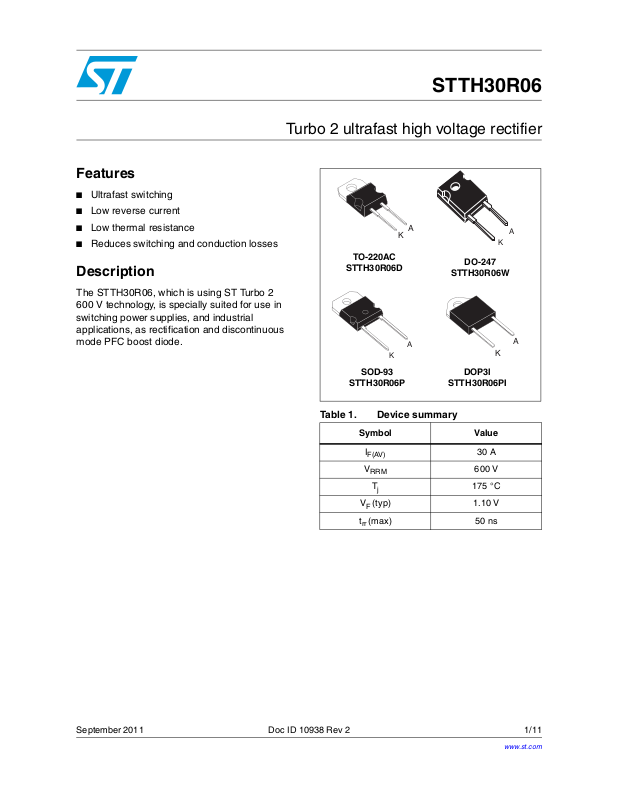

Features

■ Ultrafast switching

■ Low reverse current

■ Low thermal resistance

■ Reduces switching and conduction losses

Description

The STTH30R06, which is using ST Turbo 2
600 V technology, is specially suited for use in
switching power supplies, and industrial
applications, as rectification and discontinuous
mode PFC boost diode.

STTH30R06

Turbo 2 ultrafast high voltage rectifier

TO-220AC

STTH30R06D

K

SOD-93

STTH30R06P

A

K

DO-247

STTH30R06W

A

DOP3l

STTH30R06PI

A

K

A

K

Table 1. Device summary

Symbol Value

I

F(AV)

V

RRM

T

j

(typ) 1.10 V

V

F

(max) 50 ns

t

rr

30 A

600 V

175 °C

September 2011 Doc ID 10938 Rev 2 1/11

www.st.com

11

Characteristics STTH30R06

1 Characteristics

Table 2. Absolute ratings (limiting values)

Symbol Parameter Value Unit

V

I

F(RMS)

I

F(AV)

Repetitive peak reverse voltage 600 V

RRM

Forward rms current 50 A

Average forward current

TO-220AC / DO­247 / SOD-93

Tc = 115 °C

δ = 0.5

30 A

DOP3I Tc = 85 °C

I

T

Table 3. Thermal parameters

Surge non repetitive forward

FSM

current

Storage temperature range -65 to + 175 °C

stg

T

Maximum operating junction temperature 175 °C

j

= 10 ms sinusoidal 300 A

t

p

Symbol Parameter Value (max) Unit

TO-220AC / DO-247/ SOD-93 1.1

R

Table 4. Static electrical characteristics

th(j-c)

Junction to case

DOP3I 1.7

°C/W

Symbol Parameter Test conditions Min. Typ. Max. Unit

Reverse leakage

(1)

I

R

current

(2)

V

1. Pulse test: tp = 5 ms, δ < 2 %

2. Pulse test: tp = 380 µs, δ < 2 %

Forward voltage drop

F

= 25 °C

T

j

= 125 °C 80 800

T

j

T

= 25 °C

j

= 125 °C 1.10 1.40

T

j

VR = V

= 30 A

I

F

RRM

25

1.85

µA

V

To evaluate the maximum conduction losses use the following equation:
P = 1.07 x I

2/11 Doc ID 10938 Rev 2

F(AV)

+ 0.011 I

F2(RMS)

STTH30R06 Characteristics

Table 5. Dynamic electrical characteristics

Symbol Parameter

Reverse recovery

t

rr

time

I

V

Reverse recovery

RM

current

Forward recovery

t

fr

time

Forward recovery

FP

voltage

= 25 °C

T

j

= 125 °C

T

j

= 25 °C

T

j

Figure 1. Conduction losses versus average

current

P(W)

55

50

45

40

35

30

25

20

15

10

5

0

0 5 10 15 20 25 30 35

δ = 0.1

δ = 0.05

δ = 0.2

I (A)

F(AV)

δ = 0.5

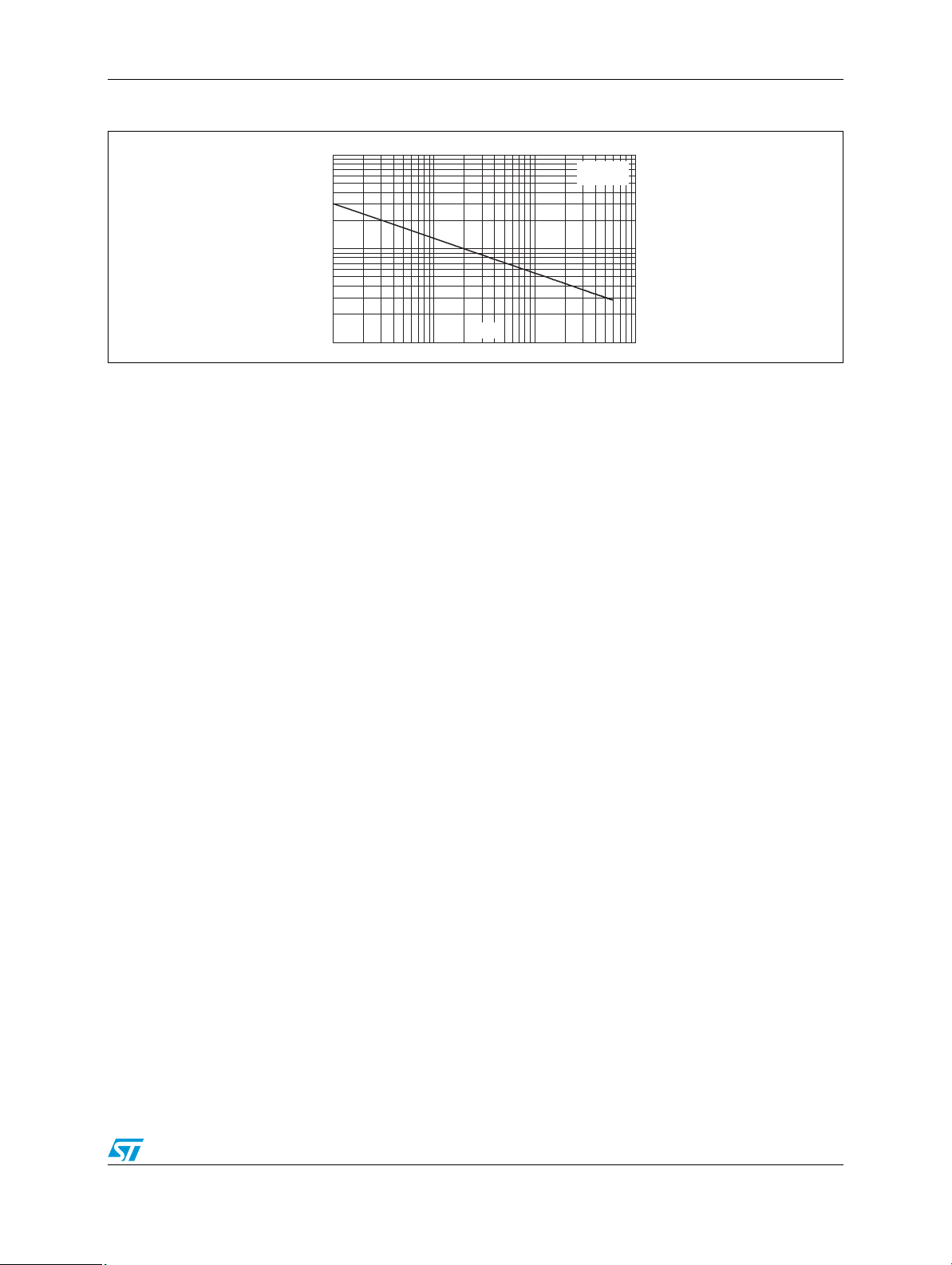

Figure 3. Relative variation of thermal

impedance junction to case versus

Test conditions

I

= 0.5 A, Irr = 0.25 A,

F

= 1 A

I

R

= 1 A, dIF/dt = 50 A/µs,

I

F

= 30 V

V

R

I

= 30 A, dIF/dt = 100 A/µs,

F

VR = 400 V

I

= 30 A,

F

/dt = 100 A/µs

dI

F

= 1.1 x V

V

FR

δ = 1

T

tp

=tp/T

δ

Min. Typ. Max. Unit

50

50 70

8.0 11 A

500 ns

Fmax

2.5 V

Figure 2. Forward voltage drop versus

forward current

I (A)

FM

200

180

160

140

120

100

80

60

40

20

0

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0

T =150°C

(typical values)

j

T =150°C

j

(maximum values)

V (V)

FM

T =25°C

j

(maximum values)

Figure 4. Peak reverse recovery current

versus dI

/dt (typical values)

F

ns

pulse duration

Z/R

th(j-c) th(j-c)

1.0

0.9

0.8

0.7

0.6

0.5

0.4

Single pulse

0.3

0.2

0.1

0.0

1.E-03 1.E-02 1.E-01 1.E+00

t (s)

p

I (A)

RM

30

V =400V

R

T =125°C

j

25

20

15

10

5

0

0 50 100 150 200 250 300 350 400 450 500

I =0.25 x I

F F(AV)

I =0.5 x I

F F(AV)

dI /dt(A/µs)

F

I=I

F F(AV)

I =2 x I

F F(AV)

Doc ID 10938 Rev 2 3/11

Characteristics STTH30R06

Figure 5. Reverse recovery time versus dIF/dt

(typical values)

t (ns)

rr

200

V =400V

R

T =125°C

j

150

100

50

0

0 200 400 600 800 1000

Figure 7. Softness factor versus dI

I =2 x I

F F(AV)

dI /dt(A/µs)

F

I=I

F F(AV)

I =0.5 x I

F F(AV)

/dt

F

(typical values)

Figure 6. Reverse recovery charges versus

dI

/dt (typical values)

F

Q (µC)

rr

3.0

V =400V

R

T =125°C

j

2.5

I =2 x I

2.0

1.5

1.0

0.5

0.0

0 200 400 600 800 1000

F F(AV)

I=I

F F(AV)

I =0.5 x I

F F(AV)

dI /dt(A/µs)

F

Figure 8. Relative variations of dynamic

parameters versus junction
temperature

S factor

0.6

0.5

0.4

0.3

0.2

0.1

dI /dt(A/µs)

0.0

0 50 100 150 200 250 300 350 400 450 500

F

I2 xI

≤

F F(AV)

V =400V

R

T =125°C

j

Figure 9. Transient peak forward voltage

versus dI

V (V)

FP

8.0

7.5

I=I

F F(AV)

T =125°C

j

7.0

6.5

6.0

5.5

5.0

4.5

4.0

3.5

3.0

2.5

2.0

1.5

1.0

0.5

0.0

0 100 200 300 400 500

/dt (typical values)

F

dI /dt(A/µs)

F

2.50

2.25

2.00

1.75

1.50

1.25

1.00

0.75

0.50

0.25

0.00

25 50 75 100 125

I

RM

Q

RR

T (°C)

j

S factor

I=I

FF(AV)

V =400V

R

Reference:T =125°C

Figure 10. Forward recovery time versus dI

(typical values)

t (ns)

fr

800

700

600

500

400

300

200

100

0

0 100 200 300 400 500

dI /dt(A/µs)

F

I=I

F F(AV)

V =1.1 x V max.

FR F

T =125°C

j

j

/dt

F

4/11 Doc ID 10938 Rev 2

STTH30R06 Characteristics

Figure 11. Junction capacitance versus reverse voltage applied (typical values)

C(pF)

1000

100

V (V)

10

1 10 100 1000

R

F=1MHz

V =30mV

OSC RMS

T =25°C

j

Doc ID 10938 Rev 2 5/11

Package information STTH30R06

2 Package information

● Epoxy meets UL94, V0

● Cooling method: by conduction (C)

● Recommended torque value: 0.4 to 0.6 N·m (TO-220AC)

In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK
specifications, grade definitions and product status are available at: www.st.com
ECOPACK

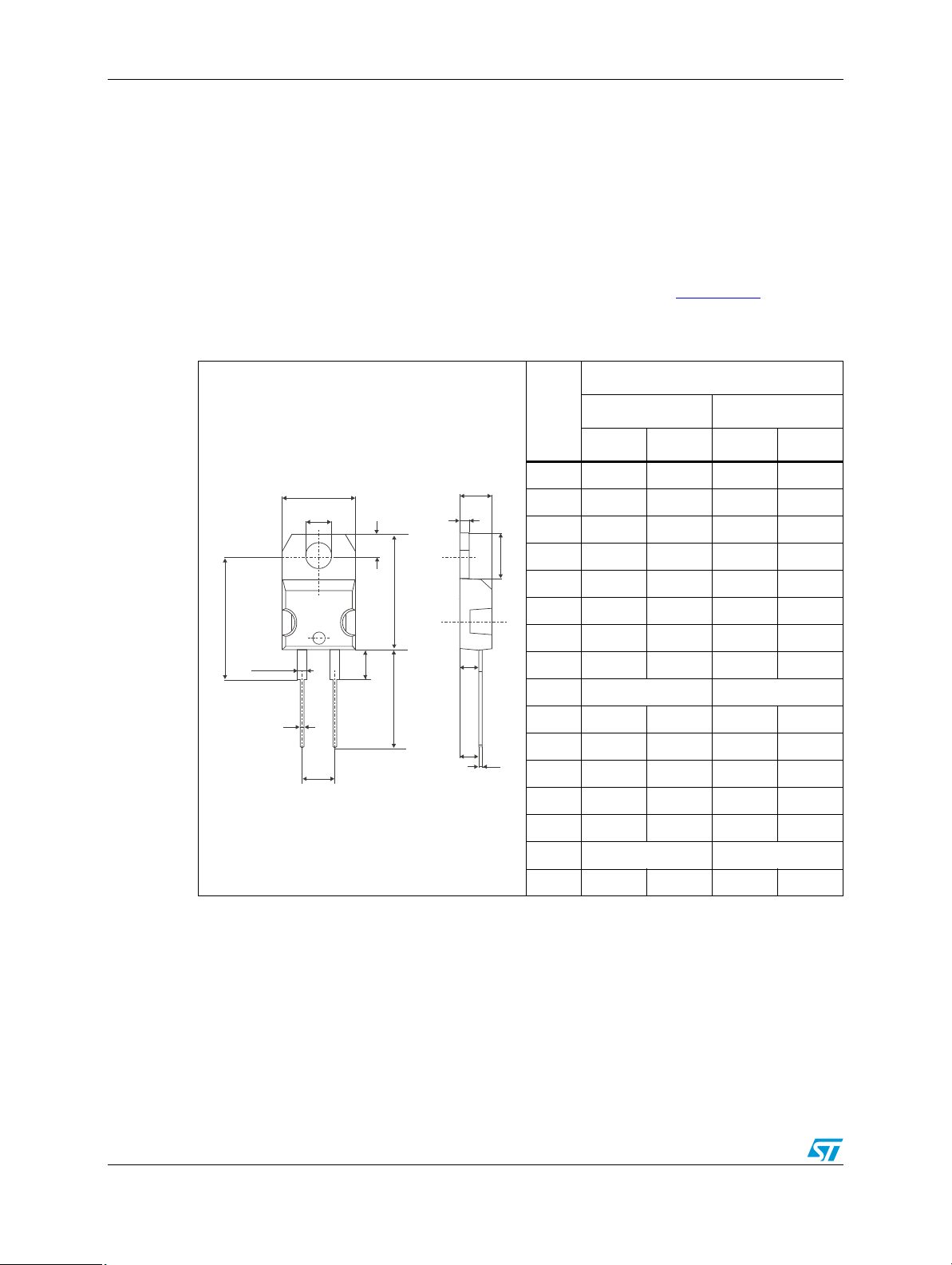

Table 6. TO-220AC dimensions

®

packages, depending on their level of environmental compliance. ECOPACK®

®

is an ST trademark.

.

Dimensions

Ref.

Millimeters Inches

Min. Max. Min. Max.

H2

Ø I

A

C

A 4.40 4.60 0.173 0.181

C 1.23 1.32 0.048 0.051

D 2.40 2.72 0.094 0.107

L5

L6

L2

L7

E 0.49 0.70 0.019 0.027

F 0.61 0.88 0.024 0.034

F1 1.14 1.70 0.044 0.066

G 4.95 5.15 0.194 0.202

F1

L9

L4

F

D

H2 10.00 10.40 0.393 0.409

L2 16.40 typ. 0.645 typ.

L4 13.00 14.00 0.511 0.551

M

E

L5 2.65 2.95 0.104 0.116

L6 15.25 15.75 0.600 0.620

G

L7 6.20 6.60 0.244 0.259

L9 3.50 3.93 0.137 0.154

6/11 Doc ID 10938 Rev 2

M 2.6 typ. 0.102 typ.

Diam. I 3.75 3.85 0.147 0.151

STTH30R06 Package information

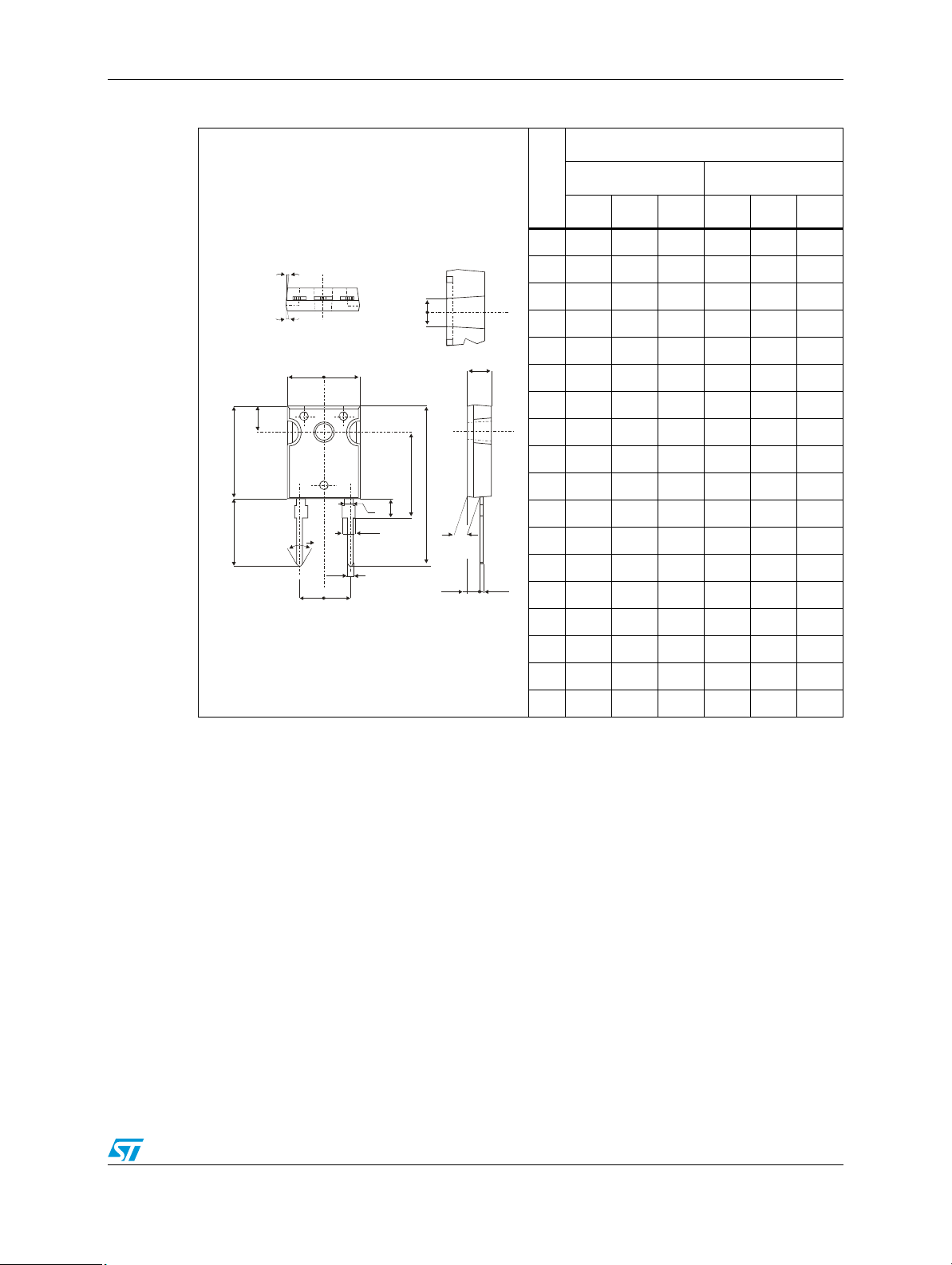

Table 7. DO247 dimensions

Dimensions

Ref.

Millimeters Inches

Min. Typ. Max. Min. Typ. Max.

A 4.85 5.15 0.191 0.203

V

D 2.20 2.60 0.086 0.102

E 0.40 0.80 0.015 0.031

V

Dia

F 1.00 1.40 0.039 0.055

F2 2.00 0.078

H

A

F3 2.00 2.40 0.078 0.094

G 10.90 0.429

L5

H 15.45 15.75 0.608 0.620

L

L2

L4

F2

L1

L3

V2

G

F3

F

D

ME

L 19.85 20.15 0.781 0.793

L1 3.70 4.30 0.145 0.169

L2 18.50 0.728

L3 14.20 14.80 0.559 0.582

L4 34.60 1.362

L5 5.50 0.216

M 2.00 3.00 0.078 0.118

V5° 5°

V2 60° 60°

Dia. 3.55 3.65 0.139 0.143

Doc ID 10938 Rev 2 7/11

Package information STTH30R06

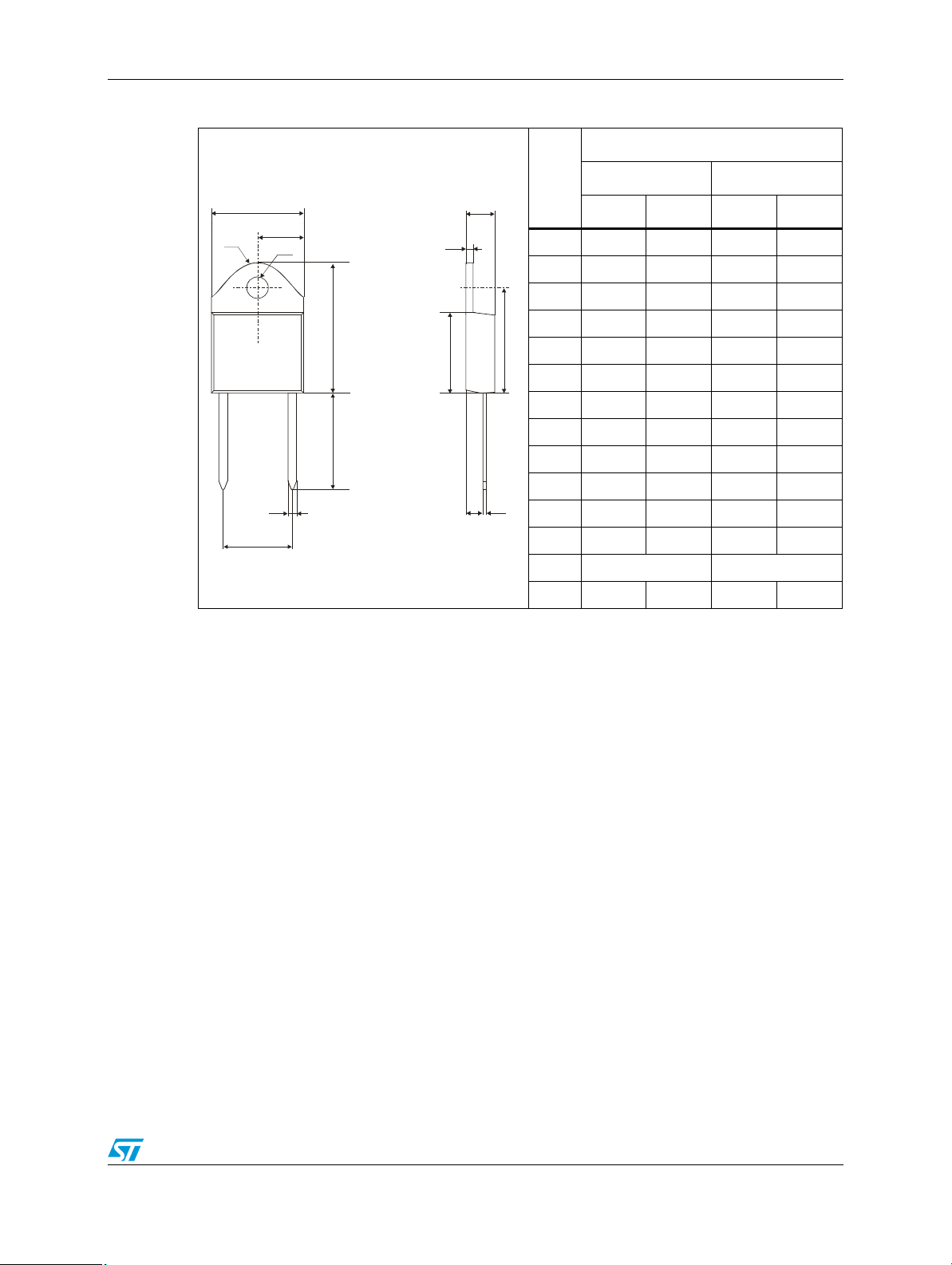

Table 8. SOD-93 dimensions

Dimensions

Ref.

Millimeters Inches

Min. Max. Min. Max.

H

O

L5

A

C

A 4.70 4.90 0.185 0.193

C 1.17 1.37 0.046 0.054

D 2.50 Typ. 0.098 Typ.

D1 1.27 Typ. 0.050 Typ.

E 0.50 0.78 0.020 0.031

F 1.10 1.30 0.043 0.051

F3 1.75 Typ. 0.069 Typ

F3

L2

L

L3

G 10.80 11.10 0.425 0.437

H 14.70 15.20 0.578 0.598

F

DE

G

L 12.20 0.480

L2 16.20 0.638

L3 18.0 Typ 0.709 Typ.

L5 3.95 4.15 0.156 0.163

L6 31.00 Typ. 1.220 Typ.

O 4.00 4.10 0.157 0.161

8/11 Doc ID 10938 Rev 2

STTH30R06 Package information

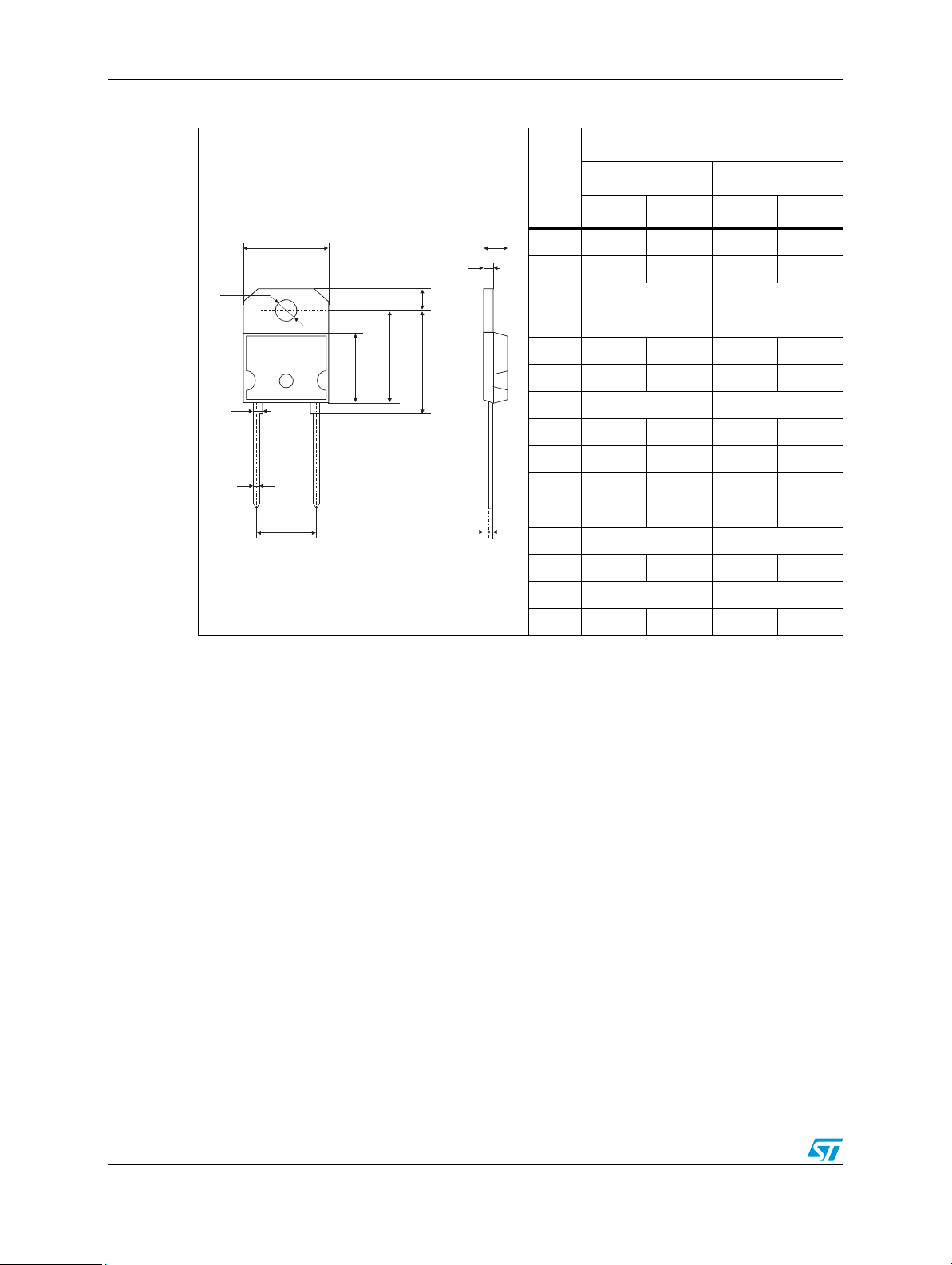

Table 9. DOP3 dimensions

Dimensions

Ref.

E

R

E1

ØP

A

c

A 4.40 4.60 0.173 0.181

Millimeters Inches

Min. Max. Min. Max.

b 1.20 1.40 0.047 0.055

c 1.45 1.55 0.057 0.061

c1 0.50 0.70 0.020 0.028

G

D

Y

D 12.15 13.10 0.474 0.516

E 15.10 15.50 0.594 0.610

E1 7.55 7.75 0.297 0.305

L

e 10.80 11.30 0.425 0.445

G 20.4 21.10 0.815 0.831

L 14.35 15.60 0.565 0.614

b

e

c1

Q

P 4.08 4.17 0.161 0.164

Q 2.70 2.90 0.106 0.114

R 4.60 typ. 0.181 typ.

Y 15.80 16.50 0.622 0.650

Doc ID 10938 Rev 2 9/11

Ordering information STTH30R06

3 Ordering information

Table 10. Ordering information

Order code Marking Package Weight Base qty Delivery mode

STTH30R06D STTH30R06D TO-220AC 1.90 g 50 Tube

STTH30R06W STTH30R06W DO-247 4.40 g 30 Tube

STTH30R06P STTH30R06P SOD-93 3.79 g 30 Tube

STTH30R06PI STTH30R06PI DOP3I 4.46 g 30 Tube

4 Revision history

Table 11. Document revision history

Date Revision Changes

18-Oct-2004 1 First issue.

07-Sep-2011 2 Updated I

from 160 A to 300 A.

FSM

10/11 Doc ID 10938 Rev 2

STTH30R06

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY TWO AUTHORIZED ST REPRESENTATIVES, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

© 2011 STMicroelectronics - All rights reserved

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

Doc ID 10938 Rev 2 11/11
