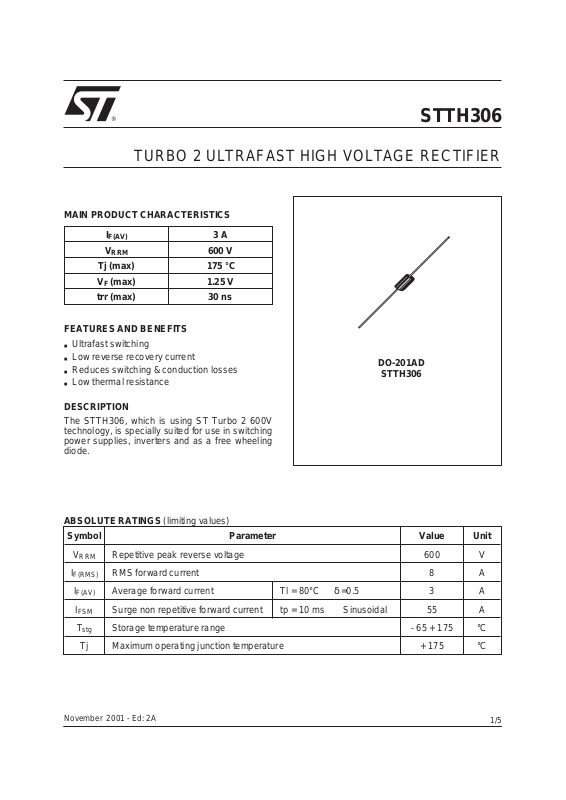

Page 1
®
TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER
MAIN PRODUCT CHARACTERISTICS
STTH306
I
F(AV)
V
RRM
3A
600 V
Tj (max) 175 °C
(max) 1.25 V
V
F
trr (max) 30 ns
FEATURES AND BENEFITS
Ultrafast switching
■
■ Low reverse recovery current
■ Reduces switching & conductionlosses
Low thermal resistance
■
DESCRIPTION
The STTH306, which is using ST Turbo 2 600V
technology, is specially suited for use in switching
power supplies, inverters and as a free wheeling
diode.
DO-201AD
STTH306
ABSOLUTE RATINGS (limiting values)
Symbol Parameter Value Unit
V
RRM
I
F(RMS)
I
F(AV)
I
FSM
T
stg
Repetitive peak reverse voltage 600 V
RMS forward current 8 A
Average forward current Tl = 80°C δ =0.5 3 A
Surge non repetitive forwardcurrent tp = 10 ms Sinusoidal 55 A
Storage temperature range - 65 + 175 °C
Tj Maximum operatingjunction temperature + 175 °C
November 2001 - Ed: 2A
1/5
Page 2
STTH306
THERMAL PARAMETERS
Symbol Parameter Maximum Unit
R
R
th (j-l)
th (j-a)
Junction to lead 20 °C/W
Junction to ambient 75
STATIC ELECTRICAL CHARACTERISTICS
Symbol Parameter Tests conditions Min. Typ. Max. Unit
I
R
V
Reverse leakage
current
Forward voltage drop IF= 3 A Tj = 25°C 1.7 V
F
VR= 600V Tj = 25°C 3 µA
Tj = 150°C 15 100
Tj = 150°C 1.0 1.25
To evaluate the maximumconduction losses use the following equation :
P=1.03xI
F(AV)
+ 0.09 I
F2(RMS)
DYNAMIC ELECTRICAL CHARACTERISTICS
Symbol Tests conditions Min. Typ. Max. Unit
trr I
tfr I
V
FP
= 0.5 A Irr = 0.25 A IR= 1A Tj = 25°C 30 ns
F
I
=1A dIF/dt=-50A/µsVR= 30V 35
F
=3A dIF/dt = 100 A/µs
F
VFR=1.1xVFmax
Tj = 25°C 100 ns
10 V
2/5
Page 3
STTH306
Fig.1: Conductionlossesversus average current.
P(W)
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0
δ = 0.05
δ = 0.1
δ = 0.2
IF(av)(A)
δ = 0.5
δ
=tp/T
δ = 1
T
tp
Fig. 3: Relative variation of thermal impedance
junction ambient versus pulse duration (epoxy
FR4, Leads = 10mm)
Zth(j-a)/Rth(j-a)
1.0
0.9
0.8
0.7
0.6
δ = 0.5
0.5
0.4
0.3
δ = 0.2
0.2
δ = 0.1
0.1
0.0
1.E-01 1.E+00 1.E+01 1.E+02 1.E+03
Single pulse
tp(s)
δ
=tp/T
T
tp
Fig. 2: Forward voltage drop versus forward
current.
IFM(A)
50
45
40
35
30
25
20
15
10
5
0
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0
(Maximum values)
Tj=150°C
Tj
(Typical values)
Tj=150°C
VFM(V)
Tj=25°C
(Maximum values)
Fig. 4: Peak reverse recovery current versus
/dt (90% confidence).
dI
F
IRM(A)
14
VR=400V
Tj=125°C
12
10
8
IF=0.25 x IF(av)
6
4
2
0
0 50 100 150 200 250 300 350 400 450 500
IF=0.5 x IF(av)
dIF/dt(A/µs)
IF=2 x IF(av)
IF=IF(av)
Fig. 5: Reverse recovery time versus dIF/dt
(90% confidence).
trr(ns)
160
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
0 50 100 150 200 250 300 350 400 450 500
IF=2 x IF(av)
IF=IF(av)
IF=0.5 x IF(av)
dIF/dt(A/µs)
VR=400V
Tj=125°C
Fig. 6: Reverse recovery charges versus dIF/dt
(90% confidence).
Qrr(nC)
500
VR=400V
450
Tj=125°C
400
350
300
250
200
150
100
50
0
0 50 100 150 200 250 300 350 400 450 500
IF=2 x IF(av)
IF=IF(av)
IF=0.5 x IF(av)
dIF/dt(A/µs)
3/5
Page 4
STTH306
Fig. 7: Softness factor versus dIF/dt (typical
values).
S factor
4.0
IF=IF(av)
VR=400V
Tj=125°C
3.0
2.0
1.0
dIF/dt(A/µs)
0.0
0 50 100 150 200 250 300 350 400 450 500
Fig. 9: Transient peak forward voltage versus
/dt (90% confidence).
dI
F
VFp(V)
25
IF=IF(av)
Tj=125°C
20
15
10
5
0
0 20 40 60 80 100 120 140 160 180 200
dIF/dt(A/µs)
Fig. 8: Relative variation of dynamic
parameters versus junction temperature.
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
25 50 75 100 125
S factor
IRM
Qrr
Tj(°C)
IF=IF(av)
VR=400V
Reference: Tj=125°C
Fig. 10: Forward recovery time versus dIF/dt
(90% confidence).
tfr(ns)
200
180
160
140
120
100
80
60
40
20
0
0 20 40 60 80 100 120 140 160 180 200
dIF/dt(A/µs)
IF=IF(av)
VFR=1.1 x VF max.
Tj=125°C
Fig. 11: Junction capacitance versus reverse
voltage applied (typical values).
C(pF)
100
10
VR(V)
1
1 10 100 1000
4/5
F=1MHz
Vosc=30mV
Tj=25°C
Page 5
PACKAGE MECHANICAL DATA
DO-201AD
DIMENSIONS
STTH306
REF.
NOTESMillimeters Inches
Min. Max. Min. Max.
A 9.50 0.374
B 25.40 1.000
C 5.30 0.209
D 1.30 0.051
E 1.25 0.049
BA
note 1
1 - The lead diameter ∅ D is not controlled over zone E
2 - The minimum length which must stay straight between
the right angles after bending is 0.59"(15 mm)
E
ØD ØD
note 2
E
B
note 1
ØC
Ordering code Marking Package Weight Base qty Delivery mode
STTH306 STTH306 DO-201AD 1.12 g 600 Ammopack
STTH306RL STTH306 DO-201AD 1.12 g 1900 Tape & reel
■
Epoxy meets UL 94,V0
