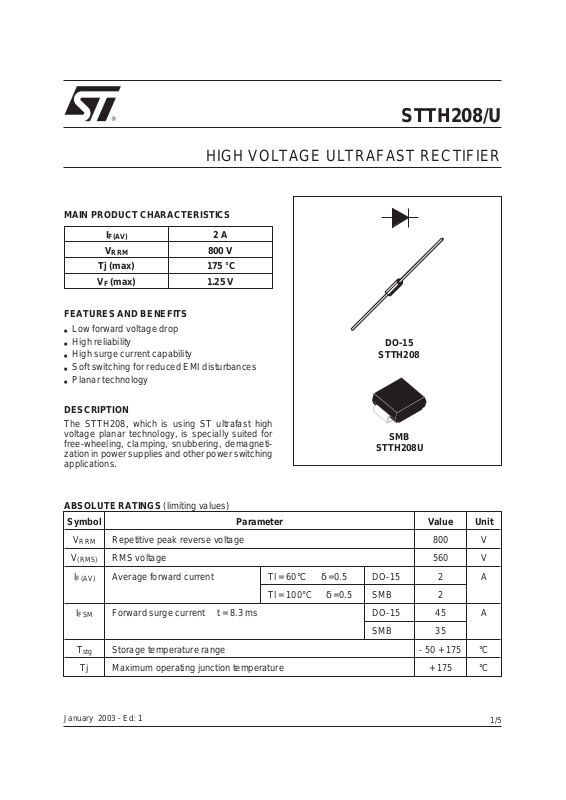

HIGH VOLTAGE ULTRAFAST RECTIFIER
MAIN PRODUCT CHARACTERISTICS
STTH208/U
I
F(AV)
V
RRM
2A
800 V
Tj (max) 175 °C
(max) 1.25 V
V
F
FEATURES AND BENEFITS
Low forward voltage drop
■
High reliability
■
■ High surge current capability
■ Soft switching for reducedEMI disturbances
■ Planar technology
DO-15
STTH208
DESCRIPTION
The STTH208, which is using ST ultrafast high
voltage planar technology, is specially suited for
free-wheeling, clamping, snubbering, demagnetizationinpowersuppliesandother power switching
SMB
STTH208U
applications.
ABSOLUTE RATINGS (limiting values)
Symbol Parameter Value Unit
V
V
(RMS)
I
F(AV)
RRM
Repetitive peak reverse voltage 800 V
RMS voltage 560 V
Average forward current Tl = 60°C δ =0.5 DO-15 2 A
Tl = 100°C δ =0.5 SMB 2
I
FSM
Forward surge current t = 8.3 ms DO-15 45 A
SMB 35
T
stg
Storage temperature range - 50 + 175 °C
Tj Maximum operating junction temperature + 175 °C
January 2003 - Ed: 1
1/5
Page 2
STTH208/U
THERMAL PARAMETERS
Symbol Parameter Value Unit
R
th (j-l)
Junction to lead L = 10 mm DO-15 40 °C/W
SMB 25
R
th (j-a)
Junction to ambient L = 10 mm DO-15 110
STATIC ELECTRICAL CHARACTERISTICS
Symbol Parameter Tests conditions Min. Typ. Max. Unit
I
R
Reverse leakage current VR= 800V Tj = 25°C 5 µA
Tj = 125°C 50
V
Forward voltage drop IF= 2 A Tj = 25°C 1.65 V
F
Tj = 150°C 0.89 1.25
To evaluate the maximum conduction losses use the following equation :
P=1.05xI
F(AV)
+0.10xI
F2(RMS)
DYNAMIC ELECTRICAL CHARACTERISTICS
Symbol Parameter Tests conditions Min. Typ. Max. Unit
t
rr
Reverse recovery time IF= 0.5 A
Tj = 25°C 75 ns
Irr = 0.25 A IR=1A
t
fr
V
FP
Forward recovery time IF=2A
Forward recovery voltage 9 V
dIF/dt = 50 A/µs
VFR=1.1xVFmax
Tj = 25°C 200 ns
2/5
Page 3
STTH208/U
Fig.1: Conduction losses versusaverage current.
P(W)
3.5
δ = 0.2
3.0
δ = 0.05
2.5
2.0
1.5
1.0
0.5
0.0
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4
δ = 0.1
I (A)
F(AV)
δ = 0.5
δ
=tp/T
δ = 1
T
tp
Fig. 3-1: Relative variation of thermal impedance
junction ambient versus pulse duration (epoxy
FR4, L
Z/R
th(j-c) th(j-c)
1.0
0.9
0.8
0.7
0.6
δ = 0.5
0.5
0.4
0.3
δ = 0.2
0.2
δ = 0.1
0.1
0.0
1.E-01 1.E+00 1.E+01 1.E+02 1.E+03
= 10mm) (DO-15).
leads
Single pulse
t (s)
p
δ
=tp/T
T
tp
Fig. 2: Forward voltage drop versus forward
current.
I (A)
FM
100.0
T=150°C
j
(maximum values)
T=150°C
10.0
1.0
0.1
0.00 0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00 2.25 2.50 2.75 3.00
j
(typical values)
V (V)
FM
T=25°C
j
(maximum values)
Fig. 3-2: Relative variation of thermal impedance
junction ambient versus pulse duration (epoxy
FR4, S=1cm
Z/R
th(j-c) th(j-c)
1.0
0.9
0.8
0.7
δ = 0.5
0.6
0.5
0.4
δ = 0.2
0.3
δ = 0.1
0.2
0.1
Single pulse
0.0
1.E-01 1.E+00 1.E+01 1.E+02 1.E+03
2
) (SMB).
t (s)
p
δ
=tp/T
T
tp
Fig. 4: Thermal resistance junction to ambient
versus copper surface under each lead (epoxy
printed circuit board FR4, copper thickness:
35µm).
R (°C/W)
th(j-a)
110
100
90
80
70
60
50
40
30
20
10
0
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0
L =10mm
leads
DO-15
SMB
S(cm²)
3/5
Page 4
STTH208/U
PACKAGE MECHANICAL DATA
SMB
DIMENSIONS
E1
E
C
L
FOOTPRINT (in millimeters)
REF.
Millimeters Inches
Min. Max. Min. Max.
D
A1 1.90 2.45 0.075 0.096
A2 0.05 0.20 0.002 0.008
b 1.95 2.20 0.077 0.087
c 0.15 0.41 0.006 0.016
A1
A2
b
E 5.10 5.60 0.201 0.220
E1 4.05 4.60 0.159 0.181
D 3.30 3.95 0.130 0.156
L 0.75 1.60 0.030 0.063
2.3
1.52 2.75
4/5
1.52
Page 5
PACKAGE MECHANICAL DATA
DO-15
STTH208/U
DIMENSIONS
A
CC
REF.
Millimeters Inches
Min. Max. Min. Max.
A 6.05 6.75 0.238 0.266
B 2.95 3.53 0.116 0.139
D
B
C 26 31 1.024 1.220
D 0.71 0.88 0.028 0.035
Ordering code Marking Package Weight Base qty Delivery mode
STTH208 STTH208 DO-15 0.4 g 1000 Ammopack
STTH208U U08 SMB 0.11 g 2500 Tape& reel
STTH208RL STTH208 DO-15 0.4 g 6000 Tape& reel
■ Epoxy meets UL 94,V0
Informationfurnishedisbelievedtobeaccurateandreliable.However,STMicroelectronicsassumesnoresponsibilityfortheconsequencesof
useofsuchinformation nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by
implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to
change without notice. This publication supersedes and replaces all information previously supplied.
STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written
approval of STMicroelectronics.
The ST logo is a registered trademark of STMicroelectronics
© 2003 STMicroelectronics - Printed in Italy - All rights reserved.
STMicroelectronics GROUP OF COMPANIES
Australia - Brazil - Canada - China - Finland - France - Germany
Hong Kong - India - Israel - Italy - Japan - Malaysia - Malta - Morocco - Singapore
Spain - Sweden - Switzerland - United Kingdom - United States.
http://www.st.com
5/5
