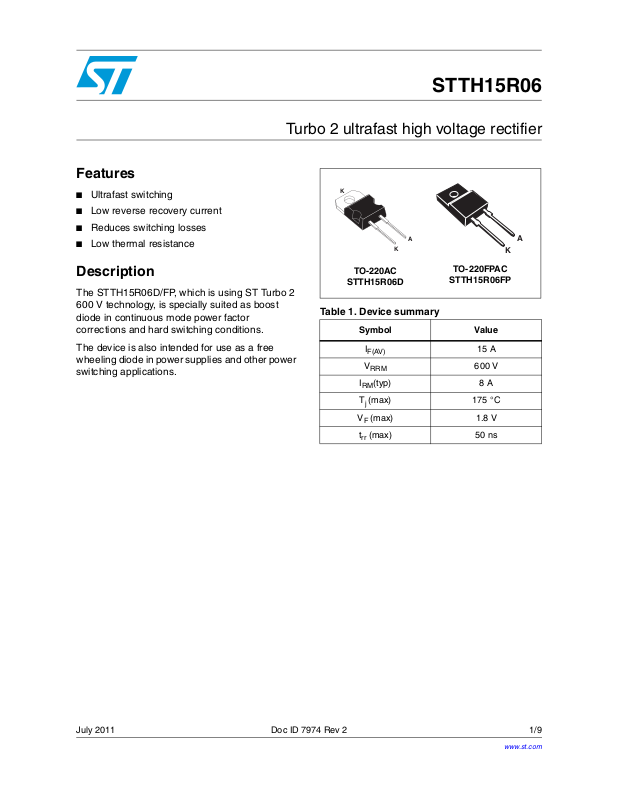

Page 1

Features

■ Ultrafast switching

■ Low reverse recovery current

■ Reduces switching losses

■ Low thermal resistance

STTH15R06

Turbo 2 ultrafast high voltage rectifier

Description

The STTH15R06D/FP, which is using ST Turbo 2 600 V technology, is specially suited as boost diode in continuous mode power factor corrections and hard switching conditions.

The device is also intended for use as a free wheeling diode in power supplies and other power switching applications.

TO-220AC

STTH15R06D

Table 1. Device summary

Symbol Value

F(AV)

RRM

(typ) 8 A

(max) 175 °C

(max) 1.8 V

(max) 50 ns

TO-220FPAC

STTH15R06FP

15 A

600 V

July 2011 Doc ID 7974 Rev 2 1/9

www.st.com

Page 2

Characteristics STTH15R06

1 Characteristics

Table 2. Absolute ratings (limiting values)

Symbol Parameter Value Unit

F(RMS)

F(AV)

Table 3. Thermal parameter

Repetitive peak reverse voltage 600 V

RRM

Forward rms current 30 A

Average forward current 15 A

Surge non repetitive forward current Tp = 10 ms sinusoidal 150 A

FSM

Storage temperature range -65 to + 175 °C

stg

Maximum operating junction temperature 175 °C

Symbol Parameter Maximum Unit

TO-220AC 1.5

Table 4. Static electrical characteristics

th(j-c)

Junction to case

TO-220FPAC 4.0

°C/W

Symbol Parameter Test conditions Min. Typ. Max. Unit

Reverse leakage

current

Forward voltage drop

= 25 °C

= 125 °C 70 800

= 25 °C

= 125 °C 1.4 1.8

VR = 600 V

= 15 A

2.9

µA

To evaluate the maximum conduction losses use the following equation: P = 1.16 x I

2/9 Doc ID 7974 Rev 2

F(AV)

+ 0.043 I

F2(RMS)

Page 3

STTH15R06 Characteristics

Table 5. Dynamic electrical characteristics

Symbol Parameter

Test conditions

Min. Typ. Max. Unit

factor

Reverse recovery time

Forward recovery time

Forward recovery voltage

= 25 °C

Tj = 125 °C

= 25 °C

IF = 0.5 A,

= 0.25 A, IR = 1 A

= 1 A,

/dt = - 50 A/µs,

= 30 V

= 15 A,

/dt = - 200 A/µs,

= 400 V

IF = 15 A, dIF/dt = 120 A/µs

= 1.1 x V

Fmax

7.5 9.0 A

0.15 -

220 nC

200 ns

Doc ID 7974 Rev 2 3/9

Page 4

Characteristics STTH15R06

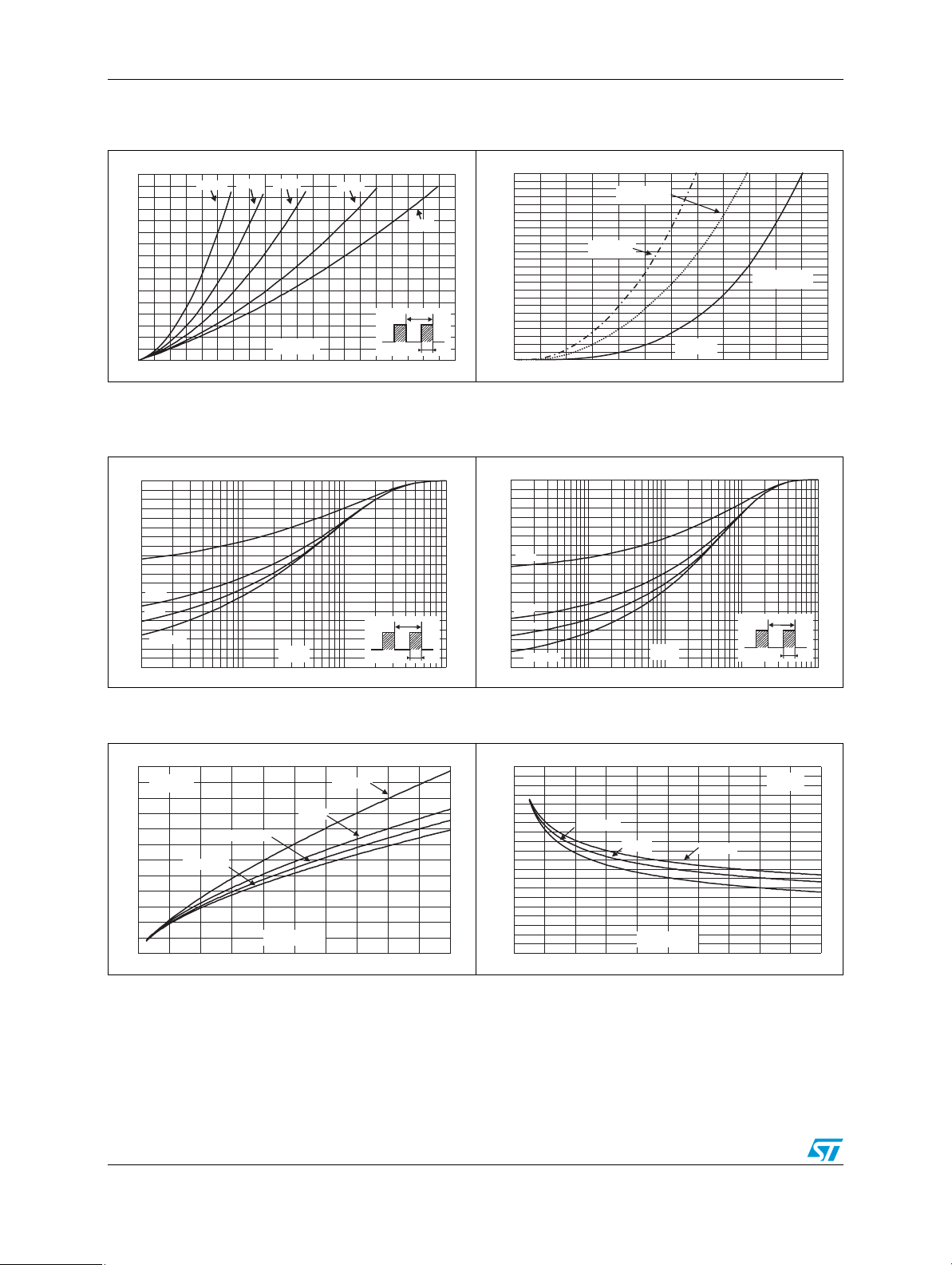

Figure 1. Conduction losses versus average

current

P(W)

02468101214161820

δ = 0.05

δ = 0.1

δ = 0.2

IF(av)(A)

δ = 0.5

δ = 1

=tp/T

Figure 3. Relative variation of thermal

impedance junction to case versus pulse duration (TO-220AC)

Zth(j-c)/Rth(j-c)

1.0

0.9

0.8

0.7

δ = 0.5

0.6

0.5

0.4

δ = 0.2

δ = 0.1

0.3

0.2

Single pulse

0.1

0.0

1.E-03 1.E-02 1.E-01 1.E+00

tp(s)

=tp/T

Figure 5. Peak reverse recovery current

versus dI

IRM(A)

VR=400V Tj=125°C

0 200 400 600 800 1000

IF=0.5 x IF(av)IF=0.5 x IF(av)

IF=0.25 x IF(av)IF=0.25 x IF(av)

/dt (90% confidence)

IF=2 x IF(av)IF=2 x IF(av)

IF=IF(av)IF=IF(av)

dIF/dt(A/µs)

Figure 2. Forward voltage drop versus

forward current

IFM(A)

120

110

100

0123456

(Maximum values)

Tj=125°C

(Typical values)

Tj=125°C

VFM(V)

Figure 4. Relative variation of thermal

impedance junction to case versus pulse duration (TO-220FPAC)

Zth(j-c)/Rth(j-c)

1.0

0.9

0.8

0.7

0.6

δ = 0.5

0.5

0.4

δ = 0.2

0.3

δ = 0.1

0.2

0.1

Single pulse

0.0

1.E-03 1.E-02 1.E-01 1.E+00 1.E+01

tp(s)

Figure 6. Reverse recovery time versus dI

(90% confidence)

trr(ns)

100

0 200 400 600 800 1000

IF=0.5 x IF(av)IF=0.5 x IF(av)

IF=IF(av)IF=IF(av)

dIF/dt(A/µs)

IF=2 x IF(av)IF=2 x IF(av)

Tj=25°C

(Maximum values)

=tp/T

VR=400V

Tj=125°C

/dt

4/9 Doc ID 7974 Rev 2

Page 5

STTH15R06 Characteristics

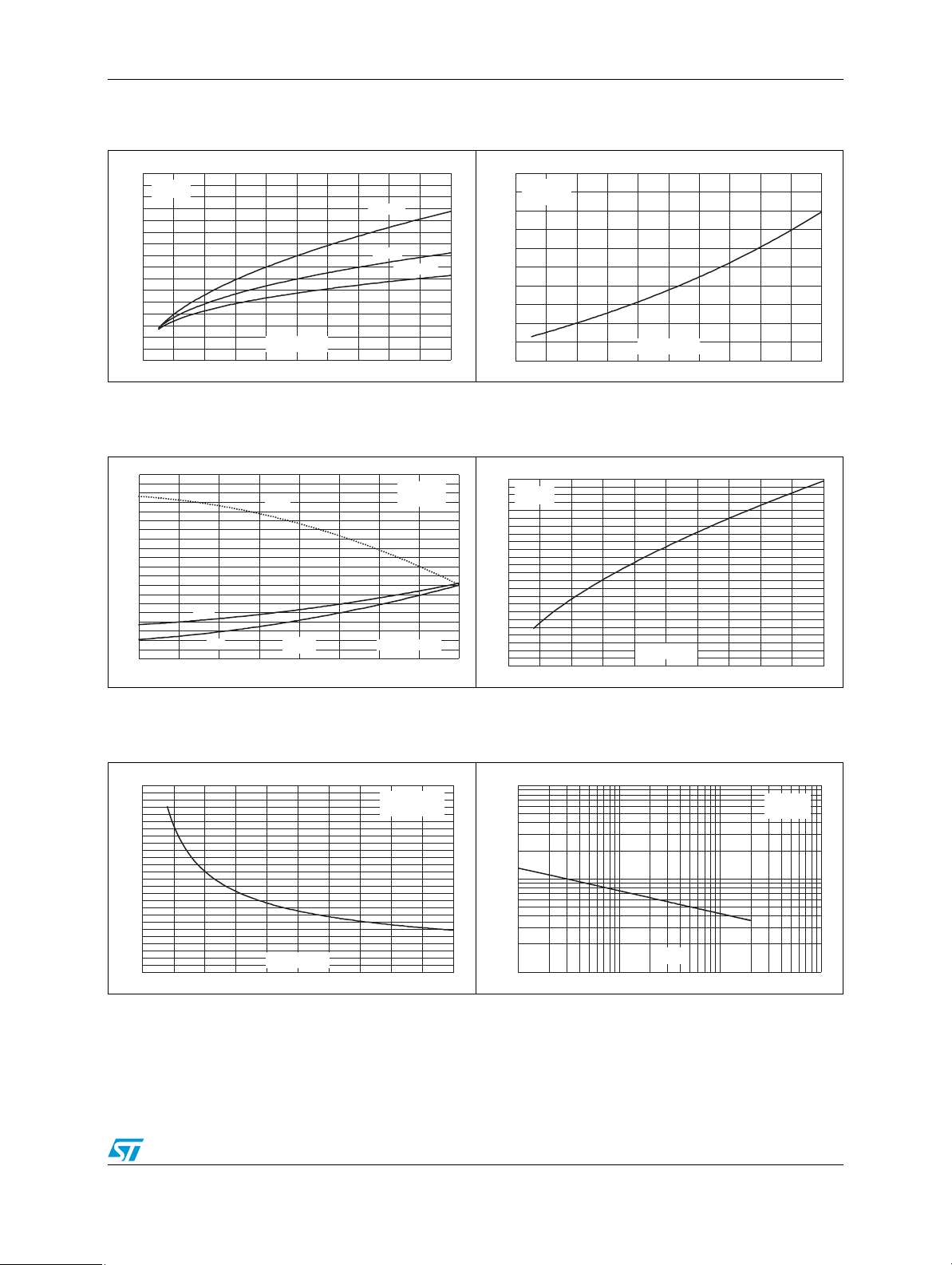

Figure 7. Reverse recovery charges versus

/dt (90% confidence)

Qrr(nC)

800

VR=400V Tj=125°C

700

600

500

400

300

200

100

0 200 400 600 800 1000

dIF/dt(A/µs)

IF=2 x IF(av)

IF=IF(av)

IF=0.5 x IF(av)

Figure 9. Relative variation of dynamic

parameters versus junction

Figure 8. Softness factor versus dI

(typical values)

S factor

0.35

IF=IF(av) VR=400V Tj=125°C

0.30

0.25

0.20

0.15

dIF/dt(A/µs)

0.10

0 200 400 600 800 1000

Figure 10. Transient peak forward voltage

versus dI

/dt (90% confidence)

/dt

temperature

2.50

2.25

2.00

1.75

1.50

1.25

1.00

0.75

0.50

0.25

0.00

25 50 75 100 125

IRM

Qrr

S factor

Tj(°C)

IF=IF(av) VR=400V Tj=125°C

Reference: Tj=125°C

Figure 11. Forward recovery time versus dI

(90% confidence)

/dt

VFP(V)

IF=IF(av)

Tj=125°C

0 100 200 300 400 500

dIF/dt(A/µs)

Figure 12. Junction capacitance versus

reverse voltage applied (typical values)

tfr(ns)

260

240

220

200

180

160

140

120

100

0 100 200 300 400 500

dIF/dt(A/µs)

IF=IF(av)

VFR=1.1 x VF max.

Tj=125°C

C(pF)

1000

100

VR(V)

1 10 100 1000

F=1MHz

Vosc=30mV

Tj=25°C

Doc ID 7974 Rev 2 5/9

Page 6

Package information STTH15R06

2 Package information

● Epoxy meets UL94, V0

● Cooling method: by conduction (C)

● Recommended torque value: 0.4 to 0.6 N·m

In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK specifications, grade definitions and product status are available at: www.st.com ECOPACK

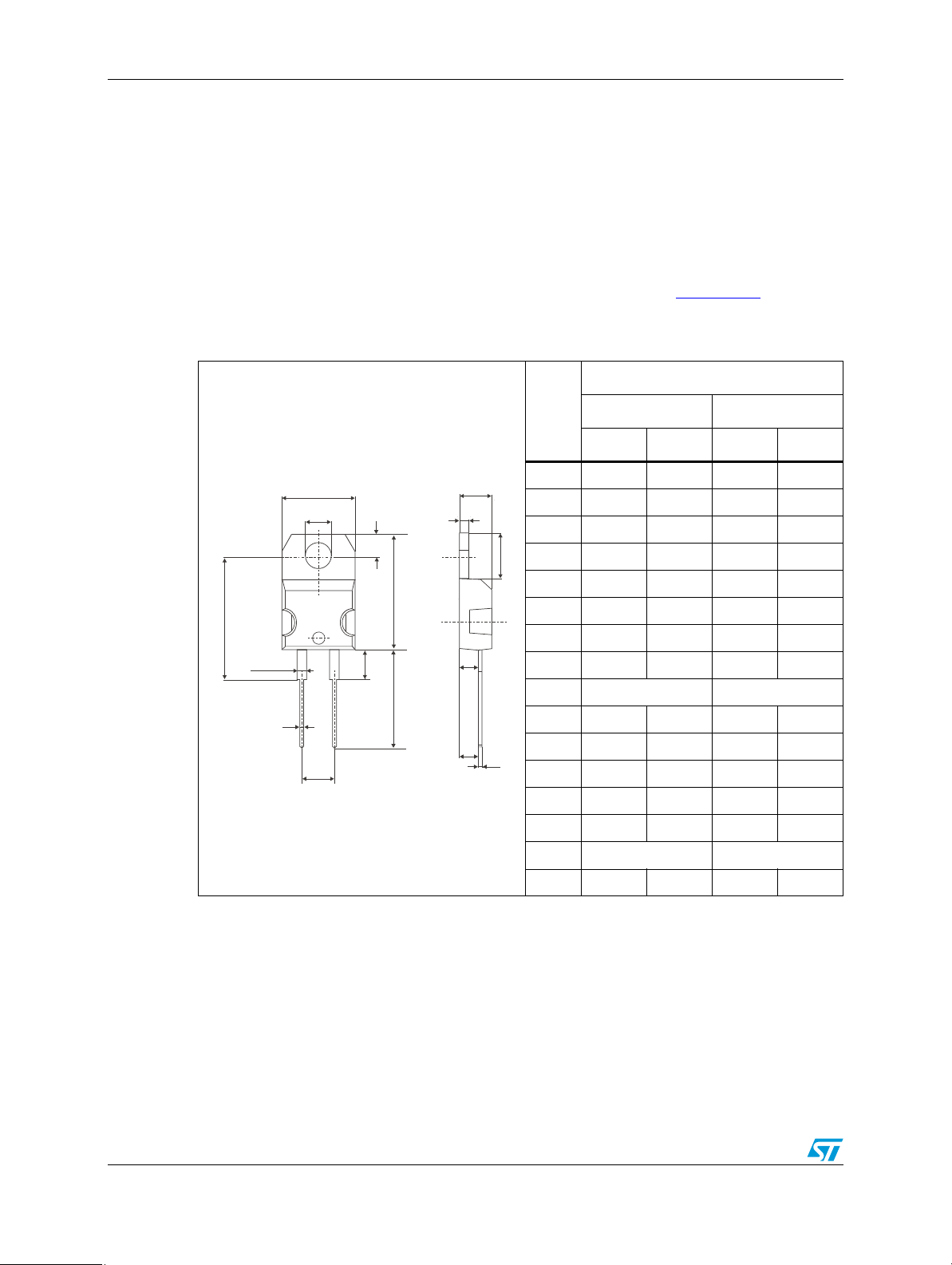

Table 6. TO-220AC dimensions

packages, depending on their level of environmental compliance. ECOPACK®

is an ST trademark.

Dimensions

Ref.

Millimeters Inches

Min. Max. Min. Max.

Ø I

A 4.40 4.60 0.173 0.181

C 1.23 1.32 0.048 0.051

D 2.40 2.72 0.094 0.107

E 0.49 0.70 0.019 0.027

F 0.61 0.88 0.024 0.034

F1 1.14 1.70 0.044 0.066

G 4.95 5.15 0.194 0.202

H2 10.00 10.40 0.393 0.409

L2 16.40 typ. 0.645 typ.

L4 13.00 14.00 0.511 0.551

L5 2.65 2.95 0.104 0.116

L6 15.25 15.75 0.600 0.620

L7 6.20 6.60 0.244 0.259

L9 3.50 3.93 0.137 0.154

6/9 Doc ID 7974 Rev 2

M 2.6 typ. 0.102 typ.

Diam. I 3.75 3.85 0.147 0.151

Page 7

STTH15R06 Package information

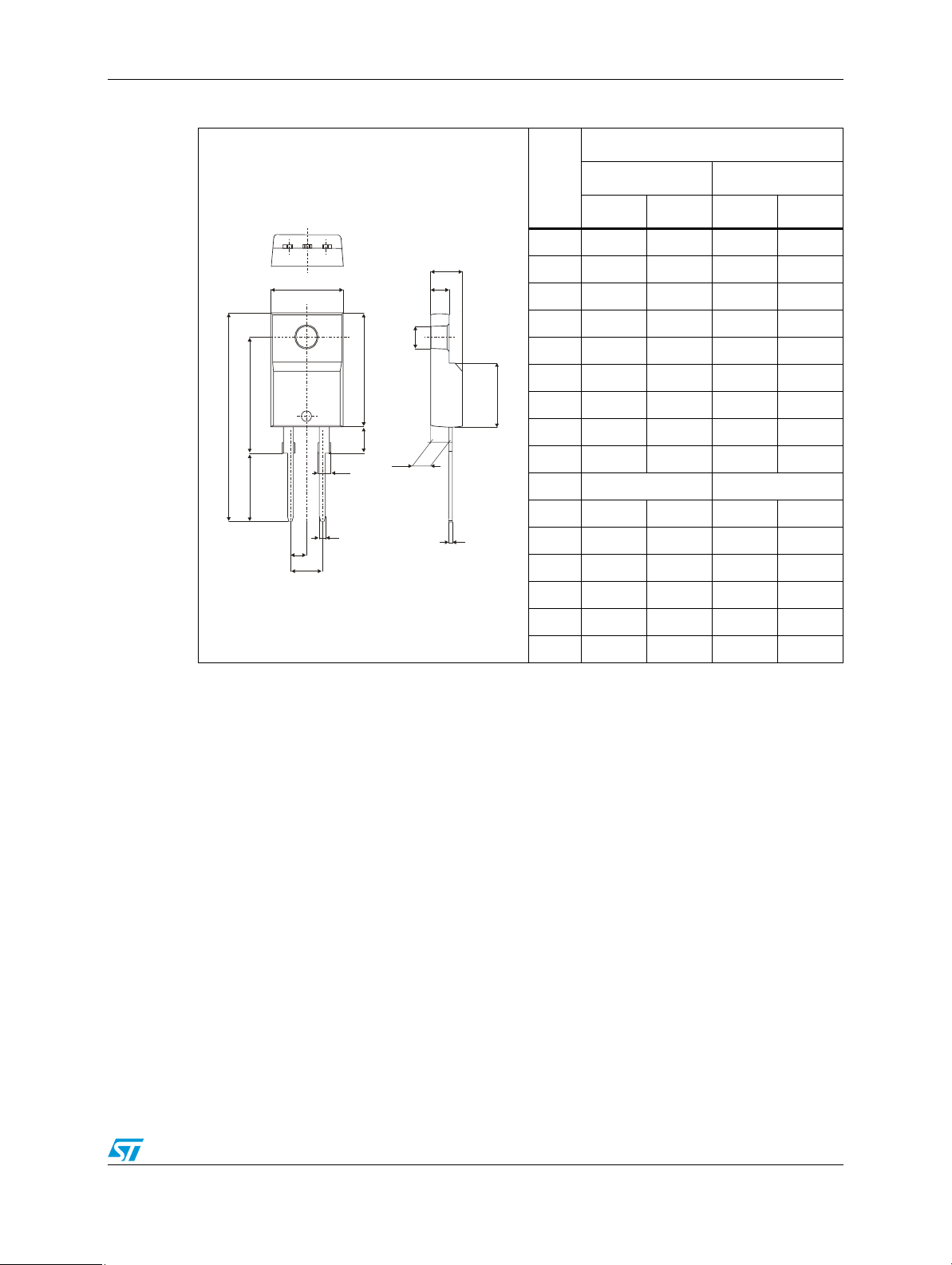

Table 7. TO-220FPAC dimensions

Dimensions

Ref.

Millimeters Inches

Min. Max. Min. Max.

A 4.4 4.6 0.173 0.181

B 2.5 2.7 0.098 0.106

D 2.5 2.75 0.098 0.108

E 0.45 0.70 0.018 0.027

Dia

F 0.75 1 0.030 0.039

F1 1.15 1.70 0.045 0.067

G 4.95 5.20 0.195 0.205

G1 2.4 2.7 0.094 0.106

H 10 10.4 0.393 0.409

L2 16 Typ. 0.63 Typ.

L3 28.6 30.6 1.126 1.205

L4 9.8 10.6 0.386 0.417

L5 2.9 3.6 0.114 0.142

L6 15.9 16.4 0.626 0.646

L7 9.00 9.30 0.354 0.366

Dia. 3.00 3.20 0.118 0.126

Doc ID 7974 Rev 2 7/9

Page 8

Ordering information STTH15R06

3 Ordering information

Table 8. Ordering information

Order code Marking Package Weight Base qty Delivery mode

STTH15R06D STTH15R06D TO-220AC 1.9 g 50 Tube

STTH15R06FP STTH15R06FP TO-220FPAC 1.7 g 50 Tube

4 Revision history

Table 9. Document revision history

Date Revision Changes

Jan-2002 1B Last issue.

18-Jul-2011 2 Updated I

from 120 A to 150 A.

FSM

8/9 Doc ID 7974 Rev 2
