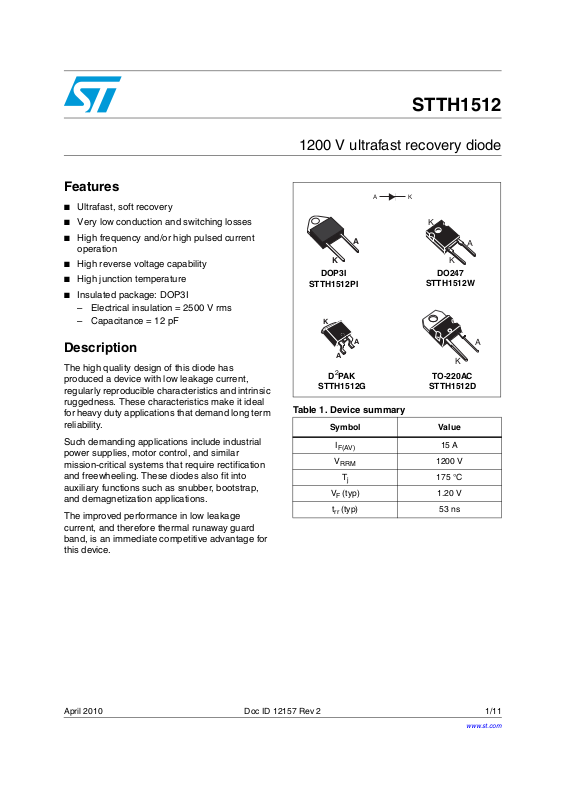

Datasheet STTH1512 Datasheet (ST)

STTH1512

1200 V ultrafast recovery diode

Features

■ Ultrafast, soft recovery

■ Very low conduction and switching losses

■ High frequency and/or high pulsed current

operation

■ High reverse voltage capability

■ High junction temperature

■ Insulated package: DOP3I

– Electrical insulation = 2500 V rms
– Capacitance = 12 pF

Description

The high quality design of this diode has
produced a device with low leakage current,
regularly reproducible characteristics and intrinsic
ruggedness. These characteristics make it ideal
for heavy duty applications that demand long term
reliability.

Such demanding applications include industrial
power supplies, motor control, and similar
mission-critical systems that require rectification
and freewheeling. These diodes also fit into
auxiliary functions such as snubber, bootstrap,
and demagnetization applications.

The improved performance in low leakage
current, and therefore thermal runaway guard
band, is an immediate competitive advantage for
this device.

A

K

DOP3I

STTH1512PI

K

A

A

D2PAK

STTH1512G

Table 1. Device summary

Symbol Value

I

F(AV)

V

RRM

T

j

(typ) 1.20 V

V

F

t

(typ) 53 ns

rr

KA

K

A

K

DO247

STTH1512W

A

A

K

TO-220AC

STTH1512D

15 A

1200 V

175 °C

April 2010 Doc ID 12157 Rev 2 1/11

www.st.com

11

Characteristics STTH1512

1 Characteristics

Table 2. Absolute ratings (limiting values at 25 °C, unless otherwise specified)

Symbol Parameter Value Unit

V

I

F(RMS)

I

F(AV)

Repetitive peak reverse voltage 1200 V

RRM

Forward rms current TO-220AC / DO247 / DOP3I / D2PAK 50 A

2

PAK /

T

= 130 °C

c

Average forward current,

TO-220AC / D
DO247

δ = 0.5

15 A

DOP3I Tc = 105 °C

I

I

T

Table 3. Thermal parameters

Repetitive peak forward

FRM

current

Surge non repetitive

FSM

forward current

Storage temperature range -65 to + 175 °C

stg

Maximum operating junction temperature 175 °C

T

j

t

= 5 µs, F = 5 kHz square 200 A

p

= 10 ms Sinusoidal 200 A

t

p

Symbol Parameter Value Unit

R

Table 4. Static electrical characteristics

th(j-c)

Junction to case

DOP3I 2 °C/W

TO-220AC / D

2

PAK / DO247 1.3 °C/W

Symbol Parameter Test conditions Min. Typ. Max. Unit

= 25 °C

T

Reverse leakage

(1)

I

R

current

(2)

V

1. Pulse test: tp = 5 ms, δ < 2 %

2. Pulse test: tp = 380 µs, δ < 2 %

Forward voltage drop

F

j

= 125 °C 10 100

T

j

T

= 25 °C

j

T

= 150 °C 1.20 1.80

j

V

R

= 15 A

I

F

To evaluate the conduction losses use the following equation:
P = 1.4 x I

2/11 Doc ID 12157 Rev 2

F(AV)

+ 0.027 I

F2(RMS)

= V

RRM

15

µA

2.10

VTj = 125 °C 1.25 1.90

STTH1512 Characteristics

Table 5. Dynamic characteristics

Symbol Parameter Test conditions Min. Typ. Max. Unit

I

= 1 A, dIF/dt = -50 A/µs,

F

VR = 30 V, Tj = 25 °C

t

Reverse recovery time

rr

I

Reverse recovery current

RM

S Softness factor

t

Forward recovery time

fr

V

Forward recovery voltage

FP

= 1 A, dIF/dt = -100 A/µs,

I

F

V

R

= 15 A, dIF/dt = -200 A/µs,

I

F

VR = 600 V, Tj = 125 °C

I

= 15 A, dIF/dt = -200 A/µs,

F

VR = 600 V, Tj = 125 °C

= 15 A dIF/dt = 50 A/µs

I

F

V

FR

= 15 A, dIF/dt = 50 A/µs,

I

F

Tj = 25 °C

Figure 1. Conduction losses versus

average current

P(W)

35

30

25

20

15

10

5

0

0 2 4 6 8 1012141618

δ = 0.05

δ = 0.1

I (A)

F(AV)

δ = 0.2

δ = 0.5

δ

δ = 1

=tp/T

Figure 3. Relative variation of thermal

impedance junction to case

= 30 V, Tj = 25 °C

= 1.5 x V

, Tj = 25 °C

Fmax

Figure 2. Forward voltage drop versus

150

140

130

120

110

100

90

80

70

60

50

T

tp

40

30

20

10

0

Figure 4. Peak reverse recovery current

53 75

20 28 A

1.5

5.5 V

forward current

I (A)

FM

T=150°C

j

(typical values)

T=150°C

j

(maximum values)

V (V)

0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0

versus dI

/dt (typical values)

F

FM

105

600 ns

T=25°C

j

(maximum values)

versus pulse duration

Z/R

th(j-c) th(j-c)

1.0

0.9

0.8

0.7

0.6

0.5

0.4

0.3

Single pulse

0.2

0.1

0.0

1.E-03 1.E-02 1.E-01 1.E+00

t (s)

p

I (A)

RM

50

V =600V

R

T=125°C

j

45

40

35

30

25

20

15

10

5

0

I =0.5 x I

F F(AV)

0 50 100 150 200 250 300 350 400 450 500

I=I

F F(AV)

I =2 x I

F F(AV)

dI /dt(A/µs)

F

ns

Doc ID 12157 Rev 2 3/11

Characteristics STTH1512

Figure 5. Reverse recovery time versus

dI

/dt (typical values)

F

t (ns)

rr

600

550

500

450

400

350

300

250

200

150

100

0 50 100 150 200 250 300 350 400 450 500

I =2 x I

F F(AV)

I=I

F F(AV)

I =0.5 x I

F F(AV)

dI /dt(A/µs)

F

V =600V

R

T=125°C

j

Figure 7. Softness factor versus

dI

/dt (typical values)

F

S factor

3.0

2.5

2.0

1.5

1.0

dI /dt(A/µs)

0.5

0 50 100 150 200 250 300 350 400 450 500

F

I 2xI

≤

F F(AV)

V =600V

R

T=125°C

j

Figure 9. Transient peak forward voltage

versus dI

V (V)

FP

40

I=I

F F(AV)

T=125°C

j

35

30

25

20

15

10

5

0

0 100 200 300 400 500

/dt (typical values)

F

dI /dt(A/µs)

F

Figure 6. Reverse recovery charges versus

dIF/dt (typical values)

Q (µC)

rr

5.5

V =600V

R

T=125°C

j

5.0

4.5

4.0

3.5

3.0

2.5

2.0

1.5

1.0

0.5

0.0

0 50 100 150 200 250 300 350 400 450 500

I =2 x I

F F(AV)

I=I

F F(AV)

I =0.5 x I

F F(AV)

dI /dt(A/µs)

F

Figure 8. Relative variations of dynamic

parameters versus junction
temperature

2.25

2.00

1.75

1.50

1.25

1.00

0.75

0.50

0.25

0.00

25 50 75 100 125

S factor

t

rr

I

RM

Q

RR

T (°C)

j

Figure 10. Forward recovery time versus dI

I=I

F F(AV)

V =600V

R

Reference:T =125°C

j

F

(typical values)

t (ns)

fr

800

700

600

500

400

300

200

100

0

0 100 200 300 400 500

dI /dt(A/µs)

F

I=I

F F(AV)

V =1.5 x V max.

FR F

T=125°C

j

/dt

4/11 Doc ID 12157 Rev 2

STTH1512 Characteristics

Figure 11. Junction capacitance versus

reverse voltage applied
(typical values)

C(pF)

1000

100

V (V)

10

1 10 100 1000

R

F=1MHz

V =30mV

OSC RMS

T=25°C

j

Figure 12. Thermal resistance junction to

ambient versus copper surface
under each lead

R

(°C/W)

th(j-a)

80

70

60

50

40

30

20

10

0

0 5 10 15 20 25 30 35 40

Epoxy printed circuit board FR4,
copper thickness = 35 µm

S (cm²)

CU

Doc ID 12157 Rev 2 5/11

Package information STTH1512

2 Package information

● Epoxy meets UL94, V0

● Cooling method: by conduction (C)

● Recommended torque value: 0.4 to 0.6 N·m (TO-220AC)

● Recommended torque value: 0.80 N·m (DOP3I)

● Maximum torque value: 1.0 N·m (DOP3I)

In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK
specifications, grade definitions and product status are available at: www.st.com
ECOPACK

Table 6. DOP3 dimensions

®

packages, depending on their level of environmental compliance. ECOPACK®

®

is an ST trademark.

.

Dimensions

Ref.

E

R

E1

ØP

A

c

A 4.40 4.60 0.173 0.181

Millimeters Inches

Min. Max. Min. Max.

b 1.20 1.40 0.047 0.055

c 1.45 1.55 0.057 0.061

c1 0.50 0.70 0.020 0.028

G

D

Y

D 12.15 13.10 0.474 0.516

E 15.10 15.50 0.594 0.610

E1 7.55 7.75 0.297 0.305

L

e 10.80 11.30 0.425 0.445

G 20.4 21.10 0.815 0.831

L 14.35 15.60 0.565 0.614

b

e

c1

Q

P 4.08 4.17 0.161 0.164

Q 2.70 2.90 0.106 0.114

R 4.60 typ. 0.181 typ.

6/11 Doc ID 12157 Rev 2

Y 15.80 16.50 0.622 0.650

STTH1512 Package information

Table 7. DO247 dimensions

Dimensions

Ref.

Millimeters Inches

Min. Typ. Max. Min. Typ. Max.

A 4.85 5.15 0.191 0.203

V

D 2.20 2.60 0.086 0.102

E 0.40 0.80 0.015 0.031

V

Dia

F 1.00 1.40 0.039 0.055

F2 2.00 0.078

H

A

F3 2.00 2.40 0.078 0.094

G 10.90 0.429

L5

H 15.45 15.75 0.608 0.620

L

L2

L4

F2

L1

L3

V2

G

F3

F

D

ME

L 19.85 20.15 0.781 0.793

L1 3.70 4.30 0.145 0.169

L2 18.50 0.728

L3 14.20 14.80 0.559 0.582

L4 34.60 1.362

L5 5.50 0.216

M 2.00 3.00 0.078 0.118

V5° 5°

V2 60° 60°

Dia. 3.55 3.65 0.139 0.143

Doc ID 12157 Rev 2 7/11

Package information STTH1512

m

D

Table 8. D

L2

L

L3

2

PAK dimensions

E

A1

B2

B

G

* FLAT ZONE NO LESS THAN 2m

Dimensions

Ref.

Millimeters Inches

Min. Max. Min. Max.

A 4.40 4.60 0.173 0.181

A

C2

A1 2.49 2.69 0.098 0.106

A2 0.03 0.23 0.001 0.009

B 0.70 0.93 0.027 0.037

B2 1.14 1.70 0.045 0.067

C 0.45 0.60 0.017 0.024

C2 1.23 1.36 0.048 0.054

C

R

D 8.95 9.35 0.352 0.368

E 10.00 10.40 0.393 0.409

A2

G 4.88 5.28 0.192 0.208

L 15.00 15.85 0.590 0.624

M

*

V2

L2 1.27 1.40 0.050 0.055

L3 1.40 1.75 0.055 0.069

M 2.40 3.20 0.094 0.126

Figure 13. Footprint (dimensions in mm)

16.90

10.30

8.90

R 0.40 typ. 0.016 typ.

V2 0° 8° 0° 8°

5.08

1.30

3.70

8/11 Doc ID 12157 Rev 2

STTH1512 Package information

Table 9. TO-220AC dimensions

Dimensions

L2

F1

Ref.

Millimeters Inches

Min. Max. Min. Max.

H2

Ø I

A

C

A 4.40 4.60 0.173 0.181

C 1.23 1.32 0.048 0.051

D 2.40 2.72 0.094 0.107

L5

L6

L7

E 0.49 0.70 0.019 0.027

F 0.61 0.88 0.024 0.034

F1 1.14 1.70 0.044 0.066

G 4.95 5.15 0.194 0.202

L9

L4

F

G

D

H2 10.00 10.40 0.393 0.409

L2 16.40 typ. 0.645 typ.

L4 13.00 14.00 0.511 0.551

M

E

L5 2.65 2.95 0.104 0.116

L6 15.25 15.75 0.600 0.620

L7 6.20 6.60 0.244 0.259

L9 3.50 3.93 0.137 0.154

M 2.6 typ. 0.102 typ.

Diam. I 3.75 3.85 0.147 0.151

Doc ID 12157 Rev 2 9/11

Ordering information STTH1512

3 Ordering information

Table 10. Ordering information

Order code Marking Package Weight Base qty Delivery mode

STTH1512D STTH1512D TO-220AC 1.86g 50 Tube

STTH1512PI STTH1512PI DOP3I 4.46 g 30 Tube

STTH1512W STTH1512W DO-247 4.4 g 30 Tube

STTH1512G STTH1512G

STTH1512G-TR STTH1512G

4 Revision history

Table 11. Document revision history

Date Revision Changes

02-Mar-2006 1 Initial release.

19-Apr-2010 2

Updated I
statement.

D2PA K

2

PA K

D

in Ta b l e 2 from 150 A to 200 A. Updated ECOPACK

FSM

1.48 g 50 Tube

1.48 g 1000 Tape and reel

10/11 Doc ID 12157 Rev 2

STTH1512

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

© 2010 STMicroelectronics - All rights reserved

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

Doc ID 12157 Rev 2 11/11
