CREAT BY ART
A

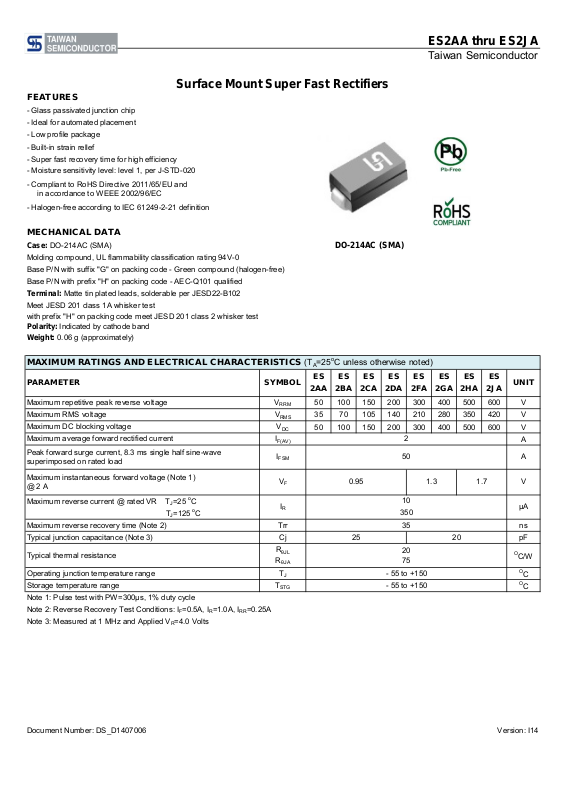

Surface Mount Super Fast Rectifiers
FEATURES
- Glass passivated junction chip
- Ideal for automated placement
- Low profile package
- Built-in strain rellef
- Super fast recovery time for high efficiency
- Moisture sensitivity level: level 1, per J-STD-020
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
MECHANICAL DATA
Case: DO-214AC (SMA)
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - Green compound (halogen-free)
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal: Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Polarity: Indicated by cathode band
Weight: 0.06 g (approximately)
ES2AA thru ES2J
Taiwan Semiconductor
DO-214AC (SMA)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (T
PARAMETER SYMBOL
=25oC unless otherwise noted)
A
ES
2AAES2BAES2CAES2DAES2FAES2GAES2HA
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current 2
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@ 2 A
Maximum reverse current @ rated VR T
T
=25 oC
J
=125 oC
J
Maximum reverse recovery time (Note 2) 35
Typical junction capacitance (Note 3) 25 20
Typical thermal resistance
Operating junction temperature range
Storage temperature range - 55 to +150
V
V
V
I
F(AV)
I
FSM
V
RRM
RMS
DC
F
I
R
50 100 150 200 300 400 500 600 V
35 70 105 140 210 280 350 420 V
50 100 150 200 300 400 500 600 V
50 A
0.95 1.3 1.7
10
350
Trr ns
Cj pF
R
θJL
R
θJA
T
J
T
STG
20
75
- 55 to +150
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Reverse Recovery Test Conditions: I
Note 3: Measured at 1 MHz and Applied V
=0.5A, IR=1.0A, IRR=0.25A
F
=4.0 Volts
R
ES
2JA
UNIT
A
V
μA
O
C/W
O
C
O
C
Document Number: DS_D1407006 Version: I14
Page 2
A
ORDERING INFORMATION
ES2AA thru ES2J
Taiwan Semiconductor
PART NO.
AEC-Q101
QUALIFIED
PACKING
CODE
R3
GREEN COMPOUND
CODE
PACKAGE PACKING
SMA 1,800 / 7" Plastic reel
R2 SMA 7,500 / 13" Paper reel
SMA 7,500 / 13" Plastic reel
ES2xA
(Note 1)
Prefix "H"
M2
F3 Folded SMA 1,800 / 7" Plastic reel
F2 Folded SMA 7,500 / 13" Paper reel
Suffix "G"
F4 Folded SMA 7,500 / 13" Plastic reel
N/A
E3 Clip SMA 1,800 / 7" Plastic reel
E2 Clip SMA 7,500 / 13" Plastic reel
Note 1: "xx" defines voltage from 50V (ES2AA) to 600V (ES2JA)
EXAMPLE
PREFERRED P/N
PART NO.
AEC-Q101
PACKING CODE
QUALIFIED
ES2JA R3 R3
ES2JA R3G R3 G Green compound
ES2JAHR3 H R3 AEC-Q101 qualified
ES2JA
ES2JA
ES2JA
GREEN COMPOUND
CODE
DESCRIPTION
RATINGS AND CHARACTERISTICS CURVES
o
(TA=25
C unless otherwise noted)
FIG.1 MAXIMUM FORWARD CURRENT
3
2
1
RESISTER OR
INDUCTIVE LOAD
0
AVERAGE FORWARD CURRENT (A)
80 90 100 110 120 130 140 150
DERATING CURVE
LEAD TEMPERATURE (oC)
INSTANTANEOUS REVERSE CURRENT (μA)
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
1000
100
T
=125oC
10
TJ=75oC
1
TJ=25oC
0.1
0.01
0 20 40 60 80 100 120 140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 3 MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
60
50
40
30
20
10
PEAK FORWARD SURGE CURRENT (A)
0
110100
NUMBER OF CYCLES AT 60 Hz
8.3ms Single Half Sine Wave
10
Pulse Width=300μs
1% Duty Cycle
1
0.1
INSTANTANEOUS FORWARD CURRENT (A)
0.01
0.4 0.6 0.8 1 1.2 1.4 1.6 1.8
FIG. 4 TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
ES2HA-2JA
ES2FA-2GA
ES2AA-2DA
FORWARD VOLTAGE (V)
Document Number: DS_D1407006 Version: I14
Page 3
A
60
ES2AA thru ES2J
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
50
40
30
20
ES2FA-JA
10
JUNCTION CAPACITANCE (pF)
0
0.1 1 10 100
REVERSE VOLTAGE (V)
ES2AA-DA
PACKAGE OUTLINE DIMENSIONS
DO-214AC (SMA)
f=1.0MHz
Vsig=50mVp-p
DIM.
Unit (mm) Unit (inch)
Min Max Min Max
A 1.27 1.58 0.050 0.062
B 4.06 4.60 0.160 0.181
C 2.29 2.83 0.090 0.111
D 1.99 2.50 0.078 0.098
E 0.90 1.41 0.035 0.056
F 4.95 5.33 0.195 0.210
G 0.10 0.20 0.004 0.008
H 0.15 0.31 0.006 0.012
SUGGESTED PAD LA YOUT
MARKING DIAGRAM
P/N = Specific Device Code
G = Green Compound
YW = Date Code
F = Factory Code
Symbol Unit (mm) Unit (inch)
A 1.68 0.066
B 1.52 0.060
C 3.93 0.155
D 2.41 0.095
E 5.45 0.215
Document Number: DS_D1407006 Version: I14
Page 4
CREAT BY ART
A
ES2AA thru ES2J
Taiwan Semiconductor
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1407006 Version: I14
