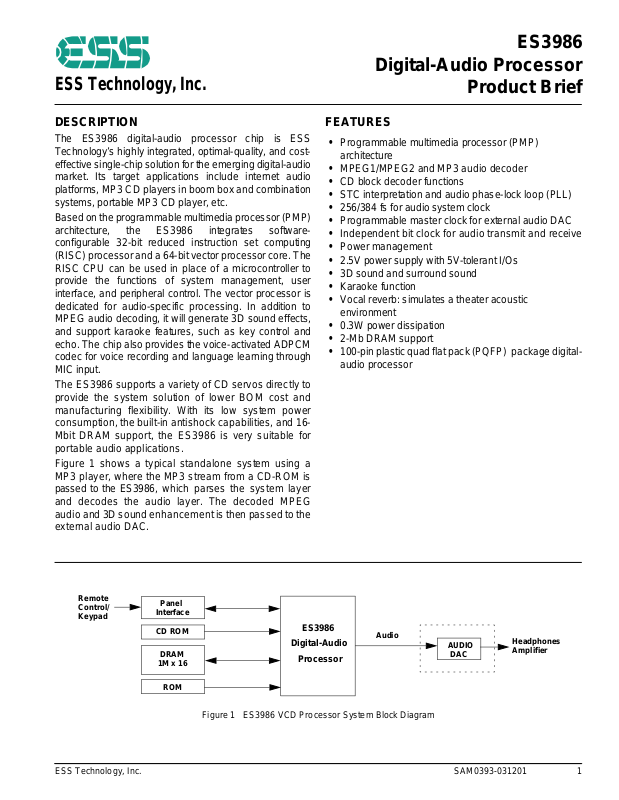

Page 1
ES3986
Digital-Audio Processor
ESS Technology, Inc.
DESCRIPTION
The ES3986 digital-audio processor chip is ESS
Technology’s highly integrated, optimal-quality, and costeffective single-chip solution for the emerging digital-audio
market. Its target applications include internet audio
platforms, MP3 CD players in boom box and combination
systems, portable MP3 CD player, etc.
Based on the programmable multimedia processor (PMP)
architecture, the ES3986 integrates softwareconfigurable 32-bit reduced instruction set computing
(RISC) processor and a 64-bit vector processor core. The
RISC CPU can be used in place of a microcontroller to
provide the functions of system management, user
interface, and peripheral control. The vector processor is
dedicated for audio-specific processing. In addition to
MPEG audio decoding, it will generate 3D sound effects,
and support karaoke features, such as key control and
echo. The chip also provides the voice-activated ADPCM
codec for voice recording and language learning through
MIC input.
The ES3986 supports a variety of CD servos directly to
provide the system solution of lower BOM cost and
manufacturing flexibility. With its low system power
consumption, the built-in antishock capabilities, and 16Mbit DRAM support, the ES3986 is very suitable for
portable audio applications.
Figure 1 shows a typical standalone system using a
MP3 player, where the MP3 stream from a CD-ROM is
passed to the ES3986, which parses the system layer
and decodes the audio layer. The decoded MPEG
audio and 3D sound enhancement is then passed to the
external audio DAC.
Product Brief
FEATURES
• Programmable multimedia processor (PMP)
architecture
• MPEG1/MPEG2 and MP3 audio decoder
• CD block decoder functions
• STC interpretation and audio phase-lock loop (PLL)
• 256/384 fs for audio system clock
• Programmable master clock for external audio DAC
• Independent bit clock for audio transmit and receive
• Power management
• 2.5V power supply with 5V-tolerant I/Os
• 3D sound and surround sound
• Karaoke function
• Vocal reverb: simulates a theater acoustic
environment
• 0.3W power dissipation
• 2-Mb DRAM support
• 100-pin plastic quad flat pack (PQFP) package digital-
audio processor
Remote
Control/
Keypad
ESS Technology, Inc. SAM0393-031201 1
Panel
Interface
CD ROM
DRAM
1M x 16
ROM
ES3986
Digital-Audio
Processor
Figure 1 ES3986 VCD Processor System Block Diagram
Audio
AUDIO
DAC
Headphones
Amplifier
Page 2
PINOUT
The pinouts for the ES3896 are shown in Figure 2.
LA4
LA5
LA6
LA7
LA8
LA9
LA10
LA11
VSS
ES3986 PRODUCT BRIEF
PINOUT
LD6
LD7
LWR#
LOE#
LCS3#
LCS1#
LCS0#
LA0
LA1
LA2
LA3
LD5
LD2
LD3
LD4
AUX7
LD0
LD1
VDD
AUX6
AUX5
VPP
LA12
LA13
LA14
LA15
LA16
LA17
ACLK
AOUT/SEL_PLL0
ATCLK
ATFS/SEL_PLL1
DA9/DOE#
AIN
ARCLK
ARFS
TDMCLK
TDMDR
TDMFS
CAS#
VSS
80
79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29
VDD
RAS#
DWE#
100-pin PQFP
DA2
DA1
DA0
ES3986F
DA8
DA7
DA6
DA5
DA4
DA3
DBUS2
DBUS1
DBUS0
DBUS5
DBUS4
DBUS3
DBUS8
DBUS7
DBUS9
DBUS66
DBUS11
DBUS10
51
30
RESET#
DBUS14
DBUS15
DBUS13
DBUS12
VSS
50
AUX4
49
AUX3
48
AUX2
47
AUX1
46
AUX0
45
NC
44
NC
43
CPUCLK
42
NC
41
NC
40
NC
39
NC
38
NC
37
NC
36
NC
35
NC
34
33
NC
32
NC
31
VDD
VSS
Figure 2 ES3986 Pinout Diagram
2 SAM0393-031201 ESS Technology, Inc.
Page 3
ES3986 PRODUCT BRIEF
ES3986 PIN DESCRIPTIONS
ES3986 PIN DESCRIPTIONS
The ES3986 pins are listed and described in Table 1.
Table 1 ES3896 Pin Descriptions
Names Pin Numbers I/O Definitions
VDD 1, 31, 51 I Voltage supply for 2.5V.
RAS# 2 O DRAM row address strobe (active low).
DWE# 3 O DRAM write enable (active low).
DA[8:0] 4:12 O DRAM multiplexed row and column address bus.
DBUS[15:0] 13:28 I/O DRAM data bus.
RESET# 29 I System reset (active low).
VSS 30, 50, 80, 100 I Ground.
NC 32:41, 43, 44 — No Connect.
CPUCLK 42 I RISC and system clock input.
CPUCLK is used only if SEL_PLL[1:0] = 00.
AUX[7:0] 44:49, 54, 52,
53,
LD[7:0] 55:62 I/O RISC interface data bus.
LWR# 63 O RISC interface write enable (active low).
LOE# 64 O RISC interface output enable (active low).
LCS[3,1,0]# 65, 66, 67 O RISC interface chip select (active low).
LA[17:0] 68:79, 82:87 O RISC interface address bus.
VPP 81 I Digital supply voltage for 5V.
ACLK 88 I/O Master clock for external audio DAC (8.192 MHz, 11.2896 MHz, 12.288 MHz, 16.9344
AOUT/
SEL_PLL0
ATCLK 90 I/O Audio transmit bit clock.
ATFS/
SEL_PLL1
DA9/DOE# 92 O Dual-purpose pin: DRAM output enable (active low)/DRAM multiplexed row and column
AIN 93 I Audio interface serial data input.
ARCLK 94 I Audio receive bit clock.
ARFS 95 I Audio interface receive frame sync.
TDMCLK 96 I TDM interface serial clock.
TDMDR 97 I TDM interface serial data receive.
TDMFS 98 I TDM interface frame sync.
CAS# 99 O DRAM column address strobe bank 0 (active low).
89 O Dual-purpose pin. AOUT is the audio interface serial data output.
91 O Dual-purpose pin. ATFS is the audio interface transmit frame sync.
I/O Auxiliary control pins (AUX0 and AUX1 are open collectors.)
MHz, and 18.432 MHz)
I Pins SEL_PLL[1:0] select phase-lock loop (PLL) clock frequency CPUCLK
for the ES3986:
00 = bypass PLL
01 = 54-MHz PLL
10 = 67.5-MHz PLL
11 = 81-MHz PLL.
I Pins SEL_PLL[1:0] select phase-lock loop clock frequency CPUCLK for the ES3986.
(Refer to the SEL_PLL0 pin above for the settings.)
address bus.
ESS Technology, Inc. SAM0393-031201 3
Page 4
ORDERING INFORMATION
ES3986 PRODUCT BRIEF
ORDERING INFORMATION
Part Number
Description Package
ES3986F Digital-Audio Processor 100-pin PQFP
