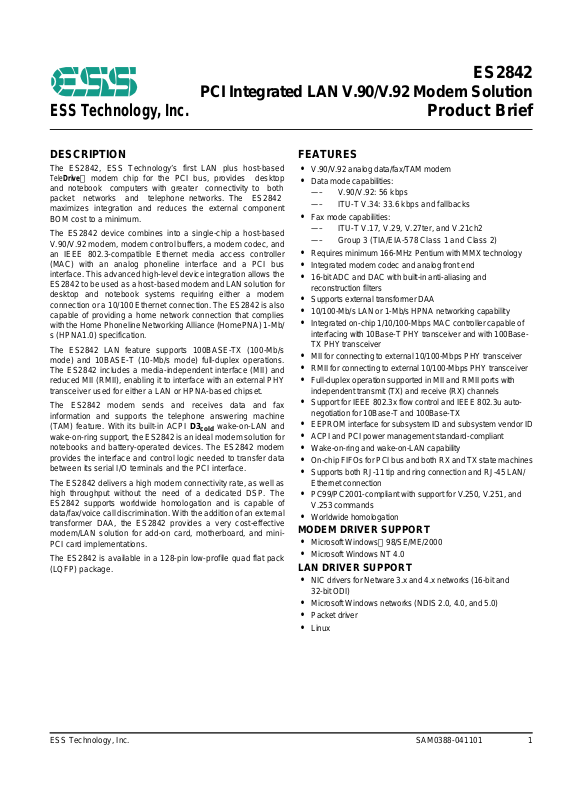

Page 1
ESS Technology, Inc. SAM0388-041101 1
ESS Technology, Inc.
ES2842
PCI Integrated LAN V.90/V.92 Modem Solution
Product Brief
DESCRIPTION
The ES2842, ESS Technology’s first LAN plus host-based
TeleDrive modem chip for the PCI bus, provides desktop
and notebook computers with greater connectivity to both
packet networks and telephone networks. The ES2842
maximizes integration and reduces the external component
BOM cost to a minimum.
The ES2842 device combines into a single-chip a host-based
V.90/V.92 modem, modem control buffers, a modem codec, and
an IEEE 802.3-compatible Ethernet media access controller
(MAC) with an analog phoneline interface and a PCI bus
interface. This advanced high-level device integration allows the
ES2842 to be used as a host-based modem and LAN solution for
desktop and notebook systems requiring either a modem
connection or a 10/100 Ethernet connection. The ES2842 is also
capable of providing a home network connection that complies
with the Home Phoneline Networking Alliance (HomePNA) 1-Mb/
s (HPNA1.0) specification.
The ES2842 LAN feature supports 100BASE-TX (100-Mb/s
mode) and 10BASE-T (10-Mb/s mode) full-duplex operations.
The ES2842 includes a media-independent interface (MII) and
reduced MII (RMII), enabling it to interface with an external PHY
transceiver used for either a LAN or HPNA-based chipset.
The ES2842 modem sends and receives data and fax
information and supports the telephone answering machine
(TAM) feature. With its built-in ACPI D3
cold
wake-on-LAN and
wake-on-ring support, the ES2842 is an ideal modem solution for
notebooks and battery-operated devices. The ES2842 modem
provides the interface and control logic needed to transfer data
between its serial I/O terminals and the PCI interface.
The ES2842 delivers a high modem connectivity rate, as well as
high throughput without the need of a dedicated DSP. The
ES2842 supports worldwide homologation and is capable of
data/fax/voice call discrimination. With the addition of an external
transformer DAA, the ES2842 provides a very cost-effective
modem/LAN solution for add-on card, motherboard, and miniPCI card implementations.
The ES2842 is available in a 128-pin low-profile quad flat pack
(LQFP) package.
FEATURES
• V.90/V.92 analog data/fax/TAM modem
• Data mode capabilities:
—– V.90/V.92: 56 kbps
—– ITU-T V.34: 33.6 kbps and fallbacks
• Fax mode capabilities:
—– ITU-T V.17, V.29, V.27ter, and V.21ch2
—– Group 3 (TIA/EIA-578 Class 1 and Class 2)
• Requires minimum 166-MHz Pentium with MMX technology
• Integrated modem codec and analog front end
• 16-bit ADC and DAC with built-in anti-aliasing and
reconstruction filters
• Supports external transformer DAA
• 10/100-Mb/s LAN or 1-Mb/s HPNA networking capability
• Integrated on-chip 1/10/100-Mbps MAC controller capable of
interfacing with 10Base-T PHY transceiver and with 100BaseTX PHY transceiver
• MII for connecting to external 10/100-Mbps PHY transceiver
• RMII for connecting to external 10/100-Mbps PHY transceiver
• Full-duplex operation supported in MII and RMII ports with
independent transmit (TX) and receive (RX) channels
• Support for IEEE 802.3x flow control and IEEE 802.3u auto-
negotiation for 10Base-T and 100Base-TX
• EEPROM interface for subsystem ID and subsystem vendor ID
• ACPI and PCI power management standard-compliant
• Wake-on-ring and wake-on-LAN capability
• On-chip FIFOs for PCI bus and both RX and TX state machines
• Supports both RJ-11 tip and ring connection and RJ-45 LAN/
Ethernet connection
• PC99/PC2001-compliant with support for V.250, V.251, and
V.253 commands
• Worldwide homologation
MODEM DRIVER SUPPORT
•
Microsoft Windows 98/SE/ME/2000
• Microsoft Windows NT 4.0
LAN DRIVER SUPPORT
•
NIC drivers for Netware 3.x and 4.x networks (16-bit and
32-bit ODI)
• Microsoft Windows networks (NDIS 2.0, 4.0, and 5.0)
• Packet driver
• Linux
Page 2
2 SAM0388-041101 ESS Technology, Inc.
ES2842 PRODUCT BRIEF
PINOUT
PINOUT
Figure 1 shows the ES2842 pinout diagram.
Figure 1 ES2842 Pinout Diagram
PIN DESCRIPTIONS
Table 1 lists the ES2842 pin descriptions.
1
DSPK
PF10
PF9
PF8
NC
OSCO
VCM
VREF
RXN
NC
NC
NC
NC
TXCLK/REFCLK
RXD1
RXD2
VAUX
RXD0
RXER/RX_ER
RXDV/CRS_DV
COL/SPEED10
GND
MDIO/SECLK
MDC/RMII_MODE
RXD3
SECS
RING_IN
TXN
TXP
AGND
AVDD
PF2
PF3
PF4
PF5
TRIDRV
GND
OSCI
LINK_ST2
PWR_RSTB
RST_PHYB
NC
NC
AD16
AD17
AD18
AD19
AD21
AD22
AD23
GND
IDSEL
CBE3#
VDD
AD24
AD25
AD28
AD26
AD27
AD29
AD30
AD31
AD3
CBE0#
AD4
IRDY#
GND
FRAME#
CBE2#
VDD
96
97
64
AD6
AD7
VDD
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
33
32
GND
CBE1#
PAR
STOP#
DEVSEL#
TRDY#
PME#
VAUXP/WOL
PCICLK
CLKRUN#
PCIGNT#
PCIREQ#
RST#
INTA#
128
VAUX
GND
D1
TXEN
TXD2
65
AD20
AD5
RXP
NC
NC
AD0
AD1
AD2
GND
VAUX
GND
RXCLK
IRQ#
CRS
LINK_ST1
VAUX
PF7
VDD
GND
SERR#
GND
VDD
VDD
GND
SEDO/TXD0
SEDI/TXD1
TXD3
VAUX
ES2842S
128-Pin LQFP
Table 1 ES2842 Pin Descriptions
Names Pin Numbers I/O Definitions
IDSEL 1 I ID select.
GND 2, 3, 22, 23, 52, 53, 72,
85, 86, 116, 117
G Digital ground.
VDD 12, 13, 37, 38, 126, 127 P 3.3V digital power supply.
AD[31:0] 4:11, 24:28, 33:35,
39:46, 118:125
I/O Address and data lines from the PCI bus.
C/BE[3:0]# 14, 21, 36, 128 I/O PCI command/byte enable. During address phase of a transaction, these pins define the bus com-
mand. During data phase, these pins define the bus enable.
FRAME# 15 I/O Cycle frame.
IRDY# 16 I/O Initiator ready.
TRDY# 17 I/O Target ready.
DEVSEL# 18 I/O Device select.
STOP# 19 I/O Stop transaction.
PAR 20 I/O Parity.
SERR# 29 OD System bus error.
PF[10:7] and
PF[5:2]
30:32, 47:51 I/O General-purpose programmable bidirectional flag. These pins can be used for interfacing with a tele-
phone or other device, performing such functions as caller ID, etc. Refer to pin
descriptions of pins 54, 108, and 109 for preprogrammed telephone interface pins.
Page 3
ESS Technology, Inc. SAM0388-041101 3
ES2842 PRODUCT BRIEF
PIN DESCRIPTIONS
NC 54:59, 64:67 — No connect.
RXN 60 I Codec analog differential receive negative input. The DC level is VCM, and the full-scale input is
either 2.2Vp-p±5% or 1.1Vp-p±5%, depending on the gain setting.
RXP 61 I Codec analog differential receive positive input. The DC level is VCM, and the full-scale input is
either 2.2Vp-p±5% or 1.1Vp-p±5%, depending on the gain setting.
VREF 62 O Voltage reference bypass. Has a range of 1.235V±5%. Bypass to AGND with 0.1-µF ceramic chip
capacitor parallel with 10-µF tantalum capacitor.
VCM 63 O Common mode voltage bypass. Has a range of 2.16V±5%. Bypass to AGND with 0.1-µF ceramic
chip capacitor parallel with 10-µF tantalum capacitor.
TXN 68 O Codec analog differential transmit negative output. The DC level is VCM, and the full-scale input is
either 2.8Vp-p±5% or 1.4Vp-p±5%, depending on the gain setting.The maximum
loading is 1.2k Ω, in parallel with 20 pF for modem applications.
TXP 69 O Codec analog differential transmit positive output. The DC level is VCM, and the full-scale input is
either 2.8Vp-p±5% or 1.4Vp-p±5%, depending on the gain setting.The maximum
loading is 1.2k Ω, in parallel with 20 pF for modem applications.
AGND 70 G Analog ground.
AVDD 71 P 5V analog power supply.
OSCI 73 I Crystal clock input.
OSCO 74 O Crystal clock output.
VAUX 75, 88, 89, 104, 105 P 3.3V V
AUX
power supply for wake-on-ring and wake-on-LAN.
LINK_ST1 76 I Link status interface input from PHY.
PHY_RSTB 77 O Reset output to PHY; will follow PWR_RSTB and remain active for 1.3 msec after PWR_RSTB. Can
be toggled by bit 7 of LAN_IO register [4Ah].
PWR_RSTB 78 I Power-on reset. This is an active-low input signal when a power-on reset event occurs.
RXER
79
I Receive error input for MII mode. Indicates that the external PHY transceiver has detected coding
errors in the receive data frame now being transmitted to RXD[3:0]. RXER is ignored while RX_DV
is deasserted.
RX_ER I Receive error input for RMII mode. Indicates that the external PHY transceiver has detected coding
errors in the receive data frame now being transmitted to RXD[1:0]. RX_ER is ignored while RX_DV
is deasserted.
RXDV
80
I Receive data valid.
CRS_DV I Carrier sense/receive data valid. Asserted asynchronously by the PHY when the receive medium is
nonidle. In 10Base-T mode, carrier is detected when squelch is passed in RMII mode.
COL
81
I Collision. When selected as COL, asserted output whenever a collision is detected.
SPEED10 I Speed select. Acts as toggle for 10-Mb/s and 100-Mb/s operation for external PHY transceiver in
RMII mode.
CRS 82 I Carrier sense input.
RXCLK 83 I Receive clock input. Provides the nibble rate clock timing reference for the output transfer of RXDV,
RXD[3:0], and RXER/RX_ER signals and operates at 25/2.5 MHz.
IRQ# 84 I Interrupt request.
TXCLK
87
I Transmit clock input. When selected as TXCLK, provides timing reference for transfer of the trans-
mitted data and operates at 25/2.5 MHz.
REFCLK I Reference clock input. When selected as REFCLK, provides continuous clock timing
reference for CRS_DV, RXD[1:0], TXEN, TXD[1:0], and RX_ER. Operates at 50 MHz ±50 ppm with
a duty cycle between 35% and 65% in RMII mode.
RXD[3:0] 90:93 I Receive data. When in RMII mode, only RXD[1:0] are defined.
MDIO
94
I/O When the MDIO function is selected, this pin functions as the MII management data I/O pin. It acts
as an output during the header portion of management frame transfers and during the data portion
of write operations. It also acts as an input during the data portion of read
operations.
SECLK O Serial EEPROM data clock input.
Table 1 ES2842 Pin Descriptions (Continued)
Names Pin Numbers I/O Definitions
Page 4
4 © 2001 ESS Technology, Inc. SAM0388-041101
ES2842 PRODUCT BRIEF
ORDERING INFORMATION
No part of this publication may be reproduced, stored in a
retrieval system, transmitted, or translated in any form or
by any means, electronic, mechanical, manual, optical, or
otherwise, without the prior written permission of ESS
Technology, Inc.
ESS Technology, Inc. makes no representations or
warranties regarding the content of this document.
All specifications are subject to change without prior
notice.
ESS Technology, Inc. assumes no responsibility for any
errors contained herein.
TeleDrive is a registered trademark of ESS Technology,
Inc.
(P) U.S. patents pending.
All other trademarks are owned by their respective
holders and are used for identification purposes only.
ESS Technology, Inc.
48401 Fremont Blvd.
Fremont, CA 94538
Tel: (510) 492-1088
Fax: (510) 492-1898
ORDERING INFORMATION
MDC
95
O When the MDC function is selected, this pin functions as the MII management data clock pin. It runs
up to 2.5 MHz.
RMII_MODE I RMII_MODE enable. The ES2842 supports both MII and RMII modes. When the RMII_MODE signal
is high, RMII mode is supported. When the RMII_MODE signal is low, MII mode is supported. Strap
option pin latched at power-on reset.
TRIDRV 96 O Tri-state output pin connected to the input pin of HPNA PHY to tri-state output of HPNA PHY. When
asserted high, this pin tri-states all outputs except open-drain outputs.
LINK_ST2 97 I Link status Interface input from (second) HPNA PHY.
TXEN 98 O Transmit enable. This pin indicates that the MAC is presenting valid data on TXD[3:0]. TXEN transi-
tions are latched on the falling edge of REFCLK.
SEDO
99
O Serial EEPROM data input.
TXD[0] O Transmit data output pin 0.
SEDI
100
I Serial EEPROM data output pin with an internal pullup.
TXD[1] O Transmit data output pin 1.
TXD[3:2] 101, 102 O Transmit data pins 2 and 3 in MII mode. Not defined in RMII mode.
SECS 103 O Serial EEPROM port chip select output using 10k Ω pulldown resistor.
PME# 106 OD Power management enable interrupt output to wake up the system.
VAUXP
107
I V
AUX
support detection pin. V
AUXP
is driven high at reset to indicate that ACPI is supported with
D3
cold
state. No support when driven low. Strap option pin latched at power-on reset.
WOL O Wake-on-LAN signal output. The ES2842 asserts this signal if a change is detected in link
status, Magic Packet, or sample frame events.
RING_IN 108 I Ring-in-detection input.
DSPK 109 O Modem speaker digital output.
CLKRUN# 110 I/O CLKRUN# is an input/output pin for PCI clock status and an output to start or accelerate clock func-
tion.
PCIGNT# 111 I PCI grant input.
PCIREQ# 112 O PCI request output.
RST# 113 I PCI bus reset.
INTA# 114 OD Interrupt A request output, active-low. INTA# is the level triggered interrupt pin dedicated to servic-
ing internal device interrupt requests.
PCICLK 115 I PCI bus clock input.
Table 1 ES2842 Pin Descriptions (Continued)
Names Pin Numbers I/O Definitions
Part Number
Description Package
ES2842S
PCI V.90/V.92 HSP Modem LAN
128-pin LQFP
Loading...
