OWNER’S MANUAL

GUIDE DU PROPRIÉTAIRE

MANUAL DEL USARIO

DWC1534BLS

CAUTION :

Read and Follow All Safety Rules and

Operating Instructions Before First

Use of This Product.

ATTENTION :

Avant de faire fonctionner cette machine, lisez et suivez toutes les consignes de sécurité de ce guide en premier lieu.

ATENCIÓN:

Lea y Siga Todas las Indicaciones de Seguridad y de Operación Antes de Utilizar Este Producto.

2412/16 in.

38,1cm



62,9cm



341/16 in. 86,5cm

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . 1

Table des matières . . . . . . . . . . . . . . . . . . . . . . 12

Índice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

?

R

Danby Products Limited, Guelph, Ontario Canada N1H 6Z9 Danby Products Inc., Findlay, Ohio USA 45840

draft 1.10.07

TABLE OF CONTENTS

Important Safety Information

Safety Precautions

3

Grounding Instructions

4

Leveling Instructions

4

Operating Instructions

Note on Door Swing

5

Features of Your Wine Cooler

5

The Controls of Your Wine Cooler

6

Setting the Temperature

6

Wine Storage

7

Shelf Instructions

7

Installation Instructions



Tools You Will Need

8

Preparing the Enclosure

8

Care and Cleaning



Helpfull Hints

9

How to Clean the Inside

9

How to Clean the Outside

9

Trouble Shooting



Before Your Call For Service

10

Warranty

11

3

5

8

9

10

WELCOME

Welcome to the

You’ll see it in this



Danby family. We’re

easy-to-use manual



proud of our quality

and you’ll hear it in the

products and we

friendly voices of our



believe in dependable

consumer service



service.

department.





Tel:1-800-26-

R

Best of all, you’ll experience these values each time you use your wine cooler. That’s important, because your new appliance will be part of your family for a long time.

Start Here!…Before using your Wine Cooler

Write down the model and serial numbers here. They are on a label located on the back of the wine cooler.

Model number DWC1534BLS

Serial number

Date purchased

Staple your receipt to the inside back cover of this manual. You will need it to obtain service under warranty.

NEED HELP?

Before you call for service,

Read this manual

Save time and money

there are a few things you

It contains instructions to

Check the Trouble Shooting

can do to help us serve

help you use and maintain

section before calling. This

you better...

your wine cooler properly.

section helps you solve





common problems that may



If you received a

occur.



damaged appliance





Immediately contact the

If you do need service, you



dealer (or builder) that sold

can relax knowing help is



you the wine cooler.

only a phone call away.

Tel: 1-800-26-

R



2

IMPORTANT SAFETY INFORMATION

READ ALL SAFETY INFORMATION BEFORE USING

WARNING

DANGER, RISK OF CHILD ENTRAPMENT!

An empty wine cooler is a very dangerous attraction to children. Remove either the gasket, latches, lids, lock and/or doors from unused or discarded appliances, or take some other action to guarantee it harmless.

DON’T WAIT, DO IT NOW!

CAUTION

To avoid installation/operation difficulties, read these instructions thoroughly.

SAFETY PRECAUTIONS

This appliance must be grounded. Connect only to a properly grounded outlet. See “Grounding Instructions” section on page 4.

Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if the appliance has been damaged or dropped.

Do not splice the power cord that is equipped with this appliance.

Keep power cord away from heated surfaces.

Do not immerse power cord, plug or the appliance itself in water.

Do not use this product near water-for example, in a wet basement, near a swimming pool or near a sink.

Do not use corrosive chemicals or vapors in this appliance.

Use this appliance only for it’s intended use, asdescribed in this manual.

Do not store perishable food items such as (but not limited to) meats and dairy products in your wine cooler.

Store wine in sealed bottles only.

See door surface cleaning instructions in the Care and Cleaning section(s) of this manual.

Do not cover or block any openings on the appliance.

This appliance is intended for household use only. Do not attempt to operate or store this appliance outdoors.

This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair or adjustment.

SAVE THESE INSTRUCTIONS

3

IMPORTANT SAFETY INFORMATION

GROUNDING INSTRUCTIONS

WARNING!

Improper use of the grounding plug can result in a risk of electrical shock.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a power cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or service technician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

If the outlet is a standard 2- prong wall outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

For best operation, plug this appliance into its own electrical outlet to prevent flickering of lights, blowing of fuse or tripping of circuit breaker.

Do not under any circumstances cut or remove the third (ground) prong from the power cord.

Do not use an adapter plug with this appliance.

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance.

Leveling

Instructions

WARNING!

Extreme Weight Hazard

Use two or more people when moving the wine cooler.

Beneath the wine cooler there

3. Turn the leveling legs clock-

are two leveling legs that are

wise to raise the wine

located on either side of the

cooler, or counter-clockwise

vent. It is important that your

to lower it. Continue in this

wine cooler is level. To level the

manner until the wine

wine cooler:

cooler is level. See Fig. A.

1.

Move the wine cooler to







its final location.





2.

Have someone gently lean

Raises





against the front of the wine





cooler to take some of the

Fig. A

Lowers



weight off of the leveling









legs.





4

Operating Instructions

Door Swing

Before Operating:

Ensure the door has clearance to open 130° (see Fig 1).

If necessary move any obstacles to accommodate door swing.

Fig 1















Fig 1





























1

Extended shelf





















1













2

Door hinge





































3

Door





















































































































130°

2

3

Features of your

Wine Cooler

1.Tempered Glass Door: Tinted for UV protection while still allowing for easy interior viewing.

2.Child Proof Lock with Key

3.Magnetic Door Gaskets: Tight fitting seals retain all the cooling power and humidity levels.

4.Slide-out shelves with stainless steel trim.

5.Front Mounted Exhaust: Allows for integrated (built-in) applications.

1 2

16 .

62,9cm

3

4

.

5

6

6.Leveling Legs

7.Interior Lights (not shown): Illuminate both compartments of the wine cooler.

5

Operating Instructions

The Controls of your Wine Cooler



1

RUN

DISPLAY



C











Activa

F





tion

1. Run





AFFICHAGE







Indicator light illuminates to



2



signify the cooling mode is





currently in operation

34

LIGHT

UT

|



WN

O





LAMPE

5

2.Electronic Display

Dispay screen shows current cabinet temperature and set temperature. (see ‘Setting the Temperature’ below)

3.C° / F°

Adjacent indicator light denotes which scale of temperature is displayed.

4. ‘UP’ Button



Used to raise (warm)

temperature

in 1° degree increments



‘DOWN’ Button

Used to lower (cool) the temperature in 1° degree increments

5. Interior lights on/off switch

Setting the

Temperature

N O T E

When you plug in your wine cooler for the first time, the temperatures will automatically be set to 45°F (7°C) and 54°F (12°C) in the left and right compartments respectively and will be displayed in the Fahrenheit scale (°F).

To switch the display between the Fahrenheit (°F) and Celsius (°C) scale, depress the UP ( ) and DOWN ( ) control buttons simultaneously for approximately five (5) seconds

The temperature range for both compartments can be set as low as 39°F (4°C) or as high as 64°F (18°C) to suit your specific wine storage requirements. Each depression of the UP ( ) or DOWN ( ) button will allow you to adjust the temperature in 1° degree increments within the aforementioned range.

You may

your ‘set’



any time by

briefly depressing either the

UP ( )

DOWN ( ) but-

ton. The

temperature will

flash in

display area for 5

seconds before the display resumes showing the current cabinet temperature.

Please

In the event of a

power

or interruption,

all

settings are lost

and the default settings are

used

resumes.

6

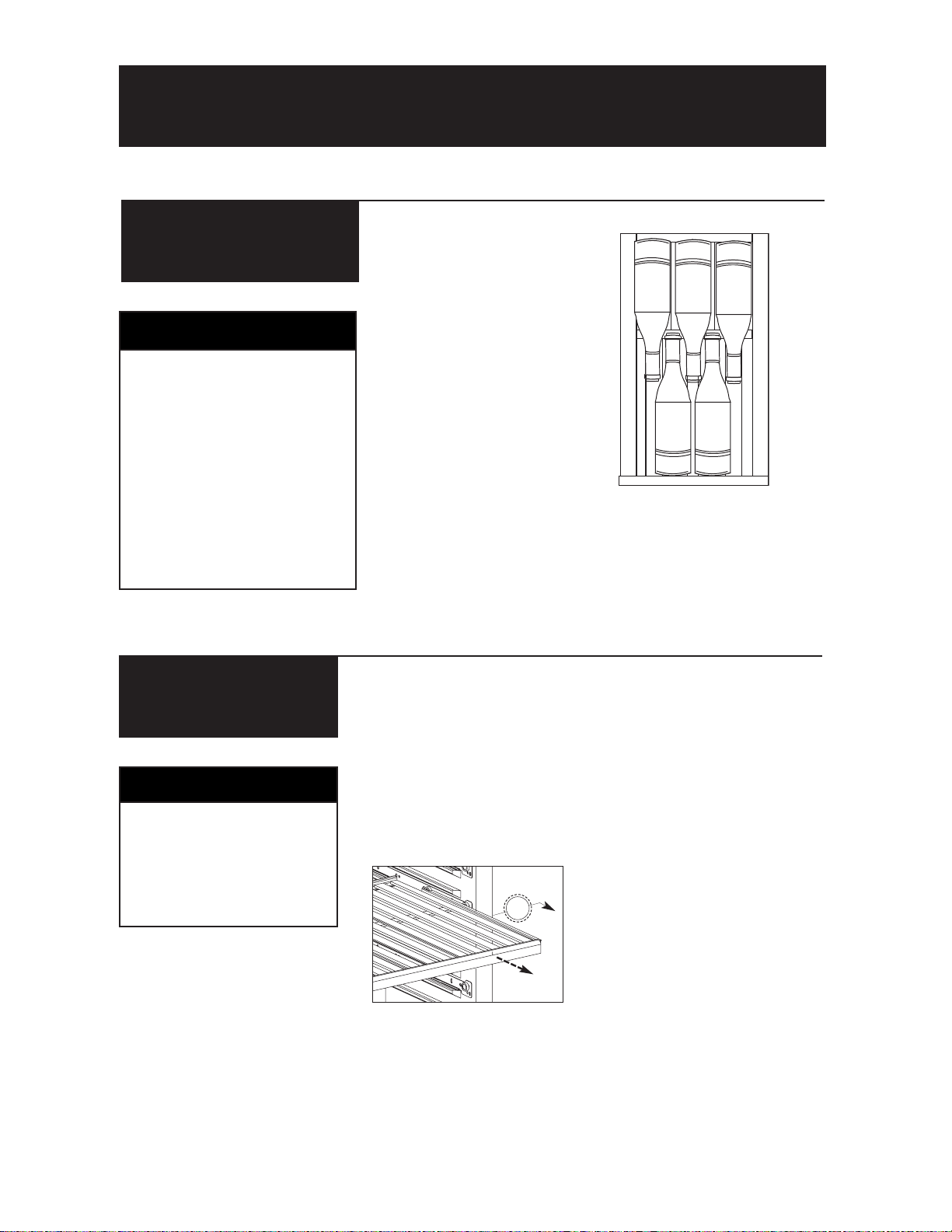

Operating Instructions

Wine

Storage

IMPORTANT!

• The maximum* capacity of the DWC1534BLS is 34 (750 ml) wine bottles.

• Store wine in sealed bottles only.

* When stocked as per instructions.

In order to achieve the maximum storage capacity of thirty-four (34) bottles, it will be necessary to position the bottles alternately on the upper six shelves, as shown in Fig B. This will allow for the storage of five (5) 750 ml bottles per shelf in each of the top six shelves. The bottom shelf can hold an additional four (4) bottles.

Fig B

Shelf Instructions

IMPORTANT!

Do not cover shelves with aluminum foil or any other material that will prevent adequate air circulation within the cabinet.

To remove a roller-shelf (Fig.C):

1.Gently slide the shelf outward until it meets resistance.

2.Tilt the shelf slightly upwards (approximately 15°) and carefully remove the shelf by sliding it outward from the cabinet.

15°

1

Fig. C

To reinstall a roller-shelf:

1.Set the shelf’s wheels upon the front of the wheel track.

2.Tilt the front of the shelf slightly upwards (approximately 15°), and begin to gently slide the shelf into the cabinet until the shelf’s rollerwheels slide naturally within the wheel track.

Note: The bottom wine rack is not secured in place (locked). Do not attempt to pull on the rack when it is stocked.

7

Danby DWC1534BLS User Manual

Installation Instructions - Intergrated Application

Tools You Will

Need

WA R N I N G !

While performing the installations described in this section; gloves, safety glasses or goggles should be worn.

Safety Glasses

Gloves



Level















Flashlight







Carpenter’s





Measuring

Square

Drill & Hole Saw set



Tape



Preparing the

Enclosure

Electrical Requirements

The appliance must be connected to an individual and properly grounded electrical outlet, protected by a 15 or 20 ampere circuit breaker or time delay fuse.

IMPORTANT!

Door Swing

Do not include the door within the enclosure; leave it outside of the enclosure to prevent the door swing from being obstructed.

It is recommended that you do not install the wine cooler into a corner (i.e. directly beside a wall). This is to allow the door to have a greater than 90° opening swing. A limited door swing will prevent the shelves from sliding out as intended, and may lead to damaging the door gasket.

The rough cabinet opening must be on a level floor area and at least 237/8” (60.64cm) deep* by 15” (38.1cm) wide.

The opening should also have a height of at least 341/16

(86.52cm).

Fig D

} 1





4

5

6







2

}





}

Electrical

















Access*









}









3



The electrical outlet may be positioned from within either side of the adjacent cabinetry, or the rear of the shaded area (as shown in Fig. D).

Important: If the electrical outlet is surface mounted (not flush) within the enclosure, the depth requirement for the installation may be affected.

If the electrical outlet is located inside the adjacent cabinetry, cut a 11/2” (3.81cm) diameter hole to admit the power cord.

Fig D

1 237/8” min. depth

2341/16” from underside of countertop

to floor.

3 15” min. width

4 2” of depth given for Elec. Access* 5 1 1/2” dia. hole (if

outlet is in adjacent cabinetry).

6 Cabinets square and plumb

*The listed depth requirement for the installation is assuming that the electrical outlet is located in the adjacent cabinetry or is flush mounted in the rear wall, not surface mounted in the enclosure.

8

Care and Cleaning

WA R N I N G !

Be certain the power is off before cleaning any part of this appliance.

Helpful Hints

Allow the wine cooler door to remain open for a few minutes after manual cleaning to air out and dry the inside of the wine cooler cabinet

How to Clean the Inside

I M P O R TA N T !

Never use any commercial or abrasive cleaners or sharp objects on any part of the wine cooler.

Walls, Floor, Inside

Window, and Shelves

Water deposits and dust can be removed with a damp cloth.

How to Clean the Outside

I M P O R TA N T !

Do not use cleaners containing ammonia or alcohol on the wine cooler.

Ammonia or alcohol can damage the appearance of the appliance.

Outer Case

It’s important to keep the area clean where the door seals against the cabinet. Clean this area with a sudsy cloth. Rinse and then dry.

Door Frame

Use only mild, non-abrasive detergents applied with a clean sponge or soft cloth. Rinse well.

Control Panel and

Door Glass

Wipe with a damp cloth and dry thoroughly. Do not use cleaning sprays, large amounts of soap and water, abrasive or sharp objects on the panel, they can damage it. Some paper towels may also scratch the control panel and door glass.

9
