Thank you for choosing Silhouette

We know you’re excited. We are too! However, the more familiar you are with your new appliance, the better experience you will have. We therefore strongly suggest that you read this Owner’s Manual before plugging in your new appliance. It contains important operational information that will help you make full use of the technical features available in your appliance. The manual also contains information designed to enhance operating reliability and safety, as well as tips to maintaining your new appliance so that it brings you happiness for years to come.

Please visit www.silhouetteappliances.com to access self-service tools, FAQs and more. Should you need additional assistance, please call 1-844-455-6097.

Note: You will need the below information to obtain service under warranty.

To receive service, you must provide the original receipt.

Model Number:

Serial Number:

Date of Purchase:

NEED HELP?

Before you call for service, here are a few things you can do to help us serve you better:

Read this Owner’s Manual:

It contains instructions to help you use and maintain your appliance properly.

If you received a damaged appliance:

Immediately contact the retailer (or builder) that sold you the appliance.

Save time and money:

Check the Troubleshooting section at the end of the guide before calling. This section helps you solve common problems that may occur.

If you do need service, you can relax, knowing help is only a phone call away.

Tel: 1-844-455-6097

1

Important Safety Information

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

IMPORTANT WARNING

An empty wine cooler is a very dangerous attraction to children. Remove either the gasket or door from unused appliances, or take some other action that will guarantee it harmless.

DANGER: Risk of child entrapment. Before you throw away your old wine cooler:

Take off doors.

Leave the shelves in place so that children may not easily climb in.

DON’T WAIT! DO IT NOW!

ELECTRICAL REQUIREMENTS

To avoid installation or operation difficulties, read these instructions thoroughly.

This appliance must be grounded. Connect only to a properly grounded outlet. See “Grounding

Instructions” section.

Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if the appliance has been damaged or dropped.

Never allow children to operate, play with, or crawl inside the appliance.

Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.

Do not store or use gasoline or any other flammable vapors or liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

Do not splice the power cord that is equipped with this appliance.

Keep power cord away from heated surfaces.

Do not immerse power cord, plug or the appliance itself in water.

Do not use this product near water for example, in a wet basement, laundry room or near a sink.

Do not use corrosive chemicals or vapors in this appliance.

Use this appliance only for its intended use, as described in this manual.

Store beverages in sealed containers only.

See door surface cleaning instructions in the Care and Maintenance section of this manual.

Do not cover or block any openings on the appliance.

Do not store perishable food items such as (but not limited to) meats and dairy products in your wine cooler. This appliance does not get cold enough to be food safe.

This appliance is intended for household use only. Do not operate or store this appliance outdoors.

This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair or adjustment.

SAVE THESE INSTRUCTIONS!

2

Important Safety Information

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

If the outlet is a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

For best operation, plug this appliance into its own electrical outlet to prevent flickering of lights, blowing of fuse or tripping of circuit breaker

DO NOT USE AN EXTENSION CORD

Use an exclusive 115V wall outlet. Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the cord. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Do not use and adapter plug with this appliance.

SAFETY REQUIREMENTS

Ensure that component parts shall be replaced with like components and that servicing shall be done by factory authorized service personnel, so as to minimize the risk of possible

ignition due to incorrect parts or improper service.

This appliance must be grounded. In the event of an electrical short circuit, grounding

reduces the risk of electrical shock by providing an escape wire for the electrical current. The serial rating plate indicates the voltage and frequency the appliance is designed for.

Risk of fire or explosion due to puncturing of refrigerant tubing. Do not use sharp objects to aid in defrost. Please handle with care. Keep flammable materials and vapors such as

gasoline away from the refrigerator. Use nonflammable cleaner.

Disposal of this unit should be in accordance with federal and local regulations.

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

SAVE THESE INSTRUCTIONS!

3

Important Safety Information

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

FOR YOUR SAFETY

While performing installations described in this section, gloves and goggles or safety glasses should be worn. Two people should be used when moving the wine cooler.

Remove interior and exterior packaging prior to installation.

Before connecting the appliance to a power source, let it stand upright for approximately 4 hours; this will reduce the possibility of a malfunction in the cooling system from handling during transportation.

Place your wine cooler on a floor that is strong enough to support it when it is fully loaded. To level your wine cooler, adjust the front leveling leg at the bottom of the unit.

Locate the wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit to perform improperly.

Avoid locating the unit in moist areas.

Plug the wine cooler into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service centre.

Do not cover shelves with aluminum foil or any other material which may prevent air circulation.

Do not open the door unless necessary.

Should the wine cooler be stored without use for long periods, it is suggested, after careful cleaning, to leave the door ajar. This will allow air to circulate inside the cabinet in order to avoid possible formations of condensation, mold and odors.

This appliance may tip when shelves are extended, possibly causing damage, injury or loss of contents. If this appliance is being used in a free-standing application, the anti-tip bracket must be installed.

If the power supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid hazard.

IMPORTANT WARNING

Risk of fire or explosion due to puncturing of refrigerant tubing. Do not use sharp opjects to aid in defrost. Please handle with care. Keep flammable materials and vapors such as gasoline away from the unit. Use nonflammable cleaner.

Disposal of this unit should be in accordance with federal and local regulations.

SAVE THESE INSTRUCTIONS!

4

Installation Instructions

LEVELING INSTRUCTIONS

Beneath the wine cooler there are two leveling legs that are located on either side of the vent. It is important that your wine cooler is level. To level the unit:

1.Have someone gently lean against the front of the wine cooler to take some weight off the leveling legs.

2.Turn the leveling legs clockwise to raise the wine cooler or counter-clockwise to lower it. Continue in this manner until the wine cooler is level.

Fig A



Raises



the Leg



(lowers

Lowers (raises

the unit)



the Leg the unit)

LOCATION

Selecting the proper location will ensure peak performance levels for your appliance. Choose a location where the unit will not be exposed to heat emitting sources (e.g. a fireplace or stove). The wine cooler should not be exposed to direct sunlight. Do not use product near water, for example in a wet basement or near a sink.

NOTE: This unit is front breathing. Do not block the front air vent. Blockage of the vent will result in high operating temperatures and system failure.

Fig E

PREPARING THE ENCLOSURE

Electrical Requirements:

The appliance must be connected to an individual, properly grounded electrical outlet, protected by a 15 ampere circuit breaker or time delay fuse.

Tools you will need:

While performing installations described in this section, gloves and safety glasses or goggles should be worn. You may also require:

tape measure

carpenter square

electric drill with hole bit

flashlight

level

stud finder

hammer or mallet

screwdriver

wrench

It is recommended that you do not install the unit into a corner (i.e. directly beside a wall). This is to allow the door to have a greater than 90° opening swing. A limited door swing may lead to damaging the door gasket. If it is necessary to install the unit in a corner, be sure to allow 2-4 inches of clearance at each side.

5

Installation Instructions

PREPARING THE ENCLOSURE

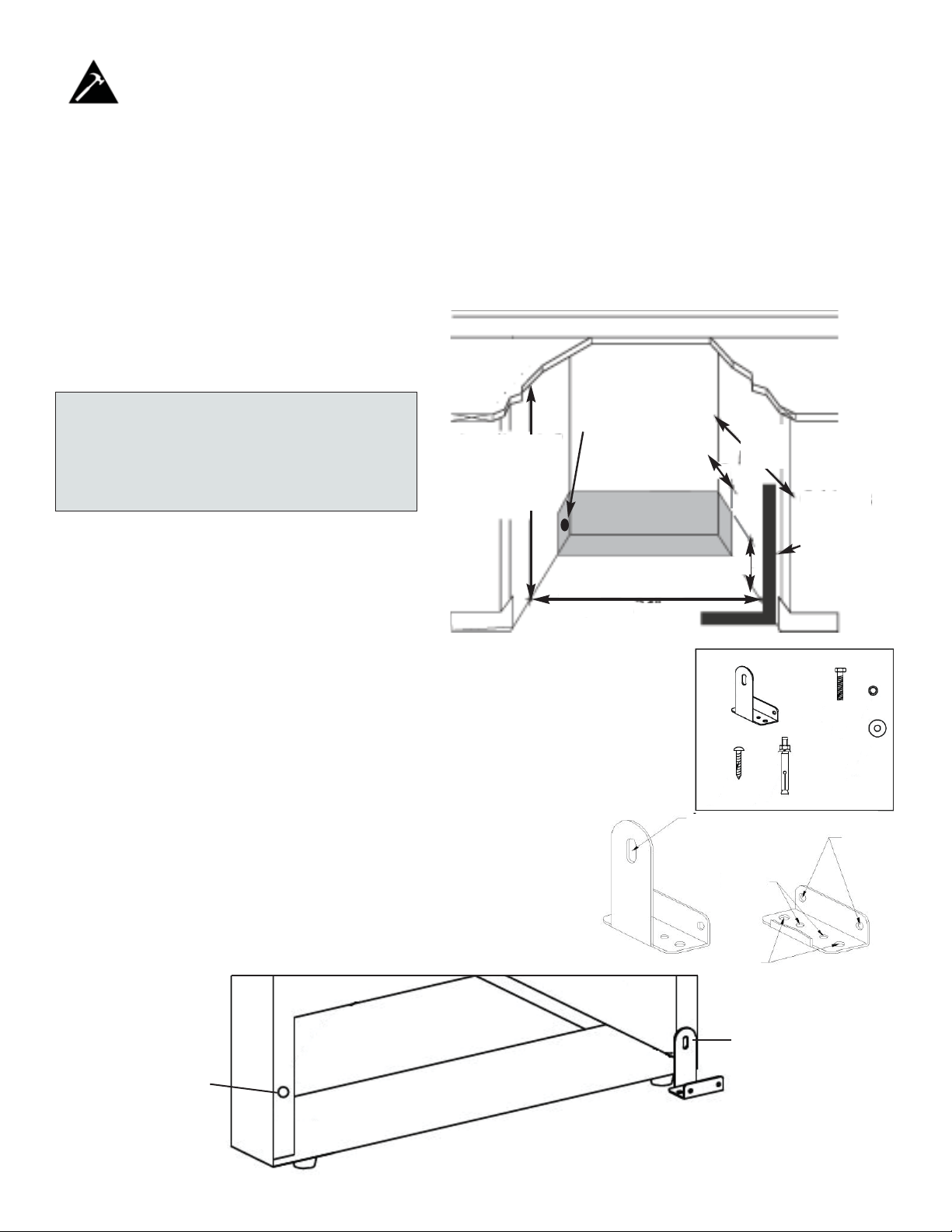

The rough cabinet opening must be on a level floor area and a minimum 25” (63.5 cm) deep by 24” (60.96 cm) wide and at least 34 9/16” (87.8 cm) high.

The electrical outlet may be positioned from within either side of the adjacent cabinetry, or the rear of the shaded area.

If the electrical outlet is located inside the adjacent cabinetry, cut a 1.5” (3.81 cm) diameter hole to admit the power cord. If the cabinet wall is metal, the hole edge must be covered with a bushing or grommet.

Important: The listed depth requirement for the installation is assuming that the electrical outlet is located in the adjacent cabinetry or is flush mounted in the rear wall, not surface mounted in the enclosure.

34-9/16” From

Underside of Countertop to Floor

1-1/2” dia. hole *if electical outlet is in adjacent

cabinetry 25”

Min*

1-3/16”

Electrical Access Cabinets Square

and

Plumb

6”

24” Min

ANTI-TIP BRACKET

Pieces provided:

This appliance may tip when shelves are extended,

1.

Anti-tip bracket

causing damage, injury or loss of contents. If this

2.

Bolt

appliance is being used in a free standing application, 3.

Lock Washer

the anti-tip bracket must be installed on either the

4.

Flat Washer

back left or back right side of the unit.

5.

Screws



6.

Expansion Screws











Anti-tip bracket mounting holes:





A









A: Fixed mounting hole for unit







C

B: Fixed mounting holes for drywall



C: Fixed mounting holes for wood floor



D: Fixed mounting holes for concrete floor



E: Mounting holes on the back of the unit

D



E

1 2 3

4

5 6

B

E

6

Installation Instructions

Important: Determine the final location of the appliance before attempting to install the bracket. You will need to choose one of the three installation methods below.

Anti-tip bracket Flat washer

Lock washer

Bolt Screw

Wall stud

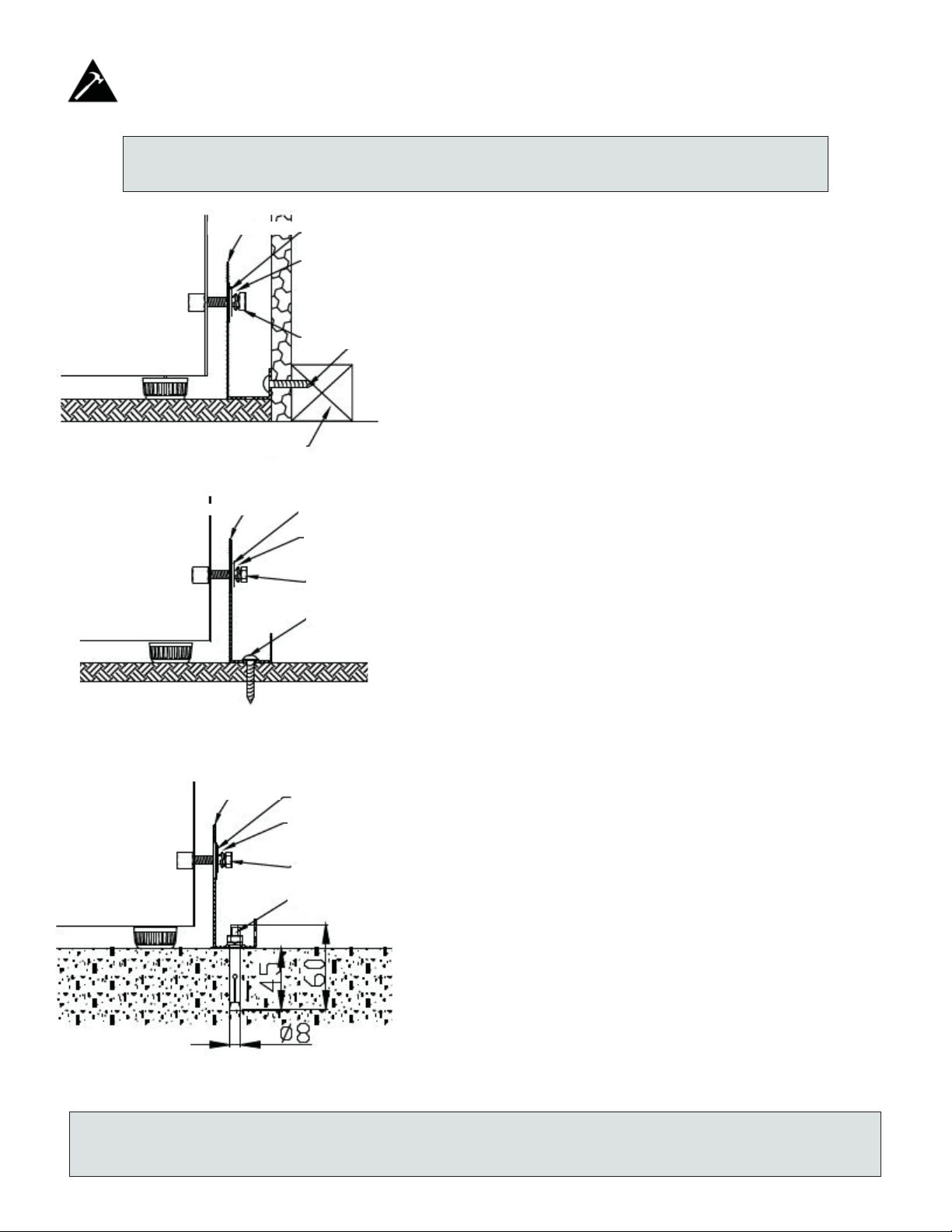

Drywall Installation:

1.Place the bracket on the floor with mounting hole B against the wall.

2.Use two screws to secure the bracket to the wall.

3.Ensure at least one screw is secured to a wall stud.

4.Place the unit so that the mounting hole E on the unit is lined up with mounting hole A on the bracket and secure with a bolt, a lock washer and a flat washer.

Note: At least one screw must enter a wood wall stud. If there are no wall studs available, use floor installation.

















Anti-tip bracket

















Flat washer





























Lock washer























Bolt





















Screw















Anti-tip bracket



















Flat washer











































Lock washer















Bolt











Expansion screw

Wood Floor Installation:

1.Place the bracket on the floor and secure it with two screws.

2.Place the unit so that mounting hole E on the unit is aligned with mounting hole A on the bracket and secure with a bolt, a lock washer and a flat washer.

Concrete Floor Installation:

1.Place the bracket on the floor and mark the location of mounting hole D on the floor.

2.Using a concrete drill bit, drill an 8mm (3/8”) pilot hole 45~55mm (1.7”~2”) deep at the marked location.

3.Remove the nut, spring washer and washer from the expansion screw.

4.Carefully tap the expansion screw into the drilled hole using a hammer or mallet.

5.Place the floor bracket with mounting hole D over the expansion screw and secure with the nut, spring washer and washer.

6.Place the unit so that mounting hole E on the unit is aligned with mounting hold A on the bracket and secure with a bolt, lock washer and flat washer.

Important: After installing the bracket, try using light force to tip the unit. If the unit does not tip then the bracket is installed correctly. If the unit does tip, reinstall the bracket more securely.

7

Operating Instructions

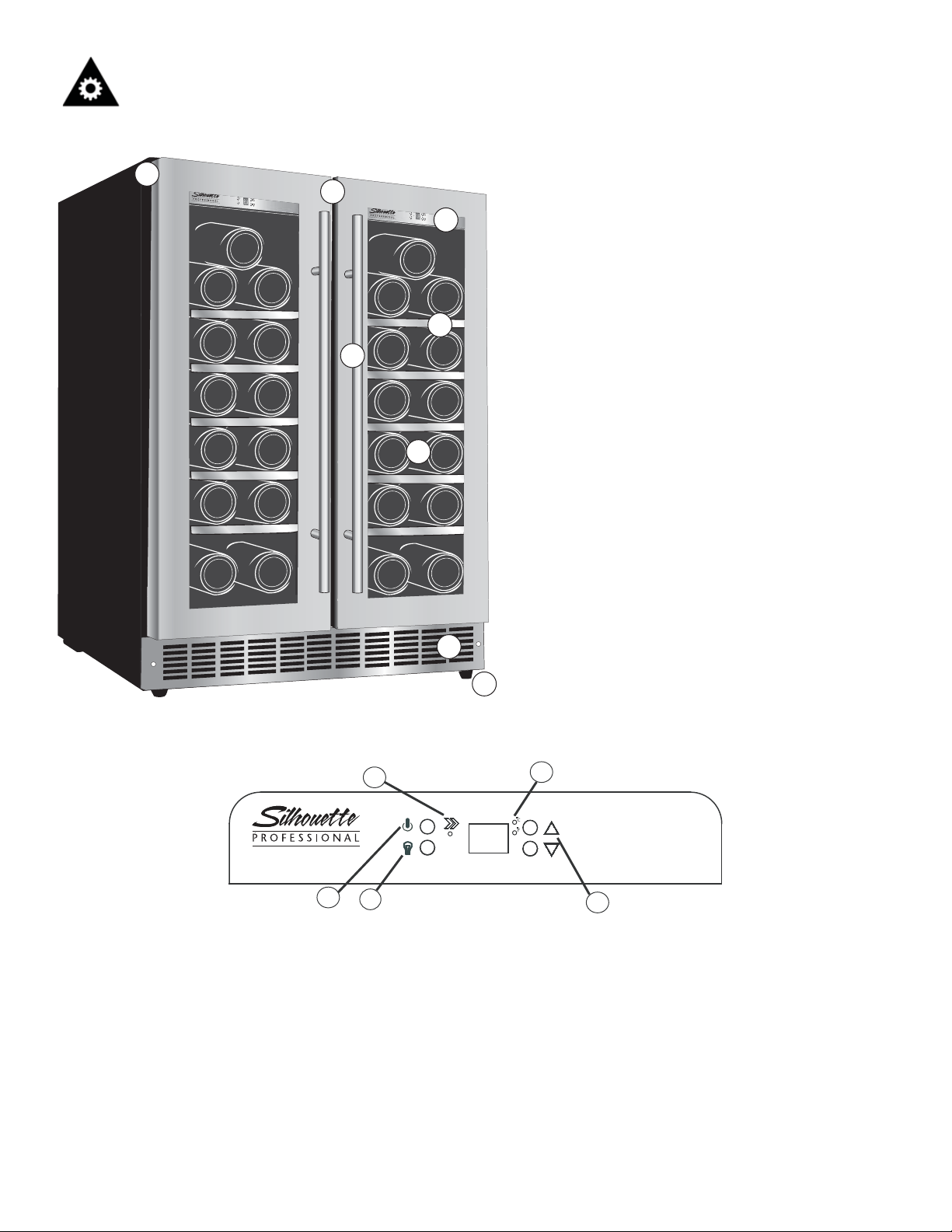

FEATURES

1

2

3

4

5

6

7

1.Magnetic Door Gaskets: Tight fitting seals retain all the cooling power and humidity levels.

2.Twin Door Design: Divided compartments allow for separate storage of different types of beverages.

3.Dual Electronic Controls: For individually regulating the temperature for both compartments of the beverage centre.

4.Metal Wire Shelves

5.Handles

6.Tempered Glass Doors: Low-E glass used to reflect and absorb heat.

7.Front Mounted Exhaust: Allows for integrated (built-in) applications.

8.Leveling Legs

9.Interior Light (not shown): Cool White LED lighting illuminates the interior without the

8

heat of an incandescent bulb.



CONTROL PANEL

1

4



2

3

5

1.Indicator Light: illuminates to signify the cooling mode is currently in operation.

2.Power Button: Press once to turn unit on. Press and hold for 3 seconds to turn unit off.

3.Light Button: To control the inner light turn ON/OFF. Press this button to have the light continuously illuminated; lighting will not be controlled by opening or closing the door.

4.°C / °F: Adjacent indicator light denotes which scale of temperature is being displayed.

5.Up and Down Buttons: Used to raise (warm) or decrease (cool) the temperature in 1° increments.

8
