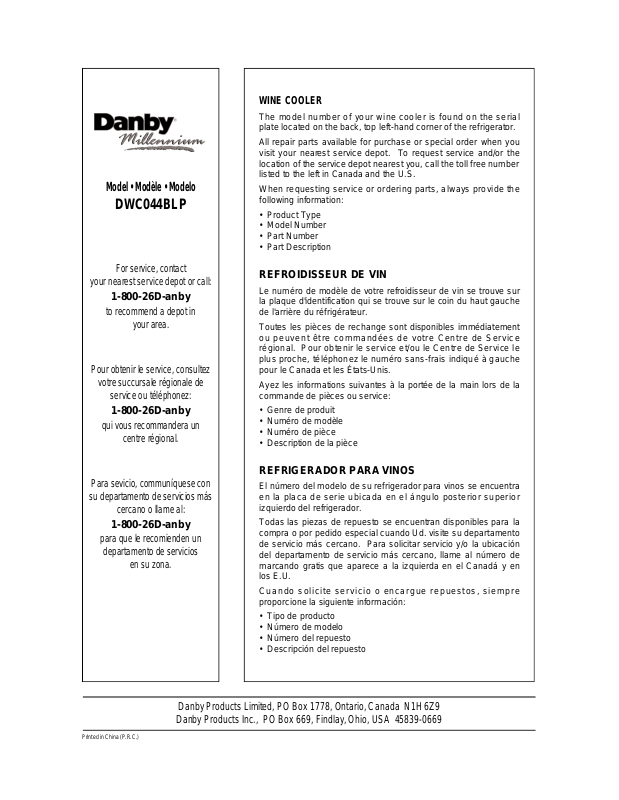

Danby DWC044BLP User Manual
Model • Modèle • Modelo
DWC044BLP
WINE COOLER
The model number of your wine cooler is found on the serial
plate located on the back, top left-hand corner of the refrigerator.
All repair parts available for purchase or special order when you
visit your nearest service depot. To request service and/or the
location of the service depot nearest you, call the toll free number
listed to the left in Canada and the U.S.
When requesting service or ordering parts, always provide the
following information:
• Product Type
• Model Number
• Part Number
• Part Description
For service, contact
your nearest service depot or call:
1-800-26D-anby
to recommend a depot in
your area.
Pour obtenir le service, consultez
votre succursale régionale de
service ou téléphonez:
1-800-26D-anby
qui vous recommandera un
centre régional.
Para sevicio, communíquese con
su departamento de servicios más
cercano o llame al:
1-800-26D-anby
para que le recomienden un
departamento de servicios
en su zona.
REFROIDISSEUR DE VIN
Le numéro de modèle de votre refroidisseur de vin se trouve sur
la plaque d'identification qui se trouve sur le coin du haut gauche
de l'arrière du réfrigérateur.
Toutes les pièces de rechange sont disponibles immédiatement
ou peuvent être commandées de votre Centre de Service
régional. Pour obtenir le service et/ou le Centre de Service le
plus proche, téléphonez le numéro sans-frais indiqué à gauche
pour le Canada et les États-Unis.
Ayez les informations suivantes à la portée de la main lors de la
commande de pièces ou service:
• Genre de produit
• Numéro de modèle
• Numéro de pièce
• Description de la pièce
REFRIGERADOR PARAVINOS
El número del modelo de su refrigerador para vinos se encuentra
en la placa de serie ubicada en el ángulo posterior superior
izquierdo del refrigerador.
Todas las piezas de repuesto se encuentran disponibles para la
compra o por pedido especial cuando Ud. visite su departamento
de servicio más cercano. Para solicitar servicio y/o la ubicación
del departamento de servicio más cercano, llame al número de
marcando gratis que aparece a la izquierda en el Canadá y en
los E.U.
Cuando solicite servicio o encargue repuestos, siempre
proporcione la siguiente información:
• Tipo de producto
• Número de modelo
• Número del repuesto
• Descripción del repuesto
Printed in China (P.R.C.)
Danby Products Limited, PO Box 1778, Ontario, Canada N1H 6Z9
Danby Products Inc., PO Box 669, Findlay, Ohio, USA 45839-0669
OWNER’S MANUAL
MANUEL D'UTILISATION
MANUAL DELPROPIETARIO
Model • Modèle • Modelo
DWC044BLP
CAUTION:
Read and follow all safety rules and
operating instructions before first
use of this product.
PRÉCAUTION:
Veuillez lire attentivement les
consignes de sécurité et les
instructions d'utilisation avant
l'utilisation initiale de ce produit.
PRECAUCIÓN:
Lea y observe todas las reglas de
seguridad y las instrucciones de
operación antes de usar este
producto por primera vez.
WINE COOLER
Owner’s Manual . . . . . . . . . . . . . . . . . . . . . . .1-4
• Safety Instructions
• Installation
• Operation
• Care and Maintenance
REFROIDISSEUR DE VIN
Manuel d'utilisation . . . . . . . . . . . . . . . . . . . . .5-8
• Consignes de sécurité
• Installation
• Fonctionnement
• Soins et entretien
REFRIGERADOR PARA VINOS
Manual del propietario . . . . . . . . . . . . . . . . .9-12
• Instrucciones de seguridad
• Instalación
• Operación
• Cuidado y Mantenimiento
Danby Products Limited, PO Box 1778, Ontario, Canada N1H 6Z9
Danby Products Inc., PO Box 669, Findlay, Ohio, USA 45839-0669
044.11.02
LIMITED PRODUCT WARRANTY
This quality product is warranted to be free from manufacturer’s defects in material and workmanship, provided that the unit is used under the normal operating
conditions intended by the manufacturer.
This warranty is available only to the person to whom the unit was originally sold by Danby or by an authorized distributor of Danby, and is non-transferable.
TERMS OF WARRANTY
Plastic parts (ie. evaporator door, door rails, covers and trays are warranted for thirty (30) days only from purchase date, with no extensions provided.
First Year During the first year (1), any electrical parts of this product found to be defective, including any sealed system units, will be repaired or
replaced, at warrantor’s option, at no charge to the ORIGINAL purchaser. Consumable parts (ie. light bulbs) are not warranted or
guaranteed for any length of time.
Second Through During the next four years (4) any part of the sealed system found to be defective (consisting of compressor, condenser, evaporator,
Fifth Year dryer and all related tubing) will be replaced without charge. The purchaser shall pay for all labour and return freight during this four year
(4) period for repair or replacement of any sealed system components. Any unit being diagnosed as non-functional due to sealed system
failure and warranting an exchange during the existing four (4) years will be subject to an appropriate depreciation or user fee, including
any and all freight charges being levied against the consumer.
To obtain Service Danby reserves the right to limit boundaries of “In Home Service” due to the proximity of an Authorized Service Depot. Any appliance
requiring service outside the limited boundaries of “In Home Service”, it will be the customer’s responsibility to transport the appliance to
the closest Authorized Service Depot at their own expense. Contact your dealer from whom your unit was purchased, or contact your
nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on
the units by anyone other than an authorized service depot, or the unit is used for commercial application, all obligations of Danby under
this warranty shall be at an end.
The following clause refers to single and double door refrigerators, supplied with or without a separate freezer section. Nothing within this warranty shall imply that
Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use,
whether proper or improper.
EXCLUSIONS
Save as herein provided, Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.), there are no other warranties, conditions, representations or
guarantees, express or implied, made or intended by Danby Products Limited or its authorized distributors and all other warranties, conditions, representations or
guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statue is hereby expressly
excluded. Save as herein provided, Danby Products Limited (Canada) or Danby Products Inc. (U.S.A), shall not be responsible for any damages to persons or
property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the
purchaser does hereby agree to indemnify and save harmless Danby Products Limited from any claim for damages to persons or property caused by the unit.
GENERAL PROVISIONS
No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:
1) Power Failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions,
(extremely high or low room temperature).
5) Use for commercial or industrial purposes.
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
Proof of purchase date will be required for warranty claims; so, please retain bills of sale. In the event warranty service is required, present this document to our
AUTHORIZED SERVICE DEPOT.
Warranty Service
With-In Canada With-In United State
In Home In Home
Danby Products Limited
PO Box 1778, 5070 Whitelaw Road,
Guelph, Ontario, Canada N1H 6Z9
Telephone: (519) 837-0920 FAX: (519) 837-0449
09.02
PO Box 669, 101 Bentley Court,
Danby Products Inc.
Findlay, Ohio, U.S.A. 45839-0669
Telephone: (419) 425-8627 FAX: (419) 425-8629
1
SAFETY INSTRUCTIONS
ATTENTION
GROUNDING INSTRUCTIONS
This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of electrical shock by providing
an escape wire for the electrical current. This appliance is
equipped with a cord having a grounding wire with a
grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded.
WARNING - Improper use of the
grounding plug can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood, or if
the doubt exists as to whether the appliance is properly
grounded.
DO NOT USE AN EXTENSION CORD
INSTALLATION INSTRUCTIONS
Remove the exterior and interior packings, wipe the outside
thoroughly with a soft dry cloth and the inside with a wet, lukewarm
cloth. Avoid placing the cabinet in a narrow recess or near any heat
source, direct sunlight, or moisture. Let air circulate freely around
the cabinet. Keep the rear of the wine cooler 5 inches away from
the wall.
Location
1. Select a place with a strong, level floor.
2. Allow 5 inches of space between the back of the wine
cooler and any adjacent wall.
3. Avoid direct sunlight and heat. Direct sunlight may affect the
acrylic coating. Heat sources nearby will cause higher electricity
consumption.
OPERATION
To avoid vibration, the cabinet must be set level. To start
the wine cooler, follow the instruction below. The wine cooler
temperature will vary depending on the quantity of bottles stored
and on the frequency with which the door is opened.
Use an exclusive wall outlet. Do not connect your wine
cooler to extension cords or together with any other
appliance in the same wall outlet. Do not splice the cord.
IMPORTANT WARNING
An empty wine cooler is a very dangerous attraction to
children. Remove either the gasket, latches, lids or doors
from unused appliances, or take some other action that
will guarantee it harmless.
DON’T WAIT! DO IT NOW!
SPECIAL INSTRUCTIONS
You must remove the bottom door support on the bottom left
hand side of the unit before you can open the door. (See Fig. A)
FIG. A
LIGHT SWITCH
TEMPERATURE INCREASE
TEMPERATURE DECREASE
LED DISPLAY
FAHRENHEIT MODE
CELSIUS MODE
FAHRENHEIT/CELSIUS SELECTOR
SETTING THE TEMPERATURE:
1. Connect the power cord to a properly grounded outlet. Each
time the unit is disconneted and re-connected to a power
source, any previous “SET” temperature is erased and the unit
defaults to a factory setting of 10C (50F)
NOTE:
FLASHING LED = SET COOLING TEMPERATURE
STEADY STATE LED = INTERNAL CABINET TEMPERATURE
2. Set the desired cooling temperature by pressing the
“up/down” arrows adjacent to the thermometer icon. When
either button is depressed and released the “SET” temperature
will flash in the LED display for approximately 5 seconds. You
can only select (change) the “SET” temperature during the
flashing LED mode. Each depression of the up/down arrows
will increase/decrease the SET temperature by increments of
1 degree. The SET temperature can be adjusted from 6C ~
14C (43F ~ 57F) After the SET temperature is established, it
will continue to flash for 5 seconds then revert back to a
steady state LED
gradually change, (increase/decrease) to reflect the true
temperature inside the cabinet.
2
mode. The steady state LED display will
