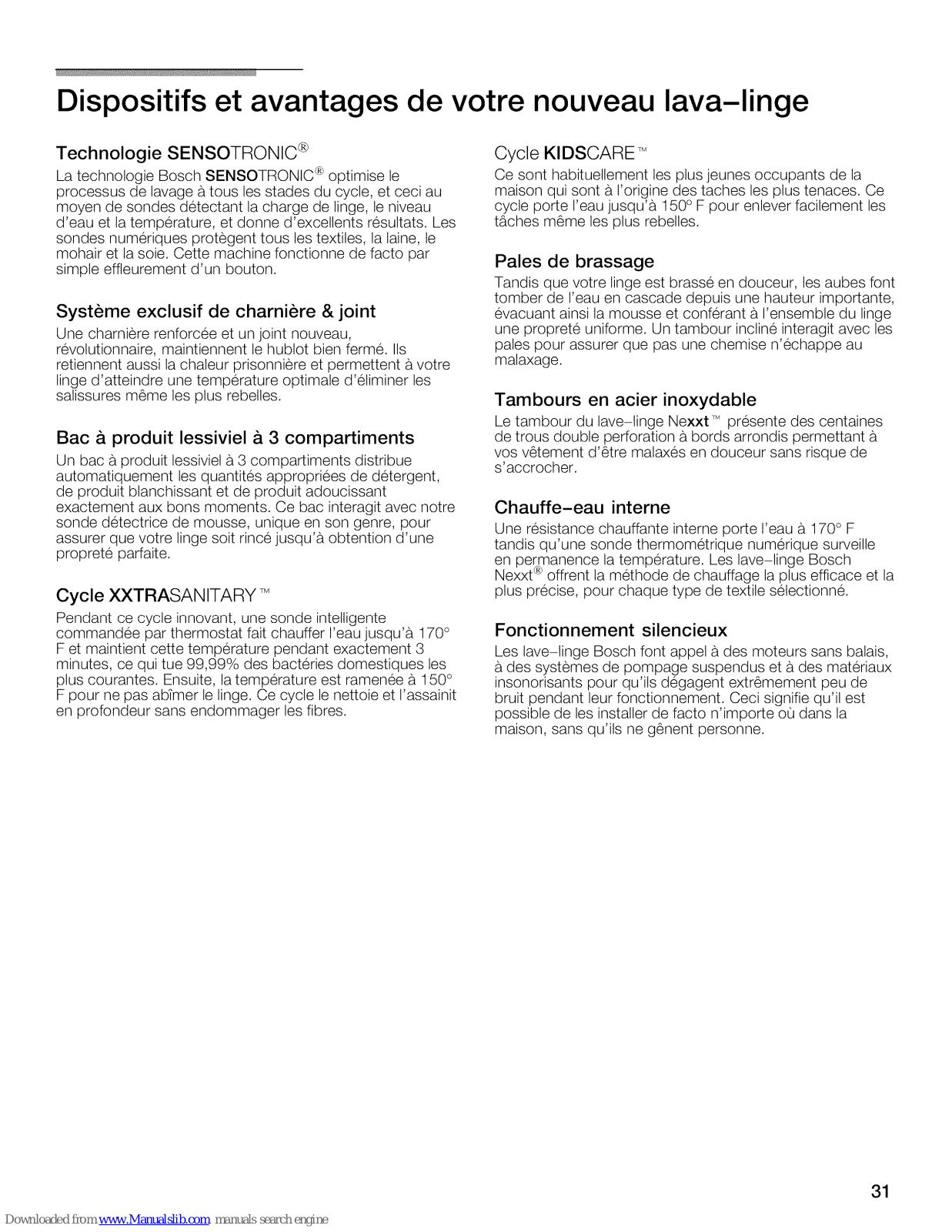

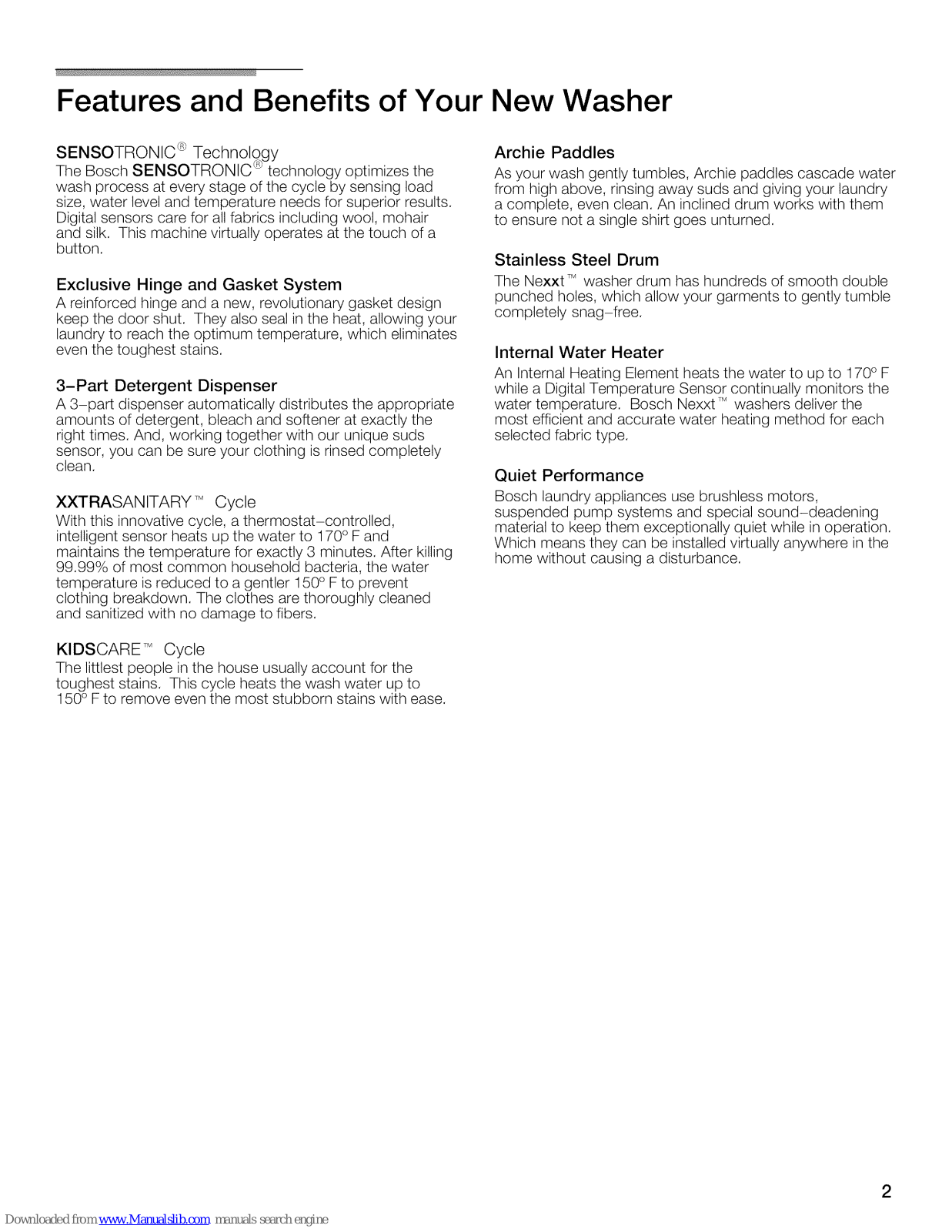

Features and Benefits of Your New Washer
SENSOTRONIC ® Technology
The Bosch SENSOTRONIC ® technology optimizes the
wash process at every stage of the cycle by sensing load
size, water level and temperature needs for superior results.
Digital sensors care for all fabrics including wool, mohair
and silk. This machine virtually operates at the touch of a
button.
Exclusive Hinge and Gasket System
A reinforced hinge and a new, revolutionary gasket design
keep the door shut. They also seal in the heat, allowing your
laundry to reach the optimum temperature, which eliminates
even the toughest stains.
3-Part Detergent Dispenser
A 3-part dispenser automatically distributes the appropriate
amounts of detergent, bleach and softener at exactly the
right times. And, working together with our unique suds
sensor, you can be sure your clothing is rinsed completely
clean.
XXTRASANITARY TMCycle
With this innovative cycle, a thermostat-controlled,
intelligent sensor heats up the water to 170° F and
maintains the temperature for exactly 3 minutes. After killing
99.99% of most common household bacteria, the water
temperature is reduced to a gentler 150° Fto prevent
clothing breakdown. The clothes are thoroughly cleaned
and sanitized with no damage to fibers.
KIDSCARE TMCycle
The littlest people in the house usually account for the
toughest stains. This cycle heats the wash water up to
150° Fto remove even the most stubborn stains with ease.
Archie Paddles
As your wash gently tumbles, Archie paddles cascade water
from high above, rinsing away suds and giving your laundry
a complete, even clean. An inclined drum works with them
to ensure not a single shirt goes unturned.
Stainless Steel Drum
The Nexxt TMwasher drum has hundreds of smooth double
punched holes, which allow your garments to gently tumble
completely snag-free.
Internal Water Heater
An Internal Heating Element heats the water to up to 170° F
while a Digital Temperature Sensor continually monitors the
water temperature. Bosch NexxtTMwashers deliver the
most efficient and accurate water heating method for each
selected fabric type.
Quiet Performance
Bosch laundry appliances use brushless motors,
suspended pump systems and special sound-deadening
material to keep them exceptionally quiet while in operation.
Which means they can be installed virtually anywhere in the
home without causing a disturbance.
2

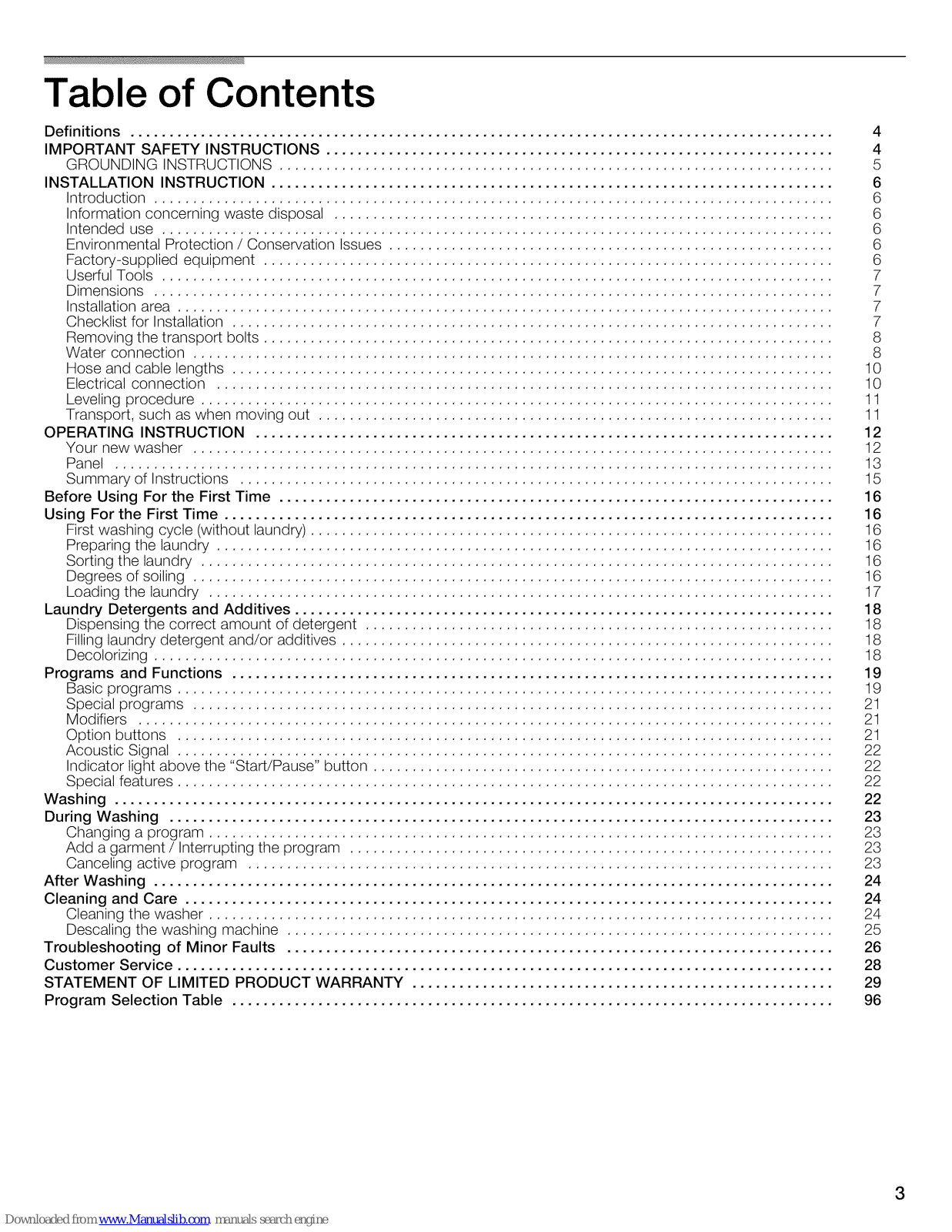

Table of Contents
Definitions ..........................................................................................
IMPORTANT SAFETY INSTRUCTIONS .................................................................
GROUNDING INSTRUCTIONS .......................................................................

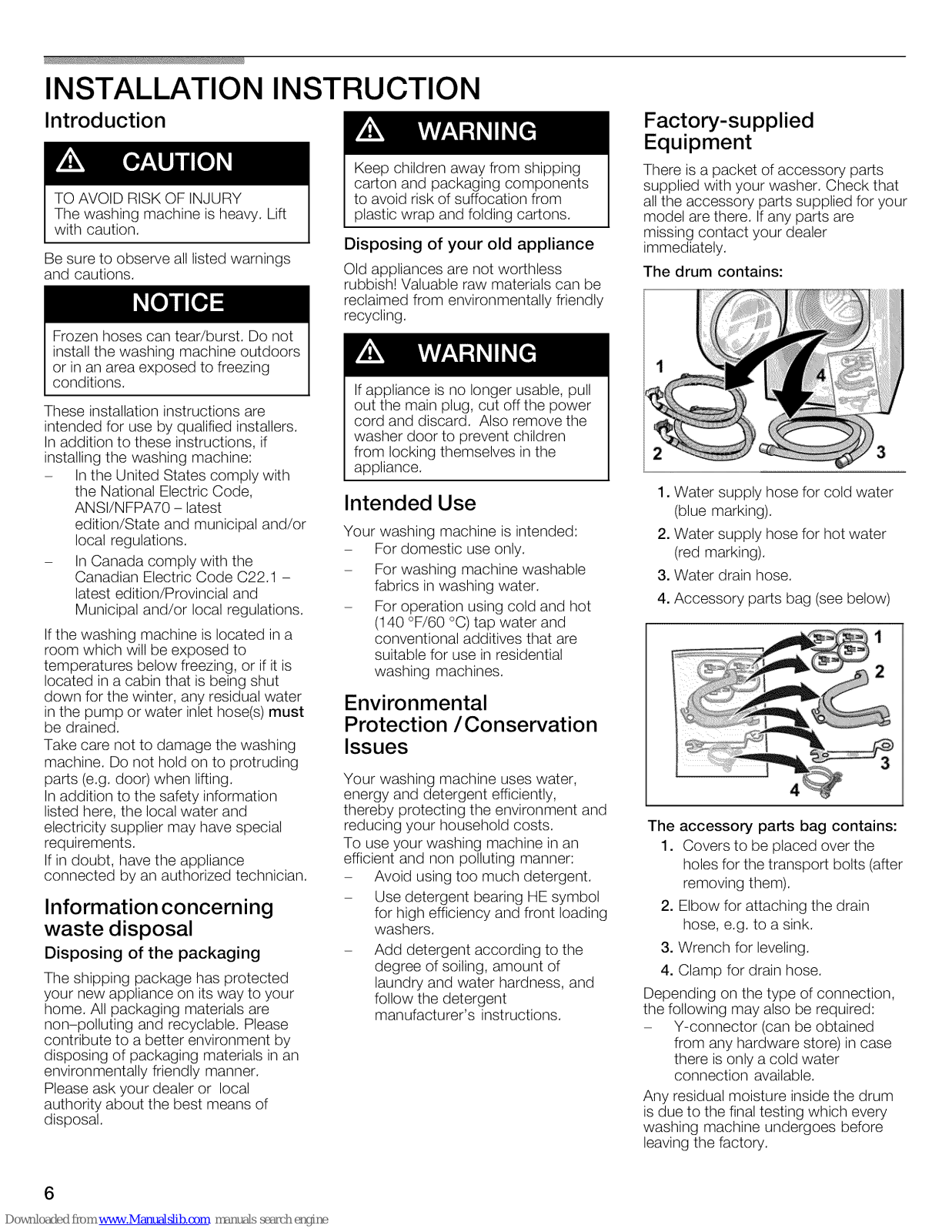

INSTALLATION INSTRUCTION ........................................................................
Introduction .......................................................................................
Information concerning waste disposal ................................................................
Intended use ......................................................................................
Environmental Protection / Conservation Issues .........................................................
Factory-supplied equipment .........................................................................
Userful Tools ......................................................................................

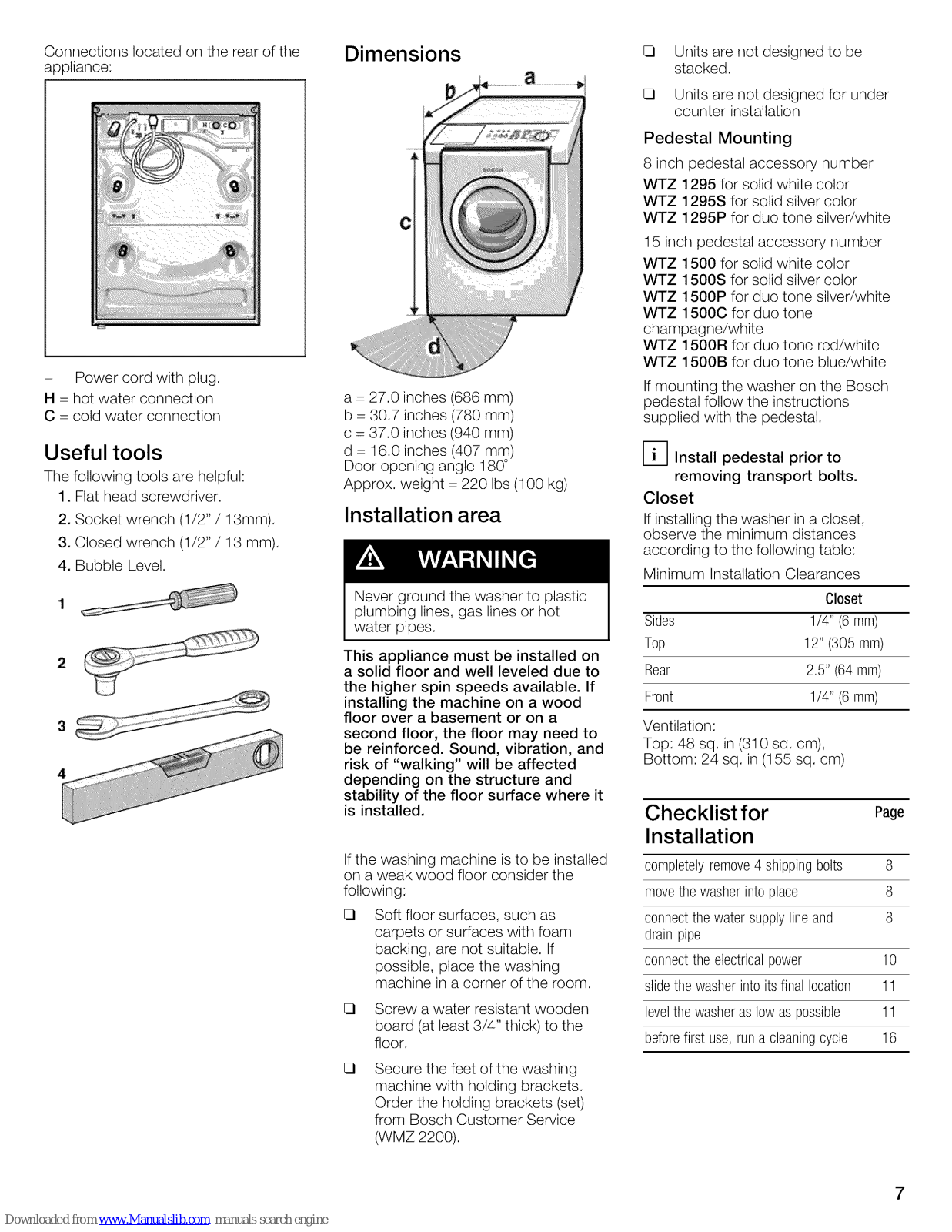

Dimensions .......................................................................................
Installation area ....................................................................................

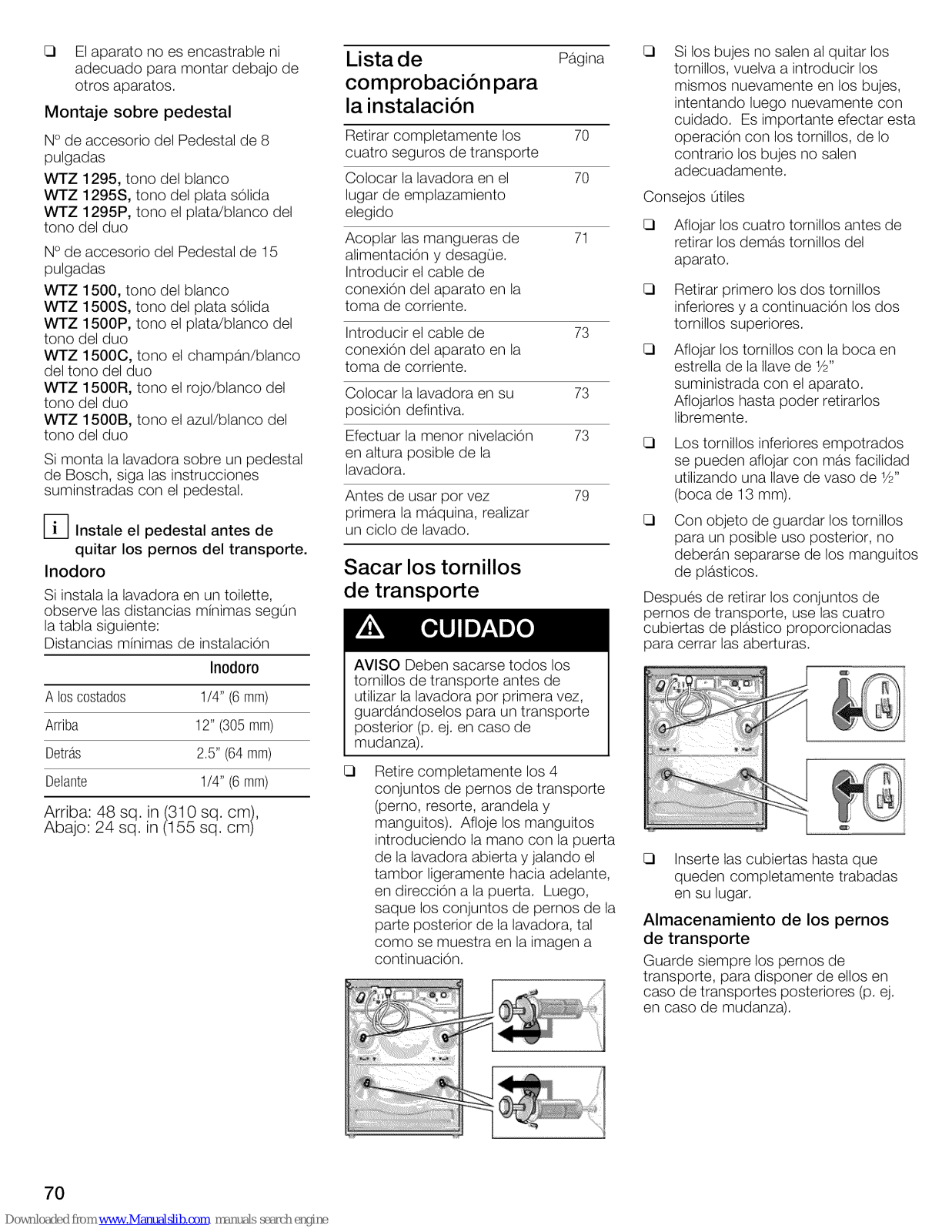

Checklist for Installation .............................................................................
Removing the transport bolts .........................................................................

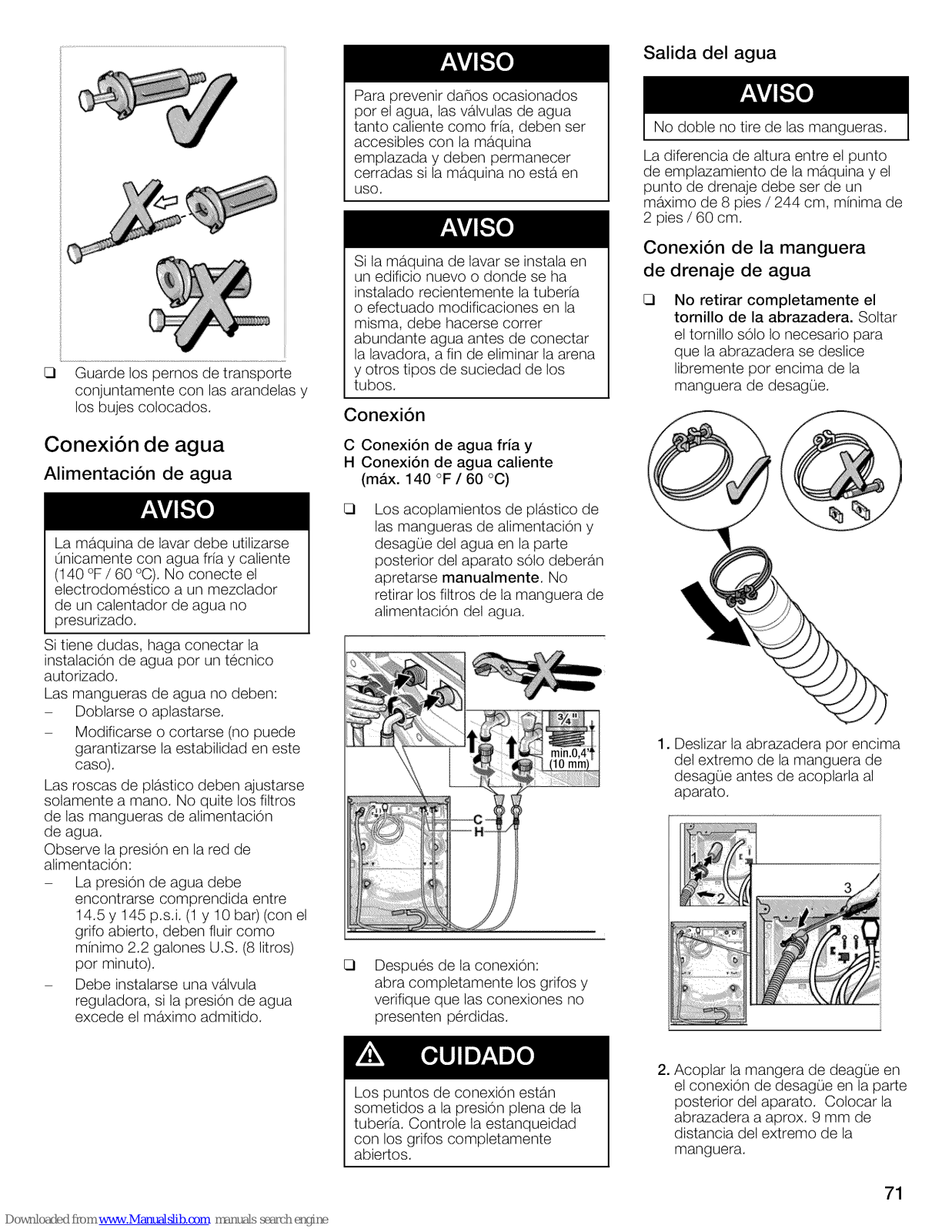

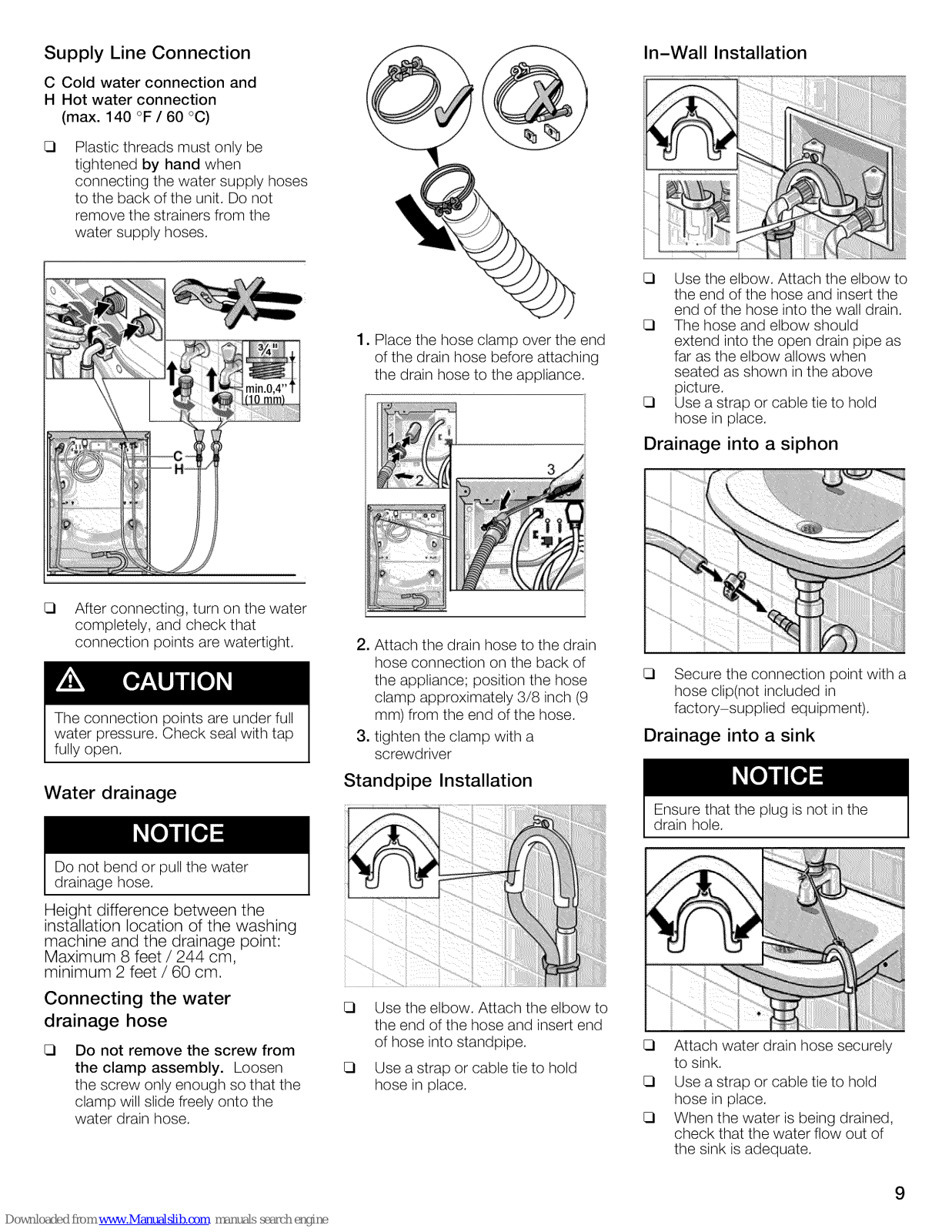

Water connection ..................................................................................

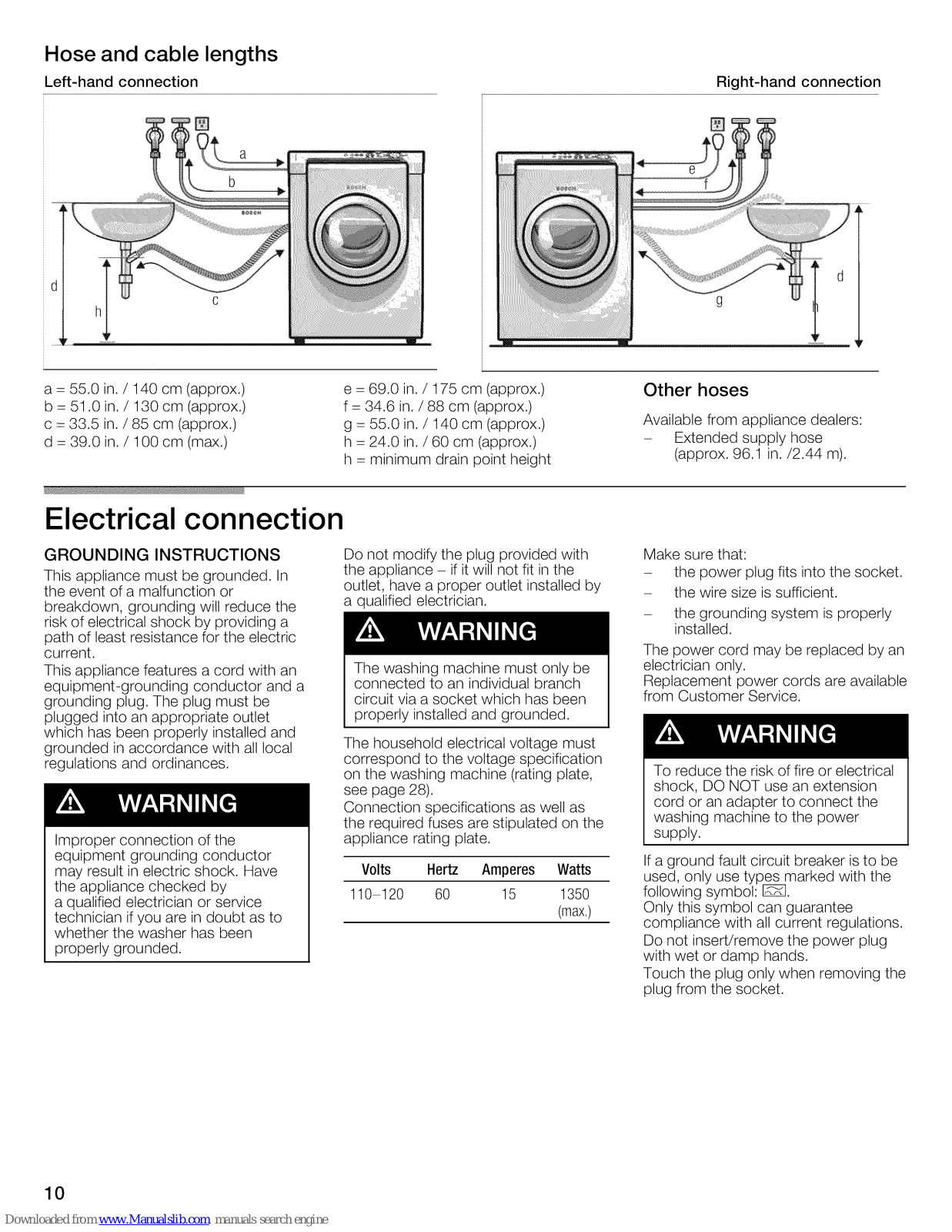

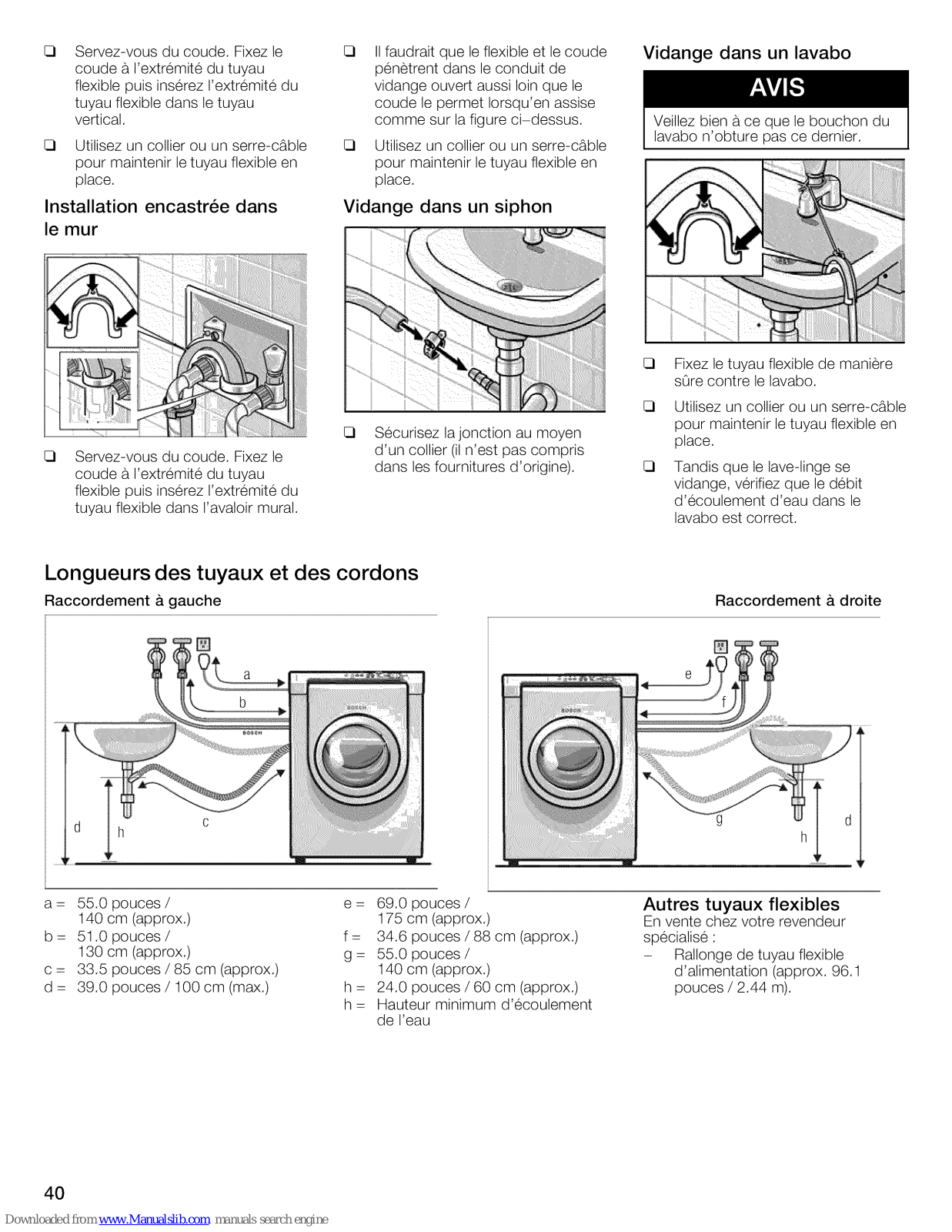

Hose and cable lengths .............................................................................
Electrical connection ...............................................................................

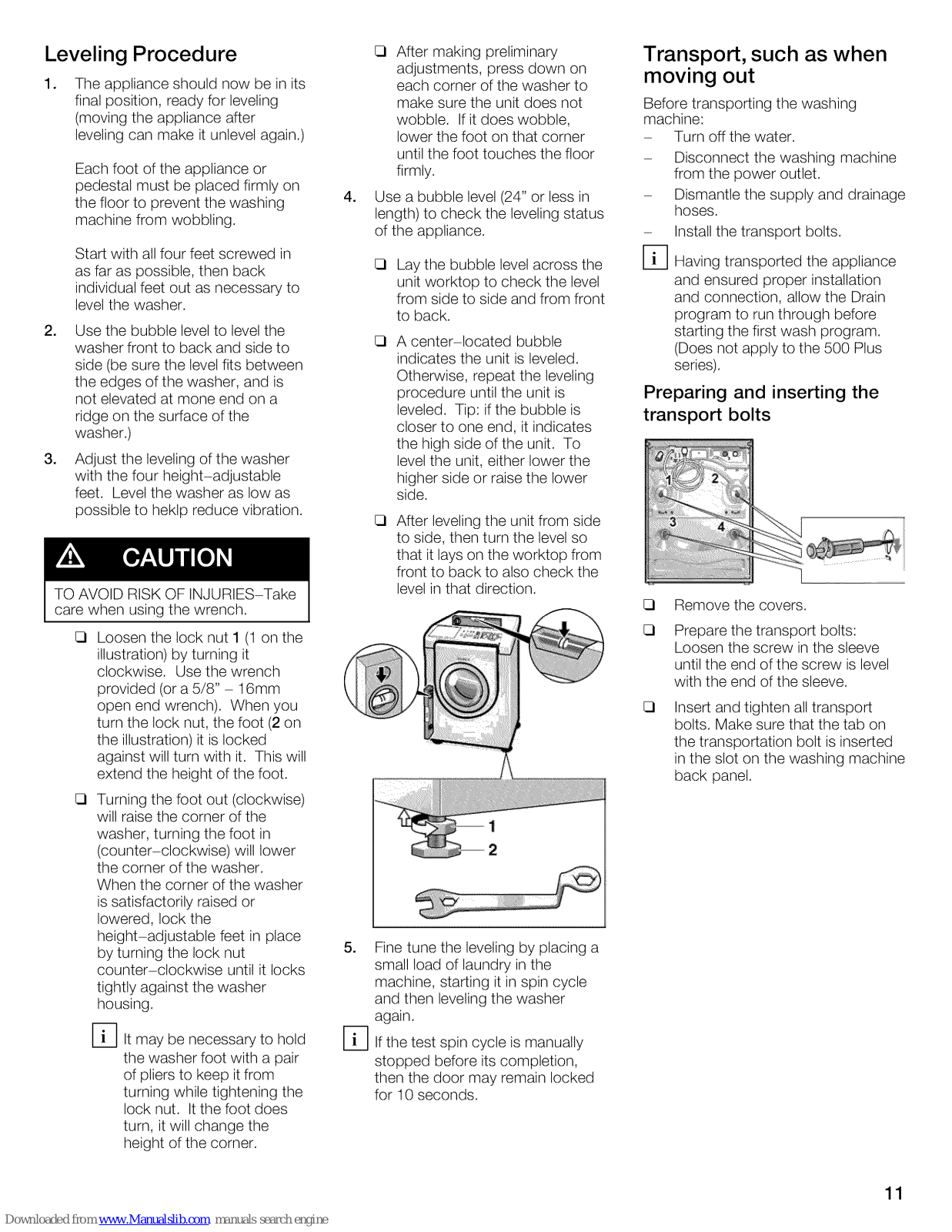

Leveling procedure .................................................................................

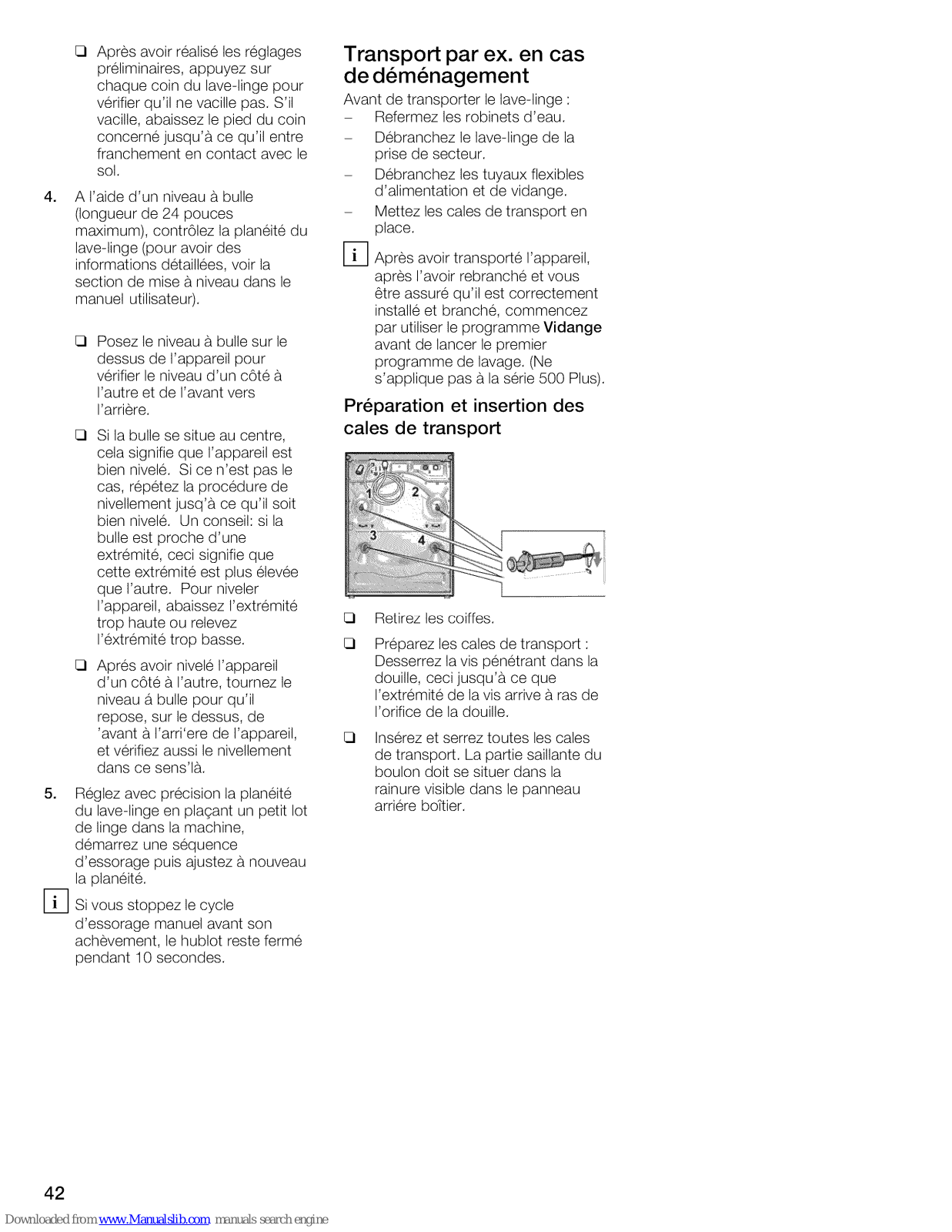

Transport, such as when moving out ..................................................................
OPERATING INSTRUCTION ..........................................................................

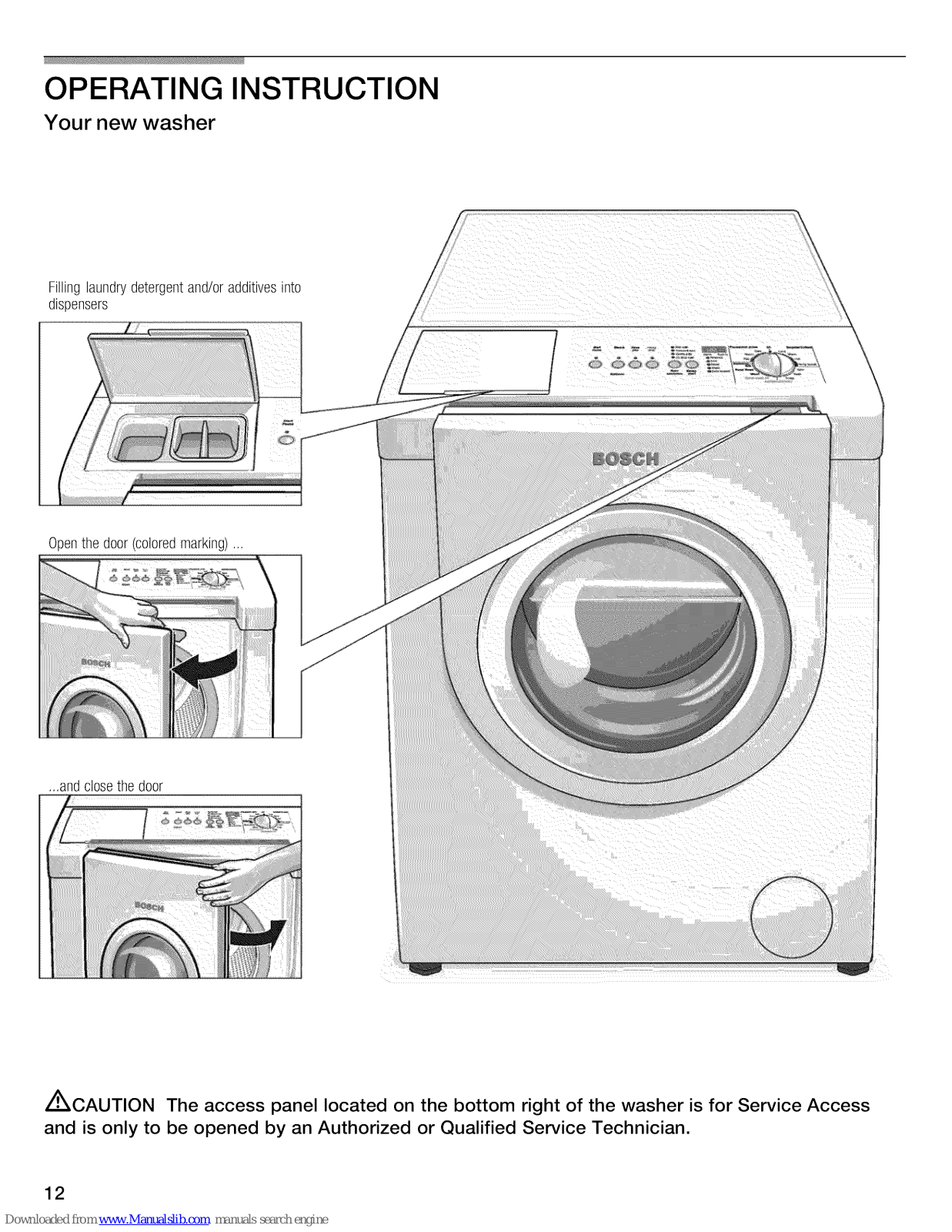

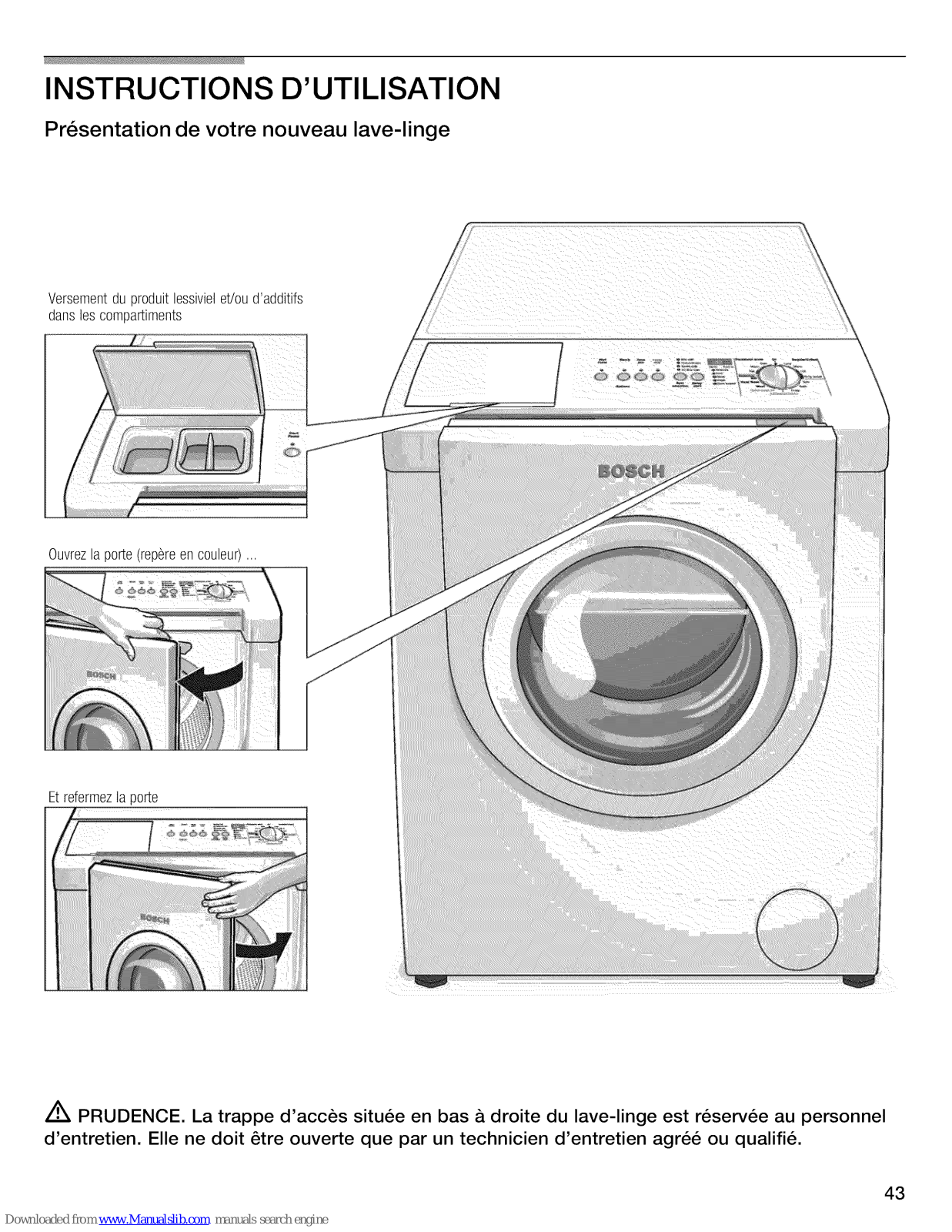

Your new washer ..................................................................................

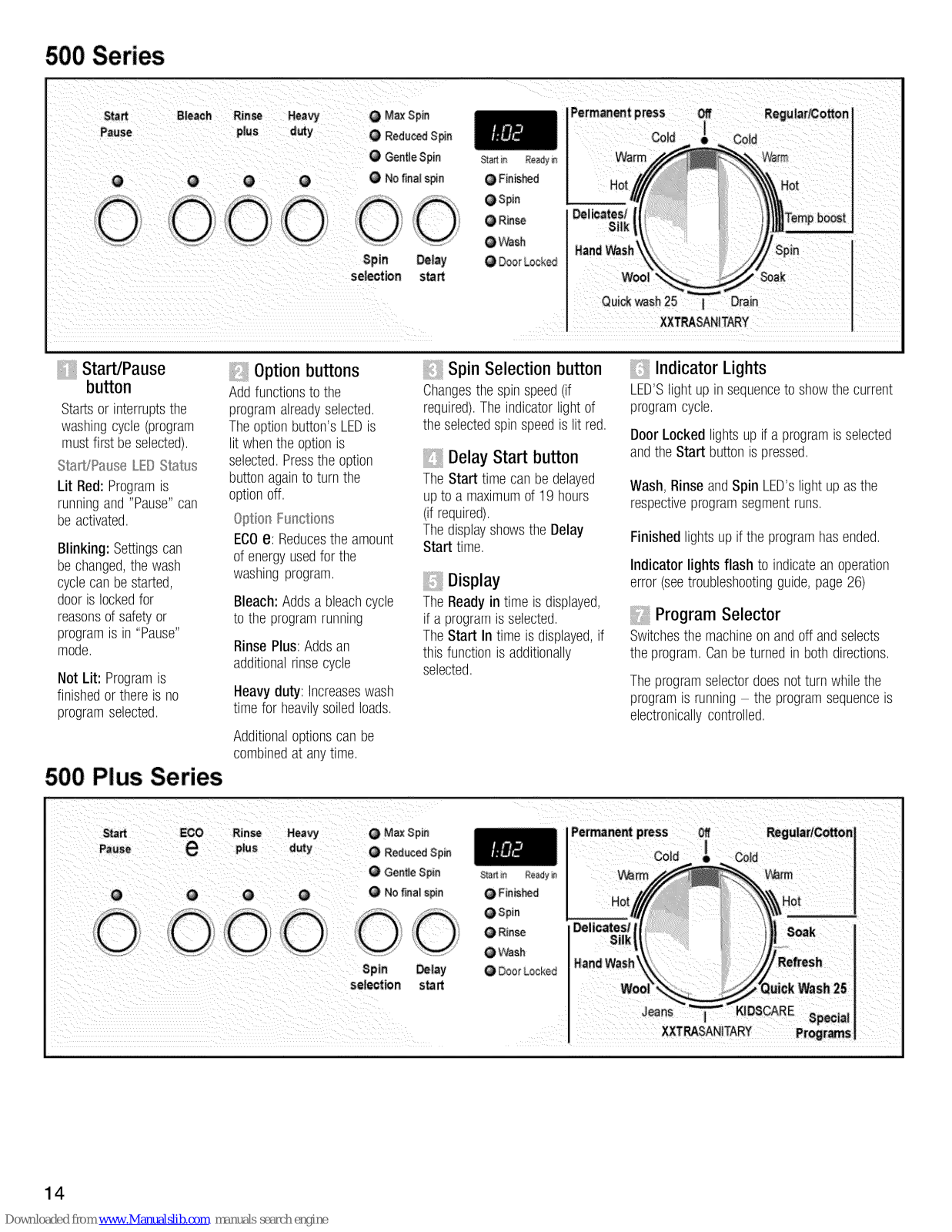

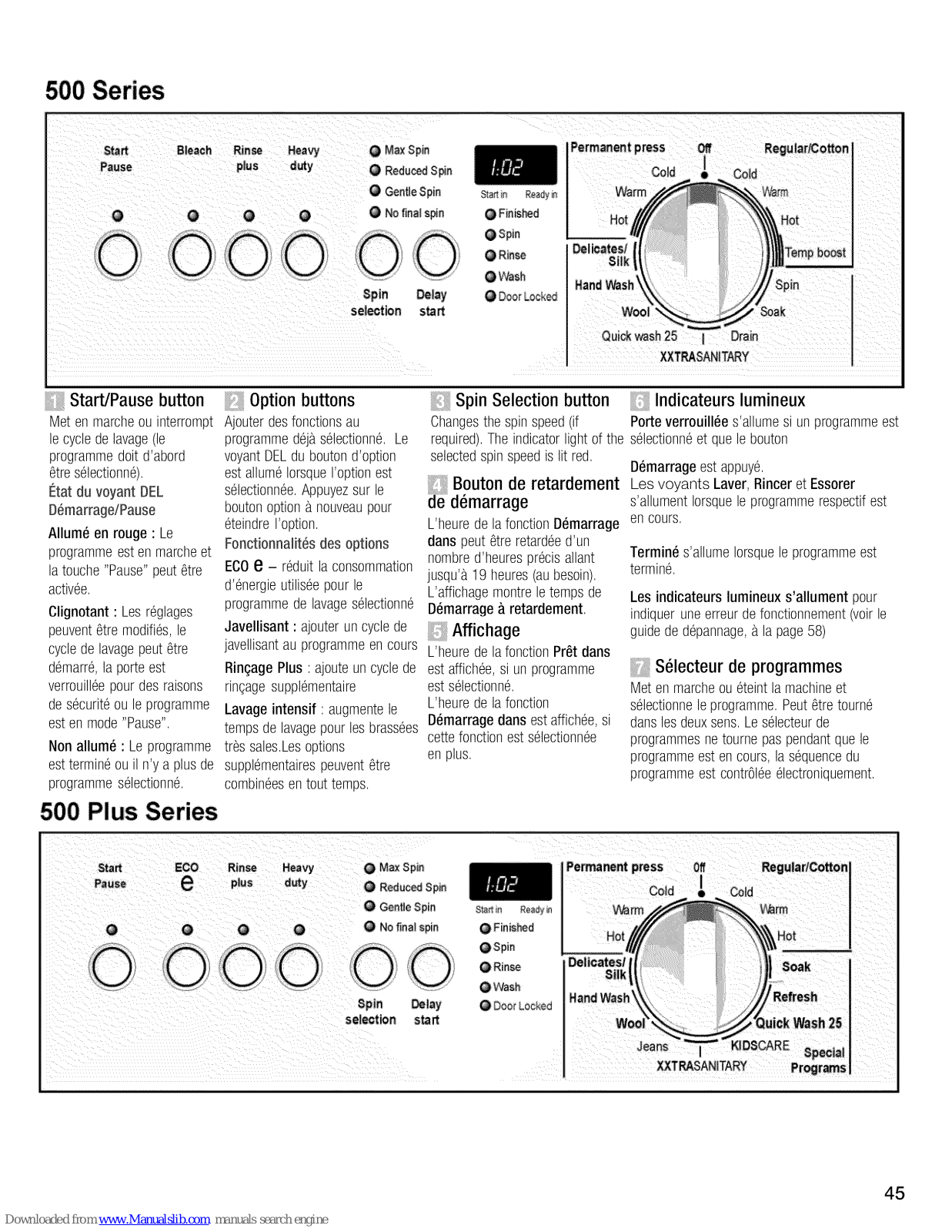

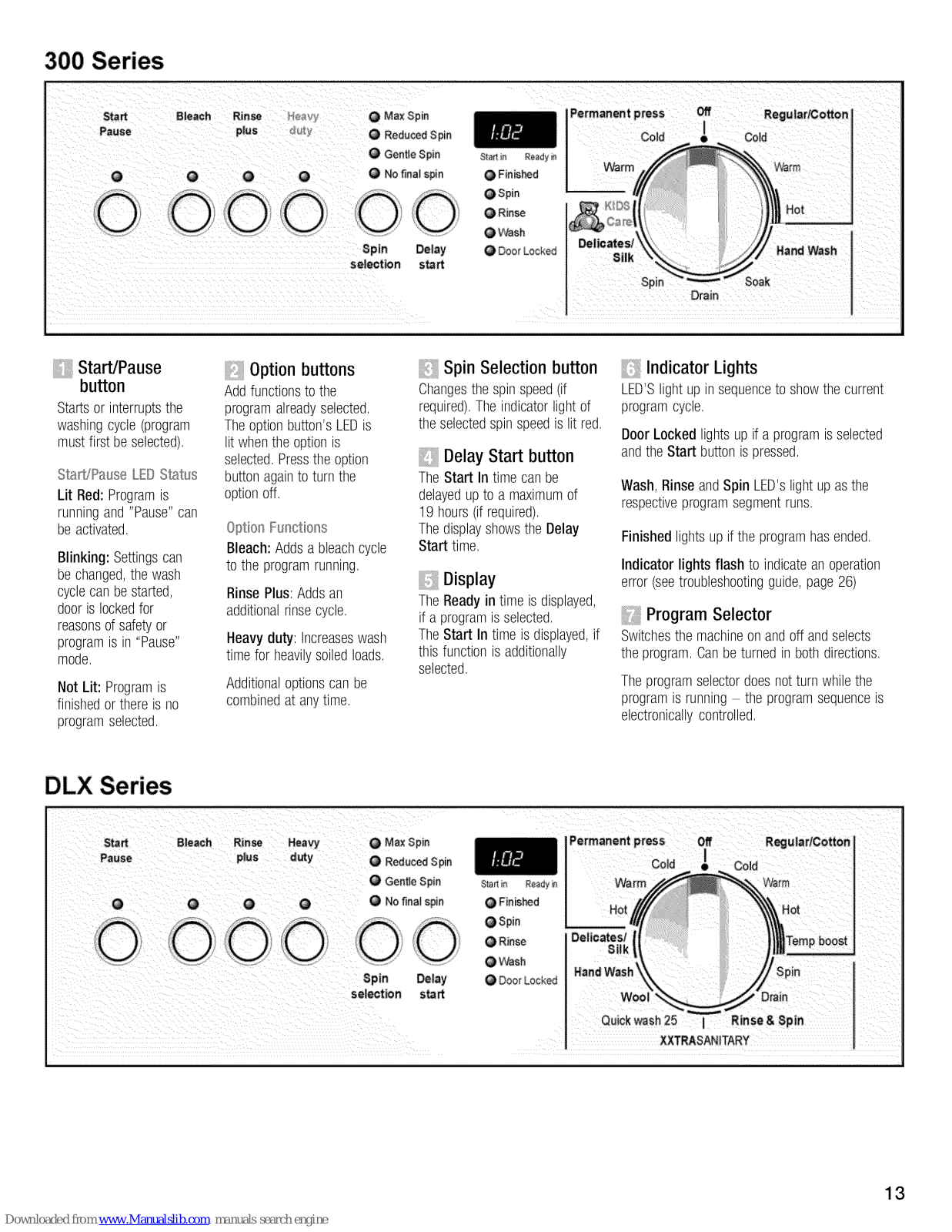

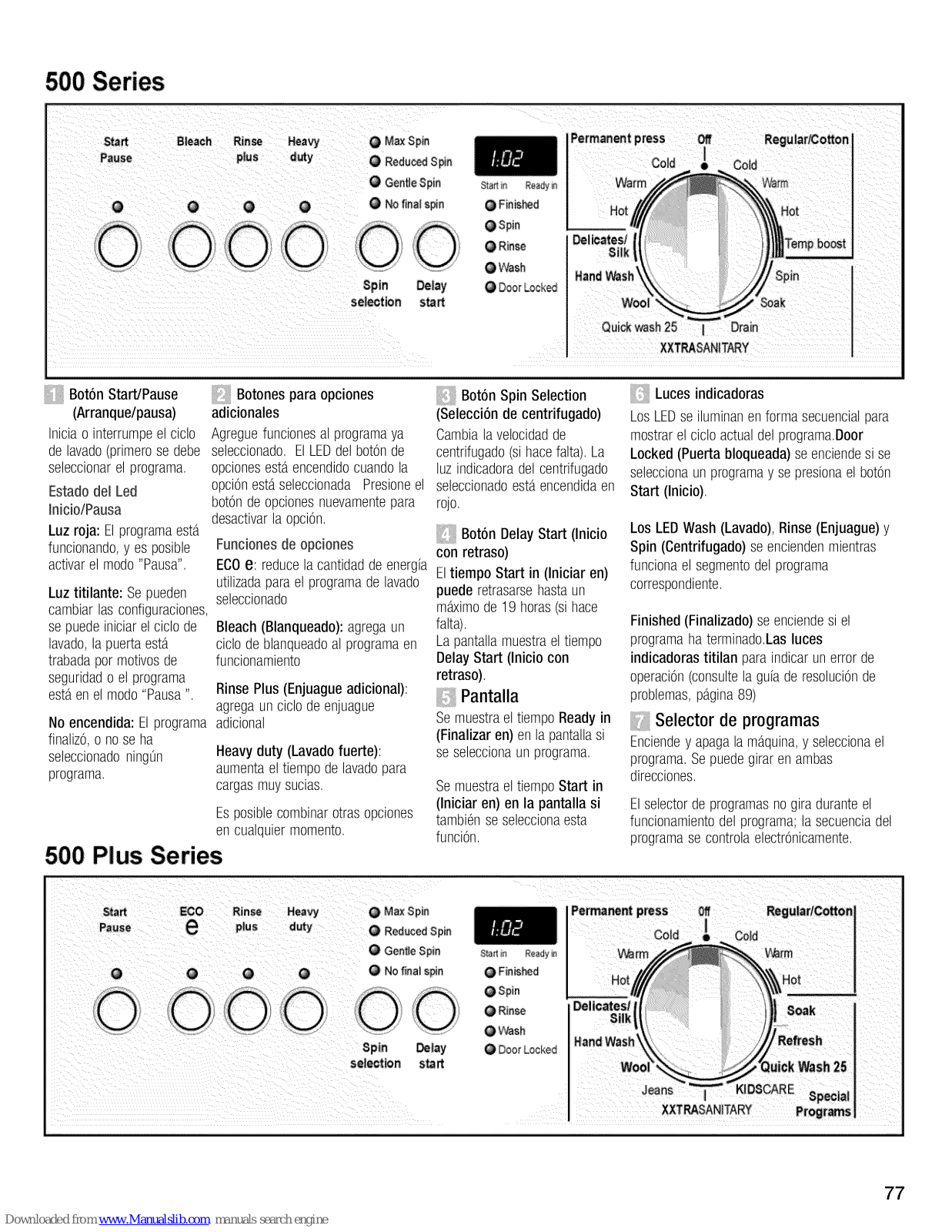

Panel ............................................................................................

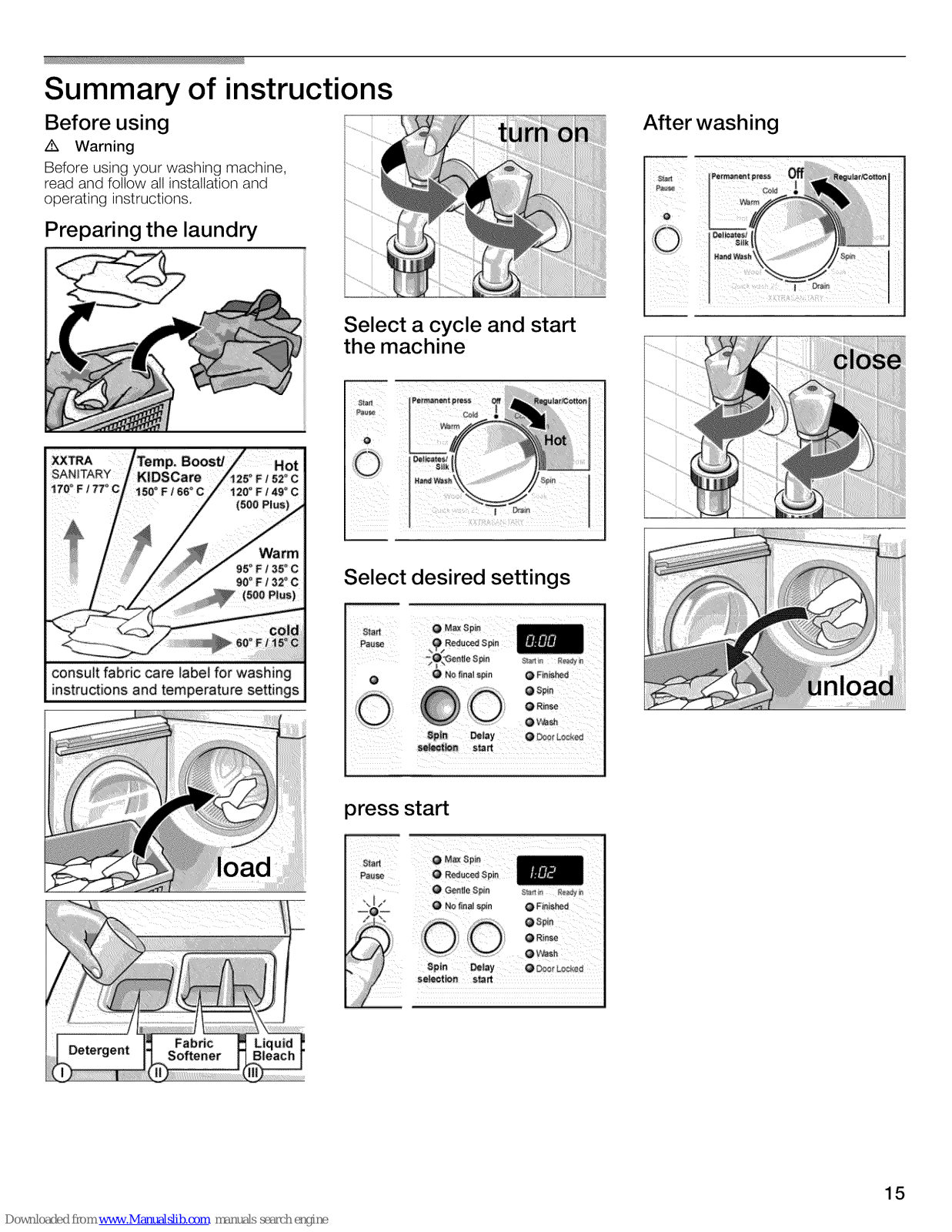

Summary of Instructions ............................................................................

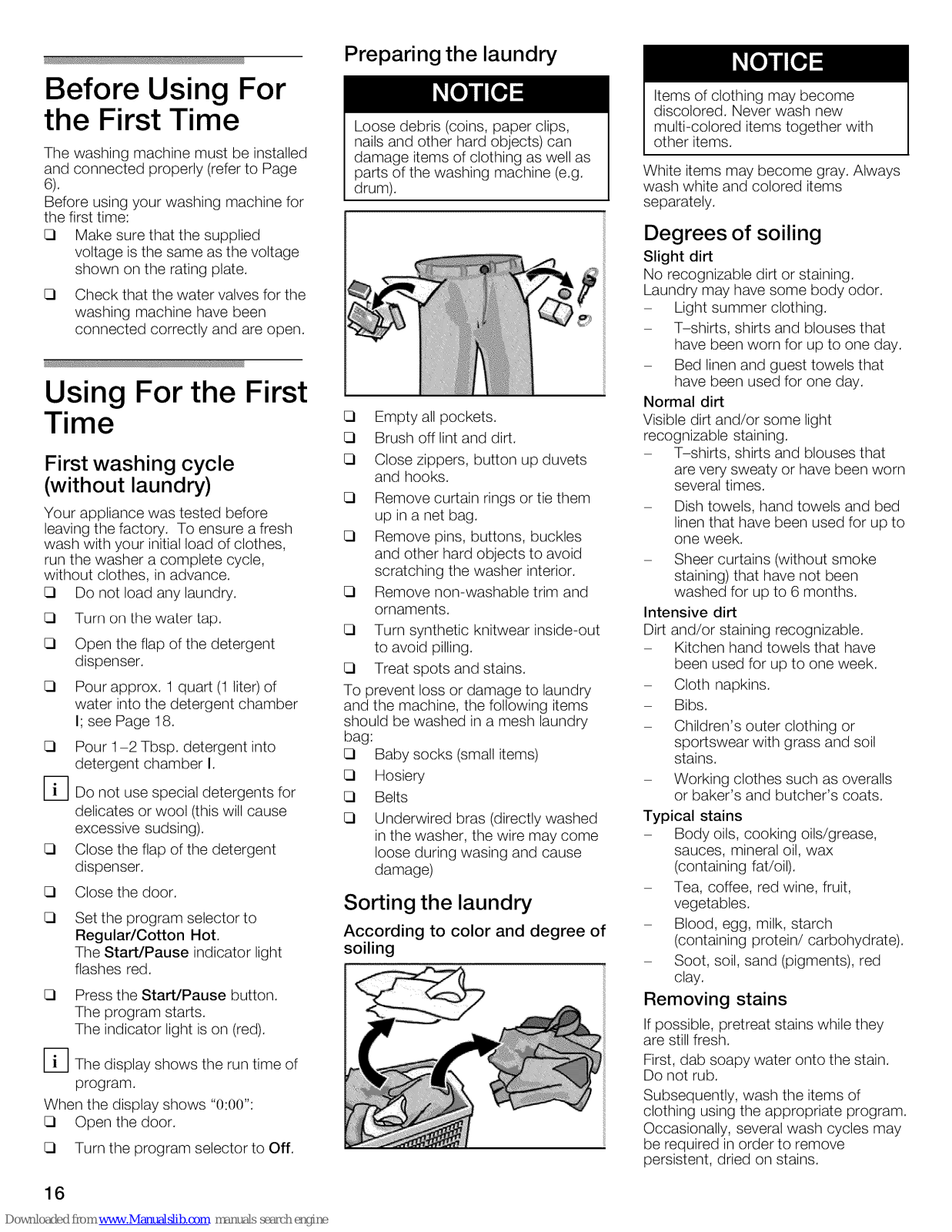

Before Using For the First Time .......................................................................
Using For the First Time ..............................................................................
First washing cycle (without laundry) ...................................................................
Preparing the laundry ...............................................................................

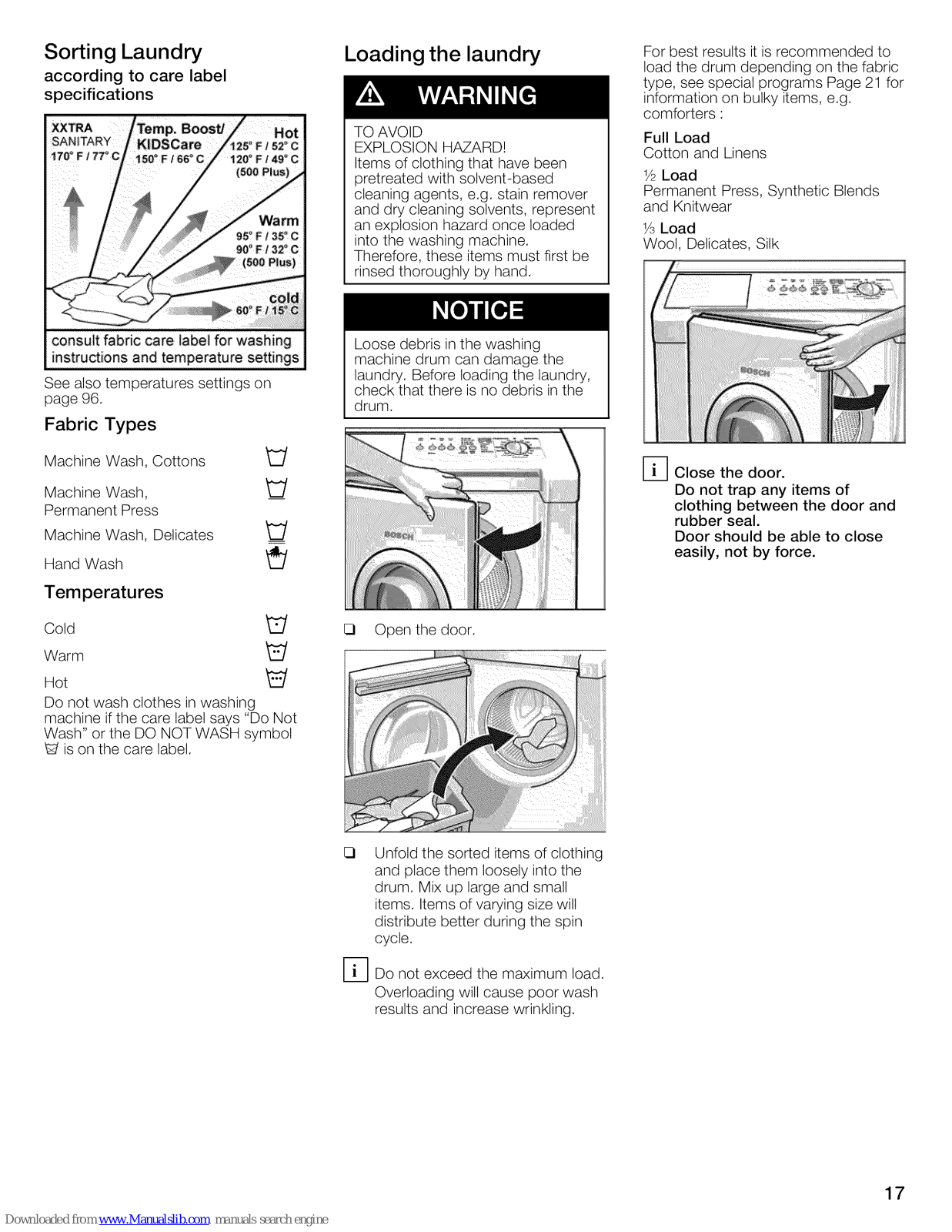

Sorting the laundry .................................................................................
Degrees of soiling ..................................................................................
Loading the laundry ................................................................................

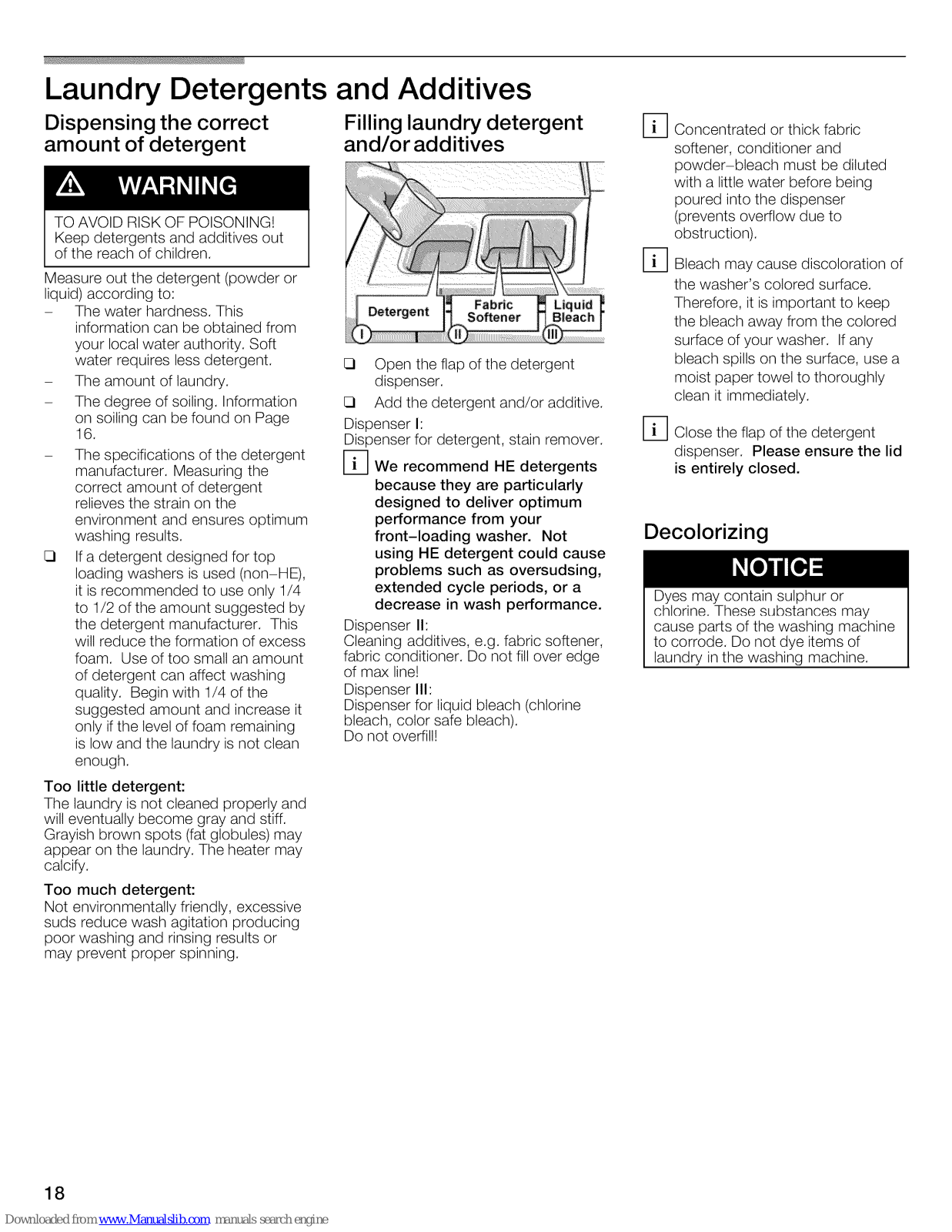

Laundry Detergents and Additives .....................................................................
Dispensing the correct amount of detergent ............................................................
Filling laundry detergent and/or additives ...............................................................
Decolorizing .......................................................................................

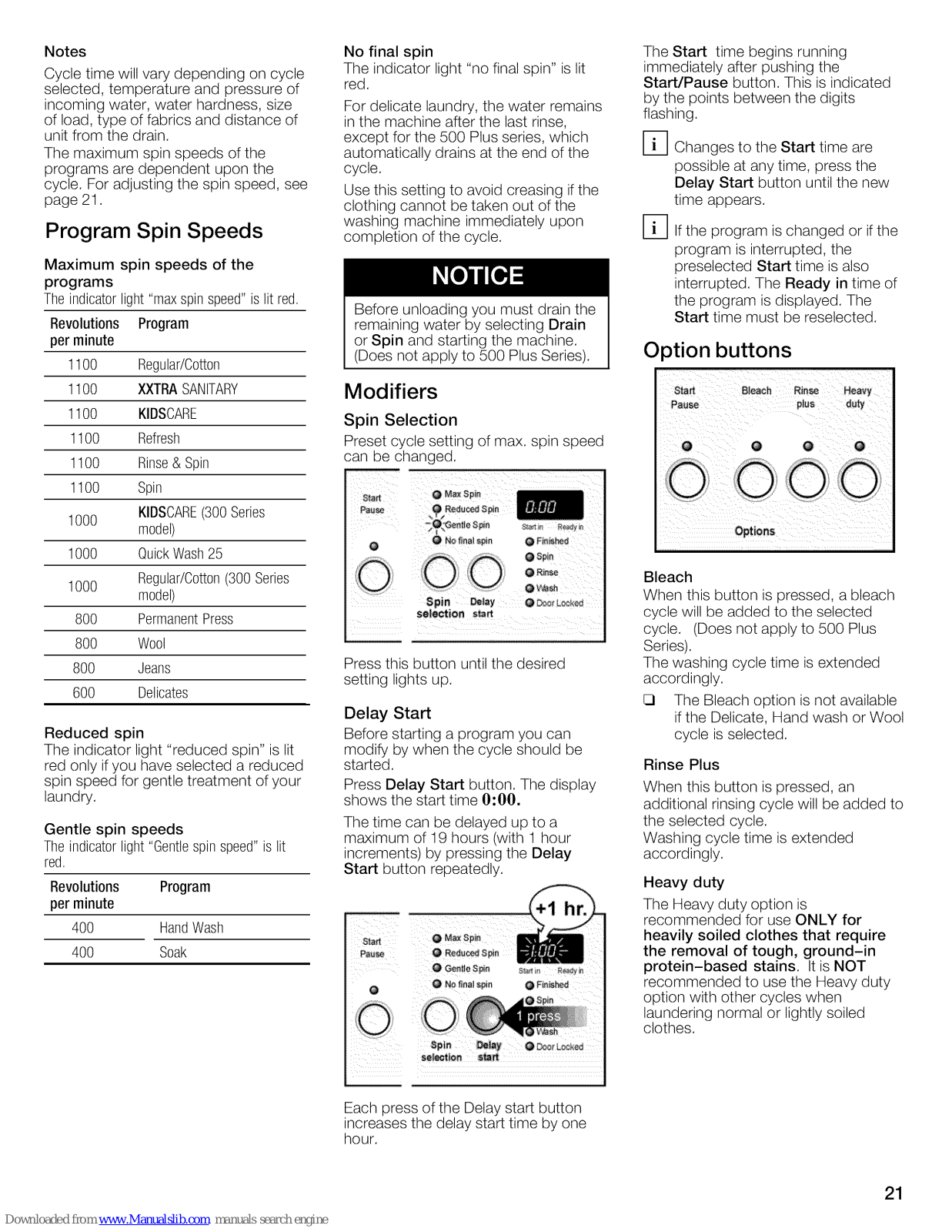

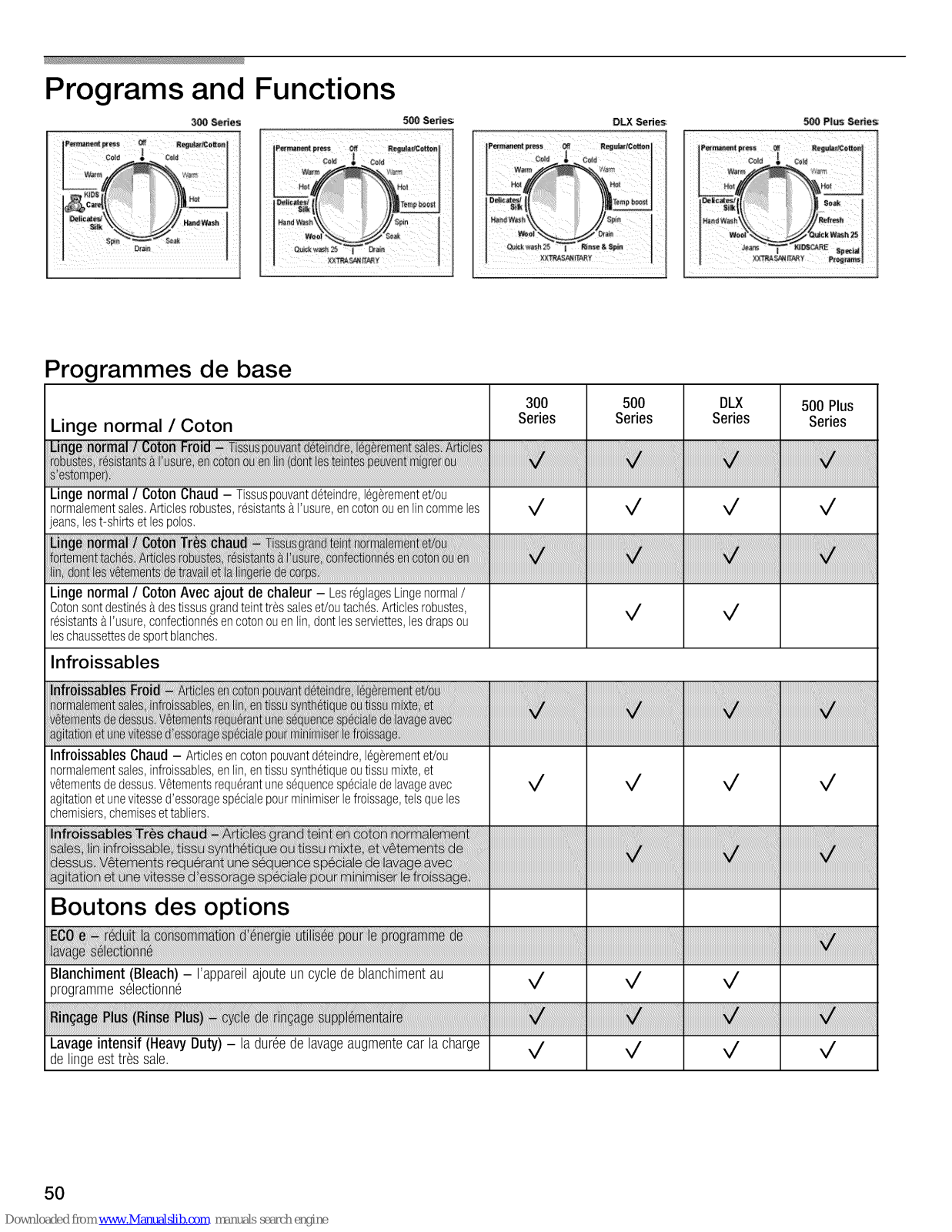

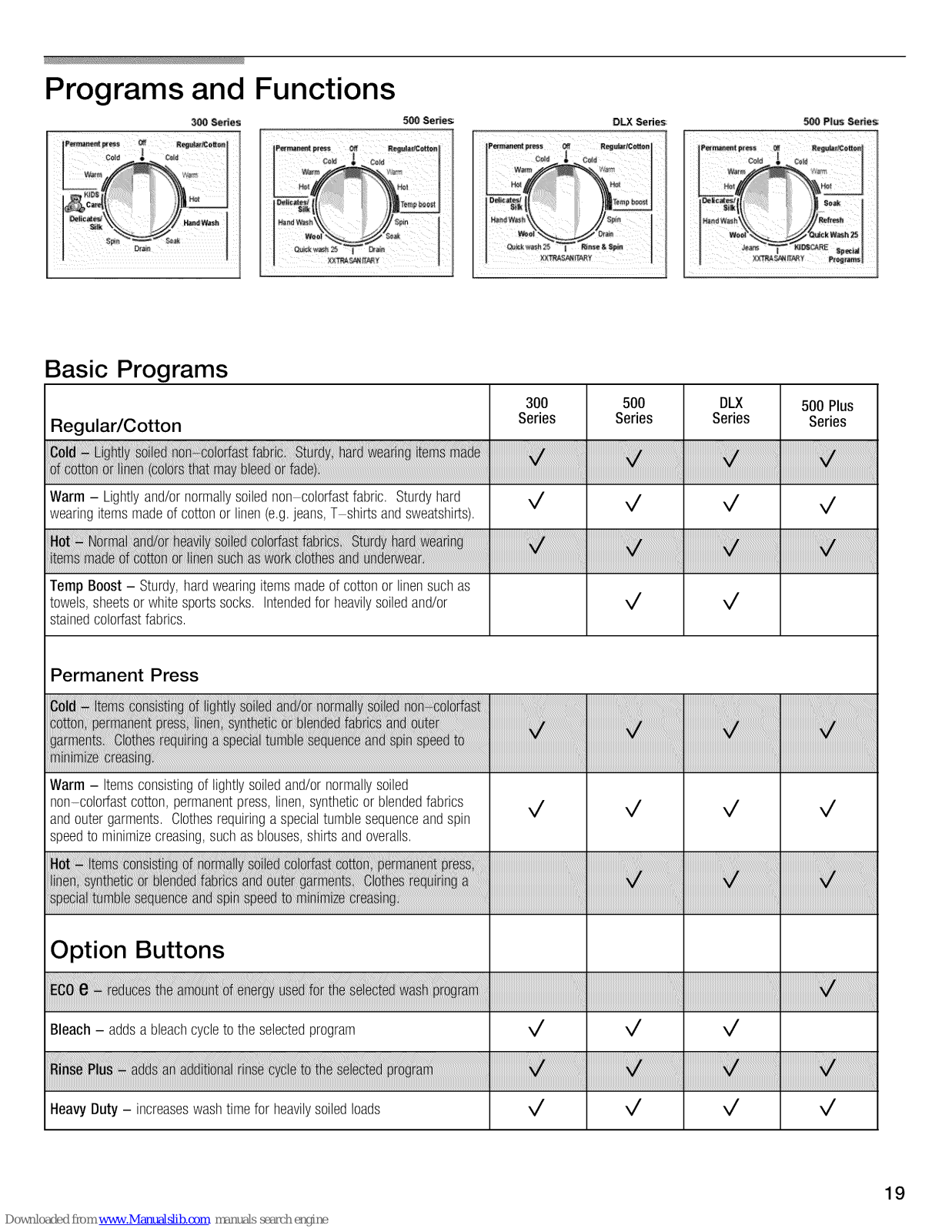

Programs and Functions .............................................................................
Basic programs ....................................................................................

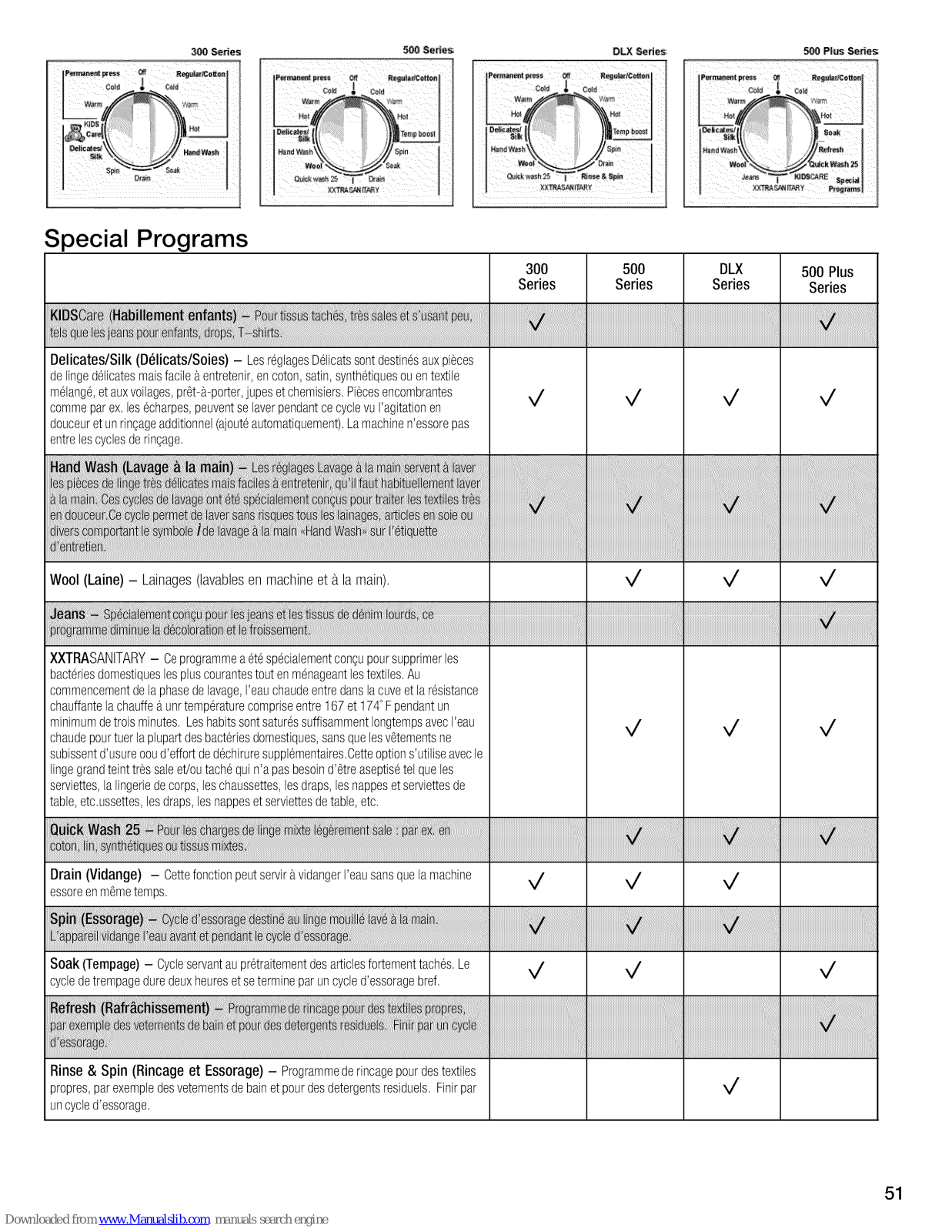

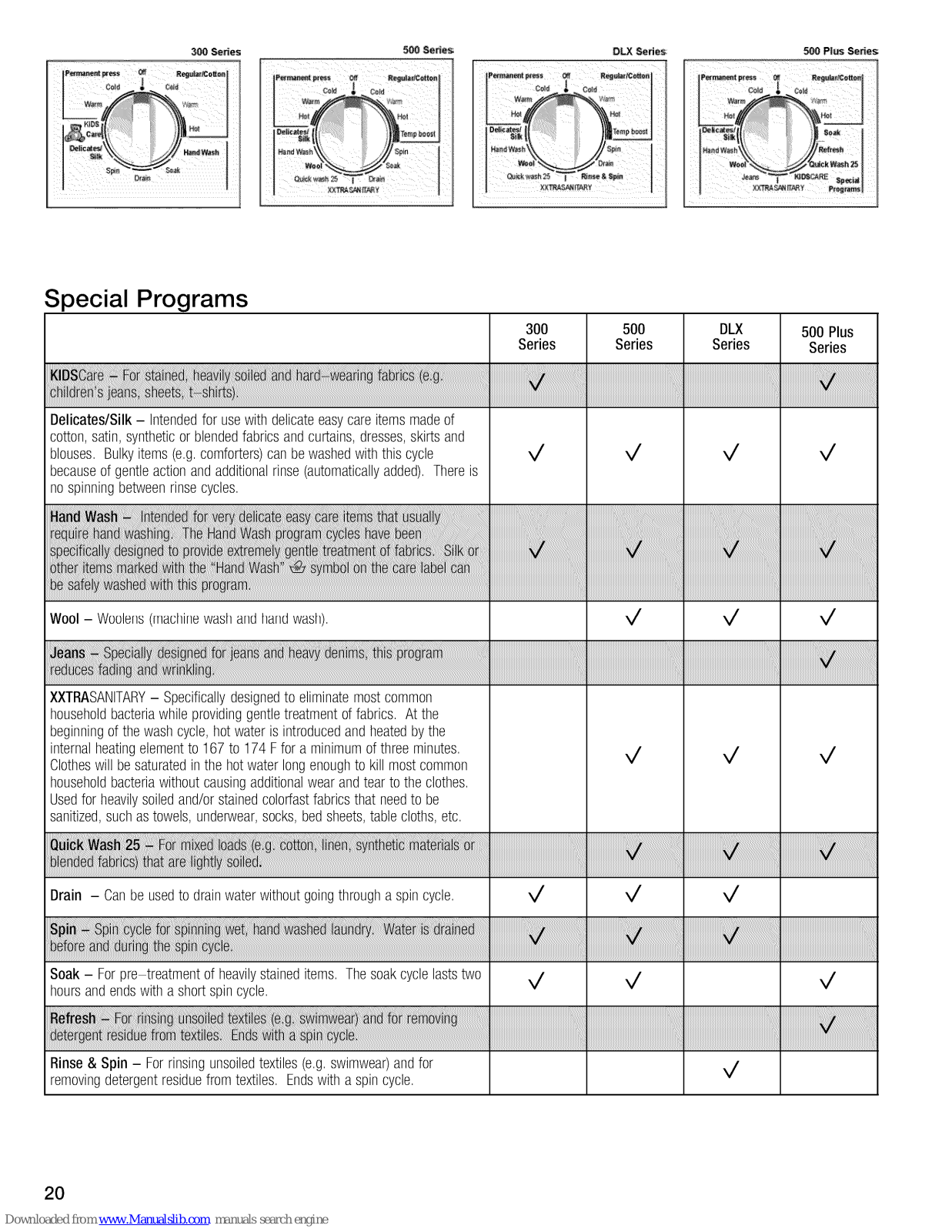

Special programs ..................................................................................
Modifiers .........................................................................................
Option buttons ....................................................................................

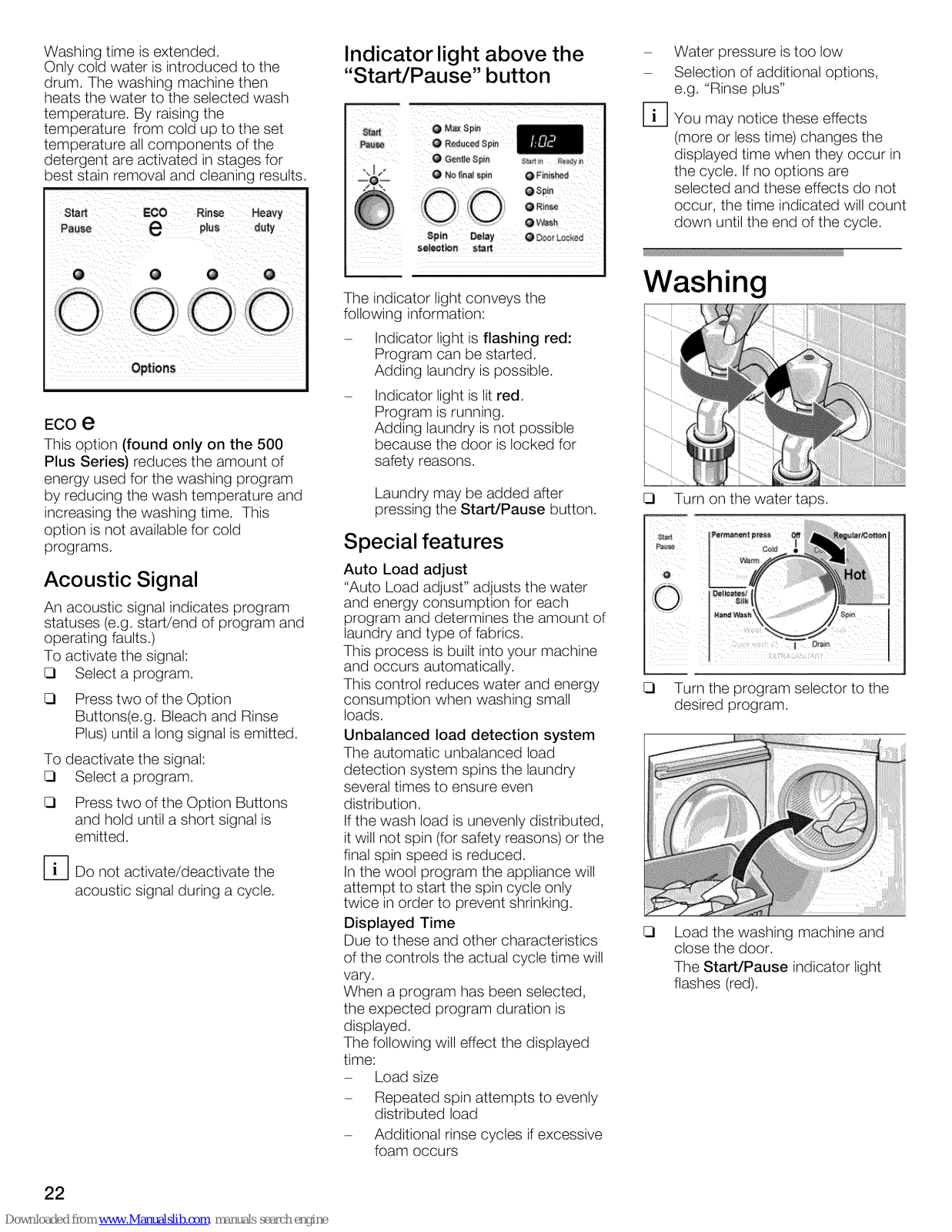

Acoustic Signal ....................................................................................
Indicator light above the "Start/Pause" button ...........................................................
Special features ....................................................................................
Washing ............................................................................................

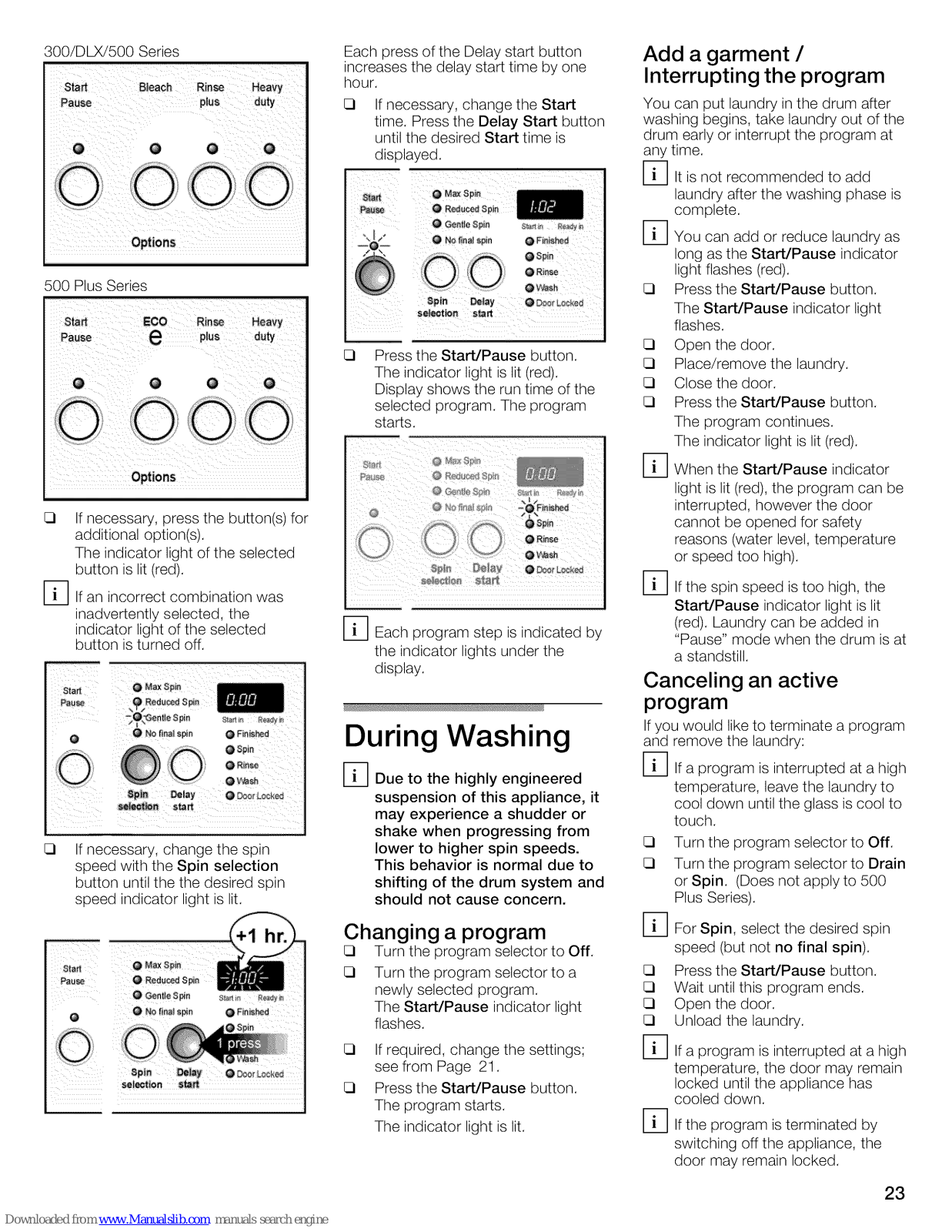

During Washing .....................................................................................
Changing a program ................................................................................
Add a garment / Interrupting the program ..............................................................
Canceling active program ...........................................................................
After Washing .......................................................................................
Cleaning and Care ...................................................................................

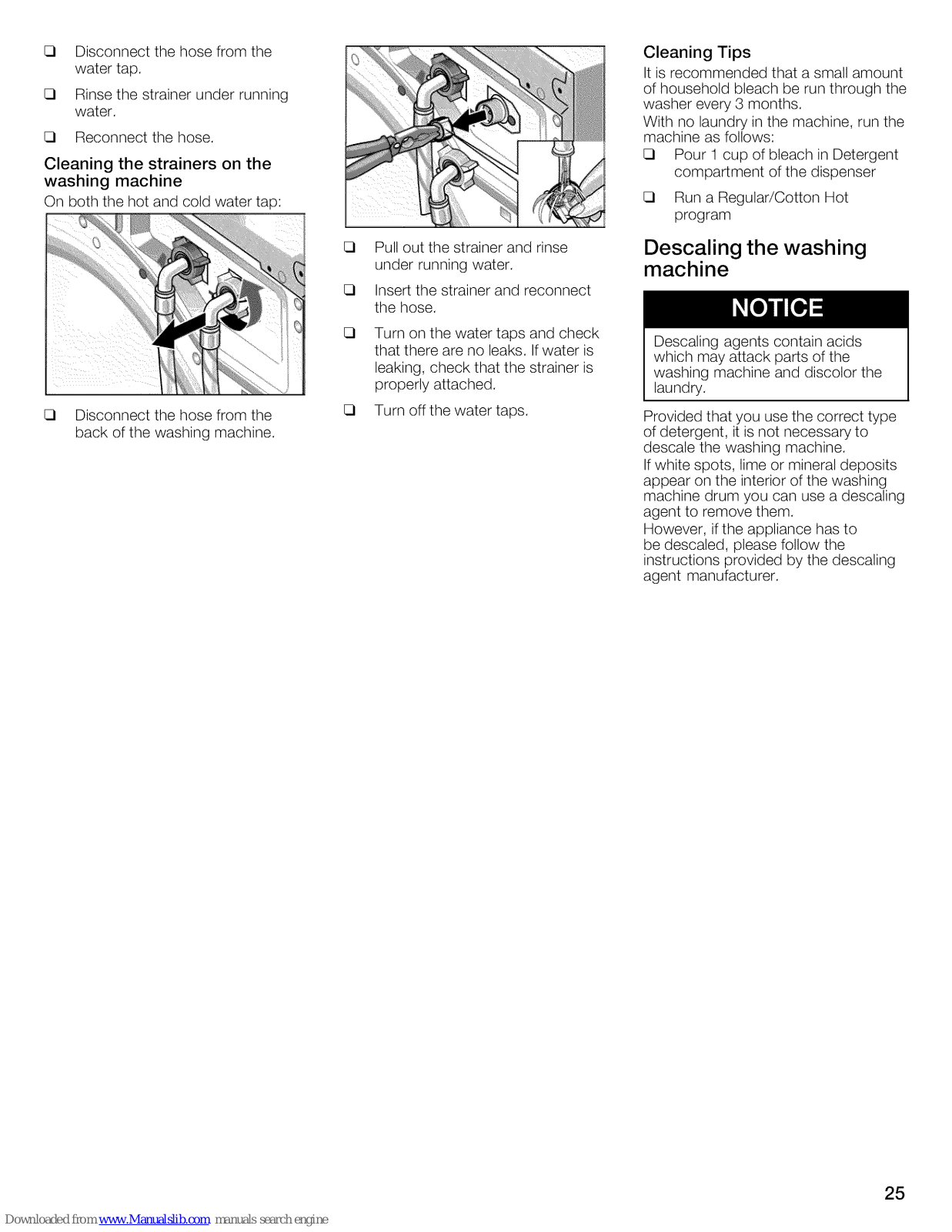

Cleaning the washer ................................................................................
Descaling the washing machine ......................................................................

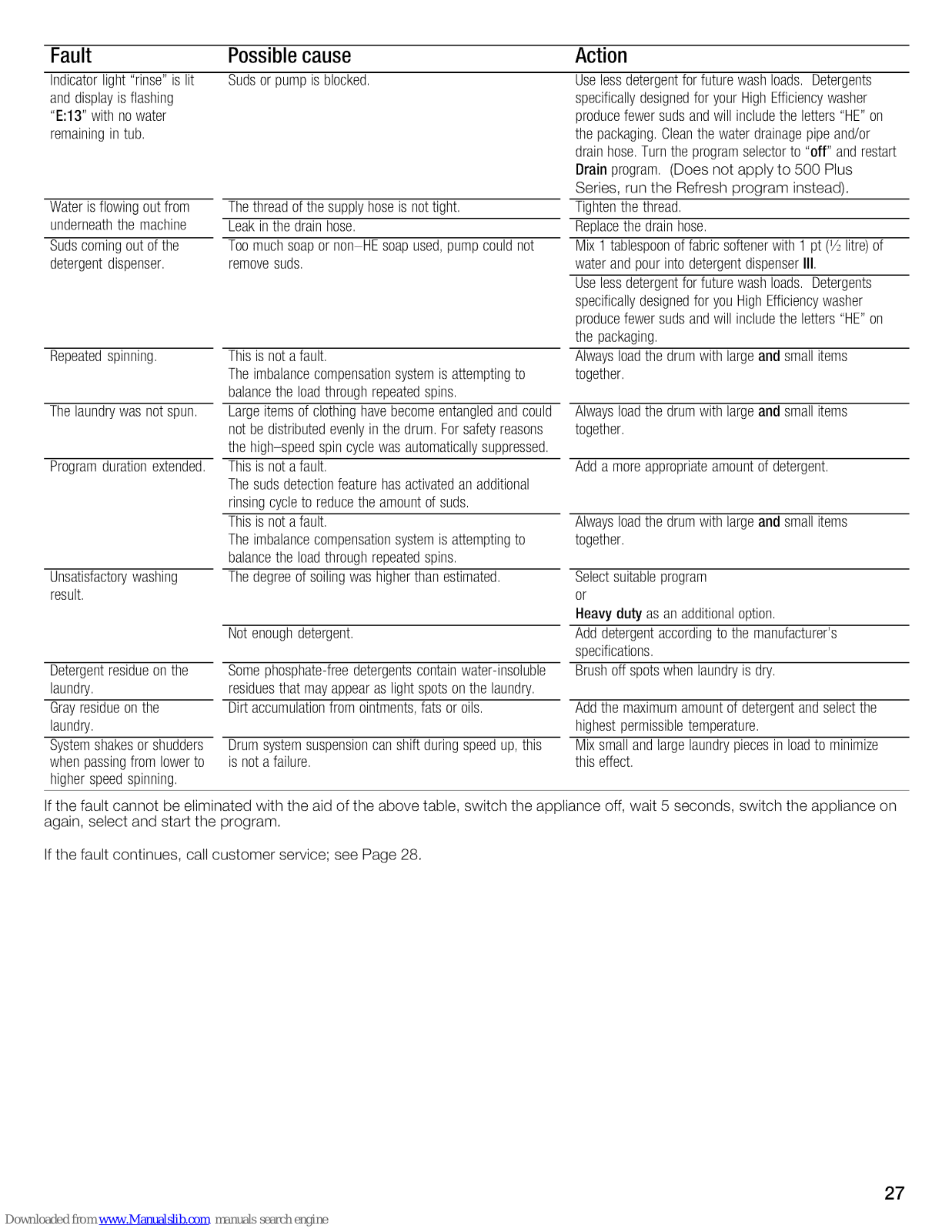

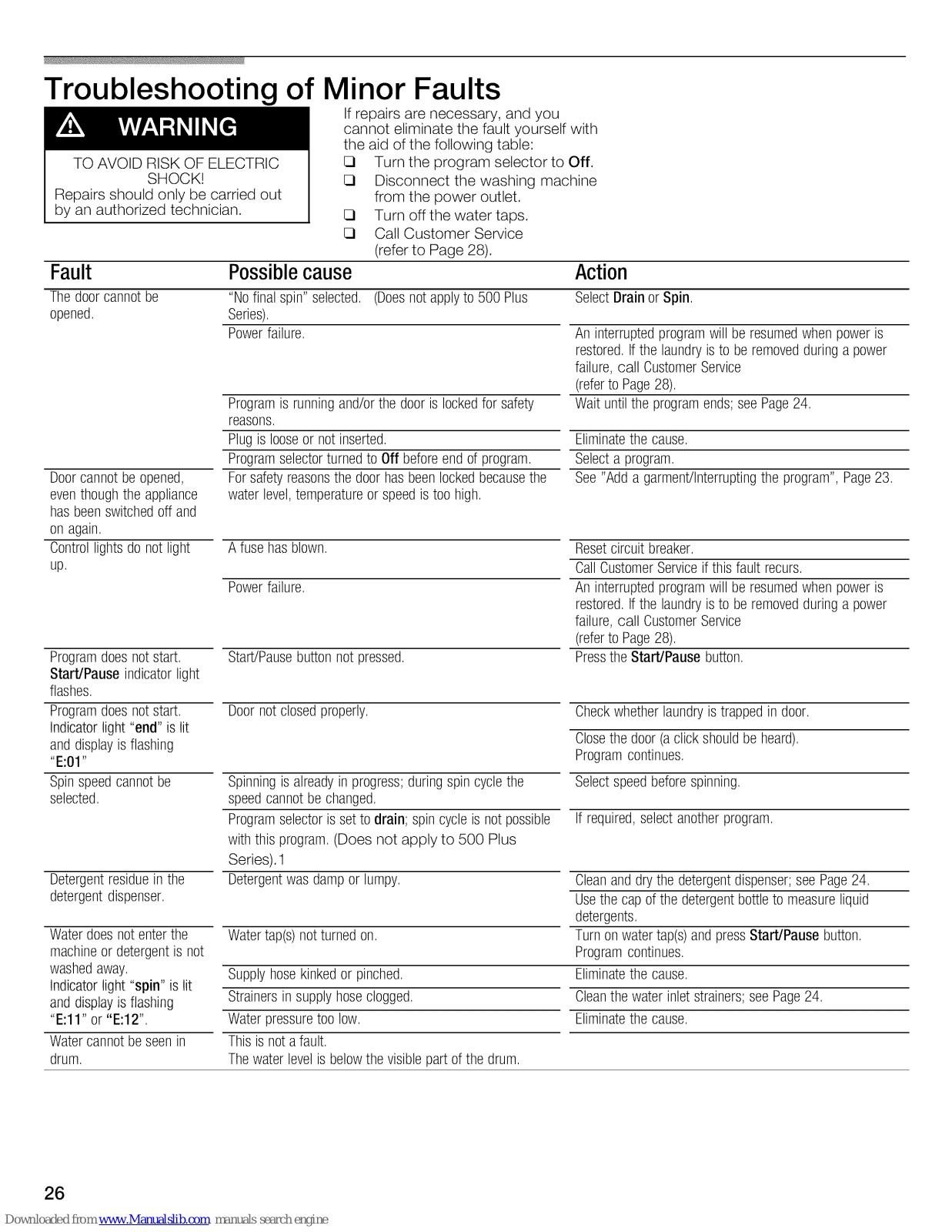

Troubleshooting of Minor Faults ......................................................................

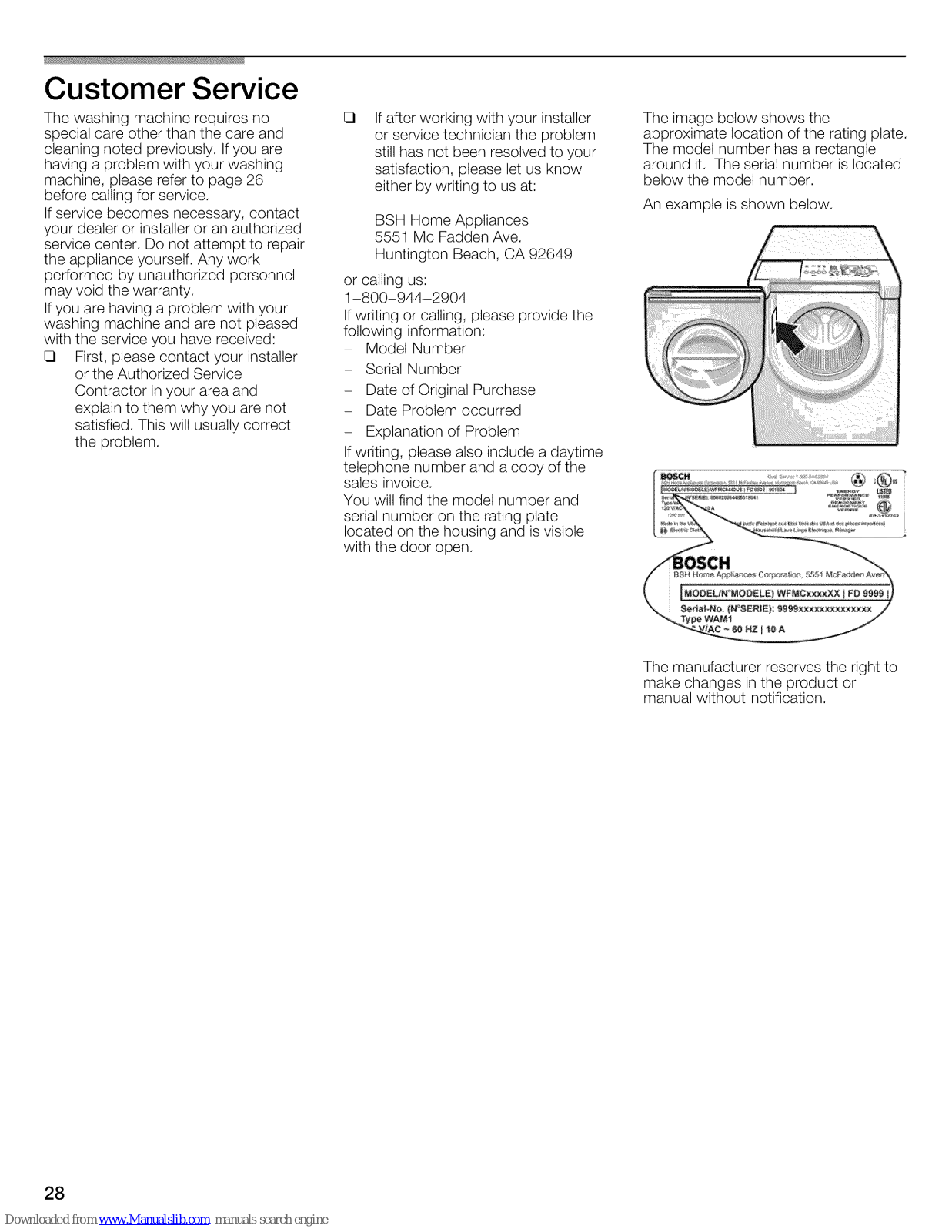

Customer Service ....................................................................................

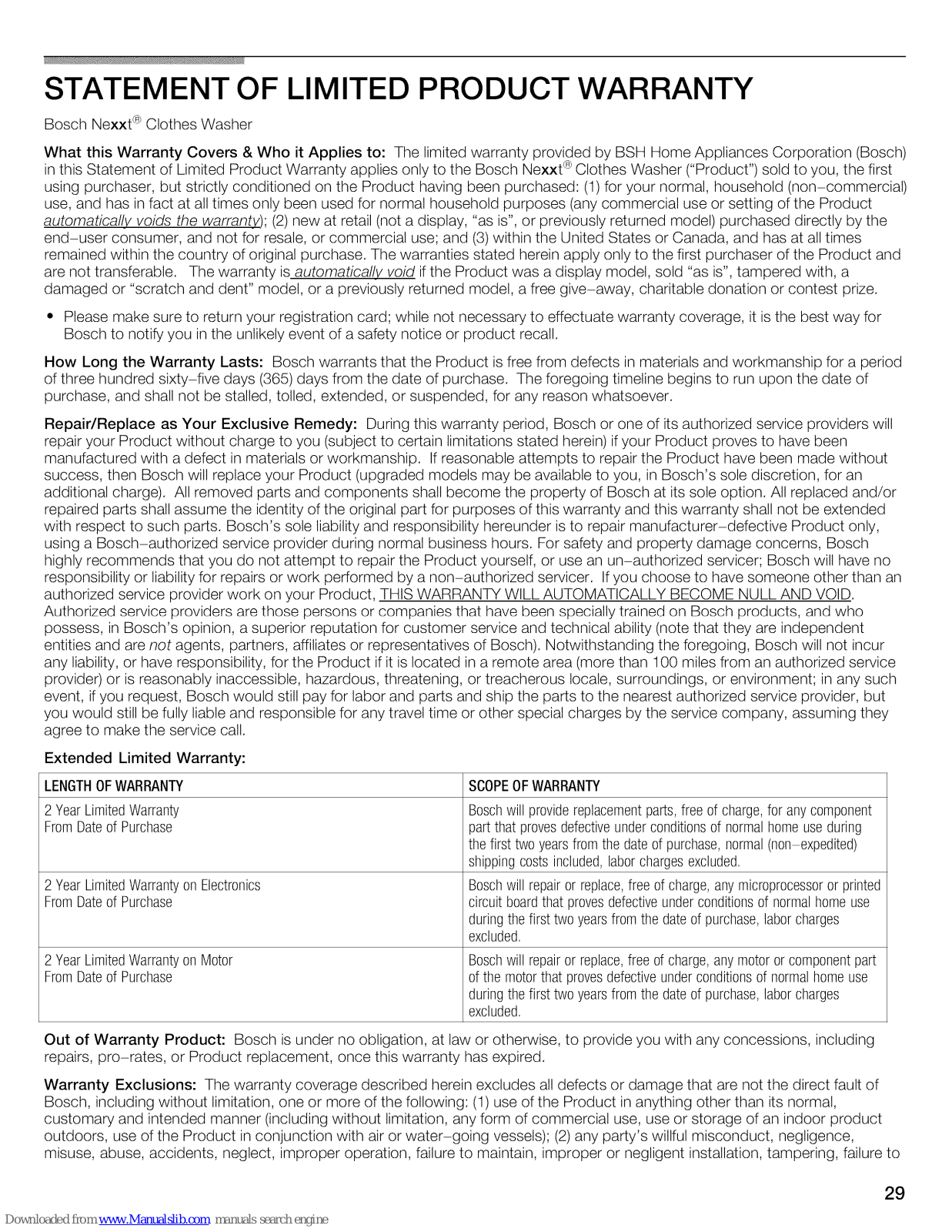

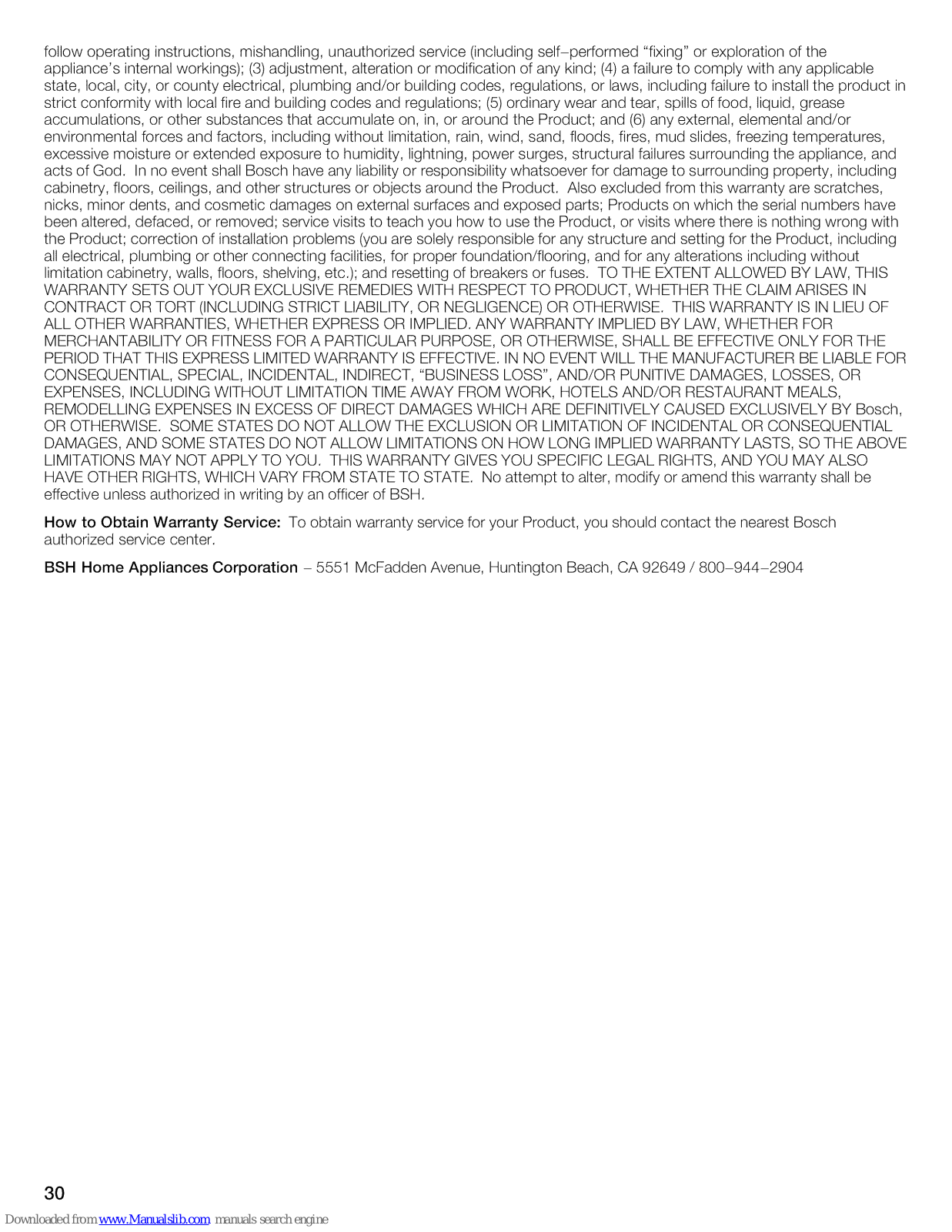

STATEMENT OF LIMITED PRODUCT WARRANTY ......................................................

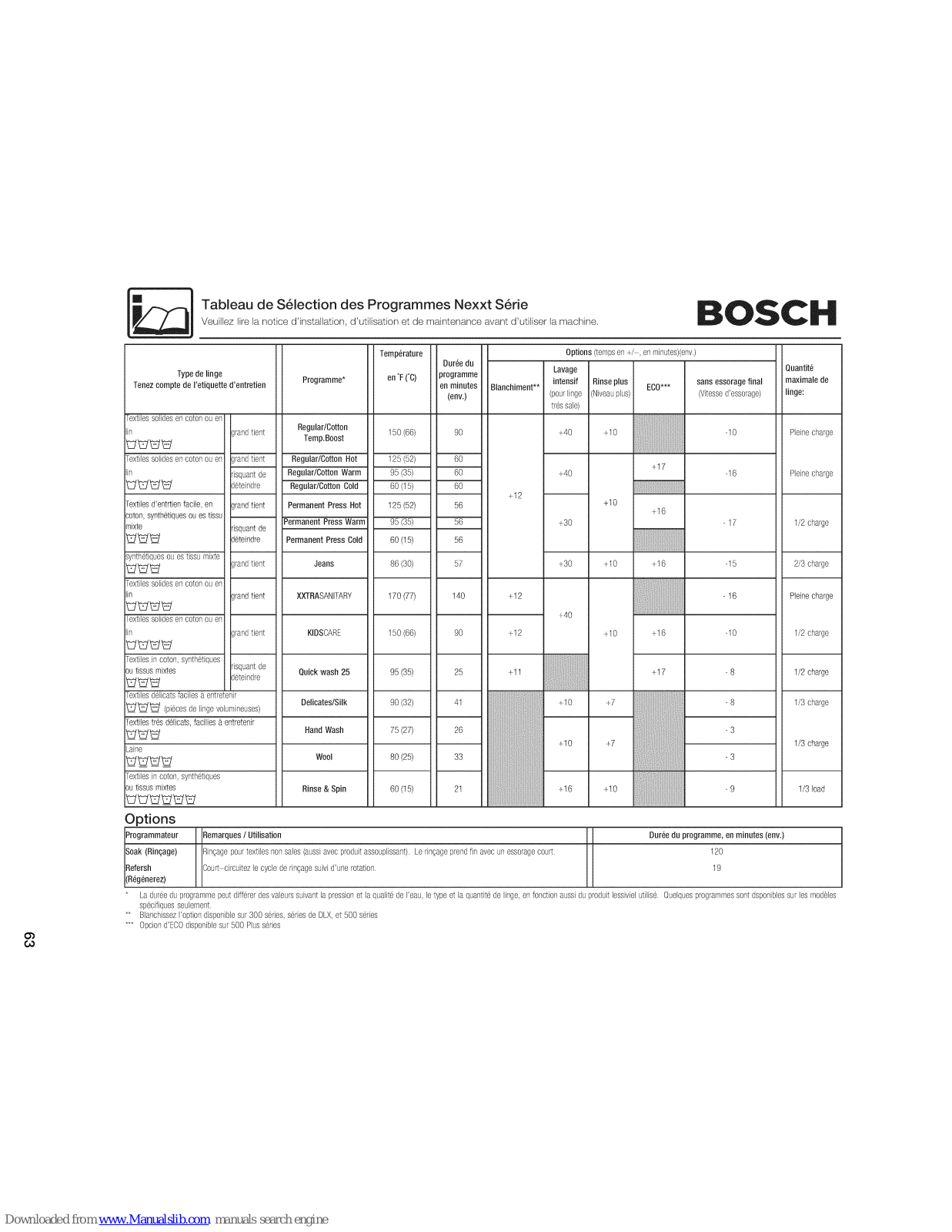

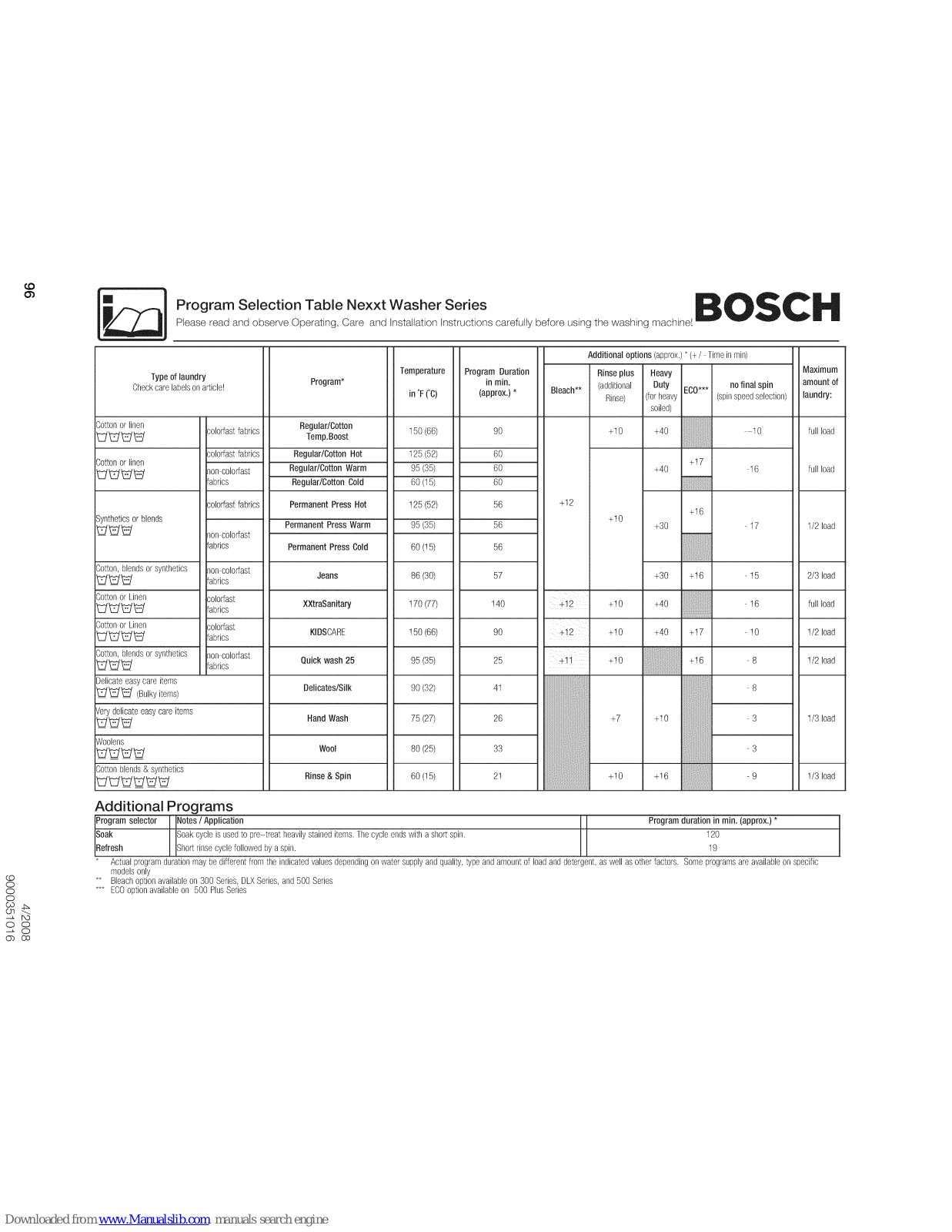

Program Selection Table .............................................................................
4
4
5
6
6
6
6
6
6
7
7
7
7
8
8
10
10
11
11
12
12
13
15
16
16
16
16
16
16
17
18
18
18
18
19
19
21
21
21
22
22
22
22
23
23
23
23
24
24
24
25
26
28
29
96

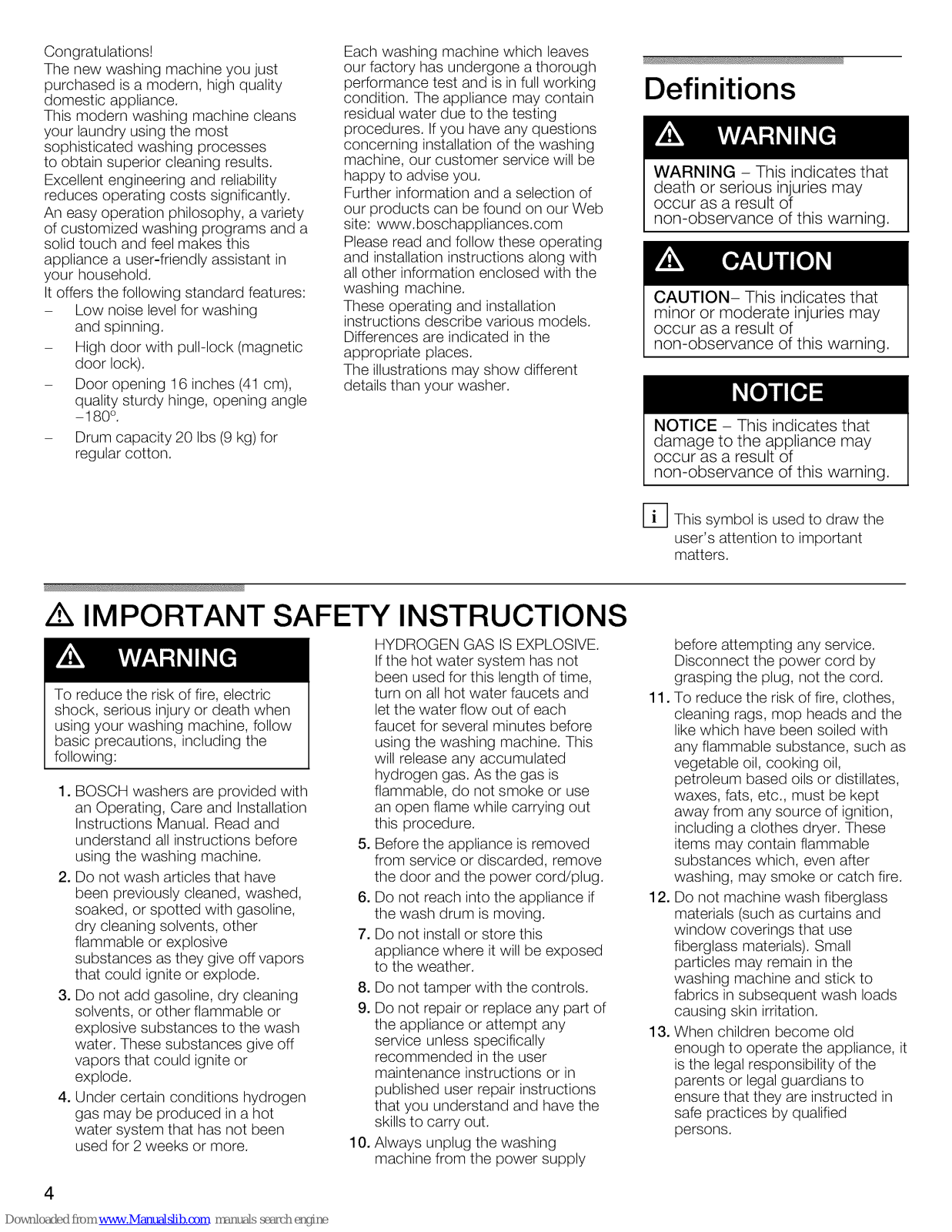

Congratulations!
Thenewwashingmachineyoujust
purchasedisamodern,highquality
domesticappliance.
Thismodernwashingmachinecleans
yourlaundryusingthemost
sophisticatedwashingprocesses
toobtainsuperiorcleaningresults.
Excellentengineeringandreliability
reducesoperatingcostssignificantly.
Aneasyoperationphilosophy,avariety
ofcustomizedwashingprogramsanda
solidtouchandfeelmakesthis
applianceauser-friendlyassistantin
yourhousehold.
Itoffersthefollowingstandardfeatures:
- Lownoiselevelforwashing
andspinning.
- Highdoorwithpull-lock(magnetic
doorlock).
- Dooropening16inches(41cm),
qualitysturdyhinge,openingangle
- 180°.
- Drumcapacity20Ibs(9kg)for
regularcotton.
Eachwashingmachinewhichleaves
ourfactoryhasundergoneathorough
performancetestandisinfullworking
condition.Theappliancemaycontain
residualwaterduetothetesting
procedures.Ifyouhaveanyquestions
concerninginstallationofthewashing
machine,ourcustomerservicewillbe
happytoadviseyou.
Furtherinformationandaselectionof
ourproductscanbefoundonourWeb
site:www.boschappliances.com
Pleasereadandfollowtheseoperating
andinstallationinstructionsalongwith
allotherinformationenclosedwiththe
washingmachine.
Theseoperatingandinstallation
instructionsdescribevariousmodels.
Differencesareindicatedinthe
appropriateplaces.
Theillustrationsmayshowdifferent
detailsthanyourwasher.

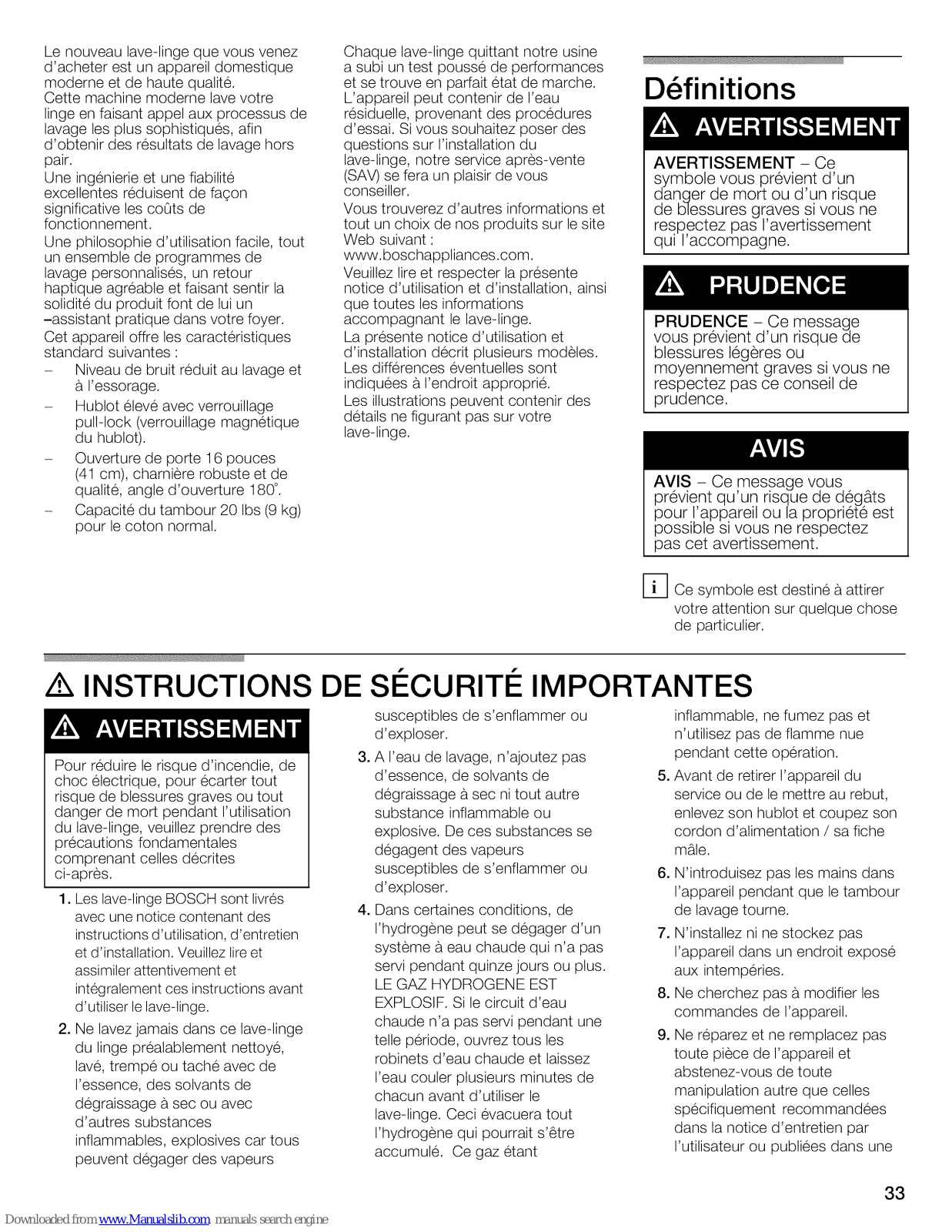

Definitions
WARNING - This indicates that
death or serious injuries may
occur as a result of
non-observance of this warning.
CAUTION- This indicates that
minor or moderate injuries may
occur as a result of
non-observance of this warning.
NOTICE - This indicates that
damage to the appliance may
occur as a result of
non-observance of this warning.
D This symbol is used to draw the
user's attention to important
matters.

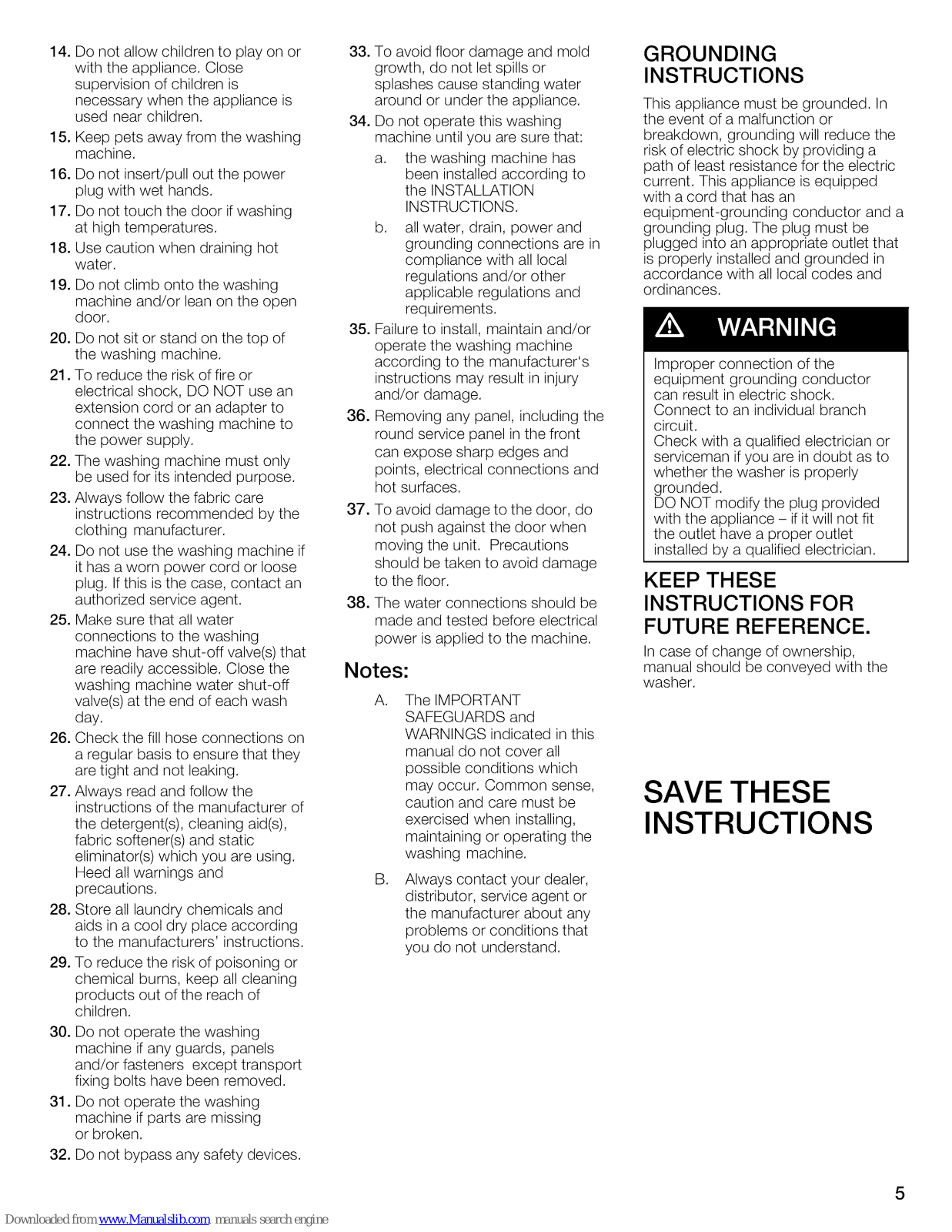

/k IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electric
shock, serious injury or death when
using your washing machine, follow
basic precautions, including the
following:
1. BOSCH washers are provided with
an Operating, Care and Installation
Instructions Manual. Read and
understand all instructions before
using the washing machine.
2. Do not wash articles that have
been previously cleaned, washed,
soaked, or spotted with gasoline,
dry cleaning solvents, other
flammable or explosive
substances as they give off vapors
that could ignite or explode.
3. Do not add gasoline, dry cleaning
solvents, or other flammable or
explosive substances to the wash
water. These substances give off
vapors that could ignite or
explode.
4. Under certain conditions hydrogen
gas may be produced in a hot
water system that has not been
used for 2 weeks or more.
,
,
7.
HYDROGEN GAS IS EXPLOSIVE.
If the hot water system has not
been used for this length of time,
turn on all hot water faucets and
let the water flow out of each
faucet for several minutes before
using the washing machine. This
will release any accumulated
hydrogen gas. As the gas is
flammable, do not smoke or use
an open flame while carrying out
this procedure.
Before the appliance is removed
from service or discarded, remove
the door and the power cord/plug.
Do not reach into the appliance if
the wash drum is moving.
Do not install or store this
appliance where it will be exposed
to the weather.
8. Do not tamper with the controls.
9. Do not repair or replace any part of
the appliance or attempt any
service unless specifically
recommended inthe user
maintenance instructions or in
published user repair instructions
that you understand and have the
skills to carry out.
10. Always unplug the washing
machine from the power supply
before attempting any service.
Disconnect the power cord by
grasping the plug, not the cord.
11. To reduce the risk of fire, clothes,
cleaning rags, mop heads and the
like which have been soiled with
any flammable substance, such as
vegetable oil, cooking oil,
petroleum based oils or distillates,
waxes, fats, etc., must be kept
away from any source of ignition,
including a clothes dryer. These
items may contain flammable
substances which, even after
washing, may smoke or catch fire.
12. Do not machine wash fiberglass
materials (such as curtains and
window coverings that use
fiberglass materials). Small
particles may remain in the
washing machine and stick to
fabrics in subsequent wash loads
causing skin irritation.

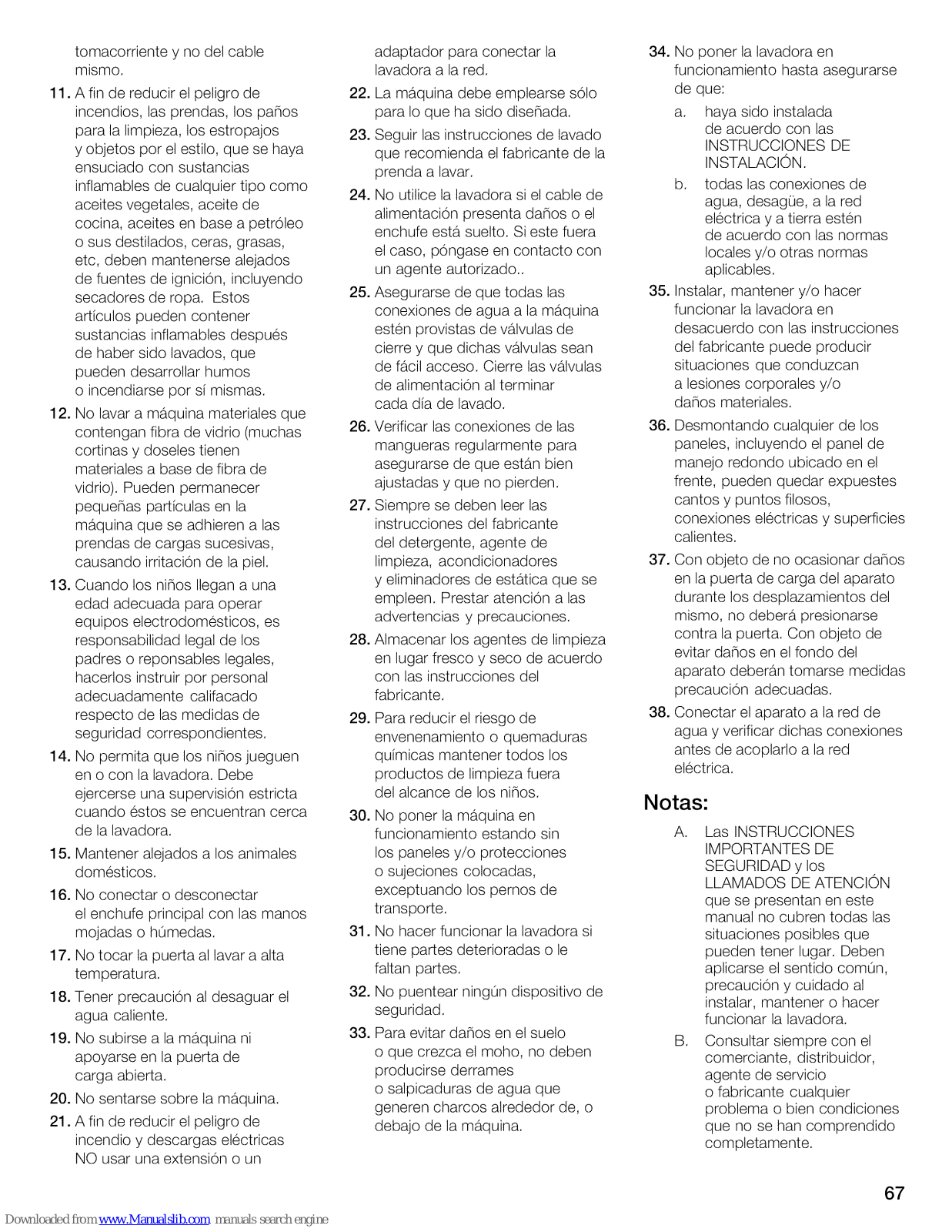

13. When children become old
enough to operate the appliance, it
is the legal responsibility of the
parents or legal guardians to
ensure that they are instructed in
safe practices by qualified
persons.
4
14. Do not allow children to play on or
with the appliance. Close
supervision of children is
necessary when the appliance is
used near children.
15. Keep pets away from the washing
machine.
16. Do not insert/pull out the power
plug with wet hands.
17. Do not touch the door if washing
at high temperatures.
18. Use caution when draining hot
water.
19. Do not climb onto the washing
machine and/or lean on the open
door.
20. Do not sit or stand on the top of
the washing machine.
21. To reduce the risk of fire or
electrical shock, DO NOT use an
extension cord or an adapter to
connect the washing machine to
the power supply.
22. The washing machine must only
be used for its intended purpose.
23. Always follow the fabric care
instructions recommended by the
clothing manufacturer.
24. Do not use the washing machine if
it has a worn power cord or loose
plug. Ifthis is the case, contact an
authorized service agent.
25. Make sure that all water
connections to the washing
machine have shut-off valve(s) that
are readily accessible. Close the
washing machine water shut-off
valve(s) at the end of each wash
day.
26. Check the fill hose connections on
a regular basis to ensure that they
are tight and not leaking.
27. Always read and follow the
instructions of the manufacturer of
the detergent(s), cleaning aid(s),
fabric softener(s) and static
eliminator(s) which you are using.
Heed all warnings and
precautions.
28. Store all laundry chemicals and
aids ina cool dry place according
to the manufacturers' instructions.
29. To reduce the risk of poisoning or
chemical burns, keep all cleaning
products out of the reach of
children.
30. Do not operate the washing
machine if any guards, panels
and/or fasteners except transport
fixing bolts have been removed.
31. Do not operate the washing
machine if parts are missing
or broken.
32. Do not bypass any safety devices.
33. To avoid floor damage and mold
growth, do not let spills or
splashes cause standing water
around or under the appliance.
34. Do not operate this washing
machine until you are sure that:
a. the washing machine has
been installed according to
the INSTALLATION
INSTRUCTIONS.
35.
36.
37.
38.
b. all water, drain, power and
grounding connections are in
compliance with all local
regulations and/or other
applicable regulations and
requirements.
Failure to install, maintain and/or
operate the washing machine
according to the manufacturer's
instructions may result in injury
and/or damage.
Removing any panel, including the
round service panel in the front
can expose sharp edges and
points, electrical connections and
hot surfaces.
To avoid damage to the door, do
not push against the door when
moving the unit. Precautions
should be taken to avoid damage
to the floor.
The water connections should be
made and tested before electrical
power is applied to the machine.
Notes:
A.
B.
The IMPORTANT
SAFEGUARDS and
WARNINGS indicated in this
manual do not cover all
possible conditions which
may occur. Common sense,
caution and care must be
exercised when installing,
maintaining or operating the
washing machine.
Always contact your dealer,
distributor, service agent or
the manufacturer about any
problems or conditions that
you do not understand.

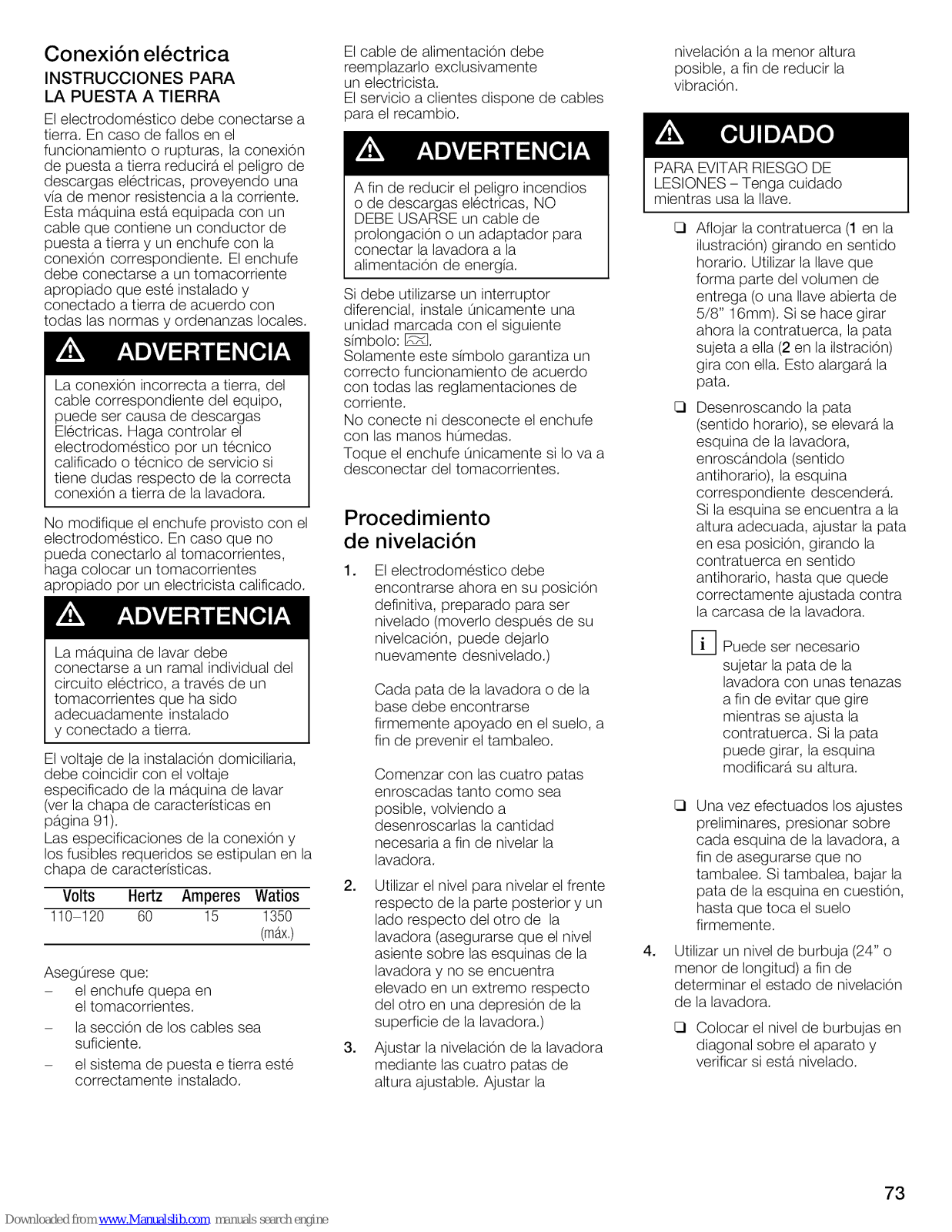

GROUNDING
INSTRUCTIONS
This appliance must be grounded. In
the event of a malfunction or
breakdown, grounding will reduce the
risk of electric shock by providing a
path of least resistance for the electric
current. This appliance is equipped
with a cord that has an
equipment-grounding conductor and a
grounding plug. The plug must be
plugged into an appropriate outlet that
is properly installed and grounded in
accordance with alllocal codes and
ordinances.
Improper connection of the
equipment grounding conductor
can result in electric shock.
Connect to an individual branch
circuit.
Check with a qualified electrician or
serviceman if you are in doubt as to
whether the washer is properly
grounded.
DO NOT modify the plug provided
with the appliance - ifit will not fit
the outlet have a proper outlet
installed by a qualified electrician.
KEEP THESE
INSTRUCTIONS FOR
FUTURE REFERENCE.
In case of change of ownership,
manual should be conveyed with the
washer.
SAVE THESE
INSTRUCTIONS

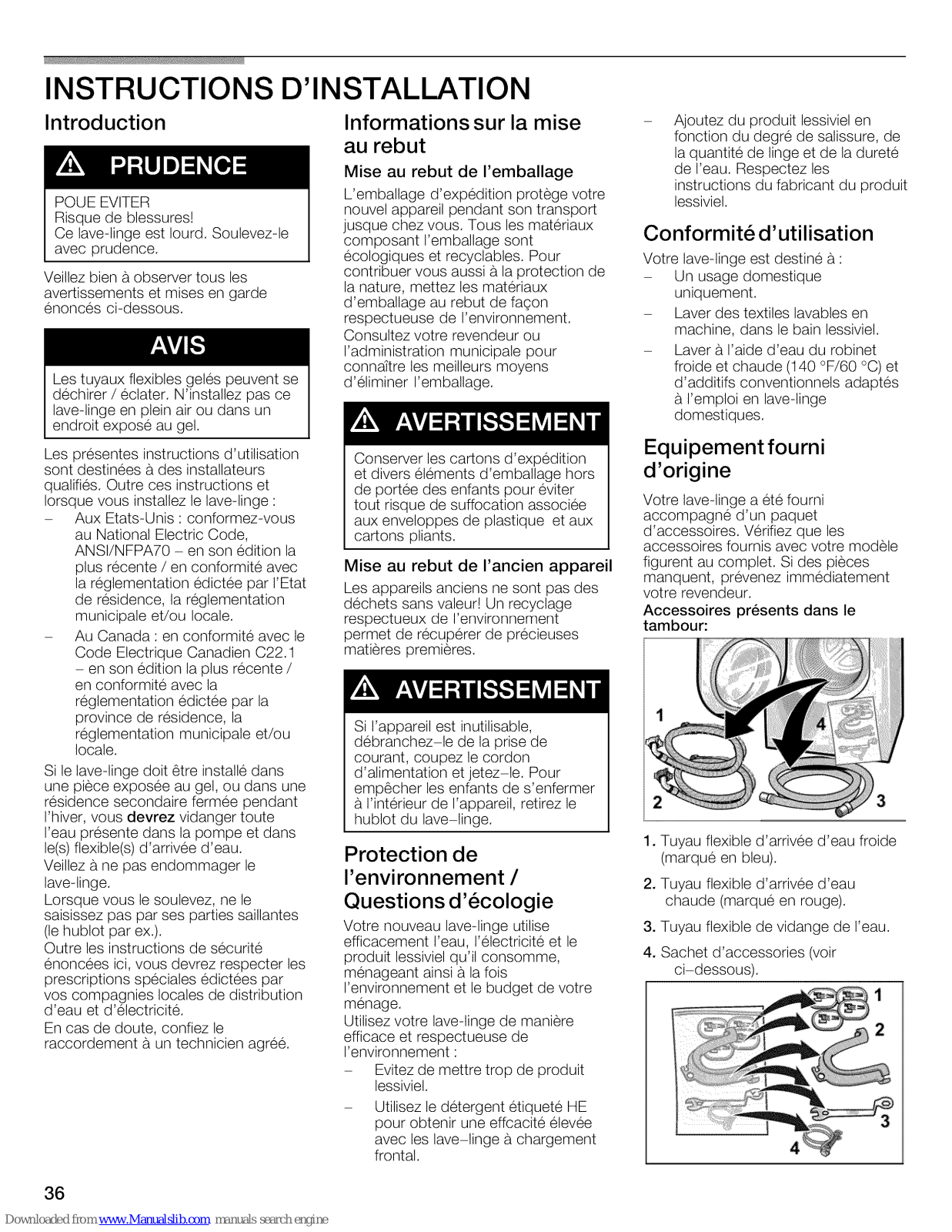

INSTALLATION INSTRUCTION
Introduction
TO AVOID RISK OF INJURY
The washing machine is heavy. Lift
with caution.
Be sure to observe all listed warnings
and cautions.
Frozen hoses can tear/burst. Do not
install the washing machine outdoors
or in an area exposed to freezing
conditions.
These installation instructions are
intended for use by qualified installers.
Inaddition to these instructions, if
installing the washing machine:
- In the United States comply with
the National Electric Code,
ANSI/NFPA70 -latest
edition/State and municipal and/or
local regulations.
- In Canada comply with the
Canadian Electric Code C22.1 -
latest edition/Provincial and
Municipal and/or local regulations.
Ifthe washing machine is located in a
room which will be exposed to
temperatures below freezing, or if it is
located in a cabin that is being shut
down for the winter, any residual water
in the pump or water inlet hose(s) must
be drained.
Take care not to damage the washing
machine. Do not hold on to protruding
parts (e.g. door) when lifting.
Inaddition to the safety information
listed here, the local water and
electricity supplier may have special
requirements.
If in doubt, have the appliance
connected by an authorized technician.
Information concerning
waste disposal
Disposing of the packaging
The shipping package has protected
your new appliance on its way to your
home. All packaging materials are
non-polluting and recyclable. Please
contribute to a better environment by
disposing of packaging materials in an
environmentally friendly manner.
Please ask your dealer or local
authority about the best means of
disposal.
Keep children away from shipping
carton and packaging components
to avoid risk of suffocation from
plastic wrap and folding cartons.
Disposing of your old appliance
Old appliances are not worthless
rubbish! Valuable raw materials can be
reclaimed from environmentally friendly
recycling.
If appliance is no longer usable, pull
out the main plug, cut off the power
cord and discard. Also remove the
washer door to prevent children
from locking themselves in the
appliance.
Intended Use
Your washing machine is intended:
- For domestic use only.
- For washing machine washable
fabrics in washing water.
- For operation using cold and hot
(140 °F/60 °C) tap water and
conventional additives that are
suitable for use in residential
washing machines.
Environmental
Protection/Conservation
Issues
Your washing machine uses water,
energy and detergent efficiently,
thereby protecting the environment and
reducing your household costs.
To use your washing machine inan
efficient and non polluting manner:
- Avoid using too much detergent.
- Use detergent bearing HE symbol
for high efficiency and front loading
washers.
Add detergent according to the
degree of soiling, amount of
laundry and water hardness, and
follow the detergent
manufacturer's instructions.
Factory-supplied
Equipment
There is a packet of accessory parts
supplied with your washer. Check that
all the accessory parts supplied for your
model are there. If any parts are
missing contact your dealer
immediately.

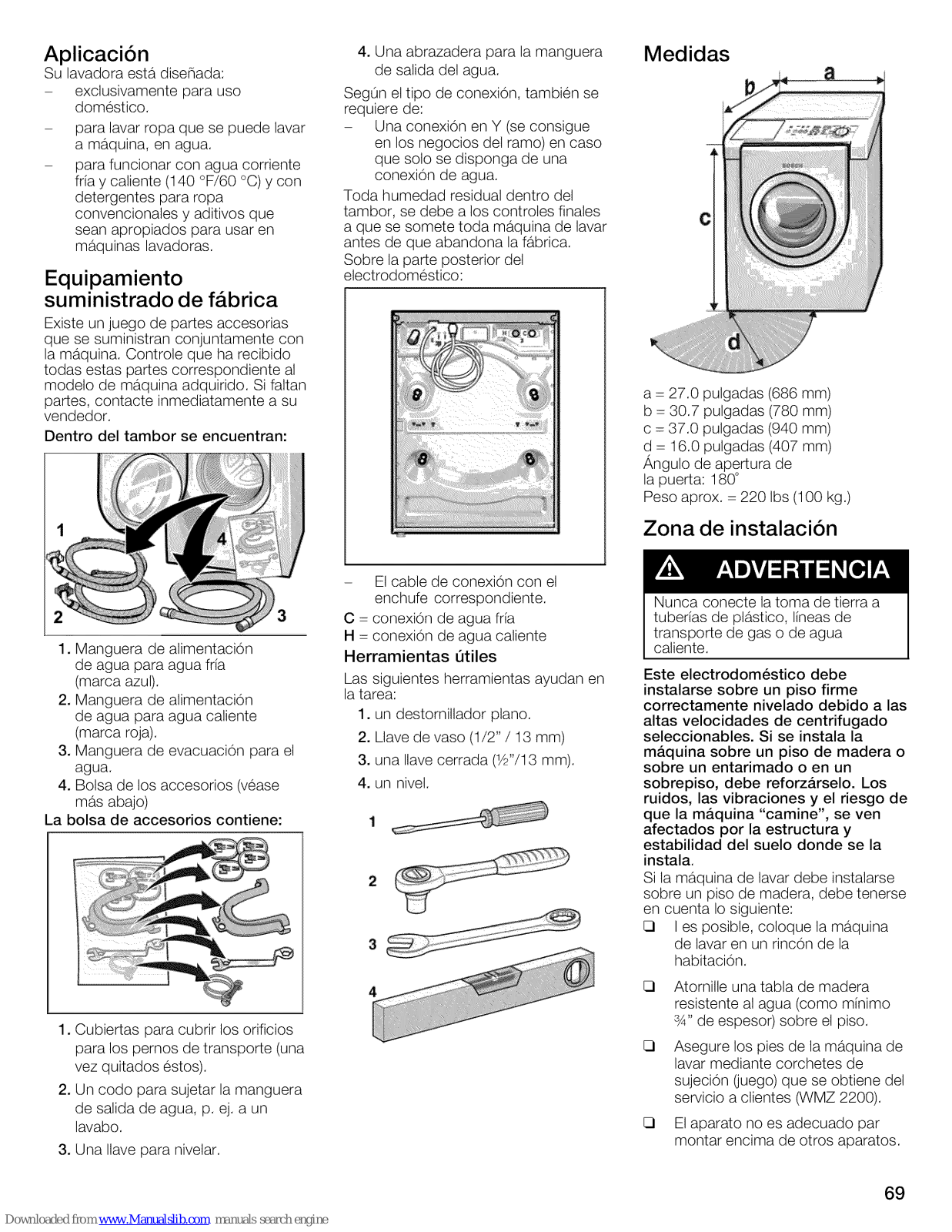

The drum contains:
1. Water supply hose for cold water
(blue marking).
2. Water supply hose for hot water
(red marking).
3. Water drain hose.
4. Accessory parts bag (see below)

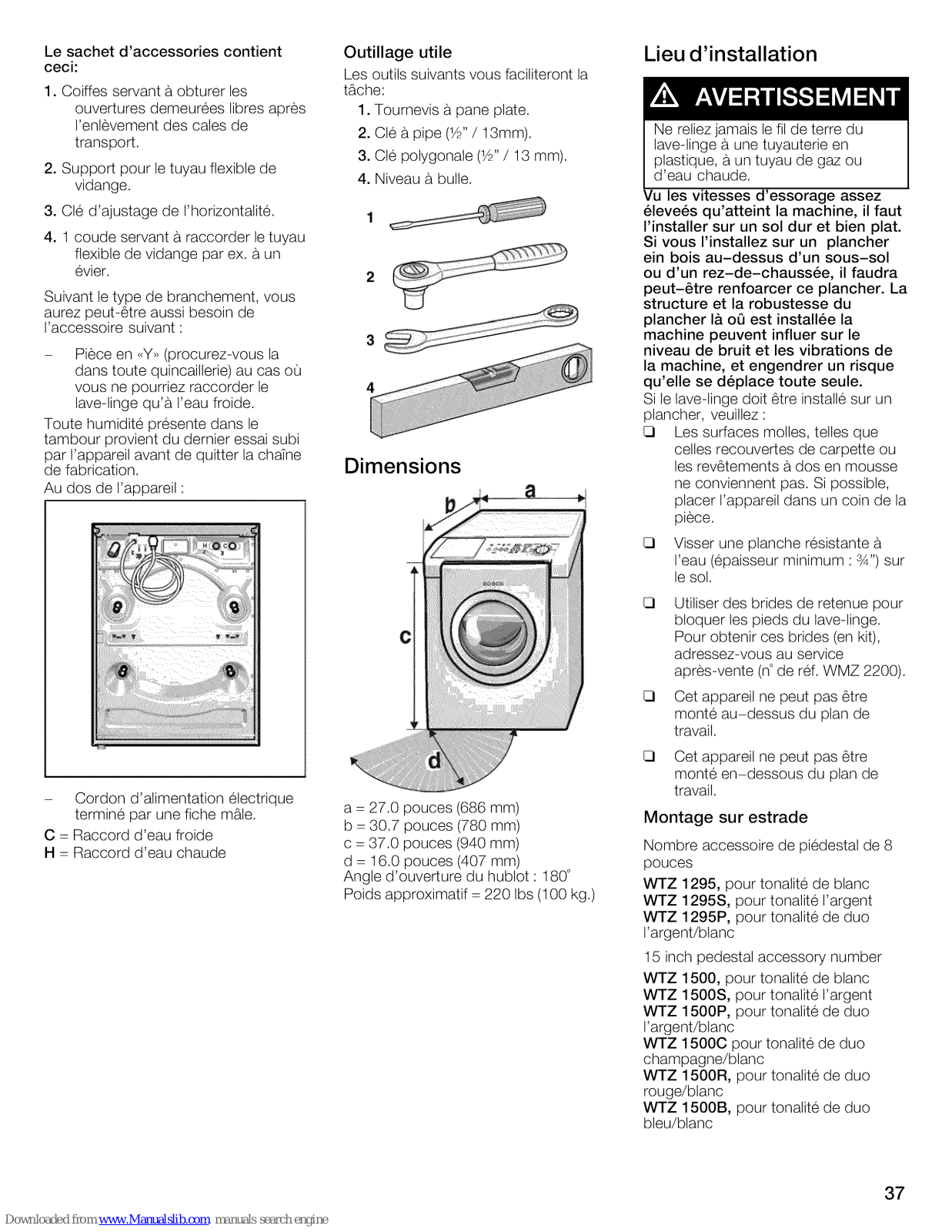

The accessory parts bag contains:
1. Covers to be placed over the
holes for the transport bolts (after
removing them).
2. Elbow for attaching the drain
hose, e.g. to a sink.
3. Wrench for leveling.
4. Clamp for drain hose.
Depending on the type of connection,
the following may also be required:
- Y-connector (can be obtained
from any hardware store) in case
there is only a cold water
connection available.
Any residual moisture inside the drum
is due to the final testing which every
washing machine undergoes before
leaving the factory.
Connectionslocatedontherearofthe Dimensions c_ units are not designed to be
appliance: stacked.
- Power cord with plug.
H = hot water connection
C = cold water connection
Useful tools
The following tools are helpful:
1. Flat head screwdriver.
2. Socket wrench (1/2" / 13mm).
3. Closed wrench (1/2" / 13 mm).
4. Bubble Level.
2
a = 27.0 inches (686 mm)
b = 30.7 inches (780 mm)
c = 37.0 inches (940 mm)
d = 16.0 inches (407 ram)
Door opening angle 180°
Approx. weight = 220 Ibs(1O0 kg)
Installation area
Never ground the washer to plastic
plumbing lines, gas lines or hot
water pipes.
This appliance must be installed on
a solid floor and well leveled due to
the higher spin speeds available. If
installing the machine on a wood
floor over a basement or on a
second floor, the floor may need to
be reinforced. Sound, vibration, and
risk of "walking" will be affected
depending on the structure and
stability of the floor surface where it
is installed.
If the washing machine is to be installed
on a weak wood floor consider the
following:
Soft floor surfaces, such as
carpets or surfaces with foam
backing, are not suitable. If
possible, place the washing
machine in a corner of the room.
Screw a water resistant wooden
board (at least 3/4" thick) to the
floor.
E3
Secure the feet of the washing
machine with holding brackets.
Order the holding brackets (set)
from Bosch Customer Service
(WMZ 2200).
Units are not designed for under
counter installation
Pedestal Mounting
8 inch pedestal accessory number
WTZ 1295 for solid white color
WTZ 1295S for solid silver color
WTZ 1295P for duo tone silver/white
15 inch pedestal accessory number
WTZ 1500 for solid white color
WTZ 1500S for solid silver color
WTZ 1500P for duo tone silver/white
WTZ 15000 for duo tone
champagne/white
WTZ 1500R for duo tone red/white
WTZ 1500B for duo tone blue/white
If mounting the washer on the Bosch
pedestal follow the instructions
supplied with the pedestal.
D Install pedestal prior to
removing transport bolts.
Closet
If installing the washer in a closet,
observe the minimum distances
according to the following table:
Minimum Installation Clearances
Closet
Sides 1/4" (6 mm)
Top 12" (305 mm)
Rear 25" (64mm)
Front 1/4" (6 mm)
Ventilation:
Top: 48 sq. in (310 sq. cm),
Bottom: 24 sq. in (155 sq. cm)
Checklistfor Page
Installation
completelyremove4shippingbolts 8
movethe washerintoplace 8
connectthewatersupplylineand 8
drainpipe
connectthe electricalpower 10
slidethe washerintoitsfinallocation 11
levelthewasheras10was possible 11
beforefirst use,runacleaningcycle 16

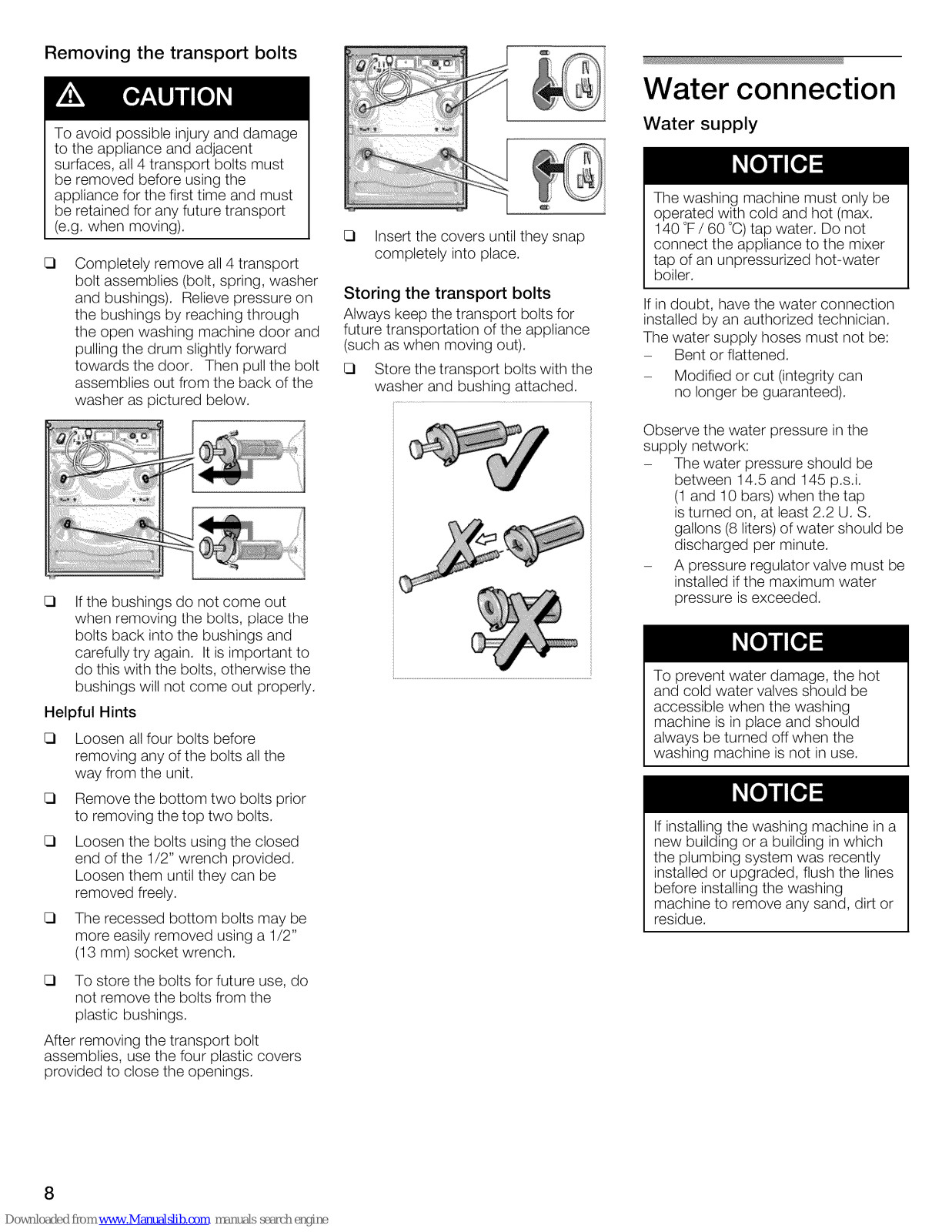

Removing the transport bolts
To avoid possible injury and damage
to the appliance and adjacent
surfaces, all 4 transport bolts must
be removed before using the
appliance for the first time and must
be retained for any future transport
(e.g. when moving).
Completely remove all 4 transport
bolt assemblies (bolt, spring, washer
and bushings). Relieve pressure on
the bushings by reaching through
the open washing machine door and
pulling the drum slightly forward
towards the door. Then pull the bolt
assemblies out from the back of the
washer as pictured below.
E3
If the bushings do not come out
when removing tile bolts, place tile
bolts back into the bushings and
carefully try again. It is important to
do this with the bolts, otherwise the
bushings will not come out properly.
Helpful Hints
Loosen allfour bolts before
removing any of the bolts all the
way from the unit.
Remove the bottom two bolts prior
to removing the top two bolts.
E3
Loosen the bolts using the closed
end of the 1/2" wrench provided.
Loosen them until they can be
removed freely.
The recessed bottom bolts may be
more easily removed using a 1/2"
(13 mm) socket wrench.
To store the bolts for future use, do
not remove the bolts from the
plastic bushings.
After removing the transport bolt
assemblies, use the four plastic covers
provided to close the openings.
Insert the covers until they snap
completely into place.
Storing the transport bolts
Always keep the transport bolts for
future transportation of the appliance
(such as when moving out).
Store the transport bolts with the
washer and bushing attached.

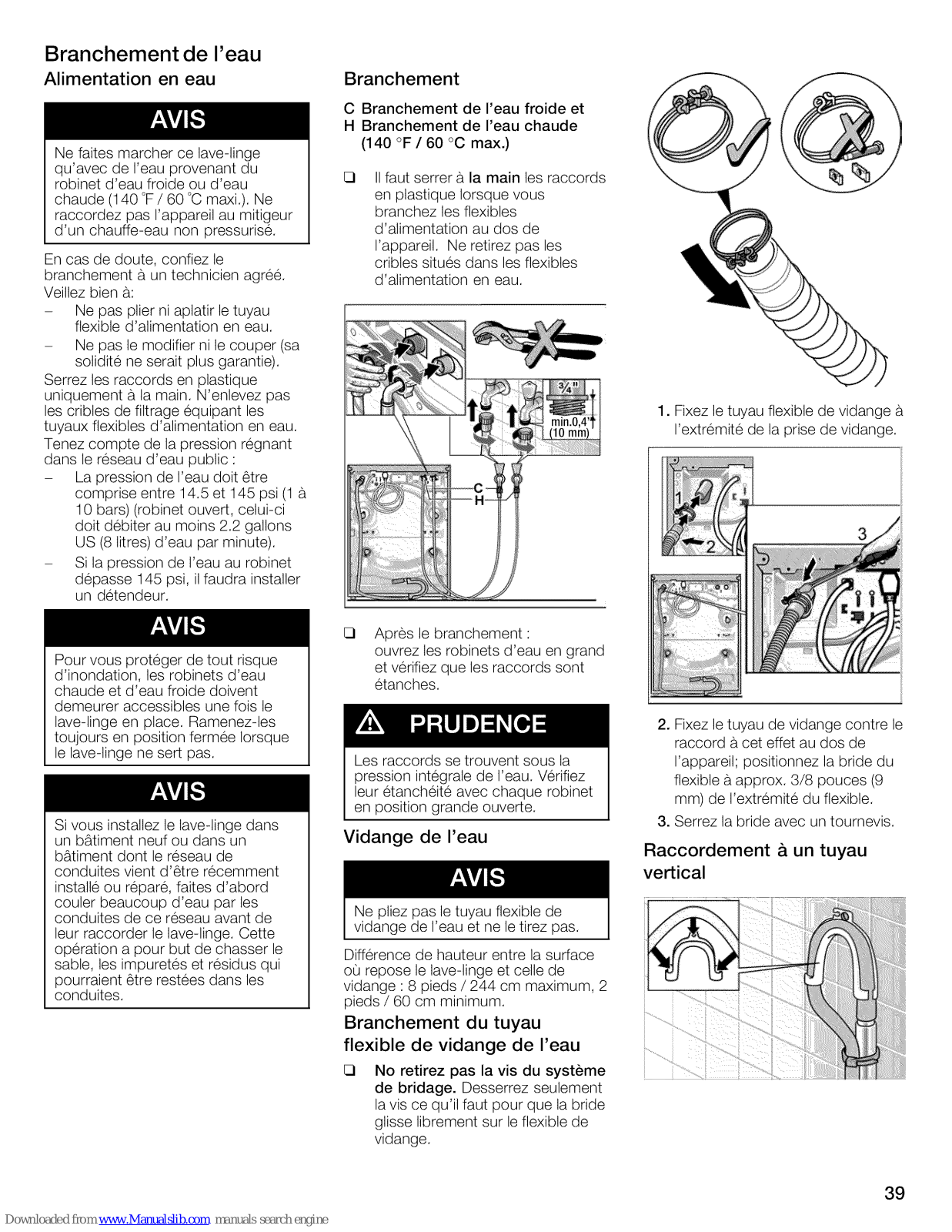

Water connection
Water supply
The washing machine must only be
operated with cold and hot (max.
140 °F/ 60 °C)tap water. Do not
connect the appliance to the mixer
tap of an unpressurized hot-water
boiler.
If in doubt, have the water connection
installed by an authorized technician.
The water supply hoses must not be:
- Bent or flattened.
- Modified or cut (integrity can
no longer be guaranteed).
Observe the water pressure in the
supply network:
- The water pressure should be
between 14.5 and 145 p.s.i.
(1 and 10 bars) when the tap
isturned on, at least 2.2 U. S.
gallons (8 liters) of water should be
discharged per minute.
- A pressure regulator valve must be
installed if the maximum water
pressure is exceeded.
To prevent water damage, the hot
and cold water valves should be
accessible when the washing
machine is in place and should
always be turned off when the
washing machine is not in use.
If installing the washing machine in a
new building or a building inwhich
the plumbing system was recently
installed or upgraded, flush the lines
before installing the washing
machine to remove any sand, dirt or
residue.
Supply Line Connection
C Cold water connection and
H Hot water connection
(max. 140 °F / 60 °C)
E3
Plastic threads must only be
tightened by hand when
connecting the water supply hoses
to the back of the unit. Do not
remove the strainers from the
water supply hoses.
In-Wall Installation
After connecting, turn on the water
completely, and check that
connection points are watertight.
The connection points are under full
water pressure. Check seal with tap
fully open.
Water drainage
Do not bend or pull the water
drainage hose.
Height difference between the
installation location of the washing
machine and the drainage point:
Maximum 8 feet / 244 cm,
minimum 2 feet / 60 cm.
Connecting the water
drainage hose
E3 Do not remove the screw from
the clamp assembly. Loosen
the screw only enough so that the
clamp will slide freely onto the
water drain hose.
1. Place the hose clamp over the end
of the drain hose before attaching
the drain hose to the appliance.
2. Attach the drain hose to the drain
hose connection on the back of
the appliance; position the hose
clamp approximately 3/8 inch (9
mm) from the end of the hose.
3. tighten the clamp with a
screwdriver
Standpipe Installation
E3
E3
Use the elbow. Attach the elbow to
the end of the hose and insert end
of hose into standpipe.
Use a strap or cable tie to hold
hose in place.
Use the elbow. Attach the elbow to
the end of the hose and insert the
end of the hose into the wall drain.
The hose and elbow should
extend into the open drain pipe as
far as the elbow allows when
seated as shown inthe above
picture.
Use a strap or cable tie to hold
hose in place.
Drainage into a siphon
Secure the connection point with a
hose clip(not included in
factory-supplied equipment).
Drainage into a sink
Ensure that the plug is not in the
drain hole.
Attach water drain hose securely
to sink.
Use a strap or cable tie to hold
hose in place.
When the water is being drained,
check that the water flow out of
the sink is adequate.

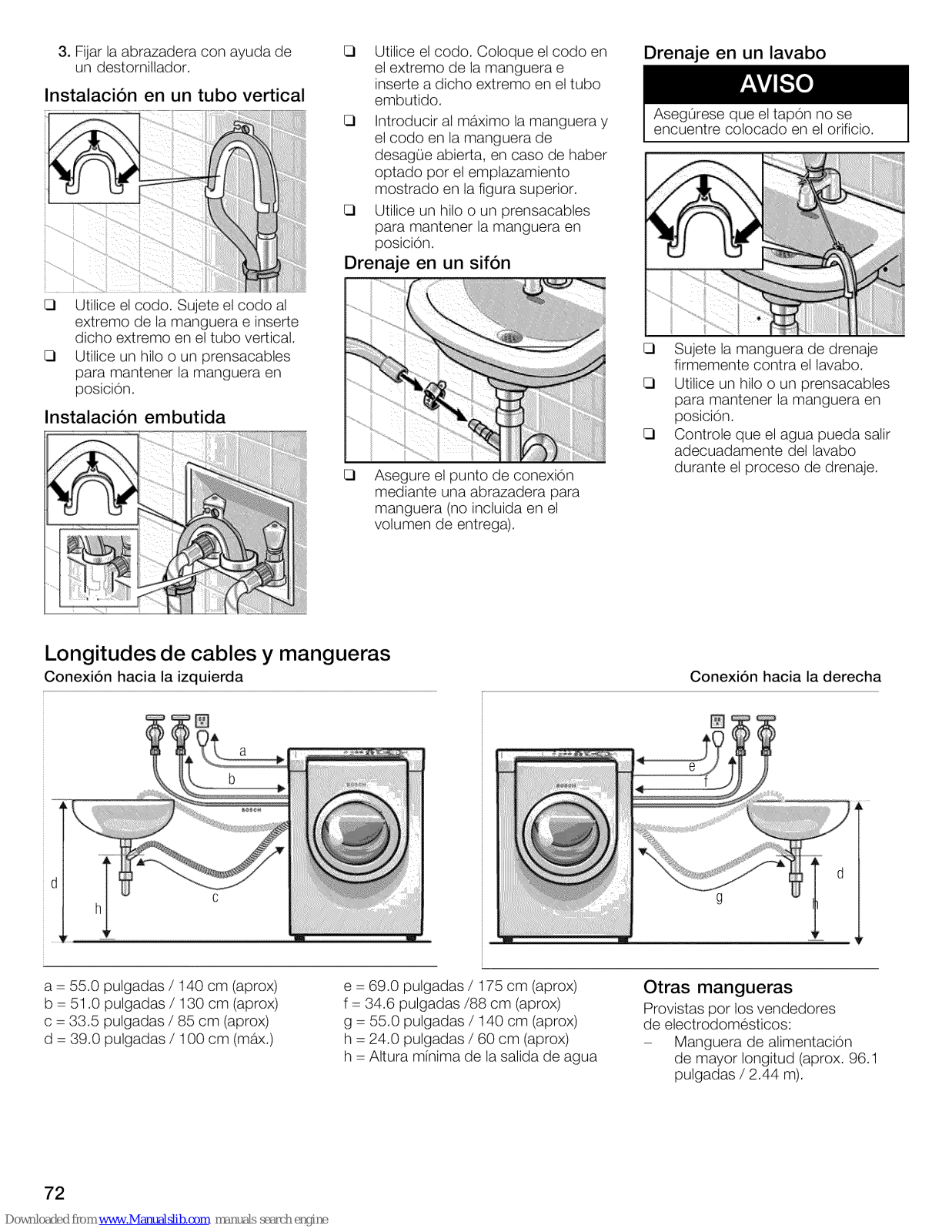

Hose and cable lengths
Left-hand connection
Right-hand connection
a = 55.0 in. / 140 cm (approx.)
b = 51.0 in. / 130 cm (approx.)
c = 33.5 in. / 85 cm (approx.)
d = 39.0 in. / 1O0cm (max.)
e = 69.0 in. / 175 cm (approx.)
f = 34.6 in. / 88 cm (approx.)
g = 55.0 in. / 140 cm (approx.)
h = 24.0 in. / 60 cm (approx.)
h = minimum drain point height
Other hoses
Available from appliance dealers:
- Extended supply hose
(approx. 96.1 in./2.44 m).

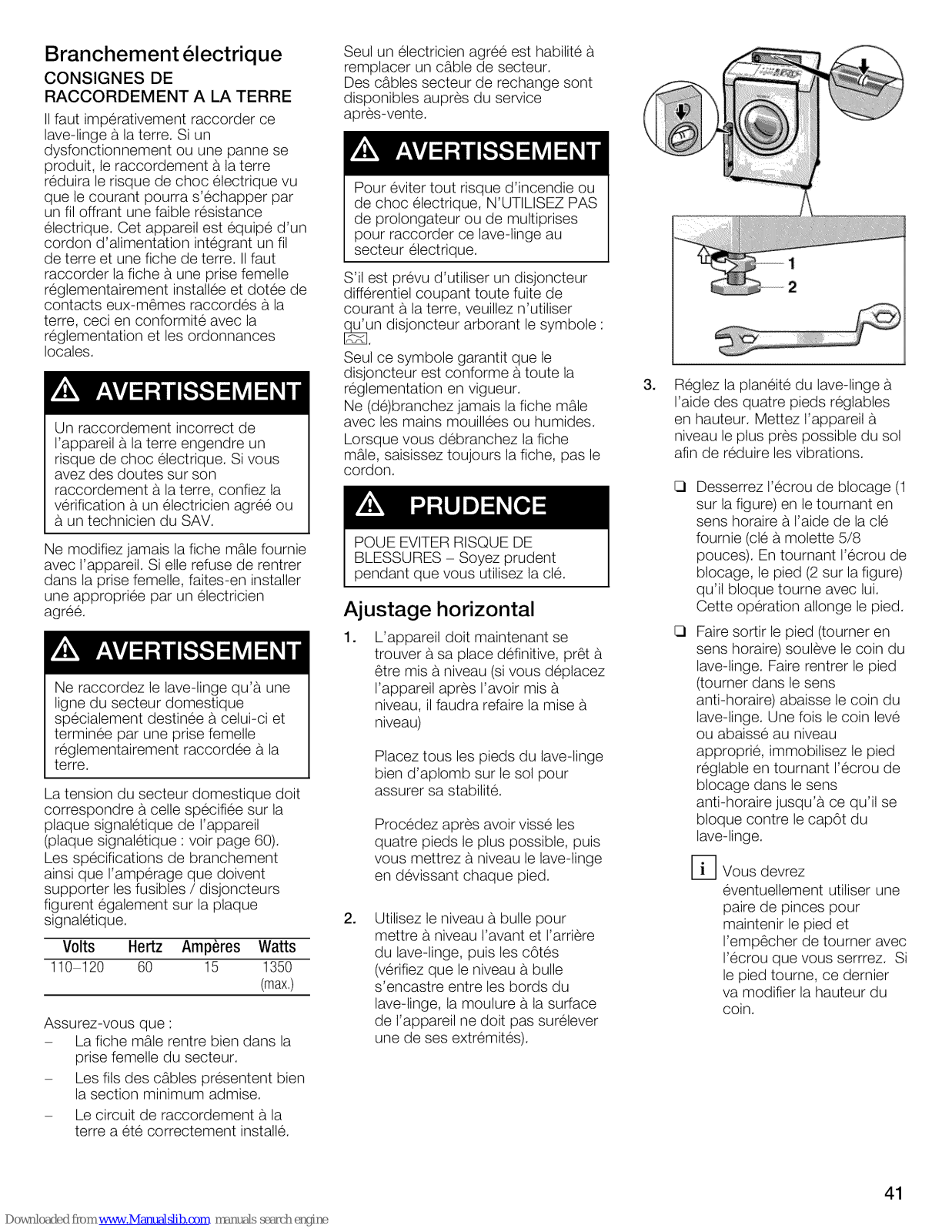

Electrical connection

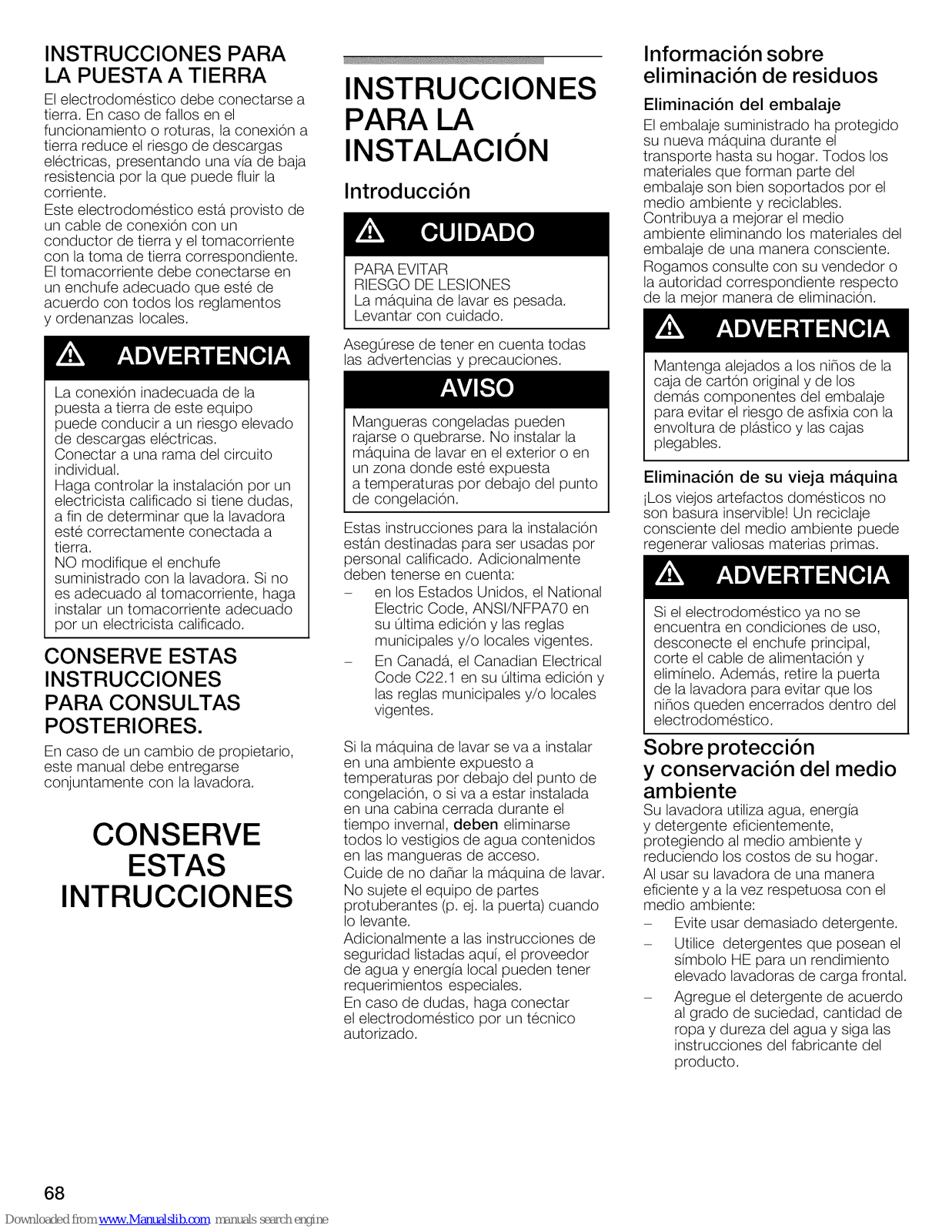

GROUNDING INSTRUCTIONS
This appliance must be grounded. In
the event of a malfunction or
breakdown, grounding will reduce the
risk of electrical shock by providing a
path of least resistance for the electric
current.
This appliance features a cord with an
equipment-grounding conductor and a
grounding plug. The plug must be
plugged into an appropriate outlet
which has been properly installed and
grounded in accordance with all local
regulations and ordinances.
Improper connection of the
equipment grounding conductor
may result in electric shock. Have
the appliance checked by
a qualified electrician or service
technician if you are in doubt as to
whether the washer has been
properly grounded.
Do not modify the plug provided with
the appliance - if it will not fit in the
outlet, have a proper outlet installed by
a qualified electrician.
The washing machine must only be
connected to an individual branch
circuit via a socket which has been
properly installed and grounded.
The household electrical voltage must
correspond to the voltage specification
on the washing machine (rating plate,
see page 28).
Connection specifications as well as
the required fuses are stipulated on the
appliance rating plate.
Volts Hertz Amperes Watts
110 120 60 15 1350
(max.)
Make sure that:
- the power plug fits into the socket.
- the wire size is sufficient.
- the grounding system is properly
installed.
The power cord may be replaced by an
electrician only.
Replacement power cords are available
from Customer Service.
To reduce the risk of fire or electrical
shock, DO NOT use an extension
cord or an adapter to connect the
washing machine to the power
supply.
If a ground fault circuit breaker is to be
used, only use types marked with the
following symbol: [Z_.
Only this symbol can guarantee
compliance with all current regulations.
Do not insert/remove the power plug
with wet or damp hands.
Touch the plug only when removing the
plug from the socket.
10
Leveling Procedure
1,
The appliance should now be in its
final position, ready for leveling
(moving the appliance after
leveling can make it unlevel again.)
Each foot of the appliance or
pedestal must be placed firmly on
the floor to prevent the washing
machine from wobbling.
2,
3,
Start with all four feet screwed in
as far as possible, then back
individual feet out as necessary to
level the washer.
Use the bubble level to level the
washer front to back and side to
side (be sure the level fits between
the edges of the washer, and is
not elevated at mone end on a
ridge on the surface of the
washer.)
Adjust the leveling of the washer
with the four height-adjustable
feet. Level the washer as low as
possible to heklp reduce vibration.
TO AVOID RISK OF INJURIES-Take
care when using the wrench.
E_
Loosen the lock nut 1 (1 on the
illustration) by turning it
clockwise. Use the wrench
provided (or a 5/8" - 16mm
open end wrench). When you
turn the lock nut, the foot (2 on
the illustration)it is locked
against will turn with it. This will
extend the height of the foot.
E_
Turning the foot out (clockwise)
will raise the corner of the
washer, turning the foot in
(counter-clockwise) will lower
the corner of the washer.
When the corner of the washer
is satisfactorily raised or
lowered, lock the
height-adjustable feet in place
by turning the lock nut
counter-clockwise until it locks
tightly against the washer
housing.
D It may be necessary to hold
the washer foot with a pair
of pliers to keep itfrom
turning while tightening the
lock nut. It the foot does
turn, it will change the
height of the corner.
4,
5,
%
After making preliminary
adjustments, press down on
each corner of the washer to
make sure the unit does not
wobble. If it does wobble,
lower the foot on that corner
until the foot touches the floor
firmly.
Use a bubble level (24" or less in
length) to check the leveling status
of the appliance.
E_
E_
E_
Lay the bubble level across the
unit worktop to check the level
from side to side and from front
to back.
A center-located bubble
indicates the unit is leveled.
Otherwise, repeat the leveling
procedure until the unit is
leveled. Tip: if the bubble is
closer to one end, it indicates
the high side of the unit. To
level the unit, either lower the
higher side or raise the lower
side.
After leveling the unit from side
to side, then turn the level so
that it lays on the worktop from
front to back to also check the
level in that direction.
Fine tune the leveling by placing a
small load of laundry in the
machine, starting it in spin cycle
and then leveling the washer
again.
If the test spin cycle is manually
stopped before its completion,
then the door may remain locked
for 10 seconds.

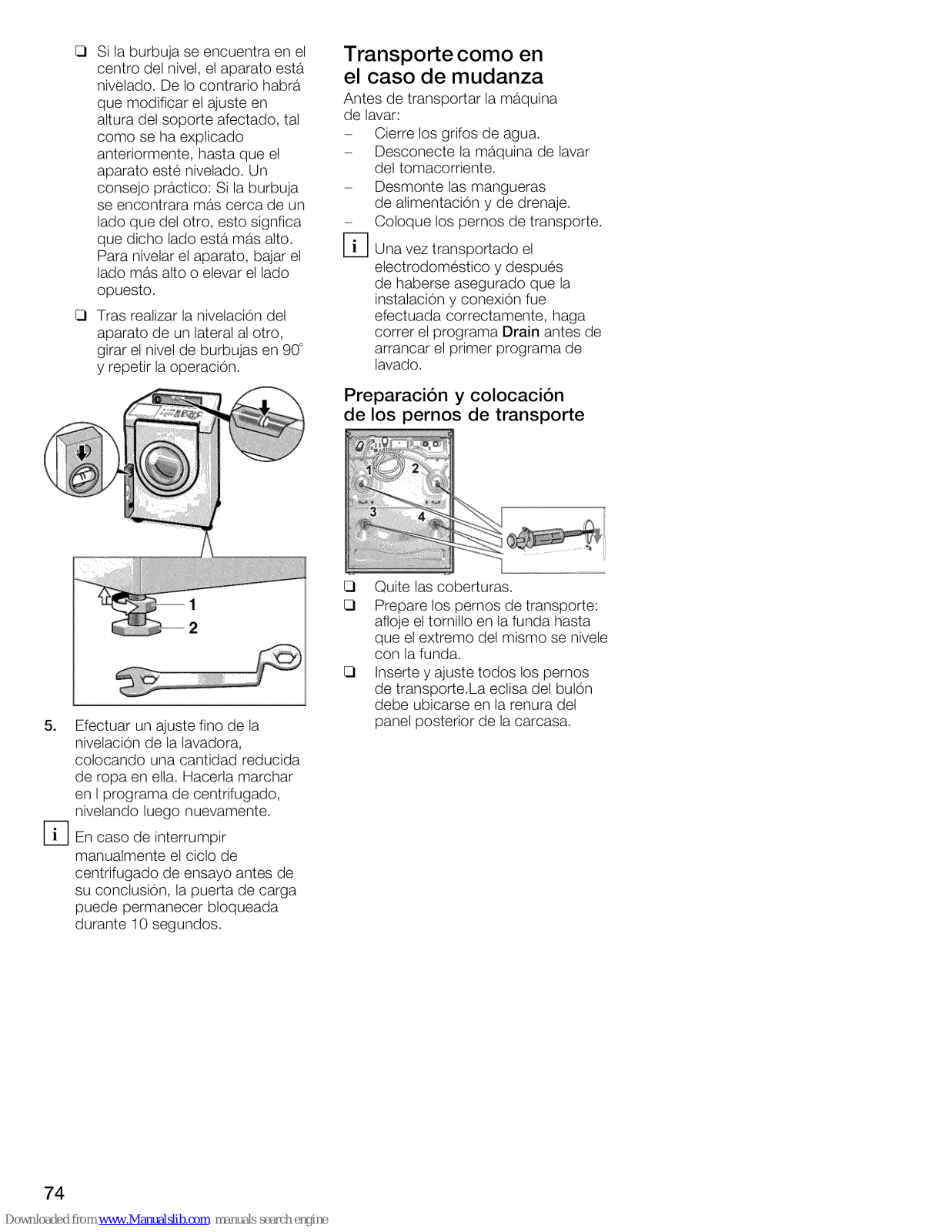

Transport, such as when
moving out
Before transporting the washing
machine:
- Turn off the water.
%
Disconnect the washing machine
from the power outlet.
Dismantle the supply and drainage
hoses.
Install the transport bolts.
Having transported the appliance
and ensured proper installation
and connection, allow the Drain
program to run through before
starting the first wash program.
(Does not apply to the 500 Plus
series).
Preparing and inserting the
transport bolts
E3
E3
E3
Remove the covers.
Prepare the transport bolts:
Loosen the screw inthe sleeve
until the end of the screw is level
with the end of the sleeve.
Insert and tighten all transport
bolts. Make sure that the tab on
the transportation bolt is inserted
in the slot on the washing machine
back panel.
11

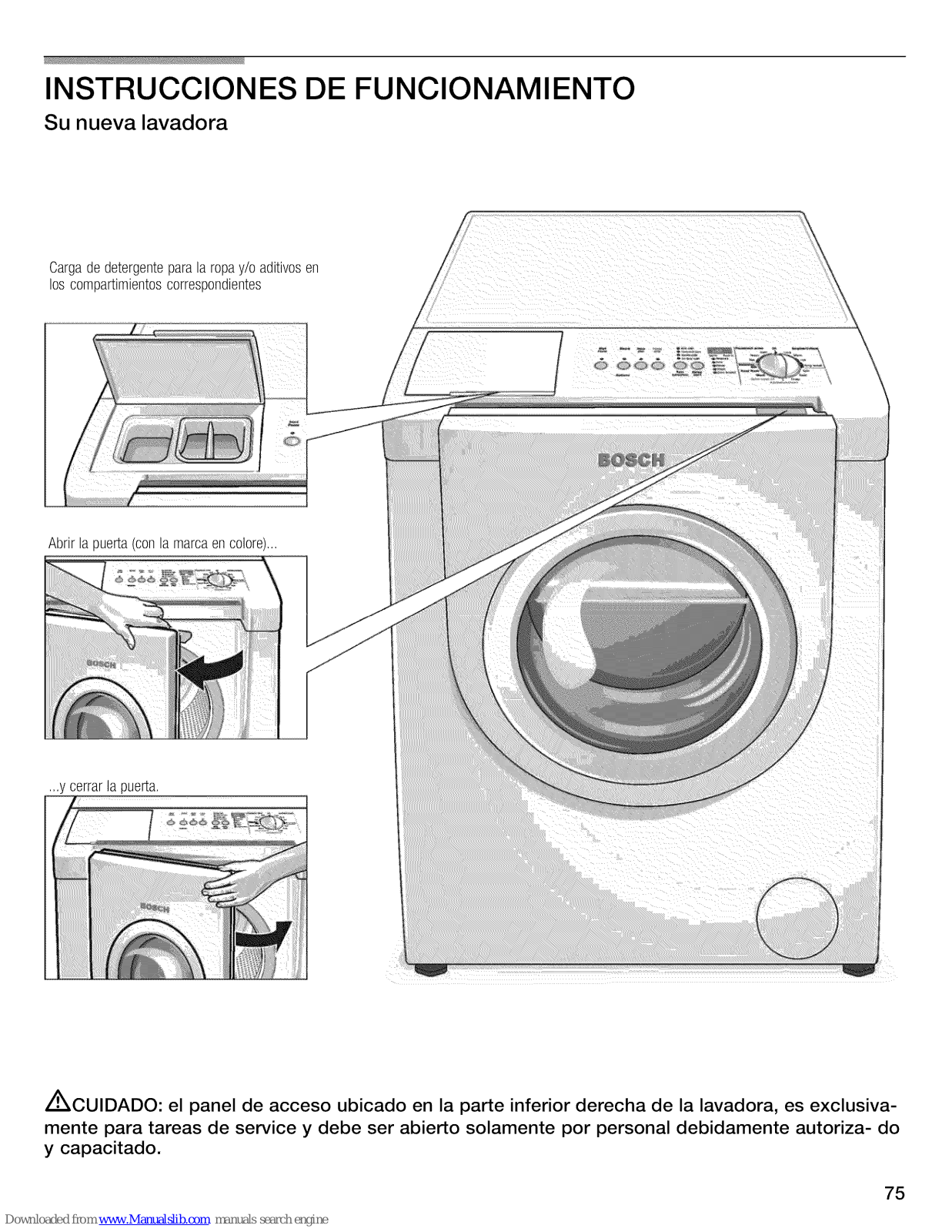

OPERATING INSTRUCTION
Your new washer
Fillinglaundrydetergentand/oradditivesinto
dispensers
/
I
/
/
,t
/
\
\
Openthe door(coloredmarking),,,
...andclosethe door
/_kCAUTION The access panel located on the bottom right of the washer is for Service Access
and is only to be opened by an Authorized or Qualified Service Technician.
12

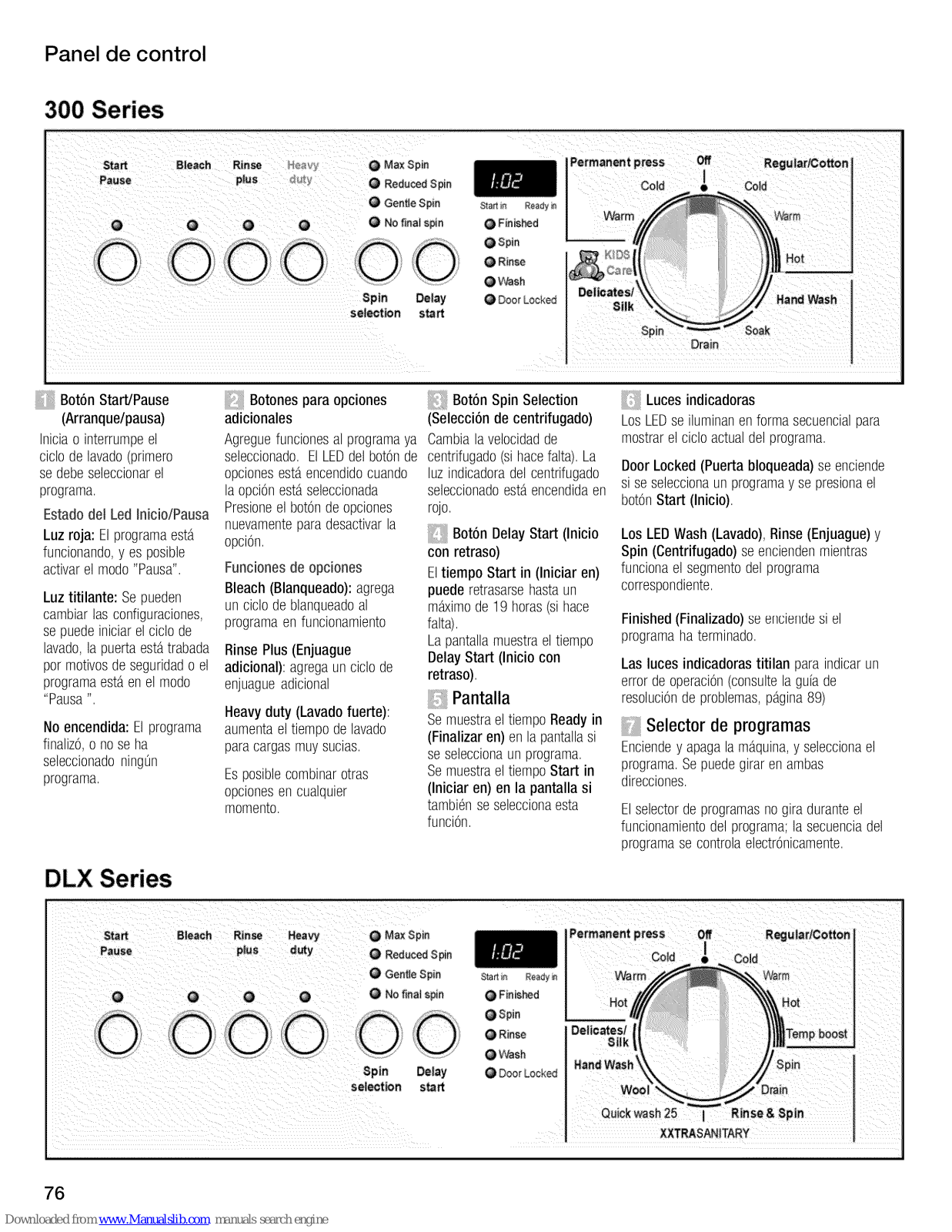

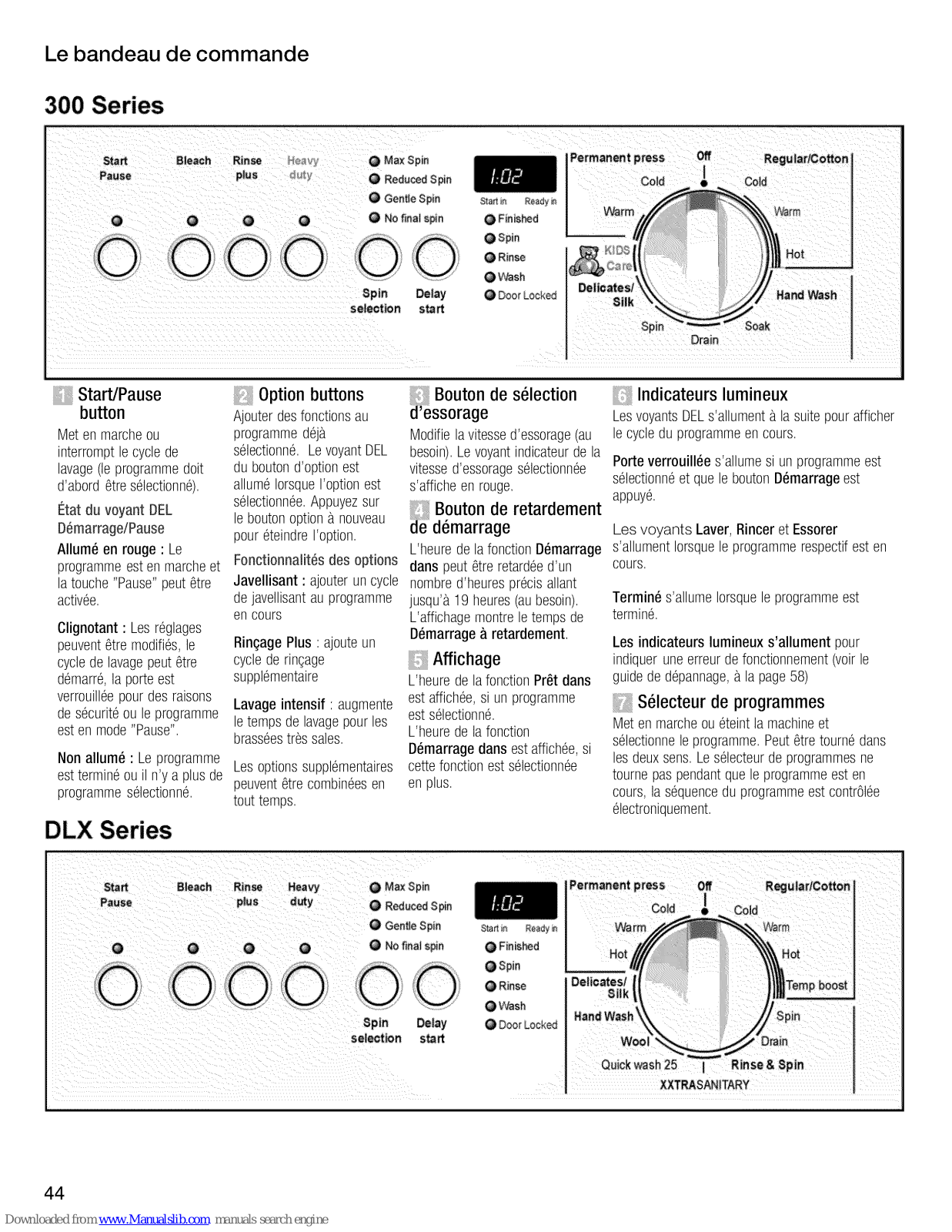

300 Series
Start/Pause
button
Startsorinterruptsthe
washingcycle(program
mustfirst beselected),
StadJPauseLEDStatus
Lit Red:Programis
runningand "Pause"can
beactivated,
Blinking: Settingscan
bechanged,thewash
cyclecanbestarted,
doorislockedfor
reasonsof safetyor
programisin"Pause"
mode,
Not Lit: Programis
finishedor thereisno
programselected,
Option buttons
Addfunctionstothe
programalreadyselected,
Theoptionbutton'sLEDis
litwhenthe optionis
selected,Presstheoption
buttonagainto turnthe
optionoff,
OptionFw_ctio__s
Bleach:Addsa bleachcycle
to theprogramrunning,
RinsePlus:Addsan
additionalrinsecycle,
Heavyduty: Increaseswash
timefor heavilysoiledloads,
Additionaloptionscan be
combinedat anytime,
Spin Selection button
Changesthe spinspeed(if
required),Theindicatorlightof
theselectedspinspeedis lit red,
Delay Start button
TheStart In timecanbe
delayedupto a maximumof
19 hours(if required),
Thedisplayshowsthe Delay
Start time,
Display
TheReadyin time isdisplayed,
ifa programisselected,
TheStart Intimeisdisplayed,if
thisfunctionisadditionally
selected,
Indicator Lights
LED'Slightupin sequenceto showthe current
programcycle,
DoorLocked lightsup ifa programisselected
andtheStart buttonispressed,
Wash,RinseandSpin LED'slight upasthe
respectiveprogramsegmentruns,
Finishedlightsupif theprogramhasended,
Indicatorlights flash to indicateanoperation
error(seetroubleshootingguide,page26)
Program Selector
Switchesthe machineon andoffandselects
theprogram,Canbeturnedinboth directions,
Theprogramselectordoesnot turnwhilethe
programis running theprogramsequenceis
electronicallycontrolled,
DLX Series
i i¸¸ // i(ii ! ii il i)i(
,or==.o,t,_oss: R_=_=,_cotto,
XXTRAS:ANiTARY
13
500 Series
Co!d
Warm
QuiG__sh 25
XXTRASANiTARY
Start/Pause
button
Startsor interruptsthe
washingcycle(program
mustfirst beselected),
StadfPauseLE[}Status
Lit Red:Programis
runningand "Pause"can
beactivated,
Blinking: Settingscan
bechanged,thewash
cyclecanbestarted,
doorislockedfor
reasonsof safetyor
programisin"Pause"
mode,
Not Lit: Programis
finishedor thereisno
programselected,
500 Plus Series
Option buttons
Addfunctionsto the
programalreadyselected,
Theoptionbutton'sLEDis
litwhenthe optionis
selected,Presstheoption
buttonagainto turnthe
optionoff,
OptionRH_ctions
FCOe: Reducestheamount
of energyusedfor the
washingprogram,
Bleach:Addsa bleachcycle
to theprogramrunning
Rinse Plus:Addsan
additionalrinsecycle
Heavyduty: Increaseswash
timefor heavilysoiledloads,
Additionaloptionscan be
combinedat anytime,
Spin Selection button
Changesthe spinspeed(if
required),Theindicatorlightof
theselectedspinspeedis lit red,
Delay Start button
TheStart timecanbedelayed
upto a maximumof 19 hours
(if required),
Thedisplayshowsthe Delay
Start time,
Display
TheReadyin time isdisplayed,
if a programis selected,
TheStart Intimeisdisplayed,if
thisfunctionisadditionally
selected,
Indicator Lights
LED'Slightupinsequenceto showthe current
programcycle,
DoorLockedlightsup ifa programis selected
andtheStart buttonispressed,
Wash,RinseandSpin LED'slightupasthe
respectiveprogramsegmentruns,
Finishedlightsupif theprogramhasended,
Indicator lights flash to indicatean operation
error(seetroubleshootingguide,page26)
Program Selector
Switchesthe machineonandoff andselects
theprogram,Canbeturnedinboth directions,
Theprogramselectordoesnotturnwhilethe
programis running theprogramsequenceis
electronicallycontrolled,
14

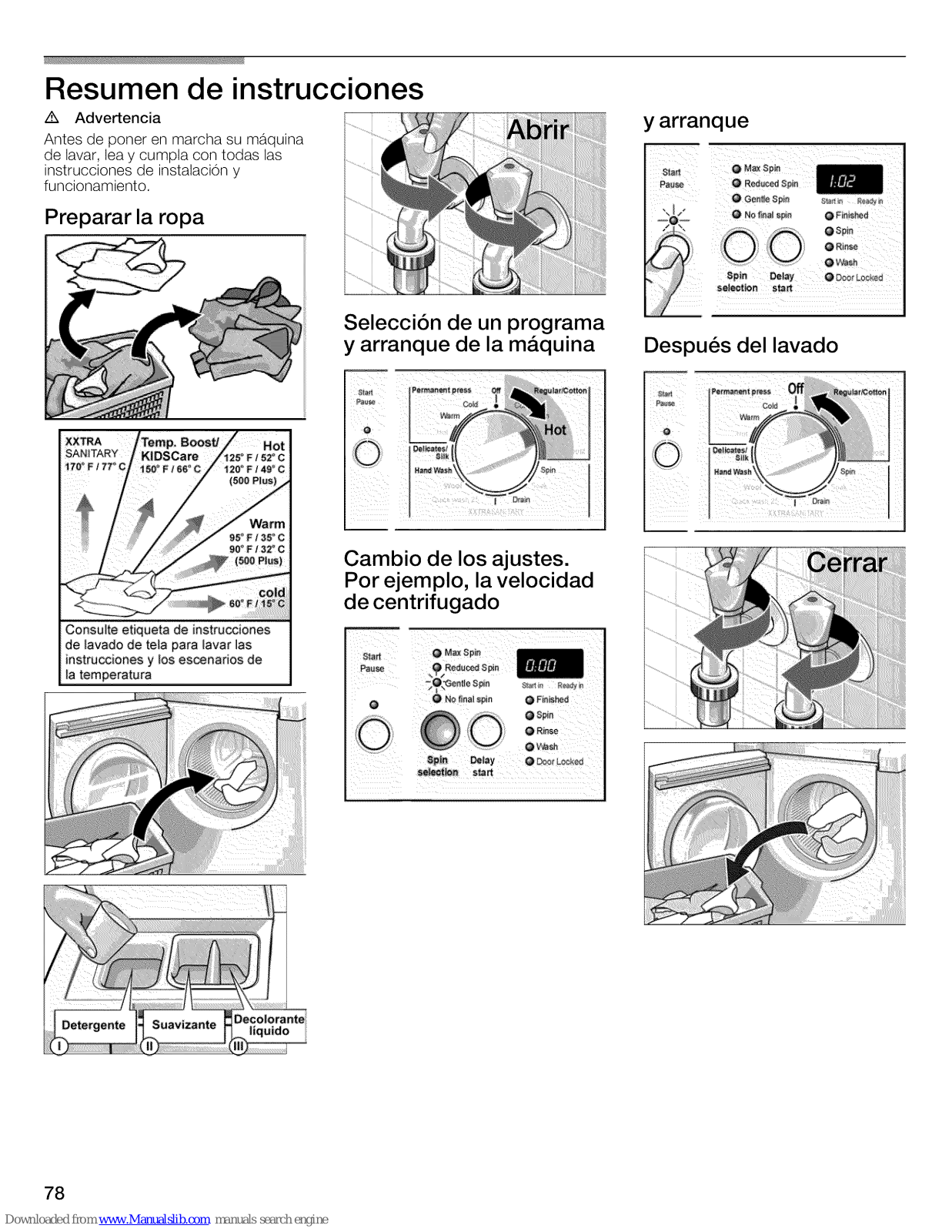

Summary of instructions
Before using
/k Warning
Before using your washing machine,
read and follow all installation and
operating instructions.
Preparing the laundry
Select a cycle and start
the machine
After washing
consult fabric care label for washing
instructions and temperature settings
Select desired settings
press start
i
i' xx ¸¸%¸¸ :
@ GentleS_in
15

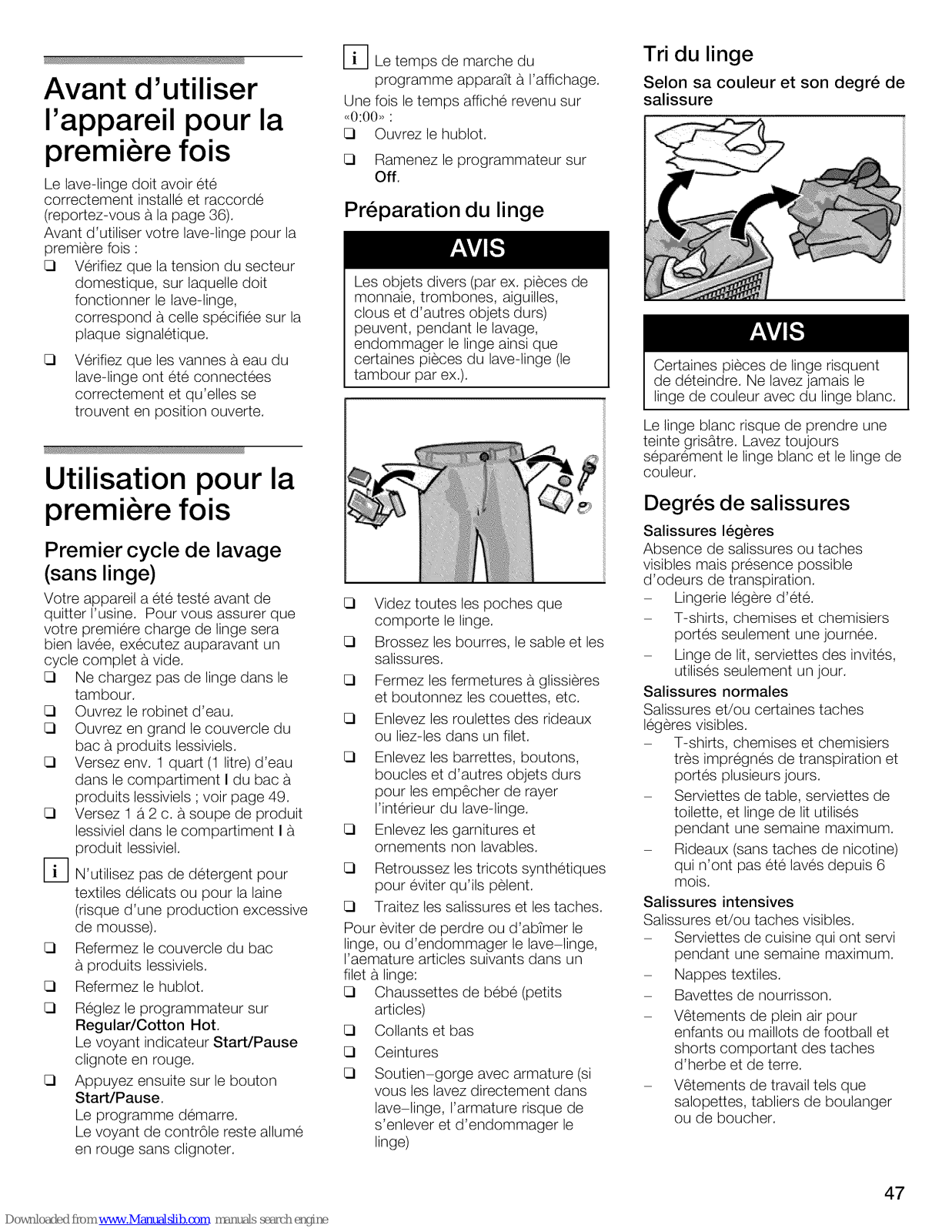

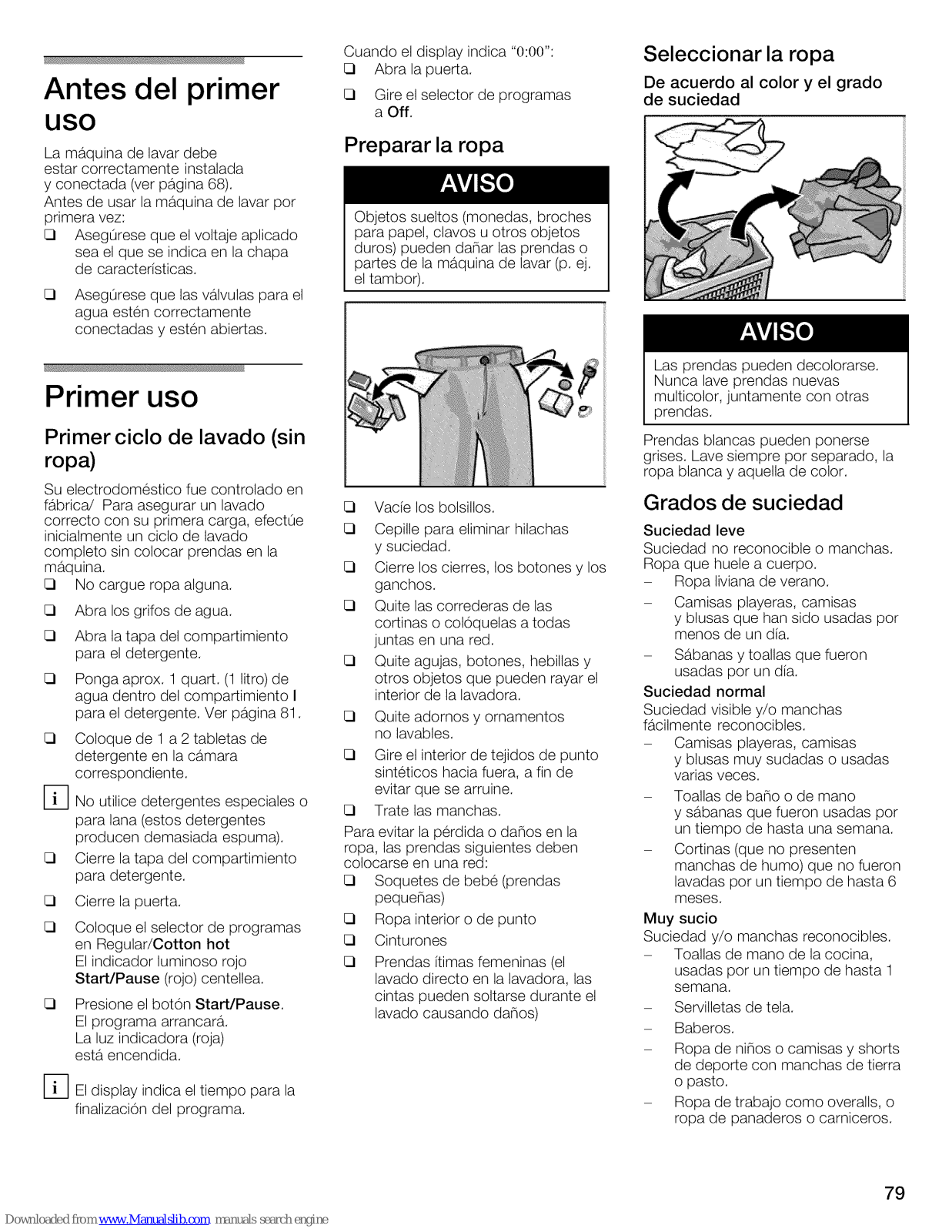

Before Using For
the First Time
The washing machine must be installed
and connected properly (refer to Page
6).
Before using your washing machine for
the first time:
CI Make surethat the supplied
voltage isthe same as the voltage
shown on the rating plate.
CI Check that the water valves for the
washing machine have been
connected correctly and are open.
Using For the First
Time
First washing cycle
(without laundry)
Your appliance was tested before
leaving the factory. To ensure a fresh
wash with your initial load of clothes,
run the washer a complete cycle,
without clothes, in advance.
CI Do not load any laundry.
C3
E3
Turn on tile water tap.
Open the flap of the detergent
dispenser.
CI Pour approx. 1quart (1 liter) of
water into the detergent chamber
I; see Page 18.
CI Pour 1-2 Tbsp. detergent into
detergent chamber I.
D Do not use special detergents for
delicates or wool (this will cause
excessive sudsing).
CI Close the flap of the detergent
dispenser.
CI Close the door.
E3
Set the program selector to
Regular/Cotton Hot,
The Start/Pause indicator light
flashes red.
CI Pressthe Start/Pause button.
The program starts.
The indicator light is on (red).
D The display shows the run time of
program.
When the display shows "0:00":
CI Open the door.
CI Turn the program selector to Off.
Preparing the laundry
Loose debris (coins, paper clips,
nails and other hard objects) can
damage items of clothing as well as
parts of the washing machine (e.g.
drum).
CI Emptyall pockets.
CI Brush off lint and dirt.
CI Close zippers, button up duvets
and hooks.
CI Remove curtain rings or tie them
up in a net bag.
CI Remove pins, buttons, buckles
and other hard objects to avoid
scratching the washer interior.
CI Remove non-washable trim and
ornaments.
CI Turn synthetic knitwear inside-out
to avoid pilling.
CI Treat spots and stains.
To prevent loss or damage to laundry
and the machine, the following items
should be washed in a mesh laundry
bag:
CI Baby socks (small items)
CI Hosiery
CI Belts
CI Underwired bras (directly washed
in the washer, the wire may come
loose during wasing and cause
damage)
Sorting the laundry
According to color and degree of
soiling
Items of clothing may become
discolored. Never wash new
multi-colored items together with
other items.
White items may become gray. Always
wash white and colored items
separately.
Degrees of soiling
Slight dirt
No recognizable dirt or staining.
Laundry may have some body odor.
- Light summer clothing.
- T-shirts, shirts and blouses that
have been worn for up to one day.
- Bed linen and guest towels that
have been used for one day.
Normal dirt
Visible dirt and/or some light
recognizable staining.
- T-shirts, shirts and blouses that
are very sweaty or have been worn
several times.
- Dish towels, hand towels and bed
linen that have been used for up to
one week.
- Sheer curtains (without smoke
staining) that have not been
washed for up to 6 months.
Intensive dirt
Dirt and/or staining recognizable.
- Kitchen hand towels that have
been used for up to one week.
- Cloth napkins.
- Bibs.
- Children's outer clothing or
sportswear with grass and soil
stains.
- Working clothes such as overalls
or baker's and butcher's coats.

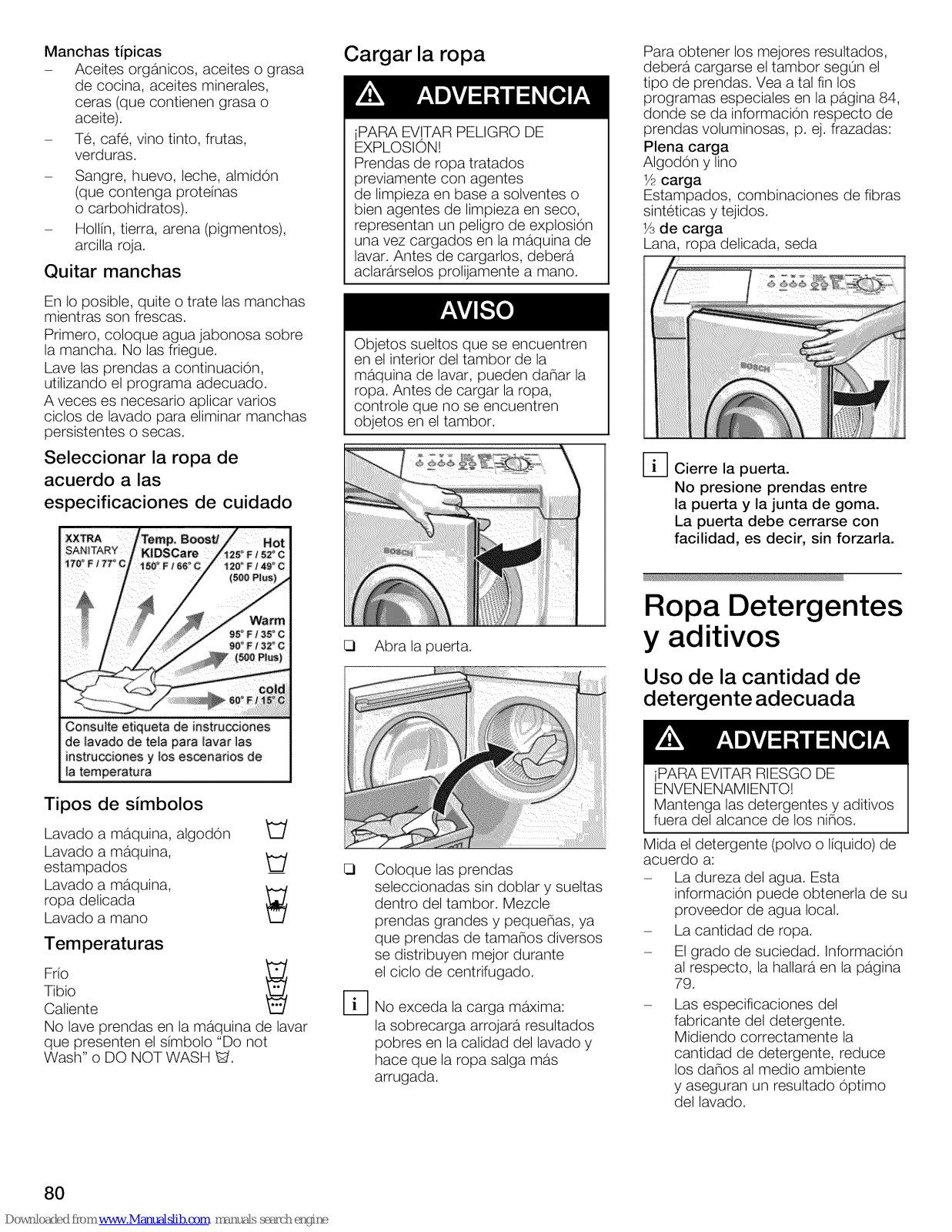

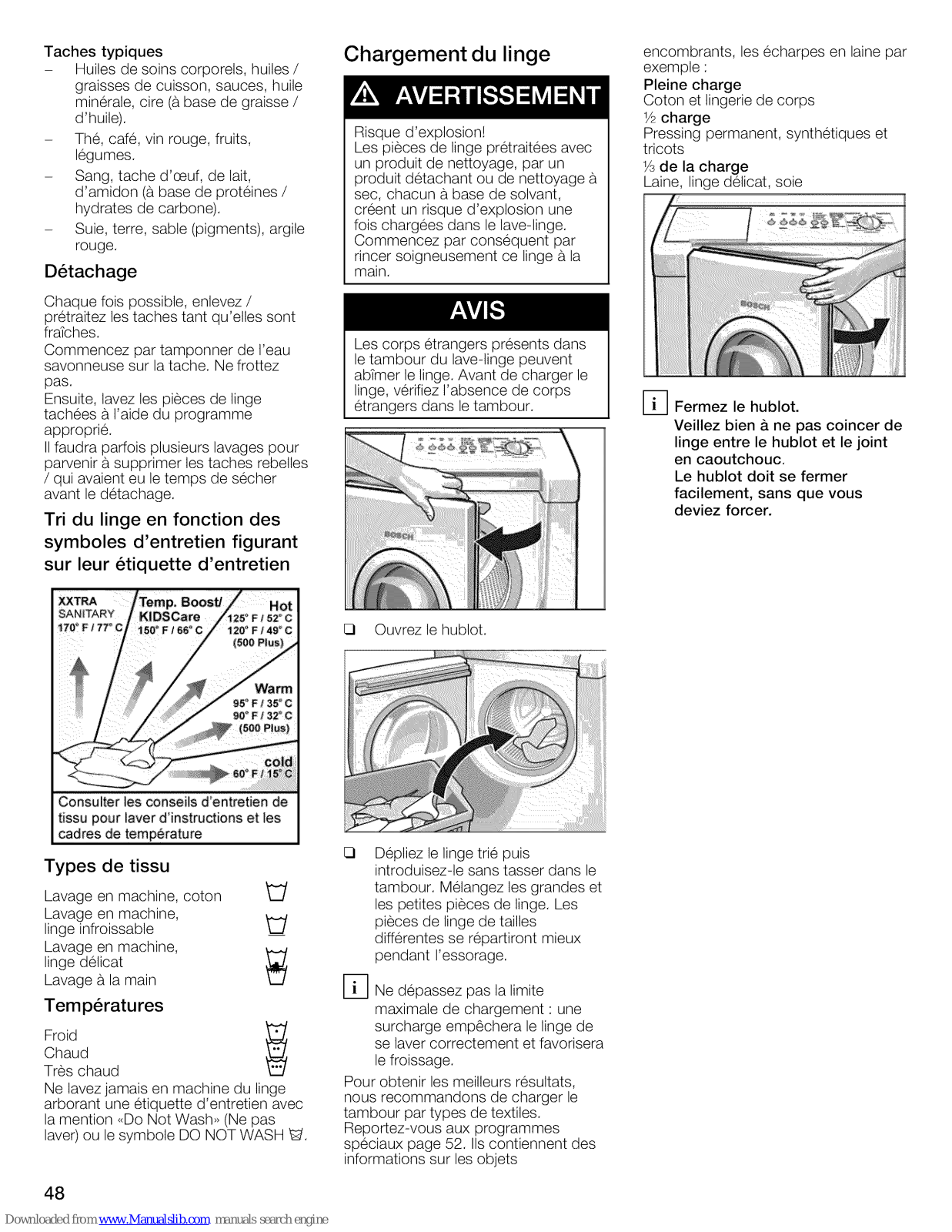

Typical stains
- Body oils, cooking oils/grease,
sauces, mineral oil, wax
(containing fat/oil).
- Tea, coffee, red wine, fruit,
vegetables.
- Blood, egg, milk, starch
(containing protein/carbohydrate).
- Soot, soil, sand (pigments), red
clay.
Removing stains
If possible, pretreat stains while they
are still fresh.
First, dab soapy water onto the stain.
Do not rub.
Subsequently, wash the items of
clothing using the appropriate program.
Occasionally, several wash cycles may
be required in order to remove
persistent, dried on stains.
16
Sorting Laundry
according to care label
specifications
consult fabric care label for washing
instructionsand temperature settings
See also temperatures settings on
page 96.
Fabric Types
Machine Wash, Cottons _/
Machine Wash,
Permanent Press
Machine Wash, Delicates
Hand Wash
Temperatures
Cold _/
Warm _/
Hot "_
Do not wash clothes in washing
machine if the care label says "Do Not
Wash" or the DO NOT WASH symbol
_d is on the care label.
Loading the laundry
TO AVOID
EXPLOSION HAZARD!
Items of clothing that have been
pretreated with solvent-based
cleaning agents, e.g. stain remover
and dry cleaning solvents, represent
an explosion hazard once loaded
into the washing machine.
Therefore, these items must first be
rinsed thoroughly by hand.
Loose debris in the washing
machine drum can damage the
laundry. Before loading the laundry,
check that there is no debris in the
drum.
Open the door.
For best results it is recommended to
load the drum depending on the fabric
type, see special programs Page 21 for
information on bulky items, e.g.
comforters :
Full Load
Cotton and Linens
1/2Load
Permanent Press, Synthetic Blends
and Knitwear
Y_Load
Wool, Delicates, Silk
D Close the door.
Do not trap any items of
clothing between the door and
rubber seal.
Door should be able to close
easily, not by force.
CI
%
Unfold the sorted items of clothing
and place them loosely into the
drum. Mix up large and small
items. Items of varying size will
distribute better during the spin
cycle.
Do not exceed the maximum load.
Overloading will cause poor wash
results and increase wrinkling.
17

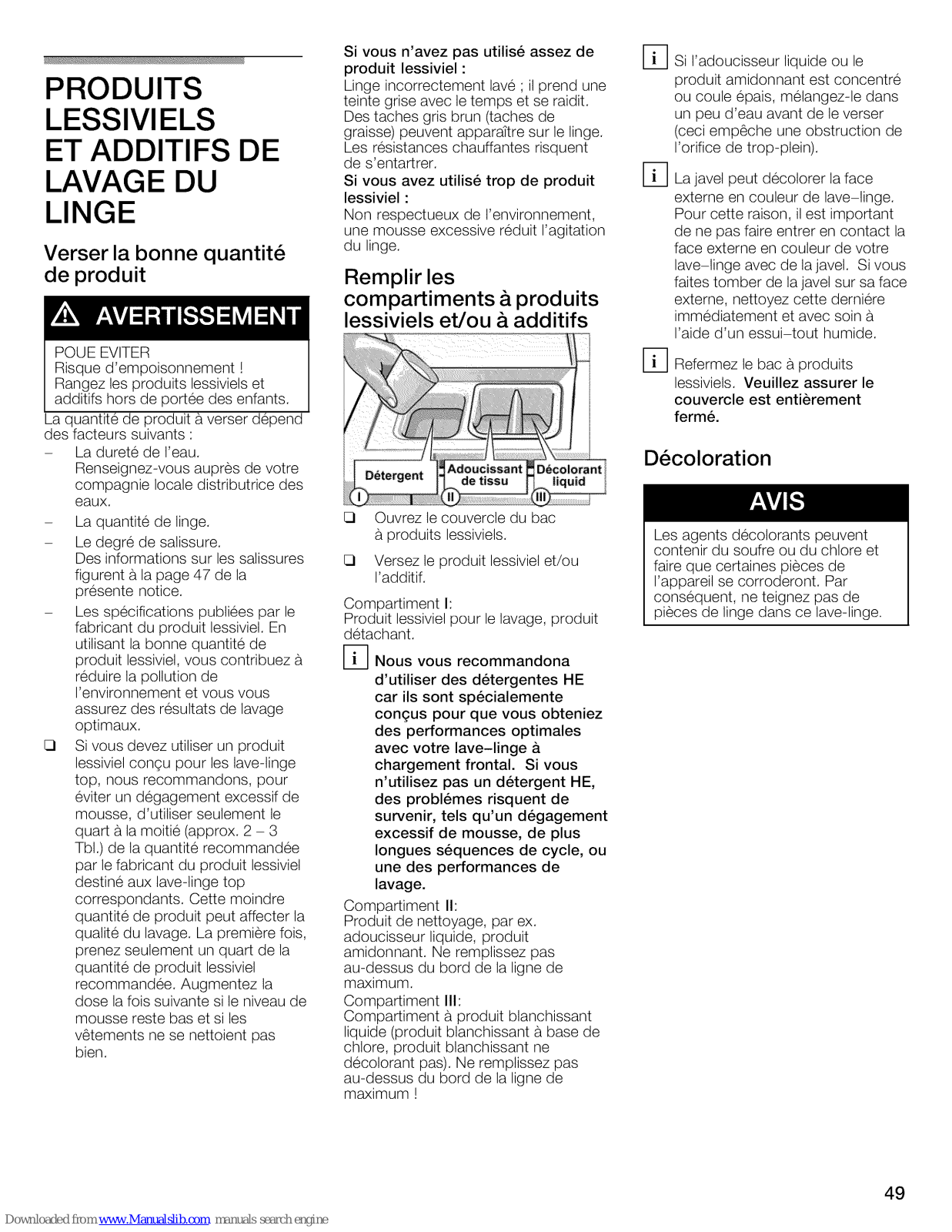

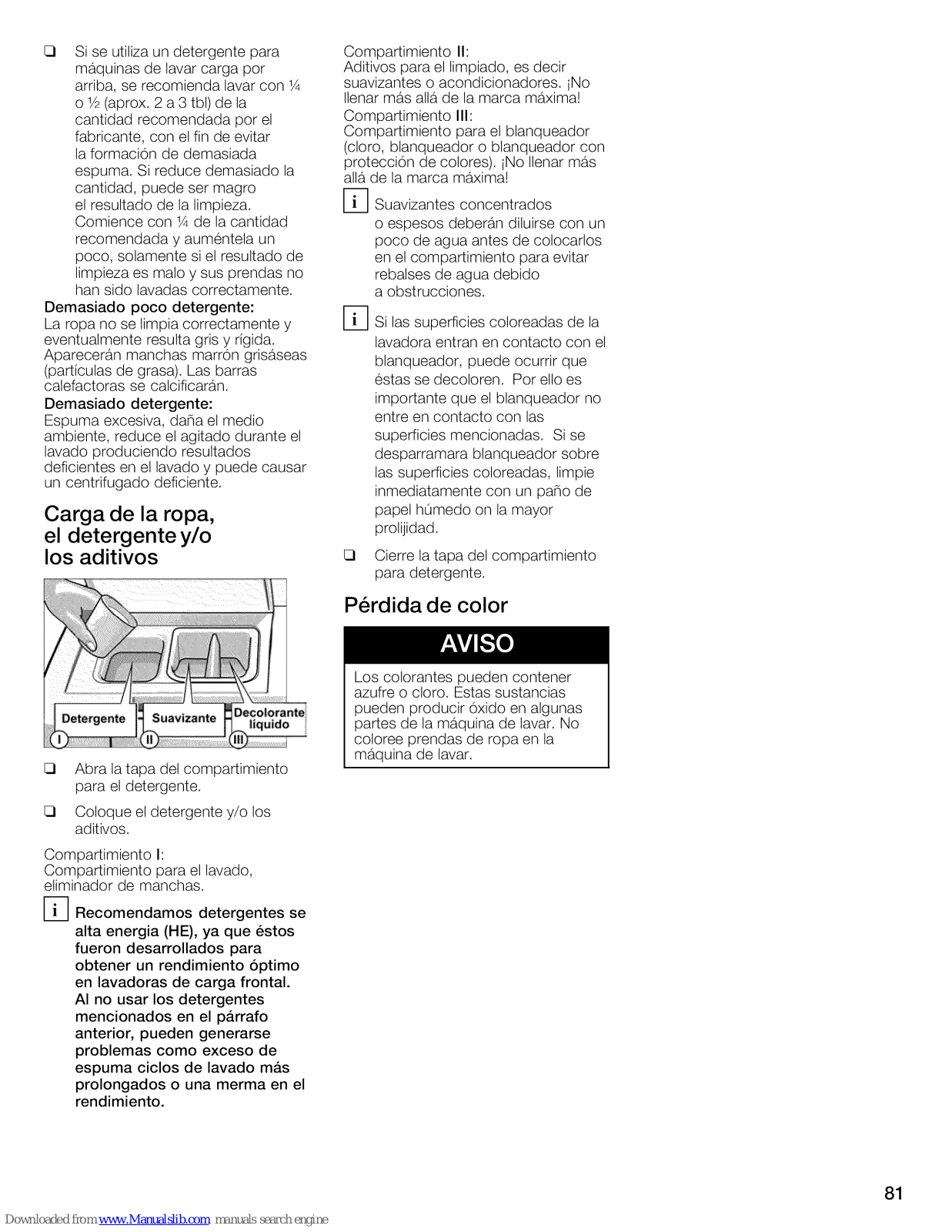

Laundry Detergents and Additives
Dispensing the correct Filling laundry detergent
amount of detergent and/or additives
TO AVOID RISK OF POISONING!
Keep detergents and additives out
of the reach of children.
Measure out the detergent (powder or
liquid) according to:
- The water hardness. This
information can be obtained from
your local water authority. Soft
water requires less detergent.
- The amount of laundry.
- The degree of soiling. Information
on soiling can be found on Page
16.
- The specifications of the detergent
manufacturer. Measuring the
correct amount of detergent
relieves the strain on the
environment and ensures optimum
washing results.
El If a detergent designed for top
loading washers is used (non-HF),
it is recommended to use only 1/4
to 1/2 of the amount suggested by
the detergent manufacturer. This
will reduce the formation of excess
foam. Use of too small an amount
of detergent can affect washing
quality. Begin with 1/4 of the
suggested amount and increase it
only if the level of foam remaining
is low and the laundry is not clean
enough.
Too little detergent:
The laundry is not cleaned properly and
will eventually become gray and stiff.
Grayish brown spots (fatglobules) may
appear on the laundry. The heater may
calcify.
Too much detergent:
Not environmentally friendly, excessive
suds reduce wash agitation producing
poor washing and rinsing results or
may prevent proper spinning.
El Open the flap of the detergent
dispenser.
El Add the detergent and/or additive.
Dispenser I:
Dispenser for detergent, stain remover.
D We recommend HE detergents
because they are particularly
designed to deliver optimum
performance from your
front-loading washer. Not
using HE detergent could cause
problems such as oversudsing,
extended cycle periods, or a
decrease in wash performance.
Dispenser I1:
Cleaning additives, e.g. fabric softener,
fabric conditioner. Do not fill over edge
of max line!
Dispenser II1:
Dispenser for liquid bleach (chlorine
bleach, color safe bleach).
Do not overfill!
rs
rs
rs
Concentrated or thick fabric
softener, conditioner and
powder-bleach must be diluted
with a little water before being
poured into the dispenser
(prevents overflow due to
obstruction).
Bleach may cause discoloration of
the washer's colored surface.
Therefore, it is important to keep
the bleach away from the colored
surface of your washer. Ifany
bleach spills on the surface, use a
moist paper towel to thoroughly
clean it immediately.
Close the flap of the detergent
dispenser. Please ensure the lid
is entirely closed.
Decolorizing
Dyes may contain sulphur or
chlorine. These substances may
cause parts of the washing machine
to corrode. Do not dye items of
laundry inthe washing machine.
18

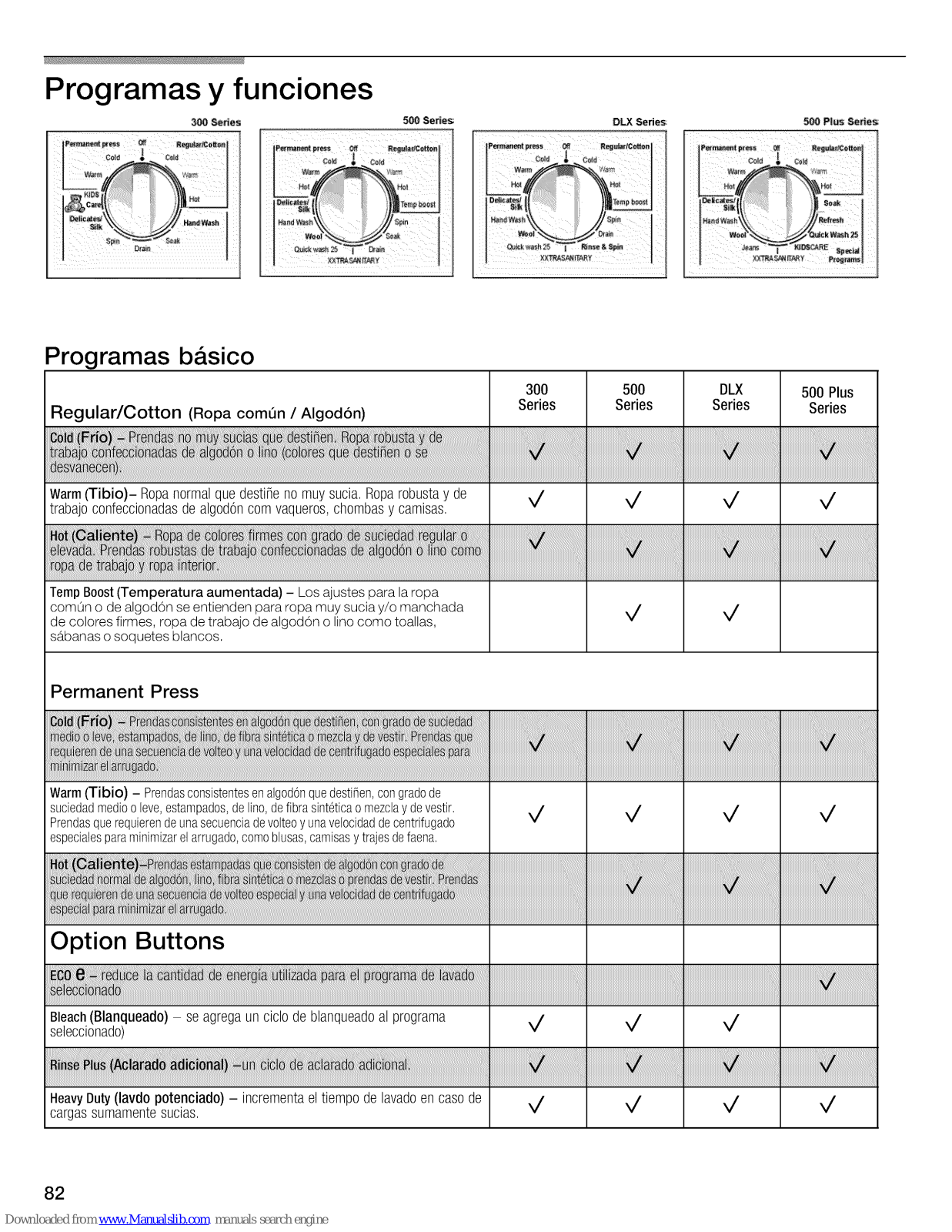

Programs and Functions
300 _es
N_ _
OLXSedes_ 5_ Pius _e_
Basic Programs
300 500 DLX 500 Plus
Regular/Cotton Series Series Series Series
tto _ ::
Warm - Lightlyand/ornormallysoilednon colorfastfabric, Sturdyhard _/ _/ _/ _/
wearingitemsmadeofcottonor linen(e,g,jeans,T shirtsandsweatshirts),
st:fa
! .....................................................................................................................................................................
TempBoost- Sturdy,hardwearingitemsmadeof cottonor linensuchas
towels,sheetsor whitesportssocks, Intendedfor heavilysoiledand/or _/ _/
stainedcolorfastfabrics,
Permanent Press
to
Warm- Itemsconsistingoflightlysoiledand/ornormallysoiled
non-colorfastcotton,permanentpress,linen,syntheticor blendedfabrics _/ _/ _/ _/
andoutergarments,Clothesrequiringa specialtumblesequenceandspin
speedto minimizecreasing,suchasblouses,shirtsandoveralls,
st .........
Option Buttons
Bleach- addsableachcycletothe selectedprogram _/ _/ _/
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
HeavyDuty-increases washtimefor heavilysoiledloads _/ _/ _/ _/
19
300 _es
I

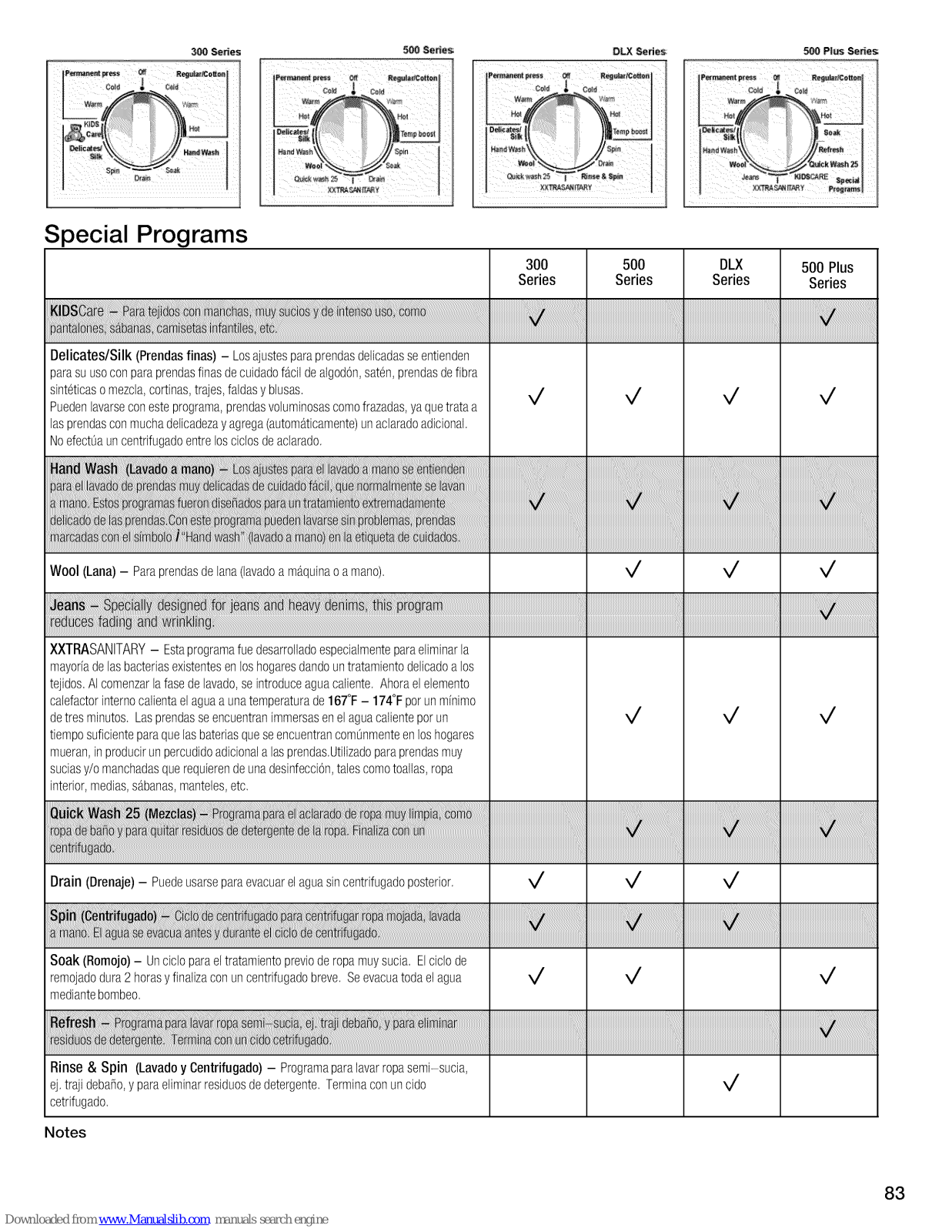

Special Programs
300 500 DLX 500 Plus
Series Series Series Series
Delicates/Silk- Intendedfor usewith delicateeasycareitemsmadeof
cotton,satin,syntheticor blendedfabricsandcurtains,dresses,skirtsand
blouses,Bulkyitems(e,g,comforters)canbewashedwiththis cycle
becauseof gentleactionandadditionalrinse(automaticallyadded),Thereis
nospinningbetweenrinsecycles,
Wool- Woolens (machirle wash and hand wash), _ _
XXTRASANITARY- Specificallydesignedto eliminatemostcommon
householdbacteriawhileprovidinggentletreatmentoffabrics,At the
beginningof thewashcycle,hotwateris introducedandheatedbythe
internalheatingelementto 167 to 174Ffora minimumofthree minutes,
Clotheswillbesaturatedinthe hotwaterlongenoughto killmostcommon
householdbacteriawithoutcausingadditionalwearandteartothe clothes,
Usedfor heavilysoiledand/orstainedcolorfastfabricsthat needto be
sanitized,suchas towels,underwear,socks,bedsheets,tablecloths,etc,
Drain - Canbe usedto drainwaterwithoutgoingthrougha spincycle, _/ _/ _/
Soak- Forpre treatmentof heavilystaineditems, Thesoakcyclelaststwo
hoursandendswithashortspincycle,
Rinse& Spin - Forrinsingunsoiledtextiles(e,g,swimwear)andfor _/
removingdetergentresiduefromtextiles, Endswithaspincycle,
2O

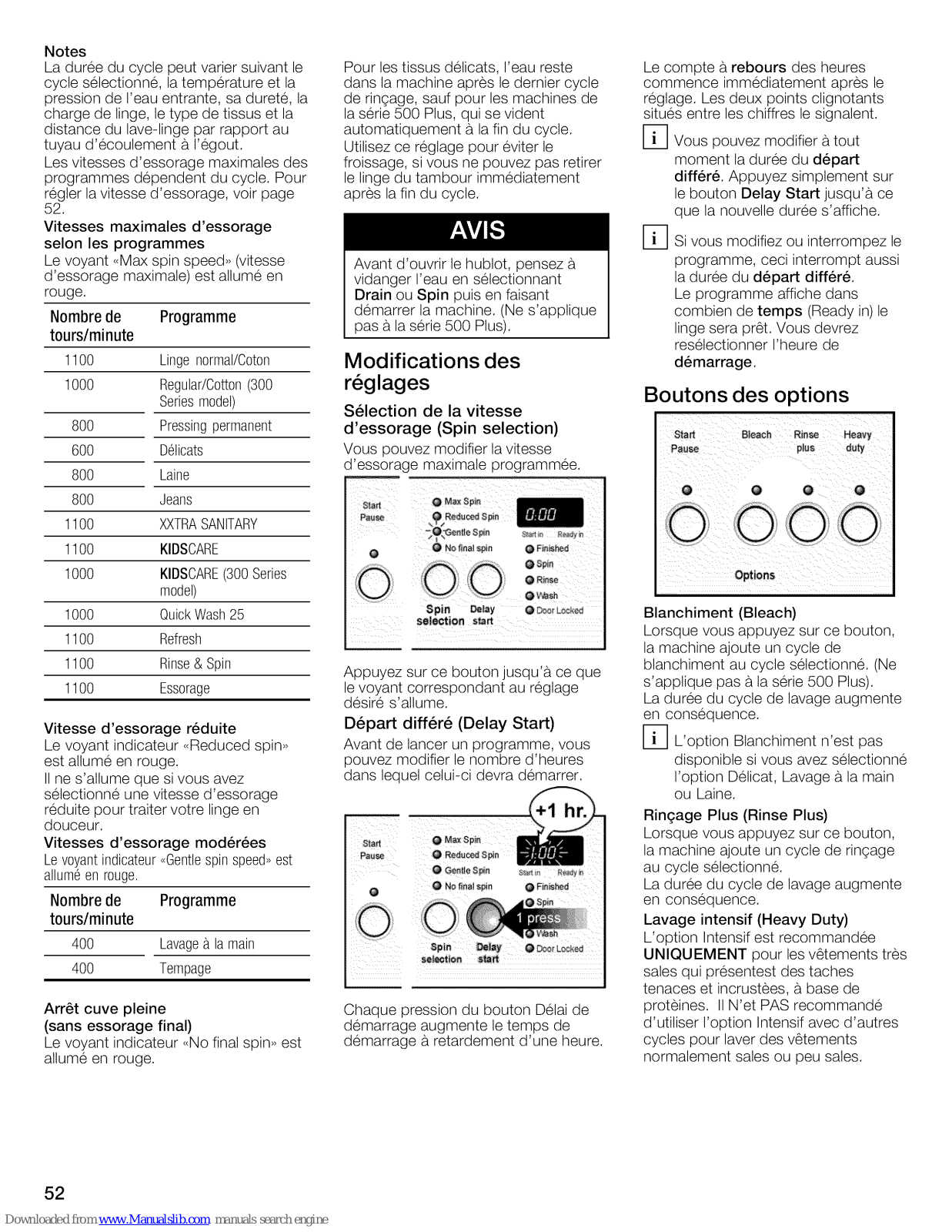

Notes
Cycle time will vary depending on cycle
selected, temperature and pressure of
incoming water, water hardness, size
of load, type of fabrics and distance of
unit from the drain.
The maximum spin speeds of the
programs are dependent upon the
cycle. For adjusting the spin speed, see
page 21.

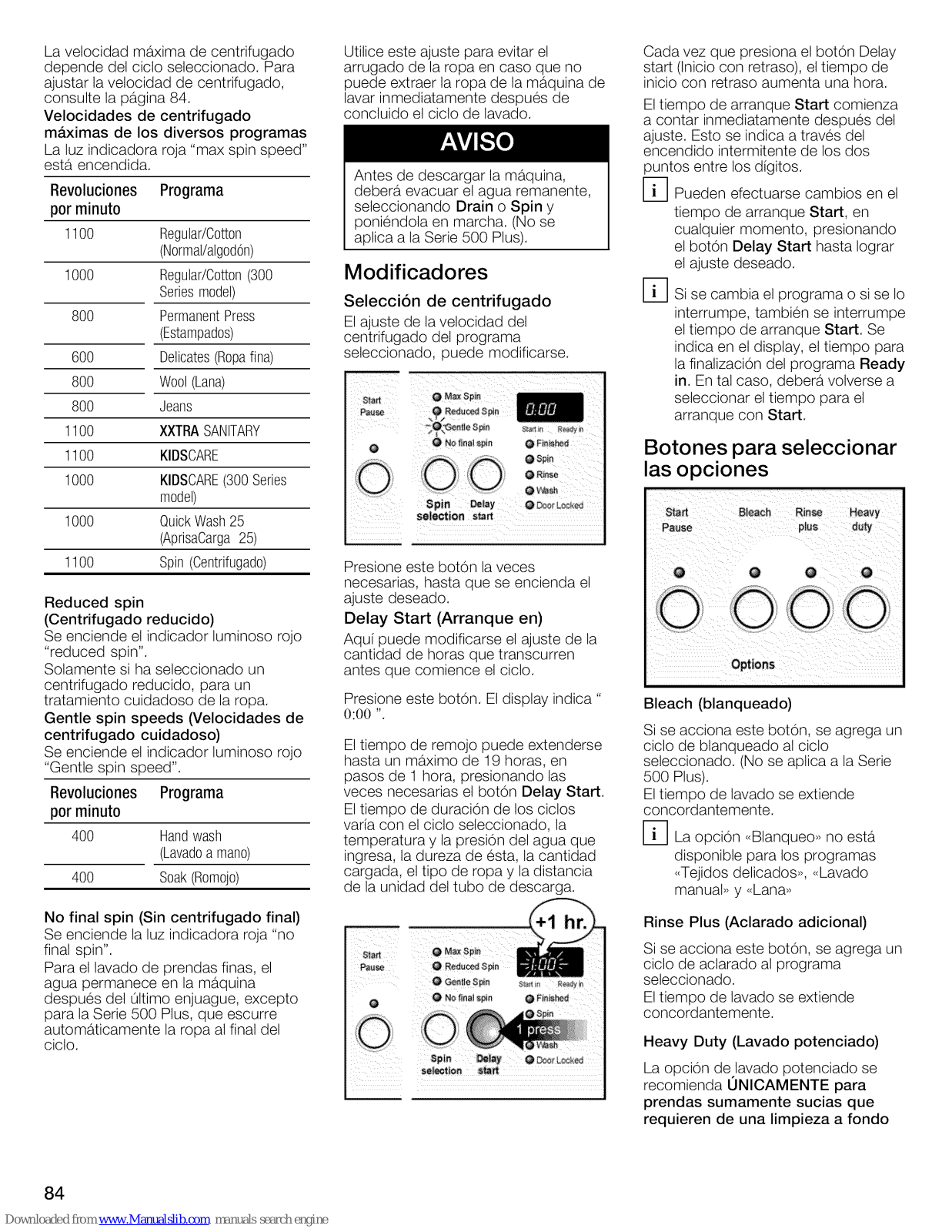

Program Spin Speeds
Maximum spin speeds of the
programs
Theindicatorlight"maxspinspeed"islit red.
Revolutions Program
per minute
1100 Regular/C0tt0n
1100 XXTRASANITARY
1100 KIDSCARE
1100 Refresh
1100 Rinse& Spin
1100 Spin
KIDSCARE(300Series
1000
model)
1000 QuickWash25
1000 Regular/C0tt0n(300 Series
model)
800 PermanentPress
800 W001
800 Jeans
600 Delicates
Reduced spin
The indicator light "reduced spin" is lit
red only if you have selected a reduced
spin speed for gentle treatment of your
laundry.
Gentle spin speeds
Theindicatorlight "Gentlespinspeed"is lit
red,
Revolutions Program
per minute
400 HandWash
400 Soak
No final spin
The indicatorlight"no final spin"is lit
red.
For delicate laundry, the water remains
in the machine after the last rinse,
except for the 500 Plus series, which
automatically drains at the end of the
cycle.
Use this setting to avoid creasing if the
clothing cannot be taken out of the
washing machine immediately upon
completion of the cycle.
Before unloading you must drain the
remaining water by selecting Drain
or Spin and starting the machine.
(Does not apply to 500 Plus Series).
Modifiers
Spin Selection
Preset cycle setting of max. soin soeea
can De changea.
Start
PaU_
@
O M_ Sp_t_
F_q_d
@spi_
OV_
Spin DeBay @ _ Lock_
selection s_n
Press this button until the desired
setting lights up.
Delay Start
Before starting a program you can
modify by when the cycle should be
started.
Press Delay Start button. The display
shows the start time 0:00.
The time can be delayed up to a
maximum of 19 hours (with 1 hour
increments) by pressing the Delay
Start button repeatedly.
il'/!_i:i>d!!
Each press of the Delay start button
increases the delay start time by one
hour.
The Start time begins running
immediately after pushing the
Start/Pause button. This is indicated
by the points between the digits
flashing.
D Changes to the Start time are
possible at any time, press the
Delay Start button until the new
time appears.
D If the program is changed or if the
program is interrupted, the
preselected Start time is also
interrupted. The Ready in time of
the program is displayed. The
Start time must be reselected.
Option buttons
i
options
Bleach
When this button is pressed, a bleach
cycle will be added to the selected
cycle. (Does not apply to 500 Plus
Series).
The washing cycle time is extended
accordingly.
_1 The Bleach option is not available
ifthe Delicate, Hand wash or Wool
cycle is selected.
Rinse Plus
When this button is pressed, an
additional rinsing cycle will be added to
the selected cycle.
Washing cycle time is extended
accordingly.
Heavy duty
The Heavy duty option is
recommended for use ONLY for
heavily soiled clothes that require
the removal of tough, ground-in
protein-based stains. It is NOT
recommended to use the Heavy duty
option with other cycles when
laundering normal or lightly soiled
clothes.
21
Washing time is extended.
Only cold water is introduced to the
drum. The washing machine then
heats the water to the selected wash
temoerature. By raising the
temoerature from cold up to the set
temoerature all components of the
detergent are activated n stages for
best stain removal ana cleaning results.
Sl[ad ECO Rinse Heavy
Pause plus duty
@ @ @ @

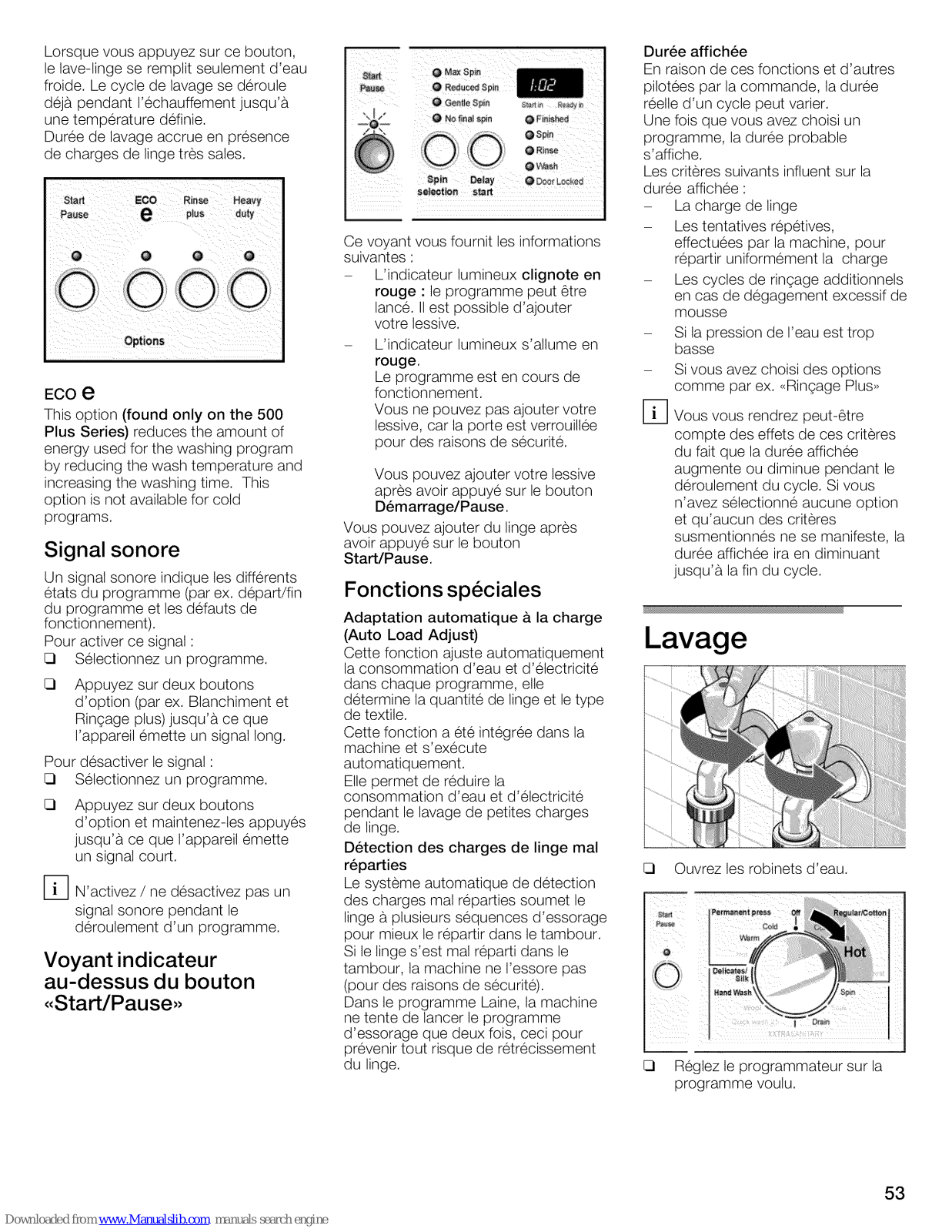

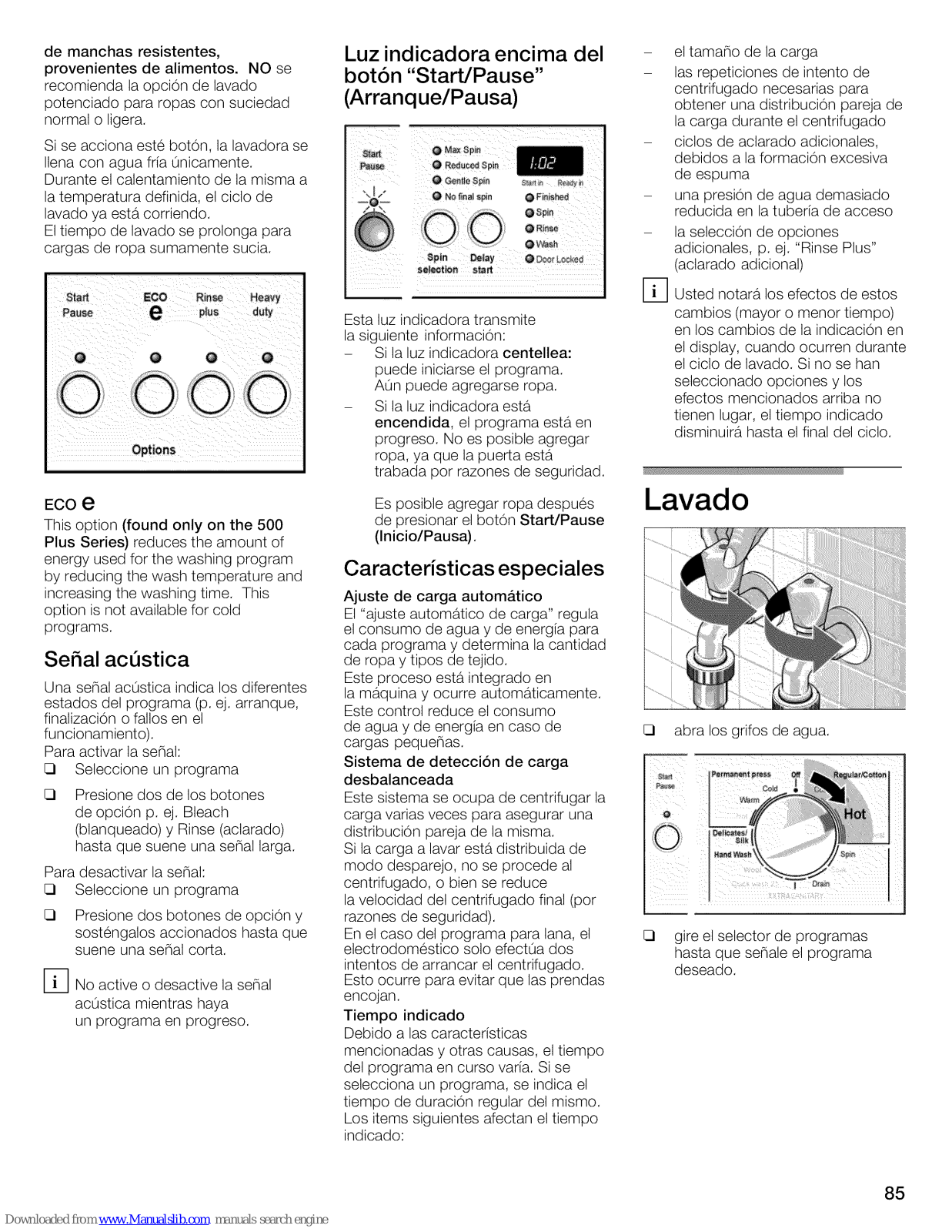

ECO e
This option (found only on the 500
Plus Series) reduces the amount of
energy used for the washing program
by reducing the wash temperature and
increasing the washing time. This
option is not available for cold
programs.
Acoustic Signal
An acoustic signal indicates program
statuses (e.g. start/end of program and
operating faults.)
To activate the signal:
Select a program.
Press two of the Option
Buttons(e.g. Bleach and Rinse
Plus) until a long signal is emitted.
To deactivate the signal:
Select a program.
Press two of the Option Buttons
and hold until a short signal is
emitted.
D Do not activate/deactivate the
acoustic signal during a cycle.
Indicator light above the
"Start/Pause" button
The indicator light conveys the
following information:
- Indicator light is flashing red:
Program can be started.
Adding laundry is possible.
Indicator light is lit red.
Program is running.
Adding laundry is not possible
because the door is locked for
safety reasons.
Laundry may be added after
pressing the Start/Pause button.
Special features
Auto Load adjust
"Auto Load adjust" adjusts the water
and energy consumption for each
program and determines the amount of
laundry and type of fabrics.
This process is built into your machine
and occurs automatically.
This control reduces water and energy
consumption when washing small
loads.
Unbalanced load detection system
The automatic unbalanced load
detection system spins the laundry
several times to ensure even
distribution.
If the wash load is unevenly distributed,
it will not spin (forsafety reasons) or the
final spin speed is reduced.
In the wool program the appliance will
attempt to start the spin cycle only
twice in order to prevent shrinking.
Displayed Time
Due to these and other characteristics
of the controls the actual cycle time will
vary.
When a program has been selected,
the expected program duration is
displayed.
The following will effect the displayed
time:
- Load size
- Repeated spin attempts to evenly
distributed load
- Additional rinse cycles if excessive
foam occurs
%
Water pressure is too low
Selection of additional options,
e.g. "Rinse plus"
You may notice these effects
(more or less time) changes the
displayed time when they occur in
the cycle. If no options are
selected and these effects do not
occur, the time indicated will count
down until the end of the cycle.
Washing
Turn on the water taps.
i!i
o
E3
close the door.
Load the washing machine and
The Start/Pause indicator light
flashes (red).
22

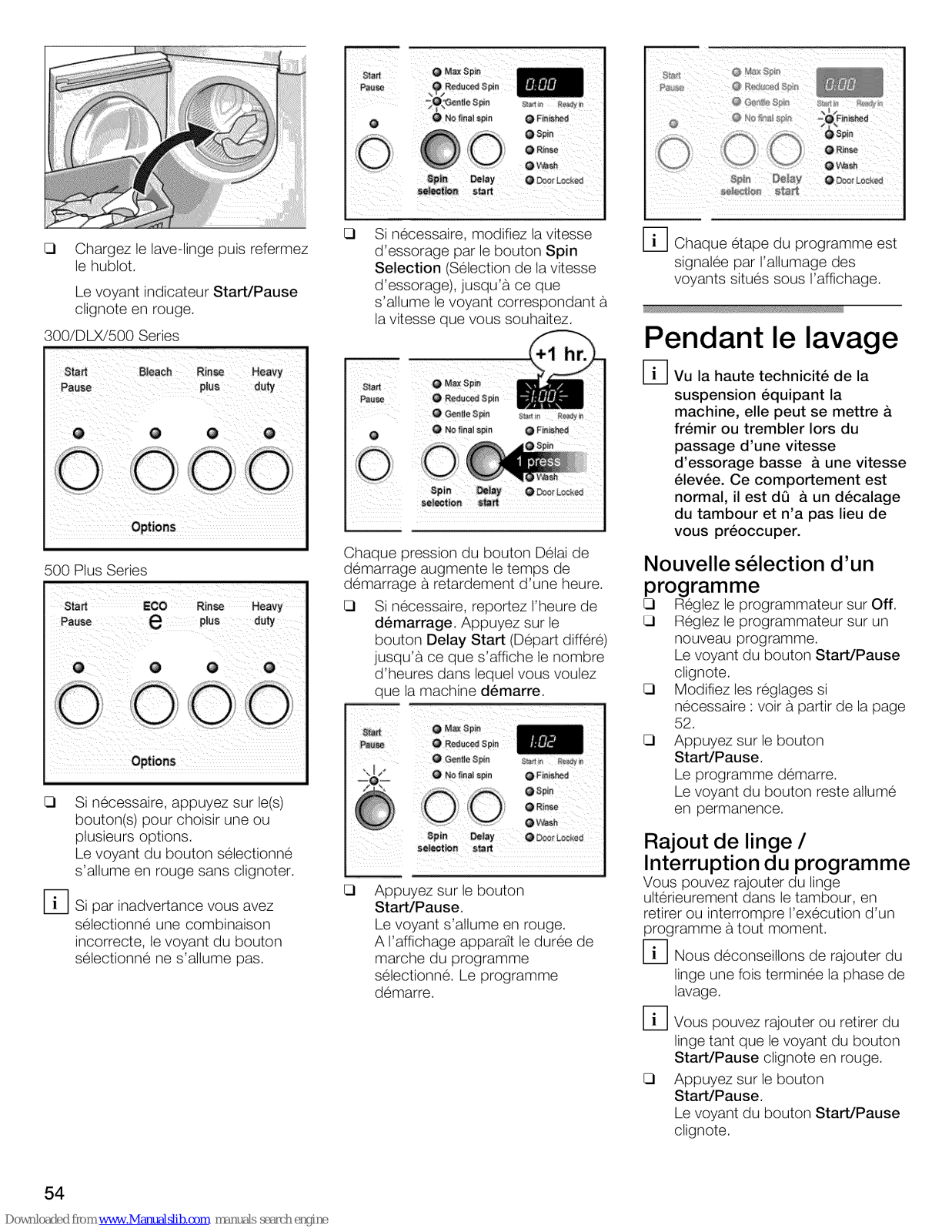

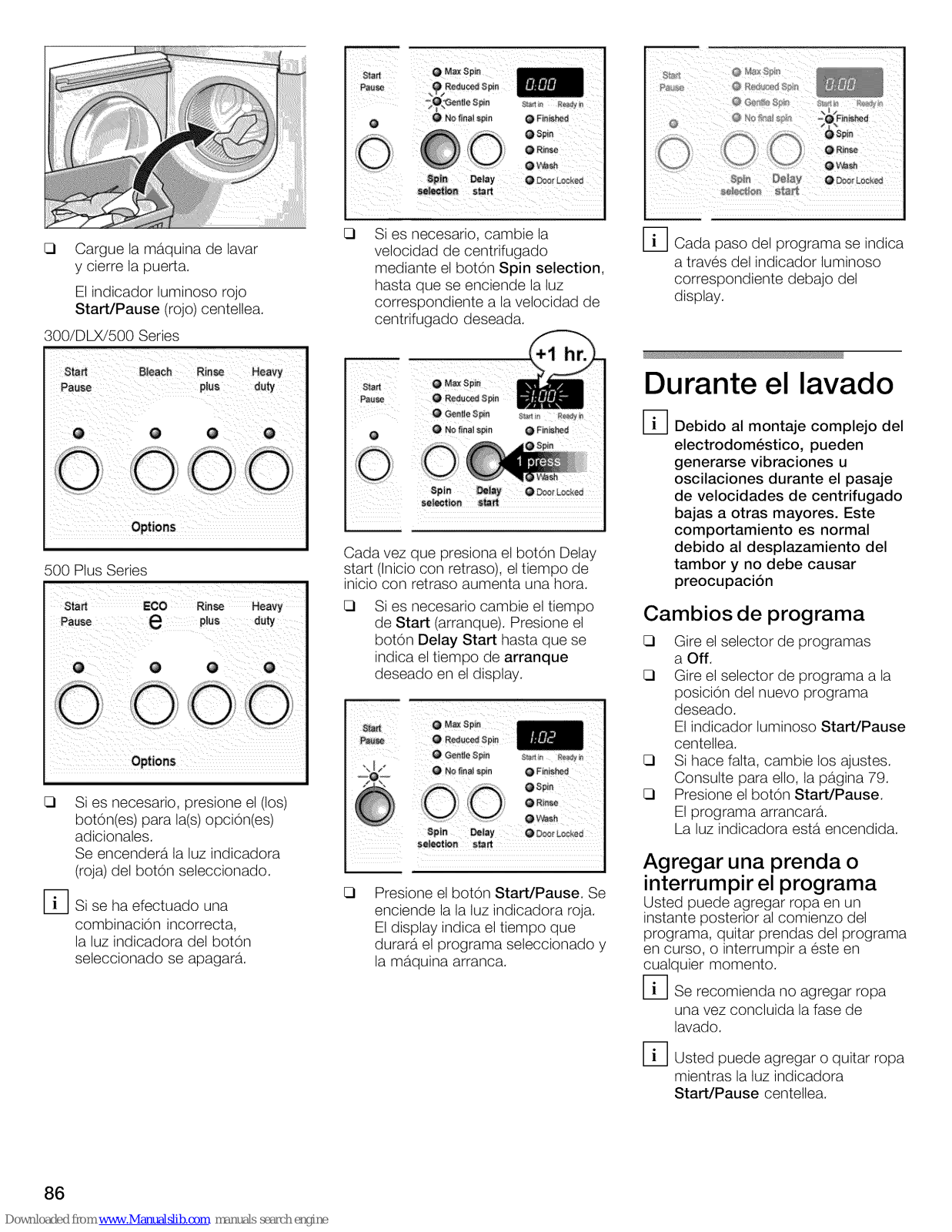

300/DLX/500 Series
Start Bleach Rinse Heavy
Pause plus duty
0 0 0 0
0 ©
Options
500 Plus Series
Stad ECO Rinse Heavy
Pause plus duty
@ @ @ @
Cl If necessary, press the button(s) for
additional option(s).
The indicator light of the selected
button is lit (red).
D If an incorrect combination was
inadvertently selected, the
indicator light of the selected
button is turned off.
C_
If necessary, change the spin
speed with the Spin selection
button until the the desired spin
speed indicator light is lit.
Each press of the Delay start button
increases the delay start time by one
hour.
C_
If necessary, change the Start
time. Press the Delay Start button
until the desired Start time is
displayed.
..... "- @Sp!#
8_tn De_ay O O_O_k_k_
S_t_m s_rt
Cl Press the Start/Pause button.
The indicator light is lit (red).
Display shows the run time of the
selected program. The program
starts.
D Each program step is indicated by
the indicator lights under the
display.
During Washing
D Due to the highly engineered
suspension of this appliance, it
may experience a shudder or
shake when progressing from
lower to higher spin speeds.
This behavior is normal due to
shifting of the drum system and
should not cause concern.
Changing a program
CI Turn the program selector to Off.
CI Turn the program selector to a
newly selected program.
The Start/Pause indicator light
flashes.
CI Ifrequired, change the settings;
see from Page 21.
CI Pressthe Start/Pause button.
The program starts.
The indicator light is lit.
Add a garment /
Interrupting the program
You can put laundry in the drum after
washing begins, take laundry out of the
drum early or interrupt the program at
any time.
D It is not recommended to add
laundry after the washing phase is
complete.
D You can add or reduce laundry as
long as the Start/Pause indicator
light flashes (red).
CI Pressthe Start/Pause button.
The Start/Pause indicator light
flashes.
CI Open the door.
CI Place/remove the laundry.
CI Close the door.
CI Pressthe Start/Pause button.
The program continues.
The indicator light is lit (red).
%
%
When the Start/Pause indicator
light is lit (red), the program can be
interrupted, however the door
cannot be opened for safety
reasons (water level, temperature
or speed too high).
If the spin speed is too high, the
Start/Pause indicator light is lit
(red). Laundry can be added in
"Pause" mode when the drum is at
a standstill.
Canceling an active
program
If you would like to terminate a program
and remove the laundry:
D If a program is interrupted at a high
temperature, leave the laundry to
cool down until the glass is cool to
touch.
CI Turn the program selector to Off.
CI Turn the program selector to Drain
or Spin. (Does not apply to 500
Plus Series).
%
C_
C_
C_
C_
%
%
For Spin, select the desired spin
speed (but not no final spin).
Press the Start/Pause button.
Wait until this program ends.
Open the door.
Unload the laundry.
If a program is interrupted at a high
temperature, the door may remain
locked until the appliance has
cooled down.
If the program is terminated by
switching off the appliance, the
door may remain locked.
23

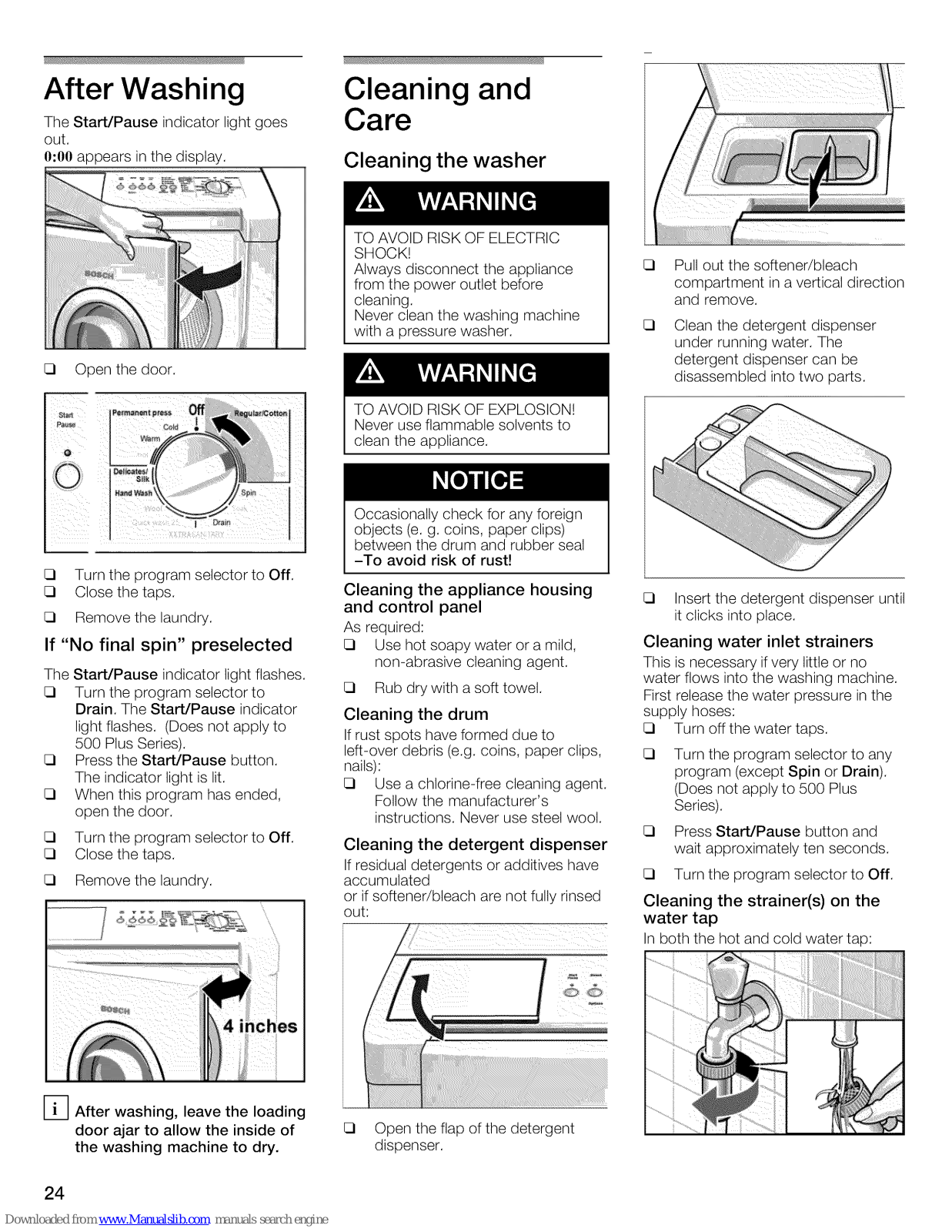

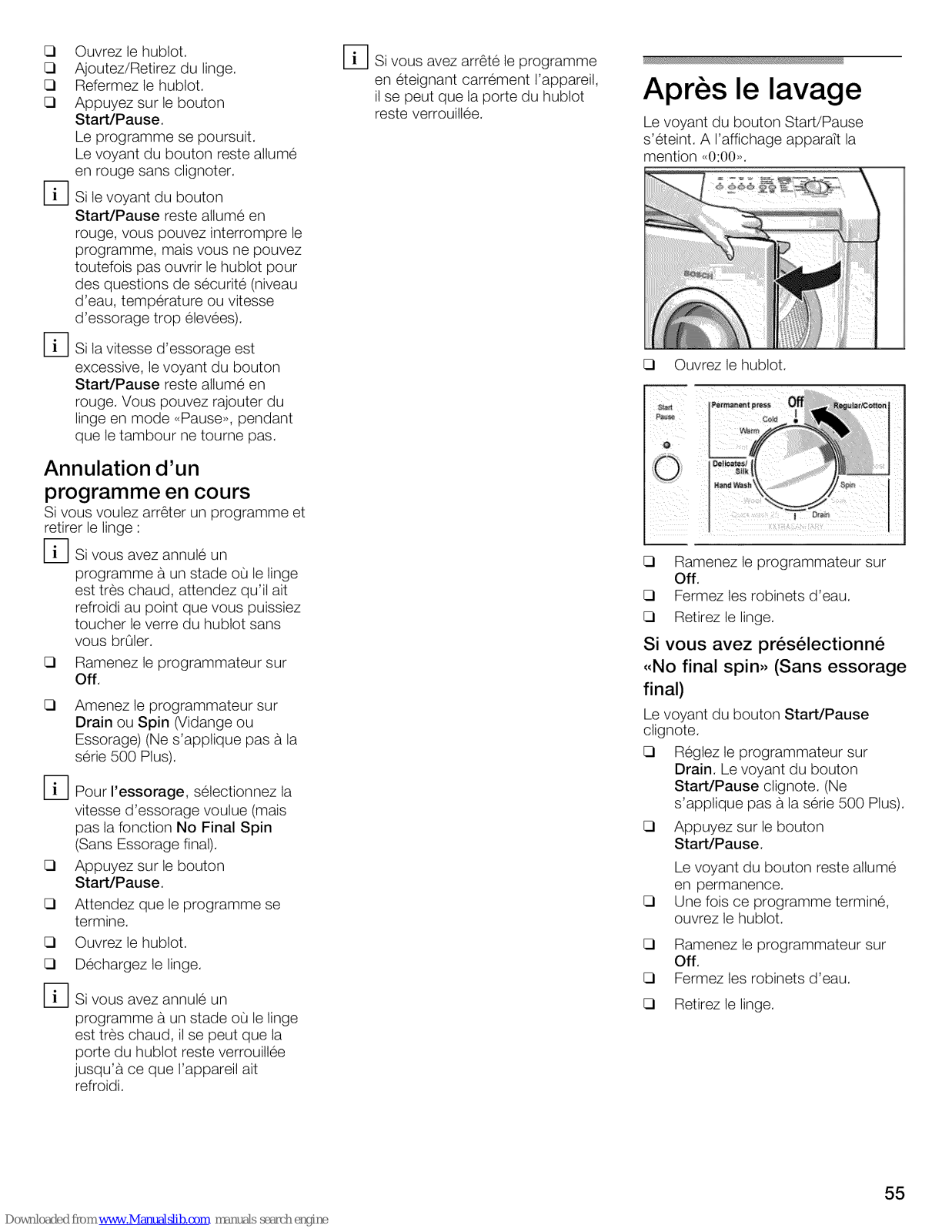

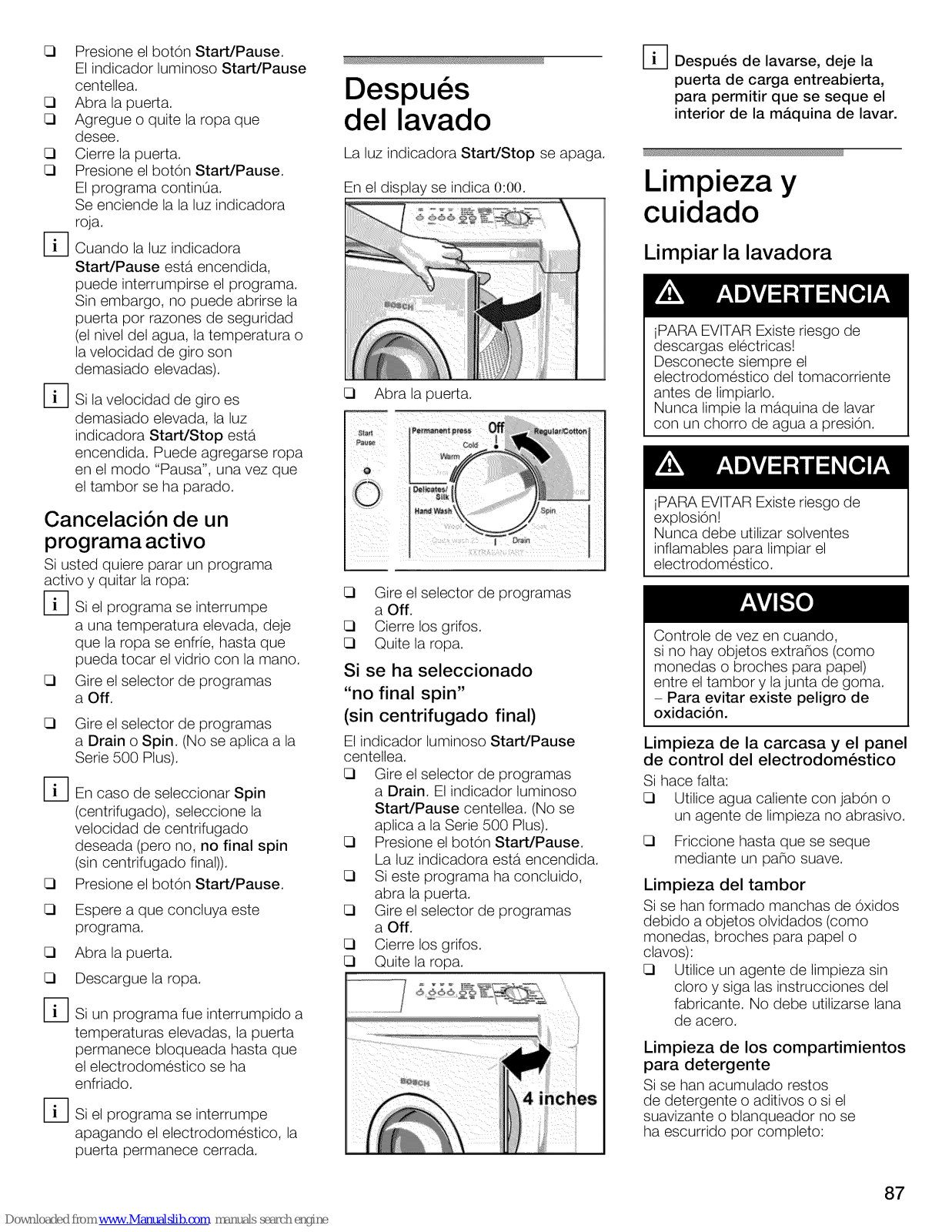

After Washing
The Start/Pause indicator light goes
out.
0:00 appears in the display.
CI Open the door.
CI Turn the program selector to Off.
CI Close the taps.
CI Remove the laundry.
If "No final spin" preselected
The Start/Pause indicator light flashes.
CI Turn the program selector to
Drain. The Start/Pause indicator
light flashes. (Does not apply to
500 Plus Series).
CI Pressthe Start/Pause button.
The indicator light is lit.
CI When this program has ended,
open the door.
CI Turn the program selector to Off.
CI Close the taps.
CI Remove the laundry.

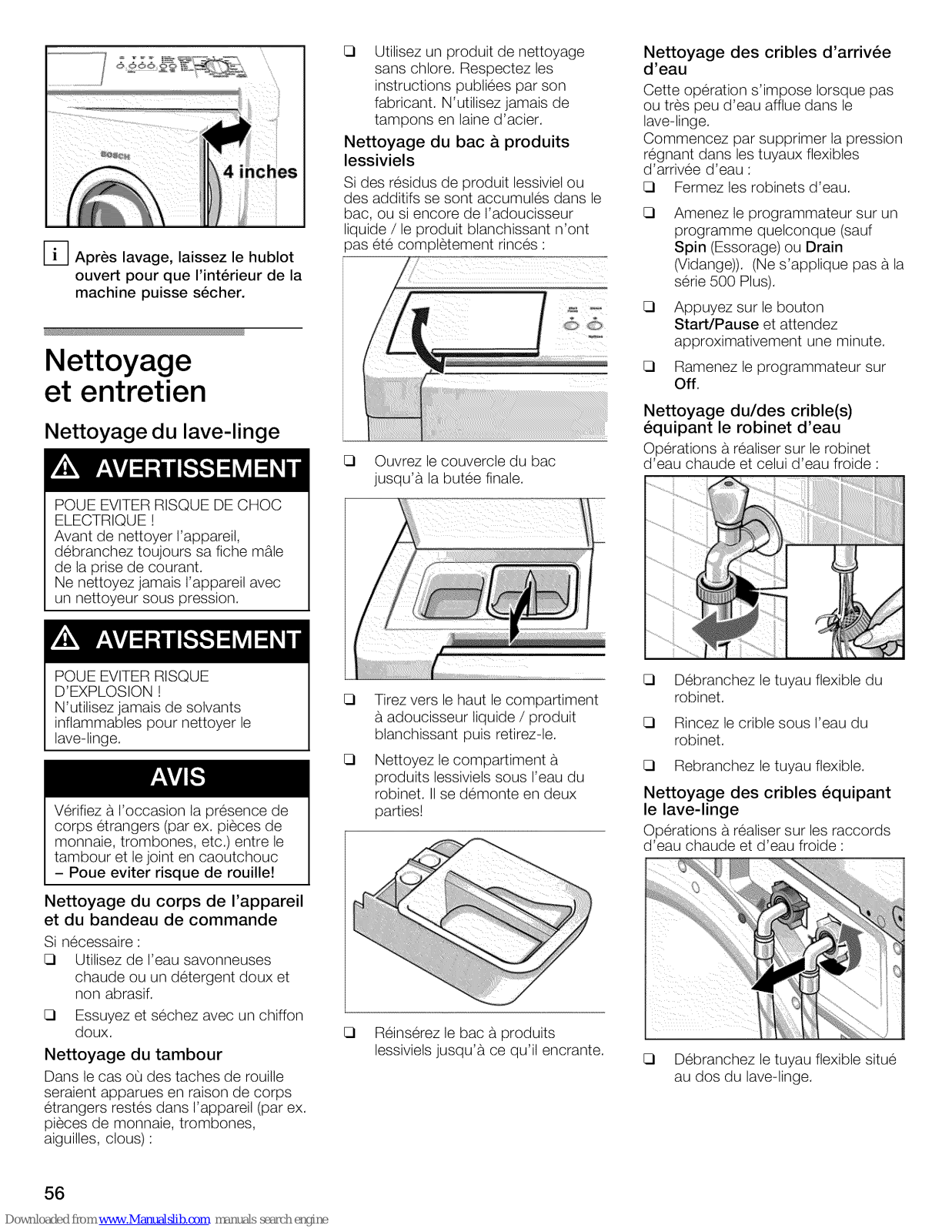

Cleaning and
Care
Cleaning the washer
TO AVOID RISK OF ELECTRIC
SHOCK!
Always disconnect the appliance
from the power outlet before
cleaning.
Never clean the washing machine
with a pressure washer.
TO AVOID RISK OF EXPLOSION!
Never use flammable solvents to
clean the appliance.
Occasionally check for any foreign
objects (e. g. coins, paper clips)
between the drum and rubber seal
-To avoid risk of rust!
Cleaning the appliance housing
and control panel
As required:
CI Use hot soapy water or a mild,
non-abrasive cleaning agent.
CI Rub dry with a soft towel.
Cleaning the drum
If rust spots have formed due to
left-over debris (e.g. coins, paper clips,
nails):
CI Use a chlorine-free cleaning agent.
Follow the manufacturer's
instructions. Never use steel wool.

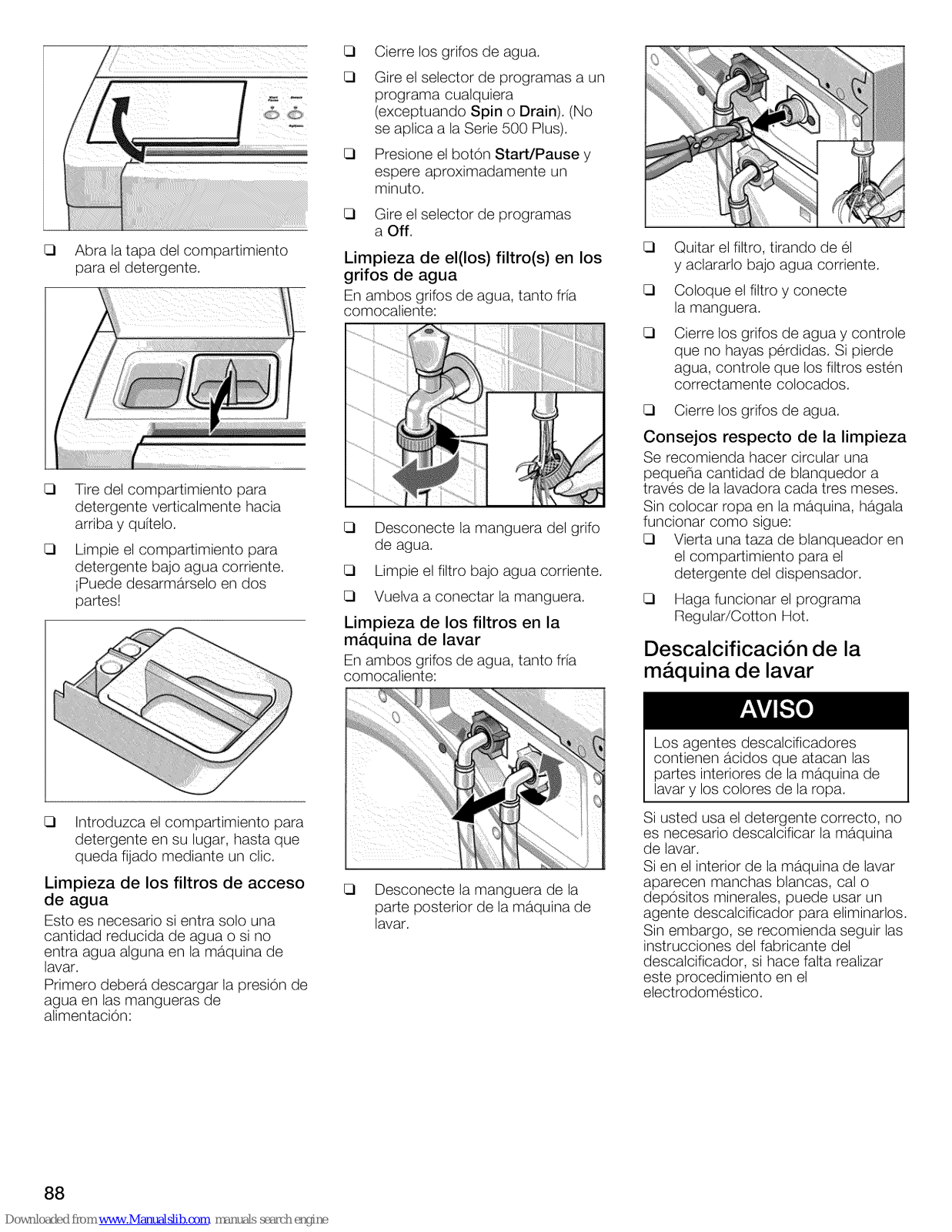

Cleaning the detergent dispenser
If residual detergents or additives have
accumulated
or if softener/bleach are not fully rinsed
out:
E3E3Pull out the softener/bleach
compartment ina vertical direction
and remove.
Clean the detergent dispenser
under running water. The
detergent dispenser can be
disassembled into two parts.
CI Insert the detergent dispenser until
it clicks into place.
Cleaning water inlet strainers
This is necessary if very little or no
water flows into the washing machine.
First release the water pressure inthe
supply hoses:
CI Turn offthe water taps.
CI
Turn the program selector to any
program (except Spin or Drain).
(Does not apply to 500 Plus
Series).
CI Press Start/Pause button and
wait approximately ten seconds.
CI Turn the program selector to Off.
Cleaning the strainer(s) on the
water tap
In both the hot and cold water tap:
DAfter washing, leave the loading
door ajar to allow the inside of
the washing machine to dry.
CI Open the flap of the detergent
dispenser.
24
Disconnect the hose from the
water tap.
Rinse the strainer under running
water.
Reconnect the hose.

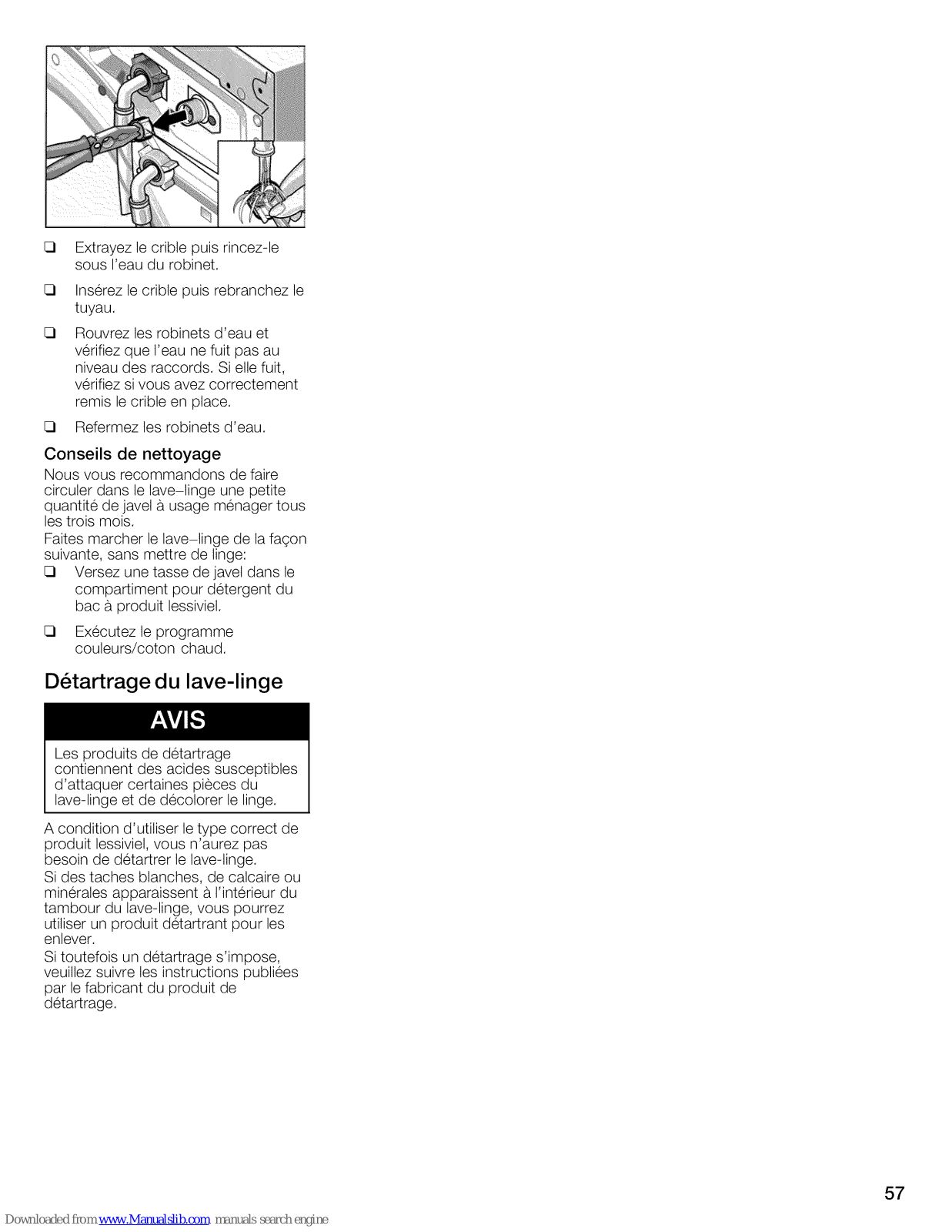

Cleaning the strainers on the
washing machine
On both the hot and cold water tap:
Disconnect the hose from the
back of the washing machine.
Pull out the strainer and rinse
under running water.
Insert the strainer and reconnect
the hose.
Turn on the water taps and check
that there are no leaks. Ifwater is
leaking, check that the strainer is
properly attached.
Turn off the water taps.
Cleaning Tips
It is recommended that a small amount
of household bleach be run through the
washer every 3 months.
With no laundry in the machine, run the
machine as follows:
Pour 1 cup of bleach in Detergent
compartment of the dispenser
Run a Regular/Cotton Hot
program
Descaling the washing
machine
Descaling agents contain acids
which may attack parts of the
washing machine and discolor the
laundry.
Provided that you use the correct type
of detergent, it is not necessary to
descale the washing machine.
If white spots, lime or mineral deposits
appear on the interior of the washing
machine drum you can use a descaling
agent to remove them.
However, if the appliance has to
be descaled, please follow the
instructions provided by the descaling
agent manufacturer.
25

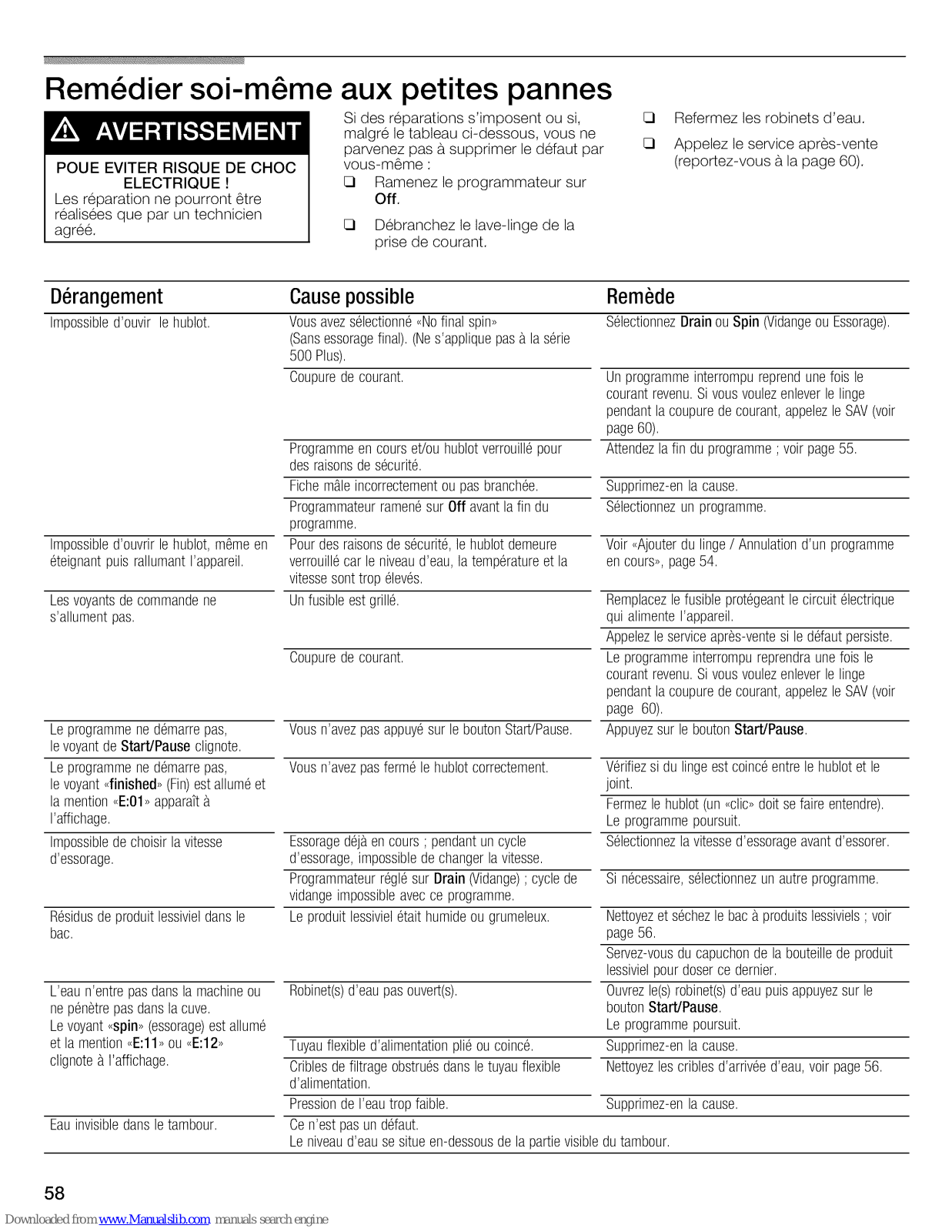

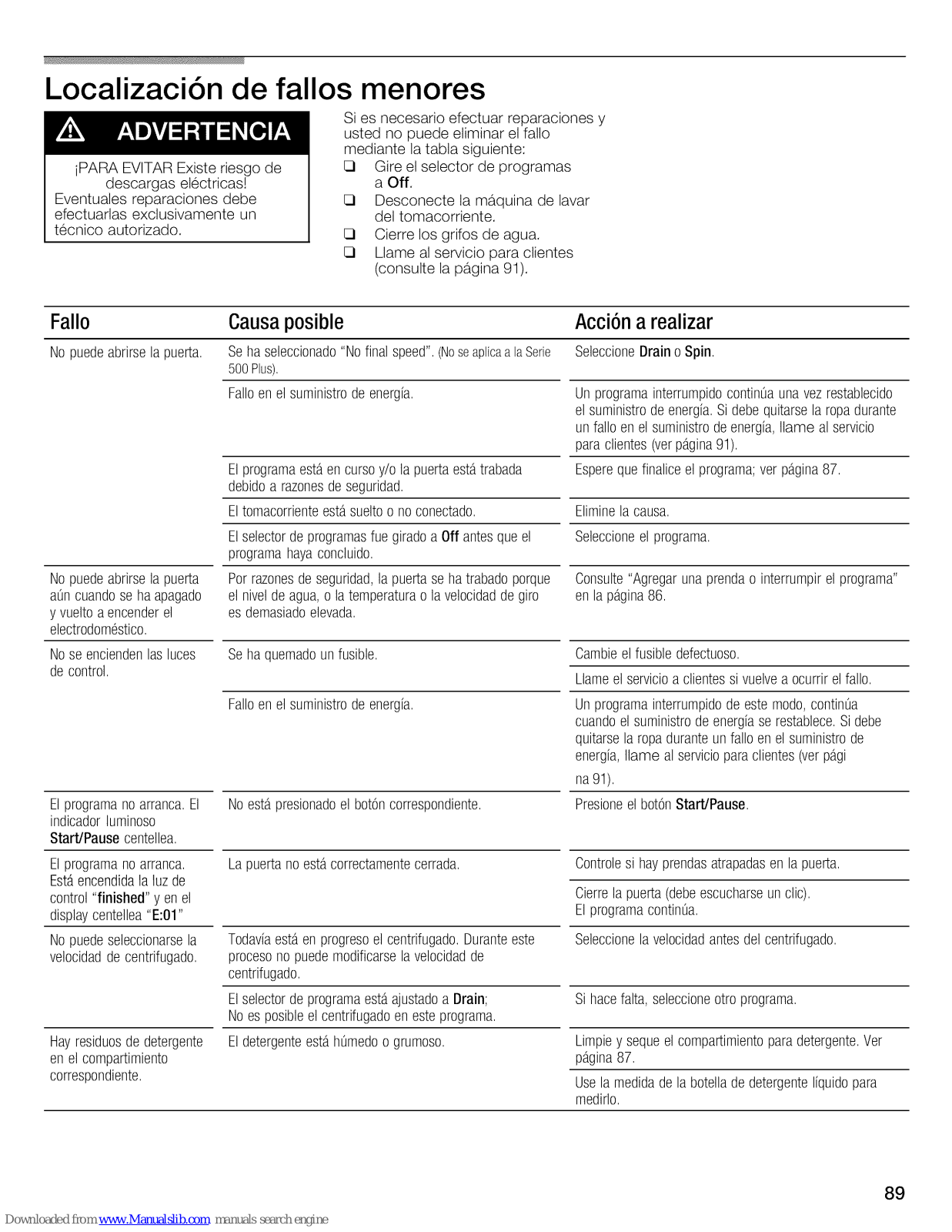

Troubleshooting of Minor Faults
TO AVOID RISK OF ELECTRIC
SHOCK!
Repairs should only be carried out
by an authorized technician.
Fault
Thedoorcannotbe
opened.
If repairs are necessary, and you
cannot eliminate the fault yourself with
the aid of the following table:
E:::I Turn the program selector to Off.
E:::I Disconnect the washing machine
from the power outlet.
E:::I Turn off the water taps.
E:::I Call Customer Service
(referto Page 28).
Action
Doorcannotbeopened,
eventhoughtheappliance
hasbeenswitchedoff and
on again.
Contmllightsdo notlight
up,
Programdoesnotstart.
Start/Pauseindicatorlight
flashes.
Programdoesnotstart.
Indicatorlight"end"islit
anddisplayisflashing
"E:Ol"
Spinspeedcannotbe
selected.
Detergentresiduein the
detergentdispenser.

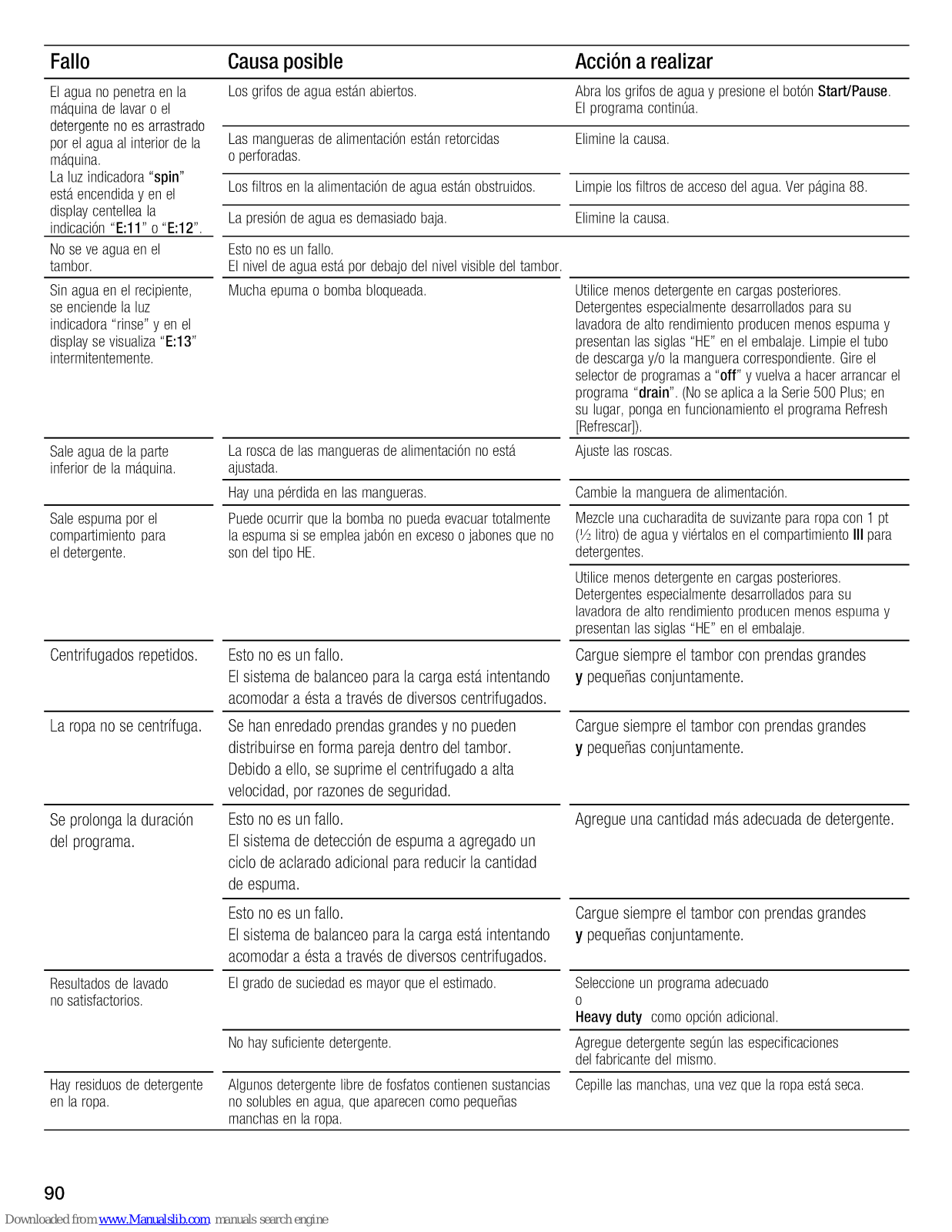

Waterdoesnotenterthe
machineor detergentis not
washedaway.
Indicatorlight"spin"islit
anddisplayis flashing
"E:11"or"E:12",
Watercannotbeseenin
drum.
Possible cause
"Nofinalspin"selected. (Doesnotapplyto 500Plus SelectDrainorSpin.
Series).
Powerfailure.
Programis runningand/orthe doorislockedfor safety
reasons.
Plugis looseor notinserted.
Programselectorturnedto Offbeforeendof program.
Forsafetyreasonsthedoorhasbeenlockedbecausethe
waterlevel,temperatureor speedistoohigh.
A fusehasblown.
Powerfailure.
Start/Pausebuttonnotpressed.
Doornotclosedproperly.
Spinningis alreadyin progress;duringspincyclethe
speedcannotbechanged.
Programselectorissettodrain; spincycleis notpossible
withthisprogram.(Does not apply to 500 Plus
Series).1
Detergentwasdampor lumpy.
Watertap(s)notturnedon.
An interruptedprogramwill beresumedwhenpoweris
restored.If the laundryisto be removedduringa power
failure,call CustomerService
(refertoPage28).
Waituntiltheprogramends;see Page24.
Eliminatethe cause.
Selecta program.
See"Adda garment/Interruptingthe program",Page23.
Resetcircuitbreaker.
CallCustomerServiceif thisfault recurs.
An interruptedprogramwill beresumedwhenpoweris
restored.If the laundryisto beremovedduringa power
failure,call CustomerService
(refertoPage28).
Pressthe Start/Pausebutton.
Checkwhetherlaundryistrappedin door.
Closethe door(aclick shouldbe heard).
Programcontinues.
Selectspeedbeforespinning.
If required,selectanotherprogram.
Supplyhosekinkedor pinched.
Strainersin supplyhoseclogged.
Waterpressuretoo low.
Thisisnotafault.
Thewaterlevelisbelowthevisiblepartofthe drum.
Cleananddrythedetergentdispenser;seePage24.
Usethe capofthedetergentbottletomeasureliquid
detergents.
Turnonwatertap(s)andpressStart/Pausebutton.
Programcontinues.
Eliminatethe cause.
Cleanthewaterinletstrainers;seePage24.
Eliminatethe cause.
26

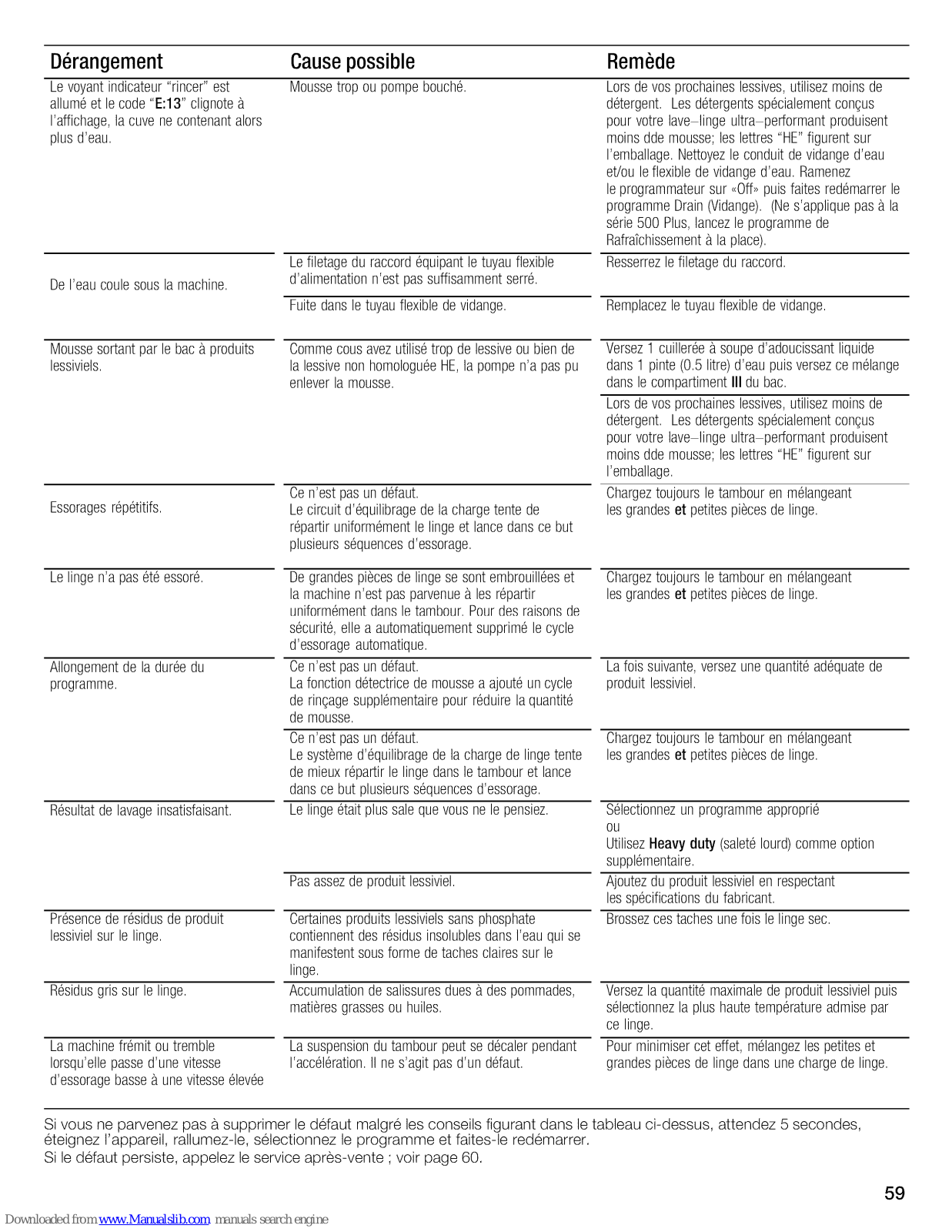

Fault
Indicatorlight"rinse"islit
anddisplayisflashing
"E:13" withnowater
remainingintub.
Waterisflowingoutfrom
underneaththe machine
Sudscomingoutofthe
detergentdispenser.
Repeatedspinning.
Thelaundrywasnotspun.
Programdurationextended.
Unsatisfactorywashing
result.
Detergentresidueon the
laundry.
Grayresidueonthe
laundry.
Systemshakesor shudders
whenpassingfromlowerto
higherspeedspinning.
Possiblecause
Sudsorpumpisblocked.
Thethreadofthesupplyhoseis nottight.
Leakinthedrainhose.
Toomuchsoapor non HEsoapused,pumpcouldnot
removesuds.
Thisisnotafault.
Theimbalancecompensationsystemisattemptingto
balancethe loadthroughrepeatedspins.
Largeitemsof clothinghavebecomeentangledandcould
notbedistributedevenlyin thedrum.Forsafetyreasons
the high-speedspincyclewasautomaticallysuppressed.
Thisis notafault.
Thesudsdetectionfeaturehasactivatedanadditional
rinsingcycleto reducetheamountofsuds.
Thisisnotafault.
Theimbalancecompensationsystemisattemptingto
balancethe loadthroughrepeatedspins.
Thedegreeofsoilingwashigherthanestimated.
Notenoughdetergent.
Somephosphate-freedetergentscontainwater-insoluble
residuesthat mayappearaslightspotsonthe laundry.
Dirtaccumulationfrom ointments,fats oroils.
Drumsystemsuspensioncan shiftduringspeedup,this
is notafailure.
Action
Uselessdetergentfor futurewashloads. Detergents
specificallydesignedfor yourHighEfficiencywasher
producefewersudsandwillincludetheletters"HE"on
thepackaging.Cleanthewaterdrainagepipeand/or
drainhose.Turnthe programselectorto "off" andrestart
Brain program.(Does not apply to 500 Plus
Series, run the Refresh program instead).
Tightenthe thread.
Replacethe drainhose.
Mix1tablespoonof fabricsoftenerwith1pt (1/2litre)of
waterandpourintodetergentdispenserIII.
Uselessdetergentfor futurewashloads. Detergents
specificallydesignedfor youHighEfficiencywasher
producefewersudsandwill includethe letters"HE"on
thepackaging.
Alwaysloadthe drumwith largeand smallitems
together.
Alwaysloadthe drumwith largeand smallitems
together.
Addamoreappropriateamountof detergent.
Alwaysloadthe drumwith largeand smallitems
together.
Selectsuitableprogram
or
Heavyduty asan additionaloption.
Adddetergentaccordingtothe manufacturer's
specifications.
Brushoffspotswhenlaundryis dry.
Addthe maximumamountof detergentandselectthe
highestpermissibletemperature.
Mixsmallandlargelaundrypiecesin loadto minimize
thiseffect.
Ifthe fault cannot be eliminated with the aid of the above table, switch the appliance off, wait 5 seconds, switch the appliance on
again, select and start the program.
Ifthe fault continues, call customer service; see Page 28.
27

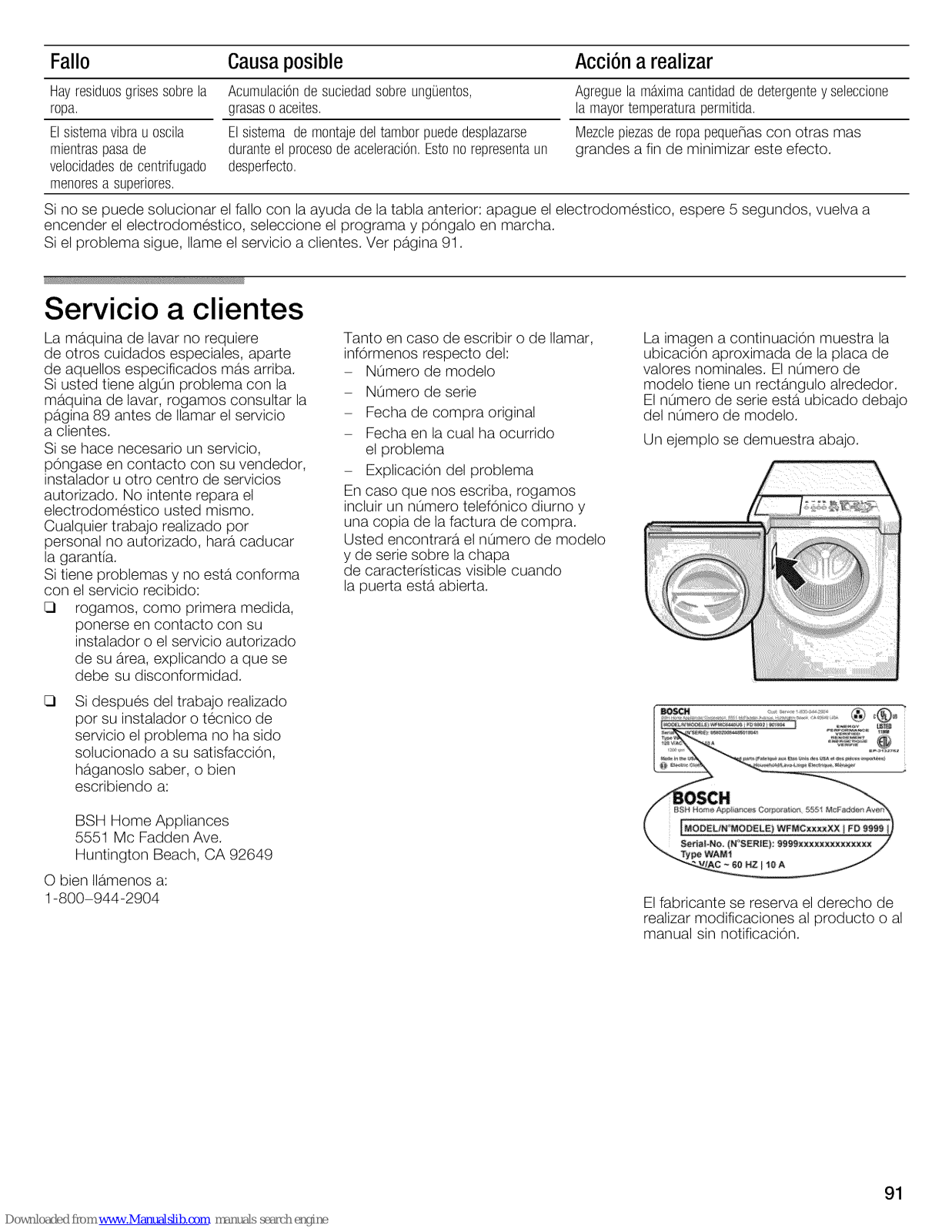

Customer Service
The washing machine requires no
special care other than the care and
cleaning noted previously. Ifyou are
having a problem with your washing
machine, please refer to page 26
before calling for service.
If service becomes necessary, contact
your dealer or installer or an authorized
service center. Do not attempt to repair
the appliance yourself. Any work
performed by unauthorized personnel
may void the warranty.
If you are having a problem with your
washing machine and are not pleased
with the service you have received:
First, please contact your installer
or the Authorized Service
Contractor in your area and
explain to them why you are not
satisfied. This will usually correct
the problem.
If after working with your installer
or service technician the problem
still has not been resolved to your
satisfaction, please let us know
either by writing to us at:
BSH Home Appliances
5551 Mc Fadden Ave.
Huntington Beach, CA 92649
or calling us:
1-800-944-2904
If writing or calling, please provide the
following information:
- Model Number
- Serial Number
- Date of Original Purchase
- Date Problem occurred
- Explanation of Problem
If writing, please also include a daytime
telephone number and a copy of the
sales invoice.
You will find the model number and
serial number on the rating plate
located on the housing and is visible
with the door open.
The image below shows the
approximate location of the rating plate.
The model number has a rectangle
around it. The serial number is located
below the model number.
An example is shown below.
The manufacturer reserves the right to
make changes in the product or
manual without notification.
28
STATEMENT OF LIMITED PRODUCT WARRANTY
Bosch Nexxt ® Clothes Washer
What this Warranty Covers & Who it Applies to: The limited warranty provided by BSH Home Appliances Corporation (Bosch)
® _ _
in this Statement of Limited Product Warranty applies only to the Bosch Nexxt Clothes Washer ('Product) sold to you, the first
using purchaser, but strictly conditioned on the Product having been purchased: (1)for your normal, household (non-commercial)
use, and has in fact at all times only been used for normal household purposes (any commercial use or setting of the Product
automatically voids the warranty); (2)new at retail (not a display, "as is", or previously returned model) purchased directly by the
end-user consumer, and not for resale, or commercial use; and (3)within the United States or Canada, and has at all times
remained within the country of original purchase. The warranties stated herein apply only to the first purchaser of the Product and
are not transferable. The warranty is automatically void if the Product was a display model, sold "as is", tampered with, a
damaged or "scratch and dent" model, or a previously returned model, a free give-away, charitable donation or contest prize.
• Please make sure to return your registration card; while not necessary to effectuate warranty coverage, it is the best way for
Bosch to notify you in the unlikely event of a safety notice or product recall.
How Long the Warranty Lasts: Bosch warrants that the Product is free from defects in materials and workmanship for a period
of three hundred sixty-five days (365) days from the date of purchase. The foregoing timeline begins to run upon the date of
purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever.
Repair/Replace as Your Exclusive Remedy: During this warranty period, Bosch or one of its authorized service providers will
repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been
manufactured with a defect in materials or workmanship. If reasonable attempts to repair the Product have been made without
success, then Bosch will replace your Product (upgraded models may be available to you, in Bosch's sole discretion, for an
additional charge). All removed parts and components shall become the property of Bosch at its sole option. All replaced and/or
repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended
with respect to such parts. Bosch's sole liability and responsibility hereunder is to repair manufacturer-defective Product only,
using a Bosch-authorized service provider during normal business hours. For safety and property damage concerns, Bosch
highly recommends that you do not attempt to repair the Product yourself, or use an un-authorized servicer; Bosch will have no
responsibility or liability for repairs or work performed by a non-authorized servicer. If you choose to have someone other than an
authorized service provider work on your Product, THIS WARRANTY WILL AUTOMATICALLY BECOME NULL AND VOID.
Authorized service providers are those persons or companies that have been specially trained on Bosch products, and who
possess, in Bosch's opinion, a superior reputation for customer service and technical ability (note that they are independent
entities and are not agents, partners, affiliates or representatives of Bosch). Notwithstanding the foregoing, Bosch will not incur
any liability, or have responsibility, for the Product if it islocated ina remote area (more than 100 miles from an authorized service
provider) or is reasonably inaccessible, hazardous, threatening, or treacherous locale, surroundings, or environment; in any such
event, if you request, Bosch would still pay for labor and parts and ship the parts to the nearest authorized service provider, but
you would still be fully liable and responsible for any travel time or other special charges by the service company, assuming they
agree to make the service call.
Extended Limited Warranty:
LENGTHOFWARRANTY
2 YearLimitedWarranty
FromDateof Purchase
2 YearLimitedWarrantyonElectronics
FromDateof Purchase
2 YearLimitedWarrantyon Motor
FromDateof Purchase
SCOPEOFWARRANTY
Boschwillprovidereplacementparts,freeof charge,for anycomponent
partthat provesdefectiveunderconditionsof normalhomeuse during
thefirsttwo yearsfromthedateof purchase,normal(non expedited)
shippingcostsincluded,laborchargesexcluded.
Boschwillrepairor replace,freeof charge,anymicroprocessororprinted
circuitboardthat provesdefectiveunderconditionsof normalhomeuse
duringthefirsttwo yearsfromthedateof purchase,laborcharges
excluded.
Boschwillrepairor replace,free of charge,anymotororcomponentpart
ofthe motorthatprovesdefectiveunderconditionsof normalhomeuse
duringthefirsttwo yearsfromthedateof purchase,laborcharges
excluded.
Out of Warranty Product: Bosch is under no obligation, at law or otherwise, to provide you with any concessions, including
repairs, pro-rates, or Product replacement, once this warranty has expired.
Warranty Exclusions: The warranty coverage described herein excludes all defects or damage that are not the direct fault of
Bosch, including without limitation, one or more of the following: (1) use of the Product in anything other than its normal,
customary and intended manner (including without limitation, any form of commercial use, use or storage of an indoor product
outdoors, use of the Product in conjunction with air or water-going vessels); (2)any party's willful misconduct, negligence,
misuse, abuse, accidents, neglect, improper operation, failure to maintain, improper or negligent installation, tampering, failure to
29
Loading...
