Installation and Operating instructions for
Control Cabinet Industrial PC
C6240-1007 from -0060
Version: 2.0
Date: 2018-02-16
Table of contents
Table of contents
1.
2.
3.
4.
Foreword 3
Notes on the Documentation 3
Liability Conditions 3
Trademarks 3
Patent Pending 3
Copyright 3
State at Delivery 3
Delivery conditions 3
Description of safety symbols 4
Basic safety measures 5
Operator's obligation to exercise diligence 6
Operator requirements 6
Product Description 7
Appropriate Use 7
Opening the Housing 7
Configuration with 100-240 VAC Full Range Power Supply 8
Configuration with 24 VDC Power Supply (optional) 9
Interfaces from C6240-1007-0060 10
PS/2 connections 10
Serial interfaces 10
USB interfaces 10
Network connection 10
Sound-On-Board 10
DVI-D (Digital Visual Interface) 10
DisplayPort 10
Additional plug-in cards (optional) 10
Installation Instructions 11
Transport and Unpacking 11
Transport 11
Unpacking 11
Installation of the PC in the control cabinet 12
Earthing measures 12
Power Supply Connection with 100-240 V
AC
power supply unit 13
Mains Socket 13
Power supply cords 13
Power Supply Connection with 24 V
DC
power supply unit 14
Beckhoff power supply technology 14
Electrical Data 15
Connecting the power supply 15
Power Switch 15
Fitting the Power Supply Cable 16
Fitting the connector 16
Connecting 24VDC Power Supply 17
Cable Cross Sections 17
Configuration for shutting down the PC 17
PC_ON and Power Status functions 17
Wiring diagram 18
Connecting devices 19
Connecting cables 19
Check voltage rating and connect. 19
Operating Instructions 20
Switching the Industrial PC on and off 20
First switching on and driver installation 20
Servicing and Maintenance 21
Cleaning the Industrial PC 21
Servicing 21
Replacing the battery on the motherboard 21
C6240-1007 1
Table of contents
Emergency procedures 21
Shutting down 21
Disposal 21
5.
6.
7.
8.
UPS Software Components (optional) 22
Installation on the PC 22
Help files 22
Troubleshooting 23
Fault correction 23
Beckhoff Support and Service 24
Beckhoff branches and partner companies 24
Beckhoff company headquarters 24
Beckhoff Support 24
Beckhoff Service 24
Assembly dimensions 25
Configuration with 100-240 VAC Power Supply 25
Configuration with 24 VDC-Power Supply (optional) 26
Appendix 27
Technical data 27
Approvals 27
FCC: Federal Communications Commission 27
Radio Frequency Interference Statement 27
FCC: Canadian Notice 27
2 C6240-1007
Foreword
Foreword
Notes on the Documentation
This description is only intended for the use of trained specialists in control
and automation engineering who are familiar with the applicable national
standards. It is essential that the following notes and explanations are
followed when installing and commissioning these components.
The responsible staff must ensure that the application or use of the
products described satisfy all the requirements for safety, including all the
relevant laws, regulations, guidelines and standards.
Liability Conditions
The documentation has been prepared with care. The products described
are, however, constantly under development. For that reason the
documentation is not in every case checked for consistency with
performance data, standards or other characteristics. In the event that it
contains technical or editorial errors, we retain the right to make alterations
at any time and without warning. No claims for the modification of products
that have already been supplied may be made on the basis of the data,
diagrams and descriptions in this documentation.
All pictures shown in the documentation are exemplary. Illustrated
configurations can differ from standard.
Trademarks
Beckhoff®, TwinCAT®, EtherCAT®, Safety over EtherCAT®, TwinSAFE®
and XFC® are registered trademarks of and licensed by Beckhoff
Automation GmbH.
Other designations used in this publication may be trademarks whose use
by third parties for their own purposes could violate the rights of the
owners.
Patent Pending
The EtherCAT Technology is covered, including but not limited to the
following patent applications and patents:
EP1590927, EP1789857, DE102004044764, DE102007017835
with corresponding applications or registrations in various other countries.
The TwinCAT Technology is covered, including but not limited to the
following patent applications and patents:
EP0851348, US6167425 with corresponding applications or registrations in
various other countries.
Copyright
© Beckhoff Automation GmbH & Co.KG.
The reproduction, distribution and utilization of this document as well as the
communication of its contents to others without express authorization are
prohibited. Offenders will be held liable for the payment of damages. All
rights reserved in the event of the grant of a patent, utility model or design.
State at Delivery
All the components are supplied in particular hardware and software
configurations appropriate for the application. Modifications to hardware or
software configurations other than those described in the documentation
are not permitted, and nullify the liability of Beckhoff Automation
GmbH & Co.KG.
Delivery conditions
In addition, the general delivery conditions of the company Beckhoff
Automation GmbH & Co.KG apply.
C6240-1007 3
Foreword
Description of safety symbols
The following safety symbols are used in this operating manual. They are
intended to alert the reader to the associated safety instructions.
Acute risk of injury!!
DANGER
If you do not adhere the safety advise adjoining this symbol, there is
immediate danger to life and health of individuals!
Risk of injury!
WARNING
If you do not adhere the safety advise adjoining this symbol, there is
danger to life and health of individuals!
Hazard to individuals!
CAUTION
If you do not adhere the safety advise adjoining this symbol, there is
obvious hazard to individuals!
Hazard to devices and environment
Attention
If you do not adhere the notice adjoining this symbol, there is obvious
hazard to materials and environment.
Note or pointer
Note
This symbol indicates information that contributes to better understanding.
4 C6240-1007
Foreword
Basic safety measures
Only switch the PC off after
closing the software
Before the Industrial PC is switched off, software that is running must
be properly closed.
Otherwise it is possible that data on the hard disk is lost. Please read the
section on Switching the Industrial PC on and off.
Switch off all parts of the equipment, then uncouple the fieldbus
Attention
Before opening the housing of the PC, and whenever the PC is being
used for purposes other than plant control, such as during functional tests
following repair, all parts of the equipment must first be switched off, after
which the Industrial PC can be uncoupled from the plant.
Pulling out the fieldbus connection plug uncouples the PC (optional).
Items of equipment that have been switched off must be secured against
being switched on again.
The Industrial PC’s power supply unit must be supplied with
100 VAC - 240 VAC or 24 VDC (optional).
Do not open the power supply unit while voltage is applied!
DANGER
The supply voltage must be switched off before the power supply unit
housing is opened.
Do not exchange any parts when under power
Attention
When components are being fitted or removed, the supply voltage must
be switched off.
Fitting work on the Industrial PC can result in damage:
• if metal objects such as screws or tools fall onto operating circuit
boards.
• if connecting cables internal to the PC are removed or inserted
during operation.
• if plug-in cards are removed or inserted when the PC is switched
on.
C6240-1007 5
Foreword
Operator's obligation to exercise diligence
The operator must ensure that
• the Industrial PC is only used for its intended use (see also Product
Description).
• the Industrial PC is in a sound condition and in working order
during operation (see also chapter Servicing).
• the operation manual is in good condition and complete, and
always available for reference at the location of the Industrial PC.
• the Industrial PC is operated, maintained and repaired only by
sufficiently qualified and authorized personnel.
• the personnel is instructed regularly about relevant occupational
safety and environmental protection aspects, and is familiar with
the operating manual and in particular the safety notes contained
herein.
• none of the safety and warning notes attached to the Industrial PC
are removed, and that all notes remain legible.
National regulations
depending on the machine
type
Depending on the type of machine and plant in which the Industrial PC is
being used, there will be national regulations for the control of such
machines and plant that the operator must observe. These regulations
cover, amongst other things, the intervals between inspections of the
controller.
The operator must initiate such inspections in good time.
Only trained persons may open the Industrial PC housing!
Attention
The operator is responsible for ensuring that only trained electrical staff
opens the housing of the Industrial PC.
Procedure in the event of a
fault
In the event of a fault in the Industrial PC, appropriate measures can be
determined with the aid of the list in the Fault correction section.
Operator requirements
Read the operating
instructions
Every user of the Industrial PC must have read these operating
instructions.
Software knowledge Every user must be familiar with any of the functions of the software
installed on the PC that he can reach.
6 C6240-1007
Product Description
Product Description
Appropriate Use
The C6240-1007 Industrial PCs is designed for mounting in control
cabinets for machine and plant engineering applications.
Opening the Housing
Front view of C6240-1007,
configuration with
100-240 V
AC
power supply
2
1 1
Front view of C6240-1007,
configuration with
24 V
DC
power supply
(optional)
Opening the housing After solving the two screws (1), the upper housing cover (2) can now be
tilted upwards, thus providing access to the drives, 3½ inch hard disk,
processor, memory and plug-in cards.
2
1
1
C6240-1007 7
Product Description
Configuration with 100-240 VAC Full Range Power Supply

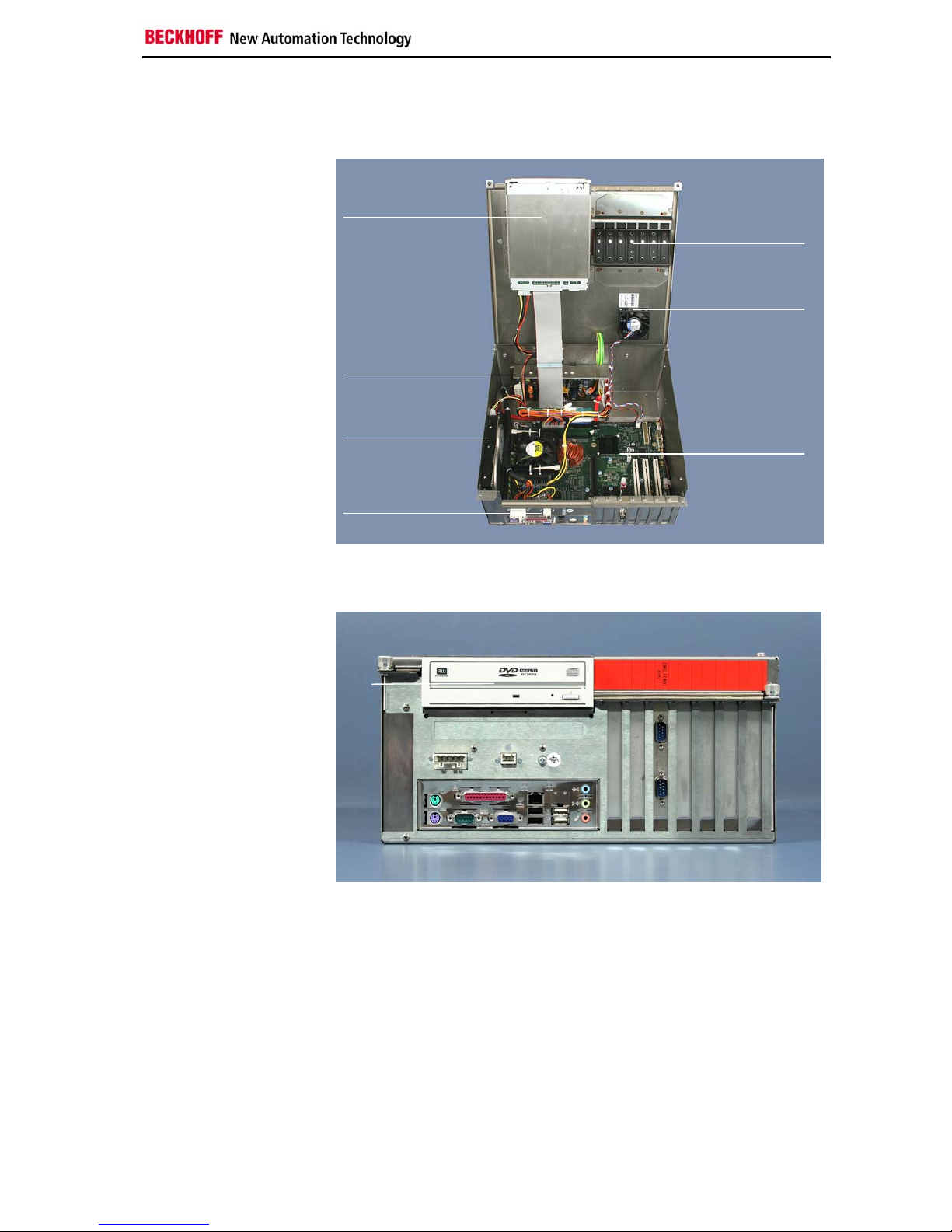

View of the open PC
Under the housing cover is a 7 slot computer core with standard ATX
motherboard for Intel® Core™ Duo and Core™ 2 Duo and a 100-240 VAC
full range power supply.
Front view of the PC
The picture shows the optional configuration of the PC with a removable
hard disk drawer (1) for one Serial-ATA-hard disk drive and a slimline CD/
DVD-ROM drive (2) instead of the standard CD/ DVD-ROM drive.
The connections of the Industrial PC are located at the front of the housing.
removable hard disk
drawer for one Serial-ATAhard disk (optional)
slimline CD/ DVD-ROM
drive (optional)
100-240 V
AC
full range power supply
3
½“ hard disk
7-slot-ATX motherboard
interfaces
8 C6240-1007
Product Description
Configuration with 24 VDC Power Supply (optional)
View of the open PC
Under the housing cover is a 7 slot computer core with standard ATX
motherboard for Intel® Core™ Duo and Core™ 2 Duo and a fanless
24 VDC power supply unit (optional with UPS).
Front view of the PC
The picture shows the optional configuration of the PC with a multi DVD
drive (1) instead of the standard CD/ DVD-ROM drive.
The connections of the Industrial PC are located at the front of the housing.
multi DVD drive (optional)
instead of CD/DVD-ROM
drive
24 VDC power supply
fanless with UPS (optional)
3
½“ hard disk
7-slot-ATX motherboard
interfaces
C6240-1007 9
Product Description
Interfaces from C6240-1007-0060
ATX motherboard
interfaces
PS/2 connections
PS/2 The upper PS/2 connector (X104) allows a PS/2 mouse to be used, while a
PC keyboard can be connected to the lower PS/2 connector (X103).
Serial interfaces
RS 232
COM1 – COM4
The basic version of the Industrial PC has 4 serial interfaces,
COM1 – COM4, using the type RS 232, which are each brought
to a 9 pin SUB-D plug connector.
• COM1 (X105) is located in the ATX-slot of the
motherboard.
• When the PC is fitted with UPS (optional), COM4 is used
from the power supply unit. When fitted without UPS, the
interface COM4 is located in one of the slots right beside
the ATX-slot.
• COM2 and COM3 are located in a slot right beside the
ATX-slot.
USB interfaces
USB1 – USB4 The four USB interfaces (X108 – X111) are used to connect peripheral
devices with USB connections:
Devices with Intel
® 4th
generation processors (C6240-1007-0060) are
equipped with 2 USB2.0 (X110, X111) and 2 USB3.0 (X108, X109)
interfaces
Devices with Intel® 6th and 7th generation processors
(C6240-1007-0070) are equipped with 4 USB3.0 interfaces.
Network connection
LAN1 The RJ-45 connector (X112) allows the PC to be connected to a
10/100/1000BASE-T Local Area Network (LAN).
LAN2 The RJ-45 connector (X113) allows the PC to be connected to a
10/100/1000BASE-T Local Area Network (LAN).
Sound-On-Board
Sound The Industrial PC has a on-board-interface with the following connectors:
Line In (X116), Line Out (X115) and Microphone jack (X114).
DVI-D (Digital Visual Interface)
DVI-D out The DVI connectors (X117, X118) are used for transferring the video
signal. DVI-D standard is supported.
DisplayPort
DisplayPort The DisplayPort (X119) is used for transferring the video signal.
X116
X105
X104
X117
X115
X112
X113
X103
X118 X109
X111
X114
X119
X108
X110
Additional plug-in cards (optional)
Type plate
There is a type plate on the top of the Industrial PC which provides
information about the hardware configuration of the Industrial PC at the
time it was supplied.
10 C6240-1007
Installation Instructions
Installation Instructions
Please also refer to chapter Foreword.
Transport and Unpacking
The specified storage conditions must be observed (see chapter Technical
data).
Transport
Despite the robust design of the unit, the components are sensitive to
strong vibrations and impacts. During transport, your Industrial PC should
therefore be protected from excessive mechanical stress. Therefore,
please use the original packaging.
Danger of damage to the unit
Attention
If the device is transported in cold weather or is exposed to extreme
variations in temperature, make sure that moisture (condensation) does
not form on or inside the device.
Prior to operation, the unit must be allowed to slowly adjust to room
temperature. Should condensation occur, a delay time of approximately
12 hours must be allowed before the unit is switched on.
Unpacking
Proceed as follows to unpack the unit:
1. Remove packaging.
2. Do not discard the original packaging. Keep it for future relocation.
3. Check the delivery for completeness by comparing it with your order.
4. Please keep the associated paperwork. It contains important
information for handling the unit.
5. Check the contents for visible shipping damage.
6. If you notice any shipping damage or inconsistencies between the
contents and your order, you should notify Beckhoff Service.
C6240-1007 11
Installation Instructions
Installation of the PC in the control cabinet
The C6240-1007 Industrial PC is designed for mounting in control cabinets
for machine and plant engineering applications.
The ambient conditions specified for operation must be observed (see
chapter Technical data).
Circulation of air
Note
When the unit is installed in an enclosure, adequate space for ventilation
and for opening the PC must be provided.
The clearance above and below the housing must be at least 5 cm in
order to ensure adequate ventilation of the PC.
Avoid extreme environmental conditions
Attention
Extreme environmental conditions should be avoided as far as possible.
Protect the PC from dust, moisture and heat.
The ventilation slots of the PC must not be covered.
Earthing measures
Earthing measures
Earthing connections dissipate interference from external power supply
cables, signal cables or cables to peripheral equipment.
.
Establish a low-impedance connection from the earthing point on the PC
housing to the central earthing point on the control cabinet wall, in which
the computer is being installed.
12 C6240-1007
Installation Instructions
Power Supply Connection with 100-240 V
AC
power supply unit
Supplied mains power unit The Industrial PC is serially fitted with a 100-240 VAC, 50-60 Hz full range
power supply unit .
Current carrying capacity of
the 100-240 V power
supply unit
Output voltages from the 100-
240 V power supply unit
Current loading
maximum
+3.3 V
16 A
+5 V stand by
2 A
+5 V
25 A
-5 V
0.3 A
+12 V
13 A
-12 V
0.8 A
Mains Socket
A mains socket is located on side of the PC housing in order to connect the
power supply.
Mains socket at the PC
housing
mains socket
Power supply cords
Power cords Europe In the area Europe you use the provided cable with inlet connector for non-
heating apparatus to connect the Industrial-PC to the power supply.
Power cords USA / Canada In the area USA / Canada the power supply cable must show the following
specifications according to the supply voltage:
Listed, Detachable, maximum 4.5 m (14.76 ft.) long; rated minimum 125 V,
10 A, Type SJT or Type SVT; one end terminates in NEMA 5-15P/-20P
grounding-type attachment plug, other end in appliance coupler
or
Listed, Detachable, maximum 4.5 m (14.76 ft.) long; rated minimum 250 V,
10 A, Type SJT or Type SVT; one end terminates in NEMA 6-15P/-20P
grounding-type attachment plug, other end in appliance coupler.
C6240-1007 13
Installation Instructions
Power Supply Connection with
24 V
DC
power supply unit
Power supply unit The Industrial PC is optionally fitted with a 24 VDC power supply unit .
Uninterruptible power supply (UPS)
Note
When the Industrial PC is provided with a power supply unit with
integrated UPS (order option) you can realize an uninterruptible power
supply (UPS) using the battery pack C9900-U330.
Danger of Explosion!
WARNING
Danger of Explosion if using other battery packs!
Beckhoff power supply technology

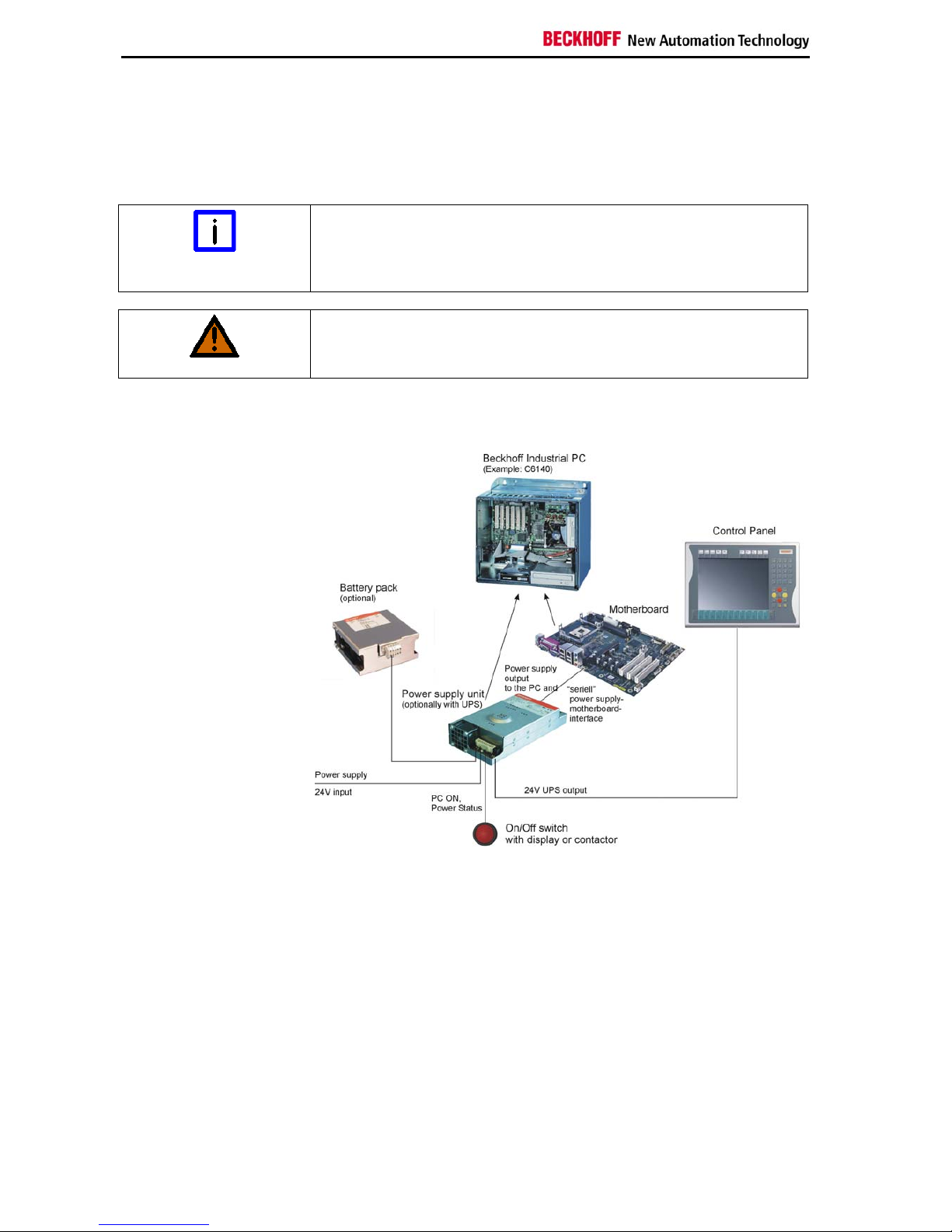

Schematic diagram of
power supply unit wirings
Innovative solution for
shutting down Industrial
PCs
Industrial PCs equipped with a UPS are in actual use frequently switched
off by simply turning off the supply voltage. In this case the PC shuts down
via the battery. However, over time this reduces the service life of the
battery.
The new Beckhoff power supply technology approach addresses this
problem and now offers the user the option of switching the PC off without
the need for using the battery, thereby reducing the load on the battery.
In addition to the main switch this innovative solution uses an ON/OFF
switch for the machine. Basically, the main switch remains switched on and
provides the power supply for the PC during shutdown. Via the PC ONinput of the power supply the PC gets the command to shut down the
operating system.
Once the PC has shut down, the PC power supply unit sets the Power
Status-output (P-S) to 0, what indicates that the process is complete and
that the main voltage can be switched off. This can be done manually via a
14 C6240-1007
Installation Instructions
signal lamp connection or via a contactor. With this solution the main
switch generally only has to be switched off if the control cabinet has to be
opened. The battery will only be used in the event of a power failure.
In order to maintain a screen display for the Industrial PC in the event of a
power failure, the power supply unit is equipped with a UPS output 27 V /
1.4 A for connecting a Control Panel with a display dimension up to 19
inches. This enables a power failure to be visualized and displayed to the
user. Once the PC has shut down, the UPS output is switched off.
For a detailed functional description please refer to section Connecting
24VDC Power Supply.
Electrical Data
Input voltage: 22 – 30 V DC
Current consumption: 10 A (22 V)
Output capacity: 150 W (max.)
Current carrying capacity of
the 24 V power supply unit
Output voltages from the
24 V power supply unit
Current loading
maximum
+ 5 V
14 A
- 5 V
0.3 A
+ 12 V
12 A
- 12 V
0.5 A
+ 3,3 V
12 A
5 V VSB
1.5 A
Connecting the power supply
A 5-pin male plug connector with CAGE CLAMP connection (see photo) is
installed at the PC housing in order to connect the power supply and the
battery pack.

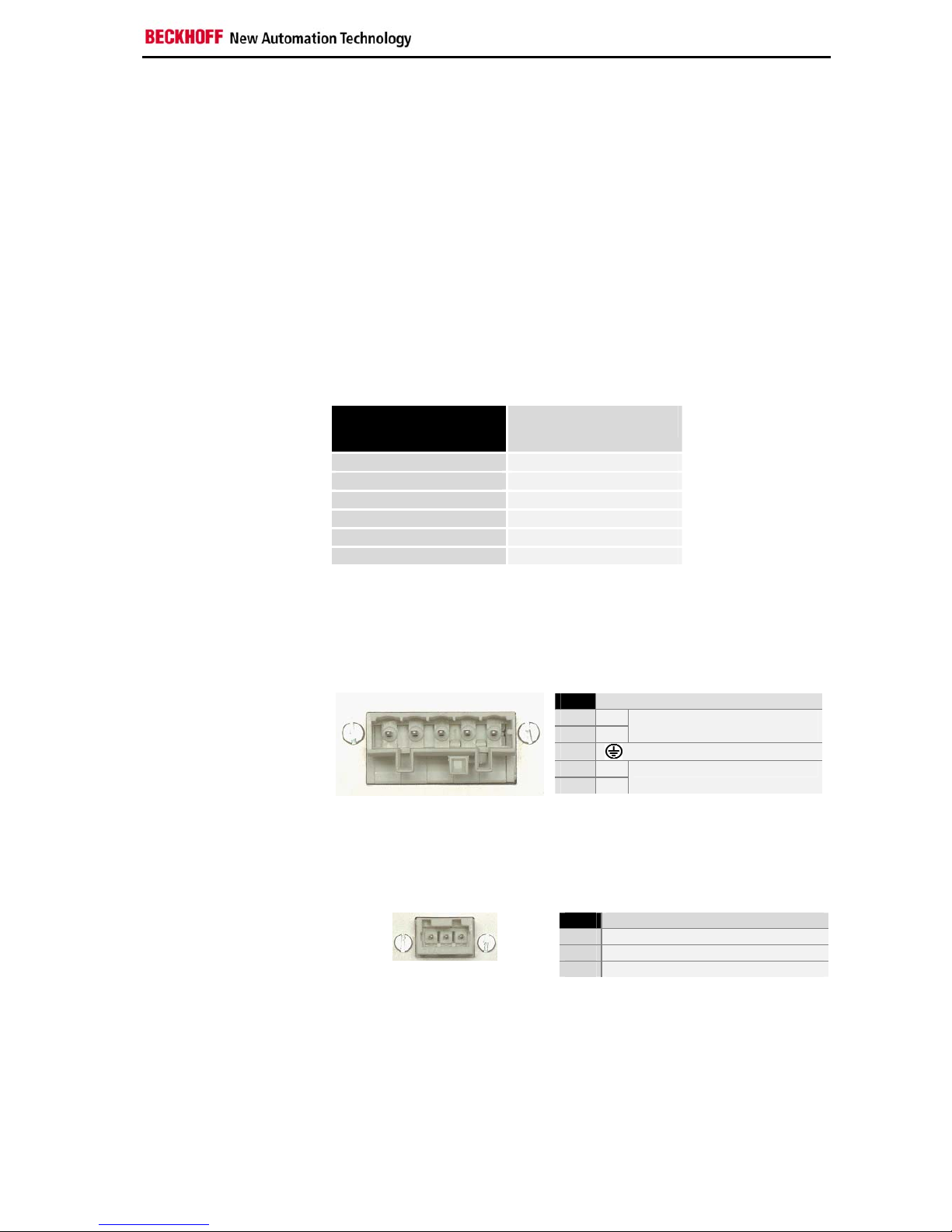

Pin assignment for
connecting the power
supply and the battery pack
Pin Function
1
+
2
-
24V
DC
Power Supply
3
4
+
5
-
Battery Pack (with UPS)
Power Switch
The Industrial PC is switched on and off with an external power switch.
Therefore the PC is equipped with a 3-pole male plug connector with
CAGE CLAMP connection.
Pin assignment for
connecting the power switch
Pin Function
1
Power-Status
2
PC_ON
3
24V DC Power Supply + Pole
54321
1 2 3
C6240-1007 15
Installation Instructions
Fitting the Power Supply Cable

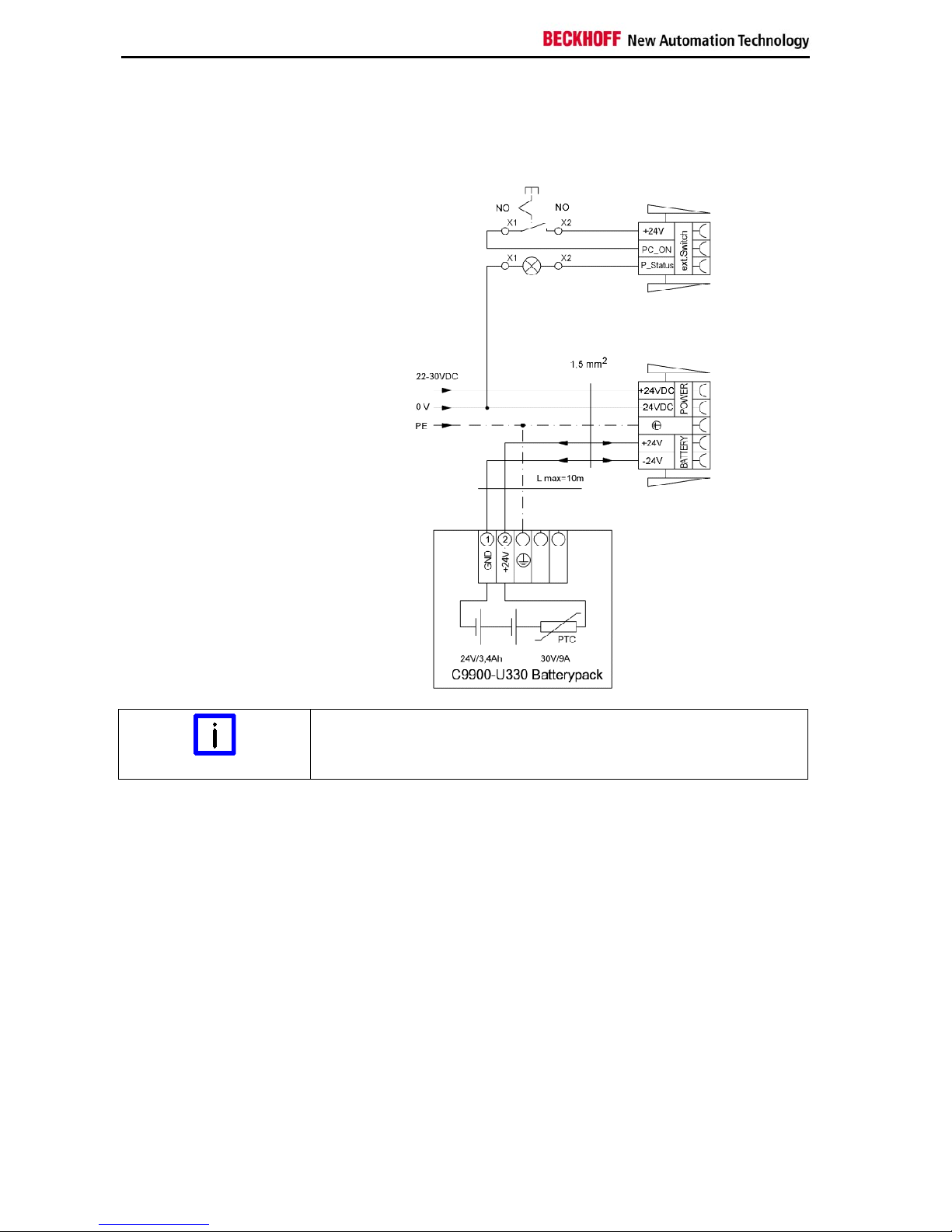

Wiring in accordance with
wiring diagram
Fit the cables for the power supply of the Industrial PC, the connection of
the battery pack as well as the connection of the power-switch in
accordance with the wiring diagram, using the included material for
assembling the connectors.
The example shows how to fit the 5-pole plug connector:

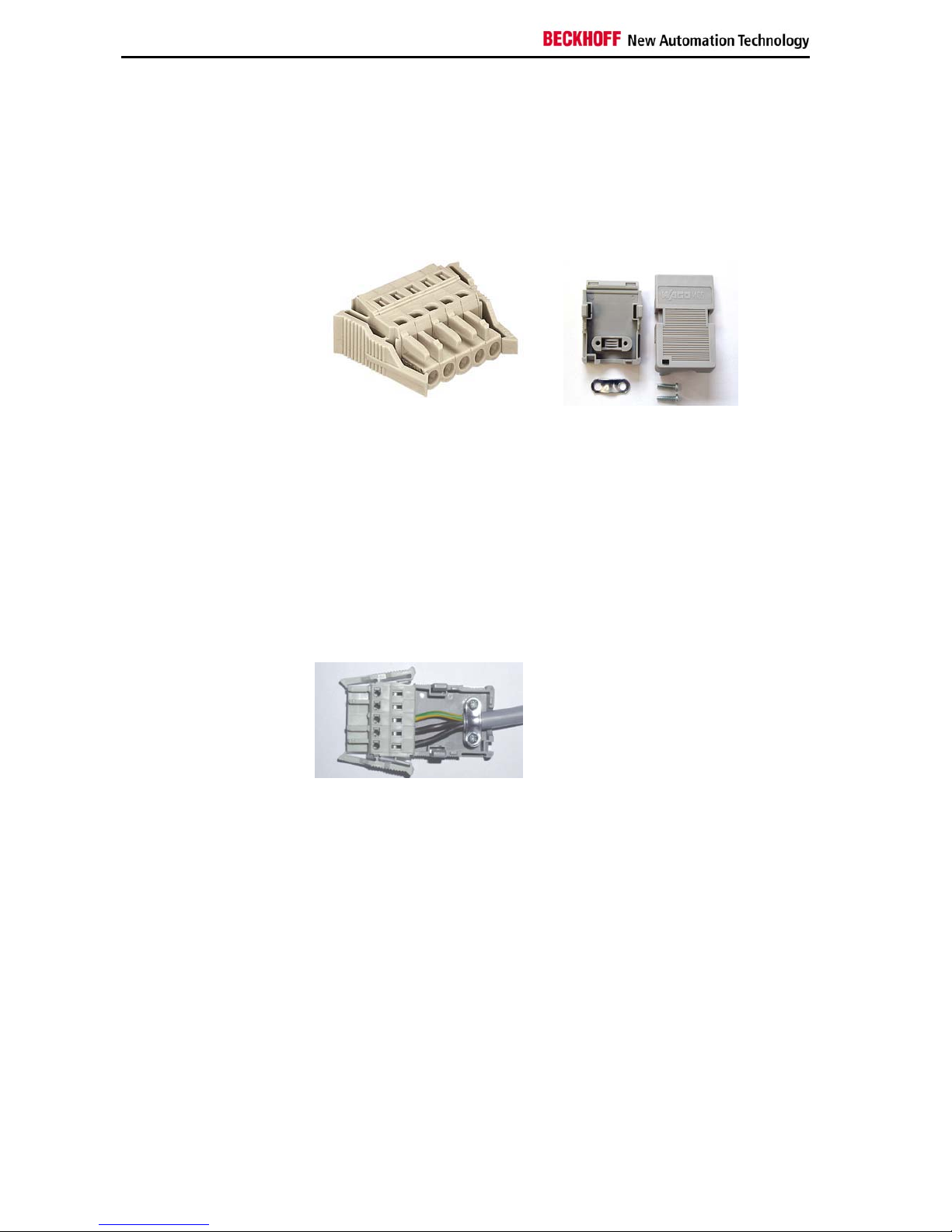

Materials for assembly of
the connector
Female plug connector 5-pole
Strain relief housing
A
B
C
D
Fitting the connector
Fitting the connector to the
cable
The plug is fitted to the cable as follows:
1. Strip insulation from the cable ends (insulation length 8 – 9 mm).
2. Push the conductors into their mountings, simply by pushing them
in as indicated on the pin assignment label.
3. Push the lower part (part A) of the strain relief housing onto the top
of the female plug connector until it snaps into place.
4. Relieve the strain on the supply cable by fixing it in place with the
cable clamp (part C) and fixing screws (part D).
Applying the strain relief
Fix the upper part (part B) of the strain relief housing by snapping it onto
the lower part.
16 C6240-1007
Installation Instructions
Connecting 24VDC Power Supply
The external wiring consists of the connection of the power supply, the
battery pack (optional) and the connection of customized components for
shutting down the PC.
Cable Cross Sections
Note cable cross sections,
avoid voltage drop!
For the connection of the power supply, wiring with a cable-cross-section
of 1.5 mm
2
must be used.
With bigger distances between voltage source and PC, you take the
voltage drop as a function of the cable-cross-section as well as voltage
fluctuations of your distribution voltage into account, so that is secured that
the voltage doesn't fall under 22 V at the power supply.
Insert fuse
Attention
The power supply must be protected with maximum 16 A.
Configuration for shutting down the PC
The connections for shutting down the Industrial PCs are established via
the PC_ON input and the Power Status output.
PC_ON and Power Status functions
• If the PC_ON input is connected to 24 V via a switch, the PC shuts
down according to the rules. The PC_ON signal is inverted, i.e. the PC
shuts down if the 24 V connection is live.
• If the PC_ON input is NOT connected by the user, the PC can be
booted in the familiar way by connecting the supply voltage and shut
down via the battery by switching off the supply voltage.
Service life of the rechargeable battery
Attention
This procedure significantly reduces the service life of the rechargeable
battery and should therefore not be used.
• Once the PC has shut down, the Power Status output is switched from
24 V to 0 V. Via this output a signal lamp can be connected or a
contactor for de-energizing the whole system. The maximum load for
the Power Status output is 0.5 A and a suitable fuse should be
provided.
C6240-1007 17
Installation Instructions
Wiring diagram
Wiring according to the wiring diagram (the circuit of PC_ON and PowerStatus is symbolical):
Wiring diagram external
switch and power supply
Connection of the Battery Pack and UPS Output
Note
Connection of the Battery Pack and UPS Output only in combination with
integrated UPS (order option).
18 C6240-1007
Installation Instructions
Connecting devices
Power supply plug
Attention
The power supply plug must be withdrawn!
Please read the documentation for the external devices prior to
connecting them.
During thunderstorms, plug connector must neither be inserted nor
removed.
When disconnecting a plug connector, always handle it at the plug. Do not
pull the cable!
Connecting cables
The connections are located at the top of the Industrial PC and are
documented in the product description chapter.
When connecting the cables to the Industrial PC, proceed according to the
following sequence:
• Switch off all the devices that are to be connected.
• Disconnect all the devices that are to be connected from the power
supply.
• Connect all the cables between the Industrial PC and to the
devices that are to be connected.
• Connect all data transfer cables (if present) to the appropriate
plug-in receptacles of the data/telecommunication networks.
• Reconnect all devices to the power supply.
Check voltage rating and connect.
When fitted with 115 V
AC
/ 60 Hz
230 VAC / 50 Hz power supply:
1. Check that the mains voltage is correct.
2. Insert the provided power supply cable into the Industrial PC's
power supply socket. Then connect it to a power socket with a
grounded earth connection.
When fitted with the (optional) 24 V
DC
power supply unit:
1. Check that the external power supply is providing the correct
voltage.
2. Insert the power supply cable that you have assembled (see the
section on Fitting the Power Supply Cable) into the Industrial PC's
power supply socket. Then connect it to your external 24 V power
supply.
Use same type of rechargeable battery
Attention
If a 24 V UPS is installed, the same type of rechargeable battery must be
used.
C6240-1007 19
Operating Instructions
Operating Instructions
Please also refer to chapter Foreword.
Switching the Industrial PC on and off
Switch on The Industrial PC does not have its own mains switch. The Industrial PC
will start when the equipment is switched on, or when it is connected to the
power supply.
Shutting down and
switching off
When the plant is switched off, or when it is disconnected from its power
supply, the Industrial PC will be switched off.
Control software such as is typically used on Industrial PCs permits various
users to be given different rights. A user who may not close software may
also not switch the Industrial PC off, since data can be lost from the hard
disk by switching off while software is running.
First shut down, then switch off the PC
Attention
If the Industrial PC is switched off as the software is writing a file to the
hard disk, the file will be destroyed. Control software typically writes
something to the hard disk every few seconds, so that the probability of
causing damage by switching off while the software is running is very
high.
Switch off power supply
Attention
When you have shut down the Industrial PC, you have to switch off power
supply for at least 10 seconds before rebooting the system.
After resetting power supply the PC will start booting automatically.
First switching on and driver installation
When you switch on the Industrial PC for the first time, the pre-installed
operating system (optional) will be started. In this case, all the required
drivers for any additional, optional hardware components ordered with the
PC will already have been installed.
If the PC was ordered without operating system, you have to install the
operating system and the driver software for any auxiliary hardware
yourself. Please follow the instructions in the documentation for the
operating system and the additional devices.
20 C6240-1007
Operating Instructions
Servicing and Maintenance
Please also refer to chapter Foreword.
Cleaning the Industrial PC
Disconnect from power supply
Attention
Switch off the Industrial PC and all connected devices, and disconnect the
Industrial PC from the power supply.
The Industrial PC can be cleaned with a soft, damp cloth. Do not use any
aggressive cleaning materials, thinners, scouring material or hard objects
that could cause scratches.
Servicing
The Industrial PC requires no maintenance.
Replacing the battery on the motherboard
A used battery on the motherboard has to be replaced.
Danger of Explosion!
WARNING
Replace battery only with the identical type or an alternative type
recommended by the manufacturer. Notice correct polarity!
Handling of Lithium Batteries
WARNING
Lithium Batteries should not be recharged, exposed to fire, opened and
they should be protected against sunlight and moisture.
The used battery must be disposed of in accordance with national
electronics scrap regulations.
Emergency procedures
In case of fire, the Industrial PC should be extinguished with powder or
nitrogen.
Shutting down
Disposal
Dismantling the Industrial
PC
Observe national
electronics scrap
regulations
The device must be fully dismantled in order to dispose of it. The housing
can be sent for metal recycling.
Electronic parts such as disk drives and circuit boards must be disposed of
in accordance with national electronics scrap regulations.
C6240-1007 21
UPS Software Components (optional)
UPS Software Components (optional)
Installing the UPS driver
software
For operating the power supply unit as a UPS, the UPS driver software and
the associated UPS driver must be installed on the Industrial PC.
On delivery of the Beckhoff Industrial PC with operating system the
software is already installed. Should the software not be installed on your
PC, the drivers can be installed from the driver CD provided.
Installation on the PC
Installation To install the UPS driver software, execute file
Beckhoff_UPS_vx.xx.xx.exe from the subdirectory of UPS\… from the
CD provided on the Industrial PC (Driver-archive for the Industrial-PC,
C9900-S700-xxxx).
The program is self-extracting and will guide the user through the
installation routine.
Help files
Beckhoff Information
System
The driver software comes with a detailed help function.
The help files can be called up either directly from the configuration register
by clicking the Help button, or under via Start > Programs > Beckhoff >
UPS software components.
22 C6240-1007
Troubleshooting
Troubleshooting
Please also refer to chapter Foreword.
Fault correction
Fault Cause Procedure
Nothing happens after the Industrial
PC has been switched on
No power supply to the Industrial
PC
Other cause
Check power supply cable
Call Beckhoff Service
The Industrial PC does not boot
fully
Floppy disk or CD in the drive
Setup settings are incorrect
Other cause
Remove floppy disk or CD
and press any key
Check the setup settings
Call Beckhoff Service
Computer boots, software starts,
but control does not operate
correctly
Cause of the fault is either in the
software or in parts of the plant
outside the Industrial PC
Call the manufacturer of the
machine or the software
Memory device access error Faulty disk or CD
Faulty device
Check disk or CD in another
drive
Call Beckhoff Service
The Industrial PC functions only
partially or only part of the time, e.g.
no or dark picture, but disk drive
responds when switching on
Defective components in the
Industrial PC
Call Beckhoff Service
C6240-1007 23
Troubleshooting
Beckhoff Support and Service
Beckhoff and their partners around the world offer comprehensive support
and service, guaranteeing fast and competent assistance with all questions
related to Beckhoff products and system solutions.
Beckhoff branches and partner companies
Please contact your Beckhoff branch office or partner company for local
support and service on Beckhoff products!
The contact addresses for your country can be found in the list of Beckhoff
branches and partner companies: www.beckhoff.com
You will also find further documentation
for Beckhoff components there.
Beckhoff company headquarters
Beckhoff Automation GmbH & Co. KG
Huelshorstweg 20
33415 Verl
Germany
Phone: +49(0)5246/963-0
Fax: +49(0)5246/963-198
e-mail: info@beckhoff.com
Web: http://www.beckhoff.de/
Beckhoff Support
Beckhoff offers you comprehensive technical assistance, helping you not
only with the application of individual Beckhoff products, but also with wideranging services:
• worldwide support
• design, programming and commissioning of complex automation
systems
• training program for Beckhoff system components
Hotline:
+49(0)5246/963-157
Fax: +49(0)5246/963-9157
e-mail: support@beckhoff.com
Beckhoff Service
The Beckhoff service center supports you in all matters of after-sales
service:
• on-site service
• repair service
• spare parts service
• hotline service
Hotline:
+49(0)5246/963-460
Fax: +49(0)5246/963-479
e-mail: mailto:service@beckhoff.com
Quote the project number If servicing is required, please quote the project number of your Industrial
PC.
24 C6240-1007
Assembly dimensions
Assembly dimensions

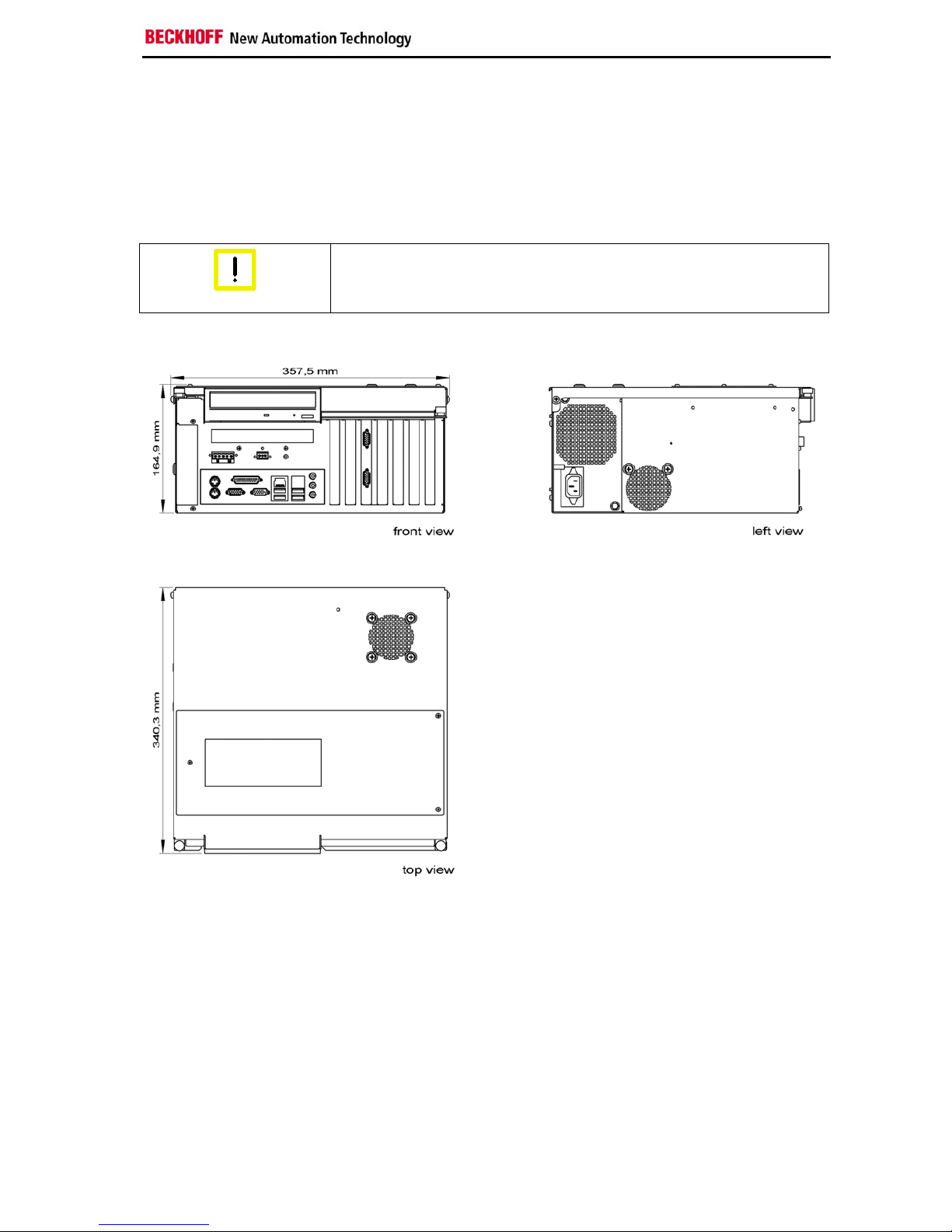

The following pages show diagrams of the Industrial PC, with dimensions
in mm.
Configuration with 100-240 VAC Power Supply
Assembly orientation
Attention
The assembly of the unit must take place with the orientation diagrammed
here.
C6240-1007 25
Assembly dimensions
Configuration with 24 VDC-Power Supply (optional)
Assembly orientation
Attention
The assembly of the unit must take place with the orientation diagrammed
here.
26 C6240-1007
Appendix
C6240-1007 27
Appendix
Technical data
Industrial PC C6240-1007 Dimensions (W x H x D): see chapter Assembly dimensions
Weight: 9.5 kg (basic configuration)
Do not use the PC in areas
of explosive hazard
The Industrial PC may not be used in areas of explosive hazard.
The following conditions must be observed during operation:
Environmental conditions Ambient temperature: 0 to 55°C
Atmospheric humidity: Maximum 95%, non-condensing
Shock resistance
Sinusoidal vibration:
(EN 60068-2-6)
10 to 58 Hz: 0.035 mm
58 to 500 Hz: 0.5 G (~ 5 m/ s2)
During reading of CD-ROM:
10 to 58 Hz: 0.019 mm
58 to 500 Hz: 0.25 G (~ 2.5 m/ s
2
)
Impact:
(EN 60068-2-27)
5 G (~ 50 m/ s²), duration: 30 ms
During reading of CD-ROM: 5 G (~ 50 m/ s²), duration: 11 ms
Protection class Protection class: IP20
Power supply
100-240 V
AC
power pack
Supply voltage: 115 V
AC
/ 60 Hz
230 V
AC
/ 50 Hz
Power consumption: 85 W for the basic version
Power supply
24 V
DC
power pack
(optional)
Supply voltage: 22 – 30 V
DC
Power consumption: 85 W for the basic version
Electromagnetic
Compatibility (EMC)
Interference resistance: according to EN 61000-6-2
Emitted resistance: according to EN 61000-6-4
Transport and storage The same values for atmospheric humidity and shock resistance are to be
observed during transport and storage as in operation. The shock
resistance during transport can be improved by means of suitably packing
the Industrial PC. The ambient temperature during storage and transport
must be between -20°C and +65°C.
Approvals
FCC: Federal Communications Commission
Radio Frequency Interference Statement
FCC Approval for USA This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.
FCC: Canadian Notice
CC Approval for Canada This equipment does not exceed the Class A limits for radiated emissions
as described in the Radio Interference Regulations of the Canadian
Department of Communications.
Loading...
