Care,UseandInstallationBooklet
FRONT-LOADINGWASHER
|
Contents |
|
WarningsandSafetyInstructions,2 |
|
Important Safety Instructions |
|
WasherDescription,3 |
|
The front, the back |
|
Control panel |
|
StartandPrograms,4-6 |
|
Choosing a Program |
|
Table of control panel lights |
|
Table of preset wash programs |
|
Table of washing options |
|
Dispenser,7 |
AW122 |
Automatic dispenser drawer |
Dispenser compartments
About using bleach
Table of laundry aids
MaintenanceandCare,8-9
When to switch o electricity and water faucets
After washing is complete
Clean the exterior, interior & dispenser drawer
Clear the coin trap
Check the rubber inlet hoses yearly
Winterization
Troubleshooting,10-11
Spare parts
TechnicalDetails,12
Recessed, closet, alcove installations

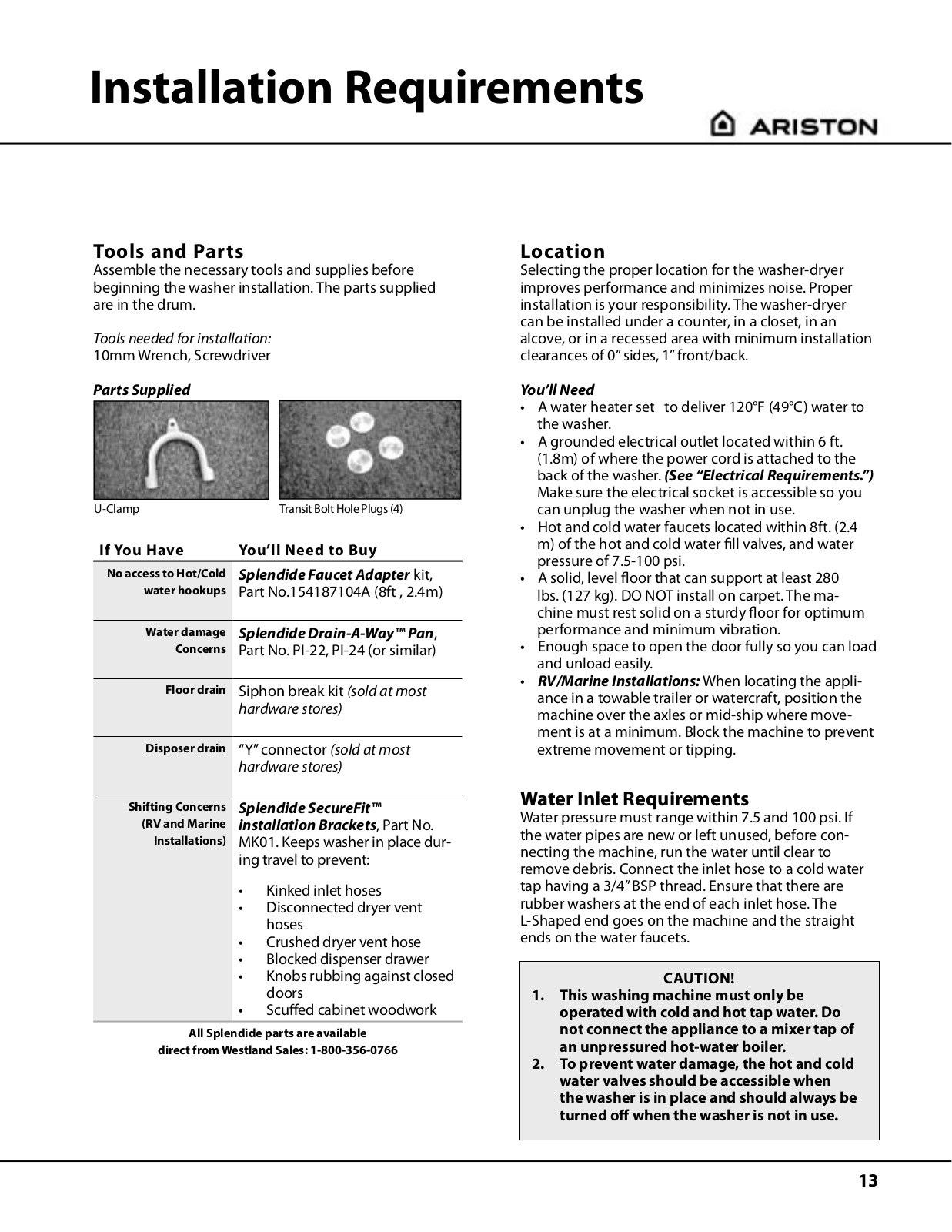

InstallationRequirements,13-15
Tools and Parts
Location
Water Inlet Requirements
Drain System Requirements

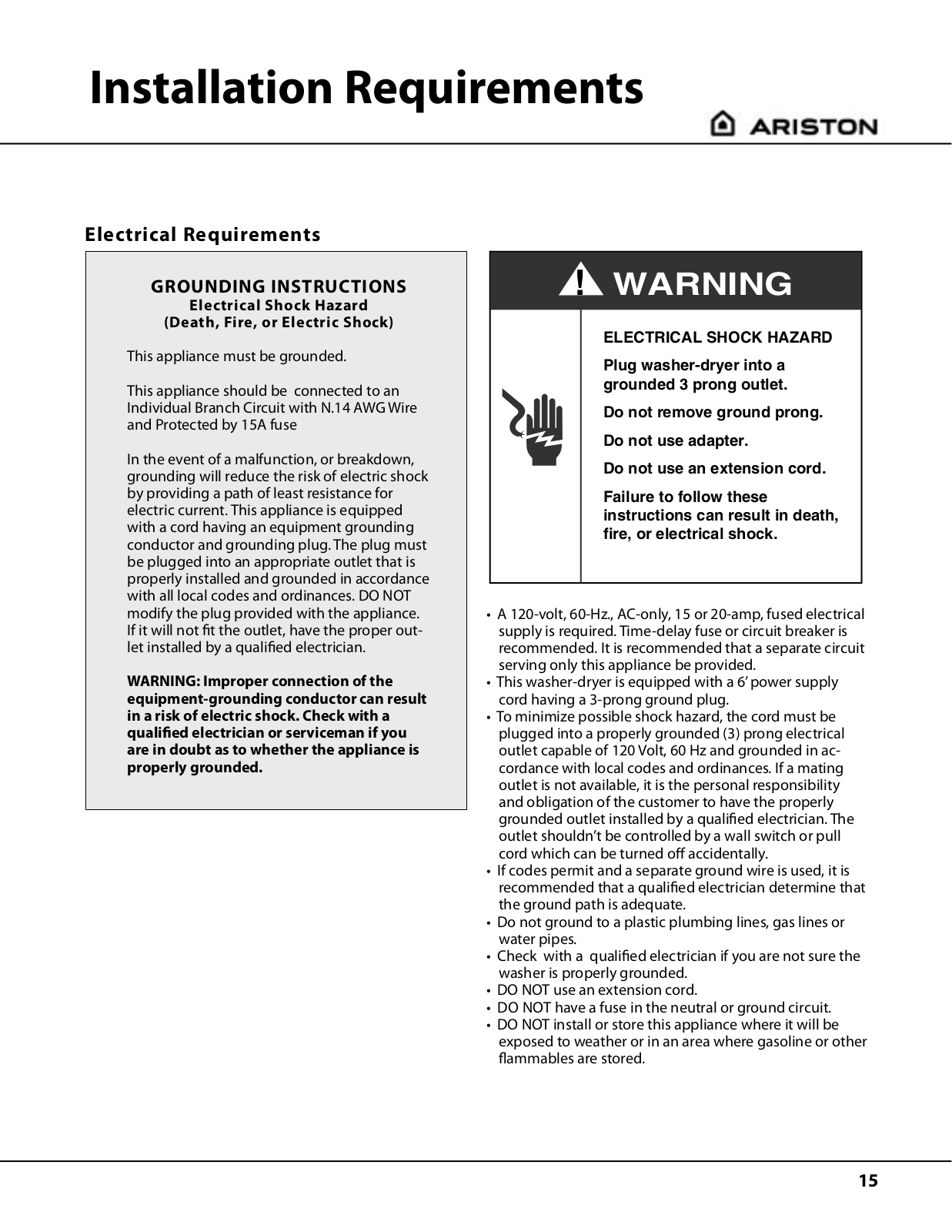

Electrical Requirements

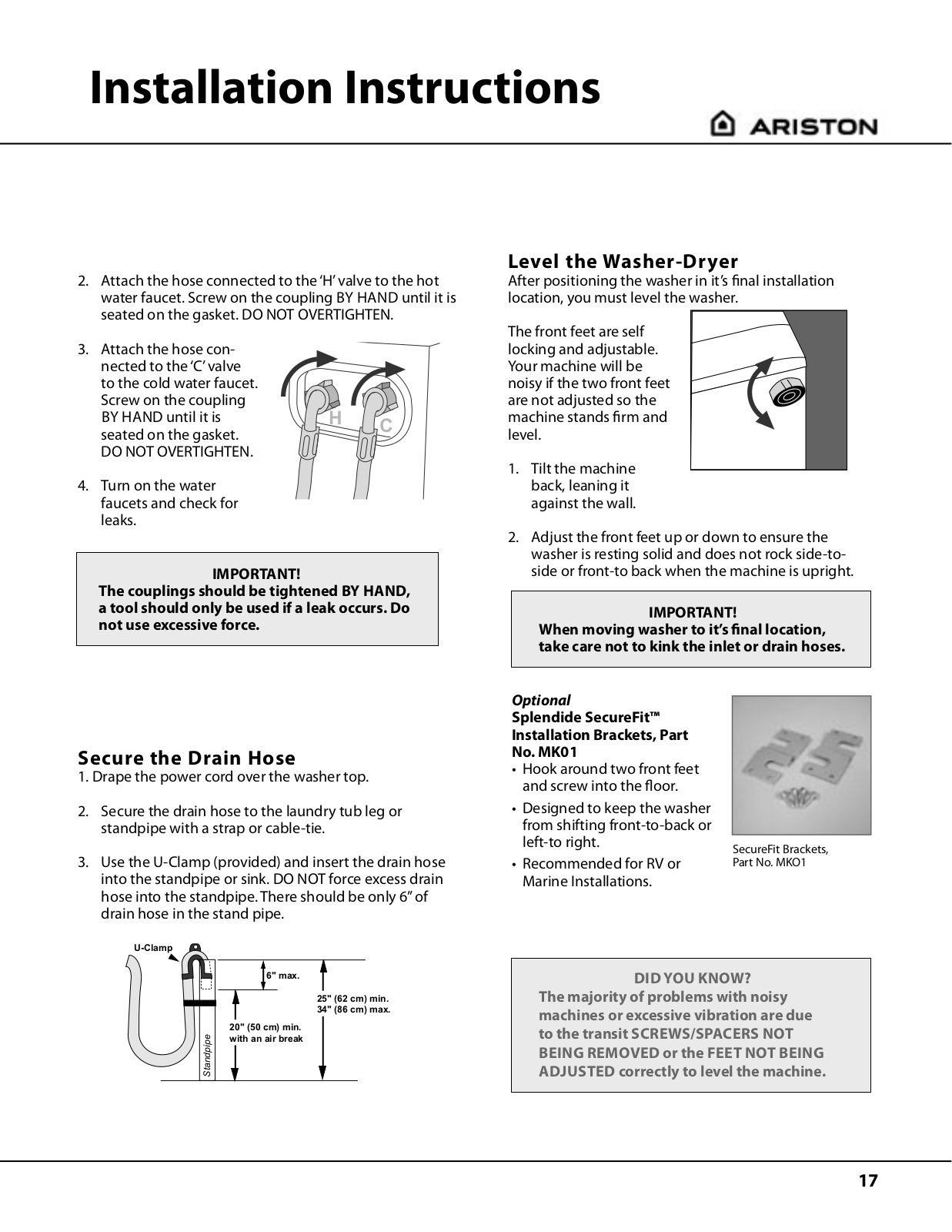

InstallationInstructions,16-17-18
RemoveTransit Screws/Spacers
Connect the Inlet Hoses
Route and Secure the Drain Hose
Level theWasher
Final Installation Checklist
1
WarningsandSafetyInstructions
The machine was designed and built in compliance with the appliance international safety regulations.
The information on this page is provided for your safety and should be read carefully.
WARNING!
Toreducetheriskoffire,electricalshock,orinjurytopersonswhenusingyourappliance, followbasicprecautionsincludingthefollowing:
! WARNING
ELECTRICAL SHOCK HAZARD
Plug washer-dryer into a grounded 3 prong outlet.
Do not remove ground prong. Do not use adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.
1.Read all instructions before using the appliance.
2.Do not wash articles that have been previously cleaned in, washed in, or spotted with gasoline, dry cleaning solvents, other flammable or explosive substances as they emit vapors that could ignite or explode.
3.Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
4.Before the appliance is removed from service or discarded, remove the door.
5.Do not reach into the appliance if the tub or drum is moving.
6.Do not install or store this appliance where it will be exposed to the weather.
7.Do not tamper with controls.
8.Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand or have the skills to carry out.
9.Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give o vapors, that could ignite or explode.
! WARNING
ELECTRICAL SHOCK HAZARD Disconnect power before servicing. Replace all panels before operating.
Failure to do so can result in death or electrical shock.
10.Under certain conditions, Hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGENGASISEXPLOSIVE.
If the hot water system has not been used for such a period, before using a washing machine, turn on all hot water faucets and let the water flow from each for several minutes.This will release any accumulated Hydrogen.
11.Check the CoinTrap every few months to remove coins, buttons or similar size objects.
12.This appliance must be properly grounded (see
GroundingInstructions).
13.Clothes, cleaning rags, mop heads and the like which have traces of any flammable substances, such as veg-
! WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move and install the washer-dryer.
Failure to do so can result in back or other injury
etable oil, petroleum based oils or distillates, etc. must not be placed in the washing machine.These items may contain flammable substances after laundering which may smoke or catch fire by itself.
14.Always be sure to unplug the washing machine from the electrical supply before attempting any service.
15.Do not insert/pull out the mains plug with wet hands.
16.Do not pull out the mains plug by tugging the cable.
17.Do not use an extension cord or an adapter to connect the washing machine to the electrical power supply.
18.Caution when draining hot water.
19.The washing machine must only be used for it’s intended purpose.
20.Make sure drum is empty before loading washer.
21.Make sure that all water connections to the washing machine have shut-o valve(s) and that they are readily accessible. Close the washing machine shut-o valves at the end of each wash day.
22.Check the fill hose connections on a regular basis to assure that they are tight and not leaking.
23.Do not machine wash fiberglass materials. Small particles can stick to fabrics washed in following loads and cause skin irritation.
24.Check the inlet hoses periodically for bulges, kinks, cuts, wear or leaks and replace them every five years.
2 |
SAVE THESE INSTRUCTIONS |
WasherDescription
Dispenser drawer |
Control panel |
Hot and cold |
|||
|
|
||||
|
|
water inlet |
|||
|
|
|
|
||
|
|
|
|
Model No. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Power cord |
|
|
Transit |
|
|
|
|||
Serial No. |
|
|
||
|
|
bolts |
||
Drain hose |
|
|
|
|
|
|
|
|
CoinTrap
Programkey
(PullonGreyTab)
Dispenser drawer
Knobs are hidden.To extract them, gently press the middle of each knob.
ExtraRinse
Programsdial
EasyIron
ON-OFF
Soaking PreWash
DO
SpinSpeed |
|
|
D=DoorLockLight |
|
|||
|
|
|
O=ON-OFFLight |
WashTemperature |
|
Introduction
Congratulations on the purchase of your new Ariston washing machine. It is a highly sophisticated engineered product that will give you many years of satisfaction. Please read this Owners Manual. It will show you ways to best utilize your valuable purchase.
3
StartandPrograms
Choosingaprogram
1.Plug the washer into the electrical socket.
2.Sort your laundry according to similar colors, fabrics and degree of soil. For best results,
do not load more than the maximum capacity:
Fabric |
MaximumLoad |
Cottons |
12 lbs. |
Synthetics |
6 lbs. |
Delicate Fabrics |
5 lbs. |
Wools |
3 lbs. |
Bathrobes |
5 lbs. |
3.Open the door. Load the machine and make sure the items are not in the way of the door seal.
4.Close the door.
5.Choose the wash program by checking the Programs table (seePresetWashingPrograms) as well as the fabric care tags found on your clothing.
•Select a washing cycle by rotating the PROGRAMS dial clockwise.
•Set the wash water temperature with the
•TEMPERATURE knob.
•Set the high spin speed with the
SPIN SPEED knob.
•To further customize the program, press one of the four WASH OPTIONS buttons
(seeWashingOptions).
6.Open the dispenser drawer and add laundry aids
(seeDispenserdrawer).
Note:If your previous washing machine was a top-loader, initial loads may require little to no detergent. Old detergent trapped in the clothes will be released during the tumble action.
7.Close the dispenser drawer.
8.Press the ON-OFFbutton (in) to begin. During the washing program, you cannot open the door.
9.Whenthecycleiscomplete,waitforthe DOOR LOCK Lighttoextinguish. Open the door and take your laundry out.
10.Unplug the washer.
Lights
Light |
Whatitmeans... |
|
|
Note |
|
|
|
|
• The door will stay locked for |
|
|
• LightON= Locked |
|
up to 2 minutes after the |
DOORLOCK Indicates when the |
|
program is completed |
||
|
door is locked |
• LightOFF=Unlocked |
! |
• NEVERattempttoopen the |
|
|
|
doorwhenthe DOOR LOCK |
|
|
|
|
lightisON |
|
|
|
• SlowFlash=Ready; awaiting |
• This washer can perform self- |
|
|
|
instructions |
|
diagnostics in the event of a |
|
Indicates the status |
• SolidLight=Program |
|
problem. If needed, this light |
ON-OFF |
|
will indicate a fault code by |
||
accepted; in operation |
|
|||
of the washer |
|
displaying a specific series of |
||
|
|
• QuickFlash=Program |
|
blinking lights. |
|
|
competed, but door still |
|
|
|
|
|
|
locked
4
StartandPrograms
Presetwashingprograms
|
|
Program |
|
ClothingType |
|
Description |
|
HighSpin |
|
Recommendation |
|
|||||||||
|
|
COTTON |
|
|
|
|
• |
120 minutes |
|
|
|
|
• |
Eliminates harmful |
|
|||||
|
|
|
|
|
|
|
|
• |
Heating element |
|
|
|
|
bacteria and safely deep |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
cleans stained, cotton |
|
|||||||
|
|
1Sanitary |
|
|
|
|
|
is used to reach |
|
|
|
|
|
|||||||
|
|
|
Colorfast Items |
|
1200rpm |
|
colorfast items |
|
||||||||||||
|
|
|
|
158ºF wash temp. |
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
• The heating element will |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
• |
Bleach option not |
|
|
|
|
take about 10 minutes to |
|
|||||
|
|
|
|
|
|
|
|
|
available |
|
|
|
|
|
|
reach full heat. |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
2Heavy |
|
Exceptionally soiled |
|
|
|
|
|
1200rpm |
|
|
|
|
|
|||||
|
|
|
|
|
whites |
|
• |
90 minutes |
|
• |
Sheets, tablecloths, etc. |
|
||||||||
|
|
3Regular |
|
Heavily soiled |
|
|
|
|
|
|
|
|
• |
Jeans, towels, etc. |
|
|||||
|
|
|
|
|
whites and colorfast |
• |
50 minutes |
|
1200rpm |
• Fasten all hooks, zippers |
|
|||||||||
|
|
|
|
|
colors |
|
|
|
|
|
|
|
|
|
|
and buttons |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
4Light |
|
Slightly soiled |
• |
40 minutes |
|
1200rpm |
• |
Shirts, sweatshirts, etc. |
|
||||||||
|
|
|
|
|
whites and delicate |
|
|
|
|
|
|
|
|
• Turn printed shirts inside |
|
|||||
|
|
|
|
|
colors |
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
out before washing |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
• Tie all strings before |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
loading |
|
|
|
|
|
PERMANENT PRESS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5Heavy |
|
Heavily soiled |
• |
80 minutes |
|
800rpm |
• |
Baby linen, etc. |
|
|||||||||
|
|
|
|
|
colorfast synthetics |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
6Regular |
|
Delicate color |
• |
65 minutes |
|
800rpm |
• All types of slightly soiled |
|
||||||||||
|
|
|
|
|
synthetics |
|
|
|
|
|
|
|
|
|
|
synthetics |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
7Light |
|
Delicate color |
• |
40 minutes |
|
800rpm |
• All types of slightly soiled |
|
|||||||||
|
|
|
|
|
synthetics |
|
|
|
|
|
|
|
|
|
|
synthetics |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
HANDWASHABLES |
|
|
|
|
|
|
|
|
|
|
|
|
• All types of delicate items |
|
||||
|
|
|
8Light |
|
Delicate items |
• |
64 minutes |
|
600rpm |
• |
Place underwear, tights |
|
||||||||
|
|
|
|
|
|
stockings and other |
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
delicates in a linen bag |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
9Silk |
|
Particularly delicate |
• |
60 minutes |
|
NoSpin |
• |
Curtains, silk, viscose |
|
||||||||
|
|
|
|
|
items |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
10Wool |
|
Wool |
|
• |
65 minutes |
|
600rpm |
• Wool scarf, sweater, etc. |
|
|||||||||
|
|
|
|
|
hand washables |
|
|
|
|
|
|
|
|
• Turn knit items inside out |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
• Use very little detergent |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
• 3 lb. max load |
|
|||
|
|
PleaseNote:cycletimeswillvaryaccordingtosizeandfabrictypeofload,watersystemtemperatureandroomtemperature |
|
|||||||||||||||||
|
|
• DONOTwashtorn,frayedornon-hemmeditems |
• |
Emptyallpocketsbeforeloadingthelaundry |
|
|||||||||||||||
|
|
SymbolsKey |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
Stop/Reset |
|
SpinCycles |
|
EasyIron |
|
DrainOnly |
|
Fabric Softener |
|
RinseCycles |
|
|||||||
|
|
|
|
(10-13min.) |
|
(AnticreaseStop) |
|
|
(NoSpin) |
|
|
OnlyCycle |
|
(25min.) |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5
StartandPrograms
WashingOptions
Option |
Whatitdoes... |
|
Howtosetit... |
|
|
Note |
|
KNOBS |
Changes the preset wash water |
Rotate TEMPERATURE |
• Rinse water is always |
||||
|
temperature of the selected |
knob to the desired wash |
|||||
TEMPERATURE |
|
COLD |
|
||||
program |
temperature |
|
|
||||
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
• |
Select |
for No Spin |
|
SPINSPEED |
Changes/excludes the preset |
Rotate SPIN SPEED knob |
• |
Faster spinning will |
|||
spin cycle of the selected |
|
extract more water |
|||||
to the desired speed |
|
||||||
|
program |
|
from highly absorbent |
||||
|
|
|
|
||||
|
|
|
|
|
fabrics |
|
|
BUTTONS |
Adds a one hour soak to the |
Press |
• |
During soaking, laun- |
|||
Soaking |
|||||||
selected washing program |
SOAKING button (in) |
|
dry is gently tumbled |
||||
|
|
|
|
|
|
||
|
|
|
|
• |
Recommended for |
||
ExtraRinse |
Adds one extra rinse to the |
Press |
|
very large loads, when |
|||
selected Cotton Heavy Duty or |
|
too much detergent is |
|||||
EXTRA RINSE button (in) |
|
||||||
|
Permanent Press program |
|
used or for detergent |
||||
|
|
|
|
||||
|
|
|
|
|
contact allergies. |
||
|
|
|
|
|
|||
|
|
Press |
• |
Prevents wrinkles |
|||
|
Automatically stops the selected |
EASY IRON button (in) |
|
caused when laundry is |
|||
|
Program will stop when it |
|
not removed promptly |
||||
|
Permanent Press or Hand |
reaches the symbol on |
|
from the drum. |
|||
EasyIron |
Washables program before |
|
|||||
the Programs dial. |
• |
Use this option when |
|||||
|
the spin cycle begins. Laundry |
|
|
|
you know you won’t |
||
|
soaks in water until the Easy |
Toresumetheprogram, |
|
||||
|
|
be able to remove the |
|||||
|
Iron button is pressed again. |
|
|||||
|
Press EASY IRON button |
|
laundry until long after |
||||
|
|
|
|||||
|
|
again (out) |
|
the cycle is finished. |
|||
|
|
|
|
|
|
||
|
Adds an extra wash to the |
|
|
• |
Recommended for |
||
Pre-Wash |
Press |
|
heavily soiled loads |
||||
selected program |
|
||||||
PRE-WASH button (in) |
|
like work clothes or |
|||||
|
(Not available in“Wool”cycle) |
|
|||||
|
|
|
|
children’s clothes. |
|||
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
OnPROGRAMSDial |
|
1. |
Rotate PROGRAMS dial |
|
|
|
|
|
|
|
clockwise and select 1h, |
• |
The On-O lamp will |
||
|
|
|
3h,9h, or12h. |
|
flash(1secondon,4 |
||
DELAYTIMER |
Delay’s the start of the |
2. PressON-OFFbutton(in). |
|
secondso ) to indicate |
|||
3. Wait 5 seconds for the |
|
a DelayStart has been |
|||||
|
washing program by 1, 3, 9 or 12 |
|
|||||
|
hours so laundry is ready when |
|
ON-OFF light to stop |
|
set.The door can be |
||
|
|
flashing. |
|
opened or closed at |
|||
|
you are. |
|
|
||||
|
4. |
Rotate the PROGRAMS |
|
any time before the |
|||
|
|
|
|||||
|
|
|
dial clockwise and select |
|
cycle begins. |
||
|
|
|
a washing program. |
|
|
|
Stop/Reset Cancels/Interrupts the
selected program
1.Rotate the PROGRAMS dial clockwise to a
Stop/Resetposition.
2.Wait 5 seconds.
3.Rotate the PROGRAMS knob to the desired washing program or Drain (see right).
•Tocancelaprogram
completely, select (Drain). After the washer drains, wait for the DOOR LOCK light to extinguish before attempting to open the door.
6
