To drive the vehicle it is necessary to
be in possession of all the requirements
prescribed by law (driving licence, minimum age, psychophysical ability, insurance, state taxes, vehicle registration,
number plate, etc.).
Gradually get to know the vehicle by
driving it first in areas with low traffic
and/or private areas.
use and maintenance Atlantic 500
6
The use of medicins, alcohol and drugs
or psychotropic substances notably increases the risk of accidents.
Be sure that you are in good psychophysical conditions and fit for driving
and pay particular attention to physical
weariness and drowsiness.
Most road accidents are caused by the
driver’s lack of experience.
NEVER lend the vehicle to beginners
and, in any case, make sure that the
driver has all the requirements for driving.
Rigorously observe all road signs and
national and local road regulations.
Avoid abrupt movements that can be
dan-gerous for yourself and other people (for example: rearing up on the back
wheel, speeding, etc.), and give due
consideration to the road surface, visibility, etc.
Avoid obstacles that could damage the
vehicle or make you lose control.
Avoid riding in the slipstream created
by preceding vehicles in order to increase your speed.
Always keep both hands on the handlebars and both feet on the footboard (or
on the footrests), in the correct driving
posture.
Avoid standing up or stretching your
limbs while driving.
use and maintenance Atlantic 500
7
OIL
COOLER
The driver should pay attention and
avoid distractions caused by people,
things and movements (never smoke,
eat, drink, read, etc.) while driving.
use and maintenance Atlantic 500
8
Use only the vehicle’s specific fuels and
lubricants indicated in the “LUBRICANT
CHART”, check all oil, fuel and coolant
levels regularly.
If the vehicle has been involved in an
accident, make sure that no damage has
occurred to the control levers, pipes,
wires, braking system and vital parts.
If necessary, have the vehicle inspected
by an aprilia Official Dealer, who should
carefully check the frame, handlebars,
suspensions, safety parts and all the
devices that you cannot check by yourself.
Always remember to report any malfunction to the technicians to help them in
their work.
Never use the vehicle when the amount
of damage it has suffered endangers
your safety.
ONLY ORIGINALS
2
1
A
5
4
3
Never change the position,inclination or colour of: number plate,direction indica-tors,
lights and horns.
Any modification of the vehicle will result in
the invalidity of the guarantee.
Any modification of the vehicle and/or the
removal of original components can compromise vehicle performance levels and
safety or even make it illegal.
We recommend respecting all regulations
and national and local provisions regarding
the equipment of the vehicle.
In particular,avoid all modifications that increase the vehicle ’s performance levels or
alter its original characteristics.
Never race with other vehicles.
Avoid off-road driving.
CLOTHING
Before starting,always wear a correctly fastened crash helmet. Make sure that it is
homologated,in good shape, of the right size
and that the visor is clean.
Wear protective clothing,preferably in light
and/or reflecting colours.
In this way you will make yourself more visible to the other drivers, thus notably reducing the risk of being knocked down, and
you will be more protected in case of fall.
This clothing should be very tight-fitting and
fastened at the wrists and ankles.
Strings, belts and ties should not be hanging loose; prevent these and other objects
from interfering with driving by getting entangled with moving parts or driving mechanisms.
use and maintenance Atlantic 500
9
Do not keep objects that can be dangerous
in case of fall, for example pointed objects
like keys, pens,glass vials etc. in your pockets (the same recommendations also apply
to passengers).
use and maintenance Atlantic 500
10
ACCESSORIES
The owner of the vehicle is responsible for
the choice, installation and use of any accessory.
Avoid installing accessories that cover horns
or lights or that could impair their functions,
limit the suspension stroke and the steering
angle, hamper the operation of the controls
and reduce the distance from the ground and
the angle of inclination in turns.
Avoid using accessories that hamper access to the controls, since this can prolong
reaction times during an emergency.
Big fairings and windshields installed on the
vehicle may produce aerodynamic forces
that affect the stability of the vehicle, especially when riding at high speed.
Make sure that the equipment is well fastened to the vehicle and not dangerous during driving.Do not install electrical devices
and do not modify those already existing to
avoid electrical overloads, because the vehicle could suddenly stop or there could be
a dangerous current shortage in the horn and
in the lights.
aprilia recommends the use of "aprilia
genuine accessories".
LOAD
Be careful and moderate when loading your
luggage. Keep any luggage loaded as close
as possible to the center of gravity of the
vehicle and distribute the load uniformly on
both sides, in order to reduce umbalance to
the minimum. Furthermore, make sure that
the load is firmly secured to the vehicle, especially during long trips.
KG!
Avoid hanging bulky, heavy and/or dangerous objects on the handlebars, mudguards
and forks: the vehicle might respond more
slowly in turns and its manoeuvrability could
be unavoidably impaired.
Do not place bags that are too bulky on the
vehicle sides, because they could hit people
or obstacles, making you lose control of the
vehicle.
Do not carry any bag if it is not tightly secured to the vehicle.
Do not carry bags which protrude too much
from the luggage-rack or which cover the
lights, horn or indicators.
Do not carry animals or children on the glove
compartment or on the luggage-rack.
Do not exceed the maximum load allowed
for each side-bag.
When the vehicle is overloaded, its stability
and its manoeuvrability can be compromised.
use and maintenance Atlantic 500
11

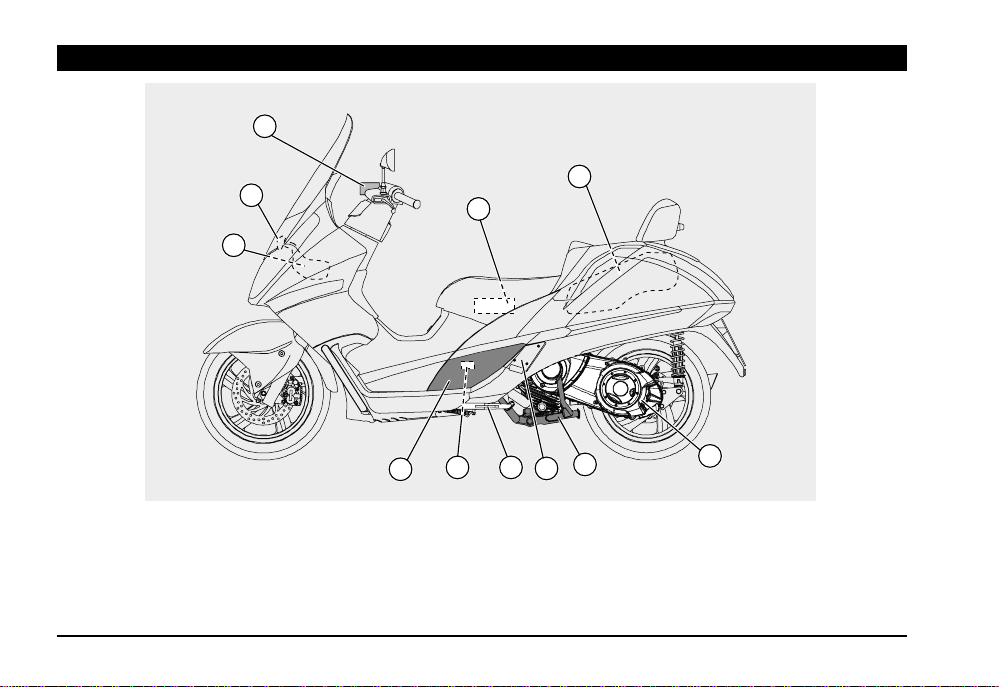

ARRANGEMENT OF THE MAIN ELEMENTS
3
KEY
1) Expansion tank
2) Coolant expansion tank plug
3) Rear brake reservoir
4) Air cleaner
5) Crash helmet compartment
6) Speed variator air cleaner cover
use and maintenance Atlantic 500
12
2
4
1
5
10
11
7) Central stand
8) Passenger left footrest
9) Side stand
10)Spark plug
11)Left inspection cover
9
7
8
6
1
2
3
4
5
6
7
8
10
9
KEY
1) Battery
2) Primary fuse carrier
3) Passenger grab rail
4) Fuel tank
5) Fuel tank filler cap
13
6) Fuel tank flap
7) Front brake reservoir
8) Ignition switch/steering lock/saddle
9) Horn
12
opening
11
10) Secondary fuse carrier
11) Right inspection cover
12) Passenger right footrest
13) Engine oil filling/level cap
use and maintenance Atlantic 500
13
ARRANGEMENT OF THE CONTROLS / INSTRUMENTS
INSTRUMENTS AND INDICATORS
4
3
2
KEY
1) Electric controls on the left side of the handlebar
2) Front and rear brake lever (combined)
3) Left rear-view mirror
4) Instruments and indicators
5) Right rear-view mirror
6) Front brake lever
7) Accelerator grip
8) Electric controls on the right side of the handlebar
9) Ignition switch /steering lock (
10)Loudspeaker protective guards (
KEY
1) Red engine oil pressure warning light (
2) Green left direction indicator warning light ( )
3) Digital total kilometres odometer
use and maintenance Atlantic 500
14
1
9
- - )
7
8
).
)
10
2
17
6
1
13
14
4
5
16
15
21
19
)
11
12
)
8
6
7
5
4) Speedometer
5) Green right direction indicator warning light ( )
6) Blue high beam warning light (
7) Amber low fuel warning light ( )
8) Fuel level indicator ( )
9) Digital clock function and setting push-buttons
10)Digital clock
11)Coolant temperature indicator (
12)Red high coolant temperature warning light (
13)Green parking light and low beam warning light (
14)Parking brake warning light (
15)Amber “down” side stand warning light (
16)“EFI” warning light
17)Revolution counter
18)LCD display
19)Selecting function 3 and resetting 18 and 3
20)ABS warning light
21)Anti-theft warning light (IMMOBILISER)
910
20
ABS
18
3
)
)
)
)
INSTRUMENTS AND INDICATORS TABLE
CAUTION
Description
When the key is in ON position
displays come on for three seconds, thus carrying on an initial check of the instrument.
Function
“ ” all warning lights, the dashboard lights and all segments of the three
Right direction indicator warning light ( )
Left direction indicator warning light ( )
Engine oil pressure warning light
Digital total kilometres odometer
Speedometer
High beam warning light ( )
Low fuel warning light ( )
Fuel level indicator (
Digital clock
Anti-theft warning light (immobiliser)
Parking brake warning light
)
()
It blinks when the right direction indicator is on.
It blinks when the left direction indicator is on.
It comes on every time the ignition switch is brought to position “ ” and the engine is not
running, thus carrying on a LED test. The warning light must go off when the engine is running.
CAUTION
cuit is insufficient. In this case, immediately stop the engine and contact your aprilia
Official Dealer.
It indicates the total number of kilometres covered, for the partial number of kilometres (TRIP 1,
TRIP 2) see page 22.
It indicates the driving speed.
It comes on when the high beam of the headlight is on or when the high beam signaller is
operated (PASSING ).
It comes on when the quantity of fuel left in the tank is about 4 litres.
It indicates the approximate fuel level in the tank. When the pointer reaches the red area, this
means that the quantity of fuel left in the tank is about 4 litres.
In this case, refuel as soon as possible, see page 24 (FUEL).
Hour and date can be shown on the display, see page 20 (DIGITAL CLOCK).
For preset vehicles only. When the motorbike engine is of f, it blinks as a deterrent for thefts. It
confirms that the anti-theft system is operating.
For preset vehicles only. It indicates that the parking brake is operating.
CAUTION
If the warning light comes on during the normal working of
the engine, this means that the engine oil pressure in the cir-
Release it before the departure.
use and maintenance Atlantic 500
15
Description
ABS (Anti-Braking System)
Coolant temperature indicator (
High coolant temperature warning
)
light (
Low beam warning light ( )
“Down” side stand warning light
EFI (Electronic Fuel Injection) warning light
Revolution counter
Multifunction LCD display
)
Function
For preset vehicles only. It tests the anti-locking system. It comes on in case of malfunction.
CAUTION
ing system. In this case, immediately stop the engine and contact an aprilia Official
Dealer.
It indicates the approximate temperature of the coolant in the engine. When the pointer starts
moving from “Min” level, the temperature is enough to drive the vehicle. The normal working
temperature is indicated by the central area of the scale. If the pointer reaches the red area or
the warning light comes on, stop the engine and check the coolant level, see page 29 (COOLANT).
CAUTION
It comes on when the coolant temperature pointer reaches the red area. Immediately stop the
engine and check the coolant level, see page 29 (COOLANT).
CAUTION
It comes on when the low beams of the headlight are on.
It comes on when the side stand is down.
CAUTION
It comes on for about three seconds every time the ignition switch is in position “
engine is not running, thus testing the injection system operation. When the engine starts,
the warning light must go off.
CAUTION
fuel injection system. In this case, immediately stop the engine and contact an aprilia
Official Dealer.
It indicates the revolution number of the engine.
The display shows: outside temperature, average and maximum speed, battery charge, chronometer, programmed maintenance interval, average consumption from the last RESET, see
page 21 (MULTIFUNCTION LCD DISPLAY).
If the warning light comes on during the normal operation of
the engine, this means that there is a failure in the anti-lock-
If the maximum allowed temperature is exceeded (red area
“Max” of the scale), the engine may be seriously damaged.
If the maximum allowed temperature is exceeded for a long
period, the engine may be seriously damaged.
When the side stand is down, the warning light is on and the
vehicle cannot be started.
If the warning light comes on during the normal operation of
the engine, this means that there is a failure in the electronic
” and the
use and maintenance Atlantic 500
16
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
