Once you’ve set up yo u r iBoo k and follo wed
the onscreen guide to connect to the
Int ernet, what’s next? In this booklet
you’ll find more information to help you get
the most out of yo ur iBook:
2Features
4 Basics
6Internet and email
14 Desktop video
18 Productivity
20 Learning more
and solving problems

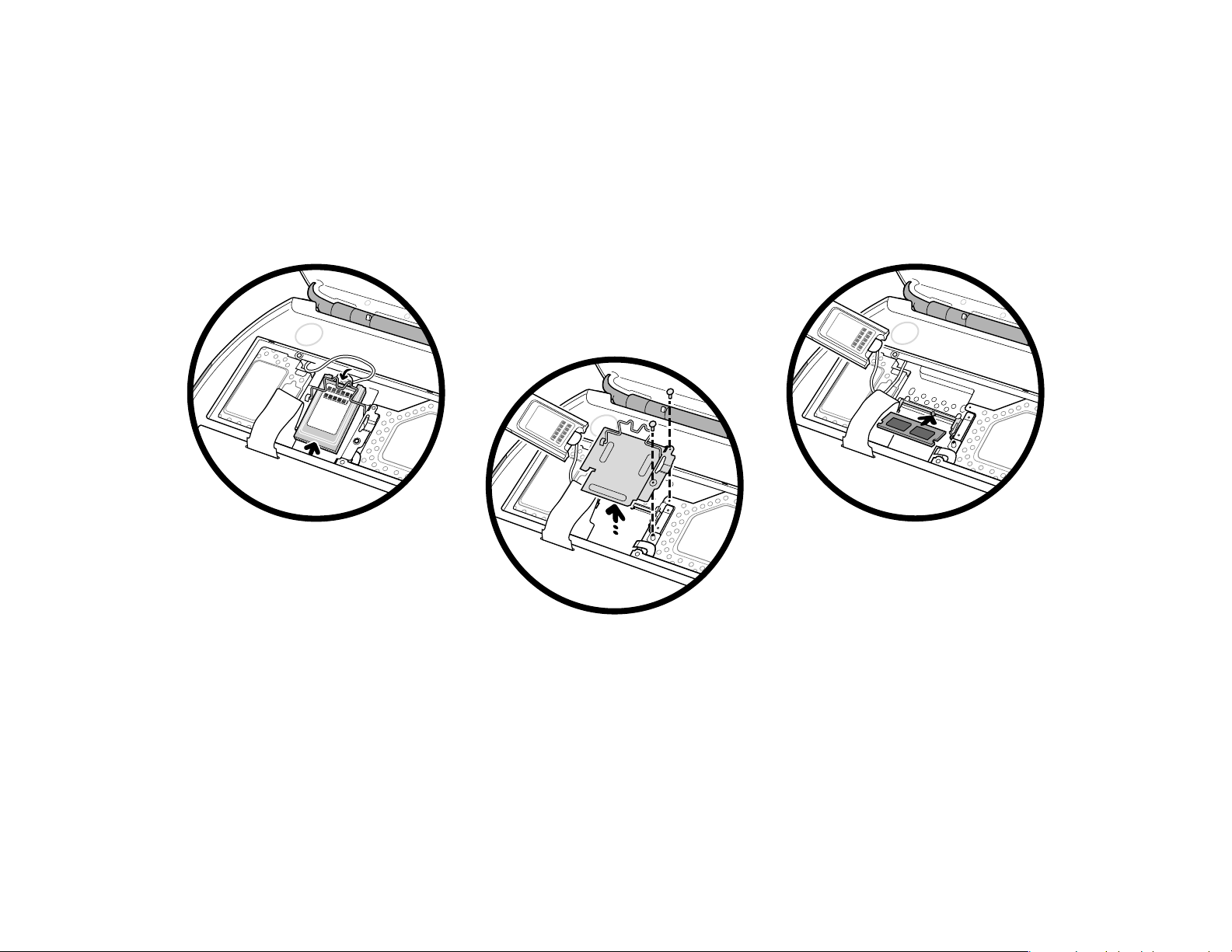

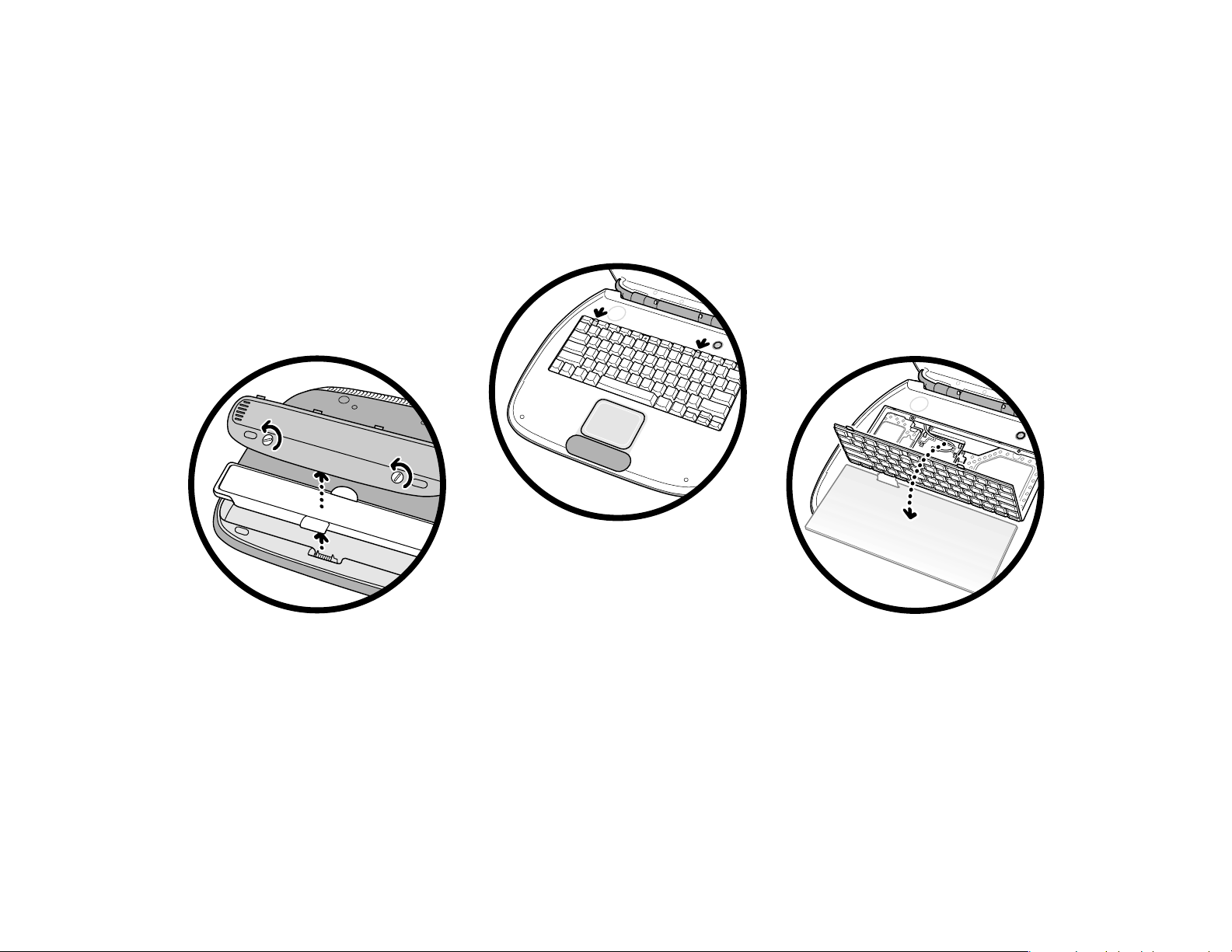

24 Installin g memory and an AirP ort Card
28 Ergonomics and safety
1
What can my iBook do?
Your computer has these built-in features:
Optional AirPort
wireless Internet
and networking
Using the optional AirPort
Card, you can connect to the
Internet, use email, share files,
play network games, and
more—all without any
wires to hold you down.
Volume and
brightness controls
Adjust sound volume and
screen brightness directly using
your keyboard.
Integrated handle
Fold out this handle
when you want to take
your computer with you.
2
Programmable
function keys
Set the keyboard function
keys to open your Web
browser, email application,
or other favorite application
or document automatically.
Battery charging
indicator
When the power adapter is
plugged in, the light glows
amber while the battery is
charging and green when
it is fully charged.
CD or DVD drive
Install software, use
applications, and listen to
music CDs. If your iBook has a
DVD drive, you can also play
DVD videos. To open the drive
(when no disc is inserted),
press the small button on the
side of the iBook.
Connect to the Internet,
Modem
browse the World Wide
Web, and send and
receive electronic mail.
Ethernet
Share files with another
computer or access
a computer network.
Sleep indicator light
Pulsating light indicates that
the computer is in sleep.
® Power button
Turn your computer on, put
it to sleep, or shut it down.
Audio/video port
Connect headphones or
external speakers. Mirror
your iBook display on a
TV or video projector using
the AV cable provided.
Connect printers, Zip and
USB
other disk drives, digital
cameras, joysticks,
and more.
FireWire
Connect a digital video
camera and use it to create
your own desktop movies.
You can also connect
FireWire hard disks,
printers, and more.
3
What are the basics?
The Macint osh deskt op is yo ur s tarting pla ce.
Apple menu
Use this to select
often-used applications
and tools. To see the
menu, click the apple ()
in the menu bar.
Control Strip
Use this for
convenient access to
often-used settings.
Remote Access
Use this Control Strip button
to connect to and disconnect
from the Internet.
Application menu
Click here to switch
between open applications.
Disc
This appears when a
CD or DVD is in the disc
drive. Double-click the
icon to see what’s on
the disc. Drag the
disc’s icon to the Trash
to eject it.
Trash
Drag items here to
delete them. Items remain
here until you choose
Empty Trash from the
Special menu.
. For a quick tutorial on mouse and
desktop skills, choose Mac Tutorials
from the Help menu.
4
Window close box
Click this to close
a window.
Hard disk
All of your files and
applications are kept here.
Double-click the icon to
open it.
Folders help organize
Folder
your files and applications.
Double-click a folder
to open it.
Applications are software programs
Application
(such as a game or word processor)
that you use with your computer.
Double-click an application’s icon
to open the application.
Document
Documents are files that you create
with an application (such as a letter
you create with your word processor).
Double-click the icon to open the file
in the application used to create it.
5
How do I fin d something on the Internet?
If you know the In t ernet address, you can go there directly.
2
Type the Internet address
and press Return on
your k eyboard.
Double-click
“Browse the Int ernet”
to open your Web browser.
1
6
Or you can search the Int ernet with Sherlock 2.
Type what yo u wan t to find and
click the Search button ( ). Then
double-click an item in the lis t of si tes.
2
. Click the other buttons to find people,
read the news, shop, and more.
Choose Search Internet
from the File menu.
1
7
How can I get start ed on the W orld Wide W eb?
These Apple W eb si t es will help you get the most o ut of yo ur comput er.
www.apple.com/guide
For great hardware and software
products for your Mac, check this
Web site or look for the Mac symbol.
8
www.apple.com/store
Purchase the latest Apple hardware,
software, and accessories.
www.apple.com/support
Product support, software updates, and
technical information
. From these Web sites you can quickly
link to other Apple Web sites around
the world.
www.apple.com/ireview
Reviews of hundreds of Web sites: movies,
finance, shopping, sports, and more
www.apple.com/hotnews
The latest Apple news and events, software
updates for your Mac, and QuickTime hot picks
www.apple.com/icards
Send customized electronic postcards
to your friends and family.
9
What can I do wi th iTools?
iTools is a new class of Int ernet services created for Ma c users.
Get your own Mac.com email
Email
address. It’s easy and works with
your favorite email programs.
KidSafe
Make the Internet a safer place
for your kids. KidSafe gives them
access to more than 75,000
educator-approved Web sites,
and blocks the rest.
iDisk
Your own 20 MB of storage on
Apple’s Internet server. Share
photos, movies, and other files over
the Internet. Create personalized
iCards using photos on your iDisk.
HomePage
Build a personal Web site in
three easy steps. Create a photo
album, publish an iMovie, post your
resumé, and more. Now anyone can
view your page on the Internet.
10

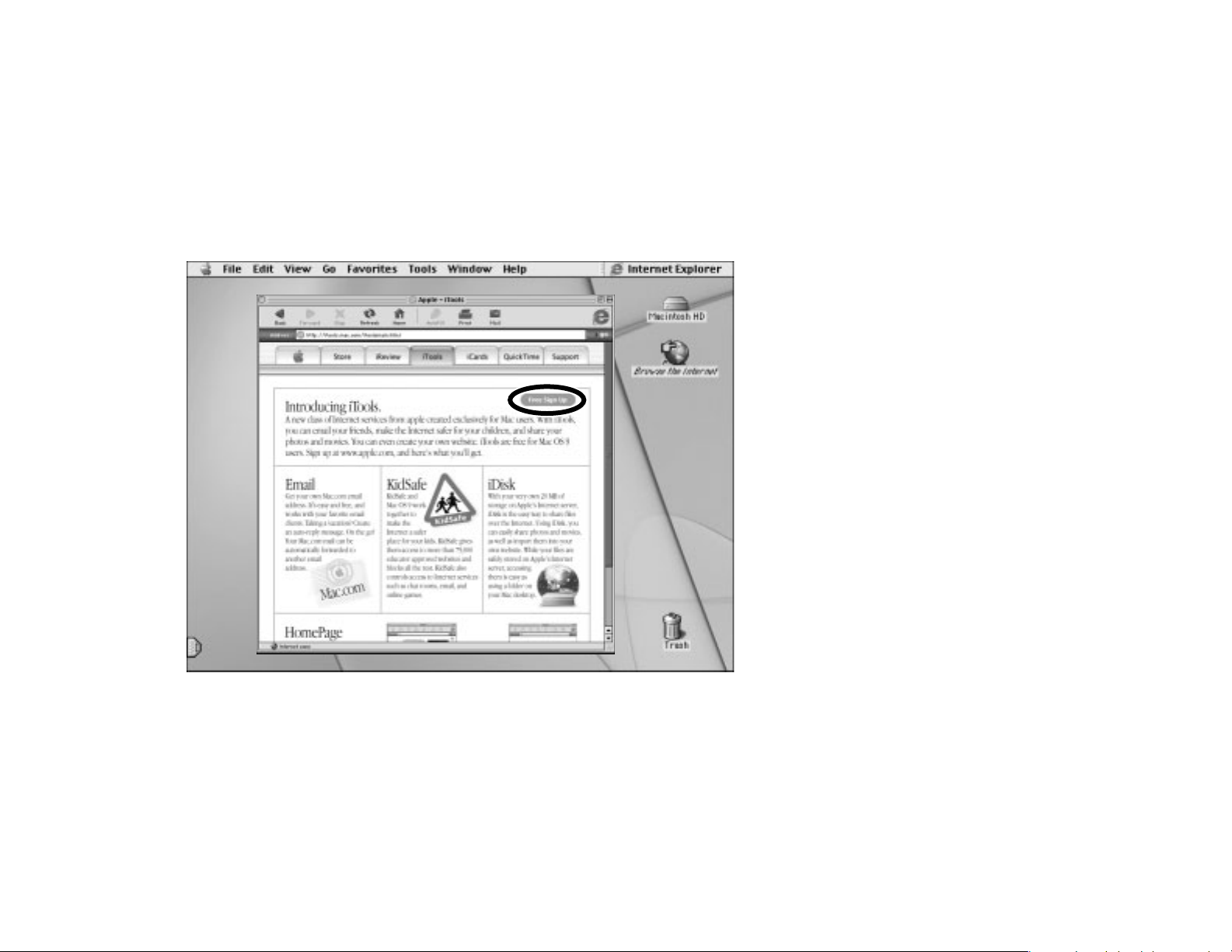

To get started usin g iTools:
Go to www.apple.com/itools
and click the Free Sign Up button.
1
Follo w the simple ins tructions
to sign up for a free account.
2
. If you signed up with EarthLink and got
a Mac.com email address using the Setup
Assistant when you first turned on your
computer, you already have an iTools
account. Go to www.apple.com/itools and
enter your member name and password.
To learn more about iTools:
m after you sign up for an account, go to www.apple.com/itools
and click Help on the iTools menu bar
11
How do I use em ail?
Follow these s teps t o creat e an d send a message:
Double-click the Mail icon
on the desktop t o open your
email application.
1
. The first time you open the application,
a setup assistant helps you connect to
your email account.
. To check for new messages,
click the Send & Receive button.
To view a message, click its subject.
12
To create a new email message,
click the New button.
2
Type the em ail address an d
a subject. Then type your
message and click Send Now.
3
13
How can I watch movies and videos?
Watch live video on the Int ernet using QuickTime TV .
Connect
to the Internet.
1
Double-click the
QuickTime Player icon
on the desktop.
2
Pull the tab to open
the Favorites drawer.
Then click a channel.
3
. With QuickTime, you can
also watch movies you make with
iMovie, listen to MP3 music files,
and much more.
To learn more about QuickTime:
m see QuickTime Help, available in the Help menu
m go to www.apple.com/quicktime
14

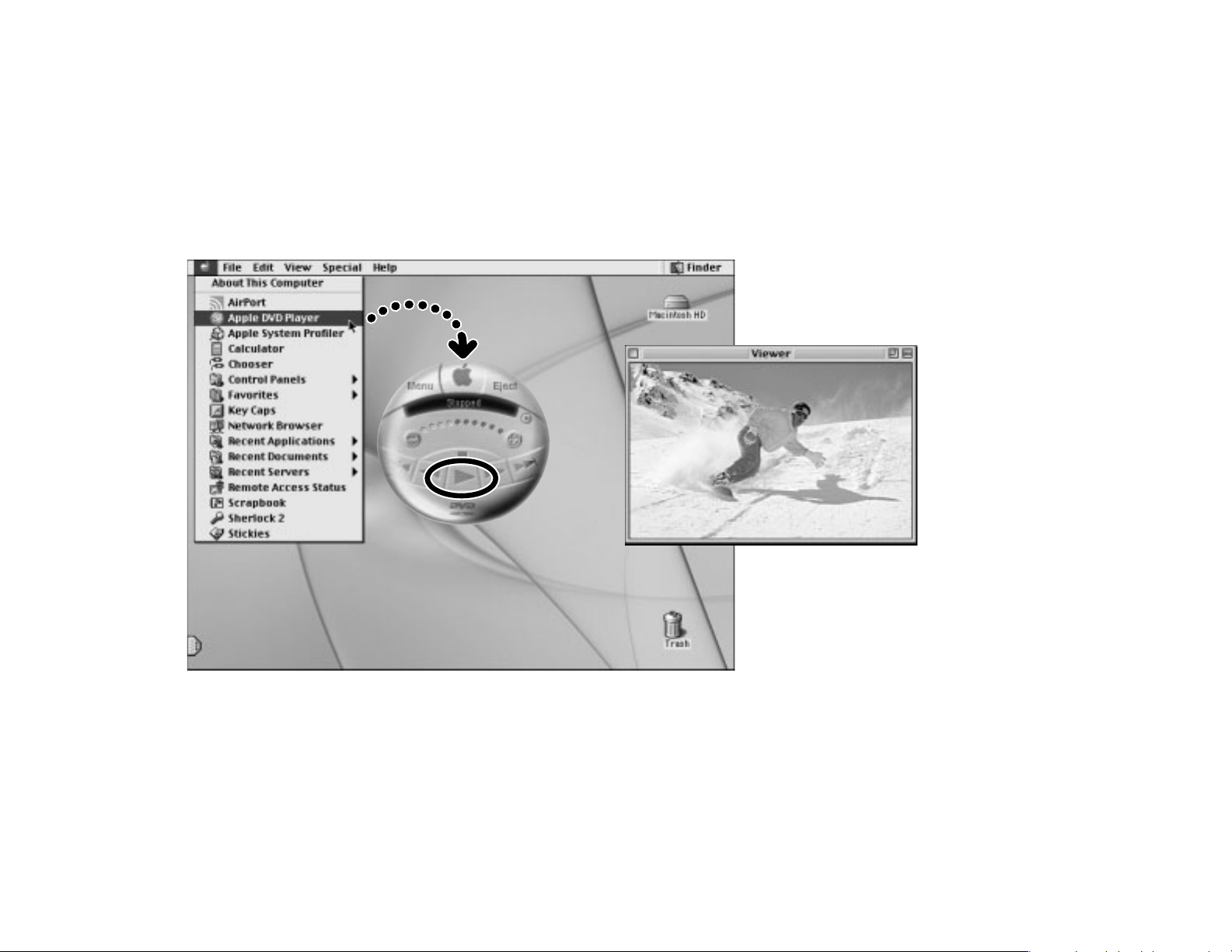

If you r comput er has a DVD drive, yo u can watch D VD video.
Insert a DVD video disc.
Then choose Apple DVD Player
from the Apple (K) menu.
1
Use the controller to play
the movie or see the DVD’s
special features.
2
. To use the whole screen to watch the
movie, choose Present Video on Screen from
the Video menu.
. To learn more about the Apple DVD Player,
see Apple DVD Player Help, available in the
Help menu.
15

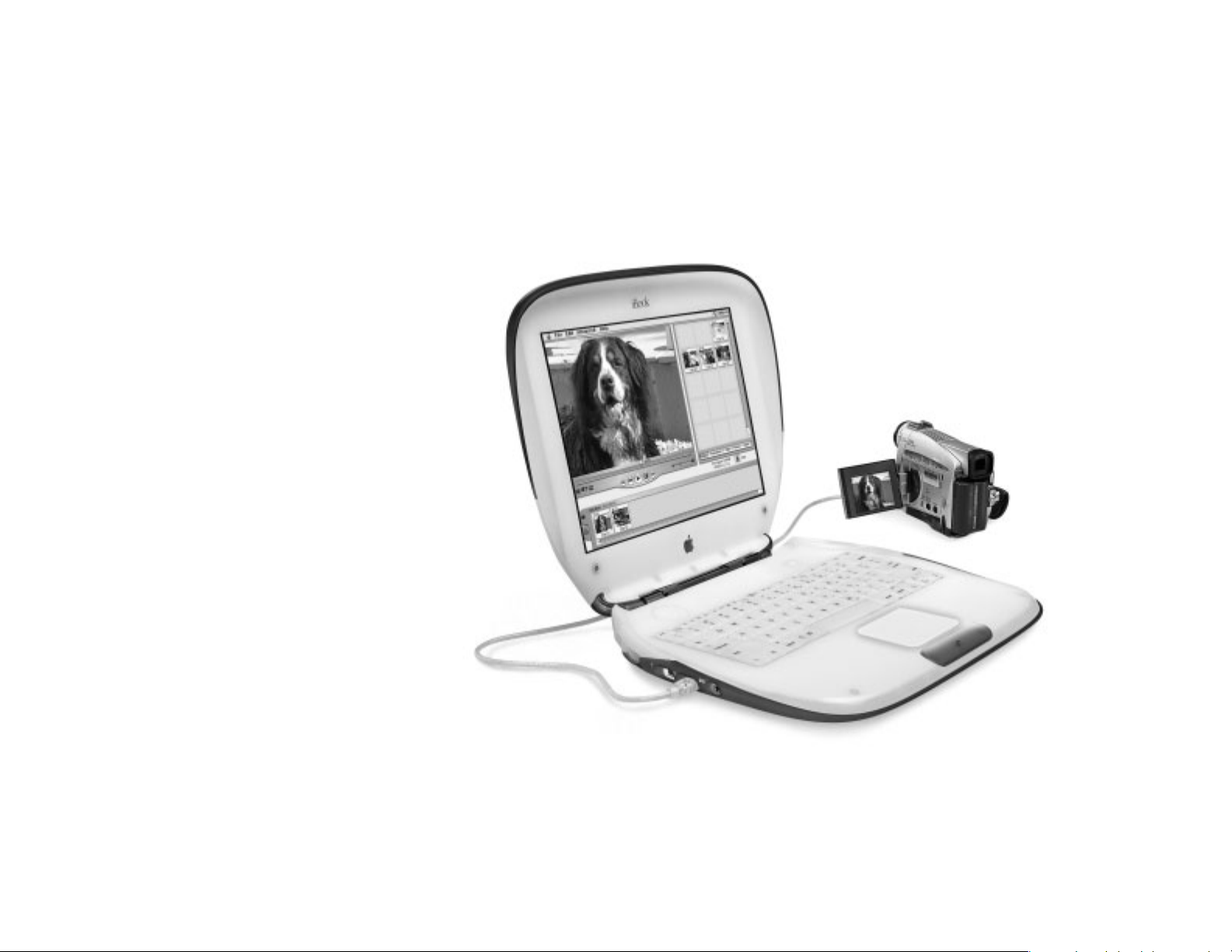

How can I make a movie?
Use iMovie 2 to edit video from a digital video camera.
Shoot video with a digital video
camera. Then connect the DV
camera using a F ireWire cable.
1
. Standard 6 pin to 4 pin FireWire cable
not included.
In iMovie, bring in you r video
clips, then edit and polish them
into movies.
2
Export your finished movie
back t o tape in yo u r DV camera
or to a QuickTime file.
3
To learn more about iMovie:
m open the iMovie application, then go through
the tutorial, available in the Help menu
m see iMovie Help, available in the Help menu
m go to www.apple.com/imovie
to find compatible DV cameras
16
With iMovie 2, you can add music, voice-overs, titles, transi tions, and more.
iMovie monitor
Preview your movie or
view video directly
from a connected
DV camera.
Shelf
To make clips part of your
movie after you import
them, move them from the
shelf to the clip viewer.
Use this to switch between
Mode switch
importing from a DV
camera and editing.
Viewers
Click the clip viewer
(eye tab) to edit and place
clips. Click the timeline
viewer (clock tab) to
edit sound.
Playback controls
Use these to play the movie
in the iMovie monitor. Click the
Play Full Screen button to
use the entire screen.
Editing buttons
Click these to open panels
for adjusting and selecting
sounds, video effects,
titles (text), and scene
transitions. Click the Clips
button to see the shelf.
Scrubber bar
Use this to select sections of video.
17

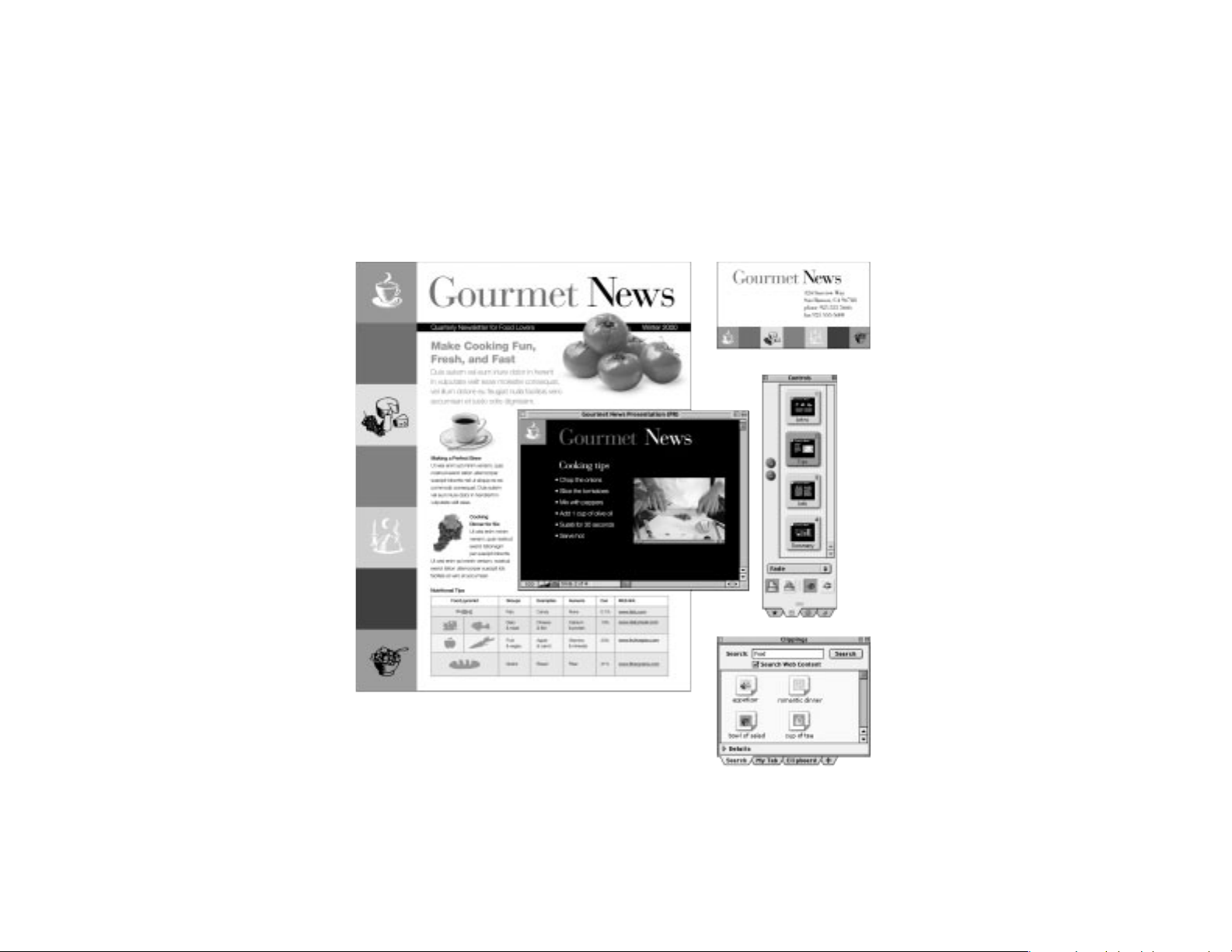

What can I do wi th AppleW orks?
Use Apple W orks for wri tin g, drawin g, makin g presentations, an d more.
Layout capabilities
Add photos, tables,
charts, and sidebars.
Link text frames, layer
graphics, and wrap text.
Word processing
Write letters, create
brochures, make
greeting cards and
party invitations.
Presentation tool
Create an onscreen slide
presentation. Add movies,
art, graphs, and charts.
Database
Keep records, save
addresses, make
inventories. Merge mailing
information with the
word processor to send
form letters.
Customizable
templates
Choose from a wide
range of predesigned
documents and modify
them as needed.
Spreadsheet
Compute data easily
using over 100 built-in
functions, then use
formatting options to
make it stand out.
Painting
Create art from scratch
or apply effects to
existing pictures
or scanned photos.
Extensive
clip art libraries
Choose from over
25,000 high-quality
clip art images.
18
18
To get started usin g Apple Works:
Open AppleWorks,
in the Applications folder
on your hard disk.
1
Click the type of document yo u wan t
to create, or click the Templates tab
to modify a ready-made d ocum en t.
2
. Click the Web tab to download more templates
from the Internet.
To learn more about AppleWorks:
m see AppleWorks Help, available in the Help menu
m open the AppleWorks Getting Started file
(on your hard disk in the AppleWorks folder)
m go to the AppleWorks Web site at
www.apple.com/appleworks
19
Where do I go t o learn more?
Look in Mac Help for more information on usin g you r comput er.
Type a question and
click Search.
2
. If you don’t see Mac Help
in the Help menu, choose Finder
from the Application menu and
try again.
. You can browse through
information about your computer
by clicking one of the blue
underlined items in the window.
. If you want to look at all
of the Help available for
your computer, choose Help
Center from the Help menu.
Choose Mac Help
from the Help men u.
1
20
Click an item in the lis t
of Help topics.
3
. If you didn’t find what you were
looking for, try rewording your question.
. Underlined items are links. When you click a link,
it will go to another Help topic, automatically do
something for you, or take you to more information
on the Internet.
21
What if I have a problem?
If the computer won’t respond:
Try to cancel what the computer is doing.
m Press the Command (x) and period (.) keys at the same time.
m If that doesn’t work, hold down the Option and Command (x) keys
and then press the Esc key.
If the computer still doesn’t respond, restart it.
m Press and hold the Power button for 5 to 10 seconds to shut down
the computer. Then press the Power button to restart it .
m If that doesn’t work, hold down the Control and Command (x)
keys and then press the Power button.
m If that doesn’t work, gently press the reset ( ) button by inserting
the end of a paper clip into the small hole above the Power button,
wait a few seconds, and then press the Power button. You need to
reset the date and time (using the Date & Time control panel) after
you reset your iBook.
Then do this:
If the problem occurs when you use a certain application:
m If this is the only way that you can start up your computer, check
with the application’s manufacturer to see if it is compatible with
your computer.
If the problem occurs frequently:
m Choose Mac Help from the Help menu. Look at the section on how
to prevent and solve problems. You may need to check for
extension conflicts or reinstall your computer’s system software.
If the computer “freezes” du ring startup
or you see a flashin g ques tion m ark:
Turn off system extensions.
m Start up your computer while holding down the Shift key.
If that does not work, start up using the system software CD.
m Insert your system software CD and start up while holding down
the C key. (Make sure the Caps Lock key is not engaged.)
Then do this:
After the computer starts up, see the troubleshooting
information in the onscreen help.
m Choose Mac Help from the Help menu. Look at the section
on how to prevent and solve problems. You may need to check for
extension conflicts or reinstall your computer’s system software.
If you notice that the background picture is different:
m You started up your computer using the system software on your
CD instead of your hard disk. If this is the only way that you can
get your computer to start up, then you probably need to reinstall
the system software on your hard disk. Look for instructions in
Mac Help or look for the system software installation program
on your CD.
22
If the computer won’t turn on or start up:
Make sure the power adapter is plugged into the computer
and into a functioning power outlet.
m Your battery may need to be recharged. You should see an amber
light around the power adapter connector when it is plugged in and
the battery is charging.
If that does not work, reset the computer’s memory.
m Start up the computer and immediately hold down the Command
(x), Option, P, and R keys until you hear the startup sound a
second time.
If that does not work or if you hear a strange sound during
startup:
m If you recently installed additional memory, make sure that it is
correctly installed. Try removing the memory; if the computer starts
up normally, the memory is not compatible with your computer.
m If that doesn’t work, gently press the reset ( ) button by inserting
the end of a paper clip into the small hole above the Power button,
wait a few seconds, and then press the Power button. You need to
reset the date and time (using the Date & Time control panel) after
you reset your iBook.
m See the service and support information that came with your iBook
for information on contacting Apple for service.
Other problems:
If you have a problem with your Internet connection:
m Make sure the telephone line is connected to the modem port (W)
and the line is functioning properly.
m Choose Mac Help from the Help menu. There you can find out how
to locate your Internet settings and the contact information for yo ur
Internet service provider.
If you have a problem connecting other devices:
m Make sure that the device is properly connected. Try unplugging
and plugging in the device again.
m Check to see if the device has software that needs to be installed.
m If that doesn’t work, contact the device manufacturer.
m If you have an older device you want to connect, see Mac Help for
information on connecting older devices to your computer.
If you have a problem with an application:
m For problems with software, contact the individual software
manufacturer.
m For information on the software that came with your iBook,
including how to contact the manufacturer, see
www.apple.com/support/bundledsw
If you have a problem using your computer:
m Look at the information in Mac Help for instructions and
troubleshooting information.
If you suspect there may be a problem with your computer
hardware:
m You can use the Apple Hardware Test CD to help you determine if
there is a problem with one of your computer’s components, such
as the memory or processor.
23
How do I expan d my iBook?
Install an AirP ort Card for wireless Int ernet and network a ccess.
. For instructions on using the AirPort software,
look in the Help Center, available in the Help menu.
Release the keyboard by slidin g
the two plastic tabs away from
the display. Then lift the
2
keyboard, flip it over, and lay it
Shut down yo u r computer . Then
disconnect the pow er adapter and
phone cord. Turn the computer
1
over and remove the battery.
on the palm rests.
If necessary, remove the metal
clip and pull the AirP ort Card
from the adapter. The adapter is
3
not used with the iBook.
24
Flip up the wire bracket an d
connect the end of the ant enna
to the AirPort Card. Touch
4
a metal surface inside the
computer.
Slide the AirPort Card (with the
AirPort ID number and barcode
facin g up) under the wire
5
bracket an d between the guides
into the slot un der the top edge
of the trackpad.
Press the wire bracket d o wn to
secure the card. Then replace the
keyboard and battery.
6
. You may need to reset the date and time
(using the Date & Time control panel) after
installing the AirPort Card.
25
Add additional m emory.
. Your iBook has one expansion slot that accepts
a 1.35-inch (or shorter), PC-100 compliant,
SO-DIMM memory module. For more information
on installing memory, look in Mac Help, available in
the Help menu.
Release the keyboard by slidin g
the two plastic tabs away from
the display.
2
Shut down yo u r computer . Then
disconnect the pow er adapter and
phone cord. Turn the computer
1
over and remove the battery.
26
Lift up the keyboard, flip it over,
and lay it on the palm rests an d
trackpad. Touch a metal surface
3
inside the computer.
If necessary, flip up the wire
bracket an d remove the
AirPort Card.
4
. To prevent scratching, place a soft cloth
between the AirPort Card and the iBook
case.
Remove the two screws that
secure the RAM shield, then
carefully lift it out.
5
Insert the RAM into the slot at an
angle and press d o wn to lock it in
place. Replace the RAM shield,
6
AirPort Card (if necessary),
keyboard, and battery.
. When reinserting the RAM shield, make
sure that the left side of the shield is under
the keyboard cable.
. You may need to reset the date and time
(using the Date & Time control panel) after
you install memory.
27
How do I work comfortably?
Keyboard and trackpad
When you use the keyboard and trackpad, your shoulders should be
relaxed. Your upper arm and forearm should form an angle that is
slightly greater than a right angle, with your wrist and hand in roughly
a straight line.
This
Not this
Use a light touch when typing or using the trackpad and keep
your hands and fingers relaxed. Avoid rolling your thumbs under
your palms.
This
Change hand positions often to avoid fatigue. Some computer users
may develop discomfort in their hands, wrists, or arms after intensive
work without breaks. If you begin to develop chronic pain or
discomfort in your hands, wrists, or arms, consult a qualified
health specialist.
Not this
28
Chair
External mo use
An adjustable chair that provides firm, comfortable support is best.
Adjust the height of the chair so your thighs are horizontal and your
feet flat on the floor. The back of the chair should support your lower
back (lumbar region). Follow the manufacturer’s instructions for
adjusting the backrest to fit your body properly.
You may have to raise your chair so your forearms and hands are at the
proper angle to the keyboard. If this makes it impossible to rest your
feet flat on the floor, you can use a footrest with adjustable height and
tilt to make up for any gap between the floor and your feet. Or you
may lower the desktop to eliminate the need for a footrest. Another
option is to use a desk with a keyboard tray that’s lower than the
regular work surface.
If you use an external mouse, position the mouse at the same height as
your keyboard and within a comfortable reach.
Built-in display
Adjust the angle of the display to minimize glare and reflections from
overhead lights and windows.
You can adjust the brightness of the screen when you take the
computer from one work location to another, if the lighting in your
work area changes.
For more information
For additional ergonomic information, see the Apple ergonomic
Web site at www.apple.com/about/ergonomics
29
Is there anythin g else I need to know?
Follow these instructions for using you r comput er safely and wisely :
When setting up and using your computer, remember the following:
m Read all the installation instructions carefully before you plug your
computer into a wall socket.
m Keep these instructions handy for reference by you and others.
m Follow all instructions and warnings dealing with your system.
m Use only the power adapter that came with your computer.
Adapters for other electronic devices may look similar, but they may
damage your computer.
m If your power adapter came equipped with a three-wire grounding
plug (a plug that has a third grounding pin), then this plug will fit
only a grounded AC outlet. If you are unable to insert the plug into
the outlet because the outlet is not grounded, contact a licensed
electrician to replace the outlet with a properly grounded outlet.
Do not defeat the purpose of the grounding plug!
m Always leave space around your power adapter. Do not use this
equipment in a location where airflow around the power adapter is
confined, such as a bookcase.
m Always disconnect the power adapter and disconnect the phone
line before opening the computer to perform procedures such as
installing memory.
m Never turn on your computer unless all of its internal and external
parts are in place. Operating the computer with missing parts can
be dangerous and damage your computer.
m Do not connect a digital telephone line to the modem, because the
wrong type of line could damage the modem.
m When using your computer or when charging the battery, it is
normal for the bottom of the case to get warm. The bottom of the
computer case functions as a cooling surface that transfers heat
from inside the computer to the cooler air outside. The bottom of
the case is raised slightly to allow airflow that keeps the unit within
normal operating temperatures.
m Keep your computer away from sources of liquids, such as drinks,
washbasins, bathtubs, shower stalls, and so on.
m Protect your computer from dampness or wet weather, such as rain,
snow, and so on.
30
Warning Electrical equipment may be hazardous if misused.
Operation of this product, or similar products, must always
be supervised by an adult. Do not allow children access to the
interior of any electrical product and do not permit them to handle
any cables.
Never push objects of any kind into this product through the
openings in the case. Doing so may result in fire or a dangerous
electric shock.
For your own safety and that of your equipment, always disconnect the
power plug (by pulling the plug, not the cord), disconnect the phone
line, and remove the battery if any of the following conditions exists:
m you want to remove any parts (leave the cord disconnected as long
as the keyboard is open)
m the power cord or plug becomes frayed or otherwise damaged
m you spill something into the case
m your computer is exposed to rain or any other excess moisture
m your computer has been dropped or the case has been otherwise
damaged
m you suspect that your computer needs service or repair
m you want to clean the case (use only the recommended procedure)
Important The only way to disconnect power completely is to unplug
the power plug, disconnect the phone cord, and remove the battery.
Make sure at least one end of the power cord is within easy reach so
that you can unplug the computer when you need to.
Warning To avoid damage to your computer, Apple recommends
that only an Apple-certified technician install additional RAM.
Consult the service and support information that came with your
computer for instructions on how to contact an Apple-authorized
service provider or Apple for service. If you attempt to install
additional RAM yourself, any damage you may cause to your
equipment will not be covered by the limited warranty on your
computer. See an Apple-authorized dealer or service provider for
additional information about this or any other warranty question.
Your iBook has a unique appearance and finish that may contain minor
imperfections, some of which may increase over time. Exposing your
iBook to extreme temperatures or humidity may cause this process to
accelerate. Proper care and handling, as described in this manual, will
help keep your iBook looking its best.
To clean the case, do the following:
1 Disconnect the power plug and phone cord and remove the
battery. (Pull the plug, not the cord.)
2 Wipe the surfaces lightly with a clean, soft cloth dampened with
water.
Warning Do not use any substance containing isopropyl alcohol.
It can damage the case.
31
Where’ s the fine print?
Communications, Telephone, and Modem
Regulation Information
For information on FCC regulations, radio and television interference, and
telephone and modem information related to this product, see the files in the
Communications Regulations folder, inside the Apple Extras folder on your hard disk.
Laser Information
Warning Making adjustments or performing procedures other than those specified
in your equipment’s manual may result in hazardous radiation exposure.
Do not attempt to disassemble the cabinet containing the laser. The laser beam
used in this product is harmful to the eyes. The use of optical instruments, such as
magnifying lenses, with this product increases the potential hazard to your eyes.
For your safety, have this equipment serviced only by an Apple-authorized
service provider.
Service Warning Label
High-Risk Activities Warning
This computer system is not intended for use in the operation of nuclear facilities,
aircraft navigation or communications systems, or air traffic control machines, or for
any other uses where the failure of the computer system could lead to death, personal
injury, or severe environmental damage.
Camera Information
The DV camera pictured on page 16 of this manual is not included with this product.
The model shown may not be available in all areas.
ENERGY STAR
As an ENERGY STAR®partner, Apple Computer has determined that this product
meets the ENERGY STAR
Environmental Protection Agency’s ENERGY STAR
®
®
guidelines for energy efficiency. The United States
®
program is a partnership with
office product equipment manufacturers to promote energy-efficiency. Reducing
energy consumption of office products saves money and reduces pollution by
eliminating wasted energy.
Every effort has been made to ensure that the information in this manual is
accurate. Apple is not responsible for printing or clerical errors.
32
Loading...
