Operating Instructions
Troubleshooting
When the Machine Does Not Operate As Wanted
1
Troubleshooting When Using the Copy Function
2
Troubleshooting When Using the Printer Function
3
Troubleshooting When Using the Scanner Function
4
5
Clearing Misfeeds
6
Remarks
7
Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the
Safety Information in "About This Machine" before using the machine.

Introduction

This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference.

Important

Contents of this manual are subject to change without prior notice. In no event will the company be li­able for direct, indirect, special, incidental, or consequential damages as a result of handling or oper­ating the machine.

Notes:

Some illustrations in this manual might be slightly different from the machine.
Certain options might not be available in some countries. For details, please contact your local dealer.
Depending on which country you are in, certain units may be optional. For details, please contact your local dealer.

Caution:

Use of controls or adjustments or performance of procedures other than those specified in this manual might result in hazardous radiation exposure.
Two kinds of size notation are employed in this manual. With this machine refer to the inch version.
For good copy quality, the supplier recommends that you use genuine toner from the supplier.
The supplier shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the supplier with your office products.

Power Source

120V, 60Hz, 15A or more
Please be sure to connect the power cord to a power source as shown above. For details about power source, see p.78 “Power Connection”.

Manuals for This Machine

Refer to the manuals that are relevant to what you want to do with the machine.
Important
Media differ according to manual.
The printed and electronic versions of a manual have the same contents.
Adobe Acrobat Reader/Adobe Reader must be installed in order to view the
manuals as PDF files.
Depending on which country you are in, there may also be html manuals. To
view these manuals, a Web browser must be installed.
For details about the functions of RW-3600, refer to the manuals for this option.
About This Machine
Be sure to read the Safety Information in this manual before using the machine. This manual provides an introduction to the functions of the machine. It also explains the control panel, preparation procedures for using the machine, how to enter text, and how to install the CD-ROMs provided.
General Settings Guide
Explains User Tools settings, and Address Book procedures such as register­ing e-mail addresses, and user codes. Also refer to this manual for explana­tions on how to connect the machine.
Troubleshooting
Provides a guide to solving common problems, and explains how to replace paper, toner, and other consumables.
Security Reference
This manual is for administrators of the machine. It explains security func­tions that the administrators can use to protect data from being tampered with, or prevent the machine from unauthorized use. Also refer to this manual for the procedures for registering administrators, as well as setting user and administrator authentication.
Copy/Document Server Reference
Explains Copier and Document Server functions and operations. Also refer to this manual for explanations on how to place originals.
Printer Reference
Explains Printer functions and operations.
Scanner Reference
Explains Scanner functions and operations.
i
Network Guide
Explains how to configure and operate the machine in a network environ­ment, and use the software provided.
Other manuals
• PostScript3 Supplement
•UNIX Supplement
• Manuals for DeskTopBinder Lite
• DeskTopBinder Lite Setup Guide
• DeskTopBinder Introduction Guide
•Auto Document Link Guide
Note
Manuals provided are specific to machine types.
For “UNIX Supplement”, please visit our Web site or consult an authorized
dealer.
“PostScript3 Supplement” and “UNIX Supplement” include descriptions of
functions and settings that might not be available on this machine.
ii

TABLE OF CONTENTS

Manuals for This Machine ......................................................................................i
How to Read This Manual ..................................................................................... 1
Symbols .....................................................................................................................1
Names of Major Options ............................................................................................2
1. When the Machine Does Not Operate As Wanted
Indicators................................................................................................................3
Panel Tone..............................................................................................................4
Checking Machine Status and Settings...............................................................5
When an Indicator to the Right of a Function Key Is Lit ....................................8
When You Have Problems Operating the Machine.............................................9
When a Job Is Not Performed.............................................................................14
2. Troubleshooting When Using the Copy Function
When a Message Appears...................................................................................17
When You Cannot Make Clear Copies ............................................................... 20
When You Cannot Make Copies As Wanted ..................................................... 23
When Memory Is Full ...............................................................................................26
3. Troubleshooting When Using the Printer Function
When a Message Appears During Installation of the Printer Driver ...............27
Windows 95/98/Me, Windows 2000, or Windows NT 4.0 ........................................27
Windows XP Professional, Windows Server 2003................................................... 28
Windows XP Home Edition ......................................................................................28
If USB Connection Fails ......................................................................................29
When a Message Appears...................................................................................30
Status Messages......................................................................................................30
Alert Messages ........................................................................................................31
Checking the Error Log ............................................................................................33
When You Cannot Print.......................................................................................34
Other Printing Problems ..................................................................................... 37
4. Troubleshooting When Using the Scanner Function
When Scanning Is Not Done As Expected ........................................................ 43
When You Cannot Send Scanned Files.............................................................44
When Stored Files Cannot Be Accessed .................................................................44
When You Cannot Browse the Network to Send a Scan File ..................................44
When the TWAIN Driver Cannot Be Started ............................................................44
When Stored Files Cannot Be Edited ......................................................................45
When the Network Delivery Function Cannot Be Used ...........................................45
Operations Are Not Possible When Messages Appear ...........................................45
When a Message Appears...................................................................................46
When a Message Appears on the Control Panel .....................................................46
When a Message Appears on the Client Computer.................................................53
iii
5. Adding Paper and Toner
Loading Paper ......................................................................................................57
Loading the Paper Roll.............................................................................................59
Loading Cut Paper ...................................................................................................60
Changing the Paper Size.....................................................................................61
Changing the Paper Size in the Paper Roll Tray ..................................................... 61
Changing the Paper Size in the Cut Paper Tray ......................................................63
Adding Toner........................................................................................................64
Inserting Toner .........................................................................................................65
Sending Scanned Documents When Toner Has Run Out ....................................... 66
Used Toner ..............................................................................................................66
6. Clearing Misfeeds
Removing Jammed Paper ...................................................................................67
Locating Jammed Paper ..........................................................................................68
Removing Jammed Paper........................................................................................69
7. Remarks
Where to Put Your Machine ................................................................................75
Machine Environment .............................................................................................. 75
Power Connection....................................................................................................78
Maintaining Your Machine .................................................................................. 79
Cleaning Inside the Original Cover ..........................................................................79
Cleaning the Main Unit.............................................................................................81
INDEX......................................................................................................... 82
iv

How to Read This Manual

Symbols

This manual uses the following symbols:
Indicates important safety notes.
Ignoring these notes could result in serious injury or death. Be sure to read these notes. They can be found in the “Safety Information” section of About This Machine.
Indicates important safety notes.
Ignoring these notes could result in moderate or minor injury, or damage to the machine or to property. Be sure to read these notes. They can be found in the “Safety Information” section of About This Machine.
Indicates points to pay attention to when using the machine, and explanations of likely causes of paper misfeeds, damage to originals, or loss of data. Be sure to read these explanations.
Indicates supplementary explanations of the machine's functions, and instruc­tions on resolving user errors.
This symbol is located at the end of sections. It indicates where you can find fur­ther relevant information.
[ ]
Indicates the names of keys that appear on the machine's display panel.
{ }
Indicates the names of keys on the machine's control panel.
1

Names of Major Options

Major options of this machine are referred to as follows in this manual:
• Roll Feeder Type 240A Paper roll tray 1
• Roll Feeder Type 240B Paper roll tray 2
• Paper Cassette Type 240 Cut paper tray
• Folder FD6500A Folding finisher
2
1. When the Machine Does Not Operate As Wanted
This chapter explains basic troubleshooting procedures that are applicable to all functions of this machine.

Indicators

This section explains the Indicators displayed when the machine requires the user to remove misfed paper, to add paper or to perform other procedures.
x: Misfeed indicator Appears when a misfeed occurs.
See p.67 “Removing Jammed Paper”.
r: Add Paper indicator Appears when paper-out condition occurs.
See p.57 “Loading Paper”.
D: Add Toner indicator Appears when toner runs out.
See p.64 “Adding Toner”.
E: Waste Toner Full indicator Appears when the waste toner bottle is full.
Contact your sales or service representative.
L: Service Call indicator Appears when the machine is malfunctioning or requires
maintenance.
M: Open Cover indicator Appears when the front cover, etc., is open.
3
1
When the Machine Does Not Operate As Wanted

Panel Tone

The following table explains the meaning of the various beep patterns that the machine produces to alert users about left originals and other machine conditions.
Beep pattern Meaning Cause
Two long beeps. Machine has warmed up. After cooling or being switched on, the
machine has fully warmed up and is ready for use.
Single short beep. Panel/screen input
accepted.
Short, then long beep. Panel/screen input
rejected.
Single long beep. Job completed
successfully.
Five long beeps. Soft alert. The initial screen returns when the ma-
Five long beeps repeated four times.
Five short beeps repeated five time.
Soft alert. Paper is empty.
Strong alert. The machine requires user attention be-
A control panel or screen key was pressed.
An invalid key was pressed on the con­trol panel or screen, or the entered pass­word was incorrect.
A Copier/Document Server Features job has finished.
chine goes into energy-saving mode and when simplified display is cancelled.
cause paper has jammed, the toner needs replenishing, or other problems have occurred.
Note
Users cannot mute the machine's beep alerts. When the machine beeps to alert
users of a paper jam or toner request, if the machine's covers are opened and closed repeatedly within a short space of time, the beep alert might continue, even after normal status has resumed.
For details about enabling or disabling beep alerts, see “System Settings”,
General Settings Guide.
Reference
“System Settings”, General Settings Guide
4

Checking Machine Status and Settings

Checking Machine Status and Settings
You can check the machine's system status.
Maintenance Info
You can check the following items under [Maintenance Info]:
[Remaining Toner]
Displays the amount of remaining toner.
[Paper Tray]
Displays the paper type and size loaded in the paper tray.
[Original Misfeed]
Displays state of and solutions for original misfeeds.
[Paper Misfeed]
Displays state of and solutions for paper jams.
[Cover Open]
Indicates whether front cover, duplex unit, etc., is open.
Data Storage
You can check the following items under [Data Storage]:
[HDD Remaining Memory]
Displays the amount of available hard disk drive memory.
[HDD File(s)]
Displays the total number of jobs stored in the hard disk drive.
[Print Job(s)]
Displays the number of jobs for Hold print/Stored print/Locked print/Sample print.
[Memory Erase Status]
Displays the state of the memory data.
1
Machine Address Info
You can check the following items under [Machine Address Info]:
[Machine IPv4 Address]
Displays the machine's IPv4 address.
[Machine IPv6 Address]
Displays the machine's IPv6 address.
5
1
When the Machine Does Not Operate As Wanted
Inquiry
You can check the following items under [Inquiry]:
[Machine Repairs]
Displays the machine number and contact number that are required for service.
[Sales Representative]
Displays the sales representative's telephone number.
[Supply Order]
Displays the contact number for placing supply orders.
[Supply Details]
Displays the name of toner used on the machine.
A On the control panel, press [System Status].
B Press each tab and check the contents.
C After checking the information, press [Exit]. The previous screen returns.
6
Checking Machine Status and Settings
Note
[Original Misfeed], [Paper Misfeed], and [Cover Open] appear only when these
errors occur.

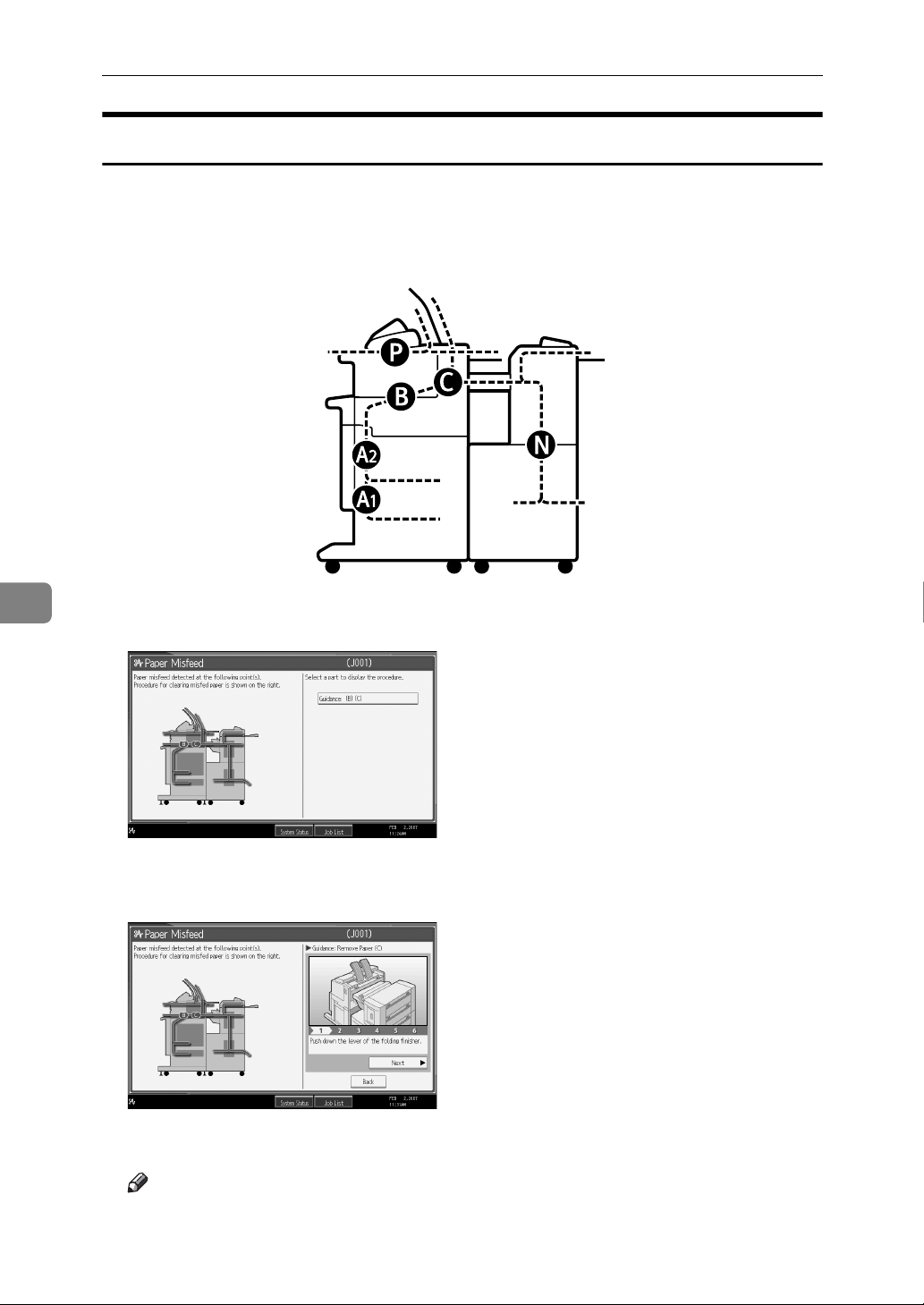

For details about how to locate and remove misfeeds, see “Locating Jammed
Paper” or “Removing Jammed Paper”.
Reference
p.68 “Locating Jammed Paper”
p.67 “Removing Jammed Paper”
1
7
When the Machine Does Not Operate As Wanted

When an Indicator to the Right of a Function Key Is Lit

1
When an indicator to the right of a function key lights up, press the correspond­ing function key. Then, follow the instructions displayed on the control panel.
ATK021S
If an error occurs in the function you are using, check the message that appears on the control panel, and then refer to “When a Message is Displayed” for the relevant function.
Following explain the main reasons the function key is lit.
Problem Cause Solution
Documents and reports do not print out.
There is no copy paper left.
Add more paper. See p.57 “Loading Pa­per”.
An error has occurred. The function whose indi-
cator is lit is defective.
The machine is unable to connect to the network.
A network error has occurred.
Record the code number shown in the display and contact your service repre­sentative. See “When a Message Ap­pears” of each chapter.
You can use other functions normally.
• Check the displayed message and take an appropriate action. See “When a Message Appears” of each chapter.
• Check that the machine is correctly connected to the network, and that the machine is correctly set. See “Network Settings”, General Set­tings Guide.
• Contact the administrator.
• When the function key is still lit, even if you take the measures above, contact your service representative.
8

When You Have Problems Operating the Machine

When You Have Problems Operating the Machine
The following chart gives explanations of common problems and messages.
If other messages appear, follow the instructions displayed.
Important
Check the contact address and Serial No. of Machine shown in the Service
Call message (L), and then contact your service representative. If the contact address is not shown, contact your sales representative.
Problem Cause Solution
Nothing happens when the operation switch is turned on.
Although the copier screen appears when the machine is turned on us­ing the main power switch, it cannot be switched to another screen by pressing the {Scanner} key.
The machine has just been turned on and the User Tools screen is dis­played, but the User Tools menu has items missing.
The main power switch is turned off.
Functions other than the copier function are not yet ready.
Functions other than the copier function are not yet ready. Time required varies by function. Func­tions appear in the User Tools menu when they become ready for use.
Turn on the main power switch.
Wait a little longer.
Wait a little longer.
1
The main power indica­tor continues blinking and does not turn off when pressed.
The display is off. The machine is in Energy
The display is off. The operation switch is
The display is off.
Please wait.” ap­pears.
This occurs in the follow­ing cases:
• The machine is com­municating with ex­ternal equipment.
• The hard disk is active.
Saver mode.
turned off.
The screen contrast knob is turned to the dark position.
This message appears when you turn on the op­eration switch.
Check if the machine is communicating with a computer.
Press the {Energy Saver} key to cancel Energy Saver mode.
Turn on the operation switch.
Set the screen contrast knob to the light position to see the display panel properly. See “Control Panel”, About This Machine.
Wait for the machine to get ready.
9
When the Machine Does Not Operate As Wanted
Problem Cause Solution
1
Please wait.” ap­pears.
Memory is full.
Do you want to store scanned file?
” appears.
You do not have the privileges to use this func­tion.
displayed even though you have entered a valid user code.
” continues to be
You do not have the privileges to use this func­tion.
displayed even though you have entered a valid user code.
” continues to be
This message appears when you change the toner cartridge.
The scanned originals exceed the number of sheets/pages that can be stored in the hard disk.
This user code is not al­lowed to use the function selected.
This user code is not al­lowed to use the function selected.
Wait for the machine to get ready.
• Press [Store File] to store pages that
have been scanned. Delete unneces­sary files with [Delete File].
• Press [No] if you are not storing pag-
es that have been scanned. Delete unnecessary files with [Delete File].
Contact the administrator.
Press the {Energy Saver} key. Confirm that the display goes off, and then press
{
Energy Saver} key again. The display
the will return to the user code entry dis­play. When printing under the copier or
{
printer function, press the key only after printing has finished.
Energy Saver}
10
Authentication
has failed.
pears.
Authentication
has failed.
pears.
The selected
” ap-
” ap-
file(s) contained file(s) without access privileg­es. Only file(s) with access priv­ileges will be deleted.
An error message re­mains, even if misfed pa­per is removed.
The user code entry screen is displayed.
The Authentication screen appears.
” appears.
The entered login user name or login password is not correct.
The machine cannot per­form authentication.
You have tried to delete files without the authori­ty to do so.
Paper is still jammed in the tray.
Users are restricted by user management.
Basic Authentication, Windows Authentica­tion, LDAP Authentica­tion or Integration Server Authentication is set.
Inquire the user administrator for the cor­rect login user name and login password.
Contact the administrator.
Files can be deleted by the person who created the file. To delete a file which you are not authorized to delete, contact the person who created the file.
Clear misfed paper. see p.67 “Removing Jammed Paper”.
Enter the user code (up to eight digits), and then press [OK].
Enter your login user name and user password. See “When the Authentica­tion Screen is Displayed”, About This Machine.
When You Have Problems Operating the Machine
Problem Cause Solution
Original images are printed on the reverse side of the paper.
Misfeeds occur frequently.
Misfeeds occur frequently.
Misfeeds occur frequently.
Misfeeds occur frequently.
An error C message re­mains, even if misfed pa­per is removed.
You may have loaded the paper incorrectly.
The cut paper tray's side fences, back fence, or side-end fences, might not be set properly.
Paper is wrinkled or folded.
Jammed or torn paper is inside the machine.
You may have loaded pa­per of a size different from the paper size settings.
You did not open and close the upper section of the fusing unit.
Load paper correctly. Load paper into the cut paper tray print side down, and into the bypass tray print side up. See p.57 “Loading Paper”.
• Remove the paper. See p.67 “Remov­ing Jammed Paper”.
• Check the side fences, back fence, and side-end fences are set properly. See p.61 “Changing the Paper Size”.
Cut folded or wrinkled areas off the pa­per roll.
Remove cut paper that is folded or wrinkled.
Remove the paper, as necessary. See p.67 “Removing Jammed Paper”.
• Remove the paper. See p.67 “Remov­ing Jammed Paper”.
• Use Tray Paper Size Settings to set the paper size. See “Tray Paper Set­tings”, General Settings Guide and “Copy Paper”, About This Machine.
When a misfeed C message appears, it remains until you open and close the upper section of the fusing unit. Open the fusing unit cover in the back, and then the upper section of the fusing unit to check if any paper remains inside. See p.67 “Removing Jammed Paper”.
1
Originals jam frequently. Originals are curled. Smooth out any curls and try again.
11
When the Machine Does Not Operate As Wanted
Document Server
Problem Cause Solution
1
Exceeded max. number of pages per file. Do you want to store the scanned pages as 1 file?
Original is be-
” appears.
ing scanned by another function. Please wait.
pears.
Cannot display
” ap-
preview of this page.
you can not check the thumbnail image.
” appears, and
The number of scanned pages exceeds the capac­ity per file of the Docu­ment Server.
Copier or Scanner func­tion is in use.
The image data may have been corrupted.
• To store scanned pages as a file, press
[
Store File]. Scanned data is stored as
a file in the Document Server.
• If you do not want to store scanned
pages, press [No]. Scanned data is de­leted.
• You can store up to 1000 A4 size pag­es per document.
To cancel a job in progress, first press
[Exit], and then press the {Copy} key or {Scanner} key. Next, press the {Clear/Stop} key. When the message
The Stop key has been pressed. Are you sure you want to stop copying?
The Clear / Stop key was
” or
pressed. Are you sure you want to stop scanning?
pears, press [Stop].
Pressing [Exit] displays the preview screen without a thumbnail.
” ap-
12
You forgot your password.
You cannot find out what is stored in a file.
You cannot access a pro­tected file without enter­ing the password.
You may not be able to ascertain the contents of a file simply from the file name.
Contact the administrator.
To delete the files stored in the docu­ment server, select [Delete All Files in Doc- ument Server]. As this will permanently delete every single file, make sure the document server does not contain any files you want to keep. See “Administra­tor Tools”, General Settings Guide.
You can switch the Select File screen be­tween [List] and [Thumbnails] display to check the contents of the file. In list dis­play, the file name, date of storage, and user name are shown. In thumbnail dis­play, an image of the stored file appears. You can enlarge the image by pressing [Preview]. Use the Select File screen to check information other than the file name. See “Checking the Details of a Stored Document”, Copy/Document Server Reference.
When You Have Problems Operating the Machine
Problem Cause Solution
Memory frequently be­comes full.
You want to check print quality before making a large print run.
The document server memory is full.
You can print a single copy without specifying the setting again.
Delete unnecessary files. On the file se­lection display, select unnecessary files, and then press [Delete File]. If this does not increase available memory, do the following.
• Switch to the scanner screen, and
then delete unnecessary files stored under the scanner function.
• Switch to the printer screen, and
then delete unnecessary files stored under Sample Print, Locked Print, Hold Print, or Stored Print.
Check print quality by printing out only the first set using the {Sample Copy} key.
Note
Loading curled paper in the cut paper tray can result in misfeeds and soiled
paper edges. To load curled paper in the cut paper tray, first flatten it by hand, and be sure to load it print side down. Also, to prevent paper from curling, lay paper on a flat surface, and do not lean it against the wall.
If you cannot make copies as you want because of paper type, paper size, or
paper capacity problems, use recommended paper. See “Copy Paper”, About This Machine.
1
Reference
“Copy Paper”, About This Machine
13
1
When the Machine Does Not Operate As Wanted

When a Job Is Not Performed

If you cannot execute a function, it may be that the machine is being held up by another function.
If you cannot execute a function, terminate any other functions currently active, and then try executing the function again. In certain cases, you can carry out an­other job (copier, document server, printer, scanner) without canceling the cur­rent job being performed. Performing multiple functions simultaneously like this is called “Multi-accessing”.
Combination Chart
Function Compatibility
The chart shows Function Compatibility when print priority is set to “Inter­leave”. See “General Features”, General Settings Guide.
: Simultaneous operations are possible.
: Operation is enabled when the relevant function key is pressed and re-
mote switching (of the scanner/external extension) is done.
: Operation is enabled when the {Interrupt} key is pressed to interrupt the
preceding operation.
: Operation is performed automatically once the preceding operation ends. × : The operation must be started once the preceding operation ends. (Simul-
taneous operations are not possible.)
Mode after you select
Mode before you select
Copy Operations for
Copying Copying
Copy
Operations for Copying
Copying
××
*1
*1
Interrupt Copying
Operations for Copying
Copying
Printer
Data Reception
Printing
Scanner
Operations for Scanning
*2
Scanning
TWAIN
Scanning
×
Document Server
Operations for Document Server
DeskTopBinder
Web Document Server
Scanning a Document to Store in Document Server
Printing from Document Server
Printing
Printing
*2
14
Mode after you select
When a Job Is Not Performed
1
Copy
Interrupt Copying
Printer
Scanner
TWAIN
Document Server
DeskTopBinder
Web Document Server
Mode before you select
Operations for Copying
Interrupt
Copying
Printer Data Reception
Scanner Operations for scanning
TWAIN Scanning
Document Server
DeskTop
Binder
Web
Document
*1
Simultaneous operations are only possible after the preceding job documents are all scanned and [New Job] appears.
*2
You can scan a document after the preceding job documents are all scanned.
*3
Simultaneous operation become possible after you press [New Job].
Copying
Printing
Scanning
Operations for Document Server
Scanning a Document to Store in Document Server
Printing from Document Server
Printing
Printing
Server
Operations for Copying
Copying
Operations for Copying
Copying
Data Reception
Printing
Operations for Scanning
Scanning
Scanning
Operations for Document Server
Scanning a Document to Store in Document Server
×× ×××
×× ×××→→
→→
××
*2
×××
*2
×××× ЧЧЧЧЧ
×××
×
××××
*2
*3 *3 *3
Printing from Document Server
Printing
Printing
15
1
When the Machine Does Not Operate As Wanted
Note
If the machine is capable of executing multiple functions simultaneously,
specify which function should have priority in “Print Priority”. This setting is factory-preset to “Display Mode”. For setting of Printing Priority Function, see “General Features”, General Settings Guide.
While printing is in progress, scanning a document using another function
may take more time.
Reference
“General Features”, General Settings Guide.
16
2. Troubleshooting When Using the Copy Function
This chapter explains likely causes of and possible solutions for copier function problems.

When a Message Appears

This section explains the machine's main messages. If other messages appear, follow the instructions they contain.
Important
Check the contact address and Serial No. of Machine shown in the Service
Call message (L), and then contact your service representative. If the contact address is not shown, contact your sales representative.
For messages that are not listed here, see “When You Have Problems Operat-
ing the Machine”.
Message Cause Solution
Please wait.
Cannot detect original size.
Memory is full.
The main power has just been turned on, paper type (plain paper/ trans­lucent paper/ film) was changed, or the machine is otherwise getting ready.
The machine cannot detect the size of the original.
The machine's memory is full due to scanning originals or performing a function. The number of originals that can be stored in memory de­pends on the size of orig­inals and function settings.
Wait for the machine to fully warm-up.
When “
be started. mode and Place original.
displayed alternately, you can make the settings for your copies and scan your originals. After the originals have been scanned, the machine will automatically start copying after it has warmed-up. See “Auto Start”, Copy/Document Server Reference.
Manually select a paper tray without us­ing [Auto Paper Select], and specify a re­production ratio without using [Auto Reduce / Enlarge].
• When Sort is selected, press [Exit] to
• When the Job Preset function is se-
Scanning originals can
” and “Select copy
” are
copy scanned originals, and then copy remaining originals.
lected, check the number of preset jobs, and then try scanning the origi­nals again.
Check paper size.
An improper paper size is set.
Check the settings for Reduce/ Enlarge, etc., and then try again.
17
Troubleshooting When Using the Copy Function
Message Cause Solution
2
Rotate Sort is not available with this paper size. Select an­other paper size or cancel Rotate Sort mode.
Maximum number of sets is nn.
(A figure is placed at n.)
The rotate sort function does not support the size of the scanned original.
The number of copies ex­ceeds the maximum copy quantity.
You cannot use rotate sort with A0 (E), B4 JIS, A4 (A), and custom size paper. See “Sort”, Copy/Document Server Reference.
Set paper of the following dimensions:
Metric version
•420 × 297 mm (A3)
•594 × 420 mm (A2)
•841 × 594 mm (A1)
•515 × 364 mm (B3 JIS)
•728 × 515 mm (B2 JIS)
Inch version (Engineering)
•11" × 17" (B)
•17" × 22" (C)
•22" × 34" (D)
Inch version (Architecture)
•12" × 18" (B)
•18" × 24" (C)
•24" × 35" (D)
You can change the maximum copy quantity. See “General Features”, Gen­eral Settings Guide.
18
File being stored exceeded max. number of pages per file. Copying will be stopped.
You do not have the privileges to use this func­tion.
You do not have the privileges to use this func­tion.
Authentication has failed.
The scanned originals have too many pages to store as one document.
This user code is not al­lowed to use the function selected.
This user code is not al­lowed to use the function selected.
The entered login user name or login password is not correct.
Press [Exit], and then store again with an appropriate number of pages.
Contact the administrator.
If the message continues to be displayed and you cannot switch the screen, press the {Energy Saver} key. Confirm that the display goes off, and then press the {En- ergy Saver} key again. The display will return to the user code entry display. When printing under the copier or printer function, press the {Energy Sav- er} key only after printing has finished.
Inquire the user administrator for the cor­rect login user name and login password.
When a Message Appears
Message Cause Solution
Authentication has failed.
The selected file(s) contained file(s) without access privileg­es. Only file(s) with access priv­ileges will be deleted.
Orig. is being scanned by anoth­er function. Please wait.
Please wait.
The machine cannot per­form authentication.
You have tried to delete files without the authori­ty to do so.
Document Server or Scanner function is in use.
The destination list is be­ing updated from the network using SmartDe­viceMonitor for Admin. Depending on the num­ber of destinations to be updated, there may be some delay before you can resume operation. Operations are not possi­ble while this message is displayed.
Contact the administrator.
Files can be deleted by the person who created the file. To delete a file which you are not authorized to delete, contact the person who created the file.
To cancel the job in process, press [Exit], and then press the {Document Server} or
{Scanner} key. Next, press the {Clear/Stop} key. When the message
The Clear / Stop key was
pressed. Are you sure you want to stop scanning?
pears, press [Stop].
Wait until the message disappears. Do not switch off the power while this mes­sage is displayed.
” ap-
2
Reference
p.9 “When You Have Problems Operating the Machine”
19
Troubleshooting When Using the Copy Function

When You Cannot Make Clear Copies

This section explains likely causes of and possible solutions for unclear copies.
Problem Cause Solution
2
Black or white streaks ap­pear on copies.
Black or white streaks ap­pear on copies.
The background is dirty. Image density is too
The background is dirty. Auto Image Density is
Copies are too light. Image density is too
Copies are too light. A light copy may result
The exposure glass or platen plate is dirty.
The original is dusty. Clean the original and try copying
dark.
not selected.
light.
when you use damp or rough grain paper.
Clean the exposure glass or platen plate. See p.79 “Maintaining Your Machine”.
again.
Be particularly careful when using the following types of original:
• Hand drawn or drawn on with other forms of pencil or pen, such as a plotter.
• Film, translucent paper, or other originals that attract static electricity.
• Very long originals.
Adjust the image density setting. See “Adjusting Copy Image Density”, Copy/Document Server Reference.
Select the auto density. See “Adjusting Copy Image Density”, Copy/Document Server Reference.
Adjust the image density settings. See “Adjusting Copy Image Density”, Copy/Document Server Reference.
Use the recommended paper. Also, use paper that has been stored in the recom­mended temperature and humidity con­dition. See “Copy Paper”, About This Machine.
20
Copies are too light. Toner cartridge is almost
empty.
Parts of images are not printed.
Toner fusing is poor. The paper thickness is
Toner fusing is poor. The copy paper is too
The same copy area is dirty whenever making copies.
The same copy area is dirty whenever making copies.
The paper is damp. Use paper that has been stored in the
not properly set.
thick.
The exposure glass or platen plate is dirty.
The original that has al­ready been printed is scanned.
Add toner. See p.64 “Adding Toner”.
recommended temperature and humid­ity condition. See “Copy Paper”, About This Machine.
Set the paper thickness again. See “Tray Paper Settings”, General Settings Guide.
Set the paper thickness again. See “Tray Paper Settings”, General Settings Guide.
Clean the exposure glass or platen plate. See p.79 “Maintaining Your Machine”.
Select [Generation Copy], and then begin copying. See “Selecting the Original Type Setting”, Copy/Document Server Reference.
When You Cannot Make Clear Copies
Problem Cause Solution
Image density is uneven. The original has areas of
solid color, or Posi­tive/Negative is selected when copying multiple sheets.
Image density is uneven. Halftone originals can
cause this problem.
Images are blurred when using translucent paper.
Extreme wrinkling oc­curs when using translu­cent paper.
Strong wrinkles appear when using translucent paper.
Streaks, scratches, or wrinkles appear in areas of solid black.
Translucent paper is be­ing used when copying multiple sheets.
An improper paper thickness is selected.
The paper type has re­cently been changed from plain paper to translucent paper.
Copy paper has been changed from plain to translucent paper, or from translucent to plain paper.
When using Repeat Copy with originals that have areas of solid color, set the number of originals as follows: A0 - A2 (E - C): 1 sheet, A3 (B) or smaller: 3 sheets. For details about sizes of origi­nals, see “Measure Chart”, Copy/Docu­ment Server Reference.
Try using “Text / Photo” or “Photo”.
Select a proper paper thickness for the copy paper. See “Tray Paper Settings”, General Settings Guide.
Select a proper paper thickness for the copy paper. See “Tray Paper Settings”, General Settings Guide.
Wait about one minute.
After switching from plain to translu­cent paper, wait one minute. After switching from translucent to plain pa­per, wait two minutes before making copies.
2
The reverse side of an original image is copied.
The reverse side of an original image is copied.
Copies are blurred. Continuous copies have
A shadow appears on copies if you use pasted originals.
Parts of images are not copied.
Parts of images are not copied.
White lines appear. The exposure glass or
Image density is too high.
Auto Image Density is not selected.
been made on small sized paper.
Image density is too high.
The original is not set correctly.
The correct paper size is not selected.
platen plate is dirty.
Adjust the image density. See “Adjust­ing Copy Image Density”, Copy/Docu­ment Server Reference.
Select the auto density. See “Adjusting Copy Image Density”, Copy/Document Server Reference.
Wait about two minutes, and then try copying again.
Adjust the image density. See “Adjust­ing Copy Image Density”, Copy/Docu­ment Server Reference.
Change the orientation of the original.
Put mending tape on the pasted part.
Set originals correctly. See “Placing Originals”, Copy/Document Server Reference.
Select the proper paper size.
Clean the exposure glass or platen plate. See p.79 “Maintaining Your Machine”.
21
Troubleshooting When Using the Copy Function
Problem Cause Solution
2
White lines appear. When D is blinking, ton-
er is beginning to run out.
Copies are blank. The original is not set
correctly.
A moiré pattern is pro­duced on copies.
Wrinkles appear on the copy.
Your original has a dot pattern image or many lines.
The paper is damp. • Replace the paper with new paper.
Add toner. See p.64 “Adding Toner”.
When using the exposure glass, face the originals down. See “Placing Originals”, Copy/Document Server Reference.
Place the original on the exposure glass at a slight angle.
• To prevent paper absorbing mois­ture, turn on the anti-humidity heat­er switch. See “Guide to Components”, About This Machine.
22

When You Cannot Make Copies As Wanted

When You Cannot Make Copies As Wanted
This section explains likely causes of and possible solutions for unclear copies.
Basic
Problem Cause Solution
Misfeeds occur frequently.
Misfeeds occur frequently.
Misfeeds occur frequently.
Misfeeds occur frequently.
Misfeeds occur frequently.
Misfeeds occur frequently.
Misfeeds occur frequently.
Misfeeds occur frequently.
The number of sheets loaded in the cut paper tray exceeds the capacity of the machine.
The cut paper tray's side fences are set too tightly.
The paper is damp. Use paper that has been stored in the
The paper is too thick or too thin.
The paper is folded or creased.
Jammed or torn paper is inside the machine.
The paper is curled. Smooth out the curl and try again.
Printed paper is being used.
Load paper only as high as the upper limit markings on the side fences of the cut paper tray. See p.57 “Loading Pa­per”.
Push the cut paper tray's side fences slightly apart, and then reset the tray.
recommended temperature and humid­ity condition. See “Copy Paper”, About This Machine.
Use recommended paper. See “Copy Paper”, About This Machine.
Cut folded or wrinkled areas off the pa­per roll.
Remove cut paper that is folded or wrinkled.
Remove the paper properly. See p.67 “Removing Jammed Paper”.
Use recommended paper. Do not use paper that has been already copied or printed onto. See “Copy Paper”, About This Machine.
2
Copy paper becomes creased.
Copy paper becomes creased.
Copy paper becomes creased.
Copies are slanted. The original was not set
Original and copy size does not match.
The paper is damp. Replace the paper with new paper. Cut
The paper is damp. Turn on the anti-humidity heater
The paper is too thin. Use recommended paper. See “Copy
straightly.
Dampness can cause pa­per to stretch.
the paper to 1000 mm (40") just before copying.
switch. See “Anti-humidity Heater Switch”, About This Machine.
Paper”, About This Machine.
Set the original so that it is squarely aligned with the original guides.
Adjust the Fine Magnification setting for Additional Copy. See “Fine Magnifica­tion”, Copy/Document Server Reference.
23
Troubleshooting When Using the Copy Function
Problem Cause Solution
2
Cannot scan originals on mixed A series and JIS B series paper continuously.
You cannot combine sev­eral functions.
Images are skewed. The side fences in the cut
Images are skewed. The paper is feeding in at
The machine does not start copying even though you have insert­ed paper into the bypass tray.
Copies shift sideways. The paper roll is not set
Copies shift sideways. The original does not
Originals on different se­ries of paper cannot be scanned continuously at the same time.
Selected functions can­not be used together.
paper tray is not locked.
a slant.
Originals are not scanned.
correctly.
match the size in the original table setting.
Scan the originals on each series separately.
Check the combination of functions and make the settings again. See “Function Compatibility”, Copy/Document Serv­er Reference.
Make sure the side fences are locked. See p.61 “Changing the Paper Size”.
Load the paper correctly. See p.57 “Loading Paper”.
After scanning the originals, load paper in the bypass tray.
Set the paper roll correctly, making sure it is straight and not loose. See p.57 “Loading Paper”.
Adjust the original guides to the specified size, and then insert the original along the guides. See “Placing Originals”, Copy/Document Server Reference.
24
Copies shift sideways. The paper is not set cor-
rectly in the bypass tray.
Copies shift in the direc­tion of the original feed (or opposite) direction.
Copies are shorter than the selected size, or cut off before the end.
Print Position Adjust­ment or Margin Adjust­ment mode is selected.
Print Position Adjust­ment or Margin Adjust­ment mode is selected.
Edit
Problem Cause Solution
In Double Copies mode, parts of the original im­age are not copied.
In Erase Border, Erase In­side, or Erase Outside mode, parts of the origi­nal image are not copied.
Combination of original and copy paper is not correct.
You set a wide erased margin.
Make sure the paper size matches the bypass tray's paper guides. See “Copy­ing from the Bypass Tray”, Copy/Docu­ment Server Reference.
Cancel Print Position Adjustment or Mar­gin Adjustment mode. See “Margin Ad­justment” and “Adjust Print Position”, Copy/Document Server Reference.
Cancel Print Position Adjustment or Mar­gin Adjustment mode. See “Margin Ad­justment” and “Adjust Print Position”, Copy/Document Server Reference.
Specify the paper size again. For exam­ple, select A3L for A4K originals. See “Double Copies”, Copy/Document Server Reference.
Make the margin width narrower. You can adjust it between 2 - 99 mm (0.1" -
3.9"). See “Edit”, General Settings
Guide.
When You Cannot Make Copies As Wanted
Problem Cause Solution
In Erase Border, Erase In­side, or Erase Outside mode, parts of the origi­nal image are not copied.
Parts of the image are not copied.
Parts of the image are not copied.
In Image Repeat mode, the original image is not copied repeatedly.
Combine
Problem Cause Solution
When using Combine, parts of the image are not copied.
Originals are not scanned correctly.
Print Position Adjust­ment or Margin Adjust­ment mode is selected.
You placed a custom size original.
You selected copy paper the same size as the orig­inals, or you did not se­lect the proper reproduction ratio.
You specified a repro­duction ratio that does not match the sizes of your originals and copy paper.
Place the originals correctly.
Cancel Print Position Adjustment or Mar­gin Adjustment mode. See “Margin Ad­justment” and “Adjust Print Position”, Copy/Document Server Reference.
Enter the size of the original, or set the scanning area wider. See “Placing Cus­tom Size Originals” and “Wide Scan”, Copy/Document Server Reference.
Select copy paper larger than the origi­nals or select the proper reproduction ratio.
When you specify a reproduction ratio using Manual Paper Select mode, make sure that the ratio matches your origi­nals and the copy paper. Select the cor­rect reproduction ratio before using Combine mode.
2
Copies are not in correct order.
You placed the originals in the incorrect order.
Folding finisher
Problem Cause Solution
The folding finisher is not recognized (is offline).
Please wait.” ap-
“ pears on the display pan­el and printing cannot be done.
Cannot specify folding. Translucent paper or
The folding finisher is turned off, or the folding finisher and the machine were not turned on in the correct order.
The folding finisher is offline.
film has been selected.
Start with the first page to be copied.
If the folding finishers is offline, turn off the main power switches of both the ma­chine and folding finisher, and then turn them back on again in the following order: folding finisher, and then the machine.
Then check the folding finisher is online.
Turn off the main power switches of both the machine and folding finisher, and then turn them back on again in the following or­der: folding finisher, and then the machine.
Then check the folding finisher is online.
Translucent paper and film are not available for folding. They are delivered to the upper output stacker, but not folded. Select another paper type, and then specify folding.
25
Troubleshooting When Using the Copy Function

When Memory Is Full

This section explains likely causes of and possible solutions for problems related to full memory.
Message Cause Solution
2
Memory is full.
nn originals have been scanned.
Press [Print] to copy scanned originals. Do not remove remaining originals.
“n” in the message repre­sents a changeable number.
Press [Continue] to scan and copy re­maining originals.
The scanned originals exceeds the number of pages that can be stored in memory.
The machine checked if the remaining originals should be copied, after the scanned originals was printed.
Press [Print] to copy scanned originals and cancel the scanning data. Press [Stop] to cancel the scanning data and not copy.
To continue copying, remove all copies, and then press [Continue]. To stop copy­ing, press [Stop].
26
3. Troubleshooting When
Using the Printer Function
This chapter explains likely causes of and possible solutions for printer function problems.

When a Message Appears During Installation of the Printer Driver

This section explains what to do if a message appears when installing the printer driver.
Message number 58 or 34 indicates that the printer driver cannot be installed us­ing Auto Run. Install the printer driver using [Add Printer] or [Install Printer].
Message number 58 appears if there is a newer version of the printer driver al­ready installed.

Windows 95/98/Me, Windows 2000, or Windows NT 4.0

This section explains the procedure under Windows 95/98/Me, Windows 2000, or Windows NT 4.0.
A On the [Start] menu, point to [Settings], and then click [Printers]. B Double-click the [Add Printer] icon. C Follow the instructions in [Add Printer Wizard].
If the printer driver is on a CD-ROM, the location of the RPCS printer driver is either \DRIVERS\RPCS\WIN9X_ME, or \DRIVERS\RPCS\WIN2K_XP.
If the installer starts, click [Cancel] to quit.
D Specify a port.
For the setting procedure, see a description for the port you are using.
Note
Available ports vary according to your Windows operating system or the
type of interface. For details, see “Preparing the Machine”, Printer Reference.
Reference
“Preparing the Machine”, Printer Reference
27
3
Troubleshooting When Using the Printer Function

Windows XP Professional, Windows Server 2003

This section explains the procedure under Windows XP Professional or Windows Server 2003.
A On the [Start] menu, click [Printers and Faxes]. B Click [Add a printer]. C Follow the instructions in [Add Printer Wizard].
If the printer driver is on a CD-ROM, the location of the RPCS printer driver is \DRIVERS\RPCS\WIN2K_XP.
If the installer starts, click [Cancel] to quit.
D Specify a port.
See the explanation for the port you are using for the setting procedure.
Note
Available ports vary according to your Windows operating system or the
type of interface. For details, see “Preparing the Machine”, Printer Reference.
Reference
“Preparing the Machine”, Printer Reference

Windows XP Home Edition

This section explains the procedure under Windows XP Home Edition.
A On the [Start] menu, click [Control Panel]. B Click [Printer and Other Hardware]. C Click [Printers and Faxes]. D Click [Add a Printer]. E Follow the instructions in [Add Printer Wizard].
If the printer driver is on a CD-ROM, the location of the RPCS printer driver is \DRIVERS\RPCS\WIN2K_XP.
If the installer starts, click [Cancel] to quit.
F Specify a port.
For the setting procedure, see a description for the port you are using.
28
Note
Available ports vary according to your Windows operating system or the
type of interface. For details, see “Preparing the Machine”, Printer Reference.
Reference
“Preparing the Machine”, Printer Reference

If USB Connection Fails

If USB Connection Fails
This section explains how to troubleshoot a problem related to USB connection.
Problem Cause Solution
The machine is not auto­matically recognized.
Windows has already con­figured the USB settings.
Windows Me and the ma­chine cannot be connected.
The USB cable is not con­nected properly.
Check whether the com­puter has identified the machine as an unsup­ported device.
You need to download USB Printing Support for Windows Me.
Disconnect the USB cable, and then turn the machine off and then back on again. After confirming the machine is on, con­nect the USB cable again.
Open Windows' Device Manager, and then, under [Universal Serial Bus control- lers], remove any conflicting devices. Conflicting devices have a [!] or [?] icon by them. Take care not to accidentally remove required devices. For details, see Windows Help.
When using Windows 2000 / XP or Windows Server 2003, an erroneous de­vice is displayed under [USB Controller] in the [Device Manager] dialog box.
Download USB Printing Support from the supplier's website.
Search the model name you use on the supplier's website, and download USB Printing Support.
3
29
3
Troubleshooting When Using the Printer Function

When a Message Appears

This section describes the principal messages that appear on the panel display. If a message not described here appears, act according to the message.
Note
Before turning the main power off, see “Turning On the Power”, About This
Machine.
Reference
“Turning On the Power”, About This Machine

Status Messages

This section describes the machine status messages.
Message Status
Ready
Waiting...
Offline
Please wait.
Job Suspended...
Hex Dump Mode
Resetting job...
Setting change...
This is the default ready message. The machine is ready for use. No action is required.
The machine is waiting for the next data to print. Wait a while.
The machine is offline. To start printing, switch the ma­chine online by pressing [Online].
This message might appear for a second or two while the machine is preparing, performing initial adjustments, or adding toner. Wait a while.
All jobs in the machine are suspended. Wait a while.
In the Hex Dump mode, the machine receives data in hexadecimal format. Turn off the machine after printing, and then turn back on.
The machine is resetting the print job. Wait until “
Ready” appears on the display panel.
The machine is setting changing. You cannot use the con­trol panel while this message is displayed. Wait a while.
30

Alert Messages

This section describes the machine Alert messages.
Message Cause Solution
When a Message Appears
Cannot connect with the wireless card. Turn the main power switch off, then check the card.
Cannot connect with the wireless card. Turn the main power switch off, then check the card.
Problems with the wireless card.
Problems with the wireless board.
Problem with Hard Disk.
IEEE 802.11b interface unit was not inserted when the machine was turned on.
IEEE 802.11b interface unit was pulled out after the machine turned on.
A wireless card that the machine cannot use has been installed.
Access to the wireless board in which the IEEE
802.11b interface unit is inserted is possible, but an error was detected.
An error has occurred in the hard disk drive.
Turn off the machine and check the in­terface unit is inserted correctly. Then, turn the machine on again. If the mes­sage appears again, call your service representative.
3
Turn off the machine and check the in­terface unit is inserted correctly. Then, turn the machine on again. If the mes­sage appears again, call your service representative.
Turn off the machine and check the in­terface unit is inserted correctly. Then, turn the machine on again. If the mes­sage appears again, call your service representative.
Turn off the machine and check the in­terface unit is inserted correctly. Then, turn the machine on again. If the mes­sage appears again, call your service representative.
Turn off the main power switch, and back on again. If the message appears again, contact your service representative.
The entered pass­word is incor­rect.
Error has oc­curred.
USB has a prob­lem.
Hardware Problem: Ethernet
Printing privi­leges have not been set for this document.
The password of the en­crypted PDF file has been entered incorrectly.
A syntax error, etc., has occurred.
An error has occurred in the USB interface.
An error has occurred in the Ethernet board.
You tried to print a print­protected document.
Enter the correct password.
Check the PDF file is not corrupted.
Turn off the main power switch, and back on again. If the message appears again, contact your service representative.
Turn off the main power switch, and back on again. If the message appears again, contact your service representative.
You cannot print this document.
31
Troubleshooting When Using the Printer Function
Message Cause Solution
3
You do not have the privileges to use this func­tion.
Authentication has failed.
Parallel I/F board has a prob­lem.
Printer font er­ror.
File system is full.
Memory Overflow
Use of this function is restricted.
• The login user name or password entered is incorrect.
• The machine current­ly cannot perform au­thentication.
An error has occurred in the parallel interface board.
An error has occurred in the font settings.
There is not enough free space on the file system for printing PDF files.
Maximum capacity of PostScript 3 list display has been exceeded.
Contact the administrator.
• Check your login user name and password.
• Contact the administrator.
Turn off the main power switch, and back on again. If the message appears again, contact your service representative.
Contact your service representative.
Delete unnecessary files from the hard disk.
Alternatively, reduce the number of files sent to the machine.
Reduce the value of [Resolution] in the printer driver. Alternatively, select
[Frame Priority] from [Memory Usage] in [System]. See “Printer Features”, General
Settings Guide.
If this message continues to appear after taking these steps, decrease the number of files sent to the machine.
32
When a Message Appears

Checking the Error Log

If files could not be stored due to printing errors, identify the cause of the errors by checking the error log on the control panel.
A Press the {Printer} key to display the printer screen.
ATK022S
B Press [Error Log].
3
An error log list appears.
Note
The most recent 30 errors are stored in the error log. If a new error is added
when there are 30 errors already stored, the oldest error is deleted. How­ever, if the oldest error is a Sample Print, Locked Print, Hold Print, or Stored Print error, it is not deleted. The error is stored separately until the number of errors reaches 30.
You cannot view [Error Log] on the simplified display.
If the main power switch is turned off, the log is deleted.
33
Troubleshooting When Using the Printer Function

When You Cannot Print

Use the following procedures if printing does not start when printing from a computer.
Problem Cause Solution
Printing does not start. The power is off. Check the cable is securely plugged into
the power outlet and the machine. Turn on the main power switch.
3
Printing does not start. The machine is set to
“Offline”.
Printing does not start. The cause is displayed
on the display of the con­trol panel.
Printing does not start. The interface cable is not
connected correctly.
Printing does not start. The correct interface ca-
ble is not being used.
Printing does not start. The interface cable was
connected after the ma­chine was switched on.
Printing does not start. If the machine is operat-
ing in an extended wire­less LAN, failure to print might result from a weak wireless signal.
Press [Online].
Check the error message or warning sta­tus on the display panel and take the re­quired action. See p.30 “When a Message Appears”.
Connect the interface cable securely. See “Connecting to the Interfaces”, General Settings Guide.
The type of interface cable you should use depends on the computer. Be sure to use the correct one. If the cable is dam­aged or worn, replace it. See “Connect­ing to the Interfaces”, General Settings Guide.
Connect the interface cable before turn­ing on the machine.
To check signal status, press the {User
Tools / Counter} key, and then press [Sys- tem Settings] on the display panel. On the [Interface Settings] tab, select [IEEE
802.11b], and then press [Wireless LAN Sig-
nal]. If signal quality is poor, move the
machine to a location where radio waves can pass or remove objects that might cause interference.
(You can check signal status only when using wireless LAN in the infrastructure mode.)
34
Printing does not start. If the machine is operat-
ing in an extended wire­less LAN, SSID settings are incorrect.
Check using the machine's display pan­el that the SSID is correctly set. See “Net­work Settings”, General Settings Guide.
When You Cannot Print
Problem Cause Solution
Printing does not start. If the machine is operat-
ing in an extended wire­less LAN, the receiver's MAC address may be preventing communica­tion with the access point.
Printing does not start. The extended wireless
LAN has not started.
Printing does not start. The login user name,
login password, or driv­er encryption key is invalid.
Printing does not start.
Data-in lamp does not blink or light up.
Advanced encryption has been set using the Ex­tended Security function.
If the data-in lamp is un­lit or not flashing even after performing [Print], the machine has not re­ceived the data.
Check access point settings when in the infrastructure mode. Depending on the access point, client access may be limit­ed by MAC address. Also, check there are no problems in transmission be­tween access point and wired clients, and between access point and wireless clients.
Confirm the orange LED is lit, and the green LED is lit or blinks during transmission.
Check the login user name, login pass­word, or driver encryption key.
Check the settings of the Extended Secu­rity function with the administrator.
• When the machine is connected to a computer via a cable, check the com­puter print port settings are correct. See “When the machine is connected to the computer using the interface cable”.
• When it is networked with a com­puter, contact the administrator.
3
The status indicator of the printer is lit.
Updating the des­tination list... Please wait. Speci­fied destina­tion(s) or sender's name has been cleared.
[List / Test Print] is dis­abled.
Printing does not start when using the extended wireless LAN in Ad-hoc mode.
” appears.
The cause is displayed on the display of the con­trol panel.
The destination list is be­ing updated from the network using SmartDe­viceMonitor for Admin.
A mechanical error might have occurred.
The correct Communica­tion mode is not set.
Check the error message on the display panel and take required action. See p.30 “When a Message Appears”.
Wait until the message disappears. Do not switch off the main power while this message is displayed. Depending on the number of destinations to be updated, there may be some delay before you can resume operation. Operations are not possible while this message is displayed.
Contact your service representative. See “List / Test Print”, General Settings Guide.
Turn the main power off and back on. See “Turning On the Power”, About This Machine.
Or, change the settings for [System Set- tings], [Interface Settings], and [Network]. See “Network Settings”, General Set­tings Guide.
If the printing does not start, consult your service representative.
35
3
Troubleshooting When Using the Printer Function
When the machine is connected to the computer using the interface cable
The following shows how to check the print port when the data-in lamp does not light up or blink. Check if the print port setting is correct. When it is connected using a parallel interface, connect it to LPT1 or LPT2. For Windows 95/98/Me
A Click the [Start] button, point to [Settings], and then click [Printers].
B Click the icon of the machine. On the [File] menu, click [Properties].
C Click the [Details] tab.
D In the [Print to the following port:] list, confirm the correct port is selected.
For Windows 2000 or Windows NT 4.0
A Click the [Start] button, point to [Settings], and then click [Printers].
B Click the icon of the machine. On the [File] menu, click [Properties].
C Click the [Ports] tab.
D In the [Print to the following port(s)] list, confirm the correct port is selected.
For Windows XP Professional or Windows Server 2003
A Click the [Start] button, and then click [Printers and Faxes].
B Click the icon of the machine. On the [File] menu, click [Properties].
C Click the [Ports] tab.
D In the [Print to the following port(s)] list, confirm the correct port is selected.
For Windows XP Home Edition
A Click the [Start] button, and then click [Control Panel].
B Click [Printers and Other Hardware].
C Click [Printers and Faxes].
D Click the icon of the machine. On the [File] menu, click [Properties].
E Click the [Ports] tab.
F In the [Print to the following port(s)] list, confirm the correct port is selected.
36

Other Printing Problems

Other Printing Problems
This section explains likely causes of and possible solutions for problems that can occur when printing from a computer.
If prints are not clear
Problem Cause Solution
The print on the en­tire page is faded.
The print on the en­tire page is faded.
The print on the en­tire page is faded.
Parts of images are not printed.
White lines appear. When D is blinking,
When D is blinking, toner is beginning to run out.
The paper is damp. Use paper that has been stored in the recom-
The paper is unsuitable.
The paper is damp. Use paper that has been stored in the recom-
toner is beginning to run out.
When printer driver settings are required
Problem Cause Solution
The printed image is different from the im­age on the computer's display.
With certain func­tions, such as en­largement and reduction, image lay­out might be different to that on the com­puter display.
Add toner. See p.64 “Adding Toner”.
3
mended temperature and humidity condition. See “Copy Paper”, About This Machine.
Use the recommended paper. (Printing on coarse or treated paper might result in faint print image.) See “Copy Paper”, About This Machine.
mended temperature and humidity condition. See “Copy Paper”, About This Machine.
Add toner. See p.64 “Adding Toner”.
In the application, change the layout, character size, and character settings.
The printed image is different from the im­age on the computer's display.
When printing graphics, the output and the screen are different.
Garbled characters are printed.
You might have se­lected to replace True Type fonts with ma­chine fonts in the printing process.
If the printer driver is configured to use the graphics command, the graphics com­mand from the ma­chine is used to print.
The correct printer language might have not been selected.
To print an image similar to that of the comput­er display, make settings to print True Type fonts as an image. See the printer driver Help.
If you want to print accurately, set the printer driver to print without using the graphics com­mand. See the printer driver Help.
Set the correct printer language.
37
Troubleshooting When Using the Printer Function
Problem Cause Solution
3
Images are printed in the wrong orientation.
Images are cut off, or excess is printed.
Page layout is not as expected.
Photo images are coarse.
Solid lines are print­ed as broken lines.
The feed orientation you selected and the feed orientation se­lected in the printer driver's option setup might not be the same.
You may be using pa­per smaller than the size selected in the application.
Print areas differ de­pending on machine used. Information that fits on a single page on one machine may not fit on a single page of another machine.
Some applications print at lower resolution.
Dither patterns do not match.
Set the machine's feed orientation and the printer driver's feed orientation accordingly. See the printer driver Help.
Use the same size paper as that selected in the application. If you cannot load paper of the cor­rect size, use the reduction function to reduce the image, and then print. See the printer driver Help.
Adjust the [Printable area:] setting in the [Printer Configuration...] dialog box on the [Print Settings] tab in the RPCS printer driver. See the printer driver Help.
Use the application's settings to specify a higher resolution.
Make the following settings with the printer driver: Change the [Dithering:] setting on the [Im-
age Adjustments] tab in the [Change User Set­tings...] dia log b ox, on the [Print Quality] tab in the
RPCS printer driver. See the printer driver Help.
38
Optional components connected to the ma­chine are not recog­nized when using Windows 95 / 98 / Me, Windows 2000 / XP, Windows Server 2003, and Windows NT 4.0.
Print results using combined printing or auto reduce/enlarge are not as expected under Windows 95 / 98 / Me / 2000 / XP, Windows Server 2003, or Windows NT
4.0.
When printing on custom size paper under Windows, the image appears in the wrong position.
Bidirectional commu­nication is not working.
The correct applica­tion or printer driver settings are not made.
The correct custom paper size is not spec­ified in the printer driver's settings.
Set up optional devices on the Properties of the printer.
See the printer driver Help.
Make sure the application's paper size and ori­entation settings match those of the printer driver. If a different paper size and orientation are set, select the same size and orientation.
To print on custom size paper from the paper tray, specify the paper size in the printer driv­er's settings. See the printer driver Help.
When paper does not feed in properly
Problem Cause Solution
Other Printing Problems
Paper is not fed from the selected tray.
Print is slanted. The cut paper tray's
Print is slanted. The paper is feeding
Misfeeds occur frequently.
Misfeeds occur frequently.
Misfeeds occur frequently.
Misfeeds occur frequently.
When you are using a Windows operating system, printer driver settings override those set using the display panel.
side fences might not be locked.
in at a slant.
The number of sheets loaded in the cut paper tray exceeds the capac­ity of the machine.
The paper is damp. Use paper that has been stored in the recom-
The paper is too thick or too thin.
The copy paper is wrinkled or has been folded/creased.
Set the desired input tray using the printer driver. See the printer driver Help.
Check the side fences are locked. See p.61 “Changing the Paper Size”.
3
Load the paper correctly. See p.57 “Loading Pa­per”.
Load paper only as high as the upper limit markings on the side fences of the cut paper tray. See p.57 “Loading Paper”.
mended temperature and humidity condition. See “Copy Paper”, About This Machine.
Use recommended paper. See “Copy Paper”, About This Machine.
Use recommended paper. Use paper that has been stored in the recommended temperature and humidity condition. See “Copy Paper”, About This Machine.
Misfeeds occur frequently.
Copy paper becomes creased.
Copy paper becomes creased.
There is considerable delay between the print start instruction and actual printing.
There is considerable delay between the print start instruction and actual printing.
There is considerable delay between the print start instruction and actual printing.
Printed paper is be­ing used.
The paper is damp. Use paper that has been stored in the recom-
The paper is too thin. Use recommended paper. See “Copy Paper”,
Processing time de­pends on data vol­ume. High volume data, such as graph­ics-heavy documents, take longer to process.
The machine might be in “Sleep mode”.
The paper type set­ting was changed.
Use recommended paper. See “Copy Paper”, About This Machine.
mended temperature and humidity condition. See “Copy Paper”, About This Machine.
About This Machine.
If the data-in lamp is blinking, data has been re­ceived by the printer. Wait for a moment.
The machine requires time to warm up if it has been in “Sleep mode”. Specify “Sleep mode” in [System Settings], [Auto Off Timer].
If the paper type setting has been changed, there might be a delay before printing begins. Wait for a moment.
39
Troubleshooting When Using the Printer Function
Problem Cause Solution
3
It takes a long time to complete a print job.
Print jobs take a long time to complete.
Folding finisher
Problem Cause Solution
Cannot specify folding.
Processing time de­pends on data vol­ume. High volume data, such as graph­ics-heavy documents, take longer to process.
If a print job is data heavy, it will take longer to complete.
The folding finisher is offline.
Wait for a moment.
Making the following setting on the printer driver may reduce the computer's workload.
• Select [Speed] in the [Print priority] on the [Print Quality] tab in the printing preferences dialog box.
• Also, select the [User settings] check box, and then click [Change User Settings...]. Select the lower value for the [Resolution:] list on the
[Image Adjustments] tab in the [Change User Settings] dialog box.
See the printer driver Help.
If the data-in lamp is blinking, data has been re­ceived by the printer. Wait for a moment.
When the folding finisher is offline, folding cannot be specified.
Turn off the main power switches of both the machine and folding finisher, and then turn them back on again in the following order: fold­ing finisher, and then the machine.
Then check the folding finisher is online.
40
Cannot specify folding.
Cannot specify folding.
Please wait.
“ appears on the dis­play panel and print­ing cannot be done.
The optional device is not configured cor­rectly on the printer driver.
Translucent paper or film was specified.
The folding finisher is offline.
Configure the optional device correctly using [Change Accessories...] on the printer driver. See the printer driver Help.
Translucent paper and film are not available for folding. They are delivered to the upper output stacker, but not folded. Select another paper type, and then specify folding.
Turn off the main power switch of both the ma­chine and folding finisher, and then turn them back on again in the following order: folding finisher, and then the machine.
Then check the folding finisher is online.
Other printing problems
Problem Cause Solution
Other Printing Problems
A print instruction was issued from the computer, but print­ing did not start.
PDF files do not print out/cannot perform PDF direct print.
PDF files do not print out/cannot perform PDF direct print.
PDF files do not print out/cannot perform PDF direct print.
User Authentication may have been set.
PDF files are pass­word-protected.
PDF files cannot be printed if they are print-disabled in PDF file security setting.
High compression PDF files created us­ing the machine's scanner function can­not print directly.
• Ask the administrator for the user code.
• Specify the user code you confirmed when printing from the printer driver. On the printer driver's [Printer Configuration] tab, click [User Code], and then enter the user code.
To print password-protected PDF files, enter the password in the [PDF Menu] or on Web Im­age Monitor.
• For details about [PDF Menu], see “PDF Menu”, General Settings Guide.
• For details about Web Image Monitor, see the Web Image Monitor Help.
Change the PDF file security setting.
Open the application used to create the PDF, and then print the file using the application's driver.
Re-save the file in normal (non-compressed) PDF format.
Some types of High Compression PDF files are not supported. Consult your sales representa­tive about the supported file types.
3
PDF direct print pro­duces strange or mal­formed characters.
Printing by wireless LAN is slow.
Printing by wireless LAN is slow.
Fonts were not embedded.
The number of jobs exceeds the capacity of the machine.
• A communica­tion error might have occurred.
• Interference from other wireless LAN devices can reduce communi­cation speed.
Embed fonts in the PDF file you want to print and then print.
Reduce the number of jobs.
• Check if there are any other active wireless­devices near the machine.
• Remove the machine from close proximity with IEEE 802.11b wireless LAN devices.
If the problem cannot be solved, contact your service representative.
41
3
Troubleshooting When Using the Printer Function
42
4. Troubleshooting When
Using the Scanner Function
This chapter explains likely causes of and possible solutions for scanner function problems.

When Scanning Is Not Done As Expected

This section explains causes and remedies when scan results are not as expected.
Problem Cause Solution
The scanned image is dirty.
The image is distorted or out of position.
The orientation of the scanned image is not correct.
No image results from scanning.
The scanned image contains white spaces.
The exposure glass or platen plate is dirty.
The original has not been loaded square.
The original was placed in the wrong top/bottom or left/right orientation.
The original was placed with the front and back reversed.
• If you scan originals using functions other than the net­work TWAIN scanner func­tion, certain paper size and resolution settings may pro­duce scanned images that are larger than the specified size because of margins being add­ed to the sides.
• If the File Format Converter (optional ) is installed, the margins may become wider.
Clean the exposure glass or plat­en plate. See p.79 “Maintaining Your Machine”.
Insert the original along the origi­nal guides, so it is straight. See “Setting Original Orientation”, Scanner Reference.
Place the original in the correct orientation. See “Setting Original Orientation”, Scanner Reference.
When the original is placed di­rectly on the original table, the side to be scanned must face down. See “Setting Original Ori­entation”, Scanner Reference.
Scanning at a higher resolution may reduce the margins.
The scanner journal cannot be printed.
The scanner journal cannot be printed.
The scanner journal cannot be printed.
The file size of the com­pressed image is larger than that of the non­compressed image.
The paper tray is open. Close the paper tray.
Paper is loaded in the bypass tray but another paper tray is specified.
The original exit switching lever is in the rear output position.
For detailed images such as line drawings, the file size increases after compression.
Remove the paper from the by­pass tray.
Switch the original exit switching lever to upper output.
If large-size files become a prob­lem, set Compression to [Off] un­der Scanner Features.
43
Troubleshooting When Using the Scanner Function

When You Cannot Send Scanned Files

The following sections explain likely causes of and solutions for Network Deliv­ery and E-mail Sending-related problems.

When Stored Files Cannot Be Accessed

This section explains likely causes of and possible solutions for job access-relat­ed problems.
Problem Cause Solution
4
The stored file is locked and is not accessible.
The file, which is password pro­tected, is locked because the pass­word was incorrectly entered ten times.
Contact the administrator.

When You Cannot Browse the Network to Send a Scan File

This section explains likely causes of and possible solutions for the Browse Net­work failing to operate when files are sent.
Problem Cause Solution
The network cannot be browsed when specifying the destination folder.
The following machine settings may not be correct:
• IPv4 address
• Subnet Mask
Check the settings. See “Network Settings ”, General Settings Guide.

When the TWAIN Driver Cannot Be Started

This section explains likely causes of and possible solutions for the TWAIN driv­er failing to operate.
Problem Cause Solution
44
The Scanner Properties dialog box cannot be displayed.
Advanced encryption has been specified in the extended security setting.
For details about the extended secu­rity setting, contact an administrator.
When You Cannot Send Scanned Files

When Stored Files Cannot Be Edited

This section explains likely causes of and possible solutions for the TWAIN driv­er failing to operate.
Problem Cause Solution
Stored files cannot be deleted. File names and passwords cannot be changed. Files cannot be redelivered.
Limits have been imposed using the available extended security function.
Contact the administrator.

When the Network Delivery Function Cannot Be Used

This section explains likely causes of and possible solutions for the Network De­livery function failing to operate.
Problem Cause Solution
The network delivery function cannot be used.
The network delivery function cannot be used.
The delivery software may be an old version or a security setting may be specified.
The network delivery function setting is not correct.
Contact the administrator.
Specify it correctly. See “Settings Required to Use the Network De­livery Scanner”, General Settings Guide.

Operations Are Not Possible When Messages Appear

4
This section explains likely causes of and possible solutions for messages that appear and when the machine fails to operate.
Message Cause Solution
Destination list / machine set­tings are updat­ed. Selected destinations or function set­tings have been cleared. Please re-select the settings.
The destination list is being up­dated from the network using SmartDeviceMonitor for Admin. Depending on the number of des­tinations to be updated, there may be some delay before you can resume operation. Opera­tions are not possible while this message is displayed.
Wait until the message disap­pears. Do not switch off the pow­er while this message is displayed.
45
4
Troubleshooting When Using the Scanner Function

When a Message Appears

This section explains likely causes of and possible solutions for error messages that may appear on the machine's control panel.

When a Message Appears on the Control Panel

This section explains causes and remedies if an error message appears on the display of the control panel.
Important
If a message not described here appears, act according to the message. For in-
formation about how to turn off the main power switch, see “Turning On the Power”, About This Machine.
Message Cause Solution
No HDD is avail­able for this function, or File Format Converter is not connected. Cannot use Scan­ner Function.
Connection with LDAP server has failed. Check the server status.
LDAP server au­thentication has failed. Check the settings.
The destination list has been up­dated. Specified destination(s) or sender's name has been cleared.
No HDD is available for this function, or File Format Converter is not connected.
A network error has oc­curred and connection has failed.
The user name and pass­word differ from those set for LDAP Authentication.
A specified destination or sender's name was cleared when the desti­nation list in the delivery server was updated.
Contact your service representative.
Try the operation once more. If the mes­sage is still shown, the network may be crowded. Check the information of Sys­tem Settings. See “System Settings”, General Settings Guide.
Make settings correctly for the user name and the password for LDAP serv­er authentication.
Specify the destination or sender's name again.
46
Updating the des­tination list has failed. Try again?
A network error has occurred.
Check whether the server is connected.
When a Message Appears
Message Cause Solution
Updating the des­tination list... Please wait. Specified desti­nation(s) or sender's name has been cleared.
Exceeded max. number of files which can be sent at the same time. Reduce the number of the selected files.
Exceeded max. No. of results to display. Max.: nnn
(A figure is placed at n.)
You do not have the privileges to use this func­tion.
The destination list has been updated.
The number of files ex­ceeded the maximum number possible.
Search results have ex­ceeded the max. display­able number.
The machine has not been set to allow you to use the function.
If a destination or sender's name was al­ready selected, re-select it after this mes­sage disappears.
Reduce the number of files and send them again.
4
Search again after changing the search conditions.
Contact the administrator.
Exceeded max. number of standby files.Try again after the current file is sent.
Exceeded time limit for LDAP server search. Check the server status.
The specified group contains some destina­tion(s) that do not have access privileges. Do you want to se­lect only the privileged desti­nation(s)?
The maximum number of standby files was exceeded.
A network error has oc­curred and connection has failed.
The specified group con­tains some destinations for sending by e-mail and some destinations for sending by Scan to Folder.
There are 100 files waiting in the send­ing queue for e-mail, Scan to Folder, or delivery functions. Wait until files have been sent.
Try the operation once more. If the mes­sage is still shown, the network may be crowded. Check the information of Sys­tem Settings. See “System Settings”, General Settings Guide.
To select destinations for sending by e­mail, press [Select] for the message dis­played on the e-mail screen. To select destination for sending by Scan to Fold­er, press [Select] for the message dis­played on the Scan to Folder screen.
47
Troubleshooting When Using the Scanner Function
Message Cause Solution
4
Cannot find the specified path. Please check the settings.
Exceeded max. number of alpha­numeric charac­ters for the path.
The selected file(s) contained file(s) without access privileg­es. Only file(s) with access priv­ileges will be deleted.
Some of selected files are cur­rently in use. They could not be deleted.
The destination comput­er name or folder name is invalid.
The maximum number of specifiable alphanu­meric characters in a path has been exceeded.
You have tried to delete files without the authori­ty to do so.
You cannot delete a file whose status is “Wait­ing...” or that is being ed­ited with DeskTopBinder.
Check whether the computer name and the folder name for the destination are correct.
The maximum number of characters which can be entered for the path is 128. Check the number of character you entered, and then enter the path again. See “Transmis­sion Function”, Scanner Reference.
The files can be deleted by the file ad­ministrator. To delete a file which you are not authorized to delete, contact the administrator.
Cancel transmission (“Waiting...”status cleared) or the DeskTopBinder setting, and then delete the file.
Cannot cancel sending all se­lected file(s). Certain file(s) are currently be­ing sent.
Selected file is currently in use. Cannot change file name.
Selected file is currently in use. Cannot change password.
Selected file is currently in use. Cannot change user name.
You cannot cancel a file currently being sent.
You cannot change the name of a file whose sta­tus is “Waiting...” or that is being edited with DeskTopBinder.
You cannot change the password of a file whose status is “Waiting...” or that is being edited with DeskTopBinder.
You cannot change the sender's name whose status is “Waiting...” or that is being edited with DeskTopBinder.
You can only cancel files waiting to be sent. You cannot cancel files already sent or currently being sent, files that were sent but did not reach the destina­tion, or files that have been cancelled.
Cancel transmission (“Waiting...” status cleared) or the DeskTopBinder setting, and then change the file name.
Cancel transmission (“Waiting...” status cleared) or the DeskTopBinder setting, and then delete the password.
Cancel transmission (“Waiting...” status cleared) or the DeskTopBinder setting, and then change the user name.
48
When a Message Appears
Message Cause Solution
Connection with the destination has failed. Check the status and connection. To check the current status, press [Scanned Files Status].
Authentication with the destina­tion has failed. Check settings. To check the cur­rent status, press [Scanned Files Status].
Destination(s) or sender name is not specified.
Destination(s) have not been specified.
The correct Network set­tings are not made.
The entered user name or password was invalid.
Destination(s) or sender name is not specified.
Destination(s) have not been specified.
• Check the network settings of the cli­ent computer.
• Check that components such as the LAN cable are connected properly.
• Check that the server settings are correct and the server is working properly.
• Check that the user name and pass­word are correct.
• Check that the ID and password for the destination folder are correct.
• A password of 128 or more charac­ters may not be recognized.
Send e-mail after specifying the destina­tion(s) or sender's name.
Send e-mail after specifying the destination(s).
4
Sender has not been specified.
Exceeded max. E­mail size. Send­ing E-mail has been cancelled. Check [Max. E­mail Size] in Scanner Features.
Sending the data has failed. The data will be re­sent later.
Transmission has failed. To check the current sta­tus, press [Scanned Files Status].
The sender's name was not specified.
The maximum e-mail size has been exceeded.
A network error has oc­curred and a file was not sent correctly.
While a file was being sent, a network error oc­curred and the file could not be sent correctly.
A sender's name should be specified be­fore sending e-mail. Send e-mail after specifying the sender's name.
• Increase the size of [Max. E-mail Size].
•Set [Divide & Send E-mail] to [Yes (per Page)] or [Yes (per Max. Size)].
See “Send Settings”, General Settings Guide.
Wait until sending is retried automatical­ly after the preset interval. If sending fails again, contact the network administrator.
Try the operation once more. If the mes­sage is still shown, the network may be crowded. Contact the administrator. Press [Scanned Files Status] to display the transmission results, and then check which job has not been sent. See “Con­firmation Displays”, Scanner Reference.
49
Troubleshooting When Using the Scanner Function
Message Cause Solution
4
Transmission has failed. Insuffi­cient memory in the destination hard disk. To check the current status, press [Scanned Files Status].
Output buffer is full. Sending the data has been cancelled. Please try again later.
Exceeded max. number of pages per file. Do you want to store the scanned pages as 1 file?
Exceeded maximum number of file to store. Delete all unnecessary files.
Transmission has failed. There was not enough free space on the hard disk of the SMTP server, FTP server, or client com­puter at the destination.
Too many jobs are in standby state, and send­ing was cancelled.
The file being stored has exceeded the max. number of pages for one file.
Too many files are wait­ing to be delivered.
Allocate sufficient space.
Retry sending after sending jobs in standby state completes.
Specify whether to use the data or not. Scan the pages that were not scanned and store them as a new file. See “Stor­ing Files Using the Scanner Function”, Scanner Reference.
Select fewer files for transmission, or de­lete some unneeded files. For details about the number of files that you can store, see “Storage Function”, Scanner Reference.
50
Exceeded max. number of stored files. Cannot send the scanned data as capturing files is unavail­able.
Exceeded max. number of files which can be used in Document Serv­er at the same time.
Entered protec­tion code for destination is incorrect. Please re-enter.
Password entered is not correct. Please re-enter.
Too many files are wait­ing to be delivered.
The maximum number of files that can be stored in the document server has been exceeded.
The correct protect destina­tion code was not entered.
You have entered an in­correct password.
Select fewer files for transmission, or de­lete some unneeded files. For details about the number of files that you can store, see “Storage Function”, Scanner Reference.
Check the files stored, and then delete unneeded files. See “Document Server”, Copy/Document Server Reference or “Storing Files Using the Scanner Func­tion”, Scanner Reference.
Ma ke sure the pr otect ion cod e is co rrect, and then enter it again. See “Registering a Protection Code”, General Settings Guide.
Check the authentication settings, and then enter a correct password.
When a Message Appears
Message Cause Solution
Exceeded max. number of alpha­numeric charac­ters.
Authentication has failed.
The entered path is not correct. Please re-enter.
Captured file ex­ceeded max. number of pages per file. Cannot send the scanned data.
Original is being scanned by anoth­er function. Please wait.
[Copier][Document Serv­er]...
The maximum enterable number of alphanumeric characters has been exceeded.
The entered login user name or login password is incorrect.
The entered path format is incorrect.
The maximum number of pages per file has been exceeded.
The machine is using an­other function such as copying.
Make sure the maximum number of characters which can be entered, and then enter it again. See “Values of Vari­ous Set Items for Transmission/Stor­age/Delivery Function”, Scanner Reference.
Check the login user name and login password. The machine is unable to au­thenticate. Contact an administrator.
Confirm the destination computer and the path, and then enter it again.
Reduce the number of pages in the trans­mitted file, and then resend the file. See “Storage Function”, Scanner Reference.
Retry scanning after the operation with the other function is completed.
4
Original is being scanned by anoth­er function. Switch to the following func­tion, then press the Stop key to cancel scanning or press the Start key to con­tinue.
[Copier][Document Serv­er]...
Specify destina­tion(s) and set original(s).
Specify the next destination, then set original.
The machine is using an­other function such as copying.
Destination(s) is not specified.
The next destination is not specified.
Switch to another function such as Copi­er, Document Server, etc., and then press
{
either the ning or the
Specify destination(s), and then set original(s).
Specify the next destination, and then set original.
Clear/Stop} key to cancel scan-
{
Start} key to continue.
51
Troubleshooting When Using the Scanner Function
Message Cause Solution
4
E-mail address entered is not correct. Please re-enter.
Memory is full. Press [Send] to send the current scanned data, or press [Cancel] to delete.
Memory is full. Cannot scan. The scanned data will be deleted.
Memory is full. Do you want to store scanned file?
The entered e-mail ad­dress is incorrect.
Because there is not enough free hard disk space in the machine for delivering or sending by e-mail while storing in the Document Server, only some of the pages could be scanned.
Because of insufficient hard disk space, the first page could not be scanned.
Because there is not enough free hard disk space in the machine for storing in the Document Server, only some of the pages could be scanned.
Make sure the e-mail address is correct, and then enter it again.
Specify whether to use the data or not.
Try one of the following measures:
• Wait for a while, and then retry the scan operation.
• Reduce the scan area or scanning res­olution. See “Scan Settings”, Scanner Reference.
• Delete unneeded stored files. See “Deleting a Stored File”, Scanner Reference.
Specify whether to use the data or not.
52
No paper. Load paper of one of the following sizes, then press [Start Printing].
A3K, B4K, A4K...
Exceeded max. data capacity.
Set Original Ori­entation to “R” then press the Start key again.
No paper is set in the specified paper tray.
The scanned original was too large, or its ori­entation was not correct.
Load paper of the sizes listed in the message.
Specify the scan size and resolution again. Note that it may not be possible to scan very large originals at a high resolution.
Re-loading the original in a different ori­entation may enable the machine to scan large originals.
See “Relationship between Resolution and Scan Size”, Scanner Reference.
When a Message Appears
Message Cause Solution
Exceeded max. data capaci­ty.Check scanning resolution, then press Start key again.
Exceeded max. page capacity per file. Press
The scanned data ex­ceeded maximum data capacity.
The number of scanned pages exceeded maxi­mum page capacity.
Specify the scan size and resolution again. Note that it may not be possible to scan very large originals at a high reso­lution. See “Relationship between Reso­lution and Scan Size”, Scanner Reference.
Select whether to send the data so far.
[Send] to send the scanned data, or press [Cancel] to delete.
Cannot display preview of this page.
The size of the image you want to preview is larger than A2 (C).
Images larger than A2 (C) cannot be previewed.
Specify A2 (C) or a smaller image, or scan again at A2 (C) or smaller.
Reference
“Turning On the Power”, About This Machine

When a Message Appears on the Client Computer

4
This section explains likely causes of and possible solutions for the main error messages displayed on the client computer when using the TWAIN driver.
Important
If a message not described here appears, act according to the message. For in-
formation about how to turn off the main power switch, see “Turning On the Power”, About This Machine.
Message Cause Solution
Paper misfeed has occurred.
The scanning area does not match the original.
The start posi­tion of the scan­ning area does not match the original.
A paper misfeed has occurred.
The specified area to be scanned differs from the actual scanned area of the original.
The specified area to be scanned differs from the actual scanned area of the original.
Remove jammed originals, and place them again.
Check whether the originals are suitable to be scanned by the machine.
Check the location of the original.
Check the location of the original.
53
Troubleshooting When Using the Scanner Function
Message Cause Solution
4
Standby time reached.
Please call your service represen­tative.
Scanner is not available on the specified device.
Scanner is not available. Check the scanner con­nection status.
Cannot find the scanner. Check the scanner main power switch.
An original was not loaded within the speci­fied time limit.
An unrecoverable error has occurred in the machine.
The TWAIN scanner function cannot be used on this machine.
• The machine's main power switch is off.
• The machine is not connected to the net­work correctly.
The machine's main power switch is off.
Load an original within the time limit specified in [Standby Time].
Contact your service representative.
Contact your service representative.
• Set the main power switch to “On”.
• Check whether the machine is con­nected to the network correctly.
• Deselect the personal firewall func­tion of the client computer.
• Use an application such as telnet to make sure SNMPv1 or SNMPv2 is set as the machine's protocol. See “Network Settings”, General Set­tings Guide and “Using telnet”, Net­work Guide.
Check that the cable is securely plugged into the power outlet and the machine. Set the main power switch to “On”.
Error has oc­curred on the scanner. Scanning will be can­celled.
Fatal error has occurred in the scanner.
Scanner is not ready. Check the scanner and the options.
The application-speci­fied scan conditions have exceeded the setting range of the machine.
An unrecoverable error has occurred on the machine.
The original cover is open.
Check whether the scanning settings made with the application exceed the setting range of the machine.
An unrecoverable error has occurred in the machine. Call your service representative.
Check whether the original cover is closed.
54
When a Message Appears
Message Cause Solution
Insufficient mem­ory.Reduce the scanning area.
Error has oc­curred within the scanner driver.
Scanner is in use by another func­tion.
Scanner memory is insufficient.
An error has occurred in the driver.
A function of the ma­chine other than the scanner function is being used such as the copier function.
• Reset the scan size.
• Lower the resolution.
• Set with no compression. See TWAIN Driver help.
The problem may be due to the follow­ing cause:
• “The Relationship between the Reso­lution and the Scanning Area” chart in Help for halftone scanning might not always apply. Scanning cannot be performed if large values are set for brightness when using halftone or high resolution.
• Check whether the network cable is connected correctly to the client computer.
• Check whether the Ethernet board of the client computer is recognized correctly by Windows.
• Check whether the client computer can use the TCP/IP protocol.
Wait for a while and reconnect.
4
Insufficient mem­ory. Reduce reso-
The computer does not have enough memory.
lution, original size, or scanning area.
No User Code is registered. Con-
Access is restricted with user codes.
sult your system administrator.
Any of Login User Name, Login Pass­word or Driver Encryption Key is
The entered login user name, password, or driv­er encryption key was invalid.
incorrect.
Reference
“Turning On the Power”, About This Machine
Reduce the resolution or size of scan­ning. Alternately, try scanning again af­ter closing any other applications in use.
Contact the administrator of the machine.
• Check the login user name, login password, and driver encryption key.
• Permission to use this function has not been granted. Contact the administrator.
55
4
Troubleshooting When Using the Scanner Function
56

5. Adding Paper and Toner

R
R
R
R
This chapter explains troubleshooting procedures that are applicable to all the machine's functions.

Loading Paper

This section explains what to do when paper runs out and needs reloading.
CAUTION:
Be careful when replacing the roll paper or removing misfed paper by follow­ing the operating instructions properly. Otherwise, an injury may result from the paper cutter inside.
CAUTION:
The fusing section of this machine might be very hot. Caution should be tak­en when removing misfed paper.
CAUTION:
When replacing or loading the paper roll, do not put the paper roll on the upper of the paper roll tray. Otherwise the tray may fall and an injury may result.
Hold the paper rolls horizontally with both hands. When you grab the paper holder and hold the paper roll vertically, the paper roll may fall off and an in­jury may result.
CAUTION:
When replacing or loading the paper, or clearing paper jams, pull out the cut paper tray slowly with both hands. Do not pull out the cut paper tray with a single hand. Otherwise the rear of the cut paper tray may fall and an injury may result.
Important
When removing paper rolls, lift the paper holders on either side of the paper
roll before removing. Do not lift one side only. This could damage the machine.
ATJ012S
57
5
Adding Paper and Toner
Note
If the original hanger (optional) is installed, remove it before pulling out the
paper roll tray or cut paper tray.
For paper types and sizes that can be loaded in the paper roll tray and cut pa-
per tray, see “Recommended Paper Sizes and Types”, About This Machine.
For details about changing the paper size in the paper roll tray or cut paper
tray, see “Changing the Paper Size”.
To load paper in the bypass tray, see “Copying from the Bypass Tray”,
Copy/Document Server Reference.
Reference
p.61 “Changing the Paper Size”
“Recommended Paper Sizes and Types”, About This Machine
“Copying from the Bypass Tray”, Copy/Document Server Reference
58

Loading the Paper Roll

The following procedure explains loading the paper roll.
Loading Paper
5
ATK003S
Note
When you use the printer function, set the paper volume again after loading
the paper roll. See “Tray Paper Settings”, General Settings Guide.
When you change the paper size or paper type, make the paper size or type
settings under System Settings. See “Tray Paper Settings”, General Settings Guide.
59
5
Adding Paper and Toner
Reference
“Tray Paper Settings”, General Settings Guide

Loading Cut Paper

The following procedure explains loading cut paper.
Note
Fan the paper before loading.
Straighten curled or warped paper before loading.
Extend the side-end fences when changing to a larger paper size such as A3.
See “Changing the Paper Size in the Cut Paper Tray”.
Reference
p.63 “Changing the Paper Size in the Cut Paper Tray”
60
ATK004S

Changing the Paper Size

Changing the Paper Size
This section explains how to change a paper size.
Procedures for changing the paper size differ depending on the tray. Make sure you are following the appropriate procedure before you begin.
Note
Be sure to select the paper size with System Settings. If you do not, misfeeds
might occur. See, “Tray Paper Settings”, General Settings Guide.
For details about paper sizes and types, see “Copy Paper”, About This Machine.
Reference
“Copy Paper”, About This Machine
“Tray Paper Settings”, General Settings Guide

Changing the Paper Size in the Paper Roll Tray

The following procedure explains how to change a paper size in the paper roll tray.
Removing the roll holder
The following procedure explains removing the roll holder.
Important
Always follow the instructions below when adjusting the roll holder. Do not
force the roll holder by pulling or sliding it strongly. This could damage it.
ATK005S
5
61
5
Adding Paper and Toner
Setting the roll holder
The following procedure explains setting the roll holder.
ATK006S
Note
For procedures about loading the paper, see “Loading Paper”.
Confirm paper width using the paper roll tray's scale.
Reference
p.57 “Loading Paper”
62
Changing the Paper Size

Changing the Paper Size in the Cut Paper Tray

The following procedure explains how to change a paper size in the cut paper tray.
5
ATK007S
Note
This procedure is required for loading A3K, B4 JISK, 11" × 17"K, or 12" × 18"K
size paper.
If you want to load A4K, 8
When you change the paper size or paper type, make the paper size or type
settings under System Settings. See “Tray Paper Settings”, General Settings Guide.
Fan the paper before loading.
Straighten curled or warped paper before loading.
Reference
p.60 “Loading Cut Paper”
“Tray Paper Settings”, General Settings Guide
1
/2" × 11"K paper sizes, see “Loading Cut Paper”.
63
5
R
R
R
R
R
R
R
Adding Paper and Toner

Adding Toner

This section explains adding and storing toner.
WARNING:
Do not incinerate used toner or toner containers. Toner dust might ig­nite when exposed to an open flame. Dispose of used toner containers in accordance with local regulations.
CAUTION:
Keep toner (used or unused) and toner containers out of reach of children.
CAUTION:
If toner or used toner is inhaled, gargle with plenty of water and move into a fresh air environment. Consult a doctor if necessary.
CAUTION:
If toner or used toner gets into your eyes, flush immediately with large amounts of water. Consult a doctor if necessary.
CAUTION:
If toner or used toner is swallowed, dilute by drinking a large amount of wa­ter. Consult a doctor if necessary.
CAUTION:
Avoid getting toner on your clothes or skin when removing a paper jam or replacing toner. If your skin comes into contact with toner, wash the affected area thoroughly with soap and water.
If toner gets on your clothing, wash with cold water. Hot water will set the toner into the fabric and may make removing the stain impossible.
CAUTION:
Do not open toner containers forcefully. Toner can spill, dirtying your clothes or hands, and possibly resulting in accidental ingestion.
Important
Fault may occur if you use toner other than the recommended type.
When adding toner, do not turn off the operation switch. If you do, settings
will be lost.
Always add toner when the machine instructs you.
When a message “
cable toner.
DAdd Toner” is shown on the display, replace the appli-
Store toner containers in a cool, dry place free from direct sunlight.
Store on a flat surface.
64
Adding Toner
Note
You can check name of the required toner name and the replacement proce-
dure using the “
Press [System Status] to check contact number where you can order supplies.
See “Checking Machine Status and Settings”.
Reference
p.5 “Checking Machine Status and Settings”
DAdd Toner” screen.

Inserting Toner

The following describes how to replace toner.
Important
Do not shake the removed toner cartridge. The remaining toner might scatter.
5
ATK008S
Note
The waste toner bottle makes a noise when toner is added. This noise does not
indicate a malfunction.
65
5
Adding Paper and Toner

Sending Scanned Documents When Toner Has Run Out

When the machine has run out of toner, the indicator on the display lights. Note that even if there is no toner left, you can still send scanned documents.
A Make sure that the machine is in scanner mode. B Press [Exit], and then perform transmission operation.
The error message disappears.
Note
If the scanner screen does not appear in step A, press the {Scanner} key.

Used Toner

Toner cannot be re-used.
Bring the stored used container to your sales or service representative for recy­cling through our recycling system. If you discard it on your own, treat it as gen­eral plastic waste material.
66

6. Clearing Misfeeds

R
R
R
R
This chapter explains what to do when paper or originals misfeed (become jammed inside the machine).

Removing Jammed Paper

CAUTION:
The fusing section of this machine might be very hot. Caution should be tak­en when removing misfed paper.
CAUTION:
Be careful when replacing the roll paper or removing misfed paper by follow­ing the operating instructions properly. Otherwise, an injury may result from the paper cutter inside.
CAUTION:
When replacing or loading the paper, or clearing paper jams, pull out the cut paper tray slowly with both hands. Do not pull out the cut paper tray with a single hand. Otherwise the rear of the cut paper tray may fall and an injury may result.
CAUTION:
Keep your hands clear of the paper exit area and the inside of the folding finisher. You can trap your fingers if you do not.
Important
When clearing misfeeds, do not turn off the operation switch. If you do, your
settings will be lost.
To prevent misfeeds, do not leave any torn scraps of paper inside the machine.
Contact your service representative if misfeeds occur frequently.
Note
For details about how to locate and remove misfeeds, see “Locating Jammed
Paper” or “Removing Jammed Paper”.
On the original cover, paper output exit cover, or paper roll tray, there is a
sticker explaining how to remove misfed paper.
Reference
p.68 “Locating Jammed Paper”
p.69 “Removing Jammed Paper”
67
6
Clearing Misfeeds

Locating Jammed Paper

If a misfeed happens, remove the misfed paper or original by following the procedures shown on the diagrams on the original cover, paper output exit cover, or paper roll tray.
A misfeed has occurred in the place corresponding to the letter displayed on the control panel.
ATK009S
A Press the key of the section from where you want to remove the jammed paper.
B After each step is complete, press [Next]. To go back to the previous step,
press [Previous].
C When all jammed paper are removed, restore the machine to the original state.
Note
More than one misfeed may be indicated. When this happens, check all the
areas indicated.
68

Removing Jammed Paper

Removing Jammed Paper
The following procedure explains how to remove jammed paper.
Important
The internal parts of the machine may be hot. Wait for the fusing unit to cool
down before clearing a paper jam in the unit.
When removing jammed paper from the fusing section, touch only the areas
explicitly specified in this manual.
Do not remove the fusing unit. Doing so can result in reduced print quality.
Note
On the original cover, paper output exit cover, or paper roll tray, there is a
sticker explaining how to remove misfed paper.
If a detailed removal instruction appears on the right of the screen, follow it.
You can also use the procedure indicated in [System Status] to remove jammed
paper.
When A1 is lit
6
ATK010S
69
Clearing Misfeeds
When A2 is lit
6
ATK011S
70
When B is lit
When C is lit
Removing Jammed Paper
ATK012S
When P is lit
6
ATK013S
ATK014S
71
Clearing Misfeeds
When N1 - N7 is lit
When N1 is lit
ATK015S
6
When N3 is lit
ATK016S
When N5 is lit
ATK017S
72
When N7 is lit
Removing Jammed Paper
ATK018S
6
73
Clearing Misfeeds
6
74

7. Remarks

R
R
R
This chapter describes how to maintain and operate the machine.

Where to Put Your Machine

This section provides precautions for installation, movement and disposal.

Machine Environment

Choose your machine's location carefully.
Environmental conditions greatly affect its performance.
Moving
The following describes precautions when moving the machine.
CAUTION:
Contact your service representative if you need to lift the machine (such as when relocating it to another floor). Do not attempt to lift the machine without the assistance of your service representative. The machine will be damaged if it topples or is dropped, resulting in malfunction and risk of injury to users. The machine's various handling areas are for service engineer use only. Do not touch these areas.
CAUTION:
Before moving the machine, be sure to disconnect all external connections, especially the power cord from the wall outlet. Damaged power cords are a fire and electric shock hazard.
CAUTION:
Unplug the power cord from the wall outlet before you move the machine. While moving the machine, you should take care that the power cord will not be damaged under the machine.
Important
Be careful when moving the machine. Take the following precautions:
• Turn off the main power.
• Unplug the power cord from the wall outlet. When you pull out the plug from the socket, grip the plug to avoid damaging the cord, thereby reduc­ing the risk of fire or electric shock.
• Close all covers and trays, including the front cover and bypass tray.
Keep the machine level and carry it carefully, taking care not to jolt or tip it.
Rough handling may cause a malfunction or damage the hard disk or mem­ory, resulting in loss of stored files.
75
Remarks
R
R
R
Do not take off the holding stand.
Protect the machine from strong shocks. Impact can damage the hard disk
and cause stored files to be lost. As a precautionary measure, files should be copied to another computer.
Note
For details about how to turn the main power off, see “Turning On the Pow-
er”, About This Machine.
Reference
“Turning On the Power”, About This Machine
Optimum environmental conditions
The following describes precautions when locating the machine.
CAUTION:
Keep the machine away from humidity and dust. Otherwise a fire or an elec­tric shock might occur.
Do not place the machine on an unstable or tilted surface. If it topples over, an injury might occur.
7
CAUTION:
After you move the machine, use the caster fixture to fix it in place. Other­wise the machine might move or come down to cause an injury.
CAUTION:
Make sure the room where you are using the machine is well ventilated and spacious. Good ventilation is especially important when the machine is used heavily.
• Temperature: 10 - 30 °C (50 - 86 °F)
• Humidity: 15 - 90%
• A strong and level base.
• The machine must be level within 5 mm, 0.2 inches: both front to rear and left to right.
• To avoid possible buildup of ozone, make sure to locate this machine in a large well ventilated room that has an air turnover of more than 30 m
3
/hr/person.
76
Where to Put Your Machine
Environments to avoid
• Locations exposed to direct sunlight or other sources of strong light (more than 1,500 lux).
• Locations directly exposed to cool air from an air conditioner or heated air from a heater. (Sudden temperature changes can cause condensation to form inside the machine.)
• Locations close to machines generating ammonia, such as a diazo copy machine.
• Places where the machine will be subject to frequent strong vibration.
•Dusty areas.
• Areas with corrosive gases.
Access to the machine
Place the machine near the power source, providing the clearance areas shown.
Clearance required for the machine only
ATK019S
1. Rear: 60 cm (23.6") or more
2. Right: 60 cm (23.6") or more
Clearance required for the machine and the optional folding finisher
ATK020S
1. Rear: 100 cm (39.4") or more
3. Front: 100 cm (39.4") or more
4. Left: 60 cm (23.6") or more
3. Front: 100 cm (39.4") or more
7
2. Right: 80 cm (31.5") or more
4. Left: 80 cm (31.5") or more
77
Remarks
R
R
R
R

Power Connection

The following explains power supply.
WARNING:
Connect the machine only to the power source described on the inside front cover of this manual. Connect the power cord directly into a wall outlet and do not use an extension cord.
Do not damage, break or make any modifications to the power cord. Do not place heavy objects on it. Do not pull it hard nor bend it more than necessary. These actions could cause an electric shock or fire.
WARNING:
If the power cord is damaged (exposure of the core, disconnection, etc.), contact your service representative to change a new one. Oper­ating the machine with a damaged power cord may cause an electric shock or fire.
CAUTION:
When you disconnect the power plug from the wall outlet, always pull the plug (not the cable).
7
CAUTION:
To disconnect the power code, pull it out by plug. Do not drag the code itself. Doing so may result in damage to the code, leading to fire or electric shock.
• When you unplug the power cord, the anti-condensation heaters go off.
• Make sure the plug is inserted firmly in the wall outlet.
• Voltage must not fluctuate by more than 10%.
• The wall outlet shall be installed near the machine and shall be easily accessible.
78

Maintaining Your Machine

Maintaining Your Machine
If the exposure glass, or platen plate is dirty, copy clarity may be reduced. Clean these parts if they are dirty.
Important
Do not use chemical cleaners or organic solvents, such as thinner or benzene.
If such substances get inside the machine or melt plastic parts, a failure might occur.
Do not clean parts other than those explicitly specified in this manual. Other
parts should only be cleaned by your service representative.
How to maintain
Cleaning the machine: Wipe the machine with a soft, dry cloth. If this does not remove the dirt, wipe the machine with a damp and tightly wrung cloth. If a damp cloth still does not remove the dirt, try using a mild detergent. Wipe the machine with a dry cloth to remove the moisture, after using a damp cloth.

Cleaning Inside the Original Cover

If you open the original cover, you can access the exposure glass and original feed mechanism.
A Open the original cover while holding it on both sides.
ATJ038S
B Wipe the exposure glass with soft, dry cloth.
7
ATJ039S
79
Remarks
C Wipe the platen plate with a soft, dry cloth.
ATJ040S
D Wipe the original feed guides with a soft, dry cloth.
7
ATJ041S
E Close the original cover gently.
ATJ042S
Note
If there is paper dust or fluff inside, remove it.
80
Maintaining Your Machine

Cleaning the Main Unit

Clean off toner that may have collected on the imaging area.
Important
Do not leave the main unit more than 10 minutes, otherwise copy quality may
deteriorate.
A Lift the main unit opening levers on either side and open the main unit.
ATJ043S
B Wipe it with a soft, dry cloth.
ATJ044S
C Close the main unit cover gently.
7
81

INDEX

A
Access to the machine, 77 Adding Paper Adding Paper and Toner Adding Toner Alert Messages
, 57
, 57
, 64
, 31
C
Cannot Browse the Network to
Send a Scan File Cannot Make Clear Copies Cannot Make Copies As Wanted Cannot Print Cannot Send Scanned Files Changing the Paper Size Changing the Paper Size in the
Cut Paper Tray Changing the Paper Size in the
Paper Roll Tray Checking Machine Status and Settings Checking the Error Log Cleaning Inside the Original Cover Cleaning the Main Unit Clearing Misfeeds Combine Copy Function
, 23
, 44
, 20
, 23
, 34
, 44
, 61
, 63
, 61
, 33
, 81
, 67
, 17
D
Data Storage, 5 Document Server
, 9
E
Edit, 23 Environment Environments to avoid Error Log
, 75
, 77
, 33
F
Folding finisher, 23, 37 Function Compatibility
, 14
H
How to Read This Manual, 1
, 79
, 5
I
If prints are not clear, 37 If USB Connection Fails Indicators Indicator to the Right of a Function Key Is Lit Inquiry Inserting Toner
, 3
, 5
, 65
, 29
J
Job Is Not Performed, 14
L
Loading Cut Paper, 60 Loading Paper Loading the Paper Roll Locating Jammed Paper
, 57
, 59
, 68
M
Machine Address Info, 5 Machine Does Not Operate As Wanted Machine Environment Maintaining Your Machine Maintenance Info Manuals for This Machine Memory Is Full Message Appears Message Appears During Installation of
the Printer Driver Message Appears on the Client Computer Message Appears on the Control Panel Moving Multi-accessing
, 75
, 26
, 75
, 79
, 5
, i
, 17, 30, 46
, 27
, 14
N
Names of Major Options, 2 Network Delivery Function Cannot Be Used
O
Operations Are Not Possible When
Messages Appear Optimum environmental conditions Other Printing Problems
, 45
, 37
, 8
, 3
, 53 , 46
, 45
, 76
82
P
T
Panel Tone, 4 Power Connection Printer Function Problems Operating the Machine Put Your Machine
, 78
, 27
, 75
R
Remarks, 75 Removing Jammed Paper Removing the roll holder
, 67, 69
, 61
S
Scanner Function, 43 Scanning Is Not Done As Expected Sending Scanned Documents When
Toner Has Run Out Setting the roll holder Status Messages Stored Files Cannot Be Accessed Stored Files Cannot Be Edited Symbols
, 1
, 66
, 62
, 30
, 45
, 9
, 43
, 44
Toner, 64 TWAIN TWAIN Driver Cannot Be Started
, 44, 53
U
Used Toner, 66
W
When A1 is lit, 69 When A2 is lit When B is lit When C is lit When N1 is lit When N3 is lit When N5 is lit When N7 is lit When paper does not feed in properly When P is lit When printer driver settings are required Windows 2000 Windows 95/98/Me Windows NT 4.0 Windows Server 2003 Windows XP Home Edition Windows XP Professional
, 70
, 71
, 71
, 72 , 72 , 72 , 72
, 71
, 27
, 27
, 27
, 28
, 28
, 28
, 44
, 37
, 37
83
84 EN USA B286-7757
In accordance with IEC 60417, this machine uses the following symbols for the main power switch:
a means POWER ON. c means STAND BY.
In accordance with IEC 60417, this machine uses the following symbols for the anti-humidity heater switch:
a means POWER ON. b means POWER OFF.
Trademarks
Microsoft
®
, Windows® and Windows NT® are registered trademarks of Microsoft Corporation in the
United States and/or other countries.
TrueType is registered trademarks of Apple Computer, Inc.
®
Adobe
, PostScript®, Acrobat®, are registered trademarks of Adobe Systems Incorporated.
Other product names used herein are for identification purposes only and might be trademarks of their respective companies. We disclaim any and all rights to those marks.
The proper names of the Windows operating systems are as follows:
The product name of Windows
The product name of Windows
The product name of Windows
®
95 is Microsoft® Windows® 95
®
98 is Microsoft® Windows® 98
®
Me is Microsoft® Windows® Millennium Edition (Windows Me)
The product names of Windows® 2000 are as follows:
Microsoft
Microsoft
®
Windows® 2000 Advanced Server
®
Windows® 2000 Server
Microsoft® Windows® 2000 Professional
The product names of Windows
Microsoft
®
Windows® XP Professional
®
XP are as follows:
Microsoft® Windows® XP Home Edition
The product names of Windows Server
Microsoft
®
Windows Server® 2003 Standard Edition
®
2003 are as follows:
Microsoft® Windows Server® 2003 Enterprise Edition
Microsoft
The product names of Windows NT
®
Windows Server® 2003 Web Edition
®
are as follows:
Microsoft® Windows NT® Server 4.0
Microsoft
®
Windows NT® Workstation 4.0
Copyright © 2007
Operating Instructions Troubleshooting
Type for 2404WD/GWD2004/LW324/Aficio MP W2400 Type for 2406WD/GWD2006/LW326/Aficio MP W3600
EN USA B286-7757
Loading...
