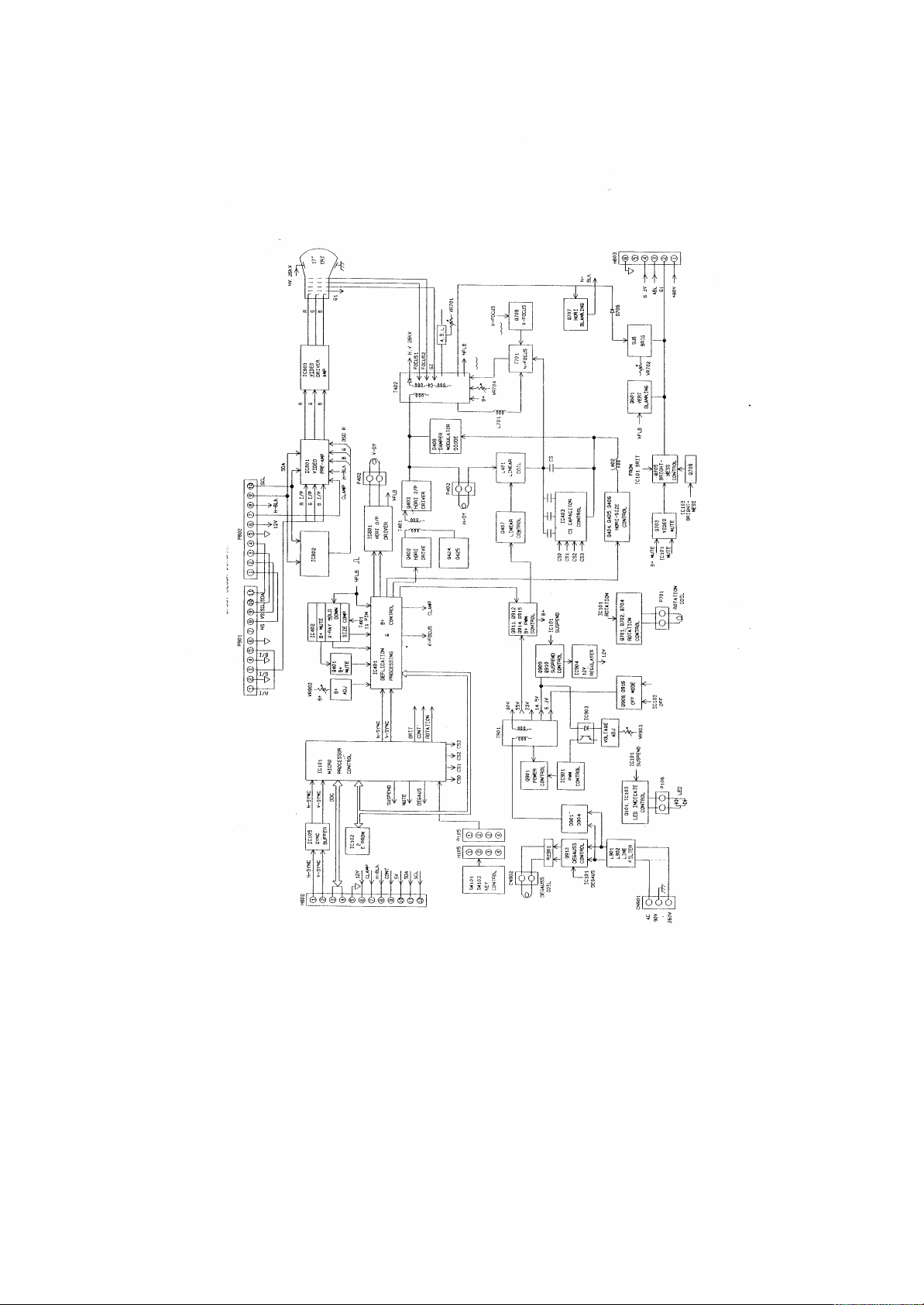

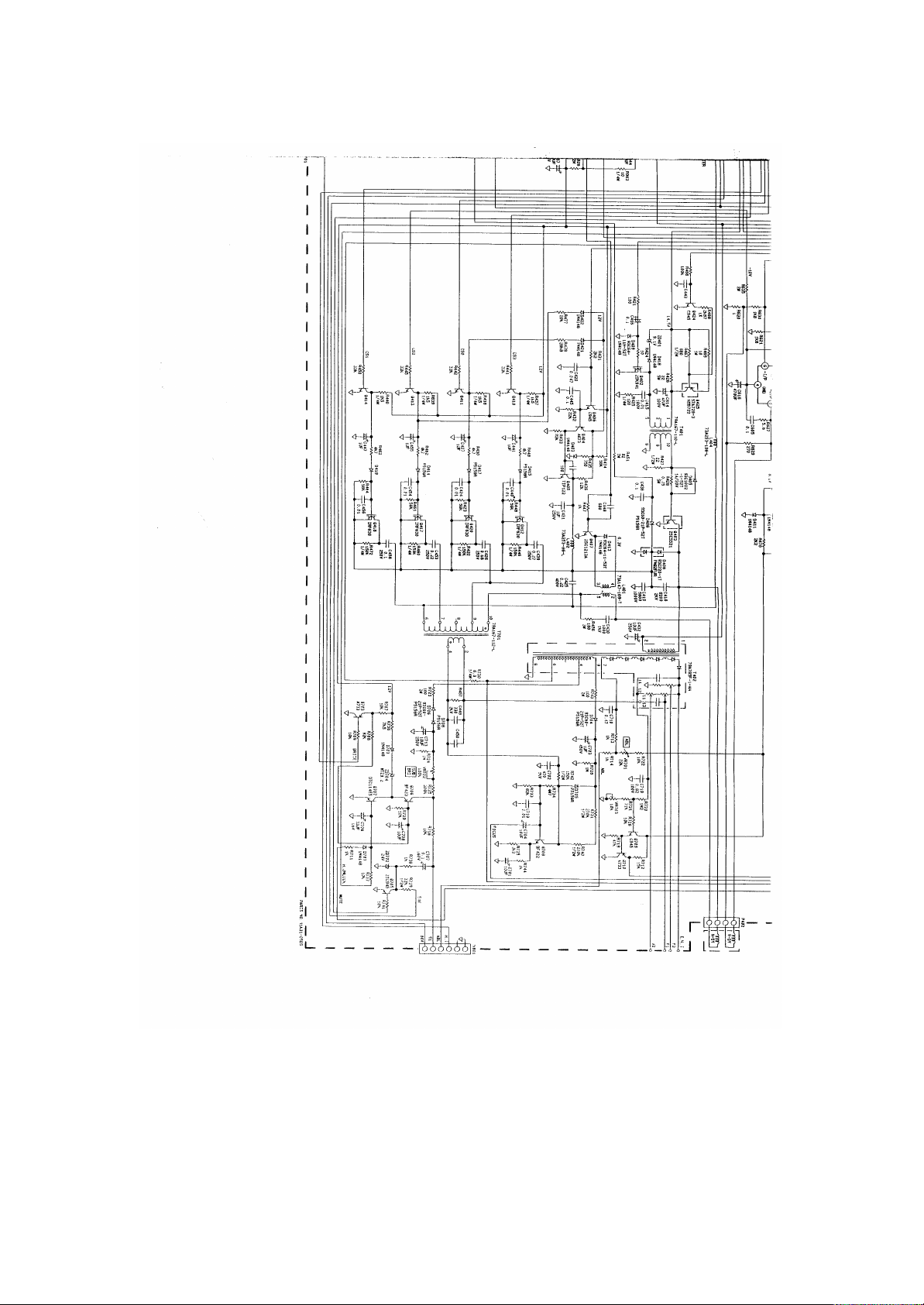

AOC 7vlr, 7vlra Diagram

Your Work Never Looked Better

7Vlr/7Vlr+

7VlrA/7VlrA+

USER MANUAL
TABLE OF CONTENTS	ENGLISH
FOR YOUR SAFETY --------------------------------------------------	1
SAFETY PRECAUTIONS --------------------------------------	2 DEUTSCH
BEFORE YOU OPERATE THE MONITOR ----------------------	3
FEATURES --------------------------------------------------------	3 FRANÇAIS
PACKING LIST ---------------------------------------------------	3
INSTALLATION INSTRUCTIONS ---------------------------	3
CONTROLS AND CONNECTORS --------------------------	4 ESPAÑOL
OPERATING INSTRUCTIONS -------------------------------------	5
GENERAL INSTRUCTIONS ----------------------------------	5 ITALIANO
HOW TO ADJUST A SETTING ------------------------------	7
ADJUSTING THE PICTURE ----------------------------------	7
POWER MANAGEMENT FEATURE -----------------------	9
PLUG AND PLAY ------------------------------------------------	10
TECHNICAL SUPPORT(FAQ) -------------------------------------	12
APPENDIX ---------------------------------------------------------------	13
SPECIFICATIONS --------------------------------------------	13-14
FACTORY PRESET TIMING TABLE ----------------------	15
CONNECTOR PIN ASSIGNMENT -------------------------	15
LIMITED THREE-YEAR WARRANTY -------------------------	16-17

Thank you very much for choosing the AOC Color Monitor.

We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe place for you future reference.

Plug & Play Drivers for the AOC Spectrum Series Monitors are available

at AOC’s Web Site: www.aoc-europe.com

Before operating the monitor please read this manual thoroughly. This manual should be retained for future reference.

FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1.Reorient or relocate the receiving antenna.

2.Increase the separation between the equipment and receiver.

3.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4.Consult the dealer or an experienced radio/TV technician for help.

NOTICE

1.The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

2.Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

3.The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.

As an ENERGY STARâ Partner AOC International has determined that this product meets the ENERGY STARâ guidelines for energy efficiency.

WARNING :

To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.

1

PRECAUTIONS

•Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.

•Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.

•Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a radiator or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided.

•The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

•The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.

•Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.

•Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

•Never push any object into the slot on the monitor cabinet. It could short circuit parts causing a fire or electric shock. Never spill liquids on the monitor.

•Do not attempt to service the monitor yourself; opening or removing covers can expose you to dangerous voltages and other hazards. Please refer all servicing to qualified service personnel.

•To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V AC, Min. 2.5A.

2

BEFORE YOU OPERATE THE MONITOR

FEATURES

∙43.2cm(17”) Color Monitor

∙Crisp, Clear Display for Windows

∙Supports Resolutions up to 1280 5 1024

∙Power Management

∙Ergonomic Design (MPR II Approved)

∙Space Saving, Compact Case Design

CHECKING THE CONTENTS OF THE MONITOR PACKAGE

The product package should include the following items:

1.Monitor

2.Owner's Manual

3.Power Cord

4.Swivel Base

5.Audio Cable/DC Power Cable ( For 7VlrA/7VlrA+ only )

INSTALLATION INSTRUCTIONS

.

To attach the swivel base to the monitor, do the following:

∙Carefully turn the monitor on its side or upside down. ( see figure 1 )

∙Locate the cavities at the bottom front of the monitor.

∙Insert the pegs on the swivel base into these cavities. Push the swivel base forward until the swivel base locks in place.

∙To remove the swivel base, hold the bottom of the swivel base, then push it out.

Install	Remove	Install	Remove
7Vlr/7Vlr+			7VlrA/7VlrA+
Figure 1 Installing and Removing the Swivel Base

3

POWERCORD

Power Source:

1.Make sure the power cord is the correct type that required in your area.

2.This monitor has a universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area ( No user adjustment is required. )

3.Connect the power cord into your monitor’s power input socket, and then plug the other end into a 3-pin AC power outlet. The power cord may be connected to either a wall power outlet or the power outlet socket on your PC, depending on the type of power cord supplied with your monitor.

CONTROLS AND CONNECTORS

VIDEO CABLE

Connecting the Video Cable: the monitor comes with a built-in video cable. Plug the signal cable′s 15-pin connector into the computer's video port and tighten the two screws on the cable connector. (see figure 2)

Connecting the Power Cord: Plug the power cord into the monitor's AC power socket. Then plug the power cord into a grounded AC outlet or ULapproved power strip or the power output socket on your PC.

Caution: If the AC outlet is not grounded, install the proper grounding adapter (not supplied).

Connecting the Audio Cable ( 7VlrA/7VlrA+ only ): Plug audio cable between the computer multi-media (or sound) card's audio output and monitor's audio input.

Connecting the DC Power Cable ( 7VlrA/7VlrA+ only ): Plug DC power cable between monitor to swivel base for audio power

1

2

7Vlr/7Vlr+ Figure 2

3

5

4

7VlrA/7VlrA+ Connecting Cables

1.	Power Cord	4.	PC Audio Output
2.	Signal Cable	5.	DC Output
3.	VGA Card Adapter

4

OPERATING INSTRUCTIONS

GENERAL INSTRUCTIONS

The other control knobs are located at the base of the monitor (See Figure 3). By changing these settings, the picture can be adjusted to your personal preferences.

∙The power cord should be connected.

∙Connect the video cable from the monitor to the video card.

∙To turn the monitor on, press the POWER switch to ON position. The power indicator will light up.

∙Your monitor features a unique quick switch system which provides a picture within seconds after the monitor is switched on.

1	4
2	3
	7Vlr/7Vlr+

1

2

3

4

5	8
6	7
7VlrA/7VlrA+

	Figure 3	External Control		Knob
EXTERNAL CONTROLS
	7Vlr/7Vlr+		7VlrA/7VlrA+
1.	OSD	1.	OSD		5.	Earphone Jack
2.	Shuttle Knob	2.	Shuttle Knob		6.	Volume
3.	Standby Power	3.	Standby Power		7.	Audio Power Indicator
	ON/OFF Switch		ON/OFF Switch
4.	Power Indicator	4.	Power Indicator		8.	Audio Power ON/OFF

5

FRONT PANEL CONTROL

∙Standby power key :

When pressed, the monitor enters the off mode, and the LED turns orange. Press again and hold to restore normal status.

∙Shuttle Knob :

The Shuttle Knob is used to control the monitor functions. Rotate to switch functions or adjust settings. Press to select or execute a function .

∙OSD Key :

The OSD Key is used to activate the OSD window, or to exit the OSD window and save the settings.

∙Power Indicator :

Green — Power On mode.

Orange — Stand-by mode, Suspend mode, or Off mode.

SWIVEL BASE CONTROL (7VlrA/7VlrA+ ONLY ) :

∙Audio Power

ON or OFF Audio Power

∙Power Indicator

Green — Audio Power ON.

∙Volume

Adjustable Audio volume.

NOTES

∙Do not install the monitor in a location near heat sources such as radiators or air ducts , or in a place subject to direct sunlight , or excessive dust or mechanical vibration or shock.

∙Save the original shipping carton and packing materials, as they will come in handy if you ever have to ship your monitor.

∙For maximum protection, repackage your monitor as it was originally packed at the factory.

∙To keep the monitor looking new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before cleaning it.

6

HOW TO ADJUST A SETTING

1.Press the Shuttle Knob or OSD Key to make the OSD window appear. See figure 4.

2.Rotate the Shuttle Knob to select the desired function. See figure 4.

3.Press the Shuttle Knob again to select the function that you want to adjust.

4.Rotate the Shuttle Knob to change the settings of the current function.

5.When the OSD window is active, it shows the input signal timing. The "H" stands for the horizontal frequency and "V" for the vertical frequency.

6.To exit and save, either press the OSD Key, select the exit function, or leave the monitor alone for 10 seconds. If you want to adjust any other function, repeat steps 2-4.

H: 68.8KHz		V: 85Hz

Contrast

70

9300

6500

Figure 4 The OSD Message

ADJUSTING THE PICTURE

The description for function control LEDS

1.	CONTRAST	Adjust the picture contrast.
2.	BRIGHTNESS	Adjust the picture brightness.
3.	H- CENTER	Adjust the horizontal position of the picture.
4.	H- SIZE	Adjust the picture’s horizontal size.
5.	V- CENTER	Adjust the vertical position of the picture.

7

	6.	V- SIZE	Adjust the picture’s vertical size.
	7.	ZOOM	Adjust	the	picture’s horizontal			and vertical
			size simultaneously.
	8.	PINCUSHION	Adjust the pincushion and barrel
	9.	TRAPEZOID	Adjust the picture’s trapezoid distortion.
	10.	PIN-BALANCE	Adjust to compensate the pincushion
			unbalance.
	11.	PARALLELOGRAM	Adjust the picture to be a rectangle.
	12.	ROTATION	Adjust the picture tilt to horizontal position.
	13.	6500°K/9300°K	The	color	temperature		for	6500°K	is
		( COLOR	x=0.313, y=0.329 and 9300°K is x=0.281,
		TEMPERATURE )	y=0.311. It presents two different color sets
			on the screen. You can select 9300°K or
			6500°K by pressing the Shuttle Knob.
	14.	USER COLOR	If the	9300°K		normal	white	or 6500°K
		( Red / Blue )	warmer white do not satisfy your desire,
			properly adjust R . B GAIN controls to obtain
			your optimum whiteness level.
	15.	DEGAUSS	If color impurity			occurs	when	moving	or
			swiveling the monitor, press the Shuttle Knob
			and degauss to fix the picture condition.
	16.	MOIRE REDUCE	Moire is the result of interference between
			the phosphor layout and the video signal. In
			some cases, you may find the moire very
			noticeable. Press the Shuttle Knob to enter in
			the moire reduce setting. Please adjust the
			level to the optimum condition. Note: Too
			high of a setting			will cause the picture			to
			shake.
	17.	RECALL	Press RECALL to restore the monitor to
			factory settings.
	18.	EXIT	Close OSD window.

8
