user manual
Dishwasher
ESI 66050
We were thinking of you when we made this product
117972840 - 122007
electrolux 3
Welcome to the world of Electrolux
You’ve chosen a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. Electrolux ambition is to offer a wide variety of quality products that would make your life even more comfortable. You can look at some examples on the cover in this manual. But now it’s time to study this manual and start using and enjoying the benefits from your new machine. We promise that it’ll make your life a little easier. Good luck!
The following symbols are used in this user manual:
Important information concerning your personal safety and information on how to avoid damaging the appliance.
General information and tips
Environmental information
4 electrolux |
|
|
|
Contents |
|
|
|
Safety information |
5 |
Unloading the dishwasher |
24 |
Product description |
7 |
Washing programmes |
24 |
Control panel |
8 |
Care and cleaning |
26 |
First use |
10 |
What to do if… |
28 |
Set the water softener |
10 |
Technical data |
31 |
Use of dishwasher salt |
12 |
Hints for test institutes |
31 |

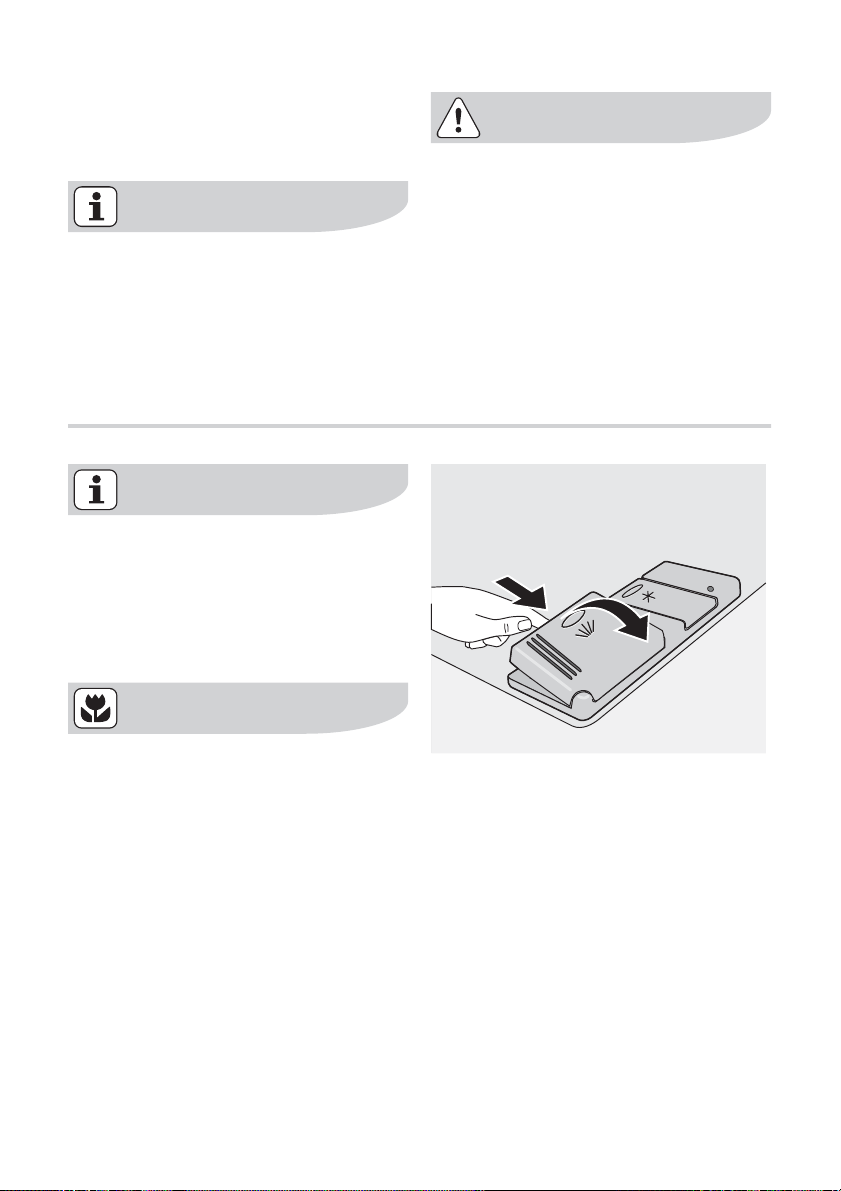

Use of rinse aid |
13 |
Installation |
32 |
Daily use |
14 |

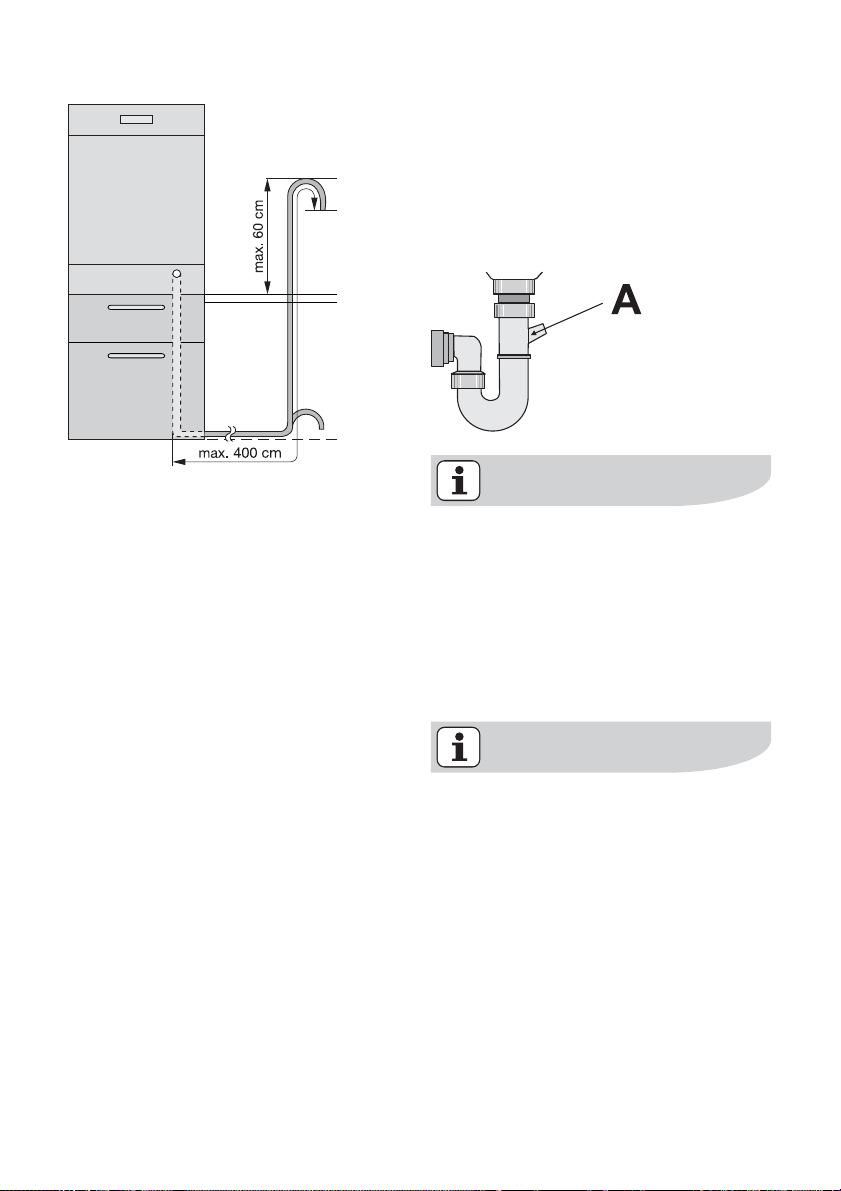

Water connection |
33 |

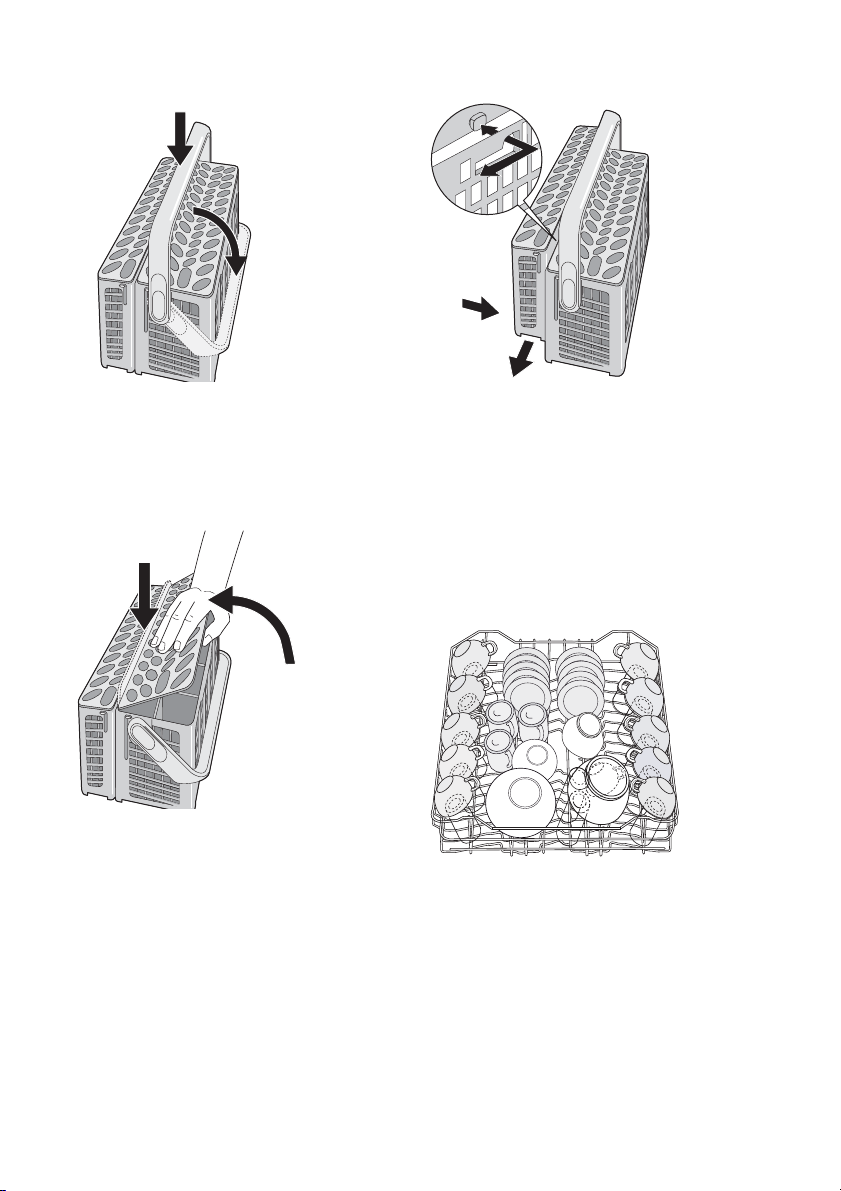

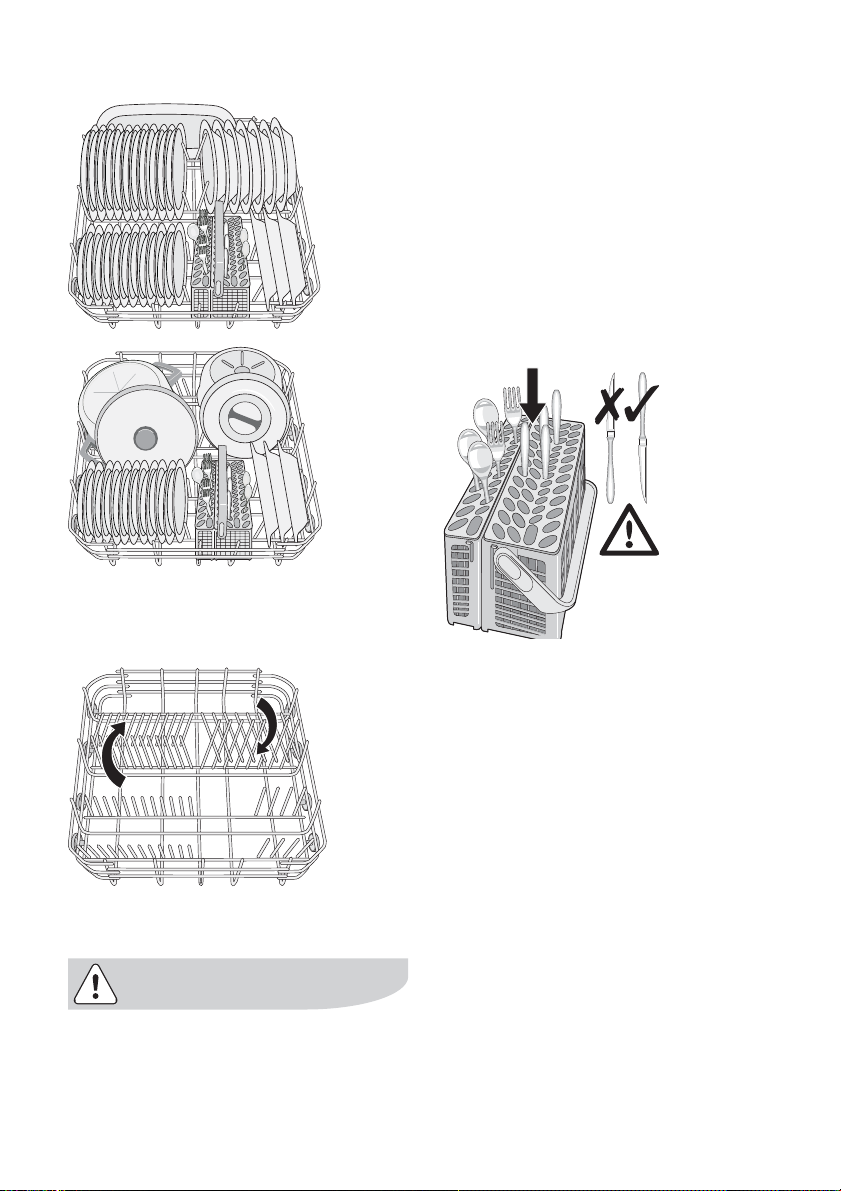

Load cutlery and dishes |
15 |
Electrical connection |
36 |

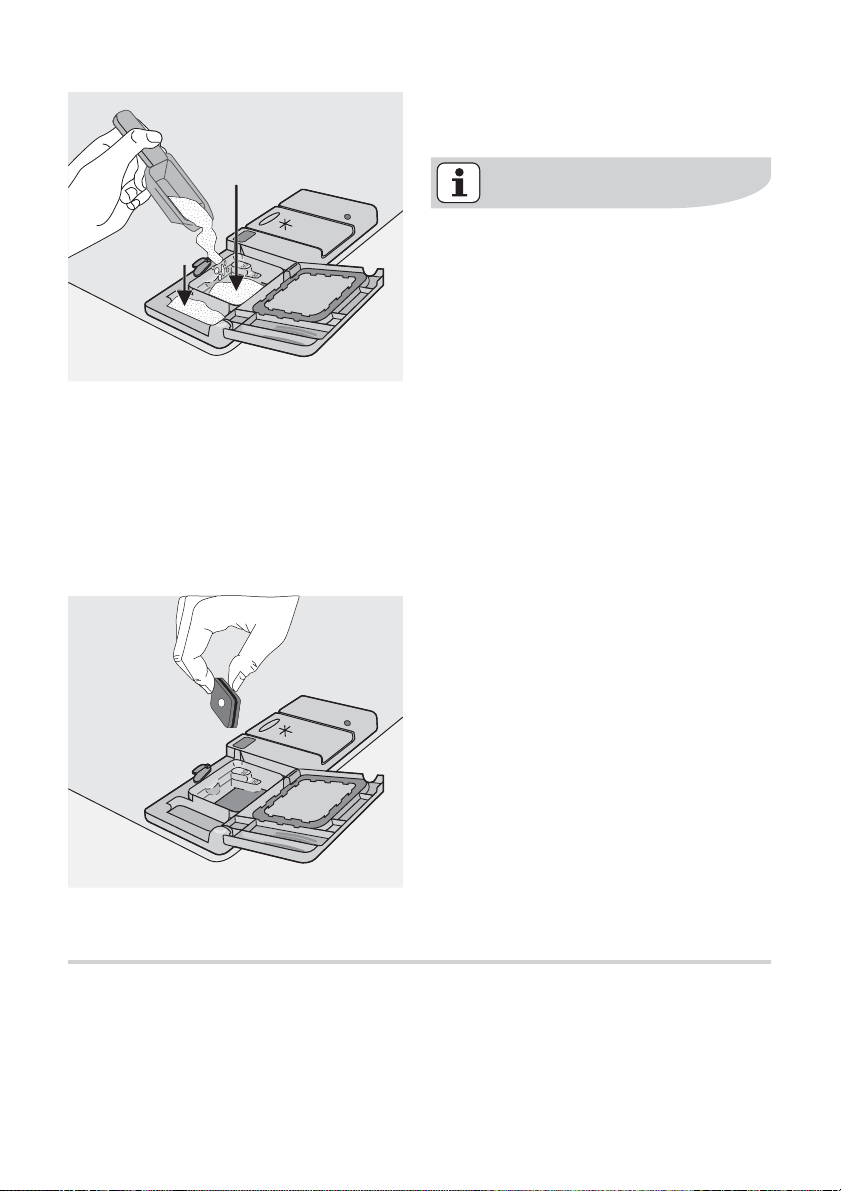

Use of detergent |
19 |
Environment concerns |
36 |
Multi-tab function |
20 |
|
|
Select and start a washing |
|
|
|
programme |
22 |
|
|
Subject to change without notice
safety information electrolux 5
Safety information
In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.
Correct use
•This dishwasher is only intended for washing household utensils suitable for machine washing.
•Do not put any solvents in the dishwasher. This could cause an explosion.
•Knives and other items with sharp points must be loaded in the cutlery basket with their points down or placed in a horizontal position in the upper basket.
•Only use products (detergent, salt and rinse aid) suitable for dishwashers.
•Avoid opening the door whilst the appliance is in operation, hot steam may escape.
•Do not take any dishes out of the dishwasher before the end of the washing cycle.
•After use, isolate the appliance from the power supply and turn off the water supply.
•This product should be serviced only by an authorized service engineer, and only genuine spare parts should be used.
•Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons could cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.
General safety
•Dishwasher detergents can cause chemical burns to eyes, mouth and throat. Could endanger life! Comply with the safety instructions of the dishwasher detergent manufacturer.
•The water in your dishwasher is not for drinking. Detergent residues may still be present in your machine.
•Ensure that the door of the dishwasher is always closed when it is not being loaded or unloaded. In this way you will avoid anybody tripping over the open door and hurting themselves.
•Do not sit or stand on the open door.
6 electrolux safety information
Child safety
•This appliance is designed to be operated by adults. Do not allow children to use the dishwasher unsupervised.
•Keep all packaging well away from children. There is a risk of suffocation.
•Keep all detergents in a safe place out of children’s reach.
•Keep children well away from the dishwasher when the door is open.
Installation
•Check your dishwasher for any transport damage. Never connect a damaged machine. If your dishwasher is damaged contact your supplier.
•All packaging must be removed before use.
•Any electrical and plumbing work required to install this appliance must be
carried out by a qualified and competent person.
•For safety reasons it is dangerous to alter the specifications or attempt to modify this product in any way.
•Never use the dishwasher if the electrical supply cable and water hoses are damaged; or if the control panel, work top or plinth area are damaged such that the inside of the appliance is freely accessible. Contact your local Service Force centre, in order to avoid hazard.
•All sides of the dishwasher must never be drilled to prevent damage to hydraulic and electric components.
For electrical and water connection carefully follow the instructions given in the specific paragraphs.
product description electrolux 7

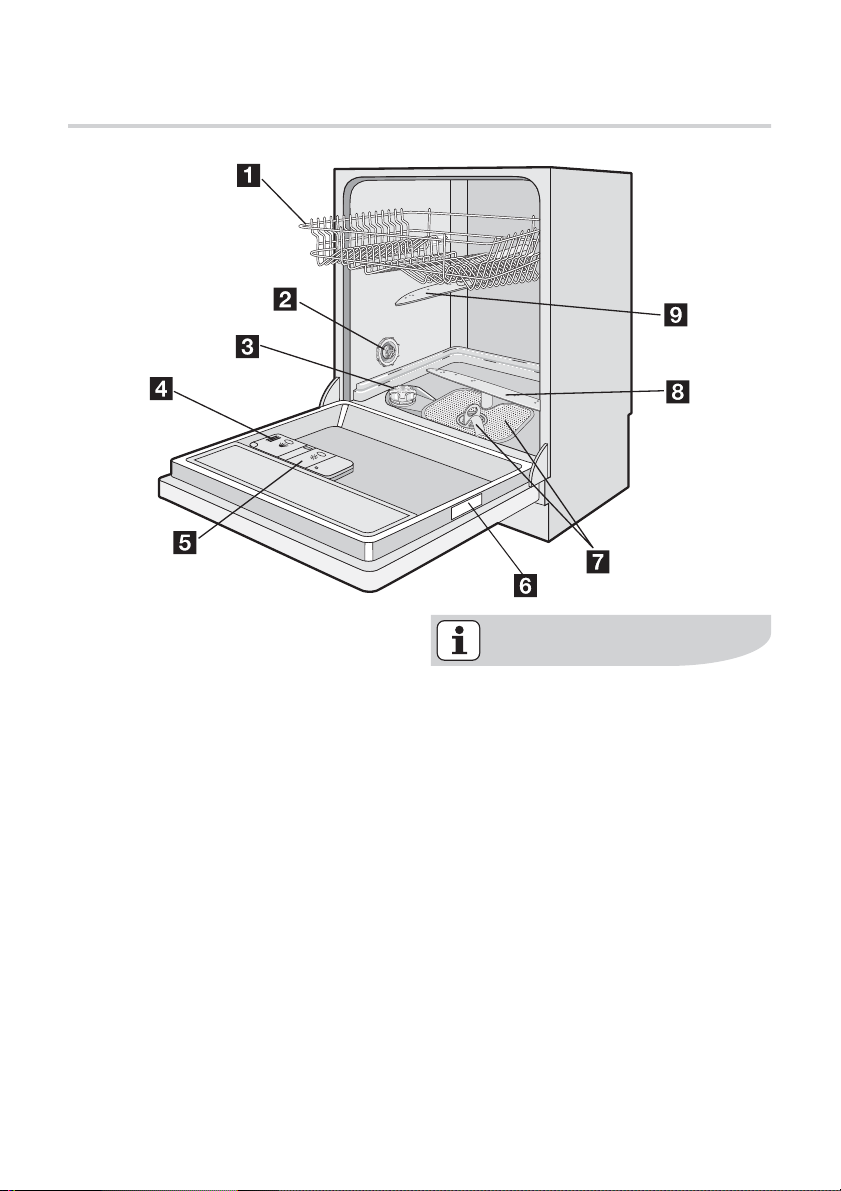

Product description
1.Upper basket
2.Water hardness dial
3.Salt container
4.Detergent dispenser
5.Rinse aid dispenser
6.Rating plate
7.Filters
8.Lower spray arm
9.Upper spray arm
This dishwasher has an internal light that turns on when the door opens and off when it closes.
Internal light equipped with led lamp CLASS 1 in accordance with EN 60825-1: 1994 + A1:2002 + A2:2001. In case this light has to be replaced please contact your local Service Force Centre.
8 electrolux control panel

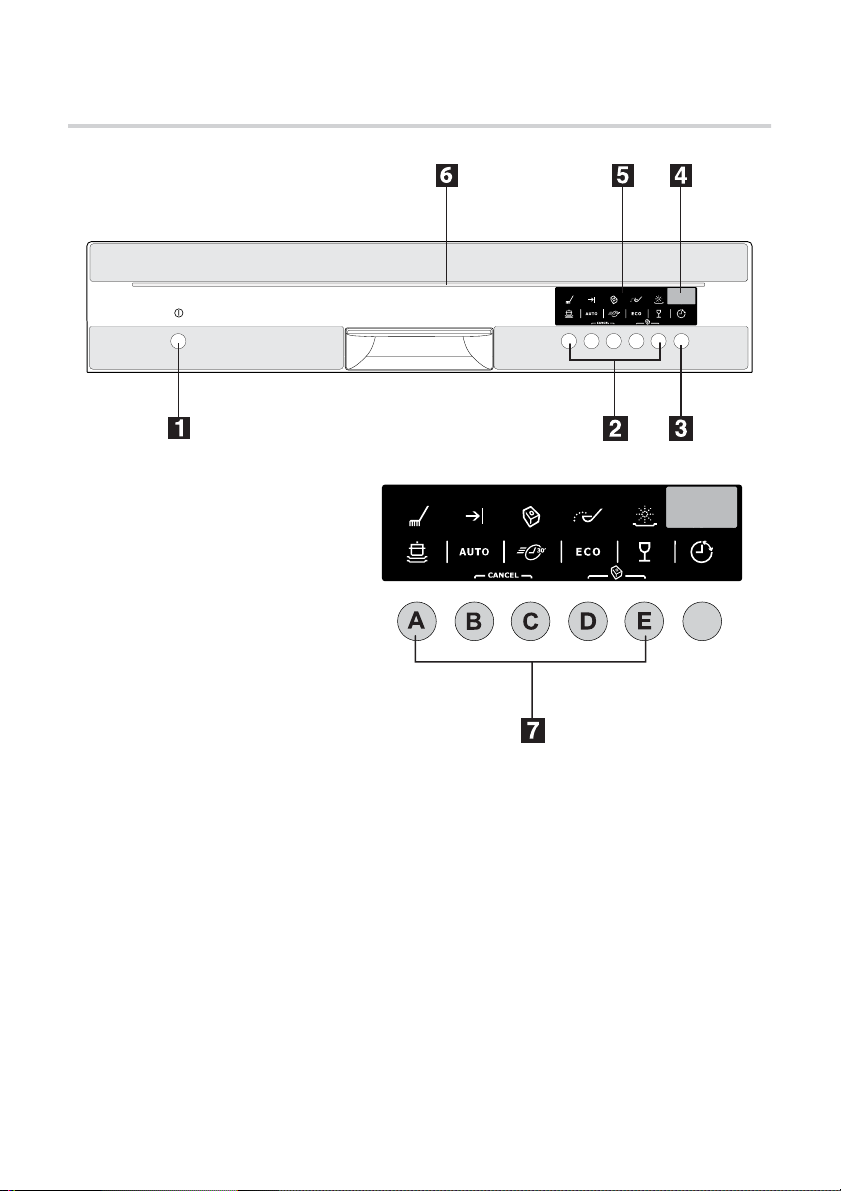

Control panel
1.On/Off button
2.Programme selection buttons
3.Delay start button
4.Digital display
5.Indicator lights
6.Light bar
7.Function buttons
Light bar
•comes on when the appliance is switched on,
•goes off when the appliance is switched off.
The digital display
The digital display indicates:
•the level of hardness to which the water softener is set,
The light bar:
• the approximate remaining time of the running programme,
•activation/deactivation of the rinse aid dispenser (ONLY with "Multitab function active"),
•the end of a washing programme (a zero will appear in the digital display),
•the countdown for the delay start,
•fault codes concerning malfunction of the dishwasher.
control panel electrolux 9
•setting the water softener level,
•cancelling a washing programme or a delay start in progress,
•activation/deactivation of the Multitab function,
•activation/deactivation of the rinse aid dispenser when Multitab function is active.
Function buttons
The following functions can be set using these buttons:
|
Indicator lights |
|
Programme in progress |
|
Comes on when a washing programme |
|
|
is set and remains on for all the duration |
|
|
of the washing programme. |
|
|
Goes off when the washing programme |
|
|
has ended. |
End |
|
Comes on when a washing programme |
|
|
has ended. |
|
|
|
Multitab function |
|
Indicates the activation/deactivation of |
|
|
the "Multitab function" (see "Multitab |
|
|
function"). |
Salt |
|
Comes on when the special salt has run |
1) |
|
out. |
|
|
|
Rinse aid |
|
Comes on when the rinse aid has run |
1) |
|
out. |
|
|
|
1)The salt and rinse aid indicator lights never come on while a washing programme is running even if filling with salt and/or rinse aid is necessary.
Setting mode
Press the On/Off button; if ALL programme button lights come on the appliance is in setting mode.
10 electrolux first use
Always remember that when performing the following operations:
–selecting a washing programme,
–setting the water softener level,
–activating/deactivating the rinse aid,
the appliance MUST be in setting mode.
Press the On/Off button; if a programme button light comes on the last performed
or selected programme is still set. In this case, to return to setting mode, the programme has to be cancelled.
To cancel a set programme or a programme in progress
Simultaneously press and hold the two Cancel buttons (Cancel) (function buttons B and C) until all the programme button lights come on. The programme has been cancelled and the machine is now in setting mode.
First use
Before using your dishwasher for the first time:
•Ensure that the electrical and water connections comply with the installation instructions
•Remove all packaging from inside the appliance
•Set the water softener level
•Pour 1 litre of water into the salt container and then fill with dishwasher salt
• Fill the rinse aid dispenser
If you want to use combi detergent tablets such as: ''3 in 1'', ''4 in 1'', ''5 in 1'' etc... set the Multitab function. (See ''Multitab function'').
Set the water softener
The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance.
The higher the content of these minerals and salts, the harder your water is. Water hardness is measured in equivalent scales, German degrees (dH°), French degrees (°TH) and mmol/l (millimol per
set the water softener electrolux 11
litre - international unit for the hardness of water).
The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.
The water softener must be set in two ways: manually, using the water hardness dial and electronically.
|

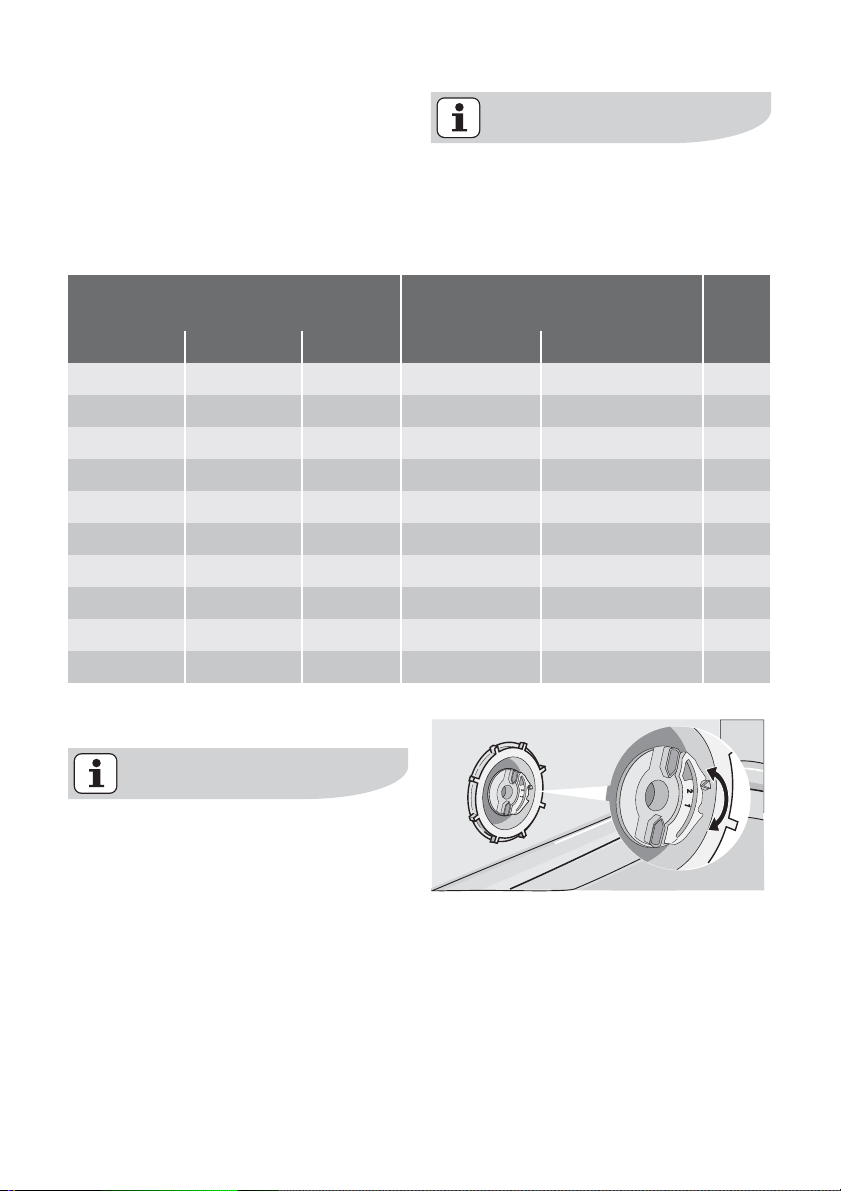

Water hardness |
|
Adjusting the water hardness |
|
Use |
||||||
|
|
|
setting |
|
of |
||||||
|
|
|
|
|
|
|
|
||||
°dH |
|
|
°TH |
|
mmol/l |
manually |
|
|
electronically |
|
salt |
|
|
|
|
|
|
|
|||||
51 - 70 |
|
|
91 - 125 |
9,1 - 12,5 |
2 |
|
|
level 10 |
|
yes |
|
43 - 50 |
|
|
76 - 90 |
|
7,6 - 9,0 |
2 |
|
|
level 9 |
|
yes |
37 - 42 |
|
|
65 - 75 |
|
6,5 - 7,5 |
2 |
|
|
level 8 |
|
yes |
29 - 36 |
|
|
51 - 64 |
|
5,1 - 6,4 |
2 |
|
|
level 7 |
|
yes |
23 - 28 |
|
|
40 - 50 |
|
4,0 - 5,0 |
2 |
|
|
level 6 |
|
yes |
19 - 22 |
|
|
33 - 39 |
|
3,3 - 3,9 |
2 |
|
|
level 5 |
|
yes |
15 - 18 |
|
|
26 - 32 |
|
2,6 - 3,2 |
1 |
|
|
level 4 |
|
yes |
11 - 14 |
|
|
19 - 25 |
|
1,9 - 2,5 |
1 |
|
|
level 3 |
|
yes |
4 - 10 |
|
|
7 - 18 |
|
0,7 - 1,8 |
1 |
|
|
level 2 |
|
yes |
< 4 |
|
|
< 7 |
|
< 0,7 |
1 |
|
|
level 1 |
|
no |
|
|
|
|
|
|
|
|
|
|
|
|
Setting manually
The dishwasher is factory set at position 2.
1.Open the dishwasher door.
2.Remove the lower basket from the dishwasher.
3.Turn the water hardness dial to position 1 or 2 (see chart).
4.Replace the lower basket.
12 electrolux use of dishwasher salt
Setting electronically
The dishwasher is factory set at level 5.
1.Press the On/Off button. The dishwasher must be in setting mode.
2.Simultaneously press and hold function buttons B and C, until the lights of function buttons A, B and C start flashing.
3.Press function button A, the lights of function buttons B and C go off while the light of function button A continues to flash. The current level shows on the digital display.
Examples:
displayed = level 5 displayed = level 10
4.To change the level, press function button A. Each time the button is pressed the level changes. (For the selection of the new level see the chart)..
Examples: If the current level is 5, by pressing function button A once, level 6 is selected. if the current level is 10, by pressing function button A once, level 1 is selected.
5.To memorise the operation, switch off the dishwasher by pressing the On/Off button.
Use of dishwasher salt
Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. Only fill with salt just before starting one of the complete washing programmes. This will prevent any grains of salt or salty water, which may have been spilt, remaining on the bottom of the machine for any period of time, which may cause corrosion.

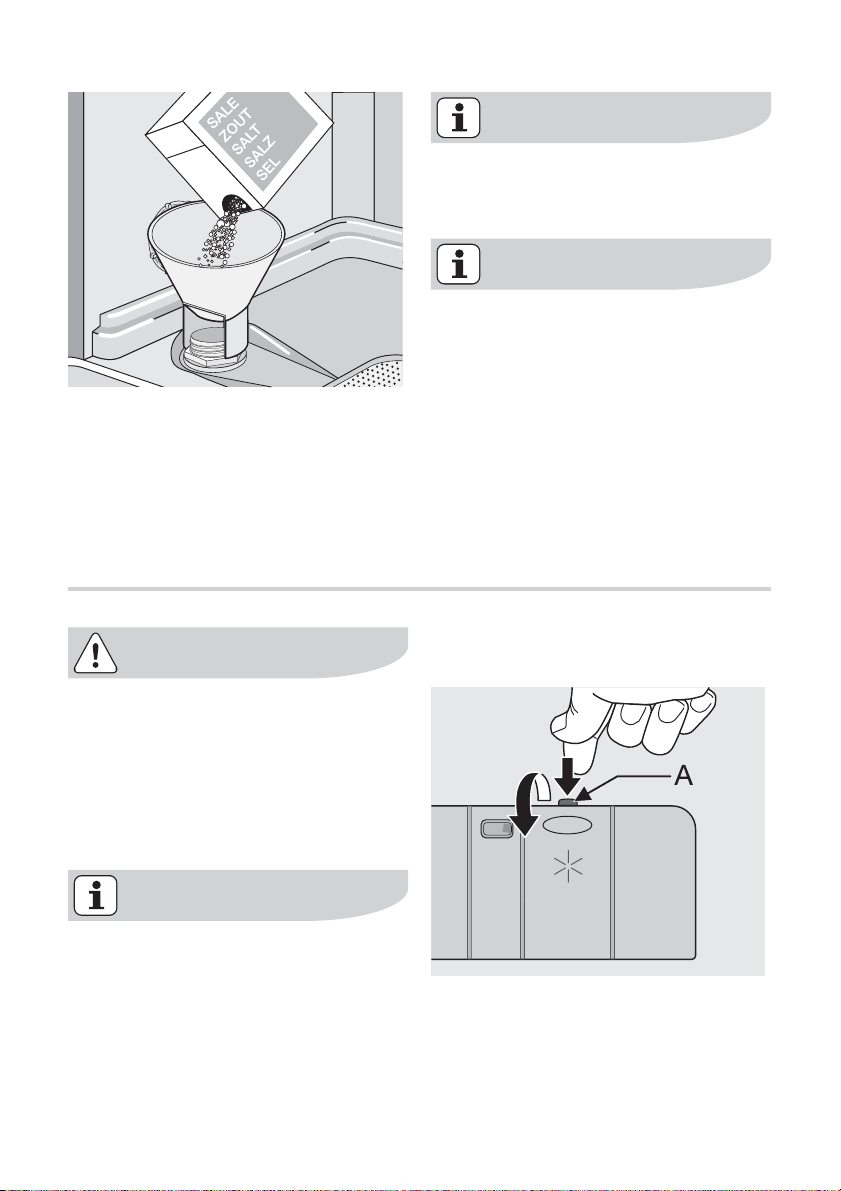

To fill:
1.Open the door, remove the lower basket and unscrew the cap of the
salt container by turning it anticlockwise.
2.Pour 1 litre of water inside the container (this is necessary only before filling with salt for the first time) .
3.Using the funnel provided, pour in the salt until the container is full.
