Operating Guide | Warranty
Model Numbers | C27V22 | C32V22 | C36V22 | HDTV Monitors
© Copyright 2002, Zenith Electronics Corporation
RECORD YOUR MODEL NUMBER
The model and serial number of your Entertainment MachineTM are located on the back of the TV cabinet. For your future convenience, we suggest that you record these numbers here:
Model No._________________________
Serial No. __________________________
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
POWER CORD POLARIZATION:
CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.
ATTENTION: P
correspondante de la prise et pousser jusqu’au fond.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.
REGULATORY INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product.
COMPLIANCE:
The responsible party for this product’s compliance is:
Zenith Electronics Corporation, 2000 Millbrook Drive, Lincolnshire, IL 60069, USA • Phone: 1-847-941-8000.
our éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne
IMPORTANT SAFETY INSTRUCTIONS
Important safeguards for you and your new product
Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future reference.
Observing the simple precautions discussed in this operating guide can help you get many years of enjoyment and safe operation that are built into your new product.
This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards Association.
1. Read Instructions
All the safety and operating instructions should be read before the product is operated.
2. Follow Instructions
All operating and use instructions should be followed.
3. Retain Instructions
The safety and operating instructions should be retained for future reference.
4. Heed Warnings
All warnings on the product and in the operating instructions should be adhered to.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. Water and Moisture
Do not use this product near water for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.
7. Accessories, Carts, and Stands
Do not place this product on a slippery or tilted surface, or on an unstable cart, stand, tripod, bracket, or table. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
8. Transporting Product
A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
PORTABLE CART WARNING
206-3706 2-WR-POLZ
9. Attachments
Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
11. Power Sources
This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home,
consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
12. Power Cord Polarization
This product is equipped with a polarized alternating - current power plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
13. Power Cord Protection
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
(Continued on next page)
P A G E 3
IMPORTANT SAFETY INSTRUCTIONS
(Continued from previous page)
14nductors,. OutdoorlocationAntennaof Grounding
If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code (U.S.A.), ANSI/ NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding co
antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
Ground Clamp
|
|
Antenna Lead in Wire |
|
|
|
|
|
Antenna Discharge Unit |
|
|
(NEC Section 810-20) |
|
|
Grounding Conductor |
Electric Service |
|
(NEC Section 810-21) |
|
|
|
Equipment |
|
Ground Clamps |
|
|
|
|
|
Power Service Grounding |
|
|
Electrode System (NEC |
|
|
Art 250, Part H) |
NEC - National Electrical Code
15. Lightning
For added protection for this product (receiver) during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
16. Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. Overloading
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
18. Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
19. Servicing
Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a.If the power-supply cord or plug is damaged.
b.If liquid has been spilled, or objects have fallen into the product.
c.If the product has been exposed to rain or water.
d.If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e.If the product has been dropped or the cabinet has been damaged.
f.If the product exhibits a distinct change in performance.
21. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
22. Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
23. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as recommended by the manufacturer. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the product.
24. Heat
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
P A G E 4 |
3-WireRev6/00 |
|
Table of Contents
Refer to the information below to hook up external equipment and set up the features on your Entertainment Machine
Step 1. Hook up external equipment and antenna or cable service wires to the TV. Install batteries in the remote control. After all connections have been made, plug your TV into standard household power, see pages 7 thru 14.
Step 2. Go to page 18 to EZ program the TV.
Step 3. Set up all other TV options see pages listed below.
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Safety Information . . . . . . . . . . . . . . . . . . . . 3 - 4
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Step 1. Hook Up TV |
|
Connection Panel Overview . . . . . . . . . . . . . . . . . . . . |
. . . . 6 |
Equipment Connection Options |
|
Antenna, Install batteries in remote control . . . . . . . . . . |
. . . . 7 |
Cable Service, Install batteries in remote control . . . . . . |
. . . . 8 |
Antenna with VCR, Install batteries in remote control . . . |
. . . . 9 |
Cable Service with VCR, Install batteries in remote control |
. . . 10 |
S-VHS VCR, Install batteries in remote control . . . . . . . . |
. . . 11 |
DVD Component Video Hookup . . . . . . . . . . . . . . . . . . |
. . . 12 |
High-Definition Hookup . . . . . . . . . . . . . . . . . . . . . . . |
. . . 13 |
High-Definition/RGB Hookup . . . . . . . . . . . . . . . . . . . . |
. . . 14 |
Audio/Video Signal Output . . . . . . . . . . . . . . . . . . . . . |
. . . 15 |
Front Panel Controls/Inputs . . . . . . . . . . . . . . . . . . . . |
. . . 16 |
Remote Control Key Functions in TV mode . . . . . . . . . . . |
. . . 17 |
Step 2. Reception Setup and Channel Search |
|
EZ Program: Select Cable service or Air Antenna |
|
and run channel search . . . . . . . . . . . . . . . . . . . . . |
. . . 18 |
On-Screen Menu Operation with Remote . . . . . . . . . . . . |
. . . 19 |
On-Screen Menus/Displays Overview . . . . . . . . . . . . . . . |
20 - 21 |
Other Functions and On-Screen Displays . . . . . . . . . . . . |
. . . 22 |
Step 3. Customize the TV’s Features
Setup Menu (Start with page 18, EZ Program)
Add/Del/Surf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 EZ Clock Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Captions (Caption/Text) . . . . . . . . . . . . . . . . . . . . . . . . 25 Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Video Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . 29 |
Contrast, Brightness, Color, Tint, Sharpness, Color Temp: . . . . |
|
(Cool, Warm), EZ Picture: (Custom, Normal, Movie, Digital |
|
Pres, Video Game, Sports, Night Time, Weak Signal). |
|
Video Sub Menu, Aspect Ratio and other settings |
. . . . . . 30 |
Audio Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . 31 |
Bass, Treble, Balance, Audio Mode: (Stereo, Mono, SAP), |
|
EZ Bass Front Surround, EZ SoundRite, Speakers, EZ Sound: |
|
(Custom, Normal, Stadium, News, Music, Theater). |
|
Lock (Parental Control Menu) . . . . . . . . . . . . . . . |
32 - 33 - 34 |
Restricts viewer programming. |
|
Special Menu |
|
EZ Timer: Sleep Timer . . . . . . . . . . . . . . . . . . . |
. . . . . . 35 |
EZ Timer: On/Off Timer Functions . . . . . . . . . . . |
. . . . . . 36 |
Channel Labels . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . 37 |
XDS Display . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . 38 |
PIP Menu (Setup PIP picture appearance) . . . . . |
. . . . . . 39 |
Source Sense . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . 40 |
Source Hookup Options . . . . . . . . . . . . . . . . . |
. . . . . . 41 |
EZ Demo (On-screen menus overview) . . . . . . . . |
. . . . . . 42 |
PIP (Picture-in-Picture) . . . . . . . . . . . . . . . . . . . |
. . . 43 - 44 |
Remote Control Programming |
|
Set up remote to operate other devices . . . . . . . |
. . . . . . 45 |
Amplifier Volume Override . . . . . . . . . . . . . . . . |
. . . . . . 46 |
Aux 1 -2 -3 . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . 47 |
AutoFind . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . 48 |
Programming Product Brand Codes . . . . . . . . . . |
. . . 49 - 50 |
Remote Modes Key Functions . . . . . . . . . . . . . . |
. . . . . . 51 |
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . 52 |
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . |
53 - 54 - 55 |
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . 56 |
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
57 - 58 - 59 |
Zenith Warranty . . . . . . . . . . . . . . . . . . . . . . . . |
. Back Cover |
Note: Design and specifications are subject to change without prior notice.
206-3594 |
P A G E 5 |
|
“Source” Connection Panel Overview
To hook up source equipment,see below and also |
|
refer to the Table of Contents on page 5; shows |
|
pages to go to for equipment hookup options. Also, |
TV Back |
see the front connections panel source’s hookup |
|
options on page 16. |
|
After you have finished hooking up your source equipment, go to page 18 and use
EZ Program to search for and find all the available channels in your area.
HD IN
Y
DVD IN
Y
Pr
Pr
ANTENNA
CABLE
ANTENNA/CABLE
Use to hookup your antenna or cable system. See pages 7, 8, 9, 10, 11.
RGB
Pb
Pb
R |
R |
AUDIO |
AUDIO |
L
L
VIDEO 1 |
VIDEO 2 |
MONITOR |
|||||
IN |
OUTPUT |
||||||
IN |
|||||||
|
|
|
|
||||
S-VIDEO 1 |
S-VIDEO 2 |
|
|||||
|
|
|
|
|
|
|
|
VIDEO |
VIDEO |
VIDEO |
R |
R |
|
R |
AUDIO |
|
AUDIO |
AUDIO |
|
|
|
|
L |
L |
|
L |
MONO |
|
MONO |
|
|
|
|
HD-RGB INPUT
Connect HD-RGB here.
RGB Format: EDTV Set top Box 640 x 480p
RGB Format: HDTV Set top Box 1920 x 1080i
HD IN
Connect progressive scan or high-definition component video equipment here.
Progressive Scan DVD, 480p EDTV Set top Box, 480p HDTV Set top Box, 1080i
DVD IN
Connect a standard component video equipment or DVD player here.
DVD Player, 480i SDTV Set top Box, 480i
VIDEO 1 IN VIDEO 2 IN
Connect your Audio/Video or S-Video equipment to these jacks.
See pages 9, 10, 11.
VIDEO / R - L AUDIO OUT
Use these output jacks to connect external audio/video equipment.
See page 15.
P A G E 6 |
206-3808 |
Hook Up an Off-Air Antenna
Connect an off-air antenna
1 |
Locate the Antenna/Cable jack on the back of |
|
your Entertainment Machine. |
2 |
Connect the wire that runs from the wall |
|
directly to this jack, according to one of the |
|
diagrams to the right. |
3 |
Remove the back of the remote and put in two |
|
“AAA” batteries. |
|
Back of |
|
Remote |
Typical
TV Back
Antenna
ANTENNA
CABLE
Flat Wire (300 ohm)
300/75 ohm Adapter
4 Plug in your TV. Do not plug it into an outlet controlled by a switch. Your Entertainment Machine is designed to operate on standard household current, 120-volt 60 Hertz AC. Do not attempt to operate it on DC power.
Antenna
120 V AC
60 Hz
If you have a 75 ohm RF cable, then you don’t need any adapters!
Typical
TV Back
ANTENNA
CABLE
A 300 to 75 ohm adapter is not included with the TV.
RF Coaxial Wire
(75ohm)
Mini glossary
75 OHM RF CABLE
300 TO 75 OHM ADAPTER
The wire that comes from an off-air antenna or cable service provider. Each end looks like a hex shaped nut with a wire sticking through the middle, and it screws onto the threaded jack on the back of your TV.
A small device that connects a two-wire 300 ohm antenna to a 75 ohm RF jack. They are usually about an inch long with two screws on one end and a round opening with a wire sticking out on the other end.
206-3594 |
P A G E 7 |
|
Hook Up Cable Service (CATV)
Connect cable service to your Entertainment Machine
1 |
Locate the Antenna/Cable jack on the |
|
|
back of the TV. |
|
2 |
Connect the cable service wire that runs |
|
from the wall or cable box directly to this |
||
|
||
|
jack, according to one of the diagrams to |
|
|
the right. |
|
3 |
Remove the back of the remote and put in |
|
|
two “AAA” batteries. |
|
|
Back of |
|
|
Remote |
|
4 |
Plug in the TV. Do not plug it into an out- |
|
|
let controlled by a switch. Your TV is |
|
|
designed to operate on standard house- |
|
|
hold current, 120-volt 60 Hertz AC. Do |
|
|
not attempt to operate it on DC power. |
|
|
120 V AC |
|
|
60 Hz |
|
|
If you’re using a cable box, leave the TV on |
|
|
channel 3 or 4 and use your cable box to |
|
|
change channels. |
|
|
If you’re using a cable box, EZ Program might |
|
|
only find the channel your cable service is on |
|
|
(usually channel 3 or 4). Don’t worry, that’s all |
|
|
you need! |
Typical
TV Back
Typical
Cable TV
Wall Jack
ANTENNA
CABLE
Coaxial Round Wire
(75ohm)
Typical
Cable TV
Wall Jack
Typical
In |
TV Back |
|
Cable Box |
||
Out |
output |
|
switch 3 4 |
||
|
||
|
ANTENNA |
|
|
CABLE |
|
|
RF Coaxial Wire |
|
|
(75ohm) |
P A G E 8 |
206-3489-O |
Hook Up an Off-Air Antenna and VCR
Connect your off-air antenna and VCR to your Entertainment Machine
1 |
Locate the Antenna In jack on the back of the VCR. |
2 |
Connect the wire that runs from the antenna, accord- |
|
ing to the diagram to the right. Make any other con- |
|
nections as necessary. |
3 |
Remove the back of the remote and put in two “AAA” |
|
batteries. |
|
Back of |
|
Remote |
4 |
|
RF Coaxial Round Wire
(75ohm)
Typical
Antennas:
Flat or
Round Wire
Flat Wire (300 ohm)
300/75 ohm Adapter
Plug in the TV. Do not plug it into an outlet controlled by a switch. The TV is designed to operate on standard current, 120-volt 60 Hertz AC. Do not attempt to operate it on DC power.
120 V AC
60 Hz
VCR Back
VCR Back AV Panel
In output
switch 3 4
Out Audio Video
TV Back
No adapters or A/V cables are included with the TV. See your Zenith dealer to purchase any adapters or cables.
Without A/V cables, most VCRs will not play videocassettes in stereo sound.
VIDEO 1 |
VIDEO 2 |
MONITOR |
|
IN |
OUTPUT |
||
IN |
|||
|
|
||
S-VIDEO 1 |
S-VIDEO 2 |
|
VIDEO |
VIDEO |
VIDEO |
ANTENNA |
|
|
CABLE |
|
|
R |
R |
R |
AUDIO |
AUDIO |
AUDIO |
|
|
|
L |
L |
L |
MONO |
MONO |
|
|
|
Connect your VCR to the
Video 1 or Video 2 set of input jacks
206-3594 |
P A G E 9 |
Hook Up Cable Service (CATV) and VCR
Connect Cable service and a VCR to the TV
1 |
Locate the Antenna/Cable In jack on the |
|
back of the VCR. |
||
|
||
2 |
Connect the cable service wire that runs |
|
|
from the wall, according to one of the dia- |
|
|
grams to the right. Make any other connec- |
|
|
tions necessary for your setup. |
|
3 |
Remove the back of the remote and put in |
|
|
two “AAA” batteries. |
|
|
Back of |
|
|
Remote |
|
4 |
Plug in the TV. Do not plug it into an outlet |
|
|
controlled by a switch. The TV is designed to |
|
|
operate on standard current, 120-volt 60 |
|
|
Hertz AC. Do not attempt to operate it on |
|
|
DC power. |
Typical
Cable TV
Wall Jack
In Cable Box
|
output |
|
Out |
switch |
3 4 |
Cable service with or without a cable box
Typical
Cable TV
Wall Jack
VCR Back
VCR Back AV Panel
In output
switch 3 4
Out Audio Video
TV Back
120 V AC
60 Hz
Tune both the VCR and the television to channel 3 or 4 (cable box output channel) and use the cable box to change channels.
No A/V cables are included with your TV. Without A/V cable hookups, most VCRs will not play videocassettes in stereo sound.
ANTENNA CABLE
CB
VIDEO 1 |
VIDEO 2 |
MONITOR |
|
IN |
OUTPUT |
||
IN |
|||
|
|
||
S-VIDEO 1 |
S-VIDEO 2 |
|
|
VIDEO |
VIDEO |
VIDEO |
R |
R |
|
R |
AUDIO |
|
AUDIO |
AUDIO |
|
|
|
|
L |
L |
|
L |
MONO |
|
MONO |
|
|
|
|
Connect your VCR to the Video 1 or Video 2 set of input jacks
P A G E 1 0 |
206-3594 |
Hook Up S-VHS VCR
Your Zenith TV may be connected to a Super-VHS VCR through the S-Video Input located on the front or rear source connection panels on your TV
1 Hook up your S-VHS VCR to your Zenith TV according to the diagram shown at the right.
2 Remove the back of the remote and put in two “AAA” batteries.
Back of
Remote
From Antenna or |
VCR Back |
|
Cable Service With |
||
|
||
or Without a Cable Box |
|
|
|
VCR Back AV Panel |
|
|
output |
|
In |
|
switch 3 4 |
|
Audio Out |
S-Video Out |
||
R |
L |
||
|
|||
Out
Flat Wire (300 ohm)
300/75 ohm Adapter
3
4
Plug in your TV. Do not plug it into a switched outlet. Your Zenith TV is designed to operate on standard household current, 120-volt 60 Hertz AC. Do not attempt to operate it on DC power.
120 V AC
60 Hz
On the remote, press SOURCE repeatedly until “S-Video” is displayed. Or use the Source menu to choose the S-Video input the equipment is connected to.
TV Back
VIDEO 1 |
VIDEO 2 |
MONITOR |
|
IN |
OUTPUT |
||
IN |
|||
|
|
||
S-VIDEO 1 |
S-VIDEO 2 |
|
VIDEO |
VIDEO |
VIDEO |
ANTENNA |
|
|
CABLE |
|
|
R |
R |
R |
AUDIO |
AUDIO |
AUDIO |
|
|
|
L |
L |
L |
MONO |
MONO |
|
|
|
Connect your S-Video VCR to the
S-Video 1 or S-Video 2 set of input jacks
206-3594 |
P A G E 1 1 |
|
Hook Up Component Video Equipment
Connecting component video DVD equipment
DVD IN
Connect a standard component
video equipment or DVD player to DVD IN. DVD Player, 480i
SDTV Set top Box, 480i
1 |
Make the connections as indicated. (Appearance |
|
of components may vary from those in the illus- |
|
trations.) |
2 |
Plug in your TV. Do not plug it into a switched |
|
outlet. Your Entertainment Machine is designed |
|
to operate on standard household current, 120- |
|
volt 60 Hertz AC. Do not attempt to operate it on |
|
DC power. |
120 V AC
60 Hz
3 Press POWER to turn TV on.
4 On the remote, press SOURCE repeatedly until “DVD” is displayed. Or use the Source menu to choose DVD.
Component video jacks are sometimes labeled with CR, CB, or PB, PR. In this case, connect B to B and the R to R. The “Y” jack is usually labeled “Y”, connect Y to Y.
TV Back
DVD IN
Y
Pr
Pb
R
AUDIO
L
VIDEO 1 |
VIDEO 2 |
MONITOR |
|
IN |
OUTPUT |
||
IN |
|||
|
|
||
S-VIDEO 1 |
S-VIDEO 2 |
|
|
VIDEO |
VIDEO |
VIDEO |
R |
R |
|
R |
AUDIO |
|
AUDIO |
AUDIO |
|
|
|
|
L |
L |
|
L |
MONO |
|
MONO |
|
|
|
|
Y
Pr
Pb
R
L
COMPONENT VIDEO OUT
S-VIDEO OUT VIDEO R-AUDIO L-/MONO
DVD Player with
Component Video
P A G E 1 2 |
206-3594 |
Hook Up HD Equipment
Connecting high-definition equipment
HD IN
Connect progressive scan or high-definition component video equipment to HD IN.
Progressive Scan DVD, 480p EDTV Set top Box, 480p HDTV Set top Box, 1080i
TV Back
1 |
Make the HD connections as indicated. |
|
(Appearance of components may vary |
|
from those in the illustrations.) |
2 |
Plug in your TV. Do not plug it into a |
|
switched outlet. Your Entertainment |
|
Machine is designed to operate on stan- |
|
dard household current, 120-volt 60 |
|
Hertz AC. Do not attempt to operate it |
|
on DC power. |
120 V AC
60 Hz
ANTENNA CABLE
IN |
DVD IN |
|
Y
Y
Pr
Pr
Pb
Pb
R |
R |
AUDIO |
AUDIO |
L
L
VIDEO 1 |
VIDEO 2 |
MONITOR |
|
IN |
OUTPUT |
||
IN |
|||
|
|
||
S-VIDEO 1 |
S-VIDEO 2 |
|
|
VIDEO |
VIDEO |
VIDEO |
R |
R |
|
R |
AUDIO |
|
AUDIO |
AUDIO |
|
|
|
|
L |
L |
|
L |
MONO |
|
MONO |
|
|
|
|
3
4
Press POWER to turn TV on.
On the remote, press SOURCE repeatedly until “HD-In” is displayed. Or use the Source menu to choose HD-In.
Y
Pr
Pb
R
L
HD OUT
S-VIDEO OUT VIDEO R-AUDIO L-/MONO
Set Top Box with
Component Video
206-3594 |
P A G E 1 3 |
|
Hook Up HD-RGB Equipment
Connecting High-definition RGB output equipment
HD-RGB INPUT
Connect HD-RGB equipment here.
RGB Format: EDTV Set top Box 640 x 480p RGB Format: HDTV Set top Box 1920 x 1080i
1 |
Make the RGB connections as indicated. |
|
(Appearance of components may vary |
|
from those in the illustrations.) |
2 |
Plug in your TV. Do not plug it into a |
|
switched outlet. Your Entertainment |
|
Machine is designed to operate on stan- |
|
dard household current, 120-volt 60 |
|
Hertz AC. Do not attempt to operate it |
|
on DC power. |
120 V AC
60 Hz
3 Press POWER to turn TV on.
4 On the remote, press SOURCE repeatedly until “HD-RGB In” is displayed. Or use the Source menu to choose HD-RGB In.
TV Back
HD IN
Y
Pr
RGB
Pb
R
AUDIO
L
RGB Out
R
Audio Out
L
Set Top Box with
HD-RGB Output
P A G E 1 4 |
206-3594 |
Audio/Video Signal Output
Output to Audio/Video devices
|
Make the Audio/Video Output connec- |
|
tions as indicated. (Appearance of |
|
devices may vary from those in the |
|
illustrations.) |
1 |
Video Output |
Use the Video Out jack to connect to an |
|
|
external video device. |
2 |
Audio Output |
Use the Left and Right Audio Out jacks |
|
|
to connect an external amplifier and |
|
speakers. (Refer to the Audio Menu on |
|
page 31 for instructions on how to turn |
|
the TV’s internal speakers off and on.) |
3 |
Select Audio/Video Input on the exter- |
|
nal device to see the image and hear |
|
the sound from the TV. |
TV Back
MONITOR
OUTPUT
VIDEO
ANTENNA
CABLE
R
AUDIO
L
VIDEO R-AUDIO L-/MONO
IN |
IN |
IN |
Audio/Video Device
206-3594-A |
P A G E 1 5 |
Front Panel Controls/Inputs
Using the front panel to operate the TV’s basic features and to make temporary connections
|
Menu Operation |
1 |
Press MENU to place menus on-screen. |
2 |
Use Channel Up/Down to select menu option. |
3 |
Use Volume Left/Right to adjust menu option. |
4 |
Use MENU to remove menus from screen. |
|
TV Operation |
1 |
Press POWER to turn TV on and off. |
2 |
Use the CHANNEL Up/Down buttons to select the next |
|
higher/lower channel number |
3 |
Use the VOLUME Up/Down buttons to adjust the sound |
|
level louder or quieter to your preference. |
Typical TV
Front Panel
video L-audio-R
Left/Right Audio
Used for stereo sound from external equipment.
S-Video / Video
Connects the video signals from external equipment.
Typical Front Panel Controls
channel |
|
|
|
|
power |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
3 |
|
1 |
||||
P A G E 1 6 |
206-3594 |
|

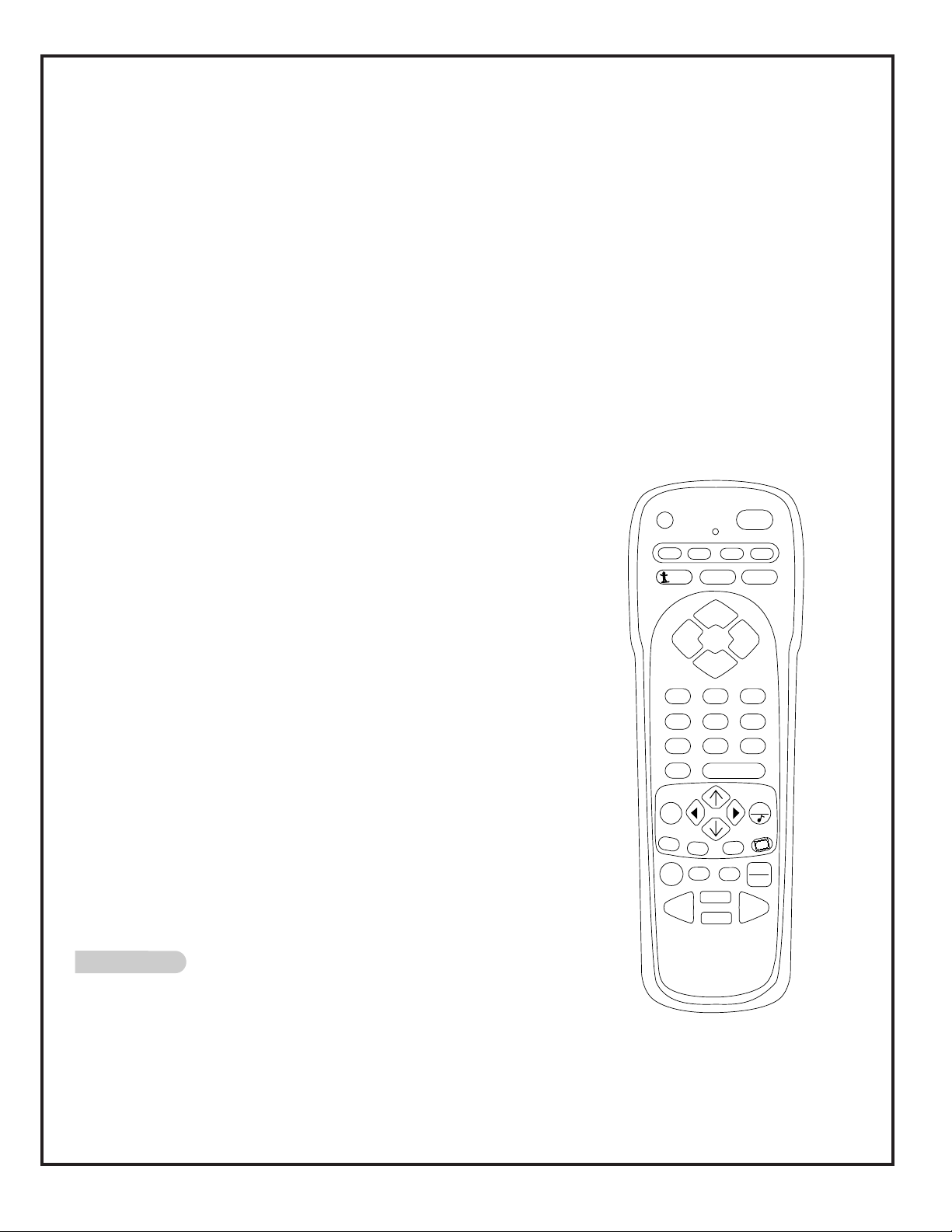

TV Mode Remote Key Functions
Note: Pressing TV puts remote into TV operating mode
A quick list of the keys on your remote and what they do in TV mode, see page 44 for remote key functions in the 6 additional programmable modes...
PRG (PROGRAM)
Programs your remote to operate other products.
See page 45.
FLASHBK (FLASHBACK)
|
|
|
POWER |
PRG |
|
POWER |
Turns TV On or Off. |
|
|
||
|
|
|
LED INDICATOR LIGHT |
CABLE VCR |
AUX |
TV |
Lights when keys are pressed. |
|
Return to the last channel viewed. Selects AM/PM in Clock/Timer menus.
SURF
Turns on and off custom channel selection mode.
When Surf mode is active, CHANNEL Up/Down keys “Surf” through the channels you’ve selected.
CHANNEL (UP/DOWN)
Select next available channel.
ENTER
Shows the Channel/Time display. Press after channel numbers for instant selection.
LEFT/RIGHT ARROWS
The Left/Right arrows adjust options.
MENU
Shows on-screen menus for TV mode. See pages 20 - 21.
PIP FEATURES
For PIP (Picture-in-Picture) operation. See page 36.
TIMER
Displays the Sleep Timer Menu. See “Timer Setup” on pages 35 - 36 for more information.
Keys dedicated to VCR functions will still operate your VCR while the remote is in TV mode.
SURF FLASHBK MUTE
CHANNEL
VOLUME VOLUME
CHANNEL
1 2 3
4 5 6
7 8 9
0 |
|
ENTER |
|
MENU |
|
|
QUIT |
|
|
|
|
PIP |
SWAP |
FREEZ |
CC |
|
|||
|
|
TV/VCR
RECORD PAUSE TIMER
SOURCE
|
PLAY |
REWIND |
FFWD |
|
STOP |
remote control part number
MBR3457CT
(124-233-05)
CABLE/VCR/AUX/TV
Selects remote operating mode.
MUTE
Turns sound Off and On while the picture remains.
Press once to quiet sound, press again to mute, press again to restore sound.
VOLUME LEFT/RIGHT
Adjusts the sound levels on your Entertainment Machine.
NUMBER KEYPAD
Selects channels directly and enters numeric values for some options.
UP/DOWN ARROWS
The Up/Down arrows select options.
QUIT
Removes on-screen display from view. If no display is on, switches Surround sound feature On and Off on some TVs.
CC (CLOSED CAPTIONING)
Displays the closed caption menu.
TV/VCR-SOURCE
Switches between watching TV through your antenna/cable, or through your VCR.
206-3594 |
P A G E 1 7 |
|
EZ Program (Channel Search)
Use EZ Program to automatically find and store in the TV’s memory, all the channels in your area
Select:
CABLE TV, If you subscribe to a cable service.
AIR ANTENNA, If you receive over-the-air programs.
1 |
Press MENU, (if not selected, use the Up/Down arrow to choose |
|
Setup Menu,) then press ENTER. |
2 |
Using the Up or Down arrow on the remote control, select EZ |
|
Program on your screen, then press ENTER. |
Setup
Video
Audio
Lock
Special
Move
3 |
|
|
Using the Up or Down arrow, select either Cable TV or Air Antenna, |
|
|
|
|
|
|
on your screen. |
|
4 |
|
|
|
Press ENTER to begin the channel search. |
|
5 |
|
|
|
When the channel search is complete, press MENU repeatedly until |
|
|
|
|
|
all menus are removed, or press QUIT. |
|
|
|
|
|
EZ Program finds channels being received by the TV tuner. |
2/3 |
|
|
|
|
||
|
|
|
|
Cable will not work unless you subscribe to a cable service. |
|
|
|
|
|
||
|
|
|
|
||
|
|
|
|
|
|
1/5
Mini glossary |
|
Air Antenna |
The device receiving the program signal sent over-the-air. |
Cable TV |
Your EZ Program selection, if you subscribe to a cable service. |
|
|
EZ Program |
Cable TV |
Add/Del/Surf |
Air Antenna |
|
|
EZ Clock |
|
Captions |
|
Caption/Text |
|
Language |
|
Source Menu |
|
Background |
|
ENTER Next |
MENU Back |
PRG |
|
|
POWER |
CABLE |
VCR |
AUX |
TV |
SURF |
FLASHBK |
MUTE |
|
CHANNEL
VOLUME VOLUME
CHANNEL
1 2 3
4 5 6
7 8 9
1/2/4
5
PIP |
SWAP |
FREEZ |
CC |
|
|
TV/VCR
RECORD PAUSE TIMER
SOURCE
|
PLAY |
REWIND |
FFWD |
|
STOP |
P A G E 1 8 |
206-3594 |
|
Loading...
