INSTALLATION INSTRUCTIONS
UNDERCOUNTER DISHWASHER
INSTRUCTIONS D'INSTALLATION LAVE-VAISSELLE SOUS PLAN DE TRAVAIL
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Table des matières . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
W10282549A
Table of Contents
Dishwasher Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Tools and Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Location Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Drain Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Water Supply Requirements . . . . . . . . . . . . . . . . . . . . . . . . 6
Electrical Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Prepare Cabinet Opening—Existing Utilities. . . . . . . . . . . 7
Prepare Cabinet Opening—New Utilities. . . . . . . . . . . . . . 7
Prepare and Route Water Line . . . . . . . . . . . . . . . . . . . . . . 8
Install Drain Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Install Moisture Barrier . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Prepare Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installation Instructions (cont.)
Make Power Supply Cord Connection . . . . . . . . . . . . . . . 12 Determine Cabinet Opening . . . . . . . . . . . . . . . . . . . . . . . 13 Choose Attachment Option. . . . . . . . . . . . . . . . . . . . . . . . 14 Move Dishwasher Into Cabinet Opening. . . . . . . . . . . . . 15 Connect to Water Supply . . . . . . . . . . . . . . . . . . . . . . . . . 17 Connect to Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Make Direct Wire Electrical Connection. . . . . . . . . . . . . . 18 Secure Dishwasher in Cabinet Opening . . . . . . . . . . . . . 19 Complete Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Check Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 If Dishwasher Does Not Operate . . . . . . . . . . . . . . . . . . . 22 Additional Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
DISHWASHER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean:
DANGER
WARNING
You can be killed or seriously injured if you don't immediately follow instructions.
You can be killed or seriously injured if you don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
WARNING
Tip Over Hazard
Do not use dishwasher until completely installed. Do not push down on open door.
Doing so can result in serious injury or cuts.
You Need to:
•Slowly open dishwasher door while someone grasps the rear of the dishwasher. Remove shipping materials, drain hose and lower rack. Close dishwasher door until latched.
•Observe all governing codes and ordinances.
•Install this dishwasher as specified in these instructions.
•Installation should be performed by a qualified service technician. The dishwasher must be installed to meet all electrical and plumbing national and local codes and ordinances.
2
INSTALLATION REQUIREMENTS

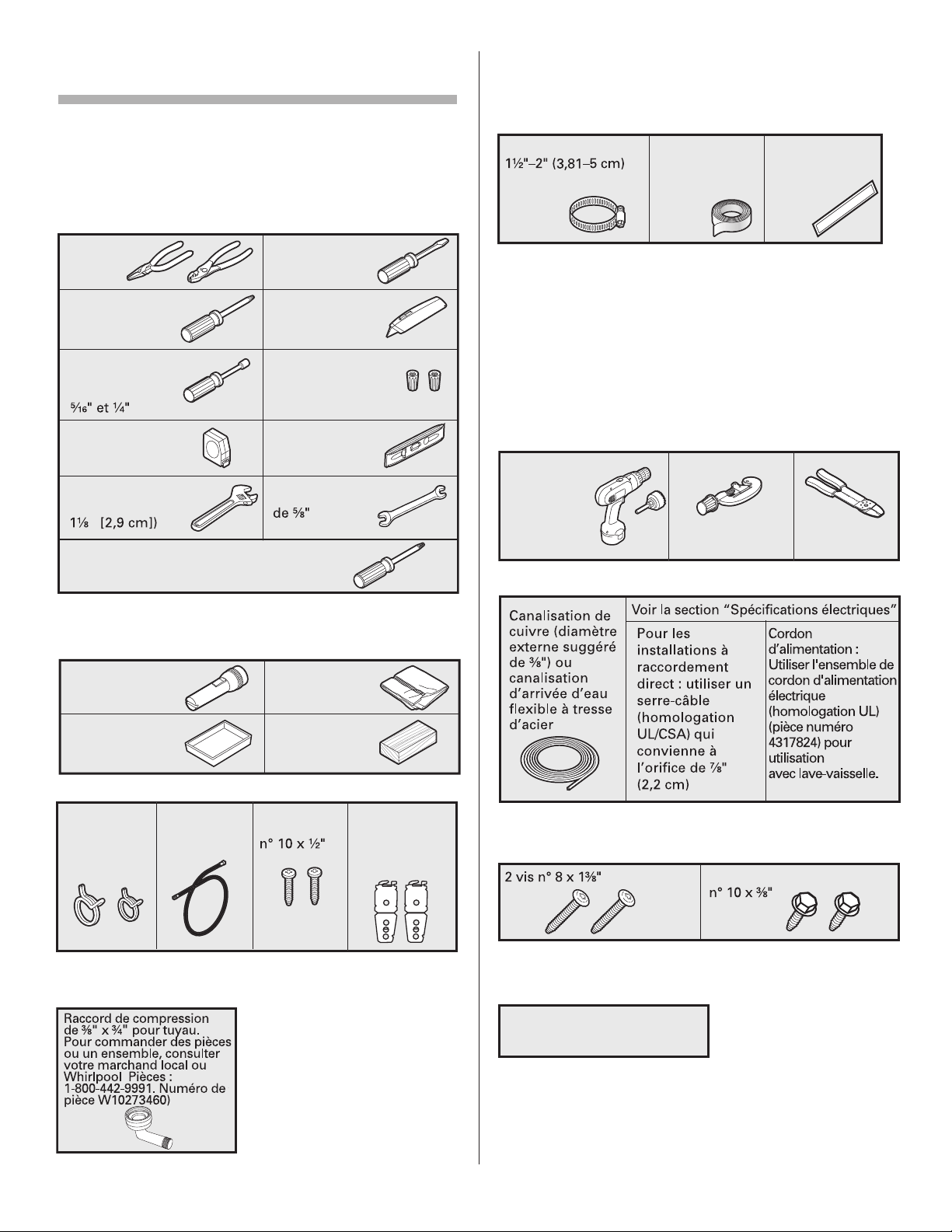

Tools and Parts
Gather the recommended tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.
All Installations
Tools needed:
Pliers |
|
Flat-blade |
|
|
screwdriver |
||
|
|
||
Phillips |
|
Utility knife |
|
screwdriver |
|||
|
|||
" |
" |
UL Listed or CSA |
|
nut drivers or |
Approved twist-on |
||
hex sockets |
wire connectors* |
||
Measuring tape |
Small level |
||
or ruler |
|
||
|
|
||
10" adjustable wrench |
" |
||
that opens to |
|||
wrench |
|||
" |
|
||
|
|
||
If installing custom front panels, |
|||
Torx®† T15 screwdriver |
|
||
*Must be the proper size to connect your household wiring to 16-gauge wiring in dishwasher
Other useful items you may need:
Flashlight |
|
Bath towel |
|
Shallow pan |
|
Wood block |
|
Parts supplied: |
|
|
|
Drain hose |
Drain hose |
|
2 – under- |
clamps (2) |
|
Phillips-head |
counter |
(1 large and |
|
screws (2) |
mounting |
1 small) |
|
|
brackets (top) |
Silver Green
Make sure all these parts are included in the literature package.
Parts needed:
³⁄ " Compr x ³⁄ " Hose Fitting. For part or kit, see local retailer or call Whirlpool Parts: 1-800-442-9991. Part Number W10273460
4 #10 x ¹⁄" wood screws (if installing custom front panels)
†® TORX is a registered trademark of Acument Intellectual Properties, LLC.
Other parts you may also need:
|
Masking or |
Moisture |
(3.81–5.0 cm) |
duct tape |
barrier tape |
Screw-type |
|
(Part Number |
clamps (3 maximum) |
|
4396277). |
NOTE: Moisture barrier tape is recommended when installing a dishwasher under a wood countertop.
NOTE: Parts available for purchase in plumbing supply stores. Check local codes. Check existing electrical supply. See “Electrical Requirements” section. It is recommended that electrical connections be made by a licensed electrical installer.
In addition, for first-time installations
Tools needed:
Cordless drill |
|
with ¹⁄ ", ³⁄ " |
|
and 1¹⁄ " hole |
Small |
saw bits |
tubing cutter Wire stripper |
Parts needed:
Copp
O.D. suggested) or flexible braided water supply line
See “Electrical Requirements” section
For Direct Wire: |
For Power Supply |
|
use UL Listed/ |
Cord: Use UL Listed |
|
CSA Approved |
power supply cord |
|
strain relief |
kit (Part Number |
|
hole |
4317824) marked for |
|
use with dishwasher. |
||
|
||
|
|
Additional parts supplied with top-venting models only:
" Torx® T15 screws |
" |
|
|
Additional parts supplied with certain models only:
Bottom sound pad (located in lower rack)
Make sure all these parts are included in the literature package.
If parts are not included, call 1-800-422-1230.
3
Location Requirements
Grounded electrical supply required.
Do not run drain lines, water lines or electrical wiring where they can interfere with or contact dishwasher motor or legs.
The location where the dishwasher will be installed must provide clearance between motor and flooring. Motor should not touch the floor.
Do not install dishwasher over carpeted flooring.
Shelter dishwasher and water lines leading to dishwasher against freezing. Damage from freezing is not covered by the warranty.
A side panel kit is available from your dealer for installing your dishwasher at the end of your cabinetry.
A moisture barrier accessory (Part Number 4396277) is available from your dealer for installing underneath the countertops. Call 1-800-422-1230 to order.
4
Check location where dishwasher will be installed. The location must provide:
•easy access to water, electricity and drain.
•convenient access for loading and unloading dishes. Corner locations require a 2" (5.1 cm) minimum clearance between the side of the dishwasher door and the wall or cabinet.
•square opening for proper operation and appearance.
•cabinet front perpendicular to floor.
•level floor. (If floor at front of opening is not level with floor at rear of opening, shims may be needed to level dishwasher.)
Helpful Tip: Be sure to accurately measure dimensions and ensure dishwasher is level if the floor in the dishwasher opening is uneven (example: Flooring extends only partway into opening).
NOTE: To avoid shifting during dishwasher operation, shims must be securely attached to the floor.
If dishwasher will be left unused for a period of time or in a location where it may be subject to freezing, have it winterized by authorized service personnel.
Make sure pipes, wires and drain hose are within the shaded area shown in the “Product and Cabinet Opening Dimensions” section.

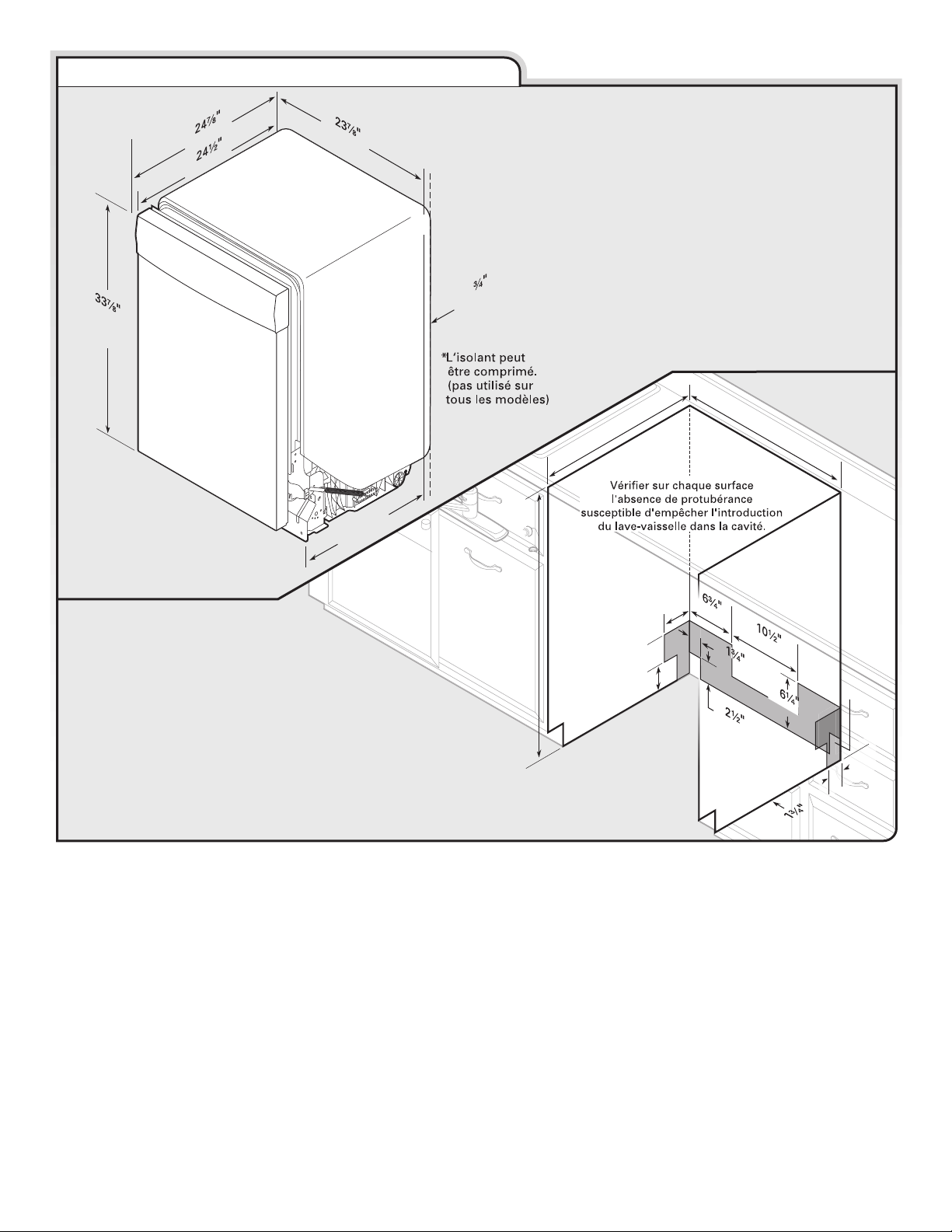

Product and Cabinet Opening Dimensions
NOTE: Shaded areas of cabinet walls show where utility connections may be installed.
*Measured from the lowest point on the underside of countertop. May be reduced to 33⁄" (86 cm) by removing wheels from dishwasher.
**Minimum, measured from narrowest point of opening.
5
Drain Requirements
•A new drain hose is supplied with your dishwasher.
If this is not long enough, use a new drain hose with a maximum length of 12' (3.7 m) (Part Number 3385556) that meets all current AHAM/IAPMO test standards, is resistant to heat and detergent, and fits the 1" (2.5 cm) drain connector of the dishwasher.
•Make sure to connect drain hose to waste tee or disposer inlet above drain trap in house plumbing and 20"
(50.8 cm) minimum above the floor. It is recommended that the drain hose either be looped up and securely fastened to the underside of the counter, or be connected to an air gap.

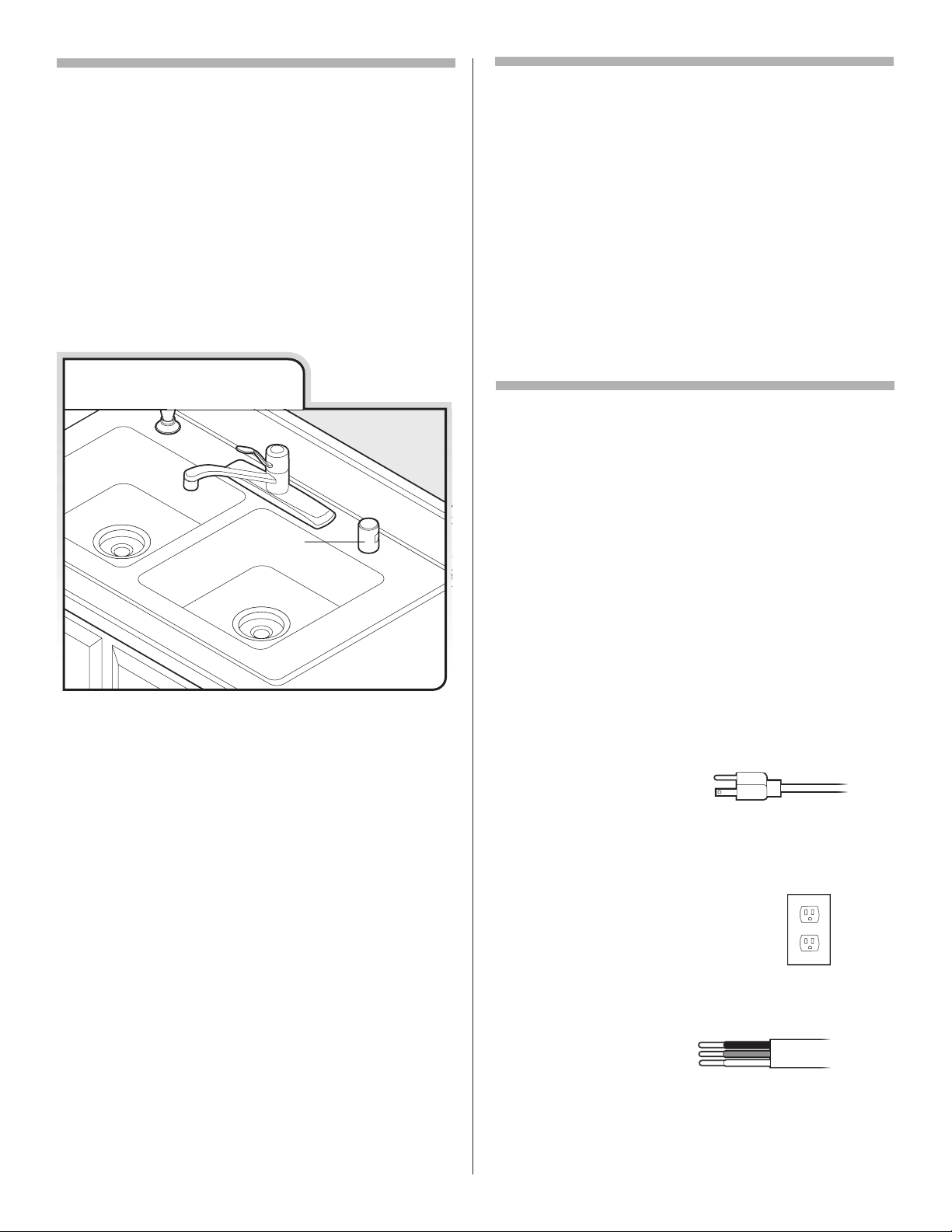

Air gap
•Make sure to use an air gap if the drain hose is connected to house plumbing lower than 20" (50.8 cm) above subfloor or floor.
•Use ¹⁄ " minimum I.D. drain line fittings.
•If required, the air gap, should be installed in accordance with the air gap installation instructions. When you are connecting the air gap a rubber hose (not provided) will be needed to connect to the waste tee or disposer inlet.
Water Supply Requirements
•A hot water line with 20-120 psi (138-862 kPa) water pressure can be verified by a licensed plumber.
•120°F (49°C) water at dishwasher.
•³⁄ " O.D. copper tubing with compression fitting or flexible braided water supply line (Part Number 4396897RP)
NOTE: ¹⁄ " minimum plastic tubing is not recommended.
•A 90° elbow with ³⁄ " Hose connection with rubber washer
•Do not solder within 6" (15.2 cm) of the water inlet valve.
Electrical Requirements
Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code, ANSI/NFPA 70 - latest edition and all local codes and ordinances.
A copy of the above code standards can be obtained from: National Fire Protection Association
One Batterymarch Park Quincy, MA 02269
You must have:
•120-volt, 60 Hz, AC-only, 15or 20-amp, fused electrical supply.
•copper wire only.
We recommend:
•a time-delay fuse or circuit breaker.
•a separate circuit.
If connecting dishwasher with a power supply cord:
•Use UL Listed power supply cord kit (Part Number 4317824) marked for use with dishwasher.
•Power supply cord must plug into
a grounded 3 prong outlet, located in the cabinet next to the dishwasher opening. Outlet must meet all local codes and ordinances.
If connecting dishwasher with direct wiring:
• Use flexible, armored or nonmetallic
sheathed, copper wire with grounding wire
that meets the wiring requirements for your home and local codes and ordinances.
• Use a UL Listed/CSA Approved strain relief.
6
INSTALLATION INSTRUCTIONS

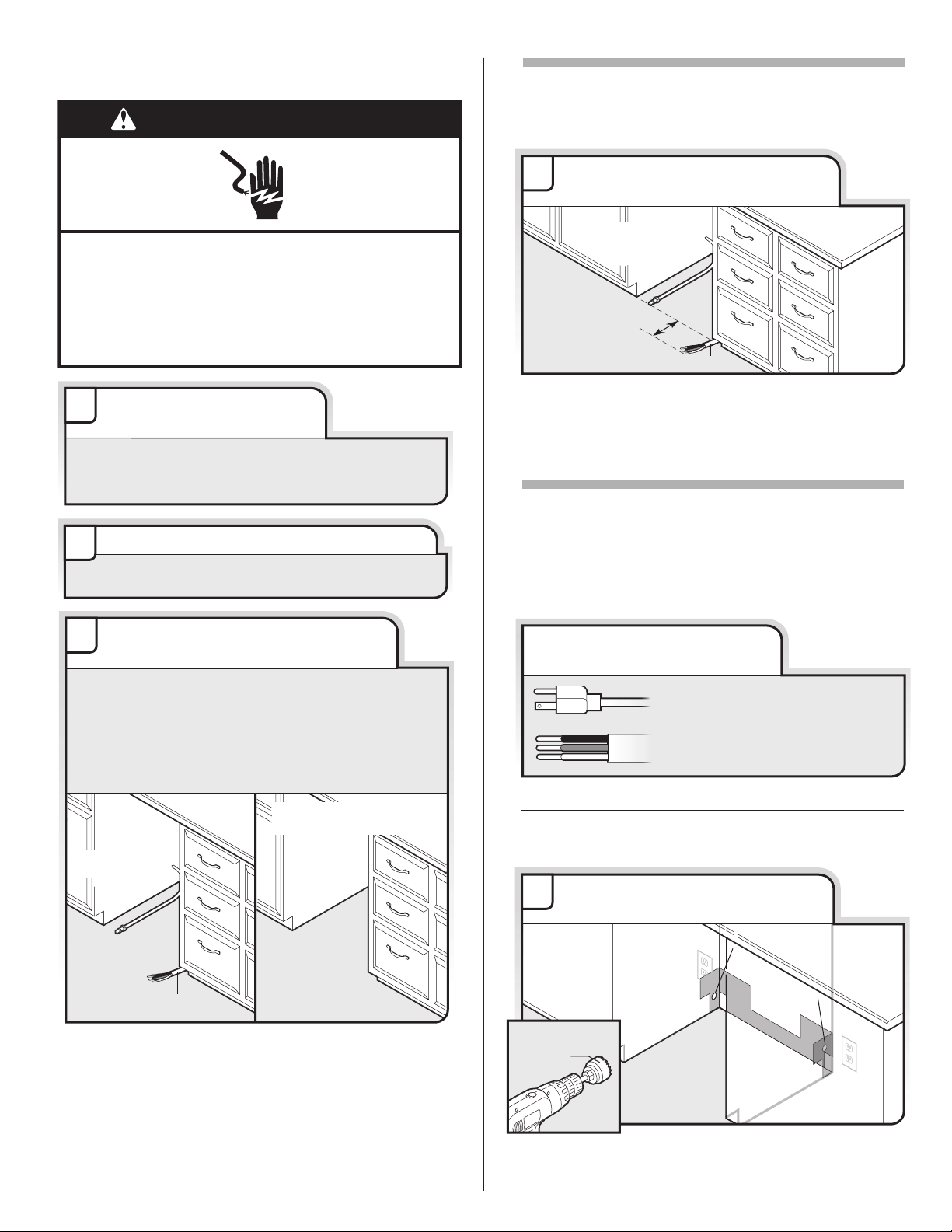

Electrical Shock Hazard
Disconnect electrical power at the fuse box or circuit breaker box before installing dishwasher.
Failure to do so can result in death or electrical shock.
1 Disconnect power
2
3 Do you already have utility hookups?
Yes —Follow instructions in the “Prepare Cabinet Opening—Existing Utilities” section.
No —Follow instructions in the “Prepare Cabinet Opening—New Utilities” section.
Existing utility |
No existing utility hookups |
Prepare Cabinet Opening—Existing
Utilities
1 Check water and electrical placement
Water line
Cable
If the water line and the cable extend to the locations shown, proceed to the “Install Drain Hose” section. If they do not reach far enough, follow the instructions in the “Prepare Cabinet Opening—New Utilities” section.
Prepare Cabinet Opening—New
Utilities
Prepare and route the electrical supply
What type of electrical connection will you use?
Power Supply Cord:
Follow Option A instructions
Direct Wire:
Follow Option B instructions
Option A, Power Supply Cord:
NOTE: A grounded 3 prong outlet is required inside a cabinet next to the dishwasher cabinet opening.
1 Power Supply Cord—Drill hole
Optional locationation
Preferredf rred locationlocation
(3.8 cm)
Drill a 1¹⁄" (3.8 cm) hole in cabinet side or rear.
See product and cabinet opening dimensions.
7

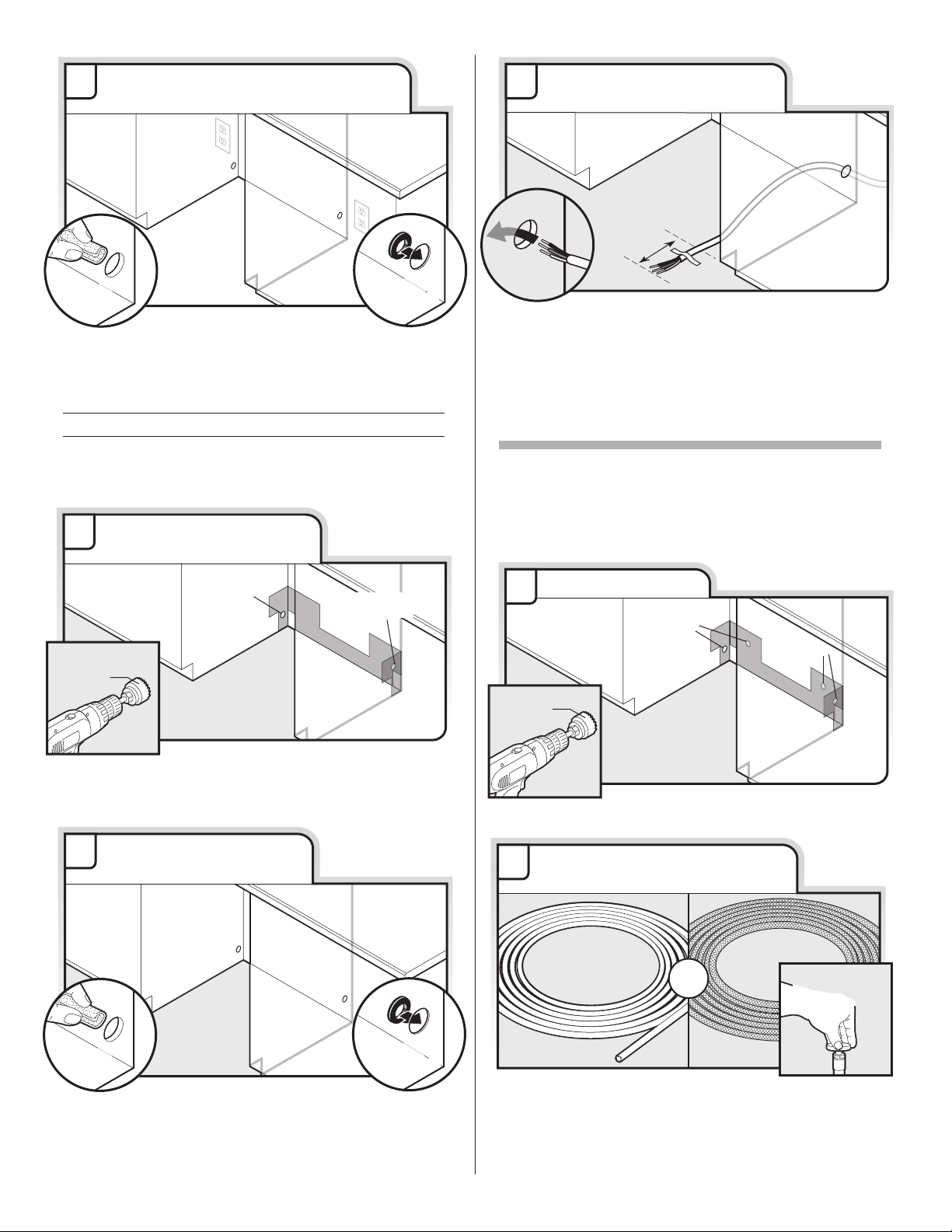

2 Power Supply Cord–Prepare hole
Wood |
Metal |
cabinet |
cabinet |
Wood cabinet: Sand the hole until smooth.
Metal cabinet: Cover hole with grommet included with power supply cord kit.
Option B, Direct Wire:
Helpful Tip: Wiring the dishwasher will be easier if you route the cable into the cabinet opening from the right side.
1 Direct Wire — Drill hole
Optional location
PreferredPr e locationlocation
(1.9 cm)
Drill a ³⁄ " (1.9 cm) hole in right-hand cabinet side or rear. See product and cabinet opening dimensions.
2 Direct Wire–Prepare hole
Wood |
Metal |
cabinet |
cabinet |
Wood cabinet: Sand the hole until smooth.
Metal cabinet: Cover hole with grommet (Part Number 302797 - not provided).
8

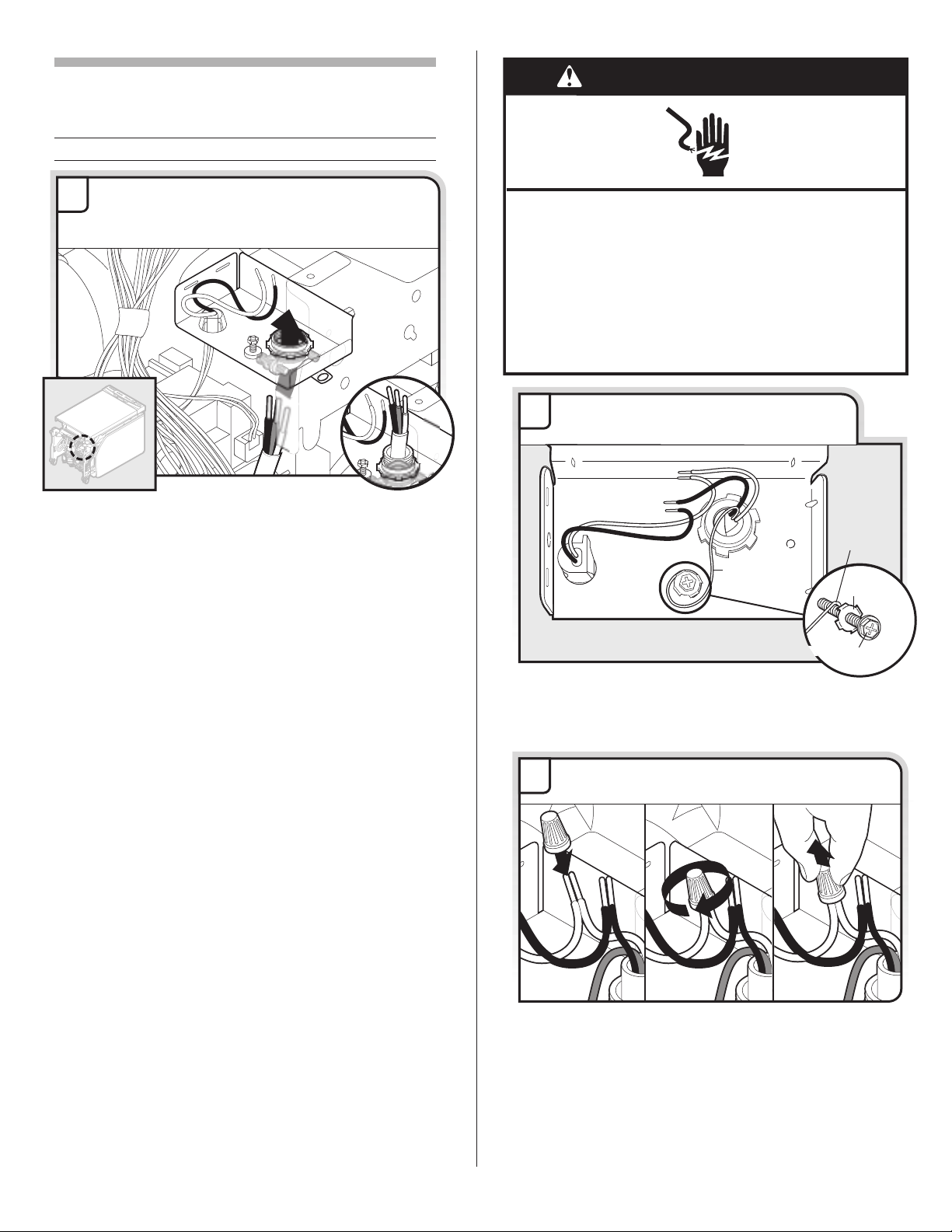

3 Direct Wire–Route cable
Route cable from power supply through cabinet hole (cable must extend to the right front side of cabinet opening). Tape cable to the floor in area shown. This will keep cable from moving when dishwasher is moved into cabinet opening.
Prepare and Route Water Line
Helpful Tip: Routing the water line through the left side of cabinet opening will make water connection easier.
1 Drill hole
PreferredPr ferredlocationsloc
OptionalOptionallocationslocations
¹⁄"
(1.3 cm)
Drill a ¹⁄ " (1.3 cm) hole in the cabinet side or rear.
2 Measure water supply line
Hot water line |
Measure overall length of copper tubing or flexible braided water supply line. Attach to the hot water line using a connection configuration that is in compliance with local codes and ordinances. The water line to the dishwasher should have a manual shutoff valve.

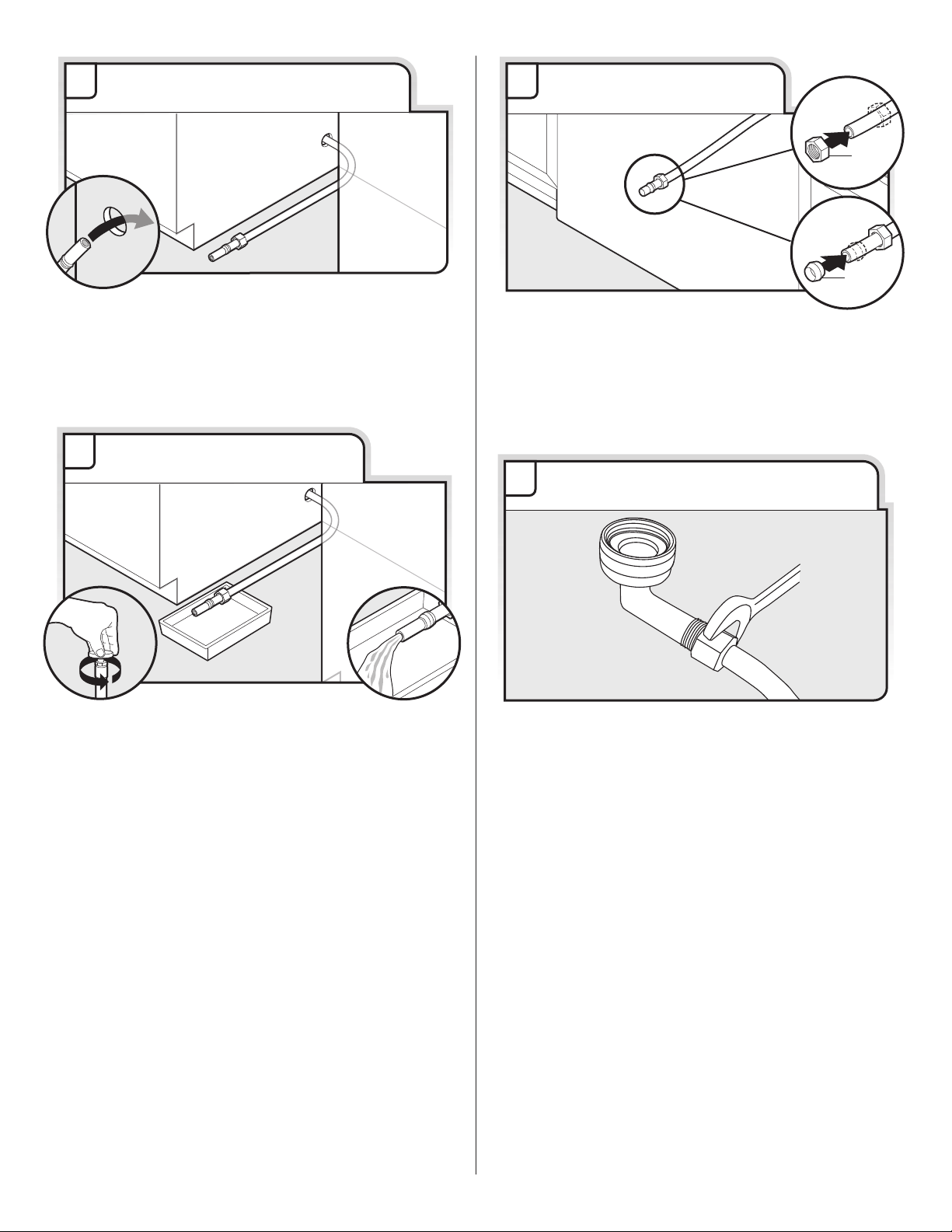

3 Route water supply line
Slowly route water supply line through hole in cabinet. (If using copper tubing, it will bend and kink easily, so be gentle.) It should be far enough into the cabinet opening to connect it to the dishwasher inlet on the front left side of the dishwasher.

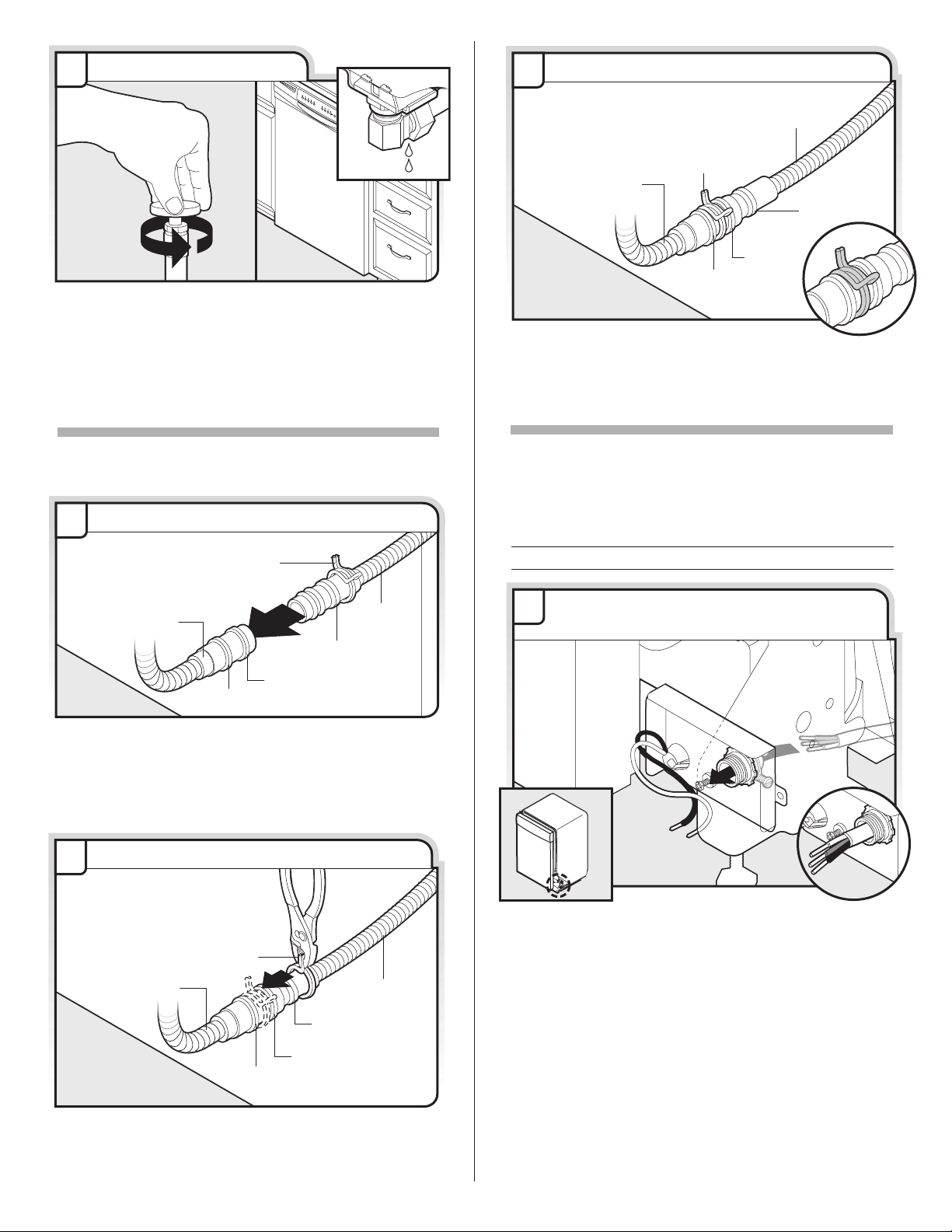

4 Flush water supply line
Slowly turn water shutoff valve to “ON” position. Flush water into a shallow pan until clear to get rid of particles that could clog the inlet valve. Turn shutoff valve to “OFF” position.
5 Slide nut and ferrule onto tubing
Nut
Ferrule
Copper tubing only: Slide nut, then ferrule, about 1" (2.5 cm) onto copper tubing.
NOTE: To avoid vibration during operation, route the water supply line so that it does not touch the dishwasher base, frame or motor.
6 Add 90° elbow fitting to the water supply line
Connect the ³⁄" compression fitting to the water supply line prior to installing the unit into the cabinet opening. Attach such that the ³⁄" connection is facing upward.
Copper tubing only: Put the tubing into the 90° elbow fitting as far as it will go (the copper tubing bends and kinks easily). Slide the nut and ferrule forward and start the nut onto the elbow threads.
Flexible braided connection: Secure nut to elbow using ⁄" open ended wrench or adjustable wrench.
NOTE: Do not use Teflon®† tape with compression fittings.
†® Teflon is a registered trademark of E.I. Du Pont de Nemours and Company.
9
Install Drain Hose
IMPORTANT: Always use a new drain hose. Check local codes to determine if an air gap is required.

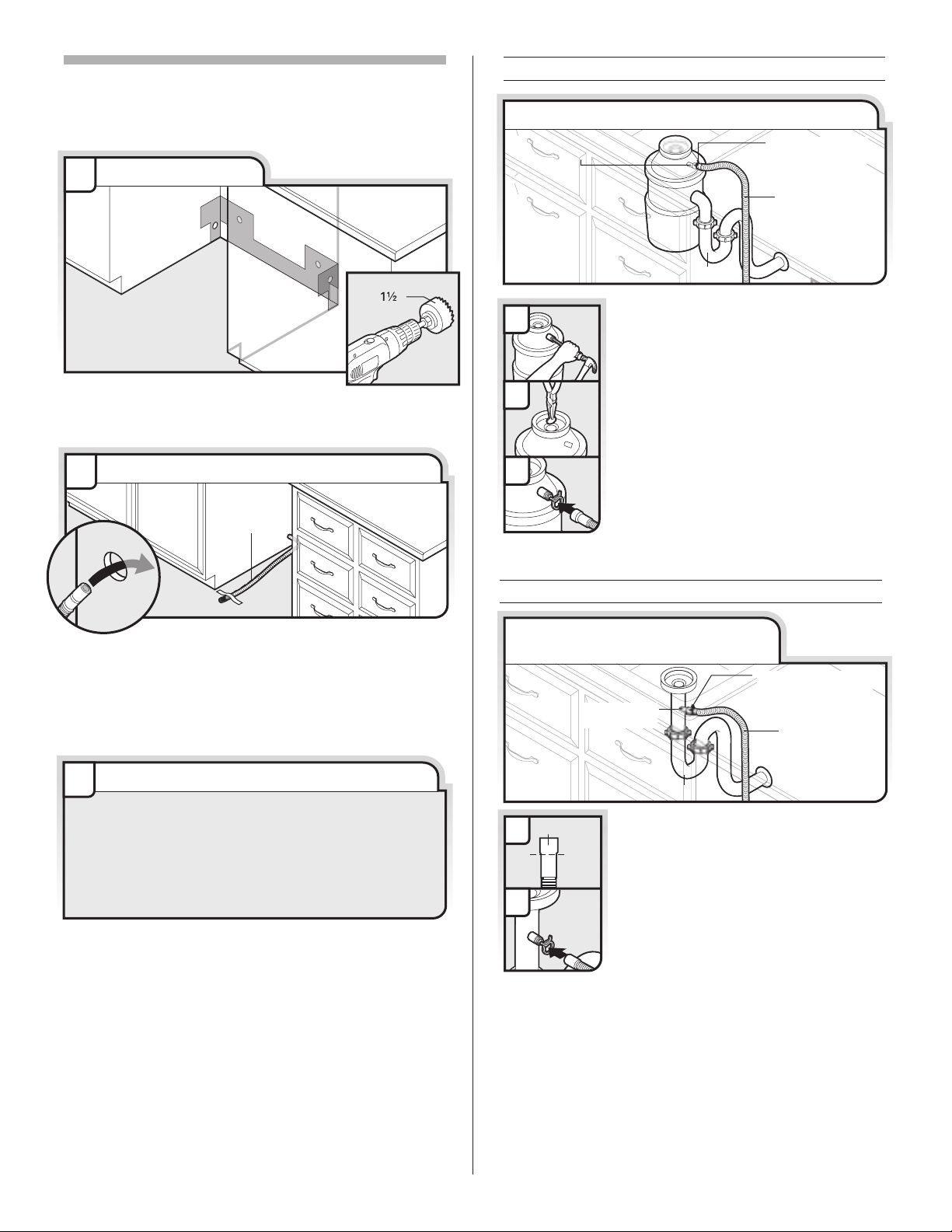

1 Drill hole
1¹⁄"
(3.8 cm)
If needed, drill a 1¹⁄ " (3.8 cm) diameter hole in cabinet wall or side of the opening closest to the sink.
2 Route drain hose
Route drain hose as shown through hole in cabinet to the front center of opening where drain connection will be made. Tape drain hose to the floor in area shown. This will prohibit it from moving when dishwasher is moved into cabinet opening.
3 Connect drain hose

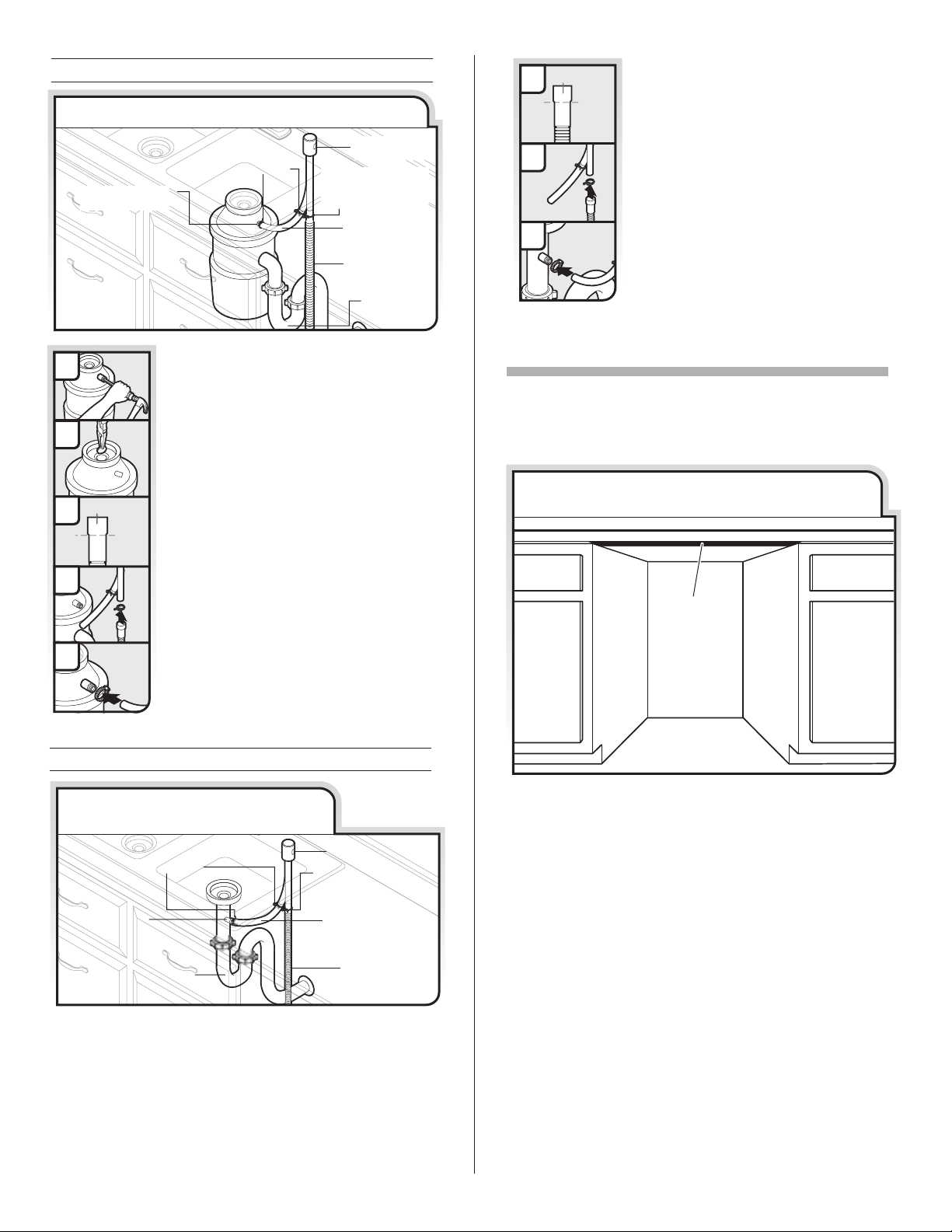

Connect drain hose to waste tee or waste disposer using one of the following options:
•Option A, Waste disposer – no air gap
•Option B, No waste disposer – no air gap
•Option C, Waste disposer – with air gap
•Option D, No waste disposer – with air gap
IMPORTANT: The drain hose connection of the disposer or a waste tee must be made before the drain trap and at least 20" (50.8 cm) above the floor where the dishwasher will be installed.
Helpful Tip: To reduce vibration of the hose, keep the hose away from the floor.
10
Option A, Waste disposer – no air gap
Waste disposer – no air gap
Disposer inlet |
|
Large silver |
|
|
hose clamp |
|
|
Drain hose |
|
|
|
Drain trap |
1 |
1. Using a hammer and screwdriver, |
knock plug into disposer. |
2 |
2. Use needle-nose pliers to remove |
plug. |
3 |
3. Attach drain hose to disposer inlet |
with large silver drain hose clamp |
(provided). Use pliers to squeeze clamp open and move into position.
Option B, No waste disposer – no air gap
No waste disposer – no air gap
|
Largecrew-typsilver |
|
|
clamphose clamp |
|
|
Waste tee |
|
|
Drain hose |
|
|
Drain trap |
|
1 Black end |
1. Connect black end of of drain hose to |
|
waste tee and cut if needed. |
||
|
(Do not cut ribbed section.) |
|
2 |
2. Attach black end of drain hose to waste |
|
tee with a large silver drain hose clamp |
||
|
||
|
(provided). Use pliers to squeeze clamp |
|
|
open and move into position. If the drain |
|
|
hose was cut, use a 1¹⁄ " to 2" (3.8 to |
|
|
5 cm) screw-type clamp (not provided). |
Option C, Waste disposer – with air gap
Waste disposer – with air gap
Screw-type clamps |
|
Air gap |
|
|
|||
Large silver drain |
|||
|
|||
Disposer inlet |
hose clampl |
||
(provided)
Rubber hose
connector
Drain hose
Drain trap
|
|
|
|
|
1 |
1. |
Using a hammer and screwdriver, |
||
|
knock plug into disposer. |
|||
|
2. |
Use needle-nose pliers to remove |
||
|
|
plug. |
||
2 |
3. |
Connect black end of drain hose to air |
||
|
|
gap and cut if needed. (Do not cut |
||
|
|
ribbed section.) |
||
3 Black end
4
5
4.Attach drain hose to air gap with large silver drain hose clamp (provided). Use pliers to squeeze clamp open and move into position. If the drain hose was cut, use a 1¹⁄ " to 2" (3.8 to
5 cm) screw-type clamp (not provided).
5.Use a rubber hose (not provided) with screw-type clamps (not provided) to connect from air gap to disposer inlet.
Option D, No waste disposer – with air gap
No waste disposer – with air gap
Screw-type clamps |
|
Air gap |
||||||||
|
||||||||||
Large silver drain |
||||||||||
|
|
|
|
|
|
|
|
|
hose clamp |
|
|
|
|
|
|
|
|
|
|
|
(provided) |
Waste tee |
|
|
|
|
|
|
Rubber hose |
|||
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
connector |
|
|
|
|
|
|
|
|
|
|
Drain hose |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
Drain |
|
trap |
|
|
|
||
|
|
|
|
|
|
|
||||
1 Black end |
1. Connect black end of drain hose to air |
|||||||||
gap and cut if needed. (Do not cut |
||||||||||
|
|
|
ribbed section.) |
|
|
|
||||
|
|
|
2. Attach drain hose to air gap with large |
|||||||
|
|
|
||||||||
2 |
|
|
silver drain hose clamp (provided). |
|||||||
|
|
Use pliers to squeeze clamp open and |
||||||||
|
|
|
move into position. If the drain hose |
|||||||
|
|
|
was cut, use a 1¹⁄ " to 2" (3.8 to 5 cm) |
|||||||
|
|
|
screw-type clamp (not provided). |
|||||||
3 |
|
|
3. Use a rubber hose (not provided) with |
|||||||
|
|
|
screw-type clamps (not provided) to |
|||||||
|
|
|
connect from waste tee to air gap. |
|||||||
Install Moisture Barrier (under a wood countertop)
Install moisture barrier (under a wood countertop)
Moisture
barrier
1.Make sure the area under the cabinet is clean and dry for installation of the moisture barrier.
2.Remove the backing of the moisture barrier and apply to underside of the countertop along the front edge of the counter.
Prepare Dishwasher
Tip Over Hazard
Do not use dishwasher until completely installed. Do not push down on open door.
Doing so can result in serious injury or cuts.
Excessive Weight Hazard
Use two or more people to move and install dishwasher.
Failure to do so can result in back or other injury.

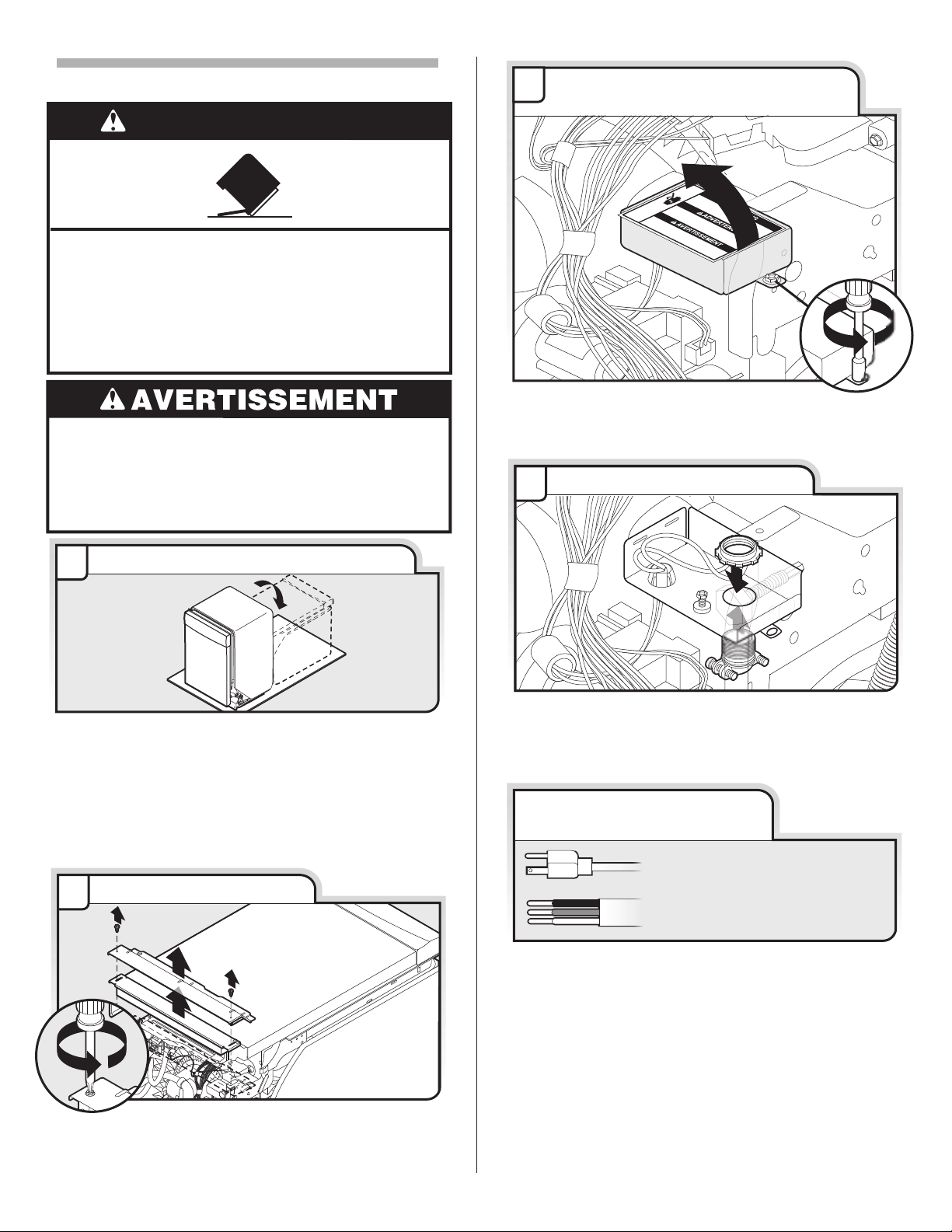

1 Put dishwasher on its back
11
Helpful Tip: Place cardboard under dishwasher until installed in cabinet opening to avoid damaging floor covering. Do not use door panel as a work table without first covering with a towel to avoid scratching the door panel.
Using two or more people, grasp sides of dishwasher door frame and place dishwasher on its back.
2 Remove panels
Using a ¹⁄ " hex head socket, nut driver or Phillips screwdriver, remove two screws attaching access panel and lower panel to dishwasher. Do not remove tech sheet from access panel.
3 Remove terminal box cover
Using a ¹⁄ " hex head socket, nut driver or Phillips screwdriver, remove terminal box cover. Retain for later use.
4
Install a UL Listed/CSA Approved strain relief. Make sure screwheads are facing to the left when tightening conduit nut. Strain relief is provided with the power supply cord kit.
12
What type of electrical connection will you use?
Power Supply Cord:
Follow Option A instructions
Direct Wire:
Follow Option B instructions
NOTE: If using Option B, proceed to “Determine Cabinet Opening,” to continue with the installation of your dishwasher.

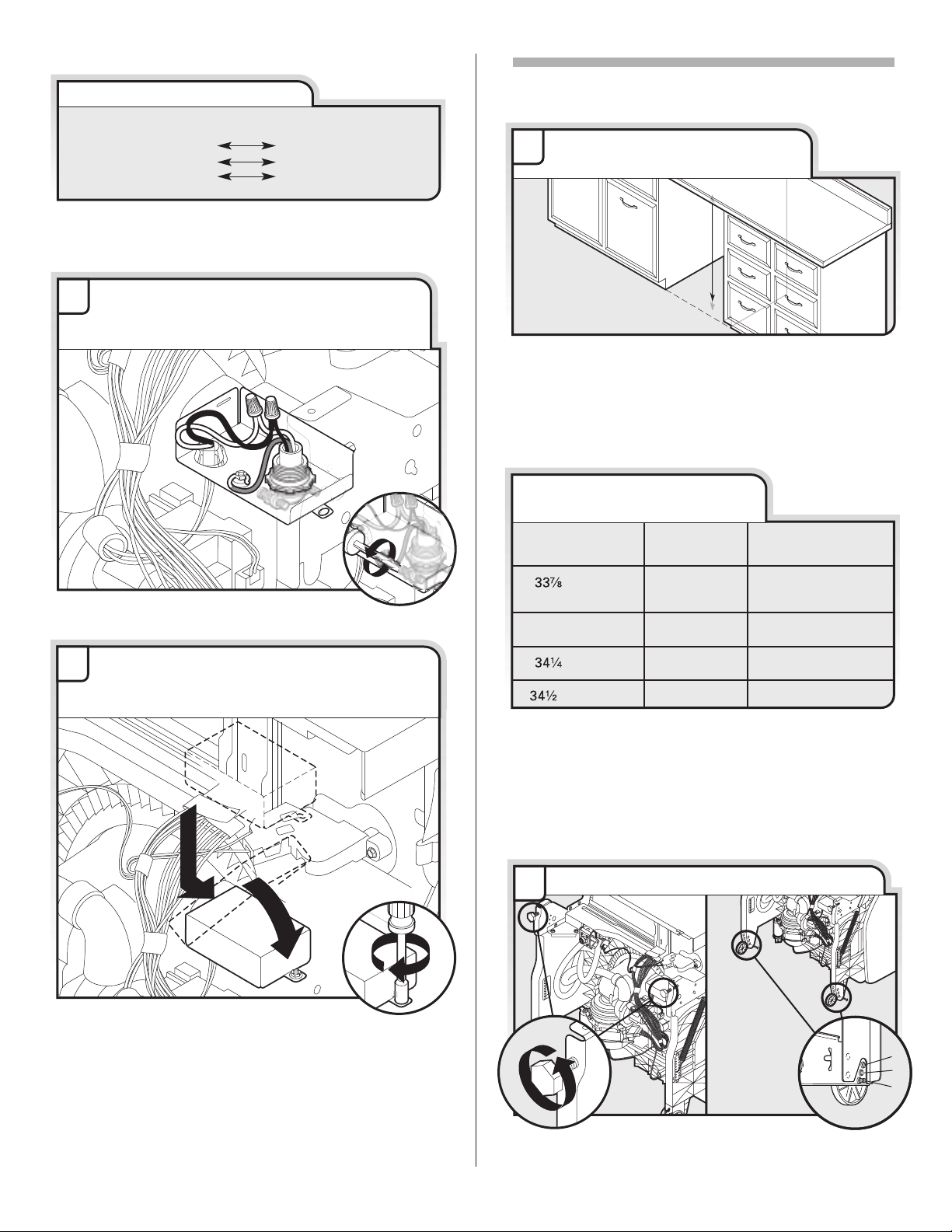

Make Power Supply Cord Connection
Option A, Power Supply Cord:
1 Power Cord—Route cord into terminal box
Route cord so that it does not touch dishwasher motor to lower part of dishwasher tub. Pull cord through strain relief in terminal bow. Take notice when installing or removing the dishwasher in order to reduce the chance of damaging the power supply cord.
Select UL Listed/CSA Approved twist-on wire connectors (included with power supply cord kit) rated to connect your power supply cord to 16-gauge dishwasher wiring.

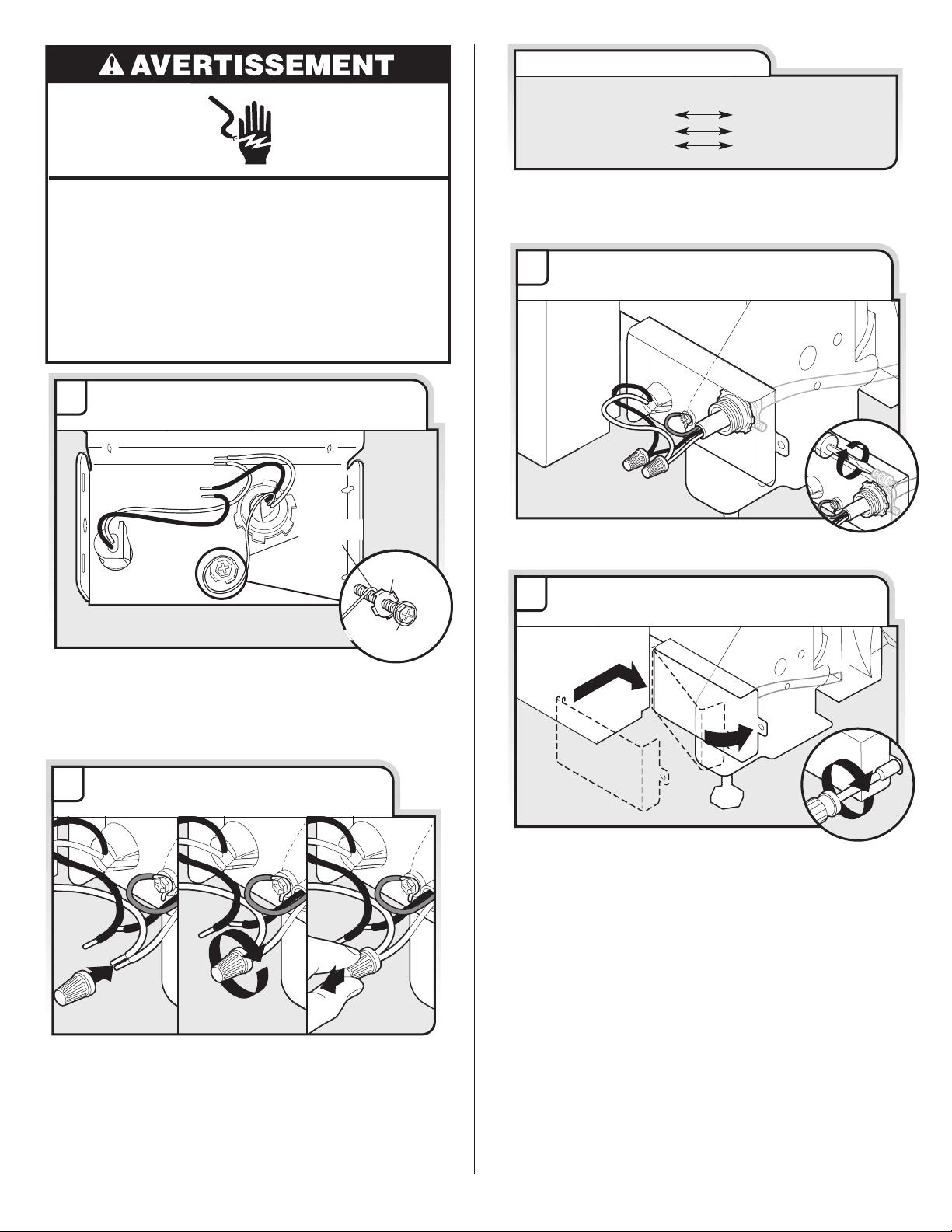

WARNING
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector in terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.
2
Ground
wire
Washer
Ground connector
Remove the green grounding screw and place through the ring terminal of the green ground wire. Reattach and tighten the green screw.
3 |
NOTE: Twist on wire connector. Gently tug on wires to be sure both are secured.
Connect wires black to black and white to white, using UL Listed/CSA Approved twist-on wire connectors (included with power supply cord kit).
Wiring configuration
If needed, see website for animated representation of this step. Visit www.whirlpool.com under FAQ tab.
4 Power Cord−Secure cord on strain relief
Tighten strain relief screws to secure cord
5 Power CordÑReinstall
terminal box cover
Place wires inside terminal box. Insert tabs
on left side of cover. Make sure wires are tucked inside box. Close cover ensuring wires are not pinched. Use ¹⁄" nut driver and previously removed screw to secure cover.
NOTE: Do not plug into outlet until instructed to do so.
Determine Cabinet Opening
1 Measure cabinet opening
13
Measure height of cabinet opening from underside of countertop to floor where dishwasher will be installed (you will need to measure the lowest point on the underside of the countertop and the highest point on the floor). Refer to “Dishwasher Height Adjustment Chart” for wheel position and the number of turns needed.
Dishwasher Height Adjustment Chart
NOTE: If the minimum cabinet opening height is less than 34" (86.4 cm), the rear wheels can be removed for additional clearance. This will allow the dishwasher to fit into a 33⁄" (86 cm) high cabinet opening, but the dishwasher will be more difficult to move. (Measurements are approximate. Wheels and legs are preset at the factory for 34¹⁄" [87.6 cm].)
2 Adjust wheels and legs
1
2
3
wheel
Turn both leveler legs to the same height. Put wheels in the required position determined from “Dishwasher Height Adjustment Chart.”

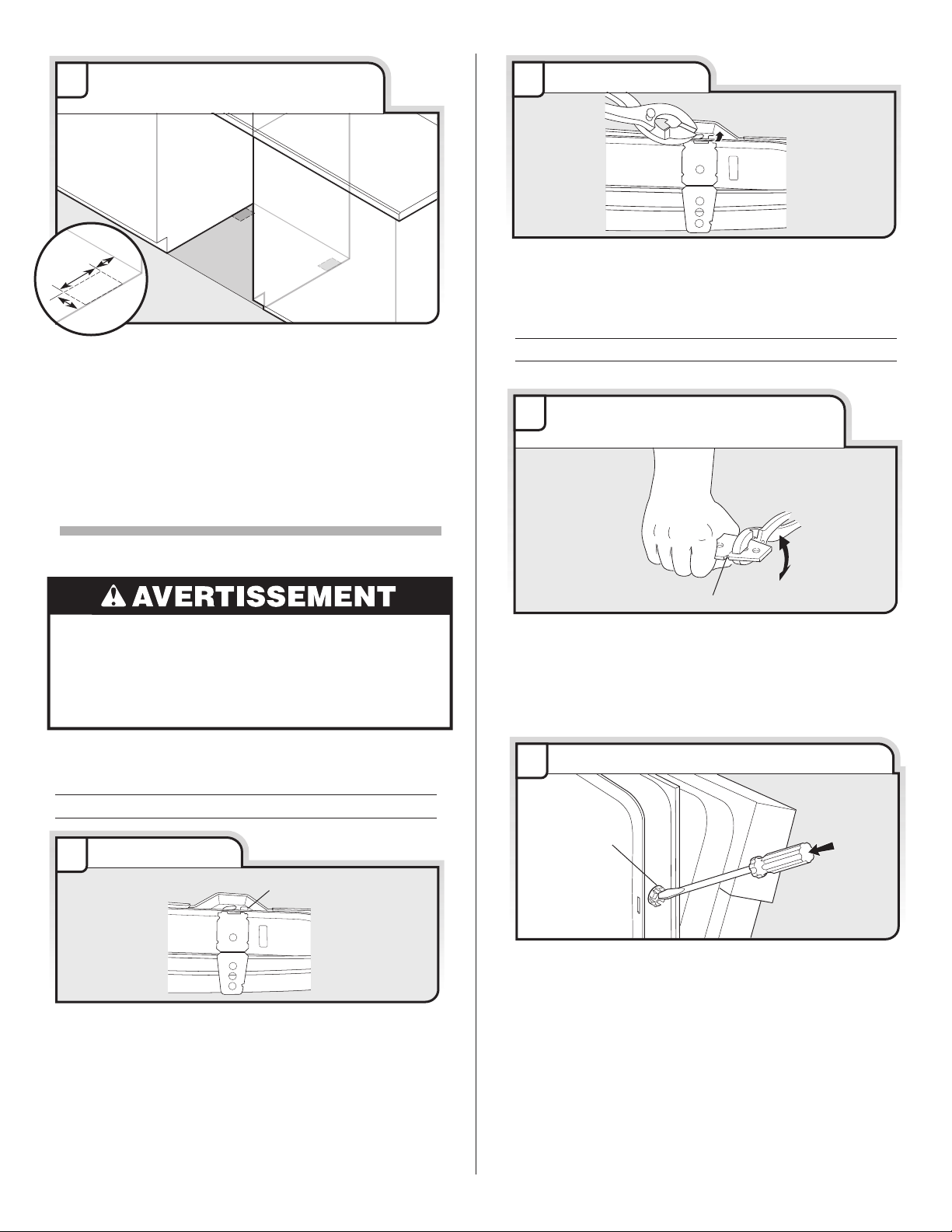

3 Built-up Floors—Add
shims as needed
|
|
2 |
|
|
|
(5 |
" |
|
|
cm) |
|
" |
) |
|
|
4 cm |
|
|
|
.1 |
|
|
|
(10 |
|
|
|
|
|
) |
|
|
|
cm |
|
|
|
(7 |
|
Built-up floors: If the kitchen floor is higher than the cabinet opening's floor - for example, the kitchen floor tile does not extend into the cabinet opening - add shims as needed in the area shown to bring the dishwasher up to 34" (86.4 cm) below the countertop.
NOTE: Shims must be securely attached to floor to avoid movement when the dishwasher is in use.
14
Choose Attachment Option
Excessive Weight Hazard
Use two or more people to move and install dishwasher.
Failure to do so can result in back or other injury.
Using 2 or more people, stand the dishwasher up.
Option 1, Countertop attachment:
1 Remove bracket
Remove the brackets from the package and place in the open slots on the left and right-hand top of the dishwasher collar as shown.
2 Insert bracket
Insert the bracket into the slot on the collar. Using a pair of pliers, bend the tab down to secure the bracket in place. Repeat this step for the other side.
NOTE: Do not attach the dishwasher. This will be done later.
Option 2, Dishwasher side attachment:
NOTE: Remove the brackets from the parts package.
1 Break end of bracket
Break off the end of the bracket along the scored line.
With another person holding the rear of the dishwasher to keep it from tipping, open dishwasher door and place towel over pump assembly and spray arm of dishwasher. This will keep screws from falling into pump area when you are securing dishwasher to cabinet.
2 Insert plastic buttons
Push the plastic buttons out of the side of the tub.
NOTE: Save the buttons to cover the holes after dishwasher is installed.

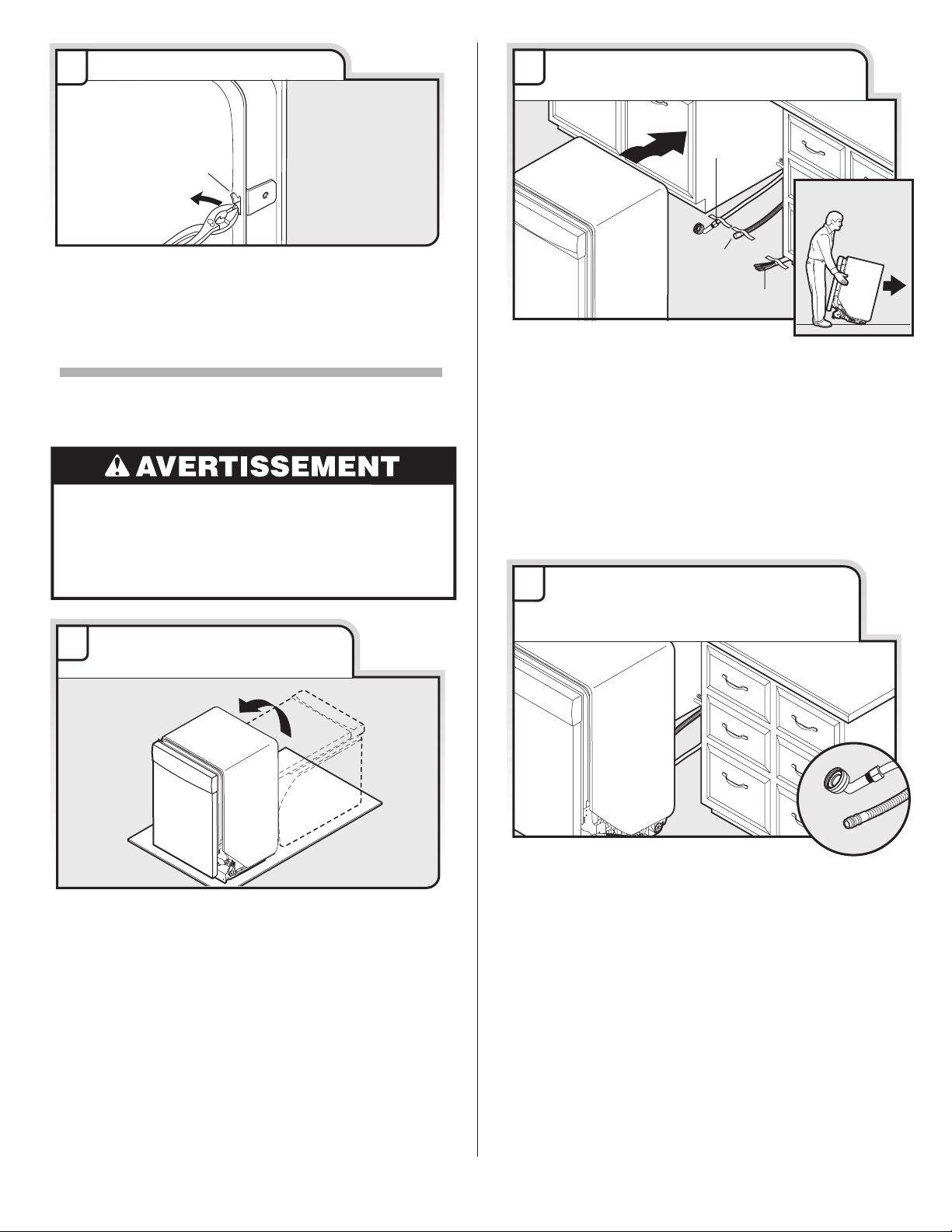

3 Reinstall bracket
Push bracket into slot on the side of dishwasher, and bend tab in toward the side of the dishwasher so that it keeps the bracket in place. Repeat this step for the other side of the dishwasher.
NOTE: Do not attach the dishwasher. This will be done later.

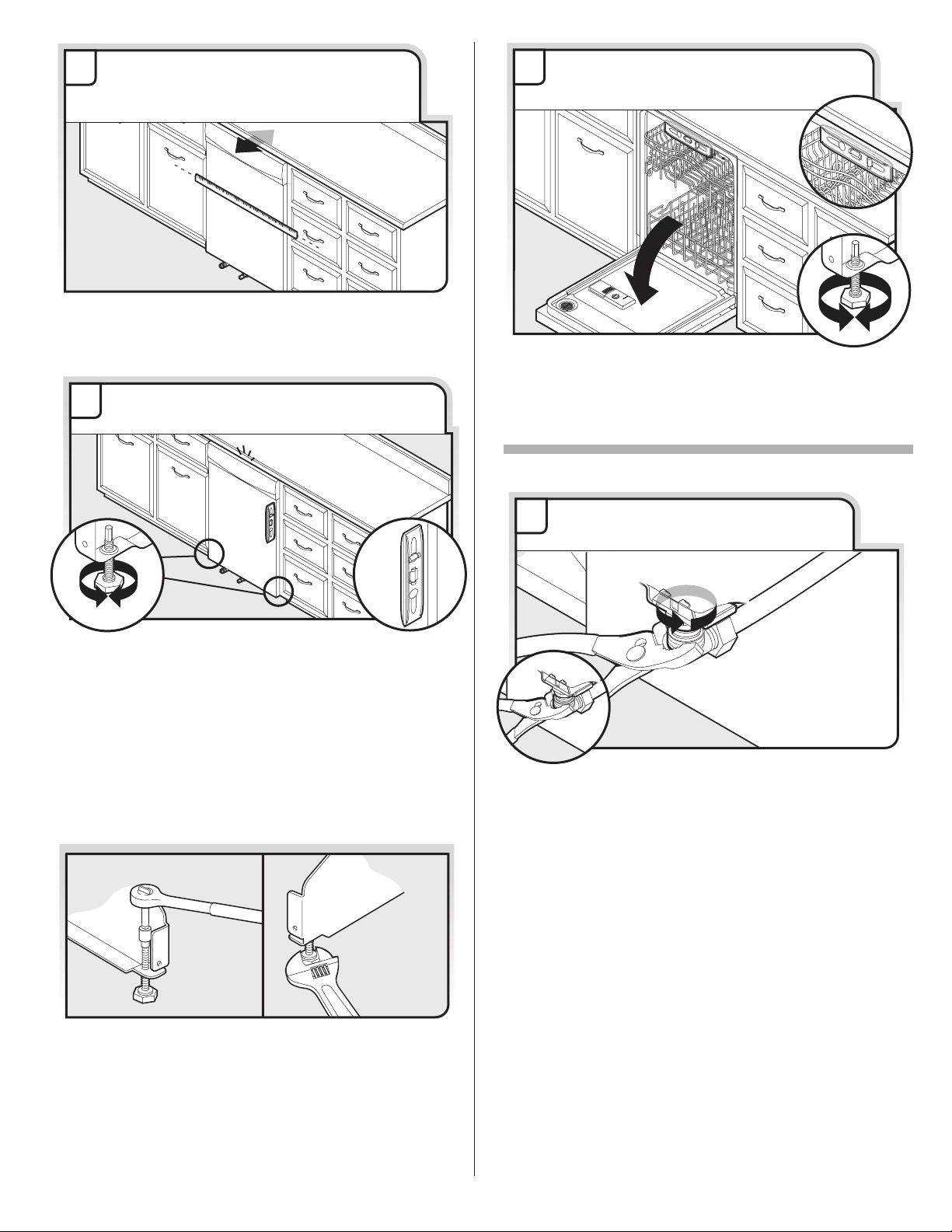

Move Dishwasher into Cabinet Opening
Excessive Weight Hazard
Use two or more people to move and install dishwasher.
Failure to do so can result in back or other injury.
1 Stand dishwasher upright
Using two or more people, stand dishwasher upright.
NOTE: Do not install kick plate until instructed to do so.
2
Water
line
Direct wire only
Drain hose
Cable
IMPORTANT: Double-check correct placement of utilities. Grasp the sides of the dishwasher at the edges of the door panel. Tilt dishwasher backward on wheels and move dishwasher close to cabinet opening.
NOTE: Do not push on the front of the panel or on the console. Panel or console may dent.
Helpful Tip: Temporarily tape utilities to the floor in the locations shown to keep them from moving when dishwasher is moved into the cabinet opening.
3 Check water and drain hose position
Check that water line is on the left side of opening and drain hose is near the center of the cabinet opening.

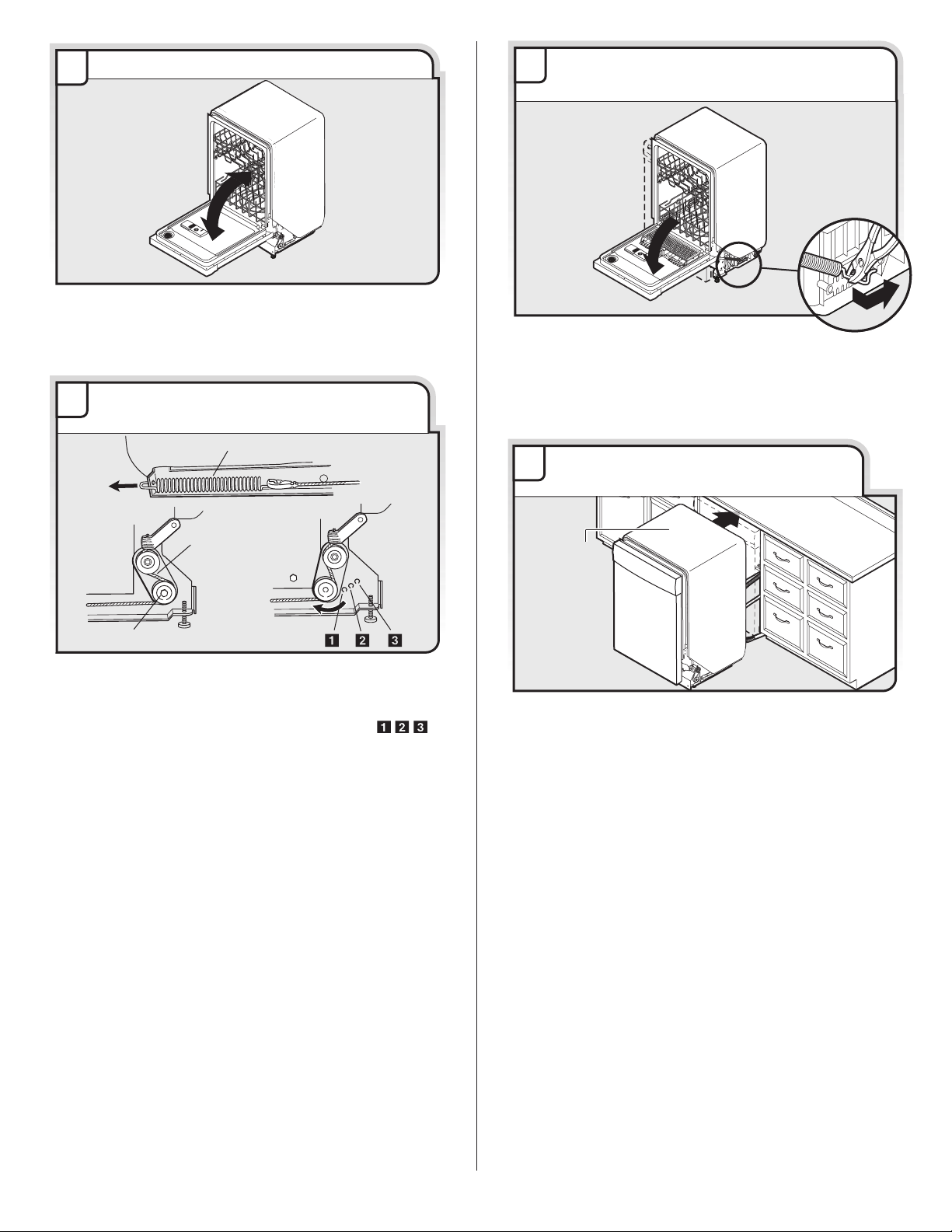

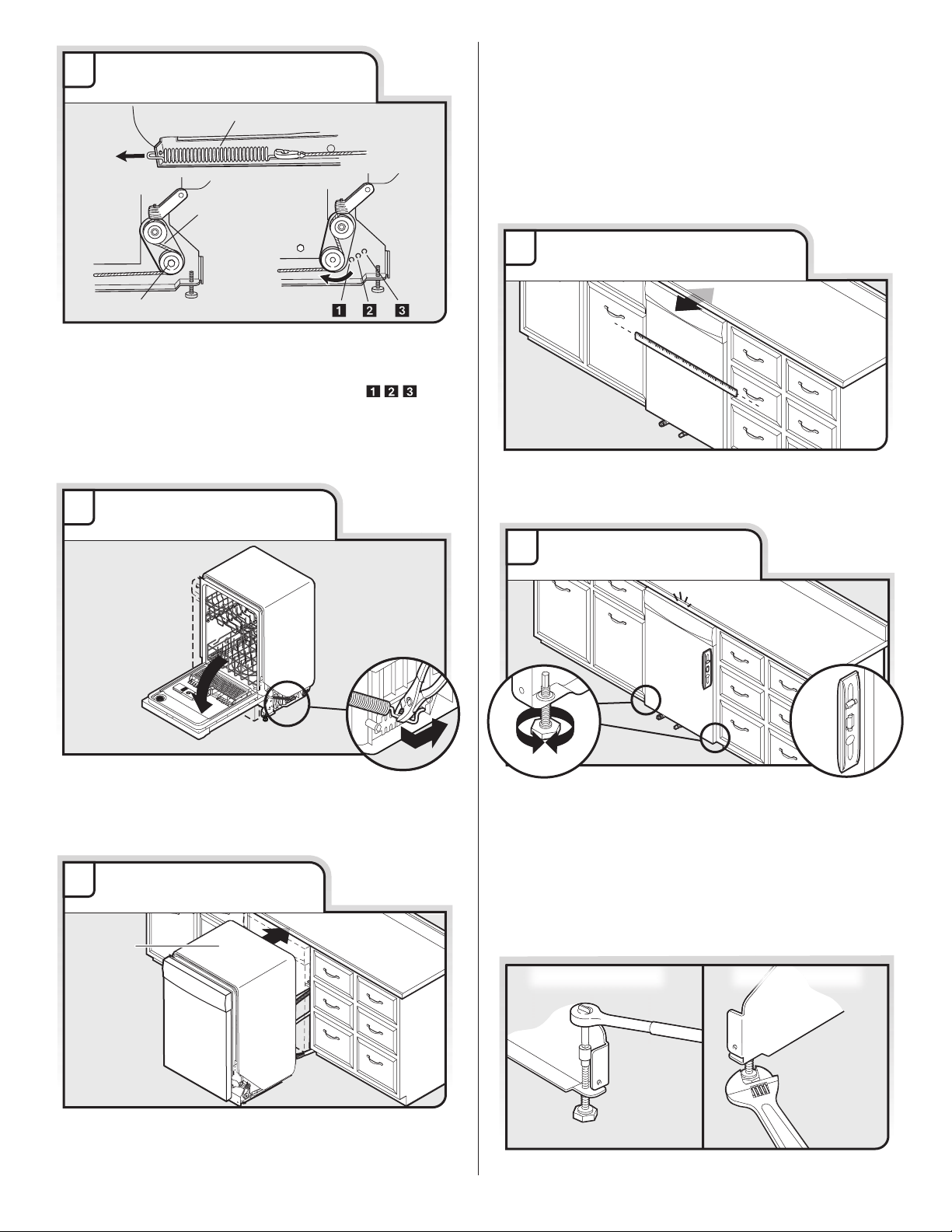

4 Open and close door
With another person holding the dishwasher to keep it from tipping, open and close the door a few times. If the door closes or falls open under its own weight, the door tension will need to be adjusted.
15
Loading...
