Page 1

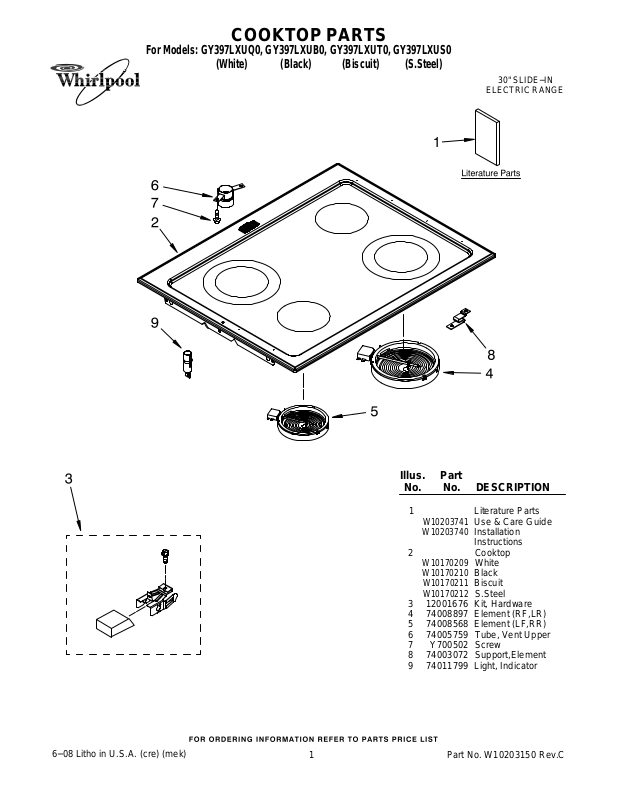

COOKTOP PARTS
For Models: GY397LXUQ0, GY397LXUB0, GY397LXUT0, GY397LXUS0
(White) (Black) (Biscuit) (S.Steel)
30" SLIDE−IN
ELECTRIC RANGE
6−08 Litho in U.S.A. (cre) (mek)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10203741
W10203740
2 Cooktop
W10170209
W10170210
W10170211
W10170212
3 12001676 Kit, Hardware
4 74008897 Element (RF,LR)
5 74008568 Element (LF,RR)
6 74005759 Tube, Vent Upper
7 Y700502 Screw
8 74003072 Support,Element
9 74011799 Light, Indicator
1
Use & Care Guide
Installation
Instructions
White
Black
Biscuit
S.Steel
Part No. W10203150 Rev.C
Page 2
CONTROL PANEL PARTS
For Models: GY397LXUQ0, GY397LXUB0, GY397LXUT0, GY397LXUS0
(White) (Black) (Biscuit) (S.Steel)
Illus. Part
No. No. DESCRIPTION
1 74005769 Lens
2 Panel, Control
7720P535−60
7720P536−60
7720P537−60
W10182766
7101P309−60
3
4 Switch, Infinte
74010824 8" (RF,LR)
7403P238−60
W10203701
5
Black
White
Biscuit
S.Steel
Screw
6" (LF,RR)
Control
Illus. Part
No. No. DESCRIPTION
6 Panel,Control(lwr)
W10185606
W10185607
W10185609
7 Knob (LF,RR)
7737P414−60
7737P415−60
7737P416−60
8 Switch, Membrane
W10177225
W10177224
W10177226
Black
White
Biscuit
Black
White
Biscuit
Black
White
Biscuit
2
Illus. Part
No. No. DESCRIPTION
9 Knob (RF,LR)
7737P417−60
7737P418−60
7737P419−60
W10203695
10
11 Y700502 Screw
12 74004153 Light, Indicator
W10187161
13
Black
White
Biscuit
Support,
Control Panel
Overlay
(S.Steel Mdl Only)
W10203150
Page 3
CHASSIS PARTS
For Models: GY397LXUQ0, GY397LXUB0, GY397LXUT0, GY397LXUS0
(White) (Black) (Biscuit) (S.Steel)
W10203150
3
Page 4
CHASSIS PARTS
For Models: GY397LXUQ0, GY397LXUB0, GY397LXUT0, GY397LXUS0
(White) (Black) (Biscuit) (S.Steel)
Illus. Part
No. No. DESCRIPTION
1 Panel, Shield
74010821 Left
74010822 Right
2 74010819 Latch Assembly
3 74010807 Cover, Front
4 74011465 Main Back
W10203736
5
6 74010815 Extension, Back
7 Y700502 Screw
8 74006364 Insulator, Cord
9 74003976 Screw
11 74010823 Fan, Cooling
12 74010812 Support,Oven Btm
7101P124−60
13
14 74003040 Element, Broil
15 74004943 Sensor, Oven
W10165722
16
17 74010886 Tube, Vent Upper
Cover, Main Wire
Screw
Tube, Vent Lower
Illus. Part
No. No. DESCRIPTION
18 71001394 Screw (4)
19 74010817 Holder, Vent Tube
20 74008597 Smoke Eliminator
21
W10165724
22 74010885 Light Assembly
23 74004180 Bracket,Pwr Supply
7407P103−60
24
25 Trim, Side
74010832 White (2)
74010831 Black (2)
26 71001394 Screw
27 74010883 Element, Bake
28 74010884 Support, Oven Rear
29 71001394 Screw
30 74011142 Hinge (2)
31 4159193 Screw, Hinge (4)
32 74010818 Switch, Hi−Limit
33 74005564 Bracket,Anti−Tip
34 74010820 Extention, Shield
Plate, Smoke Elm.
Bulb, Oven
Illus. Part
No. No. DESCRIPTION
35 74003386 Support, Element
36 74010805 Leg, Leveling
37 74010899 Pedestal, Bottom
38 74010882 Pedestal, Front
39 74007129 Support
40 74003565 Runner, Drawer (2)
41 74004078 Roller, Drawer (2)
42 74005231 Shaft, Roller (2)
43 74005230 Nut, Lock (2)
44 74006522 Retainer, Bottom
INSULATION
74010987 Insulation, Wrap
W10165725
74011207 Insulation,
Insulation, Back
Oven Bottom
4
W10203150
Page 5
DOOR PARTS
For Models: GY397LXUQ0, GY397LXUB0, GY397LXUT0, GY397LXUS0
(White) (Black) (Biscuit) (S.Steel)
Illus. Part
No. No. DESCRIPTION
1 Trim, Door Top
W10165729
W10165726
W10177497
W10168887
W10163951
2
3 74011457 Baffel, Retainer
4 74001530 Screw 8AB 1/2
5 74003645 Glass, Inner (2)
6 74005546 Spacer, Rubber
7 74001574 Nut, Snap (4)
8 74011456 Lining, Door
9 74011458 Bracket, Glass (2)
10 74003647 Insulation, Door
11 Y700502 Screw
12 Bracket, Handle
74009699 Left
74009698 Right
13 74004224 Tape, White
W10203150
Black
White
Biscuit
S.Steel
Screw, Handle (2)
Illus. Part
No. No. DESCRIPTION
14 Trim, Door Side
74009693 Black, Left
74009695 White, Left
74009697 Biscuit, Left
74009692 Black, Right
74009694 White, Right
74009696 Biscuit, Right
15 Tape, Double Sided
74009014 White
74009025 Black
16 Trim, Door Bottom
74009687 White
74009686 Black
74009688 Biscuit
17 Screw, Trim
74009540 White
74009539 Black
74009541 Biscuit
74009268 S.Steel
5
Illus. Part
No. No. DESCRIPTION
W10162384
18
19 Glass, Door
W10170228
W10170229
W10170230
W10170231
20 Handle, Door
W10118430
W10118431
W10118432
W10144883
21 74003664 Tape, Foil
22 8303810 Nameplate, Logo
23 74010267 Spacer, Rubber
Seal, Door
White
Black
Biscuit
S.Steel
(Order Items 13 &
21 When Replacing
Door Glass)
White
Black
Biscuit
S.Steel
Page 6

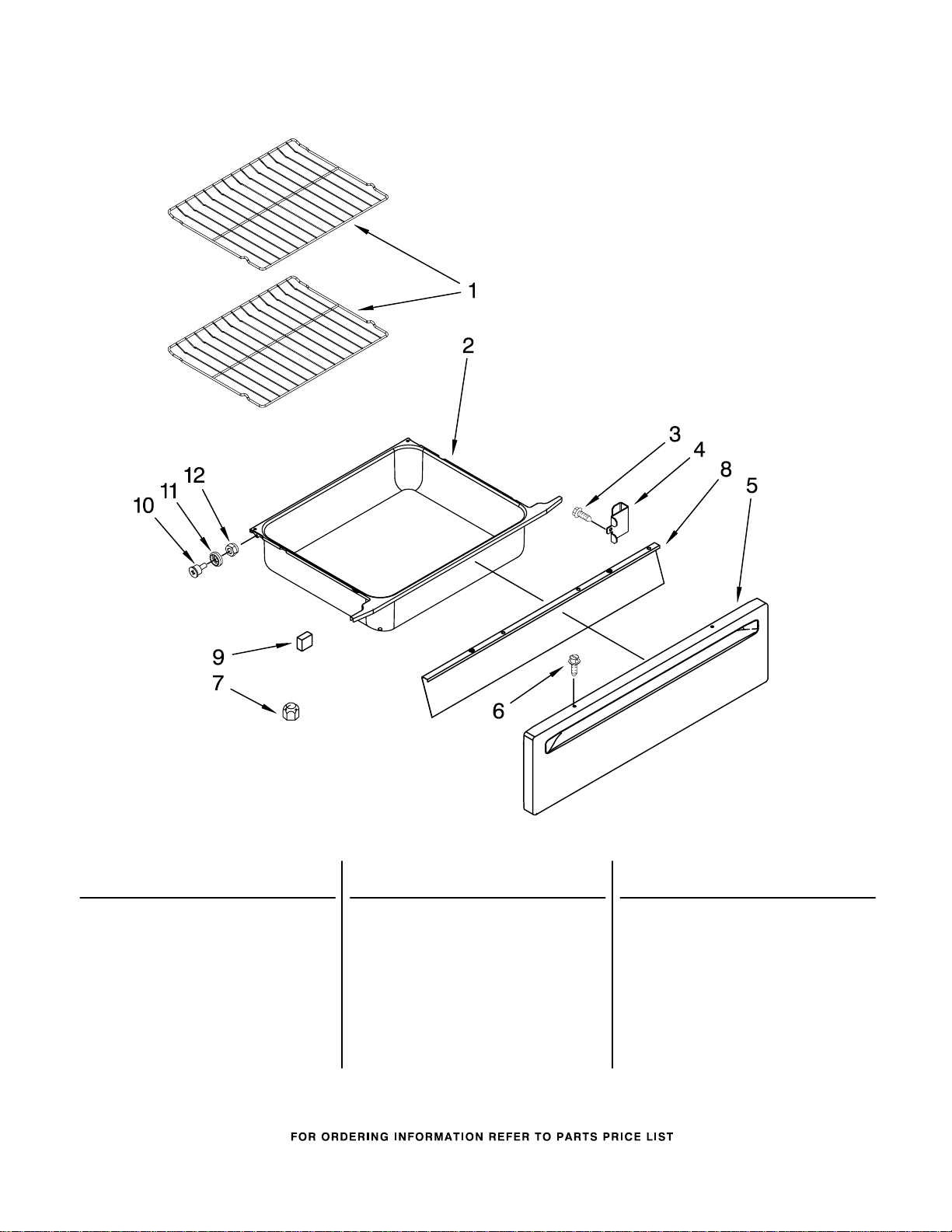

DRAWER AND RACK PARTS
For Models: GY397LXUQ0, GY397LXUB0, GY397LXUT0, GY397LXUS0
(White) (Black) (Biscuit) (S.Steel)
Illus. Part
No. No. DESCRIPTION
1 74001813 Rack, Oven (2)
2 74008333 Drawer, Storage
3 74004310 Screw, Panel
4 74010896 Bracket, Drawer
Illus. Part
No. No. DESCRIPTION
5 Panel, Drawer
74003407 White
74003701 Black
74004966 Biscuit
W10160943
6 Screw, Panel
74009540 White
74009539 Black
74009541 Biscuit
74009538 S.Steel
S.Steel
6
Illus. Part
No. No. DESCRIPTION
7 74005230 Nut, Lock
2404F030−51
8
9 74005546 Spacer, Rubber
10 74004078 Roller, Drawer (2)
11 74005231 Shaft, Roller (2)
7103P082−60
12
Lining, Drawer
Nut
W10203150
Page 7
OPTIONAL PARTS (NOT INCLUDED)
For Models: GY397LXUQ0, GY397LXUB0, GY397LXUT0, GY397LXUS0
(White) (Black) (Biscuit) (S.Steel)
Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
SPLICING WIRES−−25FT.
LENGTH
242828 Wire, Black
12 Ga. 150
242821 Wire, Blue
14 Ga. 150
242822 Wire, Brown
14 Ga. 150
242830 Wire, Brown
14 Ga. 200
242823 Wire, Green
14 Ga. 150
242824 Wire, Orange
14 Ga. 150
242825 Wire, Red
14 Ga. 150
242831 Wire, Red
14 Ga. 200
242827 Wire, Yellow
14 Ga. 150
c
c
c
c
c
c
c
c
c
Illus. Part
No. No. DESCRIPTION
REFINISHING MATERIAL
799832 Kit, Porcelain
Repair (White)
242756 Touch−Up
Self−Clean(1/2 Pt)
261582 Grease
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
511873 White Porcelain
(2 Oz.)
Illus. Part
No. No. DESCRIPTION
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
4392901 Biscuit
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit(Uncut)
ACCESSORY PARTS
241430 Foil, Aluminum
Oven (18" x 25’)
3191048 Cleaner, Glass
WIRING HARNESS PARTS
74010849 Harness, Sensor
5171P974−60
74011549 U3, Harness (RT)
74011572 Coil,Harness (Lt)
5171P976−60
74006811 Clip, Wire
Harness, Top
Harness, Main
W10203150
7
