BEFORE USING THE WASHING MACHINE

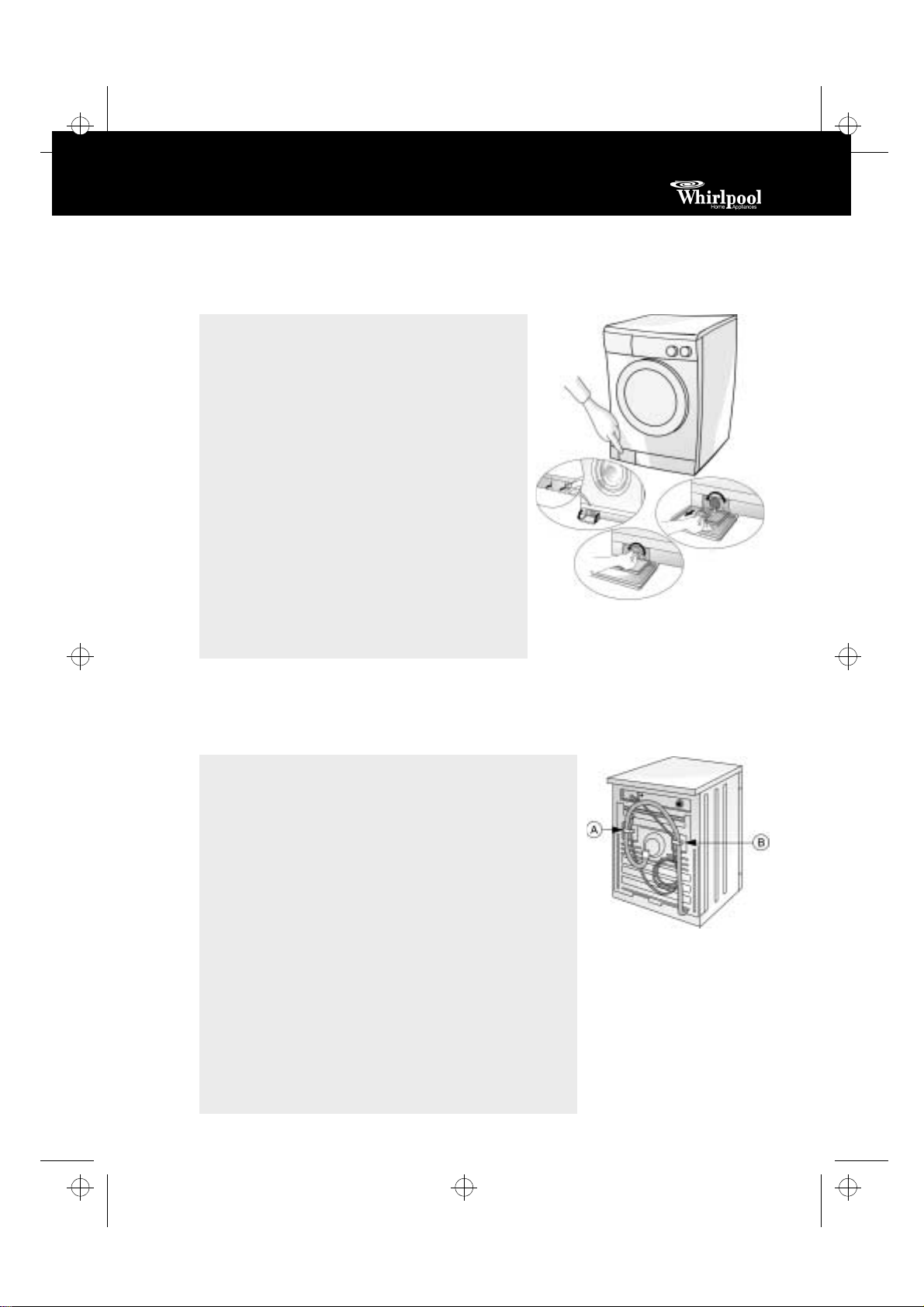

1.Removing the packaging and check

•After unpacking, make sure that the washing machine is undamaged. If in doubt, do not use the washing machine. Contact After-Sales Service or your local retailer.

•Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, as they are potentially dangerous.

2.Remove the transit bolts

•The appliance is fitted with transit bolts to prevent internal damage during transport.

Before using the washing machine you must remove the transit bolts (see “Installation/ Remove the transit bolts”).

3.Install the washing machine

•Move the machine without carrying it at the top.

•Install the appliance on a solid and level floor surface, preferably in a corner of the room.

•Adjust the feet to ensure that the machine is stable and level (see “Installation / Adjust the feet”).

4.Water supply

•Connect the water supply inlet hose in accordance with regulations of your local water company (see “Installation/Connect the water inlet hose”).

•Water supply: cold water only

•	Tap:	3/4” threaded hose connection
•	Pressure:	100-1000 kPa (1-10 bar).

5.Drain hose

•Connect the drain hose to the siphon or hook it over the edge of a sink by means of the “U” bend (see “Installation/Connect the water drain hose”).

•If the washing machine is connected to a built-in drainage system, ensure the latter is equipped with a vent to avoid simultaneous loading and draining of water (siphoning effect)

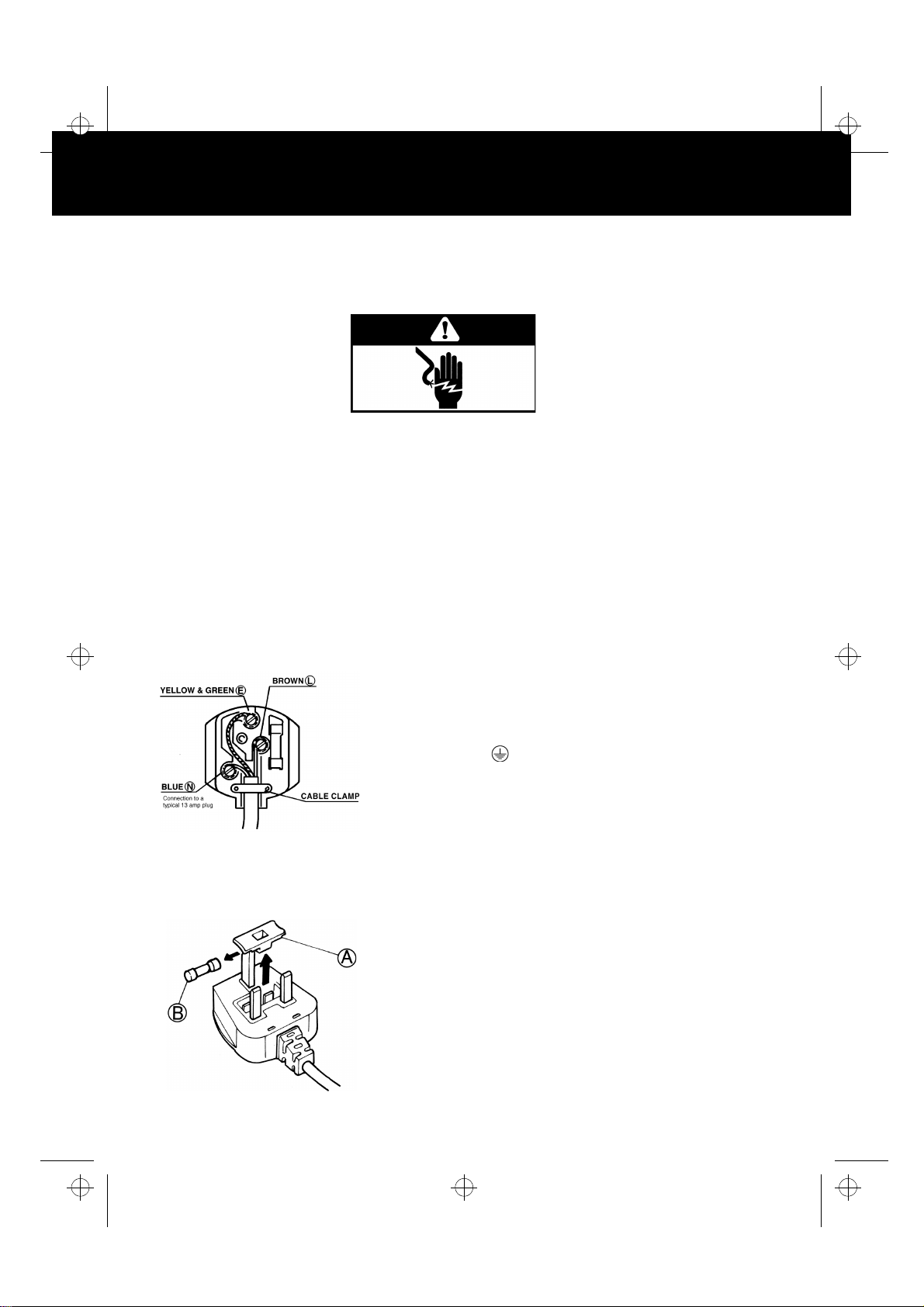

6.Electrical connections

•Electrical connections must be carried out by a qualified technician in compliance with the manufacturer’s instructions and current standard safety regulations.

•Voltage information, power consumption and electrical protection data are supplied on the inside of the appliance door.

•The appliance must be connected to the mains exclusively by means of a socket with an earth connection in accordance with established regulations. The appliance must be earthed by law. The manufacturer declines all liability for damage to property or injury to persons or animals deriving either directly or indirectly from failure to observe the directions.

•Do not use extension leads or multi sockets.

•Before any maintenance on the washing machine disconnect it from the mains supply.

•Access to the mains plug or to disconnection from mains supply via a double-pole switch must be ensured at all times following the installation.

•Do not operate the washing machine if it has been damaged during transport. Inform the After-Sales Service.

•Mains cable replacement is only to be carried out by After-Sales Service.

•The washing machine must only be used in the household for the prescribed uses.

Minimum housing dimensions:

Width: 600 mm

Height: 850 mm

Depth: 600 mm

18

3gb10015.fm5 Page 19 Friday, June 1, 2001 7:09 PM

FIRST WASH CYCLE

We recommend the first wash cycle be made without laundry.

This will remove any residual water used in testing your washing machine.

1.Turn on the tap.

2.Close the appliance door.

3.Pour a small amount of detergent (about 30 ml) into the detergent dispenser .

4.Select a short program (see programme chart).

5.Press the “On/Off” button.

PRECAUTIONS AND GENERAL RECOMMENDATIONS

1.Packing

•The packing box may be fully recycled as confirmed by the recycling symbol. Adhere to local regulations when disposing of packaging material.

2.Energy saving tips

•Achieve the best use of energy, water, detergent and time by using the recommended maximum load size.

•Do not exceed the detergent dosages indicated in the manufacturer’s instructions.

•The Eco Ball - a special system in the outlet - will prevent detergent loss from the drum to avoid detergent loss into the environment (depending on the model).

•Use “Prewash” for heavily soiled laundry only! Save detergent, time, water and energy consumption by not selecting “Prewash” for slight to normally soiled laundry.

•Pretreat stains with stain remover or soak dried in stains in water before washing to reduce the necessity of a hot wash program.

•Save energy by using a 60° C instead of a 90° C wash programme or a 40° C instead of a 60° C wash programme.

•Save energy and time by selecting a high spin speed to reduce the water content in laundry before using a tumble dryer (for machines with adjustable spin speed).

3.Disposing of packaging and old appliances

•The washing machine is built from reusable materials. The washing machine must be disposed of in compliance with local waste disposal regulations.

•Before scrapping of your old machine, cut off the power cable so that it cannot be connected to the mains.

•Remove detergent from compartment if you intend scrapping your appliance.

4.Child safety

•Children must not be allowed to play with the washing machine.

5.General recommendations

•When the appliance is not in use unplug it and turn off the tap.

•Before cleaning or carrying out maintenance, switch off the washing machine and disconnect it from the mains supply.

•To clean the outside of the washing machine, use a neutral detergent and a damp cloth.

•Do not use abrasive detergents.

•Do not attempt to force the door open.

•If necessary, the power cable may be replaced with an identical one obtained from our AfterSales Service. The power cable must only be replaced by a qualified technician.

6.EC Declaration of Conformity

•This washing machine has been designed, constructed and distributed in compliance with the safety requirements of EC Directives: 73/23/EEC Low Voltage Directive

89/336/EEC EMC Directive 93/68/EEC CE Marking Directive

19

3gb10015.fm5 Page 20 Friday, June 1, 2001 7:09 PM

DESCRIPTION OF THE WASHING MACHINE

1.Worktop

2.Control panel

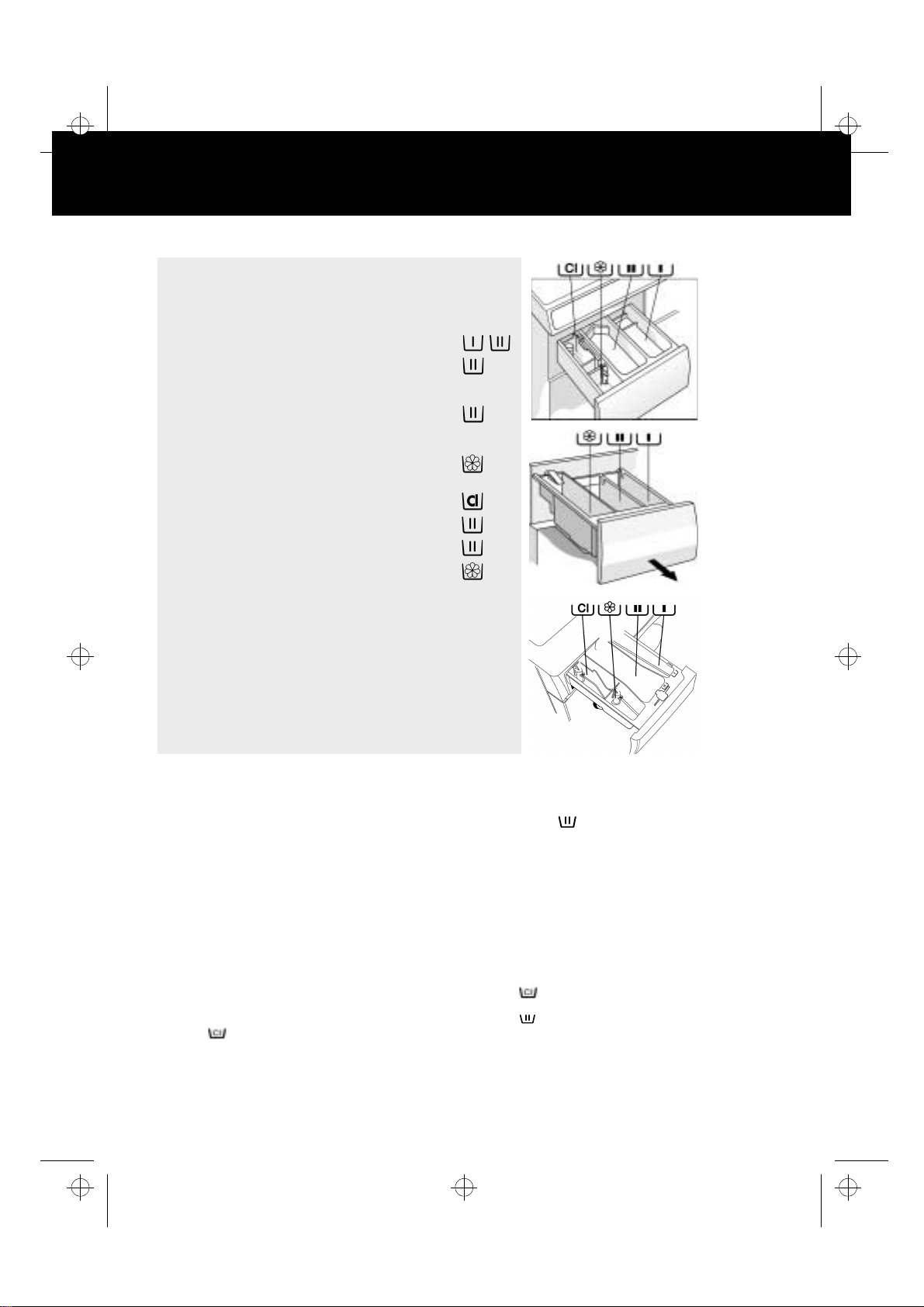

3.Detergent dispenser

4.After-Sales Service sticker (on the back side of the door)

5.Door

6.Door handle

•To open the door press the button on the inside of the handle and pull

•Close the door by pushing it firmly (the lock will click into place)

7.Filter (behind cover)

8.Adjustable foot

PREPARATION OF THE WASHING

Sort the laundry

1. Sort the laundry according to…

•Type of fabric / care label symbol

Cottons, mixed fibres, easy care/synthetics, wool, handwashed items.

•Colour

Separate whites and coloureds. Wash new coloured items separately.

•Size

Wash items of different sizes in the same load to improve washing efficiency and distribution in the drum.

•Fabric delicacy

Wash delicate articles separately: use a special

programme for Pure New Wool , curtains and other delicates. Always remove curtain glides or wash curtains with the glides inside a cotton bag. Use the special program for handwash fabrics. Wash stockings, belts and other small items or articles with hooks (e.g. bras) in special cotton bags for washing machines or in zipped pillow cases.

2.Empty pockets

Coins, safety pins and similar items can damage of your appliance drum and tub.

3.Fasteners

Close zips and fasten buttons or hooks; loose belts or ribbons should be tied together.

Stain removal

•Blood, milk, egg and other organic substances are generally removed by the enzyme phase of the programme.

•To remove red wine, coffee, tea, grass and fruit

stains etc. add a stain removing agent in detergent dispenser compartment or chlorine bleach in compartment (depending on model).

•Particularly stubborn stains should be treated before the wash.

Loading the laundry

1.Open the door.

2.Unfold the laundry and place it loosely in the drum. Follow loads recommended in the programme chart: Overloading will result in unsatisfactory washing results and creased laundry.

3.Close the door.

20

3gb10015.fm5 Page 21 Friday, June 1, 2001 7:09 PM

DETERGENTS AND ADDITIVES

Choice of the right detergent and additives

The type of detergent depends on:

•type of fabric (cottons, easy care/synthetics, delicate items, wool).

Note: use only specific detergents for wool.

•colour;

•washing temperature;

•degree and type of soiling.

Notes:

Whitish residues on dark fabrics are caused by insoluble detergents components used in modern phosphate-free powder detergents.

If you notice this problem, shake or brush the affected items or use a liquid detergent.

Keep detergents and additives in a dry place and out of reach of children.

Use only detergents and additives specifically produced for domestic washing machines.

If you use descaling agents, dyes or bleaches, make sure they are suitable for washing machine use. Descaler could contain components that can attack parts of your washing machine.

Do not use solvents (turpentine, benzine, etc.). Do not machine wash fabrics that have been treated with solvents or flammable liquids.

Dosage

Follow the instructions on the detergent pack in relation to:

•the degree and type of soiling;

•the size of the load:

•full load: follow the detergent manufacturer’s instructions;

•half load: 3/4 the amount used for a full load;

•minimum load (about 1 kg): half the amount used for a full load;

•water hardness in your area (ask for information from your water company): soft

water requires less detergent than hard water.

Notes:

Too much detergent can result in excess foam formation, and the reduction of washing efficiency. If the appliance detects excessive foam it may prevent spinning.

Insufficient detergent may result in: grey laundry, deposits on the drum, tub and heater.

You can use liquid detergent in the “Prewash” phase for programmes with this option. In this case put only powder detergents in the compartment for the main wash .

When using concentrated fabric softeners, add water in the detergent dispenser up to “MAX” level mark.

To prevent dispensing problems when using highly concentrated powder and liquid detergents, use the special detergent ball or bag supplied with the detergent and place it inside the drum.

Water hardness: soft water requires less detergent

Water hardness	Characteristics	German scale	French scale	Clarke scale
area		°dH	°fH	°eH
1	soft	0-7	0-12	0-9
2	average	7-14	12-25	9-17
3	hard	14-21	25-37	17-26
4	very hard	over 21	over 37	over 26
