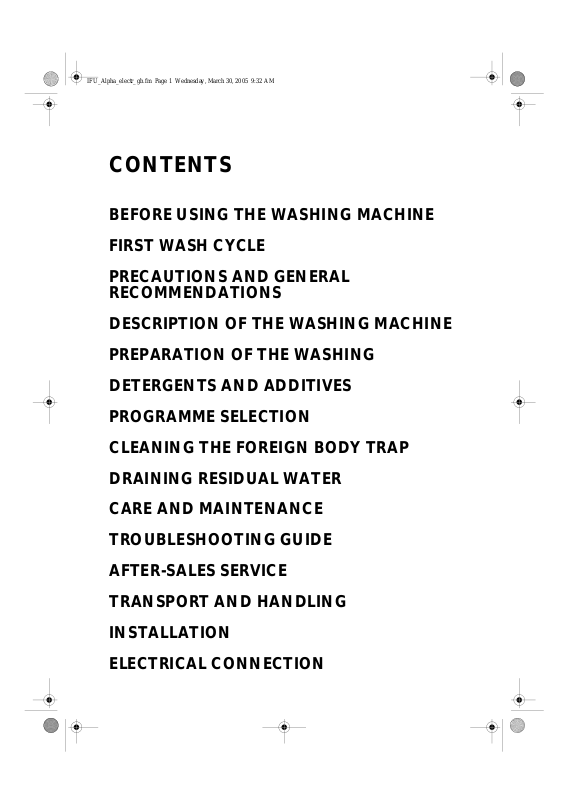

CONTENTS
BEFORE USING THE WASHING MACHINE
FIRST WASH CYCLE
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
DESCRIPTION OF THE WASHING MACHINE
PREPARATION OF THE WASHING
DETERGENTS AND ADDITIVES
PROGRAMME SELECTION
CLEANING THE FOREIGN BODY TRAP
DRAINING RESIDUAL WATER
CARE AND MAINTENANCE
TROUBLESHOOTING GUIDE
AFTER-SALES SERVICE
TRANSPORT AND HANDLING
INSTALLATION
ELECTRICAL CONNECTION
Page 2
IFU_Alpha_electr_gb.fm Page 2 Wednesday, March 30, 2005 9:32 AM
BEFORE USING THE WASHING MACHINE
1.Remove the packaging and check
Cut and remove the shrink-wrap.
a.
Remove the top protection and the protective
b.
corners.
Remove the bottom protection by tilting and turning
c.
the washing machine on one rear bottom corner.
Open the lid by pressing it slightly down while
d.
raising the handle. Remove the polystyrene
cushion (depending on model).
Remove the blue protective film from the panel
e.
(depending on model).
After unpacking, make sure that t he washing
•
machine is undamaged. If in doubt, do not use the
washing machine. Contact After-Sales Service or
your local retailer.
Keep the packaging materials (plastic bags,
•
polystyrene parts, etc.) out of reach of children;
they are potentially dangerous.

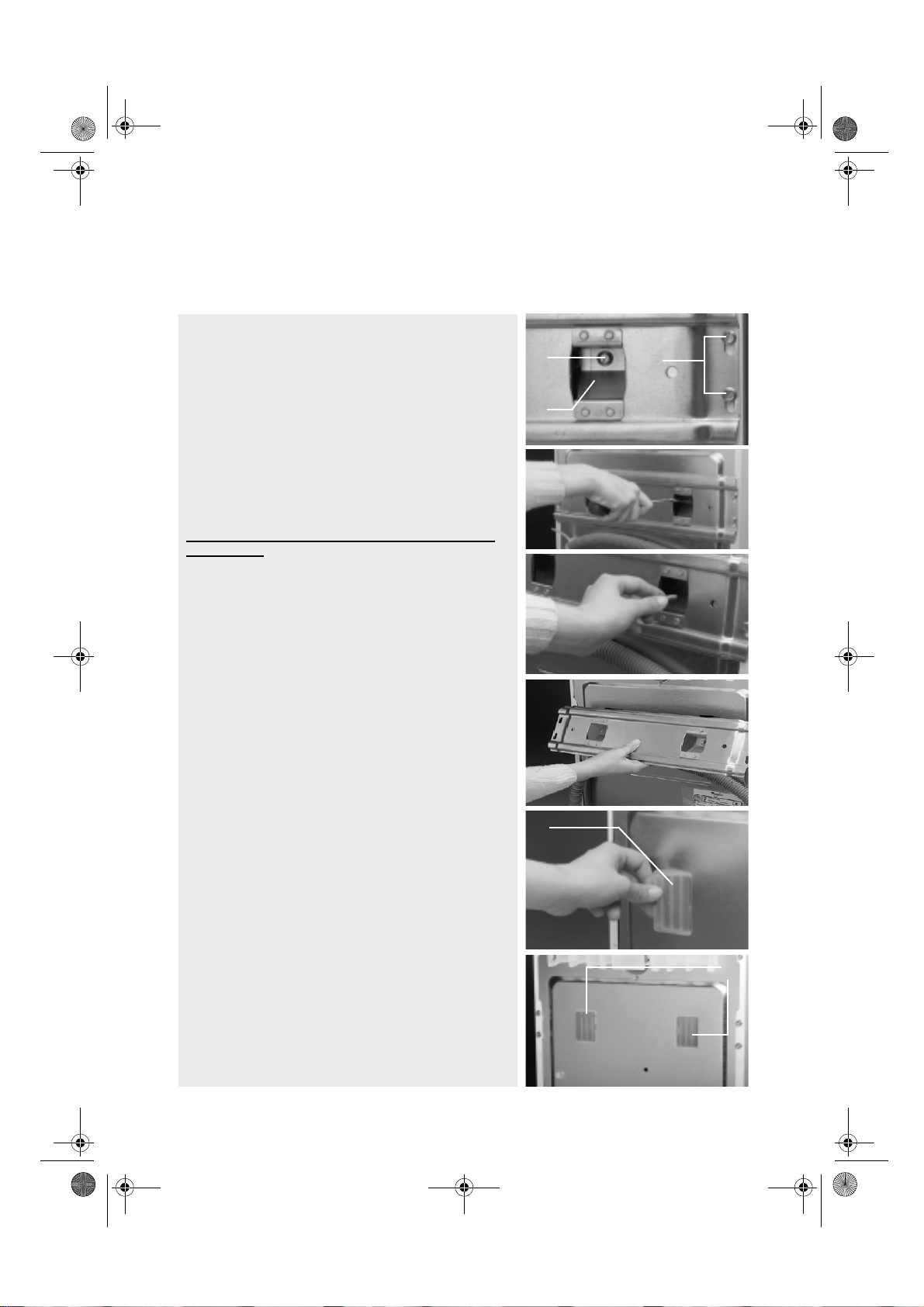

2.Remove the transport bracket
The washing machine is fitted with transport
•
screws and a transport bracket to prevent
damage during transport.
washing machine you must remove the
transport bracket
the transport bracket”).
Before using the
(see “Installation/Remove
3.Install the washing machine
Place the washing machine on a flat and stable
•
floor surface.
• Adjust the feet to ensure that the machine
is stable and level (see “Installation/Adjust
the feet”).
4.Water supply
Connect the water supply inlet hose in
•
accordance with the regulations of your local
water company (see “Installation/Connect the
water inlet hose”).
Water supply: Cold water only
•
Tap: 3/4” threaded hose connection
•
Pressure: 100-1000 kPa (1-10 bar).
•
5.Drain hose
Connect the drain hose to the siphon or hook it
•
over the edge of a sink with the “U” bend (see
“Installation/Connect the water drain hose”).
If the washing machine is connected to a built-in
•
drainage system, ensure the latter is equipped
with a vent to avoid simultaneous loading and
draining of water (siphoning effect).

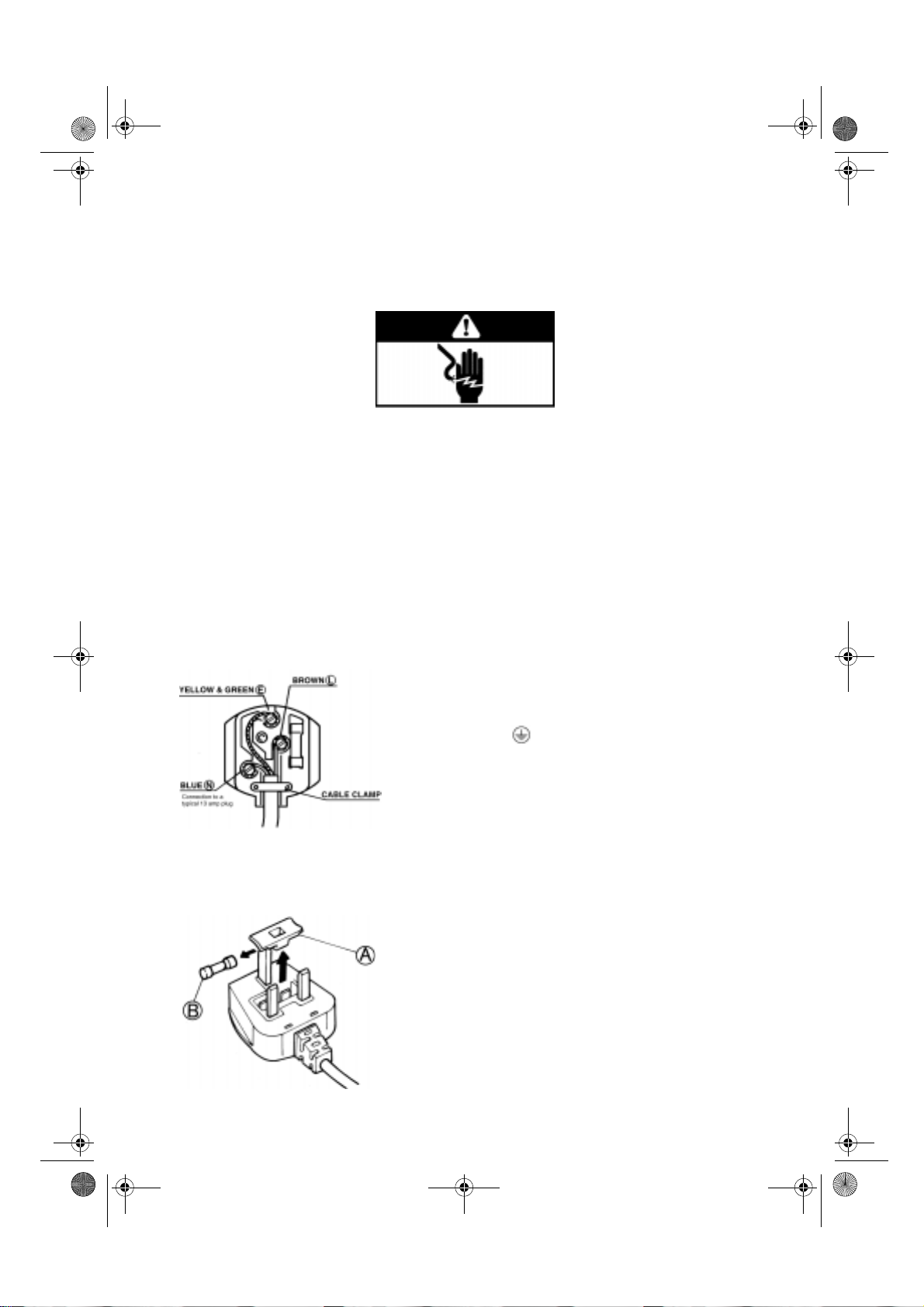

6.Electrical connection
Electrical connections must be carried out by a
•
qualified technician in compliance with the
manufacturer’s instructions and the current
standard safety regulations.
The technical data (voltage, power and fuses) are
•
given on the rating plate on the rear of the
washing machine.
The washing machine must be connected
•
exclusively by means of a socket with an earth
connection in accordance with current regulations.
The washing machine must be earthed by law. The
manufacturer declines all liability for damage to
persons or property deriving directly or indirectly
from failure to observe the directions.
Do not use extension leads or multi sockets.
•
Before any maintenance on the washing machine
•
disconnect it from the mains supply.
Access to the mains plug or to disconnection
•
from the mains supply via a double-pole switch
must be ensured at all times following the
installation.
Do not operate the washing machine if it has
•
been damaged during transport. Inform the
After-Sales Service.
Mains cable replacement is only to be carried out
•
by After-Sales Service.
The washing machine must be connected to an
•
effective earthing installation, in compliance with
the regulations in force. In particular, washing
machines installed in premises containing a
shower or a bath must be protected by a
differential residual current device of at least 30
mA. Earthing the washing machine is obligatory
under the law. The manufacturer declines all
liability for damage to persons or property
deriving either directly or indirectly from failure
to observe the directions above.
The washing machine may only be used in the
•
household for the prescribed uses.
Dimensions:
Width: 400 mm
Height: 900 mm
Depth: 600 mm
GB 2
Page 3
IFU_Alpha_electr_gb.fm Page 3 Wednesday, March 30, 2005 9:32 AM
FIRST WASH CYCLE
We recommend that the first wash cycle be carried out empty. This will remove any residual water used
in the factory checks.
Turn on the tap.
1.
Close the drum flaps.
2.
Pour a small amount of detergent (about 30 ml) into the detergent dispenser .
3.
Press the
4.
Select a short programme (see programme chart).
5.
Press the
6.
“On/Off”
“Start”
button.
button.
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
1.Packing
The packaging materials are 100% recyclable and
•
bear the recycling symbol . Adhere to local
regulations when disposing of packaging material.
2.Energy saving tips
Achieve the best use of energy, water, detergent
•
and time by using the recommended maximum
load size.
Do not exceed the detergent dosages indicated
•
in the manufacturer’s instructions.
The Eco Ball - a special system in the outlet - will
•
prevent detergent loss from the drum to avoid
detergent loss into the environment.
Use “Prewash” for heavily soiled laundry only!
•
Save detergent, time, water and energy
consumption by not selecting “Prewash” for
slight to normally soiled laundry.
Pretreat stains with stain remover or soak dried
•
in stains in water before washing to reduce the
necessity of a hot wash program.
Save energy by using a 60° C instead of a 90° C
•
wash programme or a 40° C instead of a 60° C
wash programme.
Save energy and time by selecting a high spin
•
speed to reduce the water content in laundry
before using a tumble dryer (for machines with
adjustable spin speed).
3.Disposing of packaging and old washing
machines
This appliance is marked according to the
•
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product.
The symbol on the product, or on the
documents accompanying the product, indicates
that this appliance may not be treated as
household waste. Instead it shall be handed over
to the applicable collection point for the recycling
of electrical and electronic equipment.
Disposal must be carried out in accordance with
local environmental regulations for waste disposal.
For more detailed information about treatment,
recovery and recycling of this product, please
contact your local city office, your household
waste disposal service or the shop where you
purchased the product.
The washing machine is built from reusable
•
materials. It must be disposed of in compliance
with current local waste disposal regulations.
Before scrapping, cut off the power cable so that the
•
washing machine cannot be connected to the mains.
Remove detergent from compartment if you
•
intend scrapping your washing machine.
4.Child safety
Children must not be allowed to play with or in
•
the washing machine.
5.General recommendations
Do not leave the washing machine connected
•
when not in use. Turn off the tap.
Before cleaning or carrying out maintenance
•
switch off the washing machine and disconnect it
from the mains supply.
To clean the outside of the washing machine, use
•
a neutral detergent and a damp cloth.
Do not use abrasive detergents.
•
Do not attempt to force the lid open.
•
If necessary, the power cable may be replaced
•
with an identical one obtained from our AfterSales Service. The power cable must only be
replaced by a qualified technician.
6.EC Declaration of Conformity
This washing machine has been designed,
•
constructed and distributed in compliance with
the safety requirements of EC Directives:
73/23/EEC Low Voltage Directive
89/336/EEC EMC Directive
93/68/EEC CE Marking Directive
GB 3
Page 4
IFU_Alpha_electr_gb.fm Page 4 Wednesday, March 30, 2005 9:32 AM
DESCRIPTION OF THE WASHING MACHINE
Lid
1.
Detergent dispenser
2.
Drum flaps
3.
Pump and foreign body trap
4.

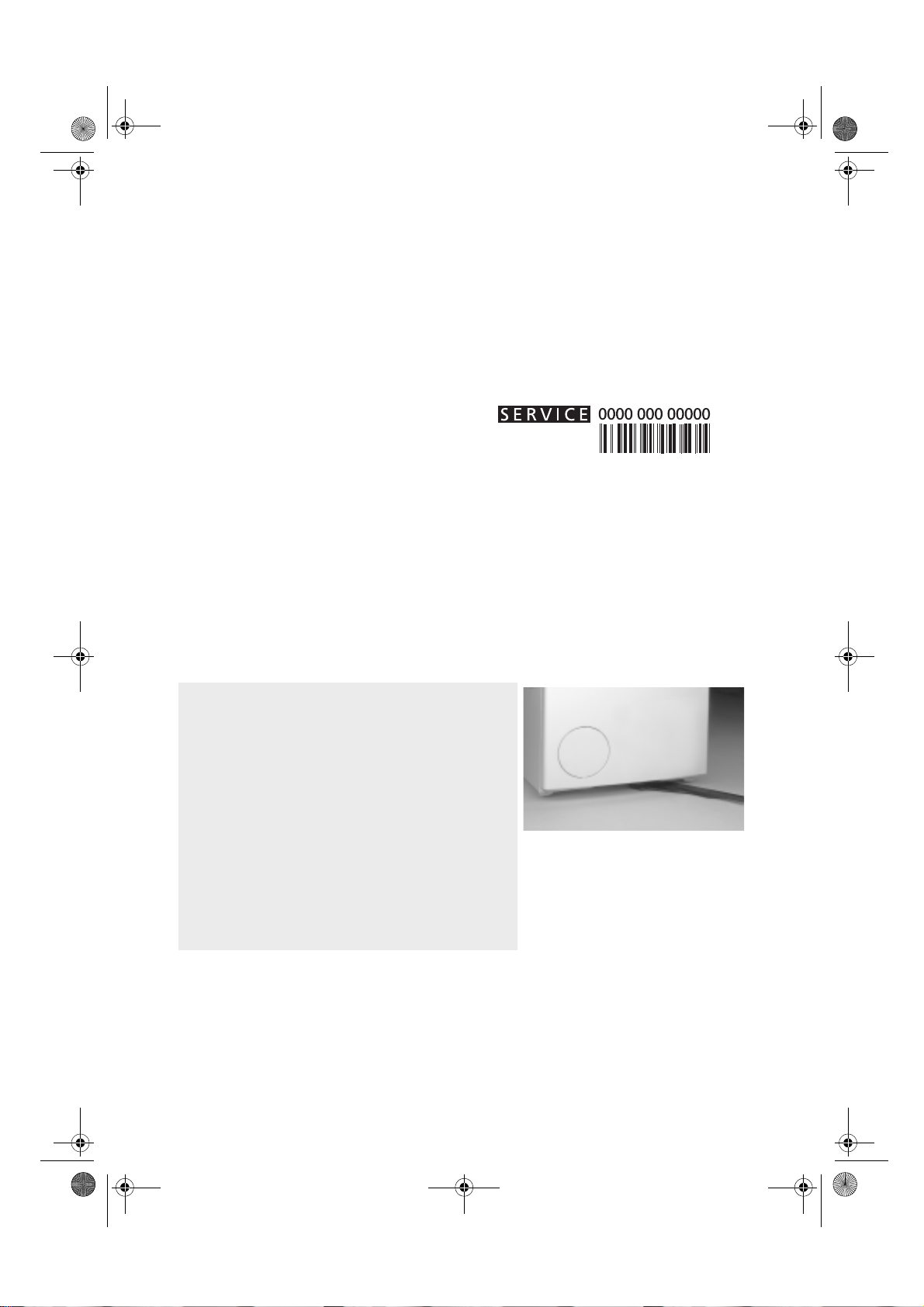

After-Sales Service sticker (behind the
5.
foreign body trap cover)
Mobility lever (depending on model)
6.
To move the washing machine: pull
•
the handle out a little bit by hand and
pull it out to the stop with the foot.
Adjustable feet
7.
1
2
3
4
5
7
PREPARATION OF THE WASHING
Sort the laundry
Sort the laundry according to…
1.
• Type of fabric / care label symbol
Cottons, mixed fibres, easy care/synthetics,
wool, handwashed items.
• Colour
Separate whites and coloureds.
Wash new coloured items separately.
•Size
Wash items of different sizes in the same load to
improve efficiency and distribution in the drum.
• Fabric delicacy
Wash delicate articles separately: use a special
programme for Pure New Wool , curtains and
other delicates. Always remove curtain glides or
wash curtains with the glides inside a cotton bag. Use
the special program for handwash fabrics. Wash
stockings, belts and other small items or articles with
hooks (e.g. bras) in special cotton bags for washing
machines or in zipped pillow cases.
Empty pockets
2.
Coins, safety pins and similar items can damage
your washing machine drum and tub.
Fasteners
3.
Close zips and fasten buttons or hooks; loose
belts or ribbons should be tied together.
Stain removal
Blood, milk, egg and other organic substances are
•
generally removed by the enzyme phase of the
programme.
To remove red wine, coffee, tea, grass and fruit
•
stains etc. add a stain removing agent in detergents
dispenser compartment or chlorine bleach in
compartment (depending on model).
Particularly stubborn stains should be treated
•
before the wash.
Dyeing and bleaching
Products usually consist of dye colour, fixing agent
and salt. Pour the dye colour, the fixing agent and
then the salt directly into the empty drum. Load the
laundry only afterwards.
Only use dyes and bleaches recommended for
•
washing machines.
Follow the manufacturer’s instructions.
•
Plastic and rubber parts of the machine may be
•
stained by dyes or bleaches.
Starching
Dissolve/dilute the starch powder or liquid in
•
approximately 80 - 100 ml water outside the
washing machine in a small container. Load the
washing machine and close the drum flaps. Pour
the dissolved starch into the softener chamber of
the detergent dispenser. Then close the lid,
chose programme “Rinse and Spin” and start.
6
GB 4
Page 5
IFU_Alpha_electr_gb.fm Page 5 Wednesday, March 30, 2005 9:32 AM
Loading the laundry
Open the machine lid.
1.
Open the drum by pressing the small flap (2a) or the
2.
push button (2b) - depending on model - and holding
the large flap. For the drum opening shown on 2c, you
just have to press the push button, without holding the
large flap.
Place the items of laundry in the drum one by one
3.
without compressing them. Follow loads
recommended in the “programme chart”: over loading
will result in unsatisfactory washing results and creased
laundry.
To close the drum, hold both doors in the middle
4.
again.
ATTENTION: Make sure that the drum flaps are
properly locked (for model as shown on photo 2c:
the button must protrude out beyond the edge
of the big door flap)
1
2a
GB 5
2b
2c
3
Page 6
IFU_Alpha_electr_gb.fm Page 6 Wednesday, March 30, 2005 9:32 AM
DETERGENTS AND ADDITIVES
Choice of the right detergents and
additives
The type of detergent depends on:
type of fabric (cottons, easy care/synthetics,
•
delicate items, wool).
use only specific detergents for wool.
Note:
colour;
•
washing temperature;
•
degree and type of soiling.
•
Notes:
Whitish residues on dark fabrics are caused by
insoluble detergents components used in modern
phosphate-free powder detergents. If you notice
this problem, shake or brush the affected items or
use a liquid detergents.
Keep detergents and additives in a dry place and out
of reach of children.
Use only detergents and additives specifically
produced for domestic washing machines.
If you use descaling agents, dyes or bleaches, make
sure they are suitable for washing machine use.
Descaler could contain components that can attack
parts of your washing machine.
Do not use solvents (turpentine, benzine, etc.).
Do not machine wash fabrics that have been
treated with solvents or flammable liquids.
WATER HARDNESS CHART
WATER HARDNESS
CATEGORY
1
2
3
4
CHARACTE-
RISTICS
soft
medium
hard
very hard
Dosage
Follow the instructions on the detergent pack in
relation to:
the degree and type of soiling;
•
the size of the load;
•
water hardness in your area (ask for information
•
from your water company): soft water requires
less detergent than hard water.
Notes:
Too much detergent can result in excess foam
formation, and the reduction of washing efficiency.
If the washing machine detects excessive foam it
may prevent spinning.
Insufficient detergent may result in:
grey laundry, deposits on the drum, tub and heater.
When using concentrated fabric softeners, add water in
the detergents dispenser up to “MAX” level mark.
To prevent dispensing problems when using highly
concentrated powder and liquid detergents, use
the special detergent ball or bag su pplied with the
detergent and place it inside the drum.
GERMAN
°dH
0-7
7-14
14-21
over 21
full load: follow the detergent manufact urer’s
-
instructions;
half load: 3/4 the amount used for a full load;
-
minimum load (about 1 kg): half the amount
-
used for a full load;
FRENCH
°fH
0-12
12-25
25-37
over 37
ENGLISH
°eH
0-9
9-17
17-26
over 26
Filling up with detergents and additives
The dispenser will have three or four compartments depending on model.
Pour in the detergent:
Washing powder for prewash and main wash
•
Washing powder for main wash without prewash
•
Fabric softeners and starch products,
•
no more than to “
Chlorine bleach, no more than to “
•
(only four compartments model)
Stain removers
•
Water softeners (water hardness class 4)
•
Starch (dissolved in water)
•
Be careful not to fill more than the “
Do not use liquid detergents for programmes with prewash.
For programmes without prewash and temperatures from cold to
40° C, it is recommended to use liquid detergents to avoid whitish
residues on the laundry.
MAX
” mark.
MAX
MAX
” mark.
” level mark.
GB 6
Page 7
IFU_Alpha_electr_gb.fm Page 7 Wednesday, March 30, 2005 9:32 AM
PROGRAMME SELECTION
Preparation of wash cycle
Load the machine, close the drum flaps and check that they are properly locked.
1.
Add detergents and additives into the dispenser to no more than the
2.
Please refer to “Detergents and Additives”.
Select the programme
Press the
1.
Turn the programme selector knob to the desired programme. Select the desired option(s) described
2.
in the Programme Chart by pressing the corresponding button(s).
“On/Off”
button. The lamp of the
“Start”
button flashes.
Start delay (if available)
The “Start Delay” button allows the user to run the machine at his convenience, for example at night
when electricity is cheaper.
Select programme and temperature, spin speed and options.
•
Press the “Start Delay” button several times to select a delay time of 1, 3, 6, 9 or 12 hours.
•
The corresponding indicator lamp flash es.
Start the programme (see next paragraph). With decreasing delay time the corresponding indicator lamp flashes.
•
The flashing light of the time delay indicator lamp goes out when the programme starts.
•
The corresponding lamp of the programme sequence indicator lights up.
To decrease the delay time or cancel “Start Delay” option
(Repeatedly) press the “Start Delay” button. Note, however, that if you have already pressed the
•
button, the selected wash programme starts immediately as soon as you push “Start Delay”
“Start”
with the “1h” lamp flashing.
To increase the delay time
• Switch the washing machine off by pushing the
• Turn the programme selector to a different programme.
• Switch the washing machine on again by pressing the
• Reselect the desired programme and options. Select the desired delay time by (repeatedly) pressing
the “Start Delay” button. Press the
“Start”
“On/Off”
button.
button.
“On/Off”
button.
Programme start
Verify that the machine is switched on. Turn on the tap and press the
of the
: If there is a power interruption or if the washing machine is disconnected during the cycle, the
Note
programme will run again from the point where it was interrupted.
button stops flashing and lights up.
“Start”
“Start”
End of wash cycle
The “End” lamp of the programme sequence indicator lights up.
•
Press the
1.
Turn the tap off.
2.
Wait for the lid to unlock (about 1 minute).
3.
Open the lid and the drum flaps and unload the machine.
4.
“On/Off”
button to switch off the machine.
Change the programme during the wash cycle
Switch the appliance off by pressing
1.
Turn the programme selector knob to the new programme.
2.
Switch the appliance on again by pressing
3.
additional options and different spin speed.
Start programme by pressing the
4.
“On/Off”
“Start”
.
“On/Off”
button.
. The
button flashes. If necessary, select
“Start”
Pause/Interrupt a programme
If, for any reason, you wish to interrupt the programme for a certain time and continue it later:
Press the
1.
After the desired pause, press again on the
2.
“On/Off”
button.
“On/Off”
button.
Cancel programme
Switch off the appliance by pressing “On/Off”.
1.
Turn the programme selector to “Drain”.
2.
Switch the appliance on again by presssing “On/Off”. The lamp of the
3.
Press the
4.
button to start the “Drain” programme.
“Start”
level mark.
“MAX”
button. The indicator lamp
button flashes.
“Start”
GB 7
Page 8
IFU_Alpha_electr_gb.fm Page 8 Wednesday, March 30, 2005 9:32 AM

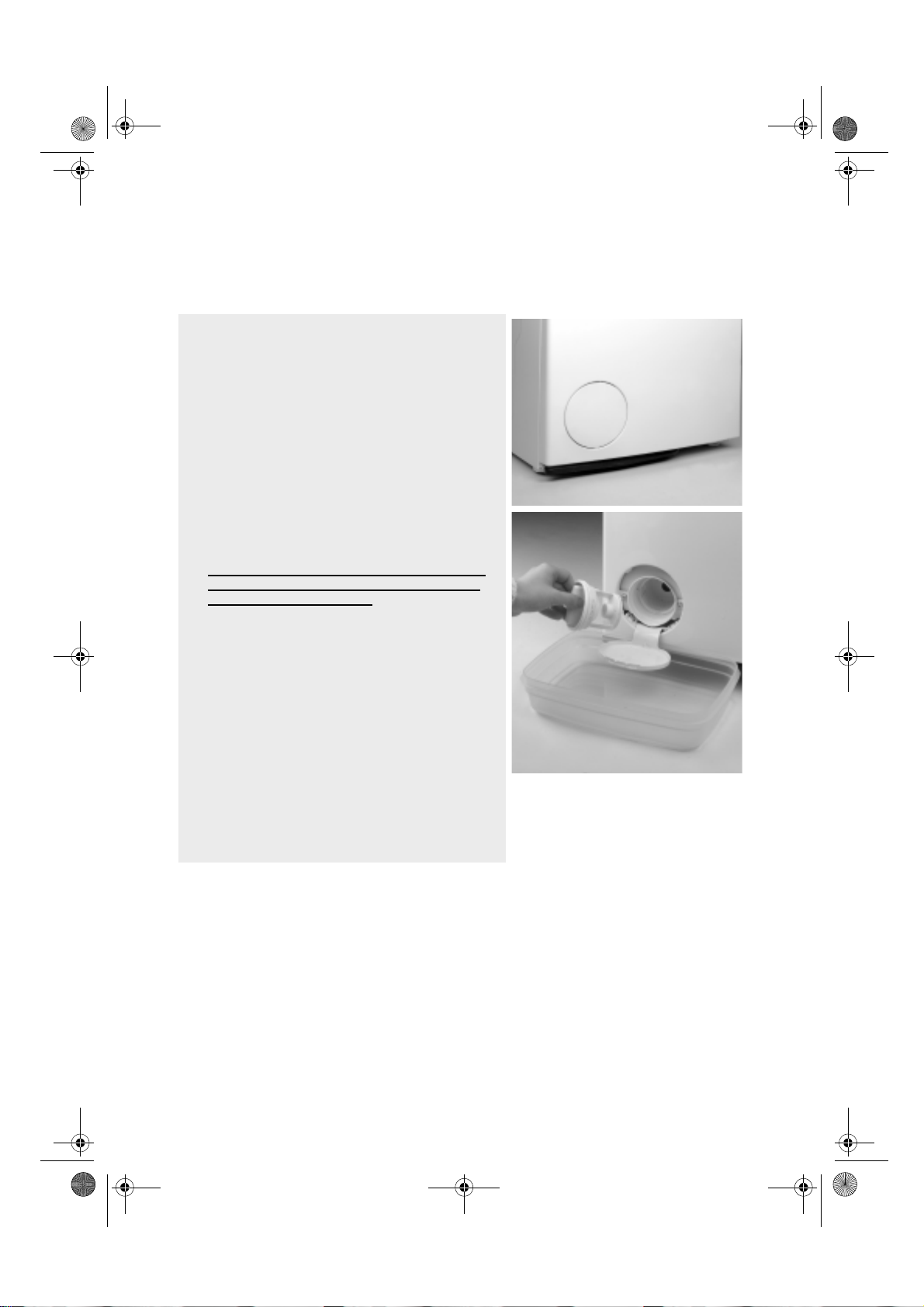

CLEANING THE FOREIGN BODY TRAP
The washing machine is provided with a self-cleaning
pump. The foreign body trap keeps objects like buttons,
coins, safety-pins etc. which have been left in the laundry.
Unplug the washing machine.
1.
Open the foreign body trap cover with a coin.
2.
Place a bowl beneath it.
3.
Turn the foreign body trap slowly anti-clockwise until
4.
the grip is vertical; do not remove it as yet.
Wait until all the water has drained out.
5.
Now unscrew the foreign body trap completely and
6.
extract it.
Remove any foreign items from the foreign body trap.
7.
Make sure the pump impeller (in the housing behind
8.
the foreign body trap) is not obstructed.
9. Insert the foreign body trap again and screw it
fully down in a clockwise direction to the stop
(until the grip is horizontal).
Pour 0.5 litres of water into the machine via the drum
10.
and check that water does not leak from the foreign
body trap.
Close the foreign body trap cover.
11.
Reconnect the washing machine.
12.
Check the foreign body trap if the washing ma chine is not
draining correctly or if it fails to perform spin cycles.
The machine has safety device which stops the washing
machine before each filling when water was not removed
completely from the tub in previous part of washing
programme.
Check the foreign body trap regularly, two or three times
a year and clean it if necessary.
IMPORTANT:
emptying the foreign body trap.
Make sure the water has cooled before
GB 8
Page 9
IFU_Alpha_electr_gb.fm Page 9 Wednesday, March 30, 2005 9:32 AM

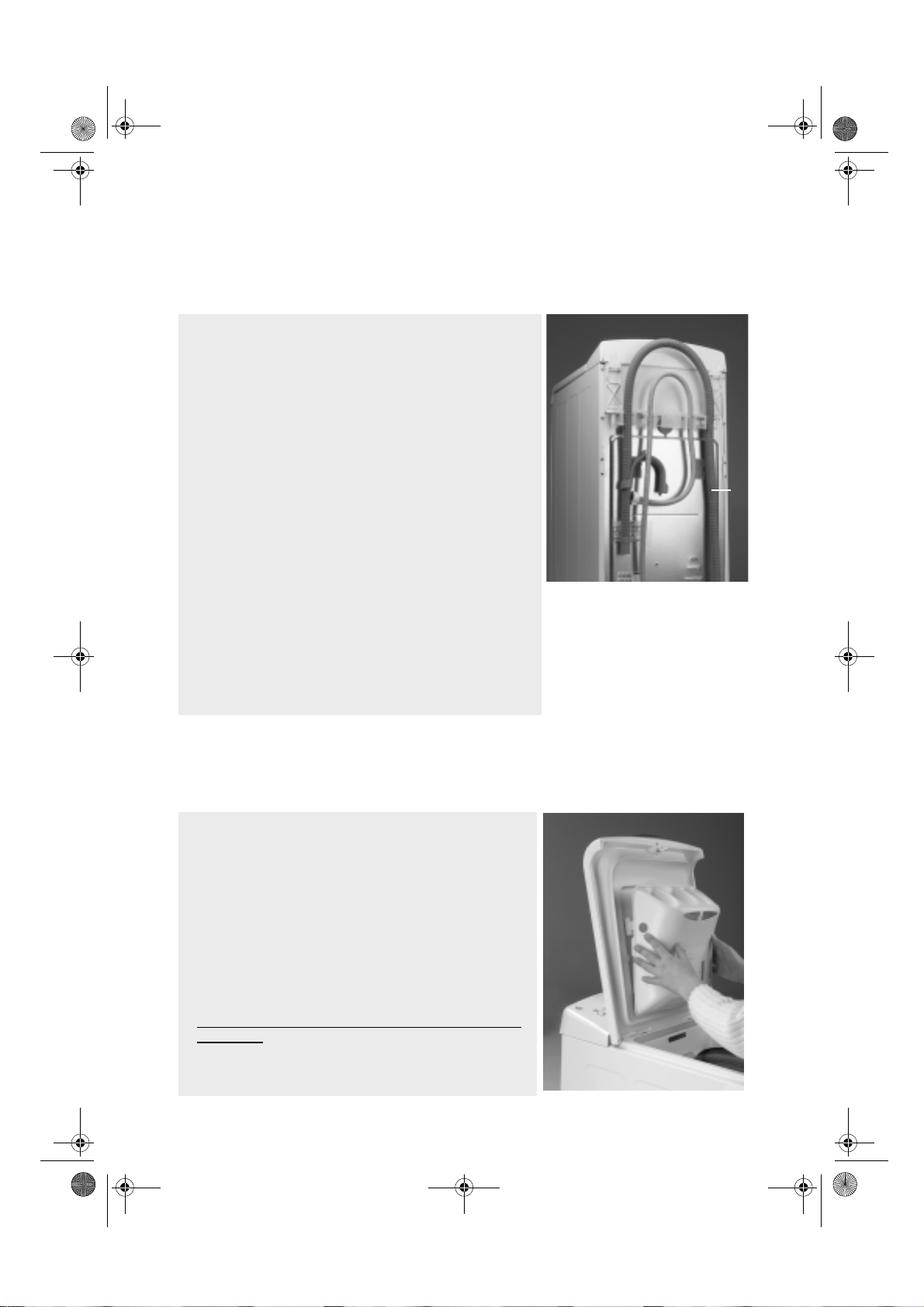

DRAINING RESIDUAL WATER
When should I drain residual water (draining problem)?
Before transporting (moving) the machine.
•
If the washing machine is installed in a room subject to sub-
•
zero temperatures. It is best in this case to drain the machine
after every wash.
If the draining problem indicators are flashing (see
•
“Troubleshooting Guide”)
Stop the washing machine and unplug it.
1.
Turn off the tap, disconnect the water supply hose from the
2.
machine and allow the water to drain into a basin.
Open the foreign body trap, let the water drain into a small
3.
shallow basin and close the trap.
Release the drain hose then open the fixing clip located at the
4.
rear of the machine (see arrow A).
Let the residual water flow into a shallow basin.
5.
Wait until the flow stops.
6.
Fix the drain hose again with the clip and replace it with the
7.
U-bend.
Reconnect the water supply hose and the power plug.
8.
Important:
After draining the residual water, screw on the machine’s
•
water supply hose by hand. Check water-tightness of washing
machine connections by turning the tap completely on.
A
CARE AND MAINTENANCE
Detergent dispenser
Push in the buttons on each side of the dispenser.
1.
Pull the dispenser towards you and remove.
2.
A small quantity of water can remain in the dispenser. It is
advisable to carry the dispenser in an upright position.
Wash the dispenser using running water.
3.
You can also remove the siphon caps in the dispenser for
cleaning.
Replace the siphon caps in the dispenser (if removed).
4.
Make sure that they lock in place.
Replace the dispenser by locating the bottom tabs in the lid
5.
holes and pivot until both of the upper buttons lock.
Note: ensure that the detergent dispenser is correctly
reinstalled.
GB 9
Page 10
A
7
4
3
4
IFU_Alpha_electr_gb.fm Page 10 Wednesday, March 30, 2005 9:32 AM

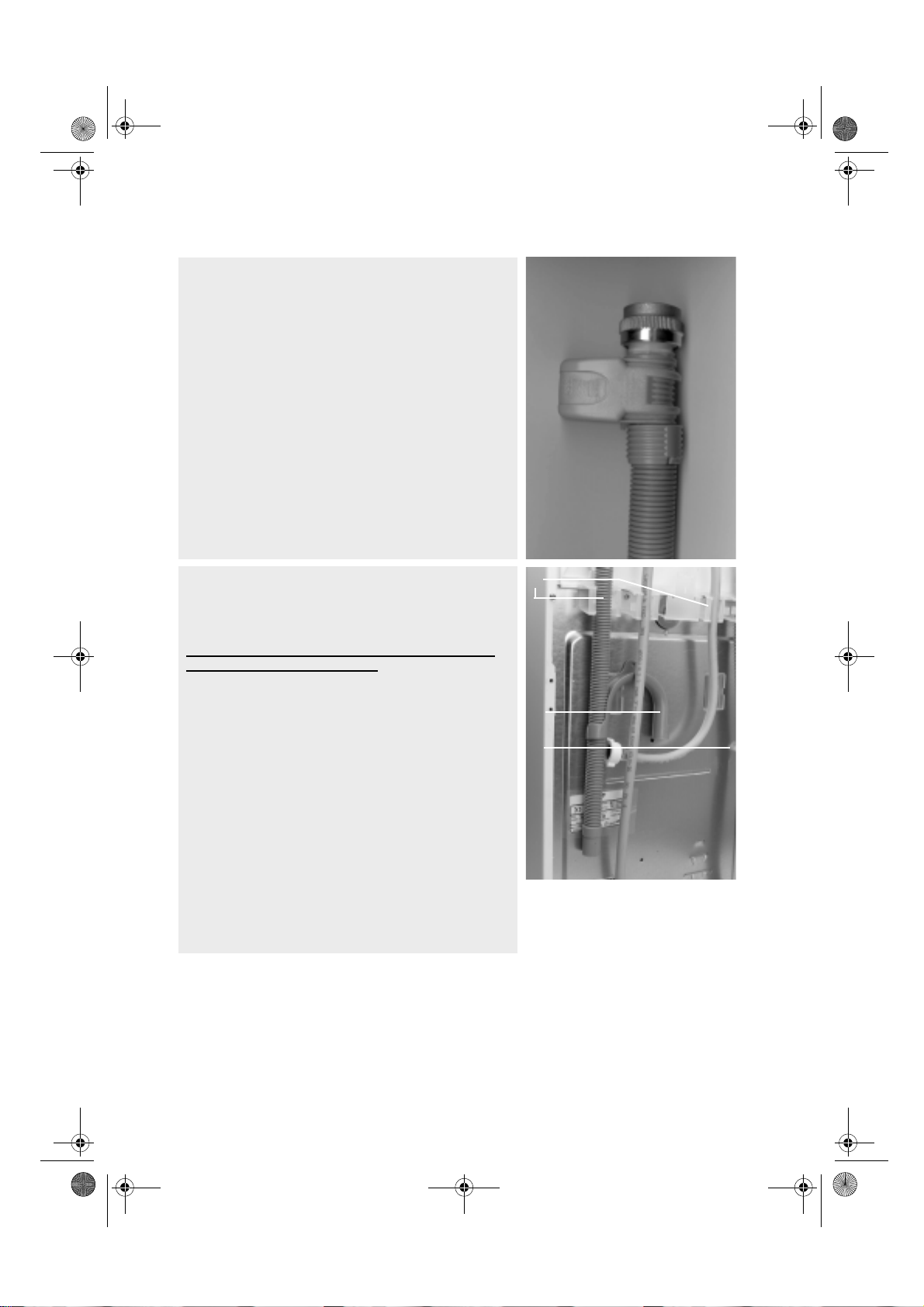

Water inlet hose filter
Check and clean regularly (at least two or three times a
year).
Unplug the washing machine.
1.
Turn off the tap.
2.
Unscrew the hose from the tap.
3.
Carefully clean the filter located at the end of hose, without
4.
assembling it, for example with a tooth-brush.
: For machines equipped with hose type “A”, it must not
Note
be submerged in water.
Screw the flexible hose back onto the tap by hand. Do not use
5.
pliers (risk of squashing the joint).
6.Turn on the tap and check that the connections are watertight.
Plug the washing machine back in.
7.

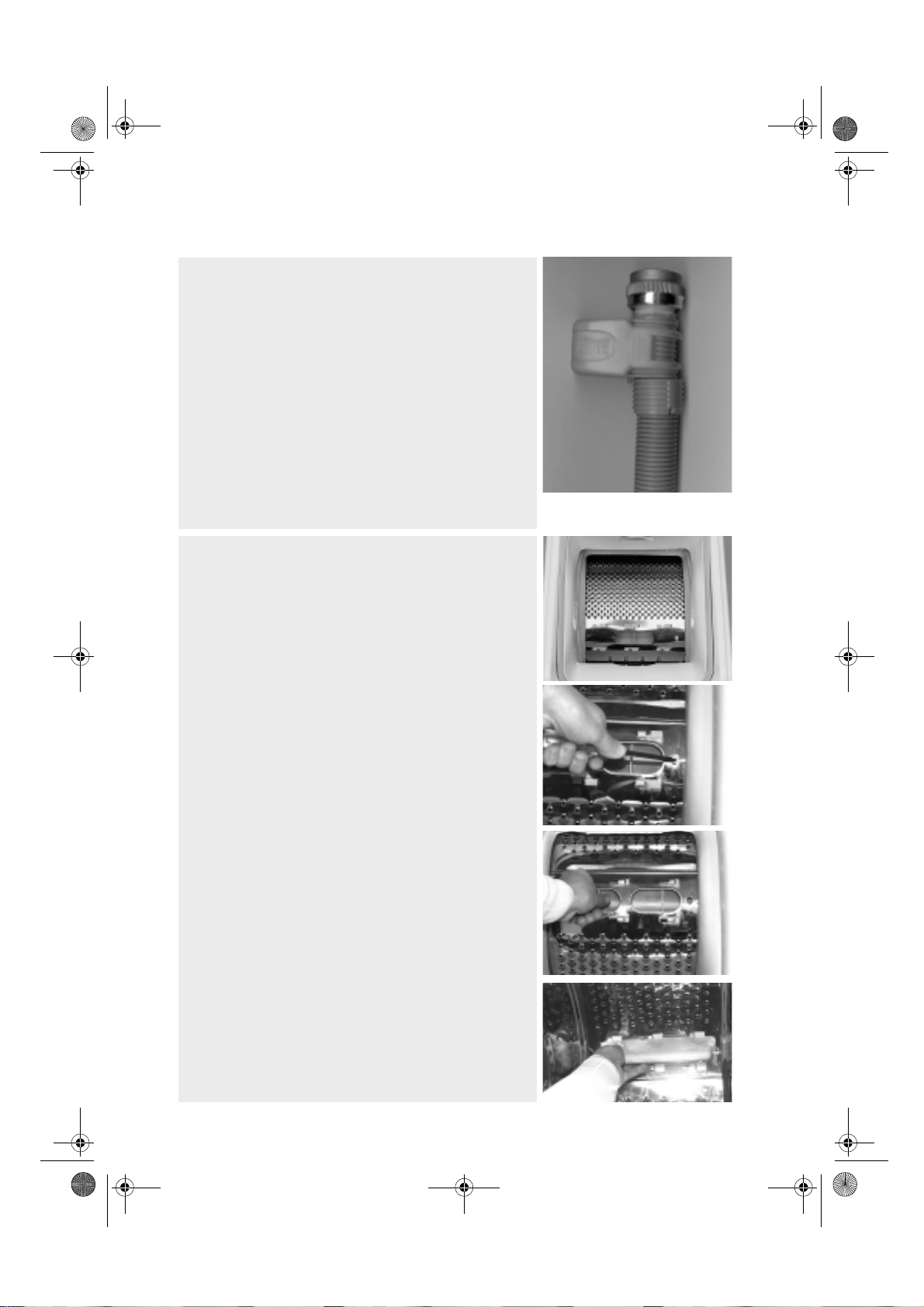

Recovering an object that falls between the drum
and the tub
If an object accidentally falls between the drum and the tub, you
can recover it thanks to one of the removable drum blades:
Unplug the washing machine.
1.
Remove the laundry from the drum.
2.
Close the drum flaps and turn the drum a half-turn.
3.
Using a screw-driver, press on the plastic end while sliding
4.
the blade from left to right.
It will fall into the drum.
5.
Open the drum: you can recover the object through the h ole
6.
in the drum.
Refit the blade from inside the drum:
7.
Position the plastic tip above the hole on the right side of the
drum.
Then slide the plastic blade from right to left until it clips.
8.
Close the drum flaps again, turn the drum through half a turn
9.
and check the positioning of the blade at all its anchorage
points.
Plug the washing machine in again.
10.
GB 10
Page 11
IFU_Alpha_electr_gb.fm Page 11 Wednesday, March 30, 2005 9:32 AM
Washing machine exterior and control
panel
Clean with a soft damp cloth.
•
If necessary, a neutral household cleaner can be
•
applied (do not use aggressive or abrasive products).
Lid seal
Clean from time to time with a damp cloth.
•
Water inlet hose(s)
Check the hose regularly for brittleness and
•
cracks. Replace if necessary.
TROUBLESHOOTING GUIDE
This washing machine is equipped with automatic
safety functions which detect and diagnose faul ts at
an early stage and allow you to react appropriately.
Often, however, the faults detected are small
enough to be solved in a matter of minutes.
For example:
*The washing machine does not start, no
lamp lights up.
Check whether:
the washing machine is plugged in.
•
the wall socket is functioning correctly
•
(use a table lamp or similar).
•
the
“On/Off”
button is pressed.
*The washing machine does not start, but
the “Start” lamp is flashing.
Check whether:
the programme has been changed.
•
Press the “Start” button again.
*The washing machine does not start
after having pressed “Start”, the lamp of
the “Start” button keeps on flashing.
Check whether:
the washing machine lid is properly closed. Open
•
and close it again.
*The washing machine stops during the
programme.
Check whether:
the “Rinse Hold” button is pressed: terminate
•
this option by pressing the button again or by
starting the “Drain” programme.
the programme has not been started (the “Start”
•
lamp still flashes). Press the
the safety system of the washing machine was
•
activated. See fault description table.
“Start”
button.
*Detergent and additive product
residues in dispenser at end of wash.
Check whether:
the detergent dispenser is properly installed and
•
is not blocked (see “Care and maintenance”).
the foreign body trap in the water inlet hose is
•
not blocked (see “Care and maintenance”).
*The washing machine vibrates during
the spin cycle.
Check whether:
the washing machine is levelled and that all the feet
•
are adjusted (see “Installation”).
the transport bracket has been removed. Before
•
starting up the washing machine, the transport
screws and the transport bracket MUST be
removed (see “Installation”).
*Final spin results are poor.
The washing machine has an unbalance
Note:
detection and correction system. If individual heavy
items are loaded (a bathrobe, for example), this
system may reduce the spin speed aut omatically or
interrupt the spin if it detects too great an
unbalance at the start of the spin, in order to
protect the washing machine.
Check whether:
the pump impeller is obstructed (see “Cleaning
•
the foreign body trap”).
if the laundry is still too wet at the end of the
•
programme: possibly add other items of clothing
and repeat the spin cycle.
there is foam on the wash: repeat a rinse-spin
•
cycle to eliminate excess of detergent.
Excessive foam formation may also prevent spinning.
GB 11
Page 12
IFU_Alpha_electr_gb.fm Page 12 Wednesday, March 30, 2005 9:32 AM
What should I do when the automatic safety system detects a malfunction?
The programme is interrupted and various indicators (depending on model) point to the source of the fault.
Fault description table.
The spin speed indicator lamps are flashing Fault description
1st (“0”) “Water inlet fault”
1st (“0”) + 2nd “Draining fault”
Other combinations “Electrical components fault”
1st (“0”) + 4th “Water Stop fault”
3rd “Foam detection / overdosing of detergent”
*
a.
Water inlet fault (no or insufficient water
supply)
Switch off the washing machine by pressing the
“On/Off”
Check whether:
•
•
•
•
•
Reconnect the washing machine.
Press the
continue with the programme (do not add
detergent for this programme).
If the fault re-occurs, contact After-Sales (see
“After-Sales Service”).
b.
Switch off the washing machine by pressing the
“On/Off”
Check whether:
•
•
•
If water has remained in the drum, you can drain it
by following the instructions in the chapter
“Draining residual water”.
IMPORTANT:
water to cool down.
Reconnect the washing machine.
Press the
continue with the programme (do not add
detergent for this programme).
If the fault re-occurs, contact After-Sales Service
(see “After-Sales Service”).
button and unplug it.
the water tap is fully turned on, and the water
supply pressure is sufficient.
the water inlet hose is kinked.
the mesh filter in the water inlet hose is blocked
(see “Care and maintenance”).
the water in the water inlet hose is frozen.
the washing machine has a safety hose and the
safety valve is open (red indicator in the safety
valve inspection window). In this case replace it
with a new safety hose.
“On/Off”
*
Draining out fault
button and unplug it.
the drain hose is kinked (see “Installation”).
the pump impeller is obstructed (see “Cleaning
the foreign body trap”).
the water in the drain hose is frozen.
“On/Off”
and the
Before draining, allow the wash
and the
“Start”
“Start”
button to
button to
*
Electrical module fault
c.
Switch the washing machine off. Switch it on again
by pressing the
If the fault re-occurs, contact After-Sales Service
(see “After-Sales Service”).
*
d.
Water stop fault
In addition to the fault indicators the pump operates.
The “Water Stop“ fault may have been
triggered by:
Too much foam.
1.
A leak in the inlet hose or in the washing machine.
2.
Switch the washing machine off by pressing the
“On/Off”
turn off the water tap.
Tilt the washing machine forwards carefully to
allow the water to evacuate from the bottom tray.
Then:
Reconnect the washing machine.
1.
Turn on water supply (if
2.
pressed, but the machine begins to fill, turn off the
water supply tap and contact After-Sales Service).
Press the
3.
programme, add detergent, if necessary, and
press the
programme.
If the fault occurs again, contact After-Sales Service
(see “After-Sales Service”).
“On/Off”
button, unplug the washing machine and
“On/Off”
“Start”
button.
(depending on model)
“On/Off”
button. Reselect the desired
button to restart the
button is not
e.*Foam detection
Too much foam may interrupt the washing programme.
Switch the washing machine off by pressing the
1.
“On/Off” button.
Move the programme selector to the “Drain”
2.
programme.
Switch the washing machine on again and press
3.
the
After the drain programme is finished, start the
4.
original washing programme again, but avoid
excessive detergent dosing.
GB 12
“Start”
button.
Page 13
IFU_Alpha_electr_gb.fm Page 13 Wednesday, March 30, 2005 9:32 AM
AFTER-SALES SERVICE
Before contacting After-Sales Service:
Try to remedy the problem yourself (see
1.
“Troubleshooting Guide”).
Restart the programme to check whether the
2.
problem has solved itself.
If the machine continues to function incorrectly,
3.
call After-Sales Service.
Specify:
The nature of the problem.
•
The exact model of the washing machine.
•
The service code (number after the word
•
SERVICE).
The After-Sales Service sticker is in the
lid of the foreign body trap or on the rear
of the machine.
Your full address.
•
Your telephone number and area code.
•
As a priority, you should contact the After-Sales
Service of the retailer who supplied you with the
washing machine.
TRANSPORT AND HANDLING
Unplug the washing machine.
1.
Turn off the tap.
2.
Remove the water supply and drain hose.
3.
Eliminate all water from the hoses and the washing
4.
machine (see “Draining residual water”).
Wait for the water to cool so as to avoid any accidents.
To facilitate moving the machine, pull the handle situated
5.
at the bottom front (optional on certain models) out a little
by hand and pull it out to the stop with the foot.
Afterwards push the handle back into the original stable
position.
Fix the transport bracket again for transportation.
6.
Transport the washing machine upright.
7.
IMPORTANT:
handle is pulled out.
Do not use the washing machine while the
GB 13
Page 14
IFU_Alpha_electr_gb.fm Page 14 Wednesday, March 30, 2005 9:32 AM
INSTALLATION
Removal of transport bracket
The washing machine is fitted with a transport bracket to
avoid any possible damage during transport.
Before using the washing machine, the transport
bracket at the back MUST be removed.
Unscrew the two screws A and the four screws B with a
1.
flat screwdriver or a No. 8 hex nut box spanner.
Remove the transport bracket.
2.
Replace the four outer screws B on the machine and
3.
tighten them.
Remove the two seals C from the hose holder and clip
4.
them into the openings of the machine D.
Note: do not forget to replace and tighten the four
outer screws.
A
D
B
1
1
C
1
2
4
D
4
GB 14
Page 15
IFU_Alpha_electr_gb.fm Page 15 Wednesday, March 30, 2005 9:32 AM

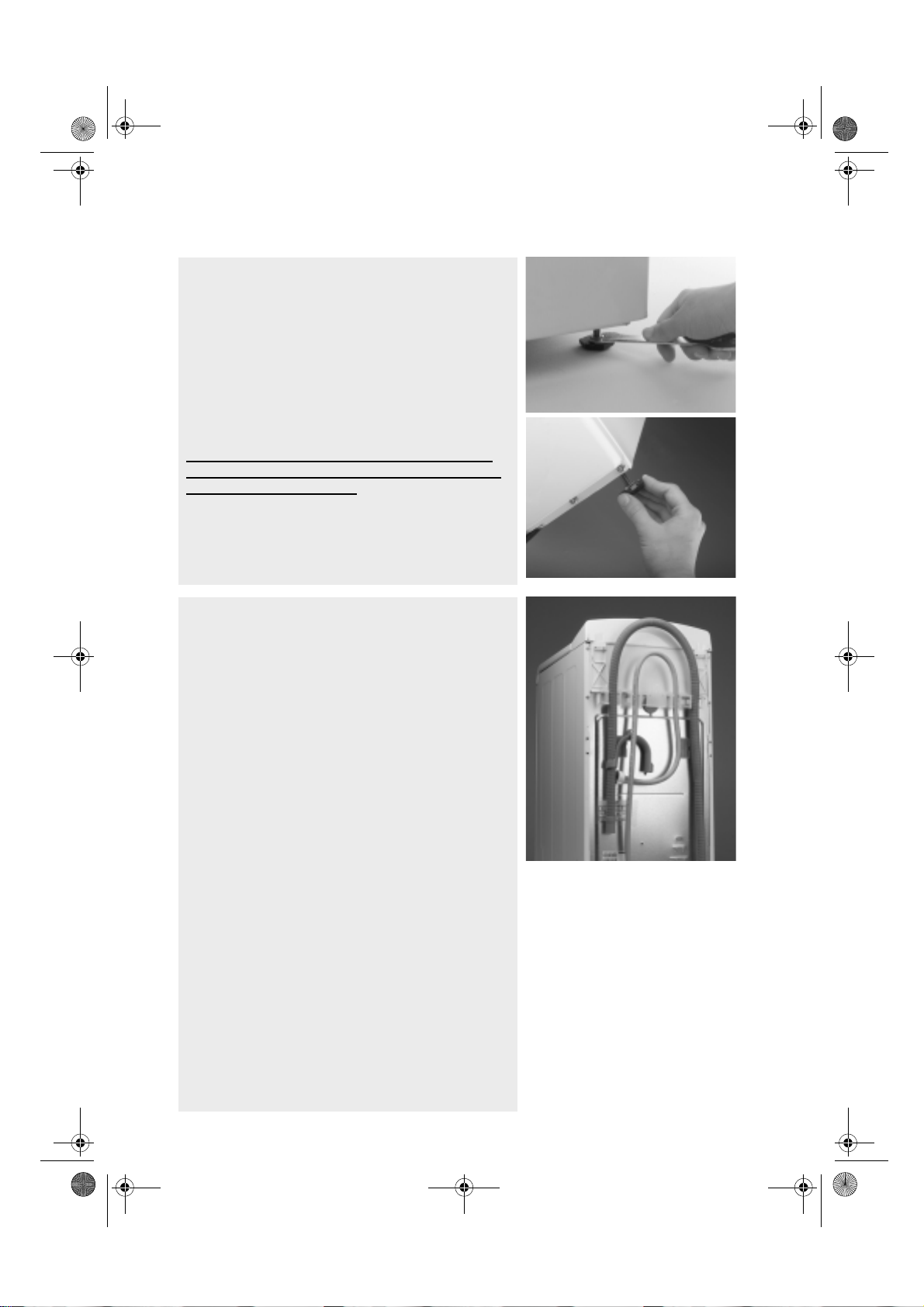

Adjust the feet
Install the washing machine on a level surface, near to
electrical, water and drain connections.
If the floor is uneven, adjust the feet (do not insert pieces of
wood, cardboard etc. under the feet):
Loosen the locknut using the wrench provided.
1.
Adjust the height of the foot by hand.
2.
Retighten the locknut by turning it anti-clockwise.
3.
Make sure that all feet are resting correctly on the
floor and that the washing machine is perfectly level
and stable (use a spirit level).
The washing machine can be installed in an area 40 cm wide
and 63 cm deep.
if you install the machine on thick carpet, adjust the
Note:
feet to ensure that there is sufficient space under the
machine for the air to circulate.
Connect the water inlet hose.
Carefully screw the water inlet hose onto the ta p by hand.
1.
Make sure there are no kinks in the hose.
2.
Check water-tightness of tap and washing machine
3.
connections by turning the tap completely on.
If the hose is too short, replace it with a suitable length of
pressure resistant hose (minimum 1000 kPa - EN 50084
approved type).
Periodically check the hose for brittleness an d cracks.
Replace if necessary.
The washing machine can be connected without a nonreturn valve.
GB 15
Page 16
IFU_Alpha_electr_gb.fm Page 16 Wednesday, March 30, 2005 9:32 AM
Water stop anti-flooding system
(depending on model)
Screw the hose to the water supply tap. Turn the tap fully
•
on and check the water-tightness of the connection.
The washing machine must not be connected to the
•
mixing tap of a non-pressurized water heater!
The inlet hose and the plastic enclosure contain
•
(depending on model) electrical components: do not cut
the hose and do not immerse the enclosure in water.
If the flexible hose is damaged, unplug the washing
•
machine from the mains immediately, turn off the tap and
replace the hose.
If the flexible hose is too short, replace it with a 3 m Water
Stop hose (available from After-Sales Service or from your
dealer). This operation must be carried out exclusively by a
qualified technician.
Connect the water drain hose
Unhook the drain hose from the left and right hose
1.
connections, see arrow A in figure.
Important:
Do NOT loosen the drain hose connection from the
right side, see arrow B in figure.
risk of leakage and of scalding with hot water.
Fix the “U” bend (C) to the free end of the drain hose.
2.
Connect the drain hose to the siphon or hook it over the
3.
edge of a sink with the “U” bend.
Small hand basins are not suitable.
The edge of the sink must be no more than 100 cm from
the floor.
If you need to add an extension, use a flexible hose of the
same size and secure the unions with screw-on hose clips.
Maximum overall drain hose length: 2.50 m.
Maximum drain height (“U” bend): 100 cm.
Minimum drain height: 55 cm.
Important:
Make sure there are no kinks in the drain hose and take
precautions against it falling while the washing machine is
running.
Otherwise, there is the
A
C
B
GB 16
Page 17
IFU_Alpha_electr_gb.fm Page 17 Wednesday, March 30, 2005 9:32 AM
ELECTRICAL CONNECTION
Do not use extension leads or multi so ck ets.
Electrical connections must be made in accordance with local regulations.
1) Warning - this washing machine must be earthed
This washing machine is normally supplied with a mains lead having a plug fitted in the factory which has
been checked for correct earth continuity.
If the fitted plug is not suitable for your socket outlet, or if the machine’s mains l ead is not fitted with a plug,
you should fit a suitable new, good quality plug by following the instructions in (2) below.
Any unsuitable plug should be cut off and disposed of in order to avoid a possible shock hazard should it be
inserted into a socket.
2) CONNECTION TO A REWIRABLE PLUG - to be carried out only by a qualified electrician
The wires in the mains lead are coloured in accordance with the following code:
BLUE - “NEUTRAL” (“N”)
BROWN - “LIVE” (“L”)
GREEN AND YELLOW - “EARTH” (“E”)
To fit a new plug, proceed as follows:
2.1 Polarized Plugs (e.g. 3 pin, 13 amp plug conforming to
BS 1363A)
The GREEN AND YELLOW wire must be connected to the
a.
terminal in the plug which is marked with the letter “E” or by
the Earth symbol or coloured green and yellow.
The BLUE wire must be connected to the terminal which is
b.
marked with the letter “N” or coloured blue.
The BROWN wire must be connected to the terminal which is
c.
marked with the letter “L” or coloured brown.
2.2) Non-polarized plugs (e.g. 2 pin with side earth contact)
The wire which is coloured GREEN AND YELLOW must be connected to the earth contact. The other two
wires should be connected to the two pins, irrespective of colour.
FUSE REPLACEMENT
If the mains lead of this washing machine is fitted with a BS 1363A 13
amp fused plug, replace the fuse only with an A.S.T.A. approved type
conforming to BS 1362 and proceed as follows:
Remove the fuse cover (A) and the fuse (B).
Fit the replacement 13 A fuse into the fuse cover.
Refit both into the plug.
For all other types of plug, the supply socket should be protected by
a 16 A fuse or circuit breaker at the distribution board.
GB 17
Loading...
