S E R V I C E |
Whirlpool Europe |
Customer Services |
FL 5105/A
Service Manual
Washing machine
Frontloader
FL 5105/A
Model |
FL 5105/A |
|
Version |
8570 510 10780 |
Page |
|
Technical data |
2 - 3 |
|
Spare part list |
4 - 5 |
|

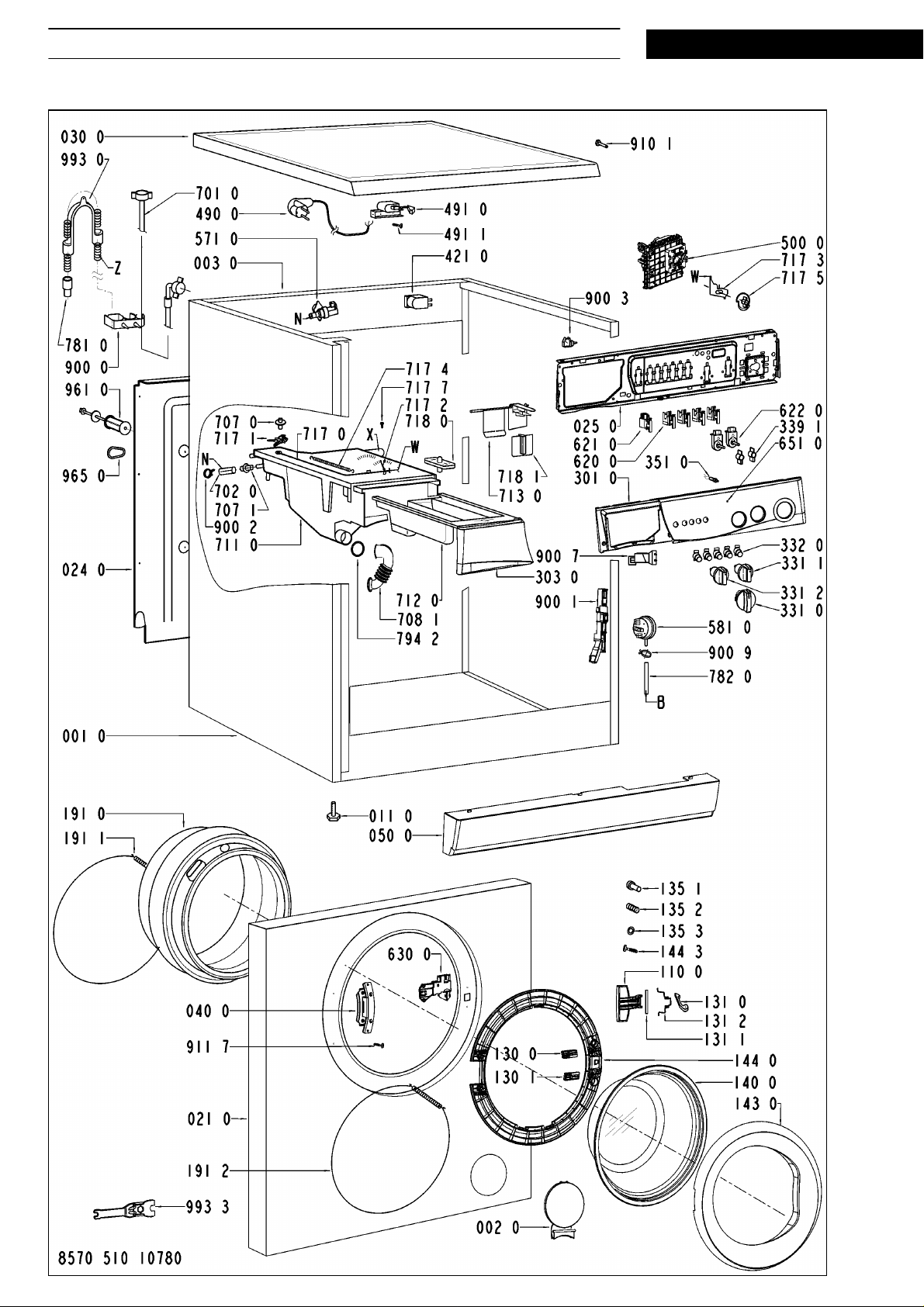

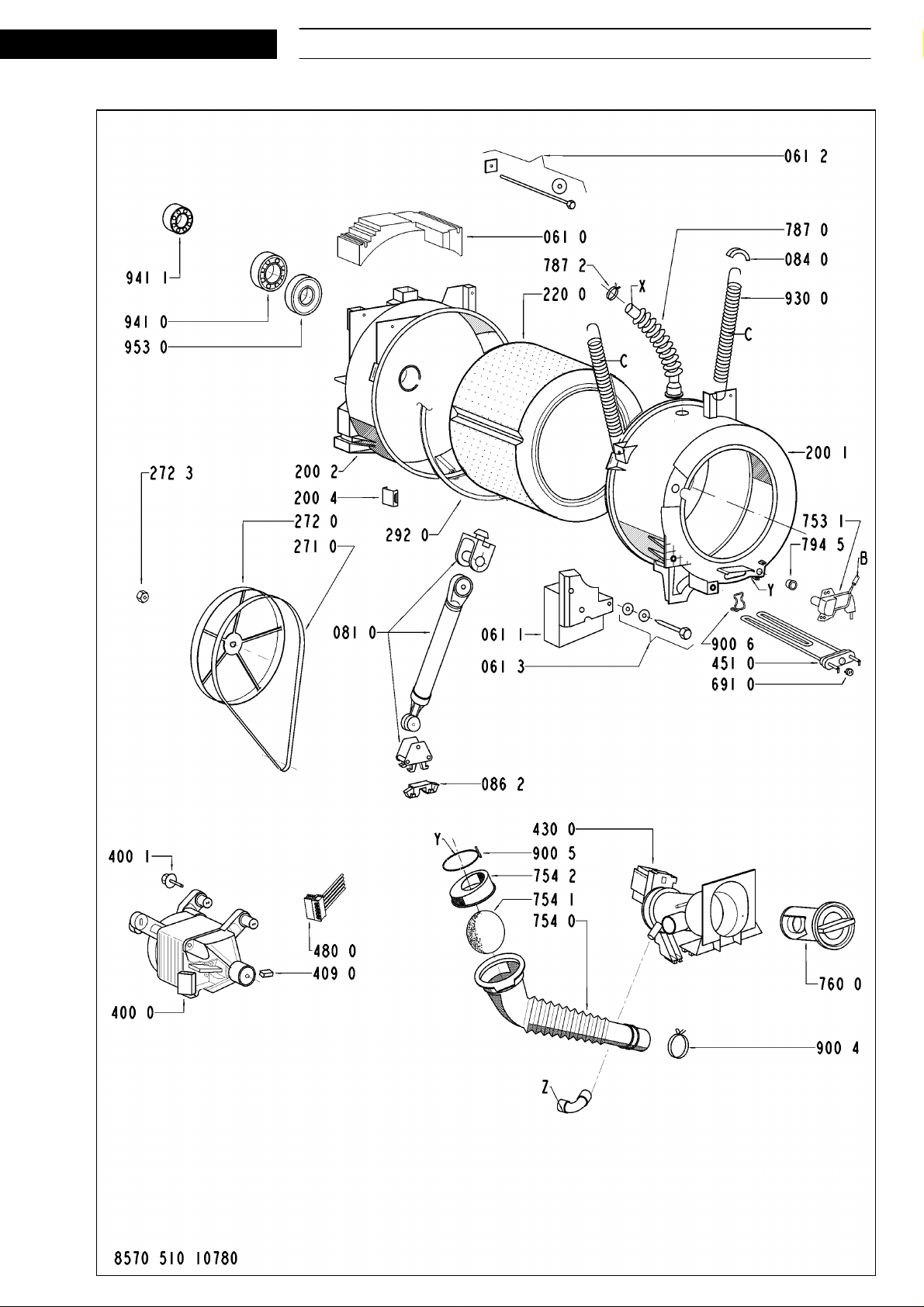

Exploded view |
6 - 7 |
|

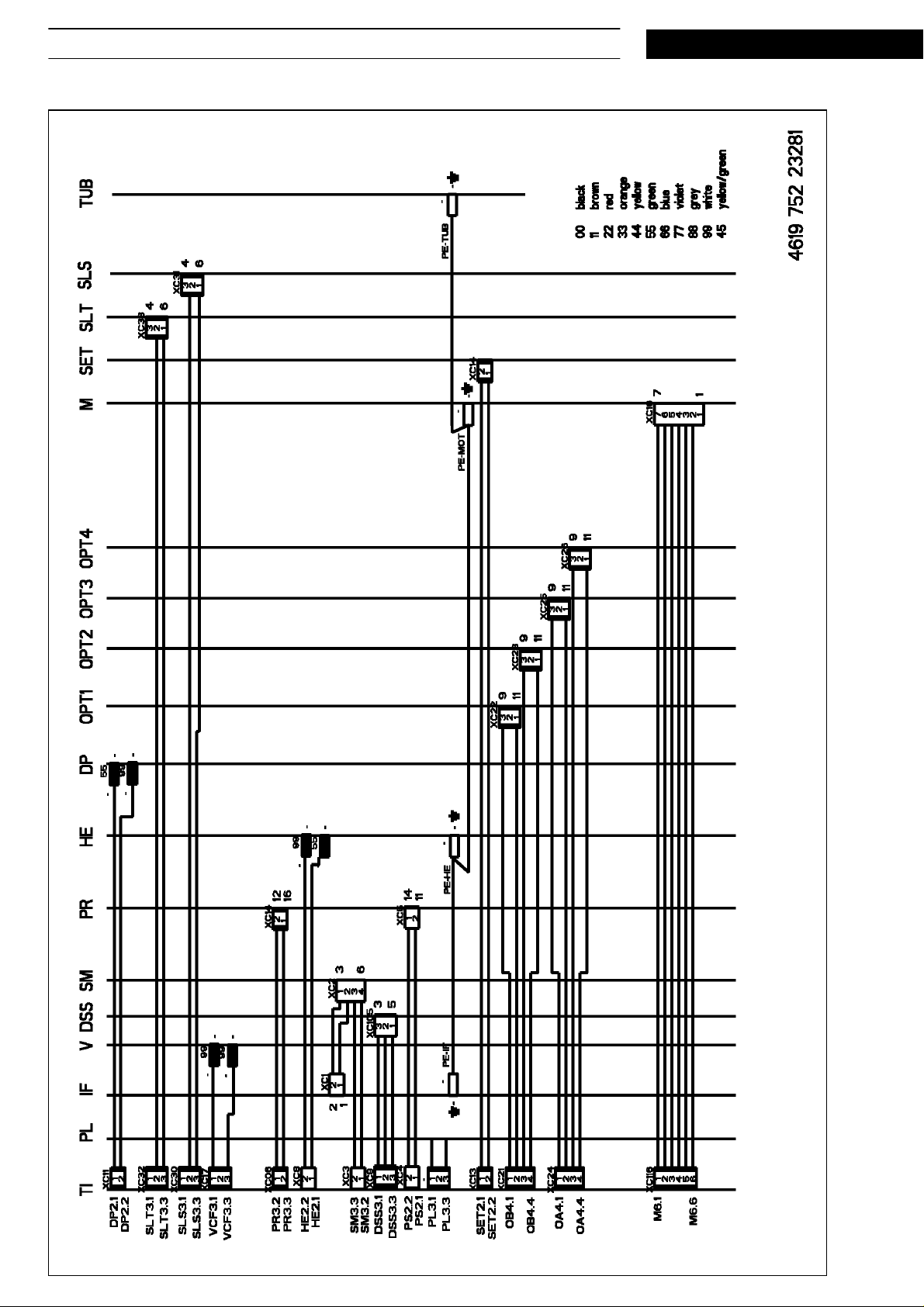

Wiring diagram |
8 |
|

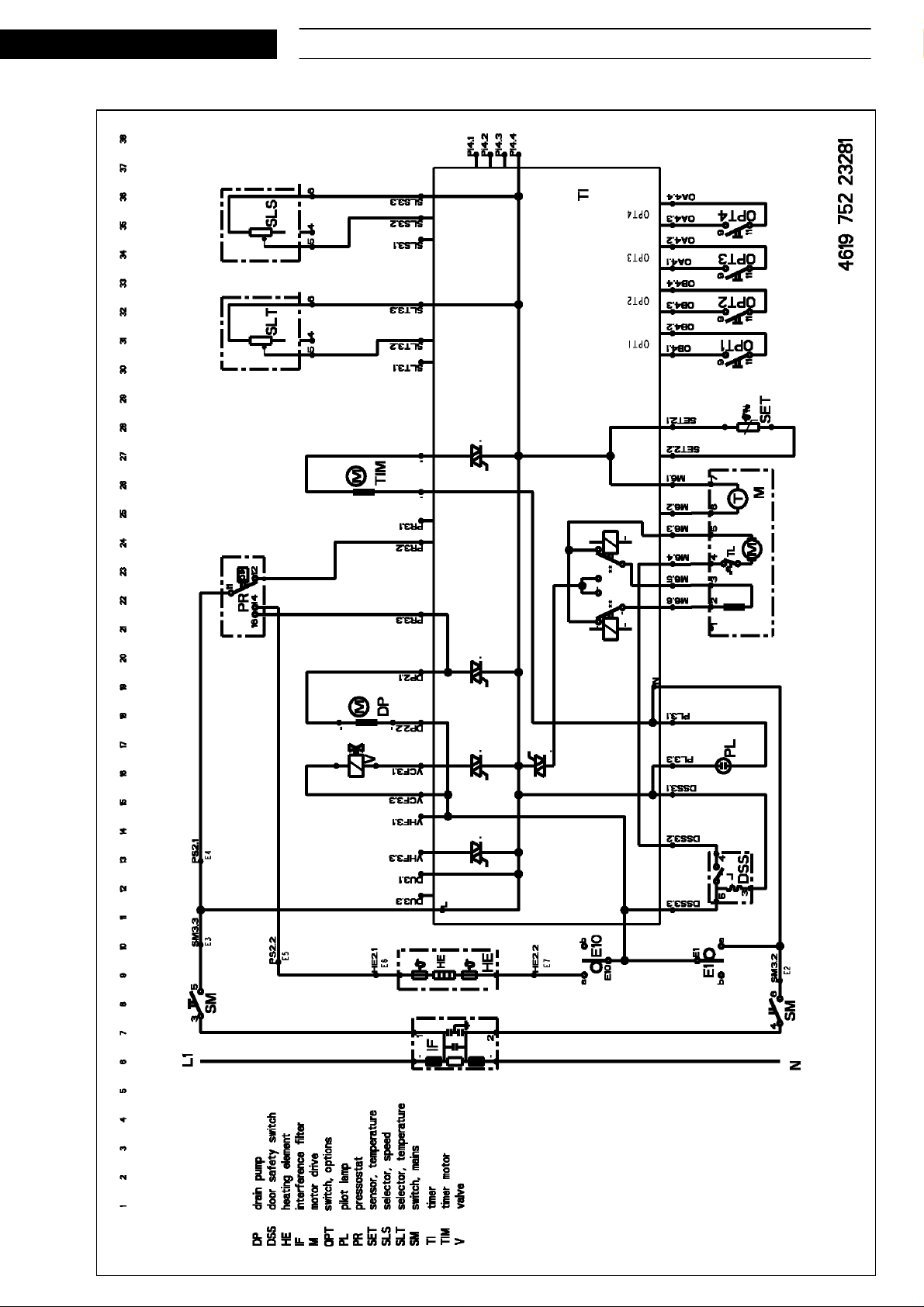

Circuit diagram |
9 |
|

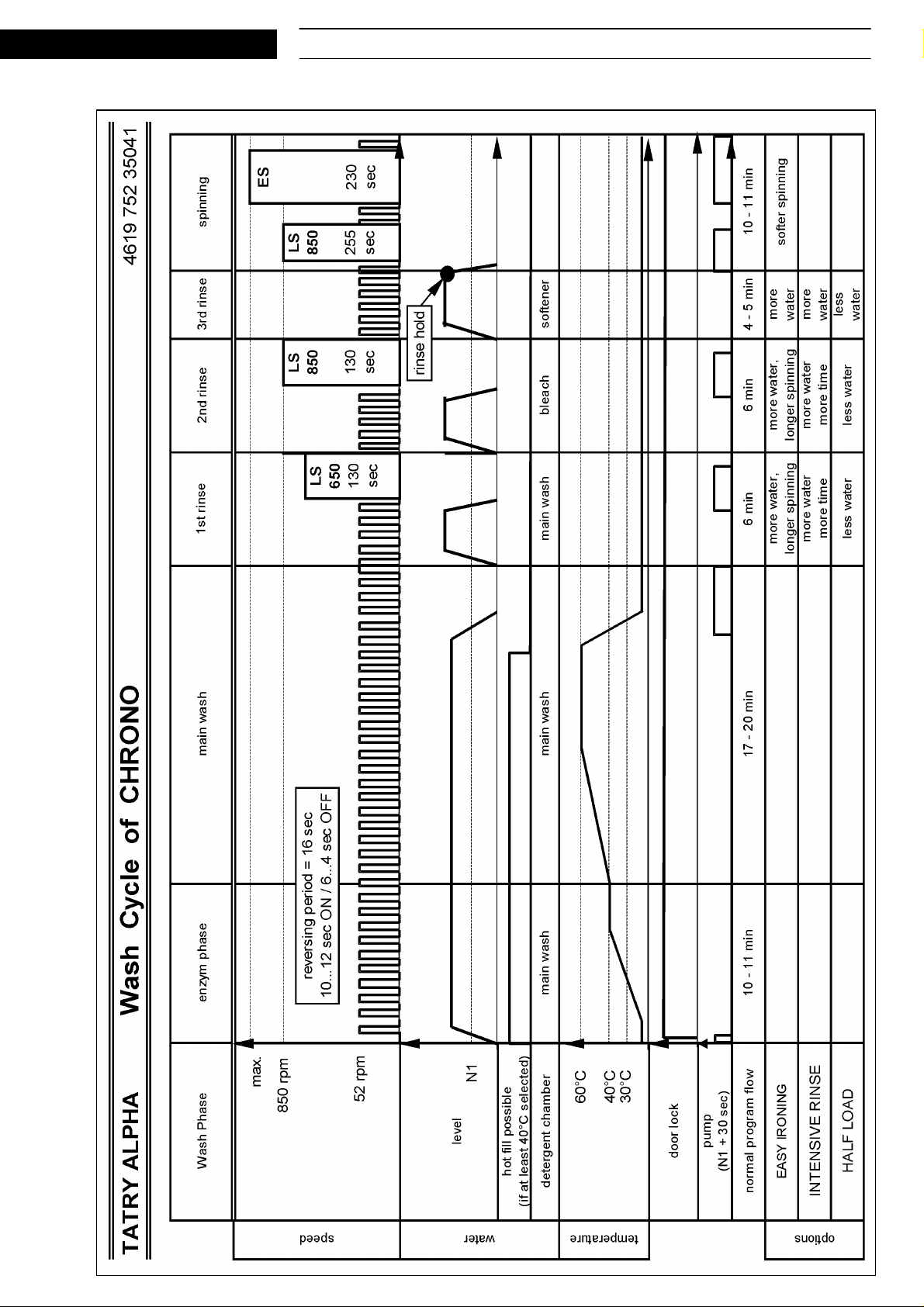

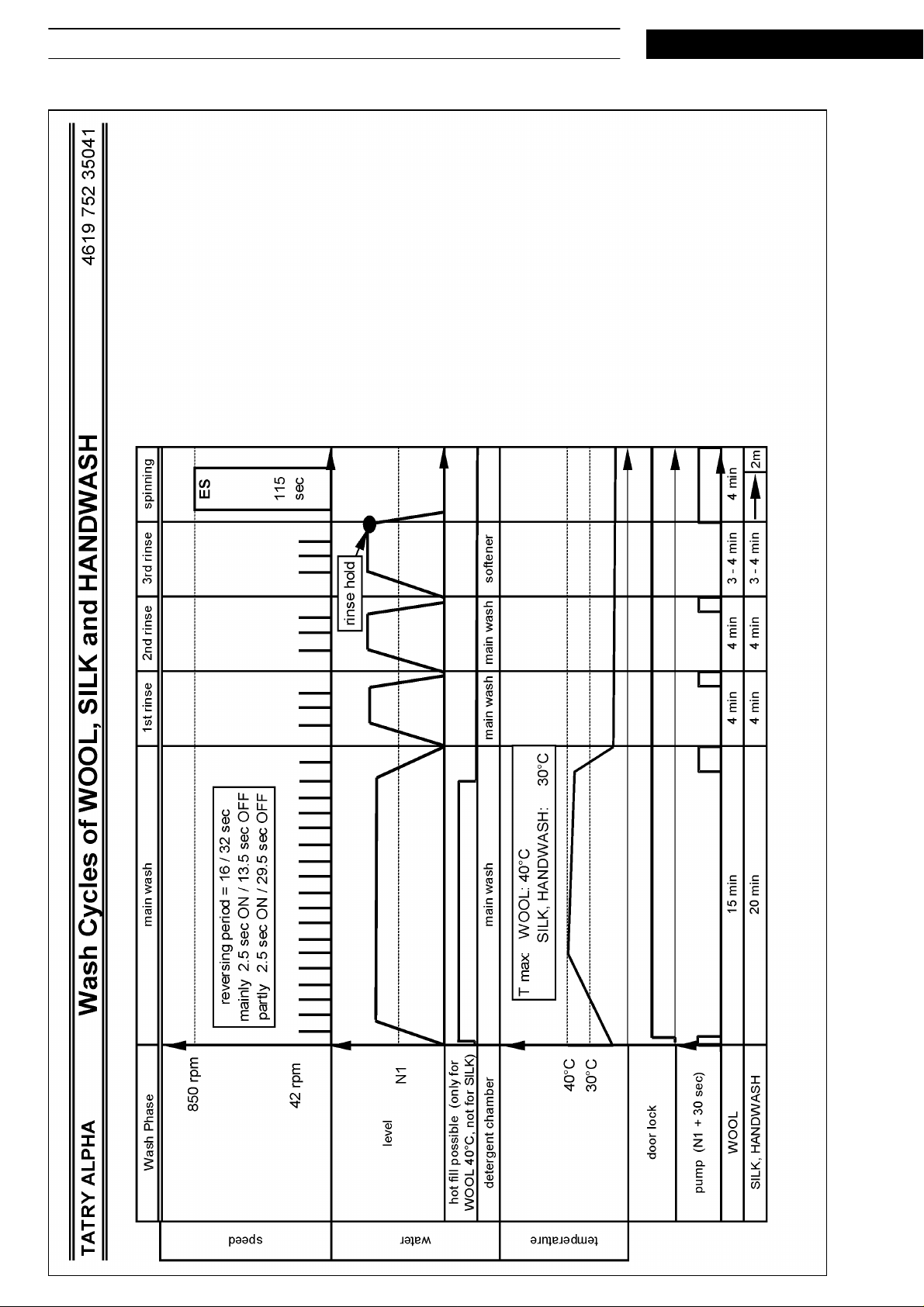

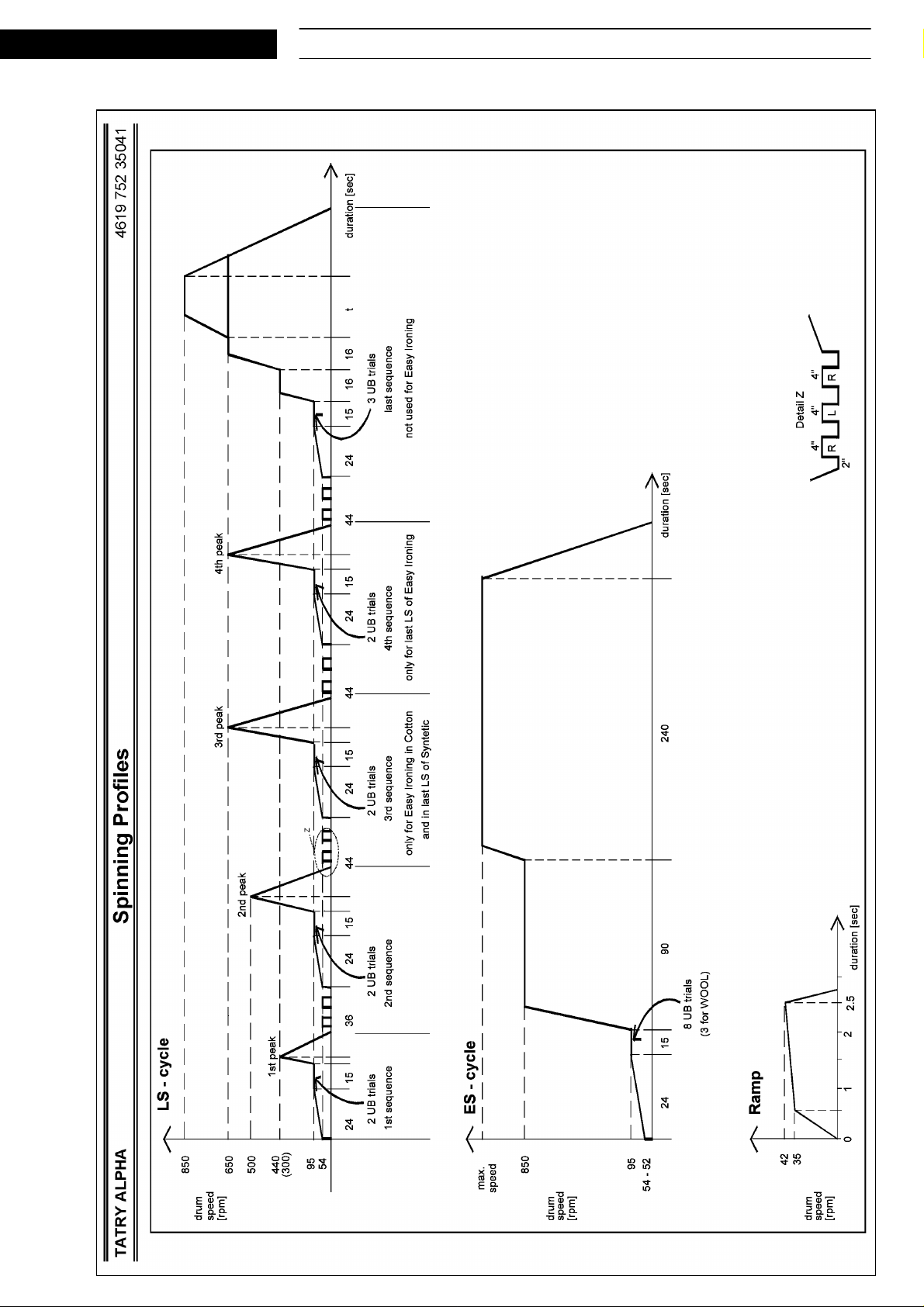

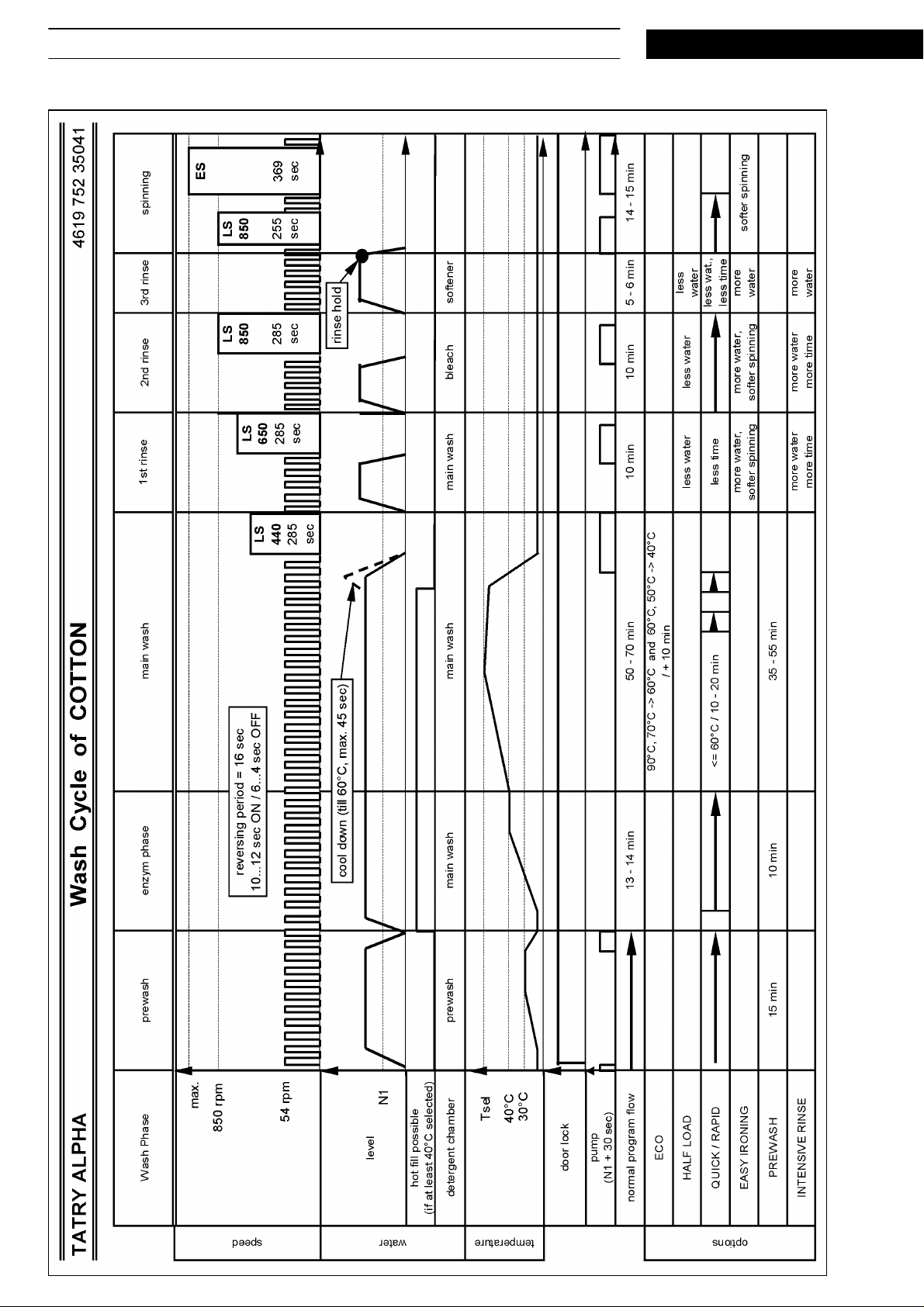

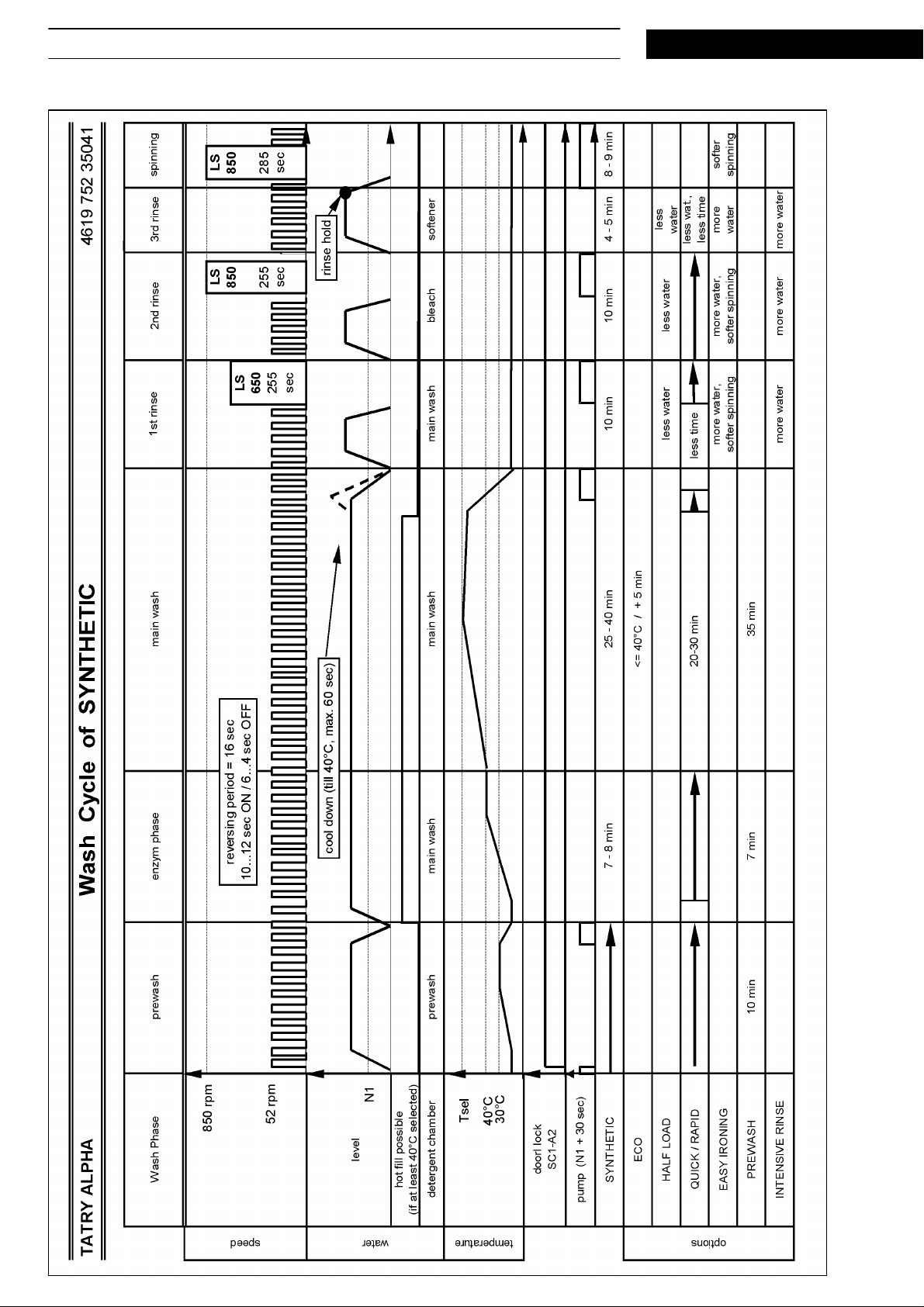

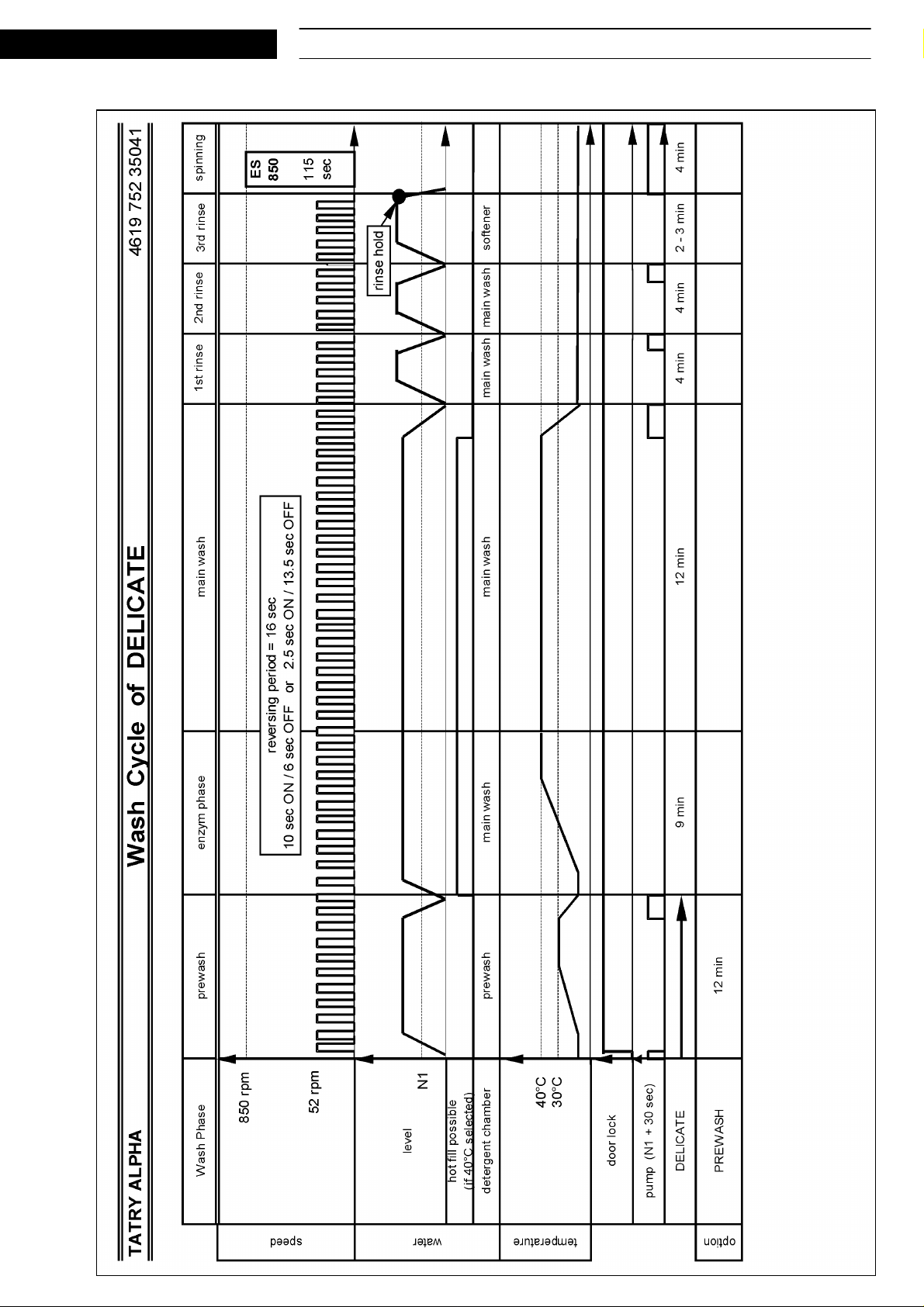

Program chart |
10 - 15 |
|
Family |
ALPHA |
This documentation is only intended for qualified technicians who are aware of the respec-
tive safety regulations. |
|
Date: 22.08.2005 (Mod.01) |
Subject to modification |
Document-No.: 4812 722 23294 |
|
05.10.2004 / Page 2 |
FL 5105/A |
Whirlpool Europe |
|
S E R V I C E |
Doc. No: 4812 722 23294 |
8570 510 10780 |
Customer Service |
||
|
|
|
|
|
Technical data
Dimensions |
|
|
Height |
81.5 - 84 |
cm |
Width |
59.5 |
cm |
Depth |
57.3 |
cm |
Weight |
|
|
Net weight |
~72 |
kg |
With package |
~74 |
kg |
Main Connection |
|
|
Voltage |
230 |
V ± 10% |
Frequency |
50 |
Hz |
Power consumption |
~2.3 |
kW |
Fuse rating |
10 |
A |
Drum |
|
|
Volume |
42 |
l |
Wash spin |
54 |
rpm |
Ramp spin |
95 |
rpm |
Speed spinning max. |
1000 |
rpm |
Capacity of dry laundry
Cotton/coloured
Cotton rapid
Cotton short
Synthetics
Synthetics rapid
Synthetics short
Delicate
Wool
Handwash/Silk
Daily
Pressostat
Kind of switch
Type
Nominal voltage
Water Level
Level 1 (11 - 12/14) Switching point Switching back point
Overflow (11 - 16)
Pilot lamp
Type
Nominal voltage
5 |
kg |
3 |
kg |
5 |
kg |
2.5kg
1.5kg
2.5kg
1.5kg
1 |
kg |
1 |
kg |
3 |
kg |
1-level pressoswitch with overflow contact 760/B1 - 223
230 |
V |
60 ± 5 |
mmWc |
35 ± 5 |
mmWc |
300 ± 20 mmWc
17.9
230 V
Nominal currents |
|
|
Contacts |
|
|
11 - 12 |
4 (4) |
A |
11 - 12 (heater. prot.) |
0.1 (0.1) |
A |
11 - 14 |
16 (4) |
A |
11 - 16 |
1 (1) |
A |
Door lock |
|
|
Kind of switch |
Switch with PTC heater |
|
|
of bimetal |
|
Type |
DA |
|
Nominal voltage |
230 (90 - 264) V |
|
Nominal current: |
|
|
Contact 4 - 5 |
16 (4) |
A |
Lock time |
≤6’’ |
|
Unlock time |
≤35 - 65/180’’ |
|
Heating element |
|
|
Kind of heating |
Tubular heating element |
|
|
with NTC - sensor |
|
Nominal voltage |
230 +10%, -15% V |
|
Nominal power |
2050 |
W ± 5% |
Resistance (20 ˚C) |
23.9/25.8 |
Ω ± 5% |
Thermo-fuse (switch |
|
|
OFF temperature) |
152/167 |
˚C |
Leakage current (< 99 ˚C) |
< 0.8 |
mA |
NTC sensor |
|
|
Resistance NTC: |
|
|
0 ˚C |
35.9 |
kΩ ± 5.8% |
30 ˚C |
9.8 |
kΩ ± 3.7% |
40 ˚C |
6.6 |
kΩ ± 3.1% |
50 ˚C |
4.6 |
kΩ ± 2.6% |
60 ˚C |
3.2 |
kΩ ± 2.0% |
70 ˚C |
2.3 |
kΩ ± 2.5% |
95 ˚C |
1.1 |
kΩ ± 3.7% |
Inlet valve |
|
|
Kind of valve |
1-way valve for cold |
|
|
water, electrical |
|
|
connection with |
|
|
Rast 2.5 |
|
Water temperature |
<60 |
˚C |
Rated flow >1 bar |
8 |
l/min ± 10% |
Pressure range |
0.2 - 10 |
bar |
Nominal voltage |
220 - 240 |
V |
Frequency |
50 |
Hz |
Nominal current |
35 |
mA |
Nominal power |
6 |
W ± 10% |
Nominal resistance |
3.8/4.1 |
kΩ ± 10% |
S E R V I C E
Technical data
Whirlpool Europe |
FL 5105/A |
05.10.2004 / Page 3 |
Customer Service |
8570 510 10780 |
Doc. No: 4812 722 23294 |
|
|
|
Drain pump (synchronous) |
|
|
Type |
72735 |
|
Nominal Voltage |
230 |
V |
Nominal/max. current |
0.3/0.5 |
A |
Rotation speed |
3000 |
rpm |
Nominal power |
34 |
W |
Frequency |
50 |
Hz |
Resistor (coil) (20 ˚C) |
155 |
Ω |
Capacity (0.55 - 1.0 m) |
14 ± 2 |
l/min |
Program timer |
|
|
Type |
AA1 |
|
Timer basic |
4619 710 73371 |
|
Timer programmed |
4619 751 53041 |
|
Program |
32 |
positions |
Motor |
|
|
Type |
MCA 38/64-148/WHE 3 |
|
Belt ratio |
i = 1:15.9 |
|
Resistance contacts (20 ˚C) |
Ω ± 7% |
|
Stator (full field) |
2.04 |
|
Rotor |
2.25 |
Ω ± 7% |
Tachogenerator |
68.70 |
Ω ± 7% |
Input power (230 V AC) |
|
|
Washing |
190 |
W ± 7% |
Rinsing |
260 |
W ± 7% |
Spinning |
360 |
W ± 10% |
Radio interference filter |
|
|
Rated voltage |
250 |
V |
Rated current |
16 |
A |
Frequency |
50/60 |
Hz |
Nominal capacity |
240/250nFX1+2x22nFY |
|
|
± 20% |
|
Nominal resistance |
1 |
MΩ ± 5% |
Derivation current |
≤ 4.15 (2 x 2.075) mA |
|
(u = 250 V AC) |
||
Main switch |
|
|
Type |
1DLF1006 |
|
Nominal voltage |
250 |
V |
Nominal current |
16 (5) |
A |
Poles |
2 |
|
Functionality |
Normally opened |
|
Connection in RAST 5 |
6.3 |
pins |
Connection lamp |
2.8 |
pins |
Option switch |
|
|
Nominal voltage |
5 |
V DC |
Nominal current |
1 |
mA |
Poles |
1 |
|
Functionality |
Normally opened |
|
Connection |
RAST 2.5 |
|
Temperature/spin speed selector |
|
|
Type |
04-0084.0006 |
|
Positions |
7 |
|
Nominal voltage |
5 |
V DC |
Nominal current |
1 |
mA |
Poles |
1 |
|
Connection |
RAST 2.5 |
|
Value of resistors ± 5%: |
|
Ω |
|
5 - 6 |
pos.1 |
<10 |
|
«-» |
pos.2 |
0.68 |
kΩ |
«-» |
pos.3 |
1.10 |
kΩ |
«-» |
pos.4 |
1.80 |
kΩ |
«-» |
pos.5 |
2.70 |
kΩ |
«-» |
pos.6 |
3.60 |
kΩ |
«-» |
pos.7 |
4.70 |
kΩ |
Push button switch |
|
|
|
ON/OFF |
|
SM |
|
Eco |
|
OPT. 1 |
|
Rapid |
|
OPT. 2 |
|
Intensive rinse |
|
OPT. 3 |
|
Rinse hold |
|
OPT. 4 |
|
05.10.2004 / Page 4 |
FL 5105/A |
|
|
Whirlpool Europe |
|
|
S E R V I C E |
||||
Doc. No: 4812 722 23294 |
8570 510 10780 |
|
|
|
Customer Service |
|
|||||
Spare part list |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Model |
|
FL 5105/A |
|
|
|
|
|
|
|
|
|
Service No. |
857051010780 |
|
|
|
|
|
|
|
|
|
|
Version |
|
857051010780 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
Pos. No. 12NC Code |
Description |
|
Pos. No. 12NC Code |
Description |
|||||||
001 0 |
4812 440 10784 |
Cabinet GW |
480 0 |
4812 321 78222 |
Cable AA1D-MOT 6/PP |
||||||
002 0 |
4812 440 10778 |
Flap round GW |
490 0 |
4819 321 18136 |
Cable, mains 2m SA |
||||||
003 0 |
4812 464 48101 |
Traverse |
491 0 |
4812 321 28367 |
Strain relief |
||||||
011 0 |
4812 500 18099 |
Adjust. foot M8, 112mm |
491 1 |
4812 502 38152 |
Screw 4.8x19 |
||||||
021 0 |
4812 440 11225 |
Front |
500 0 |
4812 282 19842 |
Timer ALPHA |
||||||
024 0 |
4819 440 19892 |
Panel, rear |
571 0 |
4812 271 28375 |
Valve, magnet Single |
||||||
025 0 |
4812 440 19817 |
Support control board |
581 0 |
4812 271 28518 |
Pressostat 60/35 R 2.5 |
||||||
030 0 |
4812 310 18936 |
Table top VBL 42l GW |
620 0 |
4819 410 28998 |
Switch options |
||||||
040 0 |
4812 417 18787 |
Hinge |
621 0 |
4819 410 29004 |
Switch ON/OFF |
||||||
050 0 |
4812 440 10779 |
Plinth GW |
622 0 |
4812 273 48002 |
Selector Temp./Spin |
||||||
061 0 |
4812 466 88458 |
Counterweight upper |
630 0 |
4812 280 58044 |
Door lock |
||||||
061 1 |
4812 466 88607 |
Counterweight front |
651 0 |
4812 134 48331 |
Light guide VBL |
||||||
061 2 |
4819 310 39227 |
Mounting kit Weight top |
691 0 |
4812 282 19485 |
Sensor NTC SC1 |
||||||
061 3 |
4819 310 39228 |
Mounting kit Weight bottom |
701 0 |
4812 530 29329 |
Hose, inlet EN 11770 Reflex |
||||||
081 0 |
4812 529 18038 |
Shock absorber until 1200 |
702 0 |
4819 530 29019 |
Hose intern |
||||||
084 0 |
4812 466 58001 |
Silent block |
707 0 |
4812 526 48031 |
Nozzle Distribution |
||||||
086 2 |
4812 401 18412 |
Stopper |
707 1 |
4812 526 48028 |
Nozzle |
|
|
||||
110 0 |
4812 498 18261 |
Handle, door GW |
708 1 |
4812 530 48143 |
Bend |
|
|
||||
130 0 |
4812 417 28047 |
Plate Door lock |
711 0 |
4812 418 88025 |
Dispenser BK, WH-3CH |
||||||
130 1 |
4812 417 28048 |
Plate Door lock Lower |
712 0 |
4812 418 88051 |
Drawer Detergent |
||||||
131 0 |
4812 417 28046 |
Lock Door |
713 0 |
4812 418 89037 |
Flap Detergent Cont. 3 ch. GW |
||||||
131 1 |
4812 417 28045 |
Pin Door Lock |
717 0 |
4819 321 28092 |
Bowden cable |
||||||
131 2 |
4812 492 58022 |
Spring Door Lock |
717 1 |
4812 321 38013 |
Lever, Nozzle |
||||||
135 1 |
4812 498 18262 |
Knob Door Safety GW |
717 2 |
4812 321 38012 |
Holder, adjust. |
||||||
135 2 |
4812 492 58023 |
Spring Door Safety |
717 3 |
4812 278 88018 |
Slide |
|
|
||||
135 3 |
4812 290 68153 |
Holder, adjust. Door Safety |
717 4 |
4812 492 38359 |
Spring, Nozzle |
||||||
140 0 |
4812 450 58983 |
Door glass |
717 5 |
4812 233 18004 |
Cam 3 C. incl. adapter |
||||||
143 0 |
4812 440 10817 |
Glass door frame VBL WH GW |
717 7 |
4812 502 18409 |
Screw cam actuator |
||||||
144 0 |
4812 440 19589 |
Frame, door glass DE-WT |
718 0 |
4812 526 48157 |
Siphon 3 Chamber GW |
||||||
144 3 |
4812 502 18669 |
Screw 4.0x12 |
718 1 |
4812 418 88018 |
Separator 3ch |
||||||
191 0 |
4812 460 68532 |
Door bellow WH grease resistance |
753 1 |
4819 418 68234 |
Chamber, air |
||||||
191 1 |
4812 492 18017 |
Strap |
754 0 |
4812 530 28826 |
Drain hose |
||||||
191 2 |
4812 492 98011 |
Strap |
754 1 |
4812 530 28832 |
Lock eco |
|
|
||||
200 1 |
4812 418 18529 |
Tub, half front 42l |
754 2 |
4812 530 28829 |
Flange eco |
||||||
200 2 |
4812 418 18531 |
Tub, half rear 42l |
760 0 |
4819 480 58106 |
Cover, pump |
||||||
200 4 |
4812 290 88054 |
Clamp for tub |
781 0 |
4819 530 28847 |
Hose, draining |
||||||
220 0 |
4819 418 18333 |
Drum |
782 0 |
4812 530 28827 |
Hose Pressostat |
||||||
271 0 |
4812 358 18056 |
V-ribbed belt WH 1250 J5 |
787 0 |
4812 530 28813 |
Steam hose |
||||||
272 0 |
4812 528 58027 |
Pulley DIAM. 298 |
787 2 |
4819 401 18174 |
Clamp, hose 25-45 mm |
||||||
272 3 |
4812 505 18371 |
Nut M 12 |
794 2 |
4812 530 58005 |
O-Ring |
|
|
||||
292 0 |
4812 530 58101 |
Gasket Tub |
794 5 |
4812 530 58098 |
Gasket Airtrap |
||||||
301 0 |
4812 452 14897 |
Control panel FL 5105/A |
900 0 |
4812 255 18204 |
Holder Hose outlet |
||||||
303 0 |
4812 498 18386 |
Handle, drawer symbols |
900 1 |
4812 290 88049 |
Bracket |
|
|
||||
331 0 |
4812 414 58249 |
Knob, timer VBL, daily, 1000 |
900 2 |
4812 401 18501 |
Clamp, hose 19.2 mm |
||||||
331 1 |
4812 414 58235 |
Knob thermostat WH VBL GW |
900 3 |
4812 401 18446 |
Cable clamp |
||||||
331 2 |
4812 414 58237 |
Knob, potentiom. 1000 GW |
900 4 |
4812 401 18414 |
Clamp, hose |
||||||
332 0 |
4812 513 18133 |
Button Options GW |
900 5 |
4819 401 18529 |
Clamp, hose |
||||||
339 1 |
4812 233 18006 |
Adapter f. Knob |
900 6 |
4812 290 18031 |
Clamp heating element+screw |
||||||
351 0 |
4812 134 18011 |
Lamp |
900 7 |
4812 255 18205 |
Holder Pressostat |
||||||
400 0 |
4819 361 58259 |
Motor MCA 38/64-148/WHE 3 |
900 9 |
4812 401 48569 |
Clamp hose pressostat |
||||||
400 1 |
4812 502 18382 |
Screw M8 X 35 |
910 1 |
4812 502 48344 |
Screw |
|
|
||||
409 0 |
4812 362 48004 |
Brush, carbon motor CESET |
911 7 |
4812 903 08196 |
Screw M 5X14-Z |
||||||
421 0 |
4812 121 18142 |
Interf. filter 1,00 μ F |
930 0 |
4819 492 38139 |
Spring Suspension |
||||||
430 0 |
4812 310 28144 |
Pump, draining KIT |
941 0 |
4812 520 28066 |
Bearing, ball 6204 |
||||||
451 0 |
4812 259 28819 |
Heating element with hole |
941 1 |
4812 520 28002 |
Bearing, ball 6203 2Z C3 |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
S E R V I C E
Spare part list
Whirlpool Europe |
FL 5105/A |
05.10.2004 / Page 5 |
Customer Service |
8570 510 10780 |
Doc. No: 4812 722 23294 |
|
|
|
Model |
|
FL 5105/A |
Service No. |
857051010780 |
|
Version |
|
857051010780 |
|
|
|
Pos. No. 12NC Code |
Description |
|
953 0 |
4819 532 78224 |
Ring |
961 0 |
4819 532 68829 |
Spacer |
965 0 |
4812 466 68545 |
Cover BK/WH |
993 0 |
4812 530 29269 |
Bow |
993 3 |
4812 395 58004 |
Tool |
Loading...
