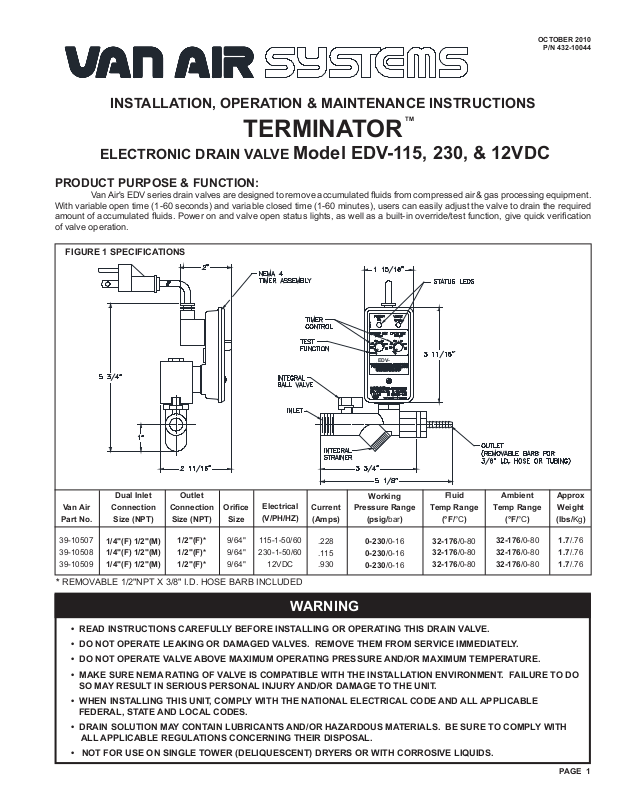

Van Air Systems EDV-115 User Manual

OCTOBER 2010

P/N 432-10044

INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS

TERMINATOR

ELECTRONIC DRAIN VALVE Model EDV-115, 230, & 12VDC

PRODUCT PURPOSE & FUNCTION:

Van Air's EDV series drain valves are designed to remove accumulated uids from compressed air & gas processing equipment.

With variable open time (1-60 seconds) and variable closed time (1-60 minutes), users can easily adjust the valve to drain the required amount of accumulated uids. Power on and valve open status lights, as well as a built-in override/test function, give quick verication of valve operation.

FIGURE 1 SPECIFICATIONS

EDV-

Van Air

Part No.

39-10507

39-10508

39-10509

Dual Inlet

Connection

Size (NPT)

1/4"(F) 1/2"(M)

Outlet

Connection

Size (NPT)

1/2"(F)*

Orice

Size

9/64"

Electrical

(V/PH/HZ)

115-1-50/60

230-1-50/60

12VDC

Current

(Amps)

.228

.115

.930

Working

Pressure Range

(psig/bar)

0-230/0-16

Fluid

Temp Range

(°F/°C)

32-176/0-80

Ambient

Temp Range

(°F/°C)

32-176/0-80

* REMOVABLE 1/2"NPT X 3/8" I.D. HOSE BARB INCLUDED

WARNING

• READ INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR OPERATING THIS DRAIN VALVE.

• DO NOT OPERATE LEAKING OR DAMAGED VALVES. REMOVE THEM FROM SERVICE IMMEDIATELY.

• DO NOT OPERATE VALVE ABOVE MAXIMUM OPERATING PRESSURE AND/OR MAXIMUM TEMPERATURE.

• MAKE SURE NEMA RATING OF VALVE IS COMPATIBLE WITH THE INSTALLATION ENVIRONMENT. FAILURE TO DO SO MAY RESULT IN SERIOUS PERSONAL INJURY AND/OR DAMAGE TO THE UNIT.

• WHEN INSTALLING THIS UNIT, COMPLY WITH THE NATIONAL ELECTRICAL CODE AND ALL APPLICABLE

FEDERAL, STATE AND LOCAL CODES.

• DRAIN SOLUTION MAY CONTAIN LUBRICANTS AND/OR HAZARDOUS MATERIALS. BE SURE TO COMPLY WITH ALL APPLICABLE REGULATIONS CONCERNING THEIR DISPOSAL.

• NOT FOR USE ON SINGLE TOWER (DELIQUESCENT) DRYERS OR WITH CORROSIVE LIQUIDS.

Approx

Weight

(lbs/Kg)

1.7/.76

PAGE 1

INSTALLATION

Relieve and lock out all pressure from drain line.

Clean existing drain line of any pipe scale, weld spatter and

accumulated debris.

TIMER ADJUSTMENT

Set the valve open time & valve closed time control knobs to conform to the desired draining schedule. Note that the "VALVE OPEN" light is illuminated whenever the valve is open.

FIGURE 2 RECOMMENDED INSTALLATION

UNIT TO BE DRAINED

EDV

TO DRAIN

TEE

MANUAL

DRAIN

BALL VALVE

Install a tee in the drain line. (Reference Figure 2).

From the vertical tee outlet, install a manual drain valve to allow

TO DRAIN

CAP

SCREEN

the system to be drained during EDV servicing. On the horizontal tee outlet, install the EDV drain valve.

Reference ow direction arrows on side of valve body.

CAUTION

IF THE EDV IS INSTALLED BACKWARDS, IT WILL NOT WORK.

Close the manual and integral ball valves.

Adjust timer knobs to desired settings (Reference Timer

Adjustment Section).

Wire or plug the valve into the appropriate grounded power supply. The "POWER ON" light should now be illuminated.

Open the integral ball valve. The EDV is now in service.

TEST FUNCTION

To verify valve operation, or to manually discharge uid, turn the "CLOSED TIME" knob counter clockwise until it stops in the area labeled "TEST". The valve will open for the set "OPEN TIME". After the valve closes, it will automatically repeat the test in 2 seconds unless the "CLOSED TIME" knob is reset to its regular position.

REQUIRED MAINTENANCE

The integral strainer must be cleaned periodically to ensure proper valve performance. The time between cleanings will vary depending operating conditions. Remove cap to access screen for cleaning. (Reference Figure 2).

WARNING

NEVER REMOVE OR REPLACE ANY PART ON EDV WHILE IT IS PRESSURIZED. CLOSE INTEGRAL BALL VALVE

AND DEPRESSURIZE DRAIN LINE USING EDV TEST

REPLACEMENT PARTS

REPLACEMENT TIMER

VALV E

POWER CORD

EDV-115

39-10511

291-00017

500-00002

EDV-230

39-10512

291-00018

500-00003

EDV-12DC

39-10513

291-00019

500-00002

PROBLEM

Valve not operating ("POWER ON" light is off)

Valve not operating ("POWER ON" light is on)

PAGE 2

TROUBLE SHOOTING

POSSIBLE CAUSE

Power to valve turned off or interrupted. Printed circuit board malfunction.

Excessive drain line pressure. Valve plugged with debris. Valve installed backwards. Printed circuit board malfunction. Valve malfunction.

SOLUTION

Check electrical connections. Make sure that the drain valve is not installed on a switched power supply line. Replace timer assembly.

EDV drain valve has a 230 PSIG maximum working pressure. Clean or replace valve. Verify proper ow direction. Replace timer assembly. Replace valve.

2950 Mechanic Street

Lake City, PA 16423 USA

Phone: 800/840-9906

Fax: 814/774-3482

www.vanairsystems.com
