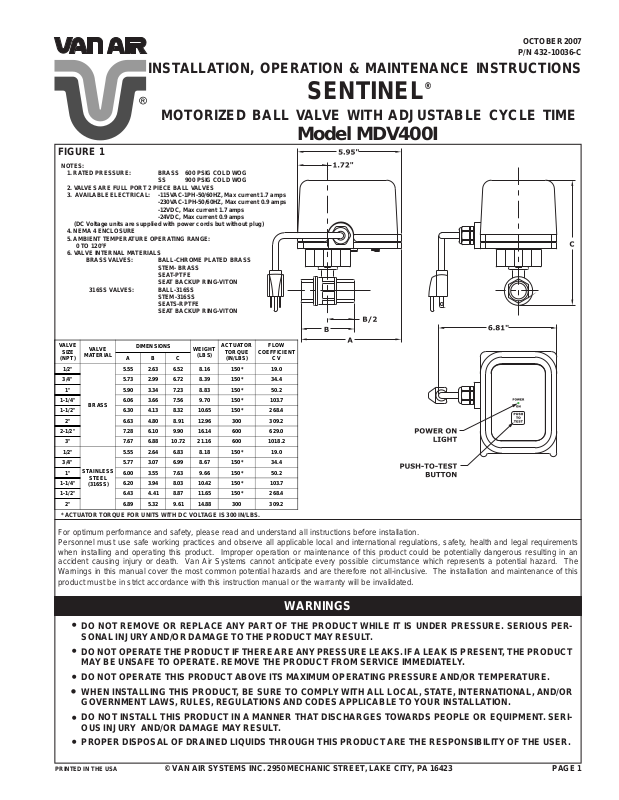

INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS

MOTORIZED BALL VALVE WITH ADJUSTABLE CYCLE TIME

FIGURE 1

NOTES:

1. RATED PRESSURE: BRASS 600 PSIG COLD WOG

2. VALVES ARE FULL PORT 2 PIECE BALL VALVES

3. AVAILABLE ELECTRICAL: -115VAC-1PH-50/60HZ, Max current 1.7 amps

(DC Voltage units are supplied with power cords but without plug)

4. NEMA 4 ENCLOSURE

5. AMBIENT TEMPERATURE OPERATING RANGE: 0 TO 120°F

6. VALVE INTERNAL MATERIALS BRASS VALVES: BALL-CHROME PLATED BRASS

316SS VALVES: BALL-316SS

SS 900 PSIG COLD WOG

-230VAC-1PH-50/60HZ, Max current 0.9 amps

-12VDC, Max current 1.7 amps

-24VDC, Max current 0.9 amps

STEM- BRASS SEAT-PTFE SEAT BACKUP RING-VITON

STEM-316SS SEATS-RPTFE SEAT BACKUP RING-VITON

OCTOBER 2007

P/N 432-10036-C

SENTINEL

Model MDV400I

VALVE

SIZE

MATERIAL

(NPT)

1/2" 3/4" 5.73 2.99 6.72 8.39 150* 34.4

1" 5.90 3.34 7.23 8.83 150* 50.2

1-1/4" 6.06 3.66 7.56 9.70 150* 103.7

BRASS

1-1/2" 6.30 4.13 8.32 10.65 150* 268.4

2" 6.63 4.80 8.91 12.96 300 309.2

2-1/2" 7.28 6.10 9.90 16.14 600 629.0

3" 7.67 6.88 10.72 21.16 600 1018.2 1/2" 3/4" 5.77 3.07 6.99 8.67 150* 34.4

STAINLESS

1" 6.00 3.55 7.63 9.66 150* 50.2

STEEL

1-1/4" 6.20 3.94 8.03 10.42 150* 103.7

(316SS)

1-1/2" 6.43 4.41 8.87 11.65 150* 268.4

2" 6.89 5.32 9.61 14.88 300 309.2

* ACTUATOR TORQUE FOR UNITS WITH DC VOLTAGE IS 300 IN/LBS.

DIMENSIONS

ABC

5.55 2.63 6.52 8.16 150* 19.0

5.55 2.64 6.83 8.18 150* 19.0

WEIGHT

(LBS)

ACTUATOR

TORQUE

(IN/LBS)

FLOW

COEFFICIENT

For optimum performance and safety, please read and understand all instructions before installation. Personnel must use safe working practices and observe all applicable local and international regulations, safety, health and legal requirements when installing and operating this product. Improper operation or maintenance of this product could be potentially dangerous resulting in an accident causing injury or death. Van Air Systems cannot anticipate every possible circumstance which represents a potential hazard. The Warnings in this manual cover the most common potential hazards and are therefore not all-inclusive. The installation and maintenance of this product must be in strict accordance with this instruction manual or the warranty will be invalidated.

WARNINGS

DO NOT REMOVE OR REPLACE ANY PART OF THE PRODUCT WHILE IT IS UNDER PRESSURE. SERIOUS PER-

•

SONAL INJURY AND/OR DAMAGE TO THE PRODUCT MAY RESUL T. DO NOT OPERATE THE PRODUCT IF THERE ARE ANY PRESSURE LEAKS. IF A LEAK IS PRESENT, THE PRODUCT

•

MAY BE UNSAFE TO OPERA TE. REMOVE THE PRODUCT FROM SER VICE IMMEDIATELY. DO NOT OPERATE THIS PRODUCT ABOVE ITS MAXIMUM OPERATING PRESSURE AND/OR TEMPERATURE.

•

WHEN INSTALLING THIS PRODUCT, BE SURE TO COMPLY WITH ALL LOCAL, STATE, INTERNATIONAL, AND/OR

•

GOVERNMENT LAWS, RULES, REGULATIONS AND CODES APPLICABLE TO YOUR INSTALLA TION. DO NOT INSTALL THIS PRODUCT IN A MANNER THAT DISCHARGES TOWARDS PEOPLE OR EQUIPMENT. SERI-

•

OUS INJURY AND/OR DAMAGE MAY RESULT. PROPER DISPOSAL OF DRAINED LIQUIDS THROUGH THIS PRODUCT ARE THE RESPONSIBILITY OF THE USER.

•

PRINTED IN THE USA © VAN AIR SYSTEMS INC. 2950 MECHANIC STREET, LAKE CITY, PA 16423 PAGE 1

Page 2

1.0 DESCRIPTION OF NORMAL OPERATION:

1.1 This product consists of a quarter turn ball valve mated to an electric actuator with a fully adjustable timer controller. The product is designed for mounting in a pipe-line requiring adjustable set closed times and adjustable set open times. A common application is draining fluids from compressed air system components such as separators, filters, airlines and receiver tanks. The timer is set at the factory to open the valve for 10 seconds every 2 hrs.

2.0 INSTALLATION INSTRUCTIONS: (Reference Figure 2)

2.1 Carefully unpack the valve from its shipping box or boxes. Check for visible signs of damage immediately file a claim with the carrier if damage is found. Do not install a damaged valve or actuator. Note: 2” valves and larger will be shipped in two boxes, one containing the valve and one containing the actuator. Smaller valves are shipped with actuator installed.

2.2 2” valves and larger will require installing the actuator after installing the valve in the line (See Figure 3).

2.3 Make sure that all pressure is removed from the line where the valve is to be installed. Make precautions to ensure the line remains free of pressure during the installation process.

2.4 Check the line for obstructions and clean as required.

2.5 Make sure all components and parts you are installing meet the temperature and pressure ratings of your system. (piping, manual valves, fittings, or electrical parts are not included)

2.6 Install a tee onto the line with the outlet facing down. Install a nipple and manual ball valve on the tee facing down. This is for bypassing the timer valve if it is not operational for any reason.

2.7 Install an isolation valve on the remaining opening. Close both manual valves and install a nipple and union on the isolation valve.

2.8 Install the valve after the union and install all additional piping downstream of the valve and bypass valve per your local requirements.

2.9 Locate a suitable power source and verify it meets the requirements of your valve (see valve label). Wire the valve using the cord included or conduit taking all precautions necessary to meet all required electrical codes for your location. Verify your timer valve is in the closed position and that timing is per your needs.

2.10 Review steps 2.1 through 2.9 to verify no steps were skipped.

2.11 Slowly pressurize the system. Once the system is fully pressurized, slowly open the isolation valve and check the system for leaks. In the event a leak is discovered, remove pressure from the system and repair before proceeding.

2.12 Your valve is now installed and ready for operation.

FIGURE 2 RECOMMENDED INSTALLATION

CAUTION: DO NOT INSTALL MORE THAN ONE FLOW SOURCE PER VALVE. MULTIPLE SOURCES WILL HAVE V ARIED

PRESSURES RESULTING IN HIGHEST T O LOWEST CONTAMINATION.

PAGE 2 © VAN AIR SYSTEMS INC. 2950 MECHANIC STREET, LAKE CITY, PA 16423 PRINTED IN THE USA

Page 3

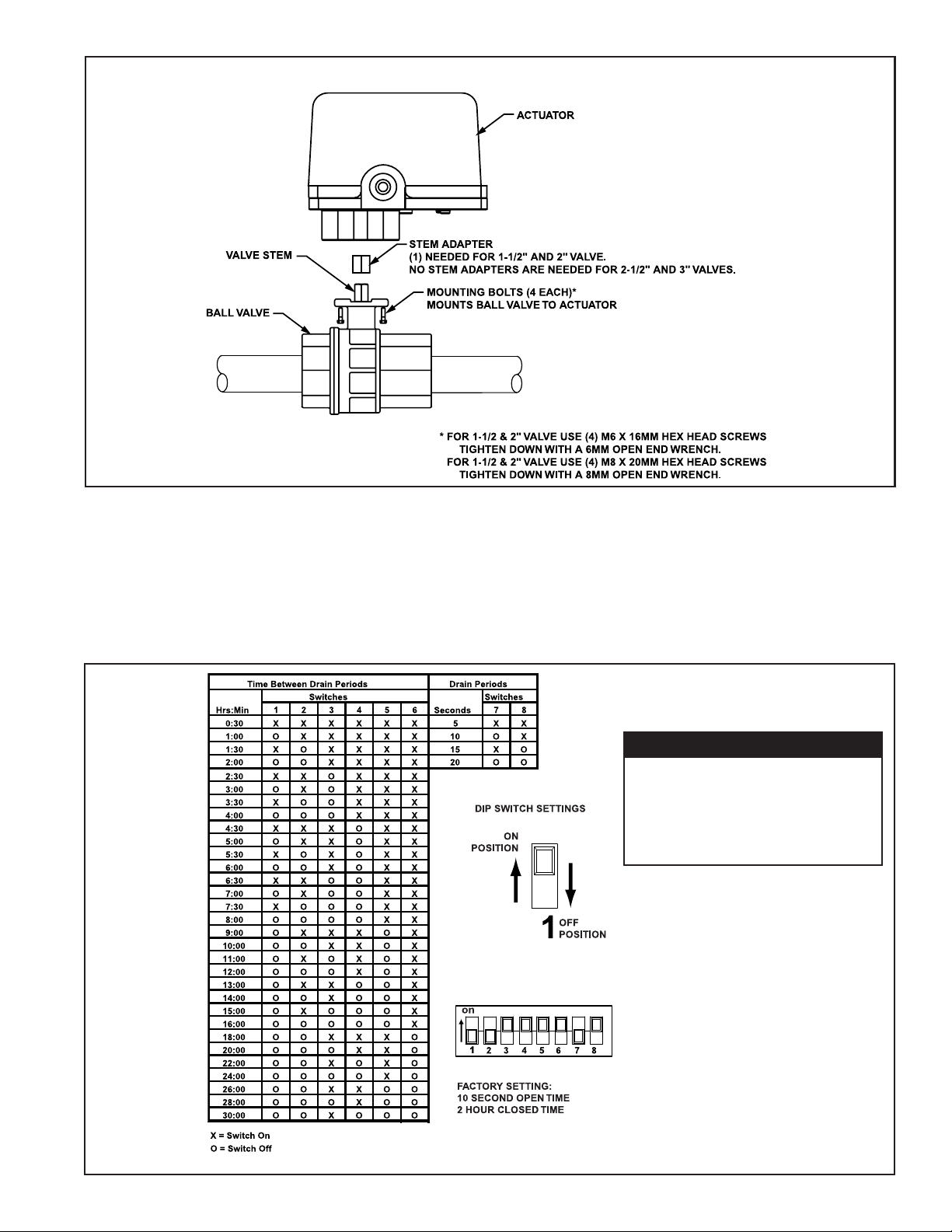

FIGURE 3 ASSEMBLY OF ACTUATOR AND VALVE (2” AND LARGER)

3.0 ADJUSTING THE TIMER

3.1 The time between drain periods and drain periods are adjusted by a dipswitch keyboard located on the circuit board inside the cover. Remove power from the unit and then unscrew the (4) screws holding the cover in place. Take caution not to stress the wire harness connecting the bottom board to the top board.

3.2 Adjust per the chart in Figure 4. Note: The timer settings cannot be changed unless power is removed from

the unit.

3.3 Reassemble cover making sure that the cover o-ring seal is properly seated and the wire harness is not positioned near the motor.

3.4 Apply power to the unit and push the TEST button to clear the previous setting.

FIGURE 4

CAUTION

POWER MUST BE REMOVED FROM UNIT WHEN CHANGING SETTINGS.

TEST BUTTON MUST BE USED ONCE AFTER POWER IS RESTORED TO INITIALIZE NEW SETTINGS.

Page 4

4.0 PUSH TO TEST BUTTON

4.1 Must be pressed after timer change to initialize new setting.

4.2 If depressed and released, the valve will cycle one time.

4.3 If depressed and held, the valve will stay open until released.

5.0 REQUIRED MAINTENANCE Periodically check the valve for the following:

5.1 Press the Push to Test button to verify valve rotation. Valve should rotate back to closed position.

5.2 Check actuator to valve connection area for debris which could impede proper operation.

5.3 Check wires and/or electrical connections for signs of damage.

5.4 Check valve for leaks. If leaks are present, remove pressure from the system and replace the ball valve.

5.5 Check fasteners for tightness.

Note: Service work to be done by qualified personnel only! Always remove pressure and power from the unit before servicing.

TROUBLE SHOOTING

PROBLEM CAUSES SOLUTION

Unit will not operate (Power On LED is no t li t)

Unit will not operate (Power On LED is lit)

Valve binds during rotation Ball valve seats worn Replace the ball valve. Ball valve should be replaced at some time between 100,000 and

Ball valve leaks prematurely Defective ball valve Replace ball valve. Valve position is opposite of

where it should be in the sequence

Valve operates at other than se t ti m es

No power Check power supply. Check circuit breakers or fuses. Check to see if circuit has a remote

Fuse F1 is blown Replace Fuse F1. Fuse F2 is blown Turn power off and back on. Press the Push to Test button. If valve does not rotate, fuse

The control board did not sense that the next position, closed or open, was reached for a period of 15 seconds

Faulty actuator/motor/valve assembly

Ball valve ball clogged or damaged

Power Interruption P ress the Push to Test button. Valve will rotate to the closed position.

P ow e r inte rrup tio n durring cycle

Settings changed with power on

power on/off switch.

labeled F2 on bottom board is blown. Replace fuse. If the valve rotates several rotations and then randomly stops, press the Push To Test Button.

If the valve rep ea ts the fault, the op ti c s e ns or has fa i le d (c ons ult fa c to r y). If the va lve rota te s back to closed, the fault was corrected and the unit is running correctly.

P re s s the Pus h To Te s t B u tto n. If the a c tuato r m o to r turns b ut the va lve d o es not, c he c k fo r a broken or loose valve stem. If the stem is broken, replace the valve. If this is not the problem, replace the entire unit. If the motor will not turn after power is applied directly to it, the motor has failed and the unit must be replaced.

150,000 cycles (will vary with application). Free valve of any debris. If valve is damaged, replace.

Valve will continue on set time once power is restored from the point power was interrupted.

Remove power and adjust timer to desired settings. See SE C TION 3.0
