CAR BATTERY CHARGER ULGD 5.0 A1
CAR BATTERY CHARGER
Translation of original operation manual
KFZ-BATTERIELADEGERÄT
Originalbetriebsanleitung
IAN 296069
ΦΟΡΤΙΣΤΗΣ ΜΠΑΤΑΡΙΑΣ
ΑΥΤΟΚΙΝΗΤΟΥ
Μετάφραση των αυθεντικών οδηγιών λειτουργίας
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of
the device.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τις δυο σελίδες με τις εικόνες και εξοικειωθείτε με όλες τις
λειτουργίες της συσκευής.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen
Funktionen des Gerätes vertraut.
GB / IE / NI/CY Translation of original operation manual Page 1
GR / CY Μετάφραση των αυθεντικών οδηγιών λειτουργίας Σελίδα 11
DE / AT / CH Originalbetriebsanleitung Seite 21
A
B
C
Contents
Introduction ............................................................2
Intended use ........................................................................2
Scope of delivery ....................................................................2
Parts description .....................................................................2
Technical Data ......................................................................2
Safety ................................................................2
Safety instructions ....................................................................2
Additional safety instructions ...........................................................3
Operation .............................................................4
Before use .........................................................................4
Connecting .........................................................................4
Disconnect .........................................................................5
Measuring STANDBY / Battery voltage ...................................................5
Revitalising .........................................................................5
Program selection ....................................................................5
Program 1 „6 V“ (7,3 V / 0,8 A) ........................................................5
Program 2
Program 3
Program 4
Retention charge ....................................................................6
Appliance protection function ..........................................................6
„12 V“ (14,4 V / 0,8 A) .................................................5
„12 V“ (14,4 V / 5,0 A) .................................................6
„12 V“ (14,7 V / 5,0 A) ..................................................6
Maintenance and care ................................................... 6
Kompernass Handels GmbH warranty .....................................6
Service ................................................................ 7
Importer ..............................................................7
Disposal ............................................................... 8
Translation of the original Conformity Declaration ............................9
ULGD 5.0 A1
GB│IE│NI│CY
│
1 ■
CAR BATTERY CHARGER
ULGD5.0A1
Voltage display
Program selection button (►►►)
Introduction
We congratulate you on the purchase of your new
device. You have chosen a high quality product.
The instructions for use are part of the product.
They contain important information concerning
safety, use and disposal. Before using the product,
please familiarise yourself with all of the safety information and instructions for use. Only use the unit
as described and for the specified applications.
If you pass the product on to anyone else, please
ensure that you also pass on all the documentation
with it.
Intended use
The Ultimate Speed ULGD5.0A1 is a multi-stage
car battery charger that is suitable for charging
and trickle charging up of 6V or 12V lead-acid
batteries (batteries) with electrolyte solution (WET),
electrolyte absorbent mats (AGM) or gel electrolyte
(GEL).
This appliance is not suitable for charging lithium-ion
batteries. The is not intended for commercial use
and is for indoor use only.
The manufacturer accepts no responsibility for
damage(s) arising out of usage contrary to the
instructions specified below.
Scope of delivery
1 Car battery charger
1 Instructions for use
Parts description
See Figure A:
12 V / 0.8 A (Program 2)
12 V / 5.0 A (Program 3)
12 V / 5.0 A (Program 4)
6 V / 0.8 A (Program 1)
LED reverse connection
LED stand-by
Charge display
Condition display
See Figure B:
Charger
Stands
Mains lead
Positive pole clamp (red)
Negative pole clamp (black)
Positive pole connector cable (red)
Negative pole connector cable (black)
Technical Data
Rated voltage: 220 - 240 V ∼ 50 Hz
(alternating current)
Rated power
consumption: 0.8 A
Rated output
DC voltage: 6 V
(direct current)
Rated output DC: 0.8 A / 5.0 A
Fuse (internal): 2 A
Environmental
temperature: -20°C bis 50°C
Protection rating: IP 65
Protection class: II /
Battery types: 6 V lead acid battery
1.2 Ah - 14 Ah
12 V Lead acid battery
1.2 Ah - 120 Ah
/ 12 V
T2A
(double shielded)
Safety
Safety instructions
WARNING!
► Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or
serious injury.
This charger is suitable for indoor
use only.
■ 2 │ GB
│IE│NI│
CY
ULGD 5.0 A1
■ This appliance may be used by chil-
dren aged 8 over and by persons
with reduced physical, sensory or
mental capabilities or lack of experience and knowledge, provided
that they are under supervision
or have been told how to use the
appliance safely and are aware of
the potential risks. Children must not
use the appliance as a plaything.
Cleaning and user maintenance
tasks may not be carried out by
children unless they are supervised.
■ If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
Additional safety instructions
■ Do not use the charger for charging
non-rechargeable batteries.
■ Do not use the charger for charging
lithium-ion batteries.
■ Place the removed battery in a well-
ventilated location during charging.
■ The automatic mode of operation
and usage restrictions are explained
below in these operating instructions.
DANGER OF ELECTRIC SHOCK!
■ Do not operate the appliance with
a damaged cable, supply cord or
mains plug. A damaged power cord
causes danger to life by electric shock.
■ Before connecting to the power,
ensure that the power connection is
earthed, is 230 V ∼, 50 Hz, and is
16 A fused and equipped with an
RCCB switch (residual current circuit
breaker) in accordance with the current regulations!
■ Disconnect the charger from the grid,
before you make or break connections to the battery.
■ Always connect the positive terminal
clamp (red)
■ The negative terminal clamp (black)
first.
must be connected to the chassis at
least 10 cm away from the battery
and the fuel line.
■ Now connect the charger to the
power supply.
■ After charging, disconnect the
charger from the grid. Only after this
remove the clamp from the bodywork.
Following this, remove the clamp
from the battery.
DANGER OF EXPLOSION
AND FIRE HAZARD!
Protect yourself from a highly explosive hydrogen-oxygen reaction!
■ Ensure that during charge and
charge retention procedures, there
are no naked lights (flames, cinders
or sparks)!
■ Ensure that the plus cable does not
come into contact with fuel lines
(e.g. petrol pipe)!
ULGD 5.0 A1
GB│IE│NI│CY
│
3 ■
■ Ensure that there is no possibility of
ignition of explosive or flammable
substances, such as petrol or solvents,
while using charger!
■ Only use the charger for charging
and for charge retention of 6 V /
12 V lead batteries.
Do not charge frozen batteries.
■ Ensure that there is adequate venti-
lation during charging.
DANGER OF CHEMICAL
BURNS!
■ Wear protective glasses! Wear
protective gloves! If eyes or skin has
come into contact with battery acid,
rinse the affected body region off
with a large amount of clean water
and consult a doctor straight away!
■ Avoid causing a short circuit when
connecting the charger to the battery. Connect the negative pole
connector cable only to the negative battery or to the body work.
Connect the positive pole connector
cable only to the plus pole of the
battery!
■ Do not place the charger close to fire,
heat or to places with long-term exposure to temperatures over 50 °C!
■ Ensure that no fuel lines,electric
cables, hydraulic or water pipes
are damaged by the screws during
assembly of the charger!
■ Do not cover the charger with any
objects!
■ Protect the electrical contact sur-
faces of the battery from short
circuiting!
Operation
Before use
♦ Before connecting the charger, the operating
instructions must be observed.
♦ Furthermore, the instructions of the vehicle man-
ufacturer regarding a permanently connected
vehicle battery must be observed. Secure the
vehicle, switch off the ignition.
♦ Clean the battery poles. Take care that while doing
so, your eyes do not come into contact with the dirt.
♦ Ensure sufficient ventilation.
Connecting
NOTES
There are two options for connecting the
►
charger. Connect the negative terminal
connecting cable (black) either directly to
the negative terminal of the battery or to
the bodywork. Please also bear in mind the
vehicle manufacturer’s instructions.
♦ Before starting the charging or trickle charging
procedure on a permanently installed battery in
a vehicle, first disconnect the negative terminal
connecting cable (black) of the vehicle from the
negative terminal of the battery. The negative
terminal of the battery is usually connected to
the vehicle’s coachwork.
♦ Connect the positive pole clamp (red) of the
charger to the positive pole of the battery.
♦ Connect the negative pole clamp (black) to the
negative pole of the battery or to the bodywork.
♦ Connect the mains cable of the charger to
the mains socket.
♦ The battery voltage display shows the cur-
rent battery voltage.
♦ Should the connection of the clamps be swapped,
the LED „reverse connection“
lights up.
■ 4 │ GB
│IE│NI│
CY
ULGD 5.0 A1
Disconnect
♦ Disconnect the appliance from the mains supply.
♦ Remove the negative pole clamp (black)
from the negative pole of the battery or from the
bodywork.
♦ Remove the positive pole clamp (red) from
the positive pole of the battery.
Measuring STANDBY /
Battery voltage
After connection to the grid, the appliance is on
STANDBY. The standby display lights up. When
the clamps are connected, the battery voltage is
shown in the LCD (voltage display ). The segments
of the condition display are empty.

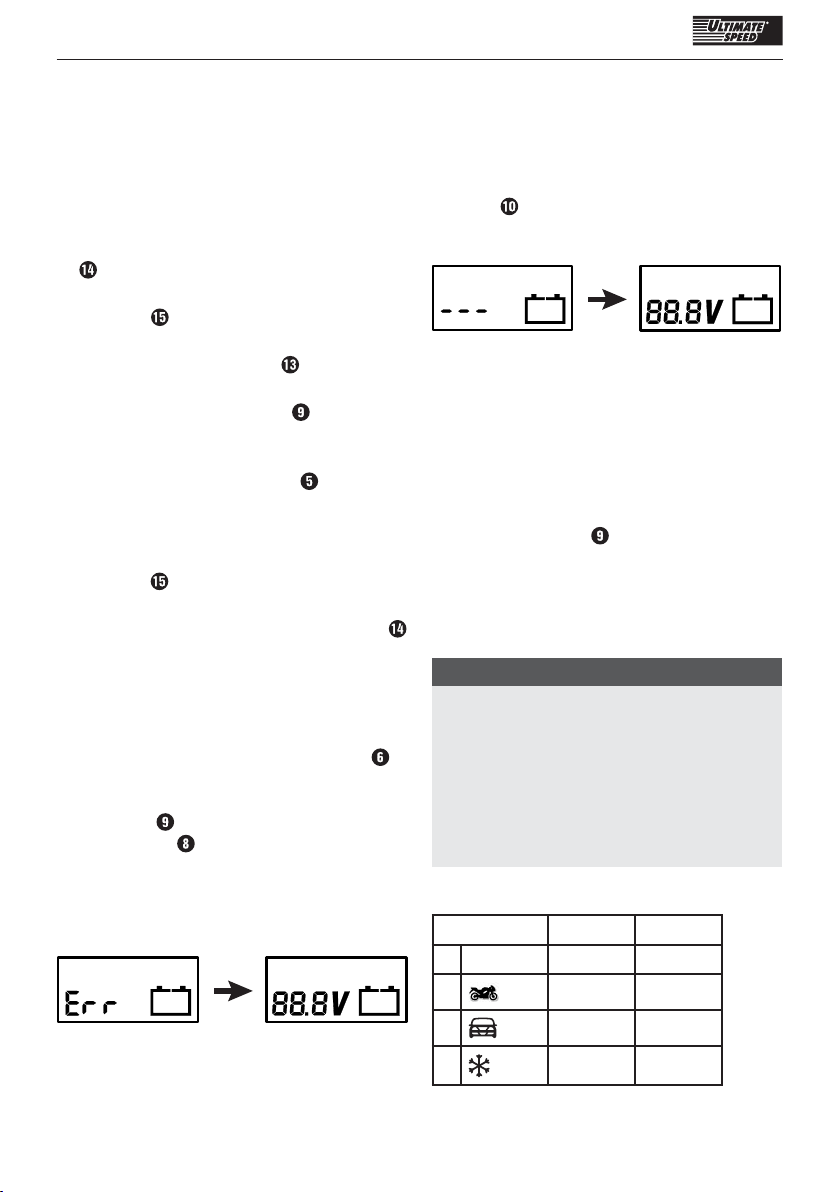

If the voltage is below 3.8 V or above 15 V, the
battery will not be charged. The display briefly
shows the error message „Err“.
The appliance goes on standby.
Revitalising
If after about 90 sec. between 7.5–10.5 V are
detected, a 12 V battery is present.
Charging starts with a pulse charge for revitalising. The voltage display
are reached, the appliance switches to the other
charge steps.
Revitalising is the same for all the 12 V charge
programmes.
flashes. Once 10.5 V

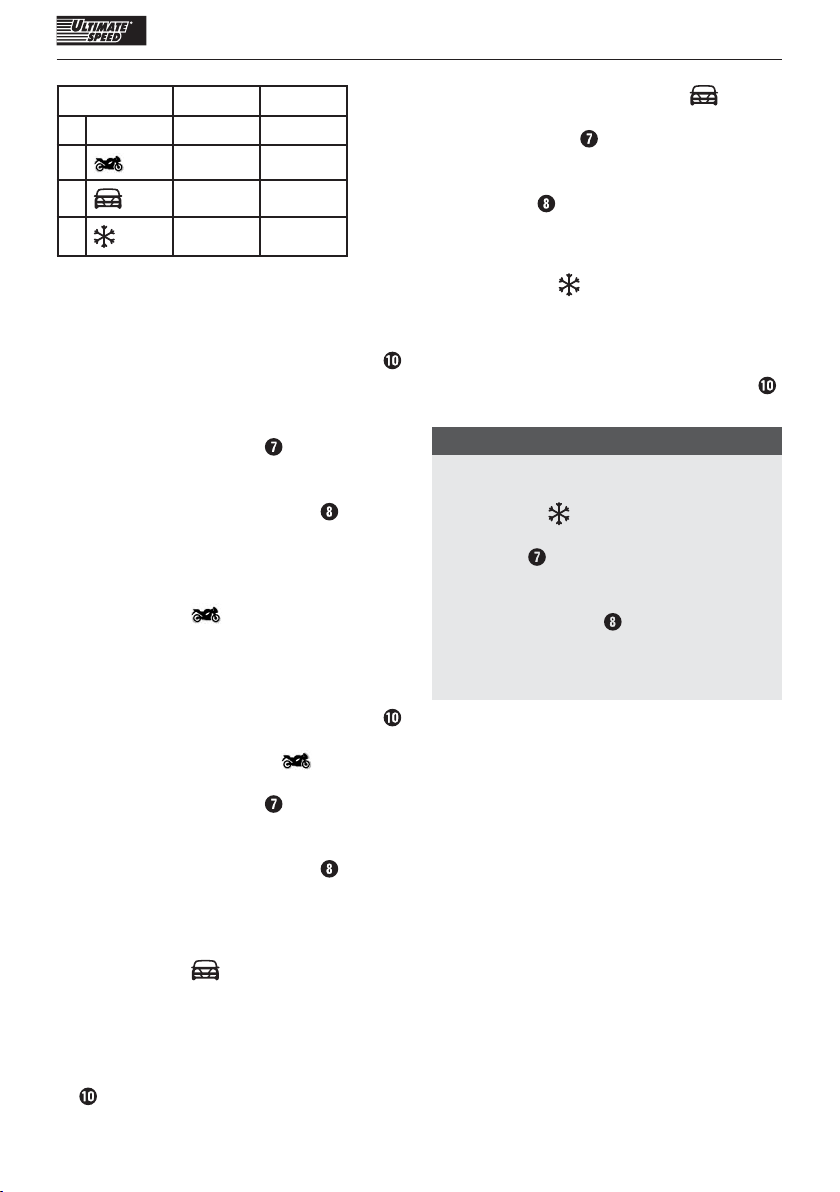

Program selection
NOTES
If a battery is detected in the voltage range of
►
between 3.7–7.3 V, the programmes 2–3–4
can not be selected. The charging process takes
place automatically. Depending on the selected
program, the characteristic charge curve is
monitored for voltage, time and temperature.
Included are the diagnostics program, revitalising mode and retention charge.
(See principle representation program 3 Fig. C)
6 V battery:
If the voltage range of the battery is measured
as between 3.7–7.3 V, only program 1 can be
selected.
12 V batteries:
If a battery is recognised in the critical voltage
range of between 7.3–10.5 V, the appliance
checks whether a fully charged 6 V battery, or a
discharged 12 V battery is present. After pressing
the program selection button
the appliance carries out a control measurement
for about 90 sec.
The display shows:
If after about 90 sec. between 7.3–7.5 V are
detected, the 12 V battery is defective.
The appliance goes on standby.
to select a program,
ULGD 5.0 A1
Program max. (V) max. (A)
1 6 V 7,3 V 0,8 A
2
3
4
*
*
*
14,4 V 0,8 A
14,4 V 5,0 A
14,7 V 5,0 A
Program 1 „6 V“ (7,3 V / 0,8 A)
For charging 6 V batteries with a capacity of less
than 14 Ah.
♦ Press the program selection button , to select
program 1. The symbol „6 V“ is displayed on
the LCD. During charging, the charge display
flashes and shows the progress of the charge
procedure (1–4 bars). When the battery is fully
charged, the condition display shows 4 bars.
The flashing stops and the appliance automatically switches to retention charge.
Program 2 „12 V“ (14,4 V / 0,8 A)
For charging 12 V batteries with a capacity of less
than 14 Ah.
GB│IE│NI│CY
│
5 ■
♦ Press the program selection button , to select
program 2. The symbol
LCD. During charging, the charge display
flashes and shows the progress of the charge
procedure (1–4 bars). When the battery is fully
charged, the condition display
The flashing stops and the appliance automatically switches to retention charge.
is displayed on the
shows 4 bars.
Program 3 „12 V“ (14,4 V / 5,0 A)
For charging 12 V batteries with a capacity of
between 14 Ah–120 Ah.
♦ Press the program selection button , to select
program 3. The symbol is displayed on the
LCD. During charging, the charge display
flashes and shows the progress of the charge
procedure (1–4 bars). When the battery is fully
charged, the condition display shows 4 bars.
The flashing stops and the appliance automatically switches to retention charge.
Program 4 „12 V“ (14,7 V / 5,0 A)
For charging 12 V batteries with a capacity of
between 14 Ah–120 Ah under cold conditions or
for charging AGM batteries.
♦ Press the program selection button , to select
program 4.
NOTE
This program may start with a minute delay.
►
The symbol is displayed on the LCD.
During charging, the charge display
flashes and shows the progress of the charge
procedure (1–4 bars). When the battery is
fully charged, the condition display shows
4 bars. The flashing stops and the appliance
automatically switches to retention charge.
Retention charge
As described under programmes, this appliance
features the automatic retention charge. Depending
on the voltage drop of the battery, caused by
selfdischarge, the appliance reacts with different
charge currents.
The battery can remain connected to the charger
for longer periods of time.
Appliance protection function
The charger switches the electronics off and
switches the system instantly to the basic setting,
as soon as there is an abnormal situation, such as
short circuit, critical voltage drop during charging,
broken circuit or swapped connection of the connector clamps is detected.
Should the appliance become too hot during
charging, the output current is automatically reduced. This protects the appliance from damage.
Maintenance and care
WARNING! Before you carry out any
work on the battery charger always pull
the mains plug out of the mains socket.
The appliance is maintenance-free.
♦ Do not under any circumstances use solvents or
other aggressive cleaning agents.
♦ Clean the plastic surfaces of the device with a
dry cloth.
Kompernass Handels GmbH
warranty
Dear Customer,
This appliance has a 3-year warranty valid from
the date of purchase. If this product has any faults,
you, the buyer, have certain statutory rights. Your
statutory rights are not restricted in any way by the
warranty described below.
Warranty conditions
The validity period of the warranty starts from the
date of purchase. Please keep your original receipt
in a safe place. This document will be required as
proof of purchase.
If any material or production fault occurs within
three years of the date of purchase of the product,
we will either repair or replace the product for you
at our discretion. This warranty service is dependent on you presenting the defective appliance and
the proof of purchase (receipt) and a short written
description of the fault and its time of occurrence.
If the defect is covered by the warranty, your product
will either be repaired or replaced by us. The repair
or replacement of a product does not signify the
beginning of a new warranty period.
■ 6 │ GB
│IE│NI│
CY
ULGD 5.0 A1
Warranty period and statutory claims for
defects
The warranty period is not prolonged by repairs
effected under the warranty. This also applies to
replaced and repaired components. Any damage
and defects present at the time of purchase must
be reported immediately after unpacking. Repairs
carried out after expiry of the warranty period shall
be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance
with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production
faults. The warranty does not extend to product parts
subject to normal wear and tear or fragile parts such
as switches, batteries, baking moulds or parts made
of glass.
The warranty does not apply if the product has been
damaged, improperly used or improperly maintained.
The directions in the operating instructions for the
product regarding proper use of the product are
to be strictly followed. Uses and actions that are
discouraged in the operating instructions or which
are warned against must be avoided.
This product is intended solely for private use and
not for commercial purposes. The warranty shall be
deemed void in cases of misuse or improper handling,
use of force and modifications/repairs which have
not been carried out by one of our authorised
Service centres.
Warranty claim procedure
To ensure quick processing of your case, please
observe the following instructions:
■ Please have the till receipt and the item number
(e.g. IAN 12345) available as proof of purchase.
■ You will find the item number on the type plate,
an engraving on the front page of the instructions
(bottom left), or as a sticker on the rear or bottom of the appliance.
■ If functional or other defects occur, please
contact the service department listed either by
telephone or by e-mail.
■ You can return a defective product to us free of
charge to the service address that will be provided
to you. Ensure that you enclose the proof of
purchase (till receipt) and information about
what the defect is and when it occurred.
You can download these instructions
along with many other manuals,
product videos and software on
www.lidl-service.com.
Service
Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk
Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
CY
Service Cyprus
Tel.: 8009 4409
E-Mail: kompernass@lidl.com.cy
IAN 296069
Importer
Please note that the following address is not the
service address. Please use the service address
provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE - 44867 BOCHUM
GERMANY
www.kompernass.com
ULGD 5.0 A1
GB│IE│NI│CY
│
7 ■
Disposal
The packaging is made from environ-
mentally friendly material and can be
disposed of at your local recycling plant.
Do not dispose of power tools in
your normal domestic waste!
European Directive 2012/19/EU requires that
worn-out power tools are collected separately and
fed into an environmentally compatible recycling
process.
Your local community or municipal authorities
can provide information on how to dispose of the
worn-out appliance.
Dispose of the packaging in an
environmentally friendly manner.
Note the labelling on the packaging
and separate the packaging material
components for disposal if necessary.
The packaging material is labelled
with abbreviations (a) and numbers
(b) with the following meanings:
1–7: Plastics,
20–22: Paper and cardboard,
80–98: Composites
■ 8 │ GB
Your local community or municipal
authorities can provide information on
how to dispose of the worn-out
product.
│IE│NI│
CY
ULGD 5.0 A1
Loading...
