SORBET MAKER SSM 200 A1
SORBET MAKER
Operating instructions
IAN 273405
SORBET-MAKER
Bedienungsanleitung
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of
the device
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen
Funktionen des Gerätes vertraut.
GB / IE Operating instructions Page 1
DE / AT / CH Bedienungsanleitung Seite 11
A
B C
Contents
Introduction ......................................................2
Intended use .....................................................2
Package contents .................................................2
Description of the appliance ........................................2
Technical data ....................................................2
Safety guidelines .................................................3
Assembly ........................................................5
Preparing ingredients .............................................5
Using the appliance ...............................................5
Cleaning and care .................................................6
Storage .........................................................7
Warranty and service .............................................7
Disposal .........................................................7
Importer ........................................................7
Recipes ..........................................................8
Tropicana sorbet ............................................................. 8
Melon & berry sorbet ......................................................... 8
Banana & pineapple sorbet .................................................... 8
Banana sorbet ............................................................... 8
Kiwi-Mango Sorbet ........................................................... 9
Strawberry and pineapple sorbet ................................................ 9
Pistachio & berry sorbet ........................................................ 9
Chocolate kiwi sorbet ......................................................... 9
Raspberry & pear sorbet ......................................................10
Peach & banana sorbet ....................................................... 10
SSM 200 A1
GB│IE
│
1 ■
Introduction
Congratulations on the purchase of your new
appliance.
You have selected a high-quality product.
The operating instructions are part of this product.
They contain important information on safety, usage
and disposal. Before using the product, familiarise
yourself with all handling and safety guidelines.
Use the product only as described and for the range
of applications specified. Please also pass these
operating instructions on to any future owner(s).
Intended use
This appliance is intended exclusively for making
sorbet from frozen fruit. This appliance is intended
solely for use in private households. Do not use it
for commercial purposes.
Package contents
Sorbet Maker
Operating instructions

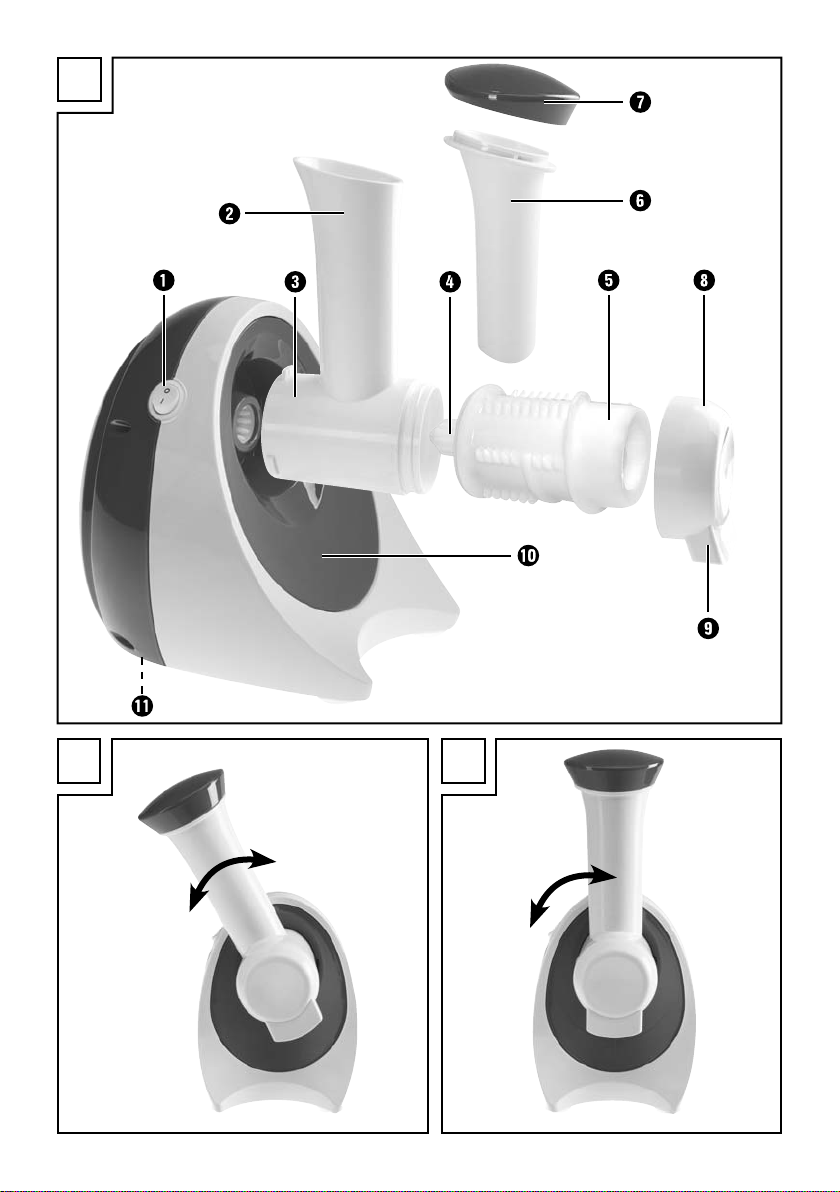

Description of the appliance
On/Off switch
Feeding tube
Roller housing
Drive shaft
Blade roller
Pusher
Pusher lid
End cap
Outlet
Motor unit
- Cable storage compartment
Technical data
Rated voltage: 220 - 240 V ∼, 50 Hz
Rated input: 200 W
Protection class: II
CO time: 2 minutes
CO time
The CO time (continuous operation time) is the
amount of time an appliance can be operated
without the motor overheating and becoming damaged. After the appliance has run for this length of
time, it must be switched off for about 1 minute to
allow the motor to cool down.
All of the parts of this appliance that come into
contact with food are food-safe.
■ 2 │ GB
│
IE
SSM 200 A1
Safety guidelines
RISK OF ELECTRIC SHOCK
► Connect the appliance only to mains power sockets supplying a
mains power voltage of 220 - 240 V ~, 50 Hz.
► To prevent accidents, have defective plugs and/or power cables
replaced immediately by an authorised specialist technician or our
Customer Service department.
► In event of operating malfunctions and before cleaning the appliance,
remove the power plug from the mains power socket.
► Always remove the power cable from the socket by pulling on the
plug, not on the power cable itself.
► Do not kink or crush the power cable, and route the cable so that it
cannot be stepped on or tripped over.
► Do not expose the appliance to humidity and do not use it outdoors.
If liquid gets into the housing, disconnect the appliance from the
mains power socket immediately and have it repaired by a qualified
technician.
► NEVER take hold the motor unit, the power cable or the power plug
with wet hands.
► If the power cable or the motor unit are damaged, you must have the
appliance repaired by qualified technicians before using it again.
► Do not open the housing of the appliance motor unit. Doing so can
lead to risks and also invalidates the warranty.
► Disconnect the appliance from the mains power source immediately
after use. The appliance is completely free of electrical power ONLY
when unplugged.
Never immerse the motor unit of the appliance in liquid and do not
allow any liquids to enter the housing of the motor unit.
SSM 200 A1
GB│IE
│
3 ■
WARNING! RISK OF INJURY!
► This appliance should not be used by children.
► Keep the appliance and its cord out of reach of children.
► This appliance may be used by persons with limited physical, sensory
or mental capabilities or lack of experience and knowledge, provided
that they are under supervision or have been told how to use the
appliance safely and are aware of the potential risks.
► Children must not use the appliance as a plaything.
► Handle the sharp blades with caution as they could cause injuries.
Reassemble the appliance after using and/or cleaning it so that you
do not injure yourself with the exposed blades. Keep the blades out
of the reach of children.
► The appliance and its connecting cable must be kept away from
children.
► The appliance should always be disconnected from the mains when
unattended and before assembly, disassembly or cleaning.
► Never put your hand into the openings of the appliance. Do not insert
any objects of any kind into the openings – except for the pusher and
the foodstuffs to be processed. If you do, there will be a serious risk
of accidents!
► Before changing accessories or additional parts that are in motion
during operation, the appliance must be switched off and disconnected from mains power.
CAUTION! MATERIAL DAMAGE!
► Do not try to use the appliance to crush ice cubes! This will irreparably
damage the appliance!
■ 4 │ GB
│
IE
SSM 200 A1
Assembly
1) Remove all packaging materials and any stickers
from the appliance.
2) Clean the appliance as described in the section
“Cleaning and Care”.
3) Place the motor unit on a flat surface.
4) Push the blade roller into the roller housing .
The drive shaft must project into the opening
of the roller housing .
5) Screw the end cap onto the roller housing ,
until the outlet is pointing downwards and
the end cap no longer turns. In doing so,
turn the end cap in clockwise direction.
6) Push the assembled roller housing into the
motor unit , so that the feed tube is slightly
offset (see Figure B on the fold-out page). The
locking mechanisms on the roller housing
must reach into the slots on the motor unit .
Turn the roller housing , so that the feed tube
is facing upwards and the roller housing
snaps into place (see Figure C on the fold-out
page).
7) Place the pusher into the feed tube .
NOTE
► The pusher lid can be removed.
For removal:
– Turn the pusher lid anticlockwise until it
allows itself to be removed.
For set up:
– Place the pusher lid on the pusher ,
so that both locking mechanisms on the
pusher lid slide through the slots on the
pusher and then turn the pusher lid
in clockwise direction so that it is firmly
held in place.
8) Insert the plug into a mains power socket.
The appliance is now ready for use.
Preparing ingredients
CAUTION! MATERIAL DAMAGE!
► Do not process fruits with stones or cores.
► Do not process whole nuts.
► Do not process ice cubes.
♦ Peel fruits such as bananas or kiwis.
♦ Remove cores, stones or stems from the fruit.
♦ Cut the fruit into small pieces so that it will easily
fit through the feed tube .
♦ Ingredients such as such as cooking chocolate
must be crushed into small pieces.
♦ Put the prepared fruit in freezer bags or plastic
tubs and place them into the freezer for approximately 24 hours (-18°C).
NOTE
► Instead of freezing fresh fruit, you can use fruit
that has already frozen from the deep-freezer.
Using the appliance
1) Take the fruits out of the freezer about 10–
20 minutes before use.
2) Place a suitable bowl under the outlet .
3) Remove the pusher from the feed tube .
4) Add the prepared fruits into the feed tube .
5) Switch on the appliance using the on/off
switch (position I).
SSM 200 A1
GB│IE
│
5 ■
