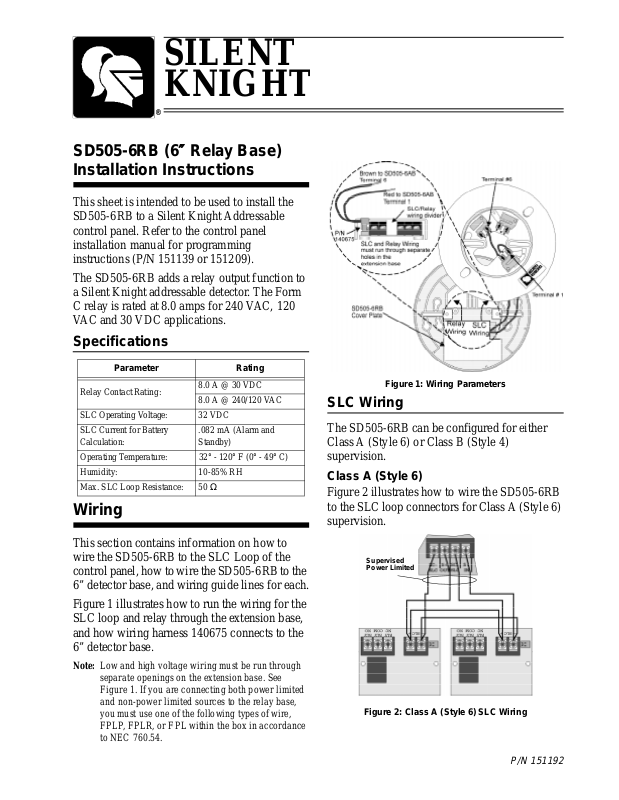

SilentKnight SD505-6RB User Manual
SILENT
KNIGHT
®
SD505-6RB (6″ Relay Base)
Installation Instructions
This sheet is intended to be used to install the
SD505-6RB to a Silent Knight Addressable
control panel. Refer to the control panel
installation manual for programming
instructions (P/N 151139 or 151209).
The SD505-6RB adds a relay output function to
a Silent Knight addressable detector. The Form
C relay is rated at 8.0 amps for 240 VAC, 120
VAC and 30 VDC applications.
Specifications
Parameter Rating
Relay Contact Rating:
SLC Operating Voltage: 32 VDC
SLC Current for Battery
Calculation:
Operating Temperature: 32° - 120° F (0° - 49° C)
Humidity: 10-85% RH
Max. SLC Loop Resistance: 50
8.0 A @ 30 VDC
8.0 A @ 240/120 VAC
.082 mA (Alarm and
Standby)
Ω
Wiring
This section contains information on how to
wire the SD505-6RB to the SLC Loop of the
control panel, how to wire the SD505-6RB to the
6” detector base, and wiring guide lines for each.
Figure 1 illustrates how to run the wiring for the
SLC loop and relay through the extension base,
and how wiring harness 140675 connects to the
6” detector base.
Figure 1: Wiring Parameters
SLC Wiring
The SD505-6RB can be configured for either
Class A (Style 6) or Class B (Style 4)
supervision.
Class A (Style 6)
Figure 2 illustrates how to wire the SD505-6RB
to the SLC loop connectors for Class A (Style 6)
supervision.
Supervised
Power Limited
Note: Low and high voltage wiring must be run through
separate openings on the extension base. See
Figure 1. If you are connecting both power limited
and non-power limited sources to the relay base,
you must use one of the following types of wire,
FPLP, FPLR, or FPL within the box in accordance
to NEC 760.54.
Figure 2: Class A (Style 6) SLC Wiring
P/N 151192
Model SD505-6RB Ins tallation Instructions
Class B (Style 4)
Figure 3 illustrates how to wire the SD505-6RB
to the SLC loop connectors for Class B (Style 4)
supervision.
Supervised
Power Limited
Figure 3: Class B (Style 4) SLC Wiring
Mounting the SD505-6RB
Do Not over tighten screws.
Figure 4: Mounting the SD505-6RB
The SD505-6RB mounts on a standard single or
double gang electrical switch box.
Follow these steps to mount the SD505-6RB:
1. Mount the extension base using the #8 1-1/2
screws through the extension base mounting
holes. (See Figure 4.)
2. Wire the SLC loop as shown in Figure 2 or
Figure 3.
3. Snap the SD505-6RB cover plate over the
SD505-6RB circuit board. See Figure 1.
4. Connect wiring harness (P/N 140675) to the
smoke base as shown in Figure 1.
5. Plug wiring harness (P/N 140675) into
harness connector. Refer to Figure 1.
6. Attach the smoke base (P/N SD505-6AB) to
extension base (P/N 120505) using the
#8 1/2” screws. (See Figure 4.)
7550 Meridian Circle
Maple Grove, MN 55369-4927
612-493-6455
800-328-0103
Fax: 612-493-6475
© 1999 Silent Knight
P/N 151192, 6/99
http://www.silentknight.com
