INSTRUCTION MANUAL BEDIENUNGSANLEITUNG MANUEL D’INSTRUCTIONS
VCC-6572P
COLOUR CCD camera
CCD-Farbkamera
Caméra CCD COULEUR
CCD
About this manual |
A propos de ce manuel |
Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for later reference.
Avant d’installer et d’utiliser la caméra, veuillez lire ce manuel attentivement. Gardez-le à portée de main pour toute référence ultérieure.
Über diese Bedienungsanleitung
Lesen Sie bitte vor der Montage und dem Inbetriebnehmen der Kamera zuerst diese Bedienungsanleitung sorgfältig durch und bewahren Sie sie zum späteren Nachschlagen auf.
Depending on the conditions of use, installation and environment, please be sure to make the appropriate settings and adjustments. If you need help with installation and/or settings, please consult your dealer.
CONTENTS
PRECAUTIONS...................................................................................... |
|
2 |
PARTS NAMES ..................................................................................... |
|
3 |
CONCERNING AUTO-IRIS LENSES ...................................................... |
6 |
|
MOUNTING THE LENS......................................................................... |
7 |
|
CONNECTIONS..................................................................................... |
|
9 |
SETTINGS.............................................................................................. |
|
11 |
TROUBLESHOOTING ........................................................................... |
16 |
|
SPECIFICATIONS .................................................................................. |
|
17 |
ACCESSORIES |
|
|
1 Lens iris plug (4-pin) ............................ |
1 pc. |
|
2 Clamping core A |
................................. |
3 pc. |
3 Clamping core B.................................. |
|
2 pc. |
1 |
2 |
3 |
FEATURES
•Built-in interline transfer method 1/3" CCD, approx. 470,000 picture elements
•Equipped with a DSP (Digital Signal Processor) function
•Horizontal resolution, more than 520 TV lines
•High sensitivity, minimum required illumination is 1.0 lux (F1.2)

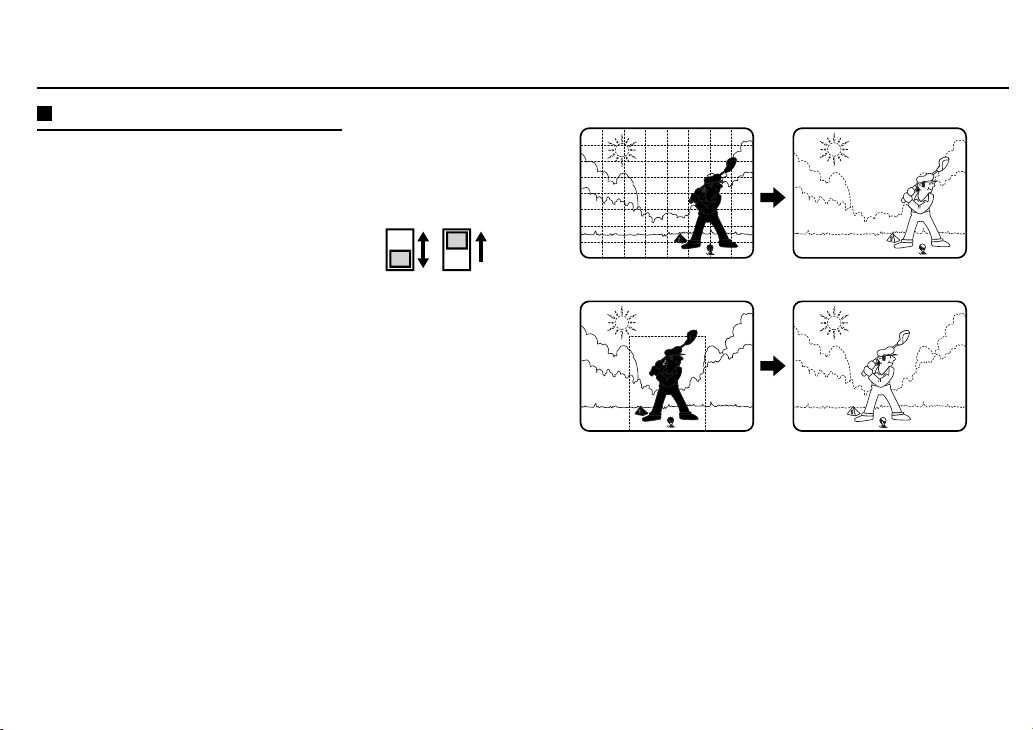

•Two types of backlight compensation functions (multi-spot photometry and center focus photometry)
•Low smear, anti-blooming, low lag, no burning and no geometric distortion using the CCD solid state image device.
•100% solid state components giving excellent immunity to shock and vibration
•Not subject to interference from magnetic or electrostatic fields
•Power supply: 12 V DC operation
English 1
PRECAUTIONS
In case of problem
Do not use the camera if smoke or a strange odour comes from the unit, or if it seems not to function correctly. Disconnect the power cord immediately, and consult your dealer (or a Sanyo Authorized Service Centre).
Do not open or modify
Do not open the cabinet, as it may be dangerous and cause damage to the unit. For internal settings and repairs, consult your dealer (or a Sanyo Authorized Service Centre).
Do not put objects inside the unit
Make sure that no metal objects or flammable substance get inside the camera. If used with a foreign object inside, it could cause a fire, short-circuits or damages.
If water or a liquid gets inside the camera, disconnect the power cord immediately, and consult your dealer (or a Sanyo Authorized Service Centre). Be careful to protect the camera from rain, sea water, etc.
Be careful when handling the unit
To prevent damages, do not drop the camera or subject it to strong shock or vibration.
Install away from electric or magnetic fields
If installed close to a TV, radio transmitter, magnet, electric motor, transformer, audio speakers the magnetic field they generate will distort the image.
Protect from humidity and dust
To prevent damages to the camera, do not install it where there is greasy smoke or steam, where the dampness may get too high, or where there is a lot of dust.
Protect from high temperatures
Do not install close to stoves, or other heat generating devices, such as spotlights, etc., or where it could be subject to direct sunlight, as that could cause deformation, discoloration or other damages.
Be careful when installing close to the ceiling, in a kitchen or boiler room, as the temperature may raise to high levels.
Install where the temperature range will stay between –10˚C and 50˚C.
(no condensation)
Cleaning
•Dirt can be removed from the cabinet by wiping it with a soft cloth. To remove stains, wipe with a soft cloth moistened with a soft detergent solution and wrung dry, then wipe dry with dry soft cloth.
•Do not use benzine, thinner or other chemical product on the cabinet, as that may cause deformation and paint peeling. Before using a chemical cloth, make sure to read all accompanying instructions. Make sure that no plastic or rubber material comes in contact with the cabinet for a long period of time, as that may cause damage or paint peeling.
ENGLISH
2 English
PARTS NAMES

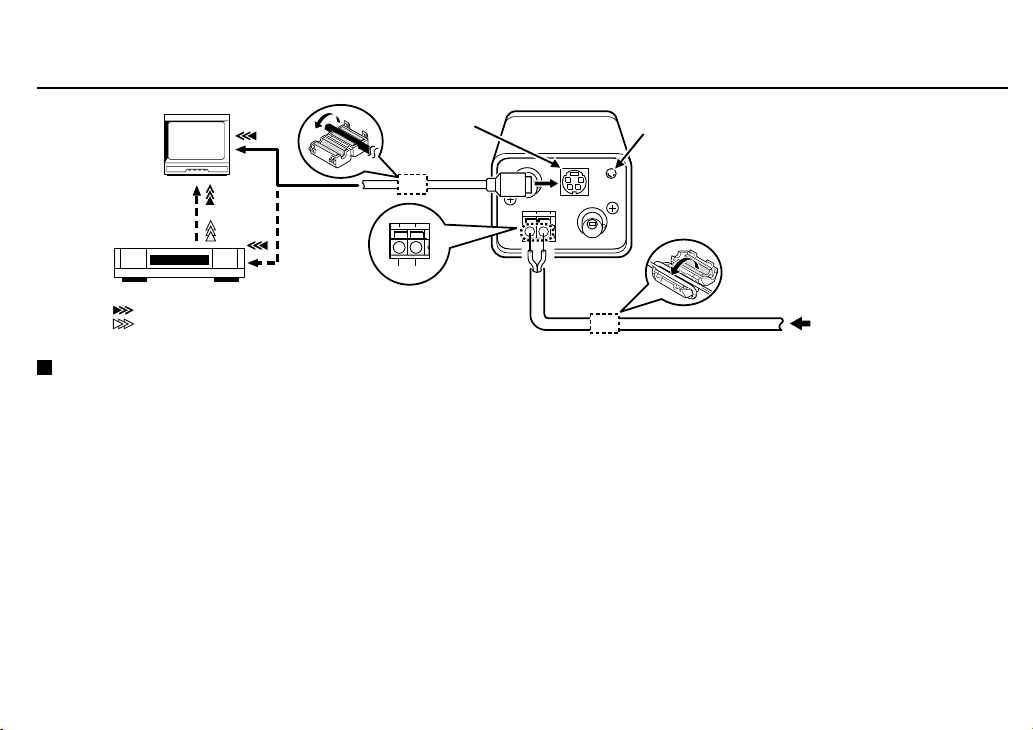

1 Video output connector (VIDEO OUT: BNC type)
3Connect this connector to a device such as a VCR or monitor with a VIDEO IN connector.
1 |
4 |
2 12 V DC input terminal (12 V DC, GND) |
|
Connect DC connecting cord to the 12V DC input terminal on the camera. |
|
|
|
|
|
5 |
3 Y/C OUT connector |
2 |
|
Using a coaxial cable (twin type, 75 ohms), connect the Y/C OUT connector from the camera to the S-VIDEO |
|
|
input terminal on the monitor or time lapse VCR. |
|
|
|
|
|
4 Power indicator (POWER) |
||
|
|
|
|
|
Comes on when the power to the camera is on. |
||
1 |
2 |
5 External sync composite video signal input connector (VBS IN: BNC type) |
|||||
|
|
|
|
|
Connect to this connector the synchronizing signal output from a synchronizing signal device or the composite |
||
|
|
|
|
|
|||
|
|
|
|
|
signal of a video distributor. |
||
|
|
|
|
|
|
|
Power supply connections |
|
|
|
|
|
|
|
|
3 |
4 |
Use a 2 wire grounded cable (22 AWG or more), and connect as shown by the illustration. |
|||||
1 Y signal ground
2 C signal ground
3Y signal: 1.0 Vp-p,
75 ohms, unbalanced, negative sync
4C signal: 0.3 Vp-p, 75 ohms, unbalanced
English 3
PARTS NAMES
6 |
|
8 |
7 |
|
|
|
|
|
9 |
|
|
1 |
2 |
3 2 |
|
1 |
|
1 Shorter screws: M3 x 4 |
||
2 Longer screws: M3 x 6 |
||
3 Camera mounting screw |
||
hole: 1/4"-20 UNC |
||
6 Lens mount cap
The cap is installed to protect the lens mount section.
Remove the lens mount cap before installing a lens (sold separately).
7 Flange-back adjustment screw (FLANGE BACK ADJ.)
8 Flange-back lock screw (FLANGE BACK LOCK)
9 Camera installation bracket
The bracket can be fixed at the top or bottom of the camera. When fixing the bracket, be sure to use the longer screws and install the shorter screws on the opposite side to seal the openings.
CAUTION:
When installing the camera support, select a location that can support the total weight of the camera and accessories.
4 English
PARTS NAMES
|

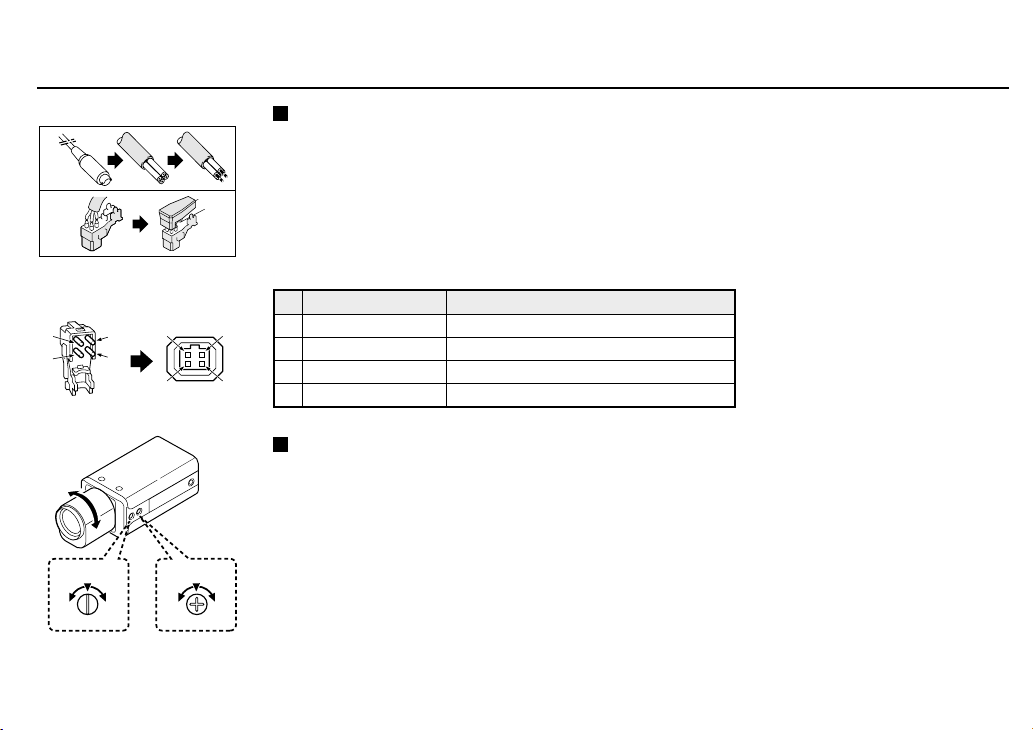

F Lens iris output connector (LENS) |
|
G |
This 4-pin connector is used to send the DC control signal and power supply to an auto-iris type lens. |
|
G Camera setup section (under the cover) |
||
|
||
F |
These settings are for when using a 1/3 inch CS mount DC (without EE internal amplifier) type lens. However, |
|
|
if due to installation conditions or environment the settings may need to be modified for best results (see |
|
|
"SETTINGS"). To access the controls, remove the cover fixing screw, then remove the cover. |
|
|
Notes: |
•When using a 1/2 or 2/3 inch C mount VIDEO (with EE internal amplifier) auto-iris type lens, set the A.I. LENS switch to the VIDEO position.
•If not using an auto-iris lens, make sure the switch 7 (BLC) is set to down (OFF) position.
English 5
