SAMSUNG LE37A550P1R, LE32A550P1R, LE52A551P2R, LE52A550, LE46A550 User Manual [gr, hr, ro, sr, tr, bg, sq, mk]

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

	Country	Customer Care Centre	Web Site
	AUSTRIA	0800-SAMSUNG (726-7864)	www.samsung.com/at
	BELGIUM	0032 (0)2 201 24 18	www.samsung.com/be
		844 000 844	www.samsung.com/cz
	CZECH REPUBLIC	Distributor pro Českou republiku:
		Samsung Zrt., česka organizační složka Vyskočilova 4, 14000 Praha 4
	DENMARK	70 70 19 70	www.samsung.com/dk
	EIRE	0818 717 100	www.samsung.com/ie
	FINLAND	030-6227 515	www.samsung.com/fi
	FRANCE	3260 SAMSUNG (€ 0,15/Min)	www.samsung.com
		08 25 08 65 65 (€ 0,15/Min)
	GERMANY	01805 - SAMSUNG (726-7864) (€ 0,14/Min)	www.samsung.com
	HUNGARY	06-80-SAMSUNG (726-7864)	www.samsung.com
	ITALIA	800-SAMSUNG (726-7864)	www.samsung.com
	LUXEMBURG	0035 (0)2 261 03 710	www.samsung.com/be
	NETHERLANDS	0900-SAMSUNG (726-7864) (€ 0,10/Min)	www.samsung.com/nl
	NORWAY	815-56 480	www.samsung.com/no
	POLAND	0 801 801 881	www.samsung.com/pl
		022-607-93-33
	PORTUGAL	80820-SAMSUNG (726-7864)	www.samsung.com/pt
	SLOVAKIA	0800-SAMSUNG (726-7864)	www.samsung.com/sk
	SPAIN	902 10 11 30	www.samsung.com
	SWEDEN	0771-400 200	www.samsung.com/se
	SWITZERLAND	0800-SAMSUNG (726-7864)	www.samsung.com/ch
	U.K	0845 SAMSUNG (7267864)	www.samsung.com
	TURKEY	444 77 11	www.samsung.com
	ESTONIA	800-7267	www.samsung.ee
	LATVIA	800-7267	www.samsung.com/lv
	LITHUANIA	8-800-77777	www.samsung.lt
	KAZAHSTAN	8-10-800-500-55-500	www.samsung.kz
	KYRGYZSTAN	00-800-500-55-500	-
	RUSSIA	8-800-555-55-55	www.samsung.com
	TADJIKISTAN	8-10-800-500-55-500	-
	UKRAINE	8-800-502-0000	www.samsung.com
	UZBEKISTAN	8-10-800-500-55-500	www.samsung.uz

LCD TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/global/register

Model

Serial No.

BN68-01410B-00

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. (See back cover for more informations.)

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

•Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

•Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders

displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages

caused by the above effect are not covered by the Warranty.

•Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.

To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

© 2008 Samsung Electronics Co., Ltd. All rights reserved.

Contents

Connecting and Preparing Your TV

List of Parts.........................................................	2
Installing the Stand.............................................	2
Installing the Wall Mount Kit................................	2
Viewing the Control Panel...................................	3
Viewing the Connection Panel............................	4
Viewing the Remote Control...............................	6
Installing Batteries in the Remote Control..........	7
Switching On and Off..........................................	7
Placing Your Television in Standby Mode...........	7
Viewing the Menus..............................................	8
Using the TOOLS Button....................................	8
Plug & Play.........................................................	9
Setting the Channels
Storing Channels Automatically........................	10
Storing Channels Manually................................	11
Adding / Locking Channels...............................	12
Sorting the Stored Channels.............................	13
Assigning Channels Names..............................	13
Fine Tuning Channel Reception.......................	14
Setting the Picture
Changing the Picture Standard.........................	15
Adjusting the Custom Picture...........................	16
Configuring Detailed Settings on the Picture....	16
Resetting the Picture Settings to the Factory
Defaults.............................................................	17
Configuring Picture Option................................	18
Viewing the Picture In Picture (PIP)..................	20
Setting the Sound
Sound Features................................................	21
Selecting the Sound Mode................................	22
Connecting Headphones (Sold separately)......	22
Setting the Time
Setting and Displaying the Current Time..........	23
Setting the Sleep Timer....................................	23
Switching the Television On and Off
Automatically.....................................................	24

Function Description
Choosing Your Language.................................	24

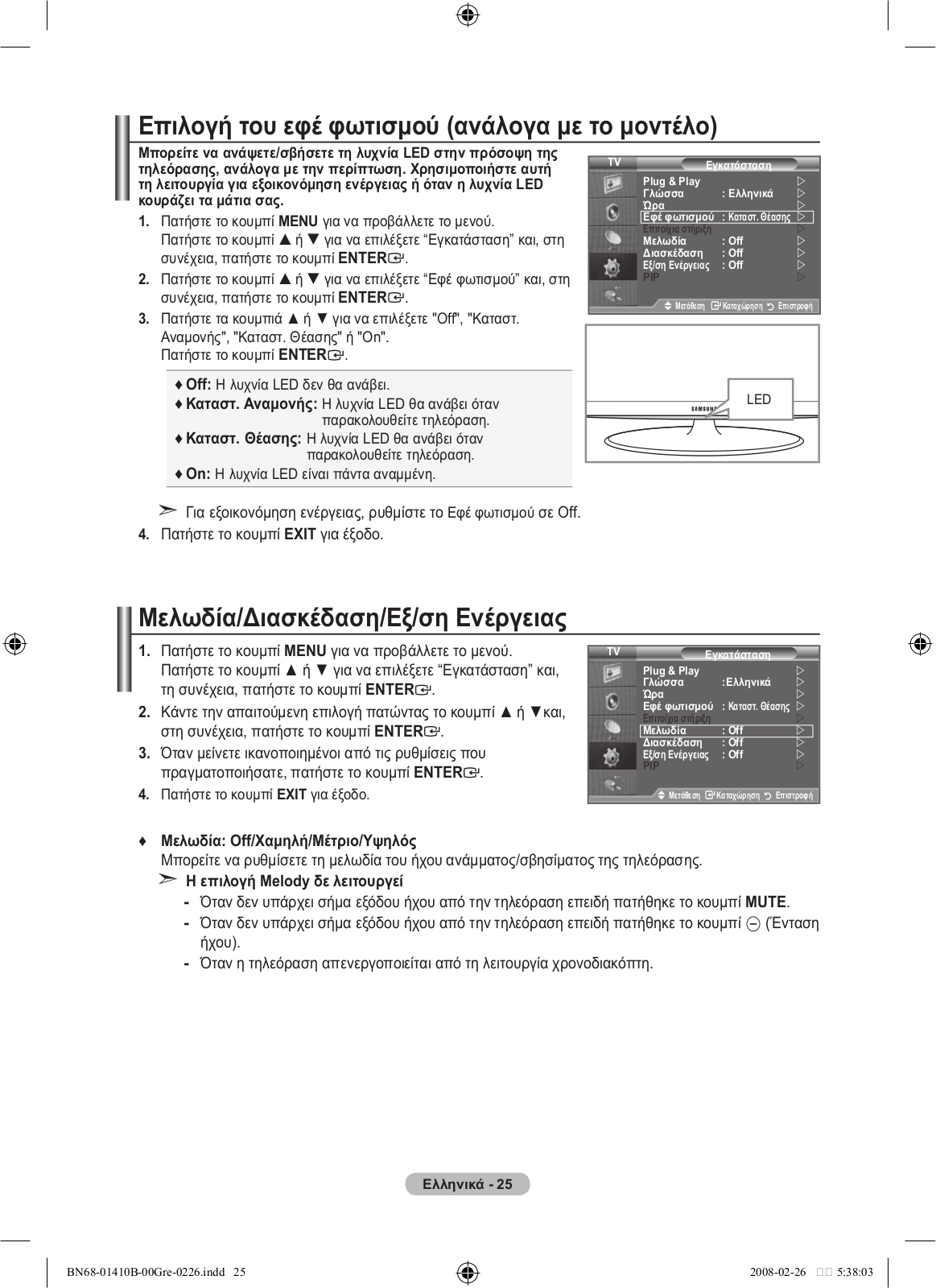

Setting the Light Effect
(depending on the model).................................	25
Melody / Entertainment / Energy Saving .........	25
Selecting the Source.........................................	27
Editing the Input Source Names.......................	27
Setting the PC
Setting up Your PC Software
(Based on Windows XP)...................................	28
Display Modes..................................................	28
Setting up the TV with your PC.........................	29
WISELINK
Using the WISELINK Function..........................	30
Using the WISELINK Menu..............................	31
Using the PHOTO (JPEG) List..........................	32
Using the MP3 List............................................	35
Using the Setup Menu......................................	36
About Anynet+

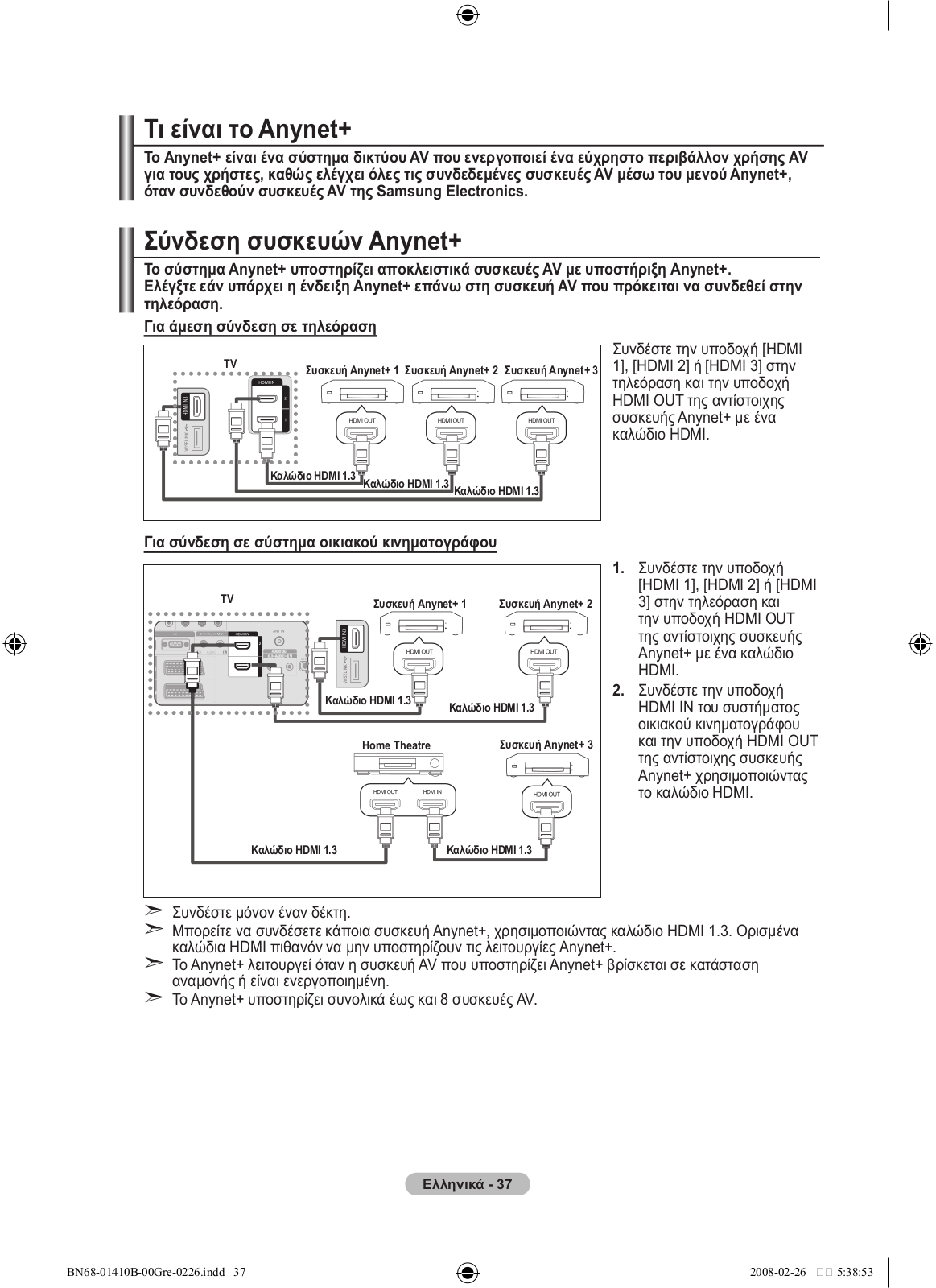

What is Anynet+? .............................................	37
Connecting Anynet+ Devices............................	37
Setting Up Anynet+...........................................	38
Scanning and Switching between Anynet+
Devices.............................................................	39

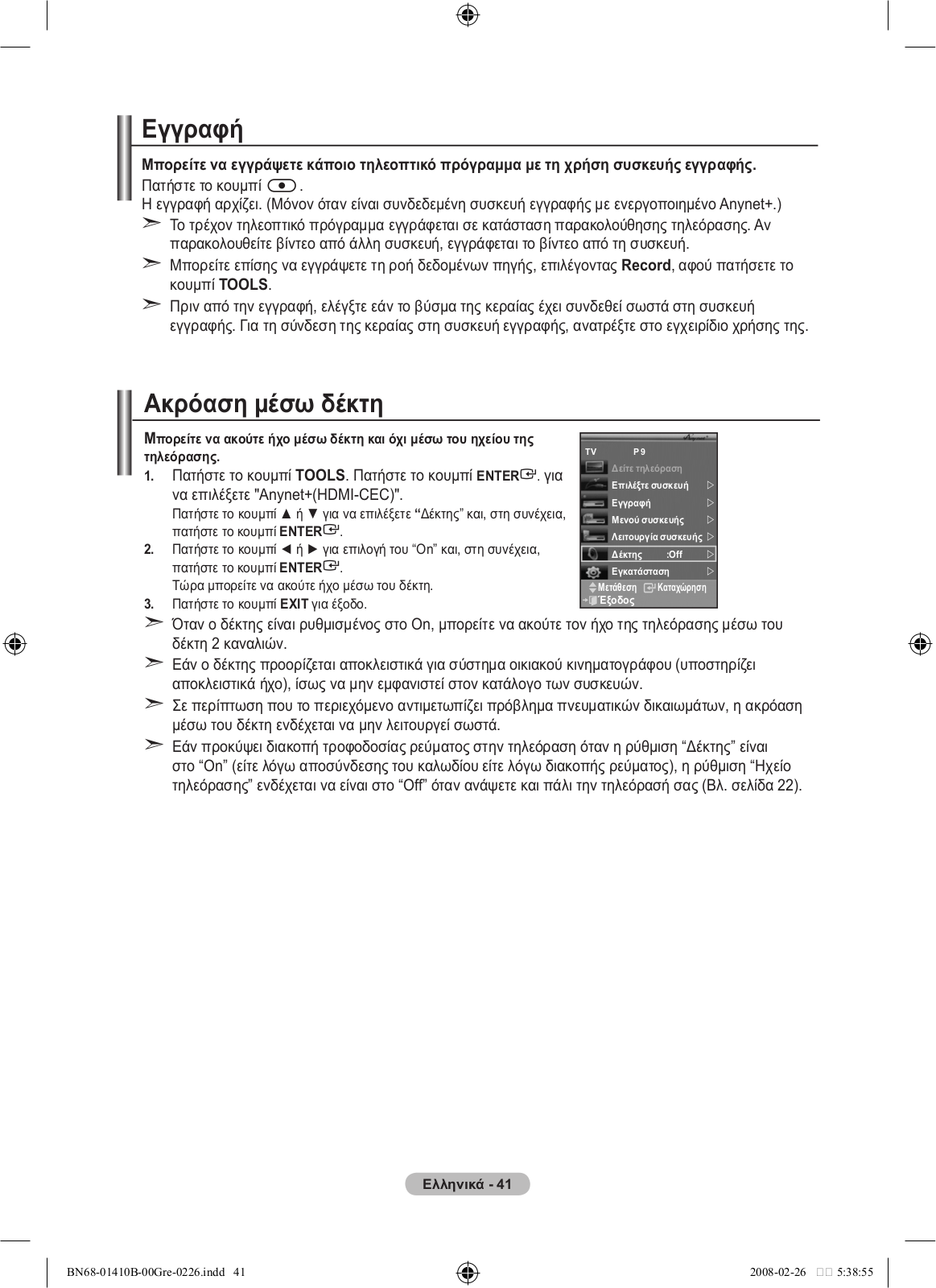

Recording..........................................................	41
Listening through a Receiver............................	41
Check Points before Requesting Service.........	42
Recommendations For Use
Teletext Feature................................................	43
Auto Wall-Mount (Sold separately)...................	45
Using the Anti-Theft Kensington Lock
(depending on the model).................................	46
Troubleshooting: Before Contacting Service
Personnel..........................................................	47

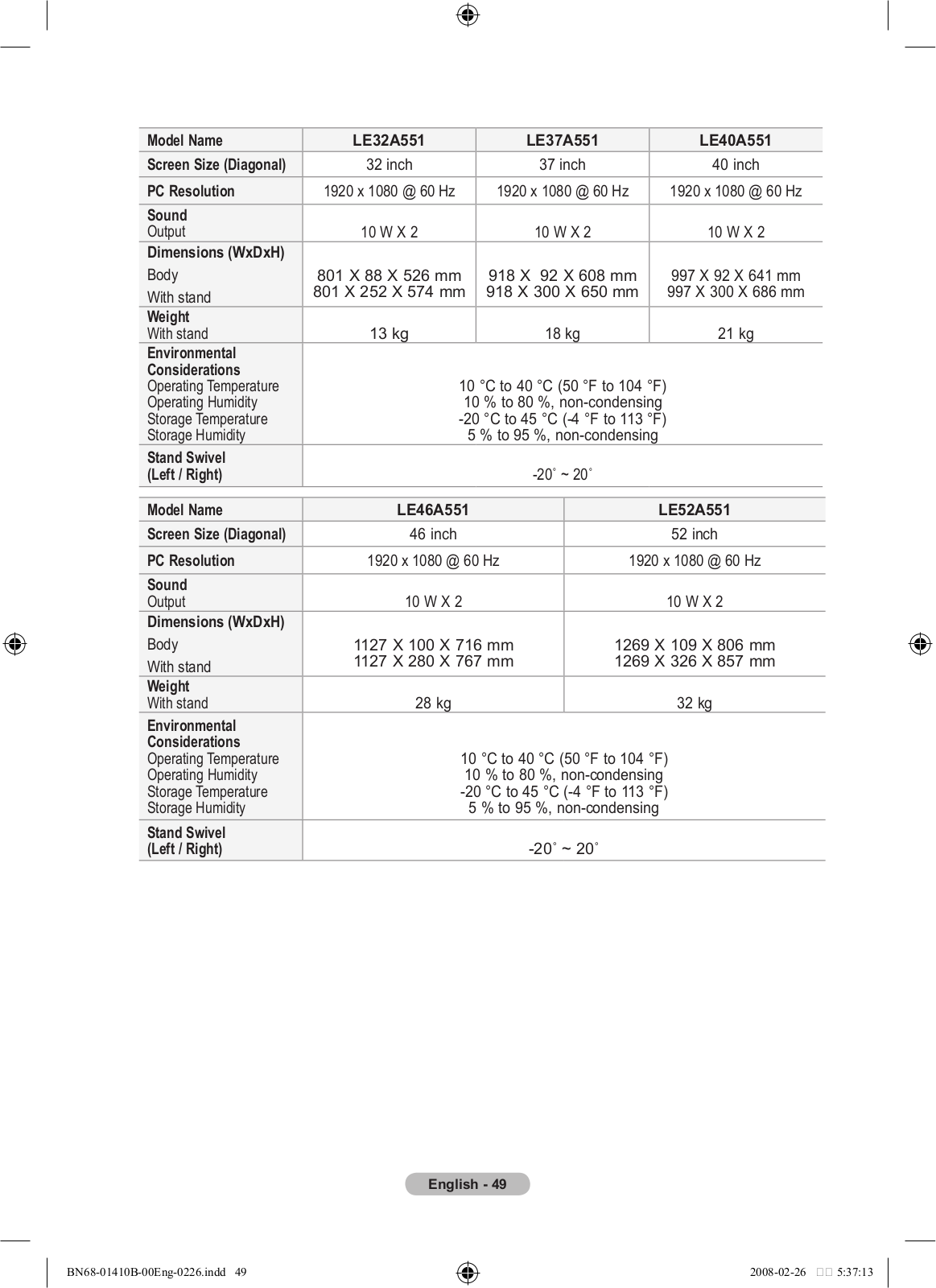

Technical and Environmental Specifications ....	48

English

Symbol	Press	Note
		Button

English - 1

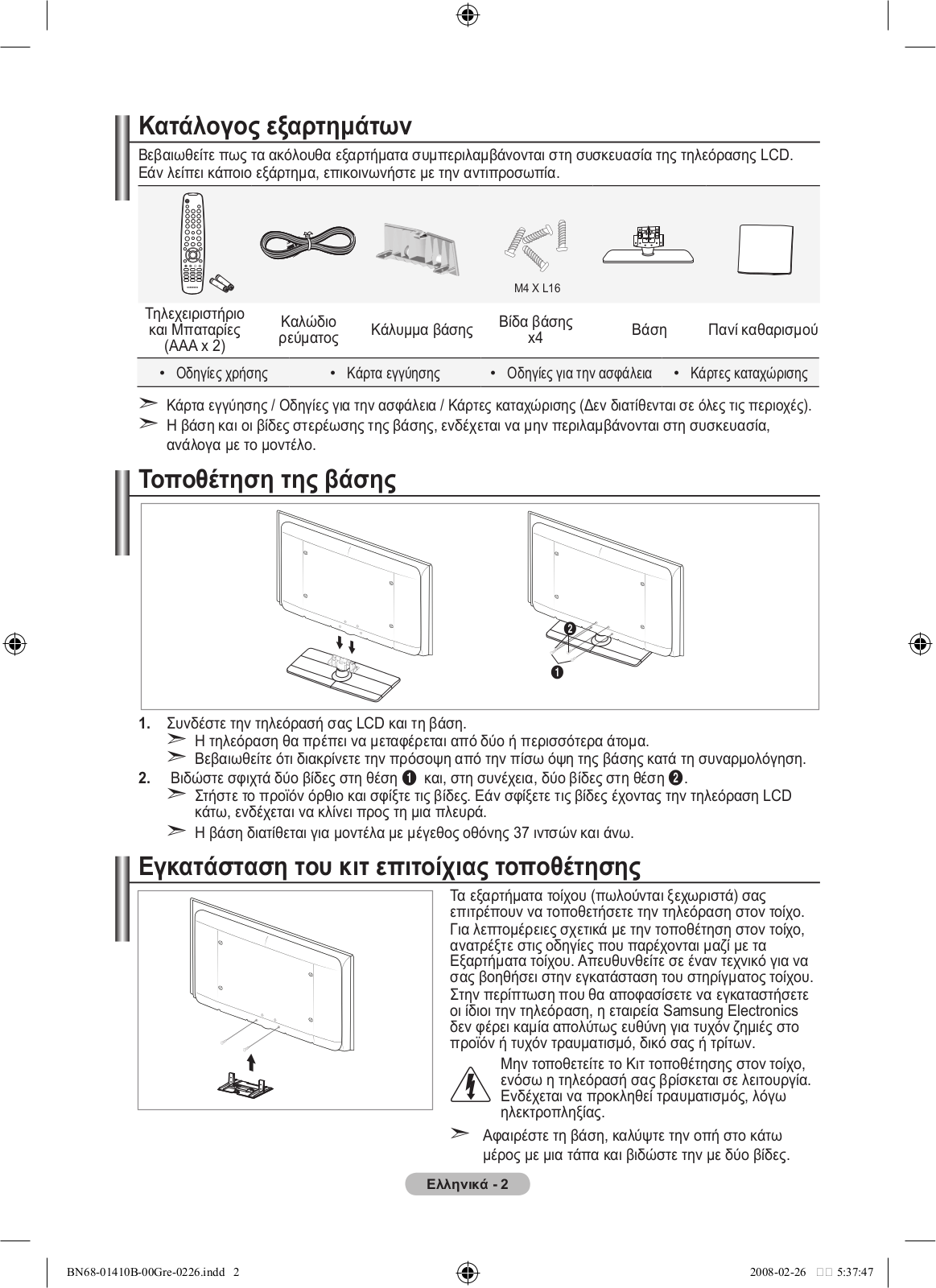

List of Parts

Please make sure the following items are included with your LCD TV.

If any items are missing, contact your dealer.

					M4 X L16
	Remote Control				Stand Screw
	& Batteries	Power Cord		Cover-Bottom		Stand	Cleaning Cloth
					X 4
	(AAA x 2)
	• Owner’s Instructions		•	Warranty card	• Safety Guide		• Registration Cards

Warranty card / Safety Guide / Registration Cards (Not available in all locations)

The stand and stand screw may not be included depending on the model.

Installing the Stand

2

1

1.Connect your LCD TV and the stand.

Two or more people should carry the TV.

Make sure to distinguish between the front and back of the stand when assembling them.

2.Fasten two screws at position 1 and then fasten two screw at position 2.

Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one side.

The stand is installed for models with the screen size of 37 inch and above.

Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Remove the stand and cover the bottom hole with a cap and fasten with two screws.

English -

Viewing the Control Panel

		1	Front Panel buttons
			Touch each button to
		2 operate.
		3
		4
		5
		6
8		7
			Side Panel buttons
		1
		2
		3
		4
		6
		7
8	8	5

The product colour and shape may vary depending on the model.

1	SOURCE	5	Power Indicator
	Toggles between all the available input sources		Blinks and turns off when the power is on and
	(TV, Ext.1, Ext.2, AV, S-Video, Component, PC,		lights up in stand-by mode.
	HDMI1, HDMI2, HDMI3). In the on-screen menu,
	use this button as you use the ENTER button	6	(Power)
	on the remote control.		Press to turn the TV on and off.
2	MENU	7	Remote Control Sensor
	Press to see an on-screen menu of your TV’s		Aim the remote control towards this spot on
	features.		the TV.

3Press to decrease or increase the volume. In the 8 Speakers on-screen menu, use the buttons as you

use the ◄ and ► buttons on the remote control.

4

Press to change channels.

In the on-screen menu, use the buttons as you use the ▼ and ▲ buttons on the remote control.

(Without the Remote Control, you can turn on the TV by using the Channel buttons.)

English -

Viewing the Connection Panel

				[Side Panel Jacks]
1	2	3	4	5

3

6

7

8

!

0 Power Input

9

The product colour and shape may vary depending on the model.

Whenever you connect an external device to your TV, make sure that power on the unit is turned off

When connecting an external device, match the colour of the connection terminal to the cable.

1PC IN [PC] / [AUDIO]

-Connect to the video and audio output jack on your PC.

2COMPONENT IN

-Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of your set and the other ends to corresponding component video out connectors on the DVD.

-If you wish to connect both the Set-Top Box and DVD, you should connect the Set-Top Box to the

DVD and connect the DVD to component connector ("PR", "PB", "Y") on your set.

-The PR, PB and Y connectors on your component devices (DVD) are sometimes labeled Y, B-Y and

R-Y or Y, Cb and Cr.

-Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the DVD.

3HDMI IN 1, HDMI IN 2, HDMI IN 3

-Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players)

-No additional Audio connection is needed for an HDMI to HDMI connection.

-When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

What is HDMI?

-“High Definition Multimedia interface” allows the transmission of high definition digital video data and multiple channels of digital audio.

-The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

English -

The TV may not output sound and pictures may be displayed with abnormal colour when DVD players/Cable Boxes/Satellite receivers supporting HDMI versions older than 1.3 are connected.

When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2) [R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company that provided the DVD player/Cable Box/Satellite receiver to confirm the HDMI version, then request a firmware update. HDMI cables that are not

1.3 may cause annoying flicker or no screen display.

DVI IN(HDMI2) [R-AUDIO-L]

-DVI audio outputs for external devices.

Supported modes for HDMI/DVI and Component

	480i	480p	576i	576p	720p	1080i	1080p
HDMI/DVI 50Hz	X	X	X	O	O	O	O
HDMI/DVI 60Hz	X	O	X	X	O	O	O
Component	O	O	O	O	O	O	O

4ANT IN

To view television channels correctly, a signal must be received by the set from one of the following sources:

-An outdoor aerial / A cable television network / A satellite network

5SERVICE

Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control.

6WISELINK

-Connect a USB mass storage device to view photo files (JPEG) and play audio files (MP3)

7S-VIDEO or VIDEO / R-AUDIO-L

-Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.

-Connect RCA audio cables to "R-AUDIO-L" on your set and the other ends to corresponding audio out connectors on the A/V device.

8Headphones jack

-Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound from the built-in speakers will be disabled.

9AUDIO OUT [R-AUDIO-L]

-Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theatre.

0 EXT 1, EXT 2

Connector		Input		Output
	Video	Audio (L/R)	RGB	Video + Audio (L/R)
EXT 1	O	O	O	Only TV output is available.
EXT 2	O	O		Output you can choose.

-Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

!Kensington Lock (depending on the model)

-The Kensington lock (optional) is a device used to physically fix the system when used in a public place.

-If you want to use a locking device, contact the dealer where you purchased the TV.

-The location of the kensington lock may be different depending on its model.

English -

Viewing the Remote Control

1Television Standby button

2Selects the TV mode directly

3Number buttons for direct

channel access

4One/Two-digit channel selection

5+: Volume increase -: Volume decrease

6Temporary sound switchoff

7It display "Channel List" on the screen.

8Use to quickly select

frequently used functions.

9Use to see information on the current broadcast

0Colour buttons : Use these buttons in the Channel list and WISELINK, etc.

) Control the cursor in the menu

aExit the on-screen menu

bUse this when connecting a SAMSUNG DMA (Digital Media Adapter) device through an HDMI interface and switching to DMA mode. (The DMA button is optional.) For more information on the operating procedures, refer to the user manual of the DMA. This button

is available when

“Anynet+(HDMI-CEC)" is

“On” (see page 38)

cPicture size selection

dSelects the HDMI mode directly.

ePicture effect selection

@ Press to select the optional		Teletext Functions
display and sound modes		2 Exit from the teletext display
for sports, cinema and		7 Teletext store
games.
# Use these buttons in the		8 Teletext size selection
DMA, WISELINK, and		9 Teletext reveal
Anynet+.
		0 Fastext topic selection
(	: This remote can be
used to control recording		! Alternately select Teletext,
on Samsung recorders		Double, or Mix.
with the Anynet+ feature)
		$ Teletext mode selection
$ Available source selection
% Previous channel		(LIST/FLOF)
		% Teletext sub page
^ P<: Next channel
P>: Previous channel		^ P<: Teletext next page
& Displays the main on-		P>: Teletext previous page
screen menu		& Teletext index
* This function enables you
to view and play photo		( Teletext hold
and music files from an		a Teletext cancel
external device.
( Returns to the previous
menu

The performance of the remote control may be affected by bright light.

English -

Installing Batteries in the Remote Control

1.Lift the cover at the back of the remote control upward as shown in the

figure.

2. Install two AAA size batteries.

Make sure to match the "+" and "–" ends of the batteries with the diagram inside the compartment.

3. Replace the cover.

Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time.

If the remote control doesn’t work, check the following:

1.Is the TV power on?

2.Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage, or is the power cord unplugged?

5. Is there a special fluorescent light or neon sign nearby?

Switching On and Off

The mains lead is attached to the rear of your set.

1.Plug the mains lead into an appropriate socket.

The standby indicator lights up on your set.

2.Press the Pbutton on your set.

You also can press the POWER button or the TV button on the remote control to turn the TV on.

The programme that you were watching last is reselected automatically.

3.Press the numeric button (0~9) or channel up/down (</>) button on the remote control or button on your set.

When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed.

4.To switch your set off, press the POWER button again.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

1.Press the POWERbutton on the remote control.

The screen is turned off and a red standby indicator appears on your set.

2.To switch your set back on, simply press the POWER, numeric buttons (0~9), TV button or channel up/down (</>) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example).

It is best to unplug the set from the mains and aerial. 

English -

Viewing the Menus

1.With the power on, press the MENU button.

The main menu appears on the screen. The menu’ s left side has icons: Picture, Sound, Channel, Setup, Input.

2.Press the ▲ or ▼ button to select one of the icons.

Then press the ENTER button to access the icon’s sub-menu.

3.Press the EXIT button to exit.

The on-screen menus disappear from the screen after about one minute.

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu change depending on which external input mode you are viewing.

1.Press the TOOLS button.

The “Tools” menu will appear.

2.Press the ▲ or ▼ button to select a menu.

3.Press the ▲/▼/◄/►/ENTER buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page.

♦Anynet+ (HDMI-CEC), see page 38

♦Picture Mode, see page 15

♦Sound Mode, see page 21

♦Sleep Timer, see page 23

♦SRS TS XT, see page 21

♦Energy Saving, see page 26

♦Dual l-ll, see page 22

♦PIP, see page 20

♦Auto Adjustment, see page 29

TV
	Mode	: Standard			
	Backlight				7
	Contrast		95
	Brightness		45
	Sharpness		50
	Colour		50
	Tint	G50	R50
	Detailed Settings				
	sMore
	Move	Enter	Return

		Tools
Anynet+ (HDMI-CEC)
Picture Mode			: Standard
Sound Mode		:		Custom
Sleep Timer		:		Off
SRS TS XT		:		Off
Energy Saving		:		Off
Dual l-ll		:		Mono
	Move		Enter	Exit

English -

Plug & Play

When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

	The Screen Saver is activated if there is no remote control key
		input for longer than 1 minute while "Plug & Play" is running.
	The Screen Saver is activated if there is no operating signal for
		longer than 15 minutes.		Enter
	1.	Press the POWER	button on the remote control.

The message "Start Plug & Play" is displayed with "OK" selected.

Plug & Play

Start Plug & Play.

OK

2.Select the appropriate language by pressing the ▲ or ▼ button. Press the ENTER button to confirm your choice.

3.Press the ◄ or ► button to select “Store Demo” or “Home Use”, then the ENTER button.

We recommend setting the TV to "Home Use" mode for the best picture in your home environment.

"Store Demo" mode is only intended for use in retail environments.

If the unit is accidentally set to “Store Demo” mode and you want to return to “Home Use”

(Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

4.The message "Check antenna input." is displayed with "OK" selected. Press the ENTER button.

Please check that the antenna cable is connected correctly.

5.Select the appropriate country by pressing the▲ or ▼ button. Press the ENTER button to confirm your choice.

6.The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER button.

The channel search will start and end automatically.

Press the ENTER button at any time to interrupt the memorization process.

After all the available channels are stored, the "Clock Set" menu appears.

7.Press the ENTER button.

Select the "Month", "Day", "Year", "Hour", or "Minute" by pressing the ◄ or ► button. Set the "Month", "Day", "Year", "Hour", or "Minute" by pressing the ▲ or ▼ button.

You can also set the “Month”, “Day”, “Year”, “Hour” and "Minute" by pressing the number buttons on the remote control.

8.Press the ENTER button to confirm your setting. The message “Enjoy your viewing” is displayed. When you have finished, press the ENTER button.

Even if the ENTER button is not pressed, the message will automatically disappear after several seconds.

♦Language: Select your language.

♦Country: Select your country.

♦Auto Store: Automatically scans for and stores channels available in the local area.

♦Clock Set: Sets the current time for the TV clock.

English -

If you want to reset this feature...

1.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2.Press the ENTER button again, to select "Plug & Play". For further details on setting up options, refer to the page 9.

The “Plug & Play” feature is only available in the TV mode.

-Storing Channels Automatically

-Storing Channels Manually

TV	Setup
Plug & Play	:English	
Language		
Time		
Light Effect	: In Watching TV 
Auto Wall-Mount	: Off	
Melody		
Entertainment	: Off	
Energy Saving	: Off	
PIP		
Move	Enter	Return

Plug & Play

Start Plug & Play.

OK

Enter Return

TV	Channel
Country	: United Kingdom 
Auto Store		
Manual Store		
Channel Manager		
Sort		
Name		
Fine Tune		
Move	Enter	Return

Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

1.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER button.

2.Press the ENTER button to select "Country".

3.Select the appropriate country by pressing the ▲ or ▼ button.

Press the ENTER button to confirm your choice.

4.Press the ▲ or ▼ button to select "Auto Store", then press the ENTER button.

5.Press the ENTER button.

The TV will begin memorizing all of the available channels.

Press the ENTER button at any time to interrupt the memorization process and return to the "Channel" menu.

6.After all the available channels are stored, the "Sort" menu appears. (refer to page 13)

English - 10

Storing Channels Manually
You can store television channels, including those received via					TV		Channel
cable networks.						Country	: United Kingdom 
When storing channels manually, you can choose:						Manual Store		
						Auto Store		
♦	Whether or not to store each of the channels found.					Channel Manager		
♦	The programme number of each stored channel which you wish					Sort		
						Name		
	to identify.					Fine Tune		
1.	Press the MENU button to display the menu.
	Press the ▲ or ▼ button to select "Channel", then press the					Move	Enter	Return
2.	ENTER	button.			TV	Manual Store
	Press the ▲ or ▼ button to select "Manual Store", then press
						Programme	: P 2
	the ENTER		button.
						Colour System	: Auto	
3.	Select the required option by pressing the ▲ or ▼ button, then					Sound System	: BG	
						Channel	: C 3
	press the ENTER			button.		Search	: 77 MHz
4.						Store	: ?
	When you are satisfied with your setting, press the
	ENTER	button.
5.	Press the EXIT button to exit.					Move	Enter	Return

♦Programme (Programme number to be assigned to a channel)

-Press the ▲ or ▼ button until you find the correct number.

You can also select the channel number directly by pressing the numeric buttons (0~9).

♦Colour System: Auto/PAL/SECAM/NTSC4.43

-Press the ▲ or ▼ button to select the required colour standard.

♦Sound System: BG/DK/I/L

-Press the ▲ or ▼ button to select the required sound standard.

♦Channel (When you know the number of the channel to be stored)

-Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel).

-Press the ► button, then press the ▲ or ▼ button to select the required number.

You can also select the channel number directly by pressing the numeric buttons (0~9).

If there is abnormal sound or no sound, re-select the sound standard required.

♦Search (When you do not know the channel numbers)

-Press the ▲ or ▼ button to start the search.

-The tuner scans the frequency range until the first channel or the channel that you selected is received on the screen.

♦Store (When you store the channel and associated programme number)

-Set to "OK" by pressing the ENTER button.

Channel mode

-P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.

-C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode.

-S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

English - 11

Adding / Locking Channels

Using the Channel Manager, you can conveniently lock or add channels.

1.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the

ENTER button.

2.Press the ▲ or ▼ button to select "Channel Manager", then press the ENTER button.

TV	Channel
Country	: United Kingdom 
Auto Store		
Manual Store		
Channel Manager		
Sort		
Name		
Fine Tune		
Move	Enter	Return

♦Adding channels

Using the Channel List, you can add channels.

3.Select Channel List by pressing the ENTER button.

4.Move to the () field by pressing the ▲, ▼, ◄ or ► button, select a channel to be added, and press the ENTER button to add the channel.

If you press the ENTER button again, the ( ) symbol next to the channel disappears and the channel is not added.

“” is active when "Child Lock" is selected to "On".

TV	Channel Manager
	Channel List		
	Child Lock	: Off	
	Move	Enter	Return

♦

Locking channels

Channel List

This feature allows you to prevent unauthorized users, such as

P

1 C3

children, from watching unsuitable programmes by muting out

1 / 10

video and audio.

5.

Prog.

Press the ▲ or ▼ button to select "Child Lock", then press the

0

C--

ENTER

button.

1

C3

6.

Select "On" by pressing the ▲ or ▼ button, then press the

2

BBC 1

ENTER

button.

3

C74

7.

Press the ▲ or ▼ button to select "Channel List", then press

4

C75

the ENTER button.

5

C76

8.

Move to the (

) field by pressing the ▲, ▼, ◄ or ► button,

6

S3

7

S4

select a channel to be locked, and press the ENTER

button.

8

S6

If you press the ENTER button again, the ( ) symbol

9

S7

Add

Lock

next to the channel disappears and the channel lock is

cancelled.

Move

Enter

A blue screen is displayed when "Child Lock" is activated.

Page

Return

9.Press the EXIT button to exit.

Select "On" or "Off" in "Child Lock" to easily turn the channels which selected on "" to be active or inactive.

You can select these options by simply pressing the CH LIST button on the remote control

English - 12

Sorting the Stored Channels

This operation allows you to change the programme numbers of the stored channels.

This operation may be necessary after using the auto store.

1.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the

ENTER button.

2.Press the ▲ or ▼ button to select "Sort", then press the

ENTER button.

3.Select the channel number that you wish to change by pressing the ▲ or ▼ button repeatedly.

Press the ENTER button.

The selected channel number and name are moved to right side.

4.Press the ▲ or ▼ button to move to the position in which you would like to change and then press the ENTER button.

The selected channel is exchanged with the one previously stored to the chosen number.

5.Repeat steps 3 to 4 for another channel to be sorted.

6.Press the EXIT button to exit.

TV	Channel
Country	: United Kingdom 
Auto Store		
Manual Store		
Channel Manager		
Sort		
Name		
Fine Tune		
Move	Enter	Return

TV		Sort
Prog.	Ch.	Name
	
0	C--
1	C23		
2	C16
3	C3
4	S1
	
	Move	Enter	Return

Assigning Channels Names

Channel names will be assigned automatically when channel information is broadcast. These names can be changed,

allowing you to assign new names.

1.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER button.

2.Press the ▲ or ▼ button to select "Name", then press the

ENTER button.

3.If necessary, select the channel to be assigned to a new name by pressing the ▲ or ▼ button. Press the ENTER button

The selection bar is displayed around the name box.

	4.
		To...	Then...
		Select a letter, number or symbol	Press the ▲ or ▼ button
		Move on the next letter	Press the ► button
		Move back the previous letter	Press the ◄ button
		Confirm the name	Press the ENTER button

TV	Channel
Country	: United Kingdom 
Auto Store		
Manual Store		
Channel Manager		
Sort		
Name		
Fine Tune		
Move	Enter	Return

TV		Name
Prog.	Ch.	Name
	
0	C--	-----
1	C23	-----
2	C16	-----
3	C3	-----
4	S1	-----
	
	Move	Enter	Return

The following characters are available: Letters of the alphabet (A~Z) / Numbers (0~9) / Special characters (+, -, *, /, space)

5.Repeat steps 3 to 4 for each channel to be assigned to a new name.

6.Press the EXIT button to exit.

English - 13

Fine Tuning Channel Reception

Use fine tuning to manually adjust a particular channel for optimal reception.

1.Use the number buttons to directly select the channel that you want to fine tune.

2.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER button.

3.Press the ▲ or ▼ button to select "Fine Tune", then press the ENTER button.

4.Press the ◄ or ► button to adjust the fine tuning.

Press the ENTER button.

5.Press the EXIT button to exit.

Fine tuned channels that have been saved are marked with an asterisk "*" on the right-hand side of the channel number in the channel banner. And the channel number turns red.

To reset the fine-tuning, select "Reset" by pressing the ▲ or ▼ button and then press the ENTER button.

TV	Channel
Country	: United Kingdom 
Auto Store		
Manual Store		
Channel Manager		
Sort		
Name		
Fine Tune		
Move	Enter	Return

	Fine Tune
P 1
		0
	Reset
Adjust	Save	Return

English - 14

Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing requirements.

1.Press the MENU button to display the menu.

Press the ENTER button, to select "Picture".

2.Press the ENTER button again, to select "Mode".

3.Press the ▲ or ▼ button to select the desired picture effect.

Press the ENTER button.

4.Press the EXIT button to exit.

♦Dynamic: Selects the picture for high-definition in a bright room.

♦Standard: Selects the picture for optimum display in a normal environment.

♦Movie: Selects the picture for comfortable display in a dark room.

The Picture mode must be adjusted separately for each input source.

You can also press the P.MODE button on the remote control to select one of the picture settings.

TV
	Mode		: Standard		
	Backlight			7
	Contrast			95
	Brightness			45
	Sharpness			50
	Colour			50
	Tint		G50	R50
	Detailed Settings				
	sMore
	Move		Enter	Return
TV
	Mode		: Dynamic
	Backlight		Standard
	Contrast		Movie
	Brightness			45
	Sharpness			50
	Colour			50
	Tint		G50	R50
	Detailed Settings
	sMore
	Move		Enter	Return

Easy Setting

1.Press the TOOLS button on the remote control.

2.Press the ▲ or ▼ button to select “Picture Mode”.

3.Press the ◄ or ► button to select the desired picture mode.

4.Press the EXIT or TOOLS button to exit.

		Tools
Anynet+ (HDMI-CEC)
Picture Mode		◄	Standard ►
Sound Mode		:	Custom
Sleep Timer		:	Off
SRS TS XT		:	Off
Energy Saving		:	Off
Dual l-ll		:	Mono
	Move	Adjust	Exit

English - 15

Adjusting the Custom Picture

Your set has several settings which allow you to control picture quality.

1.To select the desired picture effect, follow the

"Changing the Picture Standard" instructions number 1 to 3.

2.Press the ▲ or ▼ button to select a particular item. Press the

ENTER button.

3.Press the ◄ or ► button to decrease or increase the value of a particular item. Press theENTER button.

4.Press the EXIT button to exit.

♦Backlight: Adjusts the screen brightness by adjusting the LCD backlight brightness. (0~10)

♦Contrast: Adjusts the lightness and darkness between objects and the background.

♦Brightness: Adjusts the brightness of the whole screen.

♦Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.

♦Colour: Adjusts the colours, making them lighter or darker.

♦Tint: Adjusts the colour of objects, making them more red or green for a more natural look.

TV	Picture
Mode	: Standard	
Backlight		7
Contrast		95
Brightness		45
Sharpness		50
Colour		50
Tint	G50	R50
Detailed Settings		
sMore
Move	Enter	Return
▲
Backlight		7
▼

Move

Adjust

Return

The adjusted values are stored according to the selected Picture mode.

In PC mode, you can only make changes to "Backlight”, “Contrast" and “Brightness”.

TV, Ext., AV, S-Video modes of the PAL system, you cannot use the "Tint" Function.

You can return to the factory defaults picture settings by selecting the "Reset". (Refer to "Resetting the Picture Settings to the Factory Defaults" on page 17)

Configuring Detailed Settings on the Picture

You can set detailed picture settings.

1.Press the MENU button to display the menu.

Press the ENTER button, to select "Picture".

2.Press the ENTER button to select “Mode”.

Press the ▲ or ▼ button to select “Standard” or “Movie”, then press the ENTER button.

3.Press the ▲ or ▼ button to select "Detailed Settings", then press the ENTER button.

4.Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.

5.When you are satisfied with your setting, press the ENTER button.

6.Press the EXIT button to exit.

"Detailed Settings" is available in "Standard" or "Movie" mode.

In PC mode, you can only make changes to “Dynamic Contrast”, “Gamma” and “White Balance” from among the “Detailed

Settings” items.

TV	Picture
Mode	: Standard	
Backlight		7
Contrast		95
Brightness		45
Sharpness		50
Colour		50
Tint	G50	R50
Detailed Settings		
sMore
Move	Enter	Return

TV	Detailed Settings
	Black Adjust	: Off	
	Dynamic Contrast : Medium		
	Gamma	: 0	
	Colour Space	: Custom	
	White Balance		
	Flesh Tone	: 0	
	Edge Enhancement : On		
	xvYCC	: Off	
	Move	Enter	Return

♦Black Adjust: Off/Low/Medium/High

You can directly select the black level on the screen to adjust the screen depth.

♦Dynamic Contrast: Off/Low/Medium/High

You can adjust the screen contrast so that the optimal contrast is provided.

English - 16

♦Gamma: -3 ~ +3

You can adjust the Primary Colour (Red, Green, Blue) Intensity.

Press the ◄ or ► button until you reach the optimal setting.

♦Colour Space: Auto/Native/Custom

Colour space is a Colour matrix composed of “Red”, “Green” and “Blue” Colours.

Select your favourite Colour space to experience the most natural Colour.

♦Auto: Auto Color Space automatically adjusts to the most natural color tone based on program sources.

♦Native: Native Color Space offers deep and rich color tone.

♦Custom: Adjusts the color range to suit your preference.

Customizing the Colour Space

Colour: Red/Green/Blue/Yellow/Cyan/Magenta

Adjusts the Colour range to suit your preference.

“Colour” is available when “Colour Space” is set to “Custom”.

Press the ▲ or ▼ button to select “Red”, “Green”, “Blue”, “Yellow”, “Cyan” or “Magenta”.

Press the ENTER button.

Red/Green/Blue: In “Colour”, you can adjust the RGB values for the selected colour.

Press the ▲ or ▼ button to select "Red", "Green" or "Blue" to change it.

Press the ENTER button.

Press the ◄ or ► button to decrease or increase the value of a particular item. Press the

ENTER button.

Reset: Resets the colour space to the default values.

♦White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset

You can adjust the colour temperature for more natural picture colours.

R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen.

Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Press the ◄ or ► button until you reach the optimal setting.

Reset: The previously adjusted white balance will be reset to the factory defaults.

♦Flesh Tone: -15 ~ +15

You can emphasize the pink 'flesh tone' in the picture.

Press the ◄ or ► button until you reach the optimal setting.

Changing the adjustment value will refresh the adjusted screen.

♦Edge Enhancement: Off/On

You can emphasize object boundaries in the picture.

♦xvYCC: Off/On

Setting the xvYCC mode to On increases detail and colour space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the Picture Mode to Movie to enjoy this feature.

Only available in "HDMI" and "Component" on "Movie" mode.

If xvYCC function is active, PIP cannot be selected.

Resetting the Picture Settings to the Factory Defaults

You can return to the factory defaults picture settings.

1.To select the desired picture effect, follow the "Changing the

Picture Standard" instructions number 1 to 3 (On page 15).

2.Press the ▲ or ▼ button to select "Reset", then press the

ENTER button.

3.Press the ▲ or ▼ button to select "OK" or "Cancel". Press the ENTER button.

4.Press the EXIT button to exit.

The "Reset" will be set for each "Picture" mode.

TV	Picture
More
Picture Options
Reset	:	OK
		Cancel
Move	Enter	Return

English - 17

Configuring Picture Option
1.	Press the MENU button to display the menu.			TV	Picture
	Press the ENTER button, to select "Picture".			More
2.				Picture Options		
	Press the ▲ or ▼ button to select "Picture Options", then press			Reset	: OK	
3.	the ENTER	button.
	Select the required option by pressing the ▲ or ▼ button, then
	press the ENTER		button.
4.	When you are satisfied with your setting, press the ENTER			Move	Enter	Return
	button.
5.	Press the EXIT button to exit.			TV	Picture Options

	In PC mode, you can only make changes to the “Colour	Colour Tone	: Normal	
		Size	: Auto Wide 
	Tone” and “Size” from among the items in “Picture Options”.	Screen Mode	: 16:9	
		Digital NR	: Auto	
		DNIe	: Off	
		HDMI Black Level : Normal		
	♦ Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2	Movie Plus	: Low	
		Blue Only Mode	: Off	
	You can select the most comfortable colour tone to your eyes.	Move	Enter	Return
	The adjusted values are stored according to the selected
	"Picture" mode.

“Warm1” or “Warm2” is only activated when the picture mode is "Movie".

♦ Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan

You can select the picture size which best corresponds to your viewing requirements.

♦Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio.

♦16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.

♦Wide Zoom: Magnify the size of the picture more than 4:3.

♦Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.

♦4:3: This is the default setting for a video movie or normal broadcasting.

♦Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i/ 1080p) or Component (1080i/1080p) signals are input.

"Auto Wide" function is available only in "TV", "Ext.1", "Ext.2", "AV", and "S-Video" mode.

In PC Mode, only "16:9" and "4:3" mode can be adjusted.

Settings can be adjusted and stored for each external device you have connected to an input of the TV.

Temporary image retention may occur when viewing a static image on the set for more than two hours.

"Wide Zoom": Move the screen up/down using the ▲ or ▼ button after selecting the by pressing the ► or ENTER button.

"Zoom": Select by pressing the ◄ or ►button. Use the ▲ or ▼ button to move the picture up and down. After selecting , use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction.

When Double ( , ) mode has been set in PIP, the Picture Size cannot be set.

After selecting “Just Scan” in HDMI (1080i/1080p) or Component (1080i/1080p) mode:

Select by pressing the ◄ or ►button. Use the ▲, ▼, ◄ or ► button to move the picture.

Reset: Press the ◄ or ► button to select “Reset”, then press the ENTER button. You can initialize the setting.

You can select these options by simply pressing the P.SIZE button on the remote control.

English - 18

♦Screen Mode: 16:9/Wide Zoom/Zoom/4:3

When setting the picture size to "Auto Wide" in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it.

♦16:9: Sets the picture to 16:9 wide mode.

♦Wide Zoom: Magnify the size of the picture more than 4:3.

♦Zoom: Magnify the size of the picture vertically on screen.

♦4:3: Sets the picture to 4:3 normal mode.

This function is available in "Auto Wide" mode.

This function is not available in "PC", "Component" or "HDMI" mode.

♦Digital NR: Off/Low/Medium/High/Auto

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

When the signal is weak, select one of the other options until the best picture is displayed.

♦DNIe: Off/ Demo/On

This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality.

DNIe™ (Digital Natural Image engine)

This feature brings you more detailed image with 3D noise reduction, detail enhancement,

contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIe™ technology will fit every signal into your eyes.

This function is not available in "Movie" and "Standard" mode.

♦HDMI Black Level: Normal/Low

You can directly select the black level on the screen to adjust the screen depth.

This function is active only when the external input connects to HDMI(RGB signals).

♦Movie Plus: Off/Low/Medium/High/Demo

You can view more natural skin and clear text even in fast moving scenes.

Use this function when watching movies.

This function is not available in “Wide Zoom” and “Zoom” modes.

This function is not available when "PIP" is set to "On".

It is not supported in HDMI 1080p/24Hz mode.

♦Blue Only Mode: Off/On

This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc.

Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/ Cyan/Magenta/Yellow Colour Bar Patterns, without using an additional Blue Filter.

“Blue Only Mode” is available when the picture mode is set to “Movie” or “Standard”.

English - 19

Viewing the Picture In Picture (PIP)

You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

1.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2.Press the▲ or ▼ button to select "PIP", then press the

ENTER button.

3.Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.

4.When you are satisfied with your setting, press the ENTER button.

5.Press the EXIT button to exit.

You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.

TV	Setup
Plug & Play	:English	
Language		
Time		
Light Effect	: In Watching TV 
Auto Wall-Mount	: Off	
Melody		
Entertainment	: Off	
Energy Saving	: Off	
PIP		
Move	Enter	Return

TV	Mode	: Custom	
	Equalizer	PIP	
		: On
	PIP		
	SRS TS XT	: Off	
	Source	: TV	
	Auto Volume	: Off	
	Size	:	
	Internal Mute	: Off	
	Position	:	
	Reset	: P 1	
	Programme
	Move	Enter	Return
	Move	Enter	Return

Easy Setting

1.Press the TOOLS button on the remote control.

2.Press the ▲ or ▼ button to select “PIP”, then press the

ENTER button.

3.Press the ▲ or ▼ button to select a particular item.

4.Press the ◄ or ► button to select the required option.

5.Press the EXIT or TOOLS button to exit.

♦PIP: On/Off

You can activate or deactivate the PIP function.

Main picture	Sub picture
Component	TV, Ext.1, Ext.2, AV
HDMI 1, 2, 3	TV, Ext.1, Ext.2, AV
PC	TV, Ext.1, Ext.2, AV

		Tools
Anynet+ (HDMI-CEC)
Picture Mode		: Standard
Sound Mode		:	Custom
Sleep Timer		:	Off
SRS TS XT		:	Off
Energy Saving		:	Off
PIP
Move		Enter	Exit
		PIP
PIP	:	◄	On ►
Source	:		tV
Programme	:		P 1
Size	:
Position	:
Move		Adjust	Return

♦Source

You can select a source of the sub-picture.

♦Size: / /

You can select a size of the sub-picture.

If main picture is in "HDMI" mode, "Size" is available.

♦Position: / / /

You can select a position of the sub-picture.

In Double ( , ) mode, "Position" cannot be selected.

♦Programme

You can select a channel of the sub-picture only when the "Source" is set to "TV".

English - 20

Sound Features

1.Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER button.

2.Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.

3.When you are satisfied with your setting, press the ENTER button.

4.Press the EXIT button to exit.

♦Mode: Standard/Music/Movie/Speech/Custom

You can select the type of special sound effect to be used when watching a given broadcast.

Easy Setting

1.Press the TOOLS button on the remote control.

2.Press the ▲ or ▼ button to select "Sound Mode".

3.Press the ◄ or ► button to select the desired sound mode.

4.Press the EXIT or TOOLS button to exit.

TV	Sound
Mode	: Custom	
Equalizer		
SRS TS XT	: Off	
Auto Volume	: Off	
TV Speaker	: On	
Sound Select	: Main	
Move	Enter	Return
Tools

Anynet+ (HDMI-CEC)
Picture Mode	: Standard
Sound Mode	◄	Custom ►
Sleep Timer	:	Off
SRS TS XT	:	Off
Energy Saving	:	Off
Dual l-ll	:	Mono
Move	Adjust	Exit

♦	Equalizer: Balance/100Hz/300Hz/1kHz/3kHz/10kHz	TV		Equalizer
	The sound settings can be adjusted to suit your personal
	preferences.	R
	If you make any changes to these settings, the sound mode
	is automatically switched to "Custom".	L
		Balance	100Hz 300Hz 1kHz 3kHz 10kHz
		Move		Adjust	Return

♦SRS TS XT: Off/On

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

Easy Setting

1.Press the TOOLS button on the remote control.

2.Press the ▲ or ▼ button to select “SRS TS XT”.

3.Press the ◄ or ► button to select the "Off" or "On".

4.Press the EXIT or TOOLS button to exit.

	Tools
Anynet+ (HDMI-CEC)
Picture Mode	: Standard
Sound Mode	:	Custom
Sleep Timer	:	Off
SRS TS XT	◄	Off	►
Energy Saving	:	Off
Dual l-ll	:	Mono
Move	Adjust		Exit

TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc.

TruSurround XT technology is incorporated under license from SRS Labs,

Inc.

♦Auto Volume: Off/On

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume

every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

English - 21

♦TV Speaker: Off/On

If you want to hear the sound through separate speakers, cancel the internal amplifier.

The+,- and MUTE buttons do not operate when the "TV Speaker" is set to Off.

When “TV Speaker” is set to “Off”, you can operate only “Sound Select” (in PIP mode) in Sound menu.

♦Sound Select: Main/Sub

When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.

−Main: Used to listen to the sound of the main picture.

−Sub: Used to listen to the sound of the sub picture.

Selecting the Sound Mode

You can set the sound mode in the "Tools" menu.

When you set to "Dual I-II", the current sound mode is displayed on the screen.

1.Press the TOOLS button on the remote control.

2.Press the ▲ or ▼ button to select “Dual I-II".

3.Press the ◄ or ► button to select required option.

4.Press the ENTER button.

	Tools
Anynet+ (HDMI-CEC)
Picture Mode	: Standard
Sound Mode	:	Custom
Sleep Timer	:	Off
SRS TS XT	:	Off
Energy Saving	:	Off
Dual l-ll	◄	Mono ►
Move	Adjust	Exit

	Audio Type			Dual 1/2			Default
A2	Mono			MONO			Automatic
	Stereo		STEREO ↔ MONO				change
Stereo
	Dual		DUAL 1 ↔ DUAL 2				DUAL 1
	Mono			MONO			Automatic
NICAM	Stereo		MONO ↔ STEREO				change
Stereo	Dual		MONO ↔ DUAL 1				DUAL 1
				DUAL 2

If the stereo signal is weak and an automatic switching occurs, then switch to the Mono.

This function is only activated in stereo sound signal. It is deactivated in mono sound signal.

This function is only available in TV mode.

Connecting Headphones (Sold separately)

You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room.

When you insert the head set jack into the corresponding port, you can operate only "Auto Volume" and "Sound Select"(in PIP mode) in Sound menu.

TV Side Panel

Prolonged use of headphones at a high volume may damage your hearing.

You will not receive sound from the speakers when you connect headphones to the system.

The headphone volume and TV volume are adjusted differently.

English - 22

Setting and Displaying the Current Time

You can set the TV’s clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

1.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2.Press the ▲ or ▼ button to select "Time", then press the

ENTER button.

3.Press the ENTER button to select "Clock Set".

4.
	To...	Press the....
	Move to "Month", "Day", "Year", "Hour"	◄ or ► button.
	or "Minute"
	Set the "Month", "Day", "Year", "Hour"	▲ or ▼ button.
	or "Minute"
	Confirm the setting	ENTER button

TV	Mode		: Custom	
	Equalizer		Setup	
	Plug & Play		: Off	
	SRS TS XT			
	Language		:English	
	Auto Volume		: Off	
	Time		: Off	
	Internal Mute			
	Light Effect		: In Watching TV 
	Reset			
	Auto Wall-Mount		:Off
	Melody			
	Entertainment		: Off	
	Energy Saving		: Off	
	PIP	Move	Enter	
				Return
		Move	Enter	Return

TV	Clock Set
Month	Day	Year
p	01	2008
01
q
Hour	Minute
00	00
Move	Adjust	Return

5. Press the EXIT button to exit.

The current time will appear every time you press the INFO button.

You can also set "Year", "Month", "Day", "Hour" and "Minute" by pressing the number buttons on the remote control.

Setting the Sleep Timer

You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

1.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2.Press the ▲ or ▼ button to select "Time", then press the

ENTER button.

3.Press the ▲ or ▼ button to select "Sleep Timer", then press the ENTER button.

4.Press the ▲ or ▼ button repeatedly until the desired time appears (Off, 30, 60, 90, 120, 150, 180).

Press the ENTER button.

5.Press the EXIT button to exit.

The TV automatically switches to standby mode when the timer reaches 0.

Easy Setting

1.Press the TOOLS button on the remote control.

2.Press the ▲ or ▼ button to select “Sleep Timer”.

3.Press the ◄ or ► button to select the minute.

4.Press the EXIT or TOOLS button to exit.

TV	Mode		: Custom	
	Equalizer		Setup	
	Plug & Play		: Off	
	SRS TS XT			
	Language		:English	
	Auto Volume		: Off	
	Time		: Off	
	Internal Mute			
	Light Effect		: In Watching TV 
	Reset			
	Auto Wall-Mount		:Off
	Melody			
	Entertainment		: Off	
	Energy Saving		: Off	
	PIP	Move	Enter	
				Return
		Move	Enter	Return

TV	Time
Clock Set	: 00:00
Sleep Timer	Off
Timer 1	30
Timer 2	60
Timer 3	90
	120
	150
	180
Move	Enter	Return
Tools

Anynet+ (HDMI-CEC)
Picture Mode	: Standard
Sound Mode	:	Custom
Sleep Timer	◄	Off	►
SRS TS XT	:	Off
Energy Saving	:	Off
Dual l-ll	:	Mono
Move	Adjust		Exit

English - 23

Switching the Television On and Off Automatically

1. Press the MENU button to display the menu.				TV						Setup
	Press the ▲ or ▼ button to select "Setup", then press the			Plug & Play						:English	
	ENTER	button.		Language							
				Time							
2.	Press the ▲ or ▼ button to select "Time", then press the			Light Effect						: In Watching TV 
				Auto Wall-Mount							
	ENTER	button.		Melody						:Off	
3.				Entertainment						: Off	
	Press the ▲ or ▼ button to select "Timer 1", "Timer 2",			Energy Saving						: Off	
	"Timer 3", then press the ENTER button.			PIP							
	Three different On/Off Timer Settings can be made.							Move		Enter	Return
You must set the clock first.
				TV					Timer 1
4.	Press the ◄ or ► button to select the required item below.			5
	Press the ▲ or ▼ button to adjust to the setting satisfied.				On Time
				6				: 00		Off
						00
	♦ On Time : Select hour, minute and "On"/"Off".				Off Time
					00		: 00			Off
	(To activate timer with the setting satisfied, set to "On".)				Volume Programme
				10					1
	♦ Off Time : Select hour, minute and "On"/"Off".				Repeat
	(To activate timer with the setting satisfied, set to "On".)							Once
						► Move				Adjust	Return

♦Volume : Select the desired turn on volume level.

♦Repeat : Select "Once", "Everyday", "Mon~Fri", "Mon~Sat" or "Sat~Sun".

♦Programme : When the On Timer is active, you can turn on a specific channel.

You can set the hour and minute directly by pressing the number buttons on the remote control.

Auto Power Off

When you set the timer On, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time.

Choosing Your Language

When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

1.Press the MENU button to display the on-screen menu.

Press the ▲ or ▼ button to select "Setup", then press the ENTER button.

2.Press the ▲ or ▼ button to select "Language", then press the ENTER button.

3.Select a particular language by pressing the ▲ or ▼ button repeatedly.

Press the ENTER button.

4.Press the EXIT button to exit.

TV	Setup
Plug & Play	:English	
Language		
Time		
Light Effect	: In Watching TV 
Auto Wall-Mount	:Off	
Melody		
Entertainment	: Off	
Energy Saving	: Off	
PIP		
Move	Enter	Return

English - 24

Setting the Light Effect (depending on the model)

You can turn on/off the LED on the front of TV according to the				TV			Setup
situation. Use it for saving power or when the LED dazzles your					Mode		: Custom	
					Plug & Play			
					Equalizer			
eyes.					SRS TS XT		: Off	
					Auto Volume		: Off	
					Language		: English	
					Time		: Off	
					Internal Mute			
1. Press the MENU button to display the on-screen menu.					Light Effect		: In Watching TV 
					Reset			
	Press the ▲ or ▼ button to select "Setup", then press the				Auto Wall-Mount
					Melody		: Off	
	ENTER	button.			Entertainment		: Off	
					Energy Saving		: Off	
2. Press the ▲ or ▼ button to select "Light Effect", then press the					PIP	Move	Enter	
								Return
	ENTER	button.				Move	Enter	Return
3. Press the ▲ or ▼ button to select "Off", "In Standby", "In
	Watching TV" or "Always".
	Press the ENTER button.
	♦ Off: LED will not come on.						LED
	♦ In Standby: Turns the LED on in standby mode.

♦In Watching TV: Turns the LED on while watching TV.

♦Always: LED is always on.

Set the "Light Effect" to "Off" to reduce the power consumption.

4.Press the EXIT button to exit.

Melody / Entertainment / Energy Saving

1.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the

ENTER button.

2.Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.

3.When you are satisfied with your setting, press the ENTER button.

4.Press the EXIT button to exit.

TV	Mode		: Custom	
	Equalizer		Setup	
	Plug & Play		: Off	
	SRS TS XT			
	Language		:English	
	Auto Volume		: Off	
	Time		: Off	
	Internal Mute			
	Light Effect		: In Watching TV 
	Reset			
	Auto Wall-Mount		:Off
	Melody			
	Entertainment		: Off	
	Energy Saving		: Off	
	PIP	Move	Enter	
				Return
		Move	Enter	Return

♦Melody: Off/Low/Medium/High

The TV power on/off melody sound can be adjusted.

The Melody does not play

−When no sound is output from the TV because the MUTE button has been pressed.

−When no sound is output from the TV because the - (Volume) button has been pressed.

−When the TV is turned off by the Sleep Timer function.

English - 25

♦ Entertainment: Off/Sports/Cinema/Game

The “Entertainment” mode enables you to select the optimal display and sound for sports, cinema and games.

− Off: Switch the "Entertainment" function off.

− Sports: Provides the optimal picture and sound quality for sports. You can enjoy more thrilling colour and sound.

− Cinema: Provides the optimal picture and sound quality for cinema. You can experience a richer picture and enhanced sound.

− Game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV.

If you set any of the three “Entertainment” modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the “Entertainment” mode must be turned off.

The “Entertainment” settings are saved for each input source.

If you set any of the three “Entertainment” modes to On, “SRS TS XT” function is not available.

You can press the E.MODE button on the remote control repeatedly to change the “Entertainment” setting.

♦Energy Saving: Off/Low/Medium/High/Auto

This feature adjusts the screen brightness depending on the surrounding lighting conditions.

−Off: Turns off the energy saving function.

−Low: Sets the TV to low energy saving mode.

−Medium: Sets the TV to medium energy saving mode.

−High: Sets the TV to high energy saving mode.

−Auto: Automatically adjusts the brightness of the TV screen in accordance with the scenes.

Easy Setting

1.Press the TOOLS button on the remote control.

2.Press the ▲ or ▼ button to select “Energy Saving”.

3.Press the ◄ or ► button to select the "Off", "Low", "Medium",

"High" or "Auto".

4.Press the EXIT or TOOLS button to exit.

	Tools
Anynet+ (HDMI-CEC)
Picture Mode	: Standard
Sound Mode	:	Custom
Sleep Timer	:	Off
SRS TS XT	:	Off
Energy Saving	◄	Off	►
Dual l-ll	:	Mono
Move	Adjust		Exit

English - 26

Selecting the Source

You can select among external sources connected to your TV’s input jacks.

1.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Input", then press the

ENTER button.

2.Press the ENTER button again, to select "Source List".

When no external device is connected to your set, only "TV",

"Ext.1", "Ext.2" are activated in the "Source List".

"AV", "S-Video", "Component", "PC", "HDMI1", "HDMI2","HDMI3" are activated only when they are connected to your set.

3.Select the required device by pressing the ▲ or ▼ button.

Press the ENTER button.

TV	Mode	: Custom	
	Equalizer	Input	
		: TV
	Source List		
	SRS TS XT	: Off	
	Edit Name	: Off	
	Auto Volume		
	Anynet+(HDMI-CEC)		
	Internal Mute	: Off
	WISELINK
	Reset
	Move	Enter	Return
	Move	Enter	Return

		Mode	: Custom
TV					
		Equalizer	Source List		
		TV	: Off		
		SRS TS XT
		Ext.1	: ----		
		Auto Volume	: Off
		Ext.2	: ----		
		Internal Mute	: Off
		AV	: ----
		Reset	: ----
		S-Video
		Component	: ----
		PC	: ----
		sMore	Enter	Return
		Move
		Move	Enter	Return

Press the SOURCE button on the remote control to toggle between all the available source.

TV mode can be selected by pressing the TV button, number buttons(0~9), and the P</> button on the remote control.

You can also watch HDMI mode simply by pressing the HDMI button on the remote control.

Editing the Input Source Names

Name the device connected to the input jacks to make your input source selection easier.

1.Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Input", then press the

ENTER button.

2.Press the ▲ or ▼ button to select "Edit Name", then press the

ENTER button.

3.Press the ▲ or ▼ button to select the device that you wish to edit.

Press the ENTER button.

4.Press the ▲ or ▼ button to select the required device.

Press the ENTER button.

5.Press the EXIT button to exit.

When a PC with a resolution of 1920 x 1080@60Hz is connected to the HDMI IN 2 port, you should set the "HDMI2" mode to "PC" in the "Edit Name" of the "Input" mode.

TV	Mode	: Custom	
	Equalizer	Input	
		: TV
	Source List		
	SRS TS XT	: Off	
	Edit Name	: Off	
	Auto Volume		
	Anynet+(HDMI-CEC)		
	Internal Mute	: Off
	WISELINK
	Reset
	Move	Enter	Return
	Move	Enter	Return

TV	Mode	: Custom		
	Equalizer	Edit Name		
		:	----
	Ext.1
	SRS TS XT	:	VCR
	Ext.2	:
	Auto Volume	:	DVD
	AV	:
	Internal Mute	:	Cable STB
	S-Video	:
	Reset	:	Satellite STB
	Component
	PC	:	PVR STB
			AV Receiver
	HDMI1	:	s
	HDMI2	:
				Return
	Move	Enter
	HDMI3	: ----
	Move	Enter		Return

English - 27

Setting up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases.

(If not, contact your computer manufacturer or Samsung Dealer.)

1.First, click on "Control Panel" on the Windows start menu.

2.When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear.

3.When the control panel window appears, click on "Display" and a display dialog-box will appear.

4.Navigate to the "Settings" tab on the display dialog-box. The correct size setting (resolution): Optimum1920 X 1080

If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended.

D-Sub Input

	Mode	Resolution	Horizontal	Vertical	Pixel Clock	Sync Polarity
			Frequency (kHz)	Frequency (Hz)	Frequency (MHz)	(H/V)
	IBM	640 x 350	31.469	70.086	25.175	+ / -
		720 x 400	31.469	70.087	28.322	- / +
		640 x 480	31.469	59.940	25.175	- / -
		640 x 480	37.861	72.809	31.500	- / -
		640 x 480	37.500	75.000	31.500	- / -
		800 x 600	37.879	60.317	40.000	+ / +
		800 x 600	48.077	72.188	50.000	+ / +
	VESA	800 x 600	46.875	75.000	49.500	+ / +
		1024 x 768	48.363	60.004	65.000	- / -
		1024 x 768	56.476	70.069	75.000	- / -
		1024 x 768	60.023	75.029	78.750	+ / +
		1280 x 1024	63.981	60.020	108.000	+ / +
		1280 x 1024	79.976	75.025	135.000	+ / +
		1360 x 768	47.712	60.015	85.500	+ / +
		1600 x 1200	75.000	60.000	162.000	+ / +
	CVT	1920 x 1080RB	66.587	59.934	138.500	+ / -

HDMI/DVI Input

	Mode	Resolution	Horizontal	Vertical	Pixel Clock	Sync Polarity
			Frequency (kHz)	Frequency (Hz)	Frequency (MHz)	(H/V)
		640 x 480	31.469	59.940	25.175	- / -
		800 x 600	37.879	60.317	40.000	+ / +
	VESA	1024 x 768	48.363	60.004	65.000	- / -
		1280 x 1024	63.981	60.020	108.000	+ / +
		1360 x 768	47.712	60.015	85.500	+ / +
		1600 x 1200	75.000	60.000	162.000	+ / +
	CEA	1920 x 1080p	67.500	60.000	148.500	+ / +

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG is not supported.

Too long or low quality VGA cable can cause picture noise at high resolution modes (1920x1080 or 1600x1200).

English - 28
