TYPE SUP021YADR
FOR HOUSEHOLD USE ONLY
24
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed to reduce the risk of fire, electric shock, and/or injury to persons, including
the following:
1 Read all instructions and information in this instruction book and any other
literature included in this carton referring to this product before operating or using
this appliance.
2 Do not touch hot surfaces. Use handles or knobs.
3 To protect against fire, electric shock and personal injury do not immerse cord,
plugs or appliance in water or other liquid.
4 Close supervision is necessary when any appliance is used by or near children.
5 Unplug from outlet when not in use and before cleaning. Allow to cool before
putting on or taking off parts, and before cleaning the appliance.
6 Do not operate any appliance with a damaged cord or plug or after the appliance
malfunctions or has been damaged in any way. Return appliance to the nearest
authorized service centre for examination, repair or adjustment.
7 The use of accessory attachments not recommended by the appliance manufacturer
may result in fire, electric shock or personal injury.
8 Do not use outdoors.
9 Do not let cord hang over edge of table or counter, or touch hot surfaces.
10 Do not place on or near a hot gas or electric burner, or in a heated oven.
11 Always turn appliance “OFF”, then plug cord into the wall outlet. To disconnect,
turn switch to “OFF”, then remove plug from wall outlet.
12 Do not use appliance for other then intended household use.
13 Use extreme caution when using hot steam.
SAVE THESE INSTRUCTIONS
CAUTION
This appliance is for household use. Any servicing, other than cleaning and user
maintenance, should be performed by an authorized service centre. Do not immerse
base in water. To reduce the risk of fire or electric shock, do not disassemble the base.
There are no user serviceable parts inside. Repair should be done by authorized service
personnel only.
1 Check voltage to be sure that the voltage indicated on the nameplate agrees with
your voltage.
2 Never use warm or hot water to fill the water tank. Use cold water only.
3 Keep your hands and the cord away from hot parts of the appliance during
operation.
4 Never clean with scouring powders or hard implements. Simply use a soft cloth
dampened with water.
5 To avoid your coffee maker scaling up, use purified or bottled water.
INSTRUCTIONS FOR THE POWER SUPPLY CORD
A A short power-supply cord is provided to reduce risks of getting tangled up or
tripping over a longer cord.
B Longer extension cords are available and may be used if care is exercised in their use.
C If a long extension cord is used:
1 the marked electrical rating of the extension cord should be at least as great as
the electrical rating of the appliance.
2 if the appliance is of the grounded type, the extension cord should be a
grounding type
3 the cable does not hang from the table to avoid the risk of getting caught up in it.
25
GENERAL INFORMATION
This coffee machine is ideal for preparing espresso coffee either with coffee beans
or preground coffee and also features a device for dispensing steam and hot water.
This elegantly styled machine is designed for household use only. It is not suitable
for continuous professional-type use.
Warning. The manufacturer shall accept no liability for damage or injury
caused by:
• improper use or use for other than the intended purposes;
• repairs carried out by anyone other than an authorised service centre;
• tampering with the power cord;
• tampering with any machine component;
• use of spare parts and accessories other than those supplied by the
manufacturer.
The warranty will be invalidated in such cases.
TO FACILITATE INTERPRETATION
A warning triangle draws attention to the instructions that are important for user safety. Please carefully abide by these instructions to
avoid serious injury!
HOW TO USE THESE OPERATING INSTRUCTIONS
Keep these operating instructions in a safe place and make them available to
anyone else who should use the coffee machine. For further information or an
explanation of problems not completely or sufciently addressed in these instructions, contact an authorised service centre.
TECHNICAL SPECIFICATIONS
• Voltage rating See rating plate on appliance
• Power rating See rating plate on appliance
• Casing material Metal
• Size (w x h x d) (mm) 285 x 375 x 400
• Weight (Kg) 11
• Cord length (mm) 1200
• Control panel Front (Digital)
• Water tank (lit.) 2 - Extractible
• Power supply See rating plate on appliance
• Pump pressure (bars) 15
• Boiler 2 - Stainless steel
• Coffee container capacity (g.) 300 of coffee beans
• Rapid Steam Steam ready in a few seconds
• Grinders Ceramic
• Quantity of ground coffee 6 - 10 g
• Dreg drawer capacity 13
• Safety devices Boiler pressure safety valve
safety thermostat
Subject to engineering and manufacturing changes as warranted by technological
developments.
Machine in conformity with European Directive 89/336/EEC (Italian Legislative
Decree 476 of 04/12/92) concerning electromagnetic compatibility.
ENGLISH
26
SAFETY RULES
IN THE EVENT OF AN EMERGENCY
Immediately unplug the appliance.
THE APPLIANCE MAY ONLY BE USED
- In a closed place.
- To prepare coffee, dispense hot water, froth milk or heat beverages using
steam.
- For household use.
- By adults in full possession of their physical and mental capacities.
NEVER USE THE APPLIANCE
for purposes other than those indicated above to avoid hazards. Never place
any substances in the containers other than those specied in the instruction
manual. When you ll a container, make sure all nearby containers are closed.
Fill the water tank only with fresh drinking water: hot water and/or other liquids
may damage the machine. Do not use carbonated water. The coffee grinder may
be adjusted only while it is running. Do not introduce your ngers or any material
other than coffee beans into the coffee grinder. Before attempting to access the
inside of the coffee grinder, switch OFF the machine and remove the plug from
the electric socket. Do not put coffee beans or instant coffee into the ground coffee
container.
MAINS CONNECTION
Connect the coffee machine to a suitable electric socket. The voltage must match
the voltage specied on the appliance rating plate.
INSTALLATION
- Choose a perfectly level supporting surface. Do not place on a hot surface!
- Maintain a distance of 10 cm from walls and electric or gas burners.
- Do not keep at temperatures below 0 °C; the appliance may be damaged by
freezing.
- The electric socket must be accessible at all times.
- The power cord must not be damaged, secured with clamps, placed on very hot
surfaces etc.
- Do not let the power cord hang loosely (Warning: danger of tripping or of
causing the appliance to fall).
- Do not use the power cord to carry or pull the coffee machine.
HAZARDS
- The appliance must not be used by children or by individuals unacquainted with
the operating instructions.
- The appliance is dangerous for children. If left unattended it must be
switched off.
- Do not leave the materials used to pack the appliance within children’s reach.
- Do not direct a jet of hot steam and/or hot water toward yourself or others:
danger of scalding.
- Do not introduce any objects through the openings in the appliance (Electrical
hazard!).
- Do not touch the plug when your hands or feet are wet. Do not unplug the
appliance by yanking at the power cord.
- Warning: contact with hot water, steam or and hot water/steam nozzle may
cause burns.
FAULTS
- Do not use the appliance if it malfunctions or you suspect damage, e.g.
after a fall.
- Repairs must be performed by an authorised service centre.
- Do not use an appliance with a defective power cord. The cord may be replaced
exclusively by a service centre (Electrical hazard!).
- Switch off the appliance before opening the service door. Danger of burns!
CLEANING / DESCALING
- Before cleaning the appliance, unplug it and allow it to cool down.
- Avoid exposing the appliance to splashes of water. Do not immerge it in water.
- Do not dry machine components in a conventional or microwave oven.
SPARE PARTS
To guarantee safety, you should use only original spare parts and accessories.
DISPOSAL
- The packing materials can be recycled.
- Appliance: unplug the appliance and cut the power cord.
- Deliver the appliance and power cord to a service centre or public waste
disposal facility.
COMPONENT DESCRIPTION
27
Coffee bean container
Cup heater plate
Preground coffee
dispenser lid
Control panel
Service door
SBS
Height and depth
adjustable brew unit
Drip tray + grill
Tray full indicator
Dregs drawer
Brew group
Swivel base
Coffee bean container lid
Water tank lid
LCD Display
Water tank
Steam knob
ON/OFF switch
Hot water/
steam tube
Grind adjustment knob
Coffe container opening button
Cleaning
brush
Water hardness
test
Cartridge lter
applicator
TOUCH-SCREEN keys.
Different commands are associated with
these keys depending on what appears
on the LCD display. A light nger pressure will make the selected command
active; the command is then con rmed
by a sound signal.
Brew group key
Preground
coffee measure
“Aqua Prima”
cartridge lter
ENGLISH
28
INSTALLATION / VENTILATE

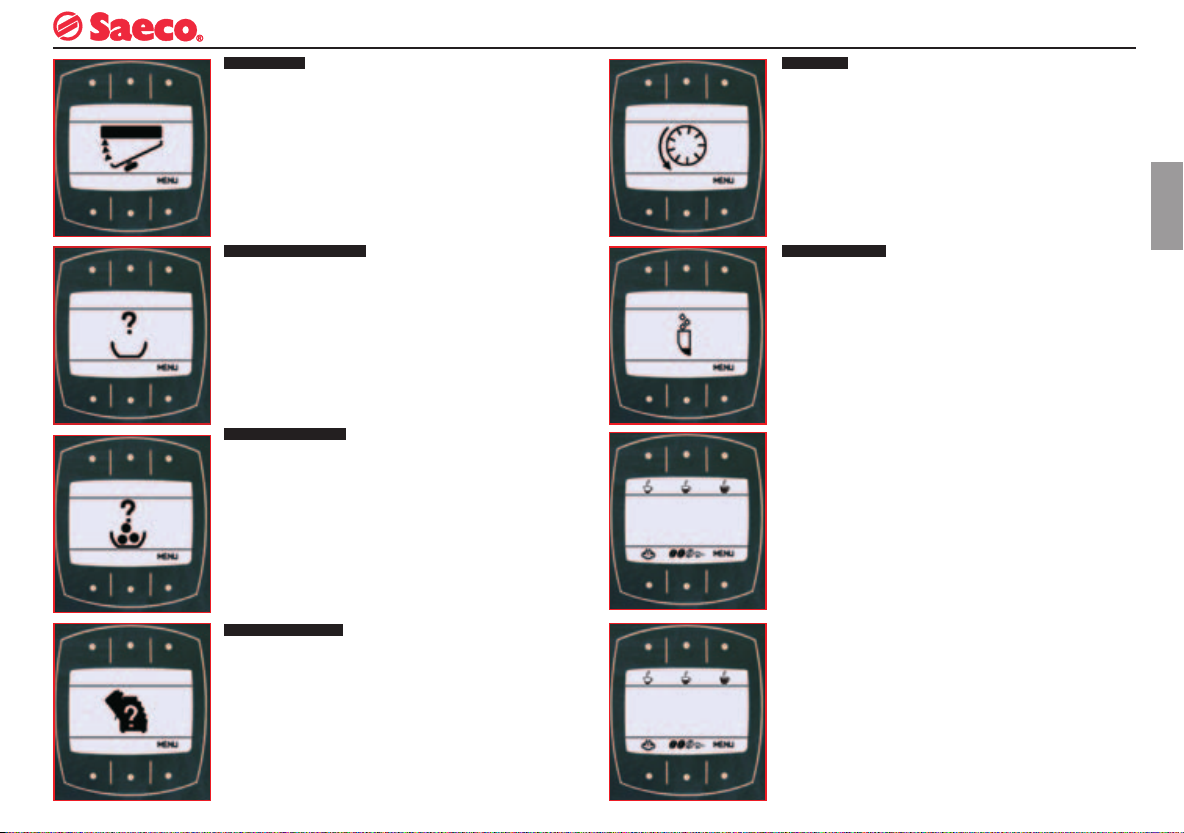

The messages displayed by the machine during operation are shown
on pg.43.
Fill the coffee bean container
with coffee beans.
VENTILATE
A message is displayed
indicating that the machine
circuit needs loading.
The “Aqua Prima” lter can
be installed (see pg.33).
Place a container beneath
the steam tube.
Turn the knob counterclockwise to start loading the
circuit.
Important warning for using the “Aqua Prima Filter” can be found at
page 44.
Fill the tank with fresh drinking water.
SELECT PRODUCT
READY FOR USE
See rating plate
Insert the plug into a suitable electric socket.
HOT WATER
VENTILATE
Wait until a steady stream
of water ows out from the
nozzle.
Note: You must load the circuit before starting
up the machine for the first time, if it has been
inoperative for a lengthy period or if the water
tank has been completely emptied. Moreover,
the circuit must be loaded every time the
message “VENTILATE” is displayed.
Move the ON/OFF switch
to “I” to turn on the
machine.
HOT WATER
A message is displayed
indicating that the machine
circuit has been loaded.
Turn the knob clockwise
to terminate the circuitloading process.
Remove the container. The machine is ready for
use.
ADJUSTMENT
COFFEE GRINDER
The neness of the grind may be
adjusted using the knob.
Coffee ows out more
slowly. Press and turn.
Coffee ows out more
quickly. Press and turn.
ADJUSTMENTS
Adjustment may be made only while the coffee grinder is
operating.
Use coffee bean blends for espresso coffee makers. If you do not obtain
the desired result, try using different coffee blends. Store coffee in a cool
place, in a hermetically sealed container.
You will note a change after dispensing 1 - 2 coffees.
If you set the grinder on too ne a grind (knob turned all the way
anticlockwise) and the SBS control on “strong” (toward the right), coffee
may ow out in a slow trickle or not at all.
29
ENGLISH
COFFEE DOSE ADJUSTMENT - You must adjust the dose before dispensing coffee.
This adjustment will have an immediate effect on the coffee brewed.
SELECT PRODUCT
READY FOR USE
ADJUSTMENT
COFFEE DOSE
You can adjust the quantity
SELECT PRODUCT
READY FOR USE
Stronger coffee.
SELECT PRODUCT
READY FOR USE
Weaker coffee.
of coffee to be ground.
To adjust the strength and consistency of brewed coffee. The adjustment can also be made while
brewing the coffe. This adjustment will have an immediate effect on the coffee brewed.
SBS
Espresso coffee
Strong black coffeeCafé crème
BIG CUPS
To place the brew unit again in its position, pull it until it ts in.
BIG CUPS
To use big cups, press the button and push the brew
unit until the end.
COFFEE IN CUPS
To adjust the quantity of coffee dispensed to the size of your cups.
Place a cup beneath
Or
1 SMALL COFFEE
PROGRAM. QUANTITY
COFFEE IN CUPS
lled to the desired level, release the button; the machine is now
programmed to dispense the quantity of coffee you have chosen.
the brew unit, press the
button corresponding
to the type of coffee
desired and keep it
pressed while coffee
is being dispensed.
When the cup has
30
DISPENSING COFFEE / HOT WATER
Warning! Hot water and steam may cause burns! Direct the steam tube toward the drip tray.
Before dispensing hot water, check on the display that the function has been selected.
SELECT PRODUCT
READY FOR USE
COFFEE BEANS
Make sure that the machine is ready.
PREGROUND COFFEE
Position a warm coffee cup
beneath the brew unit.
HOT WATER
Position a warm coffee
cup or cups beneath the
brew unit.
SELECT PRODUCT
PREGROUND COFFEE
Press the key one or
more times to select the
function.
SELECT PRODUCT
READY FOR USE
Or
1 SMALL COFFEE
Press the button of the
type of coffee desired.
Once for 1 coffee
Introduce ground coffee
using the coffee measure.
MAX 1 MEASURE
Close the cover.
HOT WATER
Or
2 SMALL COFFEES
Twice for 2 coffees. When the machine stops
making the coffee, remove
the cup or cups.
Or
1 SMALL COFFEE
PREGROUND COFFEE
Press the button of the
type of coffee desired.
When the machine stops
making the coffee, remove
the cup.
SELECT PRODUCT
READY FOR USE
Place a container beneath
the steam tube.
Press the button to
dispense water.
Turn the knob counterclockwise to start dispensing. Close the knob when
nished.
Remove the container. Press the button to restore
the machine to normal
operation.
Loading...
