Roland CUBE 40XL, CUBE 80XL User Manual

Owner’s Manual

Guitar Ampli er

Owner’s Manual

Bedienungsanleitung

Mode d'emploi

Manuale dell'utente

Manual del usuario

Manual do proprietário

Gebruikershandleiding

English

Deutsch

Français

Italiano

Nederlands Português Español

Owner’s Manual

Guitar Amplifier

CUBE-40XL

This is a compact, high-performance DSP guitar amp with 40 W output and a 25 cm (10-inch) speaker.

CUBE-80XL

This is a high-performance DSP guitar amp with 80 W output and a 30 cm (12-inch) speaker.

Two-channel switchable design with JC CLEAN channel and LEAD channel, plus a Solo function (p. 12)

•The JC CLEAN channel delivers clean sounds, and the LEAD channel gives you acoustic, clean, crunch, high-gain, and an original “dyna-amp” sound. A total of ten amp types are provided by the CUBE-40XL, and eleven types are provided by the CUBE-80XL, covering the needs of a wide range of musical styles.

•Use the Solo function to store and recall the sound settings you create. This is a great way to switch between backing sounds and solo sounds while you perform.

•Foot switch (optional) can be used to switch EFX/SOLO on and off

Composite Object Sound Modeling (COSM) is Roland’s innovative and powerful sound modeling technology. COSM analyzes the many factors that make up the original sound, such as the electrical and physical characteristics of the original, and then produces a digital model that can reproduce the same sound.

English

Deutsch

Français

Looper function lets you record, play back, and overdub the phrases you perform (p. 14)

•You can record a phrase you play, and then enjoy performing with that phrase as your backing. Maximum recording time is approximately 80 seconds.

“EFX” provides five types of e ects, plus independent reverb and delay (p. 6, p. 7)

•Onboard EFX section includes 5 types of digital effect, CHORUS, FLANGER, PHASER, TREMOLO, and HEAVY OCTAVE.

•You can use a foot switch (optional) to turn EFX, delay, and reverb on/off..

Equipped with an AUX IN jack, which is convenient for your practice sessions (p. 9)

• Use this to play along with sounds from CD players and digital audio players.

Before using this unit, carefully read the sections entitled: “IMPORTANT SAFETY INSTRUCTIONS” (inside front cover), “USING THE UNIT SAFELY” (p. 2), and “IMPORTANT NOTES” (p. 3). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, Owner’s manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

Copyright © 2010 ROLAND CORPORATION

All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION Roland is a registered trademark of Roland Corporation in the United States and/or other countries

Italiano

Nederlands Português Español

USING THE UNIT SAFELY

AboutWARNING and CAUTION Notices

Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.

Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly.

* Material damage refers to damage or other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.

About the Symbols

The symbol alerts the user to important instructions or warnings.The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger.

The symbol alerts the user to items that must never be carried out (are forbidden).The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.

The symbol alerts the user to things that must be carried out.The specific thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the power-cord plug must be unplugged from the outlet.

WARNING

(for CUBE-80XL only)

Connect mains plug of this model to a mains socket outlet with a protective earthing connection.

Do not open or perform any internal modifications on the unit.

Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page.

Never install the unit in any of the following locations.

•Damp (e.g., baths, washrooms, on wet floors); or are

•Exposed to steam or smoke; or are

•Subject to salt exposure; or are

•Humid; or are

•Exposed to rain; or are

•Dusty or sandy; or are

•Subject to high levels of vibration and shakiness.

Make sure you always have the unit placed so it is level and sure to remain stable. Never place it on stands that could wobble, or on inclined surfaces.

The unit should be connected to a power supply only of the type described as marked on the rear side of unit.

Do not excessively twist or bend the power cord, nor place heavy objects on it. Doing so can damage the cord, producing severed elements and short circuits. Damaged cords are fire and shock hazards!

This unit, either alone or in combination with an amplifier and headphones or speakers, may be capable of producing sound levels that could cause permanent hearing loss. Do not operate for a long period of time at a high volume level, or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should immediately stop using the unit, and consult an audiologist.

Do not place containers containing liquid on this product. Never allow foreign objects (e.g., flammable objects, coins, wires) or liquids (e.g., water or juice) to enter this product. Doing so may cause short circuits, faulty operation, or other malfunctions.

ALWAYS OBSERVE THE FOLLOWING

WARNING

CAUTION

Immediately turn the power off, remove the power cord from the outlet, and request servicing by your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page when:

•The power-supply cord or the plug has been damaged; or

•If smoke or unusual odor occurs

•Objects have fallen into, or liquid has been spilled onto the unit; or

•The unit has been exposed to rain (or otherwise has become wet); or

•The unit does not appear to operate normally or exhibits a marked change in performance.

In households with small children, an adult should provide supervision until the child is capable of following all the rules essential for the safe operation of the unit.

Protect the unit from strong impact. (Do not drop it!)

(for CUBE-80XL only)

A small amount of heat will radiate from the unit during normal operation. Do not use the unit in an area with less than the air space shown below.

Front

Side

30 cm (12 in.)

15 cm (6 in.)

5 cm (2 in.)

or greater

or greater

or greater

20 cm (8 in.)	20 cm (8 in.)
or greater	or greater

Do not force the unit’s power-supply cord to share an outlet with an unreasonable number of other devices. Be especially careful when using extension cords—the total power used by all devices you have connected to the extension cord’s outlet must never exceed the power rating (watts/amperes) for the extension cord. Excessive loads can cause the insulation on the cord to heat up and eventually melt through.

Before using the unit in a foreign country, consult with your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page.

The unit should be located so that its location or position does not interfere with its proper ventilation.

Always grasp only the plug on the power-supply cord when plugging into, or unplugging from an outlet.

At regular intervals, you should unplug the power plug and clean it by using a dry cloth to wipe all dust and other accumulations away from its prongs. Also, disconnect the power plug from the power outlet whenever the unit is to remain unused for an extended period of time. Any accumulation of dust between the power plug and the power outlet can result in poor insulation and lead to fire.

Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.

Never climb on top of, nor place heavy objects on the unit.

Never handle the power cord or its plug with wet hands when plugging into, or unplugging from, an outlet.

Before moving the unit, disconnect the power plug from the outlet, and pull out all cords from external devices.

Before cleaning the unit, turn off the power and unplug the power cord from the outlet (p. 7).

Whenever you suspect the possibility of lightning in your area, pull the plug on the power cord out of the outlet.

The cooling vents on the rear side of the unit may become hot, so take care to avoid burns.

Do not remove the speaker grille and speaker by any means. Speaker not user replaceable. Shock hazardous voltages and currents are present inside the enclosure.

2

IMPORTANT NOTES

Power Supply

•Do not connect this unit to same electrical outlet that is being used by an electrical appliance that is controlled by an inverter (such as a refrigerator, washing machine, microwave oven, or air conditioner), or that contains a motor. Depending on the way in which the electrical appliance is used, power supply noise may cause this unit to malfunction or may produce audible noise. If it is not practical to use a separate electrical outlet, connect a power supply noise filter between this unit and the electrical outlet.

•Before connecting this unit to other devices, turn off the power to all units. This will help prevent malfunctions and/or damage to speakers or other devices.

•Although the LEDs are switched off when the POWER switch is switched off, this does not mean that the unit has been completely disconnected from the source of power. If you need to turn off the power completely, first turn off the POWER switch, then unplug the power cord from the power outlet. For this reason, the outlet into which you choose to connect the power cord’s plug should be one that is within easy reach and readily accessible.

Placement

•Using the unit near power amplifiers (or other equipment containing large power transformers) may induce hum. To alleviate the problem, change the orientation of this unit; or move it farther away from the source of interference.

•This device may interfere with radio and television reception. Do not use this device in the vicinity of such receivers.

•Noise may be produced if wireless communications devices, such as cell phones, are operated in the vicinity of this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience such problems, you should relocate such wireless devices so they are at a greater distance from this unit, or switch them off.

•Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Also, do not allow lighting devices that normally are used while their light source is very close to the unit (such as a piano light), or powerful spotlights to shine upon the same area of the unit for extended periods of time. Excessive heat can deform or discolor the unit.

•When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.

•Do not allow rubber, vinyl, or similar materials to remain on this unit for long periods of time. Such objects can discolor or otherwise harmfully affect the finish.

•Do not paste stickers, decals, or the like to this instrument. Peeling such matter off the instrument may damage the exterior finish.

•Depending on the material and temperature of the surface on which you place the unit, its rubber feet may discolor or mar the surface. You can place a piece of felt or cloth under the rubber feet to prevent this from happening. If you do so, please make sure that the unit will not slip or move accidentally.

•Do not put anything that contains water (e.g., flower vases) on this unit. Also, avoid the use of insecticides, perfumes, alcohol, nail polish, spray cans, etc., near the unit. Swiftly wipe away any liquid that spills on the unit using a dry, soft cloth.

Maintenance

•For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.

•Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.

Repairs and Data

•Please be aware that unit settings or the contents of the solo function stored in memory may be lost when the unit is sent for servicing. Important data should always be written down on paper. Roland assumes no liability with respect to recovery of any lost data.

Additional Precautions

•Please be aware that unit settings or the contents of the solo function stored in memory can be irretrievably lost as a result of a malfunction or the improper operation of the unit. To protect yourself against the risk of losing important data, we recommend that you periodically write down on paper any important data you have stored in the unit’s memory.

•Roland Corporation assumes no liability with respect to recovery of any lost unit settings or contents of the solo function stored in memory.

•Use a reasonable amount of care when using the unit’s buttons, sliders, or other controls; and when using its jacks and connectors. Rough handling can lead to malfunctions.

•When connecting / disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable’s internal elements.

•A small amount of heat will radiate from the unit during normal operation.

•To avoid disturbing your neighbors, try to keep the unit’s volume at reasonable levels. You may prefer to use headphones, so you do not need to be concerned about those around you.

•When you need to transport the unit, package it in the box (including padding) that it came in, if possible. Otherwise, you will need to use equivalent packaging materials.

•Some connection cables contain resistors. Do not use cables that incorporate resistors for connecting to this unit. The use of such cables can cause the sound level to be extremely low, or impossible to hear. For information on cable specifications, contact the manufacturer of the cable.

•No sound is output from this unit’s speaker or any external speaker when the RECORDING OUT/PHONES jack is in use.

•Wrap the power cord around the cord hook when transporting or storing the unit.

•For CUBE-80XL only

When connecting to an external speaker, make sure the speaker conforms to the following specifications.

Impedance: 8 ohms or less

Allowable power input: 80 watts or greater

•For CUBE-80XL only

Only use speaker cable to connect the speaker. Do not use any shielded cable designed for use with guitars.

•For CUBE-80XL only

Do not insert hands, fingers, etc, into the openings in the unit’s rear panel. In particular, if the unit is to used in households with small children, always provide adult supervision to ensure that children keep their hands and feet out of these openings.

Copyright

•Recording, duplication, distribution, sale, lease, performance, or broadcast of copyrighted material (musical works, visual works, broadcasts, live performances, etc.) belonging to a third party in part or in whole without the permission of the copyright owner is forbidden by law.

•Do not use this unit for purposes that could infringe on a copyright held by a third party. We assume no responsibility whatsoever with regard to any infringements of third-party copyrights arising through your use of this unit.

Trademarks

• The product names mentioned in this document are trademarks or registered trademarks of their respective owners, and are not related to Roland Corporation. In this manual, these names are used because it is the most practical way of describing the sounds that are simulated

using COSM technology.

3

English

Deutsch

Français

Italiano

Nederlands Português Español

Panel Descriptions

Control Panel

CUBE-40XL						11			12				13

1	5	2	3		6
CUBE-80XL	11		12	13	14

1

4

5

2

3

6

1.INPUT Jack

Connect your electric guitar here.

2.[SELECT] Switch

Switches between the JC CLEAN and LEAD channels. The indicator shows you which channel is selected.

Channels can be switched using optional BOSS FS-5U, FS-5L or FS-6 foot switches.

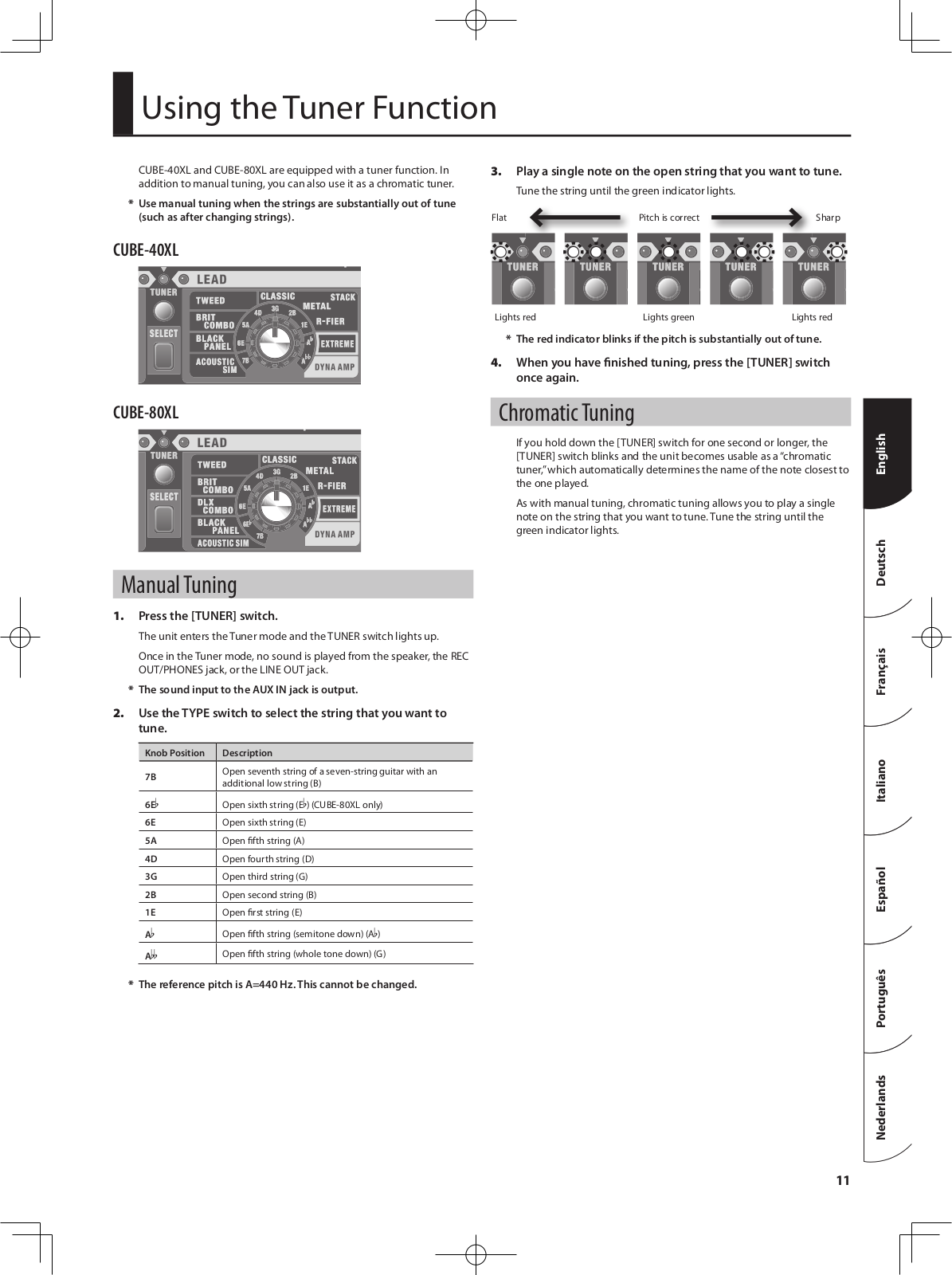

3.[TUNER] Switch

Use this when you want to tune your guitar. When you turn on the switch, it will light red, and you’ll be able to use the Tuner function.

For more detailed information, refer to”Using the Tuner Function”(p. 11)

15		16		17			18	19		20

7	8	9		10	21
15	16	17	18	19	21

7

8

9

10

JC CLEAN Channel

This is a model of Roland’s famous JC-120 Jazz Chorus guitar amplifier. The ultra-clean, ultra-flat sound offers a smooth feel. This amp is ideal for creating sounds in combination with a multi-effects device.

4.[BRIGHT] Switch (CUBE-80XL only)

This makes the mid and high ranges more brilliant, for a crisper sound.

5.[VOLUME] Knob

This adjusts the volume level of the JC CLEAN channel.

As an original function on this unit, this can produce a powerful crunch at volume levels near the maximum.

4

LEAD Channel

6.Type switch

Use this to select the COSM amp type.

If the Tuner function is on, use this to select the string that you’re tuning.

	Type	Description
		This is an original amp type that includes an
		acoustic simulator.
		It transforms the sounds from your electric guitar
		into a clear, refined acoustic-guitar sound.
	ACOUSTIC SIM	Using this type together with a single-coil pickup
		in the front position produces optimal sound
		quality.
		If you’re using humbucker pickups, turn down the
		equalizer’s BASS and MIDDLE controls slightly.
		This is modeled on the classic Fender Twin Reverb
		amplifier.
	BLACK PANEL	It’s used in a wide range of musical styles, from
		country to blues, jazz, and rock.
		It features rich lows and a bright high end.
		This is modeled on the Fender Deluxe Reverb
		amplifier.
	DLX COMBO	This amp finds use in a full range of genres,
		including surf music, blues, country, jazz, soul,
	(CUBE-80XL only)
		and hard rock.
		It features clear, clean tones and sparkling
		overdrive at high volumes.
		This is modeled on the Vox AC-30TB.
	BRIT COMBO	This is the rock amplifier that created the
		Liverpool sound of the 1960s.
		It can produce a broad range of sounds, from
		clean to overdrive.
		This is modeled on the vintage Fender Tweed
		Bassman 4 x 10” Combo.
	TWEED	It produces a clear mid to upper range with a
		fat low end, and its unique crunch tones with
		persistent distortion have earned it a loyal
		following among blues and rock guitarists.
		This is modeled on the features of a Marshall JMP
		1987.
	CLASSIC STACK	Used extensively in hard rock in the 1970s, this
		is truly the perfect amp for the “top rock” guitar
		sound.
		This is modeled on the Peavey EVH 5150.
	METAL STACK	This is a high-gain amp, so you can get heavy
		distortion and sustain even at low volumes.
		This super high-gain amp is modeled on the
		Mesa/Boogie Rectifier.
	R-FIER	This is a super high-gain amp. It’s capable of
		producing slash metal, grunge, and a wide range
		of other lead sounds.
	EXTREME	This original high-gain amp delivers thick lows
		and intense distortion while still preserving the
		sound’s clear definition.

	Type	Description
		This is an original amp type that lets you obtain
		unprecedented tonal changes according to your
		picking dynamics.
		Soft picking produces a transparent clean amp
		sound, whereas hard picking yields a deeply
		distorted high-gain amp sound.
	DYNA AMP	Once the sound is distorted, the tone then
		changes according to the force used in picking,
		greatly expanding your range of expression.
		Setting the [GAIN] knob at the optimal position
		provides maximum effectiveness. Start with the
		[GAIN] knob centered. Then adjust the [GAIN]
		knob so that soft picking yields a clean tone and
		hard picking produces heavy distortion.

*The product names mentioned in this document are trademarks or registered trademarks of their respective owners, and are not

related to Roland Corporation. In this manual, these names are used because it is the most practical way of describing the sounds that are simulated using COSM technology.

7.[GAIN] Knob

This adjusts the distortion level for the LEAD channel.

8.[VOLUME] Knob

This adjusts the volume level for the LEAD channel.

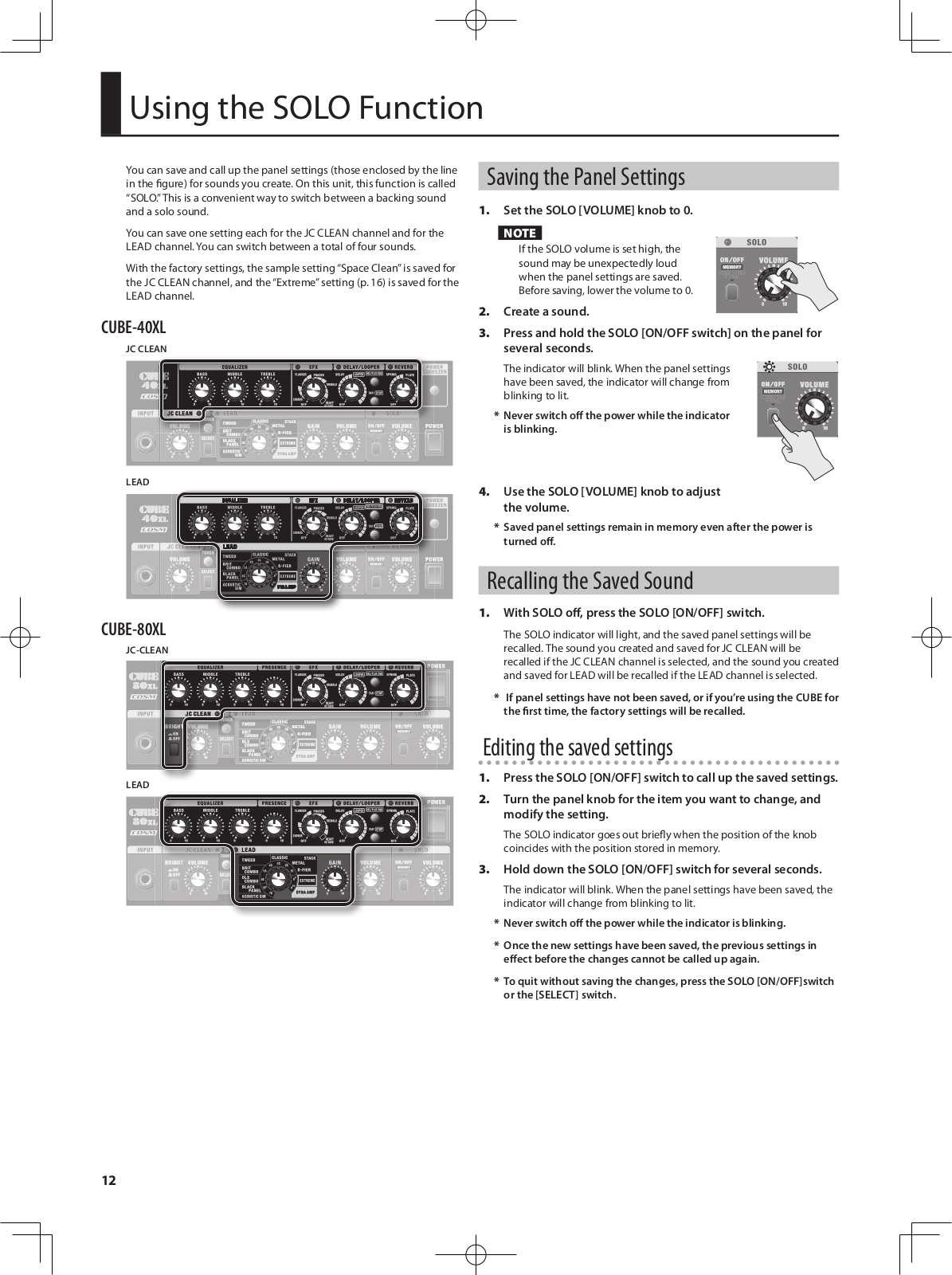

SOLO Function

This lets you save the panel settings for sounds you create (such as amp type, gain, equalizer, and various effects) and call them up later.

On the CUBE-40XL/CUBE-80XL, this function is called “SOLO.” The SOLO function is handy in situations like these:

•When you want to switch the amp type and effect at the same time.

•When you want to switch the equalizer settings and volume level at the same time.

You can store one setting each for the JC CLEAN channel and for the LEAD channel.

9.SOLO [ON/OFF] Switch

This saves panel settings and calls up it.

10.[VOLUME] Knob

This adjusts the volume level for the called-up settings.

*For information on how to use the SOLO function, refer to “Using the SOLO Function”(p. 12)

English

Deutsch

Français

Italiano

Nederlands Português Español

5

EQUALIZER

11.[BASS] Knob

This adjusts the sound level of the low-frequency range.

12.[MIDDLE] Knob

This adjusts the sound level of the middle-frequency range.

13.[TREBLE] Knob

This adjusts the sound level of the high-frequency range.

*When the LEAD channel Type switch is set to BLACK PANEL, DLX COMBO (CUBE-80XL only), or TWEED, setting [BASS] knob, [MIDDLE] knob and [TREBLE] knob all to 0 (zero) stops all sound.

PRESENCE (CUBE-80XL only)

14.[PRESENCE] Knob

This gives the midrange and high end a more lustrous contour. This is effective when you want to make the sound more airy and open.

EFX (E•ects)

15.[EFX] (E ects) Knob

You can adjust the intensity of five types of effects—chorus, flanger, phaser, tremolo, and

heavy octave—by adjusting the positioning of this knob.

The indicator lights up when this is on, and goes out when it’s off. You can also switch this on and off using an optional footswitch pedal.

*The scale indications for CHORUS, FLANGER, PHASER, and TREMOLO on the panel are just a general guide. Be sure to check the actual sound as you adjust the e ect.

	Knob Position	Description
	CHORUS	This adds a slightly detuned sound to the
		original sound, giving the sound greater
		breadth and fullness.
	FLANGER	This creates a flanging effect that creates a
		sort of spinning sensation with the sound.
	PHASER	This adds a phase-shifted signal to the
		original sound, giving the sound a swirling
		sensation.
	TREMOLO	This effect produces cyclical changes in the
		volume level.
		This adds sound lowered by an octave
	HEAVY OCTAVE	to the original sound. Since you can play
		chords even when using this effect, you can
		use it to fatten the sound of your chordal
		playing as well.

DELAY/LOOPER

16. [DELAY/LOOPER] Knob

You can switch to DELAY or the LOOPER function by positioning this knob.

When the knob is at DELAY, this functions as a delay.

When the knob is positioned at LOOPER, this functions as a looper.

The indicator lights up when delay or looper is on and goes out when it’s off.

To use Delay

16.[DELAY/LOOPER] Knob

Set the knob in the DELAY position to turn Delay on. The position of the knob within this range adjusts the volume of the delay sound.

You can also switch delay on and off using an optional footswitch pedal.

*The scale indications for DELAY and LOOPER are just a general guide. Be sure to check the actual sound as you adjust the e ect.

17.[REC/PLAY/DUB] Switch

This will blink in synchronization with the delay time.

You can also use this to specify a short delay time in the range of 90—30 ms.

18.[TAP] Switch

Use this to set the delay time. When you press the switch twice, the delay time will be set to the time interval at which you pressed the switch. The maximum length is 2000 ms.

Setting the Delay Time for Short Delay

If you hold down the switch for one second or longer, the delay time will be set to 30 ms. Each time you then press the [REC/PLAY/DUB] switch, the delay time will change over four steps (30 ms/50 ms/70 ms/90 ms) to a maximum of 90 ms.

* The short delay cannot be set using the foot switch.

To use the Looper function

16.[DELAY/LOOPER] Knob

Set the knob in the Looper range to turn on the Looper function. The position of the knob within this range specifies the Looper function’s playback volume.

17.[REC/PLAY/DUB] Switch

Use this switch to record, play back, and overdub.

18.[STOP] Switch

This switch stops playback or erases the recording.

If the [DELAY/LOOPER] knob is in the LOOPER range, this switch stops the Looper or erases the recording.

*For details on using the Looper function, refer to ”Using the LOOPER” (p. 14)

*When the knob is positioned at LOOPER, no delay e ect is applied. To use the LOOPER and delay simultaneously, refer to”Using the LOOPER Function and Delay at the Same Time” (p. 15)

6

[REVERB]

19. [REVERB] Knob

You can switch between use of two types of reverb by changing the position of the knob. You can adjust the intensity of the effect by varying the knob position.

The indicator lights up when reverb is on and goes out when the effect is off. You can also switch reverb on and off using an optional footswitch pedal.

	Knob Position	Description
		This is modeled on spring reverb.
	SPRING	It produces the distinctive reverberations of a
		spring. Turning the knob clockwise makes the effect
		progressively more intense.
		This is a plate reverb.
	PLATE	This reverb features high-end sustain. Turning the knob
		clockwise makes the effect progressively more intense.

POWER SQUEEZER (CUBE-40XL only)

20.[POWER SQUEEZER] Switch

The switch lights in red when the power squeezer function is on and goes out when the power squeezer is off.

Switching on the Power Squeezer function allows you to reduce the amp’s output to 2 watts.

Switching this on allows you to produce a sound that preserves the same tone and balance at an output of 2 watts, for volume levels that are more suitable for the average home.

*The Power Squeezer function a ects only sounds input through the INPUT jack. It has no e ect on sounds input via the AUX IN jack.

POWER

21.[POWER] Switch

This switches the power on and off.

Switching the Power On and O

*Turn on power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

1.Make sure that all [VOLUME] knobs on the CUBE-40XL/CUBE- 80XL and all the connected devices are set to 0.

2.Turn on all the devices connected to the CUBE-40XL/CUBE- 80XL’s input jacks (INPUT jack and AUX IN jack).

3.Turn on the CUBE-40XL/CUBE-80XL.

*Always make sure to have the volume level turned down before switching on power. Even with the volume all the way down, you may still hear some sound when the power is switched on, but this is normal, and does not indicate a malfunction.

*This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required before the unit will operate normally.

4.Adjust the volume levels for the devices.

5.Before switching o the power, lower the volume on all the connected devices and then TURN OFF the devices in the reverse order to which they were switched on.

*If you need to turn o the power completely, first turn o the POWER switch, then unplug the power cord from the power outlet. Refer to Power Supply (p. 3).

English

Deutsch

Français

Italiano

Nederlands Português Español

7

Rear Panel

	CUBE-40XL	CD Player
	Recorder, etc.	Digital Audio Player etc
		Headphones

Settings for momentary-type foot switches

				FS-6
6	1	2	3	B	A

					FS-5U
RING	TIP	RING	TIP	RING	TIP
					RING	TIP
TAP/STOP		REVERB	EFX	SOLO	CH SELECT
DELAY/REC/PLAY/DUB

Foot switches

CUBE-80XL

Recorder, etc.

Speaker Cable

INPUT

External Speaker

1

2

3

4

6

7

CD Player

Digital Audio Player etc

RING

TIP

RING

TIP

RING

TIP

Headphones

TAP/STOP	REVERB	EFX	SOLO	CH SELECT
DELAY/REC/PLAY/DUB
	Foot switches			Mixer, etc.

*To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn o the power on all devices before making any connections.

8
