Installation Instructions
ControlLogix EtherNet/IP Module
Catalog Number 1756-EN2T
Topic Page
About This Publication 1
Before You Begin 7
Determine Module Slot Location 8
Set the Network Address 9

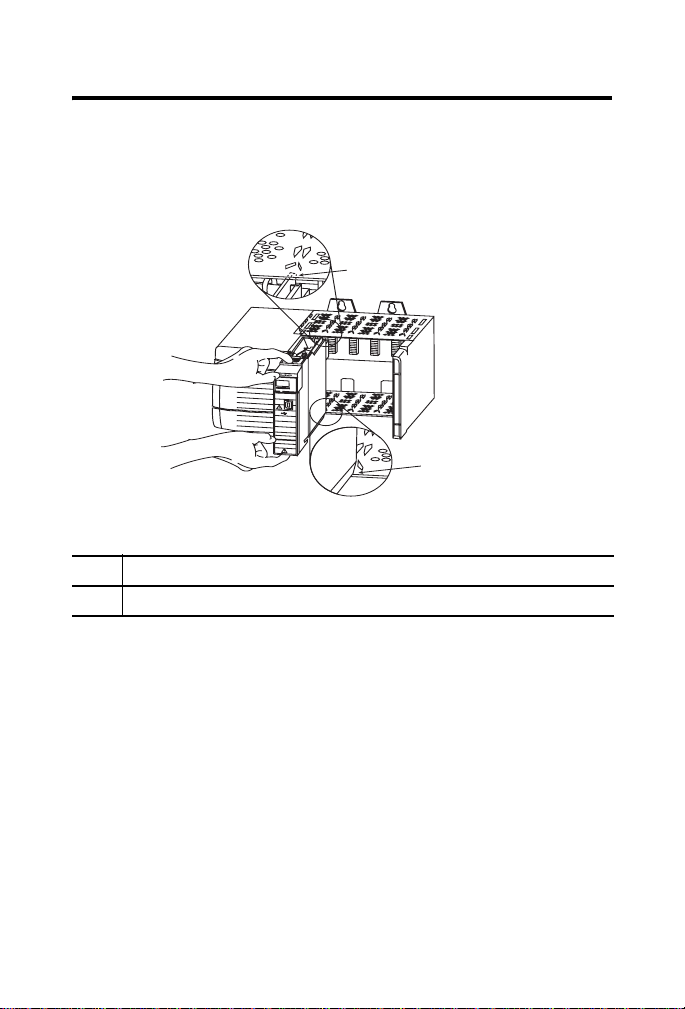

Install the Module 11
Connect the Module to the EtherNet/IP Network 12
Program the Module via the USB Port 14
Configure the Module 15
Apply Chassis Power 15
Check Power Supply and Module Status 16
Install or Remove the Module Under Power 17
Interpret the Status Indicators 19
Specifications 22
About This Publication
Use this publication as a guide to install the module. This publication describes
hardware installation only. For configuration information, refer to the
EtherNet/IP Modules in Logix5000 Control Systems User Manual, publication
ENET-UM001
http://www.rockwellautomation.com/literature.
. View or download this publication at
2 ControlLogix EtherNet/IP Module
T
Important User Information
Solid-state equipment has operational characteristics differing from those of electromechanical
equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls
(Publication SGI-1.1
http://www.rockwellautomation.com/literature/
solid-state equipment and hard-wired electromechanical devices. Because of this difference, and also
because of the wide variety of uses for solid-state equipment, all persons responsible for applying this
equipment must satisfy themselves that each intended application of this equipment is acceptable.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages
resulting from the use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the
many variables and requirements associated with any particular installation, Rockwell Automation, Inc.
cannot assume responsibility or liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits,
equipment, or software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell
Automation, Inc., is prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
available from your local Rockwell Automation sales office or online at
WARNING: Identifies information about practices or circumstances that can cause an
explosion in a hazardous environment, which may lead to personal injury or death,
property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to
personal injury or death, property damage, or economic loss. Attentions help you
identify a hazard, avoid a hazard and recognize the consequences.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, drive or
motor, to alert people that dangerous voltage may be present.
) describes some important differences between
BURN HAZARD: Labels may be on or inside the equipment, for example, drive or
motor, to alert people that surfaces may reach dangerous temperatures.
IMPORTAN
Identifies information that is critical for successful application and understanding
of the product.
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
ControlLogix EtherNet/IP Module 3
North American Hazardous Location Approval
The following information applies
when operating this equipment in
hazardous locations.
Products marked “CL I, DIV 2, GP A, B, C, D” are
suitable for use in Class I Division 2 Groups A, B, C,
D, Hazardous Locations and nonhazardous
locations only. Each product is supplied with
markings on the rating nameplate indicating the
hazardous location temperature code. When
combining products within a system, the most
adverse temperature code (lowest “T” number)
may be used to help determine the overall
temperature code of the system. Combinations of
equipment in your system are subject to
investigation by the local Authority Having
Jurisdiction at the time of installation.
WARNING:
Explosion Hazard -
•Do not disconnect equipment
unless power has been removed
or the area is known to be
nonhazardous.
•Do not disconnect connections to
this equipment unless power has
been removed or the area is
known to be nonhazardous.
Secure any external connections
that mate to this equipment by
using screws, sliding latches,
threaded connectors, or other
means provided with this product.
•Substitution of components may
impair suitability for Class I,
Division 2.
•If this product contains batteries,
they must only be changed in an
area known to be nonhazardous.
Informations sur l’utilisation de cet
équipement en environnements
dangereux.
Les produits marqués "CL I, DIV 2, GP A, B, C, D" ne
conviennent qu'à une utilisation en environnements
de Classe I Division 2 Groupes A, B, C, D dangereux et
non dangereux. Chaque produit est livré avec des
marquages sur sa plaque d'identification qui indiquent
le code de température pour les environnements
dangereux. Lorsque plusieurs produits sont combinés
dans un système, le code de température le plus
défavorable (code de température le plus faible) peut
être utilisé pour déterminer le code de température
global du système. Les combinaisons d'équipements
dans le système sont sujettes à inspection par les
autorités locales qualifiées au moment de
l'installation.
AVERTISSEMENT:
Risque d’Explosion –
•Couper le courant ou s'assurer que
l'environnement est classé non
dangereux avant de débrancher
l'équipement.
•Couper le courant ou s'assurer que
l'environnement est classé non
dangereux avant de débrancher les
connecteurs. Fixer tous les
connecteurs externes reliés à cet
équipement à l'aide de vis, loquets
coulissants, connecteurs filetés ou
autres moyens fournis avec ce
produit.
•La substitution de composants peut
rendre cet équipement inadapté à
une utilisation en environnement de
Classe I, Division 2.
•S'assurer que l'environnement est
classé non dangereux avant de
changer les piles.
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
4 ControlLogix EtherNet/IP Module
Environment and Enclosure
ATTENTION: This equipment is intended for use in a Pollution
Degree 2 industrial environment, in overvoltage Category II
applications (as defined in IEC 60664-1), at altitudes up to 2000 m
(6562 ft) without derating.
This equipment is considered Group 1, Class A industrial
equipment according to IEC/CISPR 11. Without appropriate
precautions, there may be difficulties with electromagnetic
compatibility in residential and other environments due to
conducted and radiated disturbances.
This equipment is supplied as open-type equipment. It must be
mounted within an enclosure that is suitably designed for those
specific environmental conditions that will be present and
appropriately designed to prevent personal injury resulting from
accessibility to live parts. The enclosure must have suitable
flame-retardant properties to prevent or minimize the spread of
flame, complying with a flame spread rating of 5VA, V2, V1, V0 (or
equivalent) if non-metallic. The interior of the enclosure must be
accessible only by the use of a tool. Subsequent sections of this
publication may contain additional information regarding specific
enclosure type ratings that are required to comply with certain
product safety certifications.
In addition to this publication, see:
• Industrial Automation Wiring and Grounding Guidelines, Rockwell
Automation publication 1770-4.1
requirements.
• NEMA Standard 250 and IEC 60529, as applicable, for
explanations of the degrees of protection provided by different
types of enclosure.
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
, for additional installation
Prevent Electrostatic Discharge
ATTENTION: This equipment is sensitive to electrostatic
discharge, which can cause internal damage and affect normal
operation. Follow these guidelines when you handle this
equipment:
• Touch a grounded object to discharge potential static.
• Wear an approved grounding wriststrap.
• Do not touch connectors or pins on component boards.
• Do not touch circuit components inside the equipment.
• Use a static-safe workstation, if available.
• Store the equipment in appropriate static-safe packaging when
not in use.
ControlLogix EtherNet/IP Module 5
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
6 ControlLogix EtherNet/IP Module
About the Module
Use this figure to identify the external features of the module.
1
10
EtherNet/IP
LINK NET OK
10/100 BASE T
TM
9
3
8
4
7
6
5
31587-M
Item Description Item Description
1 Top view 6 Front of module
2 Backplane connector 7 RJ45 cable connector (on
underside of module)
3 Side view 8 USB port
4 MAC ID label
9 Front panel
(on opposite side of circuit board)
5 Bottom view 10 Front view
2
2
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
ControlLogix EtherNet/IP Module 7
Before You Begin
Before you install the module, you must install and connect a ControlLogix
chassis and power supply.
2
20805-M
Item Description Item Description
1 1756-A4 chassis 2 Power supply
To install these products, refer to these publications.
Chassis Type Chassis
Installation
Series B: 1756-A4, 1756-A7,
1756-A10, 1756-A13
Publication
1756-IN080
Power Supply Power Supply
1756-PA72/C Publication
1756-PB72/B
1756-PA75/B Publication
1756-PB75/B
1
Installation
1756-IN078
1756-IN596
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
8 ControlLogix EtherNet/IP Module
Determine Module Slot Location
Install the module in any slot in the ControlLogix chassis. You can install
multiple 1756-EN2T modules in the same chassis. The following figure shows
chassis slot numbering in a four-slot chassis. Slot 0 is the first slot and is always
the leftmost slot in the rack.
1
3
2
4
6
5
20806
Item Description Item Description
1Slot 0 4Slot 3
2Slot 1 5Chassis
3 Slot 2 6 Power supply
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
ControlLogix EtherNet/IP Module 9
Set the Network Address
The module ships with the rotary switches set to 999 and BOOTP enabled. You
can set the network Internet Protocol (IP) address three ways.
• Use the rotary switches on the top of the module.
• Use a BOOTP server or Dynamic Host Configuration Protocol
(DHCP) server, such as Rockwell Automation BOOTP/DHCP.
• Use the Rockwell Automation RSLinx or RSLogix 5000 software.
3
Item Description
1 Top of module
2 Rotary switches
3 Front of module
1
2
31587
The module reads the rotary switches first to determine if they are set to a valid
number for the last portion of the IP address. Valid numbers range from
001…254. When the switches are set to a valid number, the module’s IP address
is 192.168.1.xxx (where xxx represents the number set on the switches). The
module’s subnet mask is 255.255.255.0 and the gateway address is set to 0.0.0.0.
The module does not have a host name assigned, or use any Domain Name
System when using the rotary switch settings.
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
10 ControlLogix EtherNet/IP Module
To reset the module to its initial out-of-the-box settings, reset the switches to
888 and cycle power.
IMPORTANT
Do not use the 888 switch setting during normal module operation.
After cycling power with the switches set to 888, remove the module and set the
switches to their final value. When you set the rotary switches to a value other
than 888, or to the valid IP address values 001…254, the software configuration
determines the IP address.
Determining the Module IP Address
If BOOTP/DHCP is The module
Enabled Asks for an address from a BOOTP/DHCP server. The server also
Not enabled Uses the IP address (along with other TCP configurable parameters)
assigns other Transport Control Protocol (TCP) parameters.
stored in nonvolatile memory.
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
ControlLogix EtherNet/IP Module 11
Install the Module
Follow this procedure to install the module.
1. Align the circuit board with top and bottom guides in the chassis.
1
Item Description
1 Circuit board
2. Slide the module into the chassis.
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
12 ControlLogix EtherNet/IP Module
Make sure that the module backplane connector properly connects to
the chassis backplane.
TIP
The module is properly installed when it is flush with the power supply or
other installed modules.
Connect the Module to the EtherNet/IP Network
WARNING: If you connect or disconnect the communication cable
with power applied to this module or any device on the network,
an electrical arc can occur. This could cause an explosion in
hazardous location installations.
1. Be sure that power is removed or the area is nonhazardous before
proceeding.
2. Attach the RJ45 connector to the Ethernet port on the bottom of the
module as shown.
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
ControlLogix EtherNet/IP Module 13
1
2
Item Description Item Description
1 USB port 2 RJ45 connector (underneath
module)
IMPORTANT
We recommend connecting the module to the network via a
100 MB Ethernet switch, which will reduce collisions and lost
packets and increase network bandwidth. For detailed
EtherNet/IP connection information, see the following
publications:
• EtherNet/IP Performance and Application Guide, publication
ENET-AP001
• EtherNet/IP Media Planning and Installation Guide,
publication ENET-IN001
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
14 ControlLogix EtherNet/IP Module
Program the Module via the USB Port
WARNING: The USB port is intended for temporary local
programming purposes only and is not intended for permanent
connection. If you connect or disconnect the USB cable with power
applied to this module or any device on the USB network, an
electrical arc can occur. This could cause an explosion in
hazardous location installations.
Be sure that power is removed or the area is nonhazardous before
proceeding.
A Samtec Inc. RSP-119350 USB cable is required to maintain
hazardous location certifications.
Be sure that power is removed or the area is nonhazardous before proceeding.
The module has a USB device port that uses a series B receptacle. To use the USB
port, you must have RSLinx software, version 2.51 or later installed on your
computer. Use a USB cable to connect your computer to the USB port. The
connection lets you download programs to controllers and to configure Ethernet
modules directly from your computer.
ATTENTION:
• The USB port is designed for a temporary connection only.
• The USB cable is not to exceed 3.0 m (9.84 ft) and must not
contain hubs.
• To maintain product certification integrity, you must use SAMTEC
cable, part number RSP-119350.
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
ControlLogix EtherNet/IP Module 15
Configure the Module
Follow these steps to configure the module.
1. In RSLogix 5000 software, from the Controller Organizer, select New
Module.
2. Select the module you want to configure.
For more configuration information, refer to the EtherNet/IP Modules in
Logix5000 Control Systems User Manual, publication ENET-UM001
. View or
download this publication at http://www.rockwellautomation.com/literature.
Apply Chassis Power
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
31593-M
16 ControlLogix EtherNet/IP Module
Check Power Supply and Module Status
Check the status indicators and alphanumeric display to determine whether the
power supply and module are operating properly.
LINK NET OK
3
2
1
4
Item Description Item Description
1 OK indicator is red during self-test,
then green
2 LINK status indicator 4 Power supply indicator is green
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
31281-M
3 NET status indicator
ControlLogix EtherNet/IP Module 17
The alphanumeric display should cycle through these states:
• TEST
• PA SS
• OK
• REV x.x
where x.x is the module’s firmware revision.
The display then alternates between OK and the module’s EtherNet/IP address.
Install or Remove the Module Under Power
You can install or remove this module while chassis power is applied.
WARNING: When you insert or remove the module while
backplane power is on, an electrical arc can occur. This could
cause an explosion in hazardous location installations. Be sure
that power is removed or the area is nonhazardous before
proceeding. Repeated electrical arcing causes excessive wear to
contacts on both the module and its mating connector. Worn
contacts may create electrical resistance that can affect module
operation.
1. Push on upper and lower module tabs to disengage them.
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
18 ControlLogix EtherNet/IP Module
2. Slide the module out of the chassis.
IMPORTANT
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
If you want to replace an existing module with an identical one, and you
want to resume identical system operation, you must install the new
module in the same slot.
ControlLogix EtherNet/IP Module 19
Interpret the Status Indicators
If the alphanumeric display and status indicators do not sequence through the
expected states, refer to these tables. The three bi-color (red/green) status
indicators on the module provide diagnostic information about the module and
its connections to the network.
LINK NET OK
3
2
1
4
Item Description Item Description
1 OK indicator is red during self-test,
then green
2 NET status indicator 4 Power supply indicator is green
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
31281-M
3 LINK status indicator
20 ControlLogix EtherNet/IP Module
Status Indicators
Indicator Status Description
NET Off The module is not powered. Verify that there is
Flashing green The module has an IP address, but has no established
Green The module has an IP address and at least one
Red The module is attempting to use an IP address
Link Off The module is not ready to communicate. Verify that
Green The module is ready to communicate.
Flashing green The module is communicating over the network.
chassis power and that the module is completely
inserted into the chassis and backplane.
The module does not have a valid IP address. Make
sure the module has been configured with a valid IP
address.
connections.
established connection.
already in use on the network. Assign a unique IP
address to the module.
the module has power.
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
ControlLogix EtherNet/IP Module 21
Status Indicators
Indicator Status Description
OK Off Verify that the module has 24V DC chassis power and
Flashing green The module is not configured.
Green The module is operating correctly.
Flashing red The module detected a recoverable fault. A
Red The module detected an unrecoverable fault. Cycle
Red and
alphanumeric display
scrolls 'Image
Update Needed'
Flashing red and
green
that the module is completely inserted into chassis
and backplane.
configuration error may have caused the fault. Check
the module configuration. If necessary, reconfigure
the module.
power to the module. If this does not clear the fault,
replace the module.
Update the firmware image. Once the image is
updated, cycle power. If this does not clear the fault,
replace the module.
The module is performing a power-up self-test.
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
22 ControlLogix EtherNet/IP Module
Specifications
Technical Specifications - 1756-EN2T
Attribute 1756-EN2T
Enclosure type rating None (open-style)
Module location Any slot in the ControlLogix chassis
Backplane current 1 A at 5.1V DC
Backplane current 3 mA at 24V DC
Isolation voltage 30V (continuous), Basic Insulation Type, Ethernet to
Power dissipation, max. 5.1 W
Wire size Ethernet connections:
Wiring category 2 - on Ethernet ports
Temperature, surrounding
air
North American temp code Series A: T5
Recommended USB cable
for USB port
USB port USB 1.1
(1)
Use this Conductor Category information for planning conductor routing. Refer to Industrial
Automation Wiring and Grounding Guidelines, publication 1770-4.1.
backplane
No isolation between USB and backplane
Type tested at 510V AC for 60 s
RJ45 connector according to IEC 60603-7, 2 or 4 pair
Category 5e minimum cable according to TIA 568-B.1 or
Category 5 cable according to ISO/IEC 24702
(1)
60 °C (140 °F)
Series B and C: T4A
Samtec cable, PN RSP-119350
USB device
USB series B receptacle
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
Environmental Specifications - 1756-EN2T
Attribute 1756-EN2T
Temperature, operating
• IEC 60068-2-1 (Test Ad, Operating
Cold)
• IEC 60068-2-2 (Test Bd, Operating Dry
Heat)
• IEC 60068-2-14 (Test Nb, Operating
Thermal Shock)
Temperature, nonoperating
• EC 60068-2-1 (Test Ab, Unpackaged
Nonoperating Cold)
• IEC 60068-2-2 (Test Bb, Unpackaged
Nonoperating Dry Heat)
• IEC 60068-2-14 (Test Na, Unpackaged
Nonoperating Thermal Shock)
Relative humidity
• IEC 60068-2-30 (Test Db, Unpackaged
Damp Heat)
Vibration
• IEC 60068-2-6 (Test Fc, Operating)
Shock, operating
IEC 60068-2-27 (Test Ea, Unpackaged
Shock)
Shock, nonoperating
IEC 60068-2-27 (Test Ea, Unpackaged
Shock)
Emissions
• CISPR 11
Immunity, ESD
• IEC 61000-4-2
Immunity, radiated RF
• IEC 61000-4-3
Immunity, EFT/B
• IEC 61000-4-4
Immunity, surge transient
• IEC 61000-4-5
0…60 °C (32…140 °F)
40…85 °C (-40…185 °F)
5…95% noncondensing
2 g @ 10…500 Hz
30 g
50 g
Group 1, Class A
6 kV contact discharges
8 kV air discharges
10V/m with 1 kHz sine-wave 80%AM from
80…2000 MHz
10V/m with 200 Hz 50% Pulse 100%AM at 900
MHz
10V/m with 200 Hz 50% Pulse 100%AM at 1890
MHz
3V/m with 1 kHz sine-wave 80% AM from
2000…2700 MHz
±2 kV at 5 kHz on Ethernet port
±2 kV line-earth(CM) on Ethernet port
ControlLogix EtherNet/IP Module 23
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
24 ControlLogix EtherNet/IP Module
Environmental Specifications - 1756-EN2T
Attribute 1756-EN2T
Immunity, conducted RF
• IEC 61000-4-6
10V rms with 1 kHz sine-wave 80%AM from 150
kHz…80 MHz
Certifications - 1756-EN2T
(1)
Certifications
(when product is
marked)
c-UL-us • UL Listed Industrial Control Equipment, certified for US and
CSA • CSA Certified Process Control Equipment. See CSA File
FM • FM Approved Equipment for use in Class I Division 2 Group
CE European Union 2004/108/EC EMC Directive, compliant with:
C-Tick Australian Radiocommunications Act, compliant with:
EtherNet/IP • ODVA conformance tested to EtherNet/IP specifications
(1)
See the Product Certification link at http://www.ab.com for Declarations of Conformity, Certificates,
and other certification details.
1756-EN2T
Canada. See UL File E65584.
• UL Listed for Class I, Division 2 Group A,B,C,D Hazardous
Locations, certified for U.S. and Canada. See UL File E194810.
LR54689C.
• CSA Certified Process Control Equipment for Class I, Division 2
Group A,B,C,D Hazardous Locations. See CSA File LR69960C.
A,B,C,D Hazardous Locations
• EN 61326-1; Meas./Control/Lab., Industrial Requirements
• EN 61000-6-2; Industrial Immunity
• EN 61000-6-4; Industrial Emissions
• EN 61131-2; Programmable Controllers (Clause 8, Zone A & B)
• AS/NZS CISPR 11; Industrial Emissions
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
ControlLogix EtherNet/IP Module 25
Additional Resources
These documents contain additional information concerning related Rockwell
Automation products.
Resource Description
Industrial Automation Wiring and Grounding
Guidelines, publication 1770-4.1
EtherNet/IP Modules in Logix5000 Control
Systems User Manual, publication
ENET-UM001
EtherNet/IP Performance and Application
Guide, publication ENET-AP001
EtherNet/IP Media Planning and Installation
Guide, publication ENET-IN001
ControlLogix Chassis Installation
Instructions, publication 1756-IN080
ControlLogix Power Supplies Installation
Instructions, publication 1756-IN078
ControlLogix Power Supplies Installation
Instructions, publication 1756-IN596
Open DeviceNet Vendor Association (ODVA)
website, http://www.odva.org
Provides general guidelines for installing a
Rockwell Automation industrial system
Contains information about how to use
EtherNet/IP modules with various
Logix5000 controllers
Provides detailed EtherNet/IP connection
information
Provides detailed EtherNet/IP connection
information
Contains information about how to install a
ControlLogix chassis
Contains information about how to install
ControlLogix power supplies
Contains information about how to install
ControlLogix power supplies
Provides information about implementing
EtherNet/IP technology
You can view or download publications at
http://www.rockwellautomation.com/literature
. To order paper copies of
technical documentation, contact your local Rockwell Automation distributor
or sales representative.
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
26 ControlLogix EtherNet/IP Module
Notes:
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
Notes:
ControlLogix EtherNet/IP Module 27
Rockwell Automation Publication 1756-IN603C-EN-P - April 2010
Rockwell Automation Support
Rockwell Automation provides technical information on the Web to assist you in using its products. At
http://www.rockwellautomation.com/support/
technical and application notes, sample code and links to software service packs, and a MySupport feature
that you can customize to make the best use of these tools.
For an additional level of technical phone support for installation, configuration, and troubleshooting, we
offer TechConnect support programs. For more information, contact your local distributor or Rockwell
Automation representative, or visit http://www.rockwellautomation.com/support/
Installation Assistance
If you experience a problem within the first 24 hours of installation, please review the information that's
contained in this manual. You can also contact a special Customer Support number for initial help in getting
your product up and running.
United States or Canada 1.440.646.3434
Outside United States or
Canada
Use the Worldwide Locator
http://www.rockwellautomation.com/support/americas/phone_en.html
contact your local Rockwell Automation representative.
New Product Satisfaction Return
Rockwell Automation tests all of its products to ensure that they are fully operational when shipped from
the manufacturing facility. However, if your product is not functioning and needs to be returned, follow
these procedures.
United States
Outside United States
Contact your distributor. You must provide a Customer Support case number
(call the phone number above to obtain one) to your distributor to complete
the return process.
Please contact your local Rockwell Automation representative for the return
procedure.
, you can find technical manuals, a knowledge base of FAQs,
.
at
, or
Documentation Feedback
Your comments will help us serve your documentation needs better. If you have any suggestions on how to
improve this document, complete this form, publication RA-DU002
http://www.rockwellautomation.com/literature
Allen-Bradley, ControlLogix, Rockwell Software, Rockwell Automation, and TechConnect are trademarks of Rockwell
Automat ion, Inc.
Trademarks not belonging to R ockwell Automation are property of their respective companies.
Rockwell Otomasyon Ticaret A.Ş., Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: +90 (216) 5698400
.
Publication 1756-IN603C-EN-P - April 2010 PN-74517
Supersedes Publication 1756-IN603B-EN-P - January 2009 Copyright © 2010 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
, available at
Loading...
