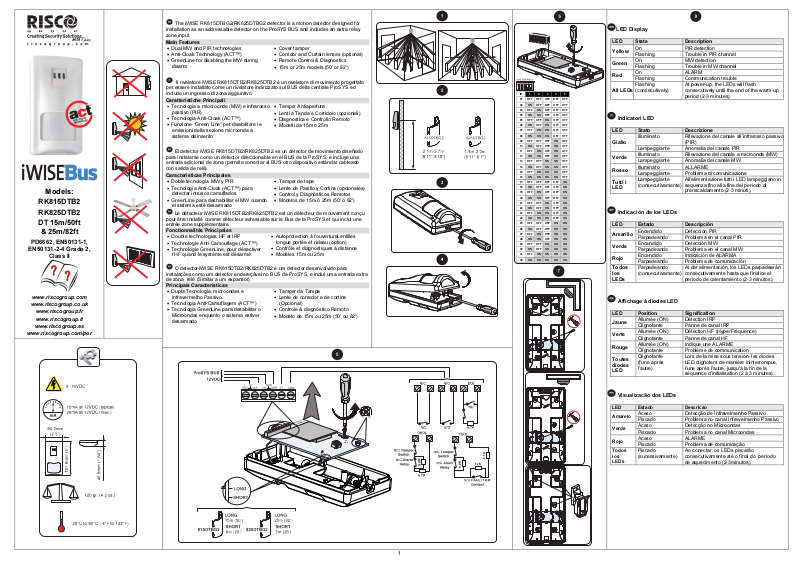

RISCO Group RK815DTBG2 User Manual [en, fr, es]

Models: RK815DTB2 RK825DTB2 DT 15m/50ft
& 25m/82ft
PD6662, EN50131-1,
EN50131-2-4 Grade 2,
Class II
www.riscogroup.com
www.riscogroup.co.uk
www.riscogroup.fr www.riscogroup.it
www.riscogroup.es
www.riscogroup.com/por
The iWISE RK815DTBG2/RK825DTBG2 detector is a motion detector designed for
installation as an addressable detector on the ProSYS BUS and includes an extra relay zone input.
Main Features
Dual MW and PIR technologies
Anti-Cloak Technology (ACT™)
GreenLine for disabling the MW during
disarm
Cover tamper
Corridor and Curtain lenses (optional)
Remote Control & Diagnostics
15m or 25m models (50' or 82')
Il rivelatore iWISE RK815DTB2/RK825DTB2 è un rivelatore di movimento progettato per essere installato come un rivelatore indirizzato sul BUS della centrale ProSYS ed include un ingresso di zona aggiuntivo.
Caratteristiche Principali
Tecnologia a miocroonde (MW) e infrarosso passivo (PIR)
Tecnologia Anti-Cloak (ACT™)
Funzione “Green Line” per disabilitare le
Tamper Antiapertura
Lenti a Tenda e Corridoio (opzionali)
Diagnostica e Controllo Remoto
Modelli da 15m o 25m
emissioni della sezione microonda a sistema disinserito
El detector iWISE RK815DTB2/RK825DTB2 es un detector de movimiento diseñado para instalarse como un detector direccionable en el BUS de la ProSYS, e incluye una entrada adicional de zona (permite conectar al BUS otro dispositivo estándar cableado con salida de relé).
Doble tecnología MW y PIR
Tecnología Anti-Cloak (ACT™) para
detectar intrusos camuflados
GreenLine para deshabilitar el MW cuando
Tamper de tapa
Lente de Pasillo y Cortina (opcionales)
Control y Diagnósticos Remotos
Modelos de 15m ó 25m (50' ó 82')
Características Principales
el sistema esté desarmado
Le détecteur iWISE RK815DTB2/RK825DTB2 est un détecteur de mouvement conçu pour être installé comme détecteur adressable sur le Bus de la ProSYS et qui inclut une entrée zone supplémentaire.
Fonctionnalités Principales
Double technologies HF et IRP
Technologie Anti-Camouflage (ACT™)
Technologie GreenLine, pour désactiver
l’HF quand le système est désarmé
O detector iWISE RK815DTB2/RK825DTB2 é um detector desenvolvido para
Autoprotection à l’ouvertureLentilles longue portée et rideau (option)
Contrôle et diagnostiques à distance
Modèles 15m ou 25m
ID 1 2 3 4 5
01 OFF OFF OFF OFF OFF
02 ON OFF OFF OFF OFF
03 OFF ON OFF OFF OFF
04 ON ON OFF OFF OFF
05 OFF OFF ON OFF OFF
06 ON OFF ON OFF OFF
07 OFF ON ON OFF OFF
08 ON ON ON OFF OFF
09 OFF OFF OFF ON OFF
10 ON OFF OFF ON OFF
11 OFF ON OFF ON OFF
12 ON ON OFF ON OFF
13 OFF OFF ON ON OFF
14 ON OFF ON ON OFF
15 OFF ON ON ON OFF
16 ON ON ON ON OFF
17 OFF OFF OFF OFF ON
18 ON OFF OFF OFF ON
19 OFF ON OFF OFF ON
20 ON ON OFF OFF ON
21 OFF OFF ON OFF ON
22 ON OFF ON OFF ON
23 OFF ON ON OFF ON
24 ON ON ON OFF ON
25 OFF OFF OFF ON ON
26 ON OFF OFF ON ON
27 OFF ON OFF ON ON
28 ON ON OFF ON ON
29 OFF OFF ON ON ON
30 ON OFF ON ON ON
31 OFF ON ON ON ON
32 ON ON ON ON ON
instalações como um detector endereçável no BUS da ProSYS, e inclui uma entrada extra de zona relé (Similar a um expansor).
Principais Características
Dupla Tecnologia, microondas e Infravermelho Passivo.
Tecnologia Anti-Camuflagem (ACT™)
Tecnologia GreenLine para desabilitar o
Microondas enquanto o sistema estiver desarmado
Tamper da Tampa
Lente de corredor e de cortina
(Opcional)
Controle & diagnóstico Remoto
Modelo de 15m ou 25m (50' ou 82')
LED Display
LED State Description
Yellow
Green
Red
All LEDs
On PIR detection Flashing Trouble in PIR channel On MW detection Flashing Trouble in MW channel On ALARM Flashing Communication trouble Flashing (consecutively)
At power-up, the LEDs will flash consecutively until the end of the warm-up period (2-3 minutes).
Indicatori LED
LED Stato Descrizione
Illuminato Rilevazione del canale all’infrarosso passivo
Giallo
(PIR)
Lampeggiante Anomalia del canale PIR
Verde
Rosso
Tutti i LED
Illuminato Rilevazione del canale a microonda (MW) Lampeggiante Anomalia del canale MW Illuminato ALLARME Lampeggiante Problema di comunicazione Lampeggiante (consecutivamente)
All’alimentazione tutti i LED lampeggiano in sequenza fino alla fine del periodo di preriscaldamento (2-3 minuti).
Indicación de los LEDs
LED Estado Descripción
Amarillo
Verde
Rojo
Todos los LEDs
Encendido Detección PIR Parpadeando Problema en el canal PIR Encendido Detección MW Parpadeando Problema en el canal MW Encendido Indicación de ALARMA Parpadeando Problema de comunicación Parpadeando (consecutivamente)
Al dar alimentación, los LEDs parpadearán consecutivamente hasta que finalice el periodo de calentamiento (2-3 minutos).
Affichage à diodes LED
LED Position Signification
Jaune
Verte
Rouge
Toutes diodes LED
Allumée (ON) Détection IRP Clignotante Panne de canal IRP Allumée (ON) Détection HF (HyperFréquence) Clignotante Panne de canal HF Allumée (ON) Indique une ALARME Clignotante Problème de communication Clignotante (l'une après l'autre)
Lors de la mise sous tension, les diodes LED clignotent de manière ininterrompue, l'une après l'autre, jusqu'à la fin de la séquence d'initialisation (2 à 3 minutes).
Visualizacão dos LEDs
LED Estado Descricao
Amarelo
Verde
Rojo
Todos los LEDs
Aceso Detecção de Infravelmenho Passivo Piscado Problema no canal Infravelmenho Passivo Aceso Detecção no Microondas Piscado Problema no canal Microondas Aceso ALARME Piscado Problema de comunicação Piscado (sucessivamante)
Ao conectar, os LEDs piscarão consecutivamente até o final do período de aquecimento (2-3minutos).
1
ProSYS Programming (Ver 7.xx and above):
1. Add/delete an iWISE BUS detector
Installer menu [7] Accessories / Install > [1] Add Delete Module > [9] More.. > [5] BUS Zone. Select ID (as defined by the Dip switches) and define type as iDTG2.
2. Assign the iWISE BUS detector to a Zone
Installer menu [2] Zones > [1] One by One > Select Zone. Under Termination select > [5] BUS Zone. Select the BUS zone number to assign to the programmed zone.
3. Program the zone input on the iWISE BUS
Installer menu [2] Zones > [1] One by One > Select Zone. Under Termination select from options [07] to [11]. Press [#]. Select the BUS zone that the input zone belongs to.
4. Configure the iWISE BUS detector parameters (see table below). Installer menu select [2] Zones > [0] Miscellaneous > [3] BUS Zone Parameters
Parameter Description LEDs Determines the operation of the detector’s LEDs. MW Sensitivity Defines the microwave channel range.
1) Minimum 3) 50% 5) 85%) 7) Trimmer
2) 25% 4) 65% 6) Maximum ACT Defines the Anti-Cloak™ Technology (ACT) operation mode. Automatic
Defines if the detector operates in PIR only mode in case of MW trouble. Microwave Bypass Green Line A feature that follows environmental guidelines by avoiding surplus
emission. This feature defines the activation of the microwave channel
while the system is disarmed. Self Test Used to test the detection technologies. In the event of a failed test, a
Programmazione ProSYS (Versione 7.xx e successive):
1. Aggiungi/cancella un rivelatore BUS iWISE
Self Test Trouble is created.
Menù Tecnico [7] Accessori > [1] Agg./Canc.Modulo > [9] Continua.. > [5] Zone BUS. Selezionare il numero ID (come impostato dai microinterrutori) e definire il tipo come iDTG2.
2. Assegnazione del rivelatore BUS iWISE ad una Zona
Menù Tecnico [2] Zone > [1] Una per Una > Selezionare il numero di zona. Raggiunta l’opzione Terminazione selezionare > [5] Zona BUS. Selezionare il numero ID della zona BUS da assegnare alla zona che si sta programmando
3. Programmazione dell’ingresso di zona aggiuntivo sul rivelatore BUS iWISE
Menù Tecnico [2] Zone > [1] Una per Una > Selezionare il numero di zona. Raggiunta l’opzione Terminazione selezionare una delle opzioni da [07] a [11]. Premere [#]. Selezionare il numero ID della zona BUS che fa riferimento all’ingresso di zona
che si sta programmando.
4. Configurazione dei parametri del rivelatore BUS iWISE (vedi tabella) Nel Menù Tecnico selezionare [2] Zone > [0] Varie > [3] Parametri Zone BUS.
Parametro Descrizione
LED Determina il modo di funzionamento dei LED Portata Microonda Determina la regolazione della portata del canale MW
1) Minima 3) 50% 5) 85%) 7) Trimmer
2) 25% 4) 65% 6) Massima ACT Definisce il modo di funzionamento della Tecnologia Anti-Cloak™ (ACT) Auto Esclusione Microonda (MW)
Stabilisce se il canale a microonda deve essere disabilitato automaticamente se il rilevatore verifica un anomalia di funzionamento sullo stesso.
Green Line La funzione Green Line evita emissioni radio superflue nell’ambiente
quando i locali sono occupati. Questa funzione permette la disabilitazione del canale microonda quando il sistema è disinserito.
Auto Test Utilizzata per testare le tecnologie di rilevazione. Nel caso il test non vada
a buon fine, verrà registrato in centrale un evento di Auto test fallito.
Programación ProSYS (Ver 7.xx y superior):
1. Añadir/Borrar un detector iWISE BUS
Menú Instalador > [7] Accesorios > [1] Agregar/Borrar Módulo > [9] Más... > [5] Zonas BUS Seleccione el ID (según se haya definido con los microinterruptores DIP) y defina el tipo
como iDTG2.
2. Asignar el detector iWISE BUS a una Zona
Menú Instalador > [2] Zonas > [1] Una a Una > Seleccione la Zona En el apartado Terminación, seleccione la opción [05] Zona BUS. Seleccione el ID del detector BUS que se va a asignar a la zona programada.
3. Programar la entrada de zona adicional del IWISE BUS
Menú Instalador > [2] Zonas > [1] Una a Una > Seleccione la Zona. En el apartado Terminación, seleccione una de las opciones de la [07] a la [11]. Presione [#]. Seleccione el ID del detector BUS al que pertenece la entrada de zona.
4. Configuración de los parámetros del detector iWISE BUS (ver tabla).
Menú Instalador > [2] Zonas > [0] Varios > [3] Parámetros Zona BUS.
Opción de programacióDescripción
LEDs Define el modo de funcionamiento de los LEDs Alcance del Microondas Define el alcance del canal microondas
1) Mínimo 3) 50% 5) 85%) 7) Potenciómetro
2) 25% 4) 65% 6) Máximo ACT Define el modo de funcionamiento de la tecnología Anti-Cloak™(ACT). Anulación Automática del Microondas
Define si el detector funcionará sólo en modo PIR en caso de fallo del MW.
Green Line Característica que sigue las directrices medioambientales, evitando
emisiones superfluas. Esta característica define si se activará el canal microondas mientras el sistema está desarmado.
Auto Test Utilizado para probar las tecnologías de detección. Cuando un test falle,
se generará un Problema de Fallo de Test.
Programmation ProSYS (Ver 7.xx et supérieure) :
1. Ajouter/Supprimer un détecteur iWISE BUS
Menu Installateur > [7] Accessoires > [1] Ajout/Suppression Module > [9] Plus... > [5] BUS
Zones.
Sélectionner l’ID (comme défini par les Dip switches) et définir le type sur iDTG2
2. Assigner le détecteur iWISE BUS à une zone
Menu Installateur > [2] Programmation Zones > [1] Une par Une > Sélectionner la zone. Dans la section Nature, sélectionner > [5] Zone-BUS. Sélectionner le numéro ID de zone BUS à assigner à la zone programmée.
3. Programmer l’entrée zone supplémentaire de l’iWISE BUS
Menu Installateur > [2] Programmation Zones > [1] Une par Une > Sélectionner la zone Dans la section Nature, sélectionner de l’option [07] à l’option [11]. Valider par [#]. Sélectionner la zone BUS pour laquelle l’entrée zone supplémentaire est
paramétrée.
4. Configurer les paramètres du détecteur iWISE BUS (voir tableau) Menu Installateur > [2] Programmation Zones > [0] Divers > [3] BUS-Zone Paramètres.
Option de
Description
programmation
LEDS Définit le mode de fonctionnement des LEDs. MW Range (Portée HF)
Définit la portée du canal HyperFréquence.
1) Minimum 3) 50% 5) 85%) 7) Potentiomètre
2) 25% 4) 65% 6) Maximum
Technologie ACT Définit le mode de fonctionnement de la technologie Anti-Cloak™
(ACT – Anti-Camouflage). Isolation MW (HF) Automatique Isolation MW (HF) @ OFF (Désarmement) GreenLine
Définit si le détecteur fonctionnera en mode IRP seul dans le cas
ou il y aurait un défaut HF.
Le GreenLine est une fonctionnalité qui suit les directives
environnementales en supprimant le surplus d’émission. Cette
fonctionnalité définit si le canal HF sera actif quand le système
est désarmé. Self Test (Auto Test) Utilisé pour tester les technologies de détection. Si le test
échoue, un Défaut Auto-test est créé.
Programação da ProSYS (Ver 7.xx ou posterior):
1. Adicionar/Apagar um detector iWISE BUS
Menu do instalador [7] Acessórios > [1] Adicionar / Apagar módulo > [9] Mais.. > [5] Zonas
de BUS.
Selecionar ID (como definido nos Dipswitches) e definir como o tipo iDTG2.
2. Alocar o iWISE BUS à uma zona
Menu do Instalador [2] Zonas > [1] Uma a Uma > Selecionar Zona. No menu de Terminação selecione > [5] Zona de BUS. Selecione o número da zona de BUS para alocar a zona programada.
3. Programação da entrada de zona do IWISE BUS
Menu do instalador [2] Zonas > [1] Uma a uma > Selecionar Zona. No menu de terminação escolha uma das opções de [07] até [11]. Apertar [#]. Escolher a zona de BUS que a entrada de zona pertence.
4. Configurar os parâmetros do detector iWISE BUS (Veja tabela) Selecionar o menu do instalador [2] Zonas > [0] Diversos > [3] Parâmetros de Zonas de
BUS.
Opções de Programação
Descrição
LEDS Habilita/desabilita a operação dos LED´s Alcance de microondas Ajusta o alcance do canal de Microondas
1) Mínimo 3) 50% 5) 85%) 7) Trimmer
2) 25% 4) 65% 6) Máximo
ACT Habilita/desabilita o modo de operação da tecnologia anti-
camuflagem (ACT™). Inibição automática do canal de Microondas
Define se o detector irá operar no modo de Apenas Infravermelho
Passivo em caso de problemas do Microondas. Green Line Uma característica que segue as diretrizes ambientais, evitando
excesso de emissão. Essa característica desabilita a emissão de
microondas enquanto o sistema estiver desarmado. Auto Teste Usado para testar as tecnologias de detecção. Quando existe um
Walk Test
Test Sensore
evento de falha de teste, um evento de teste é criado.
Prueba de detección
Prova de Moviento
Test de marche
2
MW Sensitivity Portata Microonda Alcance del Microondas
Portée HF Alcance de microondas
1
2
xx
FCC Compliance Section (US version):
FCC Part 15 Note:
This equipment has been tested and found to comply with the limits for a Class B
815DTBG2
RK815DTB2
RK815DTB2
815DTBG2
RK825DTB2
825DTBG2
3
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician.
FCC Warning: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.
US Patent Number:
This product is protected under Patent No. US 7,126,476 B2. Other patents pending.
CE Compliance Section (European and German versions):
Risco Ltd. hereby declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For the CE Declaration of Conformity please refer to our website: www.riscogroup.com
Applicable countries (European versions):
AT BE CY CZ DK
EE FI FR DE GR
HU IE IT LV LT
LU MT NL PL PT
SE SL ES SK GB
BG RO TR CH NO
RK815DTB2/RK825DTB2 applicable countries (German Version): AT, CZ, SL, DE, TR, RO, EE
RISCO Group Limited Warranty
RISCO Group and its subsidiaries and affiliates ("Seller") warrants its products to be free from defects in materials and workmanship under normal use for 24 months from the date of production. Because Seller does not install or connect the product and because the product may be used in conjunction with products not manufactured by the Seller, Seller cannot guarantee the performance of the security system which uses this product. Seller's obligation and liability under this warranty is expressly limited to repairing and replacing, at Seller's option, within a reasonable time after the date of delivery, any product not meeting the specifications. Seller makes no other warranty, expressed or implied, and makes no warranty of merchantability or of fitness for any particular purpose. In no case shall seller be liable for any consequential or incidental damages for breach of this or any other warranty, expressed or implied, or upon any other basis of liability whatsoever. Seller's obligation under this warranty shall not include any transportation charges or costs of installation or any liability for direct, indirect, or consequential damages or delay. Seller does not represent that its product may not be compromised or circumvented; that the product will prevent any personal injury or property loss by burglary, robbery, fire or otherwise; or that the product will in all cases provide adequate warning or protection. Buyer understands that a properly installed and maintained alarm may only reduce the risk of burglary, robbery or fire without warning, but is not insurance or a guaranty that such event will not occur or that there will be no personal injury or property loss as a result thereof. Consequently seller shall have no liability for any personal injury, property damage or loss based on a claim that the product fails to give warning. However, if seller is held liable, whether directly or indirectly, for any loss or damage arising under this limited warranty or otherwise, regardless of cause or origin, seller's maximum liability shall not exceed the purchase price of the product, which shall be complete and exclusive remedy against seller. No employee or representative of Seller is authorized to change this warranty in any way or grant any other warranty.
WARNING: This product should be tested at least once a week.
Contacting RISCO Group
RISCO Group is committed to customer service and product support. You can contact us through our website www.riscogroup.com or as follows:
United Kingdom
Tel:+44-161-655-5500 technical@riscogroup.co.uk Italy Tel: +39-02-66590054 support@riscogroup.it
Spain Tel:+34-91-490-2133 support-es@riscogroup.com
France
Tel: +33-164-73-28-50 support-fr@riscogroup.com Belgium
Tel: +32-2522 7622 support-be@riscogroup.com
All rights reserved. No part of this document may be reproduced in any form without prior written permission from the publisher
RISCO Group 01/2013 5IN1241 C
USA
Te: +1-631-719-4400 support-usa@riscogroup.com
Brazil
Te:l+1-866-969-5111 support-br@riscogroup.com
China
Tel: +86-21-52-39-0066 support-cn@riscogroup.com
Poland
Tel: +48-22-500-28-40 support-pl@riscogroup.com
Israel
Tel: +972-3963-7777 support@riscogroup.com
Loading...
