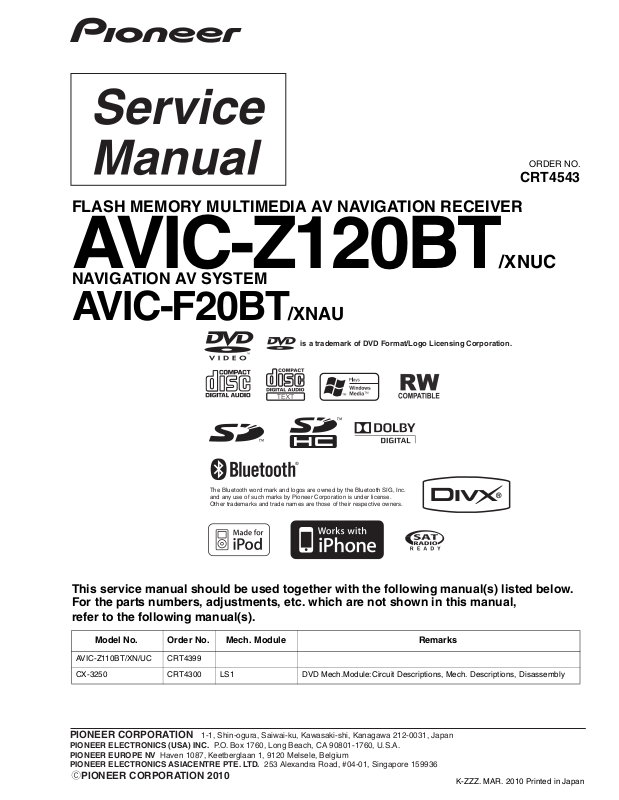

Page 1
PIONEER CORPORATION 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2010
FLASH MEMORY MULTIMEDIA AV NAVIGATION RECEIVER
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.
and any use of such marks by Pioneer Corporation is under license.
Other trademarks and trade names are those of their respective owners.
is a trademark of DVD Format/Logo Licensing Corporation.
ORDER NO.
CRT4543
AVIC-Z120BT
NAVIGATION AV SYSTEM
AVIC-F20BT
/XNAU
/XNUC
This service manual should be used together with the following manual(s) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual,
refer to the following manual(s).
Model No. Order No. Mech. Module Remarks
AVIC-Z110BT/XN/UC CRT4399
CX-3250 CRT4300 LS1 DVD Mech.Module:Circuit Descriptions, Mech. Descriptions, Disassembly
K-ZZZ. MAR. 2010 Printed in Japan
Page 2
1234
1 234
C
D
F
A
B
E
SAFETY INFORMATION
WARNING
This product may contain a chemical known to the State of California to cause cancer, or birth defects or
other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
EXPLODED VIEWS AND PARTS LIST
PACKING(Page 170)
PACKING SECTION PARTS LIST *:No n spare part
Mark No. Description AVIC-Z110BT/XN/UC AVIC-Z120BT/XNUC AVIC-F20BT/XNAU
1 Polyethylene Bag CEG1359 CEG1359 (Cover) CEG1356 (Cover)
2 Unit Box CHG6940 CHG7325 CHG7326
3 Contain Box CHL6940 CHL7325 CHL7326
5 Sub Unit Box Assy CHX2124 *CHX2202 *CHX2199
6 Cord CDE6825 Not used Not used
7 Cord CDP1157 Not used Not used
8 Cord Assy CDP1194 CDP1335 CDP1335
16 Connector CKX1049 Not used Not used
17 IM CD-ROM Not used CPJ1318 CPJ1318
21 RDS-TMC Tuner Not used Not used CXE2176
26-1 Owner's Manual CRB3035 Not used Not used
26-2 Owner's Manual CRB3036 Not used Not used
26-3 Quick Start Guide CRB3037 CRB3219 CRB3238
26-4 Quick Start Guide CRB3038 CRB3220 Not used
26-5 Important Information Not used CRD4459 CRB3239
26-6 Installation Manual CRD4418 CRD4460 CRB3240
* 26-8 Warranty Card CRY1246 CRY1246 Not used
* 26-9 Registration Card CRY1271 CRY1271 Not used
27 Cord Assy CDP1095 CDP1307 CDP1307
Owner's Manual,Installation Manual
Part No. Language Model
CRB3219 English UC
CRB3220 French
CRD4459 English, French
CRD4460 English, French
CRB3238 English AU
CRB3239 English
CRB3240 English
CONTENTS OF CD-ROM (Operation Manual), CPJ1318
Part No. Language Model
* CRB3201 English UC
* CRB3202 French
* CRB3237 English AU
All operation manuals are supplied in PDF files by the CD-ROM.
Regarding the availability of paper manual, contact Pioneer Service representative in your region.
2
AVIC-Z120BT/XNUC
Page 3
5 678
56
7
8
C
D
F
A
B
E
EXTERIOR(1)(Page 172)
EXTERIOR(1) SECTION PARTS LIST
Mark No. Description AVIC-Z110BT/XN/UC AVIC-Z120BT/XNUC AVIC-F20BT/XNAU
7 Shield CND4940 Not used CND4940
13 Sheet CNN3148 Not used Not used
14 Sheet CNN3149 Not used CNN3149
16 Navi Unit CWN3985 CWN5264 CWN5264
20 Service CC Assy CXX2854 CXX2845 CXX2846
24 DVD Mechanism Module(LS1) CXK6802 CXK6803 CXK6803
EXTERIOR(2)(Page 174)
EXTERIOR(2) SECTION PARTS LIST
Mark No. Description AVIC-Z110BT/XN/UC AVIC-Z120BT/XNUC AVIC-F20BT/XNAU
5 Cord CDE6825 Not used Not used
6 Cap CNS1472 Not used Not used
8 Cord Assy CDP1194 CDP1335 CDP1335
9 Cap CNW1490(x 13) CNW1490(x 11) CNW1490(x 11)
10 Audio Unit CWN4335 CWN5269 CWN5270
11 Screw BMZ26P060FTB BMZ26P060FTC BMZ26P060FTC
12 Shield CND4926 Not used Not used
18 Cord Assy CDP1095 CDP1307 CDP1307
EXTERIOR(3)(Page 176)
EXTERIOR(3) SECTION PARTS LIST
Mark No. Description AVIC-Z110BT/XN/UC AVIC-Z120BT/XNUC AVIC-F20BT/XNAU
14 Screw(M2 x 2) CBA1771 JJZ20P020FTC JJZ20P020FTC
17 Monitor Unit CWN3935 CWN5271 CWN5271
19 Bluetooth Module CWX3851 CWX3931 CWX3931
26 Grille Unit CXE2206 CXE3317 CXE3316
30 Plate CNS9899 CNU1299 CNU1298
32 Panel Unit CXE1991 CXE1991 CXE1992
EXTERIOR(4)(Page 178)
EXTERIOR(4) SECTION PARTS LIST
Mark No. Description AVIC-Z110BT/XN/UC AVIC-Z120BT/XNUC AVIC-F20BT/XNAU
5 Bracket CND4917 CND5724 CND5724
DVD MECHANISM MODULE(Page 180)
DVD MECHANISM MODULE SECTION PARTS LIST
Mark No. Description AVIC-Z110BT/XN/UC AVIC-Z120BT/XNUC AVIC-F20BT/XNAU
72 DVD Core Unit YWX5014 YWX5015 YWX5015
AVIC-Z120BT/XNUC
3
Page 4
1234
1 234
C
D
F
A
B
E
ELECTRICAL PARTS LIST (Page 310)
For the information of the parts that are added to this model, please refer to the following manual CRT4399).
TUNER IF UNIT
Circuit Symbol and No. Part Name AVIC-Z110BT/XN/UC AVIC-Z120BT/XNUC AVIC-F20BT/XNAU
R410 RS1/16SS681J RS1/16SS681J Not used
R411 RS1/16SS681J RS1/16SS681J Not used
R412 RS1/16SS681J RS1/16SS681J Not used
R426 RS1/16SS104J RS1/16SS104J Not used
R427 RS1/16SS104J RS1/16SS104J Not used
R520 RS1/16SS472J RS1/16SS472J Not used
R522 Not used Not used RS1/16SS223J
C431 CKSSYB122K50 CKSSYB122K50 Not used
C432 CKSSYB122K50 CKSSYB122K50 Not used
SERVICE CC ASSY
Circuit Symbol and No. Part Name AVIC-Z110BT/XN/UC AVIC-Z120BT/XNUC AVIC-F20BT/XNAU
IC4403 IC PEH224B8 CXX2678 CXX2678
R4285 Not used RS1/16SS0R0J RS1/16SS0R0J
R4288 RS1/16SS0R0J Not used Not used
R4289 Not used RS1/16SS0R0J RS1/16SS0R0J
R4290 RS1/16SS0R0J Not used RS1/16SS0R0J
C4004 CKSRYB104K10 CKSRYB104K16 CKSRYB104K16
C4613 CKSSYB473K10 CKSSYB473K16 CKSSYB473K16
C4621 CKSSYB473K10 CKSSYB473K16 CKSSYB473K16
C4622 CKSSYB473K10 CKSSYB473K16 CKSSYB473K16
C4623 CKSSYB473K10 CKSSYB473K16 CKSSYB473K16
C4624 CKSSYB473K10 CKSSYB473K16 CKSSYB473K16
C4625 CKSSYB473K10 CKSSYB473K16 CKSSYB473K16
C4626 CKSSYB473K10 CKSSYB473K16 CKSSYB473K16
C4925 CKSSYB333K10 CKSSYB333K16 CKSSYB333K16
DVD CORE UNIT
Circuit Symbol and No. Part Name AVIC-Z110BT/XN/UC AVIC-Z120BT/XNUC AVIC-F20BT/XNAU
*IC1401 Flash ROM Unit CWW2489 CWW2491 CWW2491
*IC1402 Flash ROM Unit CWW2490 CWW2492 CWW2492
4
AVIC-Z120BT/XNUC
Page 5
5 678
56
7
8
C
D
F
A
B
E
NAVI UNIT
Circuit Symbol and No. Part Name AVIC-Z110BT/XN/UC AVIC-Z120BT/XNUC AVIC-F20BT/XNAU
Q5003 Chip Transistor DTC114EUA LTC114EUB LTC114EUB
Q5102 Transistor 2SA1576A Not used Not used
Q5103 Transistor 2SC4081 Not used Not used
Q5105 Transistor UMF23N Not used Not used
Q5106 Transistor 2SB1184F5 Not used Not used
Q5107 Digital Transistor DTC143EUA Not used Not used
Q5108 Transistor 2SA1587 2SA1579 2SA1579
Q5109 Chip Transistor DTC114EUA LTC114EUB LTC114EUB
Q5110 Transistor IMX1 Not used Not used
Q5111 Digital Transistor DTC143EUA LTC143EUB LTC143EUB
Q5113 Transistor 2SA1576A LSA1576UB LSA1576UB
Q5114 Chip Transistor DTC114EUA LTC114EUB LTC114EUB
Q5116 Chip Transistor DTC114EUA LTC114EUB LTC114EUB
Q5201 Transistor 2SA1576A LSA1576UB LSA1576UB
Q5202 Chip Transistor DTC114EUA LTC114EUB LTC114EUB
Q5304 Transistor 2SA1576A LSA1576UB LSA1576UB
D5003 Diode RB551V-30 Not used Not used
D5203 Diode UDZS18(B) Not used Not used
D5204 Diode EDZ5R6(B) Not used Not used
D5205 Diode EDZ5R6(B) Not used Not used
D5251 Diode MALS180X Not used Not used
D5253 Diode MALS180X Not used Not used
D5254 Diode MALS180X Not used Not used
D5502 Diode UDZS5R6(B) Not used Not used
L5310 Inductor CTF1736 Not used Not used
F5251 EMI Filter CCG1067 CCG1289 CCG1289
F5252 EMI Filter CCG1067 CCG1289 CCG1289
F5253 EMI Filter CCG1060 CCG1290 CCG1290
VA5201 Varistor AVR-M1608C270KT2AB Not used Not used
VA5202 Varistor AVR-M1608C270KT2AB Not used Not used
VA5203 Varistor AVR-M1608C270KT2AB Not used Not used
VA5204 Varistor AVR-M1608C270KT2AB Not used Not used
R5104 RS1/10SR682J Not used Not used
R5105 RS1/10SR153J Not used Not used
R5107 RS1/10SR103J Not used Not used
R5108 Not used RS1/10SR330J RS1/10SR330J
R5109 RS1/10SR330J Not used Not used
R5110 RS1/16SS223J Not used Not used
R5111 RS1/8SQ472J Not used Not used
R5112 Not used RS1/4SA0R0J RS1/4SA0R0J
AVIC-Z120BT/XNUC
5
Page 6
1234
1 234
C
D
F
A
B
E
NAVI UNIT
Circuit Symbol and No. Part Name AVIC-Z110BT/XN/UC AVIC-Z120BT/XNUC AVIC-F20BT/XNAU
R5113 RS1/10SR153J Not used Not used
R5114 RS1/4SA331J Not used Not used
R5115 RS1/4SA331J Not used Not used
R5118 RS1/16SS224J Not used Not used
R5119 RS1/16SS472J Not used Not used
R5120 RS1/8SQ102J Not used Not used
R5122 RS1/10SR102J Not used Not used
R5134 Not used RS1/10SR0R0J RS1/10SR0R0J
R5136 RS1/10SR102J RS1/10SR271J RS1/10SR271J
R5150 RS1/4SA682J Not used Not used
R5151 RS1/10SR6800D Not used Not used
R5152 RS1/10SR6800D Not used Not used
R5153 RS1/16SS473J Not used Not used
R5154 RS1/16SS393J Not used Not used
R5519 RS1/10SR3900D RS1/10SR101J RS1/10SR101J
C5106 CKSQYB103K50 Not used Not used
C5111 CEVW101M16 Not used Not used
C5112 CKSQYB104K50 Not used Not used
C5115 CKSRYB472K50 Not used Not used
C5116 CKSRYB104K16 Not used Not used
C5118 CEVW470M16 Not used Not used
C5139 CKSQYB106K6R3 DCH1201 DCH1201
C5149 CKSRYB105K10 Not used Not used
C5434 22 uF CCG1178 CCG1254 CCG1254
C5504 10 uF CKSQYB106K6R3 DCH1201 DCH1201
C5518 10 uF CKSQYB106K6R3 DCH1201 DCH1201
C5521 10 uF CKSQYB106K6R3 DCH1201 DCH1201
C5523 10 uF CKSQYB106K6R3 DCH1201 DCH1201
6
AVIC-Z120BT/XNUC
Page 7
5 678
56
7
8
C
D
F
A
B
E
AVIC-Z120BT/XNUC
7
Page 8
1234
1 234
C
D
F
A
B
E
BLOCK DIAGRAM
Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or
"ELECTRICAL PARTS LIST".
FL+
RR+
FR-
RL-
ILM ACC B.UP
RR- RL+
FR+
P.BREAK
A.ANT
SPEED
PULSE
REVERSE
FL-
GND
DVD MECHA MODULE
(LS1)
RDS-TMC TUNER
CN2571
POWER SUPPLY
TERMINALS
FUSE
140
1
JA2001
BtoB
CDE8990
CORD
ASSY
CN2101
CN511
CN491
GPS
CORD ASSY
CORD ASSY
FFC
PREOUT
TERMINALS
CDP1335
CDP1307
GPS ANTENNA ASSY
CXE2705
CXE2176-
CN2551
CN2861
CN2512
JA401
JA5202
CN5603
JA5201
FFC
16
1
32
1
30
501
140
1
150
30
1
1
2
2
1
CN1901
JA4711
Wired Remote Jack
JA2880
120
CN4601
AU only
SD CARD
Connector
B
TUNER IF UNIT
AUDIO UNIT
AUDIO UNIT (PS/IF SECTION)
1/3
AUDIO UNIT (SYSCOM SECTION)
2/3
AUDIO UNIT (AV SECTION)
3/3
D
C
N
1/4
F
N
2/4
F
N
3/4
F
N
4/4
F
E
C
CC UNIT
1/6
E
CC UNIT
2/6
E
CC UNIT
3/6
E
CC UNIT
4/6
E
CC UNIT
5/6
E
CC UNIT
6/6
E
F
A
F
A
F
A
F
A
Please ref
Pleas
Please refer to CRT4399.
Please refer to CRT4399.
OVERALL CONNECTION DIAGRAM
8
AVIC-Z120BT/XNUC
Page 9
5 678
56
7
8
C
D
F
A
B
E
FPC
FPC
FPC
BTOB
11
IPR-
NC
1
2
IPBUS+
6
IPLG
IPBUS-
IPL+
4
IPL-
7
3
IPBUSG
8
10
IPRG
ASENBO
5
9
IPR+
FPC
JA5302
FPC
LCD PANEL
BTOB
90
FAN
CXM1394
CN5001
CN491
10
1
Drive MECHA
UNIT
TOUCH PANEL
GPS
CN3301
MIC
CXE1522-
CDE8991-
CORD ASSY
GPS ANTENNA ASSY
CXE2705
MIC ASSY
CPM1083
BT MODULE
CWX3931-
CORD ASSY
CDE8990-
JA5251
JA5202
CN5602
JA5201
CN5601
IPBUS IN
iPod Connector
CN5251
17
1
80
12
1
120
1
80
1
14
161
160
140
1
120
1
10
12
21
21
21
1
2
2
1
17PIN PLUG
4PIN JACK
USB-A
JUNCTION SOCKET
CORD ASSY
FFC
CN101
CN4201
JA4711
CN3401
CN3360
CN3362
CN3361
CN3302
CN3300
AVIC-Z120BT/XNUC
AVIC-F20BT/XNAU
120
CN4601
CDP1195
SD CARD
Connector
CWX3813-
CSX1148-
110
CN3100
MONITOR UNIT
H
KEYBOARD UNIT
F
NAVI UNIT
NAVI UNIT (PS PART)
1/4
F
NAVI UNIT (IF 1SEG PART)
2/4
F
NAVI UNIT (AUDIO,SENSOR PART)
3/4
F
NAVI UNIT (IF PART INTERNAL)
4/4
F
E
CC UNIT
CC UNIT (PS PART)
1/6
CC UNIT (CPU PART)
2/6
CC UNIT (CPU SURROUNDING PART)
3/6
CC UNIT (DDR/FLASH_ROM/SRAM PART)
4/6
CC UNIT (NAND PART)
5/6
CC UNIT (VIDEO DEC./T-CON/LVDS PART)
6/6
F
G
Please refer to CRT4399.
Please refer to CRT4399.
I
PCB UNIT
(SERVICE)
MONITOR ASSY
Please refer to
CRT4399.
Please refer to
CRT4399.
AVIC-Z120BT/XNUC
9
Page 10
1234
1 234
C
D
F
A
B
E
SCHEMATIC DIAGRAM
A-a A-b
A-a
A-b
A-b
A-a
Large size
SCH diagram
Guide page
Detailed page
Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or
"ELECTRICAL PARTS LIST".
AF-a
1/3
1/3
F
A
2001 2300
REFERENCE NUMBER LIST
A
H/OSW
MOT0
MOT1
RDS57K
BCAMPW
POS_IN
HRHSLK
HRLK
HRDT
HRCK
D_FMTOS
D_STOFM
FMCLK
FMCE1
FMCE2
TUNSL
VD5CONT
VD5CONT
DDCLK
VD8CONT5
ILMSNS
GPSREV
SYSREV
SPEED
ASENS
BSENS
MUTEVO
SWACPW5
RSTIN
PBSNS
FANUP
BSENS
ILMSNS
ASENS
ANTON5
BCAMPW
ACCPW5
ACCPW5
SWACPW5
MOTPWR2
ANTON5
SYSPW5
SYSPW5
VICSON
SCL
SDA
VICSON
TUNSL
MOTPWR2
HIVOLT
POS_IN
MOT0
MOT1
MOT8
VICSON
SCL
SDA
VICSON
HRCK
HRDT
HRLK
HRHSLK
FMCE2
RSTIN
FMCE1
FMCLK
D_STOFM
D_FMTOS
TUN_R
TUN_L
MOTPWR5
ACCPW5
MOTPWR5
MUTEBUP
MUTEBUP
H/OSW
MOTVDD33
SYSPW5
HIVOLT14
ILMV
ACCPW5
DDCLK
AU84
AU84
AU84
ACC84
ACC84
ACC84
VDD33
VDD33
VDD33
BUPV
VDD5
VDD5
VDD5
VDD5
BUP
BUP
SWVDD33
SWAC33
CCH1565-A
C2170
100u 16V
CCH1565-A
C2161
C2186
0.047u/10
C2184
4.7u/16
3216
C2143
NM
C2185
22p/50
C2190
NM
1608
C2163
CCG1223-A
C2162
CCG1223-A
C2166
NM
C2048
NM
C2217
NM
1608
D2181
HZU9R1(B2)
GNDD
GNDD
G
GNDD
G
GNDD
GNDD
GNDD
GNDD
GNDA GNDV
GNDD
GNDD
GNDD
GNDD
IC2181
LT3461AES6
Vfb=1.255Vtyp
SW1
1
GND
2
FB3SHDN
4
5
VOUT
6
VIN
L2181
CTF1473-A
L2161
CTH1257-A
UMD3N
Q2181
E1
1
B1
2
C23E2
4
5
B2
6
C1
2S
Q2182
2SD1767(R)
LSA1576UB
Q2066
LSA1576UB
Q2071
NM
Q2061
R2189
6.8k
R2062
NM
R2061
NM
R2188
5.6k
R2071
2.2k
R2072
2.2k
R2067
4.7k
R
R2182
100k
R2183
160k
R2066
4.7k
8V
HV12
SVD
B
VD5
HVO
8EN
SWVDD33
VD8V
RDS57K
BCAMPW
ACCPW5
DDCLK
MOT0
SYSPW5
H/OSW
BUP
BSENS
MOT1
VDD5
MOTPWR2
GNDV
ANTON5
GNDA
GNDD
SWVDD33
ILMSNS
ASENS
ACC84
AU84
HIVOLT
VD8CONT5
AU84
GNDD
ILMV
SWACPW5
SWVDD5
SWAC33
HIVOLT14
SYSREV
VDD33
GPSREV
SPEED
PBSNS
D2162
RB050L-40
R2068
100k
R2063
NM
S-812C56AUA-C3K
IC2182
1
GND2Vin3Vout
R2266
NM
C2266
NM
NM
Q2266
R2102
1k
GNDM
GNDD
GNDRF
GNDFVRF
TUNAGND
TUNAGND
GNDD
GNDD
TUNAGND
POS_IN
HRHSLK
HRLK
HRDT
HRCK
D_FMTOS
D_STOFM
FMCLK
FMCE1
FMCE2
TUNSL
TVD3
R2101
1k
R2141
NM
R2271
NM
R2073
47k
R2153
0
GNDD
R2155
24k
P2151
CEK1254-A
12
C2152
NM
C2151
2.2u/25
D2151
RB160M-40
R2154
130k
R2152
20k
D2152
1SS352
LT3505EDD
IC2151
BOOST
1
SW
2
VIN
3
SHDN
45
GND1
6
RT
7
FB
8
VC
9
GND2
LS1VDD
VD5CONT
BD9781HFP
IC2161
1
VIN2SW
3RT4
GND
5FB6
INV
7
EN
L2162
CTH1254-A
NM
IC2141
1VC2
VIN3GND4VDD5C
GNDD
R2162
10k
R2167
10k
R2168
NM
R2166
3k
R2165
68K
C2167
0.1u/16
C2168
NM
C2171
NM
C2169
0.1u/50
LTC114EUB
Q2067
NM
Q2062
NM
Q2277
LTC114EUB
Q2072
R2142
NM
C2183
0.1u/16
1608
C2182
0.1u/16
1608
C2154
0.1u/16
R2144
NM
R2171
NM
R2268
NM
Q2031
LSC4081UB
FANUP
NKBUP
GND
GND
L2151
CTF1744-A-T
CAMVIN
I8V
VD8
R2143
NM
R2267
NM
R2140
NM
RSTIN
C2056
1u/16
C2187
1u/25
C2181
4.7u/25
3216
MUTEVO
GNDD
R2187
47k
HV14
S-812C56AUA-C3K
IC2190
1
GND2Vin3Vout
C2191
1u/25
R2190
5.6k
GNDD
C2173
4.7u/16
3216
GNDM
NM
C2144
C2142
NM
F2161
CCG1267-A
3
21
C2189
0.01u/25
C2193
0.01u/25
C2192
0.01u/25
C2188
0.01u/25
SCL
SDA
C2156
CCG1183-A
R2192
NM
2125
L2152
BTH1112-A
10u
VICSON
VICSON
R2185
12k
R2186
11k
GNDD
MPR2
FSL
FCE2
RSTI
FCE1
FCLK
DSTF
DFTS
TUL
TUR
C2043
NM
R2164
0
POIN
MOT1
MOT8
R2992
0
S-VS-C
BCG
GNDD
NM
R2158
NM
C2157
R2151
22k
C2153
150p/50
C2155
220p/50
MUTEBUP
R2181
1.2k
R2191
6.2k
R2193
1.8k
UMF21N
Q2101
E1
1
B1
2
C23E2
4
5
B2
6
C1
R2105
47k
R2106
1k
GNDD
MOTPWR5
MVD3
CKS5546-A
CN2101
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
L2183
CTF1389-A
C2101
0.01u/16
C2194
0.01u/25
C2195
0.01u/25
P2107
CEK1276-A
12
R2161
100k
P2161
CEK1259-A
12
L2182
CTH1426-A
R2993
3.3k
R2994
10k
R2995
33k
R2163
33k
P2162
CEK1282-A
12
R2251
1k
D2241
1SS352
R2997
0
R2996
0
D2161
NM
NM
C2160NMC2159
GNDD
D2160
RB051LA-40
R2160
NM
R2081
NM
R2082
NM
R2083
0
GND GND
GND GND
GND
GNDA
NM
C2158
R2084
0
GNDA GNDA
R2085
0
GNDDGNDD
DMY
C2172
CCG1223-A
10u 50V
R2103
NM
R2074
0
(10K*2)
SWVDD33
SYSTEM
AUDIO
SWAC33
MT81V
(D)(D) (D)
(D)
(10uH)
(D)
BCAM6
91.5mA
Typ:450mA
MAX:1390mA
RUSH:1650mA
HIVOLT15
(10K*2)
SWVDD5
(22uH)
12.4V
13.8V
ILMPW
TUNER IF
BSENS
ASENS
ILMSNS
VDD5
VDD33
SWVDD
SWVDD5
SWAC33
BCAM6
ACC84
AU84
ANT+B
PREMUTE
AND CIRCUIT
REV
PKB
SPEED
KMODE
2001 - 2020
2021 - 2030
BUP
KEEP BUP
2031 - 2035
2041 - 2045
2046 - 2050
2051 - 2055
2056 - 2060
2061 - 2065
2066 - 2070
2071 - 2074
2086 - 2105
2140 - 2144
2121 - 2130
2131 - 2139
2151 - 2160
2161 - 2175
2181 - 2195
2266 - 2275
2216 - 2220
2226 - 2230
2231 - 2235
2236 - 2238
2239 - 2240
2241 - 2245
2251 - 2255
2276 - 2280
AMPMUTE
2281 - 2295
POWER AMP
ILMV
(D) (D) (D)(D)
(LITTEL250mA)
(10K*2)
(50V)
MOT8
GNDM
MOTVDD33
TUN_R
D_FMTOS
RSTIN
GNDM
TUNAGND
MOTPWR5
MOT1
FMSL
POS_IN
FMCLK
MOT8
H/OSW
D_STOFM
MOT0
HRHSLK
AU84
HLDET
GNDFVRF
GNDRF
MOTPWR2
HRLK
GNDRF
TUN_L
FV33
NC
GNDT
MOT8
GNDT
GNDRF
GNDFVRF
SDA
NC
FVDETO
VICSON
VDD33
HRDT
FMCE1
ACC84
SCL
HRCK
GNDRF
FMCE2
4
45
44
123
CONTACT SIDE
(3216)
(D)
(3216)
(D)
LS1VDD
LS1VDD
Typ:192mA
220mA
MAX 520mA
430mA
(LITTEL1.5A)
LS1VDSW
2176 - 2180
MT81
(SOC3.15A)
(Rb=Rbe=10k)
(10K*2)
GNDM
GNDD
GNDD
MAX200mA
ROCK600mA
RUSH1030mA
2200mA max
(f=3MHz)
CCG1223
10u/50v/3225
CCH1565
100u/16V
22u/16V
HLDET/
HLDET/
HLDET/
REGION RESISTANCE
(SOC1A)
HIVOLT
(D)
2296 - 2300
AMP+B
22u
(D)(D) (D)
(D)
(D)
MOTVDD33
GNDD
GNDD
NM
UNUSED
MODEL RESISTANCE
/
/
NM
UC
AU
NM
Mount
NM
NM
NM
>
>
>
>
B
CN511
2/3
F
A
3/3
F
A
2/3
F
A
TUNER:-13.54 dBs
AUDIO UNIT(PS/IF SECTION)(GUIDE PAGE)
10
AVIC-Z120BT/XNUC
Page 11
5 678
56
7
8
C
D
F
A
B
E
AF-b
1/3
1/3
F
A
A
V
A
A
A
A
A
A
A
A
A
FL+
FR
RL
BREMOTE
PREMUTE
TUN_L
TUN_R
VD5CONT
FL-
FR-
FR+
FR
FL
RL
RR
RR+
RR-
RL+
RL-
SYSPW5
MUTEVO
FL
RR
SWACPW5
RSTIN
FANUP
BSENS
ILMSNS
ASENS
ANTON5
PREMUTE
MUTEVO
FANUP
RR+
RR-
FR-
FL-
RL+
SPEED
PBSNS
ACCPW5
ACCPW5
SWACPW5
MOTPWR2
ANTON5
SYSPW5
SYSPW5
BREMOTE
RL-
FL+
FR+
MOTPWR5
IO3
GPSREV
SYSREV
SYSPW5
ACCPW5
DDCLK
ACCPW5
SYSPW5
VDD33
BUPV
VDD5
VDD5
VDD5
BUP
BUP
BUP
BUP
HSW
HSW
47u/16
C2241
10u/16
C2294
(105 )
CCH1565-A
C2123
CCH1565-A
C2134
C2289
0.1u/50
1608
C2047
1u/16
2125
C2285
2125
C2284
1608
C2282
1608
C2121
0.1u/50 1608
C2029
0.1u/50
C2281
1608
C2233
NM
(2125)
C2283
1608
C2013
NM
1608
C2041
0.1u/50
1608
C2297
NM
1608
C2296
NM
1608
C2042
1000p/50
C2010
NM
1608
C2132
0.022u/16
C2011
NM
1608
C2003
NM
1608
C2004
NM
1608
C2008
NM
1608
C2009
NM
1608
C2012
NM
1608
C2122
0.022u/16
C2046
1000p/50
C2007
3900p/50
1608
C2005
NM
1608
C2002
NM
1608
C2052
0.01u/16
C2287
2125
C2236
NM
1608
C2227
1000p/50
C2048
NM
C2124
1000p/50
C2288
2125
C2291
NM
C2237
NM
1608
C2231
NM
C2290
0.1u/50
1608
C2131
0.1u/50 1608
C2217
NM
1608
C2226
1000p/50
1608
C2286
2125
C2133
1000p/50
D2031
D2296
NM
D2027
RB160M-30
D2033
D2041
1SR154-400
D2216
1SR154-400
D2217
1SR154-400
D2046
1SR154-400
D2236
1SR154-400
D2227
UDZS18(B)
D2034
EDZ20(B)
D2231
PTZ18A
D2001
ST70-27F
D2226
NM
GNDD
GND
GND
GNDD
GNDD
GNDD
GND
GNDD
GNDD
GND
GND
GNDA
GNDA
GNDD
GNDD
GND GNDA
IC2051
BD3931FP
1
122
3
3
IC2056
S-1200B33-M5
VIN
1
VSS
2
ON/OFF3NC
4
5
VOUT
IC2216
NM
1
OUT
2
GND13GND24GND3
5
VDD
6IN7
GND4
8
GND5
9
GND610DIAG
IC2300
PA2030A
TAB
1
PW-GND2
2
OUT2(-)
3
STBY
4
5
OUT2(+)
6
VCC2
7
OUT1(-)
8
PW-GND1
9
OUT1(+)
10
RIPPLE
11
IN1
12
IN2
15
IN3
16
AC-GND
17
OUT3(+)
18
PW-GND3
19
OUT3(-)
20
VCC1
21
OUT4(+)
22
MUTE
23
OUT4(-)
24
PW-GND4
25
H-SW/VOS-DET
13
PRE-GND
14
IN4
JA2001
CKM1550-A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
L2001
CTH1347-A
L2226
CTF1410-A
L2232
NM
L2236
CTF1410-A
L2231
NM
UMD3N
Q2242
E1
1
B1
2
C23E2
4
5
B2
6
C1
Q2041
2SC4116(GRBL)
Q2226
2SC4116(GRBL)
R2046
1K
CCN1179-A-T
R2047
4.7K
CCN1180-A-T
R2041
4.7K
CCN1180-A-T
R2042
1K
CCN1179-A-T
R2226
1K
CCN1179-A-T
R2056
4.7k
R2277
10k
R2136
3.3k
R2241
390
R2242
390
R2243
1k
R2276
10k
R2234
1k
R2233
10k
R2230
47k
R2229
100k
R2026
4.7
R2027
4.7
FL+
ASN
AMP+B
BS1
BSN
BSB
BS2
IL1
VD5
PLS
AC8
ACC
RR+
FR+
PKBI
ISN
GD1
VD3
SYP5
PAV1 PAV2
ABO
FR-
ILM
RR-
REVI
RL+
BUP1
RL-
MUT
FL-
AU8
ATB
ACCPW5
BREMOTE
SYSPW5
FR
RL
FL
AMPMUTE
PREMUTEIN
PREMUTE
MOTPWR2
RR
ANTON5
SWACPW5
SWVDD5
D2028
1SR154-400
D2237
MALS180X
R2232
15k
C2292
4.7u/10
(2125)
D2029
RB500V-40
R2127
NM
R2128
3.3k
D2229
RB715W
R2231
CCN1191-A
10k
3216
TUN_L
TUN_R
FUP
R2021
4.7
R2022
4.7
BUPV
LTC114EUB
Q2276
LTC114EUB
Q2046
C2216
1000p/50
R2281NMR2282
NM
D2032
HZU7R5(B3)
D2228
UDZS5R6(B)
R2023
47k
R2028
47k
R2032
47k
R2033
10k
R2034
10k
R2044
47k
R2048
10k
R2227
4.7k
R2228
1k
Q2031
LSC4081UB
Q2032
LSC4081UB
LSA1576UB
Q2231
KBP
FANUP
NKBUP
GND
GND
100u/16
C2053
100u/16
C2058
NJM2388F84
IC2131
1
VIN
2
VOUT3GND4CONTROL
GNDA
NJM2388F84
IC2121
1
VIN2VOUT3GND4CONTROL
C2001
4700u/16
C2028
CEAT472M16-P35
R2121
47k
R2131
47k
R2135
NM
RSTIN
C2056
1u/16
1608
C2057
1u/16
1608
C2051
1.0u/35
3216
33u/10
C2276
(105
)
NM
Q2281
GNDA
MUTEVO
CCH1849-A
C2027NMC2026
IO3
C2043
NM
GND
GND
R2031
47k
MOTPWR5
D2026
KS926S2
D2297
NM
C2232
0.01u/50
1608
BUP2
BUP3
GD2
GD3
R2122
NM
R2132
NM
D2042
HZU8R2(B1)
R2043
47k
2
C2293
4.7u/16
(3216)
D2232
1SS352
R2126
NM
D2241
1SS352
C2295
NM
C2298NMC2299NMC2300
NM
GND
GND GND
R2211
0
PWR AMP
VDD5
ACC84
PREMUTE
SYSTEM
AUDIO
ILMSNS
ASENS
AU84
ANT+B
(10K*2)
(10K*2)
(Rb=Rbe=10k)
(105 )
PKB
REV
CKSQYB105K16-T
CKSRYB105K16-T
SPEED
VDD33
VDD33
OVER VOLTAGE DETECTION 20[V]
BSENS
91.5mA
65mA
436.3mA
REV
ILM
FL-
BUP
FL+
FR+
ACC
GND
AANT
FR-
PKB
PULSE
RL+
RR+
RL-
RR-
(10000uF/16V 85 -P35
MOUNT ON SIDE A
TAB
GNDD
GNDA
FLIN)
FRIN)
AC GND
FR+
GNDD
RL-
SREMOTE
FR-
VCC1
FL+
MUTE
FL-
GNDD
B_REM
RL+
VCC2
RR-
GNDD
RR+
RIPPLE
RRIN
RLIN
(105 )
VEHICLE I/F
AMPMUTE
MOUNT ON SIDE A
NM
NM
NM
CCH1928-A-P35
Video Signal
Audio Signal
600uH
>
AUDIO UNIT (PS/IF SECTION)
1/3
F
A
2/3
F
3/3
F
A
POWER SUPPLY
The > mark found on some component parts indicates
the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of
identical designation.
Symbol indicates a resistor.
No differentiation is made between chip resistors and
discrete resistors.
NOTE :
Symbol indicates a capacitor.
No differentiation is made between chip capacitors and
discrete capacitors.
NM : No Mount
TUNER:+28.56 dBs
NAVI(USB/SD):+33.31 dBs
NAVI(BT-Audio):+34.98 dBs
LS1:+33.68 dBs
IP-BUS:+33.31 dBs
i-Pod:+33.40 dBs
VTR2:+33.83 dBs
VTR1:+33.31 dBs
AVIC-Z120BT/XNUC
11
Page 12
1234
1 234
C
D
F
A
B
E
AF-a AF-b
A
F
-b
1/3
A
V
A
A
A
SWACPW5
FANUP
BSENS
ILMSNS
ASENS
RR+
RR-
FR-
FL-
RL+
SPEED
PBSNS
RL-
FL+
FR+
GPSREV
SYSREV
ACCPW5
DDCLK
VDD33
VDD5
VDD5
BUP
HSW
C2047
1u/16
2125
C2029
0.1u/50
C2233
NM
C2013
NM
1608
C2041
0.1u/50
1608
C2042
1000p/50
C2010
NM
1608
C2011
NM
1608
C2003
NM
1608
C2004
NM
1608
C2008
NM
1608
C2009
NM
1608
C2012
NM
1608
C2046
1000p/50
C2007
3900p/50
1608
C2005
NM
1608
C2002
NM
1608
C2052
0.01u/16
C2236
NM
1608
C2227
1000p/50
C2048
NM
C2237
NM
1608
C2231
NM
608
C2226
1000p/50
1608
D2031
D2027
RB160M-30
D2033
D2041
1SR154-400
00
D2217
1SR154-400
D2046
1SR154-400
D2236
1SR154-400
D2227
UDZS18(B)
D2034
EDZ20(B)
D2231
PTZ18A
D2001
ST70-27F
D2226
NM
GNDD
GND
GND
GNDD
GNDD
GNDD
GND
GNDD
GNDD
IC2051
BD3931FP
1
1
2
2
3
3
IC2056
S-1200B33-M5
VIN1VSS2ON/OFF
3
NC
4
5
VOUT
1
OUT
2
ND1
3
ND2
4
ND3
5
VDD
JA2001
CKM1550-A
1234567
8
9
10111213141516
L2001
CTH1347-A
L2226
CTF1410-A
L2232
NM
L2236
CTF1410-A
L2231
NM
Q2041
2SC4116(GRBL)
Q2226
2SC4116(GRBL)
R2046
1K
CCN1179-A-T
R2047
4.7K
CCN1180-A-T
R2041
4.7K
CCN1180-A-T
R2042
1K
CCN1179-A-T
R2226
1K
CCN1179-A-T
R2056
4.7k
R2234
1k
R2233
10k
R2230
47k
R2229
100k
R2026
4.7
R2027
4.7
FL+
ASN
BS1
BSN
BSB
BS2
IL1
VD5
PLS
ACC
RR+
FR+
PKBI
ISN
GD1
VD3
ABO
FR-
ILM
RR-
REVI
RL+
BUP1
RL-
FL-
ATB
D2028
1SR154-400
D2237
MALS180X
R2232
15k
D2029
RB500V-40
D2229
RB715W
R2231
CCN1191-A
10k
3216
R2021
4.7
R2022
4.7
BUPV
LTC114EUB
Q2046
D2032
HZU7R5(B3)
D2228
UDZS5R6(B)
R2023
47k
R2028
47k
R2032
47k
R2033
10k
R2034
10k
R2044
47k
R2048
10k
R2227
4.7k
R2228
1k
Q2031
LSC4081UB
Q2032
LSC4081UB
LSA1576UB
Q2231
KBP
NKBUP
GND
GND
100u/16
C2053
100u/16
C2058
C2001
4700u/16
C2028
CEAT472M16-P35
C2056
1u/16
1608
C2057
1u/16
1608
C2051
1.0u/35
3216
CCH1849-A
C2027
NM
C2026
C2043
NM
GND
R2031
47k
D2026
KS926S2
C2232
.01u/50
1608
BUP2
BUP3
GD2
GD3
D2042
HZU8R2(B1)
R2043
47k
D2232
1SS352
GND GND
VDD5
ILMSNS
ASENS
ANT+B
(10K*2)
PKB
REV
SPEED
VDD33
VDD33
OVER VOLTAGE DETECTION 20[V]
BSENS
91.5mA
65mA
REV
ILM
FL-
BUP
FL+
FR+
ACC
GND
AANT
FR-
PKB
PULSE
RL+
RR+
RL-
RR-
(10000uF/16V 85 -P35
VEHICLE I/F
CCH1928-A-P35
Video Signal
Audio Signal
600uH
AUDIO UNIT (PS/IF SECTION)
1/3
F
A
POWER SUPPLY
TUNER:+28.56 dBs
NAVI(USB/SD):+33.31 dBs
NAVI(BT-Audio):+34.98 dBs
LS1:+33.68 dBs
IP-BUS:+33.31 dBs
i-Pod:+33.40 dBs
VTR2:+33.83 dBs
VTR1:+33.31 dBs
12
AVIC-Z120BT/XNUC
Page 13
5 678
56
7
8
C
D
F
A
B
E
AF-a AF-b
A
F
-b
1/3
A
A
A
A
A
A
FL+
FR
RL
BREMOTE
PREMUTE
TUN_L
TUN_R
VD5CONT
FL-
FR-
FR+
FR
FL
RL
RR
RR+
RR-
RL+
RL-
SYSPW5
MUTEVO
FL
RR
ANTON5
PREMUTE
MUTEVO
FANUP
PBSNS
SWACPW5
MOTPWR2
ANTON5
SYSPW5
SYSPW5
BREMOTE
MOTPWR5
IO3
SYSPW5
ACCPW5
SYSPW5
BUP
BUP
HSW
HSW
47u/16
C2241
10u/16
C2294
(105
)
CCH1565-A
C2123
CCH1565-A
C2134
C2289
0.1u/50
1608
C2285
2125
C2284
1608
C2282
1608
C2121
0.1u/50 1608
C2281
1608
C2233
NM
(2125)
C2283
1608
C2297
NM
1608
C2296
NM
1608
C2132
0.022u/16
C2122
0.022u/16
C2287
2125
C2124
1000p/50
C2288
2125
C2291
NM
C2231
NM
C2290
0.1u/50
1608
C2131
0.1u/50
1608
C2217
NM
1608
C2286
2125
C2133
1000p/50
D2296
NM
1
D2216
1SR154-400
D2217
1SR154-400
D2231
PTZ18A
GND
GNDD
GND
GNDD
GND
GND
GNDA
GNDA
GND GNDA
IC2216
NM
1
OUT
2
GND1
3
GND2
4
GND3
5
VDD6IN
7
GND4
8
GND5
9
GND6
10
DIAG
IC2300
PA2030A
TAB1PW-GND22OUT2(-)3STBY
4
5
OUT2(+)6VCC27OUT1(-)8PW-GND19OUT1(+)10RIPPLE11IN112IN2
15
IN316AC-GND17OUT3(+)18PW-GND319OUT3(-)20VCC121OUT4(+)22MUTE23OUT4(-)24PW-GND425H-SW/VOS-DET
13
PRE-GND
14
IN4
L2232
NM
L2231
NM
UMD3N
Q2242
E11B12C2
3
E2
4
5B26
C1
CCN1
R2277
10k
R2136
3.3k
R2241
390
R2242
390
R2243
1k
R2276
10k
R2234
1k
R2233
10k
AMP+B
AC8
PKBI
SYP5
PAV1 PAV2
ABO
MUT
AU8
ATB
BREMOTE
SYSPW5
FR
RL
FL
AMPMUTE
PREMUTEIN
PREMUTE
MOTPWR2
RR
ANTON5
SWACPW5
R2232
15k
C2292
4.7u/10
(2125)
R2127
NM
R2128
3.3k
R2231
CCN1191-A
10k
3216
TUN_L
TUN_R
FUP
LTC114EUB
Q2276
C2216
1000p/50
R2281
NM
R2282
NM
LSA1576UB
Q2231
NJM2388F84
IC2131
1
VIN
2
VOUT
3
GND
4
CONTROL
GNDA
NJM2388F84
IC2121
1
VIN
2
VOUT
3
GND
4
CONTROL
R2121
47k
R2131
47k
R2135
NM
33u/10
C2276
(105
)
NM
Q2281
GNDA
MUTEVO
IO3
GND
MOTPWR5
D2297
NM
C2232
0.01u/50
1608
R2122
NM
R2132
NM
C2293
4.7u/16
(3216)
D2232
1SS352
R2126
NM
D2241
1SS352
C2295
NM
C2298
NM
C2299
NM
C2300
NM
GND
R2211
0
PWR AMP
ACC84
PREMUTE
SYSTEM
AUDIO
AU84
ANT+B
(10K*2)
(Rb=Rbe=10k)
(105 )
PKB
CKSQYB105K16-T
CKSRYB105K16-T
436.3mA
MOUNT ON SIDE A
TAB
GNDD
GNDA
FLIN)
FRIN)
AC GND
FR+
GNDD
RL-
SREMOTE
FR-
VCC1
FL+
MUTE
FL-
GNDD
B_REM
RL+
VCC2
RR-
GNDD
RR+
RIPPLE
RRIN
RLIN
(105 )
AMPMUTE
MOUNT ON SIDE A
NM
NM
NM
3/3
F
A
The > mark found on some component parts indicates
the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of
identical designation.
Symbol indicates a resistor.
No differentiation is made between chip resistors and
discrete resistors.
NOTE :
Symbol indicates a capacitor.
No differentiation is made between chip capacitors and
discrete capacitors.
NM : No Mount
13
AVIC-Z120BT/XNUC
Page 14
1234
1 234
C
D
F
A
B
E
AF-bAF-a
A
F
-b
1/3
AF-a
1/3
A
SWACPW5
FANUP
BSENS
ILMSNS
ASENS
BCAMPW
TUNSL
MOTPWR2
HIVOLT
POS_IN
MOT0
MOT1
MOT8
VICSON
SCL
SDA
VICSON
HRCK
HRDT
HRLK
HRHSLK
FMCE2
RSTIN
FMCE1
FMCLK
D_STOFM
D_FMTOS
TUN_R
TUN_L
MOTPWR5
ACCPW5
MUTEBUP
H/OSW
MOTVDD33
HIVOLT14
ILMV
ACCPW5
DDCLK
AU84
AU84
ACC84
ACC84
VDD33
VDD33
VDD33
VDD5
VDD5
SWVDD33
SWAC33
CCH1565-A
C2170
100u 16V
CCH1565-A
C2161
C2143
NM
C2163
CCG1223-A
C2162
CCG1223-A
C2166
NM
C2048
NM
608
GNDD
GNDD
GN
GNDD
GNDD
GNDD
GNDA GNDV
GNDD
GNDD
GNDD
GNDD
L2161
CTH1257-A
2S
LSA1576UB
Q2066
LSA1576UB
Q2071
NM
Q2061
R2062
NM
R2061
NM
R2071
2.2k
R2072
2.2k
R2067
4.7k
R2066
4.7k
8V
SVD
B
VD5
8EN
SWVDD33
GNDV
GNDA
GNDD
SWVDD33
ACC84
AU84
HIVOLT
ILMV
SWVDD5
SWAC33
HIVOLT14
D2162
RB050L-40
R2068
100k
R2063
NM
R2266
NM
C2266
NM
NM
Q2266
R2102
1k
GNDM
GNDD
GNDFVRF
TUNAGND
TUNAGND
TVD3
R2101
1k
R2141
NM
R2271
NM
R2073
47k
BD9781HFP
IC2161
1
VIN
2
SW
3
RT
4
GND
5
FB
6
INV
7
EN
L2162
CTH1254-A
NM
IC2141
1
VC
2
VIN
3
GND
4
VDD
5
C
GNDD
R2162
10k
R2167
10k
R2168
NM
R2166
3k
R2165
68K
C2167
0.1u/16
C2168
NM
C2171
NM
C2169
0.1u/50
LTC114EUB
Q2067
NM
Q2062
NM
Q2277
LTC114EUB
Q2072
R2142
NM
R2144
NM
R2171
NM
R2268
NM
Q2031
LSC4081UB
FANUP
NKBUP
GND
GND
CAMVIN
I8V
VD8
R2143
NM
R2267
NM
R2140
NM
C2056
1u/16
HV14
S-812C56AUA-C3K
IC2190
1
GND
2
Vin
3
Vout
0
C2173
4.7u/16
3216
GNDM
NM
C2144
C2142
NM
F2161
CCG1267-A
3
21
R2192
NM
2125
GNDD
MPR2
FSL
FCE2
RSTI
FCE1
FCLK
DSTF
DFTS
TUL
TUR
C2043
NM
R2164
0
POIN
MOT1
MOT8
R2992
0
S-VS-C
BCG
MUTEBUP
UMF21N
Q2101
E11B12C2
3
E2
4
5B26
C1
R2105
47k
R2106
1k
GNDD
MVD3
CKS5546-A
CN2101
56789
1011121314151617181920212223242526272829303132333435363738394041424344454647484950
P2107
CEK1276-A
12
R2161
100k
P2161
CEK1259-A
12
R2993
3.3k
R2994
10k
R2995
33k
R2163
33k
P2162
CEK1282-A
12
R2251
1k
R2997
0
R2996
0
D2161
NM
NM
C2160
NM
C2159
GNDD
D2160
RB051LA-40
R2160
NM
NM
C2158
C2172
CCG1223-A
10u 50V
R2103
NM
R2074
0
(10K*2)
SWVDD33
SWAC33
MT81V
(D)(D) (D)
(D)
(10uH)
(D)
BCAM6
91.5mA
Typ:450mA
MAX:1390mA
RUSH:1650mA
(10K*2)
SWVDD5
(22uH)
13.8V
ILMV
(LITTEL250mA)
(10K*2)
(50V)
MOT8
GNDM
MOTVDD33
TUN_R
D_FMTOS
RSTIN
GNDM
TUNAGND
MOTPWR5
MOT1
FMSL
POS_IN
FMCLK
MOT8
H/OSW
D_STOFM
MOT0
HRHSLK
AU84
HLDET
GNDFVRF
MOTPWR2
HRLK
TUN L
FV33
NC
GNDT
MOT8
GNDT
GNDFVRF
SDA
NC
FVDETO
VICSON
VDD33
HRDT
FMCE1
ACC84
SCL
HRCK
FMCE2
(LITTEL1.5A)
(SOC3.15A)
(10K*2)
GNDM
GNDD
GNDD
MAX200mA
ROCK600mA
RUSH1030mA
2200mA max
CCG1223
10u/50v/3225
CCH1565
100u/16V
HLDET/
REGION RESISTANCE
MOTVDD33
GNDD
GNDD
NM
UNUSED
MODEL RESISTANCE
/
/
NM
UC
AU
NM
Mount
NM
NM
NM
>
>
>
B
CN511
2/3
F
A
3/3
F
A
:-13.54 dBs
14
AVIC-Z120BT/XNUC
Page 15
5 678
56
7
8
C
D
F
A
B
E
AF-bAF-a
A
F
-b
1/3
AF-a
1/3
2001 2300
REFERENCE NUMBER LIST
A
H/OSW
MOT0
MOT1
RDS57K
BCAMPW
POS_IN
HRHSLK
HRLK
HRDT
HRCK
D_FMTOS
D_STOFM
FMCLK
FMCE1
FMCE2
TUNSL
VD5CONT
VD5CONT
DDCLK
VD8CONT5
ILMSNS
GPSREV
SYSREV
SPEED
ASENS
BSENS
MUTEVO
RSTIN
PBSNS
ANTON5
ACCPW5
ACCPW5
SWACPW5
MOTPWR2
ANTON5
SYSPW5
SYSPW5
VICSON
SCL
SDA
VICSON
D_STOFM
D_FMTOS
TUN_R
TUN_L
MOTPWR5
MUTEBUP
SYSPW5
AU84
AU84
ACC84
ACC84
VDD33
BUPV
VDD5
VDD5
BUP
BUP
C2186
0.047u/10
C2184
4.7u/16
3216
C2185
22p/50
C2190
NM
1608
C2217
NM
1608
D2181
HZU9R1(B2)
G
GNDD
GNDD
GNDD
IC2181
LT3461AES6
Vfb=1.255Vtyp
SW11GND
2FB3
SHDN
4
5
VOUT6VIN
L2181
CTF1473-A
UMD3N
Q2181
E11B12C2
3
E2
4
5B26
C1
Q2182
2SD1767(R)
R2189
6.8k
R2188
5.6k
R
R2182
100k
R2183
160k
HV12
HVO
VD8V
RDS57K
BCAMPW
ACCPW5
DDCLK
MOT0
SYSPW5
H/OSW
BUP
BSENS
MOT1
VDD5
MOTPWR2
ANTON5
ILMSNS
ASENS
VD8CONT5
AU84
GNDD
SWACPW5
SYSREV
VDD33
GPSREV
SPEED
PBSNS
S-812C56AUA-C3K
IC2182
1
GND
2
Vin
3
Vout
GNDRF
TUNAGND
GNDD
GNDD
POS_IN
HRHSLK
HRLK
HRDT
HRCK
D_FMTOS
D_STOFM
FMCLK
FMCE1
FMCE2
TUNSL
TVD3
R2153
0
GNDD
R2155
24k
P2151
CEK1254-A
12
C2152
NM
C2151
2.2u/25
D2151
RB160M-40
R2154
130k
R2152
20k
D2152
1SS352
LT3505EDD
IC2151
BOOST1SW2VIN3SHDN
45
GND1
6RT7FB8
VC
9
GND2
LS1VDD
VD5CONT
R216
10
R2167
10k
R21
N
R216
3k
0.
C2183
0.1u/16
1608
C2182
0.1u/16
1608
C2154
0.1u/16
L2151
CTF1744-A-T
RSTIN
C2187
1u/25
C2181
4.7u/25
3216
MUTEVO
GNDD
R2187
47k
HV14
S-812C56AUA-C3K
IC2190
1
GND
2
Vin
3
Vout
C2191
1u/25
R2190
5.6k
GNDD
C2189
0.01u/25
C2193
0.01u/25
C2192
0.01u/25
C2188
0.01u/25
SCL
SDA
C2156
CCG1183-A
R2192
NM
2125
L2152
BTH1112-A
10u
VICSON
VICSON
R2185
12k
R2186
11k
DSTF
DFTS
TUL
TUR
GNDD
NM
R2158
NM
C2157
R2151
22k
C2153
150p/50
C2155
220p/50
R2181
1.2k
R2191
6.2k
R2193
1.8k
MOTPWR5
123456789
101112
13
L2183
CTF1389-A
C2101
0.01u/16
C2194
0.01u/25
C2195
0.01u/25
L2182
CTH1426-A
R216
33
D2241
1SS352
R2081NMR2082NMR2083
0
GND GND
GND GND
GND
GNDA
R2084
0
GNDA GNDA
R2085
0
GNDDGNDD
DMY
SYSTEM
AUDIO
(D) (D)
(D)
HIVOLT15
12.4V
13.8V
ILMPW
TUNER IF
BSENS
ASENS
ILMSNS
VDD5
VDD33
SWVDD
SWVDD5
SWAC33
BCAM6
ACC84
AU84
ANT+B
PREMUTE
AND CIRCUIT
REV
PKB
SPEED
KMODE
2001 - 2020
2021 - 2030
BUP
KEEP BUP
2031 - 2035
2041 - 2045
2046 - 2050
2051 - 2055
2056 - 2060
2061 - 2065
2066 - 2070
2071 - 2074
2086 - 2105
2140 - 2144
2121 - 2130
2131 - 2139
2151 - 2160
2161 - 2175
2181 - 2195
2266 - 2275
2216 - 2220
2226 - 2230
2231 - 2235
2236 - 2238
2239 - 2240
2241 - 2245
2251 - 2255
2276 - 2280
AMPMUTE
2281 - 2295
POWER AMP
(D) (D) (D)(D)
TUN_R
D_FMTOS
TUNAGND
D_STOFM
AU84
GNDRF
GNDRF
TUN_L
NC
GNDRF
VDD33
ACC84
GNDRF
4
45
44
1
2
3
CONTACT SIDE
(3216)
(D)
(3216)
(D)
LS1VDD
LS1VDD
Typ:192mA
220mA
MAX 520mA
430mA
LS1VDSW
2176 - 2180
MT81
(Rb=Rbe=10k)
(f=3MHz)
22u/16V
HLDET/
HLDET/
(SOC1A)
HIVOLT
(D)
2296 - 2300
AMP+B
22u
(D)(D)
(D)
(D)
(D)
>
2/3
F
A
TUNER:-13.54 dBs
AVIC-Z120BT/XNUC
15
Page 16
1234
1 234
C
D
F
A
B
E
AUDIO UNIT(SYSCOM SECTION)(GUIDE PAGE)
AF-a
2/3
2/3
F
A
A
V
A
A
V
A
V
A
V
A
WREMIN2
WREMIN1
GMUTER
GMUTEL
VST
VDT
VCK
BCAMPW
COMDC
MOTPWR2 CE
ANTON
BLERR2
BLERR1
FMCE1
CNVSS
IICSDA
IICSCL
iPod_V
iPod_AG
iPod_R
iPod_L
NAVI_L
iPod_VG
NAVI_AG
NAVI_R
IP_L
GUIDE
AVOUT
STOIP
IPTOS
ILMSNS
EPRDI
POS_IN
GNDAZ
SYSREV
LEDCK
LEDDT
EPRCE
EPRDI
RMUTE
SPEED_IN
ASENBO
MBLPW
RMUTE
FMCE2
FMCE1
FMCLK
D_STOFM
D_FMTOS
IP_R
DIMMER
IPTOS
STOIP
IPPW
ASENBO
FANCONT
FANON
HYOKA
FANUP
GMUTE
EXTOC
CTOEX
FCONT_M
FCONT_N
MSN_RST
AVOUT
HYOKA
CTOEX
EXTOC
CTOVICS
VICSTOC
SPEED_IN
IICSDA
IICSCL
BLSYNC
LEDCS
LEDCK
LEDDT
PIPRST
PCHNG
OFFOK
CCRST
ASENREQ
CARDSNS
RDSSNS
IO_ON
PBSNS
GPSREV
NAVION5
RDS57K
LCD_OE
RDT
MBLPW
BSENS
PREON
REMIN
GMUTEL
GMUTER
MUTE
EPRCE
H/OSW TTX
MOT1
LS1STBY
SCL
SDA
EPM
IRQPW
DTOSYS
MOT0 TRX
DIMMER
CTOSYS
POS_IN
MUTEVO
ILMSNS
VD8CONT5
KMODE
BCAMPW
RDS57K
MUTEVO
PBSNS
IPPW
SYSPW
SWACPW
XRES
VD5CONT
FMCLK
RSTIN
SYSTOC
NAVION
SWACPW5
LEDCS
KDT0
KDT1
KMODE
TELMUTE
TELMUTE
SCL
SDA
RDS57K
RCK
TUNSL
MVIPW
RCK
LDET
RDT
RDSLK
BCAMSNS
RDT
RDSLK
GUIDE
GNDAZ
NAVI_L
NAVI_R
iPod_R
iPod_L
iPod_AG
iPod_VG
IP_R
IP_L
NAVI_AG
BSENREQ
CPUWDT
GMUTE
LCDTEMPIN
BLERR1
BLERR2
FCONT_C
FCONT_N
FCONT_M
iPod_V
RESET
LDET
EJECT
COMDC
CCTEMPIN
MOTPWR
IP_RG
GNDSEL
D_STOFM
GNDSEL
DDCLK
BLSYNC
FMCE2
BCAMSNS
D_FMTOS
IICSDA
RDSLK
VCK
VST
VDT
IP_LG
BSENS
FANUP
GPSREV
SYSTOD
LDET
RDS57K
RCK
RCK
RDT
CARDSNS
RSTIN
HRESET
C2459
0.1u/16
C2306
0.015u/50
C2471
NM
C2311
100p/50
C2355
0.01u/16
C2463
NM
C2435
47p/50
C2431
0 1 /16
C2391
NM
C2307
0.1u/16
C2571
NM
C2573
NM
GNDV
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
(GNGI)
IC2304
BD5229FVE
RESET CIRCUIT(100msec)
VOUT
1
SUB
2
CT3GND
4
5
VDD
S-93C56BD0I-I8
IC2302
CS
1
SK
2
DI
3
DO
45
GND
6
TEST
7
NC
8
VCC
IC2491
NJM2904M
3
4
2
1
8
IC2491
NJM2904M
5
6
7
IC2303
123
456
7891011
12
131415
CNVss
161718
RESET
19
Xout20Vss1
21
Xin
22
Vcc1
23
NMI
2425262728293031323334
35
36
37
38
Vcc2
39
40
Vss2
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
Vss3
57
58
Vcc3
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
Vcc4
74
75
Vss4
767778798081828384858687888990
Vcc5
91
92
Vss5
93949596979899
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
Vss6
130
131
Vcc6
132
133
134
135
136
137
138
139
Avss
140
141
Vref
142
Avcc
143
144
L2351
CTF1305-A
L2461
CTF1305-A
L2491
CTF1334-A
L2311
CTF1305-A
L2571
CTF1306-A
L2303
CTF1306-A
L2371
CTF1305-A
L2331
CTF1305-A
L2492
CTF1334-A
DTC114WK
Q2491
NM
Q2302
E1
1
B1
2
C2
3E24
5
B2
6
C1
R2494
51k
R2497
51k
R2495
100k
R2439
1k
R2577
220
R2301
100k
R2387
1k
R2335
NM
R2327
470
R2316
470
R2496
51k
R2499
R2492
47k
R2498
R2376
680
R2377
680
R2378
680
R2386
680
R2493
56k
R2352
NM
R2391
100k
R2392
100k
R2571
NM
R2348
47k
R2491
100k
R2435
1.8k
R2457
NM
R2450
NM
R2453
1k
R2461
47k
R2356
1k
R2452
4.7k
R2474
NM
R2315
470
R2328
680
R2313
4.7k
R2311
100k
R2379
1k
R2332
1k
R2331
220
R2314
47k
R2337
1k
R2437
47k
R2305
47k
R2304
47k
R2367
100k
R2374
NM
R2446
470
R2344
470
R2365
47k
R2354
R2406
100k
R2404
100k
R2458
47k
R2434
NM
R2355
1k
R2341
680
R2317
680
R2366
47k
R2382
150
R2381
150
R2384
220
R2385
220
SA3
CNVSS
AU84
TSTI
ILMV
WREMIN2
ASENS
WREMIN1
IICSDA
IICSCL
BSENS
GPSREV
GMUTEL
GMUTER
RCK
GMUTE
VDT
VST
VCK
MUTEVO
ILMV
RMUTE
CTOEX
EXTOC
iPod_AG
iPod_L
iPod_R
iPod_V
iPod_VG
NAVI_R
NAVI_AG
NAVI_L
GNDAZ
GUIDE
AVOUT
IP_L
IP_R
TELMUTEIN
C2574
NM
C2575
NM
C2576
NM
C2577
NM
C2578
NM
C2579
NM
C2580
NM
C2581
NM
C2582
NM
C2583
NM
C2584
NM
C2585
NM
C2586
NM
C2587
NM
C2589
NM
C2590
100p/50
R2368
220
R2372
220
R2369
100k
R2312
4.7k
R2390
100k
GNDD
HRCK
HRHSLK
HRDT
FMCLK
D_FMTOS
FMCE1
FMCE2
D_STOFM
VICSON
HRLK
C2572
0.1u/16
C2304
0.1u/16
R2310
1k
C2305
NM
C2491
0.1u/16
C2492
1000p/50
R2432
10k
R2360
47k
R2359
4.7k
GNDA
FANUP
GNDD
C2588
NM
HYOKA
NKB
NVB
GDAN
VGN
GDN
GDI
RESET
SPD1
R2455
NM
R2456
NM
R2462
NM
C2352
100p/50
R2375
680
R2405
100k
AVCC
NSD
POS_IN
MUTEVO
VD8CONT5
ILMSNS
KMODE
RDS57K
BCAMPW
R2436
47
R2351
100k
VICSON
SDA
SCL
TUNSL
R2507
22k
R2509
22k
R2508
22k
R2506
22k
R2444
47k
Q2506
UMH1N
1
E1
2
B1
3
C2
4
E2
5
B2
6
C1
Q2505
UMH1N
1
E1
2
B1
3
C2
4
E2
5
B2
6
C1
ERST
R2505
22k
IO3
BCAMSNS
SCAMSNS
FCAMSW
T-34
GDE
MNG
NVR
NVL
iR
iL
iAG
iVG
IPR
IPL
IPG
NVG
BRQ
WDT
GMT
TMP
BE1
BE2
FCC
FCN
FCM
iV
VON
HRLK
HRCK
HSLK
HRDT
R2463
100k
R2478
NM
R2447
NM
T-56
GSEL
GNDD
GND
COMDC
C2460
10p/50
C2461
10p/50
D2432
RB501V-40
C2450
4.7u/10
R2451
100k
CCTMP
R2336
1k
R2388
220
R2473
560
R2357
220
C2464
1u/10
C2420
1u/10
C2321
0.01u/50
C2331
0.01u/50
C2374
0.01u/50
C2351
0.01u/50
C2462
0.01u/50
C2411
0.01u/50
R2471
NM
X2301
CSS1781-A
HOT1
1
GND1
2
GND2
4
HOT2
3
R2325
NM
CTOS
STOC
TCK
R2460
560
LSA1576UB
Q2303
C2434
330p/50
C2436
150p/50
C2437
470p/16
C2439
NM
C2438
0.01u/16
CN2571
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
C2308
NM
C2413
0.1u/16
C2412
0.01u/16
C2414
0.01u/16
C2415
0.01u/16
C2416
0.01u/16
IO3
C2424
0.01u/50
R2329
100
L2572
NM
C2570
NM
GNDD
GNDD
C2368
NM
R2739
NM
C2443
NM
C2444
NM
C2440
NM
C2441
NM
R25700R2569
0
GNDV
R2741
NM
GNDA
R2353
0
R2302
0
/15MHz
AU84AU84
AU8
Audio/Video
(Rb=Rbe=10k)
SPEED
SWVDD5
SWAC33SWAC33
TUNPCLK
SYSTOC
BKSNS
LS1STBY
VICS_DCL
CCTEMPIN
ANTON
TUNPCE2
KDT1
BCAMSNS
BLERR1
CCRST
COMDC
NC
NC
NSD
BEEP
TMC_MSN_ON
ILMSNS
CPUWDT
IPPW
TUNSL
MOTPWR
RDS57K
VDC1
BLSYNC
SYSTOD
TELMUTE
VDT
EPM
BCAMPW
ASENBO
EPRDI
IICSCL
LCDTEMPIN
RDSSNS/CTOVICS
KDT2
IRQPW
TUNPDI
NC
R32C/116 GROUP
VICS_DRST
CTOSYS
WREMIN1
EPRST
KDT0
BSENS
VICS_SDA/BUSY
NC
VST
FLAPLESS
DIMMER
RCK
MBLPW
NC
XRES
VICS_BCLOCK
DTOSYS
SYSPW
LEDCS
VICS_DCE
CARDSNS
ACCPW
PBSNS
TSCK
ASENS
MOT1
NC
NAVION
HOMESW/TSI
PIPRST
BSENREQ
RMUTE
VCK
IO_ON
NC
FCAMSNS
/WREMSNS
/LEDDT
IICSDA
VICS_DINT
MOTPWR2/CE
FCONT_N
EPRCE
EPRDO
MOT0/TSO
WREMIN2/
WCONT
MUTEVO
PRE_ON
SIMUKE
EPRCK
RDSLK
STOIP
VD5CONT
ASENREQ
/LEDCK
FANON
DDCLK
NC
GNDSEL
TUNPCE1
SYSTEM u-COM
TUNPDO
BLERR2
RDT
TESTIN
MSN_RST
VICS_DDI
FCONT_M
FCONT_C
VICS_SCL/TSCK
IPTOS
SWACPW
POS_IN
VICS_DDO
NC
VDC0
LDET
LCD_OE
OFFOK
MVIPW
VDD5VDD5
EEPROM
HARD RESET
2301 - 2480u-com
2481 - 2490KMODE
SPEED SNS 2491 - 2510
EXTENDED I/O
2511 - 2530
3->5
2531 - 2550
LS1
2551 - 2570
TO NAVI
2571 - 2600
FANCONT
(2473)
(2484)
(2504)
(2522)
(2642)
(2566)
(2591)
(Rb=10K,Rbe=4.7k)
(2962) DARC
2951 - 2970
TUNER
RDS
VICS
128
SECCONT
21
94
VICSTOC
23
MBLPW
IO_ON
NC
NC
NC
FANCONT
CTOSYS
ILMDT
65
136
FANON
52
122
38
55
HRST
CCTEMPIN
16
138
BSENRQ
67
126
GNDA
36
19
GNDSEL
115
GNDD
54
99
BLERR2
50
CTOVICS
63
BLSYNC
OFFOK
66
69
47
AVOUT
77
GUIDE
40
90
42
71
18
27
iPod_R
NAVION
RDSSNS
62
GNDAZ
BSENS
49
111
TCON_SCL
89
117
15
114
PIPRST
14
139
48
75
56
TCON_SDA
GNDD
81
104
ASENS
IPPW
NAVI_R
GND
125
DIMMER
127
79
9
GNDILM
37
GNDD
140
91
96
100
132
CARDSNS
118
7
20
PREON
25
61
124
4
83
MVIPW
78
109
EXTOC
82
45
105
35
10
133
8
24
6
1
GPSREV
iPod_L
110
FCONT_C
113
GND
41
PBSNS
34
101
KMODEOUT
85
131
SWACPW5
NC
ILMCK
107
106
BLERR1
103
31
30
68
121
26
IP_L
84
92
ILMV
108
102
44
80
135
123
NC
NC
60
ROT1
129
51
13
3
86
SYSTOC
70
17
134
72
112
120
43
2
73
39
11
12
93
46
97
ROT0
130
IPTOS
53
STOIP
87
57
58
5
TEMPSEN
22
FCONT_N
98
32
iPod_AG
SPEED_IN
29
88
RST_SO
64
137
CTOEX
PCHNG
95
116
119
28
NC
74
59
33
CPUWDT
76
ASENBO
NAVI_L
GMUTE
ILMLD
BUP
BUP
BUP
BUP
BUP
BUP
GNDD
FANUP
NC
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
VDD5
GNDD
ASENRQ
GNDA
GNDAG
GNDD
LCD_OE
FCONT_M
GNDD
GND
SWAC33
VDD5
IP_R
HYOKA
REMIN
GNDV
GNDV
iPod_VG
iPod_V
IP_RG
IP_LG
GNDD
GNDD
GNDD
AU8
GMUTEL
GMUTER
MUTE
NC
NKBUP NKBUP NKBUP
BUP BUP BUP
AU84
SWAC33
Pull up by Tuner PCB
KEEP_BUP
KEEP_BUP
KEEP_BUP
KEEP_BUP
KEEP_BUP
BUP
GND
GND
GND
NC
NC
KEEP_BUP
KEEP_BUP
KEEP_BUP
GNDA
GNDA
GNDA
KDT0
KDT1
KDT2
TIMEOUT
UNUSED
IO3
COMDC
NC
NC
TIMEOUT
Hi:validation
Lo:invalidation
UNUSED
NM
NM
HLDET/
NM
AU
UC
AU
PEG677A8
PEG678A8
UC
CKS6225-A
3/3
F
A
1/3
F
A
CN5603
4/4
F
16
AVIC-Z120BT/XNUC
Page 17
5 678
56
7
8
C
D
F
A
B
E
AF-b
2/3
2/3
F
A
2301-2600 SYSTEM uCOM
REFERENCE NUMBER LIST
A
V
A
V
A
V
ANTON5
AMPMUTE
OFFMUTE
OFFMUTE
PREMUTEIN
ANTON5
WREMIN2
IRQPW
LS1STBY
SYSTOD
XRES
WREMIN1
RESET
CNVSS
SPEED
ANTON
PREMUTEIN
AMPMUTE
LS1L
LS1R
MBLPW
SDA
SCL
MOT0
TRX
H/OSW
TTX
REMIN
POS_IN
PBSNS
DDCLK
SYSPW5
MOTPWR2
CE
ILMSNS
SWACPW5
MOT0
TRX
VD8CONT5
MOT1
H/OSW
TTX
SPEED
SYSREV
VD5CONT
MOTPWR5
BCAMPW
RDS57K
MUTE
FANCONT
FCONT_C
FANON
CCRST
SWACPW5
SYSPW5
EPM
MOTPWR2
CE
RSTIN
ACCPW5
ACCPW5
KDT1
NAVION
ACCPW
SYSPW
NAVION5
PCHNG
MOTPWR
MOTPWR5
TMC_MSN_ON5
TMC_MSN_ON
RDSSNS
SWACPW
OFFOK
SYSTOC
CTOSYS
IO_ON
PIPRST
LCD_OE
MVIPW
LEDCK
PREON
ACCPW
ASENREQ
CPUWDT
BSENREQ
TUNSL
EJECT
CCTEMPIN
TMC_MSN_ON
KDT0
LCDTEMPIN
IICSCL
LEDDT
uRDSSNS
IICSDA
uVDD33
uVDD33
VICSTOC
GNDALS
SWVDD33
CTOVICS
TMC_MSN_ON5
SWAC33
FANUP
GPSREV
DTOSYS
GNDVLS
LS1V
HRSTO
uRDSSNS
MSN_RST
C2531
0.1u/16
C2430
47p/50
C2435
47p/50
C2431
0.1u/16
C2432
0.1u/16
C2301
NM
C2391
NM
D2552
DAP202U
D2531
UDZS8R2(B)
GNDA
GNDD
GNDVLS
GNDALS
GNDD
GNDD
GNDD
GNDD
GNDA
GNDD
GNDV
GNDD
GNDD
GNDDDC
GNDV
GNDD
GNDDDC
IC2531
TC74VHCT32AFT
1A
1
1B
2
1Y
3
2A
4
5
2B
6
2Y
7
GND
8
3Y
9
3A
10
3B
11
4Y
12
4A
13
4B
14
Vcc
1
04M
3
4
2
1
8
IC2491
NJM2904M
5
6
7
1
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
L2421
CTF1305-A
L2302
2.2u
L2492
CTF1334-A
L2411
CTF1305-A
UMD3N
Q2552
E11B12C2
3
E2
4
5B26
C1
IMH23
Q2551
C11B22E2
3
C2
4
5B16
E1
R2494
51k
R2559
470
R2497
51k
R2495
100k
R2561
220
R2562
220
R2501
2k
R2496
51k
R2499
1k
R2492
47k
R2498
1k
R2504
33k
R2536
100k
R2503
20k
R2493
56k
R2500
560k
R2352
NM
R2391
100k
R2392
100k
R2502
8.2k
R2557
470
R2431
1.8k
R2558
470
R2400
NM
R2407
220
R2398
470
R2401
680
R2425
NM
R2367
100k
R2374
NM
R2421
680
R2414
680
R2354
R2408
NM
R2403
680
R2406
100k
R2404
100k
R2458
47k
R2560
1k
R2434
NM
R2395
1k
R2394
1k
R2537
100k
NB0
UVD
OFM
BS8
SWVDD5
AMPMUTE
PREMUTEIN
AU84
GNDA
GNDV
GNDD
GNDA
GNDD
GNDV
VDD5
ANTON5
GNDDDC
AU84
LS1V
LS1L
LS1R
GPSREV
GNDALS
GNDVLS
BUP
GNDD
VDD33
ILMV
SWAC33
SWVDD33
VD8V
GNDD
10u/16
C2302
L2553
CTF1488-A
L2554
CTF1410-A
LS8
LS5
R2429
100k
R2390
100k
GNDD
TVD
BSY
TSCK
TRX
TTX
TRST
CNVS
TGND
LTC114EUB
Q2492
0.1u/16
C2492
1000p/50
C2493
0.1u/16
C2495
0.082u/16
C2494
0.01u/50
C2303
1000p/50
C2558
0.1u/16
C2557
0.1u/16
C2561
0.1u/16
R2554
1.8k
R2551
1.8k
R2553
100k
R2552
100k
R2432
10k
R2419
1k
R2417
1k
R2533
47k
R2538
100k
GNDA
R2520
1k
C2513 0.01u/50
D2518
NM
D2519
UDZS18(B)
C2514NMC2515
NM
D2520
UDZS18(B)
GND
R2521
1k
C2559
4.7u/10
LSVG
LSDG
R2396
1k
R2397
1k
GNDD
C2516
0.1u/50
R2524
47
SWBUP
RSN
CTV
VTC
R2405
100k
AVCC
GNDD
POS_IN
MOTPWR5
VD8CONT5
DDCLK
SWACPW5
SYSPW5
ILMSNS
SPEED
PBSNS
VD5CONT
MOT1
ACCPW5
SYSREV
H/OSW
MOTPWR2
MOT0
RDS57K
BCAMPW
LS1VDD
C2518
0.1u/50
C2510
1000p/50
GND
IC2530
TC74VHCT541AFTS1
G1
1
A1
2
A2
3
A3
4
5
A4
6
A5
7
A6
8
A7
9
A8
10
GND11Y8
12
Y7
13
Y6
14
Y5
15
Y4
16
Y3
17
Y2
18
Y1
19
G2
20
VCC
C2530
0.1u/16
GNDD
NAV5
R2539
100k
R2535
100k
R2534
100k
R2530
100k
R2532
100k
D2521
1SR154-400
NKBUP
RSTIN
R2436
47
R2423
47
C2563
10u/35V
CCG1236-A-T
C2562
NM
GND
C2511
0.1u/16
CE
EPM
R2420
680
R2413
680
R2428
3.9k
R2427
3.9k
D2522
1SR154-400
IC2512
TPD1018F
1
OUT
2
GND13GND24GND35VDD
6IN7
GND4
8
GND5
9
GND610DIAG
C2512
0.01u/25
R2513
47k
R2527
1k
C2527 0.01u/50
D2527
UDZS18(B)
LMUT
IRQ
LSR
LSL
LSG
COMP
NB1
NB2
PCNG
R2463
100k
R2477
100k
R2447
NM
R2433
10k
RS-750
U2511
1
GND2VCC
3
OUT
D2433
RB751S-40
D2432
RB501V-40
R2451
100k
VKN1620-A
CN2551
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
R2412
NM
R2411
680
NM
CN2511
1
2
3
4
5
6
7
8
9
10
R2415
100k
R2388
220
C2420
1u/10
C2411
0.01u/50
R2540
0
R2541
0
R2543
100k
R2542
NM
C2552
100p/50
C2551
100p/50
R2410
0
GND
TCK
R2424
47k
R2422
NM
R2529
100k
R2511
1M
LSA1576UB
Q2512
Q2531
LSC4081UB
D2491
1SS352
CKS6155-A
CN2512
1
2
3
4
5
6
C2517
0.1u/10
P2176
CEK1278-A
12
R2514
47k
IC2513
TC7SET08FUS1
INB
1
INA
2
GND3OUTY
4
5
Vcc
C2434
330p/50
C2436
150p/50
C2437
470p/16
C2439
NM
C2438
0.01u/16
C2412
0.01u/16
C2414
0.01u/16
C2415
0.01u/16
C2416
0.01u/16
C2417
0.01u/16
C2418
0.01u/16
C2419
0.01u/16
CTVI
VTCO
C2424
0.01u/50
LTC114EUB
Q2515
R2522
1k
R2525
NM
R2564
NM
TC7WH126FU
IC2511
G1
1
A1
2
Y2
3
GND
45
A2
6
Y1
7
G2
8
VCC
C2367
NM
C2564 10u
10V DCH1201-A-T
22u/16
C2565
GNDD
R2555
0
GNDA
C2440
NM
C2441
NM
R2563
NM
GNDA
R2531
100k
L2531
CTF1410-A
L2511
CTF1410-A
L2530
CTF1410-A
DTC144EUA
Q2514
DTC144EUA
Q2513
OFF MUTE
BUSY
SCLK
CNVSS
RESET
RXD
VDD33
AGND
PGND
PGND
S
LS1TX
VGND
DGND
DGND
SCK
DGND
DGND
AGND
D+
VDD5
LS1
VD(Dry)
ROUT
LS1
SRX
D-
AMUTE
5.1V
XRES
STANBY
CPRST
IECOUT
COMPOSIT
LOUT
SDA
IRQPWR
DGND
VD(Reg)
8.4V
AGND
VDD5
VDD33
TXD
AU84
SWAC33 SWAC33
SWVDD33SWVDD33
SPEED SENSE
SWVDD5
SWVDD5SWVDD5
SWVDD5
AU84
13
4230
29
TOC
PIN
PIN
CS
SYS
REQ
REQ
NON
VDD5
(Rb=Rbe=10k)
(2125)
VD(Dry)
GND
VDD
(Rb=Rbe=10k
)
(Rb=4.7k
)
GND
VICSTOC
CTOVICS
TMC_MSN_ON
RDSSNS
SWBUP
(2125)
IR REMOTE
SWBUP
NKBUP NKBUP
BUP BUP
(LITTEL500mA)
AU
RDS-TMC/MSN-DIRECT
3 5 LEVEL SHIFT
UC
u-com Rewriting dedication
CONTACT SIDE
CE
EPM
NM
NM
RS1/10SR0R0J-T
RS1/10SR0R0J-T
NM
R2540 R2541
UC
AU
Video Signal
Audio Signal
>
3/3
F
A
1/3
F
A
1/3
F
A
1/3
F
A
AUDIO UNIT (SYSCOM SECTION)
2/3
F
A
C
CN1901
RDS-TMC TUNER
LS1:+5.20 dBs
AVIC-Z120BT/XNUC
17
Page 18
1234
1 234
C
D
F
A
B
E
AF-a AF-b
A
F
-b
2/3
A
V
ANTON5
OFFMUTE
OFFMUTE
WREMIN2
WREMIN1
SPEED
ANTON
MUTE
KDT1
PCHNG
RDSSNS
KDT0
IICSCL
uVDD33
VICSTOC
SWVDD33
CTOVICS
TMC_MSN_ON5
HRSTO
uRDSSNS
MSN_RST
2531
/16
C2435
47p/50
C2301
NM
D2531
UDZS8R2(B)
GNDD
GNDD
GNDD
GNDD
IC2531
1A11B21Y32A
4
5
2B
103B114Y124A134B14
Vcc
3
2
IC2491
NJM2904M
5
6
7
136
137
138
139
140
141
142
143
144
L2421
CTF1305-A
L2302
2.2u
L2492
R2494
51k
R2497
51k
R2495
100k
R2501
2k
R2496
51k
R2499
1k
R2492
47k
R2498
1k
R2504
33k
R2536
100k
R2503
20k
R2493
56k
R2500
560k
R2502
8.2k
R2431
1.8k
R2421
680
R2458
47k
R2434
NM
NB0
UVD
OFM
BS8
SWVDD5
AU84
VDD5
AU84
BUP
GNDD
VDD33
SWAC33
SWVDD33
10u/16
C2302
R2429
100k
LTC114EUB
Q2492
C2492
1000p/50
C2493
0.1u/16
C2495
0.082u/16
C2494
0.01u/50
C2303
1000p/50
R2432
10k
R24191kR2417
1k
R2533
47k
R2538
100k
R2520
1k
C2513 0.01u/50
D2518
NM
D2519
UDZS18(B)
C2514
NM
C2515
NM
D2520
UDZS18(B)
GND
R2521
1k
SWBUP
RSN
CTV
VTC
AVCC
LS1VDD
C2518
0.1u/50
C2510
1000p/50
GND
D2521
1SR154-400
NKBUP
47
R2423
47
GND
C2511
0.1u/16
R2420
680
R2428
3.9k
R2427
3.9k
D2522
1SR154-400
IC2512
TPD1018F
1
OUT
2
GND1
3
GND2
4
GND3
5
VDD
6
IN
7
GND4
8
GND5
9
GND6
10
DIAG
C2512
0.01u/25
R2513
47k
R2527
1k
C2527 0.01u/50
D2527
UDZS18(B)
NB1
NB2
PCNG
R2447
NM
R2433
10k
D2433
RB751S-40
D2432
RB501V-40
R2451
100k
R2415
100k
C2420
1u/10
R2540
0
R2541
0
R2543
100k
GND
R2511
1M
LSA1576UB
Q2512
Q2531
LSC4081UB
D2491
1SS352
CKS6155-A
CN2512
1
2
345
6
C2517
0.1u/10
R2514
47k
IC2513
TC7SET08FUS1
INB1INA2GND
3
OUTY
4
5
Vcc
C2434
330p/50
C2436
150p/50
C2437
470p/16
C2439NMC2438
0.01u/16
CTVI
VTCO
C2424
0.01u/50
LTC114EUB
Q2515
R2522
1k
R2525
NM
TC7WH126FU
IC2511
G11A12Y23GND
45
A26Y17G2
8
VCC
C2440NMC2441
NM
R2531
100k
L2531
CTF1410-A
L2511
CTF1410-A
DTC144EUA
Q2514
DTC144EUA
Q2513
OFF MUTE
VDD33
VDD5
VDD33
AU84
SWAC33 SWAC33
SWVDD33SWVDD33
SPEED SENSE
SWVDD5
SWVDD5SWVDD5
SWVDD5
AU84
VDD5
(Rb=Rbe=10k)
GND
VICSTOC
CTOVICS
TMC_MSN_ON
RDSSNS
SWBUP
(2125)
SWBUP
NKBUP NKBUP
BUP BUP
RDS-TMC/MSN-DIRECT
UC
NM
RS1/10SR0R0J-T
RS1/10SR0R0J-T
NM
R2540 R2541
UC
AU
Video Signal
Audio Signal
1/3
F
A
1/3
F
A
AUDIO UNIT (SYSCOM SECTION)
2/3
F
A
RDS-TMC TUNER
18
AVIC-Z120BT/XNUC
Page 19
5 678
56
7
8
C
D
F
A
B
E
AF-a AF-b
A
F
-b
2/3
2301-2600 SYSTEM uCOM
REFERENCE NUMBER LIST
A
V
A
V
ANTON5
AMPMUTE
OFFMUTE
PREMUTEIN
ANTON5
WREMIN2
IRQPW
LS1STBY
SYSTOD
XRES
WREMIN1
RESET
CNVSS
ANTON
PREMUTEIN
AMPMUTE
LS1L
LS1R
SDA
SCL
MOT0
TRX
H/OSW
TTX
REMIN
POS_IN
PBSNS
DDCLK
SYSPW5
MOTPWR2
CE
ILMSNS
SWACPW5
MOT0
TRX
VD8CONT5
MOT1
H/OSW
TTX
SPEED
SYSREV
VD5CONT
MOTPWR5
BCAMPW
RDS57K
MUTE
FANCONT
FCONT_C
FANON
CCRST
SWACPW5
SYSPW5
EPM
MOTPWR2
CE
RSTIN
ACCPW5
ACCPW5
KDT1
NAVION
ACCPW
SYSPW
NAVION5
MOTPWR
MOTPWR5
TMC_MSN_ON5
TMC_MSN_ON
SWACPW
OFFOK
SYSTOC
CTOSYS
IO_ON
PIPRST
LCD_OE
MVIPW
LEDCK
PREON
ACCPW
ASENREQ
CPUWDT
BSENREQ
TUNSL
EJECT
CCTEMPIN
TMC_MSN_ON
KDT0
LCDTEMPIN
IICSCL
LEDDT
uRDSSNS
uVDD33
GNDALS
SWAC33
GPSREV
DTOSYS
GNDVLS
LS1V
C2531
0.1u/16
C2430
47p/50
C2431
0.1u/16
C2432
0.1u/16
C2391
NM
D2552
DAP202U
GNDA
GNDVLS
GNDALS
GNDD
GNDD
GNDA
GNDD
GNDV
GNDDDC
GNDV
GNDD
GNDDDC
IC2531
TC74VHCT32AFT
1A11B21Y32A
4
52B62Y7
GND
83Y93A103B114Y124A134B14
Vcc
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
L2421
CTF1305-A
L2411
CTF1305-A
UMD3N
Q2552
E1
1
B1
2
C2
3E24
5
B2
6
C1
IMH23
Q2551
C1
1
B2
2
E2
3
C2
4
5
B1
6
E1
R2559
470
R2561
220
R2562
220
R2536
100k
R2352
NM
R2391
100k
R2392
100k
R2557
470
R2558
470
R2400
NM
R2407
220
R2398
470
R2401
680
R2425
NM
R2367
100k
R2374
NM
R2421
680
R2414
680
R2354
R2408
NM
R2403
680
R2406
100k
R2404
100k
R2560
1k
R23951kR2394
1k
R2537
100k
AMPMUTE
PREMUTEIN
GNDA
GNDV
GNDD
GNDA
GNDD
GNDV
ANTON5
GNDDDC
AU84
LS1V
LS1L
LS1R
GPSREV
GNDALS
GNDVLS
VD8V
GNDD
L2553
CTF1488-A
L2554
CTF1410-A
LS8
LS5
R2390
100k
GNDD
TVD
BSY
TSCK
TRX
TTX
TRST
CNVS
TGND
C2558
0.1u/16
C2557
0.1u/16
C2561
0.1u/16
R2554
1.8k
R2551
1.8k
R2553
100k
R2552
100k
R24191kR2417
1k
GNDA
C2559
4.7u/10
LSVG
LSDG
R23961kR2397
1k
GNDD
C2516
0.1u/50
R2524
47
R2405
100k
AVCC
GNDD
POS_IN
MOTPWR5
VD8CONT5
DDCLK
SWACPW5
SYSPW5
ILMSNS
SPEED
PBSNS
VD5CONT
MOT1
ACCPW5
SYSREV
H/OSW
MOTPWR2
MOT0
RDS57K
BCAMPW
LS1VDD
IC2530
TC74VHCT541AFTS1
G1
1A12A23A34
5A46A57A68A79
A810GND
11Y812Y713Y614Y515Y416Y317Y218Y119
G2
20
VCC
C2530
0.1u/16
GNDD
NAV5
R2539
100k
R2535
100k
R2534
100k
R2530
100k
R2532
100k
RSTIN
R2423
47
C2563
10u/35V
CCG1236-A-T
C2562
NM
CE
EPM
R2420
680
R2413
680
LMUT
IRQ
LSR
LSL
LSG
COMP
R2463
100k
R2477
100k
RS-750
U2511
1
GND
2
VCC
3
OUT
VKN1620-A
CN2551
123456789
101112131415161718192021222324252627282930
R2412
NM
R2411
680
NM
CN2511
123456789
10
C2420
1u/10
C2411
0.01u/50
R2542
NM
C2552
100p/50
C2551
100p/50
R2410
0
TCK
R2424
47k
R2422
NM
R2529
100k
P2176
CEK1278-A
12
C2412
0.01u/16
C2414
0.01u/16
C2415
0.01u/16
C2416
0.01u/16
C2417
0.01u/16
C2418
0.01u/16
C2419
0.01u/16
C2424
0.01u/50
R2564
NM
C2367
NM
C2564 10u
10V DCH1201-A-T
22u/16
C2565
GNDD
R2555
0
GNDA
R2563
NM
GNDA
R2531
100k
L2531
CTF1410-A
L2530
CTF1410-A
BUSY
SCLK
CNVSS
RESET
RXD
AGND
PGND
PGND
S
LS1TX
VGND
DGND
DGND
SCK
DGND
DGND
AGND
D+
VDD5
LS1
VD(Dry)
ROUT
LS1
SRX
D-
AMUTE
5.1V
XRES
STANBY
CPRST
IECOUT
COMPOSIT
LOUT
SDA
IRQPWR
DGND
VD(Reg)
8.4V
AGND
TXD
13
4230
29
(2125)
VD(Dry)
GND
VDD
(Rb=Rbe=10k
)
(Rb=4.7k
)
IR REMOTE
(LITTEL500mA)
AU
3 5 LEVEL SHIFT
u-com Rewriting dedication
CONTACT SIDE
CE
EPM
NM
>
3/3
F
A
1/3
F
A
1/3
F
A
C
CN1901
LS1:+5.20 dBs
AVIC-Z120BT/XNUC
19
Page 20
1234
1 234
C
D
F
A
B
E
AF-bAF-a
A
F
-b
2/3
AF-a
2/3
A
V
A
V
A
BCAMPW
COMDC
FMCE1
CNVSS
LEDCK
LEDDT
EPRCE
EPRDI
SPEED_IN
FMCE2
FMCE1
FMCLK
D_STOFM
D_FMTOS
MSN_RST
AVOUT
HYOKA
CTOEX
EXTOC
CTOVICS
VICSTOC
SPEED_IN
IICSDA
IICSCL
PIPRST
PCHNG
PREON
REMIN
GMUTEL
GMUTER
MUTE
H/OSW TTX
SCL
SDA
MOT0
TRX
FMCLK
KDT0
KDT1
SCL
SDA
RDS57K
RCK
TUNSL
LDET
RDT
RDSLK
GUIDE
GNDAZ
NAVI_L
NAVI_R
iPod_R
iPod_L
iPod_AG
iPod_VG
IP_R
IP_L
NAVI_AG
FCONT_C
iPod_V
RESET
LDET
EJECT
COMDC
IP_RG
D_STOFM
DDCLK
BLSYNC
FMCE2
BCAMSNS
D_FMTOS
IICSDA
IP_LG
LDET
RDS57K
RCK
RCK
RDT
RSTIN
HRESET
C2459
0.1u/16
C2306
0.015u/50
C2471NMC2463
NM
C2435
47p/50
C2307
0.1u/16
C2571
NM
GNDV
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
IC2304
BD5229FVE
RESET CIRCUIT(100msec)
VOUT1SUB2CT
3
GND
4
5
VDD
S-93C56BD0I-I8
IC2302
CS1SK2DI3DO
45
GND
6
TEST
7NC8
VCC
IC2491
NJM2904M
342
1
8
IC2491
NJM2904M
5
6
7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
CNVss
16
17
18
RESET
19
Xout
20
Vss1
21
Xin
22
Vcc1
23
NMI
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
Vcc2
39
40
Vss2
4142434445
46
135
136
137
138
139
Avss
140
141
Vref
142
Avcc
143
144
L2461
CTF1305-A
L2491
CTF1334-A
L2311
CTF1305-A
L2303
CTF1306-A
L2492
CTF1334-A
DTC114WK
Q2491
NM
Q2302
E11B12C2
3
E2
4
5B26
C1
R2494
51k
R2495
100k
R2439
1k
R2577
220
R2301
100k
R2335
NM
R2316
470
R2492
47k
R2493
56k
R2491
100k
R2435
1.8k
R2457
NM
R2450
NM
R2453
1k
R2461
47k
R2452
4.7k
R2474
NM
R2315
470
R2313
4.7k
R2311
100k
R2437
47k
R2305
47k
R2304
47k
R2446
470
R2458
47k
R2434
NM
R2317
680
CNVSS
AU84
C2576
NM
C2577
NM
C2578NMC2579
NM
C2580
NM
C2586
NM
C2587
NM
R2312
4.7k
GNDD
HRCK
HRHSLK
HRDT
FMCLK
D_FMTOS
FMCE1
FMCE2
D_STOFM
VICSON
HRLK
C2304
0.1u/16
R2310
1k
C2305
NM
C2491
0.1u/16
C2492
1000p/50
GNDA
C2588
NM
NKB
NVB
GDAN
VGN
GDN
RESET
SPD1
R2455NMR2456
NM
R2462
NM
AVC
NSD
R2436
47
VICSON
SDA
SCL
TUNSL
R2507
22k
R2509
22k
R2508
22k
R2506
22k
R2444
47k
Q2506
UMH1N
1
E1
2
B13C2
4
E25B26C1
Q2505
UMH1N
1
E1
2
B13C2
4
E25B26C1
ERST
R2505
22k
T-34
GDE
MNG
NVR
NVL
iR
iL
iAG
iVG
IPR
IPL
IPG
NVG
FCC
iV
VON
HRLK
HRCK
HSLK
HRDT
R2478
NM
R2447
NM
GND
COMDC
C2460
10p/50
C2461
10p/50
C2450
4.7u/10
R2451
100k
R2473
560
C2464
1u/10
C2420
1u/10
C2321
0.01u/50
C2462
0.01u/50
R2471
NM
X2301
CSS1781-A
HOT1
1
GND1
2
GND2
4
HOT2
3
R2325
NM
R2460
560
C2434
330p/50
C2436
150p/50
C2437
470p/16
C2439NMC2438
0.01u/16
CN2571
1
2
3456789
10
111213
1415161718
192021
22
23
24
25262728293031323334353637
383940
414243444546474849505152535455
56
57
58
596061
62
63
646566
676869707172737475
C2308
NM
C2424
0.01u/50
GNDD
R2739
NM
C2443NMC2444
NM
C2440NMC2441
NM
R2570
0
R2569
0
GNDV
R2741
NM
GNDA
R2302
0
/15MHz
AU84AU84
AU8
Audio/Video
(Rb=Rbe=10k)
S
SWVDD5
SWAC33SWAC33
TUNPCLK
TUNPCE2
KDT1
BCAMSNS
COMDC
NC
NSD
BEEP
RDS57K
VDC1
BLSYNC
BCAMPW
IICSCL
TUNPDI
WREMIN1
EPRST
KDT0VICS_SDA/BUSY
RCK
NC
HOMESW/TSI
FCAMSNS
/WREMSNS
IICSDA
MOT0/TSO
WREMIN2/
WCONT
DDCLK
TUNPCE1
SYSTEM u COM
TUNPDO
RDT
MSN_RST
VICS_DDI
VICS_SCL/TSCK
VICS_DDO
NC
VDC0
LDET
VDD5VDD5
EEPROM
HARD RESET
(Rb=10K,Rbe=4.7k)
TUNER
RDS
VICS
21
VICSTOC
23
65
52
38
55
16
67
GNDA
36
19
54
50
CTOVICS
63
66
69
47
AVOUT
GUIDE
40
42
71
18
27
iPod_R
62
GNDAZ
49
TCON_SCL
15
PIPRST
14
48
75
56
TCON_SDA
NAVI_R
GND
9377
20
PREON
25
61
4
EXTOC
45
35
10
8246
1
iPod_L
FCONT_C
GND
41
34
31
30
68
26
IP_L
44
60
51
13
3
701772
43
2
73
39
11
12
46
53
57
58
5
22
32
iPod_AG
SPEED_IN
29
64
CTOEX
PCHNG
28
74
59
33
NAVI_L
BUP
BUP
BUP
BUP
BUP
BUP
GNDD
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
VDD5
GNDA
GNDAG
VDD5
IP_R
HYOKA
REMIN
GNDV
GNDV
iPod_VG
iPod_V
IP_RG
IP_LG
GNDD
AU8
GMUTEL
GMUTER
MUTE
NKBUP NKBUP NKBUP
BUP BUP BUP
AU84
SWAC33
Pull up by Tuner PCB
KEEP_BUP
KEEP_BUP
KEEP_BUP
KEEP_BUP
KEEP_BUP
BUP
GND
GND
GND
NC
NC
KEEP_BUP
KEEP_BUP
KEEP_BUP
GNDA
GNDA
GNDA
KDT0
KDT1
KDT2
TIMEOUT
UNUSED
COMDC
NC
NC
TIMEOUT
Hi:validation
Lo:invalidation
UNUSED
NM
HLDET/
NM
AU
UC
CKS6225-A
1/3
F
A
CN5603
4/4
F
20
AVIC-Z120BT/XNUC
Page 21
5 678
56
7
8
C
D
F
A
B
E
AF-bAF-a
A
F
-b
2/3
AF-a
2/3
A
V
A
A
V
WREMIN2
WREMIN1
GMUTER
GMUTEL
VST
VDT
VCK
MOTPWR2 CE
ANTON
BLERR2
BLERR1
IICSDA
IICSCL
iPod_V
iPod_AG
iPod_R
iPod_L
NAVI_L
iPod_VG
NAVI_AG
NAVI_R
IP_L
GUIDE
AVOUT
STOIP
IPTOS
ILMSNS
EPRDI
POS_IN
GNDAZ
SYSREV
RMUTE
ASENBO
MBLPW
RMUTE
IP_R
DIMMER
IPTOS
STOIP
IPPW
ASENBO
FANCONT
FANON
HYOKA
FANUP
GMUTE
EXTOC
CTOEX
FCONT_M
FCONT_N
SPEED_IN
BLSYNC
LEDCS
LEDCK
LEDDT
PCHNG
OFFOK
CCRST
ASENREQ
CARDSNS
RDSSNS
IO_ON
PBSNS
GPSREV
NAVION5
RDS57K
LCD_OE
RDT
MBLPW
BSENS
PREON
EPRCE
H/OSW TTX
MOT1
LS1STBY
SCL
SDA
EPM
IRQPW
DTOSYS
MOT0 TRX
DIMMER
CTOSYS
POS_IN
MUTEVO
KMODE
RDS57K
MUTEVO
PBSNS
IPPW
SYSPW
SWACPW
XRES
VD5CONT
RSTIN
SYSTOC
NAVION
SWACPW5
LEDCS
KDT1
KMODE
TELMUTE
TELMUTE
MVIPW
RCK
RDT
RDSLK
BCAMSNS
BSENREQ
CPUWDT
GMUTE
LCDTEMPIN
BLERR1
BLERR2
FCONT_C
FCONT_N
FCONT_M
EJECT
COMDC
CCTEMPIN
MOTPWR
GNDSEL
GNDSEL
DDCLK
RDSLK
VCK
VST
VDT
BSENS
FANUP
GPSREV
SYSTOD
CARDSNS
C2311
100p/50
C2355
0.01u/16
C2391
NM
C2573
NM
GNDD
GNDD
GNDD
(GNGI)
IC2303
CNVss
RESET
Xout
Vss1
Xin
Vcc1
NM
37
38
Vcc2
39
40
Vss2
414243444546474849505152535455
56
Vss3
57
58
Vcc3
59606162636465666768697071
72
73
Vcc4
74
75
Vss4
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
Vcc5
91
92
Vss5
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
Vss6
130
131
Vcc6
132
133
134
135
136
137
138
139
Avss
140
141
Vref
142
Avcc
143
144
L2351
CTF1305-A
L2311
CTF1305-A
L2571
CTF1306-A
L2371
CTF1305-A
L2331
CTF1305-A
R2387
1k
R2
R2327
470
R2316
470
R2376
680
R2377
680
R2378
680
R2386
680
R2352
NM
R2391
100k
R2392
100k
R2571
NM
R2348
47k
R2356
1k
R2315
470
R2328
680
R2
R2
R2379
1k
R23321kR2331
220
R2314
47k
R2337
1k
R2367
100k
R2374
NM
R2344
470
R2365
47k
R2354
R2406
100k
R2404
100k
R2355
1k
R2341
680
R2317
680
R2366
47k
R2382
150
R2381
150
R2384
220
R2385
220
SA3
TSTI
ILMV
WREMIN2
ASENS
WREMIN1
IICSDA
IICSCL
BSENS
GPSREV
GMUTEL
GMUTER
RCK
GMUTE
VDT
VST
VCK
MUTEVO
ILMV
RMUTE
CTOEX
EXTOC
iPod_AG
iPod_L
iPod_R
iPod_V
iPod_VG
NAVI_R
NAVI_AG
NAVI_L
GNDAZ
GUIDE
AVOUT
IP_L
IP_R
TELMUTEIN
C2574
NM
C2575
NM
C2580
NM
C2581
NM
C2582
NM
C2583
NM
C2584
NM
C2585
NM
C2589
NM
C2590
100p/50
R2368
220
R2372
220
R2369
100k
R2
R2390
100k
C2572
0.1u/16
R2360
47k
R2359
4.7k
FANUP
GNDD
HYOKA
GDI
C2352
100p/50
R2375
680
R2405
100k
AVC
POS_IN
MUTEVO
KMODE
RDS57K
R2351
100k
IO3
BCAMSNS
SCAMSNS
FCAMSW
BRQ
WDT
GMT
TMP
BE1
BE2
FCC
FCN
FCM
R2463
100k
T-56
GSEL
GNDD
CCTMP
R2336
1k
R2388
220
R2357
220
C2420
1u/10
C2321
0.01u/50
C2331
0.01u/50
C2374
0.01u/50
C2351
0.01u/50
C2411
0.01u/50
R2
CTOS
STOC
TCK
LSA1576UB
Q2303
676869707172737475767778798081828384858687888990919293949596979899
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
C2413
0.1u/16
C2412
0.01u/16
IO3
C2424
0.01u/50
R2329
100
L2572
NM
C2570
NM
GNDD
C2368
NM
R2353
0
TUNPCLK
SYSTOC
BKSNS
LS1STBY
VICS_DCL
CCTEMPIN
ANTON
TUNPCE2
KDT1
BCAMSNS
BLERR1
CCRST
COMDC
NC
NC
NSD
BEEP
TMC_MSN_ON
ILMSNS
CPUWDT
IPPW
TUNSL
MOTPWR
RDS57K
VDC1
BLSYNC
SYSTOD
TELMUTE
VDT
EPM
BCAMPW
ASENBO
EPRDI
IICSCL
LCDTEMPIN
RDSSNS/CTOVICS
KDT2
IRQPW
TUNPD
NC
R32C/116 GROUP
VICS_DRST
CTOSYS
WREMIN1
EPRST
KDT0
BSENS
VICS_SDA/BUSY
NC
VST
FLAPLESS
DIMMER
RCK
MBLPW
NC
XRES
VICS_BCLOCK
DTOSYS
SYSPW
LEDCS
VICS_DCE
CARDSNS
ACCPW
PBSNS
TSCK
ASENS
MOT1
NC
NAVION
HOMESW/TSI
PIPRST
BSENREQ
RMUTE
VCK
IO_ON
NC
FCAMSNS
/WREMSNS
/LEDDT
IICSDA
VICS_DINT
MOTPWR2/CE
FCONT_N
EPRCE
EPRDO
MOT0/TSO
WREMIN2/
WCONT
MUTEVO
PRE_ON
SIMUKE
EPRCK
RDSLK
STOIP
VD5CONT
ASENREQ
/LEDCK
FANON
DDCLK
NC
GNDSEL
TUNPCE1
SYSTEM u-COM
TUNPDO
BLERR2
RDT
TESTIN
MSN_RST
VICS_DDI
FCONT_M
FCONT_C
VICS_SCL/TSCK
IPTOS
SWACPW
POS_IN
VICS_DDO
NC
VDC0
LDET
LCD_OE
OFFOK
MVIPW
2301 - 2480u-com
2481 - 2490KMODE
SPEED SNS 2491 - 2510
EXTENDED I/O
2511 - 2530
3->5
2531 - 2550
LS1
2551 - 2570
TO NAVI
2571 - 2600
FANCONT
(2473)
(2484)
(2504)
(2522)
(2642)
(2566)
(2591)
(2962) DARC
2951 - 2970
128
SECCONT
94
MBLPW
IO_ON
NC
NC
NC
FANCONT
CTOSYS
ILMDT
136
FANON
122
HRST
CCTEMPIN
138
BSENRQ
67
126
GNDSEL
115
GNDD
99
BLERR2
BLSYNC
OFFOK
69
77
90
71
NAVION
RDSSNS
BSENS
111
89
117
114
139
75
GNDD
81
104
ASENS
IPPW
125
DIMMER
127
79
GNDILM
GNDD
140
91
96
100
132
CARDSNS
118
PREON
124
83
MVIPW
78
109
82
105
133
GPSREV
110
FCONT_C
113
PBSNS
101
KMODEOUT
85
131
SWACPW5
NC
ILMCK
107
106
BLERR1
103
68
121
84
92
ILMV
108
102
80
135
123
NC
NC
ROT1
129
86
SYSTOC
70
134
72
112
120
73
93
97
ROT0
130
IPTOS
STOIP
87
TEMPSEN
FCONT_N
98
SPEED_IN
88
RST_SO
137
PCHNG
95
116
119
NC
74
CPUWDT
76
ASENBO
GMUTE
ILMLD
FANUP
NC
VDD5
GNDD
ASENRQ
GNDD
LCD_OE
FCONT_M
GNDD
GND
SWAC33
REMIN
GNDD
GNDD
GNDD
GMUTEL
GMUTER
MUTE
NC
Pull up by Tuner PCB
KDT1
KDT2
TIMEOUT
IO3
COMDC
NC
NC
NM
UC
AU
PEG677A8
PEG678A8
3/3
F
A
AVIC-Z120BT/XNUC
21
Page 22
1234
1 234
C
D
F
A
B
E
AUDIO UNIT(AV SECTION)(GUIDE PAGE)
AF-a
3/3
3/3
F
A
1
4
2
3
5
6
AUDIO VIDEO
AV1
AV2
IP-BUS
LS1
iPod iPod
LS1
AV3
AV2
Camera Sel OUT
BIAS1
VCC1
GND1
R1-1
L1-1
L1-2
R1-2
GND2
VCC2
BIAS2
L2-1
L2-2
VOUT1
FB2
FB1
VOUT2
LOUT2
SCL
SDA
R5-1
ROUT1
R5-2
LOUT1
ROUT2
V1-1
V1-2
V2-1
V2-2
V3-1
V3-2
V4-1
V4-2
V5-1
V5-2
V6-1
V6-2
L3-2
L3-1
R3-2
R3-1
R4-1
L4-2
R4-2
L4-1
L5-2
L5-1
R2-2
R2-1
2661 - 2728
2661 - 2726 AV SELECTOR
2601 - 2609 SWC
2641 - 2660 GUIDE MIX/MUTE
2731 - 2751 VIDEO LEVEL SHIFT
2761 - 2767 DUAL ZONE OUT
2771 - 2805 E-VOL(CAPTAIN7)
2831 - 2836 SW OUT MUTE
2841 - 2852 HI OUT MUTE
2861 - 2880 AV CN
REFERENCE NUMBER LIST
2889 - 2900 LS1 LPF
Back Camera
2611 - 2620 NAVI ISO
2621 - 2624 AUD4.3
2625 - 2637 GUIDE ISO/LPF
2601 2900
2861 - 2880 WIRED REMOTE CN
A
A
A
A
A
A
A
A
A
A
A
V
A
A
V
A
V
A
A
A
A
A
V
V
V
V
V
GMUTEL
WREMIN1
WREMIN2
IICSDA
IICSCL
iPod_V
iPod_AG
iPod_VG
iPod_VG
LS_L
GNDAZ
NAVI_AG
NAVI_L
NAVI_R
GUIDE
MUTEVO
VST
GMUTEL
GMUTE
GMUTER
VDT
VCK
iPod_V
iPod_L
iPod_R
iPod_VG
AVOUT
RMUTE
GNDALS
GNDVLS
IP_L
LS1V
LS1L
LS1R
IP_R
CTOEX
EXTOC
IP_R
GMUTER
TELMUTEIN
BCV
BCVG
iPod_R
iPod_AG
iPod_L
IP_L
TUN_L
TUN_R
GUIDE
GNDAZ
iPod_AG
iPod_AG
HYOKA
VTR2V
LS1V
VTR3VG
VTR3V
WREMIN1
RCK
RCK
WREMIN2
KMODE
ACC84
MUTEBUP
VTR2L
VTR2LG
VTR2R
VTR2RG
IP_LG
IP_RG
HIVOLT
AU84
GNDVLS
LS1L
LS1R
LS_L
GNDALS
LS_R
GNDALS
LS_R
NAVI_L
GMUTE
GUIDER
GUIDEL
HIVOLT6.8
NAVI_R
NAVI_AG
47u/16
C2661
47u/16
C2701
100u/16
C2621
10u/16
C2623
NM
C2650
C2613
NM
C2614
NM
C2612
NM
C2611
NM
C2651
10u/35
CCG1236-A
C2889
2.2u/10
C2892
2.2u/10
C2891
2.2u/10
C2890
2.2u/10
C2665
C2652
0.01u/50
C2642
4.7u/10
C2641
4.7u/10
C2725
4.7u/10
C2726 4.7u/10
C2663
22u/6.3
C2703
22u/6.3
C2700
4.7u/10
C2698
4.7u/10
C2696
C2686
C2693
C2697
C2688
C2699
4.7u/10
C2694
C2692
C2689
C2690
C2695
C2691
C2685
C2687
C2671
C2672
C2674
1u
C2673
C2670 NM
C2669 NM
C2667
C2668
D2621
EDZ4R3(B)
GNDA
GNDA
GNDA
GNDV
GNDA
GNDA
TUNAGND
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDD
L2889
CTF1410-A
L2641
CTF1410-A
L2661
10u
L2662
10u
L2622
CTF1410-A
NM
Q2643
DTC323TU
Q2644
UMD3N
Q2642
E1
1
B1
2
C2
3E24
5
B2
6
C1
NM
Q2641
E1
1
B1
2
C2
3E24
5
B2
6
C1
R2724
220
R2723
220
VOR
AU4
WREMIN1
GNDA
GNDD
SWVDD33
GNDV
ACC84
WREMIN2
AU84
iPod_R
iPod_L
iPod_VG
iPod_AG
iPod_V
MUTEVO
VCK
VST
GMUTER
GMUTE
GMUTEL
VDT
GUIDE
NAVI_R
NAVI_L
NAVI_AG
GNDAZ
AVOUT
RMUTE
LS1V
LS1R
IP_L
LS1L
GNDALS
IP_R
GNDVLS
CTOEX
EXTOC
IICSDA
IICSCL
RCK
R2685
75
R2684
100
R2683
100
C2677
NM
C2678
NM
C2679
0.1u/16
C2680
0.1u/16
C2706
0.1u/16
C2708
0.1u/16
C2705
0.1u/16
C2707
0.1u/16
C2717NMC2718NMC2720NMC2719
NM
R2701
100
R2699
100
R2702
100
R2700
100
R27071kR2706
1k
R27051kR2708
1k
R2709
47k
R2710
47k
R2721
100
R2718
100
R2717
100
R2722
100
R2719
22k
R2720
22k
D2643
NM
D2644
RB715Z
C2643
1u/10
C2644
1u/10
HIVOLT14
HIVOLT
TELMUTEIN
GNDA
C2675
C2676
R2688
100
R2690
NM
GNDA
R2891
47k
R2889
47k
R2890
47k
R2892
47k
C2893
33p/50
C2895
33p/50
C2894
33p/50
C2896
33p/50
C2649
0.1u/50
C2778
NM
R2773
1k
R2774
1k
R2611
NM
R2612
NM
R2615
NM
R2613
NM
R2614
NM
R2616
NM
R2617
NM
R2618
NM
R2619
NM
R2620
NM
C2615
NM
C2617
NM
C2616
NM
C2618
NM
R2660
100k
R2659
NM
R2670NMR2671NMR2668
NM
R2691
NM
C2714
C2715
C2713
C2716
R2621
1k
C2664
0.1u/16
C2897
0.1u/16
C2624
0.1u/16
C2622
0.01u/16
R2651
NM
R2653
3k
R2654
3k
R2655
NM
C2662
0.1u/16
C2702
0.1u/16
HYOKA
R2658
820
R2657
NM
C2653
2.2u/10
IC2621
NJM2125F
3
2
1
4
5
R2642
47k
R2645
47k
R2641
47k
R2646
47k
R2650
47k
R2649
47k
R2647
47k
R2648
47k
C2645
22p/50
C2648
22p/50
C2646
22p/50
C2647
22p/50
IC2611NM5
6
7
IC2611
NM
3
4
2
1
8
GNDA
C2619
NM
R2661
NM
R2673
100
R2687
NM
AN15887A
IC2661
1
2
3
4
5
6
7
8
9
10
11
12
13
14
151617181920212223
24
25
26
27
28
29
30
31
32
33
34
35
36
3738394041424344454647
48
KMODE
GNDA
R2626
NM
C2625
DCH1201-A
C2633
150p/50
R2625
NM
C2627
220p/50
C2626
DCH1201-A
R2636
47k
R2633
100k
R2631
10k
R2634
100k
R2635
68k
IC2625
BA4558RFVM
5
6
7
R2637
NM
IC2625
BA4558RFVM
3
4
2
1
8
R2629
3.3k
R2628
3.3k
C2632
150p/50
GNDA
R2627
NM
C2628
220p/50
C2631
0.1u/16
R2630
10k
C2629
0.1u/16
R2632
1k
R2676
NM
R2675
NM
R2662
NM
R2652
R2656
0
C2603
NM
D2604
NM
C2601
NM
D2601
NM
GNDD
R2604
NM
R2603
NM
NM
Q2601
E1
1
B1
2
C2
3E24
5
B2
6
C1
R2602
NM
R2607
NM
R2609
NM
R2601
NM
R2608
NM
R2605
NM
GNDD
R2606
NM
C2602
NM
GNDD
SWREM1
SWREM2
SWRSNS
C2630
0.01u/50
D2641
HZU6R8(B1)
D2602NMD2603
NM
WRSNS
MUTEBUP
GNDA
IC2889
NJM4580V
3
4
2
1
8
NJM4580V
5
4
6
7
8
R2674
NM
R2663
NM
R2680
NM
R2644
68k
R2643
68k
D2622
1SS352
R2893
36k
R2894
36k
R2895
36k
R2896
36k
220u/
C2744
100u
C2743
R2695
4.7k
R2697
4.7k
R2703
12k
R2704
12k
R2696
4.7k
R2698
4.7k
R2693
NM
GNDA
R2694
0
GNDD
R2727
NM
GNDA
R2640
NM
GND
GNDA
R2639
NM
C2666
C2657NMC2658
NM
C2654
NM
C2655
NM
R2622
NM
R2999
NM
R2998
NM
C2721NMC2722
NM
R2623
0
R2624
0
R2075
0
GNDD
C2609NMC2610
NM
R2665
NM
R2664
0
IC2641
NJM2060V
A_OUTPUT
1
A-INPUT2A+INPUT
3
V+
4
5
B+INPUT6B-INPUT
7
B_OUTPUT
8
C_OUTPUT9C-INPUT10C+INPUT
11
V-
12
D+INPUT13D-INPUT14D_OUTPUT
VIDEO
SYSTEM
AUDIO
(Rb=Rbe=10k)
(Rb=Rbe=10k)
(2.2k)
(2.2k)
F
F
VIDEO
AU4.3
(2/2)
(1/2)
GUIDE MIX
AUDIO
LS1 LPF
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
AUD8.4
(2125)
(2125)
(2125)
(2125)
(3216)
(3216)
(2125)
(1608)
GUIDE MUTE
(3216)
(2125)
NAVI ISOLATOR
(2125)
GUIDE ISO/LPF
(2125)
(1/2)
(2/2)
(Rb=Rbe=10k)
HIVOLT14
(GNDV)
(GNDV)
(GNDV)
(GNDV)
(GNDV)
NM
HIVOLT6.8
AV SELECTOR
NM
NM
1/3
F
A
2/3
F
A
AV SELLECTOR INPUT
LS1:+2.58 dBs
IP-BUS:+2.21 dBs
i-Pod:+1.30 dBs
VTR2:+2.73 dBs
VTR1:+2.21 dBs
22
AVIC-Z120BT/XNUC
Page 23
5 678
56
7
8
C
D
F
A
B
E
AF-b
3/3
3/3
F
A
Vref
IN1_R
IN2_R
IN1_L
IN2_L
IN3_R
IN4+_R
IN4-_R
Tout_FR
SVin_FR
Tout_RR
SVin_RR
Tout_PreR
Tout_PreL
SVin_RL
Tout_RL
Tout_FL
SVin_FL
IN4-_L
IN4+_L
IN3_L
DGND
SVin_PreR
PRE/SW_R
Rear_R
Front_R
Front_L
Rear_L
PRE/SW_L
PGND
Pref
VP
SVin_PreL
MIC_in
DC_filter
Noise_DET
GND
Vcc
DATA
CLK
STB
MUTE
SA_clk
SA_out
AVSELECTOR
CODEC OUT
TUNER4
3
2
1
VOUT1
FB2
FB1
VOUT2
LOUT2
SCL
SDA
R5-1
ROUT1
R5-2
LOUT1
ROUT2
V1-1
V1-2
V2-1
V2-2
R4-1
R4-2
L5-2
L5-1
12
32 31
1516
1718
WIRED REMOTE
AV CN
A
V
V
V
V
A
V
V
A
A A
A
A
V
V
V
V
A
A
A
A
A
A
A
A
A
A
A
A
A
A
V
PREMUTE
TUN_L
IICSDA
IICSCL
iPod_VG
iPod_VG
PREMUTE
RMUTE
MUTEVO
VCK
iPod_R
iPod_AG
iPod_L
PREMUTE
BREMOTE
PFL
PFR
TUN_R
TELMUTEIN
REARLOUT
REARROUT
REARVOUT
VTR2RG
VTR2LG
VTR2V
WREMIN2
WREMIN1
HYOKA
CTOEX
EXTOC
VDT
VST
REARVOUT
VTR2R
VTR2L
KMODE
AVOUT
VTR2V
PRR
PRL
SWR
SWL
PRR
PRL
SWL
SWR
PFR
BREMOTE
PFL
REARLOUT
REARROUT
VTR3V
BCVG
VTR3VG
VTR2VG
LS_R
BCV
47u/16
C2771
10u/16
C2775
10u/16
C2799
47u/16
C2801
C2831
CCG1182-A
(10u/16V/3216)
C2832
CCG1182-A
(10u/16V/3216)
C2779
1u/10
C2788
4.7u/10
C2792
4.7u/10
C2791
4.7u/10
C2789
4.7u/10
C2787
4.7u/10
C2790
4.7u/10
C2734
1u/16
C2665
C2780
1u/10
C2846
NM
C2845
NM
C2848NMC2847
NM
C2762
4.7u/10
C2761
4.7u/10
C2834NMC2833
NM
C2725
4.7u/10
C2726 4.7u/10
C2700
4.7u/10
C2698
4.7u/10
C2696
C2697
C2699
1u
C2667
D2841
DAP202U
D2761
DAP202U
GNDA
TUNAGNDGNDD GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
TUNAGND
GNDA
GNDD
GNDA
GNDA
GNDV
GNDA
GNDA
IC2771
PML017B
1
2
3
4
5
6
7
8
9
10
11
12
131415161718192021
22
23
24
25
26
27
28
29
30
31
32
33
3435363738394041424344
L2771
2.2u
UMD3N
Q2762
E1
1
B1
2
C23E2
4
5
B2
6
C1
Q2731
LSC4081UB
R2724
220
R2723
220
MFR
MFL
VOR
VOF
SR1
GDA
SL1
MRR
MRL
FVA
TUN_L
TUNAGND
TUN_R
GNDV
GNDD
GNDD
FL
GNDA
FRRLRR
C2735
NM
L2731
CTF1473-A
C2679
0.1u/16
C2680
0.1u/16
C2717NMC2718NMC2720NMC2719
NM
R2721
100
R2718
100
R2717
100
R2722
100
R2719
22k
R2720
22k
C2811
NM
C2812
NM
miniSMDC075F/24
P2861
12
GNDA
P2862
miniSMDC075F/24
1
2
C2813
NM
C2814
NM
GNDA
GNDD
D2762
DAP202U
D2870 UDZS18(B)
D2871 UDZS18(B)
C2862NMC2863
NM
R2783
NM
C2777
NM
C2778
NM
R2773
1k
R2774
1k
R2738
680
R2735
680
R2733
22k
R2734
30k
R2732
NM
R2765
NM
R2766
NM
C2763
NM
C2764
NM
R2670NMR2671NMR2668
NM
C2774
0.1u/16
C2772
0.1u/16
C2800
0.1u/16
C2782
0.1u/16
C2781
0.1u/16
Q2761
FMG12
1
1
5
5
4
4
2
2
3
3
Q2831
FMG12
1
1
554
4
2
2
3
3
Q2841
FMG12
1
1
554
4
2
2
3
3
Q2842
FMG12
1
1
554
4
2
2
3
3
R2651
NM
R2777
R2778
R2779
R2780
R2781
R2782
4.7k
R2833NMR2834
NM
R2845NMR2846
NM
R2847NMR2848
NM
R2650
47k
R2649
47k
R2647
47k
R2648
47k
C2648
22p/50
C2647
22p/50
R2661
NM
R2673
100
222324
25
26
27
28
29
30
31
32
33
34
35
36
373839
PREMUTE
BREMOTE
GNDA
GNDA
GNDA
R2867
1k
R2868
1k
D2861
NM
D2862
MALS180X
D2863
NM
C2864
1000p/50
D2873
PTZ27(B)
GND
D2867
NM
L2861
2.2u
C2874
3900p/50
D2869
NM
D2865
MALS180X
GND
GND
D2866
NM
VA2861
AVR-M1608C270
R2865
NM
R2869
15k
D2868
NM
VA2862
VA2863
AVR-M1608C270
VA2864
R2874
1k
C2865
0.01u/50
D2874 UDZS18(B)
GND
C2238
0.01u/50
GND
GND
L2239
CTF1556-A
JA2880
CKN1042-A
2
3
1
GND
C2880
1000p/50
C2881
1000p/50
L2880
CTF1334-A
L2881
CTF1334-A
R2842
R2843
39
R2841
39
R2844
39
D2240
1SS355
D2239
PTZ27(B)
R2239
10k
D2864
NM
GND
R2788
0
R2852
22k
R2835
22k
R2849
22k
R2850
22k
R2851
22k
R2836
22k
C2841
CCG1182-A
(10u/16V/3216)
C2842
CCG1182-A
(10u/16V/3216)
C2843
CCG1182-A
(10u/16V/3216)
C2844
CCG1182-A
(10u/16V/3216)
R2831
39
R2832
39
R2764
22k
R2763
22k
R2762
820
R2761
820
KMOD
ETC
CTE
HYK
HRG
PFL
V2RG
V2LG
V2VG
BCVG
RV2G
V3VG
TELM
PRR
KMD2
SWR
PRL
SWL
PFR
V2L
RRO2
V2V
V2R
V3V
RLO2
BCV
RV2
BREM
CCP1442-A
VR2731
1k
1
3
2
R2737
820
R2812
2.7k
R2818
2.7k
R2814
2.7k
R2815
2.7k
R2816
2.7k
R2817
2.7k
R2813
2.7k
R2811
2.7k
NM
C2786
1u/10
C2785
1u/10
P2880
miniSMDC075F/24
1
2
P2863
miniSMDC075F/24
12
P2864
miniSMDC075F/24
12
D2880
MALS180X
D2881
MALS180X
R2736
1k
AVO
R2680
NM
LSA1576UB
Q2732
D2872
1SS352
220u/6.3
C2744
100u/16
C2743
R2750
75
100u/4
C2733
CEVW101M4-TRB
100u/4
C2965
CEVW101M4-TRB
CN2861
CKM1567-A
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
13
R287075R2871
75
GNDA
R2872
NM
C2773
NM
C2776
NM
C2803
NM
C2802
NM
C2736
NM
R2730
NM
GNDA
GNDA
R2639
NM
R2772
0
GNDD
R2866
NM
GNDA
R2873
0
GND
C2666
R2740
0
R2881
0
GNDA
R2771
NM
GNDA
C2658
NM
C2655
NM
R2876
0
R2875
0
R2879
NM
R2880
0
F2868 CCG1082-A-T
F2861 CCG1082-A-T
NJM2060V
A_OUTPUT
1
A-INPUT2A+INPUT
3
V+
4
5
B+INPUT
10
11
V-
12
D+INPUT13D-INPUT14D_OUTPUT
CAPTAIN7
FR
FL
RL
SWR
RR
SWL
(2.2K*2)
SW OUT MUTE
GUIDE MIX
AUD8.4
AUD8.4
(2.2K*2)
(2.2K*2)
(2.2K*2)
PRR
PRL
PFL
PFR
VIDEO
SYSTEM
AUDIO
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(1608)
TELMUTE
RVOUT2
VTRIN2VG
VTR2RG
BCVG
RLOUT2G
VTR3VG
SWG
PRR
PRL
KMODE
VTR2LG
RVOUT2G
BGND
(HYOKA)
PFL
RROUT2G
HFGND
VTRIN2V
VTR2R
RLOUT2
EXTOC
CTOEX
(2A)
VTRIN3V
SWR
BCV
SWL
PFR
RROUT2
(2A)
(Rb=Rbe=10k )
(2125)
(2125)
REAR SIDE DRAWING
BREMOTE
HRGND
VTR2L
(2125)
2125
(2125)
2.0Vp-p
0.7Vp-p
HIVOLT
(GNDV)
(GNDV)
(GNDV)
HI OUT MUTE
REARV OUT
(D)
FRONTV OUT
DUAL ZONE
(GNDV)
(2A)
(2A)
Video Signal
Audio Signal
39
A
A
>
>>>
>
1/3
F
A
AUDIO UNIT (AV SECTION)
3/3
F
A
PREOUT
TUNER: +8.55 dBs
NAVI(USB/SD):+13.30 dBs
NAVI(BT-Audio):+14.96 dBs
LS1:+13.67 dBs
IP-BUS:+13.30 dBs
i-Pod:+13.39 dBs
VTR2:+13.82 dBs
VTR1:+13.30 dBs
TUNER: +8.56 dBs
NAVI(USB/SD):+13.31 dBs
NAVI(BT-Audio):+14.98 dBs
LS1:+13.68 dBs
IP-BUS:+13.31 dBs
i-Pod:+13.40 dBs
VTR2:+13.83 dBs
VTR1:+13.31 dBs
TUNER:-13.54 dBs
NAVI(USB/SD): +2.21 dBs
NAVI(BT-Audio): +0.88 dBs
LS1: +2.58 dBs
IP-BUS: +2.21 dBs
i-Pod: +1.30 dBs
VTR2: +2.73 dBs
VTR1: +2.21 dBs
(REAR OUT)
LS1:+2.27 dBs
i-Pod:+0.99 dBs
VTR2:+2.42 dBs
VTR1:+1.90 dBs
AVIC-Z120BT/XNUC
23
Page 24
1234
1 234
C
D
F
A
B
E
AF-a AF-b
A
F
-b
3/3
VOUT1
FB2
FB1
VOUT2
LOUT2
SCL
SDA
R5-1
ROUT1
R5-2
LOUT1
ROUT2
V1-1
V1-2
V2-1
V2-2
V3-1
R4-1
L4-2
R4-2
L5-2
L5-1
Camera
WIRED REMOTE
AV CN
A
V
V
V
V
A
V
V
A
A A
A
V
V
V
V
A
A
A
A
A
A
A
A
A
V
IICSDA
IICSCL
iPod_VG
iPod_VG
PREMUTE
RMUTE
MUTEVO
VCK
iPod_R
iPod_AG
iPod_L
TELMUTEIN
REARLOUT
REARROUT
REARVOUT
VTR2V
WREMIN2
WREMIN1
VTR3V
HYOKA
CTOEX
EXTOC
VDT
VST
REARVOUT
VTR2R
VTR2L
KMODE
AVOUT
VTR2V
PRR
PRL
SWL
SWR
PFR
BREMOTE
PFL
REARLOUT
REARROUT
VTR3V
LS_R
BCV
47u/16
C2771
0u/16
C2775
C2734
1u/16
C2665
C2762
4.7u/10
C2761
4.7u/10
C2725
4.7u/10
C2726 4.7u/10
C2700
4.7u/10
C2698
4.7u/10
C2696
C2697
C2699
C2694
1u
C2667
C2668
D2761
DAP202U
GNDA
GNDA
TUNAGND
GNDA
GNDA
GNDA
GNDA
12
13
14
15
16
17
18
19
20
21
22
L2771
2.2u
UMD3N
Q2762
E11B12C2
3
E2
4
5B26
C1
Q2731
LSC4081UB
R2724
220
R2723
220
VOR
VOF
FVA
C2735
NM
L2731
CTF1473-A
C2679
0.1u/16
C2680
0.1u/16
C2717
NM
C2718
NM
C2720
NM
C2719
NM
R2721
100
R2718
100
R2717
100
R2722
100
R2719
22k
R2720
22k
D2762
DAP202U
S18(B)
S18(B)
M
M
R27731kR2774
R2738
680
R2735
680
R2733
22k
R2734
30k
R2732
NM
R2765
NM
R2766
NM
C2763
NM
C2764
NM
R2670
NM
R2671
NM
R2668
NM
C2774
0.1u/16
C2772
0.1u/16
Q2761
FMG12
1
1
5
5
4
4
2
2
3
3
R2661
NM
R2673
100
21
22
23
24
2526272829303132333435
36
37
38
39
40
GNDA
R28671kR2868
1k
D2862
MALS180X
C2864
1000p/50
D2873
PTZ27(B)
D2867
NM
L2861
2.2u
C2874
3900p/50
D2869
NM
D2865
MALS180X
GND
GND
R2869
15k
D2868
NM
VA2863
AVR-M1608C270
VA2864
R2874
1k
/50
S18(B)
C2238
0.01u/50
GND
GND
L2239
CTF1556-A
JA2880
CKN1042-A
231
GND
C2880
1000p/50
C2881
1000p/50
L2880
CTF1334-A
L2881
CTF1334-A
D2240
1SS355
D2239
PTZ27(B)
R2239
10k
D2864
NM
GND
R2764
22k
R2763
22k
R2762
820
R2761
820
KMOD
ETC
CTE
HYK
HRG
PFL
TELM
PRR
KMD2
SWR
PRL
SWL
PFR
V2L
RRO2
V2V
V2R
V3V
RLO2
BCV
RV2
BREM
CCP1442-A
VR2731
1k
1
3
2
R2737
820
R2674
NM
R2663
NM
u/10
P2880
miniSMDC075F/24
12
D2880
MALS180X
D2881
MALS180X
R2736
1k
AVO
R2680
NM
LSA1576UB
Q2732
D2872
1SS352
220u/6.3
C2744
100u/16
C2743
R2750
75
100u/4
C2733
CEVW101M4-TRB
100u/4
C2965
CEVW101M4-TRB
CN2861
CKM1567-A
123456789
101112141516171819
20
13
R2870
75
R2871
75
GNDA
R2872
NM
C2773
NM
C2776
NM
C2736
NM
R2730
NM
GNDA
R2772
0
GNDD
C2666
R2740
0
R2771
NM
GNDA
C2722
NM
R2876
0
R2875
0
R2879
NM
R2880
0
F2868 CCG1082-A-T
F2861 CCG1082-A-T
CAPTAIN7
AUD8.4
AUD8.4
(2.2K*2)
VIDEO
SYSTEM
AUDIO
(2125)
(2125)
(2125)
(2125)
(1608)
TELMUTE
RVOUT2
PRR
PRL
KMODE
(HYOKA)
VTRIN2V
VTR2R
RLOUT2
EXTOC
CTOEX
VTRIN3V
SWR
BCV
SWL
PFR
RROUT2
(Rb=Rbe=10k
)
(2125)
(2125)
BREMOTE
HRGND
VTR2L
(2125)
2125
(2125)
2.0Vp-p
0.7Vp-p
HIVOLT
(GNDV)
(GNDV)
(GNDV)
REARV OUT
(D)
FRONTV OUT
DUAL ZONE
(GNDV)
Video Signal
Audio Signal
A
A
>
AUDIO UNIT (AV SECTION)
3/3
F
A
PREOUT
TUNER:-13.54 dBs
NAVI(USB/SD): +2.21 dBs
NAVI(BT-Audio): +0.88 dBs
LS1: +2.58 dBs
IP-BUS: +2.21 dBs
i-Pod: +1.30 dBs
VTR2: +2.73 dBs
VTR1: +2.21 dBs
(REAR OUT)
LS1:+2.27 dBs
i-Pod:+0.99 dBs
VTR2:+2.42 dBs
VTR1:+1.90 dBs
24
AVIC-Z120BT/XNUC
Page 25
5 678
56
7
8
C
D
F
A
B
E
AF-a AF-b
A
F
-b
3/3
Vref
IN1_R
IN2_R
IN1_L
IN2_L
IN3_R
IN4+_R
IN4-_R
Tout_FR
SVin_FR
Tout_RR
SVin_RR
Tout_PreR
Tout_PreL
SVin_RL
Tout_RL
Tout_FL
SVin_FL
IN4-_L
IN4+_L
IN3_L
DGND
SVin_PreR
PRE/SW_R
Rear_R
Front_R
Front_L
Rear_L
PRE/SW_L
PGND
Pref
VP
SVin_PreL
MIC_in
DC_filter
Noise_DET
GND
Vcc
DATA
CLK
STB
MUTE
SA_clk
SA_out
AVSELECTOR
CODEC OUT
TUNER4
321
12
32 31
1516
1718
A
V
V
V
A
A
A
A
A
A
A
A
A
A
A
A
PREMUTE
TUN_L
MUTEVO
VCK
PREMUTE
BREMOTE
PFL
PFR
TUN_R
VTR2RG
VTR2LG
HYOKA
CTOEX
EXTOC
VDT
VST
PRR
PRL
SWR
SWL
BREMOTE
BCVG
VTR3VG
VTR2VG
47u/16
C2771
10u/16
C2775
10u/16
C2799
47u/16
C2801
C2831
CCG1182-A
(10u/16V/3216)
C2832
CCG1182-A
(10u/16V/3216)
C2779
1u/10
C2788
4.7u/10
C2792
4.7u/10
C2791
4.7u/10
C2789
4.7u/10
C2787
4.7u/10
C2790
4.7u/10
C2780
1u/10
C2846
NM
C2845
NM
C2848
NM
C2847
NM
C2834
NM
C2833
NM
D2841
DAP202U
GNDA
TUNAGNDGNDD GNDA
GNDA
GNDA
GNDA
GNDA
TUNAGND
GNDA
GNDD GNDV
IC2771
PML017B
1
2345678910
11
12
13
14
15
16
17
18
19
20
21
22
23
24
252627282930313233
34
35
36
37
38
39
40
41
42
43
44
2.2u
MFR
MFL
SR1
GDA
SL1
MRR
MRL
TUN_L
TUNAGND
TUN_R
GNDV
GNDD
GNDD
FL
GNDA
FR
RL
RR
C2811
NM
C2812
NM
miniSMDC075F/24
P2861
12
GNDA
P2862
miniSMDC075F/24
1
2
C2813NMC2814
NM
GNDA
GNDD
D2870 UDZS18(B)
D2871 UDZS18(B)
C2862
NM
C2863
NM
R2783
NM
C2777
NM
C2778
NM
R27731kR2774
1k
C2774
0.1u/16
C2772
0.1u/16
C2800
0.1u/16
C2782
0.1u/16
C2781
0.1u/16
Q2831
FMG12
1
1
5
5
4
4
2
2
3
3
Q2841
FMG12
1
1
5
5
4
4
2
2
3
3
Q2842
FMG12
1
1
5
5
4
4
2
2
3
3
R2651
NM
R2777
R2778
R2779
R2780
R2781
R2782
4.7k
R2833
NM
R2834
NM
R2845
NM
R2846
NM
R2847
NM
R2848
NM
R2650
47k
R2649
47k
R2647
47k
R2648
47k
C2648
22p/50
C2647
22p/50
PREMUTE
BREMOTE
GNDA
GNDA
GNDA
R28671kR2868
1k
D2861
NM
D2863
NM
GND
C2874
3900p/50
D2866
NM
VA2861
AVR-M1608C270
R2865
NM
VA2862
R2874
1k
C2865
0.01u/50
D2874 UDZS18(B)
GND
GND
R2842
R2843
39
R2841
39
R2844
39
R2788
0
R2852
22k
R2835
22k
R2849
22k
R2850
22k
R2851
22k
R2836
22k
C2841
CCG1182-A
(10u/16V/3216)
C2842
CCG1182-A
(10u/16V/3216)
C2843
CCG1182-A
(10u/16V/3216)
C2844
CCG1182-A
(10u/16V/3216)
R2831
39
R2832
39
ETC
CTE
HYK
HRG
V2RG
V2LG
V2VG
BCVG
RV2G
V3VG
BREM
R2812
2.7k
R2818
2.7k
R2814
2.7k
R2815
2.7k
R2816
2.7k
R2817
2.7k
R2813
2.7k
R2811
2.7k
C2786
1u/10
C2785
1u/10
P2863
miniSMDC075F/24
12
P2864
miniSMDC075F/24
12
12141516171819202122232425262728293031
32
13
C2773
NM
C2776
NM
C2803
NM
C2802
NM
GNDA
R2639
NM
R2772
0
GNDD
R2866
NM
GNDA
R2873
0
GND
R2881
0
GNDA
R2771
NM
GNDA
C2657
NM
C2658
NM
C2654
NM
C2655
NM
NJM2060V
A_OUTPUT
1
A-INPUT
2
A+INPUT
3
V+
4
5
B+INPUT
6
B-INPUT
9
C-INPUT
10
C+INPUT
11
V-
12
D+INPUT
13
D-INPUT
14
D_OUTPUT
FR
FL
RL
SWRRRSWL
(2.2K*2)
SW OUT MUTE
GUIDE MIX
AUD8.4
(2.2K*2)
(2.2K*2)
PRR
PRL
PFL
PFR
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
RVOUT2
VTRIN2VG
VTR2RG
BCVG
RLOUT2G
VTR3VG
SWG
VTR2LG
RVOUT2G
BGND
(HYOKA)
PFL
RROUT2G
HFGND
RLOUT2
EXTOC
CTOEX
(2A)
VTRIN3V
BCV
(2A)
(2125)
(2125)
REAR SIDE DRAWING
BREMOTE
HRGND
(2125)
HIVOLT
HI OUT MUTE
(2A)
(2A)
39
>
>
>
>
1/3
F
A
PREOUT
TUNER: +8.55 dBs
NAVI(USB/SD):+13.30 dBs
NAVI(BT-Audio):+14.96 dBs
LS1:+13.67 dBs
IP-BUS:+13.30 dBs
i-Pod:+13.39 dBs
VTR2:+13.82 dBs
VTR1:+13.30 dBs
TUNER: +8.56 dBs
NAVI(USB/SD):+13.31 dBs
NAVI(BT-Audio):+14.98 dBs
LS1:+13.68 dBs
IP-BUS:+13.31 dBs
i-Pod:+13.40 dBs
VTR2:+13.83 dBs
VTR1:+13.31 dBs
AVIC-Z120BT/XNUC
25
Page 26
1234
1 234
C
D
F
A
B
E
AF-bAF-a
A
F
-b
3/3
AF-a
3/3
14235
6
AUDIO VIDEO
AV1
AV2
IP-BUS
LS1
iPod iPod
LS1
AV3
AV2
Camera Sel OUT
BIAS1
VCC1
GND1
R1-1
L1-1
L1-2
R1-2
GND2
VCC2
BIAS2
L2-1
L2-2
VOUT1
FB2
FB1
VOUT2
LOUT2
SCL
SDA
R5-1
ROUT1
R5-2
LOUT1
ROUT2
V1-1
V1-2
V2-1
V2-2
V3-1
V3-2
V4-1
V4-2
V5-1
V5-2
V6-1
V6-2
L3-2
L3-1
R3-2
R3-1
R4-1
L4-2
R4-2
L4-1
L5-2
L5-1
R2-2
R2-1
2661 - 2728
Back Camera
A
A
A
A
A
A
A
A
A
V
A
A
V
A
A
A
A
A
A
V
V
V
V
V
WREMIN1
WREMIN2
IICSDA
IICSCL
iPod_V
iPod_AG
iPod_VG
LS_L
GNDAZ
NAVI_AG
NAVI_L
NAVI_R
GUIDE
MUTEVO
VST
GMUTEL
GMUTE
GMUTER
VDT
VCK
iPod_V
iPod_L
iPod_R
iPod_VG
RMUTE
GNDALS
GNDVLS
IP_L
LS1V
LS1L
LS1R
IP_R
IP_R
BCV
BCVG
iPod_L
IP_L
TUN_L
TUN_R
iPod_AG
iPod_AG
VTR2V
LS1V
VTR3VG
VTR3V
WREMIN1
RCK
RCK
WREMIN2
KMODE
ACC84
MUTEBUP
VTR2L
VTR2LG
VTR2R
VTR2RG
IP_LG
IP_RG
HIVOLT
GNDVLS
LS1L
LS1R
LS_L
GNDALS
LS_R
GNDALS
LS_R
NAVI_L
NAVI_R
NAVI_AG
47u/16
C2661
47u/16
C2701
100u/16
C2621
C2611
NM
C2889
2.2u/10
C2892
2.2u/10
C2891
2.2u/10
C2890
2.2u/10
C2665
C2663
22u/6.3
C2703
22u/6.3
C2696
C2686
C2693
C2697
C2688
C2699
4.7u/10
C2694
C2692
C2689
C2690
C2695
C2691
C2685
C2687
C2671
C2672
C2674
1u
C2673
C2670 NM
C2669 NM
C2667
C2668
GNDA
GNDA
GNDV
TUNAGND
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDD
L2889
CTF1410-A
L2661
10u
L2662
10u
L2622
CTF1410-A
R2724
R2723
V
WREMIN1
GNDA
GNDD
SWVDD33
GNDV
ACC84
WREMIN2
AU84
iPod_R
iPod_L
iPod_VG
iPod_AG
iPod_V
MUTEVO
VCK
VST
GMUTER
GMUTE
GMUTEL
VDT
GUIDE
NAVI_R
NAVI_L
NAVI_AG
GNDAZ
RMUTE
LS1V
LS1R
IP_L
LS1L
GNDALS
IP_R
GNDVLS
IICSDA
IICSCL
RCK
R2685
75
R2684
100
R2683
100
C2677NMC2678
NM
C2679
0.1
C2680
0.1
C2706
0.1u/16
C2708
0.1u/16
C2705
0.1u/16
C2707
0.1u/16
C2717
NM
C2718
C2720
NM
C2719
NM
R2701
100
R2699
100
R2702
100
R2700
100
R2707
1k
R2706
1k
R2705
1k
R2708
1k
R2709
47k
R2710
47k
R2721
100
R2717
100
R2719
22k
HIVOLT14
HIVOLT
GNDA
C2675
C2676
R2688
100
R2690
NM
GNDA
R2891
47k
R2889
47k
R2890
47k
R2892
47k
C2893
33p/50
C2895
33p/50
C2894
33p/50
C2896
33p/50
R27731kR2774
R2613
NM
R2617
NM
R2619
NM
C2615
NM
C2617
NM
R2670
R2671
NM
R2691
NM
C2714
C2715
C2713
C2716
621
1k
C2664
0.1u/16
C2897
0.1u/16
2624
u/16
C2662
0.1u/16
C2702
0.1u/16
IC2621
6
R2661
NM
R2673
100
R2687
NM
AN15887A
IC2661
1
2345678
9
101112
13
14
15
16
17
18
19
20
21
22
23
24
2526272829303132333435
36
37
38
39
40
41
42
43
44
45
46
47
48
KMODE
R2676
NM
R2675
NM
R2662
NM
C2603
NM
D2604
NM
C2601
NM
D2601
NM
GNDD
R2604
NM
R2603
NM
NM
Q2601
E11B12C2
3
E2
4
5B26
C1
R2602
NM
R2607
NM
R2609
NM
R2601
NM
R2608
NM
R2605
NM
GNDD
R2606
NM
C2602
NM
GNDD
SWREM1
SWREM2
SWRSNS
D2602
NM
D2603
NM
WRSNS
MUTEBUP
IC2889
NJM4580V
342
1
8
NJM4580V
546
7
8
R2674
NM
R2663
NM
R2680
NM
2622
S352
R2893
36k
R2894
36k
R2895
36k
R2896
36k
R2695
4.7k
R2697
4.7k
R2703
12k
R2704
12k
R2696
4.7k
R2698
4.7k
R2693
NM
GNDA
R2694
0
GNDD
R2727
NM
GNDA
C2666
R2622
NM
R2999
NM
R2998
NM
C2721
NM
C2722
NM
R2075
0
GNDD
VIDEO
SYSTEM
AUDIO
VIDEO
AU4.3
AUDIO
LS1 LPF
(2125)
(2125)
(2125)
(2125)
(2125)
(2125)
(3216)
(3216)
(2125)
(1608)
NAVI ISOLATOR
(Rb=Rbe=10k)
(GNDV)
(GNDV)
(GNDV)
NM
AV SELECTOR
NM
1/3
F
A
2/3
F
A
AV SELLECTOR INPUT
LS1:+2.58 dBs
IP-BUS:+2.21 dBs
i-Pod:+1.30 dBs
VTR2:+2.73 dBs
VTR1:+2.21 dBs
26
AVIC-Z120BT/XNUC
Page 27
5 678
56
7
8
C
D
F
A
B
E
AF-bAF-a
A
F
-b
3/3
AF-a
3/3
2661 - 2726 AV SELECTOR
2601 - 2609 SWC
2641 - 2660 GUIDE MIX/MUTE
2731 - 2751 VIDEO LEVEL SHIFT
2761 - 2767 DUAL ZONE OUT
2771 - 2805 E-VOL(CAPTAIN7)
2831 - 2836 SW OUT MUTE
2841 - 2852 HI OUT MUTE
2861 - 2880 AV CN
REFERENCE NUMBER LIST
2889 - 2900 LS1 LPF
2611 - 2620 NAVI ISO
2621 - 2624 AUD4.3
2625 - 2637 GUIDE ISO/LPF
2601 2900
2861 - 2880 WIRED REMOTE CN
A
A
A
A
A
A
V
GMUTEL
MUTEVO
VST
VDT
VCK
AVOUT
CTOEX
EXTOC
GMUTER
TELMUTEIN
TUN_L
TUN_R
GUIDE
GNDAZ
HYOKA
KMODE
AU84
NAVI_L
GMUTE
GUIDER
GUIDEL
HIVOLT6.8
NAVI_R
NAVI_AG
100u/16
C2621
10u/16
C2623
NM
C2650
C2613
NM
C2614
NM
C2612
NM
C2611
NM
C2651
10u/35
CCG1236-A
C2652
0.01u/50
C2642
4.7u/10
C2641
4.7u/10
D2621
EDZ4R3(B)
GNDA
GNDA
GNDA
GNDA
TUNAGND
GNDA
L2641
CTF1410-A
L2622
CTF1410-A
NM
Q2643
DTC323TU
Q2644
UMD3N
Q2642
E11B12C2
3
E2
4
5B26
C1
NM
Q2641
E11B12C2
3
E2
4
5B26
C1
AU4
MUTEVO
VCK
VST
VDT
AVOUT
CTOEX
EXTOC
D2643
NM
D2644
RB715Z
C2643
1u/10
C2644
1u/10
TELMUTEIN
C2649
0.1u/50
R27731kR2774
1k
R2611
NM
R2612
NM
R2615
NM
R2613
NM
R2614NMR2616
NM
R2617
NM
R2618
NM
R2619
NM
R2620
NM
C2615
NM
C2617
NM
C2616
NM
C2618
NM
R2660
100k
R2659
NM
R2621
1k
C2624
0.1u/16
C2622
0.01u/16
R2651
NM
R2653
3k
R2654
3k
R2655
NM
HYOKA
R2658
820
R2657
NM
C2653
2.2u/10
IC2621
NJM2125F
321
4
5
R2642
47k
R2645
47k
R2641
47k
R2646
47k
R2650
47k
R2649
47k
R2647
47k
R2648
47k
C2645
22p/50
C2648
22p/50
C2646
22p/50
C2647
22p/50
IC2611
NM
5
6
7
IC2611
NM
342
1
8
GNDA
C2619
NM
KMODE
GNDA
R2626NMC2625
DCH1201-A
C2633
150p/50
R2625
NM
C2627
220p/50
C2626
DCH1201-A
R2636
47k
R2633
100k
R2631
10k
R2634
100k
R2635
68k
IC2625
BA4558RFVM
5
6
7
R2637
NM
IC2625
BA4558RFVM
342
1
8
R2629
3.3k
R2628
3.3k
C2632
150p/50
GNDA
R2627
NM
C2628
220p/50
C2631
0.1u/16
R2630
10k
C2629
0.1u/16
R2632
1k
R2652
R2656
0
C2630
0.01u/50
D2641
HZU6R8(B1)
GNDA
R2644
68k
R2643
68k
D2622
1SS352
R2640
NM
GND
GNDA
R2639
NM
C2657
NM
C2658
NM
C2654
NM
C2655
NM
R2622
NM
R26230R2624
0
C2609
NM
C2610
NM
R2665
NM
R2664
0
IC2641
NJM2060V
A_OUTPUT
1
A-INPUT
2
A+INPUT
3
V+
4
5
B+INPUT
6
B-INPUT
7
B_OUTPUT
8
C_OUTPUT
9
C-INPUT
10
C+INPUT
11
V-
12
D+INPUT
13
D-INPUT
14
D_OUTPUT
(Rb=Rbe=10k)
(Rb=Rbe=10k)
(2.2k)
(2.2k)
AU4.3
(2/2)
(1/2)
GUIDE MIX
(2125)
(2125)
(2125)
(2125)
AUD8.4
(2125)
(2125)
GUIDE MUTE
(3216)
(2125)
NAVI ISOLATOR
(2125)
GUIDE ISO/LPF
(2125)
(1/2)
(2/2)
HIVOLT14
HIVOLT6.8
NM
NM
AVIC-Z120BT/XNUC
27
Page 28
1234
1 234
C
D
F
A
B
E
MONITOR UNIT(GUIDE PAGE)
GF-a
F
G
DIF1:
DEM
R0
G4
G5
G3
G2
R1
R2
R3
CPV
LOAD
VCOM2
VCOM1
STV2
LCDTEMP
R4 G1
G0B4B3
B2
B1
B0
STH2
PNLXL
PNLYB
PNLXR
PNLYT
SWAC3
PNLYB
PNLXL
PNLYT
PNLXR
BLSYNC
BLERR1
BLERR2
MVIPW
MBLPW
DIMMER
BT_L
BT_R
BTTOC
CTOBT
BT_RESET
BT_BOOTS
MIC_BT
MIC_GND
LCDTEMP
HRST
KDT2
KDT1
KDT0
ILMDT
ILMCK
ILMLD
OE1
OE
OE1
LVDSP
LVDSN
BT_R
HRST
ILMB1
RED
GREEN
BLUE
BLERR2
BLERR1
SLED
SLED
CPH
LVDSN
LVDSP
ILMG1
ILMR1
COMDC
SWAC3
BT_L
ILMB2
KDT1
KDT0
KDT2
ILMG1
ILMR1
ILMB1
ILMG2
ILMR2
KDT2
STH1
STV1
DIMMER
BLSYNC
MBLPW
EN
COMDC
KDT1
KDT0
ILMR1
ILMR2
ILMG1
ILMG2
ILMB1
ILMB2
GND
C3103
NM
D3101
NM
D3103NMD3102
NM
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
IC3101
NM
INB
1
INA
2
GND3OUTY
4
5
VCC
IC3100
NM
INB
1
INA
2
GND3OUTY
4
5
VCC
L3157
CTF1734-A
L3159
CTF1734-A
L3161
CTF1734-A
L3163
CTF1734-A
L3155
CTF1734-A
L3100
NM
Q3101
NM
Q3100
NM
R3118
NM
R3105
NM
R3117
100
R3109
NM
R3106
NM
R3115
NM
R3119
NM
R3116
NM
R3120
NM
R3111
NM
R3165
NM
SWAC33
SWAC33
SWAC33
GN
C3309
106/10
C3311
NM
GND
L3300
CTF1528-A
L3301
CTF1528-A
CN3300
CKS5105-A
1
2
3
4
L3302
CTF1528-A
L3303
CTF1528-A
GND
C3104
NM
LEDBL
GNDBL
C3109
NM
C3113
1000p/50
GNDBL
C3112
CCG1223-A-T
NM
Q3105
11
2
2
3
3
4
45
5
6
6
7
7
8
8
D3105
RB160VA-40
R3133
0
C3111
CCG1223-A-T
D3104
NM
LED1
SP8K22
Q3106
11
22334
45
5667788
LED2
R3155
NM
GND
R3100
NM
R3101
5.6k
R3102
5.6k
R3104
47k
R3110
47k
SWAC33
R3169
150
R3161
150
R3163
150
R3167
150
R3159
150
R3171
150
R3126
120k
(D)
R3113
47
R3114
47
R3154
10k
R3153
10k
R3152
10k
R3151
10k
R3112
22k
D3100
UDZS6R8(B)
GND
ILMV
PWRVI
L3304
CTF1488-A
GND
GNDBL1
GNDBL2
PNLXL1
PNLYB1
PNLXR1
PNLYT1
LVDSGND
PWRVI
GNDBL
GND
GND
GNDILM
GNDVI
GNDBL
BT_L
GNDAL
BT_R
OE1
BTTOC
CTOBT
BT_RESET
BT_BOOTS
GND
DIMMER
BLSYNC
BLERR1
BLERR2
LCDTEMP
MVIPW
MBLPW
PNLXL
PNLYB
PNLYT
PNLXR
ILMV
GND
R3150
100
(D)
L3150
CTF1731-A
112
2
3
3
4
4
C3151
0.1u/16
IC3300
BH2227AFV
AO1
1
AO2
2
TESTMONI1
3
TESTMONI2
4
5
AO3
6
AO4
7
NC1
8
NC2
9
VDD
10
CSB
11
CLK
12
DI
13
VFS
14
VSS
CN31
CKS5715-A
1
2
3
4
5
6
7
8
9
10
L3169
CTF1736-A-T
L3168
CTF1306-A
L3152
CTF1306-A
L3179
CTF1306-A
L3151
CTF1306-A
PWRBL
VA3314
NM
VA3315
NM
CCX1084-A
TH3350
C3107
0.1u/50
C3110
NM
C3108
2.2u/10
R3134
36k
(D)
R3321
200
(D)
C3303
4.7u/6.3
GND
R3322
240
(D)
R3324
(D)
240
R3323
200(D)
R3326
220
(D)
R3329
(D)
150
R3328
220(D)
R3327
150
(D)
C3304
4.7u/6.3
GND
C3305
4.7u/6.3
R3333
100(D)
R3332
200
(D)
GND
R3334
(D)
200
R3331
100
(D)
R3300
NM
CN3302
1
ILMV22ILMR23ILMG2
4
ILMB2
5
KEY1
6
INT_KEY1
7
HRST
8
KEY0
9
GND10GND11INT_KEY0
12
KEY2
13
ILMB114ILMG115ILMR116ILMV1
R3174
NM
B0B1B2B3B4G0G1
R0
R1
R2
R3
G5
G4
G3
G2
R4
NM
Q3104
L3101
CTH1394-A
9
D
10
A
11
A
12
V
13
V
14
V
15
D
16
D
CCA5
GNDBT
R3363
22k R3362
22k
R3360
220
R3361
220
GNDA
L3360
2.7u
C3363
106/10
C3364
106/10
C3366
106/10
C3362
106/10
C3367
1000p/50
C3365
1000p/50
C3361
2200p/50
C3360
2200p/50
GNDAR
CCA5
FCONT_M
SLED
GND
C3162
0.1u/10
C3160
0.1u/10
C3164
0.1u/10
C3166
0.1u/10
C3155
0.1u/10
C3153
0.1u/10
C3152
0.1u/10
C3156
0.1u/10
C3163
0.01u/16
C3350
0.1u/10
R3122
0
R3107
47k
R3350
18k
R3108
47k
R3103
NM
C3302
NM
C3310
0.1u/10
BTGND
R3129
0
R3137
0
R3128
15
R3127
NM
R3123
2.2M
R3330
33k
R3325
33k
R3335
33k
R3121
NM
(D)
R3135
1.8k
(D)
R3124
100k (D)
R3316
NM
R3125
3.9k
C3300
10u/35
CCG1236-A-T
GNDBL
C3301
NM
R3184
NM
GND
IC3151
TC7SZ08FU
4
2
5
3
1
GND
C3423
0.01u/16
FCONT_M
V34
L3180
CTF1306-A
LOCK
CN3301
CKS6118-A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
C3150
0.1u/16
D3300NMD3301
NM
D3302NMD3303
NM
D3304
NM
D3305NMD3306
NM
D3308
NM
C3306
NM
C3307NMC3308
NM
C3312NMC3313NMC3314
NM
C3315
NM
C3317
NM
GND
C3319
NM
C3320NMC3321
NM
C3322
NM
D3150
NM
1
2
34
5
6
NM
CN3303
1NC2
ILMV13ILMV24NC5NC6GND7GND8KDT09KDT210KDT111KDT012GND13GND14NC15NC16ILMV317ILMV4
18
SLED
R3130
1
R3131
1
C3114
NM
C3115
NM
C3161
0.01u/16
C3157
0.01u/16
C3154
0.01u/16
C3165
0.01u/16
C3158
0.01u/16
C3167
0.01u/16
C3159
0.01u/16
C3116
1000p/50
IC3102
BD8113EFV
COMP
1
SS
2
VCC
3
EN
4
5
RT
6
SYNC
7
GND
8
PWM
9
FAIL1
10
FAIL2
11
LEDEN
12
LED1
13
LED2
14
OVP
15
VDAC
16
ISET
17
PGND
18
OUTL
19
DGND
20
SW
21
OUTH
22
CS
23
BOOT
24
VREG
VA3303
VA3310
VA3308
NM
VA3302
VA3300
AVR-M1608C120MT6AB-T
VA3301
VA3307
VA3305
CN336
CKS5749-A-TL
1
2
3
ILMV
ILMV
CCH1586-A_Po
C3168
33u/10V
C3106
0.047u/16
D3310
NM
D3311NMD3312
NM
D3313
NM
R3305NMR3309NMR3310
NM
SWAC3
CCA5
DS90C124QVS
IC3150
RPWDNB1RESRVD2ROUT233ROUT224ROUT215ROUT206VddOR37VssOR38ROUT19
9
ROUT1810ROUT1711ROUT16
12
ROUT15
13
ROUT14
14
ROUT13
15
ROUT12
16
LOCK
17
RCLK
18
VssOR2
19
VddOR2
20
ROUT11
21
ROUT10
22
ROUT9
23
ROUT8
24
ROUT725ROUT626ROUT527ROUT4
28
VssOR129VddOR1
30
ROUT3
31
ROUT232ROUT133ROUT034VssR035VddR0
36
VddR1
37
VssR1
38
VddIR
39
VssIR
40
RIN+
41
RIN-
42
RRFB
43
VssPR1
44
VddPR1
45
VssPR0
46
VddPR0
47
REN
48
R3179
82
R3185
47
L3174
CTF1734-A
R3158
150
R3168
150
R3172
150
R3166
150
R3162
150
R3181
100
R3182
100
R3175
150
R3178
150
R3160
150
R3180
100
R3173
100
R3177
150
R3183
100
R3170
150
R3176
150
R3157
180
L3164
CTF1748-A
L3158
CTF1748-A
L3156
CTF1748-A
L3162
CTF1748-A
L3154
CTF1748-A
L3153
CTF1748-A
L3166
CTF1748-A
L3160
CTF1748-A
L3173
CTF1748-A
L3170
CTF1748-A
L3171
CTF1748-A
L3172
CTF1748-A
L3165
CTF1748-A
R3306NMR3307NMR3311NMR3312
NM
VA3317
NM
C3100
NM
C3101
NM
C3102
NM
VA3316
NM
R3136
0
C3105
NM
CN
1
2
3
4
5
6
7
8
9
10
CN3402
1
ILMV22ILMR2
3
ILMG24ILMB2
5
KEY1
6
KEY2
7NC8
KEY0
9
GND
10
GND
R3436
0
CN3403
1
ILMB1
2
ILMV3ILMV
4
ILMG1
5
ILMR1
6
GND7GND
8
KDT09KDT210KDT1
GNDA
GNDA
GNDBLGNDBL
GNDBL
GNDBL
GNDBL
GNDBL
GNDBL
GNDBL
GNDBL
R3132
NM
R3138
0
R3139
0
R3140
0
R3141
2.2k
D3106
1SR154-400
D3107
1SR154-400
D3108
1SR154-400
D3109
1SR154-400
R3142
0
Q3300
UMZ1N-TLB
E1
1B12C23
E2
4
5B26
C1
Q3303
UMZ1N-TLB
E1
1B12
C2
3
E2
4
5B26
C1
Q3301
UMZ1N-TLB
E1
1B12
C2
3
E2
4
5B26
C1
Q3305
UMZ1N-TLB
E1
1B12C23
E2
4
5B26
C1
Q3302
UMZ1N-TLB
E1
1
B1
2
C2
3
E2
4
5B26
C1
Q3304
UMZ1N-TLB
E1
1B12C23
E2
4
5B26
C1
Q3102
2SC4617(RS)
Q3103
2SC4617(RS)
R3186
0
GND
L3310
BTX1042-A
PWRBL2
L3167
CTF1734-A
L3175
CTF1734-A
L3176
CTF1734-A
L3177
CTF1734-A
L3178
CTF1734-A
VI
LVDS
D
D
SWAC33
REF NO
3150 - 3199
PWRVI
TOP
L
BOTTOM
R
REF NO
3100
- 3149
LED_BACKLIGHT Driver
PWRBL
D
NC
LVDSGND
NC
LVDSP
LVDSGND
LVDSN
NC
GNDD
GNDD
LCDTEMP
SWAC33
BLERR1
ILMCK
ILMLD
ILMDT
SECIND
PNLYB
PNLXR
PNLXL
PNLYT
GNDBL
GNDBL
GNDVI
GNDILM
GNDILM
NC
PWRVI
ILMV
PWRBL
PWRBL
CCA5
MIC_BT
BTTOC
BT_L
BT_RESET
BT_R
GNDD
LVDSGND
NC
NC
LVDSGND
NC
NC
LVDSGND
FCONT_M
BLSYNC
BLERR2
DIMMER
NM
NM
MBLPW
MVIPW
HRST
KDT1
GNDILM
NC
PWRBL
GNDBL
GNDVI
GNDBL
PWRBL
PWRVI
KDT0
ILMV
CTOBT
LCD_OE
MIC_GND
BT_BOOTS
GNDD
GNDD
ILMV
COM_DC
GNDD
GNDD
GNDD
NC
NC
KDT2
D
around the CONNECTOR
REF NO
3300 -
REF NO 3350 -
THERMISTOR
D
FAIL1
FAIL2
UVLO,TSD,OVP,SCP
LED_OPEN/SHORT
NM
NM
BLSYNC:500kHz or 430kHz
CPH:33.33MHz
CKS5501
NM
NM
LVDS
NM
NM
TOUCH
PANEL
CN5601
4/4
F
LC
PAN
H
CN2901
H
28
AVIC-Z120BT/XNUC
Page 29
5 678
56
7
8
C
D
F
A
B
E
GF-b
F
G
DIF1:inner pull up:100k
DEM:inner pull down:100k
G2
G1
OE
LOAD
STV2
CPV
STH2
STH1
CPH
G5
G4
G3
STV1
B3
B2
B1
B0
R3
R2
R1
R0
PWRVI
BTTOC
CTOBT
B4
R4
MVIPW
BT_RESET
RED
GREEN
BLUE
VCOM2
VCOM1
BT_BOOTS
ILMR1
ILMDT
ILMCK
ILMLD
G0
MIC_BT
MIC_GND
CN3401
CKS5773-A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
C3410
106/10
C3414 106/10
C3409
10u/35
C3411
106/10
C3407
106/10
C3419
NM
C3420
NM
C3422
NM
C3421
NM
C3208
0.1u/50
C3206
1u/10
C3212
NM
C3203
1u/10
C3401
NM
C3402
NM
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
IC3201
TC7S66FU
I/O
1
O/I
2
GND3CONT
4
5
VCC
IC3200
NM
3
4
2
1
8
IC3200
NM
5
6
7
L3202
LCTAW101J2520-T
L3203
LCTAW101J2520-T
L3403
CTF1635-A
L3205
CTF1306-A
L3200
CTF1306-A
L3207
CTF1306-A
L3401
DTL1096-A
L3305
NM
L3402
DTL1096-A
L3208
CTF1306-A
Q3202
2SC4617(RS)
Q3200
2SC4617(RS)
2SA1774(QR)
Q3201
2SA1774(QR)
Q3203
R3216
NM
STH2
LCD3V
STV1
STH1
OE
LCD18
CPH
LCDM12
VCOM
LCD5V
GNDV2
STV2
LOAD
VCOMOUT
GNDIO
CPV
VM12
V18
VM12
V34
V5
V5
V8
SWAC33
GND
C3309
106/10
V5
D3012
RB548W
1
2
3
D3002
RB500V-40
D3010
RB548W
1
2
3
D3011
RB548W
1
2
3
V8
VM12
2SA1577(QR)
Q3003
GND
GND
L3005
CTF1635-A
(10uH)
D3004
RB500V-40
L3001
NM
(18uH)
GND
C3017
0.039u/16
C3012
0.039u/16
C3021
10u/35
V5
BD6171KV
IC3001
NC1
1
OCPC22VREGA
3
VS2
4
CL2
5
PVCC2
6
OUT27LGND
8
VREGB
9
OVT1
10
PVCC1
11
CL1
12
VS1
13
OCPC114FB1
15
INV1
16
SS1
17
FB2
18
INV2
19
SS2
20
VREF
21
OUT3
22
PVCC3
23
FB3
24
V03DET25V01DET26V02DET27V04DET28V05DET29SVBGND30GND31EN132EN233EN334EN435EN5
36
PVCC5
37
OUT5
38
FB5
39
PGND5
40
PVCC
41
VCC
42
FIN
43
RT
44
PGND4
45
FB446OUT4
47
PVCC4
48
V34
L3002
CTF1635-A
GND
V34
GND
PWRVI
V18
D3007
1SS352
D3009
RB548W
1
2
3
D3008
RB548W
1
2
3
R3030
330k
(D)
D3006
RB160M-30
GND
V5
C3025
10u/35
R3015
390
(D)
L3004
CTH1318-A
(68uH)
L3006
DTL1096-A
C3001
10u/35
CCG1236-A-T
V8
GND
D3001
RB160M-30
R3014
2k
(D)
V18
CCH1968-A
C3038
33u/10V
_SP
RSQ035P03
Q3001
D11D2
2G3
S
4
5D36
D4
GND
R3008
330
(D)
L3007
CTF1635-A
Q3004
2SC4097(R)
GND
VM12
C3015
0.039u/16
D3005
RB500V-40
C3022
10u/35
RSQ035P03
Q3002
D1
1
D2
2
G
3
S
4
5D36
D4
LEDBL
GNDBL
C3113
1000p/50
LED1
LED2
L3361
CTF1394-A
V34
R3376
47
R3375
47
R3373
47
GNDBT
GNDBT
D3003
RB500V-40
R3413
NM
R3415
NM
NJM082BV
IC3202
A:OUT
1
A:-IN
2
A:+IN
3
V-
45
B:+IN
6
B:-IN
7
B:OUT
8
V+
TC7WT240FU
IC3203
G1
1
A1
2
Y2
3
GND
45
A2
6
Y1
7
G2
8
VCC
GND
L_R
BT_LRCK
BT_DATA1
BT_CLK1
COTOBT
U0_OUT
U0_IN
BT_VCC
GNDBT1
NRESET
BOOTS
GNDBT
IC3300
BH2227AFV
AO1
1
AO2
2
TESTMONI1
3
TESTMONI2
4
5
AO3
6
AO4
7
NC1
8
NC2
9
VDD
10
CSB
11
CLK
12
DI
13
VFS
14
VSS
CN3100
CKS5715-A-TFB
1
2
3
4
5
6
7
8
9
10
C3210
CCG1222-A
4.7u
C3214
NM
36k
(D)
IC3204
TC74VHCT04AFTS1
1A
11Y22A3
2Y
4
53A63Y7
GND
84Y94A10
5Y115A126Y136A
14
Vcc
BT_DATA2
C3369
106/10
C3368
106/10
R3374
10k
GND
R3419
NM
GND
GND
AK4388VT
IC3360
MCLK
1
BICK
2
SDTI
3
LRCK
4
5
RSTN
6
SMUTE
7
ACKS
8
DIF09DIF1
10
AOUTR
11
AOUTL
12
VCOM
13
VSS
14
VDD
15
DEM
16
DZF
CCA5
BT_MCLK
GNDBT
R3365
10k
R3364
10k
R3367
10k
GNDBT
R3363
22k R3362
22k
L3360
2.7u
C3363
106/10
C3364
106/10
C3366
106/10
C3362
106/10
C3367
1000p/50
C3365
1000p/50
R3372
47k
R3417
NM
R3421
NM
R3422
47k
R3384
NM
C3201
NM
C3200
0.1u/10
C3205
0.1u/10
R3208
NM
R3211
100
R3217
15k
R3218
15k
R3209
22k
R3028
47
R3027
47
R3210
4.7k
R3416
47k
R3370
NM
R3369
47
R3371
47
R3368
47
R3366
47
C3408
0.33u/50
C3202
NM
C3204
0.1u/10
C3213
0.1u/10
C3215
0.1u/10
C3370
0.1u/10
C3371
0.1u/10
C3372
0.1u/10
C3373
0.1u/10
C3415
NM
C3418
NM
R3213
470k
(D)
R3212
56k
(D)
R3023
18k
(D)
R3025
18k
(D)
R3024
(D)
22k
R3002
(D)
6.8k
C3046
1u/25
C3051
1u/25
C3050
1u/25
C3048
2.2u/16
C3049
2.2u/16
C3417
NM
C3416
NM
BTGND
R3001
0
R3005
0
R3222
10
R3221
10
R3010
1k
R3009
1k
R3019
15
R3018
15
R3031
20k
R3017
27k
R3012
33k
R3020
56k
R3016
100
(D)
R3004
1k
(D)
R3006
1k
(D)
R3021
10k
(D)
1.8k
(D)
R3412
120
(D)
R3214
33k (D)
DTC114EE
Q3005
R3022
62k
(D)
DTC114EE
Q3360
GNDBT
FCONT_M
R3003
200
(D)
R3026
820
(D)
R3200
1.8k
(D)
TP2
TP1
R3204
NM
R3205
NM
(D)
R3206
NM
(D)
R3207
100
C3003
0.1u/50
C3004
680p/50
C3006
330p/50
C3008
0.1u/50
C3009
0.1u/50
C3010
0.01u/50
C3014
NM
C3016
0.1u/50
C3018
0.1u/50
C3019
NM
C3020
0.01u/50
C3023
1u/10
C3024
1000p/50
C3026
0.1u/50
C3027
0.01u/50
C3028
1000p/50
C3029
1u/10
C3030
0.01u/50
C3031NMC3032
1u/10
C3033
0.01u/50
C3034
4.7u/25
C3035
0.1u/16
C3036
180p/50
C3037
0.1u/50
C3039
180p/50
R3034
270k
(D)
R3380
22k
L3407
BTX1042-A
L3003
CTH1318-A
(68uH)
R3011
100k
C3007
0.1u/50
CN3360
CKS6117-A
123
456
789
1011121415
16
17
18
192021
22232425262728293031323334
35
36
373839
40
13
C3405
NM
C3403
NM
C3406
NM
C3404
NM
C3412
NM
C3209
10u/35
CCG1236-A-T
C3211
NM
C3413
NM
C3207
0.1u/50
CN3361
CKS5749-A-TLB
1
2
3
CN3362
CKS5749-A-TLB
1
2
3
R3385
NM
CCH1635-A_Po
C3005
68u/10V
IC3362
TC7SH08FUS1
INB
1
INA
2
GND3OUTY
4
5
VCC
L3362
CTF1306-A
C3374
0.1u/10
FCONT
R3007
82
(D)
R3013
330
C3002
0.01u/50
R3202
NM
C3013
4700p/50
C3011
106/10
C3040
4700p/50
C3041
4700p/50
C3042
0.47u/16
C3043
0.47u/16
C3044
1u/16
C3045
0.47u/16
C3047
0.1u/50
C3052
1u/16
C3053
1u/16
C3054
1u/16
C3055
1u/16
R3201
9.1k
(D)
R3401
10
(D)
R3403
120
(D)
R3404
82
(D)
R3410
100
(D)
R3402
22
(D)
R3405
91
(D)
R3406
30
(D)
R3407
39
(D)
R3408
39
(D)
R3409
27
(D)
R3411
75
(D)
CN3101
1
2
3
4
5
6
7
8
9
10
CN3403
5
ILMR1
6
GND7GND
8
KDT09KDT210KDT1
GNDA
R3203
470
GND
R3215
100
R3423
0
TEST_P
GND
R3424
100k
TEST_V
GND
R3432
0
R3433
0
R3434
0
R3435
0
R3339
0
L3206
BTX1042-A
L3404
BTX1042-A
Q3204
2SC4617(RS)
L3201
CTF1306-A
R0
CPH
STV2
V0
B1
NC
V8
R1
VDD1
NC
G3
B0
NC
V7
R2
STH2
GND
G0
LOAD
NC
V6
R5
NC
NC
G1
L/R
V5
R4
V1
STV1
Vcom
G2
VDD2
V4
VDD2
B5
VDD1
GND
Vcom
GND
G5
VDD2
CPV
V3
B4
VGH
STH1
G4
GND
OE
V2
B3
NC
V10
R3
GND
U/D
B2
VGL
V9
GRADATION VOLTAGE
VM12
V8
REF NO 3200 - 3299
COM
LCD power
COMAC
COMDC
TO BL
DC/DC
V5
VM12
VI
V18
V8
PWRVI
V34
LIN
USB0 D+
VSS
I2S_MCLK
VSS
USB1 D-
VCC
MIC2N
VCC
USB0_VBUS
I2S_OUT1
USB1 D+
MIC1N
I2S_SYNC
I2S_OUT2
I2S_CLK
USB0 D-
VSS
U0_OUT
MIC_PWR
VSS
USB1_VBUS
NRESET
BOOTS
VSS
VSS
USB1_ID
RIN
I2S_IN
MIC1P
U1_IN
I2C_CLK
I2C_DA
U0_IN
U1_OUT
VSS
USB0_ID
USB0_DRV_VBUS
MIC2P
USB1_DRV_VBUS
REF NO
3401 -
around PANEL
V5
V18
VM12
V34
capacitor in BT module
H:450kHz
L:400kHz
REF NO
3001- 3099
CWN5128-
CWN5259-
CWN5271-
MODEL
For view
CWN5128-
CWN5271-
CWN5259-
For checker
0
100k
R3424R3423
0V
100k0
33k
33k
100k
5V
TEST_P
1.24V100k
3.76V
TEST_V:5V
A
B
C
-
A
C
B
&NX027/046
&NX027/046
&NX032/033
AVIC-F20BT/XNEU5
AVIC-F20BT/XNUW5
&NX032/033
6.95inch
6.1inch
6.1inch
6.1inch
6.95inch
6.1inch
-
NM
AVIC-F20BT/XNEU5
AVIC-F20BT/XNUW5
NM
LCD PANEL
MONITOR UNIT
F
G
BT MODULE
LCD
PANEL
H
CN2901
BT MODULE
AVIC-Z120BT/XNUC
29
Page 30
1234
1 234
C
D
F
A
B
E
GF-a GF-b
G
F
-b
STH1
B2B1B0
PWRVI
MVIPW
VCOM2
VCOM1
ILMDT
ILMCK
ILMLD
CN3401
CKS5773-A
44454647484950
51
525354555657585960
GND
IC3201
TC7S66FU
I/O1O/I
2
5
VCC
IC3200
NM
5
6
7
L3205
CTF1306-A
L3200
CTF1306-A
L3207
CTF1306-A
L3305
NM
L3208
STH1
VCOMOUT
GNDIO
V5
SWAC33
GND
C3309
106/10
V5
D3012
RB548W
1
2
3
D3002
RB500V-40
D3010
RB548W
1
2
3
D3011
RB548W
1
2
3
V8
VM12
2SA1577(QR)
Q3003
GND
GND
L3005
CTF1635-A
(10uH)
D3004
RB500V-40
L3001
NM
(18uH)
GND
C3017
0.039u/16
C3012
0.039u/16
C3021
10u/35
V5
BD6171KV
IC3001
NC1
1
OCPC2
2
VREGA
3
VS2
4
CL2
5
PVCC2
6
OUT2
7
LGND
8
VREGB
9
OVT1
10
PVCC1
11
CL1
12
VS113OCPC1
14
FB115INV1
16
SS117FB218INV219SS220VREF21OUT3
22
PVCC323FB3
24
V03DET
25
V01DET
26
V02DET
27
V04DET
28
V05DET
29
SVBGND
30
GND
31
EN1
32
EN2
33
EN3
34
EN4
35
EN5
36
PVCC5
37
OUT5
38
FB5
39
PGND5
40
PVCC
41
VCC42FIN
43RT44
PGND4
45
FB4
46
OUT4
47
PVCC4
48
V34
L3002
CTF1635-A
GND
V34
GND
PWRVI
V18
D3007
1SS352
D3009
RB548W
1
2
3
D3008
RB548W
1
2
3
R3030
330k
(D)
D3006
RB160M-30
GND
V5
C3025
10u/35
R3015
390
(D)
L3004
CTH1318-A
(68uH)
L3006
DTL1096-A
C3001
10u/35
CCG1236-A-T
V8
GND
D3001
RB160M-30
R3014
2k
(D)
V18
CCH1968-A
C3038
33u/10V
_SP
RSQ035P03
Q3001
D1
1
D2
2
G3S
4
5
D3
6
D4
GND
R3008
330
(D)
L3007
CTF1635-A
Q3004
2SC4097(R)
GND
VM12
C3015
0.039u/16
D3005
RB500V-40
C3022
10u/35
RSQ035P03
Q3002
D1
1
D2
2
G3S
4
5
D3
6
D4
D3003
RB500V-40
R3413
NM
TC7WT240FU
IC3203
G1
1A12Y23
GND
45
A26Y1
7G28
VCC
GND
IC3300
BH2227AFV
AO11AO22TESTMONI13TESTMONI2
4
5
AO36AO47NC1
8
NC29VDD10CSB11CLK
12DI13
VFS14VSS
C3214
NM
IC3204
TC74VHCT04AFTS1
1A
1
1Y
2
2A
3
2Y
4
5
3A
6
3Y
7
GND
8
4Y
9
4A
10
5Y
11
5A
12
6Y
13
6A
14
Vcc
GND
00
10
R3028
47
R3027
47
C3213
0.1u/10
C3215
0.1u/10
R3023
18k
(D)
R3025
18k
(D)
R3024
(D)
22k
R3002
(D)
6.8k
C3046
1u/25
C3051
1u/25
C3050
1u/25
C3048
2.2u/16
C3049
2.2u/16
R3001
0
R3005
0
R3010
1k
R3009
1k
R3019
15
R3018
15
R3031
20k
R3017
27k
R3012
33k
R3020
56k
R3016
100
(D)
R3004
1k
(D)
R3006
1k
(D)
R3021
10k
(D)
DTC114EE
Q3005
R3022
62k
(D)
FCONT_M
R3003
200
(D)
R3026
820
(D)
R3200
1.8k
(D)
05
M
R3207
100
C3003
0.1u/50
C3004
680p/50
C3006
330p/50
C3008
0.1u/50
C3009
0.1u/50
C3010
0.01u/50
C3014
NM
C3016
0.1u/50
C3018
0.1u/50
C3019
NM
C3020
0.01u/50
C3023
1u/10
C3024
1000p/50
C3026
0.1u/50
C3027
0.01u/50
C3028
1000p/50
C3029
1u/10
C3030
0.01u/50
C3031
NM
C3032
1u/10
C3033
0.01u/50
C3034
4.7u/25
C3035
0.1u/16
C3036
180p/50
C3037
0.1u/50
C3039
180p/50
R3034
270k
(D)
L3407
BTX1042-A
L3003
CTH1318-A
(68uH)
R3011
100k
C3007
0.1u/50
CCH1635-A_Po
C3005
68u/10V
FCONT
R3007
82
(D)
R3013
330
C3002
0.01u/50
C3013
4700p/50
C3011
106/10
C3040
4700p/50
C3041
4700p/50
C3042
0.47u/16
C3043
0.47u/16
C3044
1u/16
C3045
0.47u/16
C3047
0.1u/50
C3052
1u/16
C3053
1u/16
C3054
1u/16
C3055
1u/16
01
(D)
R3401
10
(D)
R3403
120
(D)
R3404
82
(D)
R3402
22
(D)
R3405
91
(D)
R3406
30
(D)
CN3403
9
KDT2
10
KDT1
R3203
470
GND
R3423
0
TEST_P
GND
R3424
100k
TEST_V
GND
R34320R34330R34340R3435
0
R3339
0
L3206
BTX1042-A
Q3204
2SC4617(RS)
L3201
CTF1306-A
V0
B1V8B0
V7V6V5V1V4
GNDV3STH1
V2
B3
V10B2V9
GRADATION VOLTAGE
REF NO
3200 - 3299
COM
LCD power
COMAC
DC/DC
V5
VM12
VI
V18
V8
PWRVI
V34
H:450kHz
L:400kHz
REF NO
3001 - 3099
CWN5128-
CWN5259-
CWN5271-
MODEL
For view
CWN5128-
CWN5271-
CWN5259-
For checker
0
100k
R3424R3423
0V
100k0
33k
33k
100k
5V
TEST_P
1.24V100k
3.76V
TEST_V:5V
ABC
-
ACB
&NX027/046
&NX027/046
&NX032/033
AVIC-F20BT/XNEU5
AVIC-F20BT/XNUW5
&NX032/033
6.95inch
6.1inch
6.1inch
6.1inch
6.95inch
6.1inch
-
AVIC-F20BT/XNEU5
AVIC-F20BT/XNUW5
NM
MONITOR UNIT
F
G
30
AVIC-Z120BT/XNUC
Page 31
5 678
56
7
8
C
D
F
A
B
E
GF-a GF-b
G
F
-b
DIF1:inner pull up:100k
DEM:inner pull down:100k
G2
G1
OE
LOAD
STV2
CPV
STH2
CPH
G5G4G3
STV1
B3B2B1
B0
R3R2R1
R0
BTTOC
CTOBT
B4
R4
BT_RESET
BT_BOOTS
G0
MIC_BT
MIC_GND
123456789
1011121314151617181920212223242526272829303132333435363738394041424344454647484950
51
52
53
C3410
106/10
C3414 106/10
C3409
10u/35
C3411 106/10
C3407
106/10
C3419
NM
C3420
NM
C3422
NM
C3421
NM
C3208
0.1u/50
C3206
1u/10
C3212
NM
C3203
1u/10
C3401
NM
C3402
NM
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
IC3201
TC7S66FU
I/O1O/I2GND
3
CONT
4
5
VCC
IC3200
NM
342
1
8
IC3200
NM
5
6
7
L3202
LCTAW101J2520-T
L3203
LCTAW101J2520-T
L3403
CTF1635-A
L3205
CTF130
L3200
CTF1306-A
L3207
CTF1306-A
L3401
DTL1096-A
L3402
DTL1096-A
L3208
CTF1306-A
Q3202
2SC4617(RS)
Q3200
2SC4617(RS)
2SA1774(QR)
Q3201
2SA1774(QR)
Q3203
R3216
NM
STH2
LCD3V
STV1
OE
LCD18
CPH
LCDM12
VCOM
LCD5V
GNDV2
STV2
LOAD
VCOMOUT
GNDIO
CPV
VM12
V18
VM12
V34
V5
V8
L3361
CTF1394-A
V34
R3376
47
R3375
47
R3373
47
GNDBT
GNDBT
R3413
NM
R3415
NM
NJM082BV
IC3202
A:OUT1A:-IN2A:+IN3V-
45
B:+IN6B:-IN7B:OUT
8
V+
TC7WT240FU
IC3203
G1
1A12Y23
GND
45
A26Y1
7G28
VCC
L_R
BT_LRCK
BT_DATA1
BT_CLK1
COTOBT
U0_OUT
U0_IN
BT_VCC
GNDBT1
NRESET
BOOTS
GNDBT
CN3100
CKS5715-A-TFB
123456789
10
C3210
CCG1222-A
4.7u
IC3204
TC74VHCT04AFTS1
1A
1
1Y
2
2A
3
2Y
4
5
3A
6
3Y
7
GND
8
4Y
9
4A
10
5Y
11
5A
12
6Y
13
6A
14
Vcc
BT_DATA2
C3369
106/10
C3368
106/10
R3374
10k
GND
R3419
NM
GND
GND
AK4388VT
IC3360
MCLK1BICK2SDTI
3
LRCK
4
5
RSTN
6
SMUTE
7
ACKS
8
DIF0
9
DIF1
10
AOUTR
11
AOUTL
12
VCOM
13
VSS14VDD15DEM16DZF
BT_MCLK
GNDBT
R3365
10k
R3364
10k
R3367
10k
GNDBT
2.7u
C3363
106/10
C3364
106/10
C3366
106/10
C3362
106/10
C3367
1000p/50
C3365
1000p/50
R3372
47k
R3417
NM
R3421
NM
R3422
47k
R3384
NM
C3201
NM
C3200
0.1u/10
C3205
0.1u/10
R3208
NM
R3211
100
R3217
15k
R3218
15k
R3209
22k
R3210
4.7k
R3416
47k
R3370
NM
R3369
47
R3371
47
R3368
47
R3366
47
C3408
0.33u/50
C3202
NM
C3204
0.1u/10
C3213
0.1u/10
C3370
0.1u/10
C3371
0.1u/10
C3372
0.1u/10
C3373
0.1u/10
C3415
NM
C3418
NM
R3213
470k
(D)
R3212
56k
(D)
C3417
NM
C3416
NM
BTGND
R3222
10
R3221
10
R3412
120
(D)
R3214
33k (D)
DTC114EE
Q3360
GNDBT
R3200
1.8k
(D)
TP2
TP1
R3204
NM
R3205
NM
(D)
R3206
NM
(D)
R3207
100
R3380
22k
CN3360
CKS6117-A
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
13
C3405
NM
C3403
NM
C3406
NM
C3404
NM
C3412
NM
C3209
10u/35
CCG1236-A-T
C3211
NM
C3413
NM
C3207
0.1u/50
CN3361
CKS5749-A-TLB
1
2
3
CN3362
CKS5749-A-TLB
1
2
3
R3385
NM
IC3362
TC7SH08FUS1
INB1INA2GND
3
OUTY
4
5
VCC
L3362
CTF1306-A
C3374
0.1u/10
R3202
NM
R3201
9.1k
(D)
R3404
82
(D)
R3410
100
(D)
R3405
91
(D)
R3406
30
(D)
R3407
39
(D)
R3408
39
(D)
R3409
27
(D)
R3411
75
(D)
CN3101
123456789
10
GNDA
R3203
470
GND
R3215
100
L3404
BTX1042-A
Q3204
2SC4617(RS)
L3
CTF
R0
CPH
STV2
B1
NC
V8
R1
VDD1
NC
G3
B0
NC
V7
R2
STH2
GND
G0
LOAD
NC
V6
R5
NC
NC
G1
L/R
V5
R4
STV1
Vcom
G2
VDD2
VDD2
B5
VDD1
GND
Vcom
G5
VDD2
CPV
B4
VGH
G4
GND
OE
B3
NC
V10
R3
GND
U/DB2VGL
V9
GRADATION VOLTAGE
VM12
V8
COMAC
COMDC
TO BL
LIN
USB0 D+
VSS
I2S_MCLK
VSS
USB1 D-
VCC
MIC2N
VCC
USB0_VBUS
I2S_OUT1
USB1 D+
MIC1N
I2S_SYNC
I2S_OUT2
I2S_CLK
USB0 D-
VSS
U0_OUT
MIC_PWR
VSS
USB1_VBUS
NRESET
BOOTS
VSS
VSS
USB1_ID
RIN
I2S_IN
MIC1P
U1_IN
I2C_CLK
I2C_DA
U0_IN
U1_OUT
VSS
USB0_ID
USB0_DRV_VBUS
MIC2P
USB1_DRV_VBUS
REF NO
3401 -
around PANEL
V5
V18
VM12
V34
capacitor in BT module
NM
LCD PANEL
BT MODULE
LCD
PANEL
H
BT MODULE
AVIC-Z120BT/XNUC
31
Page 32
1234
1 234
C
D
F
A
B
E
GF-bGF-a
G
F
-b
GF-a
R0
G4G5G3
G2
R1R2R3
G1
G0
B4
B3
B2
B1
B0
STH2
PNLYB
PNLXL
PNLYT
PNLXR
BLSYNC
BLERR1
BLERR2
MVIPW
MBLPW
DIMMER
LCDTEMP
HRST
KDT2
KDT1
KDT0
ILMDT
ILMCK
ILMLD
LVDSP
LVDSN
HRST
ILMB1
RED
GREEN
BLUE
SLED
SLED
LVDSN
LVDSP
ILMG1
ILMR1
COMDC
SWAC3
ILMB2
KDT1
KDT0
KDT2
ILMG1
ILMR1
ILMB1
ILMG2
ILMR2
KDT2
STH1
COMDC
KDT1
KDT0
ILMR1
ILMR2
ILMG1
ILMG2
ILMB1
ILMB2
GND
GND
GND
GND
GND
GND
GND
GND
GND
C3309
/
GND
R3155
NM
GND
R3153
10k
GND
LVDSGND
GNDBL
GND
GNDILM
GNDVI
GNDBL
GND
DIMMER
BLSYNC
BLERR1
BLERR2
LCDTEMP
MVIPW
MBLPW
PNLXL
PNLYB
PNLYT
PNLXR
ILMV
GND
R3150
100
(D)
L3150
CTF1731-A
1
1
223
3
4
4
C3151
0.1u/16
IC3300
BH2227AFV
AO11AO22TESTMONI13TESTMONI2
4
5
AO36AO47NC1
8
NC29VDD10CSB11CLK
12DI13
VFS14VSS
L3169
CTF1736-A-T
L3168
CTF1306-A
L3152
CTF1306-A
L3179
CTF1306-A
VA3314
NM
VA3315
NM
R3321
200
(D)
C3303
4.7u/6.3
GND
R3322
240
(D)
R3324
(D)
240
R3323
200(D)
R3326
220
(D)
R3329
(D)
150
R3328
220(D)
R3327
150
(D)
C3304
4.7u/6.3
GND
C3305
4.7u/6.3
R3333
100(D)
R3332
200
(D)
GND
R3334
(D)
200
R3331
100
(D)
R3300
NM
CN3302
1
ILMV2
2
ILMR2
3
ILMG2
4
ILMB2
5
KEY1
6
INT_KEY1
7
HRST
8
KEY0
9
GND
10
GND
11
INT_KEY0
12
KEY2
13
ILMB1
14
ILMG1
15
ILMR1
16
ILMV1
B0
B1
B2
B3
B4
G0
G1
R0R1R2
R3
G5G4G3
G2
FCONT_M
SLED
GND
C3162
0.1u/10
C3160
0.1u/10
C3166
0.1u/10
C3155
0.1u/10
C3153
0.1u/10
C3152
0.1u/10
56
C3163
0.01u/16
R3330
33k
R3325
33k
R3335
33k
R3316
NM
R3184
NM
GND
FCONT_M
LOCK
CN3301
CKS6118-A
123456789
101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354
55
C3150
0.1u/16
D3304
NM
D3305
NM
D3306
NM
D3308
NM
C3306
NM
C3307
NM
C3308
NM
C3317
NM
GND
C3319
NM
C3320
NM
C3321
NM
C3322
NM
D3150
NM
1
2
34
5
6
NM
CN3303
1
NC
2
ILMV1
3
ILMV2
4
NC
5
NC
6
GND
7
GND
8
KDT0
9
KDT2
10
KDT1
11
KDT0
12
GND
13
GND
14
NC
15
NC
16
ILMV3
17
ILMV4
18
SLED
C3161
0.01u/16
C3157
0.01u/16
C3154
0.01u/16
C3158
0.01u/16
C3167
0.01u/16
59
VA3310
VA3308
NM
VA3307
VA3305
ILMV
CCH1586-A_Po
C3168
33u/10V
D3310
NM
D3311
NM
D3312
NM
D3313
NM
R3305
NM
R3309
NM
R3310
NM
SWAC3
DS90C124QVS
IC3150
RPWDNB
RESRVD
ROUT23
ROUT22
ROUT21
ROUT20
VddOR3
VssOR3
ROUT19
ROUT18
ROUT17
ROUT16
ROUT1513ROUT1414ROUT13
15
ROUT12
16
LOCK17RCLK
18
VssOR2
19
VddOR2
20
ROUT11
21
ROUT10
22
ROUT923ROUT8
24
ROUT7
25
ROUT6
26
ROUT5
27
ROUT4
28
VssOR1
29
VddOR1
30
ROUT3
31
ROUT2
32
ROUT1
33
ROUT0
34
VssR0
35
VddR0
36
VddR137VssR1
38
VddIR
39
VssIR40RIN+41RIN-42RRFB43VssPR144VddPR1
45
VssPR046VddPR047REN
48
R3158
150
R3168
150
R3172
150
R3166
150
R3162
150
R3181
100
R3182
100
R3175
150
R3178
150
R3160
150
R3180
100
R3177
150
R3183
100
R3170
150
R3176
150
R3157
180
L3164
CTF1748-A
L3158
CTF1748-A
L3156
CTF1748-A
L3162
CTF1748-A
L3154
CTF1748-A
L3153
CTF1748-A
L3166
CTF1748-A
L3160
CTF1748-A
L3173
CTF1748-A
L3170
CTF1748-A
L3171
CTF1748-A
L3172
CTF1748-A
R3306
NM
R3307
NM
R3311
NM
R3312
NM
VA3317
NM
VA3316
NM
CN3402
1
ILMV2
2
ILMR2
3
ILMG2
4
ILMB2
5
KEY1
6
KEY2
7
NC
8
KEY0
9
GND
10
GND
R3436
0
CN340
1
ILMB1
2
ILMV
3
ILMV
4
ILMG1
5
ILMR1
6
GND
7
GND
8
KDT0
9
KDT2
10
KDT1
Q3300
UMZ1N-TLB
E1
1
B1
2
C2
3
E2
4
5
B2
6
C1
Q3303
UMZ1N-TLB
E1
1
B1
2
C2
3
E2
4
5
B2
6
C1
Q3301
UMZ1N-TLB
E1
1
B1
2
C2
3
E2
4
5
B2
6
C1
Q3305
UMZ1N-TLB
E1
1
B1
2
C2
3
E2
4
5
B2
6
C1
Q3302
UMZ1N-TLB
E1
1
B1
2
C2
3
E2
4
5
B2
6
C1
Q3304
UMZ1N-TLB
E1
1
B1
2
C2
3
E2
4
5
B2
6
C1
R3186
0
GND
L3175
CTF1734-A
L3176
CTF1734-A
L3177
CTF1734-A
L3178
CTF1734-A
LVDS
REF NO
3150 - 3199
NC
LVDSGNDNCLVDSP
LVDSGND
LVDSN
NC
GNDD
GNDD
LCDTEMP
SWAC33
BLERR1
ILMCK
ILMLD
ILMDT
SECIND
PNLYB
PNLXR
PNLXL
PNLYT
GNDBL
GNDBL
GNDVI
GNDILM
GNDD
LVDSGND
NC
NC
LVDSGND
NC
NC
LVDSGND
FCONT_M
BLSYNC
BLERR2
DIMMER
NM
NM
MBLPW
MVIPW
HRST
KDT1
GNDBL
GNDVI
GNDBL
KDT0
COM_DC
GNDD
GNDD
GNDD
NC
NC
KDT2
D
D
NM
NM
CKS5501
LVDS
NM
NM
CN5601
4/4
F
H
32
AVIC-Z120BT/XNUC
Page 33
5 678
56
7
8
C
D
F
A
B
E
GF-bGF-a
G
F
-b
GF-a
R0G5R1R2R3
CPV
LOAD
VCOM2
VCOM1
STV2
LCDTEMP
R4
PNLXL
PNLYB
PNLXR
PNLYT
SWAC3
PNLXR
BT_L
BT_R
BTTOC
CTOBT
BT_RESET
BT_BOOTS
MIC_BT
MIC_GND
KDT0
OE1
OE
OE1
BT_R
BLERR2
BLERR1
CPH
LVDSN
LVDSP
BT_L
STV1
DIMMER
BLSYNC
MBLPW
EN
C3103
NM
D3101
NM
D3103
NM
D3102
NM
GND
GND
GND
GND
GND
GND
GND
GND
GND
IC3101
NM
INB1INA2GND
3
OUTY
4
5
VCC
IC3100
NM
INB1INA2GND
3
OUTY
4
5
VCC
L3157
CTF1734-A
L3159
CTF1734-A
L3161
CTF1734-A
L3163
CTF1734-A
L3155
CTF1734-A
L3100
NM
Q3101
NM
Q3100
NM
R3118
NM
R3105
NM
R3117
100
R3109
NM
R3106
NM
R3115
NM
R3119
NM
R3116
NM
R3120
NM
R3111
NM
R3165
NM
SWAC33
SWAC33
SWAC33
C3311
NM
GND
L3300
CTF1528-A
L3301
CTF1528-A
CN3300
CKS5105-A
1
2
3
4
L3302
CTF1528-A
L3303
CTF1528-A
C3104
NM
LEDBL
GNDBL
C3109
NM
C3113
1000p/50
GNDBL
C3112
CCG1223-A-T
NM
Q3105
11
22334
45
5667788
D3105
RB160VA-40
R3133
0
C3111
CCG1223-A-T
D3104
NM
LED1
SP8K22
Q3106
11
2
2
3
3
4
45
5
6
6
7
7
8
8
LED2
R3100
NM
R3101
5.6k
R3102
5.6k
R3104
47k
R3110
47k
SWAC33
R3169
150
R3161
150
R3163
150
R3167
150
R3159
150
R3171
150
R3126
120k
(D)
R311347R3114
47
R3154
10k
R3153
10k
R3152
10k
R3151
10k
R3112
22k
D3100
UDZS6R8(B)
ILMV
PWRVI
L3304
CTF1488-A
GND
GNDBL1
GNDBL2
PNLXL1
PNLYB1
PNLXR1
PNLYT1
PWRVI
GNDBL
GND
GND
GNDILM
GNDVI
GNDBL
BT_L
GNDAL
BT_R
OE1
BTTOC
CTOBT
BT_RESET
BT_BOOTS
PNLXR
R3150
100
(D)
L3150
CTF1731-A
1
1
223
3
4
4
C3151
0.1u/16
C
CK
123456789
10
L3151
CTF1306-A
PWRBL
CCX1084-A
TH3350
C3107
0.1u/50
C3110
NM
C3108
2.2u/10
R3134
36k
(D)
R3174
NM
R0R1R2
R3
R4
NM
Q3104
L3101
CTH1394-A
CCA5
GNDBT
R3363
22k R3362
22k
R3360
220
R3361
220
GNDA
L3360
2.7u
C3363
106/10
C3364
106/10
C3366
106/10
C3362
106/10
C3367
C3365
1000p/50
C3361
2200p/50
C3360
2200p/50
GNDAR
CCA5
C3164
0.1u/10
C3166
0.1u/10
C3155
0.1u/10
C3
0.1u
C3156
0.1u/10
C3350
0.1u/10
R3122
0
R3107
47k
R3350
18k
R3108
47k
R3103
NM
C3302
NM
C3310
0.1u/10
B
R3129
0
R3137
0
R3128
15
R3127
NM
R3123
2.2M
R3121
NM
(D)
R3135
1.8k
(D)
R3124
100k
(D)
R3125
3.9k
C3300
10u/35
CCG1236-A-T
GNDBL
C3301
NM
R3184
NM
GND
IC3151
TC7SZ08FU
4
2
5
3
1
GND
C3423
0.01u/16
V34
L3180
CTF1306-A
LOCK
474849505152535455565758596061626364656667686970717273747576777879
80
0.1u/16
D3300
NM
D3301
NM
D3302
NM
D3303
NM
C3312
NM
C3313
NM
C3314
NM
C3315
NM
D3150
NM
1
2
34
5
6
R31301R3131
1
C3114
NM
C3115
NM
C3
0.01u
C3165
0.01u/16
C3158
0.01u/16
C3167
0.01u/16
C3159
0.01u/16
C3116
1000p/50
IC3102
BD8113EFV
COMP1SS2VCC3EN
4
5RT6
SYNC7GND8PWM9FAIL110FAIL211LEDEN
12
LED1
13
LED2
14
OVP
15
VDAC16ISET17PGND18OUTL19DGND
20SW21
OUTH
22CS23
BOOT24VREG
VA3303
VA3302
VA3300
AVR-M1608C120MT6AB-T
VA3301
CN
CKS57
ILMV
C3106
0.047u/16
CCA5
DS90C124QVS
IC3150
RPWDNB
1
RESRVD
2
ROUT23
3
ROUT22
4
ROUT21
5
ROUT20
6
VddOR3
7
VssOR3
8
ROUT19
9
ROUT18
10
ROUT17
11
ROUT16
12
ROUT1513ROUT1414ROUT13
15
ROUT12
16
LOCK17RCLK
18
VssOR2
19
VddOR2
20
ROUT11
21
ROUT10
VssR1
VddIR
VssIR40RIN+41RIN-42RRFB43VssPR144VddPR1
45
VssPR046VddPR047REN
48
R3179
82
R3185
47
L3174
CTF1734-A
R3181
100
R3182
100
R3178
150
R3180
100
R3173
100
R3183
100
L3173
L3165
CTF1748-A
C3100
NM
C3101
NM
C3102
NM
R3136
0
C3105
NM
123456789
10
GNDA
GNDA
GNDBLGNDBL
GNDBL
GNDBL
GNDBL
GNDBL
GNDBL
GNDBL
GNDBL
R3132
NM
R3138
0
R3139
0
R3140
0
R3141
2.2k
D3106
1SR154-400
D3107
1SR154-400
D3108
1SR154-400
D3109
1SR154-400
R3142
0
Q3102
2SC4617(RS)
Q3103
2SC4617(RS)
L3310
BTX1042-A
PWRBL2
L3167
CTF1734-A
L3175
CTF1734-A
L3176
CTF1734-A
L3177
CTF1734-A
L3178
CTF1734-A
VI
D
D
SWAC33
PWRVI
TOP
L
BOTTOM
R
REF NO
3100
- 3149
LED_BACKLIGHT Driver
PWRBL
D
PNLXR
GNDBL
GNDBL
GNDVI
GNDILM
GNDILM
NC
PWRVI
ILMV
PWRBL
PWRBL
CCA5
MIC_BT
BTTOC
BT_L
BT_RESET
BT_R
GNDILM
NC
PWRBL
GNDBL
GNDVI
GNDBL
PWRBL
PWRVI
KDT0
ILMV
CTOBT
LCD_OE
MIC_GND
BT_BOOTS
GNDD
GNDD
ILMV
around the CONNECTOR
REF NO
3300 -
REF NO 3350 -
THERMISTOR
FAIL1
FAIL2
UVLO,TSD,OVP,SCP
LED_OPEN/SHORT
BLSYNC:500kHz or 430kHz
CPH:33.33MHz
NM
TOUCH
PANEL
P
H
CN2901
AVIC-Z120BT/XNUC
33
Page 34
1234
1 234
C
D
F
A
B
E
PCB CONNECTION DIAGRAM
Capacitor
Connector
P.C.Board
Chip Part
SIDE B
SIDE A
NOTE FOR PCB DIAGRAMS
1.The parts mounted on this PCB
include all necessary parts for
several destination.
For further information for
respective destinations, be sure
to check with the schematic dia gra m.
2.Viewpoint of PCB diagrams
AUDIO UNIT
F
A
F
A
1
5
1
1
1 10
1 5
1
1
1
1
10
1
1
5
10
15
20
1 5
1
1
E
1
5
E
E
E
E
E
E
E
E
1
10
5
15
1
1
E
E
R2478
L2371
D2491
R2491
R2492
R2493
R2494
R2495
R2496
R2497
R2498
IC2491
R2499
L2572
JA2880
P2107
C2301
C2302
C2303
C2304
C2305
C2306
Q2302
C2307
Q2303
C2308
CN2511
CN2512
C2123
C2124
C2510
C2511
C2512
C2516
C2518
P2151
C2133
C2134
R2301
R2302
R2304
R2305
IC2302
IC2304
R2500
P2161
R2501
R2502
R2503
C2144
R2504
L2001
C2530
C2531
R2122
Q2531
IC2121
R2511
C2158
C2159
IC2511
IC2512
R2132
D2521
D2522
C2160
R2520
IC2131
R2521
C2355
R2522
R2524
R2525
R2332
R2527
R
R2529
D2531
L2411
R2531
R2532
R2533
R2534
R2535
R2536
R2538
IC2530
IC2531
R2539
L2421
R2540
L2231
R2541
D2160
D2161
R2
C2570
R2357
R2741
R2359
R2360
R2367
R2374
R2569
R2376
R2377
R2378
R2379
R2570
R2386
U2511
L2461
R2992
R2993
R2994
R2995
L2491
R2996
L2492
R2997
L2880
L2881
D2001
C2601
C2602
C2603
C2028
Q2601
C2412
C2414
C2415
C2416
C2417
C2419
JA2001
Q2226
C2231
C2232
C2041
C2042
C2043
Q2041
D2601
C2431
D2602
C2432
D2603
D2604
R2601
R2602
C2436
R2603
C2438
R2604
C2439
R2605
R2606
R2607
R2413
R2414
R2608
R2415
R2609
R2417
C2440
C2058
D2228
C2441
D2229
R2419
C2443
R2229
L2302
L2303
D2231
R2230
R2231
D2041
Q2061
R2425
D2042
Q2062
R2427
R2428
R2429
R2043
R2044
L2311
D2432
D2433
D
R2432
R2433
Q2071
Q2072
L2511
C2464
C2276
R2444
Q2276
R2447
R2061
R2062
R2063
P2880
L2530
R2458
L2531
R2071
R2072
R2073
R2074
R2463
R2081
C2491
R2082
R2276
C2492
C2493
R2277
C2494
Q2491
L2351
C2495
Q2492
C2880
C2881
R2477
5
10 20 30 40 50 60
X
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
Y
POWER SUPPLY
WIRED REMOTE
P 2107 (A,38,24) Fuse 250 mA CEK1276
P 2151 (A,10,66) Fuse 1 A CEK1254
P 2161 (A,41,92) Fuse 3.15 A CEK1259
P 2176 (A,112,27) Fuse 0.5 A CEK1278
P 2880 (A,19,136) Poly Switch MINISMDC075F/24
>
>
>
>
>
RDS-TMC TUNER
AUDIO UNIT
34
AVIC-Z120BT/XNUC
Page 35
5 678
56
7
8
C
D
F
A
B
E
SIDE A
F
A
1
1
525151
2010
1
1
1
1
1
5
1
1
1
1
1
1
1
5
1
1
5
1
1
1
1
1
1
1
5
1
5
510151
0
35202
E
E
E
1
10
5
1
1
1
1
1
1
D2864
D2865
C2889
D2867
D2868
D2869
R2866
C2890
C2891
C2892
C2893
C2894
C2895
C2896
C2897
R2870
R2871
R2872
R2873
L2371
L2181
L2182
L2183
R2881
R2889
L2771
R2890
IC2889
R2891
R2892
R2893
R2894
R2895
R2896
CN2101
C2101
C2305
C2306
Q2302
C2307
C2308
Q2505
Q2506
C2701
R2101
R2102
R2103
R2301
R2302
IC2300
IC2304
P2162
R2311
R2506
R2507
R2314
R2508
C2531
R2509
Q2531
C2151
C2154
P2176
C2156
C2157
C2733
C2734
C2735
Q2731
C2736
Q2732
C2160
C2161
C2355
C2162
C2163
C2166
R2332
C2743
C2744
R2335
Q2551
D2531
Q2552
C2170
R2531
R2532
C2173
R2533
R2534
D2151
R2535
D2152
R2536
R2538
R2730
C2565
R2732
R2733
R2158
R2734
IC2151
R2735
L2231
R2736
C2183
R2737
R2738
C2184
D2160
R2739
D2161
D2162
C2186
C2187
C2188
R2160
C2189
L2622
Q2762
R2357
R2740
D2552
IC2161
C2771
R2555
C2965
R2559
C2775
R2171
C2776
R2750
VR2731
R2563
R2374
L2641
D2761
D2762
R2188
R2189
IC2181
IC2182
R2771
C2799
L2461
R2772
R2777
R2778
R2779
L2661
L2662
R2780
R2781
F2161
R2782
R2783
R2788
R2999
C2001
L2889
C2026
C2602
C2027
Q2601
C2801
C2802
C2803
C2615
C2616
C2617
C2618
C2619
C2231
C2232
C2042
C2621
C2622
C2623
C2624
C2431
2
D2603
C2241
Q2242
R2606
C2053
R2607
R2417
C2058
C2443
R2613
R2614
R2615
D2231
R2616
R2617
R2618
IC2611
R2619
R2231
D2621
D2622
R2620
R2621
L2311
R2622
D2432
R2623
C2841
D2241
C2842
R2432
C2843
C2650
C2844
Q2841
C2845
IC2621
R2241
C2846
Q2842
R2242
C2847
R2243
C2848
C2464
CN2861
C2661
R2639
C2281
L2331
C2282
C2283
C2285
C2286
C2287
C2288
R2458
R2841
L2531
R2842
R2843
R2844
R2075
R2845
R2846
C2292
C2293
R2847
R2848
C2294
C2295
L2151
R2655
R2849
R2656
L2152
C2874
L2731
R2850
R2851
R2852
R2083
R2084
L2351
L2161
L2162
D2862
C2284
1
5
10
15
20
25
30
35
40
45
50
60 70 80 90 100 110 120 130 140 150
FRONT
PREOUT
CN511
B
AVIC-Z120BT/XNUC
35
Page 36
1234
1 234
C
D
F
A
B
E
AUDIO UNIT
F
A
F
A
8090100110120130140150
1 5
10
03
02
5251
1
5
1 5
10
15
20
2530
35
40
1
1
1
5
1
1
1
1
1 5 10
15 20
25 30 35
40 45
E
E
E
E
1
1
1
1
1
1
1
1
1 5
10
C2694
C2695
C2696
D2866
C2697
L2553
C2698
R2670
L2554
R2671
R2865
C2699
R2867
R2673
R2868
R2674
R2675
R2869
R2676
D2870
D2871
D2872
D2296
D2297
D2873
D2874
R2680
R2874
R2875
R2876
R2683
R2684
R2879
R2685
R2687
R2688
R2880
R2690
R2691
R2693
R2694
R2695
R2696
R2697
R2698
R2699
F2861
F2868
Q2101
C2300
C2700
C2702
C2703
C2705
C2706
C2707
C2708
R2105
R2106
C2713
C2714
C2715
C2716
C2717
C2718
C2719
C2720
C2721
C2722
C2725
C2726
R2700
R2701
R2702
R2703
R2704
R2705
R2706
C2152
C2153
R2707
R2708
R2709
C2155
R2710
CN2551
R2717
R2718
R2719
C2167
C2168
C2551
C2169
C2552
R2720
R2721
R2722
R2723
C2557
C2558
R2724
C2171
C2559
C2172
R2727
R2151
C2561
C2562
R2152
R2153
C2563
C2564
R2154
R2155
C2181
C2182
C2185
Q2181
C2761
C2762
Q2182
C2763
C2764
L2239
R2161
Q2761
R2162
R2163
R2164
R2165
R2166
R2167
R2168
C2190
C2191
R2551
C2192
R2552
C2193
R2553
C2194
R2554
C2195
C2772
R2557
C2773
C2774
R2558
C2777
C2778
C2779
R2560
R2561
R2562
R2564
C2780
C2781
D2181
C2782
C2785
R2181
C2786
R2182
R2183
C2787
C2788
R2185
C2789
R2761
R2186
R2762
R2187
R2763
R2764
R2765
R2766
C2790
C2791
C2792
R2190
R2191
R2192
R2193
R2773
IC2190
R2774
IC2771
L2861
R2998
C
C2609
C2800
C2610
C2611
C2612
C2613
C2614
C2811
C2812
C2813
C2238
C2814
C2625
C2626
D2027
C2627
C2628
C2629
R2026
R2027
R
C2630
C2631
C2632
C2633
R2611
R2612
C2831
C2832
C2833
C2834
Q2831
C2641
C2642
C2643
C2644
R2811
D2239
C2645
Q2641
R2812
Q2642
C2646
R2813
Q2643
C2647
Q2644
R2814
C2648
R2815
C2649
VA2861
R2239
R2816
VA2862
VA2863
R2817
R2624
D2240
VA2864
R2818
P2861
R2625
R2626
P2862
P2863
R2627
R2628
P2864
R2629
C2651
C2652
C2653
C2654
C2655
IC2625
C2657
C2658
R2630
R2631
R2632
R2633
R2634
R2635
R2636
R2637
R2251
C2662
C2663
C2664
D2641
C2665
R2831
R2832
C2666
R2833
C2667
D2643
C2668
R2834
R2640
D2644
C2669
R2641
R2835
R2642
R2836
R2643
R2644
Q2281
R2645
C2862
R2646
C2863
R2647
R2648
C2670
C2864
D2841
C2671
C2865
C2289
IC2641
R2649
C2672
C2673
C2674
C2675
C2676
C2677
R2650
C2678
C2290
C2679
C2291
R2651
R2652
R2653
R2654
C2296
C2297
R2657
C2298
R2658
C2680
R2659
C2299
C2685
C2686
C2687
R2660
C2688
R2661
C2689
R2662
R2663
R2664
R2665
C2690
R2668
R2281
IC2661
D2861
C2691
C2692
R2282
D2863
C2693
1
P 2861 (B,125,134) Poly Switch MINISMDC075F/24
P 2862 (B,141,140) Poly Switch MINISMDC075F/24
P 2863 (B,131,137) Poly Switch MINISMDC075F/24
P 2864 (B,135,137) Poly Switch MINISMDC075F/24
>
>
>
>
CN1901
C
36
AVIC-Z120BT/XNUC
Page 37
5 678
56
7
8
C
D
F
A
B
E
SIDE B
F
A
10203040
50
6070800
X
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
Y
1
1
1 5 10 15 20 25 30 35
40 45 50
55 60 65 70
75
80859095100105
110115120125130135140
1
5
1
1 5 15 25 35 45 55
10 20 30 40 50 60
65 75 85 95 105 115 125 135
70 80 90 100 110 120 130 140
1
1
1
1
10
1
1
1
1
E
E
E
E
E
E
E
E
E
E
E
D2880
D2881
L2571
C2311
C2121
C2122
C2513
C2514
C2515
C2321
Q2512
Q2513
C2517
Q2514
C2131
Q2515
C2132
C2331
C2527
IC2303
C2142
C2143
R2310
R2505
R2312
R2313
R2121
R2315
R2316
R2317
R2126
R2127
R2128
R2513
D2518
R2514
D2519
R2131
R2325
IC2513
R2327
D2520
R2328
R2135
R2329
C2351
R2136
C2352
D2527
R2331
R2140
R2141
R2336
R2142
R2337
R2143
R2144
R2530
IC2141
C2367
C2368
R2341
L2226
R2537
R2344
R2348
CN2571
C2374
C2181
R2542
L2232
R2543
R2351
L2236
R2352
R2353
R2354
R2161
C2571
R2355
R2162
R2356
C2572
C2573
C2574
C2575
C2576
C2577
C2578
C2579
C2580
R2365
C2581
R2366
C2582
C2583
C2584
R2368
C2391
C2585
R2369
C2586
C2587
C2588
C2589
R2372
C2590
R2181
R2375
R2571
R2381
R2382
R2577
R2384
R2385
R2387
R2388
R2390
R2391
R2392
R2394
R2395
R2396
R2397
R2398
C2002
C2003
C2004
C2005
C2007
C2008
C2009
C2010
C2011
C2012
C2013
X2301
C2216
C2217
C2029
C2411
C2413
C2609
C2418
C2226
C2227
C2611
Q2031
Q2032
3
4
C2420
C2424
C2233
R2400
Q2231
R2401
C2236
C2237
R2403
R2404
R2211
R2405
C2046
D2216
R2406
C2047
D2217
R2407
C2048
R2408
C2430
R2021
D2026
R2022
Q2046
D2027
2627
R2023
D2028
C2434
D2029
C2435
R2026
R2027
C2437
R2028
R2410
C2051
R2411
C2052
IC2216
R2412
D2031
D2032
C2056
D2226
D2033
C2057
D2227
D2034
R2031
R2032
R2226
R2033
R2227
C2444
R2034
R2228
R2420
R2421
R2422
D2232
R2423
R2424
D2236
R2232
D2237
R2233
C2450
R2234
R2041
D2046
R2042
Q2066
Q2067
R2046
R2047
R2048
C2459
R2431
C2266
R2434
2629
R2435
Q2266
R2436
R2437
C2460
R2439
C2461
C2462
C2463
2631
R2056
IC2051
IC2056
R2446
Q2277
C2471
R2066
R2067
R2450
R2068
Q2281
R2451
R2452
R2453
R2455
R2456
R2457
R2266
R2267
R2268
C2291
R2460
R2461
R2462
C2298
C2299
R2271
R2085
R2471
R2473
R2474
R2281
R2282
5
1
1
1
CN5603
F
AVIC-Z120BT/XNUC
37
Page 38
1234
1 234
C
D
F
A
B
E
MONITOR UNIT
MONITOR UNIT
F
G
F
G
1
1 15 25 35 45 55
10 20 30 40 50
1 10
1
1
1
1
1 5
10
1
5
1 5 10
15
20
25 30 35
40
45
1
5
1
5
10 15 20 25 30 35 40 45 50 55 60
E
E
E
E
E
1
5
1
5
1
5
5
1
L3310
R3432
R3433
R3434
R3435
R343
L3150
L3151
L3152
L3153
L3154
L3155
L3156
L3157
L3158
L3159
L3160
L3161
L3162
L3163
L3164
L3165
L3166
L3167
L3168
L3169
L3170
L3171
L3172
L3173
L3174
L3175
L3176
L3177
L3178
L3179
L3180
VA3314
VA3315
VA3316
VA3317
CN3301
CN3303
Q330
C3304
Q330
C3305
Q3302
Q3303
Q3304
Q3305
C3310
C3311
R3300
R3305
R3306
R3307
IC3300
R3309
R3310
R3316
L3200
C3150
L3201
C3151
L3202
C3152
C3153
L3203
C3154
L3205
C3157
R3325
R3326
R3327
C3350
R3328
L3401
R3329
L3402
L3403
C3160
L3404
C3161
R3330
R3331
R3332
R3333
R3334
R3335
R3339
D3150
R3150
R3151
R3152
R3153
R3154
R3157
IC3150
R3158
R3159
IC3151
R3350
R3160
R3161
R3162
R3163
R3166
R3167
R3168
R3169
R3170
R3171
R3172
R3173
TH3350
R3174
R3175
R3176
R3177
R3178
R3179
R3180
R3181
R3182
R3183
R3184
R3185
R3186
C3200
C3201
CN3401
C3202
CN3403
C3203
Q3200
C3204
Q3201
C3205
Q3202
C3206
Q3203
Q3204
C3401
C3402
C3403
C3404
C3405
C3406
C3213
C3407
C3408
C3409
C3410
C3411
C3412
C3413
C3414
C3415
C3416
C3417
C3418
C3419
R3200
R3201
R3202
R3203
R3204
C3420
R3205
C3421
R3206
C3422
R3207
C3423
IC3200
R3208
IC3201
R3209
IC3202
IC3203
R3210
R3211
R3212
R3213
R3214
R3215
R3216
R3217
R3218
R3221
R3222
10 20 30 40 50 60
70
X
70
60
50
40
30
20
10
0
Y
CN5601
LCD PANEL
F
38
AVIC-Z120BT/XNUC
Page 39
5 678
56
7
8
C
D
F
A
B
E
SIDE A
F
G
1
5 10
1
5 10
1
40 50 60 70 80
1 10 15
5
1
1
5
1
5
1
1
1
1
1
1
20 15
1051
1 5
10
1
1
1 5 15 25 35
10 20 30 40
L3300
L3301
L3302
L3303
L3304
L3305
R3436
L3361
VA3300
VA3301
VA3302
VA3303
VA3305
VA3307
VA3308
CN3100
CN3101
VA3310
CN3300
CN3301
CN3302
C3104
C3105
C3108
Q3104
Q3105
C3109
Q3106
C3300
C3301
C3302
C3303
C3110
Q3300
C3304
C3111
Q3301
C3112
C3307
C3114
C3309
C3116
C3317
D3104
D3105
D3106
D3107
R3103
D3108
R3104
D3109
IC3102
R3300
D3305
R3110
D3308
R3306
R3113
R3307
IC3300
R3114
R3309
R3310
R3311
R3312
R3121
R3124
R3127
R3128
R3321
R3322
R3323
R3324
R3130
R3325
R3131
R3132
R3326
R3327
R3133
R3328
R3329
R3136
CN3360
CN3361
CN3362
R3330
R3140
R3335
R3142
R3339
C3368
C3369
C3373
R3350
R3366
R3368
R3369
R3380
R3384
L3101
70
80 90 100 110 120 130 140
CN5601
H
LCD PANEL
BT MODULE
BT MODULE
CN2901
H
AVIC-Z120BT/XNUC
39
Page 40
1234
1 234
C
D
F
A
B
E
MONITOR UNIT
F
G
F
G
70
8090100110120130140
E
E
E
E
1
5
1
5
1
1
5
10
15
1
5
1
5
1
5
E
E
1
1
1
1 5 10
15 20
30 35
40 45
25
1
1
1
R3030
R3031
R3034
R3423
R3424
L3360
L3362
C3100
C3101
C3102
C3103
Q3100
Q3101
C3106
Q3102
Q3103
C3107
C3306
C3113
C3308
C3115
C3312
C3313
C3314
C3315
D3100
D3101
D3102
D3103
R3100
R3101
R3102
R3105
R3106
R3107
IC3100
R3108
D3300
IC3101
R3109
D3301
D3302
D3303
D3304
D3306
R3111
R3112
R3115
R3116
R3117
R3118
R3119
L3001
L3002
L3003
L3004
R3120
L3005
L3006
R3122
L3007
R3123
R3125
R3126
R3129
R3134
R3135
R3137
R3138
R3139
L3407
R3141
C3360
C3361
C3362
C3363
C3364
Q3360
C3365
C3366
C3367
C3370
C3371
C3372
C3374
R3360
R3361
R3362
R3363
R3364
R3365
R3367
IC3360
IC3362
R3370
R3371
R3372
R3373
R3374
R3375
R3376
R3385
C3001
C3002
C3003
C3004
Q3001
C3005
Q3002
C3006
Q3003
C3007
Q3004
C3008
C3009
Q3005
C3010
C3011
C3012
C3013
C3014
C3015
C3016
C3017
C3018
C3019
C3020
C3021
C3022
C3023
C3024
D3001
C3025
D3002
C3026
D3003
C3027
D3004
C3028
D3005
R3001
C3029
D3006
R3002
D3007
R3003
D3008
R3004
D3009
R3005
R3006
R3007
R3008
C3030
IC3001
R3009
C3031
C3032
C3033
D3010
C3034
D3011
C3035
D3012
C3036
C3037
R3010
C3038
R3011
C3039
R3012
R3013
R3014
R3015
R3016
R3017
R3018
C3040
R3019
C3041
C3042
C3043
C3044
C3045
C3046
C3047
R3020
C3048
R3021
C3049
R3022
R3023
R3024
R3025
R3026
R3027
L3100
R3028
C3050
C3051
C3052
C3053
C3054
C3055
40
AVIC-Z120BT/XNUC
Page 41
5 678
56
7
8
C
D
F
A
B
E
SIDE B
F
G
102030405060
70
X
70
60
50
40
30
20
10
0
Y
1 5
R3419
R3421
R3422
C3319
C3320
C3321
C3322
D3310
D3311
D3312
D3313
C3155
L3206
C3156
L3207
C3158
L3208
C3159
C3162
C3163
C3164
C3165
C3166
C3167
C3168
R3155
R3165
C3207
C3208
C3209
C3210
C3211
C3212
C3214
C3215
IC3204
R3401
R3402
R3403
R3404
R3405
R3406
R3407
R3408
R3409
R3410
R3411
R3412
R3413
R3415
R3416
R3417
AVIC-Z120BT/XNUC
41
Page 42
1234
1 234
C
D
F
A
B
E
ELECTRICAL PARTS LIST
NOTE:
Parts whose parts numbers are omitted are subject to being not supplied.
The part numbers shown below indicate chip components.
Chip Resistor
RS1/_S___J,RS1/__S___J
Chip Capacitor (except for CQS.....)
CKS....., CCS....., CSZS.....
The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Meaning of the figures and others in the parentheses in the parts list.
Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding
PC board.
IC 301 (A, 91, 111) IC NJM2068V
The expression of the unit in this manual is shown by u instead of µ. Please do not make a mistake.
F
A
Circuit Symbol and No. Part No.
Q 2067 (B,13,29) Transistor LTC114EUB
Q 2071 (A,30,37) Transistor LSA1576UB
Unit Number:CWN5269(UC)
Unit Number:CWN5270(AU)
Unit Name:Audio Unit
MISCELLANEOUS
IC 2051 (B,62,83) IC BD3931FP
IC 2056 (B,68,79) IC S-1200B33-M5
IC 2121 (A,12,100) IC NJM2388F84
IC 2131 (A,12,78) IC NJM2388F84
IC 2151 (A,94,16) IC LT3505EDD
IC 2161 (A,86,44) Regulator IC BD9781HFP
IC 2181 (A,99,32) IC LT3461AES6
IC 2182 (A,114,40) IC S-812C56AUA-C3K
IC 2190 (B,138,34) IC S-812C56AUA-C3K
IC 2300 (A,88,136) IC PA2030A
IC 2302 (A,43,37) IC S-93C56BD0I-I8
IC 2303 (B,55,51) IC(UC) PEG677A8
IC 2304 (A,60,53) IC BD5229FVE
IC 2491 (A,10,43) IC NJM2904M
IC 2511 (A,23,112) IC TC7WH126FU
IC 2512 (A,24,120) IC TPD1018F
IC 2513 (B,21,119)
IC 2530 (A,38,46) IC TC74VHCT541AFTS1
IC 2531 (A,52,50) Logic IC TC74VHCT32AFT
IC 2621 (A,106,71) IC NJM2125F
IC 2625 (B,96,64) IC BA4558RFVM
IC 2641 (B,136,89) IC NJM2060V
IC 2661 (B,129,53) IC AN15887A
IC 2771 (B,112,81) IC PML017B
IC 2889 (A,139,18) IC NJM4580V
Q 2031 (B,37,85) Transistor LSC4081UB
Q 2032 (B,40,87) Transistor LSC4081UB
Q 2041 (A,48,118) Transistor 2SC4116
Q 2046 (B,11,128) Transistor LTC114EUB
Q 2066 (B,13,34) Transistor LSA1576UB
(B,55,51) IC(AU) PEG678A8
L-MOS And Gate(UC)
TC7SET08FUS1
Q 2072 (A,33,37) Transistor LTC114EUB
Q 2101 (B,120,29) Chip Transistor UMF21N
Q 2181 (B,91,37) Transistor UMD3N
Q 2182 (B,91,30) Transistor 2SD1767
Q 2226 (A,27,48) Transistor 2SC4116
Q 2231 (B,70,33) Transistor LSA1576UB
Q 2242 (A,75,96) Transistor UMD3N
Q 2276 (A,37,69) Transistor LTC114EUB
Q 2303 (A,38,31) Transistor LSA1576UB
Q 2491 (A,13,36) Transistor DTC114WK
Q 2492 (A,16,44) Transistor LTC114EUB
Q 2505 (A,75,58) Transistor(UC) UMH1N
Q 2506 (A,77,62) Transistor(UC) UMH1N
Q 2512 (B,24,127) Transistor LSA1576UB
Q 2513 (B,25,119) Digital Transistor DTC144EUA
Q 2514 (B,24,122) Digital Transistor DTC144EUA
Q 2515 (B,23,117) Transistor(UC) LTC114EUB
Q 2531 (A,63,91) Transistor LSC4081UB
Q 2551 (A,143,8) Transistor IMH23
Q 2552 (A,134,8) Transistor UMD3N
Q 2642 (B,144,81) Transistor UMD3N
Q 2644 (B,140,81) Transistor DTC323TU
Q 2731 (A,124,70) Transistor LSC4081UB
Q 2732 (A,123,66) Transistor LSA1576UB
Q 2761 (B,143,70) Transistor FMG12
Q 2762 (A,137,60) Transistor UMD3N
Q 2831 (B,118,101) Transistor FMG12
Q 2841 (A,123,96) Transistor FMG12
Q 2842 (A,110,99) Transistor FMG12
D 2001 (A,35,109) Diode ST70-27F
D 2026 (B,75,91) Diode KS926S2
D 2027 (B,80,85) Diode RB160M-30
D 2028 (B,70,90) Diode 1SR154-400
D 2029 (B,49,79) Diode RB500V-40
D 2031 (B,43,82) Diode RB500V-40
D 2032 (B,42,82) Diode HZU7R5(B3)
D 2033 (B,50,79) Diode RB500V-40
D 2034 (B,46,80) Diode EDZ20(B)
Circuit Symbol and No.
Part No.
42
AVIC-Z120BT/XNUC
Page 43
5 678
56
7
8
C
D
F
A
B
E
Circuit Symbol and No. Part No.
Circuit Symbol and No.
Part No.
D 2041 (A,53,122) Diode 1SR154-400
D 2042 (A,54,117) Diode HZU8R2(B1)
D 2046 (B,19,129) Diode 1SR154-400
D 2151 (A,95,21) Diode RB160M-40
D 2152 (A,97,14) Diode 1SS352
D 2160 (A,66,22) Diode RB051LA-40
D 2162 (A,95,49) Diode RB050L-40
D 2181 (B,91,35) Diode HZU9R1(B2)
D 2216 (B,31,110) Diode 1SR154-400
D 2217 (B,28,110) Diode 1SR154-400
D 2227 (B,61,140) Diode UDZS18(B)
D 2228 (A,22,48) Diode UDZS5R6(B)
D 2229 (A,29,47) Diode RB715W
D 2231 (A,62,117) Diode PTZ18A
D 2232 (B,67,31) Diode 1SS352
D 2236 (B,68,119) Diode 1SR154-400
D 2237 (B,67,115) Diode MALS180X
D 2239 (B,121,116) Diode PTZ27(B)
D 2240 (B,112,109) Diode 1SS355
D 2241 (A,69,100) Diode 1SS352
D 2432 (A,57,57) Diode RB501V-40
D 2433 (A,54,60) Diode RB751S-40
D 2491 (A,14,50) Diode 1SS352
D 2519 (B,32,127) Diode UDZS18(B)
D 2520 (B,35,127) Diode UDZS18(B)
L 2236 (B,62,137) Inductor CTF1410
L 2239 (B,115,112) Inductor CTF1556
L 2302 (A,47,70) Inductor LCTAW2R2J2520
L 2303 (A,43,32) Inductor CTF1306
L 2311 (A,67,56) Inductor CTF1305
L 2331 (A,70,47) Inductor CTF1305
L 2351 (A,66,38) Inductor CTF1305
L 2371 (A,57,36) Inductor CTF1305
L 2411 (A,45,59) Inductor CTF1305
L 2421 (A,43,59) Inductor CTF1305
L 2461 (A,65,70) Inductor CTF1305
L 2491 (A,17,38) Inductor CTF1334
L 2492 (A,16,41) Inductor CTF1334
L 2511 (A,19,115) Inductor CTF1410
L 2530 (A,39,38) Inductor CTF1410
L 2531 (A,56,47) Inductor CTF1410
L 2553 (B,112,16) Inductor CTF1488
L 2554 (B,114,21) Inductor CTF1410
L 2571 (B,19,36) Inductor CTF1306
L 2622 (A,96,64) Inductor CTF1410
L 2641 (A,145,100) Inductor CTF1410
L 2661 (A,135,52) Chip Coil LCTAW100J2520
L 2662 (A,120,44) Chip Coil LCTAW100J2520
L 2731 (A,129,62) Inductor CTF1473
L 2771 (A,110,80) Inductor LCTAW2R2J2520
D 2521 (A,24,131) Diode 1SR154-400
D 2522 (A,19,130) Diode 1SR154-400
D 2527 (B,28,122) Diode UDZS18(B)
D 2531 (A,64,100) Diode UDZS8R2(B)
D 2552 (A,138,8) Diode DAP202U
D 2621 (A,100,62) Diode EDZ4R3(B)
D 2622 (A,104,68) Diode 1SS352
D 2641 (B,146,89) Diode HZU6R8(B1)
D 2644 (B,146,75) Diode RB715Z
D 2761 (A,144,68) Diode DAP202U
D 2762 (A,141,61) Diode DAP202U
D 2841 (B,110,103) Diode DAP202U
D 2862 (A,135,117) Diode MALS180X
D 2865 (A,138,117) Diode MALS180X
D 2870 (B,106,120) Diode UDZS18(B)
D 2871 (B,118,140) Diode UDZS18(B)
D 2872 (B,111,116) Diode 1SS352
D 2873 (B,118,116) Diode PTZ27(B)
D 2874 (B,123,140) Diode UDZS18(B)
D 2880 (B,9,126) Diode MALS180X
D 2881 (B,8,126) Diode MALS180X
L 2001 (A,54,109) Choke Coil 600 uH CTH1347
L 2151 (A,91,22) Inductor CTF1744
L 2152 (A,101,18) Inductor BTH1112
L 2161 (A,85,18) Inductor CTH1257
L 2861 (B,112,116) Inductor LCTC2R2K1608
L 2880 (A,7,121) Inductor CTF1334
L 2881 (A,12,123) Inductor CTF1334
L 2889 (A,136,20) Inductor CTF1410
X 2301 (B,59,68) Oscillator 15 000 kHz CSS1781
F 2161 (A,72,19) EMI Filter CCG1267
F 2861 (B,134,115) EMI Filter CCG1082
F 2868 (B,128,115) EMI Filter CCG1082
VR 2731 (A,116,69) Semi-fixed 1 kohm(B) CCP1442
>P 2107 (A,38,24) Fuse 250 mA CEK1276
>P 2151 (A,10,66) Fuse 1 A CEK1254
>P 2161 (A,41,92) Fuse 3.15 A CEK1259
>P 2162 (A,120,24) Fuse 1.5 A CEK1282
>P 2176 (A,112,27) Fuse 0.5 A CEK1278
>P 2861 (B,125,134) Poly Switch MINISMDC075F/24
>P 2862 (B,141,140) Poly Switch MINISMDC075F/24
>P 2863 (B,131,137) Poly Switch MINISMDC075F/24
>P 2864 (B,135,137) Poly Switch MINISMDC075F/24
>P 2880 (A,19,136) Poly Switch MINISMDC075F/24
VA 2861 (B,128,133) Varistor AVR-M1608C270KT2AB
VA 2862 (B,130,133) Varistor AVR-M1608C270KT2AB
VA 2863 (B,125,116) Varistor AVR-M1608C270KT2AB
VA 2864 (B,126,116) Varistor AVR-M1608C270KT2AB
CN 2101 (A,135,35) Connector CKS5546
CN 2512 (A,32,143) Connector CKS6155
L 2162 (A,100,39) Inductor CTH1254
L 2181 (A,90,28) Inductor CTF1473
L 2182 (A,91,33) Choke Coil 22 uH CTH1426
L 2183 (A,105,33) Inductor CTF1389
L 2226 (B,55,137) Inductor CTF1410
AVIC-Z120BT/XNUC
CN 2551 (B,129,8) Connector VKN1620
CN 2571 (B,27,53) Connector CKS6124
CN 2861 (A,130,139) Plug CKM1567
JA 2001 (A,56,136) Plug CKM1550
JA 2880 (A,12,132) Jack CKN1042
U 2511 (A,8,58) Remote IC(AU) RS-750
FM/AM Tuner Unit(UC) CWE2097
FM/AM Tuner Unit(AU) CWE2128
43
Page 44
1234
1 234
C
D
F
A
B
E
Circuit Symbol and No. Part No.
Circuit Symbol and No.
Part No.
RESISTORS
R 2188 (A,110,43) RS1/16SS5601D
R 2189 (A,110,42) RS1/16SS6801D
R 2021 (B,64,96) RS1/4S4R7J
R 2022 (B,61,96) RS1/4S4R7J
R 2023 (B,66,91) RS1/10SR473J
R 2190 (B,140,31) RS1/16SS5601D
R 2191 (B,140,30) RS1/10SR6201D
R 2193 (B,137,30) RS1/10SR1801D
R 2026 (B,80,89) RS1/4S4R7J
R 2027 (B,80,95) RS1/4S4R7J
R 2211 (B,34,112) RS1/10SR0R0J
R 2226 (B,58,137) 1 kohm CCN1179
R 2028 (B,75,85) RS1/10SR473J
R 2031 (B,39,84) RS1/10SR473J
R 2032 (B,37,82) RS1/10SR473J
R 2227 (B,57,140) RS1/10SR472J
R 2228 (B,57,141) RS1/10SR102J
R 2229 (A,25,48) RS1/16SS104J
R 2033 (B,43,80) RS1/10SR103J
R 2034 (B,41,89) RS1/10SR103J
R 2230 (A,25,47) RS1/16SS473J
R 2231 (A,60,122) 10 kohm CCN1191
R 2041 (B,48,139) 4.7 kohm CCN1180
R 2042 (B,48,142) 1 kohm CCN1179
R 2043 (A,51,118) RS1/10SR473J
R 2232 (B,71,35) RS1/16SS153J
R 2233 (B,69,36) RS1/16SS103J
R 2234 (B,68,35) RS1/16SS102J
R 2044 (A,50,118) RS1/10SR473J
R 2046 (B,52,140) 1 kohm CCN1179
R 2239 (B,114,108) RS1/8SQ103J
R 2241 (A,72,98) RS1/16SS391J
R 2047 (B,18,126) 4.7 kohm CCN1180
R 2048 (B,14,129) RS1/10SR103J
R 2056 (B,70,82) RS1/16SS472J
R 2242 (A,72,97) RS1/16SS391J
R 2243 (A,73,95) RS1/16SS102J
R 2251 (B,90,51) RS1/10SR102J
R 2066 (B,13,31) RS1/16SS472J
R 2067 (B,11,29) RS1/16SS472J
R 2276 (A,39,72) RS1/16SS103J
R 2277 (A,39,70) RS1/16SS103J
R 2068 (B,11,35) RS1/16SS104J
R 2071 (A,30,39) RS1/16SS222J
R 2072 (A,31,36) RS1/16SS222J
R 2301 (A,59,53) RS1/16SS104J
R 2302 (A,62,50) RS1/16SS0R0J
R 2304 (A,45,39) RS1/16SS473J
R 2073 (A,33,34) RS1/16SS473J
R 2074 (A,22,35) RS1/10SR0R0J
R 2305 (A,41,37) RS1/16SS473J
R 2310 (B,55,67) RS1/16SS102J
R 2075 (A,138,10) RS1/16SS0R0J
R 2083 (A,139,111) RS1/10SR0R0J
R 2084 (A,136,27) RS1/10SR0R0J
R 2311 (A,69,51) RS1/16SS104J
R 2312 (B,72,51) RS1/16SS472J
R 2313 (B,72,52) RS1/16SS472J
R 2085 (B,34,31) RS1/16SS0R0J
R 2101 (A,127,29) RS1/16SS102J
R 2314 (A,70,56) RS1/16SS473J
R 2315 (B,67,61) RS1/16SS471J
R 2102 (A,115,50) RS1/16SS102J
R 2105 (B,123,29) RS1/16SS473J
R 2106 (B,122,28) RS1/16SS102J
R 2121 (B,19,108) RS1/16SS473J
R 2128 (B,19,111) RS1/16SS332J
R 2316 (B,68,60) RS1/16SS471J
R 2317 (B,73,59) RS1/16SS681J
R 2327 (B,71,53) RS1/16SS471J
R 2328 (B,68,53) RS1/16SS681J
R 2329 (B,68,52) RS1/16SS101J
R 2131 (B,17,90) RS1/16SS473J
R 2136 (B,17,92) RS1/16SS332J
R 2151 (B,98,14) RS1/16SS223J
R 2331 (B,70,51) RS1/16SS221J
R 2332 (A,64,49) RS1/16SS102J
R 2336 (B,71,46) RS1/16SS102J
R 2152 (B,93,14) RS1/16SS2002D
R 2153 (B,98,15) RS1/16SS0R0J
R 2337 (B,68,45) RS1/16SS102J
R 2341 (B,68,43) RS1/16SS681J
R 2154 (B,96,15) RS1/10SR1303D
R 2155 (B,94,15) RS1/16SS2402D
R 2161 (B,90,43) RS1/10SR1003D
R 2162 (B,90,44) RS1/10SR1002D
R 2163 (B,96,45) RS1/10SR333J
R 2344 (B,68,40) RS1/16SS471J
R 2348 (B,70,38) RS1/16SS473J
R 2351 (B,62,35) RS1/16SS104J
R 2353 (B,67,37) RS1/16SS0R0J
R 2355 (B,63,35) RS1/16SS102J
R 2164 (B,98,46) RS1/10SR0R0J
R 2165 (B,98,48) RS1/10SR6802D
R 2166 (B,95,48) RS1/10SR3001D
R 2356 (B,62,38) RS1/16SS102J
R 2357 (A,60,40) RS1/16SS221J
R 2359 (A,36,36) RS1/10SR472J
R 2167 (B,93,47) RS1/10SR1002D
R 2181 (B,89,32) RS1/16SS122J
R 2360 (A,36,31) RS1/10SR473J
R 2365 (B,58,36) RS1/16SS473J
R 2182 (B,99,33) RS1/16SS1003D
R 2183 (B,98,33) RS1/16SS1603D
R 2185 (B,97,32) RS1/16SS1202D
R 2366 (B,57,36) RS1/16SS473J
R 2367 (A,55,39) RS1/16SS104J
R 2368 (B,55,34) RS1/16SS221J
R 2186 (B,96,31) RS1/16SS1102D
R 2187 (B,101,31) RS1/10SR473J
44
AVIC-Z120BT/XNUC
Page 45
5 678
56
7
8
C
D
F
A
B
E
Circuit Symbol and No. Part No.
Circuit Symbol and No.
Part No.
R 2369 (B,56,36) RS1/16SS104J
R 2372 (B,54,34) RS1/16SS221J
R 2375 (B,52,36) RS1/16SS681J
R 2376 (A,54,41) RS1/16SS681J
R 2377 (A,52,36) RS1/16SS681J
R 2378 (A,49,37) RS1/16SS681J
R 2379 (A,48,43) RS1/16SS102J
R 2381 (B,44,33) RS1/16SS151J
R 2382 (B,44,34) RS1/16SS151J
R 2384 (B,48,37) RS1/16SS221J
R 2385 (B,47,37) RS1/16SS221J
R 2386 (A,48,37) RS1/16SS681J
R 2387 (B,42,37) RS1/16SS102J
R 2388 (B,37,36) RS1/16SS221J
R 2390 (B,40,36) RS1/16SS104J
R 2391 (B,47,35) RS1/16SS104J
R 2392 (B,46,36) RS1/16SS104J
R 2394 (B,42,39) RS1/16SS102J
R 2395 (B,42,41) RS1/16SS102J
R 2396 (B,41,41) RS1/16SS102J
R 2397 (B,41,42) RS1/16SS102J
R 2398 (B,42,43) RS1/16SS471J
R 2401 (B,40,46) RS1/16SS681J
R 2403 (B,36,42) RS1/16SS681J
R 2404 (B,38,49) RS1/16SS104J
R 2461 (B,64,66) RS1/16SS473J
R 2463 (A,31,48) RS1/16SS104J
R 2473 (B,64,63) RS1/16SS561J
R 2477 (A,46,37) RS1/16SS104J
R 2491 (A,9,38) RS1/16SS104J
R 2492 (A,11,38) RS1/16SS473J
R 2493 (A,13,38) RS1/16SS563J
R 2494 (A,7,44) RS1/16SS513J
R 2495 (A,10,49) RS1/16SS104J
R 2496 (A,11,49) RS1/16SS513J
R 2497 (A,12,48) RS1/16SS513J
R 2498 (A,12,51) RS1/16SS102J
R 2499 (A,10,50) RS1/16SS102J
R 2500 (A,13,49) RS1/16SS564J
R 2501 (A,16,49) RS1/16SS202J
R 2502 (A,17,49) RS1/16SS822J
R 2503 (A,16,48) RS1/16SS203J
R 2504 (A,18,48) RS1/16SS333J
R 2507 (A,72,59) (UC) RS1/10SR223J
R 2508 (A,75,60) (UC) RS1/16SS223J
R 2509 (A,73,62) (UC) RS1/10SR223J
R 2511 (A,19,109) RS1/10SR105J
R 2513 (B,27,127) RS1/10SR473J
R 2514 (B,26,129) RS1/10SR473J
R 2520 (A,31,132) RS1/8SQ102J
R 2405 (B,37,50) RS1/10SR104J
R 2406 (B,38,51) RS1/16SS104J
R 2407 (B,36,51) RS1/16SS221J
R 2410 (B,42,54) RS1/16SS0R0J
R 2411 (B,42,52) RS1/16SS681J
R 2413 (A,45,55) RS1/16SS681J
R 2414 (A,44,53) RS1/16SS681J
R 2415 (A,48,51) RS1/16SS104J
R 2417 (A,60,60) RS1/16SS102J
R 2419 (A,52,59) RS1/16SS102J
R 2420 (B,40,63) RS1/16SS681J
R 2421 (B,39,63) RS1/16SS681J
R 2423 (B,40,61) RS1/16SS470J
R 2424 (B,39,46) RS1/16SS473J
R 2427 (A,40,63) RS1/10SR392J
R 2428 (A,39,63) RS1/10SR392J
R 2429 (A,45,56) RS1/16SS104J
R 2431 (B,37,62) RS1/16SS182J
R 2432 (A,54,57) RS1/16SS103J
R 2433 (A,53,57) RS1/16SS103J
R 2435 (B,37,64) RS1/16SS182J
R 2436 (B,41,63) RS1/16SS470J
R 2437 (B,44,61) RS1/16SS473J
R 2439 (B,45,64) (AU) RS1/16SS102J
R 2444 (A,42,62) RS1/16SS473J
R 2446 (B,50,64) RS1/16SS471J
R 2451 (B,45,67) RS1/16SS104J
R 2452 (B,46,70) RS1/16SS472J
R 2453 (B,54,64) RS1/16SS102J
R 2458 (A,54,63) RS1/16SS473J
R 2460 (B,57,65) RS1/16SS561J
R 2521 (A,33,132) RS1/8SQ102J
R 2522 (A,35,132) RS1/8SQ102J
R 2524 (A,7,50) (AU) RS1/10SR470J
R 2527 (A,29,132) RS1/8SQ102J
R 2529 (A,43,48) RS1/16SS104J
R 2530 (B,72,46) RS1/16SS104J
R 2531 (A,57,46) RS1/16SS104J
R 2532 (A,60,44) RS1/16SS104J
R 2533 (A,61,94) RS1/10SR473J
R 2534 (A,62,42) RS1/16SS104J
R 2535 (A,63,45) RS1/16SS104J
R 2536 (A,57,52) RS1/16SS104J
R 2537 (B,39,43) RS1/16SS104J
R 2538 (A,66,94) RS1/10SR104J
R 2539 (A,43,43) RS1/16SS104J
R 2540 (A,19,118) (UC) RS1/10SR0R0J
R 2541 (A,19,119) (AU) RS1/10SR0R0J
R 2543 (B,18,115) (UC) RS1/10SR104J
R 2551 (B,142,18) RS1/10SR182J
R 2552 (B,144,20) RS1/10SR104J
R 2553 (B,144,17) RS1/10SR104J
R 2554 (B,142,20) RS1/10SR182J
R 2555 (A,125,16) RS1/10SR0R0J
R 2557 (B,120,20) RS1/16SS471J
R 2558 (B,123,20) RS1/16SS471J
R 2559 (A,122,12) RS1/16SS471J
R 2560 (B,119,20) RS1/16SS102J
R 2561 (B,121,20) RS1/16SS221J
R 2562 (B,122,20) RS1/16SS221J
R 2569 (A,28,66) RS1/16SS0R0J
R 2570 (A,30,93) RS1/16SS0R0J
R 2577 (B,36,55) RS1/16SS221J
AVIC-Z120BT/XNUC
45
Page 46
1234
1 234
C
D
F
A
B
E
Circuit Symbol and No. Part No.
Circuit Symbol and No.
Part No.
R 2621 (A,98,63) RS1/16SS102J
R 2623 (A,101,75) RS1/16SS0R0J
R 2624 (B,97,78) RS1/16SS0R0J
R 2628 (B,89,63) RS1/10SR332J
R 2629 (B,91,67) RS1/10SR332J
R 2630 (B,91,63) RS1/10SR103J
R 2631 (B,91,66) RS1/10SR103J
R 2632 (B,105,60) RS1/10SR102J
R 2633 (B,100,61) RS1/10SR104J
R 2634 (B,104,66) RS1/10SR104J
R 2635 (B,104,63) RS1/10SR683J
R 2636 (B,102,64) RS1/10SR473J
R 2641 (B,132,84) RS1/10SR473J
R 2642 (B,139,84) RS1/10SR473J
R 2643 (B,133,84) RS1/10SR683J
R 2644 (B,138,84) RS1/10SR683J
R 2645 (B,133,86) RS1/10SR473J
R 2646 (B,139,86) RS1/10SR473J
R 2647 (B,130,92) RS1/10SR473J
R 2648 (B,142,92) RS1/10SR473J
R 2649 (B,130,87) RS1/10SR473J
R 2650 (B,142,87) RS1/10SR473J
R 2652 (B,144,84) RS1/10SR0R0J
R 2653 (B,147,94) RS1/10SR302J
R 2654 (B,146,94) RS1/10SR302J
R 2721 (B,114,64) RS1/16SS101J
R 2722 (B,114,69) RS1/16SS101J
R 2723 (B,135,63) RS1/16SS221J
R 2724 (B,135,64) RS1/16SS221J
R 2733 (A,127,67) RS1/16SS223J
R 2734 (A,127,69) RS1/16SS303J
R 2735 (A,122,70) RS1/10SR681J
R 2736 (A,120,70) RS1/10SR102J
R 2737 (A,120,67) RS1/10SR821J
R 2738 (A,123,62) RS1/10SR681J
R 2740 (A,129,64) RS1/10SR0R0J
R 2750 (A,145,77) RS1/10SR75R0D
R 2761 (B,141,68) RS1/16SS821J
R 2762 (B,146,67) RS1/16SS821J
R 2763 (B,141,69) RS1/16SS223J
R 2764 (B,146,69) RS1/16SS223J
R 2772 (A,91,82) RS1/10SR0R0J
R 2773 (B,112,71) RS1/10SR102J
R 2774 (B,112,91) RS1/10SR102J
R 2777 (A,124,86) RS1/10SR472J
R 2778 (A,124,87) RS1/10SR472J
R 2779 (A,118,85) RS1/10SR472J
R 2780 (A,118,86) RS1/10SR472J
R 2781 (A,118,84) RS1/10SR472J
R 2782 (A,124,90) RS1/10SR472J
R 2656 (A,145,97) RS1/10SR0R0J
R 2658 (B,136,75) RS1/10SR821J
R 2660 (B,141,79) RS1/16SS104J
R 2664 (B,134,76) RS1/16SS0R0J
R 2673 (B,144,63) RS1/10SR101J
R 2683 (B,143,50) RS1/16SS101J
R 2684 (B,143,49) RS1/16SS101J
R 2685 (B,145,47) RS1/16SS750J
R 2688 (B,142,44) RS1/16SS101J
R 2694 (B,144,24) RS1/8SQ0R0J
R 2695 (B,119,36) RS1/16SS472J
R 2696 (B,116,40) RS1/16SS472J
R 2697 (B,121,36) RS1/16SS472J
R 2698 (B,116,37) RS1/16SS472J
R 2699 (B,121,34) RS1/16SS101J
R 2700 (B,115,37) RS1/16SS101J
R 2701 (B,122,34) RS1/16SS101J
R 2702 (B,113,37) RS1/16SS101J
R 2703 (B,121,35) RS1/16SS123J
R 2704 (B,115,36) RS1/16SS123J
R 2705 (B,114,46) RS1/16SS102J
R 2706 (B,113,44) RS1/16SS102J
R 2707 (B,114,45) RS1/16SS102J
R 2708 (B,113,43) RS1/16SS102J
R 2709 (B,117,46) RS1/16SS473J
R 2788 (A,110,76) RS1/10SR0R0J
R 2811 (B,133,95) RS1/10SR272J
R 2812 (B,141,95) RS1/10SR272J
R 2813 (B,132,95) RS1/10SR272J
R 2814 (B,139,95) RS1/10SR272J
R 2815 (B,126,84) RS1/10SR272J
R 2816 (B,126,86) RS1/10SR272J
R 2817 (B,126,82) RS1/10SR272J
R 2818 (B,126,88) RS1/10SR272J
R 2831 (B,121,98) RS1/10SR390J
R 2832 (B,115,98) RS1/10SR390J
R 2835 (B,121,99) RS1/10SR223J
R 2836 (B,115,99) RS1/10SR223J
R 2841 (A,127,95) RS1/10SR390J
R 2842 (A,120,95) RS1/10SR390J
R 2843 (A,114,97) RS1/10SR390J
R 2844 (A,107,97) RS1/10SR390J
R 2849 (A,127,96) RS1/10SR223J
R 2850 (A,120,96) RS1/10SR223J
R 2851 (A,114,99) RS1/10SR223J
R 2852 (A,107,99) RS1/10SR223J
R 2867 (B,110,119) RS1/8SQ102J
R 2868 (B,120,136) RS1/8SQ102J
R 2869 (B,114,115) RS1/8SQ153J
R 2870 (A,133,105) RS1/16SS750J
R 2710 (B,117,43) RS1/16SS473J
R 2717 (B,113,61) RS1/16SS101J
R 2718 (B,114,67) RS1/16SS101J
R 2719 (B,113,62) RS1/16SS223J
R 2720 (B,113,66) RS1/16SS223J
46
AVIC-Z120BT/XNUC
R 2871 (A,129,105) RS1/16SS750J
R 2873 (A,110,115) RS1/10SR0R0J
R 2874 (B,122,136) RS1/8SQ102J
R 2875 (B,132,115) RS1/8SQ0R0J
R 2876 (B,130,115) RS1/8SQ0R0J
Page 47
5 678
56
7
8
C
D
F
A
B
E
Circuit Symbol and No. Part No.
Circuit Symbol and No.
Part No.
R 2880 (B,139,115) RS1/8SQ0R0J
R 2881 (A,98,100) RS1/10SR0R0J
R 2889 (A,141,10) RS1/10SR473J
R 2890 (A,141,25) RS1/10SR473J
R 2891 (A,136,13) RS1/10SR473J
R 2892 (A,138,25) RS1/10SR473J
R 2893 (A,141,11) RS1/10SR363J
R 2894 (A,141,24) RS1/10SR363J
R 2895 (A,135,15) RS1/10SR363J
R 2896 (A,138,24) RS1/10SR363J
R 2993 (A,8,26) (AU) RS1/16SS332J
R 2995 (A,8,23) (UC) RS1/16SS333J
R 2997 (A,8,20) RS1/16SS0R0J
CAPACITORS
C 2001 (A,75,106) 3 300 uF/16 V CCH1928(P35)
C 2007 (B,50,122) CKSRYB392K50
C 2027 (A,86,93) 10 000 uF/16 V CCH1849(P35)
C 2028 (A,52,92) CEAT472M16(P35)
C 2029 (B,75,84) CKSRYB104K50
C 2041 (A,54,120) CKSRYB104K50
C 2042 (A,55,119) CKSSYB102K50
C 2046 (B,18,125) CKSRYB102K50
C 2047 (B,14,126) CKSQYB105K16
C 2051 (B,62,91) CKSYB105K35
C 2184 (A,93,29) CKSYB475K16
C 2185 (B,98,31) CCSRCH220J50
C 2186 (A,100,29) CKSSYB473K10
C 2187 (A,102,31) CKSQYB105K25
C 2188 (A,110,41) CKSSYB103K25
C 2189 (A,109,43) CKSSYB103K25
C 2191 (B,133,33) CKSQYB105K25
C 2192 (B,138,31) CKSSYB103K25
C 2193 (B,142,35) CKSSYB103K25
C 2194 (B,104,33) CKSSYB103K25
C 2195 (B,109,31) CKSSYB103K25
C 2216 (B,34,110) CKSRYB102K50
C 2226 (B,55,140) CKSRYB102K50
C 2227 (B,59,141) CKSSYB102K50
C 2232 (A,62,120) CKSRYB103K50
C 2238 (B,115,111) CKSRYB103K50
C 2241 (A,72,90) Capacitor CEVW470M16
C 2276 (A,43,77) Capacitor CEHVW330M10
C 2281 (A,96,127) CKSRYB105K16
C 2282 (A,90,127) CKSRYB105K16
C 2283 (A,80,126) CKSRYB105K16
C 2284 (A,86,126) CKSRYB105K16
C 2285 (A,95,124) CKSQYB105K16
C 2286 (A,90,124) CKSQYB105K16
C 2287 (A,81,124) CKSQYB105K16
C 2052 (B,67,84) CKSSYB103K16
C 2053 (A,70,80) CEVW101M16
C 2056 (B,67,82) CKSRYB105K16
C 2057 (B,66,76) CKSRYB105K16
C 2058 (A,61,81) CEVW101M16
C 2101 (A,145,29) CKSSYB103K16
C 2121 (B,19,103) CKSRYB104K50
C 2122 (B,18,108) CKSSYB223K16
C 2123 (A,21,103) 100 uF/16 V CCH1565
C 2124 (A,17,104) CKSSYB102K50
C 2131 (B,18,86) CKSRYB104K50
C 2132 (B,16,90) CKSSYB223K16
C 2133 (A,17,84) CKSSYB102K50
C 2134 (A,20,90) 100 uF/16 V CCH1565
C 2151 (A,93,22) CKSYB225K25
C 2153 (B,100,14) CCSRCH151J50
C 2154 (A,97,18) CKSRYB104K16
C 2155 (B,95,14) CCSSCH221J50
C 2156 (A,103,23) 22 uF CCG1183
C 2161 (A,85,27) 100 uF/16 V CCH1565
C 2162 (A,84,32) 10 uF CCG1223
C 2163 (A,84,35) 10 uF CCG1223
C 2167 (B,92,43) CKSSYB104K16
C 2169 (B,95,43) CKSRYB104K50
C 2170 (A,101,48) 100 uF/16 V CCH1565
C 2288 (A,86,124) CKSQYB105K16
C 2289 (B,97,121) CKSRYB104K50
C 2290 (B,97,123) CKSRYB104K50
C 2292 (A,103,126) CKSQYB475K10
C 2293 (A,100,124) CKSYB475K16
C 2294 (A,104,119) Capacitor CEHVW100M16
C 2302 (A,52,71) CEVW100M16
C 2303 (A,49,70) CKSRYB102K50
C 2304 (A,43,34) CKSRYB104K16
C 2306 (A,60,50) CKSRYB153K50
C 2307 (A,60,55) CKSRYB104K16
C 2311 (B,71,61) CCSSCH101J50
C 2321 (B,68,58) CKSRYB103K50
C 2331 (B,68,48) CKSRYB103K50
C 2351 (B,65,38) CKSRYB103K50
C 2352 (B,61,35) CCSSCH101J50
C 2355 (A,61,38) CKSSYB103K16
C 2374 (B,54,37) CKSRYB103K50
C 2411 (B,43,53) CKSRYB103K50
C 2412 (A,44,51) CKSSYB103K16
C 2413 (B,53,37) CKSSYB104K16
C 2414 (A,48,53) CKSSYB103K16
C 2415 (A,45,52) CKSSYB103K16
C 2416 (A,52,55) CKSSYB103K16
C 2417 (A,47,57) CKSSYB103K16
C 2172 (B,101,53) 10 uF CCG1223
C 2173 (A,124,26) CKSYB475K16
C 2181 (B,88,27) CKSYB475K25
C 2182 (B,91,33) CKSRYB104K16
C 2183 (A,92,28) CKSRYB104K16
AVIC-Z120BT/XNUC
C 2418 (B,41,56) CKSSYB103K16
C 2419 (A,49,59) CKSSYB103K16
C 2420 (B,42,57) CKSRYB105K10
C 2424 (B,42,59) CKSRYB103K50
C 2430 (B,36,60) CCSSCH470J50
47
Page 48
1234
1 234
C
D
F
A
B
E
Circuit Symbol and No. Part No.
Circuit Symbol and No.
Part No.
C 2431 (A,58,56) CKSSYB104K16
C 2432 (A,52,57) CKSSYB104K16
C 2434 (B,46,67) CCSSCH331J50
C 2435 (B,41,65) CCSSCH470J50
C 2436 (A,44,67) CCSSCH151J50
C 2437 (B,44,66) CCSSCH471J16
C 2438 (A,50,67) CKSSYB103K16
C 2450 (B,49,68) CKSQYB475K10
C 2459 (B,55,70) CKSRYB104K16
C 2460 (B,59,65) CCSSCH100D50
C 2461 (B,61,65) CCSSCH100D50
C 2462 (B,58,64) CKSRYB103K50
C 2464 (A,59,61) CKSRYB105K10
C 2491 (A,14,41) CKSRYB104K16
C 2492 (A,10,48) CKSSYB102K50
C 2493 (A,14,47) CKSRYB104K16
C 2494 (A,16,47) CKSRYB103K50
C 2495 (A,14,44) CKSRYB823K16
C 2510 (A,23,128) CKSRYB102K50
C 2511 (A,19,112) CKSRYB104K16
C 2512 (A,23,127) CKSSYB103K25
C 2513 (B,30,127) CKSRYB103K50
C 2516 (A,7,52) (AU) CKSRYB104K50
C 2517 (B,22,121) (UC) CKSSYB104K10
C 2518 (A,20,122) CKSRYB104K50
C 2527 (B,27,124) CKSRYB103K50
C 2530 (A,38,41) CKSRYB104K16
C 2531 (A,56,50) CKSRYB104K16
C 2551 (B,146,17) CCSRCH101J50
C 2552 (B,146,20) CCSRCH101J50
C 2557 (B,116,14) CKSRYB104K16
C 2558 (B,120,14) CKSRYB104K16
C 2559 (B,120,16) CKSQYB475K10
C 2561 (B,116,20) CKSRYB104K16
C 2563 (B,116,18) 10 uF CCG1236
C 2564 (B,116,21) 10 uF DCH1201
C 2565 (A,115,18) Capacitor CEVW220M16
C 2572 (B,18,36) CKSRYB104K16
C 2590 (B,18,46) CCSSCH101J50
C 2621 (A,90,62) CEVW101M16
C 2622 (A,101,63) CKSSYB103K16
C 2623 (A,104,64) CEVW100M16
C 2624 (A,104,71) CKSSYB104K16
C 2625 (B,98,71) 10 uF DCH1201
C 2626 (B,94,71) 10 uF DCH1201
C 2627 (B,91,65) CCSRCH221J50
C 2628 (B,92,63) CCSRCH221J50
C 2629 (B,97,62) CKSSYB104K16
C 2630 (B,104,60) CKSRYB103K50
C 2631 (B,104,64) CKSRYB104K16
C 2632 (B,102,66) CCSRCH151J50
C 2633 (B,101,63) CCSRCH151J50
C 2641 (B,130,81) CKSQYB475K10
C 2642 (B,135,80) CKSQYB475K10
C 2643 (B,132,81) CKSRYB105K10
C 2644 (B,134,81) CKSRYB105K10
C 2645 (B,131,86) CCSSCH220J50
C 2646 (B,141,87) CCSSCH220J50
C 2647 (B,131,92) CCSSCH220J50
C 2648 (B,141,92) CCSSCH220J50
C 2649 (B,136,93) CKSRYB104K50
C 2651 (B,146,84) 10 uF CCG1236
C 2652 (B,148,89) CKSRYB103K50
C 2653 (B,107,64) CKSQYB225K10
C 2661 (A,139,46) Capacitor CEVW470M16
C 2662 (B,135,43) CKSRYB104K16
C 2663 (B,133,42) CKSYB226K6R3
C 2664 (B,132,45) CKSSYB104K16
C 2665 (B,139,59) CKSSYB104K16
C 2666 (B,140,59) CKSSYB104K16
C 2667 (B,141,59) CKSRYB105K10
C 2668 (B,141,56) CKSRYB105K10
C 2671 (B,141,52) CKSRYB105K10
C 2672 (B,141,50) CKSRYB105K10
C 2673 (B,141,49) CKSRYB105K10
C 2674 (B,141,48) CKSRYB105K10
C 2675 (B,140,44) CKSRYB105K10
C 2676 (B,140,43) CKSRYB105K10
C 2679 (B,138,53) CKSSYB104K16
C 2680 (B,138,55) CKSSYB104K16
C 2685 (B,127,36) CKSQYB475K10
C 2686 (B,114,40) CKSQYB475K10
C 2687 (B,125,36) CKSQYB475K10
C 2688 (B,113,40) CKSQYB475K10
C 2689 (B,116,48) CKSQYB475K10
C 2690 (B,118,51) CKSQYB475K10
C 2691 (B,118,50) CKSQYB475K10
C 2692 (B,114,51) CKSQYB475K10
C 2693 (B,112,55) CKSQYB475K10
C 2694 (B,114,55) CKSQYB475K10
C 2695 (B,118,54) CKSQYB475K10
C 2696 (B,118,56) CKSQYB475K10
C 2697 (B,117,62) CKSQYB475K10
C 2698 (B,117,67) CKSQYB475K10
C 2699 (B,117,64) CKSQYB475K10
C 2700 (B,117,69) CKSQYB475K10
C 2701 (A,127,46) Capacitor CEVW470M16
C 2702 (B,125,44) CKSRYB104K16
C 2703 (B,121,41) CKSYB226K6R3
C 2705 (B,131,43) CKSSYB104K16
C 2706 (B,129,43) CKSSYB104K16
C 2707 (B,130,43) CKSSYB104K16
C 2708 (B,128,43) CKSSYB104K16
C 2713 (B,117,33) CKSRYB102K50
C 2714 (B,118,39) CKSRYB102K50
C 2715 (B,123,35) CKSRYB102K50
C 2716 (B,115,34) CKSRYB102K50
C 2725 (B,104,73) CKSQYB475K10
C 2726 (B,104,90) CKSQYB475K10
C 2733 (A,129,72) Capacitor CEVW101M4
C 2734 (A,126,63) CKSRYB105K16
48
AVIC-Z120BT/XNUC
Page 49
5 678
56
7
8
C
D
F
A
B
E
F
G
Circuit Symbol and No. Part No.
Circuit Symbol and No.
Part No.
C 2743 (A,137,74) CEVW101M16
C 2744 (A,137,67) CEVQW221M6R3
C 2761 (B,138,72) CKSQYB475K10
C 2762 (B,136,72) CKSQYB475K10
C 2771 (A,106,83) Capacitor CEVW470M16
C 2772 (B,104,83) CKSSYB104K16
C 2774 (B,104,86) CKSSYB104K16
C 2775 (A,114,88) CEVW100M16
C 2779 (B,108,72) CKSRYB105K10
C 2780 (B,108,91) CKSRYB105K10
C 2781 (B,109,72) CKSSYB104K16
C 2782 (B,109,90) CKSSYB104K16
C 2785 (B,112,72) CKSRYB105K10
C 2786 (B,114,91) CKSRYB105K10
C 2787 (B,116,72) CKSQYB475K10
C 2788 (B,115,91) CKSQYB475K10
C 2789 (B,119,73) CKSQYB475K10
C 2790 (B,118,91) CKSQYB475K10
C 2791 (B,122,73) CKSQYB475K10
C 2792 (B,120,91) CKSQYB475K10
C 2799 (A,116,80) CEVW100M16
C 2800 (B,121,79) CKSSYB104K16
C 2801 (A,125,80) Capacitor CEVW470M16
C 2831 (B,121,96) 10 uF CCG1182
C 2832 (B,115,96) 10 uF CCG1182
IC 3202 (A,25,55) IC NJM082BV
IC 3203 (A,34,63) IC TC7WT240FU
IC 3204 (B,61,39) Logic IC TC74VHCT04AFTS1
IC 3300 (A,73,31) IC BH2227AFV
IC 3360 (B,87,54) IC AK4388VT
IC 3362 (B,83,36) IC TC7SH08FUS1
Q 3001 (B,118,38) FET RSQ035P03
Q 3002 (B,105,43) FET RSQ035P03
Q 3003 (B,96,23) Transistor 2SA1577
Q 3004 (B,98,20) Transistor 2SC4097
Q 3005 (B,96,33) Transistor DTC114EE
Q 3102 (B,104,67) Transistor 2SC4617
Q 3103 (B,100,70) Transistor 2SC4617
Q 3106 (A,132,64) FET SP8K22
Q 3200 (A,20,47) Transistor 2SC4617
Q 3201 (A,27,50) Transistor 2SA1774
Q 3202 (A,28,46) Transistor 2SC4617
Q 3203 (A,23,50) Transistor 2SA1774
Q 3204 (A,26,69) Transistor 2SC4617
Q 3300 (A,76,19) Transistor UMZ1N
Q 3301 (A,76,21) Transistor UMZ1N
Q 3302 (A,67,17) Transistor UMZ1N
Q 3303 (A,67,20) Transistor UMZ1N
Q 3304 (A,67,26) Transistor UMZ1N
Q 3305 (A,67,23) Transistor UMZ1N
C 2841 (A,128,93) 10 uF CCG1182
C 2842 (A,119,93) 10 uF CCG1182
C 2843 (A,114,95) 10 uF CCG1182
C 2844 (A,107,95) 10 uF CCG1182
C 2864 (B,116,116) CKSRYB102K50
C 2865 (B,121,140) CKSRYB103K50
C 2874 (A,139,117) CKSRYB392K50
C 2880 (A,15,123) CKSSYB102K50
C 2881 (A,8,123) CKSSYB102K50
C 2889 (A,145,18) CKSQYB225K10
C 2890 (A,144,22) CKSQYB225K10
C 2891 (A,145,15) CKSQYB225K10
C 2892 (A,145,24) CKSQYB225K10
C 2893 (A,142,13) CCSRCH330J50
C 2894 (A,141,23) CCSRCH330J50
C 2895 (A,136,15) CCSRCH330J50
C 2896 (A,138,23) CCSRCH330J50
C 2897 (A,137,19) CKSSYB104K16
C 2965 (A,117,63) Capacitor CEVW101M4
Unit Number:CWN5271
Unit Name:Monitor Unit
Q 3360 (B,86,33) Transistor DTC114EE
D 3001 (B,121,39) Diode RB160M-30
D 3002 (B,103,21) Diode RB500V-40
D 3003 (B,107,21) Diode RB500V-40
D 3004 (B,105,21) Diode RB500V-40
D 3005 (B,110,19) Diode RB500V-40
D 3006 (B,108,43) Diode RB160M-30
D 3007 (B,102,37) Diode 1SS352
D 3008 (B,98,42) Diode RB548W
D 3009 (B,100,42) Diode RB548W
D 3010 (B,89,18) Diode RB548W
D 3011 (B,92,18) Diode RB548W
D 3012 (B,94,18) Diode RB548W
D 3100 (B,95,68) Diode UDZS6R8(B)
D 3105 (A,140,51) Diode RB160VA-40
L 3002 (B,127,27) Inductor CTF1635
L 3003 (B,126,39) Choke Coil 68 uH CTH1318
L 3004 (B,112,46) Choke Coil 68 uH CTH1318
L 3005 (B,113,50) Inductor CTF1635
L 3006 (B,96,46) Inductor DTL1096
L 3007 (B,97,16) Inductor CTF1635
L 3101 (A,138,56) Choke Coil 56 uH CTH1394
L 3150 (A,55,49) Inductor CTF1731
L 3151 (A,49,54) Inductor CTF1306
L 3152 (A,48,42) Inductor CTF1306
MISCELLANEOUS
IC 3001 (B,109,29) IC BD6171KV
IC 3102 (A,118,65) IC BD8113EFV
IC 3150 (A,42,49) IC DS90C124QVS
IC 3151 (A,32,49) IC TC7SZ08FU
IC 3201 (A,31,61) IC TC7S66FU
AVIC-Z120BT/XNUC
L 3153 (A,45,38) Inductor CTF1748
L 3154 (A,44,38) Inductor CTF1748
L 3155 (A,44,60) Inductor CTF1734
L 3156 (A,43,37) Inductor CTF1748
L 3157 (A,43,60) Inductor CTF1734
49
Page 50
1234
1 234
C
D
F
A
B
E
Circuit Symbol and No. Part No.
Circuit Symbol and No.
Part No.
L 3158 (A,41,38) Inductor CTF1748
L 3159 (A,42,60) Inductor CTF1734
L 3160 (A,40,39) Inductor CTF1748
L 3161 (A,39,59) Inductor CTF1734
L 3162 (A,39,38) Inductor CTF1748
L 3163 (A,38,59) Inductor CTF1734
L 3164 (A,38,39) Inductor CTF1748
L 3165 (A,37,59) Inductor CTF1748
L 3166 (A,37,38) Inductor CTF1748
L 3167 (A,32,56) Inductor CTF1734
L 3168 (A,41,59) Inductor CTF1306
L 3169 (A,41,63) Inductor CTF1736
L 3170 (A,36,41) Inductor CTF1748
L 3171 (A,35,41) Inductor CTF1748
L 3172 (A,34,41) Inductor CTF1748
L 3173 (A,33,41) Inductor CTF1748
L 3174 (A,31,44) Inductor CTF1734
L 3175 (A,32,52) Inductor CTF1734
L 3176 (A,31,53) Inductor CTF1734
L 3177 (A,32,54) Inductor CTF1734
L 3178 (A,32,55) Inductor CTF1734
L 3179 (A,50,44) Inductor CTF1306
L 3180 (A,35,48) Inductor CTF1306
L 3200 (A,31,65) Inductor CTF1306
L 3201 (A,25,69) Inductor CTF1306
L 3202 (A,27,58) Inductor LCTAW101J2520
L 3203 (A,20,51) Inductor LCTAW101J2520
L 3205 (A,32,68) Inductor CTF1306
L 3206 (B,63,47) Chip Ferrite Bead BTX1042
L 3207 (B,56,35) Inductor CTF1306
L 3208 (B,63,35) Inductor CTF1306
L 3300 (A,128,17) Ferrite Bead CTF1528
L 3301 (A,129,17) Ferrite Bead CTF1528
L 3302 (A,112,19) Ferrite Bead CTF1528
L 3303 (A,113,17) Ferrite Bead CTF1528
L 3304 (A,87,57) Inductor CTF1488
L 3310 (A,65,58) Chip Ferrite Bead BTX1042
L 3360 (B,95,59) Inductor LCTAW2R7J2520
L 3361 (A,81,33) Inductor CTF1394
L 3362 (B,80,34) Inductor CTF1306
L 3401 (A,22,40) Inductor DTL1096
L 3402 (A,13,36) Inductor DTL1096
L 3403 (A,23,44) Inductor CTF1635
L 3404 (A,15,43) Chip Ferrite Bead BTX1042
L 3407 (B,126,50) Chip Ferrite Bead BTX1042
TH 3350 (A,66,6) Thermistor CCX1084
VA 3300 (A,126,21) Varistor AVR-M1608C120MT6AB
VA 3301 (A,129,21) Varistor AVR-M1608C120MT6AB
VA 3302 (A,114,20) Varistor AVR-M1608C120MT6AB
VA 3303 (A,115,17) Varistor AVR-M1608C120MT6AB
VA 3305 (A,89,20) Varistor AVR-M1608C120MT6AB
VA 3307 (A,91,20) Varistor AVR-M1608C120MT6AB
VA 3310 (A,85,19) Varistor AVR-M1608C120MT6AB
CN 3100 (A,137,39) Connector CKS5715
CN 3300 (A,121,16) Connector CKS5105
CN 3301 (A,69,70) Connector CKS6118
CN 3302 (A,89,13) Connector CKS5501
CN 3360 (A,89,36) Connector CKS6117
CN 3361 (A,107,9) Connector CKS5749
CN 3362 (A,107,15) Connector CKS5749
CN 3401 (A,34,31) Connector CKS5773
RESISTORS
R 3001 (B,132,30) RS1/10SR0R0J
R 3002 (B,130,29) RS1/10SR6801D
R 3003 (B,126,30) RS1/10SR2000D
R 3004 (B,126,29) RS1/10SR1001D
R 3005 (B,131,37) RS1/10SR0R0J
R 3006 (B,130,33) RS1/10SR1001D
R 3007 (B,129,32) RS1/10SR82R0D
R 3008 (B,124,32) RS1/10SR3300D
R 3009 (B,127,35) RS1/10SR102J
R 3010 (B,123,31) RS1/10SR102J
R 3011 (B,119,30) RS1/10SR104J
R 3012 (B,123,34) RS1/10SR333J
R 3013 (B,119,31) RS1/16SS331J
R 3014 (B,118,26) RS1/10SR2001D
R 3015 (B,119,26) RS1/10SR3900D
R 3016 (B,121,26) RS1/10SR1000D
R 3017 (B,113,41) RS1/10SR273J
R 3018 (B,115,38) RS1/10SR150J
R 3019 (B,104,38) RS1/10SR150J
R 3020 (B,109,37) RS1/10SR563J
R 3021 (B,101,16) RS1/10SR1002D
R 3022 (B,102,32) RS1/10SR6202D
R 3023 (B,100,18) RS1/10SR1802D
R 3024 (B,97,17) RS1/10SR2202D
R 3025 (B,99,36) RS1/10SR1802D
R 3026 (B,98,34) RS1/10SR8200D
R 3027 (B,100,25) RS1/16SS470J
R 3028 (B,100,24) RS1/16SS470J
R 3030 (B,97,39) RS1/10SR3303D
R 3031 (B,97,51) RS1/10SR203J
R 3034 (B,96,36) RS1/10SR2703D
R 3101 (B,101,62) RS1/16SS562J
R 3102 (B,101,56) RS1/16SS562J
R 3104 (A,109,63) RS1/16SS473J
R 3107 (B,106,66) RS1/16SS473J
R 3108 (B,106,67) RS1/16SS473J
R 3110 (A,109,64) RS1/16SS473J
R 3112 (B,103,70) RS1/16SS223J
R 3113 (A,112,64) RS1/16SS470J
R 3114 (A,112,63) RS1/16SS470J
R 3117 (B,102,68) RS1/16SS101J
R 3122 (B,115,62) RS1/16SS0R0J
R 3123 (B,118,67) RS1/10SR225J
R 3124 (A,110,66) RS1/10SR1003D
R 3125 (B,114,70) RS1/10SR392J
R 3126 (B,127,63) RS1/10SR1203D
R 3128 (A,125,66) RS1/10SR150J
R 3129 (B,127,61) RS1/10SR0R0J
R 3130 (A,120,74) RS1/4S1R0J
R 3131 (A,116,74) RS1/4S1R0J
50
AVIC-Z120BT/XNUC
Page 51
5 678
56
7
8
C
D
F
A
B
E
Circuit Symbol and No. Part No.
Circuit Symbol and No.
Part No.
R 3133 (A,114,72) RS1/16SS0R0J
R 3134 (B,124,59) RS1/10SR3602D
R 3135 (B,123,60) RS1/10SR1801D
R 3136 (A,127,73) RS1/8SQ0R0J
R 3137 (B,125,67) RS1/10SR0R0J
R 3138 (B,107,56) RS1/16SS0R0J
R 3139 (B,107,62) RS1/16SS0R0J
R 3140 (A,113,67) RS1/16SS0R0J
R 3141 (B,114,65) RS1/16SS222J
R 3142 (A,97,73) RS1/8SQ0R0J
R 3150 (A,48,49) RS1/16SS1000D
R 3151 (A,46,56) RS1/16SS103J
R 3152 (A,45,58) RS1/16SS103J
R 3153 (A,51,53) RS1/16SS103J
R 3154 (A,44,56) RS1/16SS103J
R 3157 (A,45,40) RS1/16SS181J
R 3158 (A,44,40) RS1/16SS151J
R 3159 (A,44,58) RS1/16SS151J
R 3160 (A,43,39) RS1/16SS151J
R 3161 (A,43,58) RS1/16SS151J
R 3162 (A,41,40) RS1/16SS151J
R 3163 (A,42,58) RS1/16SS151J
R 3166 (A,40,41) RS1/16SS151J
R 3167 (A,39,57) RS1/16SS151J
R 3168 (A,39,40) RS1/16SS151J
R 3222 (A,25,49) RS1/10SR100J
R 3321 (A,79,18) RS1/10SR2000D
R 3322 (A,81,18) RS1/10SR2400D
R 3323 (A,79,21) RS1/10SR2000D
R 3324 (A,80,23) RS1/10SR2400D
R 3325 (A,76,24) RS1/10SR333J
R 3326 (A,70,17) RS1/10SR2200D
R 3327 (A,72,17) RS1/10SR1500D
R 3328 (A,70,20) RS1/10SR2200D
R 3329 (A,72,20) RS1/10SR1500D
R 3330 (A,71,25) RS1/10SR333J
R 3331 (A,64,26) RS1/10SR1000D
R 3332 (A,63,26) RS1/10SR2000D
R 3333 (A,64,23) RS1/10SR1000D
R 3334 (A,63,23) RS1/10SR2000D
R 3335 (A,69,29) RS1/10SR333J
R 3339 (A,76,35) RS1/16SS0R0J
R 3350 (A,69,7) RS1/16SS183J
R 3360 (B,84,65) RS1/16SS221J
R 3361 (B,87,66) RS1/16SS221J
R 3362 (B,85,64) RS1/16SS223J
R 3363 (B,87,64) RS1/16SS223J
R 3364 (B,84,48) RS1/16SS103J
R 3365 (B,84,52) RS1/16SS103J
R 3366 (A,84,43) RS1/16SS470J
R 3169 (A,38,57) RS1/16SS151J
R 3170 (A,38,41) RS1/16SS151J
R 3171 (A,37,57) RS1/16SS151J
R 3172 (A,37,40) RS1/16SS151J
R 3173 (A,34,56) RS1/16SS101J
R 3175 (A,36,43) RS1/16SS151J
R 3176 (A,35,43) RS1/16SS151J
R 3177 (A,34,43) RS1/16SS151J
R 3178 (A,33,43) RS1/16SS151J
R 3179 (A,34,50) RS1/16SS820J
R 3180 (A,33,52) RS1/16SS101J
R 3181 (A,33,53) RS1/16SS101J
R 3182 (A,34,54) RS1/16SS101J
R 3183 (A,34,55) RS1/16SS101J
R 3185 (A,31,46) RS1/16SS470J
R 3186 (A,43,77) RS1/10SR0R0J
R 3200 (A,26,71) RS1/10SR1801D
R 3201 (A,29,71) RS1/10SR9101D
R 3203 (A,29,70) RS1/16SS471J
R 3207 (A,28,62) RS1/16SS101J
R 3209 (A,22,61) RS1/16SS223J
R 3210 (A,30,59) RS1/16SS472J
R 3211 (A,22,60) RS1/16SS101J
R 3212 (A,23,58) RS1/10SR5602D
R 3213 (A,20,55) RS1/10SR4703D
R 3367 (B,84,53) RS1/16SS103J
R 3368 (A,85,44) RS1/16SS470J
R 3369 (A,83,42) RS1/16SS470J
R 3371 (B,94,41) RS1/16SS470J
R 3372 (B,93,39) RS1/16SS473J
R 3373 (B,86,48) RS1/16SS470J
R 3374 (B,85,48) RS1/16SS103J
R 3375 (B,93,38) RS1/16SS470J
R 3376 (B,83,41) RS1/16SS470J
R 3380 (A,84,38) RS1/16SS223J
R 3401 (B,53,35) RS1/10SR10R0D
R 3402 (B,53,37) RS1/10SR22R0D
R 3403 (B,53,38) RS1/10SR1200D
R 3404 (B,55,41) RS1/10SR82R0D
R 3405 (B,54,41) RS1/10SR91R0D
R 3406 (B,52,41) RS1/10SR30R0D
R 3407 (B,55,44) RS1/10SR39R0D
R 3408 (B,57,44) RS1/10SR39R0D
R 3409 (B,58,44) RS1/10SR27R0D
R 3410 (B,57,48) RS1/10SR1000D
R 3411 (B,58,48) RS1/10SR75R0D
R 3412 (B,60,48) RS1/10SR1200D
R 3416 (B,31,36) RS1/16SS473J
R 3422 (B,23,38) RS1/16SS473J
R 3423 (B,106,14) RS1/16SS104J
R 3214 (A,24,52) RS1/10SR3302D
R 3215 (A,26,60) RS1/16SS101J
R 3217 (A,29,49) RS1/16SS153J
R 3218 (A,22,50) RS1/16SS153J
R 3221 (A,26,46) RS1/10SR100J
AVIC-Z120BT/XNUC
R 3424 (B,107,14) RS1/16SS333J
R 3434 (A,59,31) RS1/16SS0R0J
51
Page 52
1234
1 234
C
D
F
A
B
E
Circuit Symbol and No. Part No.
Circuit Symbol and No.
Part No.
CAPACITORS
C 3111 (A,139,45) 10 uF CCG1223
C 3112 (A,139,48) 10 uF CCG1223
C 3001 (B,125,55) 10 uF CCG1236
C 3002 (B,129,30) CKSRYB103K50
C 3003 (B,125,52) CKSQYB104K50
C 3113 (B,137,44) CKSSYB102K50
C 3116 (A,125,61) CKSSYB102K50
C 3150 (A,50,48) CKSSYB104K16
C 3004 (B,130,35) CCSRCH681J50
C 3005 (B,125,46) 68 uF/10 V CCH1635
C 3151 (A,50,49) CKSSYB104K16
C 3152 (A,50,46) CKSSYB104K10
C 3006 (B,127,33) CCSRCH331J50
C 3007 (B,123,29) CKSRYB104K50
C 3008 (B,127,25) CKSRYB104K50
C 3153 (A,49,45) CKSSYB104K10
C 3154 (A,49,46) CKSSYB103K16
C 3155 (B,49,50) CKSSYB104K10
C 3009 (B,124,44) CKSRYB104K50
C 3010 (B,120,35) CKSRYB103K50
C 3156 (B,49,54) CKSSYB104K10
C 3157 (A,49,44) CKSSYB103K16
C 3011 (B,124,26) 10 uF DCH1201
C 3012 (B,119,33) CKSRYB393K16
C 3013 (B,121,30) CKSRYB472K50
C 3158 (B,49,49) CKSSYB103K16
C 3159 (B,49,53) CKSSYB103K16
C 3160 (A,47,45) CKSSYB104K10
C 3015 (B,118,28) CKSRYB393K16
C 3016 (B,122,26) CKSRYB104K50
C 3161 (A,47,44) CKSSYB103K16
C 3162 (B,40,48) CKSSYB104K10
C 3017 (B,114,19) CKSRYB393K16
C 3018 (B,113,40) CKSRYB104K50
C 3020 (B,118,41) CKSRYB103K50
C 3163 (B,41,48) CKSSYB103K16
C 3164 (B,40,52) CKSSYB104K10
C 3165 (B,41,52) CKSSYB103K16
C 3021 (B,119,43) 10 uF CCG1236
C 3022 (B,119,45) 10 uF CCG1236
C 3166 (B,40,50) CKSSYB104K10
C 3167 (B,39,50) CKSSYB103K16
C 3023 (B,113,38) CKSRYB105K10
C 3024 (B,111,38) CCSRCH102J50
C 3025 (B,105,47) 10 uF CCG1236
C 3168 (B,42,64) 33 uF/10 V CCH1586
C 3200 (A,29,73) CKSSYB104K10
C 3203 (A,29,64) CKSRYB105K10
C 3026 (B,109,38) CKSRYB104K50
C 3027 (B,104,46) CKSRYB103K50
C 3204 (A,20,57) CKSSYB104K10
C 3205 (A,31,63) CKSSYB104K10
C 3028 (B,109,22) CCSRCH102J50
C 3029 (B,107,38) CKSRYB105K10
C 3030 (B,105,38) CKSRYB103K50
C 3206 (A,27,52) CKSRYB105K10
C 3207 (B,25,55) CKSRYB104K50
C 3208 (B,21,50) CKSRYB104K50
C 3032 (B,103,18) CKSRYB105K10
C 3033 (B,102,29) CKSRYB103K50
C 3209 (B,22,55) 10 uF CCG1236
C 3210 (B,23,50) 4.7 uF CCG1222
C 3034 (B,100,29) CKSYB475K25
C 3035 (B,103,26) CKSRYB104K16
C 3036 (B,100,34) CCSRCH181J50
C 3037 (B,109,50) CKSRYB104K50
C 3038 (B,106,53) 33 uF/10 V CCH1968
C 3213 (A,33,67) CKSSYB104K10
C 3215 (B,62,43) CKSSYB104K10
C 3300 (A,109,71) 10 uF CCG1236
C 3303 (A,77,25) CKSQYB475K6R3
C 3304 (A,72,23) CKSQYB475K6R3
C 3039 (B,96,39) CCSRCH181J50
C 3040 (B,100,39) CKSRYB472K50
C 3041 (B,99,39) CKSRYB472K50
C 3305 (A,67,29) CKSQYB475K6R3
C 3309 (A,77,33) 10 uF DCH1201
C 3310 (A,65,53) CKSSYB104K10
C 3042 (B,88,21) CKSRYB474K16
C 3043 (B,90,21) CKSRYB474K16
C 3350 (A,66,7) CKSSYB104K10
C 3360 (B,85,65) CKSSYB222K50
C 3044 (B,117,50) CKSQYB105K16
C 3045 (B,91,21) CKSRYB474K16
C 3046 (B,98,46) CKSQYB105K25
C 3047 (B,102,45) CKSRYB104K50
C 3048 (B,92,14) CKSQYB225K16
C 3361 (B,86,66) CKSSYB222K50
C 3362 (B,85,61) 10 uF DCH1201
C 3363 (B,87,62) 10 uF DCH1201
C 3364 (B,89,61) 10 uF DCH1201
C 3365 (B,89,64) CKSSYB102K50
C 3049 (B,94,14) CKSQYB225K16
C 3050 (B,100,47) CKSQYB105K25
C 3051 (B,97,49) CKSQYB105K25
C 3366 (B,91,60) 10 uF DCH1201
C 3367 (B,89,59) CKSSYB102K50
C 3368 (A,81,36) 10 uF DCH1201
C 3052 (B,88,14) CKSQYB105K16
C 3053 (B,90,14) CKSQYB105K16
C 3369 (A,83,36) 10 uF DCH1201
C 3370 (B,92,35) CKSSYB104K10
C 3054 (B,93,22) CKSQYB105K16
C 3055 (B,97,13) CKSQYB105K16
C 3106 (B,114,68) CKSSYB473K16
C 3371 (B,93,35) CKSSYB104K10
C 3372 (B,95,35) CKSSYB104K10
C 3373 (A,85,30) CKSSYB104K10
C 3107 (B,116,66) CKSRYB104K50
C 3108 (A,124,71) CKSQYB225K10
52
AVIC-Z120BT/XNUC
Page 53
5 678
56
7
8
C
D
F
A
B
E
Circuit Symbol and No. Part No.
C 3374 (B,81,35) CKSSYB104K10
C 3407 (A,26,43) 10 uF DCH1201
C 3408 (A,18,39) CKSQYB334K50
C 3409 (A,16,38) 10 uF CCG1236
C 3410 (A,26,39) 10 uF DCH1201
C 3411 (A,28,41) 10 uF DCH1201
C 3414 (A,30,39) 10 uF DCH1201
C 3423 (A,33,48) CKSSYB103K16
AVIC-Z120BT/XNUC
53
Loading...
