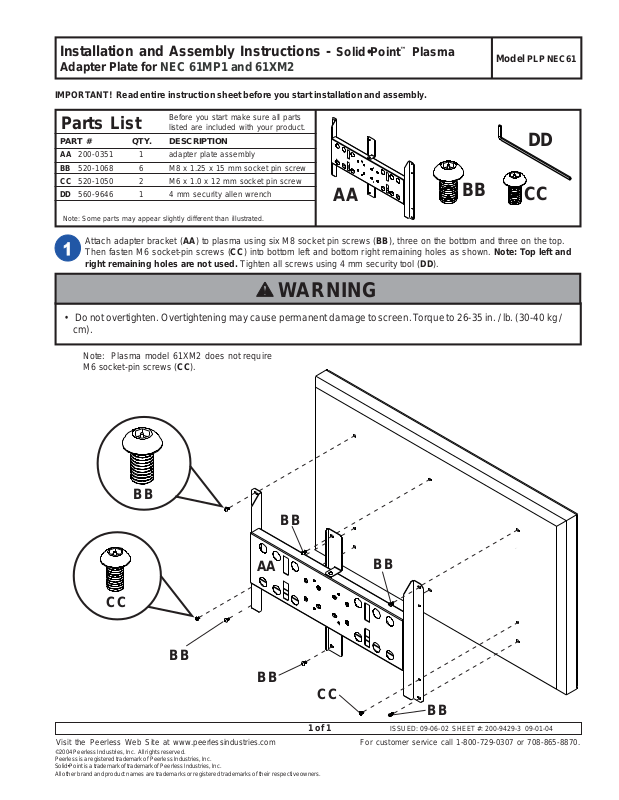

Installation and Assembly Instructions - Solid•Point
™
Plasma
Adapter Plate for NEC 61MP1 and 61XM2
IMPORT ANT! Read entire instruction sheet before you start installation and assembly .
Model PLP NEC61
Parts List
PART # QTY. DESCRIPTION
AA 200-0351 1 adapter plate assembly
BB 520-1068 6 M8 x 1.25 x 15 mm socket pin screw
CC 520-1050 2 M6 x 1.0 x 12 mm socket pin screw
DD 560-9646 1 4 mm security allen wrench
Note: Some parts may appear slightly different than illustrated.
Attach adapter bracket (AA) to plasma using six M8 socket pin screws (BB), three on the bottom and three on the top.
Then fasten M6 socket-pin screws (CC) into bottom left and bottom right remaining holes as shown. Note: Top left and
right remaining holes are not used. Tighten all screws using 4 mm security tool (DD).
Before you start make sure all parts
listed are included with your product.
AA
BB
DD
CC
WARNING
• Do not overtighten. Overtightening may cause permanent damage to screen. Torque to 26-35 in. / lb. (30-40 kg /
cm).
Note: Plasma model 61XM2 does not require
M6 socket-pin screws (CC).
BB
BB
AA
BB
CC
BB
BB
CC
BB
1 of 1
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
©2004 Peerless Industries, Inc. All rights reserved.
Peerless is a registered trademark of Peerless Industries, Inc.
Solid•Point is a trademark of trademark of Peerless Industries, Inc.
All other brand and product names are trademarks or registered trademarks of their respective owners.
ISSUED: 09-06-02 SHEET #: 200-9429-3 09-01-04
