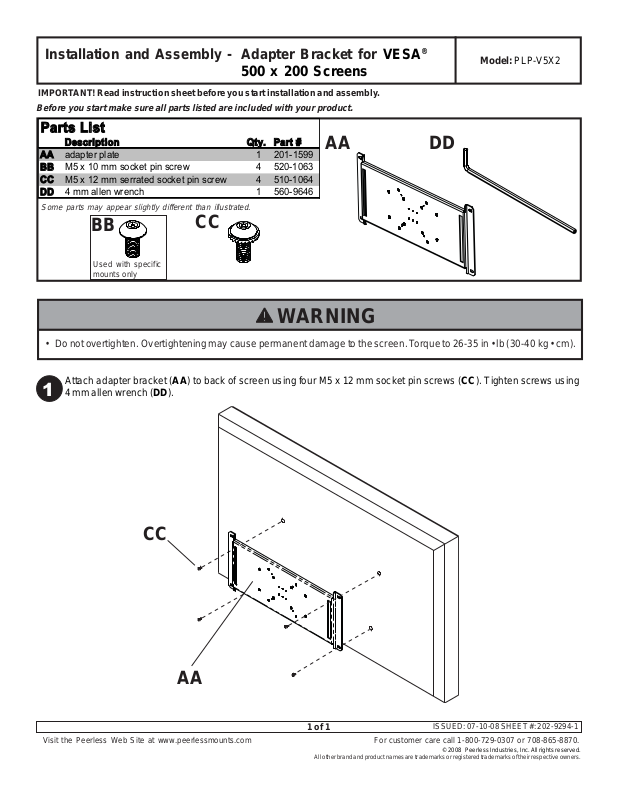

Installation and Assembly - Adapter Bracket for VESA® Model: PLP-V5X2

500 x 200 Screens

IMPORTANT! Read instruction sheet before you start installation and assembly.

Before you start make sure all parts listed are included with your product.

Parts List





AA

DD

Description

Qty.

Part #





AA adapter plate

1

201-1599





BB M5 x 10 mm socket pin screw

4

520-1063





CC M5 x 12 mm serrated socket pin screw

4

510-1064





DD 4 mm allen wrench

1

560-9646





Some parts may appear slightly different than illustrated.

BB

CC

Used with specific



mounts only



WARNING

• Do not overtighten. Overtightening may cause permanent damage to the screen. Torque to 26-35 in • lb (30-40 kg • cm).

1

Attach adapter bracket (AA) to back of screen using four M5 x 12 mm socket pin screws (CC). Tighten screws using

4 mm allen wrench (DD).

CC

AA

1 of 1

ISSUED: 07-10-08 SHEET #: 202-9294-1

Visit the Peerless Web Site at www.peerlessmounts.com

For customer care call 1-800-729-0307 or 708-865-8870.

© 2008 Peerless Industries, Inc. All rights reserved. All other brand and product names are trademarks or registered trademarks of their respective owners.
