Mounts |
Flat Panel |
Multi-Display |
|
|
|
MODELS
Dedicated Models: |
|
|
Security Fasteners* |
|
|
Screen Adapter Purchased Separately** |
|
|
MDJ700 In-line Display |
Black |
|
MDJ710 |
In-line Display |
Black |
MDJ720 |
In-line Display |
Black |
MDJ701 |
Curvilinear Display |
Black |
MDJ711 |
Curvilinear Display |
Black |
MDJ721 |
Curvilinear Display |
Black |
MDJ760 |
Circular Display |
Black |
SCREEN ADAPTER
Dedicated Models:
Requires screen-specific adapter to be purchased separately
SPECIFICATIONS
Dimensions: (Pipe Length) MDJ700: 120" (304.8 cm) MDJ710: 180" (457.2 cm) MDJ720: 240" (609.6 cm) MDJ701: 120" (304.8 cm) MDJ711: 180" (457.2 cm) MDJ721: 240" (609.6 cm)
MDJ760: 48" (122 cm) (Diameter)
Max Load: 600-1200 lb (272-545 kg) depending on ceiling attachments used
Ship Weight:
MDJ700: 31 lb (14.1 kg)
MDJ710: 45 lb (20.4 kg)
MDJ720: 62 lb (28.1 kg)
MDJ701: 27 lb (20.4 kg)
MDJ711: 35 lb (15.9 kg)
MDJ721: 56 lb (24.5 kg)
MDJ760: 45 lb (20.4 kg)
Mounting Virtually all ceiling surfaces
Surfaces: (Requires accessory)
ACCESSORIES
See chart for components needed to complete installation.
Contact Customer Care for CRT applications
70

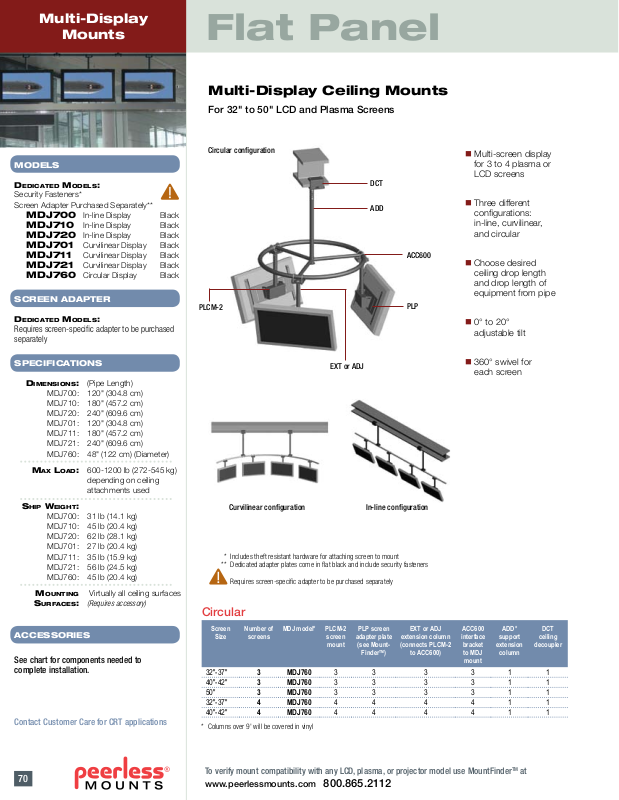

Multi-Display Ceiling Mounts
For 32" to 50" LCD and Plasma Screens
Circular configuration |
|
|
|
|
|
|
|
|
Multi-screen display |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
for 3 to 4 plasma or |
|
|
|
|
|
|
|
|
|
DCT |
LCD screens |
|
|
|
|
|
|
|
|
|
|
Three different |
||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
ADD |
||
|
|
|
|
|
|
|
|
|
configurations: |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
in-line, curvilinear, |
|
|
|
|
|
|
|
|
|
|
|
and circular |
|
|
|
|
|
|
|
|
|
|
|
ACC600 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Choose desired |
|
|
|
|
|
|
|
|
|
|
|
ceiling drop length |
|
|
|
|
|
|
|
|
|
|
|
and drop length of |
|
|
|
|
|
|
|
|
|
|
|
equipment from pipe |
PLCM-2 |
|
|
|
|
|
|
|
|
PLP |
||
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
0° to 20° |
|
|
|
|
|
|
|
|
|
|
|
adjustable tilt |
|
|
|
|
|
|
|
|
|
|
|
360° swivel for |
|
|
|
|
|
EXT or ADJ |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
each screen |
||
|
|
|
|
|
|
|
|
|
|
|
Curvilinear configuration |
In-line configuration |
*Includes theft resistant hardware for attaching screen to mount
**Dedicated adapter plates come in flat black and include security fasteners
Requires screen-specific adapter to be purchased separately
Circular
Screen |
Number of |
MDJ model* |
PLCM-2 |
PLP screen |
EXT or ADJ |
ACC600 |
ADD* |
DCT |
Size |
screens |
|
screen |
adapter plate |
extension column |
interface |
support |
ceiling |
|
|
|
mount |
(see Mount- |
(connects PLCM-2 |
bracket |
extension |
decoupler |
|
|
|
|
FinderTM) |
to ACC600) |
to MDJ |
column |
|
|
|
|
|
|
|
mount |
|
|
32"-37" |
3 |
MDJ760 |
3 |
3 |
3 |
3 |
1 |
1 |
40"-42" |
3 |
MDJ760 |
3 |
3 |
3 |
3 |
1 |
1 |
50" |
3 |
MDJ760 |
3 |
3 |
3 |
3 |
1 |
1 |
32"-37" |
4 |
MDJ760 |
4 |
4 |
4 |
4 |
1 |
1 |
40"-42" |
4 |
MDJ760 |
4 |
4 |
4 |
4 |
1 |
1 |
* Columns over 9' will be covered in vinyl
To verify mount compatibility with any LCD, plasma, or projector model use MountFinderTM at www.peerlessmounts.com 800.865.2112
|
|
Flat Panel |
|
Mounts |
|||||
|
|
|
|
|
|
|
|
Multi-Display |
|
|
|
|
|
|
|
|
|
|
|
In-Line |
|
|
|
|
|
|
|
|
|
Screen size |
Number of |
MDJ model |
PLCM-2 screen |
PLP screen |
EXT or ADJ |
ACC600 |
ADD support |
DCT ceiling |
|
|
screens |
|
mount |
adapter plate |
extension column |
interface bracket to |
extension |
decoupler |
|
|
|
|
|
(see MountFinderTM) |
(connects PLCM-2 |
MDJ mount |
column |
|
|
|
|
|
|
|
to ACC600) |
|
|
|
|
32"-37" |
3 |
MDJ700 |
3 |
3 |
3 |
5 |
2 |
2 |
|
40"-42" |
3 |
MDJ700 |
3 |
3 |
3 |
5 |
2 |
2 |
|
50" |
3 |
MDJ710 |
3 |
3 |
3 |
5 |
2 |
2 |
|
32"-37" |
4 |
MDJ700 |
4 |
4 |
4 |
6 |
2 |
2 |
|
40"-42" |
4 |
MDJ710 |
4 |
4 |
4 |
6 |
2 |
2 |
|
50" |
4 |
MDJ720 |
4 |
4 |
4 |
6 |
2 |
2 |
|
Curvilinear |
|
|
|
|
|
|
|
|
|
Screen size |
Number of |
MDJ model |
PLCM-2 screen |
PLP screen |
EXT or ADJ |
ACC600 |
ADD support |
DCT ceiling |
|
|
screens |
|
mount |
adapter plate |
extension column |
interface bracket to |
extension |
decoupler |
|
|
|
|
|
(see MountFinderTM) |
(connects PLCM-2 |
MDJ mount |
column |
|
|
|
|
|
|
|
to ACC600) |
|
|
|
|
32"-37" |
3 |
MDJ701 |
3 |
3 |
3 |
5 |
2 |
2 |
|
40"-42" |
3 |
MDJ701 |
3 |
3 |
3 |
5 |
2 |
2 |
|
50" |
3 |
MDJ711 |
3 |
3 |
3 |
5 |
2 |
2 |
|
32"-37" |
4 |
MDJ701 |
4 |
4 |
4 |
6 |
2 |
2 |
|
40"-42" |
4 |
MDJ711 |
4 |
4 |
4 |
6 |
2 |
2 |
|
50" |
4 |
MDJ721 |
4 |
4 |
4 |
6 |
2 |
2 |
Multi-Display System Components
Multi-Display Mount |
|
In-line |
|
Curvilinear |
Circular |
|
|
Screen Mount |
|
Model |
Length |
Ring Diameter |
Pipe Diameter |
Load Capacity |
Ship Weight |
MDJ700 (in-line) |
120" (304.8 cm) |
NA |
1.9" OD |
1000 lb (453.6 kg) |
31 lb (14.1 kg) |
MDJ710 (in-line) |
180" (457.2 cm) |
NA |
1.9" OD |
1200 lb (544.3 kg) |
45 lb (20.4 kg) |
MDJ720 (in-line) |
240" (609.6 cm) |
NA |
1.9" OD |
1500 lb (680.4 kg) |
62 lb (28.1 kg) |
MDJ701 (curved) |
120" (304.8 cm) |
NA |
1.9" OD |
1000 lb (453.6 kg) |
27 lb (12.2 kg) |
MDJ711 (curved) |
180" (457.2 cm) |
NA |
1.9" OD |
1200 lb (544.3 kg) |
35 lb (15.9 kg) |
MDJ721 (curved) |
240" (609.6 cm) |
NA |
1.9" OD |
1500 lb (680.4 kg) |
56 lb (25.4kg) |
MDJ760 (circular) |
NA |
48" (122 cm) |
1.9" OD |
600 lb (272.16 kg) |
45 lb (20.4 kg) |
Model |
|
|
|
|
Ship Weight |
PLCM-2 |
|
|
|
|
13.9 lb (6.3 kg) |
PLP screen adapter required. See MountFinderTM to verify screen compatibility.
See page 67 for details
Multi-Display Interface Bracket Model Description Load Capacity Ship Weight
|
|
|
ACC600 |
Interfaces between flat panel mount to |
|
1200 lb (544.3 kg) |
3.8 lb (1.7 kg) |
|
|
|
|
MDJ mount, and MDJ mount to ceiling |
|
|
|
|
|
|
See page 138 for details |
support structure. |
|
|
|
Fixed or Adjustable Extension Columns |
Model |
Drop Length* |
|
|
|
||
|
for Attaching Mount |
|
|
|
|
|
|
|
|
|
EXT/ADJ models |
8"-12' |
* |
Fixed length columns provide |
|
|
|
|
|
|
|
8" to 12' drop lengths. |
|
|
|
|
See page 139 for details |
|
|
Adjustable length columns provide |
|
|
|
|
|
|
|
6" to 12' drop lengths. |
|
Fixed or Adjustable Extension Columns |
Model |
Drop Length* |
|
|
|
||
|
for Ceiling Decouplers |
|
|
|
|
|
|
|
|
|
ADD models |
12"-12' |
* |
Fixed length columns provide |
|
|
|
|
|
|
|
1' to10' drop lengths. |
|
|
|
|
|
|
|
Adjustable length columns provide |
|
|
|
|
See page 140 for details |
|
|
1' to 12' drop lengths. |
|
|
Ceiling Decoupler |
Model |
Ceiling type |
|
Load Capacity |
Ship Weight |
|
|
|
|
DCS400 |
For structural or finished ceiling |
|
1200 lb (544.3 kg) |
7.8 lb (3.5 kg) |
|
|
|
DCT300 |
For truss ceiling |
|
1200 lb (544.3 kg) |
4.6 lb (2.1 kg) |
|
|
|
DCT500 |
For I-Beams |
|
600 lb (272.16 kg) |
9.4 lb (4.3 kg) |
|
|
|
DCT600 |
For I-Beams |
|
600 lb (272.16 kg) |
13.1 lb (6 kg) |
DCS400 |
DCT300 |
DCT500-900 |
DCT700 |
For I-Beams |
|
600 lb (272.16 kg) |
13.6 lb (6.2 kg) |
DCT800 |
For I-Beams |
|
600 lb (272.16 kg) |
14 lb (6.4 kg) |
|||
|
|
|
|
||||
See page 116 for details |
DCT900 |
For I-Beams |
|
600 lb (272.16 kg) |
9 lb (4.1 kg) |
To verify mount compatibility with any LCD, plasma, or projector model use MountFinderTM at |
|
|
|
71 |
|
www.peerlessmounts.com 800.865.2112 |
|
|
|
|
|
|
|
|
