Installation and Assembly:
Ceiling mount for LCD screens up to 29"
Models: LCC-18, LCC-18-S, LCC-36, LCC-36-S, LCC-36-W
Patent Pending
Features:
•Comes in two adjustable height ranges (in 1" increments): 18"-30" and 36"-48".
•-5° to +20° adjustable tilt.
•Screen can be mounted in standard position or face-down.
•Portrait or landscape orientation.
•Ceiling plate included.
•Hardware included for wood or concrete installations.
•Theft resistant security fasteners included.
•VESA® 75/100 mm compliant (Non-VESA adapter offered separately).
•Comes in black or silver. LCC 36-W offered in white.
•360° swivel action.
Max UL Load Capacity: 40 lb (18.1 kg)
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com
ISSUED: 09-27-04 SHEET #: 100-9004-8 10-08-12
Note: Read entire instruction sheet before you start installation and assembly.
WARNING
•Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor.
•This product should only be installed by a qualified professional.
•Make sure that the ceiling will safely support the combined load of the equipment and all attached hardware and components.
•Never exceed the Maximum UL Load Capacity. See page 1.
•If mounting to wood ceiling joists, make sure that mounting screws are anchored into the center of the joists. Use of an "edge to edge" stud finder is highly recommended.
•Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
•Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding power.
Accessories
•Lightweight Adjustable Suspended Ceiling Kit (CMJ 500)
•Lightweight Suspended Ceiling Kit (CMJ 455)
•Accessory Pack for CMJ 455 (ACC455)*
•Lightweight Cathedral Ceiling Plate (ACC912)*
•Unistrut or Structural Ceiling Plates (CMJ 300, CMJ 310)*
•Anti-Vibration Ceiling Plates (ACC845)*
•I-Beam Clamps (ACC558, ACC559)
•Truss Ceiling Adapter (ACC557)*
•Unistrut Adapter (ACC550)
•Escutcheon Ring (ACC640)*
*not evaluated by UL
•Round Ceiling Plate (ACC570)
•Cord Wrap (ACC852(W)(S))*
•Fixed Length 1 1/2" Extension Columns (EXT models)
•Adjustable Length 1 1/2" Extension Columns (ADJ models)
•Extension Column Stabilizer Kit (ACC050)*
•Extension Column Connector (ACC109)
•1/2" Threaded Rod (ACC820)*
•Threaded Rod Adapter (ACC810)*
•Non-VESA Adapter Plates (LC models)*
Tools Needed for Assembly |
|
|
|
• |
stud finder ("edge to edge" stud finder is recommended) |
|
|
• |
phillips screwdriver |
|
|
• |
drill with 5/16", 3/8", and 5/32" drill bits |
|
|
Table of Contents |
|
|
|
Parts List................................................................................................................................................................................. |
|
3 |
|
Installation to Wood Joist Finished Ceilings, Exposed Wood Joists, or Wood Beam Ceilings............................................... |
4 |
||

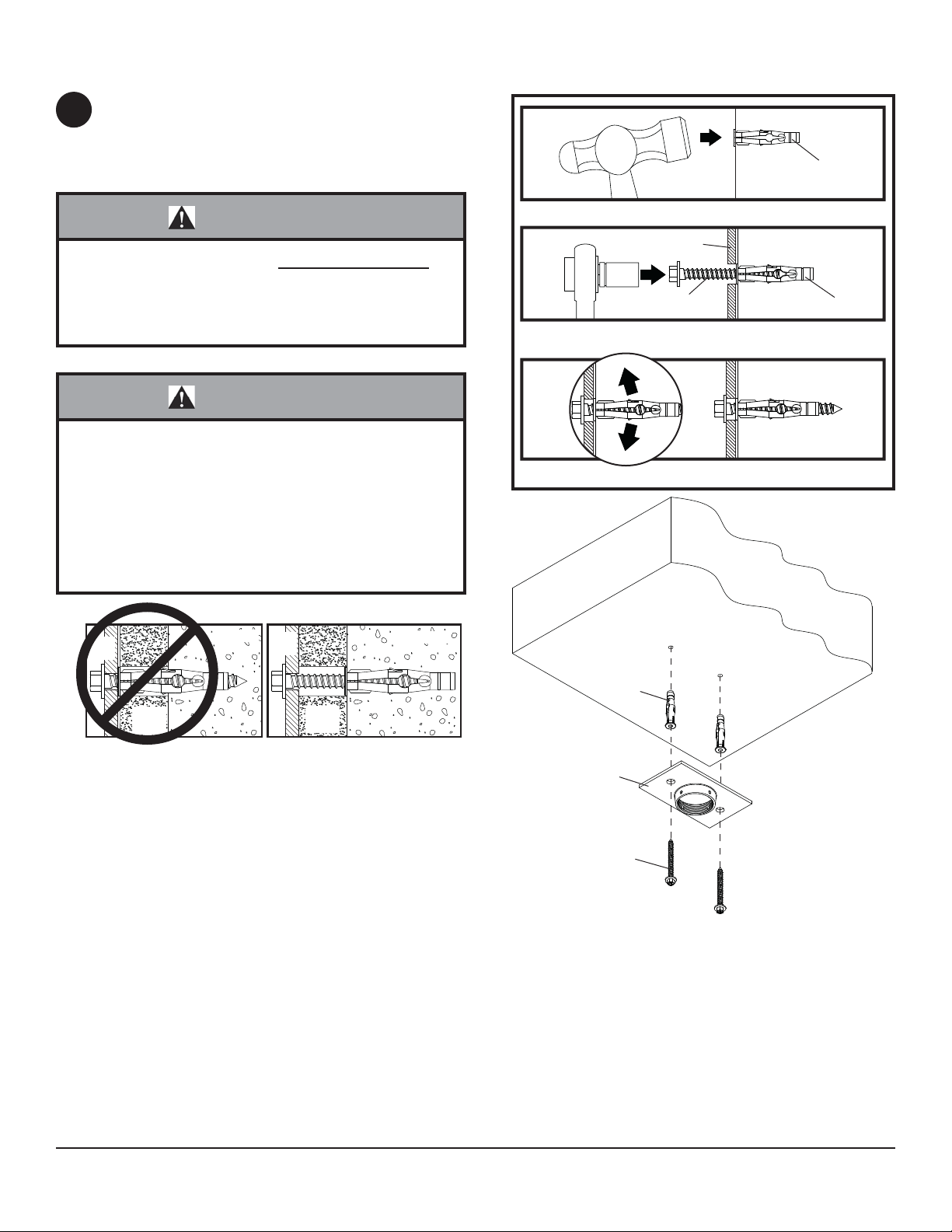

Installation to Concrete Ceilings............................................................................................................................................. |
|
5 |
|
Installing Reducer................................................................................................................................................................... |
|
6 |
|

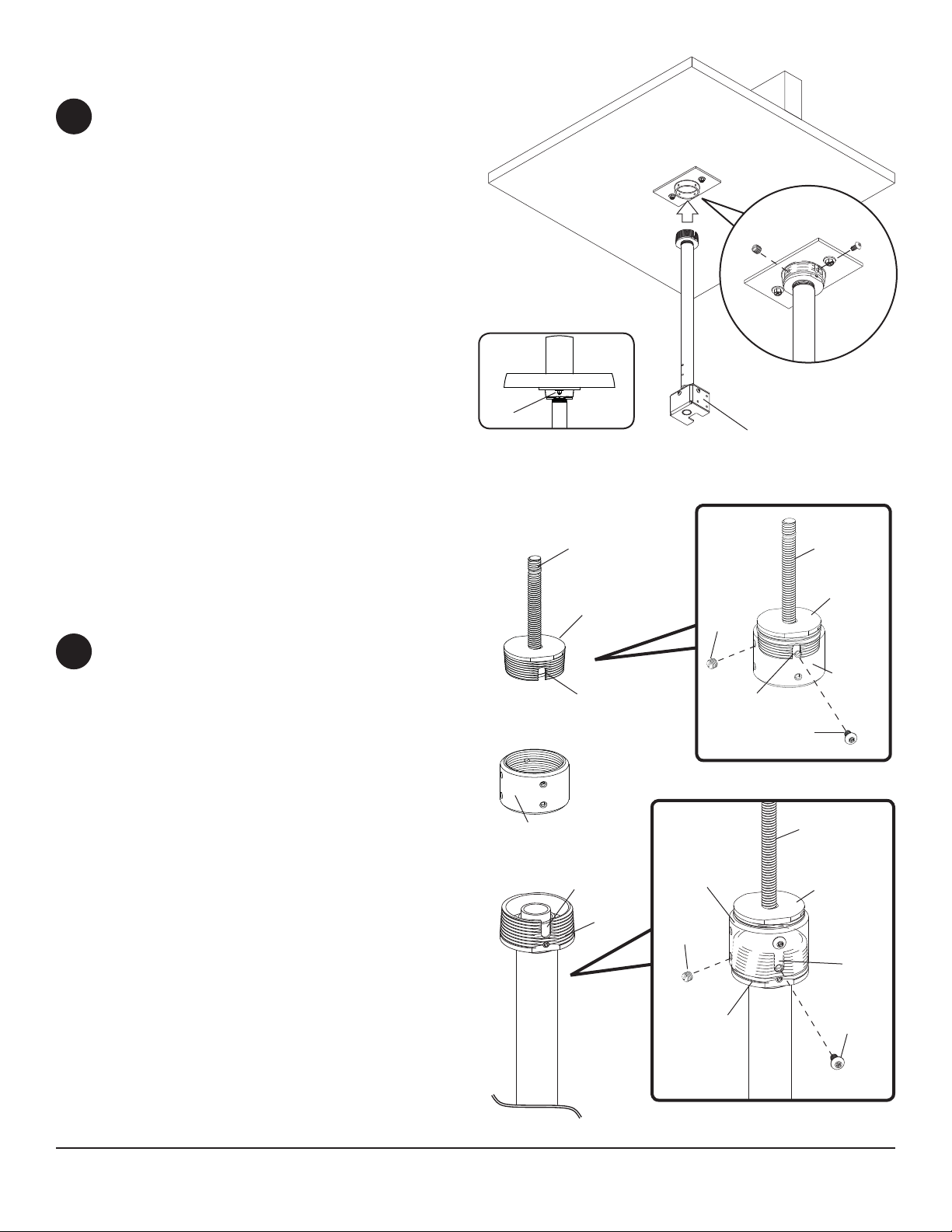

Flush Mount Installation.......................................................................................................................................................... |
|
7 |
|
Installation to Threaded Rod .................................................................................................................................................. |
|
7 |
|
Installation to Extension Column ............................................................................................................................................ |
|
8 |
|
Installation to Lightweight Suspended Ceiling Plate............................................................................................................... |
|
9 |
|
Attaching Tilt Bracket to LCD Screen ................................................................................................................................. |
|
10 |
|
Installation of screen in the Vertical Position ........................................................................................................................ |
|
11 |
|
Installation of screen in the Horizontal Position................................................................................................................... |
|
12 |
|
|
2 of 12 |
ISSUED: 09-27-04 |
SHEET #: 100-9004-8 10-08-12 |
Parts List |
|
LCC-18 |
LCC-18S |
LCC-36 |
LCC-36S |
|
|
Description |
Qty. |
Part # |
Part # |
Part # |
Part # |
A |
tube assembly |
1 |
055-1520 |
055-4520 |
055-1521 |
055-4521 |
B |
ceiling plate |
1 |
580-1042 |
580-4042 |
580-1042 |
580-4042 |
C |
tilt bracket |
1 |
055-1551 |
055-4551 |
055-1551 |
055-4551 |
D |
reducer |
1 |
580-1009 |
580-4009 |
580-1009 |
580-4009 |
E |
#14 x 2.5" wood screw |
2 |
5S1-015-C03 |
5S1-015-C04 |
5S1-015-C03 |
5S1-015-C04 |
F |
M5 x 12 mm socket pin screw |
4 |
520-1064 |
520-2064 |
520-1064 |
520-2064 |
G |
4 mm security allen wrench |
1 |
560-9646 |
560-9646 |
560-9646 |
560-9646 |
H |
concrete anchor |
2 |
590-0320 |
590-0320 |
590-0320 |
590-0320 |
I |
10-32 x 3/8" socket set screw |
1 |
520-1127 |
500-2018 |
520-1127 |
500-2018 |
J |
hex wrench |
1 |
560-1034 |
560-1034 |
560-1034 |
560-1034 |
K |
M4 x 10 mm socket pin screw |
4 |
520-1060 |
520-2060 |
520-1060 |
520-2060 |
L |
M4 x 12 mm serrated washer head socket pin screw |
4 |
510-1079 |
510-2079 |
510-1079 |
510-2079 |
M |
M4 x 20 mm socket pin screw |
4 |
520-1061 |
520-2163 |
520-1061 |
520-2163 |
N |
#10-32 x 3/16" slotted set screw |
1 |
520-1187 |
520-2187 |
520-1187 |
520-2187 |
O |
retaining spacer |
4 |
590-5005 |
590-5003 |
590-5005 |
590-5003 |
P |
M5 x 10 mm socket pin F-type screw |
1 |
520-1164 |
520-2031 |
520-1164 |
520-2031 |
Q |
cable tie |
3 |
590-1168 |
590-1168 |
590-1168 |
590-1168 |
A |
B |
C |
D |
E |
H |
G |
|
||
|
I |
J |
|
N |
|
|
F |
K |
L |
|
|
||
M |
O |
P |
Q |
|
|||
|
|
|
3 of 12 |
ISSUED: 09-27-04 SHEET #: 100-9004-8 10-08-12 |
Installation to Wood Joist Finished Ceilings, Exposed Wood Joists, or Wood Beam Ceilings
1 |
Drill two 5/32" (4 mm) dia. holes to a minimum |
depth of 2.5" (64 mm). Attach ceiling plate (B) |
with two #14 x 2.5" (6 mm x 65 mm) wood screws (E) as shown using 3/8" (10 mm) socket wrench. Tighten wood screws (E) so ceiling plate (B) is firmly attached.
WARNING
•Tighten wood screws so that ceiling plate is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power.
•Never tighten in excess of 80 in • lb (9 N.M.).
•Make sure that mounting screws are anchored into the center of the joist. The use of an "edge to edge" stud finder is highly recommended.
Skip to step 2 on page 6.
WOOD
JOIST
CEILING
B
E
E
4 of 12 |
ISSUED: 09-27-04 SHEET #: 100-9004-8 10-08-12 |
