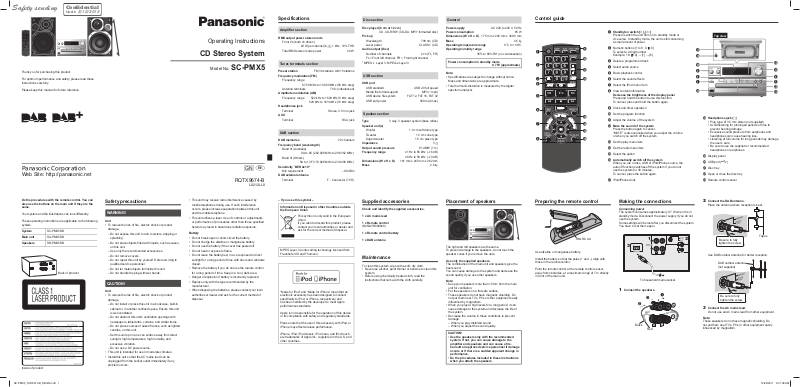

Panasonic SC-PMX5 User Manual

Panasonic Corporation

Web Site: http://panasonic.net

Operating Instructions

CD Stereo System

Model No. SC-PMX5

Thank you for purchasing this product.

For optimum performance and safety, please read these instructions carefully.

Please keep this manual for future reference.

RQTX9674-B

L0212LL0

Do the procedures with the remote control. You can also use the buttons on the main unit if they are the same.

Your system and the illustrations can look differently.

These operating instructions are applicable to the following system.

System SC-PMX5DB

Main unit SA-PMX5DB

Speakers SB-PMX5DB

Safety precautions

WARNING!

Unit

• To reduce the risk of fire, electric shock or product damage,

– Do not expose this unit to rain, moisture, dripping or

splashing.

– Do not place objects filled with liquids, such as vases,

on this unit. – Use only the recommended accessories. – Do not remove covers. – Do not repair this unit by yourself. Refer servicing to

qualified service personnel. – Do not let metal objects fall inside this unit. – Do not handle the plug with wet hands.

CAUTION!

Unit

• To reduce the risk of fire, electric shock or product damage,

– Do not install or place this unit in a bookcase, built-in

cabinet or in another confined space. Ensure this unit is well ventilated.

– Do not obstruct this unit’s ventilation openings with

newspapers, tablecloths, curtains, and similar items.

– Do not place sources of naked flames, such as lighted

candles, on this unit.

– Set this unit up on an even surface away from direct

sunlight, high temperatures, high humidity, and excessive vibration.

– Do not use a DC power source.

• This unit is intended for use in moderate climates.

• Install this unit so that the AC mains lead can be unplugged from the socket outlet immediately if any problem occurs.

Inside of product

Back of product

• This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.

• This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Battery

• Do not break open or short-circuit the battery.

• Do not charge the alkaline or manganese battery.

• Do not use the battery if the cover has peeled off.

• Do not heat or expose to flame.

• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.

• Remove the battery if you do not use the remote control for a long period of time. Keep in a cool, dark area.

• Danger of explosion if battery is incorrectly replaced.

• Replace only with the type recommended by the manufacturer.

• When disposing the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.

– If you see this symbol –

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, or iPhone may affect wireless performance.

iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Preparing the remote control

R6/LR6, AA

Use alkaline or manganese battery.

Install the battery so that the poles (+ and –) align with those in the remote control.

Point the remote control at the remote control sensor, away from obstacles, at a maximum range of 7 m directly in front of the main unit.

Placement of speakers

The right and left speakers are the same. To prevent damage to the speakers, do not touch the speaker cones if you remove the nets.

Use only the supplied speakers.

The combination of the main unit and speakers give the best sound. You can cause damage to the system and decrease the sound quality if you use other speakers.

Note:

• Keep your speakers more than 10 mm from the main unit for ventilation.

• Put the speakers on a flat safe surface.

• These speakers do not have magnetic shielding. Do not put them near TVs, PCs or other equipment easily influenced by magnetism.

• When you play at high levels for a long period, it can cause damage to the system and decrease the life of the system.

• Decrease the volume in these conditions to prevent damage:

– When you play distorted sound. – When you adjust the sound quality.

CAUTION!

• Use the speakers only with the recommended

system. If not, you can cause damage to the amplifier and speakers and can cause a fire. Consult an approved service personnel if damage occurs or if there is a sudden apparent change in performance.

• Do the procedures included in these instructions

when you attach the speakers.

Specifications

Amplifier section

RMS output power stereo mode

Front Ch (both ch driven) 20 W per channel (6

), 1 kHz, 10% THD

Total RMS stereo mode power 40 W

Tuner, terminals section

Preset station FM 30 stations, AM 15 stations Frequency modulation (FM)

Frequency range

87.50 MHz to 108.00 MHz (50 kHz step) Antenna terminals 75

(unbalanced)

Amplitude modulation (AM)

Frequency range 522 kHz to 1629 kHz (9 kHz step) 520 kHz to 1630 kHz (10 kHz step)

Headphones jack Terminal Stereo, 3.5 mm jack AUX Terminal RCA jack

DAB section

DAB memories 20 channels Frequency band (wavelength)

Band III (Australia) 9A to 9C (202.928 MHz to 206.352 MHz) Band III (Others) 5A to 13F (174.928 MHz to 239.200 MHz)

Sensitivity

BER 4x10

-4

Min requirement –98 dBm

DAB external antenna

Terminal F - Connector (75

)

Disc section

Disc played (8 cm or 12 cm)

CD, CD-R/RW (CD-DA, MP3

formatted disc)

Pick up

Wavelength 790 nm (CD) Laser power CLASS 1 (CD)

Audio output (Disc)

Number of channels 2 ch (FL, FR) FL = Front left channel, FR = Front right channel

MPEG-1 Layer 3, MPEG-2 Layer 3

USB section

USB port

USB standard USB 2.0 full speed Media file format support MP3 (

.mp3) USB device file system FAT 12, FAT 16, FAT 32 USB port power 500 mA (max)

Speaker section

Type 3 way, 3 speaker system (bass reflex) Speaker unit(s)

Woofer 1.9 cm soft dome type Tweeter 14 cm cone type Super tweeter 1.5 cm piezo type

Impedance 3 Output sound pressure 81 dB/W (1 m) Frequency range 41 Hz to 65 kHz (–16 dB)

48 Hz to 58 kHz (–10 dB)

Dimensions (W x H x D) 161 mm x 240 mm x 262 mm Mass 2.6 kg

Making the connections

Conserving power

The system consumes approximately 0.7 W when it is in standby mode. Disconnect the power supply if you do not use the system. Some settings will be lost after you disconnect the system. You have to set them again.

To household mains socket

1 Connect the speakers.

Red

Black

2 Connect the DAB antenna.

Place the antenna where reception is best.

Be sure to fully tighten the screw.

Tapes

Use DAB outdoor antenna for better reception.

Be sure to fully tighten the screw.

DAB outdoor antenna (not supplied)

3 Connect the AC mains lead.

Do not use an AC mains lead from other equipment.

Note:

These speakers do not have magnetic shielding. Do not put them near TVs, PCs or other equipment easily influenced by magnetism.

R Headphones jack ( )

• Plug type: Ø 3.5 mm stereo (not supplied)

• Avoid listening for prolonged periods of time to prevent hearing damage.

• Excessive sound pressure from earphones and headphones can cause hearing loss.

• Listening at full volume for long periods may damage the user’s ears.

• Be sure to use the supplied or recommended headphones or earphones.

S Display panel

T USB port ( )

U Disc tray

V Open or close the disc tray

W Remote control sensor

A Standby/on switch [`], [1]

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

B Numeric buttons [1 to 9, 0, 10]

To select a 2-digit number Example: 16: [

10] → [1] → [6]

C Delete a programmed track

D Select audio source

E Basic playback control

F Select the sound effects

G Select the iPod menu item

H View content information

Decrease the brightness of the display panel

Press and hold the button to use this function. To cancel, press and hold the button again.

I Clock and timer operation

J Set the program function

K Adjust the volume of the system

L Mute the sound of the system

Press the button again to cancel. “MUTE” is also cancelled when you adjust the volume or when you switch off the system.

M Set the play menu item

N Set the radio menu item

O Select the option

P Automatically switch off the system

When you are in disc, USB or iPod/iPhone source, the auto off function switches off the system if you do not use the system for 30 minutes. To cancel, press the button again.

Q iPod/iPhone dock

Top view

Control guide

General

Power supply AC 220 to 240 V, 50 Hz Power consumption 85 W Dimensions (W x H x D) 175 mm x 240 mm x 349.8 mm Mass 4.5 kg Operating temperature range 0°C to +40°C Operating humidity range

35% to 80% RH (no condensation)

Power consumption in standby mode

0.7 W (approximate)

Note:

• Specifications are subject to change without notice. Mass and dimensions are approximate.

• Total harmonic distortion is measured by the digital spectrum analyzer.

Supplied accessories

Check and identify the supplied accessories.

1 x AC mains lead

1 x Remote control

(N2QAYB000640)

1 x Remote control battery

1 x DAB antenna

Maintenance

To clean this system, wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean this system.

• Before using chemically treated cloth, read the instructions that came with the cloth carefully.

Safety sending

2/12/2012

Confidential

Until:

C D

D A

F E V

SC-PMX5_RQT9674-B_DBGN.indd 1SC-PMX5_RQT9674-B_DBGN.indd 1 12/22/2011 9:31:38 AM12/22/2011 9:31:38 AM

PLAYMODE

OFF PLAYMODE

Play all tracks.

1-TRACK

1TR

Play one selected track on the disc. Press the numeric buttons to select the track.

1-ALBUM

1ALBUM

Play one selected album on the disc. Press [R, T] to select the album.

RANDOM

RND

Play a disc randomly.

1- ALBUM RANDOM

1ALBUM RND

Play all tracks in one selected album randomly. Press [R, T] to select the album.

REPEAT

ON REPEAT

Repeat playback.

OFF REPEAT Cancel repeat playback.

Note:

• During random playback, you cannot skip to tracks which have been played or press the numeric buttons.

• Playmode function does not work with “Program playback”.

• The setting returns to the default “OFF PLAYMODE” when you open the disc tray.

Program playback

This function allows you to program up to 24 tracks.

1 Press [PROGRAM] in the stop mode.

“PGM” is shown.

2 Press the numeric buttons to select the desired

track.

Do this step again to program other tracks.

3 Press [4/9] to start playback.

Disc

Playing disc

1 Press [x , OPEN/CLOSE] on the main unit to open

the disc tray.

Put in a disc with the label facing up. Press [x, OPEN/CLOSE] again to close the disc tray.

2 Press [CD] and then press [4/9] to start playback.

Stop playback

Press [8].

Pause playback

Press [4/9]. Press again to continue playback.

Skip album

Press [R, T].

Skip track

Press [2] or [6] (main unit: [2/3] or [5/6]).

Search through track

Press and hold [3] or [5] (main unit: [2/3] or [5/6]).

Viewing available information

You can view the available information on the display panel.

Press [DISPLAY].

: Track

: Album

TAG : ID3 tags

Note:

• Maximum characters that can be shown: approximately 16

• This system supports ver. 1.0, 1.1 and 2.3 ID3 tags.

• Text data that the system does not support can show differently.

Play menu

1 Press [PLAY MENU] to select “PLAYMODE” or

“REPEAT”.

2 Press [Y, U] and then press [OK] to select the

desired mode.

Selecting a preset station

Press the numeric buttons, [2] or [6] (main unit: [2/3] or [5/6]) to select the preset station.

Viewing available information

Press [DISPLAY] to view available information.

You can view information about the DAB broadcast, program type, ensemble label, frequency and time.

DAB settings

1 Press [R ADIO MENU] to select an option. 2 Press [Y, U] to select the desired setting and then

press [OK].

DAB SECONDARY

PRIMARY To listen to primary service.

SECONDARY To listen to secondary services.

“

” is shown.

AUTO CLOCK ADJ

ON ADJUST Start auto clock adjustment.

OFF ADJUST Cancel auto clock adjustment.

SCANMODE

AUSTRALIA Scan stations on frequencies used in

Australia.

ALL BAND III Scan stations on other frequencies.

Using an iPod/iPhone

Connector

1 Press to open the cover and insert a compatible

dock adapter.

iPod/iPhone (not supplied)

Dock adapter (not supplied)

2 Connect the iPod/iPhone firmly.

Make sure to remove the iPod/iPhone from its case. Make sure to align your iPod/iPhone with the connector when inserting. Use a compatible dock adapter.

3 Press [iPod] and then press [4/9] to start

playback.

Pause playback

Press [4/9] or [8].

View iPod menu Press [iPod MENU].

Select an item

Press [R, T] and then press [OK].

For other operations, refer to “Disc”.

Note:

• Depending on the model, it may be necessary to remove the iPod/iPhone and select the album, artist, etc. on the iPod/iPhone.

• Operation results may vary depending on the iPod/ iPhone models.

• Read the User Guide of the iPod/iPhone for the operating instructions.

Compatible iPod/iPhone

As of December 2011

Update your iPod/iPhone with the latest software before using this system.

iPod touch

1st, 2nd, 3rd, 4th generation

iPod nano

2nd, 3rd, 4th, 5th, 6th generation

iPod classic

iPhone 4S / iPhone 4 / iPhone 3GS / iPhone 3G / iPhone

Charging an iPod/iPhone

An iPod/iPhone is charged automatically when connected to the system (even when the system is in standby mode).

• See the iPod/iPhone display for its battery charging status.

• Disconnect the iPod/iPhone if it is not used for an extended period of time after charging is complete.

• Charging stops when the battery is fully charged. The battery will deplete naturally.

Radio

30 FM stations can be preset.

Preparation

Press [RADIO] to select “FM”.

Manual tuning

Press [3] or [5] to select the frequency of the required station.

To tune automatically, press and hold the button until the frequency starts changing quickly.

Improving the sound quality

1 Press [R ADIO MENU] to select “FM MODE”. 2 Press [Y, U] to select “MONO” and then press

[OK].

To cancel, select “STEREO”. “MONO” is also cancelled when you change the frequency.

Automatic presetting

1 Press [R ADIO MENU] to select “A.PRESET”. 2 Press [Y, U] to select “LOWEST” or “CURRENT”

frequency.

3 Press [OK] to start presetting.

Manual presetting

1 Press [3] or [5] to tune in to the station. 2 Press [PROGRAM]. 3 Press the numeric buttons to select a preset

number.

Do steps 1 through 3 again to preset more stations. The new station replaces any station that occupies the same preset number.

Selecting a preset station

Press the numeric buttons, [2] or [6] (main unit: [2/3] or [5/6]) to select the preset station.

Clock and timers

Setting the clock

This is a 24-hour clock.

1 Press [CLOCK/TIMER] to select “CLOCK”. 2 Within 10 seconds, press [R, T] to set the time. 3 Press [OK].

Press [CLOCK/TIMER] to show the clock for a few seconds.

Note:

Reset the clock regularly to maintain accuracy.

Sleep timer

The sleep timer switches off the system after the set time.

Press [SLEEP] to select the setting (in minutes).

To cancel, select “OFF”.

30 MIN → 60 MIN → 90 MIN → 120 MIN → OFF

To show the remaining time

Press [SLEEP].

Note:

• The sleep timer can be used together with the play timer.

• The sleep timer always comes first. Be sure not to set an overlap of timers.

Play timer

You can set the timer to come on at a certain time to wake you up.

Preparation

Set the clock.

1 Press [CLOCK/ TIMER] to select “#PLAY”. 2 Within 10 seconds, press [R, T] to set the start

time.

3 Press [OK]. 4 Do steps 2 and 3 again to set the end time.

To start the timer

1 Prepare the audio source you want to listen to

(disc, radio, USB, AUX or iPod/iPhone) and set the volume.

2 Press [#, PLAY].

“#PLAY” is shown. To cancel, press [#, PLAY] again. The system must be switched off for the timer to operate.

To check the settings

Press [CLOCK/TIMER] to select “#PLAY”.

Note:

• The timer starts at a low volume and increases gradually to the preset level.

• The timer comes on at the set time every day if the timer is on.

• If you switch off the system and switch on again while a timer is in operation, the timer will not stop at the end time.

Using the auxiliary input

You can connect a VCR, DVD player etc. and listen to the audio through this system.

Preparation

• Disconnect the AC mains lead.

• Switch off all equipment and read the appropriate operating instructions.

DVD player (not supplied)

Rear panel of this main unit

Audio cable (not supplied)

1 Connect the ex ternal equipment. 2 Press [EXT-IN] to select “AUX”. 3 Play the external equipment.

Note:

• Components and cables are sold separately.

• If you want to connect equipment other than those described, refer to the audio dealer.

• Sound distortion can occur when you use an adaptor.

External equipment

USB

You can connect and play MP3 tracks from your USB device. Do not use a USB extension cable. The system cannot recognise USB device connected through a cable.

1 Connect the USB device to the USB por t. 2 Press [EXT-IN] to select “USB” and then press

[4/9] to start playback.

Stop playback

Press [8] during playback. “RESUME” is shown. Press [4/9] to continue playback from the start of the track. OR Press [8] two times to stop the playback fully.

For other operations, refer to “Disc”.

Compatible USB devices which are defined as mass storage class:

• USB devices that support bulk-only transfer.

• USB devices that support USB 2.0 full speed.

Note:

• Files are defined as tracks and folders are defined as albums.

• Track must have the extension “.mp3” or “.MP3”.

• This system can access up to:

– 255 albums (including root folder) – 2500 tracks – 999 tracks in one album

• CBI (Control/Bulk/Interrupt) is not supported.

• NTFS file system is not supported (only FAT 12/16/32 file system is supported).

• Some files can fail to work because of the sector size.

Sound effects

Changing the sound quality

1 Press [SOUND] to select a sound effect. 2 Press [Y, U] to select the desired setting.

BASS

-4 to +4

TREBLE

SURROUND

“ON SURROUND” or “OFF SURROUND”

INPUT LEVEL (For AUX source)

“NORMAL” or “HIGH”

By main unit only

Turn [BASS] or [TREBLE] to adjust the level.

Preset EQ

Press [PRESET EQ] to select a setting.

HEAVY Adds punch to rock

SOFT For background music

CLEAR Clarifies higher frequencies

VOCAL Adds gloss to vocal

FLAT Cancels the sound effect

D.BASS

This function lets you enjoy a powerful bass effect.

Press [D.BASS] to select “ON D.BASS” or “OFF D.BASS”.

1 Press [PROGRAM] in the stop mode.

“PGM” is shown.

2 Press [R, T] to select the desired album. 3 Press [6] and then press the numeric buttons to

select the desired track.

4 Press [OK].

Do steps 2 through 4 again to program other tracks.

5 Press [4/9] to start playback.

Cancel program mode

Press [PROGRAM] in the stop mode.

Check program contents

Press [2] or [6] when “PGM” is shown in the stop mode.

Clear the last track

Press [DEL] in the stop mode.

Clear all programmed tracks

Press [8] in the stop mode. “CLR ALL” is shown. Within 5 seconds, press [8] again.

Note:

The program memory is cleared when you open the disc tray.

Note on disc

• This system can play CD-R/RW with CD-DA or MP3 format content.

• Some CD-R/RW cannot be played because of the condition of the recording.

• MP3 files are defined as tracks and folders are defined as albums.

• This system can access up to:

– CD-DA: 99 tracks – MP3: 999 tracks, 255 albums (including root folder)

and 20 sessions.

• Disc must conform to ISO9660 level 1 or 2 (except for extended formats).

• Recordings will not necessarily be played in the order you recorded them.

DAB/DAB+

This system support DAB in “BAND III” bands.

DAB operation

1 Press [R ADIO] to select “DAB/DAB+”.

If you select DAB/DAB+ for the first time, the system will start the “DAB AUTO SCAN” procedure.

2 Press [3] or [5] to select the frequency of the

required station.

DAB auto scan

1 Press [R ADIO MENU] to select “AUTOSCAN” and

then press [OK ].

“START?” is shown.

2 Press [OK].

“DAB AUTO SCAN” is shown.

Note:

If no station is detected, “SCAN FAILED” is shown.

Memory presetting

20 channels can be preset.

1 Press [3] or [ 5] to select a station. 2 Press [PROGRAM]. 3 Press the numeric buttons to select a preset

number.

Do steps 1 through 3 again to preset more stations.

Note:

• A station previously stored is overwritten when another station is stored in the same preset number.

• You cannot preset a station when the station is not broadcasting or when you have selected a secondary service.

• Previous station memory is cleared during auto scan.

DAB signal quality

When adjusting the antenna, you can check the reception quality.

1 Press [R ADIO MENU] to select “SIGNAL

QUALITY”.

2 Press [Y, U] to select frequency.

Frequency block

Frequency

Reception quality 0 (poor) to 8 (excellent)

Troubleshooting

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated do not solve the problem, consult your dealer for instructions.

Common problems

No operations can be done with the remote control.

• Examine that the battery is installed correctly.

Sound is distorted or no sound.

• Adjust the volume of the system.

• Switch off the system, determine and correct the cause, then switch the system on again. It can be caused by straining of the speakers through excessive volume or power, and when using the system in a hot environment.

A “humming” sound can be heard during playback.

• An AC mains lead or fluorescent light is near the cables. Keep other appliances and cords away from the cables of this system.

Disc

Display not shown correctly. Playback does not start.

• You have not put in the disc correctly. Put it in correctly.

• Disc is dirty. Clean the disc.

• Replace the disc if it is scratched, warped, or non-standard.

• There is condensation. Let the system dry for 1 to 2 hours.

DAB

DAB reception is poor.

• Keep the antenna away from computers, TVs, other cables and cords.

• Use an outdoor antenna.

Radio

A beat sound is heard.

• Switch off the TV or move it away from the system.

• Set to “BP 1” or “BP 2” when in AM tuner mode.

iPod/iPhone

You cannot switch on the iPod/iPhone.

• Examine that the battery of the iPod/iPhone is not depleted.

• Switch off the iPod/iPhone and the system before you connect the iPod/iPhone. Connect the iPod/iPhone and try again.

No sound.

• Switch off the iPod/iPhone and remove from the system. Connect the iPod/iPhone to the system and switch it on and play it again.

USB

The USB device or the contents in it cannot be read.

• The format of the USB device or the contents in it is/are not compatible with the system.

• USB devices with storage capacity of more than 32 GB cannot work in some conditions.

Slow operation of the USB device.

• Large content size or large memory USB device takes longer time to read.

The elapsed time shown is different from the actual play time.

• Transfer the data to another USB device or backup the data and reformat the USB device.

Main unit displays

“NO PLAY”

• Examine the content. You can only play supported format.

• If there are more than 255 albums or folders (audio and non-audio), some of the MP3 files in these albums cannot be read and played. Transfer these music albums to another USB device. Alternatively, reformat the USB device and save these music albums prior to saving the other non-audio folders.

“F61” or “F76”

• There is a power supply problem.

“ERROR”

• An incorrect operation was done. Read the instructions and try again.

“NOT MP3/ERROR”

• An unsupported MP3 format. The system will skip that track and play the next one.

“VBR–”

• The system cannot show the remaining play time for variable bit rate (VBR) tracks.

“NODEVICE”

• The USB device, iPod/iPhone is not connected. Examine the connection.

“NO DISC”

• You have not put in a disc or put in a disc that the system cannot play.

“NOT SUPPORT”

• You have inserted an iPod/iPhone that cannot be played.

• Switch off the iPod/iPhone and the system before you connect the iPod/iPhone. Connect the iPod/iPhone and try again.

“--:--”

• You connected the AC mains lead for the first time or there was a power failure recently. Set the clock.

“ADJUST CLOCK”

• Clock is not set. Adjust the clock accordingly.

“ADJUST TIMER”

• Play timer is not set. Adjust the play timer accordingly.

“PGM FULL”

• The number of programmed tracks is more than 24.

“DATA”

• Data broadcast being received over the DAB broadcast signal, cannot be used on this system.

“SCRAMBLED”

• The broadcast station being received cannot be accessed.

“NO SERVICE”

• The station is currently not broadcasting.

“NO SIGNAL”

• This station cannot be received. Check your antenna.

“SCAN FAILED”

• Stations are not receivable. Check your antenna and try auto scanning.

Memory reset (Initialisation)

Reset the memory when the following situations occur:

• There is no response when buttons are pressed.

• You want to clear and reset the memory contents.

1 Disconnect the AC mains lead.

Wait 3 minutes before you continue with step 2.

2 While you press and hold [1] on the main unit,

connect the AC mains lead again.

“– – – – – – – –” is shown.

3 Release [1].

All the settings are set back to the factory preset. It is necessary to set the memory items again.

Remote control code

When other Panasonic equipment responds to the remote control of this system, change the remote control code for this system.

To set the code to “REMOTE 2”

1 Press and hold [CD] on the main unit and [2] on

the remote control until “REMOTE 2” is shown.

2 Press and hold [OK] and [2] for a minimum of

4 seconds.

To set the code to “REMOTE 1”

1 Press and hold [CD] on the main unit and [1] on

the remote control until “REMOTE 1” is shown.

2 Press and hold [OK] and [1] for a minimum of

4 seconds.

SC-PMX5_RQT9674-B_DBGN.indd 2SC-PMX5_RQT9674-B_DBGN.indd 2 12/22/2011 9:31:41 AM12/22/2011 9:31:41 AM
