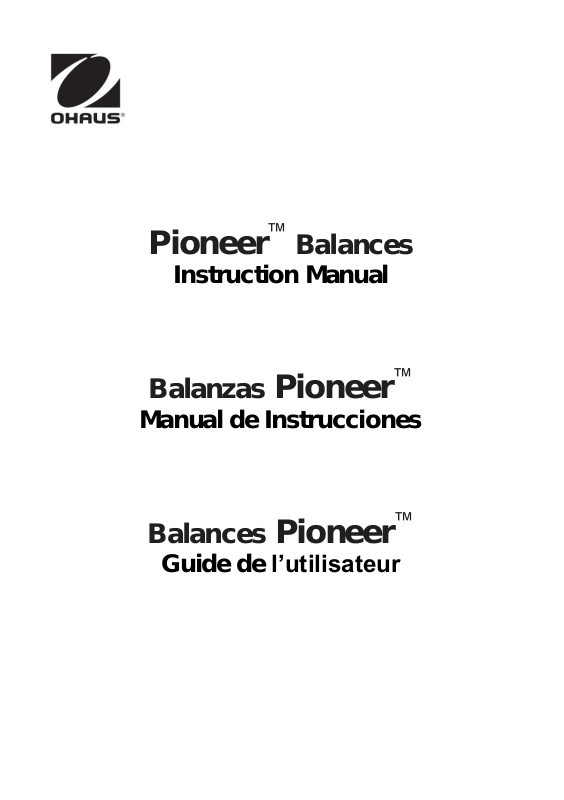

Ohaus PX523, PX84/E, PX4202, PX523/E, PX85 Instruction Manual

Pioneer

™

Balances

Instruction Manual

Balanzas Pioneer

™

Manual de Instrucciones

Balances Pioneer

™

Guide de l’utilisateur

EN-1 Pioneer

™

1. INTRODUCTION

1.1 Safety Precautions

Please follow these safety precautions:

• Verify that the AC Adapter input voltage matches the local AC power supply.

• Use the balance only in dry locations.

• Do not operate the balance in hostile environments.

• Do not drop loads on the platform.

• Do not place the balance upside down on the platform or platform mounting cone.

• Service should be performed only by authorized personnel.

1.2 Controls

No

Yes

Button:

Functions:

O/T - On

Short Press:

Turns balance on, sets display to zero

Off

Long Press:

Turns balance off

Yes

Short press (Menu):

Selects or accepts setting

Unit

Short Press:

Steps through active units and modes

Menu

Long Press:

Enters Menu

No

Short press (Menu):

Steps through available settings

Long press (Menu):

Exit menu or abort out of menu item

Print

Short Press:

Sends data

Cal

Long Press:

Initiates Span Calibration

2. INSTALLATION

2.1 Package Contents

0.1g and 0.01g Models 0.001g and 0.0001g Models

Instruction Manual Instruction Manual

Power Adapter Power Adapter

Balance Balance

Pan Pan

Pan Support Glass Doors and Panels

Wind-Ring (InCal models only) Warranty Card

Warranty Card

Pioneer

™

EN-2

2.2 Install Components

0.1g and 0.01g Models

1) Install Wind-Ring (InCal only)

2) Install Pan Support

3) Install Pan

0.001g and 0.0001g Models

1) Install Side Doors - Insert fully into Top Frame then down over retainer.

2) Install Panels - Insert bottom edge in groove then press until locked.

3) Install Top Door

4) Install Pan

EN-3 Pioneer

™

2.3 Level Balance

Level the balance on a firm, steady surface. Avoid locations with excessive air current, vibrations, heat sources

or rapid temperature changes.

2.4 Connect Power

2.5 Initial Calibration

Without InCal – Power on the balance by pressing 0/T. Press and hold Print/Cal until [CAL] is displayed.

The display flashes the calibration mass needed. To select the alternate calibration weight press No. Put

the calibration mass on the pan. The display flashes [BUSY], then [CLEAr Pan]. Remove the mass. When

calibration is complete, [DONE] is displayed.

InCal – Press and hold Print/Cal until [CAL] is displayed. The display flashes [BUSY], when calibration is

complete, [DONE] is displayed.

Note: Calibrations should be performed after a warm up time of 60 minutes.

3. OPERATION

Count, APW Optimization, Percentage, Dynamic, Density or specific units of measure must be activated in the

MODE or UNIT menus if they are not initially available.

3.1 Weighing Mode

Repeatedly press Unit until the desired unit icon is displayed.

Press 0/T to zero the balance and then place objects to be weighed on the pan.

3.2 Count Mode – Use the Count mode to count parts of uniform weight.

To access Count Mode, press Unit until the display shows [Count].

Establish an Average Piece Weight (APW) – Each time a new type of part is to be counted, the nominal weight of

one piece (APW) must be established using a small quantity of pieces.

With [CLr.APwW] displayed, press No to use the previously saved APW, or press Yes to establish a new APW. The

display indicates the number of pieces to be used to establish the new APW. If a different sample size is preferred,

press No until the desired sample size is displayed (5, 10, 20, 50 or 100). Put the specified number of pieces on

the pan. Press Yes to accept new APW or No to abort.

Count – Place the quantity to be counted on the pan.

For use with CSA Certified (or

equivalent approved) power

source, which must have a

limited circuit output.

Pioneer

™

EN-4

APW Optimization – Since the weight of each piece varies slightly, APW Optimization may be used to increase the

accuracy of the count. The balance automatically recalculates the Average Piece Weight when the number of parts

on the pan is less than three times the original sample size. The display shows [APwW.OPT] each time the APW is

optimized.

3.3 Percent Mode – Use this mode to measure the weight of a sample as a percentage of a reference weight.

To access the Percent Mode, press Unit until the display shows [PErCEnt].

Establish a new Reference Weight - With Clear reference [CLr.rEF] displayed, Press No to use the previously

saved Reference Weight. Press Yes to establish a new Reference Weight. Put the reference sample on the pan

and press Yes to accept or No to abort.

Percent – Place the object(s) to be compared to the reference weight on the pan.

3.4 Dynamic Mode – Use this mode to weigh an unstable load, such as a moving animal.

To access the Dynamic mode, press Unit until the display shows [Dyn].

Two different start/reset modes can be selected: Manual (start and stop via key press), Automatic (start and stop

automatically).

The default Averaging Time is 5s.

After accessing this mode, the two “0/T” buttons will have different functions as shown in below picture.

Set up Averaging Time-The default Averaging Time is 5s.The initial display shows [t 5].

The time “t5” is blinking. Press No to scroll the time selection 5, 10, 15, 20 and 30. The time unit is s (second).

Press the right 0/T button to select the desired option. After time is set, dynamic weighing will begin.

Begin Dynamic Manual mode-If there is no weight (less than 10d), the display shows [PUt] and [wWeigHt]

alternately. Place object(s) on weighing pan (more than 10d), the display shows the current weight value. Press

the left 0/T button to zero or tare if needed. Press the right 0/T button to start the dynamic weighing. The count

down is shown on the display, eg: “t 5”, “t 4”,… “t 1”. Once the averaging is finished, the result is displayed

(blinking).

Press the right 0/T button to stop the blinking and go back to ready status.

Begin Dynamic Auto mode-If there is no weight (less than 10d), the display shows [PUt] and [weigHt] alternately.

Place object(s) on weighing pan (more than 10d); the dynamic weighing will be started automatically. The count

down is shown on the display, eg: “t 5”, “t 4”,… “t 1”. Once the averaging is finished, the result is displayed

(blinking).

Remove the object(s), or press the right 0/T button, to clear the result and go back to ready status.

3.5 Density Mode -- Use this mode to determine an object’s density.

A density determination kit is needed to use this mode. For liquid density determination, one more sinker is

needed.

To access the Density mode, press Unit until the display shows [Density].

After accessing this mode, the two “0/T” buttons will have different functions as shown in below picture.

Begin Density Solid mode-The display shows [Air] and [weigHt] alternately. Place object(s) on the density

determination kit (in the air), the display shows the weight value.

Press the right 0/T button to accept the weight as air weight.

The display shows [Liguid] and [wWeigHt] alternately. Place object(s) on the density determination kit (in the

liquid), please make sure that the entire object is submerged in the liquid, the display shows the weight value.

EN-5 Pioneer

™

Press the right 0/T button to accept the weight as liquid weight. The density is calculated and result and [gCC] are

shown alternately.

Press the right 0/T button to stop the blinking and go back to ready status.

Begin Density Liquid mode-The display shows [Air] and [wWeigHt] alternately. Place the sinker on the on density

determination kit, the display shows the weight value.

Press the right 0/T button to accept the weight as air weight.

The display shows [Liguid] and [wWeigHt] alternately. Place the sinker on the density determination kit (in the

liquid), please make sure that the entire sinker is submerged in the liquid, the display shows the weight value.

Press the right 0/T button to accept the weight as liquid weight. The density is calculated and result and [gCC] are shown

alternately.

Press the right 0/T button to stop the blinking and go back to ready status.

3.6 Weigh Below Feature

Remove Weigh Below Cover

Attach wire or string to Hook

Suspend sample

4. SETTINGS

4.1 Menu Navigation

.CAL.

InCal*

SPAN

LINEAR**

.SETUP.

AZSM

FILTER

A.TARE

GRAD

GBL RST

END.SET

.MODE.

COUNT

APWOPT

PERCENT

END.MOD

.UNIT.

END.UNIT

GRAM

MILLIGRAM

KILOGRAM

OUNCE

NOT ALL

UNITS

SHOWN

.PRINT.

OUT STA

A. PRINT

CONTENT

LINE FO

END.PRT

.RS232.

BAUD

PARITY

HAND.SH

END.R232

.LOC.

CAL

SETUP

MODE

PRINT

RS232

END.LOCK

.END.

NO

YES

UNIT

POUND

CAL ADJ

* InCal models only

** Not available in InCal models

END.CAL

CUSTOM

NOT ALL

UNITS SHOWN

COUNT

PERCENT

DYN

DENSITY

END.MOD

Pioneer

™

EN-6

The mode menu has the following sub-menus:

Note: * Use No key to change the temperature value

Enter Menu – When the balance is on, press and hold Unit/Menu until [mMENU] appears.

Release the button and the Calibrate [.CAL.] menu will display.

Menu Navigation – Select menus, menu items and settings through use of the Yes and No buttons.

Solid arrows point to the content displayed when Yes is pressed, Dashed lines when No is pressed.

Changing Settings – To select the displayed Setting, press Yes. To move to the next Setting, press No.

Exit Menu – When [.END.] is displayed, press Yes to exit the menu function, or press No to return to the Cal menu.

Note: Press and hold No at any time to exit quickly.

4.2 Calibration Menu [.CAL.]

InCal or Span calibration should be performed daily and when the room temperature changes.

InCal [InCal] calibrates the balance using an internal mass.

Span Calibration [SpaN] uses two weight values: zero and a weight between 50% and 100% of the capacity of the

balance.

Linearity calibration [LIN] uses three weight values zero, 50% of capacity and full capacity. Generally this

calibration is not required unless testing shows that the linearity error exceeds the Linearity tolerance in the

Specification table. (Not available in InCal models)

Calibration Adjust [CAL Adj] allows adjustment to the result of the internal calibration by +/- 99 divisions.

(InCal models only)

4.3 Setup Menu [.setup.]

Automatic Zero-Setting [azsmM] – Environmental changes can cause the display to drift. The Automatic Zero-

Setting Mechanism (AZSM) is designed to keep the balance set at zero, despite these slight changes. (OFF,

SET.5d, SET 1d, SET 2d, SET 5d)

Filter [filter] – Use the low setting (SET LO) when environmental disturbances are not present. Use the

medium setting (SET MED) for normal environments. Use the high setting (SET HI) when vibrations or air currents

are present.

Auto Tare [A-tare] – The initial item placed on the balance is assumed to be a container so it is zeroed out. The

next item is then weighed. When the pan is cleared the balance resets, waiting for a container. (SET OFF, SET

ON)

.MODE.

COUNT

PERCENT

DYN

DENSITY

SET ON

END.MOD

SET OFF

APWOPT

SET ON

SET OFF

SET ON

SET OFF

SET ON

SET OFF

AUTO

SET ON

SET OFF

SET ON

SET OFF

SOLID

WATER

T20.0C*

OTHER

01.00000g/cc

SINKER

LIQUID

010.000g/cm

EN-7 Pioneer

™

Grad [Grad] – Select the readability displayed. Reducing the readability may be needed for approval. (SET 1d,

SET [1]d, SET 10d)

Global Reset [Gbl rst] – Resets all settings to factory default values. (RESET)

4.4 Mode Menu [.mMode.]

Count Mode [Count] - [SET ON or OFF]

Average Piece Weight (APW) Optimization [aPwW.OPT] - (SET ON, SET OFF)

Percent Mode [PerCent] - (SET ON, SET OFF)

Dynamic Mode [Dyn] – [SET ON, OFF] – [Auto] – [SET ON, OFF]

Density Mode [Density] - [SET ON, OFF] - [Solid, Liquid] – [Water, Other] – [T 20.0C] – [01.00000] – [Sinker] –

[010.000 ml]

When [T 20.0C] – [01.00000], [010.000] occur, use No to change the number and Yes to accept the change.

4.5 Unit Menu [.Unit.]

The Unit menu is used to enable or disable a specific unit. (SET ON, SET OFF) The unit is indicated by a small

character next to Unit in the display (g = grams). The default setting is Grams SET ON and all other units SET

OFF.

T-Units – When unit [t] displays; press Yes to show the T-Unit settings; SET OFF, SET TT (Taiwan Tael), SET TH

(Hong Kong Tael), SET TS (Singapore Tael), SET TO (Tola) or SET TI (Tical).

M-Units – When unit [m] is displayed, press Yes to show the M-Unit settings; SET OFF, SET MO (Momme) or SET

ME (Mesghal).

Custom Unit – Custom Unit (C) is used to create a unit of measure not provided with the balance. The Custom Unit

is defined by a factor, a multiplier (E) and a least significant digit (LSD). The balance will use this to convert grams

to a custom unit of measure. (Example: 1 gram = 0.257206 Avoirdupois Dram, using a 4100g x 0.01g balance)

To create a custom unit, press Yes when unit [c] is displayed.

Factor – The Factor (F) is a value from 0.1000000 to 1.999999. When the Factor is displayed, the first digit is

flashing. Press Yes to accept its value and activate the next digit, or No to edit. When editing, press No until the

desired value appears, then press Yes to accept. Repeat until all digits have been accepted. When the Factor

flashes on the display, press Yes to accept or No to re-edit. (Example: F = 0.257206)

Multiplier (E) – The settings are, [E 0] (Fx1), [E 1] (Fx10), [E 2] (Fx100), [E 3] (Fx1000), [E-3] (F/1000),

[E-2] (F/100), and [E-1] (F/10). Press No to display the next setting, Yes to accept. (Example: E = 0).

Note: The multiplier selections are limited when the capacity in grams is exceeded.

LSD – The Least Significant Digit (LSD) is the number of displayed divisions (d) by which the weight is

incremented. The values are 1d, 2d, 5d, 10d, 100d or 0.5d. Press No to go to the next setting, press Yes to accept.

(Example LSD = 1d) Note: LSD options are limited if the readability in grams is exceeded.

The example custom unit will display [0.26 C] when 1g is placed on the pan.

4.6 Print Menu [.Print.]

Output Stable [Out.Stab] – Data will only be sent when the Stable indicator is on. This setting works with manual

button pressing or continuous and interval Auto Print. (SET ON, OFF)

Auto Print [A.Print] – Data will be continuously sent when [Continu] is set. Interval [Inter] sends data every 1

to 3600 seconds. When Stable [Stable] will send data when the balance detects a new stable reading. This can

be a weight value only [LOad] or it can also include a stable zero [L+zero]. [OFF] disables automatic printing.

Content [CONteNt] – The content in the data transmission can be modified. Each of the following settings can be

set on or off. Number Only [numMber] will only send the numeric result. Balance ID [Bal. ID] will add the Balance

serial number for traceability purposes. Reference [refer] will add reference information relevant to the current

mode. GLP [GLP] will send additional items to allow proper documentation of laboratory results.

Pioneer

™

EN-8

Line Format [LinE Fo] – Single line format [single] will put all the data in one line separating each output with a

comma (,). Multi line format [mMulti] will put each data output on a new line. Multi +4 [mM-4LF] will add 4 line

spaces between each output.

4.7 RS232 Menu [.rs232.]

Baud [BAUD] – The RS232 baud rate can be set to 600, 1200, 2400, 4800, 9600 and 19200.

Parity [Parity] – Parity can be sent to 7 bits-even parity [7 eveN], 7bits-odd parity [7 odd],

7bits-no parity [7 No] or 8bit-no parity [8 No].

Handshake [Handsh] – Handshake can be set to off [Off], X on – X off [on-off], or hardware [HardwWr].

4.8 Lock Menu [.LOC.]

When a Lock Menu item is SET ON the indicated menu cannot be changed.

[Loc Cal] – Calibration, [Loc SEt] – Setup, [Loc.mMod] – Mode, [Loc.Unit] – Unit,

[Loc Prt] – Print, [Loc 232] – RS232.

4.9 Sealing Access to the Balance Settings

The Menu Lock switch prevents changes to the Lock Menu. The switch can be secured using paper seals, wire

seals or plastic ties.

Un-Locked

Locked with Plastic Tie

Multi Line Format with 4 line feeds

Line Feed-2

Line Feed-3

Line Feed-4

User ID: ………………........

GLP (ON)

Bal ID: 123456789

Balance ID (ON)

Proj ID: ……………………

GLP (ON)

Time: ……:…….:…….

GLP (ON)

Date: …../ ….. / …..

GLP (ON)

120.01 g

Result

EN-9 Pioneer

™

5.0 MAINTENANCE

5.1 Troubleshooting

Symptom

Possible Cause

Remedy

Cannot turn on

No power to balance

Verify connections and voltage.

Poor accuracy

Improper calibration

Unstable environment

Perform calibration

Move balance to suitable location

Cannot calibrate

Unstable environment

Incorrect calibration masses

Move the balance to suitable location

Use correct calibration masses

Cannot access mode

Mode not enabled

Enter menu and enable mode

Cannot access unit

Units not enabled

Enter menu and enable units

Err 5

Average Piece Weight too small

Add additional samples

Err 7.0

Time out

Err 8.1

Pan has load during power on

Remove weight from pan and re-zero.

Err 8.2

Pan was removed prior to power on

Install pan and re-zero.

Err 8.3

Weight on pan exceeds capacity

Remove weight from the pan

Err 8.4

Pan was removed during weighing

Re-install pan

Err 9.5

Factory calibration data corrupted

Contact the authorized dealer

Err 9.8

Factory calibration data corrupted

Perform calibration

Error 53

EEPROM Checksum error

Contact the authorized dealer

REF Err

Reference Weight is too small

Add additional samples

LOWREF

Reference Weight is too low for accurate

parts counting or percent weighing.

Add additional samples or continue to weigh

with less accurate results.

5.2 Service Information

If the troubleshooting section does not resolve or describe your problem, contact your authorized Ohaus service

agent. Please visit our web site, www.ohaus.com to locate the Ohaus office nearest you.

5.3 Accessories

Security device 80850000

Auxiliary Display 80251396

Density Determination Kit 80253884 (0.1mg and 1mg models only)

Printer – Thermal Contact Ohaus

Printer - Impact Contact Ohaus

Cable Kit – Thermal Printer Contact Ohaus

Cable Kit - Impact Printer Contact Ohaus

Software Winwedge 80850080

Pioneer

™

EN-10

6. TECHNICAL DATA

Ambient conditions – The technical data is valid under the following ambient conditions:

Ambient temperature: 10° C to 30° C

Relative humidity: 15 % to 80 % at 31°C non-condensing, decreasing linearly to 50% at 40° C

Height above sea level: Up to 2000 m

Operability is assured at ambient temperatures between 5° C and 40° C

Power – AC adapter, Balance power input 8-14.5 VAC, 50/60Hz 4VA or 8-20 VDC, 4W

Protection – Protected against dust and water, Pollution degree: 2, Installation category: Class II

6.1 Drawings

0.01g and 0.1g Models

0.0001g and 0.001g Models

EN-11 Pioneer

™

6.2 Specifications

Excal Model

PA84

PA124

PA224

PA163

PA323

PA523

Incal Model

PA84C

PA124C

PA224C

PA163C

PA323C

PA523C

Capacity (g)

85

120

220

162

320

520

Readability d

0.1mg

1mg

Repeatability

(Std Dev)

0.1mg

1mg

Linearity

0.2mg

0.3mg

2mg

Tare Range

To capacity by subtraction

Stabilization Time

3 seconds

Cal Weight-Span

50,80g

50,100g

100,200g

100,150g

200g,300g

200,500g

Cal Weight-Linearity

20/60g

50/100g

100/200g

100/150g

150/300g

200/500g

Pan Size

3.54 in / 9 cm diameter

4.72 in / 12 cm diameter

Net Weight

10.1 lb / 4.6kg (11.2lb/5.2kg for Incal Model)

Excal Model

PA1602

PA2202

PA3202

PA4202

PA2201

PA4201

Incal Model

PA1602C

PA2202C

PA3202C

PA4202C

PA2201C

PA4201C

Capacity (g)

1620

2200

3200

4200

2200

4200

Readability d

10mg

100mg

Repeatability

(Std Dev)

10mg

100mg

Linearity

20mg

100mg

Tare Range

To capacity by subtraction

Stabilization Time

3 seconds

Cal Weight-Span

1,1.5kg

1,2kg

2,3kg

2,4kg

1,2kg

2,4kg

Cal Weight-Linearity

1/1.5kg

1/2kg

1.5/3kg

2/4kg

1/2kg

2/kg

Pan Size

7.1 in / 18 cm diameter

Net Weight

10 lb / 4.5 kg(11.1 lb / 5.1 kg for Incal Model)

Pioneer

™

EN-12

6.3 Communication

6.3.1 Commands

The RS232 Interface allows a computer to control the balance as well as receiving data such as the displayed

weight. The balance will return “ES” for invalid commands.

Command

Function

IP

Immediate Print of displayed weight.

P

Print displayed weight (uses Stable ON/OFF menu settings).

CP

Continuous Print.

xP

Interval Print x = Print Interval (1-3600 sec)

T

Same as pressing Zero Key.

ON

Turns balance ON.

OFF

Turns balance OFF.

PSN

Show Serial Number.

PV

Version: Print product name, software revision and LFT ON (if LFT is set ON).

PU

Print current mode/unit

x#

Set PC ref wt (x) in grams

P#

Print PC ref wt

x%

Set % ref wt (x) in grams

P%

Print % ref wt

6.3.2 RS232 (DB9) Pin Connections

Pin 2: Balance transmit line (TxD)

Pin 3: Balance receive line (RxD)

Pin 5: Ground signal (GND)

Pin 7: Clear to send (hardware handshake) (CTS)

Pin 8: Request to send (hardware handshake) (RTS)

CTS

RTS

5

9

1

6

RxD

TxD

GND
