NordicTrack NCTL11991 User Manual

0 (0)

Model No. NCTL11991

Serial No.

Find the serial number in the location shown below. Write the serial number in the space above for reference.

Serial Number Decal

If you require SERVICE for this product, please call

SEARS: 1-800-4 MY HOME

(469-4663)

If you are MISSING PARTS or require INFORMATION on how

to operate this product, call

1-888-936-ICON

(4266)

CAUTION

Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference.

USER'S MANUAL

Visit our website at

www.nordictrack.com

TABLE OF CONTENTS

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .



. . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .



. . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.

. . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .



. . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .



. . . . . . . . . .8

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. .

. . . .25

TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.

. . . . . . . . . . . . . .26

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.

. . . . . . . . . . .28

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .



. . . . . . . . . . . . . . . . . . . .30

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

B

ack Cover

Note: An EXPLODED DRAWING is attached in the center of this manual.

LIMITED WARRANTY

ICON OF CANADA INC., (ICON), warrants

this product to be free

from defects in workmanship and material,

under normal use and service conditions,

for a period of one year

from the date of purchase. This warranty ex-

tends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All products for which warranty claim is made

must be received by ICON

at one of its authorised service centers with all freight and other transportation

charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorised by ICON. This

warranty does not extend

to any product or damage to a product caused by or attributable to freight damage,

abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorised service center, to

products used for commercial or rental purposes, or to products used as store display models. No other warranty

beyond that specifically set forth above is authorised by ICON.



ICON is not responsible or

liable for indirect, special or consequential

damages arising out of or in connection

with the use or performance

of the product or damages with respect to any

economic loss, loss of property, loss

of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some provinces do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you. The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from province to province or so specified by the retailer of your equipment.

ICON OF CANADA, 900 de l’Industrie, St. Jerôme, QC J7Y 4B8

2

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill.

1.It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

2.Use the treadmill only as described in this manual.

3.Place the treadmill on a level surface, with at least eight feet (2 m) of clearance behind it. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

4.Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

5.Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

6.Keep children under the age of 12 and pets away from the treadmill at all times.

7.The treadmill should not be used by persons weighing more than 275 pounds (124 kgs).

8.Never allow more than one person on the treadmill at a time.

9.Wear appropriate exercise clothing when

using the treadmill. Do not wear loose clothing that could become caught in the treadmill. Athletic support clothes are recommended for

both men and women.

Always wear athletic

shoes. Never

use the treadmill with bare feet,

wearing only

stockings, or in sandals.



10.When connecting the power cord (see page 8), plug the power cord into a surge protector (not included) and plug the surge protector into a grounded circuit capable of carrying 15 amps or more. No other appliance should be on the same circuit. Do not use an extension cord.

11.Use only a CUL-listed surge protector, rated

at 15 amps, with a 14-gauge cord of five feet or less in length. Do not use an extension

cord.

12.Keep the power cord and the surge protector away from heated surfaces.

13.Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BEFORE YOU BEGIN on page 5 if the treadmill is not working properly.)

14.Never start the treadmill while you are standing on the walking belt. Always hold the handrails while using the treadmill.

15.The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.

16.The pulse sensor is not a medical device. Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

17.Using hand weights and not holding the handrails may compromise your ability to maintain your balance. Hand weights should be used only by experienced users.

18.Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord and move the on/off switch to the off position when the treadmill is not in use. (See the drawing on page 5 for the location of the on/off switch.)

19.Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADMILL on page 25.) You

must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.

20.Do not change the incline of the treadmill by placing objects under the treadmill.

21.When folding or moving the treadmill, make

sure that the storage latch is fully closed.

3

22.When using iFIT.com CD’s and videos, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed and/or incline changes. In some instances, the speed and/or incline may change before the personal trainer describes the change.

23.When using iFIT.com CD’s and videos, you can manually override the speed and incline settings at any time by pressing the speed

and incline buttons. However, when the next “chirp” is heard, the speed and/or incline will change to the next settings of the CD or video program.

24.Always remove iFIT.com CD’s and videos from your CD player or VCR when you are not using them.

25.Inspect and tighten all parts of the treadmill regularly.

26.Never insert or drop any object into any opening.

27.DANGER: Always unplug the power cord immediately after use, before cleaning

the treadmill, and before performing the maintenance and adjustment procedures de-

scribed in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual

should be performed by an authorized service representative only.

28.This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decals shown below have been placed on your treadmill. If the decal is missing or illegible, please call our Customer Service Department, toll-free, to order a free replacement decal (see ORDERING REPLACEMENT PARTS on the back cover). Apply the decal in the location shown.

Note: This decal is shown at 38% of actual size.

4

BEFORE YOU BEGIN

Thank you for selecting the revolutionary NordicTrack

®

1-888-936-4266, Monday through Friday, 8 a.m. until







EXP2000 treadmill. The EXP2000 treadmill combines



6:30 p.m. Eastern Standard Time (excluding holidays).

advanced technology with innovative design to help



To help us assist you, please note the product model

you get the most from your exercise program in the



number and serial number before calling. The model

convenience of your home. And when you’re not exer-



number of the treadmill is NCTL11991. The serial

cising, the unique EXP2000 can be folded up, requiring



number can be found on a decal attached to the tread-

less than half the floor space of other treadmills.



mill (see the front cover of this manual for the location).

For your benefit, read this manual carefully before



Before reading further, please familiarize yourself with

using the treadmill

. If you have additional questions,



the parts that are labeled in the drawing below.

please call our Customer Service Department toll-free



Book Holder

Water Bottle Holder*





Hand Weights





Console





Handrail



Pulse Sensor







Key/Clip



LEFT SIDE





Lock Knob



RIGHT SIDE

Walking Belt

On/Off Switch





Circuit Breaker

Power Cord

Foot Rail

Cushioned Walking Platform

Rear Roller

*No water bottle is included.

Adjustment Bolts



5

ASSEMBLY

Assembly requires two people.

Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed.

Assembly requires the included allen wrench

and your own phillips screwdriver

and wire cutters

.

Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

1. With the help of a second person, carefully raise Uprights



1





(69) to the position shown.















While a second person tips the treadmill to one side and









holds it, insert one of the Extension Legs (102) into the



69



treadmill as shown. Make sure that the Extension Leg is









turned so the Base Pad (99) is on the bottom.









Next, tip the treadmill to the other side

and insert the other







Extension Leg (not shown) in the same way. L

ower the





69

side of the treadmill so that both Extension Legs (102)







are resting flat on the floor.



















102











99

2. Press the Lock Knob Sleeve (70) into the left Upright (69).

2















Make sure that the Lock Pin Collar (72) and the Spring









(71) are on the Lock Pin. Insert the Lock Pin into the Lock







Knob Sleeve (70) and the left Upright (69). Next, press







the Lock Knob Spacer (117) onto left Upright. Tighten the





69

Lock Knob (68) onto the Lock Pin.















68















70









117

71









72





















74

3. With the help of a second person, tip the Uprights (69)

3





down as shown.

Make sure that the Extension Legs















(102) remain in the Uprights.









Attach each Extension Leg (102) with two Screws (80) as



99



shown.



















With the help of a second person, carefully tip the





Frame











Uprights (69) back to the vertical position.







69







69



Note: One replacement Base Pad (99) may be included.





80







Use the Base Pad to replace any Base Pad that becomes





80

102

worn.





99









102



6



















4. Place one of the Handrail Spacers (65) on the right



4

Cutout

A





Upright (69) as shown, with the cutout toward the tread-





















mill (see inset drawing A). Pull the Upright Wire Harness





81







(98) up through the Handrail Spacer. Place the other















Handrail Spacer on the left Upright (not shown).







66



69









































Have a second person hold the Handrails (66) near the













65

Uprights (69) as shown. Connect the Upright Wire





98

69

B

98



Harness (98) to the wires extending from the right











Handrail. Insert the connectors and the Wire Harness















(98) into the hole in the Console Base (81) (see inset















drawing B).























Be careful not to pinch the Upright Wire Harness (98) as





65





















81

you set the Handrails (66) on the Spacers (65).



























5. Insert two Handrail Bushings (75) into the right Upright



5











(69). Turn the Handrail Bushings so they fit against the



























Upright with the thick sides of the Bushings facing the









66





center of the treadmill as shown in the inset drawing.



























Insert two Handrail Bolts (78) with Handrail Washers







65













69





(77) into the Handrail Bushings (75), the right Upright













(69), and the right Handrail Spacer (65). Lift up the right







75





Handrail (66) to align the Bolts with the holes in the











77

Thick

Handrail. Next, thread the Bolts into the Handrail (66).











Side













Do not tighten the Bolts yet.



















Attach the left Handrail (not shown) in the same way.





75

77



78



Tighten all four Handrail Bolts (78).













6. Look at the Rear Endcap (58). If the left or right foot on



6











the Endcap does not touch the floor, the included thick



























base pads should be attached to the treadmill as de-















scribed below.























Refer to assembly step 3. Lower the treadmill frame















and the Uprights (69) as shown. If the

left

foot of the













Rear Endcap (58) was off the ground, remove the two















Base Pads (99) from the

right

Upright (69). Attach the













included thick base pads to the Upright. If the

right

side











of the Endcap was off the ground, attach the thick base



Left













Foot

58









pads to the

left

Upright.



























Note: If either side of the Rear Endcap (58) lifts off the













Right

floor when the treadmill is used, attach the thick base













Foot

pads as described.























7. Make sure that all parts are tightened before you use the treadmill.



Note: If there is a thin sheet of clear



plastic on the face of



the hood decal and the “ComforTrack” decal, remove it.

Keep the included allen wrench in



a secure place. The allen wrench is used to adjust the walking belt (see page 27). To protect the floor or car-









pet from damage, place a mat under the treadmill.















7

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBE

TM WALKING BELT



electric shock. This product is equipped with a cord









having an equipment-grounding conductor and a

Your treadmill features a walking belt coated with



grounding plug.

Plug the power cord into a surge

PERFORMANT LUBE

TM

, a high-performance lubricant.

protector, and plug the surge protector into an ap-

Important: Never apply silicone spray or other sub-



propriate outlet that is properly installed and

stances to the walking belt or the walking platform.



grounded in accordance with all local codes and

They will deteriorate the walking belt and cause ex-



ordinances.





cessive wear.





















This product is for use on a nominal 120-volt circuit,

HOW TO PLUG IN THE POWER CORD





and has a grounding plug that looks like the plug illus-









trated in drawing 1 below. A temporary adapter that

DANGER:





looks like the adapter illustrated in drawing 2 may be

Improper connection



used to connect the surge protector to a 2-pole recep-



tacle as shown in drawing 2 if a properly grounded out-

of the equipment-grounding conductor can





let is not available.





result in an increased risk of electric shock.















Check with a qualified electrician or service-



The temporary adapter should be used only until a

man if you are in doubt as to whether the





properly grounded outlet (drawing 1) can be installed

product is properly grounded. Do not modify





by a qualified electrician.



the plug provided with the product—if it will













not fit the outlet, have a proper outlet in-



The green-colored rigid ear, lug, or the like extending

stalled by a qualified electrician.





from the adapter must be connected to a permanent

















ground such as a properly grounded outlet box cover.

Your treadmill, like any other type of sophisticated



Whenever the adapter is used it must be held in place



by a metal screw.

Some 2-pole receptacle outlet box

electronic equipment, can be seriously damaged by





covers are not grounded. Contact a qualified elec-

sudden voltage changes in your home’s power.





trician to determine if the outlet box cover is

Voltage surges, spikes, and noise interference can re-





grounded before using an adapter.



sult from weather conditions or from other appliances













being turned on or off.











To decrease the pos-

1









sibility of your tread-



Grounded Outlet Box





mill being damaged,





Treadmill Power Cord











always use a surge





Grounding Pin





protector (not in-



















cluded) with your





Grounding Plug

Grounding Plug



treadmill.























Surge protectors are







Grounding Pin



sold at most hardware



Grounded Outlet









stores and department











stores. Use only a CUL-











listed surge protector,

2









rated at 15 amps, with a

Grounded Outlet Box











14-gauge cord of five











feet or less in length.





Adapter





This product must be





Grounding Pin















grounded.

If it should





Grounding Plug

Surge Protector

malfunction or break

















down, grounding pro-

Lug









vides a path of least re-









Metal Screw









sistance for electric cur-









rent to reduce the risk of











8

NordicTrack NCTL11991 User Manual

Program

Display

Pulse

Pulse

Sensor

Sensor

Note: If

there is a

thin sheet



of

clear

plastic on

the face

Clip

of

the console, remove it.

Key

FEATURES OF THE CONSOLE

The advanced console offers an impressive selection

of features to help you get the most from your exercise. When the console is in the manual mode, the speed

and incline of the treadmill can be changed with a touch of a button. As you exercise, the console will provide continuous exercise feedback. You can even measure your heart rate using the built-in pulse sensor.

Five preset workout programs are also offered. Each program automatically controls the speed and incline of the treadmill to give you an effective workout. The included hand weights can be used to add upper-body exercise to your workouts as well. You can even create your own custom workout programs and store them in memory for future use.

In addition, the console offers a fitness test program that measures your relative fitness level and a pulsedriven program that automatically adjusts the speed and incline of the treadmill to keep your heart rate near a target level during your workout. Note: The fitness test program and the pulse-driven program require the use of an optional chest pulse sensor (see page 24).

The console also features new iFIT.com interactive technology. iFIT.com technology is like having a personal trainer right in your home. Using the included

audio cable, you can connect the treadmill to your home stereo, portable stereo, or computer and play

special iFIT.com CD programs (CD’s are available separately). iFIT.com CD programs automatically control the speed and incline of the treadmill as a personal trainer guides you through every step of your workout. High-energy music provides added motivation. Each

CD features two programs designed by certified personal trainers.

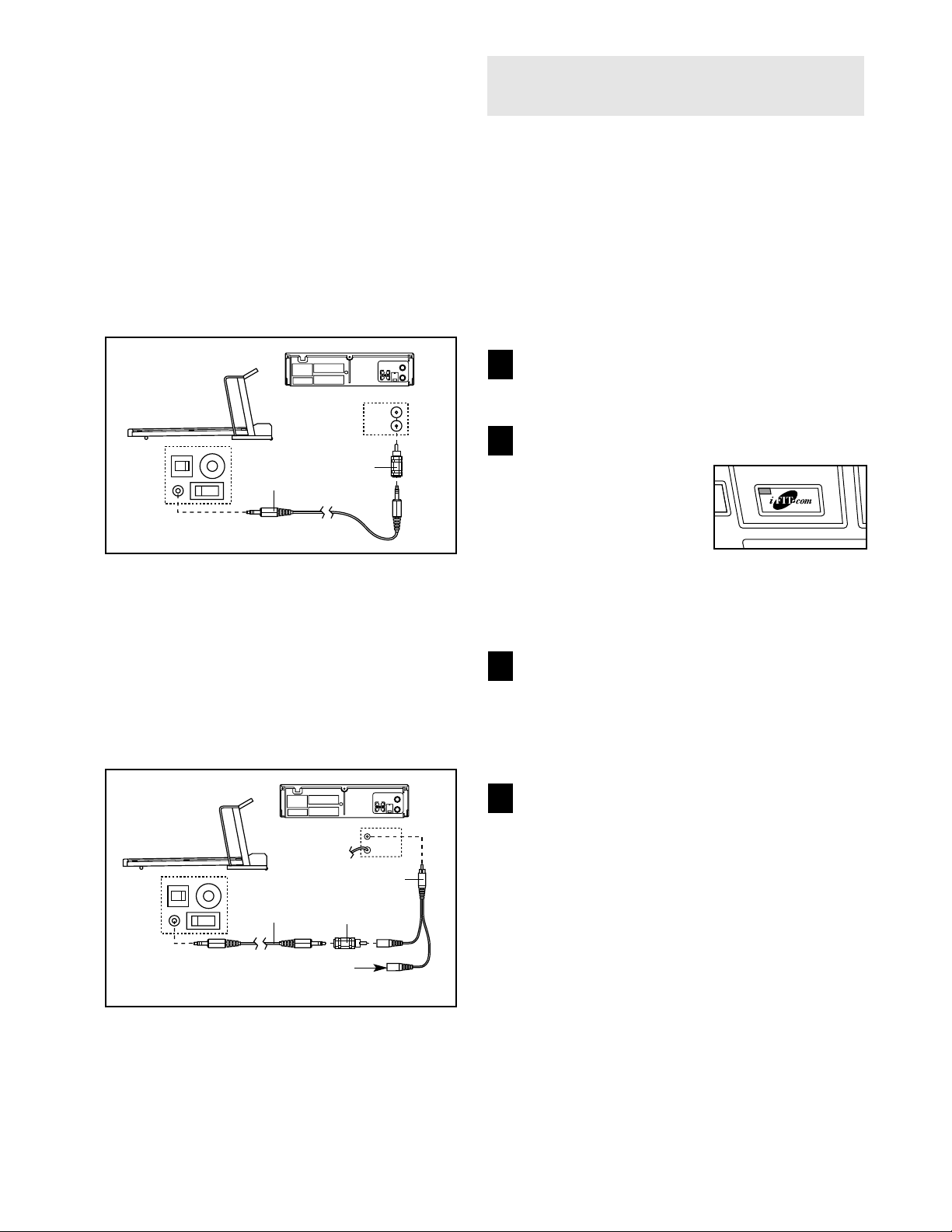

In addition, you can connect the treadmill to your VCR



and TV and play iFIT.com video programs (videocas-



settes are

available separately). Video programs offer



the same benefits as iFIT.com CD programs, but add



the excitement of working out with a class and an



instructor—the hottest new trend at health clubs.



With the treadmill connected to your computer, you



can also go to our new internet site at www.iFIT.com



and access basic programs, audio programs, and



video programs directly from the internet. And by



adding an optional upgrade module to the treadmill,



you can use virtually endless features from our internet



site. See www.iFIT.com for complete details.



To purchase iFIT.com CD’s or videocassettes or an



optional upgrade module, call toll-free 1-888-936-4266.



See page 24 for information about other accessories



that will help you get even more from your exercise.

9

CAUTION: Before operating the console, read the following precautions.

Do not stand on the walking belt when turning on the power.

Always wear the clip (see the drawing below) while operating the treadmill.

Adjust the speed in small increments to

avoid sudden jumps in speed.

The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

If you have heart problems, or if you are over 60 years of age and have been inactive, do

not use the pulse-driven program. If you are taking medication regularly, consult your physician to find whether the medication will affect your exercise hart rate.

Using hand weights and not holding the

handrails may compromise your ability to maintain your balance. Hand weights should be used only by experienced users.

• To reduce the possibility of electric shock,

keep the console dry. Avoid spilling liquids on the console and place only a sealed water bottle in the water bottle holder.

GETTING STARTED

1Attach the clip to the waistband of your clothes.

Stand on the foot rails



of the treadmill. Find



the clip attached to the

Clip

key and slide the clip



onto the waistband of



your clothes. Next, in-



sert the key into the



console.

Test the clip by carefully taking a few



steps backward until the key is pulled from the console. If the key is not pulled from the console, adjust the position of the clip as needed.

Then, remove the key from the console.

2 Plug in the power cord.

See HOW TO PLUG IN THE POWER CORD on page 8.

3 Move the on/off switch to the on position.

Locate the on/off switch

on the treadmill near the

On power cord. Move the Position on/off switch to the on

position.

4 Insert the key fully into the console.

Stand on the foot rails of the treadmill. Make sure that the clip is securely attached to the waistband of your clothes. Next, insert the key into the console. After a moment, various displays and indicators on the console will light. Note: When the key is inserted, the treadmill incline system may auto-

matically calibrate itself—the treadmill will rise to the highest incline level and then return to the lowest incline level.

5 Enter your weight.

Although you can use the console without

entering your weight, the console will count the calories you burn more

accurately if you enter

your weight. To enter your weight, press either of the Enter Weight buttons. The current weight setting will appear in the Speed/Pace display. Press the Enter Weight buttons again to enter your weight. Four seconds after the buttons are

pressed, the weight setting will disappear from the display. Your weight will then be saved in memory.

To use the manual mode of the console

, follow the



steps beginning on page 11.



To use a preset program



,

see page 12.

To create and use a custom program,





see pages 14 and 15.

To use the fitness test program,





see page 16.

To use the pulse-driven program,



see

page 17.

To use an iFIT.com CD or video

program

,

refer to page 21.

To use an iFIT.com program di-





rectly from our internet site



, see page 23.





10

HOW TO USE THE MANUAL MODE

Follow your progress with the LED track and

5 the displays.











1

Insert the key fully into the console.

The LED track

—When





the manual mode or an





See GETTING STARTED on page 10.

iFIT.com program is se-









lected, the program dis-

2 Select the manual mode.

play will show an LED



track representing 1/4



When the key is in-

Manual Indicator

mile. As you exercise, the indicators around the



serted, the manual

track will light in sequence until you have com-



mode will be selected

pleted 1/4 mile. A new lap will then begin.



and the Manual indica-

The Training Zone dis-



tor will light. If a program



has been selected,



play

—As you exercise,



press the Select Pro-



the Training Zone dis-





gram button r

epeatedly to select the manual mode.

play will show the ap-









proximate intensity level



Press the Start button or the Speed + button to

of your exercise. For ex-

3 start the walking belt.

ample, if four to six indicators in the display are lit,







your intensity level is ideal for fat burning.



A moment after the button is pressed, the walking



belt will begin to move at 1 mph. Hold the handrails



and begin walking. As you exercise, change the



speed of the walking





















belt as desired by





































































pressing the Speed +

















































and – buttons. Each

























time a button is

















































pressed, the speed set-

























ting will change by 0.1





















mph; if a button is held down, the speed setting



will change in increments of 0.5 mp





h. To change



the speed setting quickly, press the 1-step speed





















buttons. The speed range is 0.5 mph to 10 mph.





















To stop the walking belt, press the Stop button.





















The Time display will begin to fl

ash. To restart the



walking belt, press the Start button o





r the Speed +



button.





















Change the incline of the treadmill as desired.



















4





















To change the incline of





































































the treadmill, press the

















































Incline buttons. Each

























time a button is

















































pressed, the incline will

































































change by 0.5%. The



















incline range is 1% to 10%. Note: After the buttons are pressed, it may take a moment for the treadmill

to reach the selected incline setting.

Incline display

—This

















































display shows the incline





















































level of the treadmill.



























Time display

—When





























































































































































the manual mode or an

























































iFIT.com program is se-



























lected, this display will



















































show the elapsed time.

















































































































When a different pro-





























gram is selected, the display will show the time remaining in the program and the time remaining in the current segment of the program. The display will change from one number to the other every seven seconds.

Distance/Laps

display —This display

shows the distance that you have walked and the number of 1/4-mile laps you have completed.

The display will change from one number to the other every seven seconds.

Heart Rate/Calories display —When you are

not using the handgrip pulse sensor, this display will show the approximate number of

calories you have burned. When you are using the handgrip pulse sensor, the display will show your heart rate (see step 6).

11

Loading...
+ 23 hidden pages
