OWNER’S MANUAL

MANUEL DE L’UTILISATEUR

MANUAL DEL PROPIETARIO

TABLE OF CONTENTS / TABLE DES MATIÈRES / ÍNDICE

DISHWASHER MAINTENANCE.......

3

DISHWASHER LOADING TIPS........

4

DISHWASHER CARE........................

5

USER INTERFACE CUSTOMER



SETTINGS.........................................

6

ERROR CODES................................

7

Error codes / blinking lights...................

7

INSTALLATION REQUIREMENTS...

8

Tools and parts......................................

8

Location requirements.........................

10

Product and cabinet opening



dimensions:.........................................

11

Drain requirements..............................

12

Water supply requirements..................

12

Electrical requirements........................

12

INSTALLATION INSTRUCTIONS...

13

Prepare cabinet opening—



new utilities..........................................

13

Install optional moisture barrier -



recommended for wood countertops....

13

Electrical connection...........................

14

Prepare dishwasher.............................

15

Remove access panel.........................

15

Disconnect and remove drip pan



assembly.............................................

15

Connect water line to fill valve.............

16

Connect fill hose to fill valve................

17

Drain hose connection........................

18

Power cord connection.......................

18

Install door handle



(on some models)................................

20

Place dishwasher in cabinet................

20

Custom panel installation



(custom panel models only)................

21

Choose anchor attachment method...

21

Final installation check........................

22

Secure dishwasher in cabinet



opening................................................

23

Connect water line to house



shut-off valve.......................................

24

Connect drain hose.............................

24

Complete installation...........................

26

Install access panel.............................

26

Check operation..................................

27

If dishwasher does not operate...........

27

W11323304A

ENTRETIEN DU LAVE-VAISSELLE...

29

CONSEILS DE CHARGEMENT



DU LAVE-VAISSELLE.....................

30

ENTRETIEN DU



LAVE-VAISSELLE...........................

31

RÉGLAGES PAR LE CLIENT DE



L’INTERFACE UTILISATEUR..........

32

CODES D’ANOMALIES..................

33

Codes d’anomalies/témoins



qui clignotent.......................................

33

EXIGENCES D’INSTALLATION......

34

Outils et pièces....................................

34

Exigences d’emplacement..................

36

Dimensions d’ouverture du produit



et de l’armoire :...................................

37

Exigences d’évacuation......................

38

Spécifications de l’alimentation



en eau..................................................

38

Spécifications électriques...................

38

INSTRUCTIONS



D’INSTALLATION............................

39

Préparation de l’ouverture



d’encastrement de l’armoire – nouveaux

raccordements de service...................

39

Installer la barrière anti-humidité



en option – recommandée pour les



comptoirs en bois................................

39

Raccordement électrique....................

40

Préparation du lave-vaisselle..............

41

Retrait du panneau d’accès................

41

Débrancher et enlever le plateau



d’écoulement.......................................

41

Branchement de l’arrivée d’eau à la



valve de distribution............................

42

Branchement du tuyau de remplissage

à la valve de distribution......................

43

Raccord du tuyau de vidange.............

44

Branchement du câble électrique.......

44

Installer la poigne de porte



(sur certains modèles).........................

46

Placer le lave-vaisselle dans l’armoire....

46

Installation du panneau personnalisé



(modèles avec panneau personnalisé



seulement)...........................................

47

Choix de l’option de fixation...............

47

Vérification finale de l’installation........

48

Fixation du lave-vaisselle dans



l’ouverture d’encastrement de



l’armoire...............................................

49

Branchement de l’arrivée d’eau au



robinet d’arrêt de la maison................

50

Raccordement du tuyau de vidange...

50

Terminer l’installation...........................

52

Installation du panneau d’accès..........

52

Contrôle du fonctionnement................

53

Si le lave-vaisselle ne fonctionne



pas.......................................................

53

MANTENIMIENTO DE LA



LAVAVAJILLAS................................

55

CONSEJOS PARA CARGAR LA



LAVAVAJILLAS................................

56

CUIDADO DE LA LAVAVAJILLAS...

57

AJUSTES DEL CLIENTE DE LA



INTERFAZ DE USUARIO................

58

CÓDIGOS DE ERROR....................

59

Códigos de error / luces



parpadeantes......................................

59

REQUISITOS DE INSTALACIÓN....

60

Herramientas y piezas.........................

60

Requisitos de ubicación......................

62

Dimensiones del producto



y de la abertura del gabinete:..............

63

Requisitos de desagüe........................

64

Requisitos de suministro de agua.......

64

Requisitos eléctricos...........................

64

INSTRUCCIONES DE



INSTALACIÓN.................................

65

Preparación de la abertura del



gabinete: instalaciones nuevas...........

65

Instalación opcional de la barrera contra

la humedad (recomendado para los



mostradores de madera).....................

65

Conexión eléctrica...............................

66

Prepare la lavavajillas..........................

67

Quite el panel de acceso.....................

67

Desconecte y retire el ensamblaje



de la bandeja de goteo........................

67

Conecte la tubería de agua



a la válvula de llenado.........................

68

Conecte la manguera de llenado



a la válvula de llenado.........................

69

Conexiones de la manguera



de desagüe..........................................

70

Conexión del cable de alimentación...

70

Instale la manija de la puerta



(en algunos modelos)..........................

72

Coloque la lavavajillas en el gabinete.....

72

Instalación del panel a la medida



(en modelos con paneles a la medida



solamente)...........................................

73

Selección del método de sujeción



de anclaje............................................

73

Verificación final de la instalación........

74

Asegure la lavavajillas en la abertura



del gabinete.........................................

75

Conexión de tubería de agua a



manguera de válvula de cierre del



hogar...................................................

76

Conecte la manguera de desagüe......

76

Complete la instalación.......................

78

Instale el panel de acceso...................

78

Verifique el funcionamiento.................

79

Si la lavavajillas no funciona................

79

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using the dishwasher, follow basic precautions, including the following:

Read all instructions before using the dishwasher. Use the dishwasher only for its intended function.

Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of the reach of children.

When loading items to be washed:

1)Locate sharp items so that they are not likely to damage the door seal; and

2)Load sharp knives with the handles up to reduce the risk of cut-type injuries.

Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.

Do not touch the heating element during or immediately after use.

Do not operate the dishwasher unless all enclosure panels are properly in place.

Do not tamper with controls.

Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher.

Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).

To reduce the risk of injury, do not allow children to play in or on the dishwasher.

Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

For a grounded, cord-connected dishwasher:

The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipmentgrounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected dishwasher:

The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher.

SAVE THESE INSTRUCTIONS

2

WARNING

Tip Over Hazard Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

DISHWASHER MAINTENANCE

Detergents

High-quality premeasured tablets and packs are recommended for improved performance.

Quality tablets and packs have been proven better than powder, liquid, or gel detergents at reducing filming on dishes. Using tablets and packs over time will start to reduce or eliminate white film. They are suitable for all water hardness and soil levels. Also, by using a rinse aid, you can minimize repeat buildup of white film (not all packs and tablets contain rinse aid). Always place premeasured detergents in main compartment and close lid.

NOTE: Follow instructions on the package when using other dishwasher detergent types.

■■ Use automatic dishwasher detergent only. Add detergent just before starting a cycle.

■■ Fresh automatic dishwasher detergent results in better cleaning. Store tightly closed detergent container in a cool, dry place.

■■ Extremely hard water mineral deposits (15 grains per U.S. gallon or more) can cause damage to your dishwasher and make it difficult to achieve good results. A water softener is recommended to avoid damage and achieve good results.

■■ For more details about powders, liquids, and gels and hard water conditions consult the brand website.

Rinse aid

Using rinse aid will optimize your drying and wash performance. This dishwasher is specifically designed to be used with rinse aid for improved drying performance and controlling buildup of hard water deposits. Rinse aid needs to be added to the product every 1 to 3 months depending on usage.

Refer to the Quick Start Guide or brand website for information about filling the rinse aid dispenser.

Cycle Selection and Energy

Efficient dishwashers run longer to save water and energy, just as driving a car slower saves on gas. Typical cycle time is approximately 2 1/2 hours, but can take less or significantly more time depending on your selections and incoming water temperature and amount of food soils on the dishes. For

optimum performance the dishwasher should be connected to a 120 F (49° C) hot water supply.

If you first press the Start button, the main sensor cycle with heated drying will be automatically selected. This cycle senses the soil amount, and toughness of soil, to adjust the cycle for improved cleaning.

Sanitize or Sani

Sanitizes dishes and glassware in accordance with NSF International NSF/ANSI Standard 184 for Residential Dishwashers. Certified residential dishwashers are not intended for licensed food establishments. Only sanitizing cycles have been designed to meet the requirements of the NSF/ANSI

184 performance standard for soil removal and for sanitization efficacy. There is no intention, either directly or indirectly, that all cycles on a NSF/ANSI 184 certified dishwasher meet the NSF/ANSI 184 performance standard for soil removal and for sanitization efficacy. The Sani Rinse indicator glows at the end

of the cycle if the Sani Rinse option was successfully completed. If the indicator does not activate, it is probably due to the cycle being interrupted.

3



DISHWASHER LOADING TIPS

Silverware Baskets

Sliding Bowl Tines

Style 1

Style 2

Use silverware basket lids to provide optimal spacing and best cleaning performance. NOTE: If your silverware does not fit into the designated slots, open the lids (Style 1) or lift on the ends of the lids and pull to remove (Style 2). Mix silverware types to

keep them separated. Load knives down, forks up, and alternate spoons for best cleaning results.

Removing Upper Racks

In order to make space for tall items, your upper racks are removable. The manner in which to remove will depend on whether the rack is mounted with Style 1 or Style 2. Remove dishes prior to removing any racks.

Style 1

To remove the rack, pull the rack forward about halfway out of the tub. On one side, press the tab on the track in and pull up the front end of the rack, out of the track. Then repeat this step on the other side to completely remove the front end of the rack. Then remove the rack by pulling the back end out using a forward and upward motion.

To replace the rack, Push back of rack into rail first and then push front down.

Rack

Track Stop

Style 2

To remove the rack, pull the rack out until it stops. On the left and right side of the rack, push the plastic track stops on the front of the rail sideways to open them. Pull out the rack.

To replace the rack, push the rack back onto the rails. Push the track stops closed.

The sliding bowl tines allow you to easily load bowls of multiple sizes. Grab the moveable tine row in the lower rack and slide into the desired position.

Fold Down Tines

Fold down tines allow you to optimize the spacing in the rack. Fold down tines might be in the lower rack , the second level rack and/or third level rack depending on your model. To fold or unfold the tine, hold the tine nearest the clip at the end of the tine row and gently push it past the stop on the clip and in the direction you want to fold it.

Stemware Holder

Use the stemware holders to support wine glasses and other stemware. Push them up to rotate them out of the way when not needed.

Stemware

Holder

Cup Shelf

Use the cup shelf to hold additional cups or small items. Push up to fold out of the way when not needed.

4

DISHWASHER CARE

Interior Cleaning

Many detergents may leave white spots or a white residue on dishware and on the interior of the dishwasher. Over time this residue can become unsightly and could affect dishwasher performance. Use of a dishwasher cleaning product such as affresh® Dishwasher Cleaner can help to remove the residue. Monthly use of affresh® Dishwasher Cleaner is recommended to help maintain the dishwasher. Follow package directions.

NOTE: We recommend the use of high-quality, premeasured detergent tablets or packs and the use of rinse aid for dishwasher cleaning and daily care.

Countertop Air Gap

If you have a drain air gap, check and clean it if the dishwasher isn't draining well.

Extended Time Without Use

To Reduce Risk of Property Damage During Vacation or Extended Time Without Use

■■ When you will not be using the dishwasher during the summer months, turn off the water and power supply to the dishwasher.

■■ Make sure the water supply lines are protected against freezing conditions. Ice formations in the supply lines can increase water pressure and cause damage to your dishwasher or home.

■■ Damage from freezing is not covered by the warranty.

■■ When storing your dishwasher in the winter, avoid water damage by having your dishwasher winterized by authorized service personnel.

Exterior Cleaning

Clean the exterior of dishwasher with a soft, damp cloth and mild detergent. Avoid using abrasive cleaning products on the exterior of the dishwasher. Abrasive cleaning products can damage the finish.

Troubleshooting

The brand website listed on the Quick Start Guide has detailed information to troubleshoot most problems customers encounter. This information may save you the cost of a service call

Foreign Object Cup

If the Foreign Object Cup is full the Quick Start Guide or the brand website listed on the Quick Start Guide has detailed information about how to empty it.

5

USER INTERFACE CUSTOMER SETTINGS

Customer Settings

To enter the Customer Settings Menu, press and Hold the HI TEMP key (or “Options” key if there is no HI TEMP key) for 5 seconds, then release. Press the START key within 2 seconds. The HI TEMP light will come on to indicate you are in the Customer Settings Menu mode.

Customer Settings Menu

The Customer Settings Menu consists of a set of Features with Submenus under each of the features. To scroll through the Features, press the NORMAL (or CYCLE) key.

To enter a Submenu, press the START Key. To scroll through the available submenu options, press the NORMAL (or CYCLE) key.

To exit the settings menu without making any changes, Press the CANCEL key AND hold for 3 seconds or wait 30 seconds without doing anything.

The Menus and Submenus are either represented by numbers and characters in the display window (if present) or by LED light patterns on the HMI (if no other display is present).



Display Text



LED Pattern (no display)







Default



Menu

(if display is







POTS







What this setting does







SENSOR





NORMAL





Setting





present)





AND PANS













Rinse Aid Level

A







X







Adjust amount of rinse aid dispensed









A 0



X



X



X



0 mL - rinse aid off



















































A 1



X











1 mL



X































A 2



X











2 mL



































A 3



X



X







3 mL



































A 4











X



4 mL



































A 5



X







X



5 mL



































A 6







X



X



6 mL







Sound Level

S



X



X







Turn sound On and Off









S 1



X















X



















































S 0







X















Light in Tub

L











X



Turn the inner light on and off (if present)

































L 1



X











Light in Tub ON



X































L 0







X







Light in Tub OFF







Kosher Friendly

E



X







X



Turn Kosher Friendly mode ON and OFF









K 1



X











Turn the mode ON























































K 0







X







Turn the mode OFF



X



Factory Reset

r



X



X



X



Factory Reset







6

ERROR CODES

ERROR CODES / BLINKING LIGHTS



Code Shown

Code Shown on







Front Panel LED *





Issue

(7 Seg Display)

What will happen?

What to do?

(# blinks, Pause, #



(if present)







blinks)































Turn off water to unit (if possible).Turn

Dishwasher fails





Drain sequence

off power to unit. If the water cannot



1 Pause 1 Pause -

will begin, machine

be turned off, DO NOT turn off power

to operate fill valve

F1E1

pause, repeat

operation will be

and keep door closed. Press Cancel

correctly







prevented

key one time to silence alarm tone. Call















service.



















Ensure fill hose is connected to

No water present at

H2O

8 Pause 1 Pause -

Cycle is paused

product. Ensure water supply is turned

dishwasher

pause, repeat

ON. Press Start to resume cycle. If













alarm still present, call service.



















Turn off water to unit (if possible).Turn







Drain sequence

off power to unit. If the water cannot

Dishwasher

F8E4

8 Pause 4 Pause -

will begin, machine

be turned off, DO NOT turn off power

overfills

pause, repeat

operation will be

and keep door closed. Press Cancel









prevented

key one time to silence alarm tone. Call









service.



















Turn off water to unit (if possible).Turn







Drain sequence

off power to unit. If the water cannot

Fill valve stuck on

F8E5

8 Pause 5 Pause -

will begin, machine

be turned off, DO NOT turn off power

pause, repeat

operation will be

and keep door closed. Press Cancel











prevented

key one time to silence alarm tone. Call









service.









If drain hose is connected to a garbage

Dishwasher will not



9 Pause 1 Pause -



disposal, confirm that drain hose is not

F9E1

Cycle ends

clogged and disposal plug has been

drain

pause, repeat





knocked out. If unit still will not drain,

















call service.











Water present

FAE5

10 Pause 5 Pause -

Cycle ends

Call service.

under dishwasher

pause, repeat







User interface









service

F6E1

6 Pause 1 Pause -

Product will not able to

Call service.

communication



pause, repeat

start or resume cycles



fault









7

INSTALLATION REQUIREMENTS

TOOLS AND PARTS

Gather the recommended tools and parts before starting installation. Read and follow the instructions provided with the tools listed here.

All Installations

Tools Needed:

Pliers

Flat-blade screwdriver

















Phillips screwdriver

Utility knife

















5/16" (7.9 mm) and 1/4"

Small level

(6.4 mm) nut drivers or hex



sockets



Other Useful Items You May Need:

Flashlight

Shallow pan

















Bath towel

Masking, or duct tape

Parts Supplied:

Drain hose clamps (2)

Drain hose

(1 large/red and 1 small/silver)





















#8 x 1/2" (12.7 mm) Phillips-head

Undercounter mounting

screws (2)

brackets (2)

Make sure all parts are included in the literature package.





















Measuring tape or ruler

5/8" (15.9 mm) open-end

















wrench



Door handle (on some models)







































10" adjustable wrench that

TorxT20 and, if installing

opens to 11/8" (29 mm)

custom front panels, Torx T15



screwdrivers

†TORX, T15, and T20 are trademarks of Acument Intellectual Properties, LLC.

8

Other Parts Needed (not provided):

3/8" (9.5 mm) Compression x 3/4" (19 mm) Hose Fitting with rubber seal and 90° elbow (required to properly connect household water line to the dishwasher.)

First-Time Installations

Check local codes. Check existing electrical supply. See the “Electrical Requirements” section. It is recommended that electrical connections be made by a licensed electrical installer.

Additional Tools Needed:

Household Wiring (Metallic) Strain Relief to fit 7/8"

(22 mm) hole (required to properly secure household wiring to the dishwasher terminal box.)

NOTE: Use only UL Listed/ CSA Approved parts.

Optional Accessory Parts Available:

Moisture Barrier Tape

NOTE: Moisture barrier tape is an optional, added level of protection if installing a dishwasher under a wooden countertop. Recommended but not required for wooden countertop.

Side Panel Kit

For enclosing the side of the dishwasher when installing it at the end of your cabinetry (Whirlpool part number varies with color).

Call us at our toll-free number or visit the brand website listed in the Quick Start Guide for accessory and part information.

Small tubing cutter



Wire stripper













Cordless drill

1/2" (12.7 mm), 3/4" (19 mm),



and 11/2" (38 mm)



hole saw bits

Additional Parts Needed (not provided):

Copper Tubing (3/8" O.D. suggested) or Flexible Braided Water Supply Line Kit. Kit includes braided hose and 3/8" compression x

3/4" hose fitting.

Screw-Type Clamps 11/2"- 2" (38 mm - 50 mm) (3 maximum)

Optional-Longer Drain Hose

(Maximum length 12 ft (3.7 m)

NOTE: Must meet AHAM/ IAPMO test standards, fit 1" (25 mm) drain connection, and be resistant to heat and detergent.

NOTE: If using a flexible braided hose, replace inlet hose after

5 years to reduce the risk of hose failure. Record hose installation or replacement dates on the hose for future reference.

NOTE: Be sure to purchase only Whirlpool factory-certified parts and accessories for your appliance. Your installation may require additional parts. To order, refer to the contact information referenced in your Quick Start Guide.

9

For Direct Wire

For Power Cord









































































Cabinet Grommet

For 11/2" (38 mm) hole in cabinet.

NOTE: Required for metal cabinets

Power Cord Kit

Kit typically includes power cord, metallic strain relief, grommet.

(Whirlpool Part Number

Cord Kit - Straight - W11365011

Cord Kit - Right Angle - W11365014)

Call us at our toll-free number or visit the brand website listed in the Quick Start Guide for accessory and part information.

NOTE: Be sure to purchase only Whirlpool factory-certified parts and accessories for your appliance. Your installation may require additional parts. To order, refer to the contact information referenced in your Quick Start Guide.

LOCATION REQUIREMENTS

Dishwasher must be fully enclosed (top, sides, back, and floor) upon installation. A side panel kit is available from your dealer for installing your dishwasher at the end of your cabinetry.

An optional moisture barrier accessory is also available for installing underneath a wooden countertop.

Check location where dishwasher will be installed. The location must provide:

■■ Convenient access for loading and unloading dishes. Corner locations require a 2" (5.1 cm) minimum clearance between the side of the dishwasher door and the wall or cabinet.

■■ Easy access to water, electricity, and drain: ■■ Grounded electrical supply is required.

■■ This dishwasher has a water heating feature and also requires a connection to a hot water supply line.

■■ Make sure pipes, wires and drain hose are within the shaded area shown in the “Product and Cabinet Opening Dimensions” section.

■■ Do not run drain lines, water lines, or electrical wiring where they can interfere with or contact dishwasher motor or legs.

■■ Shelter dishwasher and water lines leading to dishwasher against freezing. Damage from freezing is not covered by the warranty.

NOTE: If dishwasher will be left unused for a period of time or in a location where it may be subject to freezing, have it winterized by authorized service personnel.

■■ If installed in new construction, flush the water supply line of debris before connecting it to the fill valve. If it is not flushed, debris from the water supply could plug the fill valve screen.

■■ A square opening for proper operation and appearance. ■■ The cabinet front to be perpendicular to floor.

■■ Level floor.

Helpful Tip: If floor at front of opening is not level with floor at rear of opening, shims may be used to level dishwasher.

NOTE: To avoid shifting during dishwasher operation, shims must be securely attached to the floor.

■■ The location where the dishwasher will be installed must provide clearance between motor and flooring. Motor should not touch the floor.

■■ Do not install dishwasher over carpeted flooring.

10

PRODUCT AND CABINET OPENING DIMENSIONS:





.



24½"



237/8"



(62.6 cm)

3/4"

(60.4 cm)



B

(1.9 cm)







A





C



30"

33½"

30"



(76.2 cm)



(76.2 cm)

(85.1 cm)







min. with legs







removed









3¾"







(9.7 cm)



311/2" - 41/2"



21"



(8.4 cm - 10.6 cm)



(52.9 cm)



A. Insulation may be compressed (not used on all models).

B. For panel-ready models, dishwasher depth is 24" (61.0 cm), not including the 3/4" (1.9 cm) custom door panel.

C. Door handles may protrude forward of the face of the dishwasher, varies by model.

Check that all surfaces have no protrusions that would prohibit dishwasher installation.





NOTE: Shaded areas





of cabinet walls





show where utility

34"



connections may be



installed.

(86.4 cm)

4"

D



(10.2 cm)









3"

6¼"



(7.6 cm)

(15.9 cm)



24"





(62.0 cm)

2"









(5.1 cm)

24" (62.0 cm)

E

D. Measured from the lowest point on the underside of the countertop. May be reduced to 331" (85.1 cm) by removing the wheels and perforated area of insulation (blanket) on dishwasher.

E. Minimum, measured from narrowest point of opening.

11

DRAIN REQUIREMENTS

■■ A new drain hose is supplied with your dishwasher. If drain hose is not long enough, use a new drain hose with a maximum length of 12 ft (3.7 m) that meets all current AHAM/ IAPMO test standards, is resistant to heat and detergent, and fits the 1" (2.5 cm) drain connector of the dishwasher.

NOTE: Do not connect multiple drain hoses together.

■■ Make sure to connect drain hose to waste tee or disposer inlet above drain trap in house plumbing and 20" (50.8 cm) minimum above the floor. It is recommended that the drain hose either be looped up and securely fastened to the underside of the counter or be connected to an air gap.

■■ Make sure to use an air gap if the drain hose is connected to house plumbing lower than 20" (50.8 cm) above subfloor or floor.

Use of air gap

Air gap

■■ If required, the air gap should be installed in accordance with the air gap installation instructions. When you are connecting the air gap, a rubber hose (not provided) will be needed to connect to the waste tee or disposer inlet.

■■ Use 1/2" (1.3 cm) minimum I.D. drain line fittings.

WATER SUPPLY REQUIREMENTS

■■ This dishwasher has a water heating feature and also requires a connection to a hot water supply line.

■■ A hot water line with 20 to 120 psi (138 kPa to 862 kPa) water pressure can be verified by a licensed plumber.

■■ 120°F (49°C) water at dishwasher.

■■ 3/8" (0.95 cm) O.D. copper tubing with compression fitting or flexible braided water supply line.

NOTE: 1/2" (1.3 cm) minimum plastic tubing is not recommended.

■■ A 90° elbow with 3/4" (0.95 cm) hose connection with rubber washer.

■■ Do not solder within 6" (15.2 cm) of the water inlet valve.

■■ If installed in new construction, make sure the house water supply lines have been flushed prior to connecting the dishwasher to remove any debris that may exist in the supply line.

NOTE: If replacing an existing dishwasher, it is recommended to install a new water line and drain hose (supplied) with the new dishwasher.

ELECTRICAL REQUIREMENTS

Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code, ANSI/NFPA 70 - latest edition, and all local codes and ordinances.

A copy of the above code standards can be obtained from:

National Fire Protection Association 1 Batterymarch Park

Quincy, MA 02169-7471

You Must Have:

■■ 120 V, 60 Hz, AC only, 15 A or 20 A, fused electrical supply ■■ Copper wire only

■■ A maximum of 2 field wiring supply conductors (12 AWG largest size) plus 1 grounding conductor are permitted in the terminal box.

We Recommend:

■■ A time-delay fuse or circuit breaker.

Circuit Requirements:

■■ The dishwasher may be installed on the same circuit as a garbage disposal providing that the branch circuit cannot exceed rated circuit load and must comply with all governing codes and regulations such as but not limited to National Electrical Code, ANSI/NFPA 70 - latest edition.

■■ No electrical connections other than the dishwasher power and ground connections can be made inside of the dishwasher terminal box.

If connecting dishwasher with a power supply cord:

■■ Use UL Listed power cord kit marked for use with dishwasher.

■■ Plug into a grounded 3 prong outlet. Outlet must

meet all local codes and ordinances.

If connecting dishwasher with direct wiring:

■■ Use flexible, armored, or nonmetallic sheathed copper wire with grounding wire that meets the wiring requirements for your home and local codes and ordinances.

■■ Use a UL Listed/CSA Approved metallic strain relief.

12

INSTALLATION INSTRUCTIONS

WARNING

Electrical Shock Hazard

Disconnect electrical power at the fuse box or circuit breaker box before installing dishwasher.

Failure to do so can result in death or electrical shock.

1. Disconnect power

Disconnect electrical power at the fuse box or circuit breaker box before installing dishwasher.

2. Shut off water supply

Shut off the water supply to the dishwasher.

PREPARE CABINET OPENING—

NEW UTILITIES

3.

Drill hole locations—new construction





Optional





location





Preferred





location

11"



1/2"

(3.8 cm)

(1.27 cm)

The power-supply receptacle for the appliance shall be installed in a cabinet or on a wall adjacent to the undercounter space in which the appliance is to be installed.

NOTE: Refer to the “Product and Cabinet Opening Dimensions” section for the correct hole placement and dimensions of the shaded area.

Drill a 11" (3.8 cm) drain hose hole in the side or rear of cabinet, depending on location of drain hose routing and drain hose connection location.

Drill a 1/2" (1.27 cm) water supply hose hole in the side or rear of cabinet, depending on location of water supply routing and connection location

Drill a 11" (3.8 cm) electrical conduit hole in the right-hand side or rear of cabinet.

4.

Sand holes smooth







Metal

Wood

Cabinet



Cabinet



Wood cabinet: Sand the hole until smooth.

Metal cabinet: Cover edges of hole with grommet included with power cord kit.

Helpful Tip: Wiring the dishwasher will be easier if you route the cable into the cabinet opening from the right-hand side.

INSTALL OPTIONAL MOISTURE BARRIER -

RECOMMENDED FOR WOOD COUNTERTOPS

Moisture barrier/wood shims

Moisture

barrier

Install

wood

shims

Make sure the area under the cabinet is clean and dry for installation of the moisture barrier. Remove the backing of the moisture barrier, and apply to underside of the countertop along the front edge of the counter.

NOTE: The use of this moisture barrier is recommended but not required.

NOTE: Install wood shims if side anchoring and the gap between the sides of the cabinet and sides of the dishwasher are greater than 1/2" (1.27 cm) on each side or are greater than the length of the side anchor screws.

13

5. Built-up floors – add shims as needed

52" cm

" cm 4 .1 10 " ¾ 2 cm 7

Built-up floors: If the kitchen floor is higher than the cabinet opening’s floor - for example, the kitchen floor tile does not extend into the cabinet opening - add shims, as needed, in the area shown to bring the dishwasher up to 34" (86.4 cm) below the countertop.

NOTE: Shims must be securely attached to floor to avoid movement when the dishwasher is in use.

6. If installing into a 331/2" (85.1 cm) opening

Cut insulation blanket along perforation for cabinet opening height of 331" (85.1 cm). For other cabinet opening heights, do not cut the insulation blanket.

ELECTRICAL CONNECTION

For Direct Wire, begin with Step 7

For Power Cord, wait until Step 18

7. Direct wire – route cable

(15. 6”

2

cm)



If installing with direct wire, route the cable as shown. Do not connect the wire to the product at this time. This connection will be made later, after the unit is installed into the cabinet opening.

Route cable from power supply through cabinet hole. (Cable must extend to the right front side of cabinet opening.) Tape cable to the floor in area shown. This will prohibit cable from moving when dishwasher is moved into cabinet opening.

14

PREPARE DISHWASHER

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed. Do not push down on open door.

Doing so can result in serious injury or cuts.

WARNING

Excessive Weight Hazard

Use two or more people to move and install dishwasher.

Failure to do so can result in back or other injury.

8. Put the dishwasher on its back

Helpful Tip: Place cardboard under dishwasher until installed in cabinet opening to avoid damaging floor covering.

Using two or more people, grasp sides of dishwasher door frame, and place the dishwasher on its back.

Do not use the door panel as a worktable without first covering it with a towel to avoid scratching the door panel.

REMOVE ACCESS PANEL

9.

Remove access panel

Using a 5/16" (7.9 mm) nut driver or Phillips screwdriver, remove the two screws attaching access panel to dishwasher. Once the screws are removed push the access panel toward the top of the project to unhook it and then remove it.

DISCONNECT AND REMOVE DRIP PAN ASSEMBLY

10a. Remove drip pan assembly

Drip pan assembly

To remove the drip pan assembly, press the snap at each side of the plastic tray in toward the center of the product and pull

toward yourself. Take caution not to pull too far or too hard as the float switch wire is still connected at this time.

10b. Remove float switch wire

1

2

To remove the float switch wire, gently depress the connector latch tab (1) and then pull the connector (2) out of the housing. The float itself should not be removed from the tray.

15

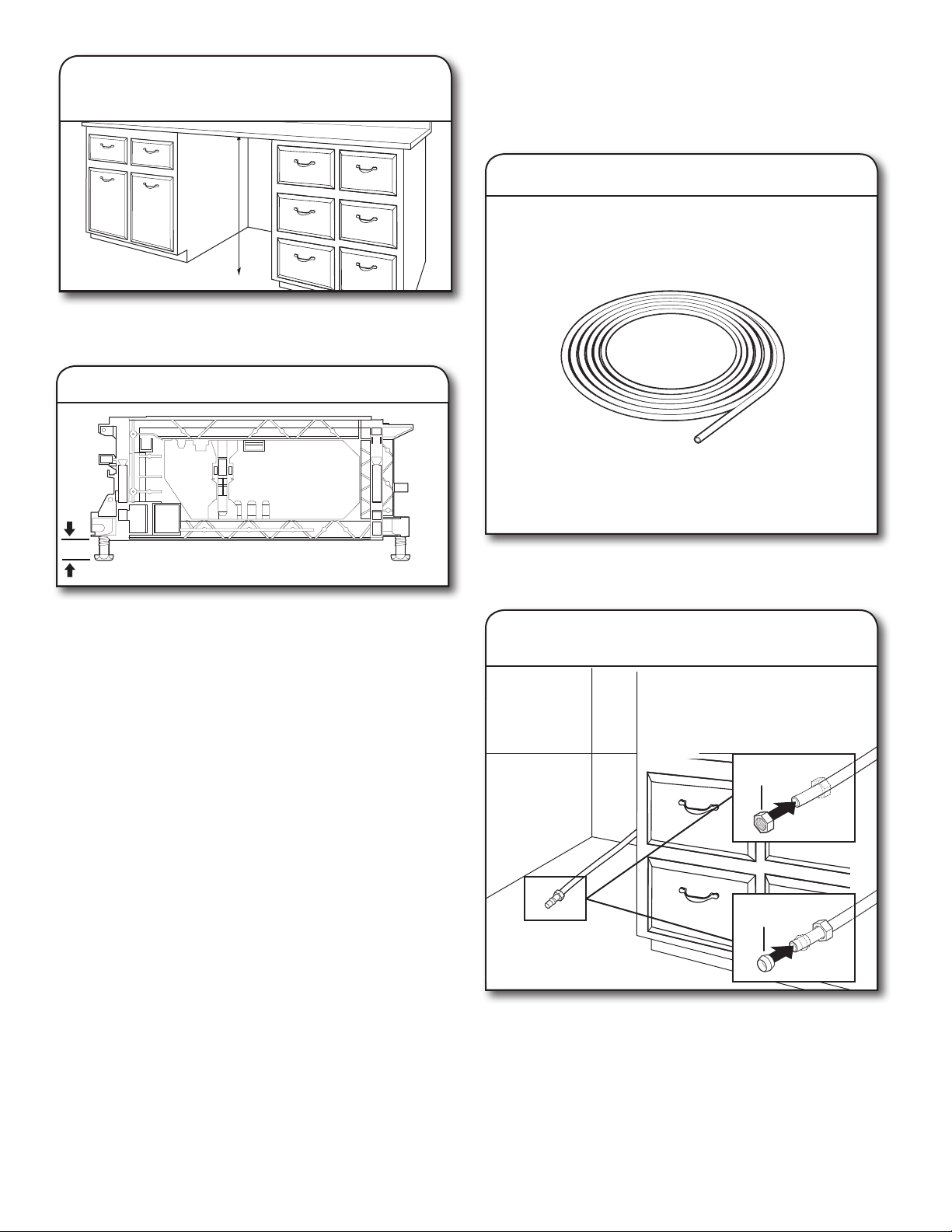

11. Measure cabinet opening

CONNECT WATER LINE TO FILL VALVE

– For Copper line, begin with Step 12



– For Flexible line, begin with Step 14



12. Copper Water Line

Measure the height of cabinet opening from the underside of the countertop to the floor where the dishwasher will be installed. Be sure to measure the lowest point on the underside of the countertop and the highest point on the floor.

Leveling leg adjustment

Use wrench to initially loosen leveling legs if needed.

Adjust all four leveling legs to the same height by rotating each foot clockwise or counterclockwise as needed.

The unit comes with the legs set for a 331" (85.1 cm) height installation. If your opening height is 341" (87.6 cm), you would therefore need to lower all four legs by 1" (2.54 cm).

Legs can be remove if necessary for tight installations.

If using copper tubing, measure overall length of copper tubing required to reach the water supply, cut to length, and attach with compression fittings.

13. Slide nut and ferrule onto tubing (copper tubing only)

Nut

Ferrule

Copper tubing only: Put the tubing into the 90° elbow fitting as far as it will go. (The copper tubing bends and kinks easily.) Push the nut and ferrule forward and tighten it, so that it sits right up against elbow threads.

NOTE: To avoid vibration during operation, route the water supply line so that it does not touch the dishwasher base, frame, or motor. If using copper tubing, skip step 14 and go to 15.

16

14. Flexible line

CONNECT FILL HOSE TO FILL VALVE

16. Tighten 90° elbow fitting to valve



Flexible braided line: Confirm the flexible braided line is long enough.

15. Add 90° elbow fitting to the water supply line

Get 3/8" compression x 3/4" hose fitting with 90° elbow. Connect the 3/8" compression fitting of the 90° elbow fitting to the water supply line. Attach such that the 3/4" connection is facing upward as shown above.

Elbow fitting

Be sure rubber washer is properly seated in fitting. Slide the 3/4" (19 mm) fitting of the 90° elbow up to the valve and hand

tighten it to avoid cross-threading. Hand tighten until the coupling is tight.

Using pliers, check the tightness of the coupling. An additional 1/4 to 1/2 turn may be required to seal the rubber gasket. Route fill hose out the rear left side of unit.

NOTES:

■■ Do not use tape with compression fittings.

■■ Do not over-tighten. Damage to the coupling can result.

17

DRAIN HOSE CONNECTION

17. Connect drain hose

Drain Hose Location

Put provided silver clamp over elbow end of drain hose.

Then push the hose onto the drain port with the hose facing underneath the dishwasher. Using pliers squeeze, open the drain hose clamp and slide it over the elbow to ensure those hose is attached in place. Route the hose out of the back of the product.

NOTE: If the hose is installed with the rubber elbow facing out, the drain hose may become kinked causing slow or incomplete draining in tight cabinet installations.

If installing product using a Power Cord, proceed to Step 18. If installing a product with direct wiring, wait until after Step 44 when the unit has been installed in the cabinet opening.

POWER CORD CONNECTION

WARNING

Electrical Shock Hazard Electrically ground dishwasher.

Connect ground wire to green ground connector in terminal box.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

18. Remove terminal box

Terminal

box

To remove the terminal box, depress the plastic latch, slide the box toward the left of the unit along the metal tube and rotate the left side of the box forward. Make sure that the product wiring will still be attached within the terminal box.

19. Remove terminal box cover

Terminal box cover

Using 1/4" (6.4 mm) nut driver remove the screw holding the terminal box cover. Remove the cover by lifting it out of the box. Keep the cover for later use.

20. Install strain relief

Install a UL Listed/CSA Approved metallic strain relief. Make sure screw heads are facing up when tightening conduit nut. Strain relief is provided with the power cord kit.

Suggested wire length relative to strain relief

3" - 3.5"

(75 mm - 90 mm) 0.75" - 1"

(19 mm - 25 mm)

18

21. Connect ground wire

Ground connector

screw



Ground

Washer

wire



Ground



screw

Route power cord through strain relief in the back of the terminal box. Remove the ground connector screw on the raised floor inside the box and place it through the ring terminal of the green ground wire of power cord. Reattach and tighten the ground connector screw to the raised floor of the box.

22. Connect remaining wires



White wire

White wire

Ground wire

Black wire

Black wire



Select UL Listed/CSA Approved power cord for the Dishwasher.

Power Cord Kit

Kit typically includes power cord, metallic strain relief, grommet. (Whirlpool Part Number Cord Kit - Straight - W11365011

Cord Kit - Right Angle - W11365014)

To connect wires with ring terminals, remove the screws from the terminal block, place the screw through the ring terminals, and reattach screws back into the terminal block.

To connect wires without ring terminals, remove the screws from the terminal block, push the wire ends under the screw heads, and tighten the screws.

NOTE: Pre-tinned wires should not be used when connecting to the terminal block.

Wiring configuration

23. Secure cord or wire on strain relief

Tighten strain relief screws to secure cord.

24. Reinstall terminal box cover and wires

Place wires inside terminal box. Replace the cover by inserting the hooks of the terminal cover into the slots in the floor of the terminal box and sliding the cover tight against the back wall where wires come in. Make sure wires are tucked inside the box and not pinched by the cover.

Put the terminal box back on the crossbar and push to the right so terminal box snaps into the plastic side member.

NOTES:

■■ Once the terminal box has been remounted on the dishwasher, tuck any excess length or slack over nearby components to help keep them off the floor.

■■ Route cord out the rear of the dishwasher so that it does not touch dishwasher motor or lower part of dishwasher tub.

■■ Do not plug cord into an outlet until instructed to do so.

■■ A maximum of 2 power cord supply conductors (12 AWG largest size) plus 1 grounding conductor are permitted in the terminal box.

IMPORTANT: NO ADDITIONAL CONNECTIONS OTHER THAN DISHWASHER POWER CONNECTION ARE TO BE MADE INSIDE THE DISHWASHER TERMINAL BOX.

19

INSTALL DOOR HANDLE

(ON SOME MODELS)

25. Install door handle

Mounting stud

Handle

Setscrew

(in bottom

of handle)

Hex key

IMPORTANT: Do not scratch the front panel during this procedure. If door panel has a protective film, peel film back past the point of the handle studs before installing handle. Handle is easiest to install while unit is on its back.

Remove the door handle and hex key from the packaging. Setscrews are already installed in the handle. Place handle on mounting studs with the setscrews facing down. Push the door handle tightly against the door. Insert the short end of the hex key into the setscrews. Tighten the setscrews 1/4 turn past snug.

Retain hex key with Installation Instructions.

PLACE DISHWASHER IN CABINET

WARNING

Excessive Weight Hazard

Use two or more people to move and install dishwasher.

Failure to do so can result in back or other injury.

26. Stand dishwasher upright

Using two or more people, stand the dishwasher up. NOTE: Do not install kick plate until instructed to do so.

Dishwasher may fit tightly into cabinet opening. Do not remove insulation blanket—the blanket reduces the sound level.

IMPORTANT: Slowly move dishwasher completely into cabinet opening. Do not kink or pinch water line, drain hose, power cord, or direct wire between dishwasher and cabinet. Remove cardboard from under dishwasher (if used).

NOTE: Route water supply, drain hose, and power cord out the rear of the dishwasher. If your product has insulation around the bottom, route these lines through the slits in that insulation in the rear of the product.

27. Move dishwasher close to cabinet opening

Water

line

Drain

hose

Cable

Route the utilities through the holes in the cabinet, and pull

the slack out at the same time as the dishwasher is pushed into the cabinet.

28. Route power cord

If using a power cord, make sure to route the end through hole in cutout before sliding dishwasher into the cabinet opening.

29. Secure insulation blanket

Insulation

blanket

Secure

blanket

NOTE: Make sure insulation blanket is secured at both left and right rear corners before pushing into cabinet opening to keep the blanket from bunching up in a tight fitting cabinet. The blanket can be secured by pulling the insulation down toward the bottom of the product and ensuring the hooks on the side members grab onto the slots in the insulation blanket.

20

30. Move dishwasher all but 6" (15.2 cm) into cabinet opening

6" (15.2 cm)

NOTE: Leave unit about 6" (15.2 cm) out from cabinet in order to install anchor brackets and adjust door tension if needed.

31. Pull slack from utilities

NOTE: Pull slack out of utilities at the same time the dishwasher is pushed into the cabinet opening to avoid any kinks.

CUSTOM PANEL INSTALLATION

(CUSTOM PANEL MODELS ONLY)

For custom panel installation, refer to the Custom Panel Installation Instruction Sheet included in the literature package. Complete custom panel installation before proceeding to the “Choose Anchor Attachment Method” section.

CHOOSE ANCHOR ATTACHMENT METHOD

IMPORTANT: The dishwasher must be secured to the cabinet as one of the final steps. Prepare the dishwasher for this by

attaching the 2 brackets found in the parts bag to the dishwasher.

For countertops that are wood, laminate or another similar surface, use Countertop Attachment: go to Step 32.

For countertops that are marble, granite, or another hard surface, use Side Attachment: go to Step 33.

NOTE: If the gap between the top of the door and the underside of the counter top is tight (less than 1/4" [6.35 mm]), we suggest using Side Attachment to keep from scratching the User Interface or console with the anchor screws.

Countertop Attachment:

32. Insert bracket

Tabs must point to the right.

Remove the brackets from the package, and insert into the open slots on the leftand right-hand top of the dishwasher collar as shown. Go to Step 35.

Bend tab

Using pliers, bend/twist tab to lock the brackets in place.

Side Attachment:

33. Break end of bracket

Top score line for stainless steel tubs

Bottom score line for plastic tubs

Break off the end of the bracket along the scored line using pliers.

21

Maytag MDB8959SKB User Manual

34. Install bracket

Bend tabs

Push bracket into slot on the side of dishwasher, and bend tab in toward the side of the dishwasher so that it keeps the bracket in place. Repeat this step for the other side of the dishwasher.

NOTE: Install wood shims to the inside of the cabinets if the gap between the sides of the cabinet and the sides of the dishwasher are greater than 1/2" (1.3 cm) on each side.

NOTE: Do not attach the dishwasher. This will be done later.

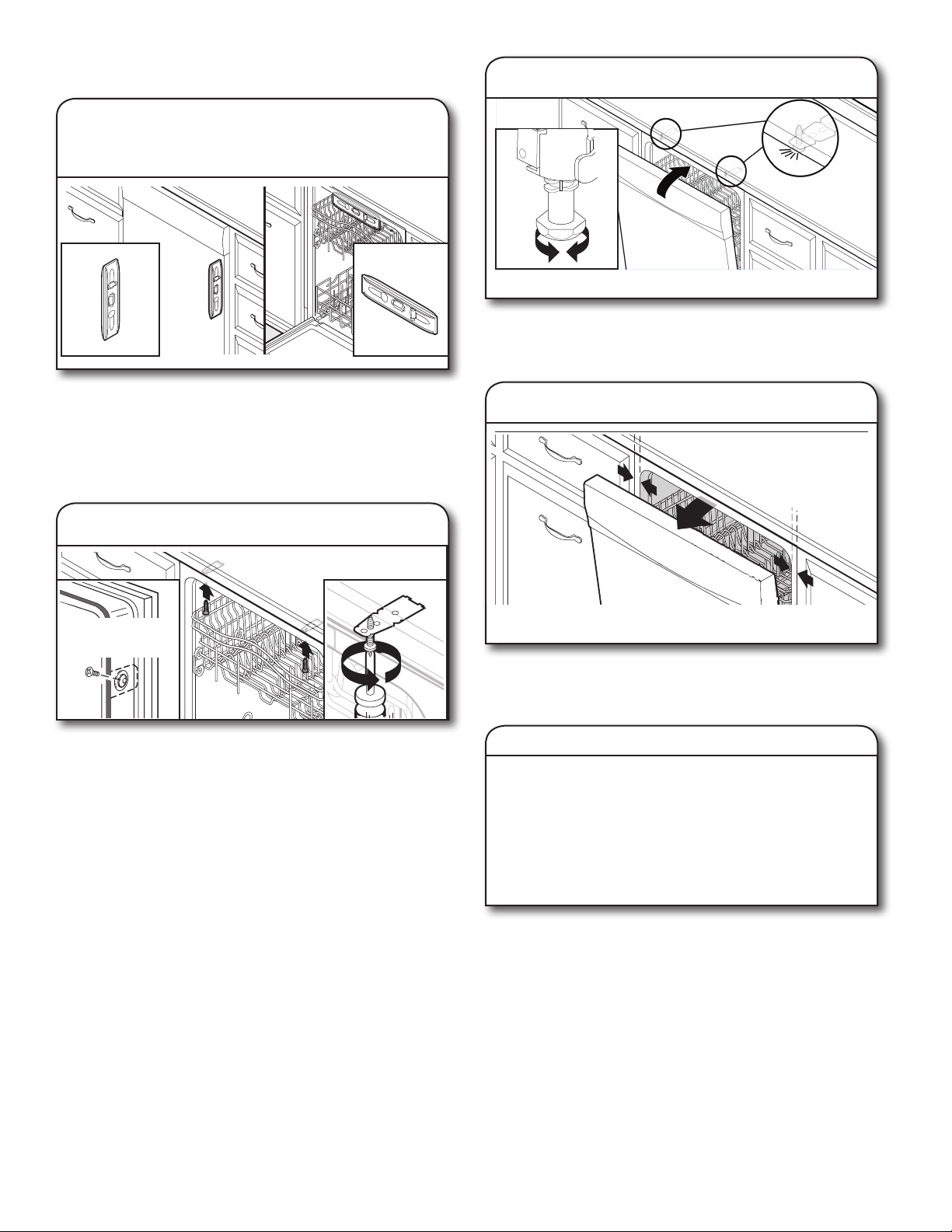

FINAL INSTALLATION CHECK

35. Open and close door

36. Align front of dishwasher with front of cabinet doors

37. Check for plumb and adjust legs if needed

■■ Check that leveling legs are firmly against the floor. Close and latch the door and place level against the front panel. Check that dishwasher is centered from front to back in the opening. If needed, adjust leveling leg until dishwasher is plumb. Repeat for other side of dishwasher.

■■ With dishwasher plum check that racks do not roll out on their own when you open the door. Adjust front level legs until racks no longer roll unless you pull them.

Helpful Tip: Push up on front of dishwasher to raise dishwasher off the ground to adjust front legs. With some installations, it may be easier to adjust the front leg using a 1/4" (6.4 mm) hex head socket or adjustable wrench. If the gap between the top of the door and the underside of the counter top is tight (less than 1/4" [6 mm]), we suggest side anchoring to keep from scratching the User Interface or console.

Level legs





















Preferred method





Optional method



























































































































































































































38. Check level side to side and adjust legs if needed

Align front of dishwasher door panel with front of cabinet doors.

You may need to adjust alignment to be even with your cabinets.

Place level against top front opening of tub. Check that dishwasher is level from side to side. If dishwasher is not level, adjust front legs up or down until dishwasher is level.

22

SECURE DISHWASHER IN CABINET

41. Check door clearance

OPENING

39. Double-check dishwasher alignment



in cabinet opening



Check that dishwasher is still level front to back and side-to-side in the cabinet opening.

Open dishwasher door and place towel over pump assembly and spray arm of dishwasher. This will keep screws from falling into pump area when you are securing dishwasher to cabinet.

IMPORTANT: Check that top of door does not contact screws, brackets, or countertop. If it does, adjust leveling legs or use the side attachment option.

42. Check inner spacing

40. Secure dishwasher

Screw to side

cabinet

Open dishwasher door to prepare for securing the dishwasher to the countertop or side cabinet.

NOTES:

■■ The dishwasher must be secured to keep it from shifting when the door is opened or closed.

■■ Do not drop screws into bottom of dishwasher.

■■ Locate brackets installed in the “Choose Anchor Attachment Method” section, either on top or on the sides of the dishwasher.

■■ If countertop anchoring: Secure dishwasher to the countertop with two Phillips-head screws (included).

■■ If side anchoring: Drill pilot holes in cabinet to avoid splitting the wood. Secure dishwasher to cabinet with two Philips-head screws (included). Remove upper rack for easier access. See the Quick Start Guide for instructions on how to remove the upper rack if needed.

Open door and check that space between dishwasher cabinet opening and tub is equal on both sides. If spacing is not equal, loosen bracket screws and shift tub. Tighten bracket screws.

43. Direct Wire Connection

To complete direct wire connection. Complete Steps 18 to 24 in this installation guide.

Once complete, return here to Step 44 to complete Product Installation.

23

CONNECT WATER LINE TO HOUSE SHUT-OFF VALVE

NOTE: If using a flexible braided hose, replace inlet hose after 5 years to reduce the risk of hose failure. Record hose installation or replacement dates on the hose for future reference.

44. Attach water supply line

Option A: Waste disposer—no air gap

Disposer inlet

Large drain

hose clamp





Drain hose



Drain trap

Attach the water supply line (copper tubing or flexible braided line) to the hot water line using a connection configuration that is in compliance with local codes and ordinances. The water supply to the dishwasher should have a manual shut-off valve located under the sink.

CONNECT DRAIN HOSE

45. Connect drain hose

Connect drain hose to waste tee or waste disposer using one of the following options:

■■ Option A: Waste disposer – no air gap

■■ Option B: No waste disposer – no air gap ■■ Option C: Waste disposer – with air gap

■■ Option D: No waste disposer – with air gap

IMPORTANT: The drain hose connection of the disposer or a waste tee must be made before the drain trap and at least 20" (50.8 cm) above the floor where the dishwasher will be installed.

Helpful Tip: To reduce vibration of the hose, keep the hose away from the floor.

NOTE: Use the red clamp provided to connect the drain hose to the customer connection - plumbing or garbage disposal.

Helpful Tip: Remove disposer knockout plug.

1

1. Using a hammer and screwdriver, knock

plug into disposer.



2

2. Use needle-nose pliers to remove plug.



3

3. Attach drain hose to disposer inlet with

large drain hose clamp (provided). Use

pliers to squeeze clamp open and move



into position.

24

Loading...
+ 55 hidden pages
