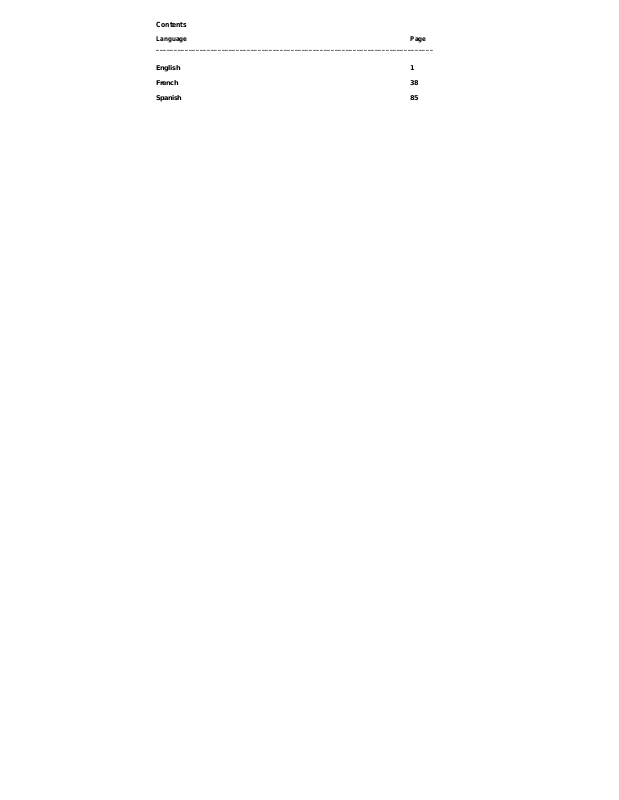

Contents
Language Page
____________________________________________________________________________
English 1
French 38
Spanish 85
Topic
Inventory of Contents 2
Features 3
Setting Up 4
Battery Installation 7
Function keys 9
LCD Screen and Settings 11
Manual Settings 13
Weather Forecast and Tendency 17
Display of Indoor Temperature and Humidity Reading 23
Display of Outdoor Temperature Reading 24
Display of Indoor Maximum and Minimum records 24
Display of Outdoor Maximum and Minimum records 26
915 MHz Reception 27
Mounting 28
Care and Maintenance 31
Specifications 32
Warranty Information 33
Page
1
This product offers:
INVENTORY OF CONTENTS
1. Wireless Weather Station
2. Wireless Outdoor Temperature Sensor (TX37U) and mounting bracket.
3. Instruction Manual and Warranty Ca rd.
INSTANT TRANSMISSIONis the state-of-the-art new
wireless transmission technology, exclusively designed and
developed by LA CROSSE TECHNOLOGY. INSTANT
TRANSMISSION offers you an immediate update (every 4
seconds!) of all your outdoor data measured from the
sensors: follow your climatic variations in real-time!
2
FEATURES:
The Weather station
LCD
Display
Function
Keys
Hanging hole
Battery
compartment
cover
Foldout
Stand
3
• Manual time setting
• 12/24 hour display
• Hour and minute display
• Wireless transmission at 915 MHz
• Signal reception intervals at 4-second
• Display indoor and outdoor temperature and indoor humidity (% RH)
• Temperature displayed in degrees Fahrenheit (°F) or Celsius (°C) selectable
• Weather forecasting with 15 easy-to-read weather forecast signs featured by Weather man
• Indoor comfort level indicator
• Indoor and Outdoor temperature display with MIN/MAX recording
• All MIN/MAX recordings can be reset
• Low battery indicator
• Table standing/ Wall mounting
4
The Outdoor Temperature Sensor
• Remote transmission of outdoor temperature to Weather Station by
915 MHz
• Shower proof casing
• Wall mounting case (Mounting at a sheltered place. Avoid direct rain and
sunshine)
SETTING UP:
Note: This weather station receives only one outdoor sensor.
IMPORTANT:
Please place the Weather station at least 5 feet away from the Sensor before inserting the batteries in
the units in order for the Sensor to transmit accurate initial data to the Weather station.
5
1. First, insert the batteries into the Temperature sensor. (see “Install and replace batteries in the
Temperature sensor“).
2. Immediately after and within 30 seconds, insert the batteries into Weather station (see “Install
and replace batteries in the Weather station”). Once the batteries are in place, all segments of
the LCD will light up briefly. Following the time as 12:00 and the "Weather man" icon will be
displayed. If these are not displayed after 60 seconds, remove the batteries and wait for at least
10 seconds before reinserting them.
3. After inserting the batteries, the Weather station will start receiving data from the sensor. The
outdoor temperature and the signal reception icon should then be displayed on the Weather
station. If this does not happen after 3 minutes, the batteries will need to be removed from both
units and reset from step 1.
4. In order to ensure sufficient 915 MHz transmission however, this should under good conditions
be a distance no more than 100 meters between the final position of the Weather Station and the
sensor (see notes on “Mounting” and “915 MHz Reception”).
Note:
• If the signal reception is not successful on the first frequency (915MHz) for 45 seconds, the
frequency is changed to 920MHz and the learning is tried another 45 seconds. If still not
6
successful the reception is tried for 45 seconds on 910MHz. This will also be done for resynchronization.
BATTERY INSTALLATION
INSTALL AND REPLACE BATTERIES IN THE WEATHER STATION
The Weather station uses 2 x AA, IEC LR6, 1.5V batteries. To install and
replace the batteries, please follow the steps below:
1. Remove the cover at the back of the Weather station.
2. Insert batteries observing the correct polarity (see marking).
3. Replace compartment cover.
7
INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE SENSOR
Note:
In the event of changing batteries in any of the units, all units need to be reset by following the setting up
procedures. This is because a random security code is assigned by the sensor at start-up and this code
must be received and stored by the Weather station in the first 3 minutes of power being supplied to it.
BATTERY CHANGE:
It is recommended to replace the batteries in all units regularly to ensure optimum accuracy of these units
(Battery life See Specifications below).
The Temperature Sensor uses 2 x AA, IEC LR6, 1.5V battery. To install and replace
the batteries, please follow the steps below:
1. Remove the battery compartment cover at the back of the sensor.
2. Insert the batteries, observing the correct polarity (see marking).
3. Replace the battery compartment cover on the unit.
8
FUNCTION KEYS:
Weather station:
The weather station has four easy to use function keys.
Please participate in the preservation of the environment. Return used batteries to an
authorised depot.
SET key
+ key
OUT key
IN key
9
SET key
• Press and hold the key to enter manual setting modes: Manual time, Calendar, 12/24 hour
display and Temperature unit °F/°C setting
+ key
• To make adjustment for various settings
IN key
• Press to display the MIN and MAX indoor temperature records
• Press and hold to reset the indoor MIN/MAX temperature records
OUT key
• Press to display the MIN and MAX outdoor temperature records
• Press and hold to reset the outdoor MIN/MAX temperature records
10
LCD SCREEN AND SETTINGS:
Sensor low battery
Signal*
Weather
Tendency icon
Weather
Forecast icon
indicator
Outdoor Reception
(Weather man)
Outdoor
Temperature
Receiver Low battery indicator
Indoor Relative
Humidity %
Indoor comfort indicator
Indoor Temperature
Date
Time
11
*When the outdoor signal is successfully received by the Weather Station, this icon will be switched on.
(If not successful, the icon will not be shown in LCD) So user can easily see whether the last reception
was successful (icon on) or not (icon off). On the other hand, the short blinking of the icon shows that a
reception is currently taking place.
For better distinctness the LCD screen is split into 3 sections:
Section 1 - OUTDOOR TEMPERATURE
• Display the outdoor temperature.
• Display the signal reception symbol indicating that receiver is receiving outdoor data
Section 2 - INDOOR TEMPERATURE, INDOOR HUMIDITY, DATE AND WEATHER MAN ICON
• Display the current indoor temperature and humidity in normal display.
• Display the weather condition to be expected in form of 15 fancy weather symbols (featured by
Weather man) which change their appearance depending on the air pressure development and
the current outdoor temperature.
• Display the weather tendency indicator and indoor comfort level indicator
• Display the date
12
Section 3 - TIME
• Display the current time.
MANUAL SETTINGS:
The following manual settings can be done in the setting mode:
• Manual time
• Calendar
• 12/24 hour display
• Temperature unit °F/°C setting
Press and hold the SET key for about 3 seconds to advance to the setting mode:
MANUAL TIME SETTING
Hours
(flashing)
Minutes
(flashing)
13
To set the clock:
1. The hour digits start flashing in the time display section.
2. Use the + key to adjust the hours and then press SET key to go to the minute setting.
3. The minute will be flashing. Press the + key to just the minutes.
4. Confirm with the SET key and enter the “Calendar Setting”.
CALENDAR SETTING
"Day. Month." (for 24h time display)
"Month. Day." (for 12h time display)
14
Year
The date default of the Weather station is 1. 1. of the year 2006 after initial set-up. To set the date:
1. Using the + key, set the year required. The range runs from 2000 to 2029 (default is 2006).
2. Press the SET key to enter the month setting mode.
3. The month digit will be flashing. Press the + key to set the month and then press the SET key to go
to the date setting.
4. The date digit will be flashing. Press the + key to set the date.
5. Confirm with the SET key and enter the “12/24-Hour Display setting”.
12/24 HOUR TIME DISPLAY SETTING
1. After setting time reception ON/OFF, press the SET key, “12h” or “24h” flashes in the LCD. (default
12 h)
2. Press the + key to select the “12h” or “24h” display mode.
3. Press the SET again to confirm and to enter the “°F/°C Temperature unit setting”.
flashing
15
Note: When 24h mode display is selected, the calendar format will be "Day. Month." display. When 12h
mode display is selected, the calendar format will be "Month. Day." display.
°F/°C TEMPERATURE UNIT SETTING
The default temperature reading is set to °F (degree Fahrenheit).
To select °C (degree Celsius):
1. The “°C or °F” will be flashing, use the + key to toggle between “°C” and “°F”.
2. Once the desired temperature unit has been chosen, confirm with the SET key and exit the setting
mode.
flashing
16
WEATHER FORECAST AND TENDENCY:
The weather forecast icons (Weather man):
One of the 15 different weather icons (featured by Weather man with different clothing) is displayed in the
centre of LCD, which indicates the different forecast weather conditions (Sunny, Sunny + Cloudy or
Cloudy + Rainy) due to change in air pressure level and the current outdoor temperature:
Sunny
≥ 78.8°F (26°C)
66.2 to 78.6°F
(19 to 25.9°C)
50 to 66°F
(10 to 18.9°C)
17
32 to 49.8°F
(0 to 9.9°C)
< 32°F (0°C)
Sunny + Cloudy
≥ 78.8°F (26°C)
66.2 to 78.6°F
(19 to 25.9°C)
50 to 66°F
(10 to 18.9°C)
18
32 to 49.8°F
(0 to 9.9°C)
< 32°F (0°C)
Cloudy + Rainy
For every sudden or significant change in the air pressure, the weather icons will update accordingly to
represent the change in weather. If the icons do not change, then it means either the air pressure has not
changed or the change has been too slow for the Weather Projection Station to register. However, if the
≥ 78.8°F (26°C)
66.2 to 78.6°F
(19 to 25.9°C
)
19
50 to 66°F
(10 to 18.9°C)
32 to 49.8°F
(0 to 9.9°C)
< 32°F (0°C)
icon displayed is a sun or raining cloud, there will be no change of icon if the weather gets any better
(with sunny icon) or worse (with rainy icon) since the icons are already at their extremes.
The icons displayed forecasts the weather in terms of getting better or worse and not necessarily sunny
or rainy as each icon indicates. For example, if the current weather is cloudy and the rainy icon is
displayed, it does not mean that the product is faulty because it is not raining. It simply means that the air
pressure has dropped and the weather is expected to get worse but not necessarily rainy.
Note:
After setting up, readings for weather forecasts should be disregarded for the next 12-24 hours. This will
allow sufficient time for the Weather station to collect air pressure data at a constant altitude and
therefore result in a more accurate forecast.
Common to weather forecasting, absolute accuracy cannot be guaranteed. The weather forecasting
feature is estimated to have an accuracy level of about 75% due to the varying areas the Weather station
has been designed for use in. In areas that experience sudden changes in weather (for example from
sunny to rain), the Weather station will be more accurate compared to use in areas where the weather is
stagnant most of the time (for example mostly sunny).
20
If the Weather station is moved to another location significantly higher or lower than its initial standing
point (for example from the ground floor to the upper floors of a house), remove the batteries and reinsert them after about 30 seconds. By doing this, the Weather station will not mistake the new location
as being a possible change in air-pressure when really it is due to the slight change of altitude. Again,
disregard weather forecasts for the next 12 to 24 hours as this will allow time for operation at a constant
altitude.
THE WEATHER TENDENCY INDICATOR
Working together with the weather icons are the weather tendency indicators (the upward and downward
arrow located near the Weather man). When the indicator points upwards, it means that the air-pressure
is increasing and the weather is expected to improve, but when indicator points downwards, the airpressure is dropping and the weather is expected to become worse.
21
Therefore, user may see how the weather has changed and is expected to change. For example, if the
indicator is pointing downwards together with cloudy icons, it means that the last noticeable change in the
weather was when it was sunny (the sunny icon only). Therefore, the next change in the weather will be
the cloudy icons since the indicator is pointing downwards.
Note:
• Once the weather tendency indicator has registered a change in air pressure, it will remain
permanently visualized on the LCD.
• When the tendency indicator is pointing to the right, it means that no pressure change has been
detected by the weather station from the beginning. Therefore, the coming weather condition is
expected to be more or less the same as the current condition.
THE COMFORT LEVEL INDICATOR:
The comfort level indicator is located at the right of the weather man icon:
TREND
The coming weather condition is expected to be more
or less the same as the current condition
22
Comfortable : A happy face icon “☺” indicating a temperature level between 20°C and 25.9°C
(68°F to 78.6°F)and relative humidity reading between 45% and 65%.
Uncomfortable : A sad face icon “
DISPLAY OF INDOOR TEMPERATURE AND HUMIDITY READING:
The indoor temperature and humidity are measured and displayed on the second section of the LCD.
Indoor icon
” indicating any value outside the comfortable range.
Indoor Relative
Humidity %
Indoor
Temperature
23
DISPLAY OF OUTDOOR TEMPERATURE READING:
The outdoor temperature is measured and displayed on the first section of the LCD.
Outdoor icon
DISPLAY OF INDOOR MAXIMUM AND MINIMUM TEMPERATURE RECORDS:
1. In normal display mode, press the IN button once. The min indoor temperature will be shown in the
LCD.
2. Then press the IN button one more time, the max indoor temperature will be shown.:
24
Outdoor
Temperature
3. Press one more time the IN button to go back to the normal display.
RESETTING THE INDOOR MAXIMUM/ MINIMUM RECORDS
Note: The indoor minimum and maximum records are to be reset at the same time
Indoor icon
Max icon
Max indoor
temperature
25
1. In normal display mode, press the IN key once. The min indoor temperature will be displayed.
2. Then press and hold the IN key for about 3 seconds, this will reset the indoor minimum and
maximum temperatures to the current value.
DISPLAY OF OUTDOOR MAXIMUM AND MINIMUM TEMPERATURE RECORDS:
1. Press the OUT button once, the min outdoor temperature will be displayed.
Outdoor icon
Min icon
2. By pressing OUT button once more, the max outdoor temperature will be shown.
3. Press one more OUT button to advance to normal display.
RESETTING THE OUTDOOR MAXIMUM/ MINIMUM TEMPERATURE RECORDS
Note:
The outdoor minimum and maximum records are to be reset at the same time
1. In normal display mode, press the OUT key once. The min outdoor temperature will be displayed.
Min outdoor
temperature
26
2. Then press and hold the OUT key for about 3 seconds, this will reset the outdoor minimum and
maximum temperatures to the current value.
915 MHz RECEPTION
The Weather station should receive the temperature data within 5 minutes after set-up. If the temperature
data is not received 5 minutes after setting up (not successfully continuously, the outdoor display shows
“- - -” ), please check the following points:
1. The distance of the Weather station or sensor should be at least 1.5 to 2 meters away from any
interfering sources such as computer monitors or TV sets.
2. Avoid positioning the Weather station onto or in the immediate proximity of metal window frames.
3. Using other electrical products such as headphones or speakers operating on the same signal
frequency (915MHz) may prevent correct signal transmission and reception.
4. Neighbours using electrical devices operating on the 915MHz signal frequency can also cause
interference.
Note:
When the 915MHz signal is received correctly, do not re-open the battery cover of either the sensor or
Weather station, as the batteries may spring free from the contacts and force a false reset. Should this
27
happen accidentally then reset all units (see Setting up above) otherwise transmission problems may
occur.
The transmission range is about 100 m from the sensor to the Weather station (in open space). However,
this depends on the surrounding environment and interference levels. If no reception is possible despite
the observation of these factors, all system units have to be reset (see Setting up).
MOUNTING
POSITIONING THE WEATHER STATION:
The Weather Station may be hung onto wall easily or free standing.
To wall mount
Choose a sheltered place. Avoid direct rain and sunshine.
Before wall mounting, please check that the outdoor temperature values can be
received from the desired locations.
1. Fix a screw (not supplied) into the desired wall, leaving the head extended out the
by about 5mm.
2. Remove the stand from the Weather Station by pulling it away from the base and
28
Free standing
hang the station onto the screw. Remember to ensure that it locks into place
before releasing.
With the foldout stand, the weather station can be placed onto any flat surface.
29
POSITIONING THE TEMPERATURE SENSOR:
The Sensor is supplied with a holder that may be attached to a wall with the two
screws supplied. The Sensor can also be position on a flat surface by securing
the stand to the bottom to the Sensor.
To wall mount:
1. Secure the bracket onto a desired wall using the screws and plastic anchors.
2. Clip the remote temperature sensor onto the bracket.
30
Note:
Before permanently fixing the sensor wall base, place all units in the desired locations to check that the
outdoor temperature reading is receivable. In event that the signal is not received, relocate the sensors or
move them slightly as this may help the signal reception.
CARE AND MAINTENANCE:
• Extreme temperatures, vibration and shock should be avoided as these may cause damage to
the unit and give inaccurate forecasts and readings.
• Precautions shall be taken when handling the batteries. Injuries, burns, or property damage may
be resulted if the batteries are in contact with conducting materials, heat, corrosive materials or
explosives. The batteries shall be taken out from the unit before the product is to be stored for a
long period of time.
• Immediately remove all low powered batteries to avoid leakage and damage. Replace only with
new batteries of the recommended type.
• When cleaning the display and casings, use a soft damp cloth only. Do not use solvents or
scouring agents as they may mark the LCD and casings.
• Do not submerge the unit in water. Furthermore, fix all parts in place where the units are
adequately protected against moisture and rain.
31
• Special care shall be taken when handling a damaged LCD display. The liquid crystals can be
harmful to user's health.
• Do not make any repair attempts to the unit. Return them to their original point of purchase for
repair by a qualified engineer. Opening and tampering with the unit may invalidate their
guarantee.
• Never touch the exposed electronic circuit of the device as there is a danger of electric shock
should it become exposed.
• Do not expose the units to extreme and sudden temperature changes, this may lead to rapid
changes in forecasts and readings and thereby reduce their accuracy.
SPECIFICATIONS:
Temperature measuring range:
Indoor : 14.1°F to +139.8°F with 0.2°F resolution (-9.9ºC to +59.9ºC with 0.1ºC resolution);
“OF.L” displayed if outside this range
Outdoor : -39.8°F to +139.8°F with 0.2°F resolution (-39.9ºC to +59.9ºC with 0.1ºC resolution);
“OF.L” displayed if outside this range
Relative humidity measuring range:
Indoor : 1% to 99% with 1% resolution (displays “- -” when lower than 1 %; displays
32
"99" % if higher than 99 %)
Indoor temperature checking interval : every 15 seconds
Indoor humidity checking interval : every 20 seconds
Outdoor data reception : every 4 seconds
Power supply:
Weather station : 2 x AA, IEC, LR6, 1.5V
Temperature sensor : 2 x AA, IEC, LR6, 1.5V
Battery life cycle (Alkaline batteries recommended)
Weather station : Approximately 24 months
Temperature sensor : Approximately 24 months
Dimensions (L x W x H)
Weather station : 3.18" x 1.22" x 5.64" (80.8 x 30.9 x 143.2 mm)
Temperature sensor : 1.50" x 0.83" x 5.05" (38.2 x 21.2 x 128.3 mm)
WARRANTY INFORMATION
La Crosse Technology, Ltd provides a 1-year limited warranty on this product against manufacturing
defects in materials and workmanship.
33
This limited warranty begins on the original date of purchase, is valid only on products purchased and
used in North America and only to the original purchaser of this product. To receive warranty service, the
purchaser must contact La Crosse Technology, Ltd for problem determination and service procedures.
Warranty service can only be performed by a La Crosse Technology, Ltd authorized service center. The
original dated bill of sale must be presented upon request as proof of purchase to La Crosse Technology,
Ltd or La Crosse Technology, Ltd’s authorized service center.
La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated
herein, with new or reconditioned parts or products if found to be defective during the limited warranty
period specified above. All replaced parts and products become the property of La Crosse Technology,
Ltd and must be returned to La Crosse Technology, Ltd.
Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever
is longer. La Crosse Technology, Ltd will pay all expenses for labor and materials for all repairs covered
by this warranty. If necessary repairs are not covered by this warranty, or if a product is examined which
is not in need or repair, you will be charged for the repairs or examination.
34
The owner must pay any shipping charges incurred in getting your La Crosse Technology, Ltd product to
a La Crosse Technology, Ltd authorized service center.
Your La Crosse Technology, Ltd warranty covers all defects in material and workmanship with the
following specified exceptions: (1) damage caused by accident, unreasonable use or neglect (including
the lack of reasonable and necessary maintenance); (2) damage occurring during shipment (claims must
be presented to the carrier); (3) damage to, or deterioration of, any accessory or decorative surface; (4)
damage resulting from failure to follow instructions contained in your owner’s manual; (5) damage
resulting from the performance of repairs or alterations by someone other than an authorized La Crosse
Technology, Ltd authorized service center; (6) units used for other than home use (7) applications and
uses that this product was not intended or (8) the products inability to receive a signal due to any source
of interference.
This warranty covers only actual defects within the product itself, and does not cover the cost of
installation or removal from a fixed installation, normal set-up or adjustments, claims based on
misrepresentation by the seller or performance variations resulting from installation-related
circumstances.
35
LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR INCIDENTAL,
CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE
OPERATION OR MALFUNCTION OF THIS PRODUCT. THIS PRODUCT IS NOT TO BE USED FOR
MEDICAL PURPOSES OR FOR PUBLIC INFORMATION. THIS PRODUCT IS NOT A TOY. KEEP
OUT OF CHILDREN’S REACH.
This warranty gives you specific legal rights. You may also have other rights specific to your State.
Some States do no allow the exclusion of consequential or incidental damages therefore the above
exclusion of limitation may not apply to you.
For warranty work, technical support, or information contact:
La Crosse Technology, Ltd
2809 Losey Blvd. S.
La Crosse, WI 54601
Phone: 608.782.1610
Fax: 608.796.1020
36
support@lacrossetechnology.com
sales@lacrossetechnology.com
(information on other products)
www.lacrossetechnology.com
Question? Instructions? Please visit:
www.lacrossetechnology.com/9630
All rights reserved. This handbook must not be reproduced in any form, even in excerpts, or duplicated or
processed using electronic, mechanical or chemical procedures without written permission of the publisher.
This handbook may contain mistakes and printing errors. The information in this handbook is regularly checked
and corrections made in the next issue. We accept no liability for technical mistakes or printing errors, or their
consequences.
All trademarks and patents are acknowledged.
e-mail:
(warranty work)
web:
37
Loading...
