La Crosse Technology WS7014 User Manual

WIRELESS 868 MHz WEATHER STATION

INTRODUCTION:

Congratulations on purchasing this Weather Station with wireless 868 MHz transmission of outdoor temperature and display of indoor temperature and humidity, weather forecast icons and weather tendency indicators. It is further featuring a DCF-77 radio controlled clock with calendar display. With only four easy to use function keys, this innovative product is ideal for use in the home or office.

Instructions Manual

« Instant Transmission+» is the up and coming state-of-the-art new wireless transmission technology, exclusively designed and developed by LA CROSSE TECHNOLOGY. “IT +” offers you an immediate update of all your outdoor data measured from the transmitters: follow your climatic variations in real-time!

The Weather Station

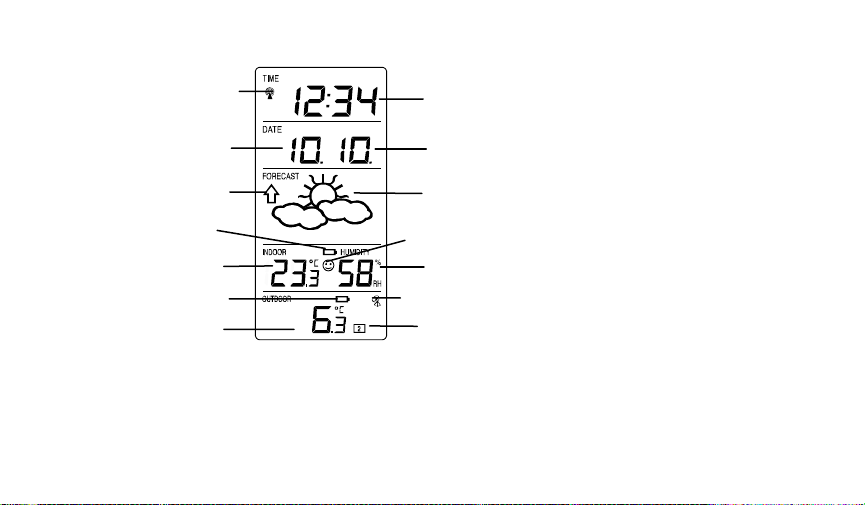

LCD Display

Function Keys

FEATURES: WEATHER STATION

• DCF-77 Radio controlled time with manual setting options

• Time reception ON/OFF

• 12/24 hour display

• Hour and minute display, seconds indicated by flashing dot

• Time zone option ±12hours

• Date and month calendar display

Hanging Hole

Battery Cover

Detachable Stand

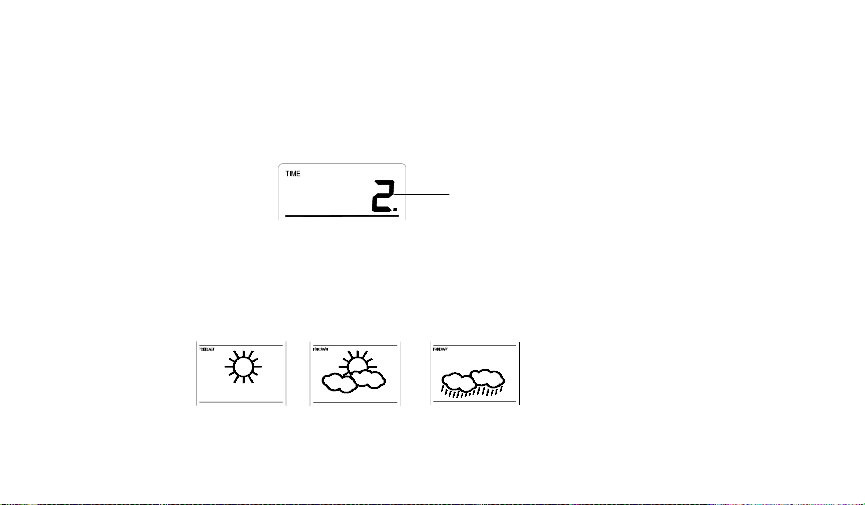

• Weather forecasting with 3 weather icons and weather tendency indicator

• Weather forecasting icon sensitivity setting

• Temperature display in degrees Celsius (°C) or Fahrenheit (°F) selectable

• Indoor and outdoor temperature display with MIN/MAX recording

• Indoor humidity reading displayed as RH% with MIN/MAX recordings

• All MIN/MAX temperature recordings show date and time received

• All MIN/MAX recordings can be reset

• Indoor comfort level indicator - happy or sad face icons

• Can take up to three outdoor transmitters

• LCD contrast setting

• Low battery indicator

• Wireless transmission at 868 MHz

• Signal reception intervals at 4 seconds

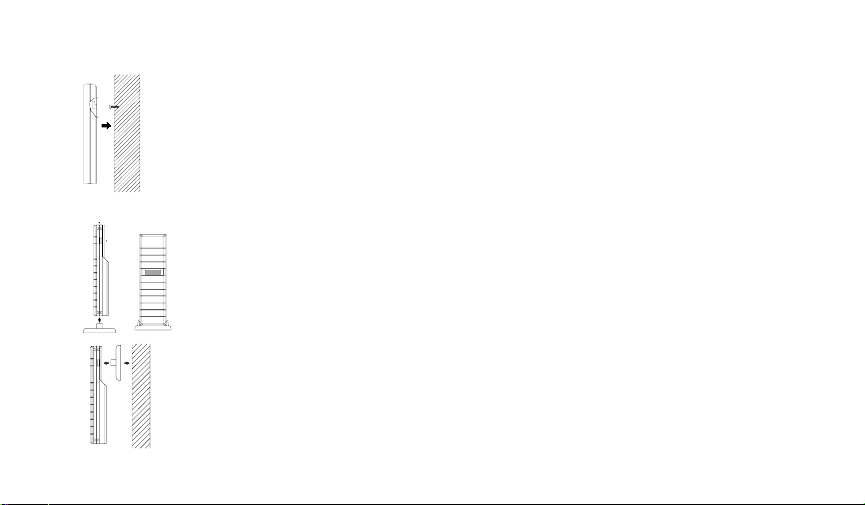

• Wall mounting or table standing

THE OUTDOOR TRANSMITTER

• Remote transmission of outdoor temperature to weather station by 868 MHz signal

• Wall mounting case

• Mounting at a sheltered place. Avoid direct rain and sunshine

SETTING UP:

WHEN ONE TRANSMITTER IS USED

1. First, insert the batteries in the transmitter (see “How to install and replace batteries in the Temperature Transmitter” below).

2. Within 2 minutes of powering up the transmitter, insert the batteries in the Temperature Station (see “How to install and replace batteries in the Weather Station” below). Once the batteries are in place, all segments of the LCD will light up briefly and a short signal tone will

sound. Following the indoor temperature/humidity and the time as 0:00 will be displayed. If

these information are not displayed on the LCD after 60 seconds, remove the batteries and wait for at least 60 seconds before reinserting them. Once the indoor data is displayed user may proceed to the next step.

3. After the batteries are inserted, the Weather station will start re ceiving data signal from the transmitter. The outdoor temperature data should then be displayed on the Weather station. If this does not happen after 2 minutes, the batteries will need to be removed from both units and reset from step 1.

4. In order to ensure sufficient 868 MHz transmission however, the distance between the Weather Station and the transmitter should not be more than 100 meters (see notes on “Positioning” and “868 MHz Reception”).

Note:

In the event of changing batteries of the units, ensure the batteries do not spring free from the contacts. Always wait at least 1 minute after removing the batteries before reinserting, otherwise start up and transmission problems may occur.

WHEN MORE THAN ONE TRANSMITTER IS USED

1. User shall remove all the batteries from the Weather Station and transmitters, and wait 60 seconds.

2. Insert the batteries in the first transmitter.

3. Within 2 minutes of powering up the first transmitter, insert the batteries in the Weather Station. Once

the batteries are in place, all segments of the LCD will light up briefly and a short signal tine will

sound. Following the indoor temperature/humidity and the time as 0:00 will be displayed. If these

information are not displayed on the LCD after 60 seconds, remove the batteries from both units and wait for at least 60 seconds before reinserting them.

4. The outdoor temperature data from the first transmitter (channel 1) should then be displayed on the Weather Station. Also, the signal reception icon will be displayed. If this does no t happen after 2 minutes, the batteries will need to be removed from both units and reset from step 1.

5. Insert the batteries in the second transmitter as soon as the outdoor temperature readings from the first transmitter are displayed on the Weather Station. Note : User shall insert the batteries into the second transmitter within 45 seconds after the Weather Station displays the information of the first transmitter.

6. The outdoor temperature from the second transmitter and the "channel 2" icon should then be displayed on the Weather Station. If this does not happen after 2 minutes, the batteries will need to be removed from all the units and reset from step 1.

7. Insert the batteries in the third transmitter as soon as the "channel 2" icon and outdoor data are displayed on the Weather Station. Then within 2 minutes, the channel 3 outdoor data from the third transmitter will be displayed and the channel icon will shift back to "1" once the third transmitter is successfully received. If this is not happen, user shall restart the setting up from step 1. Note : User shall insert the batteries into the third transmitter within 45 seconds after the Weather

Station displays the information of the first transmitter. Or immediately after reception of the second transmitter is finished.

8. In order to ensure sufficient 868 MHz transmission however, the distance between the Weather Station and the transmitter should not be more than 100 meters (see notes on “Positioning” and “868 MHz Reception”).

IMPORTANT:

Transmission problems will arise if the setting for additional sensors is not followed as described above. Should transmission problems occur, it is necessary to remove the batteries from all units and start again the set-up from st ep 1.

HOW TO INSTALL AND REPLACE BATTERIES IN THE WEATHER STATION

HOW TO INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE TRANSMITTER

The Temperature Transmitter uses 2 x AA, IECLR6, 1.5V batteries. To install and replace the batteries,

please follow the steps below:

1. Slide the battery cover downwards and remove.

2. Insert the batteries, observing the correct polarity (see marking).

3. Replace the battery cover.

Note:

In the event of changing batteries in any of the units, all units need to be reset by following the setting up procedures. This is because a random security code is assigned by the transmitter at start-up and this code must be received and stored by

The Weather Station uses 2 x AA, IEC LR6, 1.5V batteries. If the batteries need to be replaced, the low battery symbol will appear on the LCD. To install and replace the batteries, please follow the steps below:

1. Insert finger or other solid object in the space at the bottom center of the battery compartment and lift up to remove the cover.

2. Insert batteries observing the correct polarity (see marking).

3. Replace compartment cover.

the Weather Station in the first three minutes of power being supplied to it.

BATTERY CHANGE:

It is recommended to replace the batteries in all units on an annual basis to ensure optimum accuracy of these units.

Please participate in the preservation of the environment. Return used batteries to an authorized depot.

FUNCTION KEYS:

Weather Station:

The weather station has four easy to use function keys.

SET key (Setting)

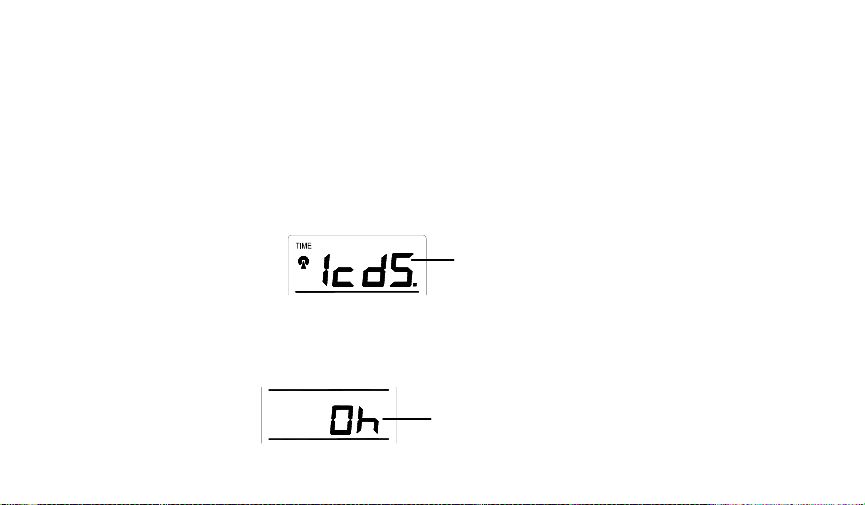

• Used to enter the set mode for the following functions: LCD contrast, Time zone, Time Reception ON/OFF, 12/24 hour display, Manual time, Year, Date, °C/°F, and Weather forecasting icon sensitivity settings.

• The year can only be displayed in the set mode (not displayed in normal mode)

IN key (Indoor)

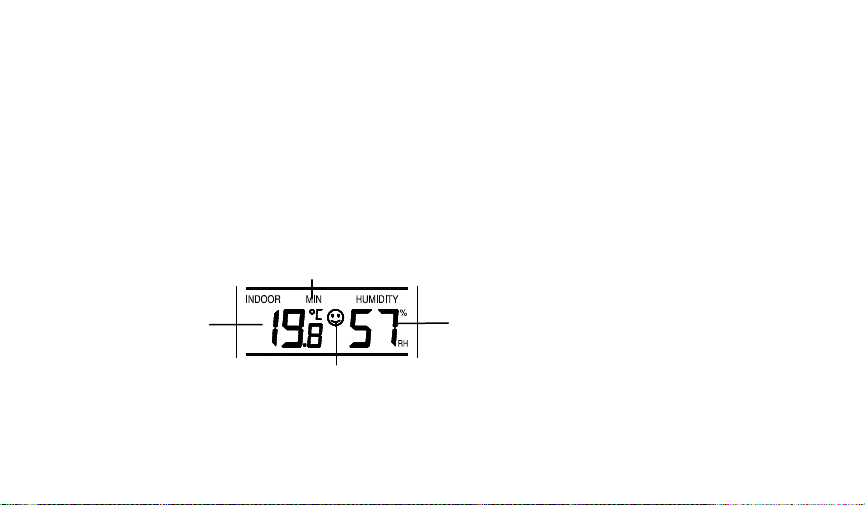

• Used to toggle between the current/ minimum / maximum indoor temperature and humidity

• Press for over 3 seconds to reset the indoor maximum and minimum temperature and humidity

records (will reset all records to current level)

Setting

Indoor Outdoor

Channel

Note: the Time/date information is only available for MIN/MAX tem pe rature data, and will be changed to default time after the reset operation

• Change LCD contrast, time zone, Time Reception ON/OFF, 12/24 hour display, hour, year, month, day, °C/°F and weather forecasting icon sensitivity units in setting modes Note: in 24hr time display mode, the day is set by using the IN key. In 12hr time display mode, the month is set by using the IN key

OUT key (Outdoor)

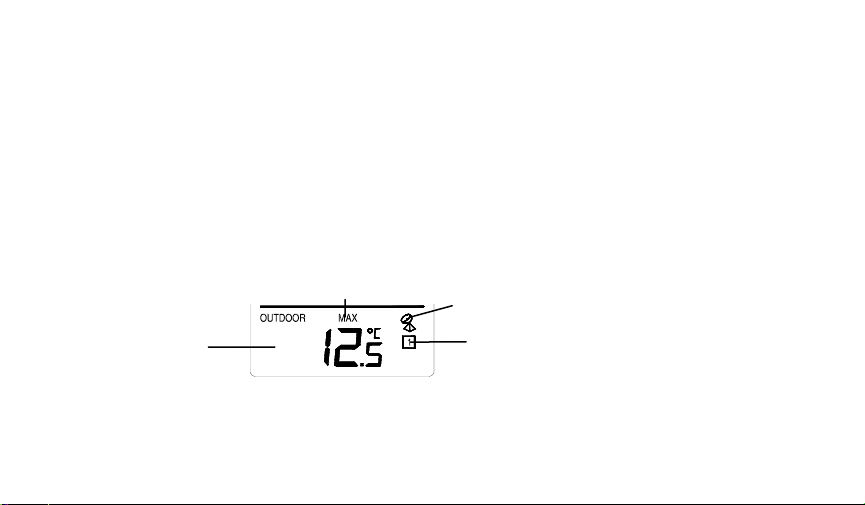

• Used to toggle between the current / minimum / maximum outdoor temperature

• Press for around 3 seconds to reset the outdoor maximum and minimum temperature records (will

reset all temperatures to current level of the relative transmitter being reset - each transmitter’s data must be reset separately) Note: the time/date information of MIN/MAX data will be reset to default time as well.

• Change minute, month, day in setting modes Note: in 24hr time display mode, the month is set by using the OUT key. In 12hr time display mode, the day is set by using the OUT key

CH key (Channel)

• Toggle between the outdoor Temperature Transmitters 1, 2 and 3 (if more than 1 transmitter is used)

• Exit manual setting mode
