LASERJET ENTERPRISE 600 M601, M602, AND M603 SERIES PRINTER

User Guide

HP LaserJet Enterprise 600 M601, M602, and M603 Series Printer

User Guide

Trademark Credits

, Acrobat®, and PostScript® are

Adobe trademarks of Adobe Systems Incorporated.

Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.

The information contained herein is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Part number: CE988-90901

Edition 4, 11/2011

Intel® Core™ is a trademark of Intel Corporation in the U.S. and other countries.

Microsoft®, Windows®, Windows® XP, and Windows Vista® are U.S. registered trademarks of Microsoft Corporation.

is a registered trademark of The

UNIX Open Group.

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks.

Conventions used in this guide

TIP: Tips provide helpful hints or shortcuts.

NOTE: Notes provide important information to explain a concept or to complete a task.

CAUTION: Cautions indicate procedures that you should follow to avoid losing data or damaging

the product.

WARNING! Warnings alert you to specific procedures that you should follow to avoid personal

injury, catastrophic loss of data, or extensive damage to the product.

ENWW iii

iv Conventions used in this guide ENWW

Table of contents

1 Product basics .................................................................................................................. 1

Product comparison .................................................................................................................. 2

HP LaserJet Enterprise 600 M601 models .................................................................... 2

HP LaserJet Enterprise 600 M602 models .................................................................... 3

HP LaserJet Enterprise 600 M603 models .................................................................... 4

Environmental features .............................................................................................................. 5

Accessibility features ................................................................................................................ 6

Product views .......................................................................................................................... 7

Front view ................................................................................................................ 7

Rear view ................................................................................................................. 8

Interface ports ........................................................................................................... 9

Serial number and model number location ................................................................... 9

2 Control panel menus ....................................................................................................... 11

Control-panel layout ............................................................................................................... 12

Retrieve Job from USB menu .................................................................................................... 14

Retrieve Job from Device Memory menu .................................................................................... 15

Supplies menu ....................................................................................................................... 16

Trays menu ............................................................................................................................ 17

Administration menu ............................................................................................................... 18

Reports menu .......................................................................................................... 18

General Settings menu ............................................................................................. 18

Retrieve From USB Settings menu .............................................................................. 21

General Print Settings menu ...................................................................................... 21

Default Print Options menu ....................................................................................... 23

Display Settings menu .............................................................................................. 23

Manage Supplies menu ........................................................................................... 24

Manage Trays menu ................................................................................................ 25

Stapler/Stacker Settings menu .................................................................................. 26

Multi-Bin Mailbox Settings menu ............................................................................... 26

Network Settings menu ............................................................................................ 27

ENWW v

Troubleshooting menu .............................................................................................. 31

Device Maintenance menu ...................................................................................................... 32

Backup/Restore menu .............................................................................................. 32

Calibrate/Cleaning menu ........................................................................................ 32

USB Firmware Upgrade menu ................................................................................... 33

Service menu .......................................................................................................... 33

3 Software for Windows ................................................................................................... 35

Supported operating systems and printer drivers for Windows ..................................................... 36

Select the correct printer driver for Windows ............................................................................. 37

HP Universal Print Driver (UPD) ................................................................................. 37

UPD installation modes ............................................................................. 38

Change print job settings for Windows ..................................................................................... 39

Priority for print settings ........................................................................................... 39

Change the settings for all print jobs until the software program is closed ....................... 39

Change the default settings for all print jobs ............................................................... 39

Change the product configuration settings .................................................................. 40

Remove the printer driver from Windows .................................................................................. 41

Supported utilities for Windows ............................................................................................... 42

HP Web Jetadmin ................................................................................................... 42

HP Embedded Web Server ....................................................................................... 42

HP ePrint ................................................................................................................ 42

Software for other operating systems ........................................................................................ 43

4 Use the product with Mac ............................................................................................... 45

Software for Mac ................................................................................................................... 46

Supported operating systems and printer drivers for Mac ............................................. 46

Install software for Mac operating systems .................................................................. 46

Install software for Mac computers connected directly to the product .............. 46

Install software for Mac computers on a wired network ................................. 47

Configure the IP address ............................................................ 47

Install the software ..................................................................... 48

Remove the printer driver from Mac operating systems ................................................. 49

Priority for print settings for Mac ............................................................................... 50

Change printer-driver settings for Mac ....................................................................... 50

Change the settings for all print jobs until the software program is closed ........ 50

Change the default settings for all print jobs ................................................ 50

Change the product configuration settings ................................................... 50

Software for Mac computers ..................................................................................... 51

HP Utility for Mac ..................................................................................... 51

Open the HP Printer Utility .......................................................... 51

vi ENWW

HP Utility features ...................................................................... 51

Supported utilities for Mac ....................................................................................... 52

HP Embedded Web Server ........................................................................ 52

HP ePrint ................................................................................................. 52

AirPrint ................................................................................................... 52

Basic print tasks with Mac ....................................................................................................... 54

Cancel a print job with Mac ..................................................................................... 54

Change the paper size and type with Mac ................................................................. 54

Resize documents or print on a custom paper size with Mac ........................................ 54

Create and use printing presets with Mac .................................................................. 54

Print a cover page with Mac ..................................................................................... 55

Use watermarks with Mac ........................................................................................ 55

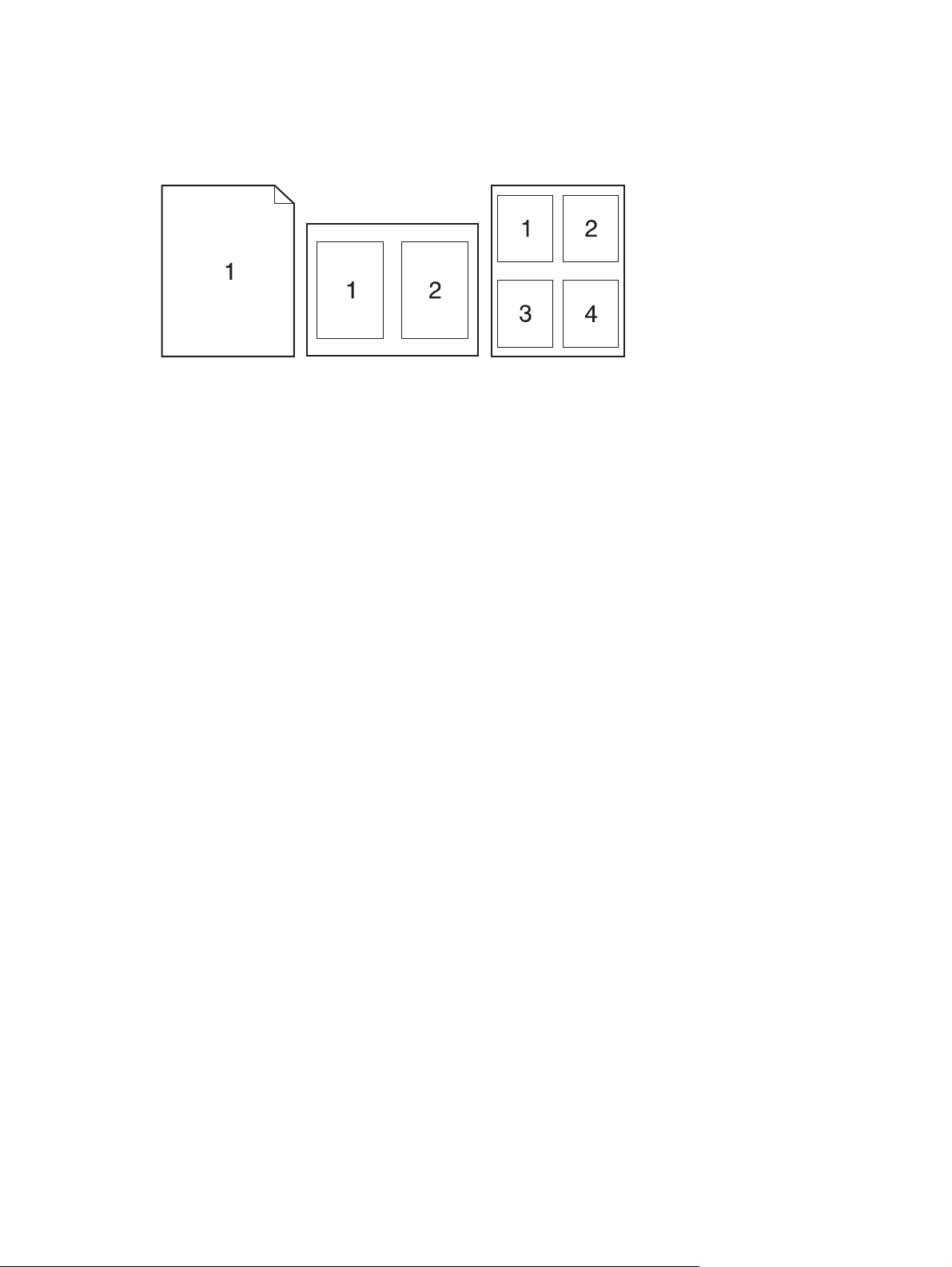

Print multiple pages on one sheet of paper with Mac ................................................... 56

Print on both sides of the page (duplex printing) with Mac ........................................... 56

Store jobs with Mac ................................................................................................ 56

Solve problems with a Mac ..................................................................................................... 58

5 Connect the product with Windows ................................................................................. 59

Printer sharing disclaimer ........................................................................................................ 60

Connect with USB .................................................................................................................. 60

CD installation ........................................................................................................ 60

Connect to a network with Windows ........................................................................................ 61

Supported network protocols .................................................................................... 61

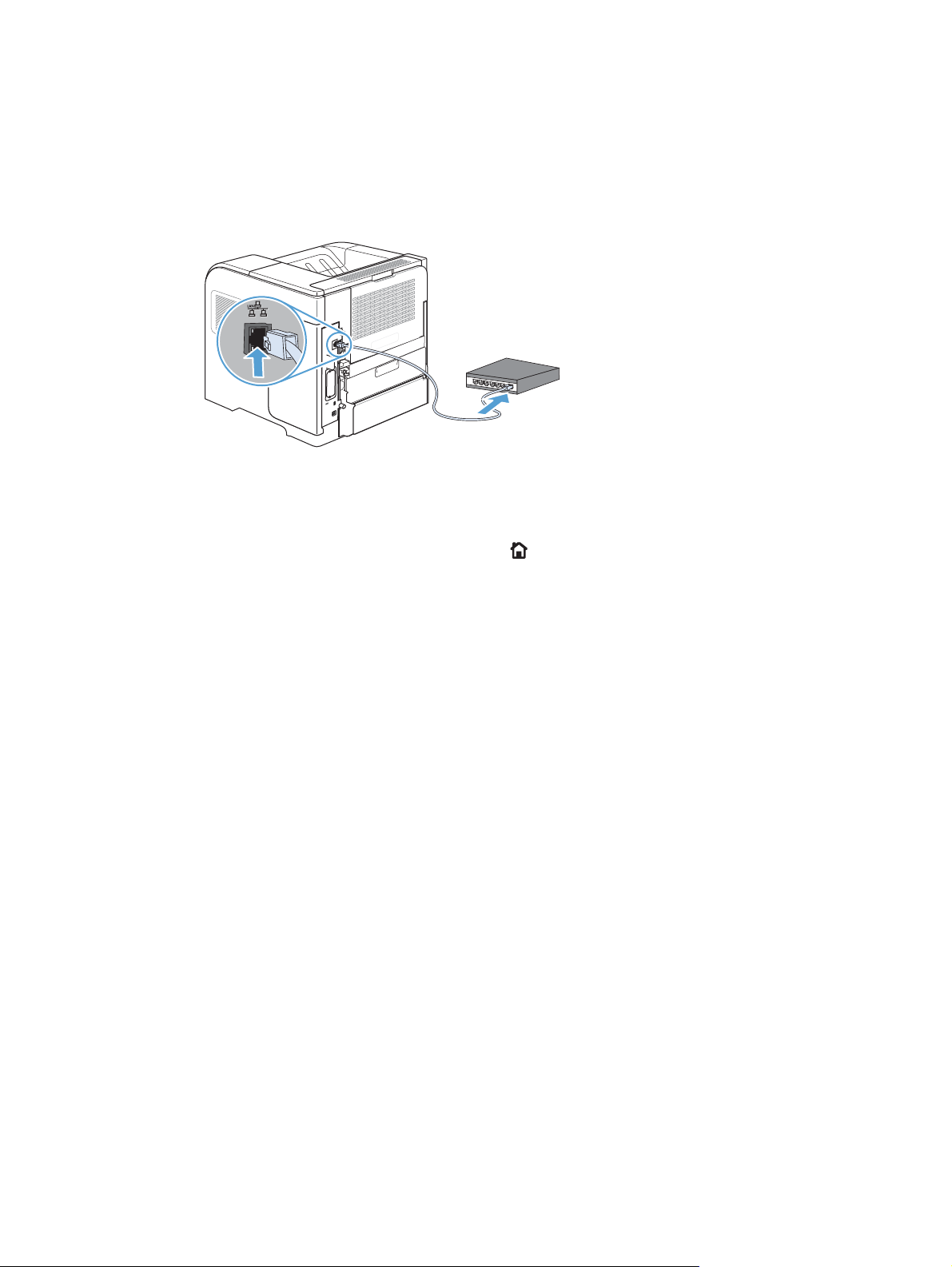

Install the product on a wired network with Windows .................................................. 63

Configure the IP address ........................................................................... 63

Install the software .................................................................................... 64

Configure network settings with Windows .................................................................. 65

View or change network settings ................................................................ 65

Set or change the network password .......................................................... 65

Manually configure IPv4 TCP/IP parameters from the control panel ................ 66

Manually configure IPv6 TCP/IP parameters from the control panel ................ 67

Link speed and duplex settings ................................................................... 68

6 Paper and print media ................................................................................................... 69

Understand paper use ............................................................................................................ 70

Special paper guidelines .......................................................................................... 70

Change the printer driver to match the paper type and size in Windows ...................................... 72

Supported paper sizes ............................................................................................................ 73

Supported paper types ........................................................................................................... 75

Supported paper types for input options ..................................................................... 75

Supported paper types for output options ................................................................... 76

ENWW vii

Tray and bin capacity ............................................................................................................. 77

Load paper trays .................................................................................................................... 78

Load Tray 1 ............................................................................................................ 78

Load Tray 2 or an optional 500-sheet tray ................................................................. 79

Load an optional 1,500-sheet tray ............................................................................ 81

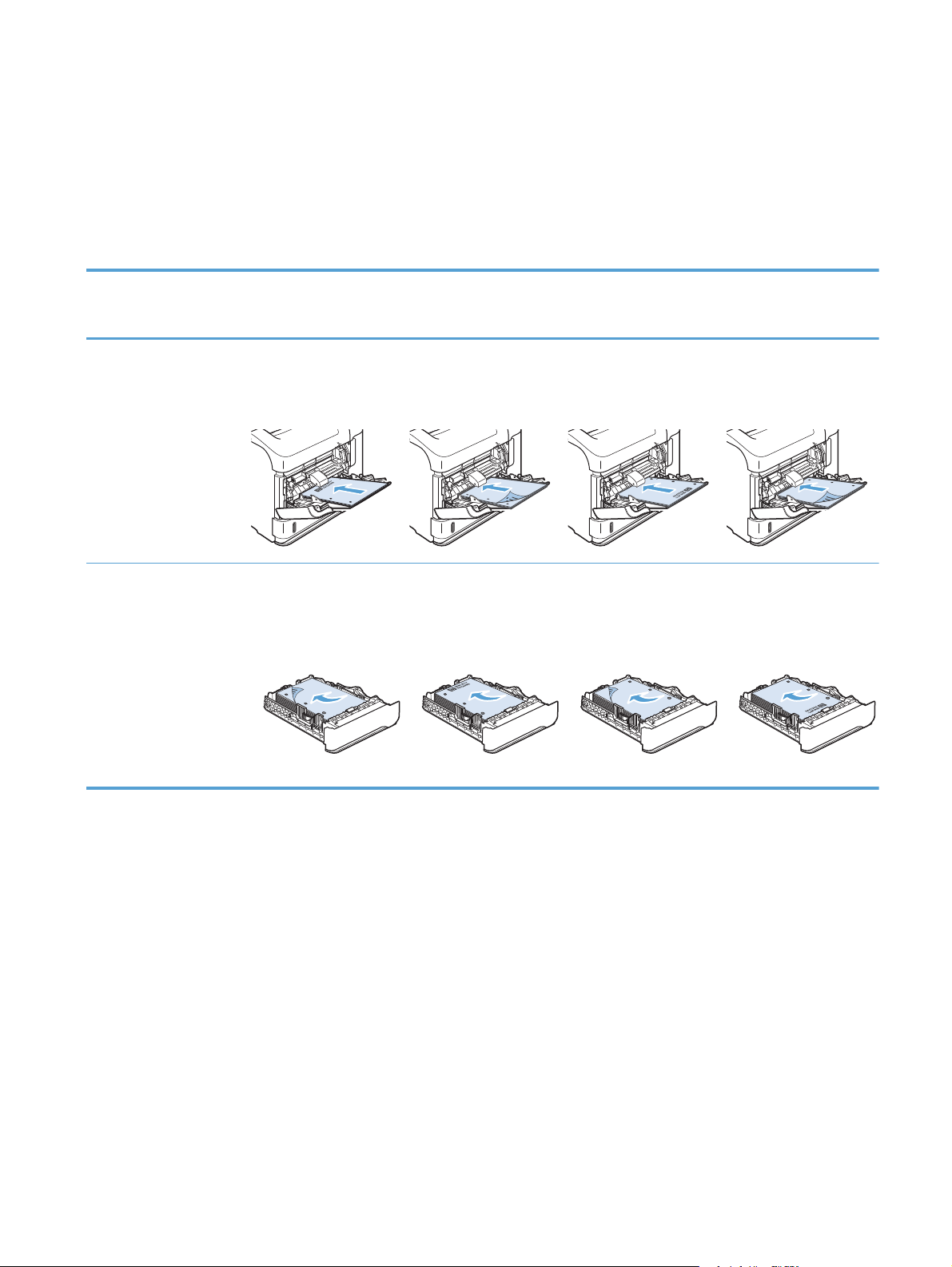

Paper orientation for loading trays ............................................................................ 83

Load letterhead, preprinted, or prepunched paper ....................................... 83

Load envelopes ........................................................................................ 84

Configure trays ...................................................................................................................... 85

Configure a tray when loading paper ........................................................................ 85

Configure a tray to match print job settings ................................................................ 85

Configure a tray from the control panel ...................................................................... 86

Select an output bin ................................................................................................................ 87

Print to the top (standard) output bin .......................................................................... 87

Print to the rear output bin ........................................................................................ 87

Print to the optional stacker or stapler/stacker ............................................................. 88

Print to the 5-bin mailbox ......................................................................................... 89

7 Print cartridges ............................................................................................................... 91

Print cartridge information ....................................................................................................... 92

Supplies views ....................................................................................................................... 93

Print cartridge views ................................................................................................ 93

Manage print cartridges ......................................................................................................... 94

Change settings for print cartridges ........................................................................... 94

Print when a print cartridge is at estimated end of life ................................... 94

Enable or disable the Very Low Settings options from the control panel ........... 94

Print with EconoMode ............................................................................... 95

Store and recycle supplies ........................................................................................ 95

Recycle supplies ....................................................................................... 95

Print-cartridge storage ............................................................................... 95

HP policy on non-HP print cartridges ........................................................... 95

HP anticounterfeit Web site ...................................................................................... 95

Replacement instructions ......................................................................................................... 97

Replace the print cartridge ....................................................................................... 97

Replace staples ....................................................................................................... 99

Perform preventive maintenance .............................................................................. 100

Reset the maintenance-kit counter ............................................................. 100

Solve problems with print cartridges ....................................................................................... 101

Check the print cartridges ...................................................................................... 101

Inspect the print cartridge for damage ...................................................... 102

Repeating defects ................................................................................... 103

viii ENWW

Print the Supplies Status page .................................................................. 103

Interpret control panel messages for supplies ............................................................ 104

8 Print tasks .................................................................................................................... 107

Cancel a print job with Windows .......................................................................................... 108

Basic print tasks with Windows .............................................................................................. 109

Open the printer driver with Windows ..................................................................... 109

Get help for any printing option with Windows ........................................................ 110

Change the number of print copies with Windows .................................................... 110

Save custom print settings for reuse with Windows .................................................... 111

Use a printing shortcut with Windows ....................................................... 111

Create printing shortcuts ......................................................................... 112

Improve print quality with Windows ........................................................................ 115

Select the page size with Windows .......................................................... 115

Select a custom page size with Windows .................................................. 115

Select the paper type with Windows ........................................................ 115

Select the paper tray with Windows ......................................................... 115

Print on both sides (duplex) with Windows ............................................................... 116

Manually print on both sides with Windows .............................................. 116

Automatically print on both sides with Windows ........................................ 117

Print multiple pages per sheet with Windows ............................................................ 119

Select page orientation with Windows ..................................................................... 120

Use HP ePrint ....................................................................................................................... 122

Additional print tasks with Windows ...................................................................................... 123

Print on preprinted letterhead or forms with Windows ................................................ 123

Print on special paper, labels, or transparencies with Windows .................................. 125

Print the first or last page on different paper with Windows ........................................ 128

Scale a document to fit page size with Windows ...................................................... 130

Add a watermark to a document with Windows ....................................................... 132

Create a booklet with Windows .............................................................................. 132

Select output options with Windows ........................................................................ 134

Select an output bin with Windows .......................................................... 134

Select staple options with Windows .......................................................... 135

Use job storage features with Windows ................................................................... 137

Create a stored job with Windows ........................................................... 137

Print a stored job .................................................................................... 138

Delete a stored job ................................................................................. 138

Set job storage options with Windows ...................................................... 139

Print one copy for proof before printing all the copies .................. 139

Temporarily store a personal job on the product and print it later .. 139

Temporarily store a job on the product ....................................... 139

ENWW ix

Permanently store a job on the product ...................................... 140

Make a permanently stored job private so that anyone who tries

to print it must provide a PIN .................................................... 140

Receive notification when someone prints a stored job ................. 140

Set the user name for a stored job ............................................. 141

Specify a name for the stored job .............................................. 141

Print special jobs with Windows ............................................................................. 141

Set the duplex alignment ......................................................................... 141

Walk-up USB printing ........................................................................................................... 143

9 Manage and maintain .................................................................................................. 145

Print information pages ......................................................................................................... 146

Use the HP Embedded Web Server ........................................................................................ 147

Open the HP Embedded Web Server by using a network connection .......................... 147

HP Embedded Web Server features ......................................................................... 148

Information tab ...................................................................................... 148

General tab ........................................................................................... 148

Print tab ................................................................................................ 149

Troubleshooting tab ................................................................................ 149

Security tab ........................................................................................... 150

HP Web Services tab .............................................................................. 150

Networking tab ...................................................................................... 150

Other Links list ....................................................................................... 150

Use HP Web Jetadmin software ............................................................................................. 151

Product security features ........................................................................................................ 152

Security statements ................................................................................................ 152

IP Security ............................................................................................. 152

Secure the HP Embedded Web Server ..................................................................... 152

Encryption support: HP Encrypted High Performance Hard Disks (xh models only) ......... 152

Secure stored jobs ................................................................................................. 153

Lock the control panel menus .................................................................................. 153

Lock the formatter .................................................................................................. 153

Economy settings ................................................................................................................. 154

Print with EconoMode ............................................................................................ 154

Powersave modes ................................................................................................. 154

Disable or enable sleep mode ................................................................. 154

Set the sleep timer .................................................................................. 155

Set the sleep schedule ............................................................................. 155

Install memory and internal USB devices ................................................................................. 156

Overview ............................................................................................................. 156

Install memory ...................................................................................................... 156

x ENWW

Install product memory ............................................................................ 156

Enable memory ..................................................................................................... 161

Check DIMM installation ........................................................................................ 162

Memory allocation ................................................................................................ 162

Install internal USB devices ..................................................................................... 163

Clean the product ................................................................................................................ 166

Clean the paper path ............................................................................................ 166

Product updates ................................................................................................................... 166

10 Solve problems ........................................................................................................... 167

Self help ............................................................................................................................. 168

Solve problems checklist ....................................................................................................... 169

Factors that affect product performance ................................................................... 170

Restore factory settings ......................................................................................................... 171

Interpret control-panel messages ............................................................................................ 172

Control-panel message types .................................................................................. 172

Control-panel messages ......................................................................................... 172

Paper feeds incorrectly or becomes jammed ............................................................................ 173

The product does not pick up paper ........................................................................ 173

The product picks up multiple sheets of paper ........................................................... 173

Prevent paper jams ................................................................................................ 173

Clear jams .......................................................................................................................... 175

Jam locations ........................................................................................................ 175

Clear jams from the output areas ............................................................................ 175

Clear jams from the rear output bin .......................................................... 176

Clear jams from the optional stacker or stapler/stacker ............................... 176

Clear paper jams from the optional stacker or stapler/stacker ...... 177

Clear staple jams from the optional stapler/stacker ..................... 177

Clear jams from the optional 5-bin mailbox ............................................... 179

Clear jams from the fuser area ................................................................................ 181

Clear jams from the optional duplexer ..................................................................... 184

Clear jams from the trays ....................................................................................... 186

Clear jams from Tray 1 ........................................................................... 186

Clear jams from Tray 2 or an optional 500-sheet tray ................................. 186

Clear jams from the optional 1,500-sheet tray ........................................... 187

Clear jams from the optional envelope feeder ........................................................... 189

Clear jams from the top-cover and print-cartridge areas ............................................. 190

Change jam recovery ............................................................................................ 192

Improve print quality ............................................................................................................. 193

Select a paper type ............................................................................................... 193

Use paper that meets HP specifications .................................................................... 193

ENWW xi

Print a cleaning page ............................................................................................ 194

Check the print cartridge ........................................................................................ 194

Use the printer driver that best meets your printing needs ........................................... 196

The product does not print or it prints slowly ............................................................................ 197

The product does not print ...................................................................................... 197

The product prints slowly ........................................................................................ 198

Solve walk-up USB printing problems ...................................................................................... 199

The Retrieve From USB menu does not open when you insert the USB accessory ........... 199

The file does not print from the USB storage accessory ............................................... 199

The file that you want to print is not listed in the Retrieve From USB menu ..................... 200

Solve connectivity problems ................................................................................................... 201

Solve direct-connect problems ................................................................................. 201

Solve network problems ......................................................................................... 201

Poor physical connection ......................................................................... 201

The computer is using the incorrect IP address for the product ...................... 201

The computer is unable to communicate with the product ............................ 202

The product is using incorrect link and duplex settings for the network .......... 202

New software programs might be causing compatibility problems ................ 202

The computer or workstation might be set up incorrectly .............................. 202

The product is disabled, or other network settings are incorrect .................... 202

Solve product software problems with Windows ...................................................................... 203

A printer driver for the product is not visible in the Printer folder .................................. 203

An error message was displayed during the software installation ................................ 203

The product is in Ready mode, but nothing prints ...................................................... 203

Solve product software problems with Mac ............................................................................. 205

The printer driver is not listed in the Print & Fax list .................................................... 205

The product name does not appear in the product list in the Print & Fax list .................. 205

The printer driver does not automatically set up the selected product in the Print & Fax

list ....................................................................................................................... 205

A print job was not sent to the product that you wanted ............................................. 206

When connected with a USB cable, the product does not appear in the Print & Fax list

after the driver is selected. ...................................................................................... 206

You are using a generic printer driver when using a USB connection ........................... 206

Appendix A Product supplies and accessories .................................................................. 207

Order parts, accessories, and supplies ................................................................................... 208

Part numbers ....................................................................................................................... 209

Paper-handling accessories .................................................................................... 209

Customer self-repair parts ....................................................................................... 209

Cables and interfaces ............................................................................................ 210

xii ENWW

Appendix B Service and support ...................................................................................... 211

Hewlett-Packard limited warranty statement ............................................................................. 212

HP's Premium Protection Warranty: LaserJet print cartridge limited warranty statement .................. 214

Data stored on the print cartridge ........................................................................................... 215

End User License Agreement .................................................................................................. 216

Customer self-repair warranty service ..................................................................................... 219

Customer support ................................................................................................................. 220

Repack the product .............................................................................................................. 221

Appendix C Product specifications ................................................................................... 223

Physical specifications .......................................................................................................... 224

Power consumption, electrical specifications, and acoustic emissions .......................................... 224

Operating environment ......................................................................................................... 224

Appendix D Regulatory information ................................................................................ 225

FCC regulations ................................................................................................................... 226

Environmental product stewardship program ........................................................................... 227

Protecting the environment ...................................................................................... 227

Ozone production ................................................................................................. 227

Power consumption ............................................................................................... 227

Toner consumption ................................................................................................ 227

Paper use ............................................................................................................. 227

Plastics ................................................................................................................. 227

HP LaserJet print supplies ....................................................................................... 228

Return and recycling instructions ............................................................................. 228

United States and Puerto Rico .................................................................. 228

Multiple returns (more than one cartridge) .................................. 228

Single returns .......................................................................... 228

Shipping ................................................................................ 228

Non-U.S. returns .................................................................................... 229

Paper .................................................................................................................. 229

Material restrictions ............................................................................................... 229

Disposal of waste equipment by users in private households in the European Union ...... 230

Chemical substances ............................................................................................. 230

Material Safety Data Sheet (MSDS) ......................................................................... 230

For more information ............................................................................................. 230

Declaration of Conformity ..................................................................................................... 232

Safety statements ................................................................................................................. 234

Laser safety .......................................................................................................... 234

Canadian DOC regulations .................................................................................... 234

ENWW xiii

VCCI statement (Japan) .......................................................................................... 234

Power cord instructions .......................................................................................... 234

Power cord statement (Japan) ................................................................................. 234

EMC statement (China) .......................................................................................... 235

EMC statement (Korea) .......................................................................................... 235

EMI statement (Taiwan) .......................................................................................... 235

Product Stability .................................................................................................... 235

Laser statement for Finland ..................................................................................... 235

GS statement (Germany) ........................................................................................ 236

Substances Table (China) ....................................................................................... 237

Restriction on Hazardous Substances statement (Turkey) ............................................. 237

Index ............................................................................................................................... 239

xiv ENWW

1 Product basics

Product comparison

●

Environmental features

●

Accessibility features

●

Product views

●

ENWW 1

Product comparison

HP LaserJet Enterprise 600 M601 models

M601n printer

CE989A

M601dn printer

Prints up to 45 pages per minute (ppm) on Letter size paper and 43 ppm on A4 size

●

paper

Embedded HP Jetdirect networking

●

Contains 512 megabytes (MB) of random access memory (RAM). Expandable to

●

1 gigabyte (GB).

4 GB solid-state module memory

●

Tray 1 holds up to 100 sheets

●

Tray 2 holds up to 500 sheets

●

500-sheet face-down output bin

●

100-sheet face-up output bin

●

4-line color graphical control-panel display

●

Hi-speed USB 2.0 port

●

Host USB printing port

●

Walk-up USB printing port

●

One open dual inline memory module (DIMM) slot

●

Has the same features as the HP LaserJet Enterprise 600 M601n printer, plus the following:

CE990A

Duplex-printing accessory for automatic printing on both sides

●

Wireless network printing

●

2 Chapter 1 Product basics ENWW

HP LaserJet Enterprise 600 M602 models

M602n printer

CE991A

M602dn printer

CE992A

Prints up to 52 pages per minute (ppm)

●

on Letter size paper and 50 ppm on A4 size paper

Embedded HP Jetdirect networking

●

Contains 512 megabytes (MB) of

●

random access memory (RAM). Expandable to 1 gigabyte (GB).

4 GB solid-state module memory

●

Tray 1 holds up to 100 sheets

●

Tray 2 holds up to 500 sheets

●

500-sheet face-down output bin

●

100-sheet face-up output bin

●

Has the same features as the HP LaserJet Enterprise 600 M602n printer, plus the following:

Duplex-printing accessory for automatic printing on both sides

●

Wireless network printing

●

4-line color graphical control-panel

●

display

Numeric keypad

●

Hi-speed USB 2.0 port

●

Host USB printing port

●

Walk-up USB printing port

●

One open dual inline memory module

●

(DIMM) slot

Walkup USB printing port

●

Hardware interface pocket

●

M602x printer

CE993A

ENWW

Has the same features as the HP LaserJet Enterprise 600 M602n printer, plus the following:

Duplex-printing accessory for automatic printing on both sides

●

One additional 500-sheet input tray (Tray 3)

●

Wireless network printing

●

Product comparison

HP LaserJet Enterprise 600 M603 models

M603n printer

CE994A

M603dn printer

CE995A

Prints up to 62 pages per minute (ppm)

●

on Letter size paper and 60 ppm on A4 size paper

Embedded HP Jetdirect networking

●

Contains 512 megabytes (MB) of

●

random access memory (RAM). Expandable to 1 gigabyte (GB).

4 GB solid-state module memory

●

Tray 1 holds up to 100 sheets

●

Tray 2 holds up to 500 sheets

●

500-sheet face-down output bin

●

100-sheet face-up output bin

●

Has the same features as the HP LaserJet Enterprise 600 M603n printer, plus the following:

Duplex-printing accessory for automatic printing on both sides

●

Wireless network printing

●

4-line color graphical control-panel

●

display

Numeric keypad

●

Hi-speed USB 2.0 port

●

Host USB printing port

●

Walk-up USB printing port

●

One open dual inline memory module

●

(DIMM) slot

Walkup USB printing port

●

Hardware interface pocket

●

M603xh printer

CE996A

Has the same features as the HP LaserJet Enterprise 600 M603n printer, plus the following:

Duplex-printing accessory for automatic printing on both sides

●

Wireless network printing

●

One additional 500-sheet input tray (Tray 3)

●

250 GB HP Encrypted High Performance Hard Disk (replaces the 4 GB solid-state

●

module memory that is in the n and dn models)

4 Chapter 1 Product basics ENWW

Environmental features

Duplex Save paper by using duplex printing as your default print setting.

Print multiple pages per sheet Save paper by printing two or more pages of a document side-by-side on one sheet of paper.

Access this feature through the printer driver.

Recycling Reduce waste by using recycled paper.

Recycle print cartridges by using the HP return process.

Energy savings Save energy by initiating sleep mode for the product.

HP Smart Web printing Use HP Smart Web printing to select, store, and organize text and graphics from multiple

Web pages and then edit and print exactly what you see onscreen. It gives you the control you need for printing meaningful information while minimizing waste.

Download HP Smart Web printing from this Web site:

Job storage Use the job storage features to manage print jobs. By using job storage, you activate printing

while you are at the shared product, eliminating lost print jobs that are then reprinted.

www.hp.com/go/smartweb.

ENWW

Environmental features

Accessibility features

The product includes several features that aid you with accessibility issues.

Online user guide that is compatible with text screen-readers.

●

Print cartridges can be installed and removed by using one hand.

●

All doors and covers can be opened by using one hand.

●

Paper can be loaded in Tray 1 by using one hand.

●

6 Chapter 1 Product basics ENWW

Product views

Front view

1 Top output bin

2 Control panel (the M602 and M603 models include a numeric keypad)

3 Top cover (provides access to the print cartridge)

4 Walkup USB printing port

5 Tray 1 (pull to open)

6 On/off button

7Tray 2

ENWW

Product views

Rear view

1 Rear output bin (pull to open)

2 Duplex accessory cover (remove this to install the duplex printing accessory)

3Interface ports

4 Right cover (provides access to the DIMM slot)

5 Hardware integration pocket (M602 and M603 models only)

8 Chapter 1 Product basics ENWW

Interface ports

1 RJ-45 Network connection

2 Power connection

3 Host USB connection, for adding fonts and other third-party solutions (this connection might have a removable cover)

4 Slot for a cable-type security lock

5 Hi-speed USB 2.0 connection, for connecting directly to a computer

Serial number and model number location

The label that contains the model and serial numbers is on the back of the product.

ENWW

Product views

10 Chapter 1 Product basics ENWW

2 Control panel menus

Control-panel layout

●

Retrieve Job from USB menu

●

Retrieve Job from Device Memory menu

●

Supplies menu

●

Trays menu

●

Administration menu

●

Device Maintenance menu

●

ENWW 11

Control-panel layout

Use the control panel to obtain product and job status information and to configure the product.

Number Button or light Function

1 Control-panel display Shows status information, menus, help information, and error messages

4 OK button

Up arrow Navigates to the previous item in the list, or increases the value of numeric

Help button Provides information about the message on the control-panel display

Stop button

Down arrow Navigates to the next item in the list, or decreases the value of numeric items

items

Saves the selected value for an item

●

Performs the action that is associated with the item that is highlighted on

●

the control-panel display

Clears an error condition when the condition is clearable

●

Cancels the current print job and clears the pages from the product

Back arrow Backs up one level in the menu tree or backs up one numeric entry

Home button

Ready light

Data light

Opens and closes the menus.

On: The product is online and ready to accept data to print.

●

Off: The product cannot accept data because it is offline (paused) or has

●

experienced an error.

Blinking: The product is going offline. The product stops processing the

●

current job and expels all of the active pages from the paper path.

On: The product has data to print, but is waiting to receive all of the

●

data.

Off: The product has no data to print.

●

Blinking: The product is processing or printing the data.

●

12 Chapter 2 Control panel menus ENWW

Number Button or light Function

14 Numeric keypad

Attention light

Folder or STAR (Secure Transaction Access Retrieval) button

NOTE: This item is not

included for the M601 models.

Backspace button

NOTE: This item is not

included for the M601 models.

NOTE: This item is not

included for the M601 models.

On: The product has experienced a problem. See the control-panel

●

display.

Off: The product is functioning without error.

●

Blinking: Action is required. See the control-panel display.

●

Provides quick access to the Retrieve Job menu

Returns values to their defaults and exits the help screen

Enter numeric values

ENWW

Control-panel layout

Retrieve Job from USB menu

NOTE: You must enable this feature by using the control-panel menus or the HP Embedded Web

Server before it can be used.

To enable this feature by using the control-panel menus, open the Administration menu, open the Retrieve From USB Settings sub menu, and then select the Enable option. To enable this feature by using the HP Embedded Web Server, click the Print tab.

To display: At the product control panel, press the Home button, and then select the Retrieve Job from USB menu.

First level Second level Values

Select a file or folder <Job name> Copies

14 Chapter 2 Control panel menus ENWW

Retrieve Job from Device Memory menu

To display: At the product control panel, press the Home button, and then select the Retrieve Job from Device Memory menu.

First level Second level Values

All Jobs (With PIN) Print Copies

Print and Delete Copies

Delete

All Jobs (No PIN) Print Copies

Print and Delete Copies

Delete Yes

<Job name with PIN> Print Copies

Print and Delete Copies

Delete

<Job name without PIN> Print Copies

Print and Delete Copies

Delete Yes

ENWW

Retrieve Job from Device Memory menu

Supplies menu

To display: At the product control panel, press the Home button, and then select the Supplies

menu.

In the following table, asterisks (*) indicate the factory default setting.

Table 2-1 Supplies menu

First level Second level Third level Fourth level Values

Manage Supplies Print Supplies Status

Supply Settings Black Cartridge Very Low Settings Stop

Prompt to continue

Continue*

Low Threshold

Settings

Maintenance Kit Very Low Settings Stop

Low Threshold

Settings

Supply Messages Low Message On*

1-100%

Default values for the CE390A cartridge:

●

Default values for the CE390X cartridge:

●

Prompt to continue

Continue*

1-100%

Default = 10%

M601 = 8%

M602 = 11%

M603 = 20%

M602 = 5%

M603 = 9%

Off

Level Gauge On*

Off

Reset Supplies New Maintenance Kit No

Yes

Black Cartridge The status is displayed.

Maintenance Kit The status is displayed.

16 Chapter 2 Control panel menus ENWW

Trays menu

To display: At the product control panel, press the Home button, and then select the Trays menu.

In the following table, asterisks (*) indicate the factory default setting.

Table 2-2 Trays menu

First level Second level Values

Manage Trays Use Requested Tray Exclusively*

First

Manually Feed Prompt Always*

Unless Loaded

Size/Type Prompt Display*

Do Not Display

Use Another Tray Enabled*

Disabled

Alternative Letterhead Mode Disabled*

Enabled

Duplex Blank Pages Auto *

Yes

Tray 2 Model Standard Tray*

Custom Tray

Image Rotation Standard*

Alternate

Override A4/Letter Yes*

Envelope Feeder Size Select a size from the list.

Envelope Feeder Type Select a type from the list.

Tray <X> Size Select a size from the list.

Tray <X> Type Select a type from the list.

ENWW

Trays menu

Administration menu

Reports menu

To display: At the product control panel, press the Home button, select the Administration menu, and then select the Reports menu.

Table 2-3 Reports menu

First level Second level

Configuration/Status Pages Administration Menu Map

Configuration Page

Supplies Status Page

Usage Page

File Directory Page

Current Settings Page

Other Pages PCL Font List

PS Font List

General Settings menu

To display: At the product control panel, press the Home button, select the Administration

menu, and then select the General Settings menu.

In the following table, asterisks (*) indicate the factory default setting.

Table 2-4 General Settings menu

First level Second level Third level Fourth level Values

Date/Time Settings Date/Time Format Date Format DD/MMM/YYYY

MMM/DD/YYYY

YYYY/MMM/DD

Time Format 12 hour (AM/PM)

24 hours

Date/Time Date Month

Day

Year

Select values from the lists.

18 Chapter 2 Control panel menus ENWW

Table 2-4 General Settings menu (continued)

First level Second level Third level Fourth level Values

Time Hour

Minute

AM/PM

Time Zone Select the time zone from

Adjust for Daylight

Savings

Energy Settings Sleep Timer Settings Sleep/Auto Off Timer Enabled*

Sleep/Auto Off After If you enabled the sleep/

Wake/Auto On

Events

On*

All Events*

Select values from the lists.

the list.

Off

Disabled

auto off timer, enter a value between 0 and 120 minutes.

Default value: 30 minutes

Network port

Power button only

Print Quality Image Registration Adjust Tray <X> Print Test Page

X1 Shift

Y1 Shift

X2 Shift

Y2 Shift

Adjust Paper Types Select from a list of paper

types that the product supports. The available options are the same for each paper type.

Resistance Mode Normal

Humidity Mode Normal

Restore Modes

Print Mode Select from a list of print

-5.00 mm to 5.00 mm

modes.

Down

High

ENWW

Administration menu

Table 2-4 General Settings menu (continued)

First level Second level Third level Fourth level Values

Optimize Line Detail Normal*

Alternate 1

Alternate 2

Alternate 3

Off

Restore Optimize

Resolution 300 x 300 dpi

600 x 600 dpi

FastRes 1200*

ProRes 1200

REt Off

On*

Economode Off*

Toner Density Range: 1 - 5

Default = 3

Quiet Mode Off*

Jam Recovery Auto*

Off

Manage Stored Jobs Quick Copy Job

Storage Limit

Quick Copy Job Held

Timeout

1-100

Default = 32

Off*

1 Hour

4 Hours

1 Day

1 Week

Default Folder Name

20 Chapter 2 Control panel menus ENWW

Table 2-4 General Settings menu (continued)

First level Second level Third level Fourth level Values

Sort Stored Jobs By Job Name*

Date

Restore Factory Settings

Retrieve From USB Settings menu

To display: At the product control panel, press the Home button, select the Administration menu, and then select the Retrieve From USB Settings menu.

Table 2-5 Retrieve From USB Settings menu

First level Values

Enable Retrieve from USB Enabled

Disabled*

General Print Settings menu

To display: At the product control panel, press the Home button, select the Administration

menu, and then select the General Print Settings menu.

In the following table, asterisks (*) indicate the factory default setting.

Table 2-6 Print Settings menu

First level Second level Values

Manual Feed Enabled

Disabled*

Courier Font Regular*

Dark

Wide A4 Enabled

Disabled*

Print PS Errors Enabled

Disabled*

Print PDF Errors Enabled

Disabled*

ENWW

Administration menu

Table 2-6 Print Settings menu (continued)

First level Second level Values

Personality Auto*

PCL

PDF

PCL Form Length Range: 5 – 128

Default = 60

Orientation Portrait*

Landscape

Font Source Internal*

USB

Font Number Range: 0 – 110

Default = 0

Font Pitch Range: 0.44 – 99.99

Default = 10.00

Font Point Size Range: 4.00 – 999.75

Default = 12.00

Symbol Set Select from a list of symbol sets.

Append CR to LF No*

Yes

Suppress Blank Pages No*

Yes

Media Source Mapping Standard*

Classic

22 Chapter 2 Control panel menus ENWW

Default Print Options menu

To display: At the product control panel, press the Home button, select the Administration

menu, and then select the Default Print Options menu.

In the following table, asterisks (*) indicate the factory default setting.

First level Second level Values

Number of Copies

Default Paper Size Select from a list of sizes that the product

supports.

Default Custom Paper Size Unit of Measure Inches

X Dimension

Y Dimension

Output Bin Select from a list of available output bins.

Sides 1-sided*

2-sided

2-Sided Format Book-style*

Flip-style

Edge-To-Edge Enabled

Disabled*

Display Settings menu

To display: At the product control panel, press the Home button, select the Administration

menu, and then select the Display Settings menu.

In the following table, asterisks (*) indicate the factory default setting.

Table 2-7 Display Settings menu

First level Second level Values

Display Brightness Range -10 to 10

Language Select from a list of languages that the

product supports.

Show IP Address Display

Hide

Inactivity Timeout Range: 10 – 300 seconds

Default = 60 seconds

ENWW

Administration menu

Table 2-7 Display Settings menu (continued)

First level Second level Values

Clearable Warnings On

Job*

Continuable Events Auto continue (10 seconds)*

Press OK to continue

Manage Supplies menu

To display: At the product control panel, press the Home button, select the Administration

menu, and then select the Manage Supplies menu.

In the following table, asterisks (*) indicate the factory default setting.

Table 2-8 Manage Supplies menu

First level Second level Third level Values

Print Supplies Status

Supply Settings Black Cartridge Very Low Settings Stop

Prompt to continue

Continue*

Low Threshold Settings 1-100%

Default values for the CE390A cartridge:

M601 = 8%

●

M602 = 11%

●

M603 = 20%

●

Default values for the CE390X cartridge:

M602 = 5%

●

M603 = 9%

●

Maintenance Kit Very Low Settings Stop

Prompt to continue

Continue*

Low Threshold Settings 1-100%

Default = 10%

24 Chapter 2 Control panel menus ENWW

Table 2-8 Manage Supplies menu (continued)

First level Second level Third level Values

Supply Messages Low Message On*

Off

Level Gauge On*

Off

Reset Supplies New Maintenance Kit No

Yes

Manage Trays menu

To display: At the product control panel, press the Home button, select the Administration

menu, and then select the Manage Trays menu.

In the following table, asterisks (*) indicate the factory default setting.

Table 2-9 Manage Trays menu

First level Values

Use Requested Tray Exclusively*

First

Manually Feed Prompt Always*

Unless Loaded

Size/Type Prompt Display*

Do Not Display

Use Another Tray Enabled*

Disabled

Alternative Letterhead Mode Disabled*

Enabled

Duplex Blank Pages Auto *

Yes

Tray 2 Model Standard Tray

Custom Tray

Image Rotation Standard

Alternate

Override A4/Letter Yes*

ENWW

Administration menu

Stapler/Stacker Settings menu

To display: At the product control panel, press the Home button, select the Administration

menu, and then select the Stapler/Stacker Settings menu.

In the following table, asterisks (*) indicate the factory default setting.

Table 2-10 Stapler/Stacker Settings menu

First level Values

Stapling None*

Top left or right

Top left

Top right

Staples Very Low Continue*

Stop

Multi-Bin Mailbox Settings menu

To display: At the product control panel, press the Home button, select the Administration

menu, and then select the Multi-Bin Mailbox Settings menu.

In the following table, asterisks (*) indicate the factory default setting.

Table 2-11 Multi-Bin Mailbox Settings menu

First level Values

Operation Mode Mailbox*

Stacker

Job Separator

Collator

26 Chapter 2 Control panel menus ENWW

Network Settings menu

To display: At the product control panel, press the Home button, select the Administration

menu, and then select the Network Settings menu.

In the following table, asterisks (*) indicate the factory default setting.

Table 2-12 Network Settings menu

First level Values

I/O Timeout Range: 5 – 300 sec

Default = 15

Jetdirect Menu See the table that follows for details.

Table 2-13 Jetdirect Menu

First level Second level Third level Fourth level Values

Information Print Sec Page Yes

No*

TCP/IP Enable On*

Off

Host Name

IPV4 Settings Config Method Bootp

DHCP*

Auto IP

Manual

Manual Settings

NOTE: This menu is

available only if you select the Manual option under the Config Method menu.

Subnet Mask Enter the address.

Default Gateway Enter the address.

Default IP Auto IP*

DHCP Release No*

IP Address Enter the address.

Legacy

ENWW

Yes

Administration menu

Table 2-13 Jetdirect Menu (continued)

First level Second level Third level Fourth level Values

DHCP Renew No*

Yes

Primary DNS

Secondary DNS

IPV6 Settings Enable Off

On*

Address Manual Settings Enable

Address

DHCPV6 Policy Router Specified

Router Unavailable*

Always

Primary DNS

Secondary DNS

Proxy Server

Proxy Port

Idle Timeout

Security Secure Web HTTPS Required*

HTTPS Optional

IPSEC Keep

Disable*

802.1X Reset

Keep*

Reset Security Yes

No*

Diagnostics Embedded Tests LAN HW Test Yes

No*

HTTP Test Yes

No*

SNMP Test Yes

No*

28 Chapter 2 Control panel menus ENWW

Table 2-13 Jetdirect Menu (continued)

First level Second level Third level Fourth level Values

Data Path Test Yes

No*

Select All Tests Yes

No*

Execution Time [H] Range: 1 – 60 hours

Default = 1 hour

Execute No*

Yes

Ping Test Dest Type IPV4

IPV6

Dest IPv4

Dest IPv6

Packet Size

Timeout

Count

Print Results Yes

Execute Yes

Ping Results Packets Sent

Packets Received

Percent Lost

RTT Min

RTT Max

RTT Average

Ping in Progress Yes

ENWW

Administration menu

Table 2-13 Jetdirect Menu (continued)

First level Second level Third level Fourth level Values

Refresh Yes

Link Speed Auto*

10T Half

10T Full

100TX Half

100TX Full

1000T Full

30 Chapter 2 Control panel menus ENWW

Troubleshooting menu

To display: At the product control panel, press the Home button, select the Administration

menu, and then select the Troubleshooting menu.

In the following table, asterisks (*) indicate the factory default setting.

Table 2-14 Troubleshooting menu

First level Second level Third level Values

Print Event Log

View Event Log

Print Paper Path Page

Print Quality Pages Print Fuser Test Page

Diagnostic Tests Paper Path Sensors Select from a list of the product

sensors.

Paper Path Test Print Test Page

Source Select from a list of the available

Destination Select from a list of the available

Duplex Off*

Copies 1*

Stacking Off

Manual Sensor Test

trays.

bins.

100

500

Manual Tray/Bin Sensor

Test

Component Test

Print/Stop Test Range: 0 – 60,000

ENWW

Administration menu

Device Maintenance menu

Backup/Restore menu

To display: At the product control panel, press the Home button, select the Device Maintenance menu, and then select the Backup/Restore menu.

In the following table, asterisks (*) indicate the factory default setting.

Table 2-15 Backup/Restore menu

First level Second level Third level Values

Backup Data Scheduled Backups Enable Scheduling Enter a time

Days Between Enter the number of days

Backup Now

Export Last Backup

Restore Data Insert a USB drive that contains

the backup file.

Calibrate/Cleaning menu

To display: At the product control panel, press the Home button, select the Device Maintenance menu, and then select the Calibrate/Cleaning menu.

In the following table, asterisks (*) indicate the factory default setting.

Table 2-16 Calibrate/Cleaning menu

First level Second level Values

Cleaning Settings Auto Cleaning Off*

Cleaning Interval From the list, select the number of pages at

which to automatically clean the product.

Cleaning Size Letter

Print Cleaning Page

32 Chapter 2 Control panel menus ENWW

USB Firmware Upgrade menu

To display: At the product control panel, press the Home button, select the Device Maintenance menu, and then select the USB Firmware Upgrade menu.

Insert a USB storage device with a firmware upgrade bundle into the USB port, and follow the onscreen instructions.

Service menu

To display: At the product control panel, press the Home button, select the Device Maintenance menu, and then select the Service menu.

The Service menu is locked and requires a PIN for access. This menu is intended for use by authorized service personnel.

ENWW

Device Maintenance menu

34 Chapter 2 Control panel menus ENWW

3 Software for Windows

Supported operating systems and printer drivers for Windows

●

Select the correct printer driver for Windows

●

Change print job settings for Windows

●

Remove the printer driver from Windows

●

Supported utilities for Windows

●

Software for other operating systems

●

ENWW 35

Supported operating systems and printer drivers for Windows

The product supports the following Windows operating systems:

Windows XP (32-bit and 64-bit)

●

Windows Server 2008 (32-bit and 64-bit)

●

Windows Vista (32-bit and 64-bit)

●

Windows 7 (32-bit and 64-bit)

●

The installation program on the software CD that came with the product supports the following Windows operating systems:

Windows XP Service Pack 2 or greater (32-bit)

●

Windows Server 2008 (32-bit and 64-bit)

●

Windows Server 2008 R2 (64-bit)

●

Windows Vista (32-bit and 64-bit)

●

Windows 7, including Starter Edition (32-bit and 64-bit)

●

NOTE: You also can install the product software on 64-bit Windows XP and 64-bit Windows Server

2003 operating systems by using the Windows Add Printer feature.

The product supports the following Windows printer drivers:

HP PCL 6 (this is the default printer driver)

●

HP postscript emulation Universal Print Driver (HP UPD PS)

●

HP PCL 5 Universal Print Driver (HP UPD PCL 5)

●

HP PCL 6 Universal Print Driver (HP UPD PCL 6)

●

The printer drivers include online Help that has instructions for common printing tasks and also describes the buttons, checkboxes, and drop-down lists that are in the printer driver.

NOTE: For more information about the UPD, see www.hp.com/go/upd.

36 Chapter 3 Software for Windows ENWW

Select the correct printer driver for Windows

Printer drivers provide access to the product features and allow the computer to communicate with the product (using a printer language). The following printer drivers are available at

lj600Series_software.

www.hp.com/go/

HP PCL 6 driver

HP UPD PS driver

HP UPD PCL 5

Provided as the default driver. This driver is automatically installed unless you

●

select a different one.

Recommended for all Windows environments

●

Provides the overall best speed, print quality, and product-feature support for

●

most users

Developed to align with the Windows Graphic Device Interface (GDI) for the

●

best speed in Windows environments

Might not be fully compatible with third-party and custom software programs

●

that are based on PCL 5

●

Recommended for printing with Adobe highly graphics-intensive software programs

Provides support for printing from postscript emulation needs, or for postscript

●

flash font support

Recommended for general office printing in Windows environments

●

Compatible with previous PCL versions and older HP LaserJet products

●

The best choice for printing from third-party or custom software programs

●

The best choice when operating with mixed environments, which require the

●

product to be set to PCL 5 (UNIX, Linux, mainframe)

software programs or with other

Designed for use in corporate Windows environments to provide a single

●

driver for use with multiple printer models

Preferred when printing to multiple printer models from a mobile Windows

●

computer

HP UPD PCL 6

Recommended for printing in all Windows environments

●

Provides the overall best speed, print quality, and printer feature support for

●

most users

Developed to align with Windows Graphic Device Interface (GDI) for best

●

speed in Windows environments

Might not be fully compatible with third-party and custom software programs

●

that are based on PCL 5

HP Universal Print Driver (UPD)

The HP Universal Print Driver (UPD) for Windows is a single driver that gives you instant access to virtually any HP LaserJet product, from any location, without downloading separate drivers. It is built on

ENWW

Select the correct printer driver for Windows

proven HP print driver technology and has been tested thoroughly and used with many software programs. It is a powerful solution that performs consistently over time.

The HP UPD communicates directly with each HP product, gathers configuration information, and then customizes the user interface to show the product’s unique, available features. It automatically enables features that are available for the product, such as two-sided printing and stapling, so you do not need to enable them manually.

For more information, go to

UPD installation modes

Traditional mode

Dynamic mode

www.hp.com/go/upd.

Use this mode if you are installing the driver from a CD for a single computer.

●

When installed from the CD that comes with the product, UPD operates like

●

traditional printer drivers. It operates with a specific product.

If you use this mode, you must install UPD separately for each computer and

●

for each product.

To use this mode, download UPD from the Internet. See

●

upd.

Dynamic mode allows you to use a single driver installation, so you can

●

discover and print to HP products in any location.

Use this mode if you are installing UPD for a workgroup.

●

www.hp.com/go/

38 Chapter 3 Software for Windows ENWW

Change print job settings for Windows

Priority for print settings

Changes to print settings are prioritized depending on where the changes are made:

NOTE: The names of commands and dialog boxes might vary depending on your software program.

Page Setup dialog box: Click Page Setup or a similar command on the File menu of the

●

program you are working in to open this dialog box. Settings changed here override settings changed anywhere else.

Print dialog box: Click Print, Print Setup, or a similar command on the File menu of the

●

program you are working in to open this dialog box. Settings changed in the Print dialog box have a lower priority and usually do not override changes made in the Page Setup dialog box.

Printer Properties dialog box (printer driver): Click Properties in the Print dialog box

●

to open the printer driver. Settings changed in the Printer Properties dialog box usually do not override settings anywhere else in the printing software. You can change most of the print settings here.

Default printer driver settings: The default printer driver settings determine the settings used

●

in all print jobs, unless settings are changed in the Page Setup, Print, or Printer Properties dialog boxes.

Printer control panel settings: Settings changed at the printer control panel have a lower

●

priority than changes made anywhere else.

Change the settings for all print jobs until the software program is closed

1. On the File menu in the software program, click Print.

2. Select the driver, and then click Properties or Preferences.

The steps can vary; this procedure is most common.

Change the default settings for all print jobs

1. Windows XP, Windows Server 2003, and Windows Server 2008 (using the

default Start menu view): Click Start, and then click Printers and Faxes.

Windows XP, Windows Server 2003, and Windows Server 2008 (using the Classic Start menu view): Click Start, click Settings, and then click Printers.

Windows Vista: Click Start, click Control Panel, and then in the category for Hardware and Sound click Printer.

ENWW

Windows 7: Click Start, and then click Devices and Printers.

2. Right-click the driver icon, and then select Printing Preferences.

Change print job settings for Windows

Change the product configuration settings

1. Windows XP, Windows Server 2003, and Windows Server 2008 (using the

default Start menu view): Click Start, and then click Printers and Faxes.

Windows XP, Windows Server 2003, and Windows Server 2008 (using the Classic Start menu view): Click Start, click Settings, and then click Printers.

Windows Vista: Click Start, click Control Panel, and then in the category for Hardware and Sound click Printer.

Windows 7: Click Start, and then click Devices and Printers.

2. Right-click the driver icon, and then select Properties or Printer properties.

3. Click the Device Settings tab.

40 Chapter 3 Software for Windows ENWW

Remove the printer driver from Windows

Windows XP

1. Click Start, Control Panel, and then Add or Remove Programs.

2. Find and select the product from the list.

3. Click the Change/Remove button to remove the software.

Windows Vista

1. Click Start, Control Panel, and then Programs and Features.

2. Find and select the product from the list.

3. Select the Uninstall/Change option.

Windows 7

1. Click Start, Control Panel, and then under the Programs heading, click Uninstall a

program.

2. Find and select the product from the list.

3. Select the Uninstall option.

ENWW

Remove the printer driver from Windows

Supported utilities for Windows

HP Web Jetadmin

HP Web Jetadmin is a simple print and imaging peripheral management software tool that helps optimize product use, control color costs, secure products, and streamline supplies management by enabling remote configuration, proactive monitoring, security troubleshooting, and reporting of printing and imaging products.

To download a current version of HP Web Jetadmin and for the latest list of supported host systems, visit

www.hp.com/go/webjetadmin.

When installed on a host server, a Windows client can gain access to HP Web Jetadmin by using a supported Web browser (such as Microsoft® Internet Explorer) by navigating to the HP Web Jetadmin host.

HP Embedded Web Server

The product is equipped with the HP Embedded Web Server, which provides access to information about product and network activities. This information appears in a Web browser, such as Microsoft Internet Explorer, Netscape Navigator, Apple Safari, or Mozilla Firefox.

The HP Embedded Web Server resides on the product. It is not loaded on a network server.

The HP Embedded Web Server provides an interface to the product that anyone who has a networkconnected computer and a standard Web browser can use. No special software is installed or configured, but you must have a supported Web browser on your computer. To gain access to the HP Embedded Web Server, type the IP address for the product in the address line of the browser. (To find the IP address, print a configuration page. For more information about printing a configuration page, see

For a complete explanation of the features and functionality of the HP Embedded Web Server, see

the HP Embedded Web Server on page 147.

HP ePrint

With HP ePrint , you can print anywhere, anytime, from a mobile phone, laptop, or any other mobile device. HP ePrint works with any email-capable device. If you can e-mail, you can print to an HP ePrintenabled product. For more details, go to

NOTE: The product must be connected to a network and have Internet access to use HP ePrint.

HP ePrint is disabled as a default setting in the product. Use this procedure to enable it.

1. Type the product IP address into the address line of a Web browser to open the HP Embedded

2. Click the Web Services tab.

Print information pages on page 146).

Use

www.hpeprintcenter.com.

Web Server.

3. Select the option to enable Web Services.

42 Chapter 3 Software for Windows ENWW

Software for other operating systems

OS Software

UNIX For HP-UX and Solaris networks, go to

model scripts using the HP Jetdirect printer installer (HPPI) for UNIX.

For the latest model scripts, go to

Linux For information, go to

SAP devices For drivers, go to

For information, go to

www.hp.com/go/sap/drivers.

www.hplip.net.

www.hp.com/go/sap/print.

www.hp.com/go/unixmodelscripts.

www.hp.com/go/jetdirectunix_software to install

ENWW

Software for other operating systems

44 Chapter 3 Software for Windows ENWW

4 Use the product with Mac

Software for Mac

●

Basic print tasks with Mac

●

Solve problems with a Mac

●

ENWW 45

Software for Mac

Supported operating systems and printer drivers for Mac

The product supports the following Mac operating systems:

Mac OS X 10.5 and 10.6

●

NOTE: For Mac OS X 10.5 and later, PPC and Intel® Core™ Processor Macs are supported. For

Mac OS X 10.6, Intel Core Processor Macs are supported.

The HP LaserJet software installer provides PostScript® Printer Description (PPD) files, Printer Dialog Extensions (PDEs), and the HP Utility for use with Mac OS X computers. The HP printer PPD and PDE files, in combination with the built-in Apple PostScript printer drivers, provide full printing functionality and access to specific HP printer features.

Install software for Mac operating systems

Install software for Mac computers connected directly to the product

This product supports a USB 2.0 connection. Use an A-to-B type USB cable. HP recommends using a cable that is no longer than 2 m (6.5 ft).

1. Connect the USB cable to the product and the computer.

2. Install the software from the CD. Click the product icon, and follow the onscreen instructions.

If you did not add a pirnter during the CD install process, continue with the next step.

At the computer, open the Apple menu the Print & Fax icon.

, click the System Preferences menu, and then click

4. Click the plus (+) symbol in the lower left corner of the Printer Names column, select the product

from the Add Printer window, and then make sure that the product driver is listed in the Print Using area.

46 Chapter 4 Use the product with Mac ENWW

5. Click Add to create the printer queue.

NOTE: For Mac OS X 10.5 and 10.6, the installation procedure should automatically configure

the installed options.

6. Print a page from any program to make sure that the software is correctly installed.

NOTE: If the installation failed, reinstall the software.

Install software for Mac computers on a wired network

Configure the IP address

1. Connect the network cable to the product and to the network.

2. Wait for 60 seconds before continuing. During this time, the network recognizes the product and

assigns an IP address or host name for the product.

At the product control panel, press the Home

4. Open the following menus:

Administration

●

Reports

●

Configuration/Status Pages

●

Configuration Page

●

button.

ENWW

Software for Mac

5. Find the IP address on the Embedded Jetdirect page.

Jetdirect Page

6. IPv4: If the IP address is 0.0.0.0, or 192.0.0.192, or 169.254.x.x, you must manually configure

the IP address. Otherwise, the network configuration was successful.

IPv6: If the IP address begins with "fe80:", the product should be able to print. If not, you must manually configure the IP address.

Install the software

HP Color LaserJet

Page 1

1. Install the software from the CD. Click the product icon, and follow the onscreen instructions.

If you did not add a pirnter during the CD install process, continue with the next step.

At the computer, open the Apple menu

, click the System Preferences menu, and then click

the Print & Fax icon.

3. Click the plus (+) symbol in the lower left corner of the Printer Names column.

By default, Mac OS X uses the Bonjour method to find the driver and add the product to the printer pop-up menu. This method is best in most situations. If Mac OS X cannot find the HP printer driver, an error message displays. Reinstall the software.

If you are connecting the product to a large network, you might need to use IP printing to connect rather than Bonjour. Follow these steps:

a. From the Add Printer window, click the IP Printer button.

b. From the Protocol drop-down list, select the HP Jetdirect-Socket option. Enter the IP

address or host name for the product. From the Print Using drop-down list, select the product model if one is not already selected.

4. Print a page from any program to make sure that the software is correctly installed.

48 Chapter 4 Use the product with Mac ENWW

Remove the printer driver from Mac operating systems

You must have administrator rights to remove the software.

1. Open System Preferences.

2. Select Print & Fax.

3. Highlight the product.

4. Click the minus (-) symbol.

5. Delete the print queue, if necessary.

ENWW

Software for Mac

Priority for print settings for Mac

Changes to print settings are prioritized depending on where the changes are made:

NOTE: The names of commands and dialog boxes might vary depending on your software program.

Page Setup dialog box: Click Page Setup or a similar command on the File menu of the

●

program you are working in to open this dialog box. Settings changed here might override settings changed anywhere else.

Print dialog box: Click Print, Print Setup, or a similar command on the File menu of the

●

program you are working in to open this dialog box. Settings changed in the Print dialog box have a lower priority and do not override changes made in the Page Setup dialog box.

Default printer driver settings: The default printer driver settings determine the settings used

●

in all print jobs, unless settings are changed in the Page Setup, Print, or Printer Properties dialog boxes.

Printer control panel settings: Settings changed at the printer control panel have a lower

●

priority than changes made anywhere else.

Change printer-driver settings for Mac

Change the settings for all print jobs until the software program is closed

1. On the File menu, click the Print button.

2. Change the settings that you want on the various menus.

Change the default settings for all print jobs

1. On the File menu, click the Print button.

2. Change the settings that you want on the various menus.

3. On the Presets menu, click the Save As... option and type a name for the preset.

These settings are saved in the Presets menu. To use the new settings, you must select the saved preset option every time you open a program and print.

Change the product configuration settings

From the Apple menu icon.

2. Select the product in the left side of the window.

3. Click the Options & Supplies button.

, click the System Preferences menu and then click the Print & Fax

4. Click the Driver tab.

5. Configure the installed options.

50 Chapter 4 Use the product with Mac ENWW

Software for Mac computers

HP Utility for Mac

Use the HP Utility to set up product features that are not available in the printer driver.

You can use the HP Utility when the product uses a universal serial bus (USB) cable or is connected to a TCP/IP-based network.

Open the HP Printer Utility

From the dock, click HP Utility.

▲

-or-

From Applications, click Hewlett Packard, and then click HP Utility.

HP Utility features

The HP Utility consists of pages that you open by clicking in the Configuration Settings list. The following table describes the tasks that you can perform from these pages. At the top of any page, click the HP Support link to access technical assistance, online supplies ordering, online registration, and recycling and return information.

Menu Item Description

Information And Support

Device Information Shows information about the currently selected product.

File Upload Transfers files from the computer to the product.

Upload Fonts Transfers font files from the computer to the product.

Update Firmware Transfers a firmware update file to the product.

Commands Sends special characters or print commands to the product after the

Printer Settings Trays Configuration Changes the default tray settings.

Economode & Toner

Resolution Sets the default print resolution for the product

Output Devices Manages settings for the optional output accessories

Duplex Mode Turns on the automatic two-sided printing mode.

Stored Jobs Manages print jobs that are stored on the product hard disk.

E-mail Alerts Configures the product to send e-mail notices for certain events.

Supplies Status Shows the product supplies status and provides links for online

supplies-ordering.

print job.

Changes toner density to use toner more economically

Density

ENWW

Network Settings Configures the network settings, such as the IPv4 and IPv6 settings.

Supplies

Management

Configures how the product should behave when supplies are nearing the end of their estimated life.

Software for Mac

Menu Item Description

Protect Direct Ports Disables printing over USB or parallel ports.

Additional Settings Provides access to the HP Embedded Web Server.

Supported utilities for Mac

HP Embedded Web Server

The product is equipped with the HP Embedded Web server, which provides access to information about product and network activities. Access the HP Embedded Web Server from the HP Utility. Open the Printer Settings menu, and then select the Additional Settings option.

You can also access the HP Embedded Web Server from the Safari Web browser:

1. Select the page icon in the left side of the Safari toolbar.

2. Click the Bonjour logo.

3. In the list of printers, double-click this product. The HP Embedded Web Server opens.

HP ePrint

AirPrint

NOTE: The product must be connected to a network and have Internet access to use HP ePrint.

HP ePrint is disabled as a default setting in the product. Use this procedure to enable it.

1. Type the product IP address into the address line of a Web browser to open the HP Embedded

Web Server.

2. Click the Web Services tab.

3. Select the option to enable Web Services.

Direct printing using Apple’s AirPrint is supported for iOS 4.2 or later. Use AirPrint to print directly to the product from an iPad (iOS 4.2), iPhone (3GS or later), or iPod touch (third generation or later) in the following applications:

Mail

●

Photos

●

www.hpeprintcenter.com.

Safari

●

Select third-party applications

●

52 Chapter 4 Use the product with Mac ENWW

To use AirPrint, the product must be connected to a network. For more information about using AirPrint and about which HP products are compatible with AirPrint, go to

www.hp.com/go/airprint.

NOTE: You might need to upgrade the product firmware to use AirPrint. Go to www.hp.com/go/ lj600Series_firmware.

ENWW

Software for Mac

Basic print tasks with Mac

Cancel a print job with Mac

1. If the print job is currently printing, cancel it by following this procedure:

a. Press the Stop

b. The product prompts you to confirm the deletion. Press the OK button.

2. You can also cancel a print job from a software program or a print queue.

Software program: Typically, a dialog box appears briefly on the computer screen,

●

allowing you to cancel the print job.

Mac print queue: Open the print queue by double-clicking the product icon in the Dock.

●

Highlight the print job, and then click the Delete button.

button on the product control panel.

Change the paper size and type with Mac

1. On the File menu in the software program, click the Print option.

2. In the Copies & Pages menu, click the Page Setup button.

3. Select a size from the Paper Size drop-down list, and then click the OK button.

4. Open the Finishing menu.

5. Select a type from the Media-type drop-down list.

6. Click the Print button.

Resize documents or print on a custom paper size with Mac

Mac OS X 10.5 and 10.6

Use one of these methods.

1. On the File menu, click the Print option.

2. Click the Page Setup button.

3. Select the product, and then select the correct settings for the Paper Size and

Orientation options.

1. On the File menu, click the Print option.

2. Open the Paper Handling menu.

3. In the Destination Paper Size area, click the Scale to fit paper size

box, and then select the size from the drop-down list.

Create and use printing presets with Mac

Use printing presets to save the current printer driver settings for reuse.

54 Chapter 4 Use the product with Mac ENWW

Create a printing preset

1. On the File menu, click the Print option.

2. Select the driver.

3. Select the print settings that you want to save for reuse.

4. In the Presets menu, click the Save As... option, and type a name for the preset.

5. Click the OK button.

Use printing presets

1. On the File menu, click the Print option.

2. Select the driver.

3. In the Presets menu, select the printing preset.

NOTE: To use printer-driver default settings, select the standard option.

Print a cover page with Mac

1. On the File menu, click the Print option.

2. Select the driver.

3. Open the Cover Page menu, and then select where to print the cover page. Click either the

Before Document button or the After Document button.

4. In the Cover Page Type menu, select the message that you want to print on the cover page.

NOTE: To print a blank cover page, select the standard option from the Cover Page Type

menu.

Use watermarks with Mac

1. On the File menu, click the Print option.

2. Open the Watermarks menu.

3. From the Mode menu, select the type of watermark to use. Select the Watermark option to print

a semi-transparent message. Select the Overlay option to print a message that is not transparent.

4. From the Pages menu, select whether to print the watermark on all pages or on the first page

only.

5. From the Text menu, select one of the standard messages, or select the Custom option and type

a new message in the box.

ENWW

6. Select options for the remaining settings.

Basic print tasks with Mac

Print multiple pages on one sheet of paper with Mac

1. On the File menu, click the Print option.

2. Select the driver.

3. Open the Layout menu.

4. From the Pages per Sheet menu, select the number of pages that you want to print on each

sheet (1, 2, 4, 6, 9, or 16).

5. In the Layout Direction area, select the order and placement of the pages on the sheet.

6. From the Borders menu, select the type of border to print around each page on the sheet.

Print on both sides of the page (duplex printing) with Mac

1. Insert enough paper into one of the trays to accommodate the print job.

2. On the File menu, click the Print option.

3. Open the Layout menu.

4. From the Two-Sided menu, select a binding option.

Store jobs with Mac

You can store jobs on the product so you can print them at any time. You can share stored jobs with other users, or you can make them private.

1. On the File menu, click the Print option.

2. Open the Job Storage menu.

56 Chapter 4 Use the product with Mac ENWW

3. In the Job Storage Mode drop-down list, select the type of stored job.

Proof and Hold: This feature provides a quick way to print and proof one copy of a job

●

and then print more copies.

Personal Job: When you send a job to the product, the job does not print until you request

●

it at the product control panel. If you assign a personal identification number (PIN) to the job, you must provide the required PIN at the control panel.

Quick Copy: If the optional hard disk is installed on the product, you can print the

●

requested number of copies of a job and then store a copy of the job on the optional hard disk. Storing the job allows you to print additional copies of the job later.

Stored Job: If the optional hard disk is installed on the product, you can store a job such as

●

a personnel form, time sheet, or calendar on the product and allow other users to print the job at any time. Stored jobs also can be protected by a PIN.

4. To use a custom user name or job name, click the Custom button, and then enter the user name

or the job name.

Select which option to use if another stored job already has that name.

Use Job Name + (1 - 99) Append a unique number to the end of the job name.

Replace Existing File Overwrite the existing stored job with the new one.

5. If you selected the Stored Job or Personal Job option in step 3, you can protect the job with a

PIN. Type a 4-digit number in the Use PIN to Print field. When other people attempt to print this job, the product prompts them to enter this PIN number.

ENWW

Basic print tasks with Mac

Solve problems with a Mac

See Solve product software problems with Mac on page 205.

58 Chapter 4 Use the product with Mac ENWW

5 Connect the product with Windows

Printer sharing disclaimer

●

Connect with USB

●

Connect to a network with Windows

●

ENWW 59

Printer sharing disclaimer

HP does not support peer-to-peer networking, as the feature is a function of Microsoft operating systems and not of the HP printer drivers. Go to Microsoft at

Connect with USB

This product supports a USB 2.0 connection. Use an A-to-B type USB cable. HP recommends using a cable that is no longer than 2 m (6.5 ft).

CAUTION: Do not connect the USB cable until the installation software prompts you to connect it.

CD installation

1. Quit all open programs on the computer.

2. Install the software from the CD, and follow the onscreen instructions.

3. When prompted, select the Directly connect to this computer using USB cable option,

and then click the Next button.

4. When the software prompts you, connect the USB cable to the product and the computer.

www.microsoft.com.

5. At the end of the installation, click the Finish button, or click the More Options button to install

more software.

6. On the More Options screen, you can install more software, or click the Exit button.

7. Print a page from any program to make sure that the software is correctly installed.

NOTE: If the installation failed, reinstall the software.

60 Chapter 5 Connect the product with Windows ENWW

Connect to a network with Windows

You can configure network parameters from the control panel, the HP Embedded Web Server, or for most networks, from the HP Web Jetadmin software.

NOTE: HP Web Jetadmin software is not supported on Mac OS X operating systems.

For a complete list of supported networks and for instructions on configuring network parameters from software, see the HP Jetdirect Embedded Print Server Administrator’s Guide. The guide comes with products in which an HP Jetdirect embedded print server is installed.

Supported network protocols

Table 5-1 Supported network protocols

Network type Supported protocols

TCP/IP IPv4 and IPv6 networks

TCP/IP IPv4 networks only

Bonjour

●

Simple Network Management Protocol (SNMP) v1, v2, and v3

●

Hyper Text Transfer Protocol (HTTP)

●

Secure HTTP (HTTPS)

●

File Transfer Protocol (FTP)

●

Port 9100

●

Line printer daemon (LPD)

●

Intenet Printing Protocol (IPP)

●

Secure IPP

●

Web Services Dynamic Discovery (WS Discovery)

●

IPsec/Firewall

●

Auto IP

●

Service Location Protocol (SLP)

●

Trivial File Transfer Protocol (TFTP)

●

Telnet

●

ENWW

Internet Group Management Protocol (IGMP) v2

●

Bootstrap Protocol (BOOTP)/DHCP

●

Windows Internet Name Service (WINS)

●

IP Direct Mode

●

WS Print

●

Connect to a network with Windows

Table 5-1 Supported network protocols (continued)

Network type Supported protocols

TCP/IP IPv6 networks only

Other supported network protocols

Dynamic Host Configuration Protocol (DHCP) v6

●

Multicast Listener Discovery Protocol (MLD) v1

●

Internet Control Message Protocol (ICMP) v6

●

AppleTalk

●

iPrint

●

Table 5-2 Advanced Security features for network management

Service name Description

IPsec/Firewall Provides network-layer security on IPv4 and IPv6 networks. A firewall provides

simple control of IP traffic. IPsec provides additional protection through authentication and encryption protocols.

Kerberos Allows you to exchange private information across an open network by assigning a

unique key, called a ticket, to each user who logs on to the network. The ticket is then embedded in messages to identify the sender.

SNMP v3 Employs a user-based security model for SNMP v3, which provides user

authentication and data privacy through encryption.

SSL/TLS Allows you to transmit private documents via the Internet and guarantee privacy

and data integrity between the client and server applications.

IPsec batch configuration Provides network-layer security through the simple control of IP traffic to and from

the product. This protocol provides the benefits of encryption and authentication and allows for multiple configurations.

62 Chapter 5 Connect the product with Windows ENWW

Install the product on a wired network with Windows

Configure the IP address

1. Connect the network cable to the product and to the network.

2. Wait for 60 seconds before continuing. During this time, the network recognizes the product and

assigns an IP address or host name for the product.

At the product control panel, press the Home

4. Open the following menus:

Administration

●

Reports

●

Configuration/Status Pages

●

Configuration Page

●

button.

ENWW

Connect to a network with Windows

5. Find the IP address on the Embedded Jetdirect page.

Jetdirect Page

6. IPv4: If the IP address is 0.0.0.0, or 192.0.0.192, or 169.254.x.x, you must manually configure

the IP address. Otherwise, the network configuration was successful.

IPv6: If the IP address begins with "fe80:", the product should be able to print. If not, you must manually configure the IP address.

Install the software

HP Color LaserJet

Page 1

1. Quit all programs on the computer.

2. Install the software from the CD.

3. Follow the onscreen instructions.

4. When prompted, select the Connect through a wired network option.

5. From the list of available printers, select the printer that has the correct IP address.

6. At the end of the installation, click the Finish button, or click the More Options button to install

more software.

7. Print a page from any program to make sure that the software is correctly installed.

64 Chapter 5 Connect the product with Windows ENWW

Configure network settings with Windows

View or change network settings

Use the embedded Web server to view or change IP configuration settings.

1. Print a configuration page, and locate the IP address.

If you are using IPv4, the IP address contains only digits. It has this format:

●

xxx.xxx.xxx.xxx

If you are using IPv6, the IP address is a hexadecimal combination of characters and digits. It

●

has a format similar to this:

xxxx::xxxx:xxxx:xxxx:xxxx

2. To open the embedded Web server, type the IP address into the address line of a Web browser.

3. Click the Networking tab to obtain network information. You can change settings as needed.

Set or change the network password

Use the embedded Web server to set a network password or change an existing password.

1. Open the embedded Web server, click the Networking tab, and click the Security link.

NOTE: If a password has previously been set, you are prompted to type the password. Type the

password, and then click the Apply button.

2. Type the new password in the New Password box and in the Verify password box.

3. At the bottom of the window, click the Apply button to save the password.

ENWW

Connect to a network with Windows

Manually configure IPv4 TCP/IP parameters from the control panel

Use the control-panel Administration menus to manually set an IPv4 address, subnet mask, and default gateway.

At the control panel, press the Home

2. Open each of the following menus:

a. Administration

b. Network Settings

c. Jetdirect Menu

d. TCP/IP

e. IPV4 Settings

f. Config Method

g. Manual

h. Manual Settings

i. IP Address, Subnet Mask, or Default Gateway

3. Use the numeric keypad, or press the up arrow

the number for the first byte of the IP address, subnet mask, or default gateway.

4. Press the OK button to move to the next set of numbers. To move to the previous set of numbers,

press the back arrow

button.

or the down arrow to increase or decrease

5. Repeat steps 3 and 4 until the IP address, subnet mask, or default gateway is complete, and then

press the OK button to save the setting.

66 Chapter 5 Connect the product with Windows ENWW

Manually configure IPv6 TCP/IP parameters from the control panel

Use the control-panel Administration menus to manually set an IPv6 address.

At the control panel, press the Home

2. To enable manual configuration, open each of the following menus:

a. Administration

b. Network Settings

c. Jetdirect Menu

d. TCP/IP

e. IPV6 Settings

f. Address

g. Manual Settings

h. Enable

Select the On option, and then press the OK button.

3. To configure the address, open each of the following menus:

Administration

●

Network Settings

●

button.

Jetdirect Menu

●

TCP/IP

●

IPV6 Settings

●

Address

●

Use the numeric keypad, or press the up arrow the OK button.

NOTE: If you are using the arrow buttons, you must press the OK button after entering each

digit.

or the down arrow to enter the address. Press

ENWW

Connect to a network with Windows

Link speed and duplex settings

The link speed and communication mode of the print server must match the network. For most situations, leave the product in Auto mode. Incorrect changes to the link speed and duplex settings might prevent the product from communicating with other network devices. If you need to make changes, use the product control panel.

NOTE: Making changes to these settings causes the product to turn off and then on. Make changes

only when the product is idle.

At the control panel, press the Home

button.

2. Open each of the following menus:

a. Administration

b. Network Settings

c. Jetdirect Menu

d. Link Speed

3. Select one of the following options.

Setting Description

Auto The print server automatically configures itself for the highest link speed and

communication mode allowed on the network.

10T Half 10 megabytes per second (Mbps), half-duplex operation

10T Full 10 Mbps, full-duplex operation

100TX Half 100 Mbps, half-duplex operation

100TX Full 100 Mbps, full-duplex operation

100TX Auto Limits auto-negotiation to a maximum link speed of 100 Mbps

1000T Full 1000 Mbps, full-duplex operation

4. Press the OK button. The product turns off and then on.

68 Chapter 5 Connect the product with Windows ENWW

6 Paper and print media

Understand paper use

●

Change the printer driver to match the paper type and size in Windows

●

Supported paper sizes

●

Supported paper types

●

Tray and bin capacity

●

Load paper trays

●

Configure trays

●

Select an output bin

●

ENWW 69

Understand paper use

This product supports a variety of paper and other print media in accordance with the guidelines in this user guide. Paper or print media that does not meet these guidelines might cause poor print quality, increased jams, and premature wear on the product.

For best results, use only HP-brand paper and print media designed for laser printers or multiuse. Do not use paper or print media made for inkjet printers. Hewlett-Packard Company cannot recommend the use of other brands of media because HP cannot control their quality.

Store paper in the original package to prevent exposing the paper to moisture and other damage. Do not open the package until you are ready to use the paper.

It is possible for paper to meet all of the guidelines in this user guide and still not produce satisfactory results. This might be the result of improper handling, unacceptable temperature and/or humidity levels, or other variables over which Hewlett-Packard has no control.

CAUTION: Using paper or print media that does not meet Hewlett-Packard's specifications might

cause problems for the product, requiring repair. This repair is not covered by the Hewlett-Packard warranty or service agreements.

Special paper guidelines

This product supports printing on special media. Use the following guidelines to obtain satisfactory results. When using special paper or print media, be sure to set the type and size in the printer driver to obtain the best results.

CAUTION: HP LaserJet products use fusers to bond dry toner particles to the paper in very precise

dots. HP laser paper is designed to withstand this extreme heat. Using inkjet paper could damage the product.

Media type Do Do not

Envelopes

Labels

Store envelopes flat.

●

Use envelopes where the seam

●

extends all the way to the corner of the envelope.

Use peel-off adhesive strips that are

●

approved for use in laser printers.

Use only labels that have no

●

exposed backing between them.

Use labels that lie flat.

●

Use only full sheets of labels.

●

Do not use envelopes that are

●

wrinkled, nicked, stuck together, or otherwise damaged.

Do not use envelopes that have

●

clasps, snaps, windows, or coated linings.

Do not use self-stick adhesives or

●

other synthetic materials.

Do not use labels that have

●

wrinkles or bubbles, or are damaged.

Do not print partial sheets of labels.

●

70 Chapter 6 Paper and print media ENWW

Media type Do Do not

Transparencies

Letterhead or preprinted forms

Heavy paper

Glossy or coated paper

All paper types

Use only transparencies that are

●

approved for use in laser printers.

Place transparencies on a flat

●

surface after removing them from the product.

Use only letterhead or forms

●

approved for use in laser printers.

Use only heavy paper that is

●

approved for use in laser printers and meets the weight specifications for this product.

Use only glossy or coated paper

●

that is approved for use in laser printers.

Use coated paper in the

●

temperature and humidity range for this product.

Store paper in the original

●

packaging.

Store paper in a dust-free area.

●

Do not use transparent print media

●

not approved for laser printers.

Do not use raised or metallic

●

letterhead.

Do not use paper that is heavier

●

than the recommended media specification for this product unless it is HP paper that has been approved for use in this product.

Do not use glossy or coated paper

●

designed for use in inkjet products.

Do not use coated paper in

●

extremely high or low humidity environments.

Do not use paper that is curled.

●

Do not use paper that has been

●

stored in a humid environment.

ENWW

Understand paper use

Change the printer driver to match the paper type and size in Windows

1. On the File menu in the software program, click Print.

2. Select the product, and then click the Properties or Preferences button.

3. Click the Paper/Quality tab.

4. Select a size from the Paper size drop-down list.

5. Select a paper type from the Paper type drop-down list.

6. Click the OK button.

72 Chapter 6 Paper and print media ENWW

Supported paper sizes

This product supports a number of paper sizes, and it adapts to various media.

NOTE: To obtain best results, select the correct paper size and type in the printer driver before

printing.

Table 6-1 Supported paper and print media sizes

Size and dimensions Tray 1 Tray 2

and the optional 500sheet trays

Letter

216 x 279 mm (8.5 x 11 in)

210 x 297 mm (8.27 x

11.69 in)

Legal

216 x 356 mm (8.5 x 14 in)

Executive

184 x 267 mm (7.24 x

10.51 in)

Optional 1,500-sheet tray

Optional envelope feeder

Optional duplexer

Optional stacker and stapler/ stacker

(Stacker only)

Optional 5-bin mailbox

148 x 210 mm (5.83 x

8.27 in)

8.5 x 13

216 x 330 mm (8.5 x 13 in)

B5 (JIS)

182 x 257 mm (7.17 x

10.12 in)

Double Postcard (JIS)

148 x 200 mm (5.8 x

7.9 in)

16K

197 x 273 mm (7.8 x

10.8 in)

ENWW

(Stacker only)

Supported paper sizes

Table 6-1 Supported paper and print media sizes (continued)

Size and dimensions Tray 1 Tray 2

and the optional 500sheet trays

Custom

76 x 127 mm to 216 x 356 mm

(3.0 x 5.0 in to

8.5 x 14 in)

Custom

148 x 210 mm to 216 x 356 mm

(5.83 x 8.27 in to

8.5 x 14 in)

Envelope Commercial #10

105 x 241 mm (4.13 x

9.49 in)

Optional 1,500-sheet tray

Optional envelope feeder

Optional duplexer

Optional stacker and stapler/ stacker

(Stacker only)

Optional 5-bin mailbox

Envelope DL ISO

110 x 220 mm (4.33 x

8.66 in)

Envelope C5 ISO

162 x 229 mm (6.37 x

9.01 in)

Envelope B5 ISO

176 x 250 mm (6.92 x

9.84 in)

Envelope Monarch #7-3/4

98 x 191 mm (3.9 x 7.5 in)

Custom sizes cannot be stapled, but they can be stacked in the output bins.

74 Chapter 6 Paper and print media ENWW

Supported paper types

For a complete list of specific HP-brand paper that this product supports, go to www.hp.com/support/

lj600Series.

Supported paper types for input options

Paper type Tray 1 Tray 2 Optional 500-

sheet trays

Any Type

Plain

Light 60-74g

Cardstock 176-220g

Transparency

Labels

Letterhead

Preprinted

Prepunched

Colored

Rough

Bond

Recycled

Optional 1,500-sheet tray

Optional envelope feeder

HP EcoSMART Lite

Envelope

ENWW

Supported paper types

Supported paper types for output options

Paper type Standard top

bin (facedown)

Any Type

Plain

Light 60-74g

Cardstock 176-220g

Transparency

Labels

Letterhead

Preprinted

Prepunched

Colored

Rough

Bond

Recycled

Rear bin (faceup)

Optional duplexer

Optional stacker or stapler/stacker

Optional 5-bin mailbox

HP EcoSMART Lite

Envelope

76 Chapter 6 Paper and print media ENWW

Tray and bin capacity

Tray or bin Paper type Specifications Quantity

Tray 1 Paper and cardstock Range:

60 g/m 200 g/m

Envelopes

Less than 60 g/m to 90 g/m

Labels Maximum 0.23 mm (0.009 in)

thick

Transparencies Minimum 0.13 mm (0.005 in)

thick

Tray 2 and the optional 500-

Paper and cardstock Range:

sheet trays

60 g/m 135 g/m

Labels Maximum 0.13 mm (0.005 in)

thick

Transparencies Minimum 0.13 mm (0.005 in)

thick

Optional 1,500-sheet tray Paper Range:

60 g/m 135 g/m

(16 lb) bond to

(54 lb) bond

(16 lb) bond

(24 lb) bond

(16 lb) bond to

(36 lb) bond

(16 lb) bond to

(36 lb) bond

Maximum stack height: 10 mm (0.39 in)

Equivalent to 100 sheets of

75 g/m

(20 lb) bond

Up to 10 envelopes

Maximum stack height: 10 mm (0.39 in)

Equivalent to 500 sheets of

75 g/m

(20 lb) bond

Maximum stack height: 54 mm (2.1 in)

Equivalent to 1,500 sheets of

75 g/m

(20 lb) bond

Optional envelope feeder Envelopes

Standard top bin Paper

Less than 60 g/m to 90 g/m

(16 lb) bond

(24 lb) bond

Up to 75 envelopes

Up to 500 sheets of 75 g/m

(20 lb) bond

Rear bin Paper

Up to 100 sheets of 75 g/m

(20 lb) bond

Optional duplexer Paper Range:

60 g/m 120 g/m

Optional stacker Paper

(16 lb) bond to

(32 lb) bond

Up to 500 sheets of 75 g/m

(20 lb) bond

Optional stapler/stacker Paper Stapling: Up to 20 print jobs of

up to 15 pages each

Stacking: Up to 500 sheets of

Optional 5-bin mailbox Paper

75 g/m

Up to 500 sheets of 75 g/m

(20 lb) bond

ENWW

Tray and bin capacity

Load paper trays

Load Tray 1

NOTE: The product might print at a slower speed when using Tray 1.

CAUTION: To avoid jams, do not load trays while the product is printing. Do not fan the paper.

Fanning can cause misfeeds.

1. Open Tray 1.

2. Pull out the tray extension.

78 Chapter 6 Paper and print media ENWW

3. Load the paper into the tray. Make sure that

the paper fits under the tabs and below the maximum-height indicators.

4. Adjust the side guides so that they lightly touch

the paper stack but do not bend the paper.

Load Tray 2 or an optional 500-sheet tray

CAUTION: To avoid jams, do not load trays while the product is printing.

CAUTION: Do not fan the paper. Fanning can cause misfeeds.

1. Pull the tray out and lift up slightly to remove it

from the product.

ENWW

Load paper trays

2. Pinch the release lever that is located on the

left guide and slide the side guides to the correct paper size.

3. Pinch the release lever that is located on the

rear paper guide and slide it to the correct paper size.

4. Load the paper into the tray. Make sure that

the stack is flat at all four corners and that the top of the stack is below the maximum-height indicators.

5. Slide the tray completely into the product.

80 Chapter 6 Paper and print media ENWW

Load an optional 1,500-sheet tray

The optional 1,500 sheet tray adjusts for Letter, A4, and Legal sizes. The product automatically senses which size is loaded if the tray guides are correctly adjusted.

CAUTION: To avoid jams, do not load trays while the product is printing.

CAUTION: Do not fan the paper. Fanning can cause misfeeds.

1. Press the release and open the door of the

1,500-sheet tray.

2. If paper is in the tray, remove it. When paper

is in the tray, the guides cannot be adjusted.

3. Pinch the guides at the front of the tray and

slide them to the correct paper size.

ENWW

Load paper trays

4. Load the paper into the tray. Load complete

reams at one time. Do not divide reams into smaller sections.

5. Make sure that the height of the stack does not

exceed the maximum-height indicators on the guides and that the front edge of the stack is aligned with the arrows.

6. Close the door on the tray.

82 Chapter 6 Paper and print media ENWW

Paper orientation for loading trays

Load letterhead, preprinted, or prepunched paper

If a duplexer is installed, or if a stapler/stacker is installed, the product alters the way the images for each page are arranged. If you are using paper that requires a specific orientation, load it according to the information in the following table.

Tray Single-sided printing,

no stapler/stacker

Tray 1 Face-up

Top edge leading into the product

All other trays Face-down

Top edge at the front of the tray

Duplex printing, no stapler/stacker

Face-down

Bottom edge leading into the product

Face-up

Bottom edge at the front of the tray

Single-sided printing with the stapler/ stacker

Face-up

Bottom edge leading into the product

Face-down

Bottom edge at the front of the tray

Duplex printing with the stapler/stacker

Face-down

Top edge leading into the product

Face-up

Top edge at the front of the tray

ENWW

Load paper trays

Load envelopes

Load envelopes into Tray 1 or the optional envelope feeder with the front of the envelope facing up, and the short, postage-edge leading into the product.

84 Chapter 6 Paper and print media ENWW

HP LaserJet 600 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Product basics
