HP LaserJet 5100 Startup Guide [hu]

start start

začínáme

alapismeretek

hp LaserJet 5100

5100tn 5100dtn

hp LaserJet 5100, 5100tn, and 5100dtn series printers

English

start guide

Publication number Q1860-90924

First Edition, May 2002

Warranty

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with respect to this information.

HEWLETT-PACKARD SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTY OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Hewlett-Packard shall not be liable for any direct, indirect, incidental, consequential, or other damage alleged in connection with the furnishing or use of this information.

Trademark Credits

NERGY STAR

E Star logo are U.S. registered marks of the United States Environmental Protection Agency.

HP-UX Release 10.20 and later and HP-UX Release

11.00 and later (in both 32 and 64-bit configurations) on all HP 9000 computers are Open Group UNIX 95 branded products.

Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation.

PostScript is a trademark of Adobe Systems Incorporated.

UNIX is a registered trademark of The Open Group.

and the Energy

Hewlett-Packard Company 11311 Chinden Boulevard Boise, Idaho 83714

Introduction

Congratulations on your purchase of the HP LaserJet 5100 series printer! This printer is available in three configurations, as described below.

HP LaserJet 5100 printer

The HP LaserJet 5100 printer (product number: Q1860A) is a 22 pages per minute (ppm) laser printer that comes standard with a 100-sheet multi-purpose Tray 1, a 250-sheet Tray 2, and 16 MB of memory. It is designed for workgroups and is able to print full-bleed images on paper sizes up to A3 and 11 x 17.

HP LaserJet 5100tn printer

The HP LaserJet 5100tn printer (product number : Q1861A) is a 22 ppm laser printer that comes standard with a 100-sheet multi-purpose T ray 1, a 250-sheet T r ay 2, a 500-sheet T ray 3, 32 MB of memory , and an HP Jetdirect print server for connecting to a f ast Ethernet (10/100Base-TX) network. It is designed for network users and is able to print full-bleed images on paper sizes up to A3 and 11 x 17.

HP LaserJet 5100dtn printer

The HP LaserJet 5100dtn printer (product number: Q1862A) is a 22 ppm laser printer that comes standard with a 100-sheet multi-purpose T ray 1, a 250-sheet T r ay 2, a 500-sheet T ray 3, 32 MB of memory, an HP Jetdirect print server for connecting to a fast Ethernet (10/100Base-TX) network, an embedded Web server DIMM for remote printer management, and a duplex printing accessory . The printer is designed for network users and is able to print full-bleed images on paper sizes up to A3 and 11 x 17.

English

ENWW

The illustrations in this guide will be based on the HP LaserJet 5100 printer unless otherwise stated.

start guide 3

Installation checklist

This guide will help you set up and install the new printer. F or proper installation, please complete each section in order.

Unpack the printer steps 1-4 Install and connect the printer steps 5-13 Install printing software step 14 Verify printer setup step 15

4 start guide

ENWW

Step 1. Prepare printer location

Printer Size

24.6 in (62.5 cm)

10.6 in (27.0 cm)

55 in (139.8 cm)

18.5 in (47.0 cm)

11.9 in (30.3 cm)

English

2.4 in (6.0 cm)*

25 in (63.5 cm)

3.9 in (10.0 cm)*

18.6 in (47.3 cm)

18.5 in (47.0 cm)

* Space for ventilation.

Figure 1 HP LaserJet 5100 printer dimensions (top and side views)

ENWW

4.3 in (11.0 cm)

start guide 5

24.6 in (62.5 cm)

10.6 in (27.0 cm)

55 in (139.8 cm)

18.5 in (47.0 cm)

11.9 in (30.3 cm)

2.4 in (6.0 cm)*

25 in (63.5 cm)

3.9 in (10.0 cm)*

24.4 in (62.0 cm)

6.1 in (15.5 cm)

* Space for ventilation.

Figure 2 HP LaserJet 5100tn/5100dtn printer dimensions (top and side views)

6 start guide

ENWW

24.6 in (62.5 cm)

55 in (139.8 cm)

11.9 in (30.3 cm)

2.4 in (6.0 cm)*

English

25 in (63.5 cm)

3.9 in (10.0 cm)*

18.5 in (47.0 cm)

10.6 in (27.0 cm)

* Space for ventilation.

Figure 3 Maximum accessories configuration (top and side views)

6.5 in (16.6 cm)

Printer weight (without print cartridge)

HP LaserJet 5100 printer: 50 lb (23 kg)

•

HP LaserJet 5100tn printer with optional 500-sheet feeder: 75

•

lb (34 kg) HP LaserJet 5100dtn printer with duplexer and optional

•

500-sheet feeder: 114 lb (52 kg)

29.7 in (75.5 cm)

ENWW

start guide 7

Location requirements for the printer

A sturdy, level surface for

•

placement

Space allowance around the

•

printer, including 2.4 inches (60 mm) of space on the left side and 3.9 inches (100 mm) of space on the right side for ventilation

A clean, well-ventilated

•

environment

No exposure to direct

•

sunlight or chemicals, including ammonia-based cleaning solutions

Adequate power supply (for

•

100-127 V models, at least

10.5 amps; for 220-240 V models, at least 5.3 amps)

A stable en vir o n m en t—no

•

abrupt temperature or humidity changes

Relative humidity 20% to

•

80%

Room temperature 50° to

•

91° F (15° to 32.5° C)

8 start guide

ENWW

Step 2. Check package contents

Cartridge

Printer Software and

Online Use Guide

Figure 4 Package contents

Printer

Control Panel

Overlay (Optional)

Power Cord

Tray 3

English

(500 sheet

paper feeder,

5100tn and

5100dtn only)

Printer

Documentation

Duplex Printing

Accessory

(or duplexer, for 2-sided printing,

5100dtn only)

Note

ENWW

A printer cable is not included in the package contents. See Chapter 1 of the online use guide for ordering information. (The online use guide is included on the compact disc included with the printer.)

start guide 9

Step 3. Remove internal packaging

Note

Save all packing material. You may need to repack the printer at a later date.

1 Remove the tape from the front of

the printer.

2 Remove the tape from the back of

the printer.

3 Open Tray 1 and remove the

cardboard spacer and pieces of tape.

4 Open the top cover and remove the

internal packing material.

10 start guide

ENWW

Step 4. Locate printer parts

Control

panel and

display

Tray 2 (250-sheet)

The following illustrations give the location and names of the important printer parts.

Top output bin

Paper size indicator

(set with dial inside tray)

Paper stop

Top cover

Product and

serial numbers

(located on the

underside of the

top cover)

Tray 1 (100-sheet)

Paper level

indicator

English

Latches (to open rear door)

Power switch

Power

connector

Network, I/O, or hard disk

(EIO slots)

Figure 5 Printer parts (front and rear views)

ENWW

Rear door

(paper jam access)

Rear output bin

(straight-through

paper path)

Parallel interface

connector

start guide 11

Step 5. Install accessories

Install any accessories that you have purchased with the printer. (This includes the 500-sheet feeder and tray for the HP LaserJet 5100tn and 5100dtn printers.) Use the installation instructions that are packaged with the accessories.

Note

Duplex Printing

Accessory

(or duplexer, for

2-sided printing)

250-sheet

feeder and tray

500-sheet

feeder and tray

See the online use guide for information on installation of the memory, font, or flash DIMM accessories.

HP Jetdirect

print server

Hard disk

EIO card

Memory, Font, or Flash DIMM

Figure 6 Optional accessories

12 start guide

ENWW

Step 6. Install print cartridge

1 Open the printer’s top cover.

Remove the print cartridge from its packaging (save packaging for possible cartridge storage).

Caution

To prevent damage to the print cartr i dge, do not expose it to light for more than a few minutes.

2 Rotate the cartridge and gently

shake it from side to side to distribute the toner evenly inside the cartridge.

3 Locate the sealing tape tab on the

end of the cartridge. Carefully bend the tab back and forth until it separates from the cartridge.

Continued on the next page.

English

ENWW

start guide 13

4 Firmly pull the tab straight out from

the cartridge to remove the entire length of tape. Avoid touching any black toner on the tape.

Note

If the tab separates from the tape, grasp the tape and pull it out of the cartridge.

Note

If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. (Hot water sets toner into fabric.)

5 Position the cartridge as shown with

the arrow pointing into the printer. Slide the cartridge into the printer as far as it will go and close the top cover.

Note

If the print cartridge does not slide into the printer easily , make sure all packing material has been removed. Also, make sure the jam access plates inside the printer (identified with green handles) are in the down position.

14 start guide

ENWW

Step 7. Load Tray 2

1 Pull Tray 2 out of the printer and

raise the tray cover.

2 Remove the packing cardboard and

tape.

3 Set the dial in the tray to the desired

setting so the printer will read the correct size of paper. Use the toggle switch to gain access to more sizes.

Note

The paper size indicated by the dial in the tray must match the size of paper loaded in the tray. If these sizes do not match, the paper might jam or other errors might occur.

Setting the dial adjusts the printer’s sensors, not the guides inside the tray.

4 T o reposition the rear blue guide, tilt

it toward the front of the tray and remove it.

English

ENWW

5 Align the rear guide with the desired

paper size. With the guide angled slightly toward the front of the tray, insert it into the appropriate holes. Rotate the rear guide upright until it snaps into place.

Continued on the next page.

start guide 15

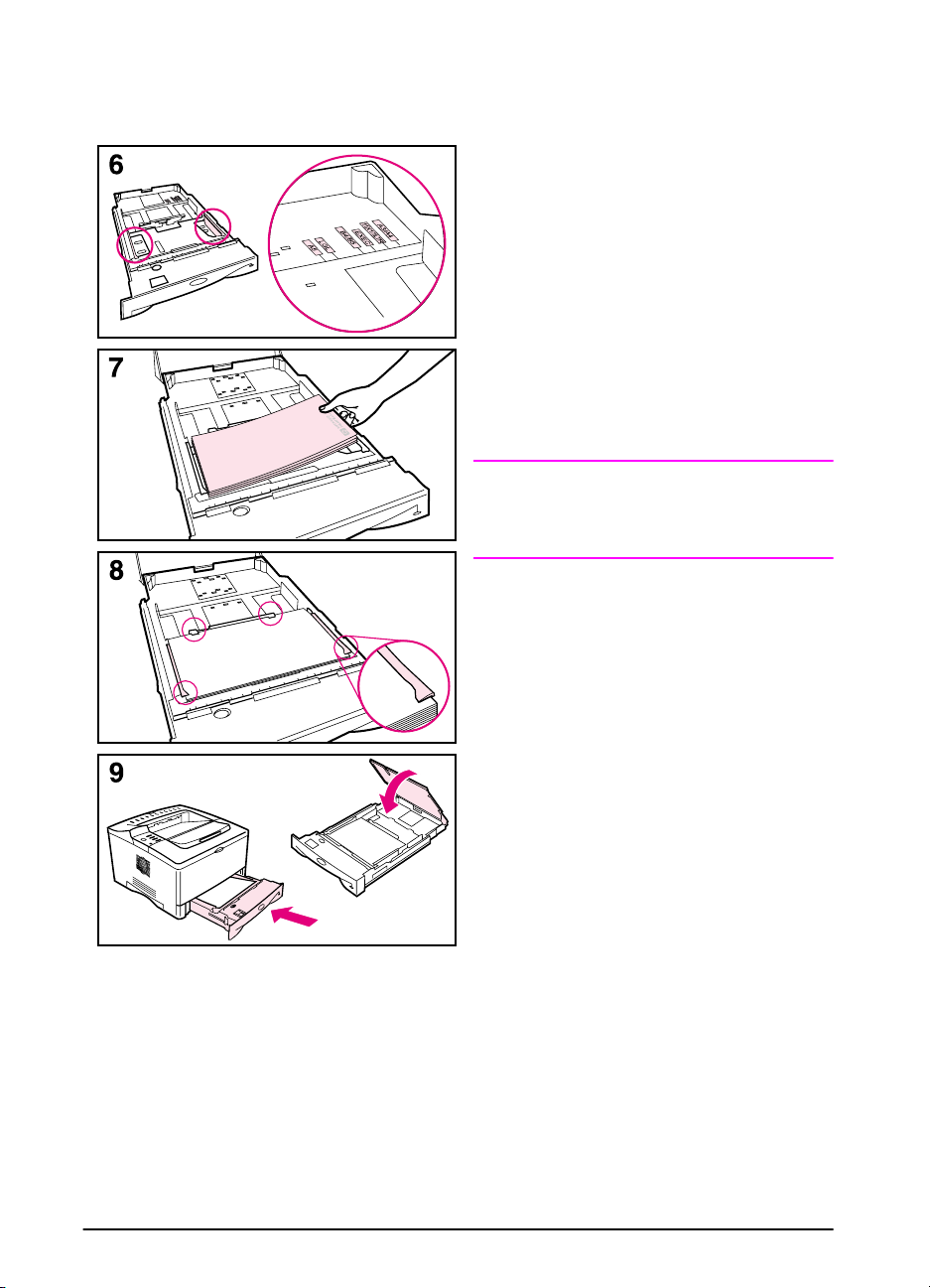

6 Slide the blue side guides to the

desired paper size.

7 Load paper into the tray. 8 Make sure the paper is flat in the tray

at all four corners and below the tabs on the guides.

9 Close the tray cover and slide the

tray into the printer.

Note

See the online use guide for instructions on loading and printing on custom-size paper.

16 start guide

ENWW

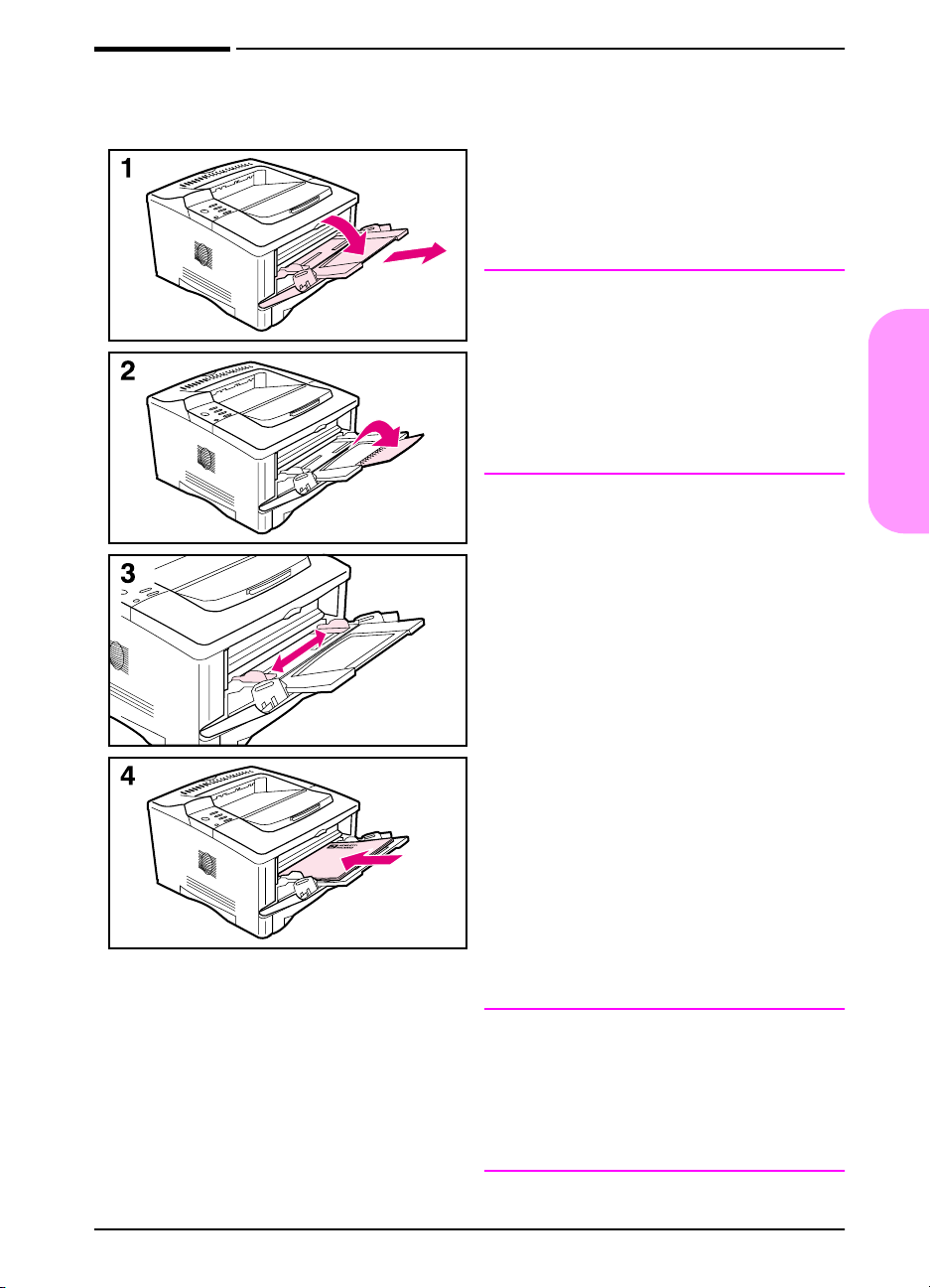

Step 8. Load Tray 1 (optional)

T ra y 1 is a multi-purpose tray and holds up to 100 sheets of paper, approximately 10 envelopes, or 20 index cards.

Note

Paper loaded in Tray 1 will be printed first unless the Tray 1 setting is changed from the printer control panel. To change the order in which trays are used, see the online use guide.

1 Open Tray 1 by pulling down on th e

top center of the door. Pull out the tray extension until it clicks into place.

2 Flip open the second tray extension

if the paper is longer than 9 inches (229 mm).

3 Adjust the guides to the desired

paper size.

4 Load paper. The paper should fit

under the tabs on the guides.

English

ENWW

Load letter or A4 paper with the

•

long edge toward the printer. Load legal, 11 x 17, or A3 paper

•

with the short edge toward the printer.

Note

See the sections on letterhead, envelopes, and duple xing in the online use guide for proper orientation of specific jobs.

start guide 17

Step 9. Attach power cord

1 Locate the power switch on the right

side of the printer. Make sure the printer is turned off.

2 Connect the power cord to the

printer and a grounded power strip or an AC outlet.

Caution

To prevent damage to the printer, use only the power cord shipped with the printer.

3 Turn the printer on. 4 After the printer warms up, the

READY message should appear on the control panel display and the Ready light should remain on. If the READY message does not appear, see the problem solving chapter in the online use guide.

READY

18 start guide

ENWW

Step 10. Change the control panel overlay (optional)

If necessary, use the following procedure to install the appropriate control panel overlay for your language.

1 Locate the control panel overlays in

the output bin of the printer. (These overlays might have moved during shipping.)

2 If necessary, remove the overlay

currently installed on the printer:

a Open the printer’s top cover. b Insert a thin, rigid object under the

edge of the overlay, and then pull up on the overlay until it comes off.

c Close the top cover.

3 Place the desired control panel

overlay onto the control panel and snap it into place.

English

ENWW

start guide 19

Step 11. Configure the control panel display language (optional)

By default, the control panel on the printer displays messages in English. If necessary , set the printer to display messages and print configuration pages in another supported language.

1 Turn the pr inter off. 2 Hold down [Select] while turning on the pr inter. 3 When SELECT LANGUAGE appears in the LED display, release

[Select].

4 After the printer has finished initializing, LANGUAGE = ENGLISH

will appear in the LED display.

5 When LANGUAGE = ENGLISH appears in the display, press

[- VALUE +] to scroll through the available languages.

6 Press [Select] to save the desired language as the new def ault. 7 Press [Go] to return to READY. 8 To activate your new language choice, turn the printer off and

then turn the prin ter on. 9 The LED display text should now appear in the selected

language.

20 start guide

ENWW

Step 12. Connect printer cables

The HP LaserJet 5100 printer includes one interface: an IEEE-1284 parallel port.

The HP LaserJet 5100tn and 5100dtn printers also include an HP Jetdirect print server with an additional fast Ethernet (10/ 100Base-TX) port.

10/100Base-TX cable

and RJ-45 port

Parallel cable and

IEEE-1284 port

English

Figure 7 Interface ports

ENWW

start guide 21

Connecting parallel cable

T o ensure reliability, use an IEEE-1284 bi-directional parallel cable. (These cables are clearly marked with “IEEE-1284.”) Only IEEE-1284 cables support all of the printer’s advanced features.

Caution

Make sure the printer is turned off.

1 Connect the parallel cable to the

parallel port.

2 Snap the wire clips in place to

secure the cable to the printer. The cable should install easily. If

installation is difficult, check the cable orientation.

3 Connect the other end of the cable

to the proper connector on the computer.

Note

See the online use guide for information on ordering a two- or threemeter IEEE-1284 parallel cable.

22 start guide

ENWW

Connecting to fast Ethernet (10/100Base-TX) network

Caution

Use the RJ-45 port to connect the printer to fast Ethernet (10/ 100Base-TX) network. (This port is only available on the HP LaserJet 5100tn and 5100dtn printers.)

Make sure the printer is turned off before connecting to the RJ-45 port.

Figure 8 Connecting to Ethernet 10Base-T network

English

Note

ENWW

Connect a twisted-pair network cable to the RJ-45 port on the

•

HP Jetdirect print server card. Connect the other end of the cable to the network.

•

For a successful link, either the 10 or 100 LED at the port should turn on when the printer is turned on. If no LEDs turn on, the print server is unable to link to the network. For more information, see the problem-solving chapter in the online use guide.

start guide 23

Step 13. Test the printer

READY

INFORMATION MENU

PRINT CONFIGURATION

Print a configuration page to make sure the printer is operating correctly.

1 Make sure that the printer is on and

the READY message appears.

2 Press [Menu] until the display reads

INFORMATION MENU.

3 Press [Item] until the display reads

PRINT CONFIGURATION.

4 Press [Select] to print the

configuration page.

5 The configuration page shows the

printer’s current configuration.

Note

A Jetdirect network configuration page will also print for the HP LaserJet 5100tn and 5100dtn printers.

PRINT CONFIGURATION

24 start guide

ENWW

Step 14. Install printing software

The printer comes with printing software on a compact disc. The printer drivers on this compact disc must be installed to take full advantage of the printer features. In addition, the online use guide for the printer is located on this compact disc.

If your computer does not have a CD-ROM drive but you have access to one, you can copy the compact disc onto diskettes for installation on your computer.

The most recent printer drivers are available on the Internet at

http://www.hp.com/support/lj5100

of Microsoft for the printer software automatically checks the computer for Internet access to obtain the latest software.

Windows®-driven computers, the installation program

. Depending on the configuration

Software for networks

The following softw are and utilities are available managing netw ork printing.

HP Web Jetadmin (Windows)

HP Web Jetadmin allows you to manage HP Jetdirect connected printers within your intranet using a browser. HP Web Jetadmin is a browser-based management tool and should be installed only on the network administrator’s computer . It can be installed and run on a variety of systems.

English

ENWW

T o download a current version of HP W eb Jetadmin and for the latest list of supported host systems, visit HP Customer Care Online at

http://www.hp.com/go/webjetadmin

start guide 25

HP LaserJet Utility (Mac OS)

The HP LaserJet Utility allows control of features that are not available in the driver. Use the illustrated screens to select printer features and to complete tasks with the printer, such as the following:

customize the printer control panel messages

•

name the printer, assign it to a zone on the network, download

•

files and fonts, and change most of the printer settings

set a password for the printer

•

from the computer, lock out functions on the printer control panel

•

to prevent unauthorized access (see the printer software help)

configure and set the printer for IP printing

•

initialize disk or flash memory

•

manage fonts in random access memory (RAM), disk memory,

•

or flash memory

administer job-retention features

•

Note

The HP LaserJet Utility is not supported for the Korean, Japanese, Simplified Chinese, and Traditional Chinese languages.

See the HP LaserJet Utility Help for more information.

UNIX

The HP Jetdirect Printer Installer for UNIX® is a simple printer installation utility for HP-UX available for download from HP Customer Care Online at

http://www.hp.com/support/net_printing

and Sun Solaris networks. It is

Linux

Printing from Linux is supported using Graphical Print Dialog (GPR), a print dialog available for LPR networks. For PostScript print jobs, GPR uses the printer PostScript Printer Description (PPD) files to communicate with the printer and enable printer features.

Currently, GPR printing is fully supported on computers running Red Hat 6.2 that have an X window desktop (such as KDE) installed. Howev er , other types of Linux might successfully use GPR printing as well.

For more information ab out using Linux with HP printers, see

http://hp.sourcef orge.net

26 start guide

ENWW

Installing Windows printing software

1 Close all running applications. 2 Insert the compact disc in to the CD-ROM drive.

Depending on the computer configuration, the installation program might start automatically . If the installation progr am does not start automatically, complete the following steps:

a Click Start, and then click Run. b Type D:\SETUP (or the appropriate drive-directory letter) in

the command-line box and click OK.

3 Follow the instructions on the computer screen.

English

Note

If you would like to test the software installation, select the option near the end of the installation program that allows you to print a test page.

ENWW

start guide 27

Installing Macintosh printing software

1 At the printer, print a configuration page and a Jetdirect network

configuration page to determine the IP Address, AppleTalk

printer name, and the zone where the printer is located (if

applicable). (For more inf ormation about printing a configuration

page, see “Step 13. Test the printer” on page 24.)

2 Quit all open applications. 3 Insert the compact disc in to the CD-ROM drive. 4 Double-click the Installer icon and f ollow the instructions on the

screen. 5 If you are using Mac OS 8.6 to Mac OS 9.2, complete steps 6

through 11.

-Or-

If you are using Mac OS X, complete steps 12 through 16.

Mac OS 8.6 to Mac OS 9.2

6 Open the Chooser from the Apple menu. 7 Click the Apple LaserWriter icon. If the icon is not there, contact

your Macintosh dealer. 8 If you are on a network with multiple zones, select the zone in

the AppleTalk Zones bo x where the printer is located. (The zone

is listed on the configuration page printed in step 1.)

9 Double-click the desired printer. An icon should appear. 10 Choose a Background Printing option. Select On if you want to

work on the computer at the same time a job is being printed. 11 Close the Chooser by clicking the close box in the upper left

corner.

28 start guide

ENWW

+ 142 hidden pages
