Introduction
Congratulations on your purchase of the HP LaserJet 5100 series
printer! This printer is available in three configurations, as described
below.
HP LaserJet 5100 printer
The HP LaserJet 5100 printer (product number: Q1860A) is a
22 pages per minute (ppm) laser printer that comes standard with
a 100-sheet multi-purpose Tray 1, a 250-sheet Tray 2, and 16 MB
of memory. It is designed for workgroups and is able to print
full-bleed images on paper sizes up to A3 and 11 x 17.
HP LaserJet 5100tn printer
The HP LaserJet 5100tn printer (product number : Q1861A) is a
22 ppm laser printer that comes standard with a 100-sheet
multi-purpose T ray 1, a 250-sheet T r ay 2, a 500-sheet T ray 3, 32 MB
of memory , and an HP Jetdirect print server for connecting to a f ast
Ethernet (10/100Base-TX) network. It is designed for network users
and is able to print full-bleed images on paper sizes up to A3 and
11 x 17.
HP LaserJet 5100dtn printer
The HP LaserJet 5100dtn printer (product number: Q1862A) is a
22 ppm laser printer that comes standard with a 100-sheet
multi-purpose T ray 1, a 250-sheet T r ay 2, a 500-sheet T ray 3, 32 MB
of memory, an HP Jetdirect print server for connecting to a fast
Ethernet (10/100Base-TX) network, an embedded Web server
DIMM for remote printer management, and a duplex printing
accessory . The printer is designed for network users and is able to
print full-bleed images on paper sizes up to A3 and 11 x 17.
English
ENWW
The illustrations in this guide will be based on the HP LaserJet 5100
printer unless otherwise stated.
start guide 3
Installation checklist
This guide will help you set up and install the new printer. F or proper
installation, please complete each section in order.
Unpack the printer steps 1-4
Install and connect the printer steps 5-13
Install printing software step 14
Verify printer setup step 15
4 start guide
ENWW
Step 1. Prepare printer location
Printer Size
24.6 in (62.5 cm)
10.6 in (27.0 cm)
55 in (139.8 cm)
18.5 in (47.0 cm)
11.9 in (30.3 cm)
English
2.4 in (6.0 cm)*
25 in (63.5 cm)
3.9 in (10.0 cm)*
18.6 in (47.3 cm)
18.5 in (47.0 cm)
* Space for ventilation.
Figure 1 HP LaserJet 5100 printer dimensions (top and side views)
ENWW
4.3 in (11.0 cm)
start guide 5
24.6 in (62.5 cm)
10.6 in (27.0 cm)
55 in (139.8 cm)
18.5 in (47.0 cm)
11.9 in (30.3 cm)
2.4 in (6.0 cm)*
25 in (63.5 cm)
3.9 in (10.0 cm)*
24.4 in (62.0 cm)
6.1 in (15.5 cm)
* Space for ventilation.
Figure 2 HP LaserJet 5100tn/5100dtn printer dimensions (top and side views)
6 start guide
ENWW
24.6 in (62.5 cm)
55 in (139.8 cm)
11.9 in (30.3 cm)
2.4 in (6.0 cm)*
English
25 in (63.5 cm)
3.9 in (10.0 cm)*
18.5 in (47.0 cm)
10.6 in (27.0 cm)
* Space for ventilation.
Figure 3 Maximum accessories configuration (top and side views)
6.5 in (16.6 cm)
Printer weight (without print cartridge)
HP LaserJet 5100 printer: 50 lb (23 kg)
•
HP LaserJet 5100tn printer with optional 500-sheet feeder: 75
•
lb (34 kg)
HP LaserJet 5100dtn printer with duplexer and optional
•
500-sheet feeder: 114 lb (52 kg)
29.7 in (75.5 cm)
ENWW
start guide 7
Location requirements for the printer
A sturdy, level surface for
•
placement
Space allowance around the
•
printer, including 2.4 inches
(60 mm) of space on the left
side and 3.9 inches (100
mm) of space on the right
side for ventilation
A clean, well-ventilated
•
environment
No exposure to direct
•
sunlight or chemicals,
including ammonia-based
cleaning solutions
Adequate power supply (for
•
100-127 V models, at least
10.5 amps; for 220-240 V
models, at least 5.3 amps)
A stable en vir o n m en t—no
•
abrupt temperature or
humidity changes
Relative humidity 20% to
•
80%
Room temperature 50° to
•
91° F (15° to 32.5° C)
8 start guide
ENWW
Step 2. Check package contents
Print
Cartridge
Printer Software and
Online Use Guide
Figure 4 Package contents
Printer
Control Panel
Overlay (Optional)
Power Cord
Tray 3
English
(500 sheet
paper feeder,
5100tn and
5100dtn only)
Printer
Documentation
Duplex Printing
Accessory
(or duplexer, for
2-sided printing,
5100dtn only)
Note
ENWW
A printer cable is not included in the package contents. See
Chapter 1 of the online use guide for ordering information. (The
online use guide is included on the compact disc included with the
printer.)
start guide 9
Step 3. Remove internal packaging
Note
Save all packing material. You may
need to repack the printer at a later
date.
1 Remove the tape from the front of
the printer.
2 Remove the tape from the back of
the printer.
3 Open Tray 1 and remove the
cardboard spacer and pieces of
tape.
4 Open the top cover and remove the
internal packing material.
10 start guide
ENWW
Step 4. Locate printer parts
Control
panel and
display
Tray 2 (250-sheet)
The following illustrations give the location and names of the
important printer parts.
Top output bin
Paper size indicator
(set with dial inside tray)
Paper stop
Top cover
Product and
serial numbers
(located on the
underside of the
top cover)
Tray 1 (100-sheet)
Paper level
indicator
English
Latches (to open rear door)
Power
switch
Power
connector
Network, I/O, or hard disk
(EIO slots)
Figure 5 Printer parts (front and rear views)
ENWW
Rear door
(paper jam access)
Rear output bin
(straight-through
paper path)
Parallel interface
connector
start guide 11
Step 5. Install accessories
Install any accessories that you have purchased with the printer.
(This includes the 500-sheet feeder and tray for the
HP LaserJet 5100tn and 5100dtn printers.) Use the installation
instructions that are packaged with the accessories.
Note
Duplex Printing
Accessory
(or duplexer, for
2-sided printing)
250-sheet
feeder and tray
500-sheet
feeder and tray
See the online use guide for information on installation of the
memory, font, or flash DIMM accessories.
HP Jetdirect
print server
Hard disk
EIO card
Memory, Font,
or Flash DIMM
Figure 6 Optional accessories
12 start guide
ENWW
Step 6. Install print cartridge
1 Open the printer’s top cover.
Remove the print cartridge from its
packaging (save packaging for
possible cartridge storage).
Caution
To prevent damage to the print
cartr i dge, do not expose it to light for
more than a few minutes.
2 Rotate the cartridge and gently
shake it from side to side to
distribute the toner evenly inside the
cartridge.
3 Locate the sealing tape tab on the
end of the cartridge. Carefully bend
the tab back and forth until it
separates from the cartridge.
Continued on the next page.
English
ENWW
start guide 13
4 Firmly pull the tab straight out from
the cartridge to remove the entire
length of tape. Avoid touching any
black toner on the tape.
Note
If the tab separates from the tape,
grasp the tape and pull it out of the
cartridge.
Note
If toner gets on your clothing, wipe it off
with a dry cloth and wash clothing in
cold water. (Hot water sets toner into
fabric.)
5 Position the cartridge as shown with
the arrow pointing into the printer.
Slide the cartridge into the printer as
far as it will go and close the top
cover.
Note
If the print cartridge does not slide into
the printer easily , make sure all packing
material has been removed. Also,
make sure the jam access plates inside
the printer (identified with green
handles) are in the down position.
14 start guide
ENWW
Step 7. Load Tray 2
1 Pull Tray 2 out of the printer and
raise the tray cover.
2 Remove the packing cardboard and
tape.
3 Set the dial in the tray to the desired
setting so the printer will read the
correct size of paper. Use the toggle
switch to gain access to more sizes.
Note
The paper size indicated by the dial in
the tray must match the size of paper
loaded in the tray. If these sizes do not
match, the paper might jam or other
errors might occur.
Setting the dial adjusts the printer’s
sensors, not the guides inside the tray.
4 T o reposition the rear blue guide, tilt
it toward the front of the tray and
remove it.
English
ENWW
5 Align the rear guide with the desired
paper size. With the guide angled
slightly toward the front of the tray,
insert it into the appropriate holes.
Rotate the rear guide upright until it
snaps into place.
Continued on the next page.
start guide 15
6 Slide the blue side guides to the
desired paper size.
7 Load paper into the tray.
8 Make sure the paper is flat in the tray
at all four corners and below the tabs
on the guides.
9 Close the tray cover and slide the
tray into the printer.
Note
See the online use guide for
instructions on loading and printing on
custom-size paper.
16 start guide
ENWW
Step 8. Load Tray 1 (optional)
T ra y 1 is a multi-purpose tray and holds
up to 100 sheets of paper,
approximately 10 envelopes, or
20 index cards.
Note
Paper loaded in Tray 1 will be printed
first unless the Tray 1 setting is
changed from the printer control panel.
To change the order in which trays are
used, see the online use guide.
1 Open Tray 1 by pulling down on th e
top center of the door. Pull out the
tray extension until it clicks into
place.
2 Flip open the second tray extension
if the paper is longer than 9 inches
(229 mm).
3 Adjust the guides to the desired
paper size.
4 Load paper. The paper should fit
under the tabs on the guides.
English
ENWW
Load letter or A4 paper with the
•
long edge toward the printer.
Load legal, 11 x 17, or A3 paper
•
with the short edge toward the
printer.
Note
See the sections on letterhead,
envelopes, and duple xing in the online
use guide for proper orientation of
specific jobs.
start guide 17
Step 9. Attach power cord
1 Locate the power switch on the right
side of the printer. Make sure the
printer is turned off.
2 Connect the power cord to the
printer and a grounded power strip
or an AC outlet.
Caution
To prevent damage to the printer, use
only the power cord shipped with the
printer.
3 Turn the printer on.
4 After the printer warms up, the
READY message should appear on
the control panel display and the
Ready light should remain on. If the
READY message does not appear,
see the problem solving chapter in
the online use guide.
READY
18 start guide
ENWW
Step 10. Change the control panel overlay (optional)
If necessary, use the following
procedure to install the appropriate
control panel overlay for your
language.
1 Locate the control panel overlays in
the output bin of the printer. (These
overlays might have moved during
shipping.)

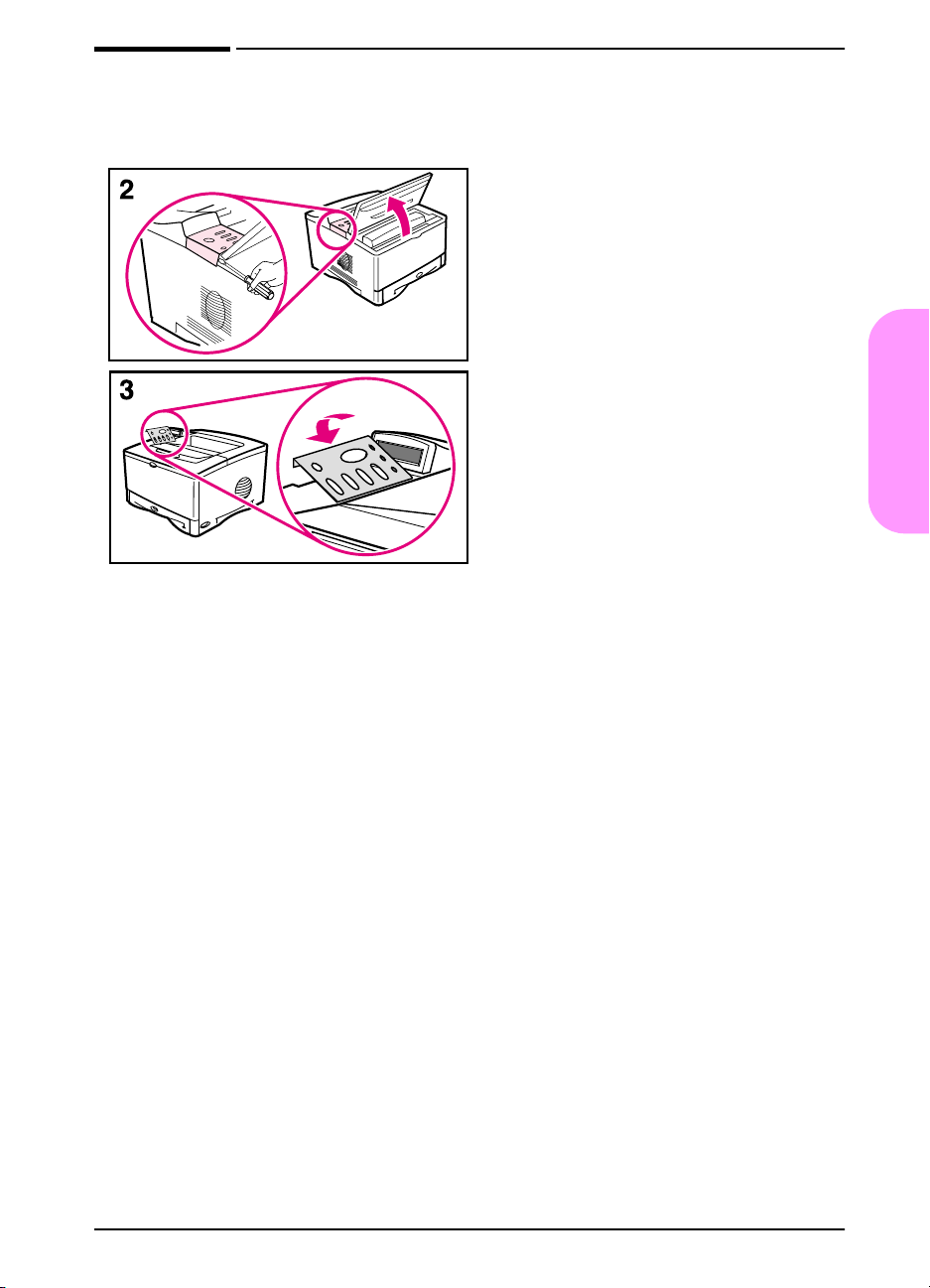

2 If necessary, remove the overlay
currently installed on the printer:
a Open the printer’s top cover.
b Insert a thin, rigid object under the
edge of the overlay, and then pull
up on the overlay until it comes off.
c Close the top cover.
3 Place the desired control panel
overlay onto the control panel and
snap it into place.
English
ENWW
start guide 19
Step 11. Configure the control panel display language (optional)
By default, the control panel on the printer displays messages in
English. If necessary , set the printer to display messages and print
configuration pages in another supported language.
1 Turn the pr inter off.
2 Hold down [Select] while turning on the pr inter.
3 When SELECT LANGUAGE appears in the LED display, release
[Select].
4 After the printer has finished initializing, LANGUAGE = ENGLISH
will appear in the LED display.
5 When LANGUAGE = ENGLISH appears in the display, press
[- VALUE +] to scroll through the available languages.
6 Press [Select] to save the desired language as the new def ault.
7 Press [Go] to return to READY.
8 To activate your new language choice, turn the printer off and
then turn the prin ter on.
9 The LED display text should now appear in the selected
language.
20 start guide
ENWW
Step 12. Connect printer cables
The HP LaserJet 5100 printer includes one interface: an IEEE-1284
parallel port.
The HP LaserJet 5100tn and 5100dtn printers also include an
HP Jetdirect print server with an additional fast Ethernet (10/
100Base-TX) port.
10/100Base-TX cable
and RJ-45 port
Parallel cable and
IEEE-1284 port
English
Figure 7 Interface ports
ENWW
start guide 21
Connecting parallel cable
T o ensure reliability, use an IEEE-1284
bi-directional parallel cable. (These
cables are clearly marked with
“IEEE-1284.”) Only IEEE-1284 cables
support all of the printer’s advanced
features.
Caution
Make sure the printer is turned off.
1 Connect the parallel cable to the
parallel port.
2 Snap the wire clips in place to
secure the cable to the printer.
The cable should install easily. If
installation is difficult, check the
cable orientation.
3 Connect the other end of the cable
to the proper connector on the
computer.
Note
See the online use guide for
information on ordering a two- or threemeter IEEE-1284 parallel cable.
22 start guide
ENWW
Connecting to fast Ethernet (10/100Base-TX) network
Caution
Use the RJ-45 port to connect the printer to fast Ethernet (10/
100Base-TX) network. (This port is only available on the HP
LaserJet 5100tn and 5100dtn printers.)
Make sure the printer is turned off before connecting to the RJ-45
port.
Figure 8 Connecting to Ethernet 10Base-T network
English
Note
ENWW
Connect a twisted-pair network cable to the RJ-45 port on the
•
HP Jetdirect print server card.
Connect the other end of the cable to the network.
•
For a successful link, either the 10 or 100 LED at the port should
turn on when the printer is turned on. If no LEDs turn on, the print
server is unable to link to the network. For more information, see
the problem-solving chapter in the online use guide.
start guide 23
Step 13. Test the printer
READY
INFORMATION
MENU
PRINT
CONFIGURATION
Print a configuration page to make sure
the printer is operating correctly.
1 Make sure that the printer is on and
the READY message appears.
2 Press [Menu] until the display reads
INFORMATION MENU.
3 Press [Item] until the display reads
PRINT CONFIGURATION.
4 Press [Select] to print the
configuration page.
5 The configuration page shows the
printer’s current configuration.
Note
A Jetdirect network configuration page
will also print for the HP LaserJet
5100tn and 5100dtn printers.
PRINT
CONFIGURATION
24 start guide
ENWW
Step 14. Install printing software
The printer comes with printing software on a compact disc. The
printer drivers on this compact disc must be installed to take full
advantage of the printer features. In addition, the online use guide
for the printer is located on this compact disc.
If your computer does not have a CD-ROM drive but you have
access to one, you can copy the compact disc onto diskettes for
installation on your computer.
The most recent printer drivers are available on the Internet at
http://www.hp.com/support/lj5100
of Microsoft
for the printer software automatically checks the computer for
Internet access to obtain the latest software.
®
Windows®-driven computers, the installation program
. Depending on the configuration
Software for networks
The following softw are and utilities are available managing netw ork
printing.
HP Web Jetadmin (Windows)
HP Web Jetadmin allows you to manage HP Jetdirect connected
printers within your intranet using a browser. HP Web Jetadmin is
a browser-based management tool and should be installed only on
the network administrator’s computer . It can be installed and run on
a variety of systems.
English
ENWW
T o download a current version of HP W eb Jetadmin and for the latest
list of supported host systems, visit HP Customer Care Online at
http://www.hp.com/go/webjetadmin
.
start guide 25
HP LaserJet Utility (Mac OS)
The HP LaserJet Utility allows control of features that are not
available in the driver. Use the illustrated screens to select printer
features and to complete tasks with the printer, such as the
following:
customize the printer control panel messages
•
name the printer, assign it to a zone on the network, download
•
files and fonts, and change most of the printer settings
set a password for the printer
•
from the computer, lock out functions on the printer control panel
•
to prevent unauthorized access (see the printer software help)
configure and set the printer for IP printing
•
initialize disk or flash memory
•
manage fonts in random access memory (RAM), disk memory,
•
or flash memory
administer job-retention features
•
Note
The HP LaserJet Utility is not supported for the Korean, Japanese,
Simplified Chinese, and Traditional Chinese languages.
See the HP LaserJet Utility Help for more information.
UNIX
The HP Jetdirect Printer Installer for UNIX® is a simple printer
installation utility for HP-UX
available for download from HP Customer Care Online at
http://www.hp.com/support/net_printing
®
and Sun Solaris networks. It is
.
Linux
Printing from Linux is supported using Graphical Print Dialog
(GPR), a print dialog available for LPR networks. For PostScript
print jobs, GPR uses the printer PostScript Printer Description
(PPD) files to communicate with the printer and enable printer
features.
Currently, GPR printing is fully supported on computers running
Red Hat 6.2 that have an X window desktop (such as KDE) installed.
Howev er , other types of Linux might successfully use GPR printing
as well.
For more information ab out using Linux with HP printers, see
http://hp.sourcef orge.net
.
®
26 start guide
ENWW
Installing Windows printing software
1 Close all running applications.
2 Insert the compact disc in to the CD-ROM drive.
Depending on the computer configuration, the installation
program might start automatically . If the installation progr am
does not start automatically, complete the following steps:
a Click Start, and then click Run.
b Type D:\SETUP (or the appropriate drive-directory letter) in
the command-line box and click OK.
3 Follow the instructions on the computer screen.
English
Note
If you would like to test the software installation, select the option
near the end of the installation program that allows you to print a
test page.
ENWW
start guide 27
Installing Macintosh printing software
1 At the printer, print a configuration page and a Jetdirect network
configuration page to determine the IP Address, AppleTalk
printer name, and the zone where the printer is located (if
applicable). (For more inf ormation about printing a configuration
page, see “Step 13. Test the printer” on page 24.)
2 Quit all open applications.
3 Insert the compact disc in to the CD-ROM drive.
4 Double-click the Installer icon and f ollow the instructions on the
screen.
5 If you are using Mac OS 8.6 to Mac OS 9.2, complete steps 6
through 11.
-Or-
If you are using Mac OS X, complete steps 12 through 16.
Mac OS 8.6 to Mac OS 9.2
6 Open the Chooser from the Apple menu.
7 Click the Apple LaserWriter icon. If the icon is not there, contact
your Macintosh dealer.
8 If you are on a network with multiple zones, select the zone in
the AppleTalk Zones bo x where the printer is located. (The zone
is listed on the configuration page printed in step 1.)
9 Double-click the desired printer. An icon should appear.
10 Choose a Background Printing option. Select On if you want to
work on the computer at the same time a job is being printed.
11 Close the Chooser by clicking the close box in the upper left
corner.
28 start guide
ENWW
Loading...
